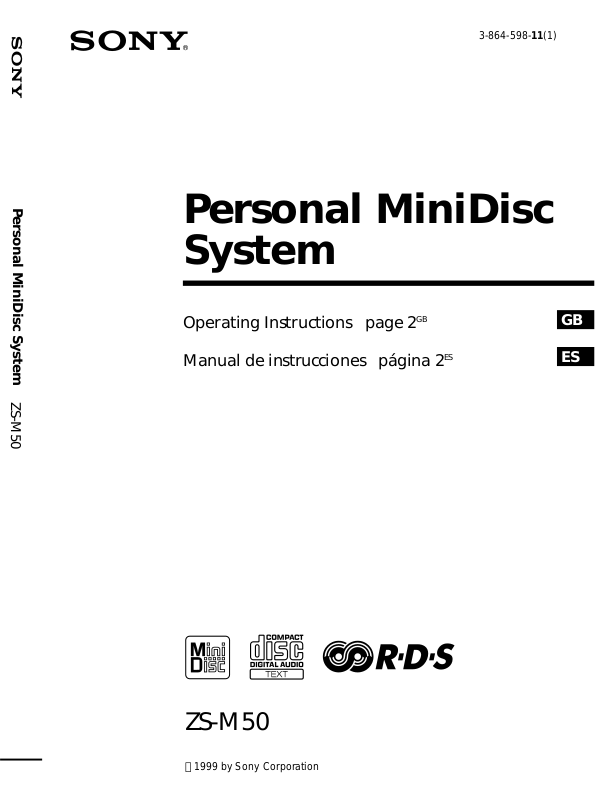

Sony ZS-M50 User Manual
S
Personal MiniDisc System
3-864-598-11(1)
Personal MiniDisc
System
ZS-M50
Operating Instructions page 2
Manual de instrucciones página 2
GB
GB
ES
ES
ZS-M50
1999 by Sony Corporation
Warning
To prevent fire or shock hazard, do
not expose the player to rain or
moisture.
Notice for customers in the United
Kingdom
A moulded plug complying with BS 1363 is
fitted to this equipment for your safety and
convenience.
To avoid electrical shock, do not open
the cabinet. Refer servicing to
qualified personnel only.
Information
This Compact Disc/MiniDisc player is
classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT label is
located at the bottom.
Warning
Do not install the appliance in a confined
space, such as a bookcase or built-in cabinet.
Should the fuse in the plug supplied need to
be replaced, same rating fuse approved by
ASTA or BSI to BS 1362, (i.e. marked with
or mark) must be used.
If the plug supplied with this equipment has
a detachable fuse cover, be sure to attach the
fuse cover after you change the fuse. Never
use the plug without the fuse cover. If you
should lose the fuse cover, please contact
your nearest Sony service station.
GB
Introduction2
Table of contents
Basic Operations
4 Playing a CD
6 Recording a whole CD (Synchronized recording)
8 Playing an MD
10 Listening to the radio
The CD Player•The MD
Player
12 Using the display
16 Checking CD text information
18 Locating a specific track
19 Playing tracks repeatedly
(Repeat Play)
20 Creating your own programme
(Programme Play)
22 Playing tracks in random order
(Shuffle Play)
The Radio
23 Presetting radio stations
25 Playing preset radio stations
26 Using the Radio Data System
(RDS)
Recording
33 Recording the track you are
listening to
(Synchronized recording of a
single track – REC IT)
34 Recording the tracks you
programmed
(Synchronized recording of the
tracks you programmed)
36 Recording from the radio or a CD
38 Recording on a recorded MD
Editing recorded tracks on
the MD
39 Before editing
41 Erasing recordings
(Erase Function)
44 Dividing recorded tracks
(Divide Function)
46 Combining recorded tracks
(Combine Function)
48 Moving recorded tracks
(Move Function)
49 Labelling recordings
(Name Function)
The Timer
53 Setting the clock
55 Waking up to music
57 Timer-recording radio
programmes
59 Falling asleep to music
Setting Up
60 Preparing the system
63 Connecting optional components
65 Adjusting the audio emphasis
Additional Information
66 Precautions
68 System limitations of the MD
70 Getting to know the MD
72 Troubleshooting
75 Error messages
76 Specifications
77 Index
Basic Operations
GB
Introduction
GB
3
Basic Operations
Playing a CD
2
Connect the mains lead (see page 61).
1 Press 6 CD OPEN/CLOSE
(direct power-on) and place the
CD on the CD compartment.
1
2 Press CD ^ (CD ( on the
remote).
The lid of the CD compartment
closes and the player plays all the
tracks once.
GB
Basic Operations4
With the label side up
Display
Position
pointer
Track
number
Playing
time
Use these buttons for additional operations
Tips
• Next time you want to
listen to a CD, just press
CD ^. The player
turns on automatically
and starts playing the
CD.
• What is the position
pointer in the display?
It shows about where on
the CD track the player
is playing.
• When opening or
closing the lid of the CD
compartment, be careful
not to pinch your
fingers, etc., between the
lid and the player. If
pinched, press 6 CD
OPEN/CLOSE again to
open the lid.
CD ^
To Do this
adjust the volume Press VOLUME +, –
stop playback Press CD p.
pause playback Press CD ^ (CD P on the
go to the next track Turn the jog dial clockwise.
go back to the previous track Turn the jog dial
remove the CD Press 6 CD OPEN/CLOSE.
turn on/off the player Press OPERATE.
CD pOPERATE
6 CD OPEN/
CLOSE
VOLUME +, –
Jog dial
(VOL +, – on the remote).
remote).
Press the button again to
resume play after pause.
(On the remote, press +.)
counterclockwise.
(On the remote, press =.)
Basic Operations
Basic Operations
GB
5
Recording a whole CD
(Synchronized recording)
3412
Connect the mains lead (see page 61).
1 Insert a recordable MD (direct
power-on).
With the label
side up
Insert in the direction of
the arrow
2 Press 6 CD OPEN/CLOSE and
place the CD on the CD
compartment.
Press 6 CD OPEN/CLOSE again
to close the CD compartment.
3 Press CD p.
Display
After “TOC Reading” is
displayed, the disc name
will be displayed if it is
labeled.
With the label side up
GB
Basic Operations6
4 Press SYNCHRO REC CD (
MD.
The player starts recording
automatically.
If the MD has any previous
recording, recording will be
made from the last recorded
position.
Position pointer (showing
playing position on the CD and
recording position on the MD)
Track number
of MD
Remaining
recording
time of MD
Basic Operations
Notes
• After you
stop
recording, do
not disconnect the
mains lead or move
the player while “TOC
EDIT” is flashing in the
display. If you do so,
recording may not be
done properly.
• When you record a
whole CD, you cannot
pause recording.
Tips
• Adjusting the volume or
the audio emphasis
(page 65) will not affect
the recording level.
Keep the volume at a
moderate level so as to
prevent the sound from
skipping.
• To record over the
previous recording, see
page 38.
• Once the clock is set, the
recording date and time
are stamped
automatically (page 53).
• You can label an MD or a
track during recording
(page 49).
Use these buttons for additional operations
OPERATE
To Press
stop recording MD p or CD p
turn on/off the player OPERATE
If “CD>MD OK?” alternates with time display
There is not enough space on the MD to record the whole
CD.
If it is all right to record as much as possible and cancel
recording of some tracks, press YES•ENTER. To stop
recording, press NO•CANCEL.
If any other messages are displayed, see page 75.
MD p
CD p
YES
ENTER
NO
CANCEL
Basic Operations
GB
7
Playing an MD
Connect the mains lead (see page 61).
12
1 Insert the MD (direct power-on).
With the label
side up
Insert in the direction of
the arrow
2 Press MD ^ (MD ( on the
remote).
The player plays all the tracks
once.
GB
Basic Operations8
Display
After “TOC Reading” is
displayed, the disc name
will be displayed if it is
labeled.
Track name is displayed
if it is labeled.
Playing timeTrack number
Use these buttons for additional operations
MD pOPERATE MD ^
VOLUME +, –
6 MD EJECT
Jog dial
DISPLAY
Basic Operations
Tip
Next time you want to
listen to a MD, just press
MD ^. The player
turns on automatically
and starts playing the
MD.
To Do this
adjust the volume Press VOLUME +, –
(VOL +, – on the remote).
stop playback Press MD p.
pause playback Press MD ^ (MD P on the
remote).
Press the button again to
resume play after pause.
go to the next track Turn the jog dial clockwise.
(On the remote, press +.)
go back to the previous track Turn the jog dial
counterclockwise.
(On the remote, press =.)
remove the MD Press 6 MD EJECT.
turn on/off the player Press OPERATE.
check the playing position Press DISPLAY.
in the display using the
position pointer
Basic Operations
GB
9
Listening to the radio
1
Connect the mains lead (see page 61).
1 Press RADIO BAND until the
band you want appears in the
display (direct power-on).
2
Display
“FM”, “MW” or “LW”
appears
2 Hold down TUNE + or TUNE –
until the frequency digits begin to
change in the display.
The player automatically scans
the radio frequencies and stops
when it finds a clear station.
If you can’t tune in a station,
press TUNE + or TUNE –
repeatedly until you tune in the
station you want.
GB
Basic Operations10
Indicates an FM stereo
broadcast
Tips
• If the FM broadcast is
noisy, press MONO/ST
(MODE on the remote)
until “Mono” appears in
the display and radio
will play in monaural.
• Next time you want to
listen to the radio, just
press RADIO BAND.
The player turns on
automatically and starts
playing the previous
station.
Use these buttons for additional operations
OPERATE
VOLUME +, –
MONO/ST
To Press
adjust the volume VOLUME +, –
(VOL +, – on the remote)
turn on/off the radio OPERATE
To improve broadcast reception
FM:
Set the FM ANTENNA SELECTOR at the rear of the
player to “
” (telescopic aerial).
Reorient the aerial for FM.
Basic Operations
MW/LW:
Keep the MW/LW loop aerial as far as possible from
the player and reorient it.
If the broad cast is still noisy, connect the external
aerial (page 62).
Basic Operations
11
GB
The CD Player•The MD Player
Using the display
You can check information about the CD
and MD using the display.
DISPLAY
Tip
When using the CD
containing text
information, the disc
name, the artist name,
etc. appear in the
display (page 16).
During stop (CD)
The total track number and playing time are
displayed.
CD indication Position pointer
Total playing time
Total track number
If the CD has more than 20 tracks, “OVER 20” appears
in the display.
Music calendar
GB
The CD Player•The MD Player12
Note
During repeat play
(page 19), programme
play (page 20) and
shuffle play (page 22),
the number of tracks
left and remaining time
on the CD will not be
displayed.
During play (CD)
The current track number and playing time are
displayed. The track numbers in the music calendar
disappear after they are played.
To check the remaining time
Press DISPLAY.
To display
the current track number and once
remaining time on the current
track
the number of tracks left and twice
remaining time on the CD
the current track number three times
and playing time
Press DISPLAY
continued
The CD Player•The MD Player
The CD Player•The MD Player 13
GB
Using the display (continued)
Tip
The disc name or the
track name is displayed
only with the MDs that
have been electronically
labelled.
During stop (MD)
The total track number and playing time are
displayed.
MD
indication
Disc name
Total track number
If the MD has more than 20 tracks, “OVER 20”
appears in the display.
To check the remaining recording time on the MD
Press DISPLAY.
The position pointer also appears in the display.
Total playing time
Music calendar
GB
The CD Player•The MD Player14
Note
During repeat play
(page 19), programme
play (page 20) and
shuffle play (page 22),
the number of tracks
left and remaining time
on the MD will not be
displayed.
During play (MD)
The current track number, playing time and the track
name are displayed. The track numbers in the music
calendar disappear after they are played.
To check the remaining time, recording date and
time, etc.
Press DISPLAY.
To display
the current track number, once
remaining time on the current
track and position pointer
the number of tracks left, twice
remaining time on the MD
and the disc name
recording date and time* three times
the current track number, four times
playing time and the track
name
* Once the clock is set, the recording date and time are
stamped automatically (page 53).
Press DISPLAY
The CD Player•The MD Player
The CD Player•The MD Player 15
GB
Checking CD text
information
You can display the CD text (the disc
name, the artist name, the track name,
etc.) when this information is recorded
on the CD.
DISPLAY
Tips
• This mark
appears on
the CD, the
CD case, etc., when the
CD contains text
information.
• This player can display
up to 1,500 characters
of text information per
CD. If a CD has text
information of more
than 1,500 characters,
the excess characters
will be omitted.
During stop (CD)
The total track number and playing time are
displayed.
CD text
indication
Total track number
* If you press DISPLAY once, the position pointer is
displayed. If you press it twice, the display returns
to the initial one.
Disc name/artist name*
Total playing time
Music calendar
GB
The CD Player•The MD Player16
During play (CD)
The current track name, the current track number and
playing time are displayed.
If you press DISPLAY, indications in the display
changes as follows:
To display
the position pointer, the current once
track number and remaining
time on the current track
the disc name/artist name, twice
the number of tracks left and
remaining time on the CD
the current track name, three times
the current track number
and playing time
Press DISPLAY
The CD Player•The MD Player
The CD Player•The MD Player 17
GB
Locating a specific
track
You can quickly locate any track on a CD
or an MD using the number buttons on
the remote. You can also find a specific
point in a track while playing a CD or an
MD.
Number
buttons
=, +
Note
You cannot locate a
specific track if “REP
PGM”, “REP SHUF”,
“PGM” or “SHUF” is lit
in the display. Turn off
the indication by
pressing p.
Tips
• To locate a track
numbered over 10,
press >10 first, then the
corresponding number
buttons.
Example:
To play the track
number 23, press >10
first, then 2 and 3.
To play the track
number 10, you can use
the 0/10 button as well
as >10, 1 and 0.
• To select a track on an
MD numbered 100 or
more, press >10 twice,
then the corresponding
number buttons.
To locate Press
a specific track directly the number button of the track.
a point while listening to + (forward) or = (backward)
the sound while playing and hold down
until you find the point.
(On the player, use ) or 0.)
a point while observing + (forward) or = (backward)
the display in pause and hold down until
you find the point.
(On the player, use ) or 0.)
GB
The CD Player•The MD Player18
Playing tracks
repeatedly
(Repeat Play)
MD ^
CD ^
You can play tracks repeatedly in
normal, shuffle or programme play
modes (page 20).
On the remote
During stop, press
MODE repeatedly until
“REP 1”, “REP ALL”,
“REP SHUF” or “REP
PGM” appears in the
display. Then play the
CD or the MD.
You can also select “REP
1” or “REP ALL” during
play.
To repeat Do this
a single track 1 Play the track you want.
all the tracks 1 Start normal play.
tracks in random 1 Start shuffle play (page 22).
order 2 Press REPEAT until
programmed tracks 1 Start programme play (page 20).
The CD Player•The MD Player
REPEAT
SHUF/PGM
2 Press REPEAT until
“REP 1” appears in the display.
2 Press REPEAT until
“REP ALL” appears in the
display.
“REP SHUF” appears in the
display.
2 Press REPEAT until “REP PGM”
appears in the display.
To cancel Repeat Play
Stop play first. Then, press REPEAT until “REP”
disappears from the display.
The CD Player•The MD Player 19
GB
Creating your
own programme
(Programme Play)
MD ^
CD ^
Jog dial
You can arrange the playing order
of up to 20 tracks on a CD or an MD.
On the remote
Press MODE until
“PGM” appears in the
display, then press the
number button to select
the track.
Tip
If you made a mistake,
press NO•CANCEL
and re-enter the track
number by turning the
jog dial and press
YES•ENTER.
Before you begin, make sure that the CD or MD player
is in stop mode.
1 Press SHUF/PGM until “PGM” appears in the
2 Turn the jog dial to select the track you want to
YES
ENTER
SHUF/PGM
NO
CANCEL
display.
programme, and press YES•ENTER.
Repeat this step.
Programmed tracks appear in the music calendar.
(In case of CD)
Playing order
Total programmed time
(In case of MD)
Track number
Playing order
Track number
Total programmed time
3 Press CD ^ ( or MD ^) to start programme
play.
GB
The CD Player•The MD Player20
Tips
• If the programme play
is finished, the
programme is saved.
You can play the same
programme again by
pressing ^.
• If you open the lid of
the CD compartment,
the programme is
erased.
• If you take out the MD,
the programme is
erased.
• During play, total
programmed time
cannot be displayed.
To cancel Programme Play
Stop play first. Then, press SHUF/PGM until “PGM”
disappears from the display.
To check the order of tracks before play
Before starting the programme play, press
YES•ENTER.
“PGM Check” appears in the display. Every time you
press YES•ENTER, the track number appears in the
programmed order.
To change the current programme
Change before starting the programme play.
To Do this
erase the last track in 1 Press NO•CANCEL.
the programme The track programmed last is
erased.
2 Re-enter the track numbers by
turning the jog dial and pressing
YES•ENTER.
change the whole 1 Press p to erase the whole
programme completely programme.
2 Create a new programme
following the programming
procedure.
The CD Player•The MD Player
The CD Player•The MD Player 21
GB
Playing tracks
in random
order
(Shuffle Play)
You can play tracks in random
order.
SHUF/PGMMD ^ CD ^
Tip
During shuffle play,
you cannot select the
previous track by
turning the jog dial (or
by pressing = on the
remote).
On the remote
Press MODE until
“SHUF” appears in the
display.
Before you begin, make sure that the CD or MD player
is in stop mode.
1 Press SHUF/PGM until “SHUF” appears in the
display.
2 Press CD ^ (or MD ^) to start shuffle play.
To cancel Shuffle Play
Stop play first. Then, press SHUF/PGM until “SHUF”
disappears from the display.
GB
The CD Player•The MD Player22
The Radio
Presetting radio
stations
You can store radio stations into the
player’s memory. You can preset
up to 30 stations, 10 for each band in
any order.
1 Press RADIO BAND until the band you want
2 Hold down AUTO PRESET/RDS until “Auto
RADIO BAND
Jog dial
AUTO
PRESET/
RDS
YES
ENTER
appears in the display.
Preset” flashes in the display.
The stations are stored in memory from the lower
frequencies (from the preset number 1, in
numerical order) as long as the station has a signal
strong enough.
When you’ve done presetting, the station stored in
the preset number 1 will be tuned in automatically.
The Radio
On the remote
1 Press BAND until the
band you want
appears in the
display.
2 Press TUNE + or –
until you tune in the
station you want.
3 Hold down the
number button that
you want to preset
the new station on
for 2 seconds.
If a station cannot be preset automatically
You need to preset a station with a weak signal
manually. Also, when you want to replace preset
stations with a new one, proceed as follows:
1 Press RADIO BAND until the band you want
appears in the display.
2 Press TUNE + or TUNE – repeatedly until you
tune in the station you want, and then, hold down
YES•ENTER for 2 seconds.
3 Select the preset number you want to preset the
new station on by turning the jog dial.
4 Press YES•ENTER.
The new station replaces the old one.
continued
The Radio 23
GB
Presetting radio stations (continued)
The characters you can
input
• Uppercase letters:
ABCD.....WXYZ’,/:
(space)
• Lowercase letters:
abcd.....wxyz’,/:
(space)
• Numbers and symbols:
0123456789!"#$%&()*.;
<=>? @_`+ –’,/:
(space)
To label the preset station
1 According to the procedure on page 25, tune in the
station you want to label.
2 Press EDIT for 2 seconds.
3 Input the name of the station (up to 8 characters).
For details, see step 3 on page 50.
To Do this
move the cursor Press ¿ or ÷.
select the characters Turn the jog dial.
erase the characters Press DELETE.
insert the characters Use INSERT.
4 Press YES•ENTER.
GB
The Radio24
Playing preset
radio stations
Once you’ve preset the stations, use the
jog dial on the player or the number
buttons on the remote to tune in your
favorite stations.
Jog dialRADIO BAND
The Radio
On the remote
1 Press BAND until the
band you want
appears in the
display.
2 Press the number
button to tune in a
stored station.
1 Press RADIO BAND until the band you want
appears in the display.
2 Turn the jog dial to display the preset number of
the station you want.
The Radio 25
GB
Using the Radio
Data System
(RDS)
RADIO BAND
Radio Data System (RDS) is a
broadcasting service that allows
radio stations to send additional
information along with the regular
programme signal. This player
offers convenient RDS features like
station name display, location of
stations by programme type, etc.
RDS is available only on FM
stations.
Notes
• Not all FM stations
provide RDS services,
nor do they provide the
same type of services. If
you are not familiar
with the RDS system,
check with your local
radio stations for
details on RDS services
in your area.
• RDS may not work
properly if the station
you are tuned in is not
transmitting the RDS
signal properly or if the
signal strength is weak.
Before receiving RDS broadcasts
Be sure to preset the FM stations according to the
procedure on page 23.
Receiving RDS broadcasts
Simply select a station from the FM band.
Jog dial
AUTO
PRESET/
RDS
YES
ENTER
When you tune in a
station that provides
RDS services, “ ” will
be displayed on the left
side of the frequency
indication.
GB
The Radio26
Notes
• If the RDS broadcast is
not received, the
station name,
programme type and
radio text may not
appear in the display.
In addition, if the
receiving conditions
are not good,the above
information may not
appear in the display
properly.
• When receiving a
station that does not
provide the radio text
information, “NoRT”
will be displayed when
you select “RT disp“.
To check the RDS information
Press DISPLAY.
Each time you press the button, the indication in the
display changes as follows:
Indication
PS disp Station name,
PTY disp Programme type
RT disp Radio text,
(normal display) —
What information it shows
up to 8 characters
up to 64 characters
continued
The Radio
The Radio 27
GB
Using the Radio Data System (RDS) (continued)
Monitoring traffic information, news, or
weather informatin (EON)
Using the Enhanced Other Networks (EON) function,
the player can automatically switch to a network
station broadcasting traffic information, news, or
weather information. After the program ends, the
player switches back to the station you were listening
to.
1 Tune in the station that provides the EON
function.
2 Press AUTO PRESET/RDS.
3 Turn the jog dial until “EON Wait” appears in the
display.
4 Press YES•ENTER.
5 Turn the jog dial until the information you want
appears in the display.
The display changes as follows: “Traffic” n
“News” n “Weather” n “Off”
6 Press YES•ENTER.
The player stands by for the EON stations to start
broadcasting the information you selected.
When a certain network station starts broadcasting
the information you selected, it switches to that
station automatically.
When receiving
an EON station,
E is displayed.
Lights up while standing
by for the information
you selected, and then
starts flashing when
receiving the
information.
“T” for “Traffic”
“N” for “News”
“W” for “Weather”
GB
The Radio28
Monitoring traffic announcement (TA)
Press TA SEARCH on the remote.
If you are not listening to the radio, it turns on
automatically.
The player starts searching for a station that will
broadcast the traffic information. When it locates the
station, it switches to that station automatically and
stands by for the traffic information. If you want to
select another station, press TA SEARCH again.
If the station the player located provides the EON
function, the player automatically switches to another
network station when that station starts broadcasting
the traffic information.
continued
The Radio
The Radio 29
GB
Using the Radio Data System (RDS) (continued)
Note
“No memory” appears
when the programme
type that you selected
is not currently being
broadcast.
Locating a station by programme type (PTY)
You can locate a station you want by selecting a
programme type.
1 While listening to the radio, press AUTO PRESET/
RDS.
2 Turn the jog dial until “PTY Search” appears in the
display.
3 Press YES•ENTER.
4 Turn the jog dial until the programme type you
want appears in the display.
See the list of programme types (PTY) on pages 29
and 30.
5 Press YES•ENTER.
The player starts searching the preset RDS stations
for the programme. “PTY Search” is flashing
during searching.
When the player finds the programme type you
want, it stops searching.
GB
The Radio30
Loading...
