Sony XS-HF55 DATASHEET
1998 MOBILE ES PRODUCT GUIDE
41
Speaker
Maximum input power
Rated input power
Impedance
Sensitivity
Frequency response
Crossover frequency
Mass (per speaker)
Separate type, 2-way
XS-HF55:Woofer 13 cm (5
1
/4in),
Highly oriented polyolefine cone type
XS-HF77: Woofer 16 cm (61/2in),
Highly oriented polyolefine cone type
Tweeter 2.5 cm (1 in), Soft dome type
XS-HF55: 140 watts
XS-HF77: 140 watts
XS-HF55: 50 watts
XS-HF77: 50 watts
4 ohms
90dB / W / m
XS-HF55: 35 - 25,000 Hz
XS-HF77: 30 - 25,000 Hz
Woofer: 5,000 Hz, -12 dB/oct
Tweeter: 5,000 Hz, -12 dB/oct
XS-HF55: Approx. 750g (3 lb. 10 oz.)
XS-HF77: Approx. 760g (3 lb. 11 oz.)
Tweeter: Approx. 70g (2.5 oz.)
Passive crossover network:
Approx. 200g (7.1 oz.)

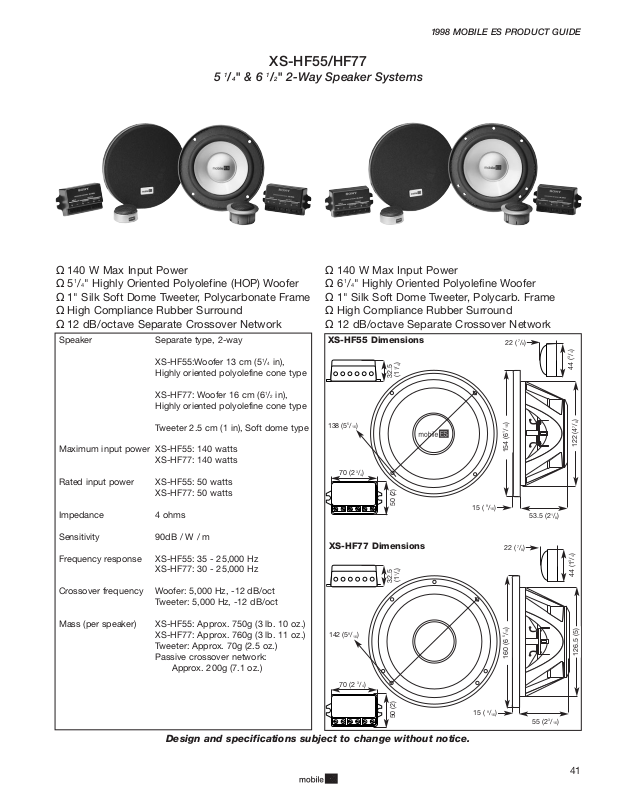

XS-HF55/HF77
5 1/4" & 6 1/2" 2-Way Speaker Systems
Ω 140 W Max Input Power
Ω 6
1
/4" Highly Oriented Polyolefine Woofer
Ω 1" Silk Soft Dome Tweeter, Polycarb. Frame
Ω High Compliance Rubber Surround
Ω 12 dB/octave Separate Crossover Network
Ω 140 W Max Input Power
Ω 5
1
/4" Highly Oriented Polyolefine (HOP) Woofer
Ω 1" Silk Soft Dome Tweeter, Polycarbonate Frame
Ω High Compliance Rubber Surround
Ω 12 dB/octave Separate Crossover Network
Design and specifications subject to change without notice.
138 (55/16)
154 (6
1
/
16
)
53.5 (21/8)
15 ( 9/16)
XS-HF55 Dimensions
122 (4
7
/
8
)
44 (
3
/
4
)
22 (7/8)
70 (23/4)
32.5
(1
1
/
4
)
50 (2)
142 (59/16)
160 (6
5
/
16
)
55 (23/16)
15 ( 9/16)
XS-HF77 Dimensions
126.5 (5)
44 (1
3
/
4
)
22 (7/8)
70 (2 3/4)
50 (2)
32.5
(1
1
/
4
)
