Sony XR-X7 Operating Manual

Compact Disc

OPERATING INSTRUCTIONS

En (English)

Stereo System

XR-X7

U

For assistance and information

(United States and Puerto Rico)

8B-CL2-903-21
010620CYK-H-M

C

MANUAL DE INSTRUCCIONES

MODE D'EMPLOI

E (Español)

F (Français)

PRECAUTIONS

WARNING

To reduce the risk of fire or electric shock, do not expose
this appliance to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK

En

“CAUTION:TO REDUCE THE RISK OF

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED

Explanation of Graphical Symbols:

2

DO NOT OPEN

ELECTRIC SHOCK,

SERVICE PERSONNEL.”

The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated "dangerous voltage" within
the product’s enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.

The exclamation point within an
equilateral triangle is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.

Read these Operating Instructions carefully and completely
before operating the unit. All precautions in this booklet and
on the unit should be strictly followed.
Keep the Operating Instructions for future reference.

Installation
1Water and moisture — Do not use this unit near water,

such as near a bathtub, washbowl, swimming pool, or the
like.

2Heat — Do not use this unit near sources of heat, including

heating vents, stoves, or other appliances that generate heat.
It also should not be placed in temperatures less than 5°C
(41°F) or greater than 35°C (95°F).

3Mounting surface — Place the unit on a flat, even surface.
4Ventilation — The unit should be situated with adequate

space around it so that proper heat ventilation is assured.
Allow 10 cm (4 in.) Clearance from the rear and the top of
the unit, and 5 cm (2 in.) from each side.

- Do not place the unit on a bed, rug, or similar surface that
may block the ventilation openings.

- Do not install the unit in a bookcase, cabinet, or airtight
rack where ventilation may be impeded.

5Objects and liquid entry — Make sure that objects or

liquids do not get inside the unit through the ventilation
openings.

6 Carts and stands — When placed or

mounted on a stand or cart, the unit should
be moved with care. Quick stops, excessive
force, and uneven surfaces may cause the
unit or cart to overturn or fall.

7Condensation — Moisture may form on the CD pickup

lens when:

- The unit is moved from a cold spot to a warm spot

- The heating system has just been turned on

- The unit is used in a very humid room

- The unit is cooled by an air conditioner

When this unit has condensation inside, it may not function
normally. Should this occur, leave the unit for a few hours,
then try to operate again.

8Wall or ceiling mounting — The unit should not be

mounted on a wall or ceiling, unless specified in the
Operating Instructions.

Electric Power
1 Power sources — Connect this unit only to power sources

specified in the Operating Instructions, and as marked on
the unit.

2Polarization — As a safety feature, some units are

equipped with polarized AC power plugs which can only be
inserted one way into a power outlet. If it is difficult or
impossible to insert the AC power plug into an outlet, turn
the plug over and try again. If it still does not easily insert
into the outlet, please call a qualified service technician to
service or replace the outlet. To avoid defeating the safety
feature of the polarized plug, do not force it into a power
outlet.

3AC power cord

- When disconnecting the AC power cord, pull it out by the
AC power plug. Do not pull the cord itself.

- Never handle the AC power plug with wet hands, as this
could result in fire or shock.

- Power cords should be firmly secured to avoid being
severely bent, pinched, or walked upon. Pay particular
attention to the cord from the unit to the AC outlet.

- Avoid overloading AC outlets and extension cords beyond
their capacity, as this could result in fire or shock.

4Extension cord — To help prevent electric shock, do not

use a polarized AC power plug with an extension cord,
receptacle, or other outlet unless the polarized plug can be
completely inserted to prevent exposure of the blades of the
plug.

5When not in use — Unplug the AC power cord from the

AC outlet if the unit will not be used for several months or
more. When the cord is plugged in, a small amount of current
continues to flow to the unit, even when the power is turned
off.

Outdoor Antenna
1 Power lines — When connecting an outdoor antenna,

make sure it is located away from power lines.

2 Outdoor antenna grounding — Be sure the antenna

system is properly grounded to provide protection against
unexpected voltage surges or static electricity build-up.
Article 810 of the National Electrical Code, ANSI/NFPA 70,
provides information on proper grounding of the mast,
supporting structure, and the lead-in wire to the antenna
discharge unit, as well as the size of the grounding unit,
connection to grounding terminals, and requirements for
grounding terminals themselves.

Antenna Grounding According
to the National Electrical Code

GROUND CLAMP

ELECTRIC
SERVICE
EQUIPMENT

POWER SERVICE
GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)

NEC-NATIONAL ELECTRICAL CODE

ANTENNA
LEAD IN
WIRE

ANTENNA
DISCHARGE
UNIT
(NEC SECTION
810-20)

GROUNDING
CONDUCTORS
(NEC SECTION
810-21)

GROUND CLAMPS

Maintenance

Clean the unit only as recommended in the Operating
Instructions.

Damage Requiring Service

Have the unit serviced by a qualified service technician if:

- The AC power cord or plug has been damaged

- Foreign objects or liquid have gotten inside the unit

- The unit has been exposed to rain or water

- The unit does not seem to operate normally

- The unit exhibits a marked change in performance

- The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

OWNER'S RECORD

Record the model number and serial number of your set
(found at the rear of your set) below. Refer to them when
contacting your Aiwa dealer.

Model No. _____________________________

TABLE OF CONTENTS

PRECAUTIONS .................................... 2

PREPARATIONS................................... 4

PARTS AND CONTROLS ......................... 5

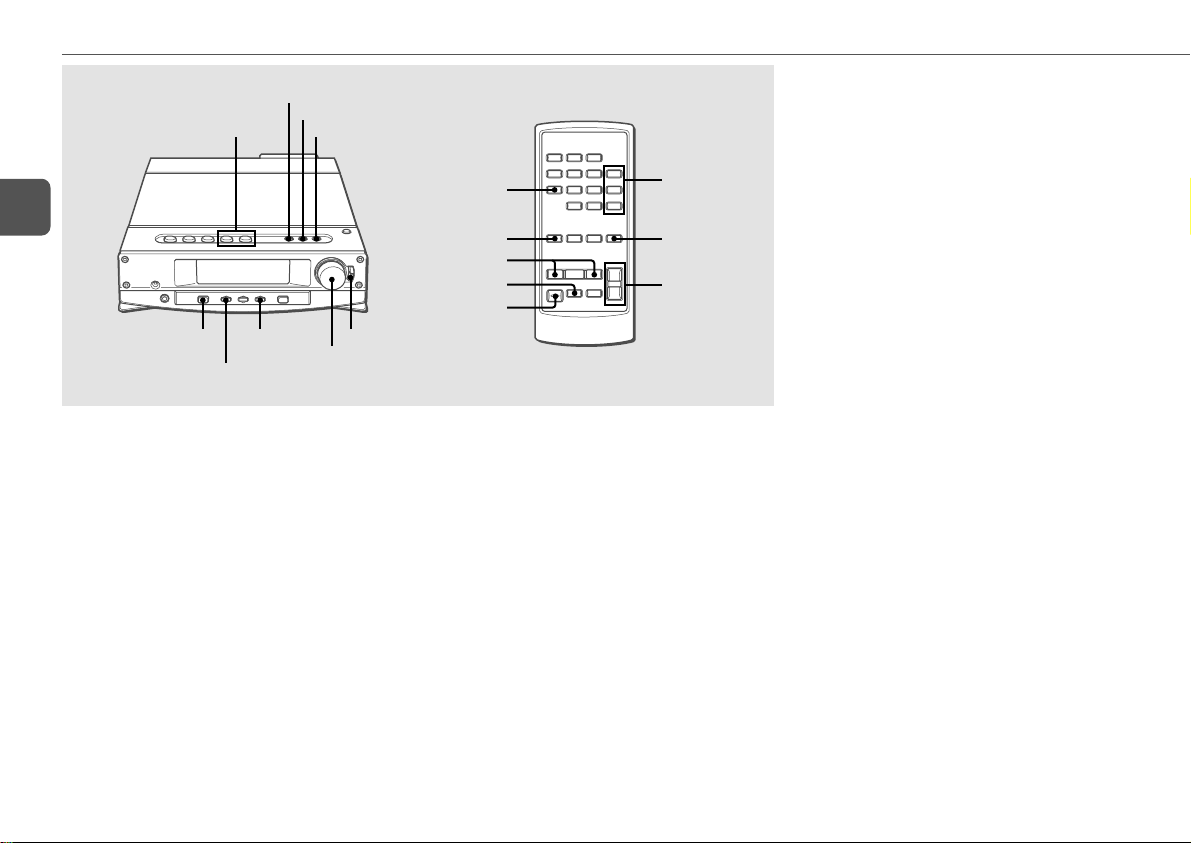

ADJUSTMENTS BEFORE OPERATION.......... 8

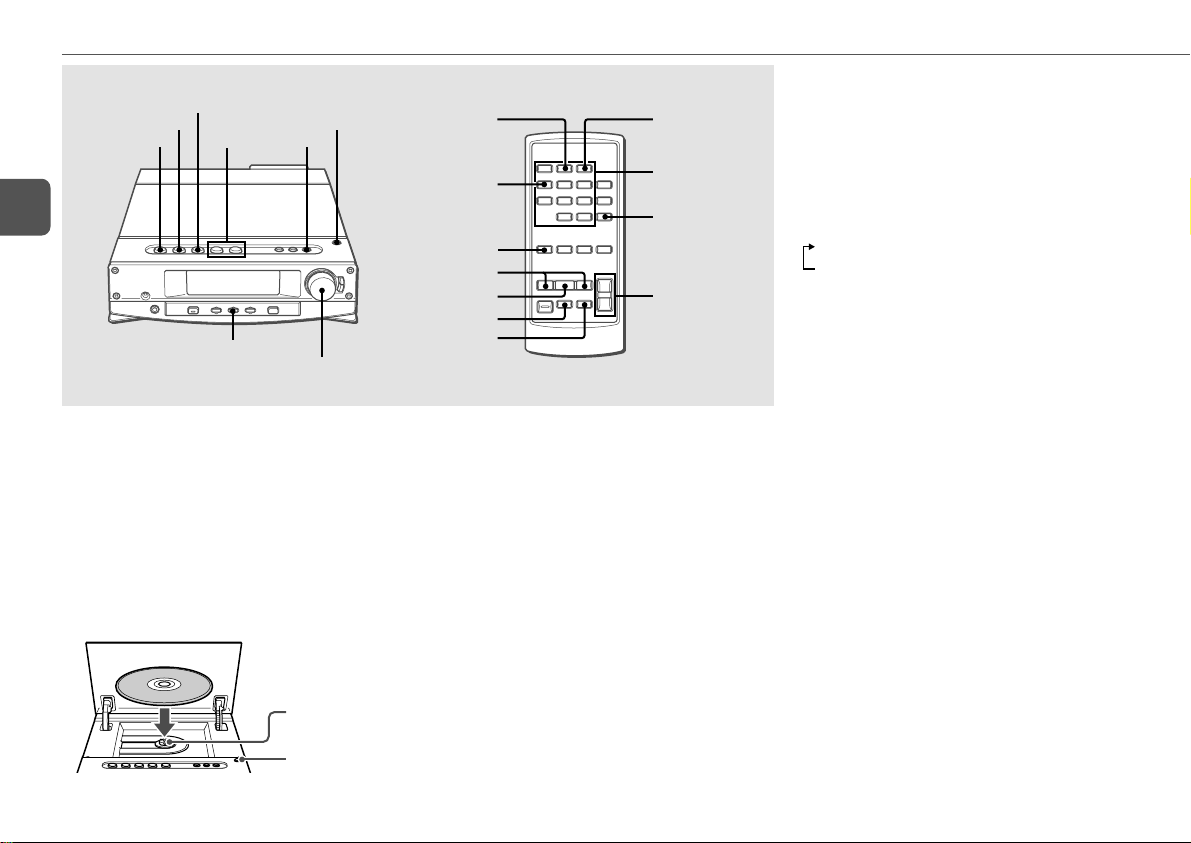

CD OPERATIONS................................ 10

RADIO OPERATIONS ........................... 12

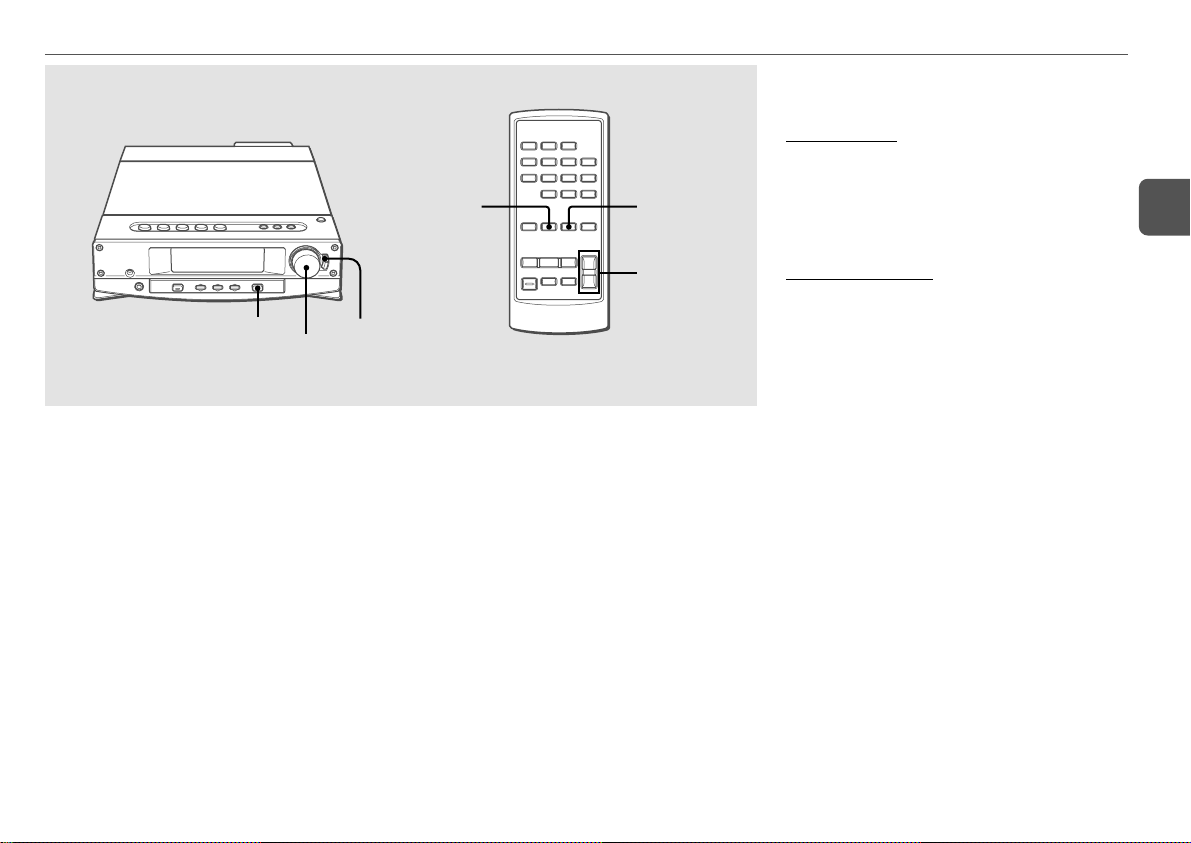

SOUND ADJUSTMENTS........................ 13

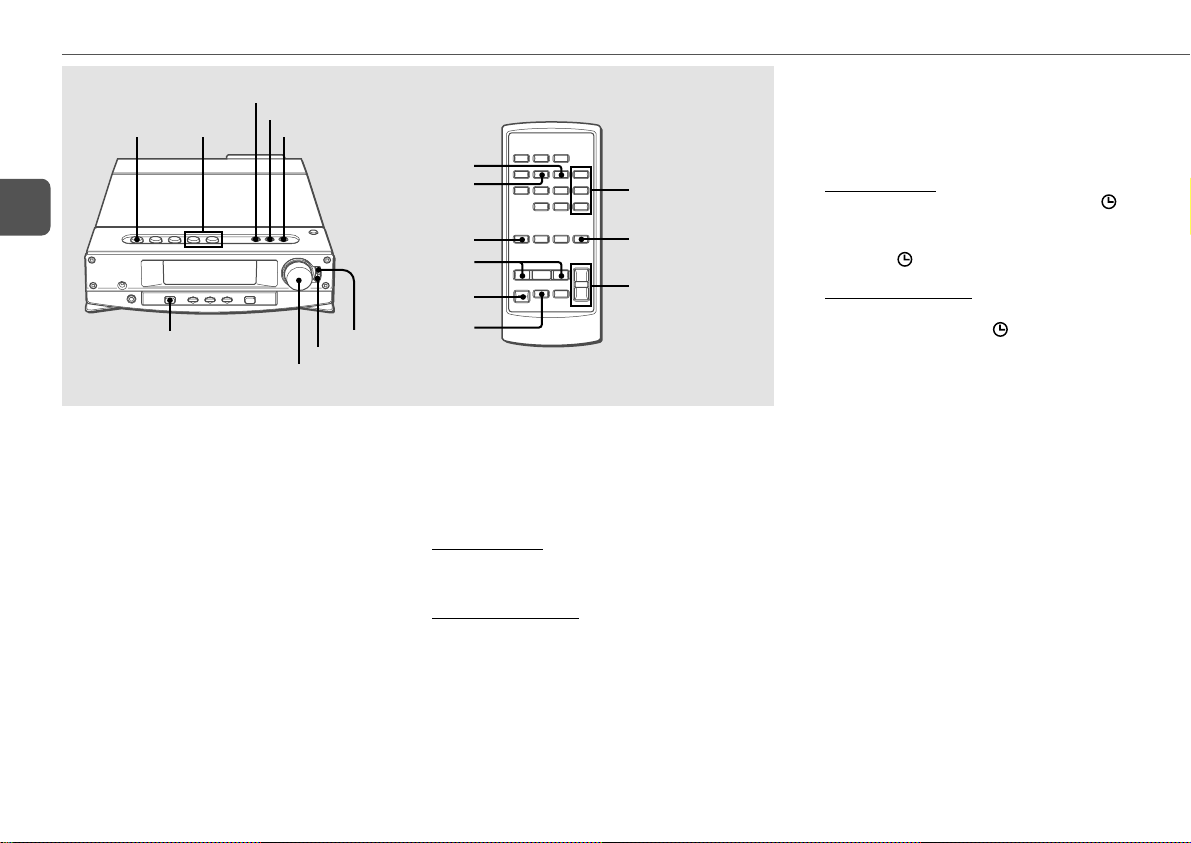

TIMER OPERATIONS ........................... 14

REFERENCE ..................................... 16

System and accessories

Main unit CX-LX7
Speakers SX-LX7
Speakers cords

Remote control
Lithium battery (CR2025)
FM antenna
AM antenna

En

Serial No. _____________________________

3

PREPARATIONS

Connection

Plug in the AC power cord to the AC power outlet after all other
connections are made.

1

Connect the speaker cords to the speakers.

Connect the amber cords to the + terminals and the silver

En

cords to the – terminals.

3

Connect the supplied antennas.

Connect the FM antenna to the FM 75 Ω terminals and
the AM antenna to the AM LOOP terminals.

FM antenna

AM antenna

Remote control

While sliding the latch, pull out the battery holder from the
bottom of the remote control. Place the supplied battery on
the battery holder with correct polarity. Finally , insert the holder
back into position.

CR2025

2

Connect the speakers to the main unit.

Connect the right speaker to the SPEAKERS R terminals
and the left to the SPEAKERS L terminals. The amber cords

go to the

terminals.

4

4

Connect the AC power cord to an AC power outlet.

When the AC power cord is connected to an AC power
outlet for the first time, "DEMO" appears on the display.
To deactivate the DEMO, press DEMO/ECO and the clock
will flash on the display. For setting the clock, see page 9.

Speakers

•Do not short-circuit the

•Do not leave objects generating magnetism or objects

affected by magnetism near the speakers.

Antennas

Keep antennas away from metallic objects, electrical
equipment and cords.
FM antenna: Extend fully in a T-shape. If reception is poor,
connect an optional outdoor antenna to the FM 75 Ω terminals.
Be sure to connect the shield braid of the antenna to the 2
terminal.
AM antenna: Rotate to find the best reception.

and speaker cord leads.

•When you operate the remote control, aim the remote control
at the main unit. When the remote control is operated, the
display colour changes for a few seconds.

•Replace the battery with a new one when the operational
distance between the remote control and main unit becomes
shorter.

•Remove the battery if the unit is not going to be used for an
extended period of time.

•The remote control may not operate if it is used under intense
sunlight or if its line of sight is obstructed.

Caution!

•Do not keep the battery near metallic objects such as rings,
bracelets, and keys. It may cause the battery to short circuit.

•After removing the battery, be sure to keep it out of reach of
children. In case it is swallowed, consult a doctor
immediately.

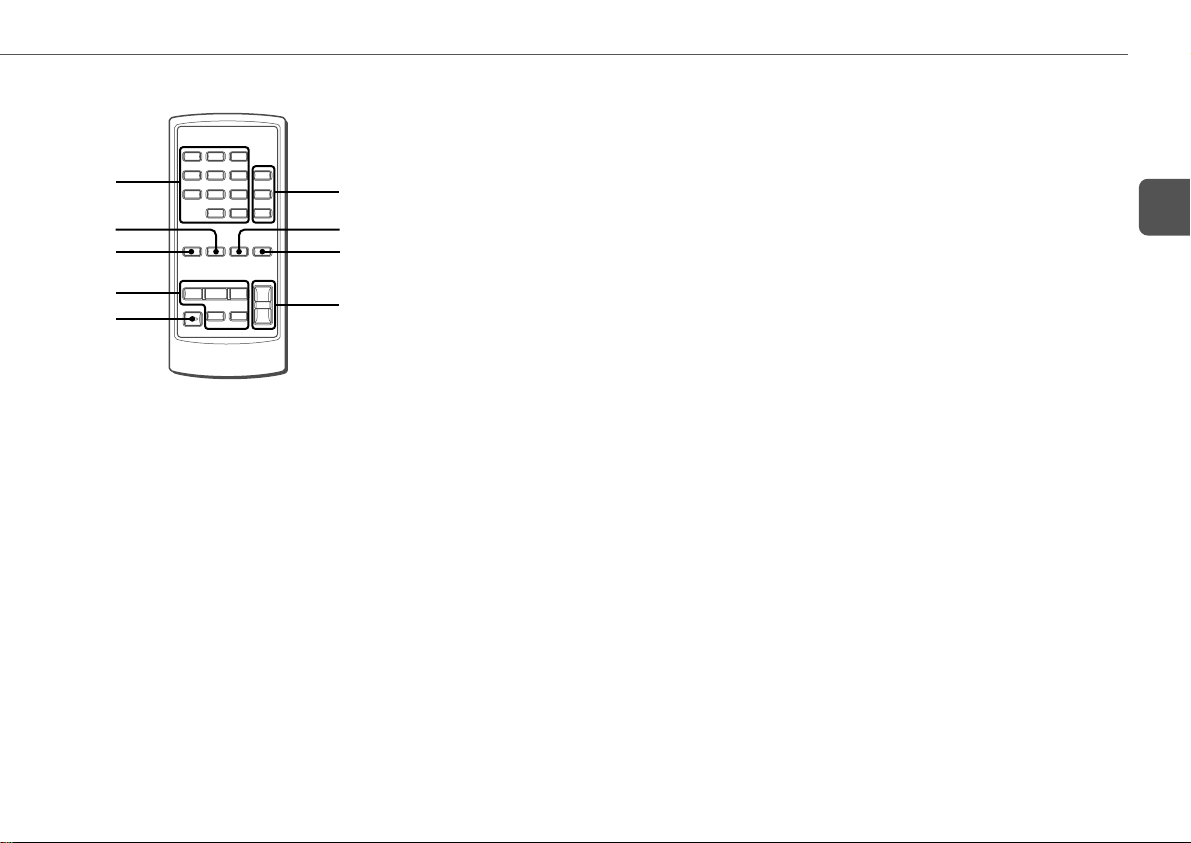

PARTS AND CONTROLS

Main unit: rear

1

4 75 6

1 DIGITAL OUT (OPTICAL) jack

CD digital sound signals can be output through this jack.
Use an optical cable to connect digital audio equipment.
Remove the dust cap from the DIGITAL OUT (OPTICAL)
jack. Then connect an optical cable plug to the DIGITAL
OUT (OPTICAL) jack.

2 AM LOOP and FM 75 Ω terminals

Connect the supplied AM and FM antennas.

3 SPEAKERS3 terminals

Connect the supplied speakers using the supplied
speaker cords.

4 AC power cord

2 3

5 VIDEO/AUX IN jacks

Accept analog sound signals from external equipment.
Connect external equipment using an optional connecting
cable with RCA phono plugs (red plug to the R jack, white
plug to the L jack). Refer also to the operating instructions
for your equipment.
To switch function to external input, press VIDEO/AUX
(AUX on the remote control) to select the AUX (VIDEO or
TV) function.

Tip:

To change a source name in the display, hold down
VIDEO/AUX and press POWER while the power is on.
AUX → VIDEO → TV

6 LINE OUT jacks

Analog sound signals for all functions can be output
through these jacks. Use a cable with RCA phono plugs
to connect audio equipment.
Connect the red plug to the R jack, and the white plug to
the L jack.
Signals input through the VIDEO/AUX jacks are not
output from the LINE OUT jacks.

7 3SUPER WOOFER jack

Connect an optional powered sub woofer with a built-in
amplifier to this jack.

En

5

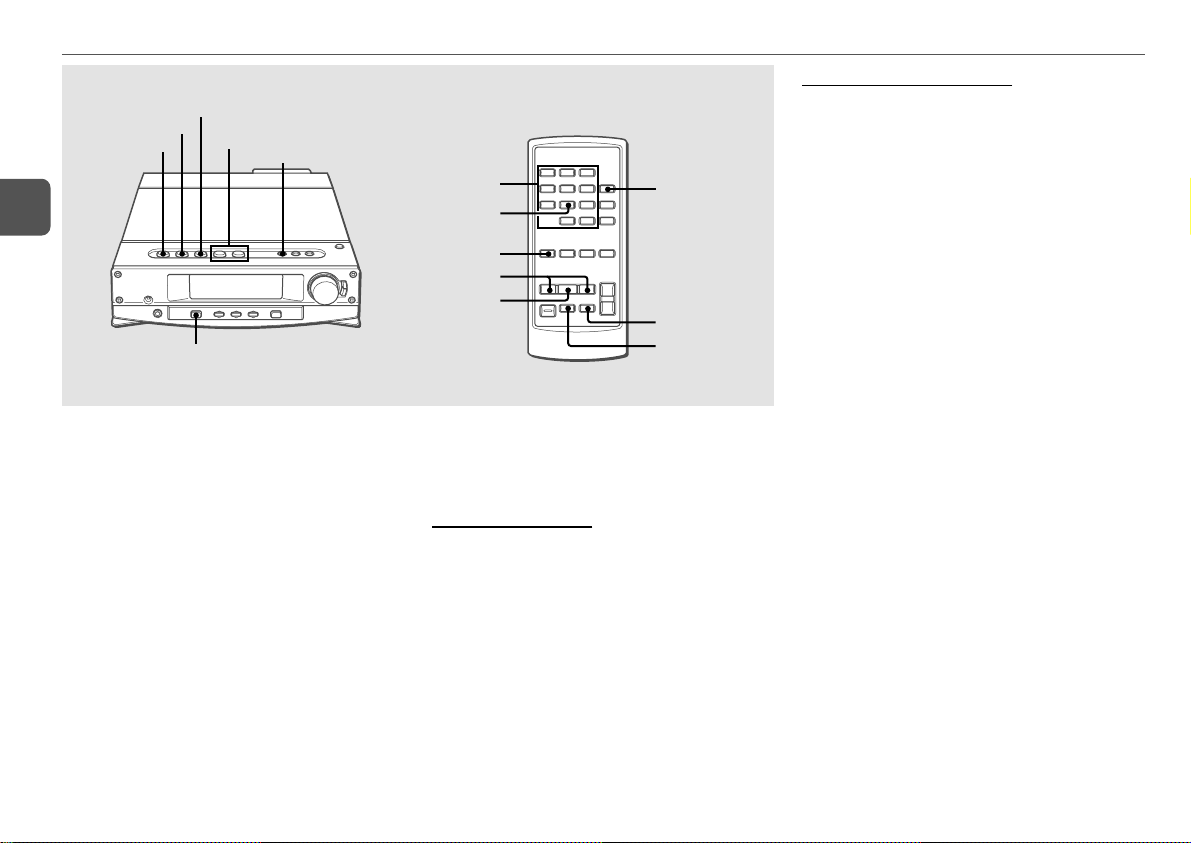

Main unit: front

En

1 aSET

CD: pauses playback.
Radio: stores the received station to preset.

sCLEAR

CD: stops playback.
Radio: clears a preset station.

cPRESET

CD: starts playback.
Radio: tunes in a preset station.

f/r, t/g ( TUNING DOWN/UP)

CD: skips to a previous or a succeeding track when
pressed, searches a track in fast forward or reverse
playback when held down.
Radio: manually tunes up or down within the band.

1

8 0

2

!976

3

45

#

2 TUNER/BAND

Selects radio function and the radio band.

3 VIDEO/AUX

Selects the function of external equipment connected to
the VIDEO/AUX IN jacks.

4 CD

Selects CD function.

5 zOPEN/CLOSE

Opens or closes the disc compartment.

$@

6 PHONES jack

Plug in optional headphones set with a stereo mini plug
(ø3.5 mm,

7 POWER 6STANDBY/ON

Switches the unit on and off (standby).

8 DEMO/ECO

When the unit is turned off: selects ECO mode, DEMO
mode or displays the clock.
When the unit is turned on: selects DEMO mode.

1

/8 in.). Speaker output is canceled.

9 DISPLAY

CD: displays the track number being played and
remaining time of play.
Radio: displays the frequency of the tuned station.

0 COLOR

Selects the display color.

! QSURROUND

Turns QSURROUND on and off.

@ VOLUME/MULTI JOG

Adjusts the volume.
Clock and Timer: sets the time.
Sleep: sets the sleep timer duration.

# ENTER

Determines the mode and the time (clock and timer).

$ MODE

Selects T-BASS, BASS, TREBLE, sleep and timer.

6
