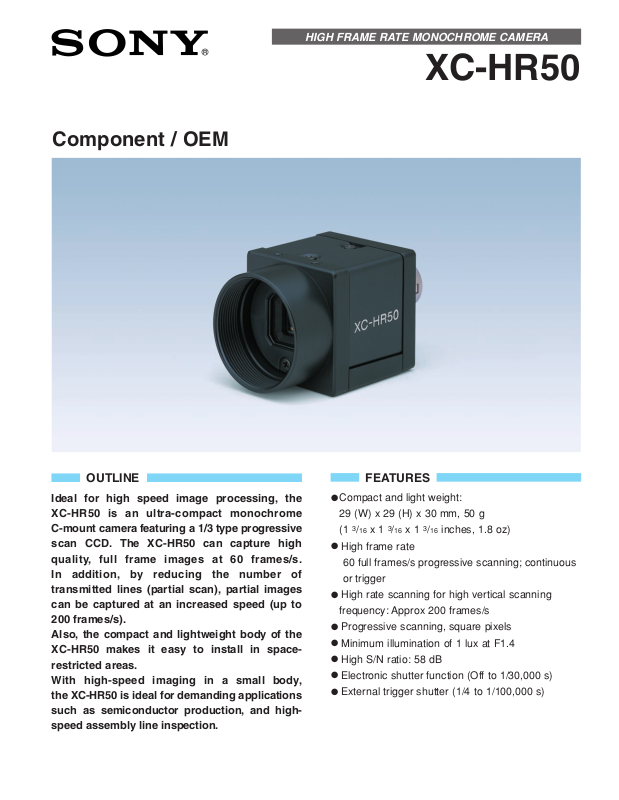

Sony XC-HR50 User Manual

HIGH FRAME RATE MONOCHROME CAMERA

XC-HR50

Component / OEM

OUTLINE

FEATURES

Ideal for high speed image processing, the
XC-HR50 is an ultra-compact monochrome
C-mount camera featuring a 1/3 type progressive
scan CCD. The XC-HR50 can capture high
quality, full frame images at 60 frames/s.
In addition, by reducing the number of
transmitted lines (partial scan), partial images
can be captured at an increased speed (up to
200 frames/s).
Also, the compact and lightweight body of the
XC-HR50 makes it easy to install in space­restricted areas.
With high-speed imaging in a small body,
the XC-HR50 is ideal for demanding applications
such as semiconductor production, and high­speed assembly line inspection.

●

Compact and light weight:

29 (W) x 29 (H) x 30 mm, 50 g

(1

3

/16 x 1 3/16 x 1 3/16 inches, 1.8 oz)

●

High frame rate

60 full frames/s progressive scanning; continuous

or trigger

●

High rate scanning for high vertical scanning

frequency: Approx 200 frames/s

●

Progressive scanning, square pixels

●

Minimum illumination of 1 lux at F1.4

●

High S/N ratio: 58 dB

●

Electronic shutter function (Off to 1/30,000 s)

●

External trigger shutter (1/4 to 1/100,000 s)

SPECIFICATIONS

DIMENSIONS

XC-HR50

Image device 1/3 type PS CCD
Effective picture elements 659 (H) x 494 (V)
Lens mount C mount
Scanning system 60 Hz Non-interlaced
Sync system Internal/External (automatic switching)
External sync signal HD/VD (2 to 5 Vp-p)
Video output 1 Vp-p, Sync negative, 75 Ω unbalanced
Horizontal resolution 500 TV lines
Minimum illumination 1 lux (F1.4, Manual Gain MAX)
S/N ratio 58 dB
Shutter Normal: OFF to 1/30,000 s with switches

Restart/Reset, Async External trigger, Non-reset, reset, switches or with trigger pulse width (1/100000 to 1/4 s)

Gain control Fixed, Manual
Gamma 1 (Fixed)
Output connector DC IN, SYNC, VIDEO: multi 12-pin
Power requirements DC+12 V (+10.5 to 15 V)
Power consumption 1.8 W
Operating temperature -5 to 45˚C (23 to 113 ˚F)
Storage temperature -30 to 60˚C (-22 to 140 ˚F)
Operating humidity 20 to 80% (no condensation)
Storage humidity 20 to 95% (no condensation)
Vibration 10 G (20 Hz to 200 Hz)
Shock resistance 70 G
Dimensions 29 (H) x 29 (W) x 30 mm (1

3

/

16

x 1

3

/

16

x 1

3

/

16

inches)

Weight 50 g (1.8 oz)
Regulation UL 6500 listed, FCC Class A Digital Device, CE (EN61326/97+A1/98), AS4251.1+AS4252.1
Supplied accessories Lens mount cap (1), Operating instructions (1)

XC-HR50

SHUT

VIDEO OUT/DC IN/SYNC

HR

TRIG

FIX/M

BINING

ON OFF MIN

M GAIN HD/VD

MAX EXT INT

75Ω

14.5

12

2-M2 depth 3

29

29

12 30

23.715

20

12

3-M3 depth 3

42

4-M2 depth 3

16.5

22
