Page 1
Television
Reference Guide
XBR-75X945C
Sony Customer Support
http://esupport.sony.com/ES/LA/
Call the number on the warranty card.
Please Do Not Return the Product
to the Store
Page 2
Table of Contents
IMPORTANT NOTICE . . . . . . . . . . . . . . . . 2
Safety information . . . . . . . . . . . . . . . . . 3
Precautions . . . . . . . . . . . . . . . . . . . . . . . 5
Parts and Controls . . . . . . . . . . . . . . . .7

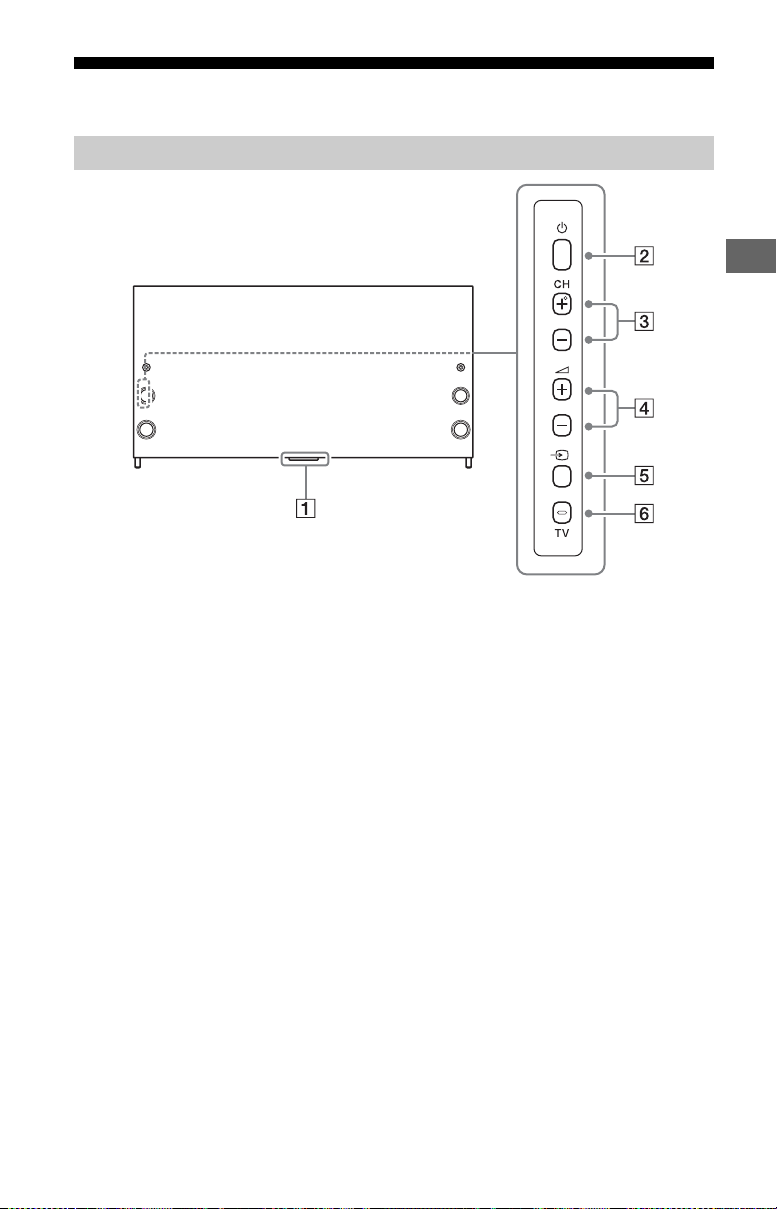

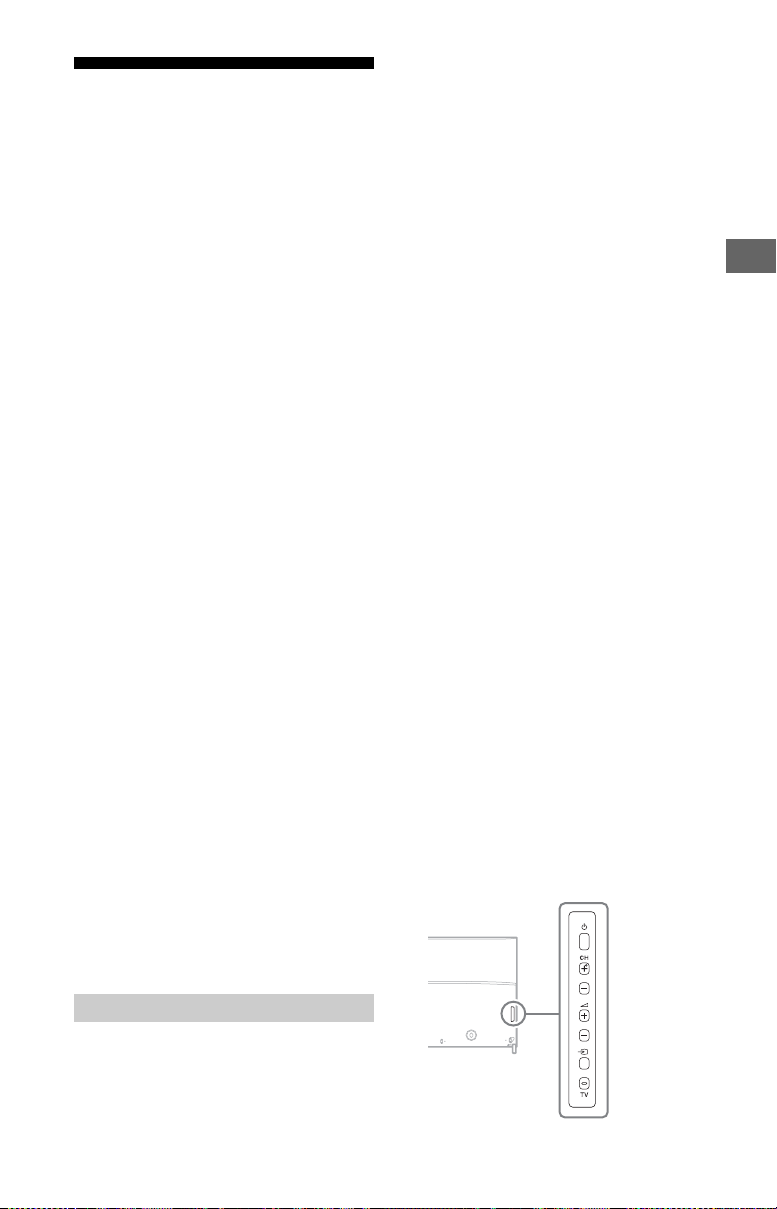

Controls and Indicators . . . . . . . . . . . . . 7

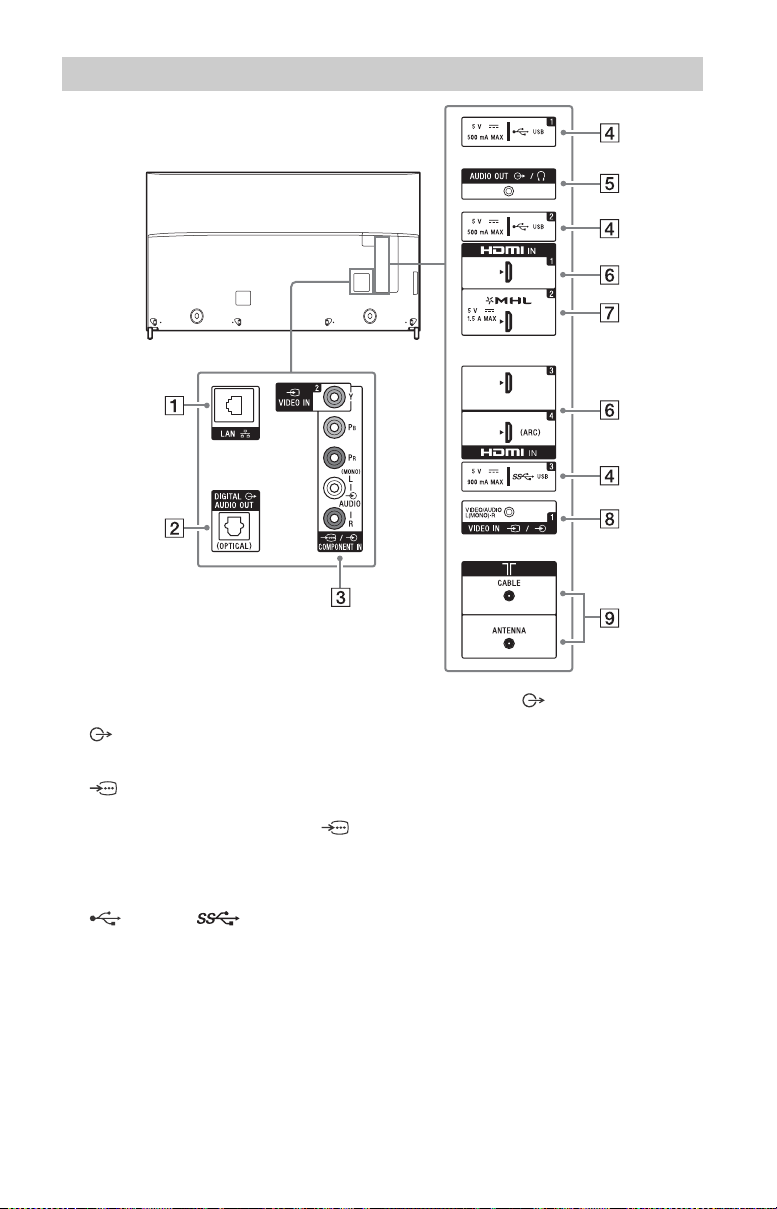

Inputs and Outputs . . . . . . . . . . . . . . . . 8

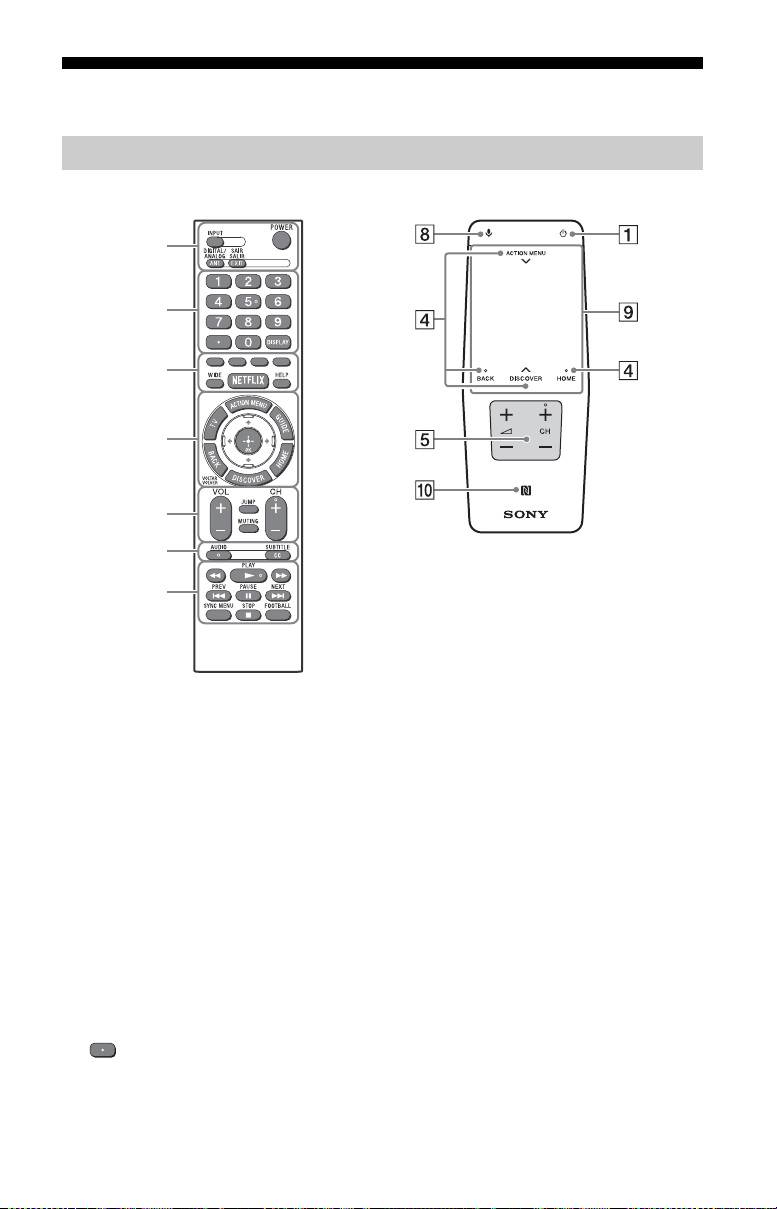

Using Remote Control . . . . . . . . . . . .10
Remote Control Parts Description. . . . 10
Using the Touchpad Remote
Control. . . . . . . . . . . . . . . . . . . . . . . . . . 12
Launching the Touchpad Remote
Control Introduction/Tutorial. . . . . . . . 12

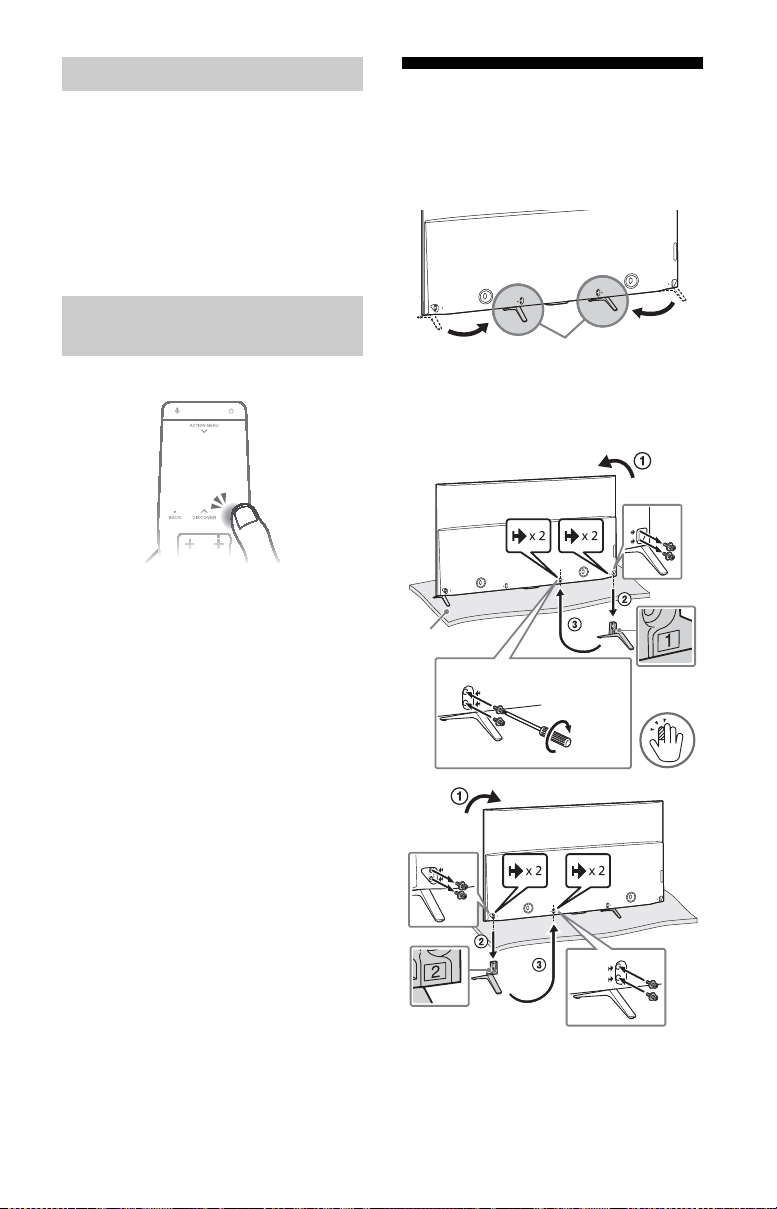

Attaching the Table-Top Stand
(Alternative) . . . . . . . . . . . . . . . . . . . .12
Connecting the TV . . . . . . . . . . . . . . .14

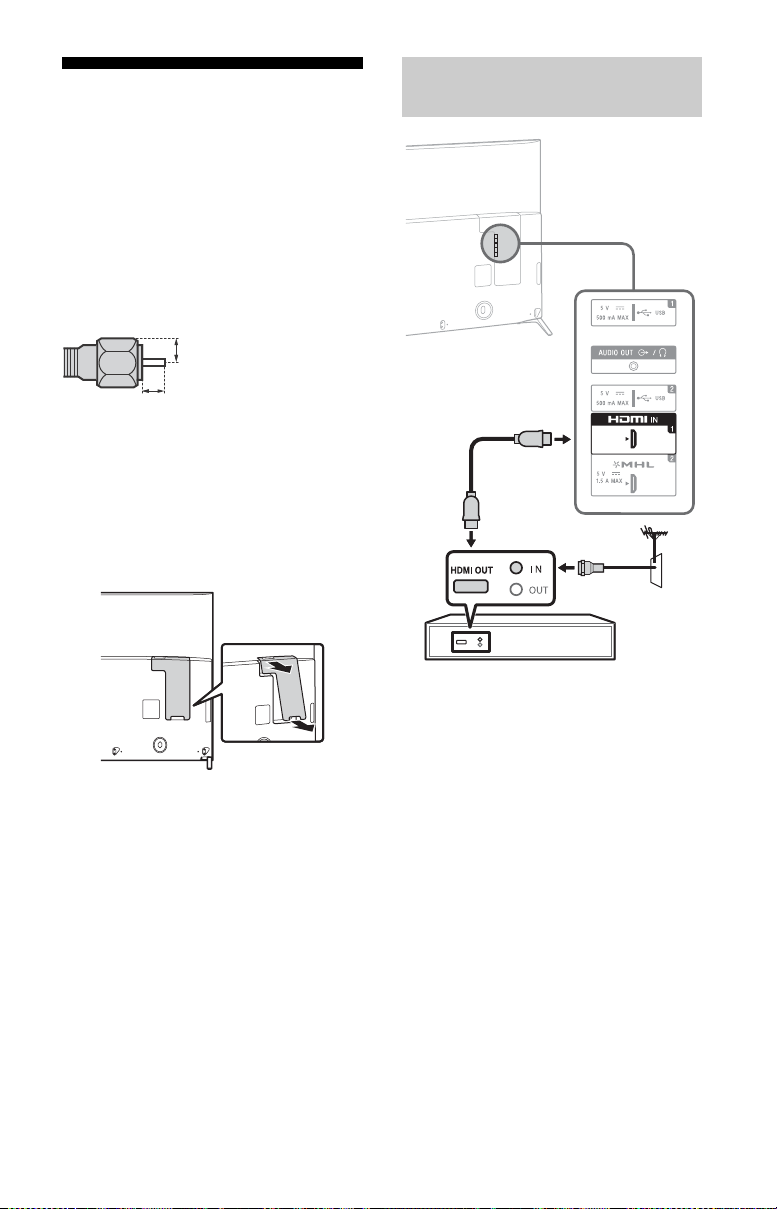

Showing a Set Top Box with HDMI
connection . . . . . . . . . . . . . . . . . . . . . . 14

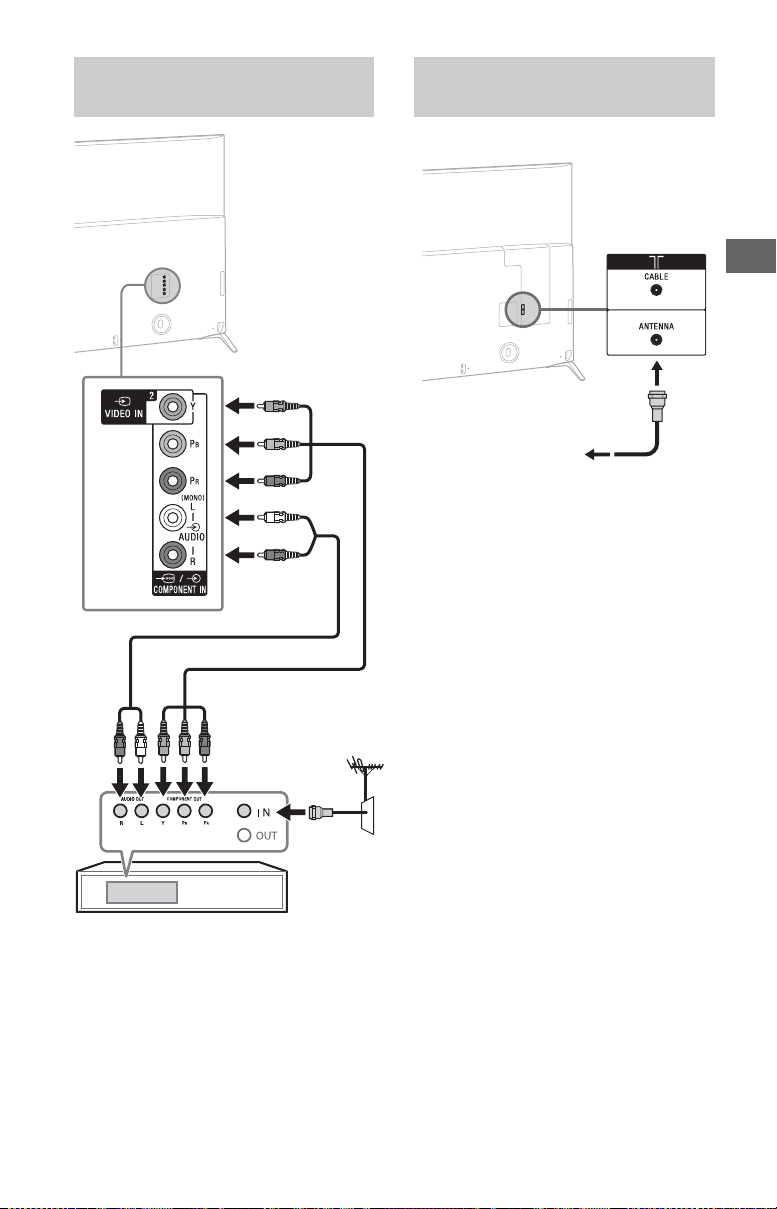

Showing a Set Top Box with
COMPONENT connection. . . . . . . . . . . 15
Cable System or VHF/UHF Antenna
System. . . . . . . . . . . . . . . . . . . . . . . . . . 15

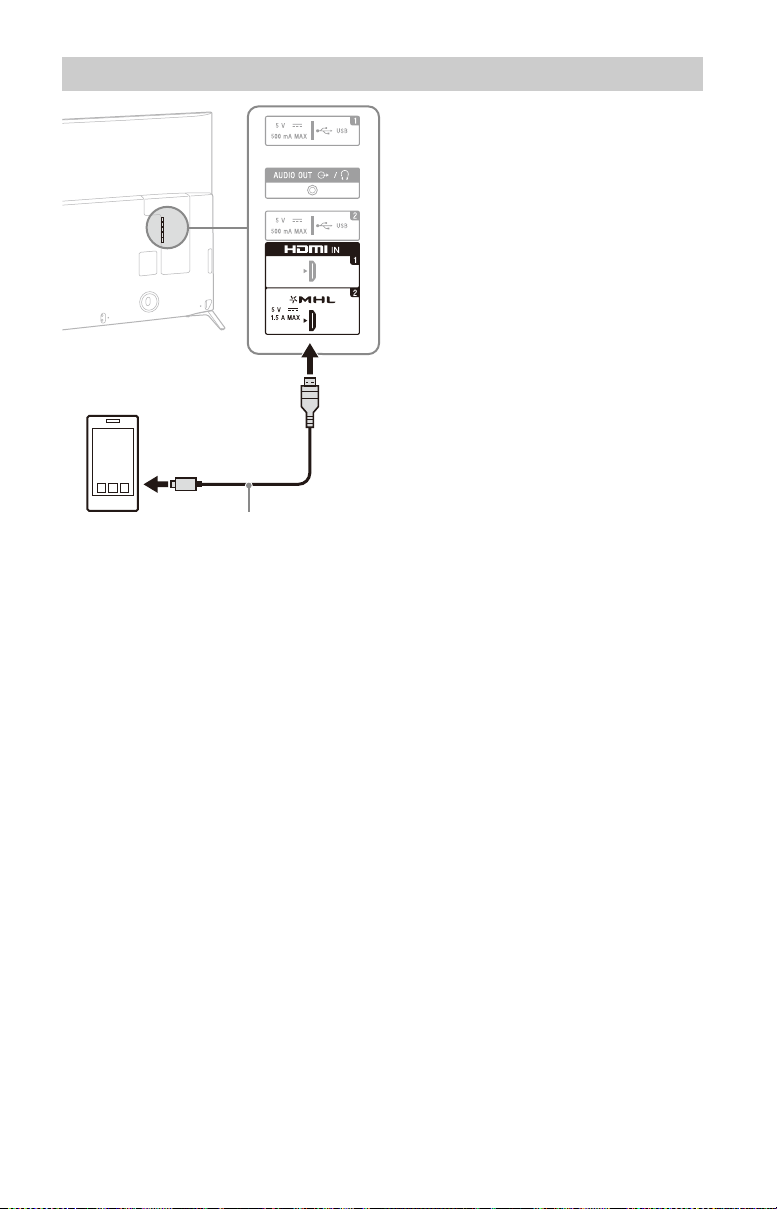

Connecting MHL Device. . . . . . . . . . . . 16

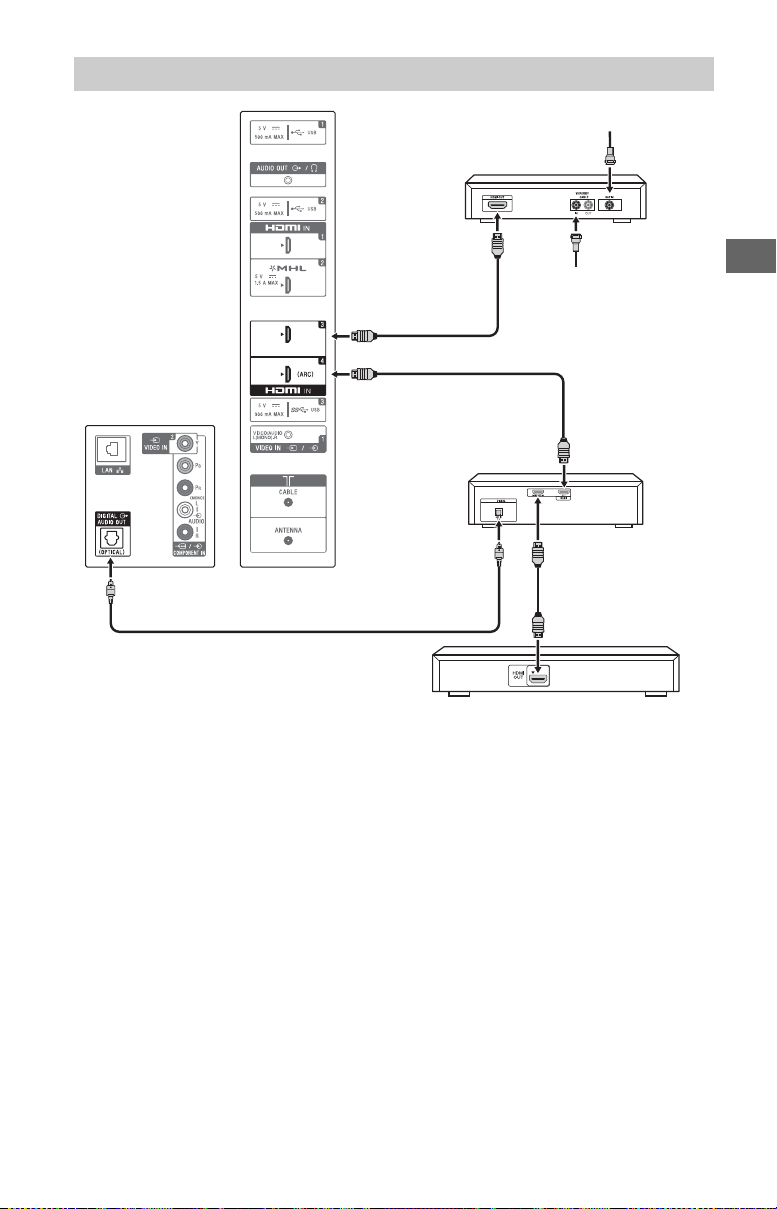

Showing HD BRAVIA® Sync™ Basic
Connection . . . . . . . . . . . . . . . . . . . . . . 17

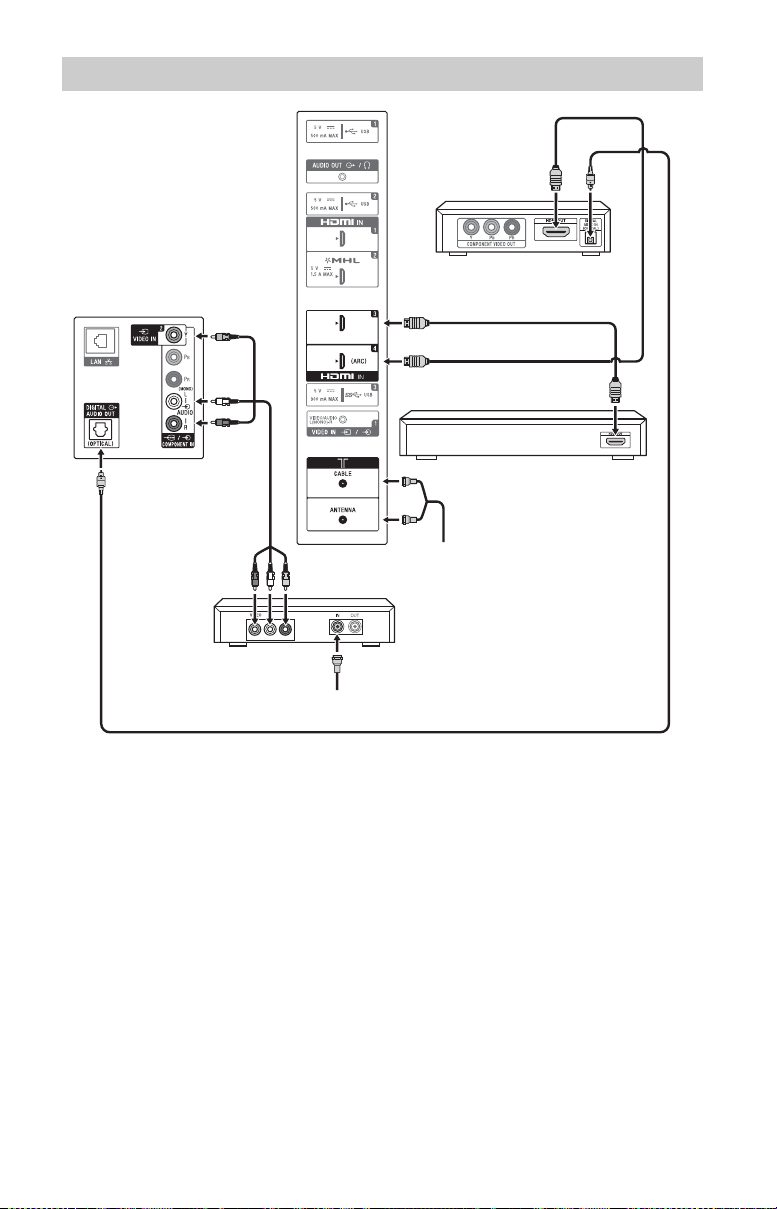

Showing HD Basic Connection with
Home Theater System . . . . . . . . . . . . . 18

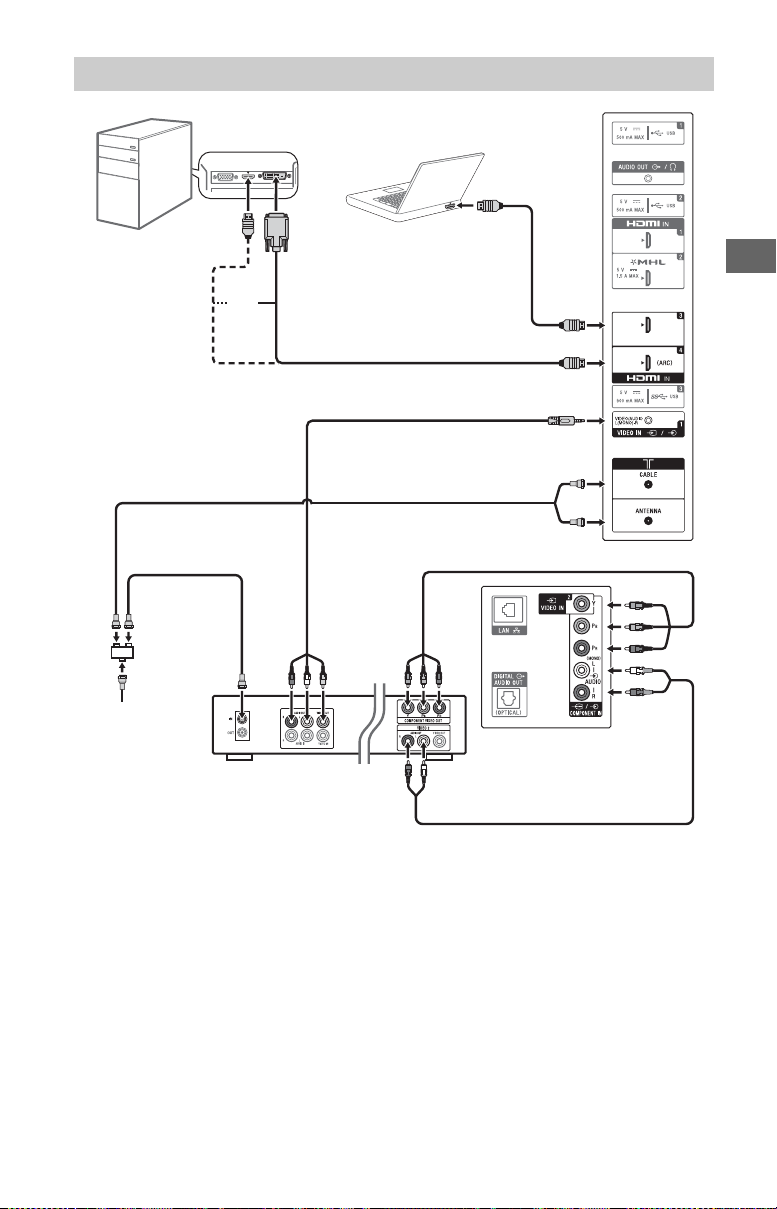

Showing PC Connection with SD VCR/
DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Installing the TV to the Wall . . . . . . 20
Installing the TV against a wall or
enclosed area. . . . . . . . . . . . . . . . . . .22
Troubleshooting. . . . . . . . . . . . . . . . .23
Troubles and Solutions . . . . . . . . . . . . 23
Specifications . . . . . . . . . . . . . . . . . . .24
Introduction
Thank you for choosing this Sony product.
Before operating the TV, please read this manual
horoug hly an d retain it for f uture re ference.
t
Note
• Images and illustrations used in Startup Guide and this
manual are for reference only and may differ from actual
product appearance.
The 75 class has a 74.5 inch (189.3
cm) viewable image size
(measured diagonally).
Location of the identification label
Labels for the Model No. and Power Supply rating are
located on the rear of the TV.
IMPORTANT NOTICE
Owner’s Record
The model and serial numbers are located at the side
and rear of the TV. Record these numbers in the spaces
provided below. Refer to them whenever you call upon
your Sony dealer regarding this TV.
Model Name
Serial No.
ADVERTENCIA
Para reducir el riesgo de incendio o descargas eléctricas, no
exponga este producto a la humedad ni a la lluvia.
Este símbolo pone sobre aviso al usuario de la
presencia de “voltaje peligroso” sin aislamiento
interior del producto, el cual puede ser de
en el
tal intensidad que podría presentar riesgo de
descargas eléctricas.
Este símbolo tiene por objeto advertir al usuario
que la documentación que acompaña a este
oducto contiene instrucciones importantes
pr
de operación y mantenimiento (servicio).
El producto no debe estar expuesto a goteos ni
aduras, ni se deben colocar sobre él objetos con
salpic
líquidos como floreros.
PRECAUCIÓN
Para evitar descargas eléctricas y exposición a contactos
eléctricos, no utilice este enchufe de corriente alterna con
un cable de extensión, receptáculo u otro tomacorriente a
menos que los contactos eléctricos puedan ser
introducidos completamente.
• Use el televisor únicamente con ca de 110 V - 240 V
2
Page 3
Seguridad
• Utilice el cable de alimentación de ca especificado por
Sony y que corresponda al voltaje de la zona donde vaya
a utilizarlo.
• Por razones de seguridad, el enchufe está diseñado de tal
orma que sólo puede conectarse en una dirección en los
f
tomacorrientes de pared. Si no puede introducir
completamente los contactos del enchufe en el
tomacorriente, póngase en contacto con su distribuidor.
• Si se introduce algún objeto sólido o cae líquido en la
idad, desenchufe el televisor inmediatamente y haga
un
que sea revisado por personal especializado antes de
volver a operarlo.
• Desconecte el televisor si no
algunos días. Para ello, tire del enchufe, nunca del cable.
• Consulte la información sobre seguridad
instrucciones de seguridad.
• Algunas personas pueden experimentar molestias (como
ansancio visual, fatiga o náuseas) al mirar imágenes de
c
video 3D o al jugar con juegos 3D estereoscópicos. Sony
recomienda que los usuarios descansen regularmente al
mirar videos 3D o al jugar con juegos 3D estereoscópicos.
La duración y la frecuencia de los descansos necesarios
varían según cada persona. Usted debe decidir lo que
mejor funciona en su caso. Si experimenta molestias,
debe dejar de mirar imágenes de video 3D o de jugar
juegos 3D estereoscópicos hasta que éstas desaparezcan.
Consulte a su médico si lo considera necesario. También
se recomienda leer nuevamente (i) el manual de
instrucciones de cualquier otro dispositivo o medio que
se utilice con el televisor y (ii) nuestro sitio web
(http://esupport.sony.com/ES/LA/)
información. La vista de los niños pequeños (en especial
los menores de seis años) todavía está en desarrollo.
Consulte con su médico (a un pediatra o a un
oftalmólogo) antes de permitir que niños pequeños miren
imágenes de video 3D o jueguen juegos 3D
estereoscópicos. Los adultos deben supervisar a los niños
pequeños para asegurarse de que sigan las
recomendaciones anteriores.
• No use, guarde ni deje los anteojos 3D o la batería cerca
uego o en lugares con temperaturas elevadas, por
del f
ejemplo, superficies o autos expuestos a la luz solar
directa.
va a utilizarlo durante
en Folleto de
para obtener la última
Audio
Evite el uso prolongado del aparato con un volumen
superior a 85 decibeles, porque esto podría perjudicar su
sentido de audición.
Nota sobre Closed Captions
El uso del televisor con finalidades distintas a la
visualización privada de emisiones de programas en UHF o
VHF o transmisiones vía cable dirigidas al público en
general puede requerir la autorización de la compañía de
emisión por cable y/o del propietario del programa.

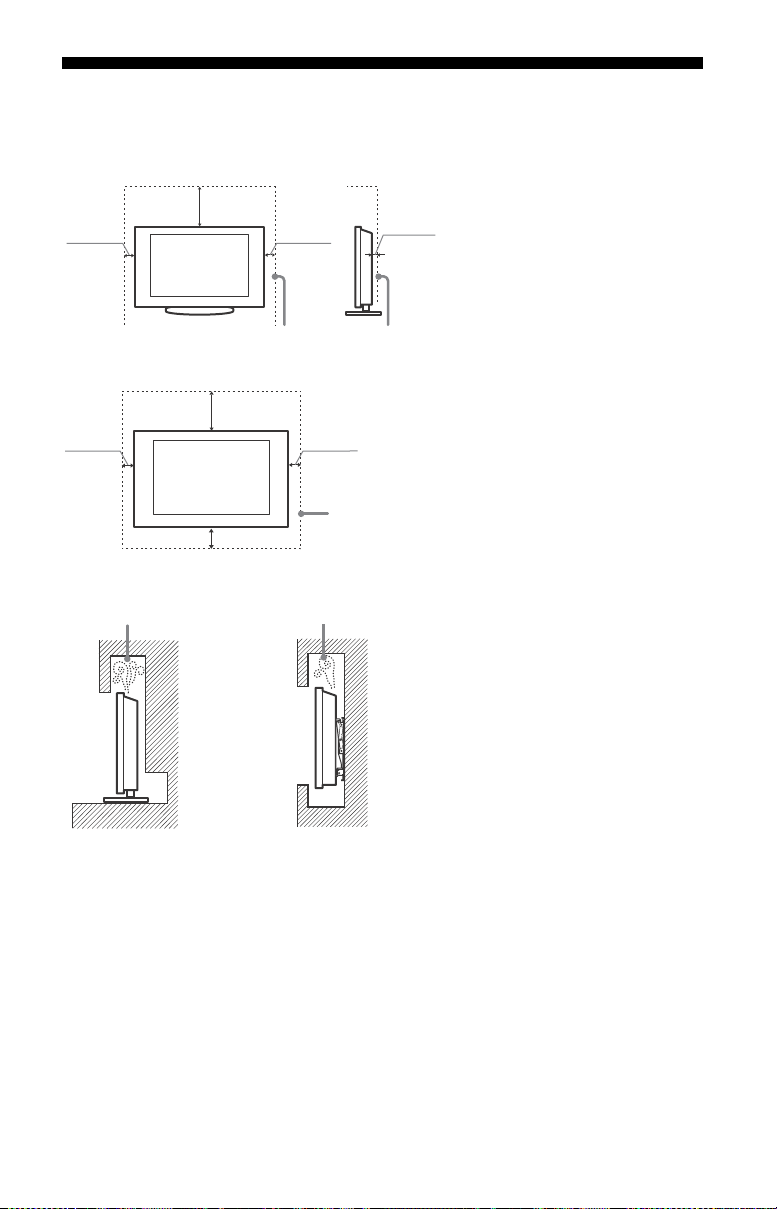

• Ensure your TV has adequate ventilation, see page 22.
• For best picture quality, do not e
illumination or sunlight.
• Avoid installing the TV in a room with reflective wall and
loor materials.
f
• Avoid moving the TV from a cold area to a warm area.
udden room temperature changes may cause moisture
S
condensation. This may cause the TV to show poor
picture and/or poor color. Should this occur, allow
moisture to evaporate completely before powering the TV
on.
xpose the screen to direct
Securing the TV
Sony strongly recommends taking
measures to prevent the TV from
toppling over.
Unsecured TVs may topple and result
property damage, serious bodily
in
injury or even death.
Preventing the TV from Toppling
• Secure the TV to a wall a nd/or stand.
• Do not allow children to play or climb on furniture and TV
ts.
se
• Avoid placing or hanging items on the TV.
• Never install the TV on:
y, unstable and/or uneven surfaces.
slipper
rniture that can easily be used as steps, such as a
fu
chest of drawers.
• Install the TV where it cannot be pulled, pushed, or
ocked over.
kn
• Install the TV so that the TV’s Table-Top Stand does not
otrudes out from the TV stand (not supplied). If the
pr
Table-Top Stand protrudes out from the TV stand, it may
cause TV set to topple over, fall down, and cause personal
injury or damage to the TV.
US
Safety information
Before setting up your TV
Some TV models are packaged with a detached Table-Top
Stand so you can mount your TV to a wall right away. See
page 20 (Installing the TV to the Wall) if you want to mount
the TV to a wall. If you are not mounting the TV to a wall,
will need to attach the Table-Top Stand. You will need a
you
Phillips screwdriver (not supplied) and the supplied screws
o complete the task. Look for the Startup Guide.
t

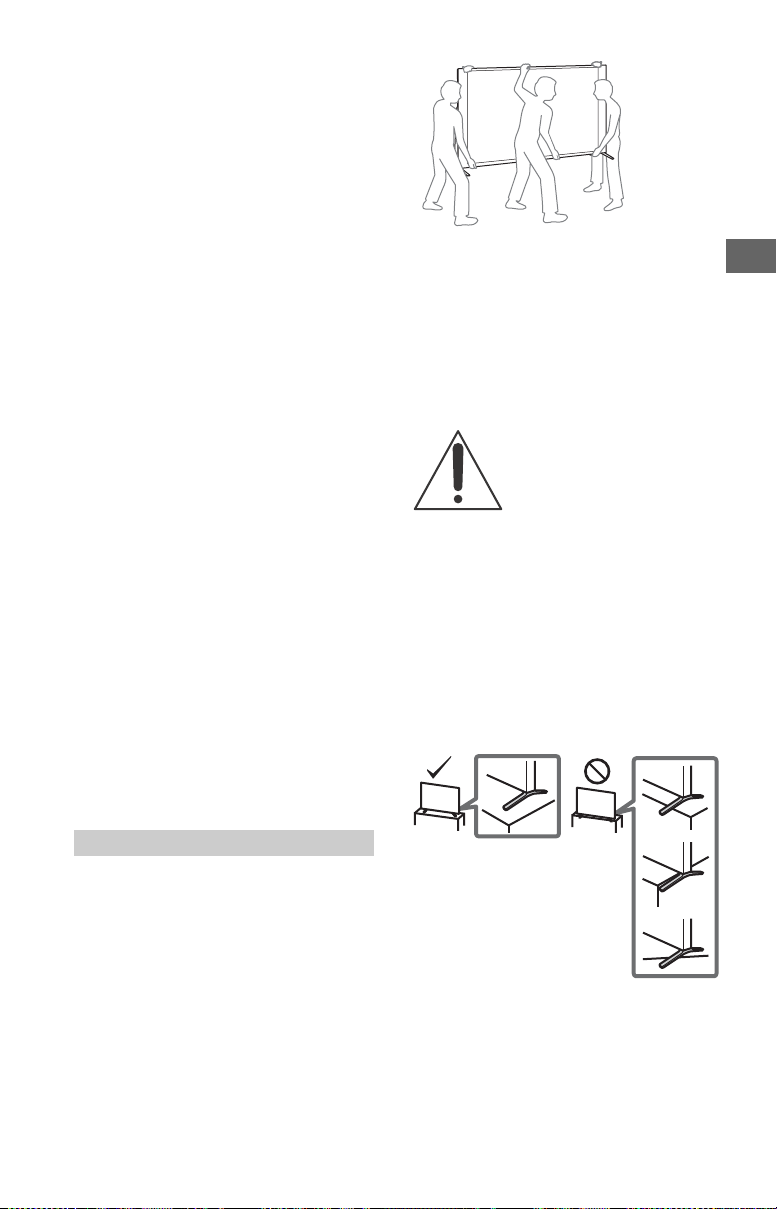

Be sure to consider the following while setting up your TV:
• Disconnect all cables when carrying the TV.
• Carry the TV with the adequate number of people; larger
e TVs require two or more people.
siz
• Correct hand placement while carrying the TV is very
ortant for safety and to avoid damage.
imp
• Route all AC power cords and connecting cables so that
hey are not accessible to curious children.
t
3
Page 4

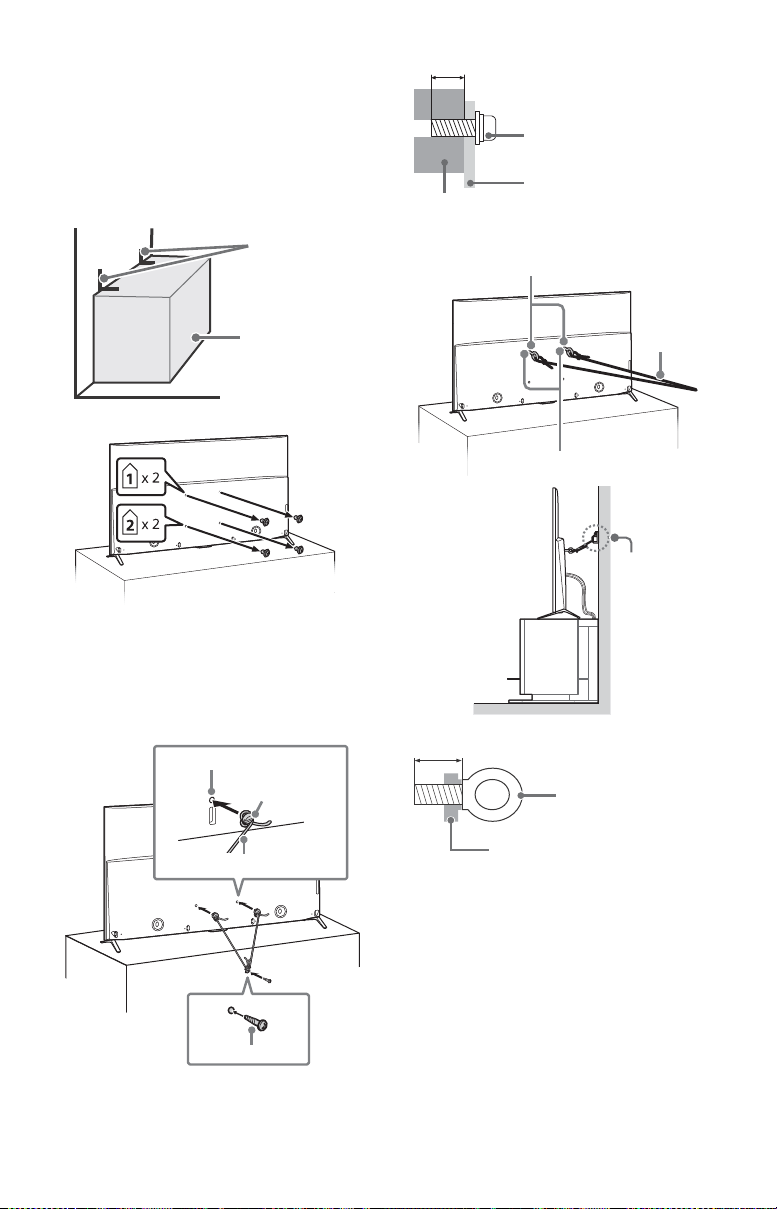

Recommended Measures to Secure the
Angle brace
(not supplied)
Stand
Screw hole on the rear cover
M6 machine screw
(not supplied)
Rope or chain (not supplied)
Screw (not supplied)
8-12 mm
Screw M6
Rope or chain
TV’s rear cover
M6 eye bolts (not supplied)
Wall-mount holes
Rope or
chain (not
supplied)
Wall-anchor
(not supplied)
8-12 mm
M6 eye bolt
TV’s rear cover
TV
Consider the following measures when securing your TV to
a Stand (not supplied).
1 Secure the Stand for the TV.
Make sure the Stand can adequately support the weight
he TV. Use two angle braces (not supplied) to secure
of t
the stand. For each angle brace use the appropriate
hardware to:
• Attach one side of the angle brace to the wall stud.
• Attach the other s ide to the Stand.
2 Remove the screws from the rear of the TV.
3 Secure the TV to the Stand.
Use the optional hardware listed as follows (not
d):
supplie
• M6 machine screw (screwed into the TV’s rear cover)
• A screw or similar (attach it to the Stand)
• Rope or chain (strong enough to support the weight of
the TV). Make sure that there is no excess slack in the
rope or chain.

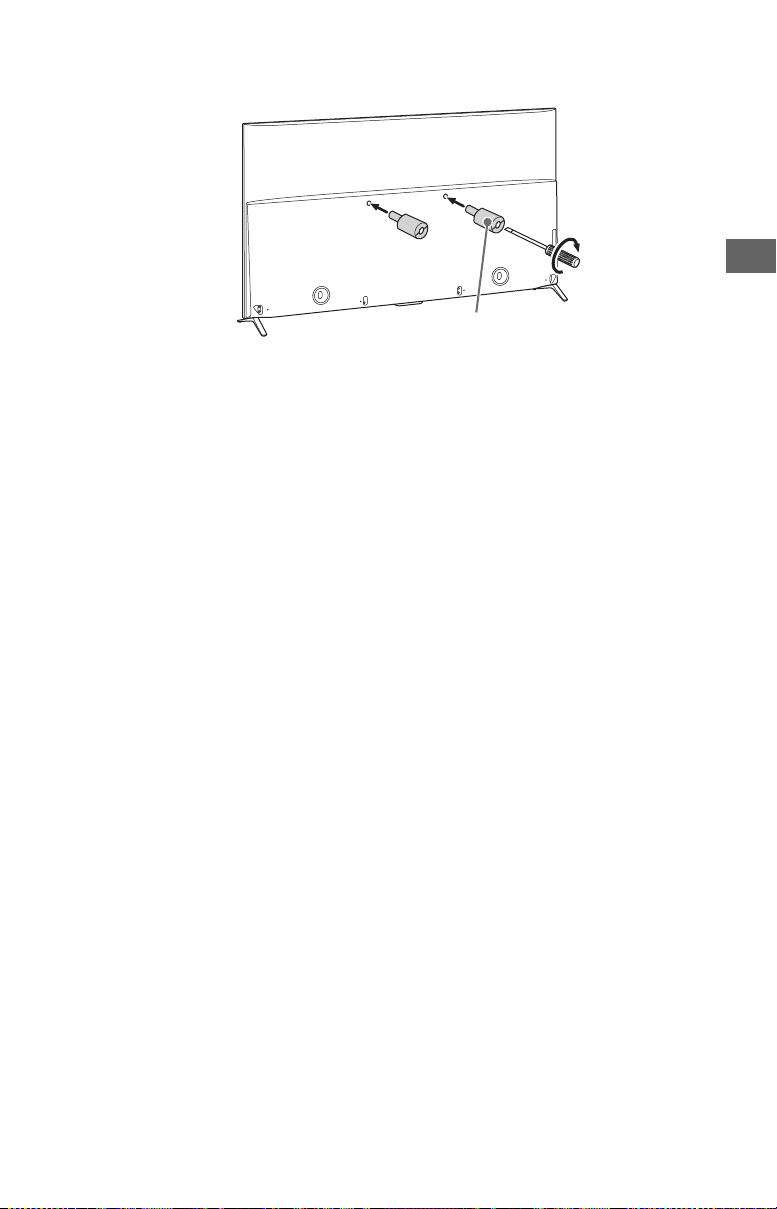

4 Anchor the TV to the wall by using bolts, wall anchor and
chain (or rope).

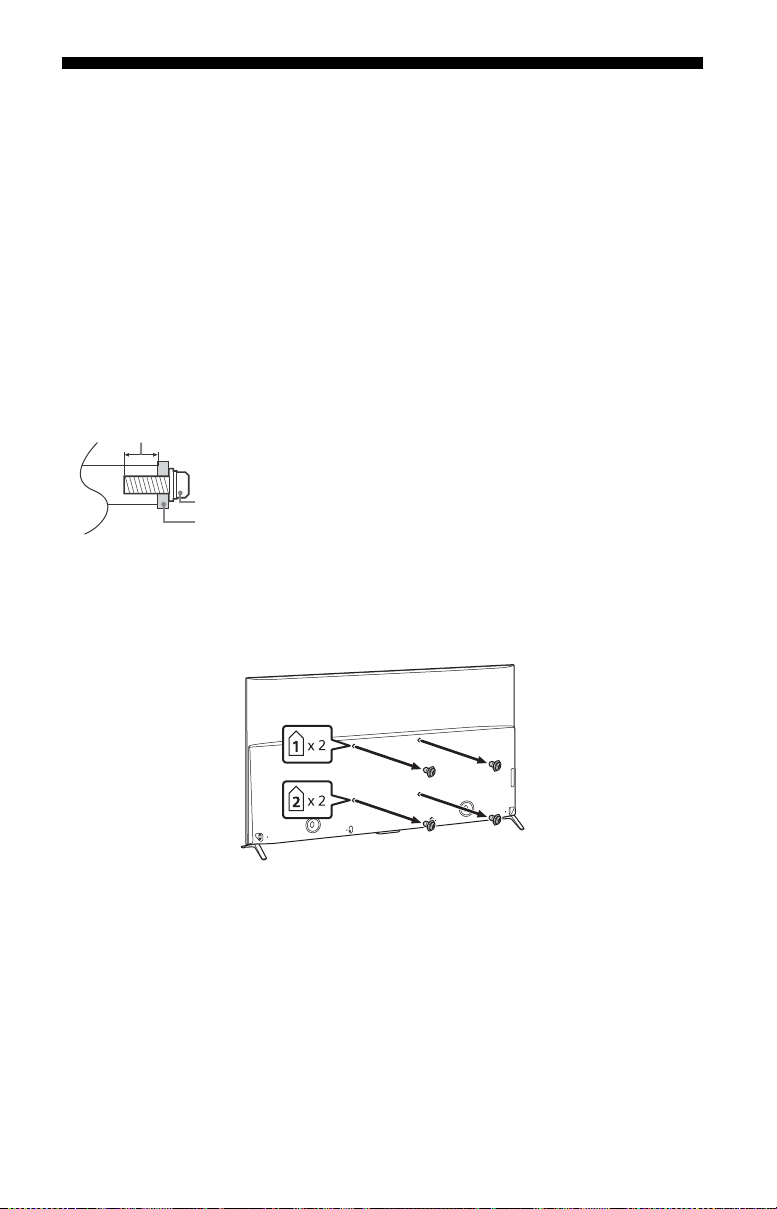

Please see below illustration for M6 eye bolt length.
The length of the M6 machine screw differs depending
on the
illustration.
4
rope or chain diameter. Please see below
Note
• Your TV is shipped with screws attached to the rear of the
TV depending on the TV model. (They are fastened in the
screw holes for wall mounting.) Be sure to remove the
upper two screws prior to anchoring the TV to a wall.
• Securing the TV to the stand without securing the TV and
nd to the wall provides minimum protection
the sta
against the TV toppling over. For further protection, be
sure to follow the three measures recommended.
Page 5
Precautions

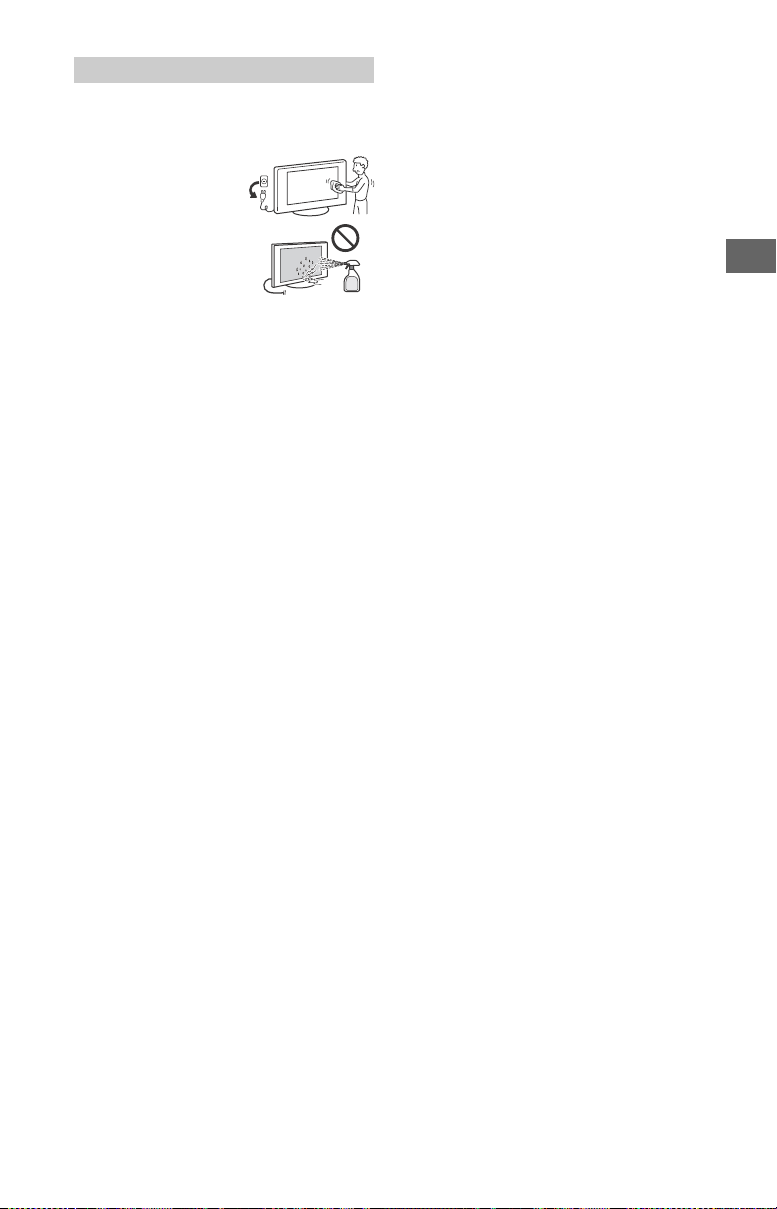

How to care for your BRAVIA TV
Safety is very important. Please read and follow the safety
documentation (Safety Booklet) separately provided.
Unplug the TV and other
onnected equipment f rom
c
the wall outlet before you
begin cleaning your TV.
• Wipe the LCD screen gently
ith a soft cloth.
w
• Stubborn stains may be
emoved with a cloth
r
slightly moistened with a
solution of mild soap and
warm water.
• If using a chemically
etreated cloth, please follow the instruction provided
pr
on the package.
• Never spray water or detergent directly on the TV set. It
y drip to the bottom of the screen or exterior parts and
ma
enter the TV set, and may cause damag e to the TV set.
• Never use strong solvents such as a thinner, alcohol or
e for cleaning.
benzin
• Do not plug in the TV into the wall outlet until th e
oisture from cleaning has evaporated.
m
The TV should also be placed on a stable surface to prevent
om toppling over (see page 3). If you have young
it fr
children or pets at home, check regularly to ensure the TV is
curely fastened.
se
US
5
Page 6
La experiencia de TV BRAVIA® 4K
¡Gracias por elegir a Sony! Su nuevo TV BRAVIA® le
brinda una “Experiencia de TV 4K”. Este documento le
ayudará a aprovechar su TV al máximo.
Registre su TV en:
http://esupport.sony.com/LA/perl/registration.pl
Los cuatro pasos para una experiencia
de TV 4K
TV, fuente, sonido y configuración.
1 TV
Ahora que ya hizo la mejor elección en tecnología LCD
V con retroiluminación LED, retire todos los accesorios
T
del empaque antes de configurar su TV.
2 Fuente
Para disfrutar los increibles detalles de su TV BR
debe tener acceso a programación HD, la cual se puede
obtener de las siguientes maneras:
• Solicitando a su proveedor servicio de alta definición
K).
(4
Este TV muestra todas las señales de entrada de video en
The following chart shows the high-definition (HD) and standard-definition (SD) video formats supported by your BRAVIA TV
inputs.
AVIA
• Recibiendo emisiones de HD por aire a través de una
ena para TV de alta definición (HD) conectada
ant
directamente a la parte posterior del TV.
tp://www.antennaweb.org para recibir más
Visite ht
información sobre la selección y configuración de
antena.
• A través de los reproductores Blu-ray Disc™ de super
a resolución ó demás equipos HD de Sony.
alt
3 Sonido
Complete la experiencia de alta definición con un
istema de sonido envolvente BRAVIA Sync™ o un
s
receptor de audio/video de Sony.
4 Ajustes
Instale su TV y conecte sus fuentes. Consulte la
página 14 para ver ejemplos de diagramas de conexión.
Para obtener la más alta c
utilice los cables de HDMI (Interfaz multimedia de alta
definición) de Sony.
una resolución de 3 840 puntos × 2 160 líneas.
alidad de experiencia 4K,

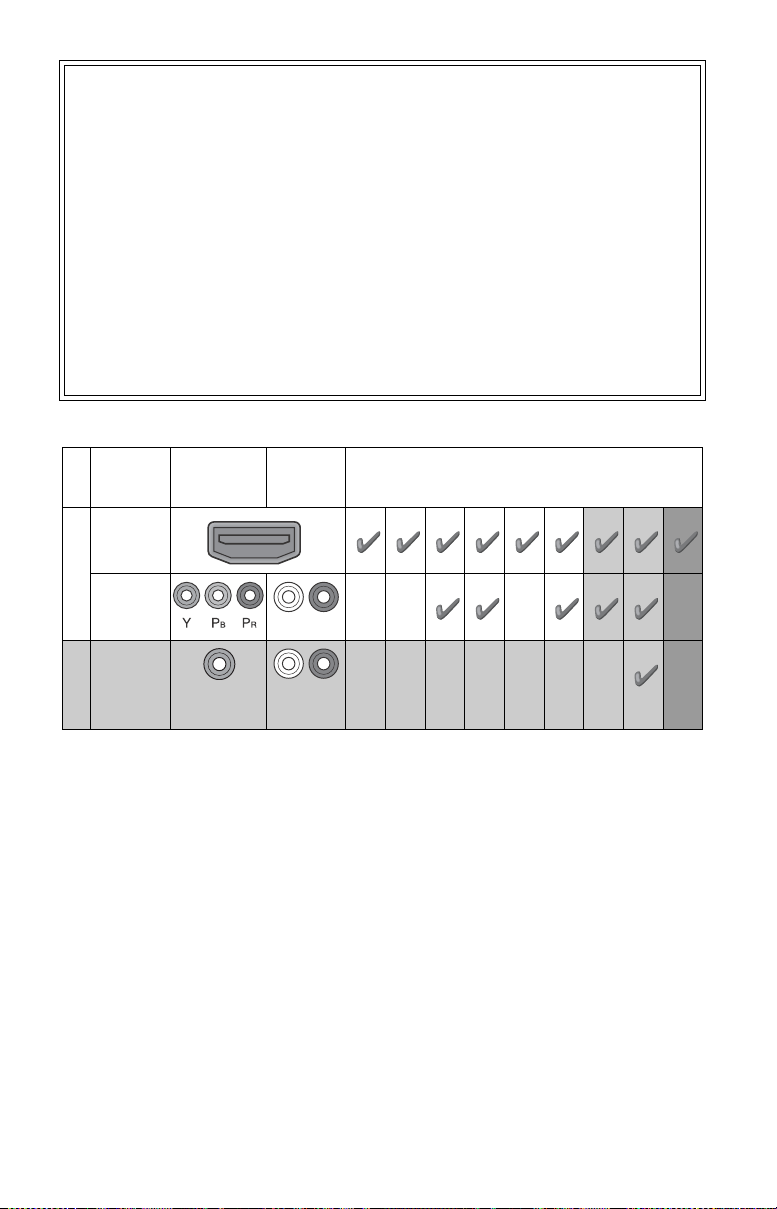

SUPPORTED FORMATS
INPUT VIDEO AUDIO
HDMI
4K*11080/
1080p*11080i 720/
24p/
30p
24p/
30p
720p*1480p/
576p
480i/
576i
PC*
4K/
HD
COMPONENT
Audio L/R
2
VIDEO
SD
*1 For details of supported formats, refer to the “S
*2 For supported PC formats refer to the Help Guide.
Compos ite
video
connection
Audio L/R
6
pecifications” in this manual.
Page 7

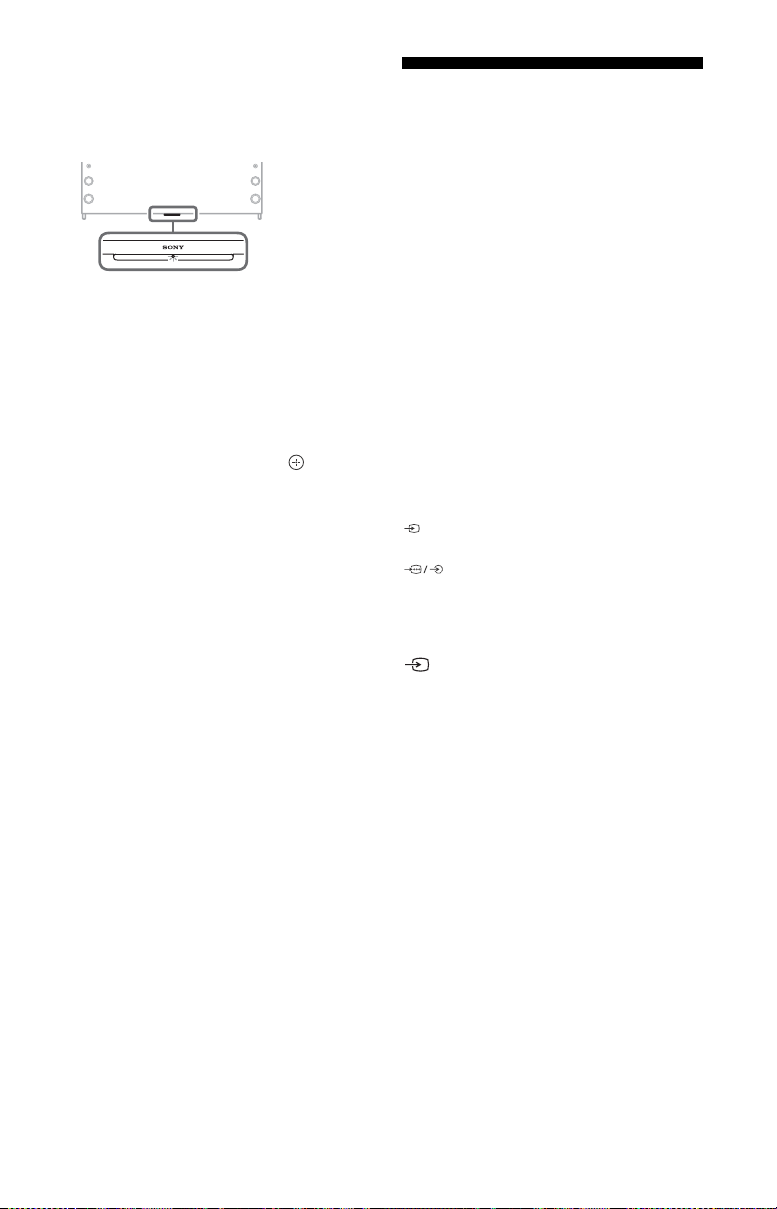

Parts and Controls
Controls and Indicators
US
Remote Control sensor* / Light
sensor*
/ Illumination LED / 3D Sync
Trans mitte r*
The illumination LED lights up or blinks
according to the status of the TV.
•White
When turning on the TV/picture off
mode/software update, etc.
•Cyan
When connecting with a mobile
device wirelessly.
•Amber
Timer is set.
(Power)
CH +/- (Channel)
+/- (Volume)
(Input select)
Display and select the input source.
TV
Switch to a TV channel or input from
other applications.
* Do not place anything near the sensor.
7
Page 8
Inputs and Outputs
LAN
DIGITAL AUDIO OUT (OPTICAL)
VIDEO IN 2,
/ COMPONENT IN
• For a composite connection:
Use VIDEO IN 2, and (L/R) of /
COMPONENT IN*.
• For a component connection:
Use Y, PB, PR, and (L/R).
USB 1/2, USB 3
• Connecting a large USB device may
interfere with other connected
devices beside it.
• When connecting a large USB device,
connect to the USB 1 jack.
8
AUDIO OUT /
• To listen to the TV's sound through
the connected equipment, press
HOME. Select [Settings] [Sound]
[Headphone/Audio out] and then
select the desired item.
HDMI IN 1/3/4
• If connecting a digital audio system
that is compatible with Audio Return
Channel (ARC) technology, use HDMI
IN 4. If not, an additional connection
with DIGITAL AUDIO OUT (OPTICAL) is
necessary.
HDMI IN 2/MHL
• You can connect your MHL (Mobile
High-definition Link) device using an
HD quality MHL cable.
/ VIDEO IN 1
For a composite connection, use the
supplied Analog Extension Cable*.
Page 9
ANTENNA/CABLE
Connect to your cable or antenna.
* When connecting mono equipment, connect to
the L (MONO) audio jack.
US
9
Page 10
Using Remote Control
Ȫ
ȩ
ȫ
Ȭ
ȭ
Ȯ
ȯ
IR (infrared) Remote Control Touchpad Remote Control
Remote Control Parts Description
INPUT
Display and select the input source.
POWER/
Turn on or turn off the TV (standby
mode).
ANT/DIGITAL/ANALOG
Switch between digital and analog
mode.
EXIT/SAIR SALIR
Return to the previous screen or exit
from the menu. When an Interactive
Application service is available, press to
exit from the service.
Number buttons
Use with the 0-9 buttons to select
digital channels.
DISPLAY
Display information about the channel/
program/input you are viewing.
Color buttons
Execute correspondent function at that
time.
WIDE
Change the screen format.
NETFLIX
Access the “NETFLIX” online service.
HELP
Display Help Menu.
10
Page 11
ACTION MENU
Display a list of contextual functions.
You can also display it by slide down
your finger from ACTION MENU on the
Touchpad Remote Control.
TV
Switch to a TV channel or input from
other applications.
GUIDE*
Display the digital program guide.
BACK
Return to previous screen.
HOME
Display the TV Home Menu.
DISCOVER
Bring up the Content Bar to search for
content.
You can also launch Content Bar by
slide up your finger from DISCOVER on
the Touchpad Remote Control.
//// (Item select/Enter)
VOL +/– (Volume)
Adjust the volume.
JUMP
Jump back and forth between two
channels or inputs. The TV alternates
between the current channel or input
and the last channel or input that was
selected.
MUTING
Mute the sound. Press again to restore
the sound.
CH +/–
Select the channel.
AUDIO
Change the language for the program
currently being viewed.
CC/SUBTITLE
Turn subtitles on or off (when the
feature is available).
//////
Operate media contents on TV and
connected BRAVIA Sync-compatible
device.
SYNC MENU
Display the BRAVIA Sync Menu.
FOOTBALL
Turn Live Football Mode on or off (when
the feature is available).
(Microphone)
Use Voice Function. (e.g., Search various
content by voice.)
Touchpad
Operate the TV with the touchpad.
(NFC)
Touch the device (e.g. some models of
Xperia) corresponding to the One-touch
mirroring function, then its screen is
displayed on the TV.
* The location, availability and function of remote
control button may vary depending on your
country/region/TV model.

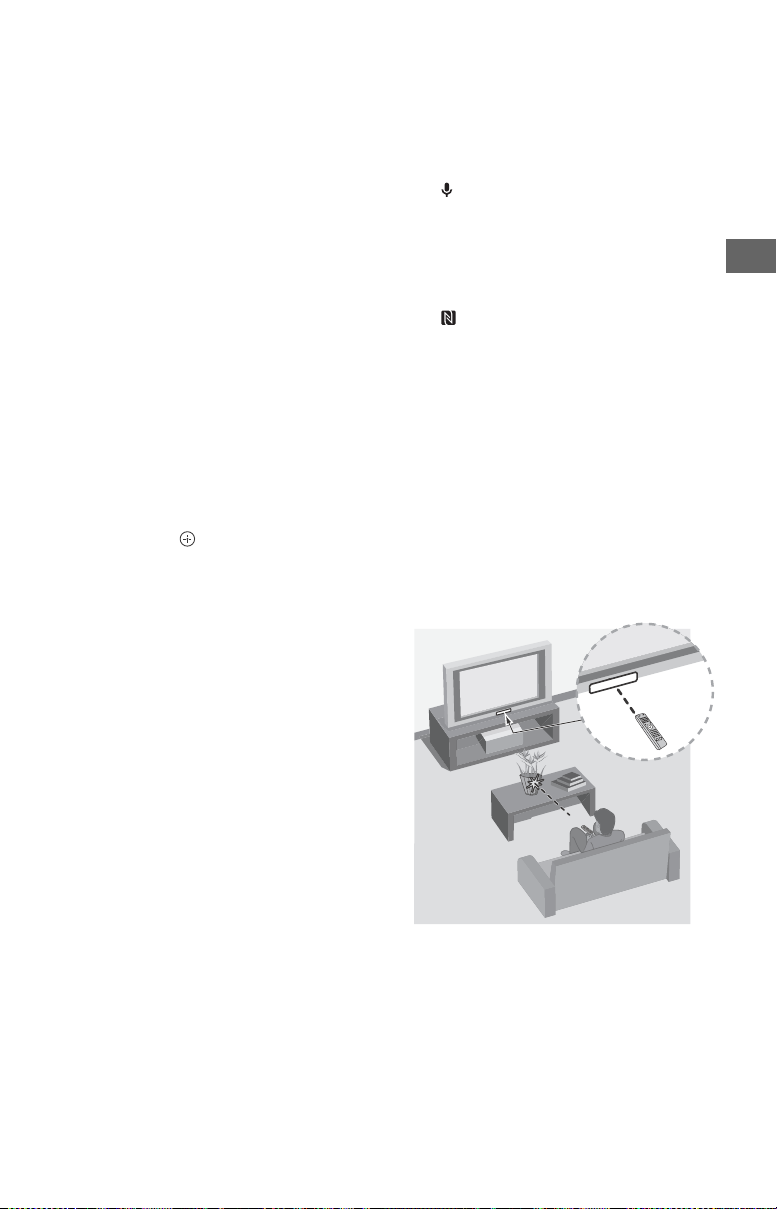

Guidelines for IR Remote Control
• Point your remote control directly at
the IR sensor located on your TV.
• Make sure that no objects are blocking
e path between the remote control
th
and the IR sensor on your TV.
• Fluorescent lamps can interfere with
emote control; try turning off the
your r
fluorescent lamps.
• If you are having problems with the
mote control, reinsert or replace your
re
batteries and make sure that they are
correctly inserted.
US
11
Page 12
Using the Touchpad Remote Control
Middle position
Thick cushion
1
1.5 N∙m/1,5 N∙m
{15 kgf∙cm}
2
Touchpad Remote Control can only be used
after pairing with the TV.
To pair, follow the pairing screen
nstruction.
i
Pairing screen can be displayed by pressing
the button on the TV for 5 seconds, or
select [Settings] - [Touchpad Remote
Control settings] - [Pair Touchpad Remote
Control].
Launching the Touchpad Remote Control Introduction/Tutorial
1 Press HOME.
2 Select [Settings] - [Touchpad
Remote Control settings] - [Start
Introduction/Tutorial].
Attaching the Table-Top Stand (Alternative)
You can change the Table-Top Stand from
the edge to the middle position by referring
to the instructions below.
Note
• Two or more people are needed to carry out this
installation.
• Be careful not to pinch the finger during
installa
tion.
12
Page 13
Note
IR Sensor
3D Sync
Transmitter
*
2
*
1
• Two or more people are needed to carry out this
installation.
• Ensure that there are no objects in front of the
TV
.

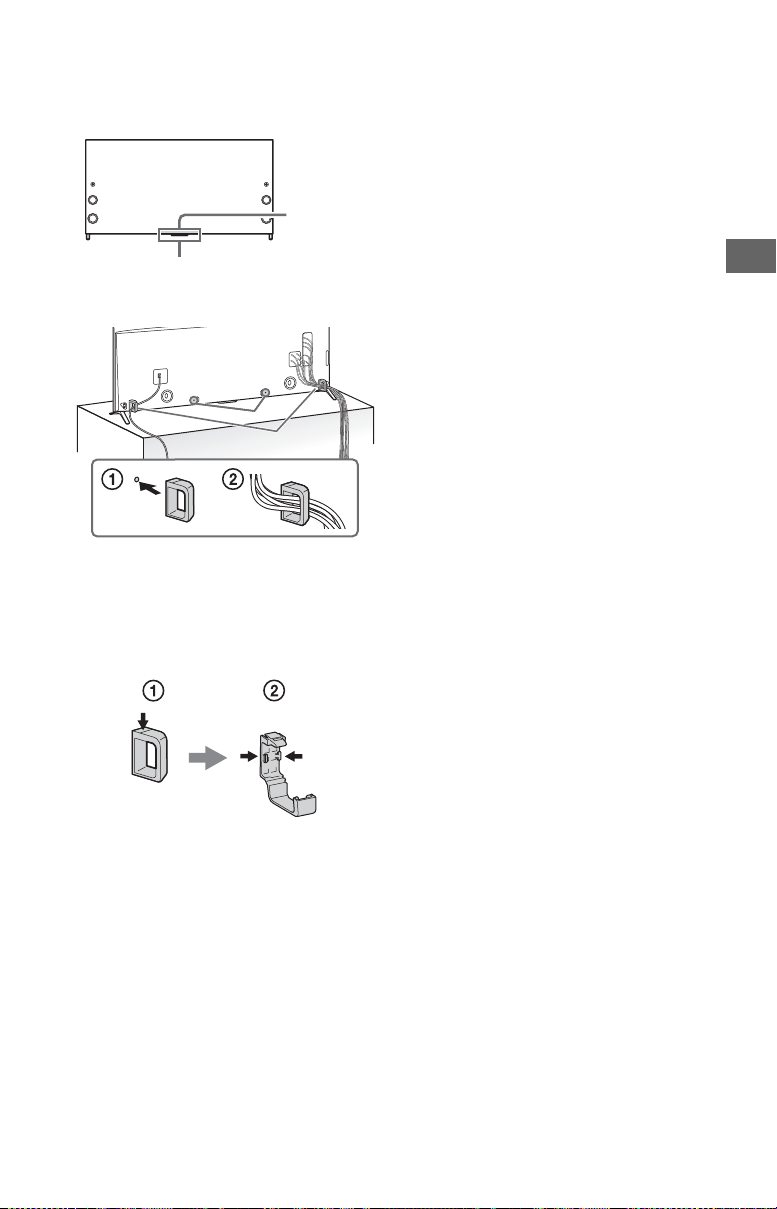

To bundle the cables
*1 Location of cable clamper when the Table-Top
Stand is attached to middle position.
*2 Location of cable clamper when the Table-Top
Stand is attached to edge position.
Note
• To detach the cable clamper from the TV, press
the top of the clamper , then pinch as
illustrated.
US
13
Page 14
Connecting the TV
(Reference drawing for an F type plug)
1.5 mm max.
7 mm max.
Set Top Box
For more information on connections, refer
to the Help Guide.
Note
• When connecting the cable to the Cable/
Antenna, input finger tighten only, over
tightening the connection can damage the TV.
• To select an input device connected to the TV,
pr
ess INPUT.
Recommendation for an F type plug
Projection of the inner wire from the
connection part must be less than 1.5 mm.
To detach the terminal cover
The terminal cover is factory-attached to
the TV.
Before connecting cables, remove the
terminal cover.
Showing a Set Top Box with HDMI connection
Note
• After connecting all cables, re-attach the
terminal cover to the TV.
14
Page 15
Showing a Set Top Box with
Set Top Box
Cable or Antenna
COMPONENT connection
Cable System or VHF/UHF Antenna System
US
15
Page 16
Connecting MHL Device
Use authorized MHL CABLE with
MHL logo (not supplied)
MHL device
The TV simultaneously charges the MHLcompatible connected device while playing
photo/music/video files. You can use the
TV remote control to control the connected
MHL-compatible device.
Note
• If [Charge MHL during power off] is set to [On],
you can continue charging the MHL-compatible
device even when the TV is in standby mode.
• Use authorized MHL 3 CABLE with MHL logo for
4K smar
tphone or mobile devices.
16
Page 17
Showing HD BRAVIA® Sync™ Basic Connection
*1Side Panel
*
1
Blu-ray Disc
HD Cable Box or
HD Satellite Receiver
*
1
A/V Receiver
SAT (Dish)
Cable/Antenna
*
2
Optical Connection
*
1
Rear of TV
US
*1Signifies a BRAVIA Sync capable device.
*2The optical connection is only needed for A/V receivers that do not support ARC (Audio
Return Channel).
Set the speaker settings to audio out, press HOME, then select [Settings] [Sound]
[Speakers] [Audio system].
Set the HDMI CEC settings on the TV and AV receiver to allow for system audio control for
ARC connections.
17
Page 18
Showing HD Basic Connection with Home Theater System
Cable/Antenna
Blu-ray Disc/DVD
SD Cable Box or
SD Satellite Receiver
Cable/SAT (Dish)
Home Theater System
*Optical Connection
Rear of TV
Side Panel
* The optical connection is only needed for home theater system that do not support ARC
(Audio Return Channel) when connecting with HDMI.
Set the speaker settings to audio out, press HOME, then select [Settings] [Sound]
[Speakers] [Audio system].
Set the HDMI CEC settings on the TV and AV receiver to allow for system audio control for
ARC connections.
18
Page 19
Showing PC Connection with SD VCR/DVD
Rear of TV
PC
DVDVCR
Splitter
Cable/Antenna
VCR/DVD
Combo
Notebook PC
Side Panel
*DVI
or
US
* DVI does not support audio signals. Connect the audio output of the PC to the PC speakers
or an A/V receiver to listen to sound from the PC.
19
Page 20
Installing the TV to the Wall
Wall-Mount Bracket
Screw
8 mm - 12 mm
This TV’s instruction manual only shows the steps on preparing the installation of the TV
before installing to the wall.
Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box
as packaged. If the Table-Top Stand is attached to the TV, the TV may require detaching the
Table-Top Stand.
Prepare the TV for the Wall-Mount Bracket before making cable connections.
For product protection and safety reasons, Sony strongly recommends that installation of
your TV on the wall be performed by qualified professionals. Do not attempt to install it
yourself.
• Follow the instruction guide provided with the Wall-Mount Bracket for your model.
Sufficient expertise is required in installing this TV, especially to determine the
strength of the wall for withstanding the TV’s weight.
• The length of the screw for Wall-Mount Brack
Bracket thickness. Please see below illustration.
• Be sure to store the unused screws and Table-Top Stand in a safe place until you are
eady to attach the Table-Top Stand. Keep the screws away from small children.
r
Note
• Read the supplied Safety Booklet for additional safety information.
et differs depending on the Wall-Mount
1 Remove the screws from the rear of the TV.
20
Page 21
2 Before installing the Wall-Mount Bracket, attach the Wall-Mount Attachment
Wall-Mount Attachment
(supplied with the TV)
(supplied with the TV) to the rear of the TV (to make it parallel with the wall).
Note
• Be sure to fasten the Wall-Mount Attachment when attaching them to the TV.
• Use only a flat head screwdriver to install the Wall-Moun
over torqueing the Wall-Mount Attachment and damaging the TV.
• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.
t Attachment. Use of another tool might result in
US
21
Page 22
Installing the TV against a wall or enclosed area
Leave at least this much space around the set.
Installed with stand
10 cm
30 cm
10 cm
6 cm
Installed on the wall
Leave at least this much space around the set.
10 cm
10 cm
10 cm
30 cm
Never install the TV set as follows:
Air circulation is blocked. Air circulation is blocked.
Wall Wall
Make sure that your TV has adequate ventilation. Allow enough space around the TV as
shown in the illustration.
Note
• Inadequate ventilation can lead to overheating of the TV and may cause damage to your TV or cause a
fire.
22
Page 23
Troubleshooting
Rear of TV
In order to keep your TV software up-todate, it is necessary to download the latest
software information via the digital
broadcasting system or internet and to
update the software. Select [Update Now]
to start a software update. The illumination
LED flashes white while the software is
updating. Do not unplug the AC power cord
during the software update. If you do, the
software update may not finish completely,
and it may cause a software malfunction.
Software updates can take up to 30
minutes. If you do not wish to update the
software automatically, press HOME and
select [Help] [System software update]
[Automatic software download] [Off].
When you unplug the TV and plug it in
again, the TV may not be able to turn on for
a while even if you press the power button
on the remote control or the TV because it
takes time to initialize the system. Wait for
about 10 to 20 seconds, then operate it
again.
When the illumination LED is flashing red,
count how many times it flashes (interval
time is three seconds).
If the illumination LED flashes red, reset the
TV by disconnecting the AC power cord for
two minutes, then turn on the TV.
If the problem persists, contact Sony
Customer Support (information provided
on the front cover) with the number of
times the illumination LED flashes red
(interval time is three seconds). Disconnect
the AC power cord, and contact Sony
Customer Support.
When the illumination LED is not
flashing, check the items as follows.
You can also refer to [Troubleshooting] in
the Help Guide or perform self-diagnosis by
selecting [Help] [Self diagnostics]. If the
problem persists, contact Sony Customer
Support (information provided on the front
cover).
Connect the TV to AC power, and press the
button on the TV or POWER button on the
remote control.
Some programs cannot be tuned.
Check the cable/antenna connection.
The remote control does not function.
Replace the batteries.
The Parental lock password has been
forgotten.
Enter 4357 for the PIN code. (PIN code 4357 is
always accepted.)
The TV and its surroundings become
warm.
When the TV is used for an extended period
of time, the TV and its surroundings may
become warm to the touch. This is not a
malfunction of the TV.
How to reset the TV to factory settings
Turn on the TV. You can reset the TV to
factory settings by pressing HOME, then
select [Settings] [Storage & reset]
[Factory data reset].
WARNING: The reset will clear all of your
cust
omized settings including the [Parental
lock] setting.
For security purposes, be sure to remove all
personal and account information before
discarding, selling or passing your TV to
someone else by: unlinking/unregistering,
signing out of and deactivating all network
services as well as factory reset the TV.
Frozen audio or video, a blank screen, or
the TV does not respond to TV or remote
control buttons.
Perform a simple reset of the TV by
unplugging the AC power cord for two
minutes, then plug it in again.
The , CH+/–, +/–, and TV buttons
cannot be located on the TV.
See below illustration for location of the
buttons on the TV.
US
Troubles and Solutions
There is no picture (screen is dark) and no
sound.
Check the cable/antenna connection.
23
Page 24
The illumination LED is turned on.
If you do not wish to light up the illumination
LED, you can turn it off.
Press HOME,
[Illumination LED] [Off].
then select [Settings]
Cannot connect to a wireless router by
WPS (Wi-Fi Protected Setup).
If you use WEP security, select [Easy]
[Wi-Fi] [Connect by scan list]. Then, select
the network name (SSID) you want to
connect.
Cannot find the required network name
in network setup.
Select [[Manual entry]] and press to enter
network name.
Specifications
System
Television system
An alo g: N TS C 3. 58 / PAL-M / PAL-N
Digital: SBTVD
Channel coverage
VHF: 2-13, UHF: 14-69
CATV (Analog): 1-135
Panel system
LCD (Liquid Crystal Display) Panel, LED
Backlight
Speaker output
12.5 W + 12.5 W + 12.5 W + 12.5 W + 20 W +
20 W
Wireless technology
Protocol IEEE802.11ac/a/b/g/n
Bluetooth Version 4.1
Input/Output jacks
ANTENNA/CABLE
75-ohm external terminal for RF inputs
/ VIDEO IN 1
Video / Audio input (mini jack)
COMPONENT IN
YPBPR (Component Video): 1080p (50, 60 Hz),
1080i (50, 60 Hz), 720p (50, 60 Hz), 576p,
576i, 480p, 480i
Audio input (phono pin jack)
VIDEO IN 2
Video input (common phono pin with Y
input)
HDMI IN 1/2/3/4 (Support 4K resolution)
Video (2D):
4096 × 2160p (50, 60 Hz)*
2
(24 Hz)*
, 3840 × 2160p (50, 60 Hz)*1, 3840
× 2160p (24, 25, 30 Hz), 1080p (30, 50,
60 Hz), 1080/24p, 1080i (50, 60 Hz), 720p
(30
, 50, 60 Hz), 720/24p, 576p, 576i, 480p,
480i, PC Formats
1
*
YCbCr 4:2:0 / 8bit only
2
*
3840 × 2160p is displayed when 4096 ×
2160p is input
Video (3D):
Frame Packing: 1080p (30 Hz), 1080/24p,
1
080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/
24p
Side-by-Side: 1080p (50, 60 Hz), 1080/24p,
1
080i (50, 60 Hz), 720p (50, 60 Hz)
Over-Under: 1080p (30, 50, 60 Hz), 1080/
2
4p, 1080i (50, 60 Hz), 720p (50, 60 Hz)
Audio: 5.1 channel linear PCM: 32, 44.1, 48,
8
8.2, 96, 176.4 and 192 kHz, 16, 20 and
24 bits, Dolby Digital and DTS
1*2
, 4096 × 2160p
24
Page 25
ARC (Audio Return Channel) (HDMI IN 4 only)
MHL (common with HDMI IN 2)
Video (2D):
4096 × 2160p (24 Hz)*, 3840 × 2160p (24,
25
, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p,
1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/
24p, 576p, 576i, 480p, 480i
* 3840 × 2160p is displayed when 4096 ×
2
160p is input
Video (3D):
Frame Packing: 1080p (30 Hz), 1080/24p,
10
80i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/
24p
Side-by-Side: 1080p (50, 60 Hz), 1080/24p,
10
80i (50, 60 Hz), 720p (50, 60 Hz)
Over-Under: 1080p (50, 60 Hz), 1080p (30
H
z), 1080/24p, 1080i (50, 60 Hz), 720p (50,
60 Hz)
Audio: 5.1 channel linear PCM: 32, 44.1, 48,
8
8.2, 96, 176.4 and 192 kHz, 16, 20 and
24 bits, Dolby Digital and DTS
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM,
Dolby Digital, DTS)
AUDIO OUT / (Stereo mini jack)
Headphone, Audio output, Subwoofer
1, 2, 3
USB port 1 and 2 support High Speed USB
(USB2.0).
USB port 3 supports Super Speed USB
(U
SB3.0).
LAN
10BASE-T/100BASE-TX connector
(Connection speed may differ depending on
the network environment. 10BASE-T/
100BASE-TX communication rate and
communication quality are not guaranteed
for this TV.)
Home Network
Refer to the Help Guide for supported
formats.
Others
Optional accessories
MHL Cable: DLC-MC10, DLC-MC20, DLC-MC30
Active 3D Glasses: TDG-BT500A
Operating temperature
0 ºC – 40 ºC
Power and others
Power requirement
110 V - 240 V AC, 50/60 Hz
Power consumption
in use
478 W
in standby*
Less than 0.5 W
Screen size (inches measured diagonally)
(Approx.)
189.3 cm / 74.5 inches (75 class)
Display resolution
3,840 dots (horizontal) × 2,160 lines (vertical)
Output Rating
USB 1
5 V, , 500 mA MAX
USB 2
5 V, , 500 mA MAX
USB 3
5 V, , 900 mA MAX
MHL (HDMI IN 2)
5V, 1.5 A MAX
* Standby power consumption will increase
when
your TV is connected to the network.
Dimensions (Approx.)
with stand
Edge position:
1,929 × 1,041 × 322 mm
Middle position:
1,929 × 1,048 × 322 mm
without stand
1,929 × 991 × 110 mm
wall-mount hole pattern
400 × 300 mm
wall-mount screw size (mm)
M6 (length: see diagram on page 20.)
Stand width (Approx.)
Edge position:
1,910 mm
Middle position:
707 mm
Mass (Approx.)
with stand
56.8 kg
without stand
56.0 kg
Note
• Optional accessories availability depends on
countries/region/TV model/stock.
• Design and specifications are subject to change
w
ithout notice.
• This TV set incorporates MHL 3.
US
25
Page 26
Licensing Information
• The terms HDMI and HDMI HighDefinition Multimedia Interface, and
the HDMI Logo are trademarks or
registered trademarks of HDMI
Licensing LLC in the United States and
other countries.
• Fergason Patent Properties, LLC:
U.S. Patent No. 6,816,141
• Manufactured under license from
Dolby Labor
double-D symbol are trademarks of
Dolby Laboratories.
•“BRAVIA” and , S-Force,
Motionflow, BRAVIA Sync, and are
trademarks or registered marks of
Sony C
• Gracenote, Gracenote eyeQ, Gracenote
deoID, Gracenote Video Explore, the
Vi
Gracenote logo and logotype, and the
“Powered by Gracenote” logo are
either registered trademarks or
trademarks of Gracenote in the United
States and/or other countries.
• Java and all Java-based trademarks
nd logos are trademarks or registered
a
trademarks of Oracle and/or its
affiliates. Other names may be
trademarks of their respective owners.
• ASTRO TV is a software developed by
OTVS S/A that comprises a complete
T
implementation of the Ginga
Middleware Standard, compliant with
Brazilian ABNT NBR-15606.
• GINGA® is a registered trademark of
PUC
• NCL® is a registered trademark of PUCRio
•Opera® Devices SDK from Opera
Softw
Opera Software ASA. All rights
reserved.
• Wi-Fi, Wi-Fi Direct, Miracast and Wi-Fi
rotected Setup are trademarks or
P
registered trademarks of Wi-Fi
Alliance.
atories. Dolby and the
orporation.
-Rio/UFPB
are ASA. Copyright 1995-2014
• MHL, Mobile High-Definition Link and
e MHL Logo are trademarks or
th
registered trademarks of MHL
Licensing, LLC.
• For DTS patents, see
http://patents.dts.com. Manuf
under license from DTS, Inc.
DTS, the Symbol, & DTS and the
ymbol together are registered
S
trademarks, and DTS Digital Surround
is a trademark of DTS, Inc. © DTS, Inc.
All Rights Reserved.
• Designed with UEI Technology™ Under
cense from Universal Electronics Inc.
Li
Portions © UEI 2000 - 2014
• The Bluetooth® word mark and logos
e owned by the Bluetooth SIG, Inc.
ar
and any use of such marks by Sony
Corporation is under license. Other
trademarks and trade names are those
of their respective owners.
• TUXERA is a registered trademark of
uxera Inc. in the US and other
T
countries.
• USB-IF SuperSpeed USB Trident logo is
registered trademark of USB
a
Implementers Forum, Inc.
• The N Mark is a trademark or
egistered trademark of NFC Forum,
r
Inc. in the United States and in other
countries.
actured
26
Page 27
US
27
Page 28
For Your Convenience
Online
Registration:
Software
Updates:
Be sure to register your TV.
http://esupport.sony.com/LA/perl/registration.pl
Your TV is capable of receiving software updates. For the
latest information about software updates for your TV, visit:
http://esupport.sony.com/LA/
NOTE: If your TV is connected to the Internet, you can check
for software updates by selecting [Help], [System software
update] and then [Check for a system software update].
©2015 Sony Corporation Printed in U.S.A. 4-573-176-E2(1)
Loading...
