Sony XAV-63 Operating Manual

4-410-680-21(1)

AV Center

XAV-63

Operating Instructions

Manual de instrucciones

Istruzioni per l’uso

Be sure to install this unit in the dashboard of the car for safety. For installation and connections, refer to the supplied “Installation/Connections” guide.

Warning

To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

This label is located on the bottom of the chassis.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or

0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-oflife to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Note on the lithium battery

Do not expose the battery to excessive heat such as direct sunlight, fire or the like.

Warning if your car’s ignition has no ACC position

Be sure to set the Auto Off function (page 38). The unit will turn off automatically in the set time when no source is selected, which prevents battery drainage. If you do not set the Auto Off function, press and hold (SOURCE/OFF) until the display disappears each time you turn the ignition off.

To cancel the demonstration (Demo) display, see page 42.

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

Table of Contents

Notes on safety. . . . . . . . . . . . . . . . . . . . . . . . . .7

Notes on installation. . . . . . . . . . . . . . . . . . . . . .7

Copyrights . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Playable discs and symbols used in these

Operating Instructions . . . . . . . . . . . . . . . . . . . .9

Location and function of

controls/terminals. . . . . . . . . . . . . . . . . . . . . . .10

Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . .10

RM-X170 Remote Commander . . . . . . . . . 12

Getting Started

Resetting the unit . . . . . . . . . . . . . . . . . . . . . . .14

Performing initial settings . . . . . . . . . . . . . . . .14

Setting the clock. . . . . . . . . . . . . . . . . . . . . . . .14

Preparing the remote commander . . . . . . . . . .14

Radio

Listening to the radio . . . . . . . . . . . . . . . . . . . .15

Reception controls. . . . . . . . . . . . . . . . . . . .15

Reception indications . . . . . . . . . . . . . . . . .16

Storing and receiving stations . . . . . . . . . . . . .16

Storing automatically — BTM . . . . . . . . . .16

Storing manually . . . . . . . . . . . . . . . . . . . . .16

Receiving stored stations. . . . . . . . . . . . . . .16

RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Setting AF and TA. . . . . . . . . . . . . . . . . . . .17

Selecting PTY . . . . . . . . . . . . . . . . . . . . . . .18

Setting CT . . . . . . . . . . . . . . . . . . . . . . . . . .18

Discs

Playing discs . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Playback controls . . . . . . . . . . . . . . . . . . . . 19

Playback indications. . . . . . . . . . . . . . . . . . 20

Using PBC (playback control) functions. . . . . 21

Configuring audio settings . . . . . . . . . . . . . . . 21

Changing the audio language/format . . . . . 21

Changing the audio channel . . . . . . . . . . . . 22

Adjusting the audio output level

— Dolby D level. . . . . . . . . . . . . . . . . . . . . 22

Repeat and shuffle play. . . . . . . . . . . . . . . . . . 22

Direct search play . . . . . . . . . . . . . . . . . . . . . . 23

USB Device Operations

Playing from a USB device. . . . . . . . . . . . . . . 24

Repeat and shuffle play. . . . . . . . . . . . . . . . . . 24

Enjoying music according to your mood

— SensMe™ . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Before using the SensMe™ function . . . . . 25

Installing “SensMe™ Setup” and “Content

Transfer” on your computer . . . . . . . . . . . . 25

Registering a USB device using “SensMe™

Setup” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Transferring tracks to the USB device using

“Content Transfer” . . . . . . . . . . . . . . . . . . . 26

Playing tracks in channels

— SensMe™ channels . . . . . . . . . . . . . . . . 26

Playing tracks in mood maps

— SensMe™ mood. . . . . . . . . . . . . . . . . . . 28

Searching for a track by listening to track

passages — ZAPPIN™ . . . . . . . . . . . . . . . . . . 29

iPod Operations

Sound Adjustment

Playing an iPod . . . . . . . . . . . . . . . . . . . . . . . . 29

Setting the play mode . . . . . . . . . . . . . . . . . . . 30

Repeat and shuffle play . . . . . . . . . . . . . . . . . . 30

Operating an iPod directly

— Passenger App Control. . . . . . . . . . . . . . . . 31

Useful Functions

Listing up tracks/images/video files

— List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Selecting a track/image/video file. . . . . . . . 31

Selecting a file type. . . . . . . . . . . . . . . . . . . 31

Using Gesture Command . . . . . . . . . . . . . . . . 32

Selecting the sound quality — EQ7 . . . . . . . . 32

Customizing the equalizer curve

— EQ7 Tune . . . . . . . . . . . . . . . . . . . . . . . 32

Adjusting the sound characteristics . . . . . . . . 33

Optimizing sound for the listening position

— Intelligent Time Alignment . . . . . . . . . . . . 33

Calibrating the listening position

— Intelligent Time Alignment Tune . . . . . 34

Speaker configuration and volume setup . . . . 34

Creating a virtual center speaker

— CSO. . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Using rear speakers like subwoofers

— Rear Bass Enhancer. . . . . . . . . . . . . . . . 34

Adjusting the speaker volume . . . . . . . . . . 35

Monitor Adjustment

Touch panel calibration . . . . . . . . . . . . . . . . . 35

Setting the background screen . . . . . . . . . . . . 35

Adjusting the picture — Picture EQ. . . . . . . . 36

Customizing the picture . . . . . . . . . . . . . . . 36

Selecting the aspect ratio . . . . . . . . . . . . . . . . 36

Settings

Basic setting operation. . . . . . . . . . . . . . . . . . .37

General settings . . . . . . . . . . . . . . . . . . . . . . . .38

Sound settings . . . . . . . . . . . . . . . . . . . . . . . . .40

Screen settings . . . . . . . . . . . . . . . . . . . . . . . . .42

DVD and other playback settings. . . . . . . . . . .43

Using Optional Equipment

Auxiliary audio/video equipment. . . . . . . . . . .45

Rear view camera. . . . . . . . . . . . . . . . . . . . . . .45

Rear view camera settings. . . . . . . . . . . . . .46

Additional Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Notes on LCD panel . . . . . . . . . . . . . . . . . .46

Notes on discs . . . . . . . . . . . . . . . . . . . . . . .47

Playback order of MP3/WMA/AAC/JPEG/

Xvid/MPEG-4 files . . . . . . . . . . . . . . . . . . .48

About MP3 files . . . . . . . . . . . . . . . . . . . . .48

About WMA files . . . . . . . . . . . . . . . . . . . .48

About AAC files . . . . . . . . . . . . . . . . . . . . .48

About JPEG files . . . . . . . . . . . . . . . . . . . . .48

About MPEG-4 files . . . . . . . . . . . . . . . . . .48

About iPod. . . . . . . . . . . . . . . . . . . . . . . . . .49

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . .49

Removing the unit . . . . . . . . . . . . . . . . . . . . . .50

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . .50

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .52

Error displays/messages . . . . . . . . . . . . . . .54

Language code/area code list. . . . . . . . . . . . . .55

Notes on safety

Notes on installation

• Comply with your local traffic rules, laws and regulations.

• While driving – Do not watch or operate the unit, as it may lead

to distraction and cause an accident. Park your car in a safe place to watch or operate the unit.

– Do not use the setup feature or any other

function which could divert your attention from the road.

– When backing up your car, be sure to

look back and watch the surroundings carefully for your safety, even if the rear view camera is connected. Do not depend on the rear view camera exclusively.

• While operating – Do not insert your hands, fingers or foreign

object into the unit, as it may cause injury or

damage to the unit. – Keep small articles out of the reach of children. – Be sure to fasten seatbelts to avoid injury in the

event of a sudden movement of the car.

Preventing an accident

Pictures appear only after you park the car and set the parking brake. If the car starts moving during video playback, the picture is automatically switched to the background screen after displaying the caution below.

“Video blocked for your safety.”

The monitor connected to the REAR VIDEO OUT is active while the car is in motion. The picture on the display is switched to the background screen, but audio source can be heard.

Do not operate the unit or watch the monitor while driving.

• We recommend this unit should be installed by a qualified technician or service personnel. – If you try to install this unit by yourself, refer to

the supplied “Installation/Connections” guide and install the unit properly.

– Improper installation may cause battery drain or

a short circuit.

• If the unit does not work properly, check the connections first, referring to the supplied “Installation/Connections” guide. If everything is in order, check the fuse.

• Protect the unit surface from damage. – Do not expose the unit surface to chemicals,

such as insecticide, hair spray, insect repellent, etc.

– Do not leave rubber or plastic materials in

contact with the unit for a long time. Otherwise, the finish of the unit may be impaired, or deformation may occur.

• When installing, be sure to fix securely.

• When installing, be sure to turn the ignition off. Installing the unit with the ignition on may cause battery drain or a short circuit.

• When installing, be sure not to damage any car parts such as pipes, tubes, fuel tank or wiring by using a drill, as it may cause a fire or an accident.

Copyrights

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Microsoft, Windows, Windows Vista and Windows Media and logos are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

“DVD VIDEO,” “DVD-R,” “DVD-RW,” “DVD+R,” and “DVD+RW” are trademarks.

ZAPPIN is a trademark of Sony Corporation.

12 TONE ANALYSIS and its logo are trademarks of Sony Corporation.

“WALKMAN” and “WALKMAN” logo are registered trademarks of Sony Corporation.

SensMe and the SensMe logo are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB.

Music recognition technology and related data are provided by Gracenote®. Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and videorelated data from Gracenote, Inc., copyright © 2000 to present Gracenote. Gracenote Software, copyright © 2000 to present Gracenote. One or more patents owned by Gracenote apply to this product and service. See the Gracenote website for a non-exhaustive list of applicable Gracenote patents.

Gracenote, CDDB, MusicID, MediaVOCS, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

This product uses font data which is licensed to Sony by Monotype Imaging Inc. or its affiliates.

iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

Apple, Macintosh and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER FOR DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM

All other trademarks are trademarks of their respective owners.

Playable discs and symbols used in these Operating Instructions

This unit can play various video/audio discs. The following chart helps you to check if a disc is supported by this unit, as well as what functions are available for a given disc type.

Disc symbol in manual Disc format

DVD VIDEO

DVD-R*

/DVD-R DL*1/DVD-RW*

(Video mode/VR mode)

VIDEO

DVD+R*

/DVD+R DL*1/DVD+RW*

Video CD

(Ver. 1.0/1.1/2.0)

Audio CD

AUDIO

*1 Audio files can also be stored. *2 Video/image files can also be stored.

Note

“DVD” may be used in these Operating Instructions as a general term for DVD VIDEOs, DVD-Rs/DVD-RWs, and DVD+Rs/DVD+RWs.

CD-ROM*

/CD-R*2/CD-RW*

The following chart shows the supported file types and their symbols. Available functions differ depending on the format, regardless of disc type. The format symbols below appear in these Operating Instructions next to the description of functions available for their corresponding file types.

Format symbol in manual File type

MP3 audio file

WMA audio file

AAC audio file

JPEG image file

Xvid video file

MPEG-4

Tip

For details on compression formats, see page 48.

Note

Even compatible discs may not be playable on this unit, depending on their recording condition.

MPEG-4 video file

Location and function of controls/terminals

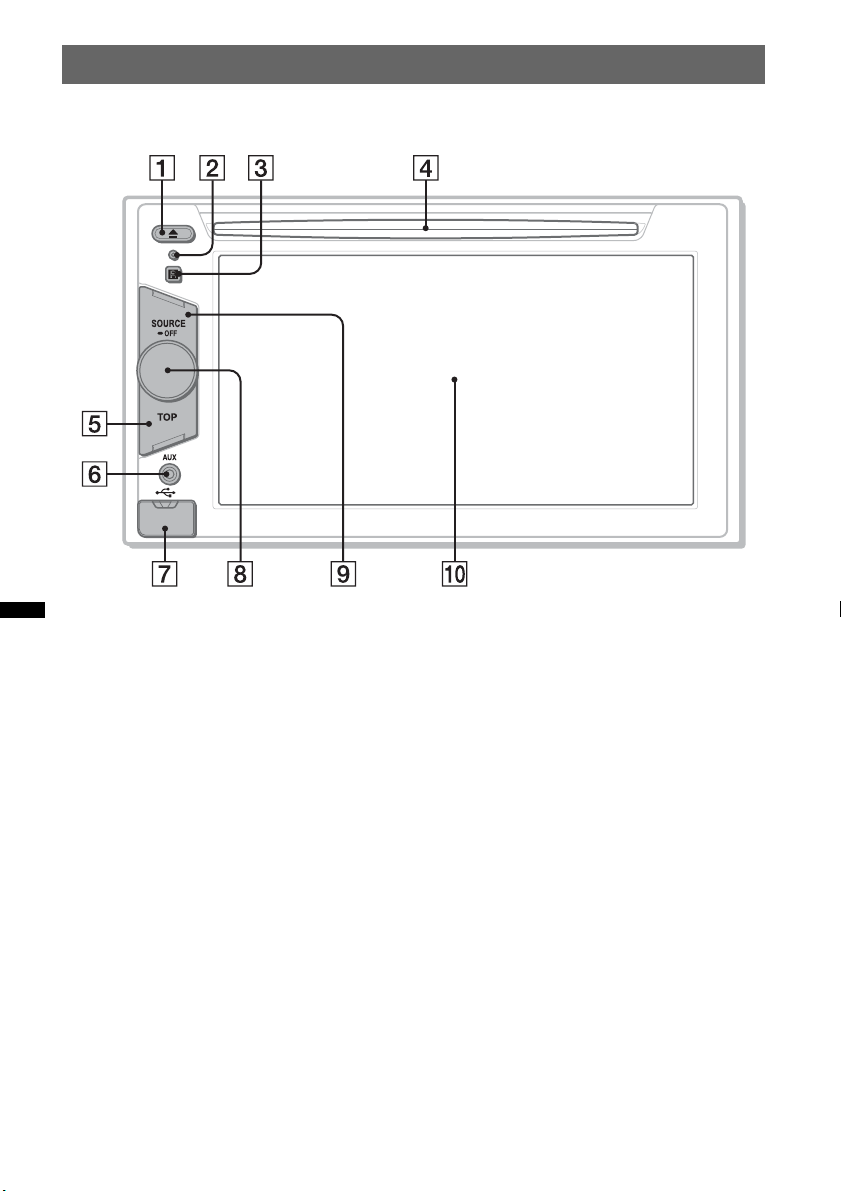

Main unit

For details, see the pages listed below.

A Z (Eject) button page 18

B Reset button page 14

C Receptor for the remote commander

D Disc slot page 18

E TOP button

Press to open the source list.

F Front AUX terminal page 45

G USB terminal

Remove the cap to connect a USB device.

H Volume control dial

I SOURCE/OFF button

Press to turn on the power/change the source: “Tuner” (Radio), “Disc,” “iPod/USB,” “AUX” (Auxiliary equipment). Press and hold for 1 second to exit the source. Press and hold for more than 2 seconds to turn off.

J Display/touch panel

Screen displays

When no source is selected:

A “Source List” key

Touch to open the source list.

B “Top” key

Touch to open the source list.

Source List Top

Source list:

45 67

ATT

M.OFF

C Clock page 14, 42

D (Close) key

Touch to close the menu.

E “ATT” (Attenuate) key*

Touch to attenuate the sound. To cancel, touch again.

F (Setting) key

Touch to open the setting menu.

G “M.OFF” (Monitor off) key

Touch to turn off the monitor and the button illumination. To turn back on, touch anywhere on the display.

H Source select keys

Touch to change the source: “Tuner” (Radio), “Disc,” “AUX” (Auxiliary equipment), “iPod/USB,” “SensMe™.”

* Appears only when a source is selected.

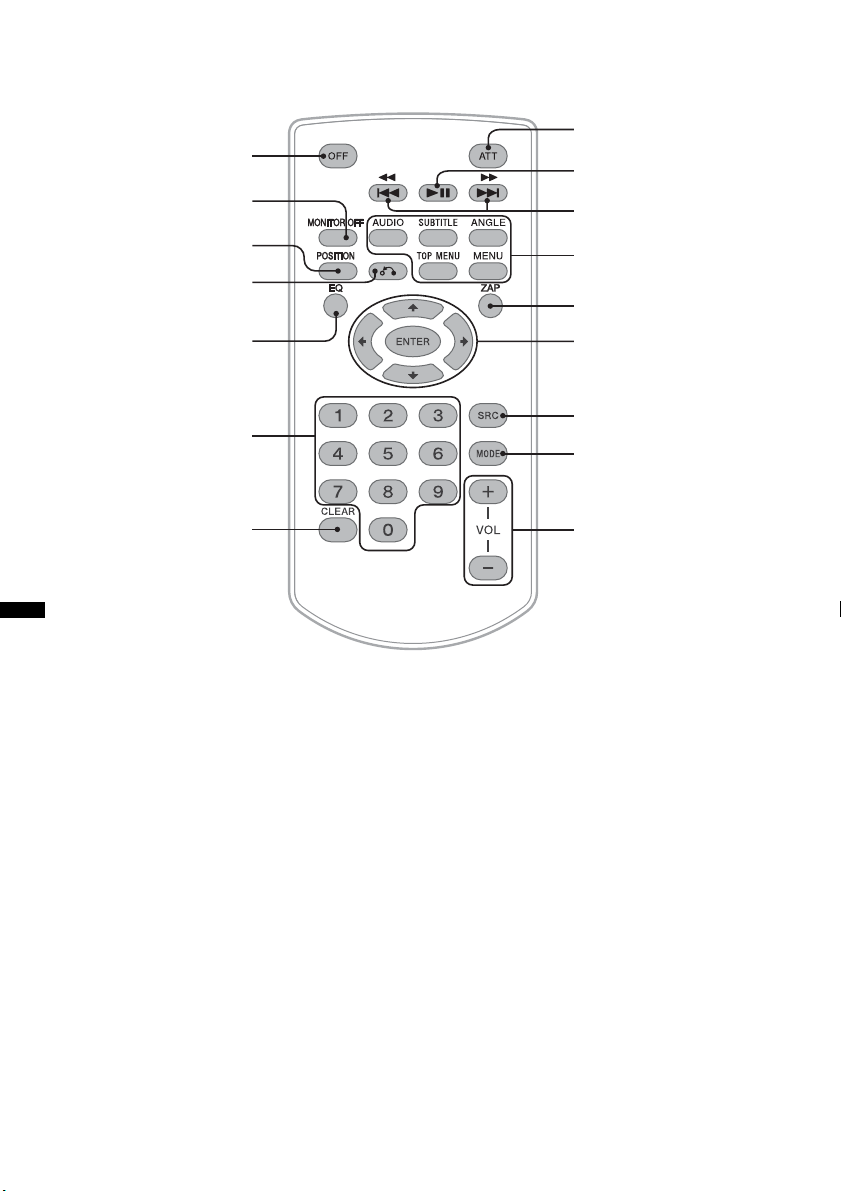

RM-X170 Remote Commander

8 9 q;

3 4

• The remote commander can be used to operate the audio controls. For menu operations, use the touch panel.

• For details, see the pages listed below.

• Remove the insulation film before use (page 14).

A OFF button

Press to exit the source/stop the source. Press and hold to turn off.

B MONITOR OFF button

Press to turn off the monitor and the button illumination. To turn back on, press again.

C POSITION button

Press to switch the listening position (“Front L”/“Front R”/“Front”/“All”/“Custom”/ “OFF”).

qs qd

qf qg

E EQ (Equalizer) button

Press to select an equalizer curve from 7 music types (“Xplod”/“Vocal”/“Edge”/ “Cruise”/“Space”/“Gravity”/“Custom”/ “OFF”).

F Number buttons page 23

Radio:

Press to receive stored stations. Press and hold to store stations.

Disc/USB:

Press to locate a title/chapter/track.

G CLEAR button

Press to delete an entered number.

H ATT (Attenuate) button

Press to attenuate the sound. To cancel, press again.

D O (Return) button

Press to return to the previous display/return

to the menu on a VCD*

I u (Play/Pause) button

J .m/M> buttons

Radio:

Press to tune to stations automatically. Press and hold to find a station manually.

Disc*

/USB:

Press to skip a chapter/track/scene/file. Press and hold momentarily to reverse/ fast-forward video. Press and hold to reverse/fast-forward a track.

K DVD playback setting buttons

(AUDIO):

Press to change the audio language/format. (For a VCD/CD/MP3/WMA/AAC/MPEG4, to change the audio channel.)

(SUBTITLE):

Press to change the subtitle language.

(ANGLE):

Press to change the viewing angle.

(TOP MENU):

Press to open the top menu on a DVD.

(MENU):

Press to open the menu on a disc.

L ZAP button

Press to enter ZAPPIN™ mode.

M </M/m/, (Cursor)/ENTER buttons

page 18

Press to control the menu on a DVD.

*1 When playing with PBC functions. *2 Operation differs depending on the disc (page 19). *3 When two auxiliary devices are used.

Note

The remote commander will not operate when the unit is turned off and the display has disappeared. Press (SOURCE/OFF) on the main unit, or insert a disc to activate the unit and enable operation via the remote commander.

N SRC (Source) button

Press to turn on/change the source: “Tuner” (Radio), “Disc,” “iPod/USB,” “AUX” (Auxiliary equipment).

O MODE button

Press to select the radio band (FM/MW/LW)/ select an auxiliary device (Front AUX/Rear

AUX)*

P VOL (Volume) +/– buttons

Getting Started

Setting the clock

Resetting the unit

Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit. Press the reset button (page 10) with a pointed object, such as a ballpoint pen.

Note

Pressing the reset button will erase the clock setting and some stored contents.

Performing initial settings

After resetting, the display for the initial settings appears.

Initial Setting

Rear/Sub Out

Listening Position

Language

1 Touch “Rear/Sub Out” to set the

subwoofer connection status.

If a subwoofer is connected, select “Sub.” If a power amplifier is connected, select “Rear.” If neither a subwoofer or power amplifier is connected, you can select either “Sub” or “Rear.”

2 Touch “Listening Position” to set the

listening position.

Set to “Front L” if your listening position is front left, or “Front R” if front right.

3 Touch “Language” to set the display

language.

Touch repeatedly until the desired language (English/Spanish/Russian) appears.

4 Touch “OK.”

The setting is complete.

This setting can then be further configured in the setting menu.

• For details on setting the subwoofer connection status, see page 41.

• For details on setting the listening position, see “Optimizing sound for the listening position — Intelligent Time Alignment” on page 33.

• For details on setting the display language, see page 38.

Rear / Sub

Front L / Front R

English

The clock uses a 24-hour indication.

1 Touch “Source List,” then .

The general setting menu appears. If not, touch “General.”

2 Touch “Clock Adjust.”

The setting display appears.

3 Set the hour and minute.

For example, to set to 8:30, touch “0830.”

4 Touch “OK.”

The setting is complete.

To delete an entered number, touch “Clear.” To return to the previous display, touch “Back.”

Preparing the remote commander

Before using the remote commander for the first time, remove the insulation film.

Radio

Listening to the radio

1 Touch “Source List,” then “Tuner.”

The radio reception display appears, and the preset list is displayed automatically.

ATTSource List

TA AF Top

Reception controls

Touch the display if the reception controls are not displayed.

2 3 4 5

ATT

Source List

TA AF Top

P1 P2 P3

P4 P5 P6

Receive

Band

Preset

List

BTM

Memory

PTY List

2 Touch “Band.”

The band list appears.

ATT

Source List

FM1

TA AF Top

FM2 FM3 LW

Band

Receive

Preset

List

PTY List

3 Touch the desired band (“FM1,” “FM2,”

“FM3,” “MW,” or “LW”).

Touch “Band” again to close the band list.

4 Perform tuning.

To tune automatically

Touch

./>.

Scanning stops when the unit receives a station. Repeat this procedure until the desired station is received.

To tune manually

Touch

m/M repeatedly until the desired

frequency is received. To skip frequencies continuously, touch and hold

m/M.

Receive

Band

678

9 0 qa

1 “Source List”

Touch to open the source list. (page 11)

2 “ATT”

Touch to attenuate the sound. To cancel, touch again.

3 “TA”

Touch to set TA in RDS. (page 17)

4 “AF”

Touch to set AF in RDS. (page 17)

5 “Top”

Touch to open the source list. (page 11)

6 m/M

Touch to tune manually. Touch and hold to continuously skip frequencies.

7 ./>

Touch to tune automatically.

8 “Band”

Touch to open the band list and change the band.

9 “Receive Menu”

Touch to open the receive menu, which contains the following items.

• “Regional” (page 17)

0 “Preset List”

Touch to list up stored stations, or store stations. (page 16)

qa “PTY List”

Touch to open the PTY list. (page 18)

Preset

List

PTY List

Reception indications

Storing and receiving stations

ATT

TA AF Top

Band

Receive

Preset

List

PTY

List

Source List

A Current source icon* B Band name, preset number*2, frequency*3/

status

C Volume level*

D EQ7 setting status

*1 Appears only when the controls are displayed. *2 Appears only when a preset station is received. *3 While receiving an RDS station, the program

service name appears. For details, see “RDS” on page 17.

*4 When ATT is activated, appears.

Caution

When tuning to stations while driving, use Best Tuning Memory (BTM) to prevent an accident.

Storing automatically — BTM

1 Touch “Source List,” then “Tuner.”

To change the band, touch “Band,” then select the desired band (“FM1,” “FM2,” “FM3,” “MW,” or “LW”).

2 Touch “Preset List,” then “BTM.”

The unit stores the first six available stations in the preset list (“P1” to “P6”). A beep sounds when the setting is stored.

Storing manually

1 While receiving the station that you

want to store, touch “Preset List.”

2 Touch “Memory,” then touch a number

in the list (“P1” to “P6”).

The number and the confirmation display appear.

3 Touch “Yes.”

The station is stored.

Note

If you try to store another station to the same number, the previously stored station will be replaced.

Tip

When an RDS station is stored, the AF/TA setting is also stored (page 17).

Receiving stored stations

1 Select the band, then touch “Preset

List.”

2 Touch the desired number (“P1” to

“P6”).

RDS

Overview

FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio program signal.

Display items

ATT

TA AF TopSource List

Receive

Preset

Band

A Band name, preset number, frequency

(program service name), RDS data, TA*

B RDS*2, TP*

C Clock

*1 During traffic information. *2 During RDS reception. *3 During traffic program reception.

RDS services

This unit automatically provides RDS services as follows:

PTY

List

Notes

• Depending on the country/region, not all RDS functions may be available.

• RDS will not work if the signal strength is too weak, or if the station you are tuned to is not transmitting RDS data.

Setting AF and TA

1 During reception/playback, touch “AF”

or “TA” to activate either function.

When activated, the key color changes. To deactivate, touch again.

Storing RDS stations with the AF and TA setting

You can preset RDS stations along with the AF/ TA setting. If you use the BTM function, only RDS stations are stored using the same AF/TA setting. If you preset manually, you can preset both RDS and non-RDS stations with the AF/TA setting for each.

1 Set AF/TA, then store the station with BTM or

manually.

Receiving emergency announcements

With AF or TA on, emergency announcements will automatically interrupt the currently selected source.

Tip

If you adjust the volume level during a traffic announcement, that level will be stored into memory for subsequent traffic announcements, independently from the regular volume level.

AF (Alternative Frequencies)

Selects and retunes the station with the strongest signal in a network. By using this function, you can continuously listen to the same program during a long-distance drive without having to retune the same station manually.

TA (Traffic Announcement)/TP (Traffic Program)

Provides current traffic information/programs. Any information/program received will interrupt the currently selected source.

PTY (Program Types)

Displays the currently received program type. Also searches for a designated program type.

CT (Clock Time)

The CT data from the RDS transmission sets the clock.

Staying with one regional program — Regional

When the AF function is on, this unit’s factory setting restricts reception to a specific region, so you will not be switched to another regional station with a stronger frequency.

If you leave this regional program’s reception area, deactivate the regional function during FM reception. Touch “Receive Menu,” then the “Regional” box to set to “OFF.”

Note

This function does not work in the UK and in some other areas.

Local Link function (UK only)

This function enables you to select other local stations in the area, even if they are not stored on numbers.

1 During FM reception, touch “Preset List,” then

a number (“P1” to “P6”) to which a local station is stored.

2 Within 5 seconds, touch the number of the

local station again. Repeat this procedure until the local station is received.

Selecting PTY

1 During FM reception, touch “PTY List.”

The PTY list appears if the station is transmitting PTY data. To scroll the list, touch v/V.

2 Touch the desired program type.

The unit searches for a station broadcasting the selected program type.

To close the PTY list, touch “PTY List.”

Type of programs

“News” (News), “Current Affairs” (Current Affairs), “Information” (Information), “Sport” (Sports), “Education” (Education), “Drama” (Drama), “Cultures” (Culture), “Science” (Science), “Varied Speech” (Varied), “Pop Music” (Pop Music), “Rock Music” (Rock Music), “Easy Listening”

(M.O.R. Music), “Light Classics M” (Light classical), “Serious Classics” (Serious classical), “Other Music” (Other Music), “Weather & Metr” (Weather), “Finance” (Finance), “Children’s Progs” (Children’s program), “Social Affairs” (Social Affairs), “Religion” (Religion), “Phone In” (Phone In), “Travel & Touring” (Travel), “Leisure & Hobby” (Leisure), “Jazz Music” (Jazz Music), “Country Music” (Country Music),

“National Music” (National Music), “Oldies Music” (Oldies Music), “Folk Music” (Folk Music), “Documentary” (Documentary)

Notes

• You cannot use this function in countries/regions where no PTY data is available.

• You may receive a different radio program from the one you select.

Discs

Playing discs

Depending on the disc, some operations may be different or restricted. Refer to the operating instructions supplied with your disc.

1 Insert the disc (label side up).

Playback starts automatically.

If the DVD menu appears

Touch the item in the DVD menu. You can also use the menu control panel, which can be displayed by touching outside of the DVD menu. Touch b/v/V/B to move the cursor, then touch “ENTER” to confirm. If the menu control panel does not appear by touching the display, use the remote commander.

About the DVD menu

A DVD is divided into several sections, which make up a picture or music feature. These sections are called “titles.” When you play a DVD that contains several titles, you can select a desired title using the DVD’s top menu. For DVDs that allow you to select items such as subtitle/sound language(s), select these items using the DVD menu.

If the disc contains JPEG files

The slide show starts automatically.

To stop playback

Press and hold (SOURCE/OFF) for 1 second.

Note

Discs in DTS format are not supported. The sound is not output if the DTS format is selected.

To eject the disc

1 Press Z on the main unit.

Setting CT

1 Set “CT” to “ON” in setting (page 39).

Notes

• The CT function may not work even though an RDS station is being received.

• There may be a difference between the time set by the CT function and the actual time.

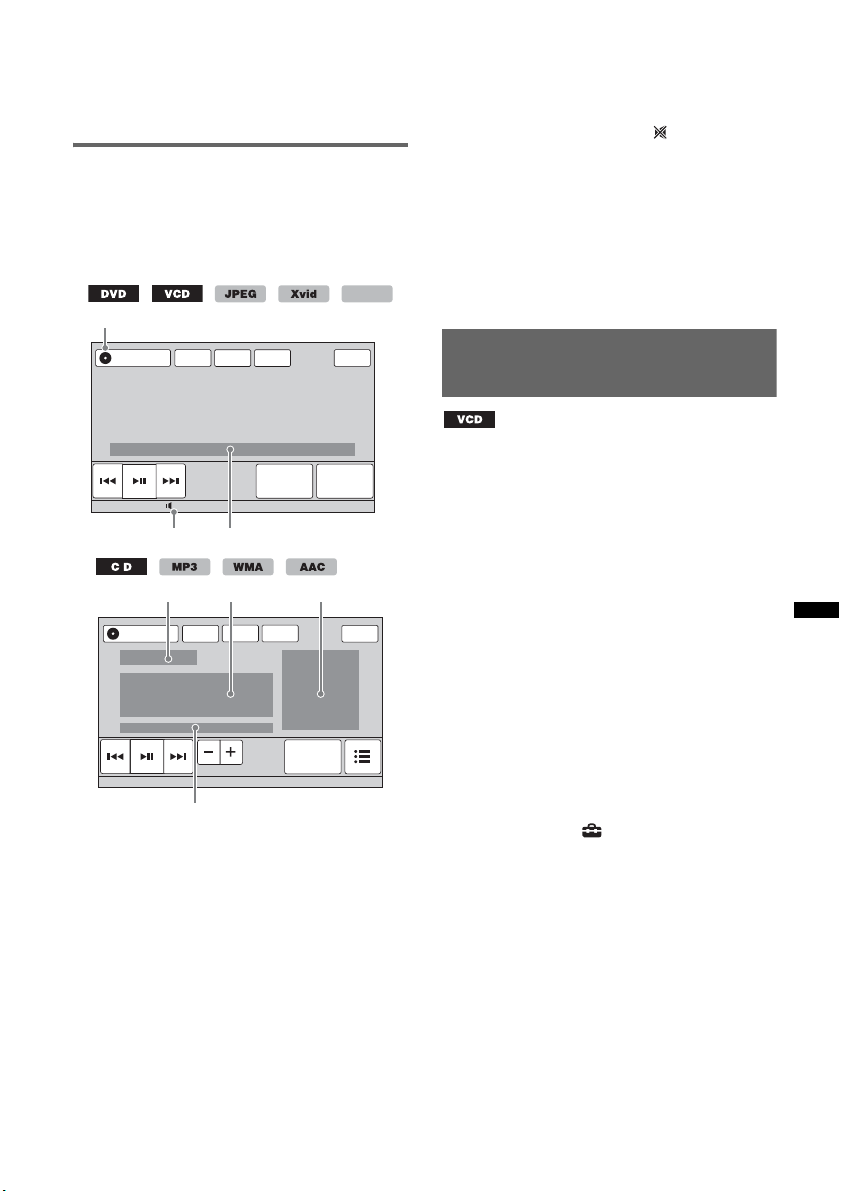

Playback controls

Touch the display if the playback controls are not displayed.

Common to all discs/formats

2 3

MPEG-4

ATT

TA AF

TopSource List

Source List

ATT TA AF Top

Source List

ATT TA AF Top

PBC Panel

DVD

Control

DVD

Control

Play Menu

Album

Play Menu

1 “Source List”

Touch to open the source list. (page 11)

2 “ATT”

Touch to attenuate the sound. To cancel, touch again.

3 “Top”

Touch to open the source list. (page 11)

4 ./>

Touch to skip a chapter/track/scene/ image/file.

Touch and hold momentarily to reverse/ fast-forward the video; and then repeatedly to switch the speed (× 2 t ×12 t × 120 t ×2…)*

touch u. Touch and hold to reverse/fast-forward

the audio track. During pause, touch and hold down >

to play the video in slow motion. To cancel, release the key.

5 u

Touch to pause/resume play after pause.

6 “Play Menu”

Touch to open the play menu, which contains the following items.

• “Repeat”/“Shuffle” (page 22)

• “Dolby D Level” (DVD VIDEO

playback only) (page 22)

• “Image Turn” (JPEG playback only):

Touch to rotate an image left/right.

• “Audio” (page 22)

. To cancel,

7 “DVD Control”

Touch to open the DVD control menu, which contains the following items.

• “Audio”: Touch repeatedly to select

the audio language/format. (page 21)*

• “Subtitle”: Touch repeatedly to turn

off/select the subtitle language.*

• “Angle”: Touch repeatedly to change

the viewing angle.*

• “Top Menu”: Touch to open the top

menu on the DVD.*

• “Menu”: Touch to open the menu on

the disc.*

2*3

8 “PBC Panel”

Touch to display the control panel for the PBC menu. (page 21)

9 “Album” –/+

Touch to skip an MP3/WMA/AAC/JPEG/ Xvid/MPEG-4 album (folder).

0 (List)

Touch to list up tracks/images/video files. (page 31)

*1 The speed depends on the format or the recording

method.

*2 Availability depends on the disc. *3 When the 4-digit input prompt appears, input the

language code (page 55) for the desired language.

Note

If the disc contains multiple file types, only the selected file type (audio/video/image) can be played. For details on how to select the file type, see “Selecting a file type” on page 31.

Notes on JPEG playback

• If a large-sized image is rotated, it may take longer to display.

• Progressive JPEG files cannot be displayed.

Playback indications

Touch the display if the indications are not displayed. For audio discs, some indications are always displayed during playback.

MPEG-4

Source List

A Current source icon B Volume level* C Format, playback status, elapsed playback

time* number* status, play mode status (repeat/shuffle)

D Playback status, elapsed playback time* E Track name, artist name, album name F Album artwork display* G Format, track number, album number*7, EQ7

setting status, play mode status (repeat/ shuffle)

*1 When ATT is activated, appears. *2 During JPEG playback or VCD playback with PBC

functions, no indication appears.

*3 Indications differ depending on the disc/format. *4 When playing a VCD with PBC functions

(page 21), no indication appears.

*5 DVD only. *6 The recommended size is from 240 × 240 to 960 ×

960 pixels.

*7 MP3/WMA/AAC only.

ATT TA AF Top

DVD

Play Menu

Control

B C

D E

ATT

Album

TA AF

Play Menu

, chapter/title/album (folder)/track

3*4

, audio format*5, EQ7 setting

TopSource List

Using PBC (playback control) functions

The PBC menu interactively assists with operations while a PBC-compatible VCD is played.

1 Start playing a PBC-compatible VCD.

The PBC menu appears.

2 Touch “PBC Panel.”

The menu control panel appears.

3 Touch the number keys to select the

desired item, then touch “ENTER.”

4 Follow the instructions in the menu for

interactive operations.

To return to the previous display, press O. To hide the controls, touch “Close.”

Playing without PBC functions

1 While no source is selected, touch

“Source List,” then .

2 Touch “Visual.”

The visual setting menu appears.

3 Tou ch v/V to scroll, then touch “Video

CD PBC” to set to “OFF.”

4 Start playing a VCD.

The PBC menu does not appear during playback.

Notes

• The items on the menu, and operation procedures

differ depending on the disc.

• During PBC playback, the track number, playback

item, etc., do not appear on the playback display.

• Resume playback is unavailable during playback

without PBC.

Configuring audio settings

Note

Discs in DTS format are not supported. The sound is not output if the DTS format is selected.

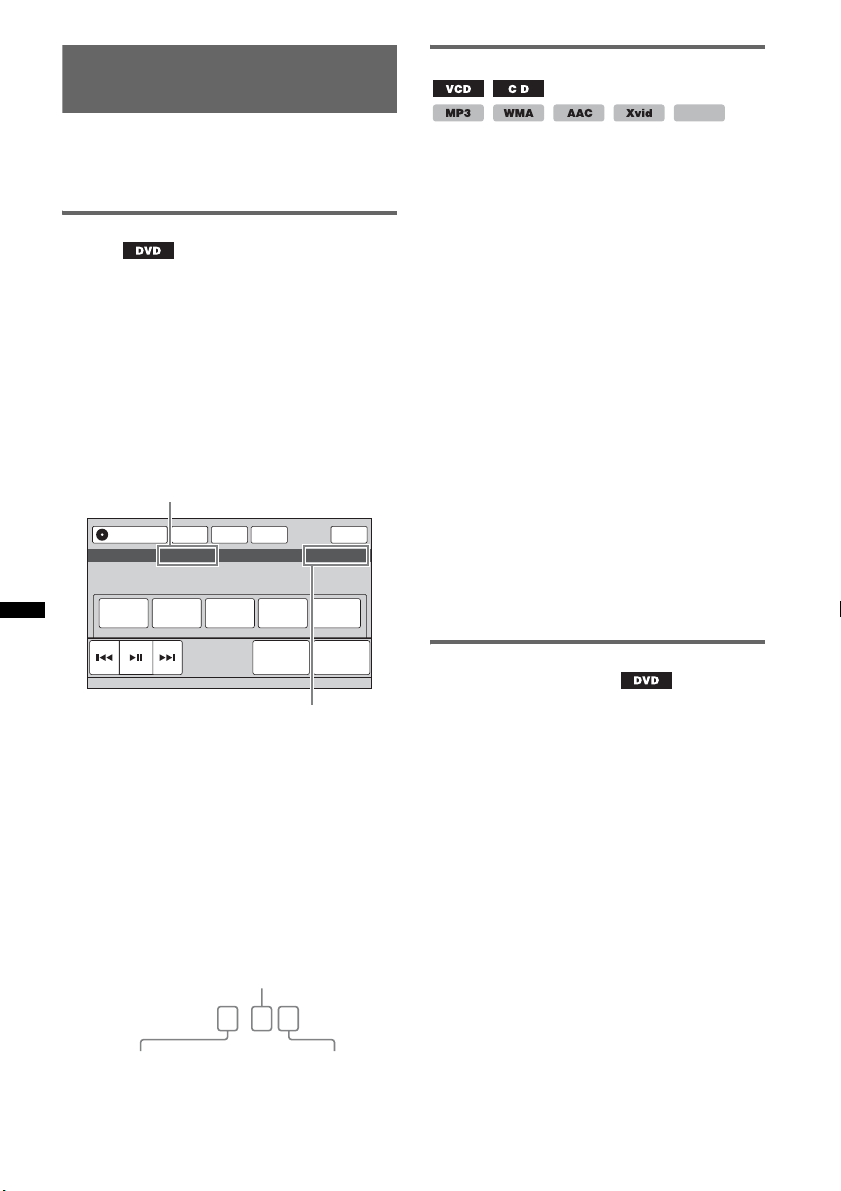

Changing the audio language/ format

The audio language can be changed if the disc is recorded with multilingual tracks. You can also change the audio format when playing a disc recorded in multiple audio formats (e.g., Dolby Digital).

1 During playback, touch “DVD Control.” 2 Touch “Audio” repeatedly until the

desired audio language/format appears.

Audio language

Source List

Audio 1: English Dolby D 3/2.1

Audio Subtitle Angle MenuTop Menu

The audio language switches among the available languages. When the 4-digit input prompt appears, input the language code (page 55) for the desired language. When the same language is displayed two or more times, the disc is recorded in multiple audio formats.

* The format name and channel numbers appear as

follows: Example: Dolby Digital 5.1 ch

ATT TA AF Top

DVD

Play Menu

Control

Audio format/channel numbers*

Rear channel × 2

Dolby D 3 / 2 . 1

Front channel × 2 + Center channel × 1

To close the DVD control menu, touch “DVD Control.”

LFE channel × 1

Changing the audio channel

MPEG-4

When playing a VCD/CD/MP3/WMA/AAC/ Xvid/MPEG-4, you can listen to both the right and left channel, only the right channel, or only the left channel via both the right and left speakers. The options are indicated below.

“Stereo”: Standard stereo sound (default) “1/Left”: Left channel sound (monaural) “2/Right”: Right channel sound (monaural)

1 During playback, touch “Play Menu,”

then “Audio” repeatedly until the desired audio channel appears.

To close the play menu, touch “Play Menu.”

Note

You may not be able to change the audio setting depending on the disc.

Tip

Operation via the remote commander by pressing (AUDIO) repeatedly is also available.

Adjusting the audio output level — Dolby D level

You can adjust the audio output level for a DVD recorded in Dolby Digital format, to reduce the volume level differences between discs.

1 During playback, touch “Play Menu.” 2 Touch the “Adjust” box to set to “ON.” 3 Touch –/+ repeatedly to adjust the

output level.

The output level is adjustable in single steps, between –10 and +10.

To close the play menu, touch “Play Menu.”

Repeat and shuffle play

1 During playback, touch “Play Menu,”

then the “Repeat” or “Shuffle” box repeatedly until the desired option appears.

Source List

Chapter OFF ON

Repeat Shuffle Adjust Dolby D Level 0

Repeat or shuffle play starts. To close the play menu, touch “Play Menu.” The repeat options and switching order of each

disc/format are indicated below.

Disc/format Options

MPEG-4

ATT TA AF Top

“OFF”: Returns to normal play

mode. “Chapter”: Repeats the current chapter. “Title”: Repeats the current title.

“OFF”: Returns to normal play

mode. “Track”: Repeats the current track.

“OFF”: Returns to normal play mode. “Track”: Repeats the current track. “Album”: Repeats the current album (folder).

“OFF”: Returns to normal play mode. “Image”: Repeats the current image. “Album”: Repeats the current album.

“OFF”: Returns to normal play mode. “Movie”: Repeats the current video file. “Album”: Repeats the current album (folder).

MPEG-4

DVD

Control

Play Menu

The shuffle options and switching order of each disc/format are indicated below.

Disc/format Options

“OFF”: Returns to normal play

mode.

“Title”: Plays chapters in the current title in random order.

“OFF”: Returns to normal play

mode. “Disc”: Plays tracks in the current disc in random order.

“OFF”: Returns to normal play mode. “Album”: Plays tracks/images/ video files in the current album (folder) in random order.

MPEG-4

*1 Available only when playing a version 1.0/1.1 VCD,

or a version 2.0 VCD without PBC functions.

*2 Excluding a DVD-R/DVD-R DL/DVD-RW in VR

mode.

Direct search play

You can directly locate a desired point by specifying the title number, chapter number, etc.

1 During playback, press the number

buttons on the remote commander to enter an item (track, title, etc.) number, then press (ENTER).

Playback starts from the beginning of the selected point.

The search items for a disc/format are as follows:

DVD: Title or chapter* VCD*2/CD/MP3/WMA/AAC: Track JPEG: Image Xvid/MPEG-4: Movie

*1 The search item depends on the setting. *2 Available only when playing a VCD without PBC

functions.

Setting the search item (DVD only)

You can set the search item (title or chapter) for DVD playback.

1 Touch “Source List,” then touch . 2 Touch “Visual.”

The visual setting menu appears.

3 Touch v/V to scroll, then touch “DVD

Direct Search” to set to “Chapter” or “Title.”

The setting is complete.

To return to the previous display, touch “Back.”

MPEG-4

USB Device Operations

• MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the USB standard can be used.

• Compatible codecs are MP3 (.mp3), WMA (.wma), AAC (.m4a), JPEG (.jpg), Xvid (.avi), and MPEG-4 (.mp4).

• Backup of data in a USB device is recommended.

For details on the compatibility of your USB device, visit the support site on the back cover.

Notes

• Connect the USB device after starting the engine. Depending on the USB device, malfunction or damage may occur if it is connected before starting the engine.

• A large-sized file may take time to start playing.

Playing from a USB device

1 Remove the cap from the USB

connector, and connect the USB device to the USB connector.

Playback starts automatically. If a USB device is already connected, touch “Source List,” then “iPod/USB” to start playback.

For details on the location of the USB connector, see “Location and function of controls/terminals” (page 10).

About the playback controls and indications

You can control USB playback in the same way as disc playback. For details, see “Playback controls” on page 19. For details on playback indications, see “Playback indications” on page 20.

To stop playback

Press and hold (SOURCE/OFF) for 1 second.

To disconnect the USB device

Stop playback, then disconnect. Do not disconnect during playback, as data in the USB device may be damaged.

Notes on use

• Do not use USB devices so large or heavy that they may fall down due to vibration, or cause a loose connection.

• Do not leave a USB device in a parked car, as malfunction may result.

• This unit cannot recognize USB devices via a USB hub.

• Be sure to use the USB cable supplied with the device if a cable is needed when making a USB connection.

Notes on playback

• If a USB device contains multiple file types, only the selected file type (audio/video/image) can be played. For details on how to select the file type, see “Selecting a file type” on page 31.

• Displayed indications will differ, depending on the USB device, recorded format and settings. For details, visit the support site on the back cover.

• The maximum number of displayable data is as follows: – folders (albums): 256 – files (tracks): 2,000

• It may take time for playback to begin, depending on the amount of recorded data.

• DRM (Digital Rights Management) files may not be played.

• During playback or reverse/fast-forward of a VBR (Variable Bit Rate) MP3/WMA/AAC file, elapsed playing time may not display accurately.

• Playback of a lossless compression file is not supported.

Repeat and shuffle play

1 During playback, touch “Play Menu,”

then the “Repeat” or “Shuffle” box repeatedly until the desired option appears.

Repeat or shuffle play starts.

The repeat options are as follows:

“OFF”: Returns to normal play mode. “Track”/“Image”/“Movie”*

current track/image/video file.

“Album”: Repeats the current album (folder). “Drive”*

: Repeats the current drive.

The shuffle options are as follows:

“OFF”: Returns to normal play mode. “Album”: Plays tracks/images/video files in the

current album (folder) in random order.

*1 Options depend on the file type. *2 When two or more drives exist on the USB device.

To close the play menu, touch “Play Menu.”

: Repeats the

Enjoying music according to your mood — SensMe™

Sony’s unique “SensMe™ channels” and “SensMe™ mood” features automatically group tracks by channel or mood, and allow you to enjoy music intuitively.

4 Connecting the USB device and

enjoying the SensMe™ function on the unit

Connect the set up USB device. You can then enjoy “SensMe™ channels” or “SensMe™ mood” on this unit.

Before using the SensMe™ function

The following is the basic procedure required to enjoy the SensMe™ function on the unit.

1 Installing “SensMe™ Setup” and

“Content Transfer” to your computer

First download the “SensMe™ Setup” and “Content Transfer” software from the support site on the back cover.

2 Registering a USB device using

“SensMe™ Setup”

Connect a USB device to your computer, and perform registration using “SensMe™ Setup” to enable the SensMe™ function on this unit.

™

SensMe

Setup

Tip

Registration can be performed either along with the installation procedure or after installation.

3 Transferring tracks to the USB device

using “Content Transfer”

In order to group tracks by channel or mood, track sound patterns need to be analyzed by 12 TONE ANALYSIS, which is loaded with “Content Transfer.” With the USB device connected to your computer, drag and drop tracks from Windows Explorer or iTunes, etc., to “Content Transfer.” Both analysis and transfer of tracks will be performed by “Content Transfer.”

SensMe™

Installing “SensMe™ Setup” and “Content Transfer” on your computer

The software (“SensMe™ Setup” and “Content Transfer”) is required to enable the SensMe™ function on this unit.

1 Download the “SensMe™ Setup” and

“Content Transfer” software from the support site.

2 Install the software in your computer.

For more details on the installation, visit the support site on the back cover.

Registering a USB device using “SensMe™ Setup”

USB device registration is required to enable the SensMe™ function on the unit.

If registration is not performed along with the installation procedure, follow the steps below.

1 Start “SensMe™ Setup” on your

computer.

2 Connect a USB device to your

computer.

3 Complete registration following the

on-screen instructions.

Tip

If you connect a registered USB device containing analyzed tracks, the USB device can be unregistered again.

Content

Transfer

Transferring tracks to the USB device using “Content Transfer”

To enable the SensMe™ function on this unit, tracks need to be analyzed and transferred to the registered USB device using “Content Transfer.”

1 Connect the registered USB device to

your computer.

For “WALKMAN,” connect via MTP mode. For USB devices other than “WALKMAN,” connect via MSC mode. “Content Transfer” starts automatically. If a message appears, follow the on-screen instructions to proceed.

2 Drag and drop tracks from Windows

Explorer or iTunes, etc., to “Content Transfer.”

The analysis and transfer of tracks starts.

For details on operations, refer to the Help of “Content Transfer.”

Note

The track analysis by 12 TONE ANALYSIS may take time, depending on the computer environment.

Tip

Not only audio files but also image or video files can be transferred using “Content Transfer.” For details, refer to the Help of “Content Transfer.”

Playing tracks in channels — SensMe™ channels

“SensMe™ channels” automatically group tracks into channels by their tunes. You can select and play a channel that fits your mood, activity, etc.

1 Connect a USB device set up for the

SensMe™ function.

2 Touch “Source List,” then “SensMe™.” 3 Touch “channels.”

The channel list appears.

Shuffle All

Energetic

Relax

ZAP

4 Touch v/V to scroll the channel list.

Playback of the first track in the current channel starts from the track’s most melodic or rhythmical section*.

* May not be detected correctly.

5 Touch the desired channel.

Playback of tracks in the selected channel starts.

Notes

• Depending on the track, it may not be detected correctly or may be grouped in a channel not suited to the track’s mood.

• If the connected USB device contains many tracks, it may take time for “SensMe™ channels” to start, due to data reading.

Tip

Tracks are played in random order. The order will vary with each channel selection.

Channel list

x Recommended, Shuffle All

“Morning” (5:00 – 9:59) “Daytime” (10:00 – 15:59) “Evening” (16:00 – 18:59) “Night” (19:00 – 23:59) “Midnight” (24:00 – 4:59)

Plays tracks recommended for each time of day. Set the clock (page 14) for the channel to be displayed accurately.

“Shuffle All”: Plays all analyzed tracks in random order.

“SensMe™ channels” playback controls and indications

A C D E

Shuffle All

Energetic

Relax

ZAP

x Basic channels

Plays tracks according to the music type.

“Energetic”: High-spirit tracks. “Relax”: Calm tracks. “Mellow”: Mellow, melancholy tracks. “Upbeat”: Happy tracks to improve your

mood.

“Emotional”: Ballad tracks. “Lounge”: Lounge tracks. “Dance”: Rhythm and rap, rhythm and blues

tracks. “Extreme”: Intense rock tracks.

x In-car channels

Plays tracks that are suitable while driving.

“Freeway”: Speedy, high-spirit tracks. “Chillout Drive”: Intoned, healing ballad

tracks. “Weekend Trip”: Delightful, bright and happy

tracks. “Midnight Cruise”: Jazz or piano-featured

tracks with a mature mood.

“Party Ride”: Up-tempo and lively tracks. “Morning Commute”: Bright and breezy

tracks. “Goin’ Home”: Warm and relaxing tracks.

HGF

A To display the control keys: “Source List,”

“ATT,” “TA,” “AF,” “Top.” (page 19)

B To scroll the list and select another channel. C Indicates the current channel. D Indicates the album artwork display*

E Indicates the playback status, elapsed

playback time, zappin status, progress bar, track name and artist name.

F To pause/resume play after pause. G To skip a track. H To enter ZAPPIN mode. (page 29)

During ZAPPIN playback of “SensMe™ channels,” the most melodic or rhythmical sections*

*1 The recommended size is from 240 × 240 to 960 ×

960 pixels.

*2 May not be detected correctly.

of the tracks are played.

Playing tracks in mood maps — SensMe™ mood

“SensMe™ mood” distributes tracks as dots on a two-axis mood map, based on the characteristics of the individual tracks.

By touching the point on the map according to your mood, a circle appears around the touched point, and the tracks inside the circle are played.

1 Connect a USB device set up for the

SensMe™ function.

2 Touch “Source List,” then “SensMe™.” 3 Touch “mood.”

The two-axis mood map appears.

Circle

Mood

Type

Sad

Style

Time

Dots representing tracks

Fast

Slow

Happy

ZAP

4 Touch the desired point on the map.

A circle appears around the touched point, and playback of tracks inside the circle starts. Playback of the first track starts from its most melodic or rhythmical section*.

* May not be detected correctly.

Notes

• Only the 200 most recently transferred tracks using “Content Transfer” are mapped.

• Depending on the track, it may not be detected correctly or may be mapped in a position not suited to the track’s mood.

• If the connected USB device contains many tracks, it may take time for “SensMe™ mood” to start, due to data reading.

Tips

• In the mood map, the currently played track is indicated as a green dot.

• Tracks are played from the circle’s center outward.

“SensMe™ mood” playback controls and indications

A B C D E

Mood

Type

Style

Time

Sad

Fast

Slow

Happy

ZAP

IFGH

A To display the control keys: “Source List,”

“ATT,” “TA,” “AF,” “Top.” (page 19)

B To move the circle and regroup tracks. C To change the size of the circle: small,

medium, or large.

D Indicates the album artwork display*

E Indicates the playback status, elapsed

playback time, zappin status, progress bar, track name and artist name.

F To change parameters on the horizontal axis. G To skip a track. H To pause/resume play after pause. I To enter ZAPPIN mode. (page 29)

During ZAPPIN playback of “SensMe™ mood,” the most melodic or rhythmical sections*

*1 The recommended size is from 240 × 240 to 960 ×

960 pixels.

*2 May not be detected correctly.

of the tracks are played.

Changing parameters on the horizontal axis

In the mood map, you can change parameters on the horizontal axis. Tracks are remapped according to the characteristics of the parameters.

Do this To change parameters to

Touch “Mood” “Sad” – “Happy” Touch “Type” “Acoustic” – “Electronic” Touch “Style” “Soft” – “Hard” Touch “Time” “Morning” – “Midnight”

Searching for a track by listening to track passages — ZAPPIN™

While playing short track passages from a USB device in sequence, you can search for a track you want to listen to. This function is convenient, for example, when searching for a track in shuffle or shuffle repeat mode.

1 During audio playback, touch “ZAP.”

Playback starts from a passage of the next track. You can select the playback time (page 38), but cannot select the track passage to play.

iPod Operations

For details on the compatibility of your iPod, see “About iPod” on page 49 or visit the support site on the back cover.

In these Operating Instructions, “iPod” is used as a general reference for the iPod functions on the iPod and iPhone, unless otherwise specified by the text or illustrations.

Playing an iPod

1 Reduce the volume on this unit. 2 Remove the cap from the USB

connector, and connect the iPod to the USB connector.

Use of the optional USB connection cable RC-202IPV is recommended.*

“ZAP” touched.

The playback section of each track in ZAPPIN mode.

2 Touch “ZAP” when a track you want to

listen to is played.

The track that you select returns to normal play mode from the beginning. To search for a track via ZAPPIN mode again, repeat steps 1 and 2.

In the case of “SensMe™ channels” or “SensMe™ mood” playback

If you enter ZAPPIN mode during “SensMe™ channels” or “SensMe™ mood” playback, the most melodic or rhythmical sections* of tracks are played. For details on the SensMe™ function, see “Enjoying music according to your mood — SensMe™” on page 25.

* May not be detected correctly.

Tip

The ZAPPIN function is also available during iPod playback.

While the iPod is connected, a device connected to the front AUX terminal becomes unavailable, and “Front AUX” cannot be selected when changing the source.

The following display appears on the iPod

screen*

, then playback starts from the item last played. If an iPod is already connected, to start playback, touch “Source List,” then “iPod/ USB.”

*1 To play videos from an iPod with video, use of

the RC-202IPV is required.

*2 May not appear in the case of an iPod touch or

iPhone being connected, or when the iPod was last played using Passenger App Control.

3 Adjust the volume on this unit.

About playback controls and indications

You can control iPod playback in the same way as disc playback. For details, see “Playback controls” on page 19. For details on playback indications, see “Playback indications” on page 20.

To skip items of the selected play mode

During playback, touch –/+ of the selected play mode.

Repeat and shuffle play

To stop playback

Press and hold (SOURCE/OFF) for 1 second.

To disconnect the iPod

Stop playback, then disconnect. Do not disconnect during playback, as data in the iPod may be damaged.

About resuming mode

When the iPod currently playing is connected to the dock connector, the mode of this unit changes to resuming mode and playback starts in the mode set by the iPod. In resuming mode, repeat/shuffle play are not available.

Caution for iPhone

When you connect an iPhone via USB, telephone volume is controlled by the iPhone itself. In order to avoid emitting sudden loud sound after a call, do not increase the volume on the unit during a call.

Note

This unit cannot recognize an iPod via a USB hub.

Tips

• When the ignition key is turned to the ACC position with the unit on, the iPod will be recharged.

• If the iPod is disconnected during playback, “USB device is not connected.” appears on the display of the unit.

Setting the play mode

You can set one of the following play modes.

For audio playback

“ALBUM,” “TRACK,” “GENRE,” “PLAYLIST,” “ARTIST,” “MUSIC PODCAST”*

For video playback

“MOVIE,” “RENTAL,” “TV SHOW,” “MUSIC VIDEO,” “VIDEO PLAYLIST,” “VIDEO PODCAST”

* May not appear depending on iPod setting.

1 During playback, touch . 2 Touch “MUSIC” or “VIDEO.” 3 Touch the desired play mode.

To start playback, touch the desired item(s) in the list. To scroll the list, touch v/V.

1 During playback, touch “Play Menu,”

then the “Repeat” or “Shuffle” box repeatedly until the desired option appears.

Repeat or shuffle play starts. To close the play menu, touch “Play Menu.” The repeat options are as follows:

For audio playback

“OFF”: Returns to normal play mode. “Track”: Repeats the current track. “Album”/“Podcast”/“Artist”/“Playlist”/ “Genre”*: Repeats the current item of the

selected play mode.

For video playback

“OFF”: Returns to normal play mode. “Track”: Repeats the current video. “RENTAL”/“TV SHOW”/“MUSIC VIDEO”/ “Playlist”/“Podcast”*: Repeats the current

item of the selected play mode.

The shuffle options are as follows:

For audio playback

“OFF”: Returns to normal play mode. “Album”/“Podcast”/“Artist”/“Playlist”/ “Genre”*: Plays tracks of the selected play

mode in random order. “Device”: Plays all tracks in an iPod in random order.

* Differs depending on the selected play mode.

Note

Displayed options may not conform to actual operation.
