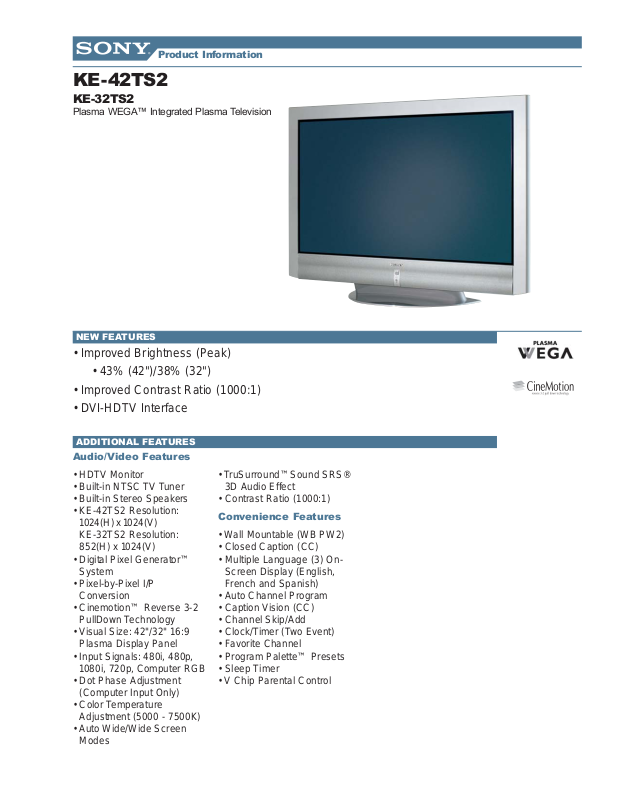

Sony WEGA KE-32TS2, WEGA KE-42TS2 BROCHURE
KE-42TS2
KE-32TS2
Plasma WEGA™ Integrated Plasma Television
• Improved Brightness (Peak)
• 43% (42")/38% (32")
• Improved Contrast Ratio (1000:1)
• DVI-HDTV Interface
Audio/Video Features
• HDTV Monitor
• Built-in NTSC TV Tuner
• Built-in Stereo Speakers
• KE-42TS2 Resolution:
1024(H)x 1024(V)
KE-32TS2 Resolution:
852(H) x 1024(V)
• Digital Pixel Generator™
System
• Pixel-by-Pixel I/P
Conversion
• Cinemotion™ Reverse 3-2
PullDown Technology
• Visual Size: 42"/32" 16:9
Plasma Display Panel
• Input Signals: 480i, 480p,
1080i, 720p, Computer RGB
• Dot Phase Adjustment
(Computer Input Only)
• Color Temperature
Adjustment (5000 - 7500K)
• Auto Wide/Wide Screen
Modes
• TruSurround™Sound SRS®
3D Audio Effect
• Contrast Ratio (1000:1)
Convenience Features
• Wall Mountable (WB PW2)
• Closed Caption (CC)
• Multiple Language (3) OnScreen Display (English,
French and Spanish)
• Auto Channel Program
• Caption Vision (CC)
• Channel Skip/Add
• Clock/Timer (Two Event)
• Favorite Channel
• Program Palette™ Presets
• Sleep Timer
• V Chip Parental Control
NEW FEATURES
ADDITIONAL FEATURES
Product Information
KE-42TS2
KE-32TS2
Plasma WEGA™ Integrated Plasma Television
All-in-One Design This unique flat panel television
provides a complete plug and play solution.Once you
take it out of the box, you can have the unit up and
running in minutes.The unit features a NTSC tuner,
stereo speakers and table top pedestal.
Digital Pixel Generator™ System Sony-unique
digital signal processing technology that transmits and
processes all signals digitally. Maximizes display performance of high-end video sources for natural, rich
image reproduction especially high-definition sources.
Pixel by Pixel I/P Conversion This interlace to
progressive technology constructs a film or video
scene one pixel at a time for fluid, life-like motion
along with breathtaking image detail.
CineMotion™ Reverse 3-2 PullDown
Technology Minimizes motion artifacts and opti-
mizes film-based content from any video input for the
purest reproduction of film originated sources.
TruSurround™ SRS® Audio Processing
Eliminates the need to sit in the “sweet spot.”
Generates the life-like sound of rear speakers using
only the stereo pair built into the television cabinet.
Specifications
Inputs and Outputs
• DVI HDTV Interface
• Composite Video Input x 2
• S-Video Input x 2
• RF Input x 1
• HD Component Video Input
(Y/Pb/Pr) x 1
• HD Component Video Input
(Y/Pb/Pr) with RGB/HV x 1
• Audio Output x 1
• Subwoofer Output x 1
• Control S In x 1
• Control S Out x 1
• Headphone Jack x 1
(Front)
General
• Power Requirements:
AC120V, 60Hz
• Power Consumption
(Standby):
1.7W (32")/2.0W (42")
• Power Consumption (in
Operation):
270W (32")/360W (42")
Accessories
Supplied Accessories
• Instruction Manual
• Remote Control
• AA Batteries (2)
Optional Accessories
• A/V Stand: SU-TS1
• Wall Bracket:WB-PW2
Weights & Measures
• Dimensions (W x H x D):
KE-42TS2:41
5
/8"x301/8"x 5"
(1056 x 764 x 124mm)
KE-32TS2:33
3
/4"x243/4"x 51/4"
(856 x 627 x 132mm)
• Weight:
KE-42TS2: 81.9 lbs.
(37.0kgs)
KE-32TS2: 56.3 lbs.
(25.5kgs)
ADDITIONAL FEATURES
KEY TECHNOLOGY
Product Information
©2002 Sony Electronics Inc. All rights
reserved. Features and specifications are
subject to change without notice.
C
onventional
Conventional I/P System
Conventional I/P System
F
il
m
M
I/P S
od
eVideo
yste
M
od
m
P
ixel-b
y
-
P
e
F
il
m
M
od
ixel Syste
eVideo
m
M
od
e
D
etection
Field by field
Field by field
F
ield b
y Field
D
etection
W
ithin a fie
ld
!
