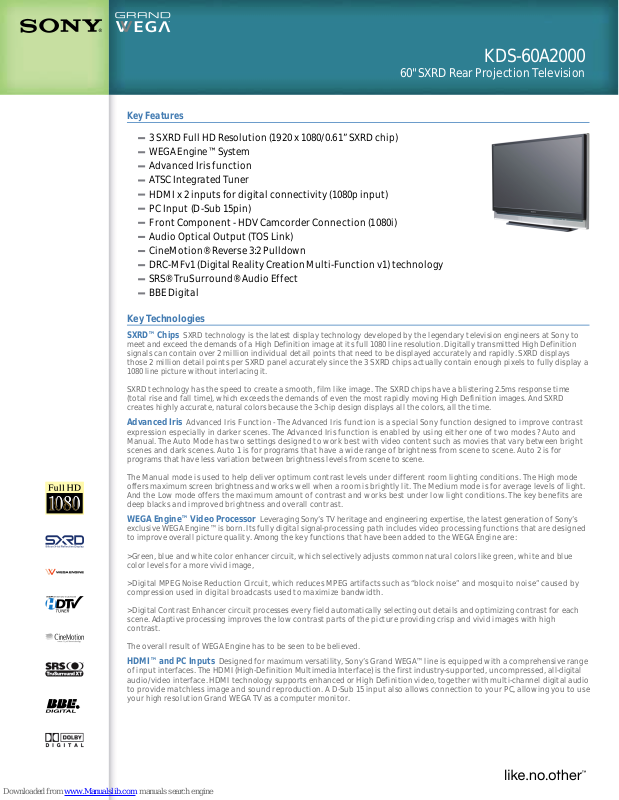

Sony WEGA KDS-60A2000 Specifications
KDS
-60A2000
60" SXRD Rear Projection Television
Key Features
3 SXRD Full HD Resolution (1920 x 1080/0.61” SXRD chip)
WEGA Engine
™ System
Advanced Iris function
ATSC Integrated Tuner
HDMI x 2 inputs for digital connectivity (1080p input)
PC Input (D-Sub 15pin)
Front Component - HDV Camcorder Connection (1080i)
Audio Optical Output (TOS Link)
CineMotion® Reverse 3:2 Pulldown
DRC-MFv1 (Digital Reality Creation Multi-Function v1) technology
SRS® TruSurround® Audio Effect
BBE Digital
Key Technologies
SXRD™
Chips
SXRD technology is the latest display technology developed by the legendary television engineers at Sony to
meet and exceed the demands of a High Definition image at its full 1080 line resolution. Digitally transmitted High Definition
signals can contain over 2 million individual detail points that need to be displayed accurately and rapidly. SXRD displays
those 2 million detail points per SXRD panel accurately since the 3 SXRD chips actually contain enough pixels to fully display a
1080 line picture without interlacing it.
SXRD technology has the speed to create a smooth, film like image. The SXRD chips have a blistering 2.5ms response time
(total rise and fall time), which exceeds the demands of even the most rapidly moving High Definition images. And SXRD
creates highly accurate, natural colors because the 3-chip design displays all the colors, all the time.
Advanced Iris
Advanced Iris Function - The Advanced Iris function is a special Sony function designed to improve contrast
expression especially in darker scenes. The Advanced Iris function is enabled by using either one of two modes ? Auto and
Manual. The Auto Mode has two settings designed to work best with video content such as movies that vary between bright
scenes and dark scenes. Auto 1 is for programs that have a wide range of brightness from scene to scene. Auto 2 is for
programs that have less variation between brightness levels from scene to scene.
The Manual mode is used to help deliver optimum contrast levels under different room lighting conditions. The High mode
offers maximum screen brightness and works well when a room is brightly lit. The Medium mode is for average levels of light.
And the Low mode offers the maximum amount of contrast and works best under low light conditions. The key benefits are
deep blacks and improved brightness and overall contrast.
WEGA Engine™ Video Processor
Leveraging Sony’s TV heritage and engineering expertise, the latest generation of Sony’s
exclusive WEGA Engine™ is born. Its fully digital signal-processing path includes video processing functions that are designed
to improve overall picture quality. Among the key functions that have been added to the WEGA Engine are:
> Green, blue and white color enhancer circuit, which selectively adjusts common natural colors like green, white and blue
color levels for a more vivid image,
> Digital MPEG Noise Reduction Circuit, which reduces MPEG artifacts such as “block noise” and mosquito noise” caused by
compression used in digital broadcasts used to maximize bandwidth.
> Digital Contrast Enhancer circuit processes every field automatically selecting out details and optimizing contrast for each
scene. Adaptive processing improves the low contrast parts of the picture providing crisp and vivid images with high
contrast.
The overall result of WEGA Engine has to be seen to be believed.
HDMI™
and PC Inputs
Designed for maximum versatility, Sony’s Grand WEGA™ line is equipped with a comprehensive range
of input interfaces. The HDMI (High-Definition Multimedia Interface) is the first industry-supported, uncompressed, all-
digital
audio/video interface. HDMI technology supports enhanced or High Definition video, together with multi-channel digital audio
to provide matchless image and sound reproduction. A D-Sub 15 input also allows connection to your PC, allowing you to use
your high resolution Grand WEGA TV as a computer monitor.
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 800.222.7669 • www.sony.com
Last Updated: 11/04/2006
KDS
-60A2000
60" SXRD Rear Projection Television
Shown with optional SU-RS11X A/V Stand
Please visit the Dealer Network for current
information at www.sony.com/dn
Features
General
Auto SAP: Yes
Channel Fix: Yes
ID1 Detection:
Yes
Video Label: Yes
Video
Tuner: ATSC/NTSC hybrid with Clear QAM (8
VSB)
Video Processing:
Yes (WEGA Engine
™ HD
System)
Color Temperature: Cool, Neutral, Warm
Noise Reduction: Yes
Black Corrector: High, Medium, Low, Off
Clear White:
On, Off
Gamma Compensation: High, Medium, Low,
Off
CineMotion® Reverse 3:2 Pulldown
Technology: Yes
Advanced Iris: Yes
Comb Filter: 3D Digital Comb Filter
DRC® MultiFunction Circuitry: Yes (DRC MF V1)
DRC® Mode: Mode 1, Mode 2, CineMotion®
Technology
DRC®
Palette Presets:
Custom 1, Custom 2,
Custom 3
Direct Mode:
On, Off
Game Mode: On/Off
Auto Adjustment (PC): Yes
Advanced Video Menu: Yes
Picture Modes: Vivid, Standard, Custom
Detail Enhancer:
High, Medium, Low, Off
Color System: ATSC, NTSC
Wide Mode: Yes
Display Technology: SXRD™ Technology
High Definition: Yes (Full HD 1080)
Audio
Tone Control(s): Treble, Bass
Sound Mode: Dynamic, Standard, Custom
MTS Stereo Decoder:
Yes
A/V Synch: Off/1/2/3
Audio Mute: Yes
Speaker On/Off:
Yes
SRS
® TruSurround® XT Audio Effect: Yes
Dolby®
Digital:
Yes
Convenience
Channel Label: Yes
Channel Skip/Add: Yes
Channel Jump: Yes
Favorite Channel: Yes
Speed Surf™ Channel Selection: Yes
Program Guide Access: Yes
Auto Channel Programming: Yes
Info Banner: Yes
Programmable Timer: 2 Event
Sleep Timer:
15, 30, 45, 60, 90, Off
Caption Vision: On, Off, Program
Clock: Yes
Power Save Mode: Standard, Reduced, Picture
Off
Picture Freeze:
Yes
Specifications
General
Aspect Ratio: 16:9
Screen Size:
60"
Television Type: Rear Projection
Video
Native Resolution: 1080p
Display Resolution: 1920 x 1080
Display Response Time: 2.5ms (rise and fall)
Vertical Size:
Yes
Vertical Center:
Yes
Horizontal Center: Yes
Inputs and Outputs
Analog Audio Input(s): 5 (1 Front/4 Rear)
Audio Out (Variable/Fixed):
1 (Rear)
Component Video (Y/Pb/Pr ) Input(s): 3 (1
Front/2 Rear)
Composite Video Input(s): 3 (1 Front/2 Rear)
Digital Audio Output(s):
1 (Rear) Dolby®
Digital
Optical Output
RF Connection Input(s): 1 (Rear)
S
-Video Input(s): 1 (Rear)
PC Audio Input(s): 1 (Rear)
PC Video Input(s): 1 (Rear)
HDMI™ Connection(s): 2 (Rear) - 1 rear input
included L/R audio inputs
Power
Power Consumption (in Operation): 210W
Power Consumption (in Standby): 0.5W
Power Requirements: AC 120V, 60Hz
Power Management: Yes
Regulation and Standard Compliance
Energy Star
® Compliant: Yes
Service and Warranty Information
Limited Warranty:
1 Year Parts / 1 Year Labor
Dimensions
Weight:
94lbs 13oz (43Kg)
Measurements: 55.75" x 39" x 20.25" (1413 x 988 x
514mm)
3
4
Supplied Accessories
Remote Control (RM-YD010)
Operating Instructions
Quick Start Guide
Batteries (AA x2)
Warranty
Product Registration Card
Optional Accessories
SU
-RS11X (AV Stand)
XL-5200 (120W Replacement Lamp)
UPC Code: 027242697799
1. With Advanced Iris ON
2. Depending on usage, the lamp will require periodic replacement to
maintain optimum picture quality. It is recommended that the lamp be
exchanged after 8,000 hours of use.
3. Screen Size measured diagonally
4. For additional warranty terms and information please refer to the
Limited Warranty Card included with this product or visit
http://esupport.sony.com
©2006 Sony Electronics Inc. All rights reserved.
Sony, Grand WEGA, Steady Sound, WEGA Engine, Speed Surf,
SXRD,CineMotion and DRC are trademarks of Sony. SRS and the SRS
symbol, and TruSurround are trademarks of SRS Labs, Inc. This TV
incorporates High-Definition Multimedia Interface (HDMI™) technology. HDMI,
the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC. All other trademarks are
property of their respective owners.
Features and specifications are subject to change without notice. Non
-
metric weights and measures are approximate.
