Operating Instructions
VPL-HW30ES/HW30AES
© 2011 Sony Corporation
4-290-338-11 (1)
Video Projector
Page 2
WARNING
Wartungsarbeiten stets nur
qualifiziertem Fachpersonal.
To reduce the risk of fire or
electric shock, do not expose
this apparatus to rain or
moisture.
To avoid electrical shock, do
not open the cabinet. Refer
servicing to qualified
personnel only.
THIS APPARATUS MUST BE
EARTHED.
AVERTISSEMENT
Afin de réduire les risques
d’incendie ou d’électrocution,
ne pas exposer cet appareil à
la pluie ou à l’humidité.
Afin d’écarter tout risque
d’électrocution, garder le
coffret fermé. Ne confier
l’entretien de l’appareil qu’à
un personnel qualifié.
CET APPAREIL DOIT ÊTRE
RELIÉ À LA TERRE.
WARNUNG
Um die Gefahr von Bränden
oder elektrischen Schlägen zu
verringern, darf dieses Gerät
nicht Regen oder Feuchtigkeit
ausgesetzt werden.
Um einen elektrischen Schlag
zu vermeiden, darf das
Gehäuse nicht geöffnet
werden. Überlassen Sie
DIESES GERÄT MUSS
GEERDET WERDEN.
For the customers in the U.S.A. and
Canada
WARNING:
Using this unit at a voltage other than 120 V
may require the use of a different line cord or
attachment plug, or both. To reduce the risk
of fire or electric shock, refer servicing to
qualified service personnel.
For the customers in the U.S.A.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in
a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced
radio/TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
2
Page 3
All interface cables used to connect
peripherals must be shielded in order to
comply with the limits for a digital device
pursuant to Subpart B of Part 15 of FCC
Rules.
If you have any questions about this product,
you may call;
Sony Customer Information Service Center
1-800-222-7669 or http://www.sony.com/
Declaration of Conformity
Trade Name: SONY
Model: VPL-HW30ES
VPL-HW30AES
Responsible party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego, CA 92127
U.S.A.
Telephone Number:858-942-2230
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
For the customers in Canada
This Class B digital apparatus complies with
Canadian ICES-003.
Pour les clients au Canada
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
For the customers in Europe
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan, Minato-ku,
Tokyo, 108-0075 Japan.
The Authorized Representative for EMC
and product safety is Sony Deutschland
GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Germany. For any service or
guarantee matters please refer to the
addresses given in separate service or
guarantee documents.
Pour les clients en Europe
Le fabricant de ce produit est Sony
Corporation, 1-7-1 Konan, Minato-ku,
Tokyo, 108-0075 Japon.
Le représentant autorisé pour EMC et la
sécurité des produits est Sony Deutschland
GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Allemagne. Pour toute question
concernant le service ou la garantie, veuillez
consulter les adresses indiquées dans les
documents de service ou de garantie séparés.
Für Kunden in Europa
Der Hersteller dieses Produkts ist Sony
Corporation, 1-7-1 Konan, Minato-ku,
Tokyo, 108-0075 Japan.
Der autorisierte Repräsentant für EMV und
Produktsicherheit ist Sony Deutschland
GmbH, Hedelfinger Strasse 61, 70327
Stuttgart, Deutschland. Bei jeglichen
Angelegenheiten in Bezug auf
Kundendienst oder Garantie wenden Sie
sich bitte an die in den separaten
Kundendienst- oder Garantiedokumenten
aufgeführten Anschriften.
For kundene i Norge
Dette utstyret kan kobles til et ITstrømfordelingssystem.
Für Kunden in Deutschland
Entsorgungshinweis: Bitte werfen Sie nur
entladene Batterien in die Sammelboxen
beim Handel oder den Kommunen. Entladen
sind Batterien in der Regel dann, wenn das
Gerät abschaltet und signalisiert „Batterie
leer“ oder nach längerer Gebrauchsdauer der
Batterien „nicht mehr einwandfrei
funktioniert“. Um sicherzugehen, kleben Sie
die Batteriepole z.B. mit einem
Klebestreifen ab oder geben Sie die
Batterien einzeln in einen Plastikbeutel.
3
Page 4
For the customers in Taiwan only
For the Customers in Brazil only
DESCARTE DE PILHAS E BATERIAS
Bateria Primária
Atenção:
Verifique as instruções de uso do aparelho
certificando-se de que as polaridades (+) e
(-) estão no sentido indicado. As pilhas
poderão vazar ou explodir se as polaridades
forem invertidas, expostas ao fogo,
desmontadas ou recarregadas.
Evite misturar com pilhas de outro tipo ou com
pilhas usadas, transportá-las ou armazená-las
soltas, pois aumenta o risco de vazamento.
Retire as pilhas caso o aparelho não esteja
sendo utilizado, para evitar possíveis danos
na eventualidade de ocorrer vazamento.
As pilhas devem ser armazenadas em local
seco e ventilado.
No caso de vazamento da pilha, evite o
contato com a mesma. Lave qualquer parte
do corpo afetado com água abundante.
Ocorrendo irritação, procure auxílio médico.
Não remova o invólucro da pilha.
Mantenha fora do alcance das crianças. Em
caso de ingestão procure auxílio médico
imediatamente.
4
Page 5
Table of Contents
Precautions .........................................7
Location of Controls
Front/Right Side .................................8
Rear/Bottom .......................................9
Remote Control ................................10
Connections and
Preparations
Unpacking ........................................11
Step 1: Installing the Projector .........13
Before Setting Up the
Projector .....................................13
Positioning the Projector and a
screen ..........................................16
Step 2: Adjusting the Picture
Position .............................................20
Step 3: Connecting the Projector .....25
Connecting to a VCR .................25
Connecting to a Computer ..........27
Connecting to an Optional
TMR-PJ1 3D Sync
Transmitter* ...............................28
Step 4: Selecting the Menu
Language ..........................................29
Using the Simulated 3D
Function ..................................... 36
Using the 3D Glasses ................. 37
Selecting the Picture Viewing
Mode ............................................... 38
Adjusting the Picture Quality .......... 39
Selecting to Directly Adjust the
Desired Menu Item .................... 39
Adjusting the Picture Using Real
Color Processing .............................. 40
Using the Menus
Operation through the Menus .......... 42
Picture Menu ................................... 46
Advanced Picture Menu .................. 50
Screen Menu .................................... 51
Setup Menu ...................................... 53
Function Menu ................................. 55
Installation Menu ............................. 58
Information Menu ............................ 60
About the Preset Memory No. ... 61
Others
About the Control for HDMI ........... 62
About the x.v.Color ......................... 62
Projecting
Projecting the Picture on the
Screen ...............................................31
Turning Off the Power ...............32
Selecting the Wide Screen Mode .....33
Watching 3D Video Images ............. 35
About the simulated 3D feature ....... 63
Troubleshooting ............................... 64
Warning Indicators .................... 67
Message Lists ............................. 68
Replacing the Lamp and the Air
Filter and Cleaning the Ventilation
Holes (intake) .................................. 69
Cleaning the Air Filter ..................... 72
5
Page 6
Fitting the Lens Cap ......................... 72
Cleaning and the Screen of the
Projector ........................................... 73
How to Use the USB Charging
AC Power Adaptor ...........................73
Specifications ................................... 75
Preset Signals .............................77
Input Signals and Adjustable/
Setting Items ...............................79
Compatible 3D Signals ..............81
3D Signals and Adjustable/
Setting Items ...............................81
Ceiling Installation ........................... 83
Index ...............................................87
Trademark Information
“PS3” is a registered trademark of Sony
Computer Entertainment Inc.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing
LLC.
“Blu-ray” and “Blu-ray Disk” are
trademarks of Blu-ray Disc Association.
..........................................................................
Control for HDMI is an HDMI standard mutual
control function which uses the HDMI CEC
(Consumer Electronics Control) specification.
This projector supports DeepColor, x.v.Color,
LipSync, 3D signal and computer input signal
of HDMI standards. It also supports HDCP.
6
Page 7
Precautions
On safety
• Check that the operating voltage of your
unit is identical with the voltage of your
local power supply.
• Should any liquid or solid object fall into
the cabinet, unplug the unit and have it
checked by qualified personnel before
operating it further.
• Unplug the unit from the wall outlet if it is
not to be used for several days.
• To disconnect the cord, pull it out by the
plug. Never pull the cord itself.
• The wall outlet should be near the unit and
easily accessible.
• The unit is not disconnected to the AC
power source (mains) as long as it is
connected to the wall outlet, even if the
unit itself has been turned off.
• Do not look into the lens while the lamp is
on.
• Do not place your hand or objects near the
ventilation holes. The air coming out is
hot.
On preventing internal heat buildup
After you turn off the power with the I/1
(ON/STANDBY) switch, do not disconnect
the unit from the wall outlet while the
cooling fan is still running.
Caution
The projector is equipped with ventilation
holes (intake) and ventilation holes
(exhaust). Do not block or place anything
near these holes, or internal heat build-up
may occur, causing picture degradation or
damage to the projector.
On repacking
Save the original shipping carton and
packing material; they will come in handy if
you ever have to ship your unit. For
maximum protection, repack your unit as it
was originally packed at the factory.
7
Page 8
Location of Controls
Front/Right Side
You can use the buttons on the control panel with the same names as those on the remote
control to operate the projector.
M/m/</, (arrow)/
(enter) button (1 page 42)
MENU button (1 page 42)
INPUT button (1 page 31)
?/1 (ON/STANDBY) switch (1 page 21)
Control panel
Lens shift dials (1 page 21)
LAMP/COVER
indicator
(1 page 67)
Ventilation
holes (exhaust)
(1 page 14)
Focus ring (1 page 23)
Ventilation holes (exhaust) (1 page 14)
Note
While the ON/STANDBY indicator
lights in orange, the power saving
mode is on. (1 page 54)
Remote control detector
Zoom lever (1 page 23)
ON/STANDBY
indicator
(1 page 20)
- AC IN socket
HDMI 1 connector (1 page 25)
HDMI 2 connector (1 page 25)
INPUT A connector (1 page 27)
Y P
B/CB PR/CR connector (phono type) (1 page 26)
8
3D SYNC connector (1 page 28)
IR IN connector
Inputs signals to control the projector
REMOTE connector
Connects to a computer,
etc. for remote control
Page 9
Rear/Bottom
Location of Controls
Ventilation holes (intake)
(1 page 14)
Ventilation holes (intake)
(1 page 14)
Ventilation holes (intake)
(1 page 14)
Ventilation holes (intake)
(1 page 14)
Lamp cover (1 page 70)
Adjusters (1 page 24)
Filter holder (1 page 71)
Ventilation holes (intake)
(1 page 14)
Projector suspension
support attaching hole
(1 page 83)
9
Page 10
Remote Control
LIGHT button
Illuminates the buttons on
the remote control.
Infrared transmitter
?/1 (On/standby)
switch (1 page 21)
INPUT button (1 page 31)
PICTURE MODE buttons
(1 page 38)
PATTERN button
(1 page 21)
MOTION ENHANCER
button (1 page 39)
WIDE MODE button
(1 page 33)
COLOR SPACE button
(1 page 39)
COLOR TEMP button
(1 page 39)
GAMMA CORRECTION
button (1 page 39)
SHARPNESS +/– button
(1 page 48)
RESET button (1 page 42)
M/m/</, (arrow)/ (enter)
buttons (1 page 42)
MENU button (1 page 42)
3D button (1 page 55)
RCP (Real Color Processing)
button (1 page 40)
ADVANCED IRIS button
(1 page 39)
BLACK LEVEL button
(1 page 39)
CONTRAST +/– button
(1 page 47)
10
BRIGHTNESS +/– button
(1 page 47)
Page 11
Connections and Preparations
This section describes how to install the projector and screen, how to connect the
equipment from which you want to project the picture, etc.
Unpacking
Check the carton to make sure it contains the following items:
• Remote control (1) and
Size AA (R6) manganese batteries (2)
Inserting the batteries into the remote control
Insert the batteries E side first as shown in the illustration.
Inserting them forcibly or with the polarities reversed may
cause a short circuit and may generate heat.
• AC power cord (1)
• Lens cap (1)
When you have purchased the projector,
the lens cap is put onto the lens.
Remove this lens cap when you use the
projector.
• USB charging AC power adaptor (1)
• Operating Instructions (this manual)
For VPL-HW30AES, the following items
are also contained.
• 3D glasses (2)
• USB charging cable (1)
• Pouch for the 3D glasses (2)
• 3D Sync Transmitter (1)
Connections and Preparations
Push and slide to open.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
When you dispose of the battery, you must obey the law in the relative area or country.
11
Page 12
ATTENTION
Il y a danger d’explosion s’il y a remplacement incorrect de la batterie. Remplacer
uniquement avec une batterie du même type ou d’un type équivalent recommandé par le
constructeur.
Lorsque vous mettez la batterie au rebut, vous devez respecter la législation en vigueur
dans le pays ou la région où vous vous trouvez.
VORSICHT
Explosionsgefahr bei Verwendung falscher Batterien. Batterien nur durch den vom
Hersteller empfohlenen oder einen gleichwertigen Typ ersetzen.
Wenn Sie die Batterie entsorgen, müssen Sie die Gesetze der jeweiligen Region und des
jeweiligen Landes befolgen.
Installing batteries
Two size AA (R6) batteries are supplied for Remote Control.
To avoid risk of explosion, use size AA (R6) manganese or alkaline batteries.
Caution about handling the remote control
• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind
onto it.
• Do not place the remote in a location near a heat source, a place subject to direct
sunlight, or a damp room.
12
Page 13
Step 1: Installing the Projector
The projector displays pictures output from
a VCR or other device.
The lens shift allows you to have broader
options for placing the projector and
viewing pictures easily.
Before Setting Up the Projector
Unsuitable installation
Do not place the projector in the following
situations, which may cause malfunction
or damage to the projector.
Poorly ventilated location
Leave space of more than 30 cm (11 7/8 inches)
around the unit.
Hot and humid
Installing the projector in such a location
may cause a malfunction of the unit due to
moisture condensation or rise in
temperature.
Near a heat or smoke sensor
Malfunction of the sensor may occur.
Very dusty and extremely smoky
locations
Install in a location away from walls
To maintain the performance and
reliability of the projector, allow at
least 30 cm (11 7/8 inches) between
the projector and walls.
Connections and Preparations
Locations subject to direct cool or
warm air from an air-conditioner
(11
30 cm
7
/8inches)
30 cm
(11
7
/8inches)
(11 7/8inches)
(11
30 cm
30 cm
7
/8inches)
13
Page 14
Improper use
Do not do any of the following while using
the projector.
Blocking the ventilation holes (intake
or exhaust)
Ventilation holes
(intake)
Ventilation holes
(exhaust)
Tip
For details on the location of the ventilation
holes (intake or exhaust), see “Location of
Controls” (1 page 8).
Tilting front/rear and left/right
15° or more
15° or more
Avoid using the projector tilted at an angle
of more than 15 degrees.
Do not install the projector anywhere other
than on a level surface or on the ceiling.
Installing the projector in such a location
may result in uneven color uniformity or
reduce the reliability of the effects of the
lamp.
If the projector is tilted up or down, the
image on the screen may be trapezoidal.
Position the projector so that the lens is
parallel to the screen (1 page 19).
When installing the unit at altitudes
When using the projector at an altitude of
1,500 m or higher, set “Cooling Setting” in the
Setup menu to “High” (1 page 53).
Failing to set this mode when using the
projector at high altitudes could have adverse
effects, such as reducing the reliability of
certain components.
15° or more
15° or more
14
15° or more
WARNING
When installing the unit, incorporate a readily
accessible disconnect device in the fixed
wiring, or connect the power plug to an easily
accessible socket-outlet near the unit. If a fault
should occur during operation of the unit,
operate the disconnect device to switch the
power supply off, or disconnect the power
plug.
AVERTISSEMENT
Lors de l’installation de l’appareil, incorporer
un dispositif de coupure dans le câblage fixe ou
brancher la fiche d’alimentation dans une prise
murale facilement accessible proche de
l’appareil. En cas de problème lors du
fonctionnement de l’appareil, enclencher le
dispositif de coupure d’alimentation ou
débrancher la fiche d’alimentation.
Page 15
WARNUNG
Beim Einbau des Geräts ist daher im Festkabel
ein leicht zugänglicher Unterbrecher
einzufügen, oder der Netzstecker muss mit
einer in der Nähe des Geräts befindlichen,
leicht zugängli chen Wandsteckdose verbunde n
werden. Wenn während des Betriebs eine
Funktionsstörung auftritt, ist der Unterbrecher
zu betätigen bzw. der Netzstecker abzuziehen,
damit die Stromversorgung zum Gerät
unterbrochen wird.
Connections and Preparations
15
Page 16
Positioning the Projector and a screen
The installation distance between the projector and a screen varies depending on the size
of the screen or whether or not you use the lens shift features.
1 Determine the installation position of the projector and screen.
You can obtain a good quality picture if you position the projector so that the center
of the lens is within the area indicated in gray in the illustration.
Use the values L, x and y in the table on page 15 or 16 as a guide.
Screen
*
**
* Installation position not using lens shift (x = 0, y = 0)
** Example of installation position using lens shift (x, y)
L: Distance between the screen and the front end of the projector’s lens.
x: Horizontal distance between the center of the screen and the center of the
projector’s lens.
y: Vertical distance between the center of the screen and the center of the projector’s
lens.
For installation of the projector on a ceiling, see “Ceiling Installation.”
(1 page 83)
For details on the lens shift feature, see “Step 2: Adjusting the Picture Position.”
(1 page 20)
16
Page 17
When using the 16:9 aspect ratio screen size
Screen Size
SS (inches)
(mm) 1016 1524 2032 2540 3048 3810 5080 6350 7620
minimum 1201 1825 2448 3072 3695 4631 6189 7748 9307
L
maximum 1840 2782 3723 4664 5605 7017 9371 11724 14077
x 000000000
y 324 486 648 809 971 1214 1619 2024 2428
x 44 66 89 111 133 166 221 277 332
y 259 389 518 648 777 971 1295 1619 1943
x 89 133 177 221 266 332 443 553 664
y 194 291 389 486 583 728 971 1214 1457
x 133 199 266 332 398 498 664 830 996
y 130 194 259 324 389 486 648 809 971
x 177 266 354 443 531 664 886 1107 1328
y 65 97 130 162 194 243 324 405 486
x 221 332 443 553 664 830 1107 1384 1660
y 000000000
To calculate the installation positions
L (minimum) = 31.1781 (1
L (maximum) = 47.0644 (1
y = –1.463 × x (mm or inch) + 8.0942 (
40 60 80 100 120 150 200 250 300
(47 3/8) (71 7/8) (96 1/2) (121) (145 1/2) (182 3/8) (243 3/4) (305 1/8) (366 1/2)
(72 1/2) (109 5/8) (146 5/8) (183 5/8) (220 3/4) (276 3/8) (369) (461 5/8) (554 1/4)
(0) (0) (0) (0) (0) (0) (0) (0) (0)
7
(12
/8) (19 1/4)(25 5/8) (31 7/8) (38 1/4) (47 7/8) (63 3/4)(79 3/4) (95 5/8)
3
(1
/4)(2 5/8)(3 5/8)(4 3/8)(5 1/4)(6 5/8)(8 3/4) (11) (13 1/8)
1
(10
/4) (15 3/8)(20 1/2) (25 5/8) (30 5/8) (38 1/4) (51) (63 3/4) (76 1/2)
5
(3
/8)(5 1/4) (7) (8 3/4) (10 1/2) (13 1/8) (17 1/2)(21 7/8) (26 1/4)
3
(7
/4) (11 1/2)(15 3/8) (19 1/4)(23)(28 3/4) (38 1/4)(47 7/8) (57 3/8)
1
(5
/4)(7 7/8)(10 1/2) (13 1/8) (15 3/4) (19 5/8) (26 1/4)(32 3/4) (39 1/4)
1
(5
/8)(7 3/4)(10 1/4) (12 7/8) (15 3/8) (19 1/4) (25 5/8)(31 7/8) (38 1/4)
(7) (10
5
(2
/8)(3 7/8)(5 1/8)(6 1/2)(7 3/4)(9 5/8) (12 7/8) (16) (19 1/4)
3
(8
/4) (13 1/8)(17 1/2) (21 7/8) (26 1/4) (32 3/4) (43 5/8)(54 1/2) (65 3/8)
1
/2) (14) (17 1/2)(21)(26 1/4) (35) (43 5/8) (52 3/8)
(0) (0) (0) (0) (0) (0) (0) (0) (0)
Unit: mm (inches)
7
/32) × SS – 46.1543 (1 13/16)
27
/32) × SS – 42.3308 (1 21/32)
5
/16) × SS
Connections and Preparations
17
Page 18
When using the 4:3 aspect ratio screen size
Screen Size
SS (inches)
(mm) 1016 1524 2032 2540 3048 3810 5080 6350 7620
minimum 1480 2243 3006 3770 4533 5677 7585 9493 11401
L
maximum 2262 3414 4566 5718 6870 8598 11478 14357 17237
x 000000000
y 396 594 792 991 1189 1486 1981 2477 2972
x 54 81 108 135 163 203 271 339 406
y 317 475 634 792 951 1189 1585 1981 2377
x 108 163 217 271 325 406 542 677 813
y 238 357 475 594 713 892 1189 1486 1783
x 163 244 325 406 488 610 813 1016 1219
y 158 238 317 396 475 594 792 991 1189
x 217 325 433 542 650 813 1084 1355 1626
y 79 119 158 198 238 297 396 495 594
x 271 406 542 677 813 1016 1355 1693 2032
y 000000000
To calculate the installation positions
L (minimum) = 38.1569 (1
L (maximum) = 57.5992 (2
y = –1.463 × x (mm or inch) + 9.9060 (
40 60 80 100 120 150 200 250 300
(58 3/8) (88 3/8) (118 3/8) (148 1/2) (178 1/2) (223 5/8) (298 5/8) (373 3/4) (448 7/8)
(89 1/8) (134 1/2) (179 7/8) (225 1/8) (270 1/2) (338 5/8) (452) (565 1/4) (678 5/8)
(0) (0) (0) (0) (0) (0) (0) (0) (0)
5
(15
/8)(23 1/2) (31 1/4) (39 1/8) (46 7/8)(58 5/8) (78) (97 5/8)
1
(2
/4)(3 1/4)(4 3/8)(5 3/8)(6 1/2) (8) (10 3/4) (13 3/8) (16)
1
(12
/2)(18 3/4) (25) (31 1/4) (37 1/2)(46 7/8) (62 1/2)(78)(93 5/8)
3
(4
/8)(6 1/2)(8 5/8) (10 3/4) (12 7/8) (16) (21 3/8) (26 3/4) (32 1/8)
3
(9
/8)(14 1/8) (18 3/4) (23 1/2) (28 1/8)(35 1/8) (46 7/8) (58 5/8) (70 1/4)
1
(6
/2)(9 5/8) (12 7/8)(16)(19 1/4)(24 1/8) (32 1/8) (40) (48)
1
(6
/4)(9 3/8) (12 1/2) (15 5/8) (18 3/4)(23 1/2) (31 1/4) (39 1/8) (46 7/8)
5
(8
/8)(12 7/8) (17 1/8) (21 3/8) (25 5/8)(32 1/8) (42 3/4) (53 3/8) (64 1/8)
1
(3
/8)(4 3/4)(6 1/4)(7 7/8)(9 3/8)(11 3/4) (15 5/8) (19 1/2) (23 1/2)
3
(10
/4) (16) (21 3/8) (26 3/4) (32 1/8) (40) (53 3/8) (66 3/4) (80)
(0) (0) (0) (0) (0) (0) (0) (0) (0)
Unit: mm (inches)
1
/2) × SS – 46.1543 (1 13/16)
9
/32) × SS – 42.3308 (1 21/32)
3
/8) × SS
(117 1/8)
18
Page 19
2 Position the projector so that the lens is parallel to the screen.
Top view
Screen
3 Project an image on the screen and adjust the picture so that it fits the
screen. (1 page 20)
Note
When using a screen with an uneven surface, stripes pattern may rarely appear on the screen
depending on the distance between the screen and the projector or the zooming magnifications. This
is not a malfunction of the projector.
Connections and Preparations
19
Page 20
Step 2: Adjusting the Picture Position
Project an image on the screen and then adjust the picture position.
ON/STANDBY indicator
1
Lens shift dials
4
Remote control
detector
5, 6
Zoom lever,
Focus ring
2
?/1 (On/
standby)
switch
3 PATTERN button
Tip
The ?/1 (ON/STANDBY), INPUT, MENU, and M/m/</,/ (joystick) buttons on the side
panel of the projector function the same as those on the remote control.
Note
Depending on the installation location of the projector, you may not control it with the remote
control. In this case, point the remote control to the screen instead of the projector.
1 After connecting the AC cord to
the projector plug the AC cord
Lights in red.
into a wall outlet.
The ON/STANDBY indicator lights
in red and the projector goes into
standby mode.
20
Page 21
Flashes in green fo
r
a while (tens of
seconds) and then
lights in green.
2 Press the ?/1 (ON/STANDBY)
switch to turn on the projector.
The ON/STANDBY indicator flashes
in green, and then lights in green.
When the ON/STANDBY indicator
flashes, “Starting...” appears on the
screen.
3 Display a test signal for
performing adjustments.
Press the PATTERN button on the
remote control to display the test
signal.
Tip
The test signal is displayed for 1 minute.
Press the button to clear the test signal
display before that.
4 Move both lens shift dials to
adjust the picture position.
Connections and Preparations
To adjust the vertical
position
To adjust the horizontal position
21
Page 22
To adjust the horizontal position
Turn the lens shift dial right or left.
The picture projected on the screen moves right or left by a maximum of 25% of the screen
width from the center of the lens.
25% 1 screen width 25%
Top view
: Picture position when moving the picture to the left
at maximum
: Picture position when moving the picture to the
right at maximum
To adjust the vertical position
Turn the lens shift dial up or down.
The picture projected on the screen moves up or down by a maximum of 65% of the screen
height from the center of the lens.
Side view
65%
1
screen
height
65%
22
: Picture position when moving the picture upward at
maximum
: Picture position when moving the picture downward at
maximum
Page 23
Notes
• The range to move the picture projected on the screen can be adjusted only within the octagon area
illustrated below. In this connection, see “Positioning the Projector and a screen” (1 page 16) as
well.
Range of movement of
the projected picture
Projected Picture
H: Width of the projected picture
V: Height of the projected picture
• When you use both the horizontal and vertical lens shift features at the same time, the distance the
picture projected on the screen moves differ depending on how much the lens shift is adjusted. For
details, see the table on page 17 or 18.
5 Adjust the picture size using the
zoom lever.
Connections and Preparations
Focus ring
Zoom lever
6 Adjust the focus using the focus
ring.
23
Page 24
To adjust the tilt of the installation surface
If the projector is installed on an uneven surface, use the adjusters to keep the projector
level.
Turn to adjust.
Adjusters
Notes
• Pointing the projector at too high or too low of a tilt will result in trapezoidal distortion in the
projected image.
• Be careful not to catch your finger when turning the adjusters.
24
Page 25
Step 3: Connecting the Projector
When making connections, be sure to do the following:
• Turn off all equipment before making any connections.
• Use the proper cables for each connection.
• Insert the cable plugs properly; poor connection at the plugs may cause a malfunction or
poor picture quality. When pulling out a cable, be sure to pull it out from the plug, not
the cable itself.
• Refer to the operating instructions of the connected equipment.
Connecting to a VCR
To connect to equipment with HDMI output connectors
You can enjoy better picture quality by connecting a DVD player/recorder, Blu-ray Disc
player/recorder, or PS3
Moreover, if you have a Control for HDMI compatible equipment, you can operate the
projector synchronizing with the Control for HDMI compatible equipment. For details,
see the Function menu (1 page 55) and “About the Control for HDMI” (1 page 62).
Right side of the projector
®
equipped with HDMI output to the HDMI input of the projector.
AV amplifier
Equipment with HDMI
output connectors
Speakers
Connections and Preparations
: Video signal flow
to HDMI output
HDMI cable (not supplied)
When using an optional HDMI cable, be sure to use a Sony
HDMI cable or other cable they has the HDMI logo.
25
Page 26
Notes
• Use a high-speed HDMI cable. With a standard HDMI cable, images of 1080p,
DeepColor, and 3D video images may not be displayed properly.
• When connecting an HDMI cable to the projector, make sure the
part of the HDMI input of the projector and the
v mark on the connector of the cable is
V mark on the upper
set at the same position.
• If the picture from equipment connected to the projector with an HDMI cable is not
clear, check the settings of the connected equipment.
To connect to equipment with component video output
connectors
Right side of the projector
Component video cable (not supplied)
: Video signal flow
AV amplifier
Equipment with component
video output connectors
Speakers
26
Page 27
Connecting to a Computer
Right side of the projector
Computer
to monitor output
HD-Dsub15 pin cable (not supplied) or HDMI cable (not supplied)
: Video signal flow
When using an optional HDMI cable, be sure to use a Sony
HDMI cable or other cable they has the HDMI logo.
Tip
When connecting an HD-Dsub15 pin cable, set “Input-A Signal Sel.” in the Setup menu to
“Auto” or “Computer.” If the input signal does not appear properly, set it to “Computer.” (1
pages 54, 68)
Notes
• Use a high-speed HDMI cable. With a standard HDMI cable, images of 1080p, DeepColor, and
3D video images may not be displayed properly.
• When connecting an HDMI cable, make sure the
the projector and the
v mark on the connector of the cable is set at the same position.
V mark on the upper part of the HDMI input of
• If you set your computer, such as a notebook type, to output the signal to both computer’s display
and this equipment, the picture of the equipment may not appear properly. Set your computer to
output the signal to only the external monitor.
For details, refer to the computer’s operating instructions supplied with your computer. For
settings of the computer, consult with the manufacturer of the computer.
• If the picture from equipment connected to the projector with an HDMI cable is not clear, check
the settings of the connected equipment.
Connections and Preparations
27
Page 28
Connecting to an Optional TMR-PJ1 3D Sync Transmitter*
The optional TMR-PJ1 3D Sync Transmitter* is required to view projected 3D video
images.
Right side of the projector
LAN cable (not supplied)
: 3D sync signal flow
TMR-PJ1 3D Sync Transmitter
(not supplied)*
Tip
Place the optional 3D Sync Transmitter directly facing the 3D glasses. Also, in order to stabilize
operation of the 3D glasses, it is recommended that you place the 3D Sync Transmitter near your
viewing position.
CAUTION
Be sure to use straight-type LAN cable of up to 15 m labeled TYPE CM, and do not use
an extension cord.
Notes
• Turn off the projector before connecting the 3D Sync Transmitter, otherwise the 3D Sync
Transmitter is not recognized.
• The 3D SYNC connector is dedicated for the optional 3D Sync Transmitter. Do not connect
computers or other network devices, to avoid malfunction.
• Be sure to use straight-type LAN cable (not supplied) labeled Cat-7 (Category 7). If you use other
than the specified cable, the 3D Sync Transmitter may occasionally not work.
• Be sure to use cable of up to 15 m, and do not use an extension cord. Also, keep the LAN cable
away from any AC power cords as much as possible.
• Up to one TMR-PJ1 can be connected to a projector. Never connect multiple TMR-PJ1 units,
which may cause a malfunction.
* 3D Sync Transmitter is supplied with VPL-HW30AES.
28
Page 29
Step 4: Selecting the Menu Language
You can select one of 16 languages for displaying the menu and other on-screen displays.
The factory default setting is English. To change the current menu language, set the
desired language with the menu screen.
2,3,4
M/m/</,
(arrow)/ (enter)
buttons
1
MENU button
1 Press MENU.
The menu appears.
Connections and Preparations
29
Page 30

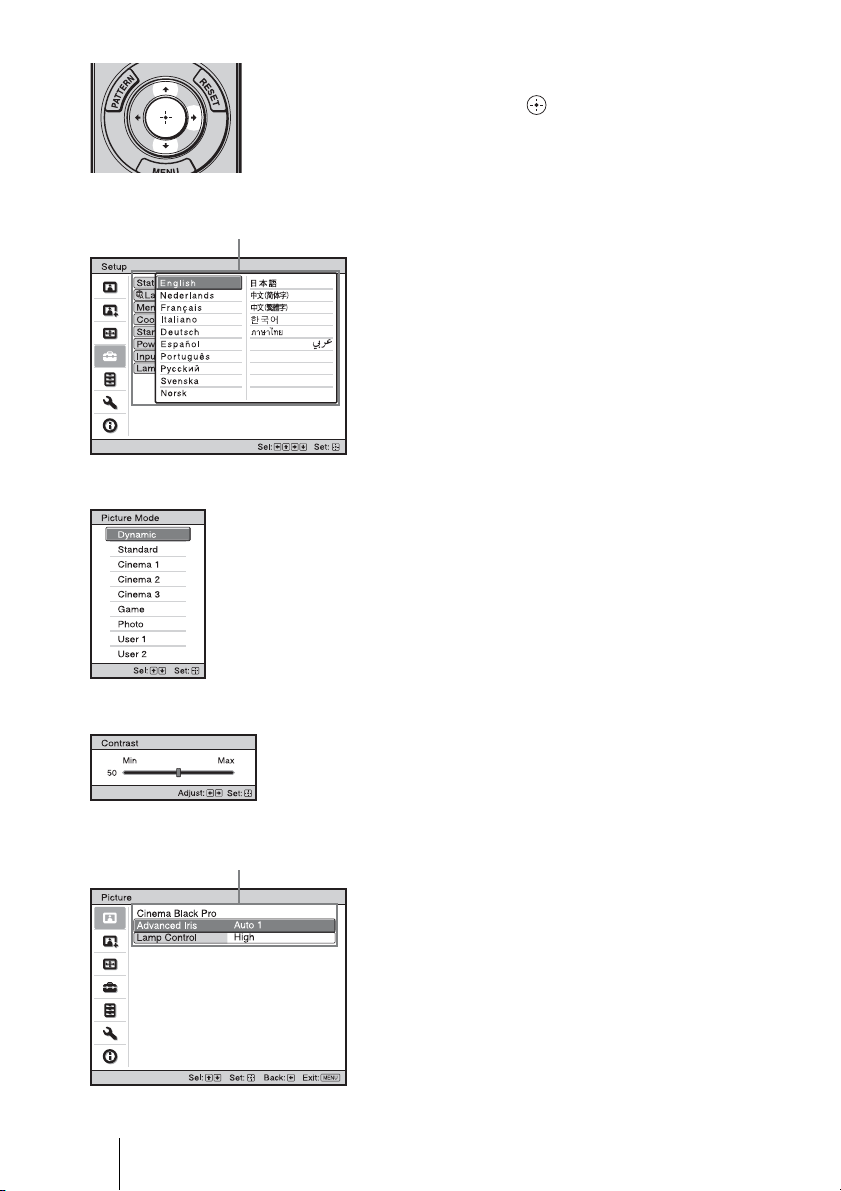

2 Press M/m to select the
Setup menu, and press , or
.
The setting items of the selected menu
appears.
3 Press M/m to select “Language,”
and press , or .
30
4 Press M/m/</, to select a
language, and press .
The menu changes to the selected
language.
To clear the menu
Press MENU.
Page 31
Projecting
This section describes how to operate the projector to view the picture from the equipment
connected to the projector. It also describes how to adjust the quality of the picture to suit your taste.
Projecting the Picture on the Screen
1 Power on both the projector and
the equipment connected to the
projector.
2 Press INPUT to display the input
palette on the screen.
3 Select the equipment from
which you want to display
images.
Press INPUT repeatedly or press M/m/
(enter) to select the equipment
Example: To view the picture
from the video
equipment connected
to the INPUT A
connector.
from which to project.
Projecting
To view the picture from Press INPUT to display
RGB/component equipment connected to the INPUT A connector Input-A*
Component equipment connected to the Y P
Equipment connected to the HDMI 1 connector HDMI 1
Equipment connected to the HDMI 2 connector HDMI 2
* Set the “Input-A Signal Sel.” setting in the Setup menu according to the signal input. When
you set it to “Auto,” and cannot display the picture properly, select an appropriate signal
according to the input signal. (1 pages 54, 61)
Tips
• When “Auto Input Search” is set to “On” in the Function menu, only input terminals with
effective signals are displayed in the input palette.
• When “Status” is set to “Off” in the Setup menu, the input palette does not appear. Press of
the INPUT button to switch between input terminals in sequence.
• When the “Control for HDMI” is set to “On” in the Function menu, the input terminal with
effective signals is automatically displayed, synchronizing with the operation of the equipment
connected to HDMI 1 or HDMI 2 input of the projector. (Only when the connected equipment
supports Control for HDMI compatible.)
B/CB PR/CR connector Component
31
Page 32
Notes on input of HDMI signal
The projector adjusts the RGB dynamic range of the equipment connected with HDMI
cable to the following to suit the HDMI standard and display in best picture quality.
When video signal is input: Limited (16-235)
When computer signal is input: Full (0-255)
When a signal other than those of HDMI standard is input, the following symptoms may
occur.
• When a video signal is input, the color gradation of the dark area or bright area may
become unclear, or texts may become faded. In this case, switch the RGB dynamic range
of the connected equipment to Limited (16-235). If this adjustment is unavailable, adjust
“Brightness”, “Contrast”, or “Sharpness” in the Picture menu of the projector. (1
page 47)
* When a computer signal is input, the texts may become faded. In this case, adjust the “Sharpness”
in the Picture menu. (1 page 48) (* 1,920 × 1,080 or 1,280 × 720 signals)
Turning Off the Power
1 Press the ?/1 (ON/STANDBY) switch.
A message “POWER OFF?” appears on the screen.
2 Press the ?/1 (ON/STANDBY) switch again before the message
disappears.
The ON/STANDBY indicator flashes in green and the fan continues to run to reduce the
internal heat. First, the ON/STANDBY indicator flashes quickly, during which you will
not be able to light up the lamp with the
?/1 (ON/STANDBY) switch.
Note
Never disconnect the power cord while the ON/STANDBY indicator is flashing.
The fan stops and the ON/STANDBY indicator changes from flashing green to remaining
red.
The power is turned off completely, and you can disconnect the power cord.
You can turn off the projector by holding the
second, instead of performing the above steps.
32
?/1 (ON/STANDBY) switch for about 1
Page 33
Selecting the Wide Screen Mode
You can enjoy various wide screen modes according to the video signal received.
WIDE MODE
button
Original
When the Wide
Mode is operated
Press WIDE MODE.
Each time you press the button, you can
select the “Wide Mode” setting.
You can also select it using the menu.
(1 page 51)
Wide Zoom (When a video
signal is input)
A 4:3 aspect ratio picture is enlarged
naturally to fill the screen. The upper and
lower portions of the screen are slightly
cut off.
Normal (When a video signal is
input)
A 4:3 aspect ratio picture is displayed in
the center of the screen and enlarged to fill
the screen vertically.
Projecting
Squeezed
Full (When a video signal is
input)
A picture squeezed to 4:3 aspect ratio is
displayed in its original aspect ratio.
When a 4:3 aspect ratio picture is
displayed, the picture is enlarged
horizontally to fill the 16:9 screen.
Tip
Squeezed: An original 16:9 aspect ratio picture
is recorded horizontally compressed to a 4:3
picture.
33
Page 34
L
etterbox picture with side panels
Zoom
A 16:9 aspect ratio picture is enlarged
vertically and horizontally in the same
ratio to fill the screen. Use this mode to
Letterbox picture
view a letterbox picture or a letterbox
picture with side panels.
If the subtitle of a movie, etc. is hidden
and cannot be seen, adjust the screen with
“Vertical Size” and “V Center” to display
the subtitle. (1 page 52)
Full 1 (When a computer
signal is input)
Displays a picture on the whole of the
screen without changing the aspect ratio
of the original picture.
Full 2 (When a computer
signal is input)
Displays a picture on the whole of the
screen.
Notes
• You can adjust the vertical position of the picture with “V Center” and “Vertical Size” in the
Screen menu only when “Zoom” is selected. (1 page 52)
• When the aspect ratio of the computer signal is 16:9 or wider, the “Wide Mode” setting is fixed at
“Full 1.”
Notes on selecting the wide screen mode
The projector is featured with the WIDE MODE. When changing the settings of WIDE
MODE, use caution as described below.
• Select the wide screen mode taking into account that changing the aspect ratio of the
original picture will provide a different look from that of the original image.
• Note that if the projector is used for profit or for public viewing, modifying the original
picture by switching to the wide mode may constitute an infringement of the rights of
authors or producers, which are legally protected.
34
Page 35
Watching 3D Video Images
You can enjoy powerful 3D video images, such as from 3D games and 3D Blu-ray Discs,
using the optional 3D Sync Transmitter and 3D glasses*.
1 Connect the optional TMR-PJ1 3D Sync Transmitter* to the projector (1
page 28).
2 Turn on the HDMI equipment for 3D compatibility connected to the
projector then play the 3D content.
For details on how to play 3D content, refer to the operating instructions for the
connected equipment.
3 Turn on the 3D glasses, after checking for comfortable fit.
For details on how to use the 3D glasses, see “Using the 3D Glasses” (1 page 37).
4 Turn on the projector and project the 3D video image onto the screen.
For details on how to project the image, see “Projecting the Picture on the Screen” (1
page 31).
Tips
• The factory default setting for “2D-3D Display Sel.” is “Auto.” to allow projecting 3D video
images automatically when the projector detects 3D signals.
• To convert 3D video images to 2D video images, set “2D-3D Display Sel.” to “2D” (1 page 55).
Notes
• If the 3D Sync Transmitter is not connected properly, 3D video images will not be displayed.
• It may not be possible to display 3D video image, depending on the type of signal. Set the “3D
Format” to “Side-by-Side” or “Over-Under” to suit to the 3D format in which you wish to watch
the 3D content.
• Use the 3D glasses within the communication range.
• You can watch 3D video images only when signals from HDMI input. When connecting 3D
equipment such as a 3D game or 3D Blu-ray player to the projector, use an HDMI cable.
• There are differences in perception of 3D video images among individuals.
• When the temperature of the usage environment is low, the 3D effect may be diminished.
* 3D Sync Transmitter and 3D glasses are supplied with VPL-HW30AES.
Projecting
Adjusting/Setting the 3D functions using the menu
Press the 3D button on the remote control to adjust the 3D settings in “3D Settings” in the
Function menu. For details, see “3D Settings” (1 page 55).
Safety precautions
• Use only the specified 3D glasses. You should only use the 3D glasses for watching 3D
video images.
• If you observe flickering or flashing, turn off the lighting in the room.
• Not for use by children without proper adult supervision.
35
Page 36
Using the Simulated 3D Function
You can convert normal 2D video images to 3D video images.
Tip
For details on how to operate the on-screen menu, see “Operation through the Menus” (1 page 42).
1 Display the Function menu and select “3D Settings.”
2 Set “2D-3D Display Sel.” to “3D.”
3 Set “3D Format” to “Simulated 3D” (1 page 55).
Tips
• Use the optional 3D glasses*.
• The projector automatically returns to 2D display and “2D-3D Display Sel.” returns to “Auto”
after approximately one hour when converting 2D video images to 3D video images using the
simulated 3D function.
Notes
• “2D-3D Display Sel.” cannot be set to “3D” for some video sources. For available 3D signals, see
“Compatible 3D Signals” (1 page 81).
• The simulated 3D feature may have limited effect, depending on the video source.
• There are differences in perception of 3D video images converted by the simulated 3D function
among individuals.
• If the 3D Sync Transmitter is not connected properly, “3D Settings” will not be displayed in the
menu.
* 3D glasses are supplied with VPL-HW30AES.
36
Page 37
Using the 3D Glasses
Use the optional TDG-PJ1 3D glasses* to view 3D images.
Note
Connect the optional TMR-PJ1 3D Sync Transmitter* to the projector before using the 3D glasses.
(1 page 31)
* 3D Sync Transmitter and 3D glasses are supplied with VPL-HW30AES.
Projecting
LED indicatorPower button
1 Put on the 3D glasses.
2 Press the power button on the 3D
glasses.
The LED indicator lights up in green.
3 Place the 3D Sync Transmitter in view
of the 3D glasses.
For detailed information, refer to the
instruction manual supplied with the 3D
IR sensor
Precautions for use
• The 3D glasses are operated by receiving infrared signals from the 3D Sync Transmitter.
Mis-operation may occur if:
– The 3D Sync Transmitter is not facing the 3D glasses IR (infrared) sensor, or the distance
between the 3D Sync Transmitter and 3D glasses is too great.
– If there are objects blocking the path between the 3D glasses and the 3D Sync
Transmitter.
– The 3D glasses are near other infrared devices (remotely-controlled lights, air
conditioners, IR transmitter).
• There are differences in perception of 3D video images among individuals.
• When the temperature of the usage environment is low, the 3D effect may be diminished.
• Be careful not to pinch your fingers in hinges of the 3D glasses when bending the temple
frames.
• Do not drop or modify these 3D glasses.
• If these glasses are broken, keep broken pieces away from your mouth or eyes.
• Not for use by children without proper adult supervision.
glasses.
37
Page 38
Selecting the Picture Viewing Mode
You can select the picture viewing mode that best suits the type of program or room
conditions.
The availability of each picture mode depends on whether the video image is 2D or 3D.
Press one of the
PICTURE MODE buttons.
DYNAMIC
Project bright images with sharp, vivid
PICTURE MODE
buttons
picture quality.
STANDARD
Ideal for projecting TV programs, sports,
concerts, and other video images.
CINEMA 1
Picture quality suited for watching
movies.
CINEMA 2
Picture quality suited for digital cinema
content.
CINEMA 3
Simulates production/editing studio
picture quality.
38
GAME
Picture quality suited for playing video
games.
Ideal for projecting still images taken with
a digital camera.
USER 1, USER 2
Adjusts the picture quality to suit your
taste.
Page 39
Adjusting the Picture Quality
You can easily adjust the picture quality that suits your taste by selecting the adjustment
items with the remote control. The adjusted data can be stored in each picture mode.
Selecting to Directly Adjust the Desired Menu Item
The following menu items can be
adjusted by using the buttons on
MOTION
ENHANCER button
COLOR TEMP
button
the remote control.
“Motion Enhancer”
“Color Temp.”
Projecting
COLOR SPACE
button
ADVANCED IRIS
button
BLACK LEVEL
button
GAMMA
CORRECTION
button
“Color Space”
“Advanced Iris”
“Black Level Adj.”
“Gamma Correction”
Press the following buttons of the desired menu
item repeatedly to adjust the picture quality to
suit your taste. For details on each menu item,
see the Picture
menu. (1 page 46)
39
Page 40
Adjusting the Picture Using Real Color Processing
The Real Color Processing (RCP) feature allows you to adjust the color, hue, and
brightness of each target of the projected picture you specify independently. You can thus
obtain a picture more suitable to your taste.
Tip
Freeze the scene of the video source when you are adjusting the picture using Real Color Processing.
1 Press RCP on the remote
control.
2, 3, 4, 5
M/m/</,
(arrow) /
(enter) buttons
1
RCP (Real
Color
Processing)
button
2 Press M/m to select “User 1,”
“User 2” or “User 3,” then press
,.
The RCP (Real Color Processing)
window appears.
3 Select the target color you want
to adjust.
Repeat steps 1 and 2 described
below to specify the target color.
40
Reference palette
1 Press
M/m to select
“Color Select,” then press
to select the color you want to
adjust among “Red,” “Yellow,”
“Green,” “Cyan,” “Blue” and
“Magenta.”
Only the portions that correspond
to the specified color will be
colored and the other portions will
be displayed in black and white.
The reference palette in the RCP
window also shows the adjustable
colors. Select the desired setting to
adjust the color on the projected
image using the reference palette
as a guide.
</,
Page 41
2 Press M/m to select “Position” or
“Range,” and specify it more
delicate color position and color
range you want to adjust using
</,.
4 Adjust the color of the specified
portions.
Press
M/m to select “RCP Color,”
“RCP Hue” or “RCP Brightness,”
then adjust the color or hue of the
portions selected in step 3 to suit your
taste using
projected picture. The picture is
returned to normal color during
adjustment.
</, while watching the
5 After the adjustment is
complete, press .
The RCP window disappears and the
picture of step 2 is appeared. Then
after a few seconds, normal picture is
restored.
Tip
There are some limitations on selection of
position and range.
Projecting
41
Page 42
Using the Menus
This section describes how to make various adjustments and settings using the menus.
Note
The menu displays used for the explanation may be different from the actual menu display.
Operation through the Menus
The projector is equipped with an on-screen menu for making various adjustments and
settings. Some of the adjustable/setting items are displayed in a pop-up menu, in a setting
menu or adjustment menu with no main menu, or in the next menu window. If you select
an item name followed by an arrow (
To change the on-screen menu language, see “Step 4: Selecting the Menu Language.”
(1 page 29)
B), the next menu window with setting items appears.
42
RESET button
2, 3, 4
M/m/</, (arrow) /
(enter) buttons
1
MENU button
Page 43
1 Press MENU.
The menu window appears.
2 Press M/m to select a menu item,
and press , or .
The items that can be set or adjusted
with the selected menu appear. The
item presently selected is shown in
white.
Using the Menus
43
Page 44
Pop-up menu
Setting menu
3 Press M/m to select an item you
want to set or adjust and press
, or .
The setting items are displayed in a
pop-up menu, in a setting menu, in an
adjustment menu or in the next menu
window.
Setting items
Adjustment menu
Next menu window
44
Setting items
Page 45
4 Make the setting or adjustment
of an item.
When changing the adjustment
level
To increase the value, press M/,.
To decrease the value, press m/<.
Press to restore the original screen.
When changing the setting
Press M/m to change the setting.
Press to restore the original screen.
You can restore the original menu
screen using < depending on the
selected item.
Items that cannot be adjusted
Adjustable items differ depending on the
input signal. The items that cannot be
adjusted or set do not appear in the menu.
(1 page 79)
To clear the menu
Press MENU.
To reset the picture that has
been adjusted
Select “Reset” from Picture menu.
To reset the items that have
been adjusted
Select an item in the Menu screen, and
display the pop-up menu, the setting
menu, and the adjustment menu.
Press the RESET on the remote control to
reset only the selected settings to its
factory preset value.
Note
RESET button on the remote control is
available only when the adjustment menu or
the setting menu is selected.
Using the Menus
When the screen display appears, select
“Yes” using < and press .
All of the following settings are reset to its
factory preset value.
The settings of “Cinema Black Pro”,
“Motionflow”, “Contrast”, “Brightness”,
“Color”, “Hue”, “Color Temp”,
“Sharpness” and “Expert Setting” on the
menu
45
Page 46
Picture Menu
The Picture menu is used for adjusting the picture.
Note
These items may not be available, depending on the type of input signal. For details, see “Input
Signals and Adjustable/Setting Items” (1 page 79).
Picture Mode You can select the picture viewing mode that best suits the type of
Reset Resets all currently selected picture mode settings to their default values.
picture or the environment.
The availability of each picture mode depends on whether the video
image is 2D or 3D.
Dynamic: Project bright images with sharp, vivid picture quality.
Standard: Ideal for projecting TV programs, sports, concerts, and other
video images.
Cinema 1: Picture quality suited for watching movies.
Cinema 2: Picture quality suited for digital cinema content.
Cinema 3: Simulates production/editing studio picture quality.
Game: Picture quality suited for playing video games.
Photo: Ideal for projecting still images taken with a digital camera.
User 1, User 2: You can adjust the quality of the picture to suit your
taste and then store the settings. Once the settings are stored, you can
view the picture with the adjusted picture quality by pressing each
PICTURE MODE button on the remote control.
Tip
You can also store the settings if the picture quality is adjusted in other
modes. To reset everything to the factory settings, select “Reset” from
the menu.
The factory default settings are as follows.
User 1: Same as “Cinema 1” setting.
User 2: Same as “Cinema 3” setting.
(1 page 45)
46
Page 47
Cinema Black Pro Advanced Iris
Switches the iris function during projection.
Auto 1 : Automatically switches to an optimum iris according to a
projected scene. The contrast of the scene is emphasized most.
Auto 2 : An optimum iris becomes smaller than when set to “Auto 1”.
The contrast of the scene becomes reduced.
Sensitivity: If “Auto 1” or “Auto 2” is selected, either “Recommend”,
“Fast”, or “Slow” can be selected according to the desired response
speed with Sensitivity Mode.
Manual: Manually (fixed) adjusts the Iris.
Off: Disables the iris (aperture) function.
Lamp Control
Switches the lamp wattage during projection.
High: Increases the lamp brightness, and projects brighter images.
Low: Decreases the lamp brightness, and enhances blacks by
minimizing brightness.
Tip
When you switch from “Low” to “High”, the number of turns of the fan
increases, and the fan noise becomes slightly louder. When you switch to
“Low”, energy consumption is reduced, thereby increasing the lamp life.
Motionflow Motion Enhancer
Reproduces fast-moving pictures smoothly without generating
afterimages.
High: Select this for picture quality smoother than “Low.”
Low: Select this for smooth picture quality.
Off: Select “Off” when noise, etc. appears in “High” or “Low.” Usually,
use to set “Motion Enhancer” to “Off.”
Note
Depending on the scene, a noise in particular in digital signals may
appear on the picture.
Contrast Adjusts the contrast.
Higher values increase the sharpness in images, while lower values
decrease the sharpness.
You can make adjustments by pressing CONTRAST+/– on the remote
control.
Brightness Adjusts the brightness of the picture.
The higher the setting, the brighter the picture. The lower the setting, the
darker the picture.
You can make adjustments by pressing BRIGHTNESS+/– on the remote
control.
Color Adjusts the color density.
The higher the setting, the greater the intensity. The lower the setting, the
lower the intensity.
Using the Menus
47
Page 48
Hue Adjusts the color tone.
Color Temp. Adjusts the color temperature.
Sharpness Sharpens the outline of the picture, or reduces the noise.
Expert Setting NR (Noise Reduction)
The higher the setting, the more greenish the picture becomes. The lower
the setting, the more reddish the picture becomes.
High: Equivalent to 9,300 K color temperature.
Gives white colors a blue tint.
Middle: Equivalent to 8,000 K color temperature.
Gives a neutral tint between “High” and “Low.”
Low 1: Equivalent to 6,500 K color temperature.
Gives white colors a red tint.
Low 2: Equivalent to 6,000 K color temperature.
Gives white colors an even redder tint.
Custom 1 to 5: Enables you to adjust, set, and store your favorite color
temperature.
The factory default settings are as follows.
Custom 1: Same as “High” color temperature setting.
Custom 2: Same as “Middle” color temperature setting.
Custom 3: Same as “Low 1” color temperature setting.
Custom 4: Same as “Low 2” color temperature setting.
Custom 5: Setting that prioritizes brightness.
The higher the setting, the sharper the picture. The lower the setting, the
softer the picture, thus reducing the noise.
You can make adjustments by pressing SHARPNESS+/– on the remote
control.
Reduces the roughness or noise of the picture.
Usually, select “Off”.
If the picture is rough or noisy, select a setting from among “Low”,
“Middle” or “High” according to the input signal source.
MPEG NR (MPEG Noise Reduction)
Reduces block noise and mosquito noise, in particular in digital
signals.
Block NR: Reduces digital noise that appears in mosaic-like pattern.
Mosquito NR: Reduces digital noise that appears near the outline of the
picture.
Film Mode
According to the film source you have selected, make a setting for
playback.
Auto 1: Suited for reproducing a picture movement close to the original
picture movement of the film source. Normally, set this to “Auto 1.”
Auto 2: Reproduces a 2-3 or 2-2 Pull-Down format video signal, such as
film sources, in a smooth picture movement. When a video signal
other than 2-3 or 2-2 Pull-Down format is input, the picture is played
back in progressive format.
Off: Plays back the picture in progressive format without detecting
video signals automatically.
48
Page 49
Expert Setting Gamma Correction
Adjusts the response characteristics of the tone of the picture.
Select a favorite tone from 8 options.
Gamma 1: Bright Produces a brighter picture overall.
Gamma 2:
Off
Gamma 3: Dark Produces a darker picture overall.
Gamma 4: Brightens dark areas in the picture, and expands gradation
expression.
Gamma 5: Produces a picture with contrast emphasized slightly.
Gamma 6: Produces a picture with contrast emphasized more than with
Gamma 5.
Gamma 7: Simulates the gamma curve of film.
Gamma 8: Simulates the gamma curve of still image.
Off: Gamma Correction is “Off.”
Black Level Adj. (Adjust): Produces a bolder, dynamic picture.
Set according to the input signal source.
3: Brightens dark areas in the picture, and expands gradation.
–3: Emphasizes dark areas in the picture.
Using the Menus
White Level Adj. (Adjust): Produces clear picture with sharp light/dark
contrast.
Set according to the input signal source.
3: Makes bright areas in the picture even brighter.
–3: Lowers the brilliance of bright areas in the picture.
x.v.Color
Set this item when playing back an x.v.Color video signal.
Set this item to “On” when connecting the projector with equipment that
supports x.v.Color and playing back an x.v.Color video signal.
For details on x.v.Color, see “About the x.v.Color” (1 page 62).
Color Space
You can convert the range of color reproduction.
Normal: Color range conforming to sRGB standards.
Wide 1: Reproduces color similar to film.
Wide 2: Reproduces color similar to digital cinema.
Wide 3: Produces a wider, more vivid range of color reproduction.
49
Page 50
Advanced Picture Menu
The Advanced Picture is used for adjusting the picture more.
RCP (Real Color
Processing)
You can adjust the color, hue, and brightness of each selected
portion of the picture independently.
User 1, User 2, User 3: You can adjust the picture using Real Color
Processing and store the settings. Once the settings are stored, you can
view the picture with the adjusted picture quality.
Off: Cancels this feature.
For details, see “Adjusting the Picture Using Real Color Processing”.
(1 page 40)
50
Page 51
Screen Menu
The Screen menu is used to adjust the input signal. You can adjust the size of the picture,
and select wide screen mode, etc.
.
Note
These items may not be available, depending on the type of input signal. For details, see “Input
Signals and Adjustable/Setting Items” (1 page 79).
Using the Menus
Wide Mode
(Video signal)
Wide Mode
(Computer signal)
You can set the aspect ratio of the picture to be displayed for the
current input signal. (1 page 33) This item is enabled only when a
video signal (preset memory numbers 3 to 14) (1 page 77) is input.
Wide Zoom: A 4:3 aspect ratio picture is enlarged naturally to fill the
screen. The upper and lower portions of the screen are slightly cut off.
Normal: A 4:3 aspect ratio picture is displayed in the center of the
screen and enlarged to fill the screen vertically.
Full: A picture squeezed to 4:3 aspect ratio is displayed in its original
aspect ratio. When a 4:3 aspect ratio picture is displayed, the picture is
enlarged horizontally to fill the 16:9 screen.
Zoom: A 16:9 aspect ratio picture is enlarged vertically and horizontally
in the same ratio to fill the screen. The upper and lower portions are
cropped.
You can switch settings by pressing WIDE MODE on the remote
control.
You can set the aspect ratio of the picture to be displayed for the
current input signal. (1 page 34) This item is enabled only when a
computer signal is input.
Full 1: Displays a picture on the whole of the screen without changing
the aspect ratio of the original picture.
Full 2: Displays a picture on the whole of the screen.
Zoom: A picture is enlarged vertically and horizontally in the same ratio
to fill the screen. The upper and lower portions are cropped.
You can switch settings by pressing WIDE MODE on the remote
control.
Note
When the aspect ratio of the input signal is 16:9 or wider, this setting is
fixed at “Full 1”.
51
Page 52
Over Scan Hides the outline of the picture.
Screen Area Selects the size of the picture when a Hi-Vision picture is
V Center Adjust the whole picture by moving up and down on the screen.
Vertical Size Reduces or enlarges the picture vertically.
Adjust Signal You can adjust the input signal.
On: Hides the outline of the input picture. Select this setting when noise
appears along the edge of the picture.
Off: Projects the whole of the input picture.
Tip
To display the displayable region within the four directions of the screen,
refer to “Blanking” on the Installation menu (1 page 58).
overscanned.
Full: Expands the picture on the whole of the screen.
Through: Does not expands the picture on the whole of the screen.
As the selected number increases, the screen moves up, and as the
selected number decreases, the screen moves down.
The screen is enlarged as the setting increases and reduced as the setting
decreases. If the subtitle of a movie, etc. cannot be seen, use this together
with “V Center”.
APA: Adjusts “Phase”, “Pitch”, and “Shift” automatically to a position
that suits the image signal for pictures from a computer.
Phase: Adjusts the dot phase and the phase of computer signal of
pictures from a computer. Adjusts the picture to the point where it
looks clearest.
Pitch: Adjusts the horizontal size of the picture from a computer.
As the number increases, the picture becomes wider, and as the
number decreases, the picture becomes narrower. Adjust the setting to
match the number of dots of the input signal.
Shift: Adjusts the position of the picture.
H: As the setting for H (horizontal) increases, the picture moves
to the right, and as the setting decreases, the picture moves to
the left. Use < / , to adjust the horizontal position.
V: As the setting for V (vertical) increases, the picture moves up,
and as the setting decreases, the picture moves down. Use M /
m to adjust the vertical position.
52
Page 53
Setup Menu
The Setup menu is used to change the factory preset settings, etc.
Using the Menus
Status Sets whether or not the on-screen display is displayed.
Language Selects the language used in the menu and on-screen displays.
Menu Position You can change the position to display the menu on the upper
Cooling Setting Use this item when using the projector at high altitudes.
Standby Mode Lowers the power consumption in standby.
Set to “Off” to turn off the on-screen displays except for certain
menus, message when turning off the power, and warning messages.
Available languages are: English, Dutch, French, Italian, German,
Spanish, Portuguese, Russian, Swedish, Norwegian, Japanese,
Chinese (Simplified Chinese), Chinese (Traditional Chinese),
Korean, Thai and Arabic.
screen.
Bottom Left: Displays the menu on the bottom left area of the
screen.
Center: Displays the menu on the center of the screen.
High: Use this setting when using the projector at an altitude of
1,500 m or higher.
Standard: Use this setting when using the projector at normal
altitudes.
Notes
• When this item is set to “High”, the fan noise becomes slightly
louder since the number of fan rotations increase.
• Do not use the projector at an altitude of 2,700 m or higher.
When set to “Standard”, the power consumption in standby becomes
normal.
When set to “Low”, the power consumption in standby is lowered.
Notes
• The factory default setting is “Low”.
• When this item is set to “Low”, the “PJ Auto Power On” function
is disabled (The function is set to “Off” and does not appear in the
menu.).(1 page 56)
53
Page 54
Power Saving Sets the power saving mode.
When set to “On”, the projector goes into power saving mode if no
signal is input for 10 minutes. At that time, the ON/STANDBY
indicator lights in orange, then the screen becomes dark. In power
saving mode, the power saving mode is cancelled if a signal is input
or any button on the projector or the remote control is pressed. If you
do not want to set the projector to power saving mode, select “Off”.
Input-A Signal Sel. Selects the type of signal input from the equipment connected to
the INPUTA connector.
Selects the type of signal input from the equipment by selecting
“Input-A” with the INPUT button.
Auto: Selects the input signal type automatically.
Computer: Inputs the signal from a computer.
Video G BR: Inputs the signal from a TV game or HDTV broadcast.
Component: Inputs the component signal from a DVD player/
recorder, Blu-ray Disc player/recorder, digital tuner, etc.
Note
When the input signal is not displayed correctly with this item set to
“Auto,” select the item according to the input signal.
Lamp Setting When replacing the lamps, set the desired lamp setting.
(1 page 71)
54
Page 55
Function Menu
The Function menu is used for changing the settings of the various functions of the
projector.
The 3D Settings menu can be displayed by pressing the 3D button on the remote control.
Using the Menus
3D Settings You can change the settings of the 3D function.
2D-3D Display Sel.: For Switching the video images to “2D” or
“3D.”
Auto: Displays 3D video images when HDMI signals with 3D
information are input. Displays 2D video images when other
signals are input.
3D: Displays 3D video images according to the 3D system
selected in “3D Format.” However, when HDMI signals with 3D
information are input the projector, displays 3D video images
according to the 3D system of the HDMI signals with 3D
information.
2D: Displays 2D video images.
* The 3D information is additional information to discriminate
3D.
3D Format: You can select this item by pressing b on the remote
control when setting “2D-3D Display Sel.” to “3D.” Set the 3D
system when the input HDMI signals do not include 3D
information.
Simulated 3D: Converts 2D video images to 3D video images.
The setting can be made only for input the HD signals.
• The simulated 3D feature may have limited effect, depending
on the video source.
• There are differences in perception of 3D video images among
individuals.
• The projector automatically returns to 2D display after
approximately one hour when displaying the 3D video images
with simulated 3D.
Side-by-Side: Displays 3D images as received (before conversion
to sequential) in left-right split-screen format.
Over-Under: Displays 3D images as received (before conversion
to sequential) in top-bottom split-screen format.
55
Page 56
3D Settings 3D Glasses Bri’ness: For adjusting the brightness of the picture
when watching 3D video images using the 3D glasses. You can
select the brightness from among “Min,” “1,” “2,” “3,” and “Max.”
3D Depth Adjust: For adjusting the depth of the 3D video images
on the screen. The setting can be made only when a 3D Format
other than “Simulated 3D” is selected.
We recommended that “3D Depth Adjust” be set to “0.” The 3D
video images may be difficult to perceive, depending on the
setting of “3D Depth Adjust.”
Simulated 3D Effect: For adjusting the 3D effect when 2D content
is converted to 3D video images. You can select the effect from
among “High,” “Middle,” and “Low.”
Notes
• “3D Settings” will not be displayed if the 3D Sync Transmitter is not
connected before turning on the projector.
• The menu display has a ghost while a 3D video image is displayed and
is best viewed with the 3D glasses.
• We recommended that the screen size be 100 to 120 inches. If you
watch 3D video images on a screen larger than 100 inches, the 3D
effect may be diminished.
HDMI Setting You can change the settings of the Control for HDMI function.
Control for HDMI: Selects the function whether to turn the Control
for HDMI function effective when the HDMI 1 and HDMI 2
connectors are connected to a Control for HDMI compatible
equipment.
When set to “On”, the following are available.
• The operation of the projector and the connected Control for
HDMI compatible equipment will synchronize with each other.
• The Control for HDMI setting of Sony equipment (AV
amplifier, video, etc.), which is compatible with “Control for
HDMI - Easy Setting”*, will also be effective.
The factory default setting is “On”.
Device Auto Power Off: Sets whether to also turn the power of the
connected Control for HDMI compatible equipment off when you
turn the power of the projector off.
When set to “On”, the equipment will synchronize and turn off
when the power of the projector turns off.
The factory default setting is “On”.
PJ Auto Power On: Select whether to link the power of the
projector to the Control for HDMI compatible equipment.
When set to “On”, the power of the projector will automatically
turn on when the power of the connected equipment is turned on
or when making operations such as playback.
Note
To enable this function, set “Standby Mode” (1 page 53) in the
Setup menu to “Standard”, and then set “PJ Auto Power On” to
“On”. For details, see “About the Control for HDMI” (1 page 62).
56
Page 57
HDMI Setting Device List: Lists all the Control for HDMI compatible equipment
connected to the projector.
When “Enable” is selected, the Control for HDMI setting of Sony
equipment (AV amplifier, video, etc.), which is compatible with
“Control for HDMI - Easy Setting”, will also be effective.
* “Control for HDMI - Easy Setting” is a function that makes the
Control for HDMI setting of equipment connected to HDMI input
of the projector effective as well when the Control for HDMI
setting of the projector is effective. This function is only available
between compatible Sony equipment, and some equipment may
not be compatible.
Although some non-Sony equipment may be compatible,
operation is not guaranteed for such equipment.
Auto Input Search Hides input terminals that do not have signal input.
When set to “On”, terminals without input signals do not appear on
the input palette that appears when you press INPUT.
To display all input terminals, set this to “Off”. (1 page 31)
Background Selects the background color of the screen when no signal is
input.
You can select “Black” or “Blue”.
Using the Menus
57
Page 58
Installation Menu
The Installation menu is used for changing the installation settings.
V Keystone Corrects the vertical trapezoidal distortion of the picture.
Image Flip Flips the picture on the screen horizontally and/or vertically.
Blanking This feature allows you to adjust the displayable region within
When the bottom of the trapezoid is longer than the top ( ):
Sets a lower value (– direction)
When the top of the trapezoid is longer than the bottom ( ):
Sets a higher value (+ direction).
Note
Depending on the picture position adjusted with the lens shift
feature, the aspect ratio of the picture may change from the original
or picture distortion may occur with V Keystone adjustment.
Off: The picture does not flip.
HV: Flips the picture horizontally and vertically.
H: Flips the picture horizontally.
V: Flips the picture vertically.
Use this item for installation for the backside projection or ceiling
installation.
the four directions of the screen.
Select the edge to adjust by highlighting Left, Right, Top, or Bottom
using the M / m buttons.
Adjust the amount of blanking using the < / , buttons.
58
Note
When both the “Blanking” and the “V Keystone” are adjusted at the
same time, the “Blanking” cannot be adjusted correctly. When using
the “Blanking”, make sure that you set the “V Keystone” to “0”.
Page 59
Panel Alignment This feature allows you to adjust the gaps in the color of
characters or the picture.
When set to “On”, the “Adjust Color” and the “Pattern Color” can be
assigned and adjusted.
Adjust Color: Assigns the desired color to adjust the gaps in color.
Select “R” (Red) or “B” (Blue) to make adjustments based on “G”
(Green).
Pattern Color: Select “R/G” (Red and Green) or “R/G/B” (White,
all colors) when the “Adjust Color” is “R” (Red). Select “B/G”
(Blue and Green) or “R/G/B” (White, all colors) only when the
“Adjust Color” is “B” (Blue).
Adjust: Assign the settings of the horizontal direction (H) with
< / , buttons and the vertical direction (V) with M / m buttons
on the Shift Adjust screen. The colors selected in the “Adjust
Color” can be adjusted with the < / ,, M / m buttons in each
direction.
Reset: Returns to the factory settings.
Note
Depending on the adjustments made above, the number of display
pixel may decrease. Also, colors may become uneven or the
resolution may change.
Tip
If colors appear on the edge of the screen after making the
adjustments above, adjust the region of the picture to display with
“Blanking” in the Installation menu. (1 page 58)
Using the Menus
59
Page 60
Information Menu
The Information menu displays the model name, serial number, the horizontal and vertical
frequencies of the input signal and the cumulated hours of usage of the lamp.
Model name: VPL-HW30ES
Serial No.
Memory No.
Signal type
Model name Displays the model name (VPL-HW30ES).
Serial No. Displays the serial number.
fH (horizontal frequency) Displays the horizontal frequency of the input signal.
fV (vertical frequency) Displays the vertical frequency of the input signal.
Memory No. Displays the preset memory number of the input signal.
Signal type Displays the type of the input signal. When input signals with 3D
Lamp Timer Indicates how long the lamp has been turned on (total usage).
information are input, the type of input signals and the 3D format are
displayed.
Notes
• fH (horizontal frequency) and fV(vertical frequency) may not be displayed depending on the input
signal used on the projector.
• You cannot change the displays listed above.
60
Page 61
About the Preset Memory No.
This projector has 32 types of preset data for input signals (the preset memory). When the
preset signal is input, the projector automatically detects the signal type and recalls the
data for the signal from the preset memory to adjust it to an optimum picture. The memory
number and signal type of that signal are displayed in the Information menu.
You can also adjust the preset data through the Screen menu.
This projector also contains 20 different user memories beside the preset memories used
for inputting analog computer signals. You can save input signals that have not been preset
on these user memories.
When an unpreset signal is input for the first time, a memory number is displayed as 0.
When you adjust the data of the signal in the Screen menu, it will be registered to the
projector. If more than 20 user memories are registered, the newest memory always
overwrites the oldest one.
See the chart on page 77 to find if the signal is registered to the preset memory.
Note
When the aspect ratio of input signal does not match the screen size, a part of the screen is displayed in black.
Using the Menus
61
Page 62
Others
This section describes about the other functions, how to solve the problems, how to
replace the lamp and air filter, etc.
connected to the projector. For settings of
About the Control for HDMI
What is the Control for HDMI?
Control for HDMI is an HDMI standard
mutual control function which uses the
HDMI CEC (Consumer Electronics
Control) specification. By connecting a
variety of Control for HDMI compatible
equipment such as a hard disk Blu-ray Disc
player, a DVD player/recorder, an AV
amplifier, etc. to a Control for HDMI
compatible TV or a projector with an HDMI
cable, the equipment connected will
synchronize with the TV or the projector
when either is operated.
Using the Control for HDMI
function
• Connect and assign the settings of each
equipment appropriately.
• Do not turn off the main power of the
equipment.
• Set the input setting of the projector to the
HDMI input which the equipment is
connected.
• Check if the picture from the equipment
appears appropriately on the projector.
Connecting a Control for HDMI
compatible equipment
Use an HDMI cable to connect the projector
and the Control for HDMI compatible
equipment. Use a cable that has acquired the
HDMI logo.
Setting the Control for HDMI
Be sure to assign the appropriate
connections for both the projector and the
Control for HDMI compatible equipment
62
the projector, see page 56. For settings of the
Control for HDMI compatible equipment
connected to the projector, refer to its
operational instructions. When equipment
that is compatible with the “Control for
HDMI - Easy Setting” is connected to the
HDMI input of the projector, if you turn the
Control for HDMI function setting of the
projector on, the Control for HDMI function
setting of the connected equipment will also
turn on.
What you can do with the
Control for HDMI
• By turning on or playing back the
connected equipment, the projector will
turn on and the input setting will switch to
the terminal of the connected equipment
automatically.
• By turning the power of the projector off,
the power of the connected equipment will
also turn off automatically.
• By changing the language setting of the
projector, the language setting of the
connected equipment will also change to
the same language automatically.
Notes
• The available functions of the Control for
HDMI differ depending on each equipment.
Refer to the operating instruction of each
equipment.
• Some synchronization may be available with
equipment of other brands with similar
functions, but it is not guaranteed.
About the x.v.Color
• “x.v.Color” is a promotion name given to
the products that have the capability to
realize a wide color space based on the
Page 63
xvYCC specifications and is a trademark
of Sony Corporation.
• xvYCC is an international standard of the
technical specifications of the extendedgamut color space for video signals. The
color gamut of xvYCC is wider than the
one of sRGB that is used with the current
television system.
About the simulated 3D feature
• Use the simulated 3D function taking into
account that the picture will provide a
different look from the original images,
because this function converts the video
images.
• Note that if the projector is used for profit
or for public viewing, displaying 2D video
images as 3D video images by converting
to the simulated 3D may constitute an
infringement of the rights of authors or
producers, which are legally protected.
Others
63
Page 64
Troubleshooting
If the projector appears to be operating erratically, try to diagnose and correct the problem
using the following instructions. If the problem persists, consult with qualified Sony
personnel.
Power
Symptom Cause and Remedy
The power is not turned on. c The power may not turn on if you turn the power off with I/1
Symptom Cause and Remedy
No picture. c Check that the proper connections have been made.
The picture from the
INPUT A connector is
colored strange.
The picture has ghosts. c Video images are displayed in 3D. Watch the 3D video images
The bright area of the
picture may become
unclear or texts may
become faded. (When
HDMI video signal is
input)
The texts may become
faded when connected with
a computer. (When
computer signal is input)
The picture is too dark. c Adjust the “Contrast” or “Brightness” of the Picture menu
(ON/STANDBY) switch and turn it on again in a short time.
After about 1 minute, turn the power on.
c Close the lamp cover securely, then tighten the screws securely.
(1 page 70)
c Close the filter holder securely. (1 page 71)
c Check warning indicators. (1 page 67)
(1 page 25)
c Select the input source correctly using the INPUT button.
(1 page 31)
c Set the computer signal to output from an external monitor.
c Set the computer signal to output only to an external monitor.
c Select “Computer,” “Component” or “Video GBR” for “Input-A
Signal Sel.” on the Setup menu according to the input
signal. (1 page 54)
c Select “Computer,” “Component” or “Video GBR” for “Input-A
Signal Sel.” on the Setup menu according to the input
signal. (1 page 54)
using the 3D glasses, or set “2D-3D Display Sel.” to “2D” (1
page 55).
c This symptom may occur when a signal other than those of
HDMI standard is input. (1 page 32) Switch the RGB dynamic
range of the connected equipment to Limited (16-235). If this
adjustment is unavailable, adjust “Brightness”, “Contrast”, or
“Sharpness” in the Picture menu of the projector. (1 page
47)
c This symptom may occur when a signal other than those of
HDMI standard is input. (1 page 32) Adjust “Sharpness” in the
Picture menu. (1 page 47)
properly. (1 page 47)
64
Page 65
Symptom Cause and Remedy
The picture is not clear. c Adjust the focus. (1 page 23)
The picture flickers. c For pictures from a computer, activate “APA” and adjust the
The color of characters or
the picture is not
appropriate.
Image is left on the screen.
(image retention)
c Condensation has accumulated on the lens. Leave the projector
for about 2 hours with the power on.
current input signal.
c Adjust “Phase” for “Adjust Signal” in the Screen menu
properly. (1 page 52)
c Select the desired color registration in “Panel Alignment” of
Installation menu (1 page 59).
c When High contrast non-moving images are displayed for a
long period of time, there may be some image retention on the
screen. This is only a temporary condition. Turning off the
power for a while will eliminate the retained image.
On-screen display
Symptom Cause and Remedy
On-screen display does not
appear.
The model name does not
disappear from the screen.
Or else, the demo mode is
displayed continuously.
Input terminals do not
appear.
c Set “Status” in the Setup menu to “On.” (1 page 53)
c Check if the ON/STANDBY indicator should light in green. The
ON/STANDBY indicator flashes while the projector is starting
up.
Avoid using the projector until the indicator light up in green.
c The display mode of the projector may be set at the time of
purchase. Consult with your local dealer or qualified Sony
personnel.
c Set “Auto Input Search” in the Function menu to “Off”. (1
page 57)
Others
Remote control
Symptom Cause and Remedy
The remote control does
not work.
c Batteries could be weak. Replace them with new batteries.
(1 page 11)
c Insert the batteries with the correct polarities. (1 page 11)
c If there is a fluorescent lamp near the remote control detector, the
projector may work improperly or inadvertently.
c Confirm the position of the remote control detector on the
projector. (1 page 8)
c If the 3D Sync Transmitter is pointed to the remote control
detector on the projector, the remote function may be impeded.
65
Page 66
3D video images
Symptom Cause and Remedy
The video image does not
seem like 3D video images.
c Check if the 3D glasses are turned on (1 page 37).
c Make sure that the battery in the 3D glasses is charged.
c Check if the input source is HDMI.
c Set “2D-3D Display Sel.” to “Auto” or “3D” (1 page 55).
c Check if the input signals are compatible 3D signals (1 page
81).
c If no 3D signal is input from the 3D equipment connected to the
projector, restarting the connected 3D equipment may solve the
problem.
c The 3D glasses may not function effectively if the viewing or
projector position is too far from the 3D Sync Transmitter. (1
page 37).
c Check that the 3D Sync Transmitter is placed within the
specified range. (1 page 31).
c Turn off the projector, reconnect the 3D Sync Transmitter, and
then turn on the projector again. (1 page 28)
c The screen size is not appropriate. Set the zooming
magnification to low or watch the image from farther away from
the screen (1 page 84).
Others
Symptom Cause and Remedy
The fan is noisy. c Check the setting of “Cooling Setting” in the Setup menu.
The lens shift cannot be
adjusted.
The projector and
connected equipment turn
On/Off, play back, and
operate at the same time.
(1 page 53)
c Make sure that the room temperature is not too high.
c Check the installation conditions. (1 page 13)
The number of fan rotation increases to maintain the product
reliability of the projector’s components in a room, where the
temperature is higher than normal. The fan noise becomes
slightly louder. The approximate normal temperature is 25°C.
c The lens shift cannot be adjusted over the range of movement.
Adjust the lens shift within the range of movement (1
pages 16, 23).
c “Control for HDMI”, “Device Auto Power Off”, and “PJ Auto
Power ON” are set to “On”. Set them to “Off”.
For details, see “HDMI Setting” (1 page 56).
66
Page 67
Warning Indicators
The ON/STANDBY or LAMP/COVER indicator lights up or flashes if there is any
trouble with your projector.
LAMP/COVER indicator
Symptom Cause and Remedy
LAMP/COVER flashes in
red. (A repetition rate of 2
flashes)
LAMP/COVER flashes in
red. (A repetition rate of 3
flashes)
ON/STANDBY flashes in
red. (A repetition rate of 4
flashes)
ON/STANDBY flashes in
red. (A repetition rate of 2
flashes)
ON/STANDBY flashes in
red. (A repetition rate of 6
flashes)
Note
When a warning indicator other than the above starts flashing, and the symptom persists even after
carrying out the above methods, consult with qualified Sony personnel.
c Close the lamp cover securely, then tighten the screws securely.
(1 page 70)
c Close the filter holder securely. (1 page 71)
c The lamp has reached the end of its useful lifespan. Replace the
lamp. (1 page 69)
c The lamp has reached a high temperature. Wait until the lamp
cools, and then turn on the power again.
c The fan is broken. Consult with qualified Sony personnel.
c The internal temperature is unusually high. Check to ensure that
if nothing is blocking the ventilation holes or whether or not the
projector is being used at high altitudes.
c Press the I/1 (ON/STANDBY) switch to turn on the projector. If
the power is not turned on, disconnect the AC power cord, then
confirm the ON/STANDBY lamp is turned off. After about 10
seconds, reconnect the AC power cord and turn on the power
again. If the indicators still light up, the electrical system has a
problem. Consult with qualified Sony personnel.
ON/STANDBY indicator
Others
67
Page 68
Message Lists
Warning messages
Message Cause and Remedy
High temp.! Lamp off in 1
min.
Frequency is out of range! c Frequency is out of range. Input a signal that is within the
Please check Input-A
Signal Sel.
Please replace the Lamp/
Filter.
Please clean the filter. c It is time to clean the air filter. Clean the air filter. (1 page 72)
Please clean the filter. Have
you finished? Yes No
Projector temperature is
high. Cooling Setting
should be “High” if
projector is being used at
high altitude.
c Turn off the power.
c Check to ensure that nothing is blocking the ventilation holes.
(1 page 14)
acceptable frequency range of the projector. (1 page 77)
c Set “Input-A Signal Sel.” in the Setup menu to
“Computer” when an RGB signal is input from a computer.
(1 page 54)
c It is time to replace the lamp. Replace the lamp. (1 page 69)
c Also, replace the air filter too. Restart cleaning the ventilation
holes (intake). (1 page 69)
If this message appears again after you replace the lamp and
filter, the lamp replacement process is not complete. Check the
lamp replacement process. (1 page 69)
Note
To clear this message, press any button either on the remote control
or the control panel of the projector once.
Note
To clear this message, press any button either on the remote control
or the control panel of the projector once.
c It is time to clean the air filter. Clean the air filter. (1 page 72)
c If you cleaned the air filter, select “Yes.” If you did not clean the
air filter, select “No.”
c Check to ensure that the ventilation holes on the unit are not
covered. (1 page 8)
c When using the projector at high altitude, set the Cooling
Setting to “High”. (1 page 53)
Note
When temperature inside the projector remains high, the Cooling
Setting is switched to “High” in 1 minute, then the fan speed
increases.
Caution messages
Message Cause and Remedy
c No signal is input in the selected input. Check connections.
x
Not applicable! c Press the appropriate button.
68
(1 page 25)
c The operation to be activated by the button is currently
prohibited.
Page 69
Replacing the Lamp and the Air Filter and Cleaning the Ventilation Holes (intake)
Tools you need to get started:
• Projector Lamp LMP-H202 (optional)
• Standard Phillips screwdriver
• Cloth (for scratch protection)
The lamp used for the light source has a
certain lifespan. When the lamp dims, the
color balance of the picture becomes strange,
or “Please replace the Lamp/Filter.” appears
on the screen, the lamp may be exhausted.
Replace the lamp with a new one (not
supplied)
Use an LMP-H202 Projector Lamp as the
replacement lamp.
The air filter is supplied with the LMP-H202
Projector Lamp. When you replace the lamp,
it is also time to replace the air filter.
Whenever you replace the lamp, be sure to
replace the air filter with a new one. Also
clean the ventilation holes (intake).
without delay.
message for replacing the air filter appears,
replace the air filter immediately.
1 Turn off the projector and unplug
the AC power cord.
2 When setting the projector on a
flat surface such as a desk etc.,
put a cloth to prevent the surface
from being scratched. Reverse
the projector as illustrated, then
place it on the cloth.
Others
Caution
• The lamp remains hot after the projector is
turned off with the
switch. If you touch the lamp, you may burn
your fingers. When you replace the lamp,
wait for at least 1 hour for the lamp to cool.
• Do not touch the surface of the lens. If you
touch it, wipe off the fingerprints with a soft
cloth.
• Pay special attention to replacing the lamp
when the projector is installed on the ceiling.
• When removing the lamp unit, make sure it
remains horizontal, then pull straight up. Do
not tilt the lamp unit. If you pull out the lamp
unit while tilted and if the lamp breaks, the
pieces may scatter, causing injury.
• When you remove the air filter, be careful
not to let any dust fall into the projector.
• Replacing the air filter is crucial to maintain
the good performance of the projector or to
prevent malfunction to it. When a warning
?/1 (ON/STANDBY)
Notes
• When the lamp is damaged the broken
pieces of the lamp may become
scattered, if you do not reverse the
projector. This may cause injury.
• Be sure that the projector is placed on a
stable surface.
69
Page 70
3 Loosen the screw on the lamp
cover with a Philips screwdriver,
and then open the lamp cover.
4 Loosen the 3 screws on the
lamp with the Phillips
screwdriver. Hold up the handle,
then pull the lamp straight out.
5 Hold the handle of the new lamp
and push it in securely until it
reaches the end, and then
tighten the 3 screws.
Note
Be careful not to touch the optical block
inside the unit.
6 Close the lamp cover, then
tighten the screws.
70
Page 71
7 Remove the filter holder.
11 Wipe dust off the ventilation
holes (intake) with a soft cloth.
Others
Ventilation holes (intake)
8 Remove the air filter.
Claws
9 Attach the new air filter so that it
fits into the each claws (10
positions) on the filter holder.
Note
Attach the air filter aligning it with the
shape of the filter holder.
Also, do not touch the fan after removing
the air filter that is set deep inside the
projector.
10 Attach the filter holder.
Note
The projector will not turn on unless the
filter holder is securely closed.
12 Place the project back on its
original position.
13 Turn on the projector, then
select the desired setting item
on the Setup menu. The
menu screen below will be
appeared.
14 Select “Yes”.
Caution
Do not put your hands into the lamp
replacement slot, and do not allow any liquid
or other objects into the slot to avoid
electrical shock or fire.
71
Page 72
Notes
• Be sure to use an LMP-H202 Projector Lamp
for replacement. If you use lamps other than
the LMP-H202, the projector may
malfunction.
• Be sure to turn off the projector and unplug
the power cord before replacing the lamp,
then check the ON/STANDBY lamp has
already been turned off.
• The projector will not turn on unless the lamp
is securely installed in place.
• The projector will not turn on unless the lamp
cover is securely closed.
• To cancel a message displayed on the screen,
press either the button on the remote control
or the one on the control panel on the
projector.
Note
The lamp contains mercury. The disposal
rules for used fluorescent tubes depend on
where you live. Follow the waste disposal
policy in your area.
Disposal of the used lamp
For the customers in the USA
Lamp in this product contains mercury.
Disposal of these materials may be
regulated due to environmental
considerations. For disposal or
recycling information, please contact
your local authorities or the
Telecommunications Industry
Association (www.eiae.org).
Cleaning the Air Filter
When “Please clean the filter.” appears on
the screen, you should clean the air filter.
The air filter should be cleaned every 1,500
hours. This value varies depending on the
environment or how the projector is used.
1,500 hours are approximate.
After washing the air filter with a mild
detergent solution, dry it in a shaded place.
Notes
• When you clean the air filter, make sure you
do not damage it.
For details on how to attach and remove the
air filter, see “Replacing the Lamp and the
Air Filter and Cleaning the Ventilation Holes
(intake)” Steps 7 to 10. (1 page 71)
• When you remove the air filter, be careful
not to let any dust fall into the projector.
• Cleaning the air filter is crucial to maintain
the good performance of the projector or to
prevent malfunction to it. When a warning
message for cleaning the air filter appears,
clean the air filter immediately.
Fitting the Lens Cap
When fitting the lens cap onto the lens,
position the lens cap so that the concave on
the side of the lens cap will fit the zoom
lever, as shown in the illustration.
72
Lens cap
Zoom lever
Page 73
Cleaning and the
Screen of the
How to Use the USB
Charging AC Power
Projector
Cleaning the lens
The lens surface is especially treated to
reduce reflection of light.
As incorrect maintenance may impair the
performance of the projector, take care with
respect to the following:
• Wipe the lens gently with a soft cloth such
as a cleaning cloth or glass cleaning cloth.
• Stubborn stains may be removed with a
soft cloth such as a cleaning cloth or glass
cleaning cloth lightly dampened with
water.
• Never use solvent such as alcohol,
benzene or thinner, or acid, alkaline or
abrasive detergent, or chemical cleaning
cloth, as they will damage the lens surface.
Cleaning the cabinet
• To remove dust from the cabinet, wipe
gently with a soft cloth. If dust is
persistent, wipe with a soft cloth slightly
moistened with a diluted mild detergent
solution.
• Never use any type of abrasive pad,
alkaline/acid cleaner, scouring powder, or
volatile solvent, such as alcohol, benzene,
thinner or insecticide.
• Using such materials or maintaining
prolonged contact with rubber or vinyl
materials may result in damage to the
screen surface and cabinet material.
Adaptor
Use the provided USB charging AC power
adaptor to charge your 3D glasses.
Caution
Avoid connecting the USB cable supplied
with the 3D glasses to a USB connector in
any other adaptor than the provided. It may
cause fire, a rise in temperature or damage to
the cable and glasses.
1 Turn off the power of the 3D
glasses.
2 Open the USB connector cover
and connect the provided USB
cable.
Open the cover.
USB cable supplied with the 3D glasses
Others
Black points and bright points (red,
blue, or green) on the screen
The projector is manufactured using highprecision technology.
You may, however, see tiny black points
and/or bright points (red, blue, or green) that
continuously appear on the projector.
This is a normal result of the manufacturing
process and does not indicate a malfunction.
3 Connect the USB cable to the
USB connector of the USB
charging AC power adaptor.
To USB charging AC power adaptor
73
Page 74
4 Plug the USB charging AC
power adaptor into an AC outlet.
Charging starts. The LED indicator on
the 3D glasses lights up in yellow while
the glasses are being charged.
Precautions about USB charging
AC power adaptor
Installation
Do not place the USB charging AC power
adaptor in a location where it is:
• Subject to extreme high temperature (E.g.,
in a car with its windows closed)
• Subject to direct sunlight or near a heat
source
• Subject to mechanical vibration or shock
Operation
• To prevent damage, be careful not to drop
or otherwise cause a mechanical shock to
the unit.
• After using, disconnect the unit from the
AC outlet and the equipment.
• Disconnect the unit from the AC outlet by
pulling on the plug. Do not pull on the
cord.
• To avoid short-circuiting, do not allow the
terminals of the USB charging AC power
adaptor or connector to touch any metal
object.
Cleaning
• Clean the unit with a soft, dry cloth. If the
unit is very dirty, wipe it off with a soft
cloth lightly moistened with a mild
detergent solution, and then wipe with a
soft dry cloth.
• Do not use any type of solvent such as
alcohol, thinner, or benzine as it may
damage the finish of the cabinet.
• If you use any chemical cleaner, observe
the instructions provided with the product.
• If the cabinet of the unit is splashed with
any type of solvent such as insecticide, or
remains in contact for a long time with
rubber or vinyl, the finish of the cabinet
may be damaged.
74
Page 75
Specifications
System
Projection system
SXRD panel, 1 lens, projection system
LCD panel
0.61-inch (15.4 mm)
SXRD panel 6,220,800 pixels
(2,073,600 pixels × 3)
Lens 1.6 times zoom lens (manual)
f=18.7 mm to 29.7 mm
F2.52 to F3.02
Lamp
200 W Ultra High Pressure Lamp
Projection picture size
40 inches to 300 inches (1,016 mm to
7,620 mm) (measured diagonally)
Acceptable video signals
15 kHz RGB/component 50/60 Hz,
Progressive component 50/60 Hz,
480/60i, 576/50i, 480/60p, 576/50p,
720/60p, 720/50p, 10 80/60i, 1080/50i,
1080/24PsF (48i), 1080/60p (HDMI
input only), 1080/50p (HDMI input
only), 1080/24p (HDMI input only)
Acceptable computer signals
fH: 19 kHz to 72 kHz
fV: 48 Hz to 92 Hz
Maximum resolution 1,920 × 1,080
(HDMI input only)
For details, see “Preset Signals”. (1
page 77)
SYNC/HD: Composite sync input:
TTL level, positive/ negative
Horizontal sync input: TTL level,
positive/negative
VD: Vertical sync input: TTL
3D SYNC
IR IN
REMOTE
level, positive/negative
RJ45 connector
Minijack
RS-232C: D-sub 9-pins (female)
General
Dimensions
Mass Approx. 10 kg (22 lb 1 oz)
Power requirements
Power consumption
Operating temperature
Operating humidity
Storage temperature
Storage humidity
407.4 mm × 179.2 mm ×
463.9 mm (16
inches) (w/h/d)
AC 100 V to 240 V, 3.0 A to 1.3 A,
50/60 Hz
Max. 300 W
Standby mode: 8 W
Standby mode (low): 0.5 W
5°C to 35°C (41°F to 95°F)
35% to 85% (no condensation)
–20 °C to +60 °C (–4 °F to +140 °F)
10% to 90%
1
/8 × 71/8 × 183/8
Others
Input
Y PB/CB PR/CR
Y with Sync: 1 Vp-p±2dB sync
P
P
HDMI
INPUT A
Component: phono type
negative (75 ohms terminated)
B/CB: 0.7 Vp-p±2dB (75 ohms
terminated)
R/CR: 0.7 Vp-p±2 dB (75 ohms
terminated)
Digital RGB/Y C
HD D-sub 15-pins
Analog RGB/component:
R (PR): 0.7 Vp-p±2 dB
R/C
(75 ohms terminated)
G: 0.7 Vp-p±2 dB
(75 ohms terminated)
G with sync/Y: 1 Vp-p±2 dB sync
negative (75 ohms terminated)
B (PB): 0.7 Vp-p±2 dB
B/C
(75 ohms terminated)
B (PB) CR (PR)
Supplied accessories
Remote control RM-PJ20 (1)
Size AA (R6) manganese batteries
(2)
AC power cord (1)
Lens cap (1)
USB charging AC power adaptor
(1)
Operating Instructions (1)
3D glasses (2)*
USB charging cable (1)*
Pouch for the 3D glasses (2)*
3D Sync Transmitter (1)*
* VPL-HW30AES only
Design and specifications are subject to change
without notice.
Optional accessories
Projector Lamp LMP-H202 (for replacement)
Projector Suspension Support PSS-H10
75
Page 76
3D glasses
3D Sync Transmitter
TDG-PJ1
TMR-PJ1
Warning on power connection
Use a proper power cord for your local power supply.
The United States,
Canada
Plug type YP-3 YP-12A * YP-359 VM0722
Female end YC-13 YC-13D VM0303B YC-13 VM0724
Cord type SVT H05VV-F CEE (13)
Rated Voltage
& Current
Safety approval UL/CSA VDE VDE
* Use a rated plug that complies with the regulation of each country/region and the specifications.
10A/125V 10A/250V 10A/250V 12A/125V 10A/250V
Continental
Europe
UK, Ireland,
Australia,
New Zealand
53 rd (OC)
Japan China
VCTF 227 IEC
DENANHO
53(RVV)
CCC
76
Page 77
Preset Signals
The following table shows the signals and video formats which you can project using this
unit.
When a signal other than the preset signal shown below is input, the picture may not be
displayed properly.
Memory
No.
3 480/60i 480/60i
4 576/50i 576/50i
5 480/60p 480/60p
6 576/50p 576/50p
7 1080/60i 1035/60i
8 1080/50i 1080/50i
9 1080/24PsF (48i) 1080/24PsF (48i)
10 720/60p 720/60p
11 720/50p 720/50p
12 1080/60p 1080/60p
13 1080/50p 1080/50p
14 1080/24p 1080/24p
18 720/60p
(Frame packing)
19 720/50p
(Frame packing)
20 1080/24p
(Frame packing)
Preset signal
(resolution)
(720 × 480i)
(720 × 576i)
(Progressive
NTSC)
(720 × 480p)
(Progressive
PA L)
(720 × 576p)
(1920 × 1035i)
1080/60i
(1920 × 1080i)
(1920 × 1080i)
(1920 × 1080i)
(1280 × 720p)
(1280 × 720p)
(1920 × 1080p)
(1920 × 1080p)
(1920 × 1080p)
720/60p
(1280 × 720p)
720/50p
(1280 × 720p)
1080/24p
(1920 × 1080p)
fH
(kHz)fV(Hz)
15.734 59.940 SonG/Y or
15.625 50.000 SonG/Y or
31.470 60.000 SonG/Y –
31.250 50.000 SonG/Y –
33.750 60.000 SonG/Y –
28.130 50.000 SonG/Y –
27.000 48.000 SonG/Y –
45.000 60.000 SonG/Y –
37.500 50.000 SonG/Y –
67.500 60.000 – –
56.260 50.000 – –
26.973 23.976 – –
90.000 60.000 – –
75.000 50.000 – –
53.946 23.976 – –
Sync H Size
composite sync
composite sync
/composite video
–
–
Others
77
Page 78
Memory
No.
Preset signal
(resolution)
fH
(kHz)fV(Hz)
Sync H Size
26 640 × 480 VESA 60 31.469 59.940 H-neg, V-neg 800
28 VESA 72 37.861 72.809 H-neg, V-neg 832
29 VESA 75
37.500 75.000 H-neg, V-neg 840
(IBM M3)
30 VESA 85
43.269 85.008 H-neg, V-neg 832
(IBM M4)
31 800 × 600 VESA 56 35.156 56.250 H-pos, V-pos 1024
32 VESA 60 37.879 60.317 H-pos, V-pos 1056
33 VESA 72 48.077 72.188 H-pos, V-pos 1040
34 VESA 75
46.875 75.000 H-pos, V-pos 1056
(IBM M5)
35 VESA 85 53.674 85.061 H-pos, V-pos 1048
37 1024 × 768 VESA 60 48.363 60.004 H-neg, V-neg 1344
38 VESA 70 56.476 70.069 H-neg, V-neg 1328
39 VESA 75 60.023 75.029 H-pos, V-pos 1312
45 1280 × 960 VESA 60 60.000 60.000 H-pos, V-pos 1800
47 1280 × 1024 VESA 60 63.974 60.013 H-pos, V-pos 1696
50 1400 × 1050 SXGA + 65.317 59.978 H-neg, V-pos 1864
55 1280 × 768 1280 × 768/60 47.776 59.870 H-neg, V-pos 1664
56 1280 × 720 1280 × 720/60 44.772 59.855 H-neg, V-pos 1664
Preset memory numbers for each input signal
Analog signal
Signal Preset memory number
Component signal (INPUT A and Y P
R connectors)
C
B/CB PR/
3 to 11
Video GBR signal (INPUT A connector) 3 to 11
Computer signal (INPUT A connector) 26, 28 to 35, 37 to 39, 55, 56
Digital signal
Signal Preset memory number
Component signal (HDMI 1, 2 connectors) 3 to 8, 10 to 14, 18 to 20
Video GBR signal (HDMI 1, 2 connectors) 3 to 8, 10 to 14, 18 to 20
Computer signal (HDMI 1, 2 connectors) 10 to 13*, 26, 32, 37, 45, 47, 50,
* Some digital signals input from computers may be displayed as preset memory number of
Component or Video GBR signal.
78
55
Page 79
Input Signals and Adjustable/Setting Items
The items in the menus available to adjust differ depending on the input signal. The
following tables indicate them.
The items that cannot be adjusted are not displayed in the menu.
Picture Menu
Item Input signal
Component signal Video GBR signal Computer signal
Advanced Iris zzz
Lamp Control zzz
Motion Enhancer zz –
Contrast zzz
Brightness zzz
Color zz –
Hue zz –
Color Temp. zzz
Sharpness zz –
NR z
MPEG NR zzz
Film Mode z
Black Level Adj.*
White Level Adj.*
Gamma Correction
x.v.Color
z ––
Color Space
RCP zzz
(preset memory
numbers 3, 4, 7, 8, 9
only)
(preset memory
numbers 3, 4, 7, 8, 9
only)
1
1
1
*
(preset memory
numbers 3, 4, 7, 8, 9
only)
(preset memory
numbers 3, 4, 7, 8, 9
only)
zz –
zz –
zzz
zzz
z
z
–
–
Others
: Adjustable/can be set
z
– : Not adjustable/cannot be set
79
Page 80
Screen menu
Item Input signal
Component signal Video GBR signal Computer signal
Wide Mode zzz *
3
Over Scan zz –
Screen Area *
2
(preset memory
numbers 7, 8, 9, 12, 13,
14 only)
V Center *
Vertical Size *
4
4
APA – – z *
Phase – – z *
Pitch – – z *
Shift z *
z
z
–
(preset memory
numbers 7, 8, 9, 12, 13,
14 only)
zzz
zz –
5
5
5
5
z *
5
z
z : Adjustable/can be set
– : Not adjustable/cannot be set
1
*
: The setting can be made only when “x.v.Color” is set to “Off”.
*2: The setting can be made only when “Over Scan” is set to “On” and “Wide Mode” is set to “Full”
in the Screen menu.
3
*
: If the input signal is from a computer, the setting cannot be made when the aspect ratio is 16:9
or wider (fixed at “Full 1”).
4
*
: The setting can be made only when “Zoom” is selected in “Wide Mode”.
5
*
: The setting can be made only for analog signal.
Note
When connecting a cable such as an HDMI cable, etc., check the type of the signal in the Information
menu (1 page 60) and Digital signal (1 page 78), and check items that are adjustable/can be
set.
80
Page 81
Compatible 3D Signals
The projector accepts the following types of 3D signals.
Resolution 3D signal format
720/60, 50P Side-by-Side format
Over-Under format*
Frame packing*
1080/60, 50i Side-by-Side format*
1080/24P Over-Under format*
Frame packing*
1080/60, 50P Side-by-Side format
Over-Under format
*: Mandatory 3D format of the HDMI standards.
Others
3D Signals and Adjustable/Setting Items
Some items on the menus may not be available to adjust/set, depending on the 3D signals.
The items that cannot be adjusted are not displayed on the menu. The following tables
indicate those items.
Item 3D signals
720/60, 50P 1080/60, 50i 1080/24P 1080/60, 50P
Advanced Iris––––
Lamp Control –
Motion enhancer – – z –
NR ––––
MPEG NR zz– * z
Film mode ––––
x.v.Color – – z
Wide mode –
Over scan––––
Screen area –
V keystone –
z: Adjustable/can be set
–: Not Adjustable/cannot be set
(fixed at “High”)–(fixed at “High”)–(fixed at “High”)–(fixed at “High”)
(component
signal only)
(fixed at “Full”) –(fixed at “Full”)–(fixed at “Full”)–(fixed at “Full”)
(fixed at “Full”)–(fixed at “Full”)–(fixed at “Full”)–(fixed at “Full”)
(fixed at “0”)
–
(fixed at “0”)
z
(fixed at “0”)
–
–
(fixed at “0”)
81
Page 82
*: The setting can be made for Over-Under format
When the projector is set to convert 2D video images to 3D video images, some items on
the menus may be not available to adjust/set, depending on the “3D Format” settings on
the Function menu. The items that cannot be adjusted are not displayed on the menu.
The following tables indicate these items.
Item 3D format
Side-by-Side Over-Under Simulated 3D
Advanced Iris – – –
Lamp Control – – –
Motion enhancer z
(preset memory
number 14 only)
NR – – z
MPEG NR zzz
Film mode – – –
x.v.Color z
(preset memory
number 14 only)
Wide mode – – –
Over scan – – –
Screen area – – –
V keystone z
(preset memory
number 14 only)
– z
(preset memory
numbers 7, 8 only)
– z
––
82
Page 83
Ceiling Installation
Use the PSS-H10 Projector Suspension Support when you install the projector on a
ceiling. The projection distances for ceiling installation are shown below.
L’:Distance between the screen and the installation hole at the
ceiling side of the ceiling mount unit (front side)
y’: Distance between the ceiling and the center of the screen such
that the picture will not be truncated or blocked
PSS-H10 Projector Suspension
Support (not supplied)
Ceiling
Center of the screen
Center of the lens
Others
83
Page 84
When using the 16:9 aspect ratio screen size
Screen Size
SS (inches)
40 60 80 100 120 150 200 250 300
(mm) 1016 1524 2032 2540 3048 3810 5080 6350 7620
(minimum) 1385 2008 2632 3256 3879 4814 6373 7932 9491
L’
(maximum) 2013 2955 3896 4837 5779 7190 9544 11897 14250
(54 17/32) (79 1/16) (103 5/8) (128 5/32) (152 23/32) (189 17/32) (250 29/32) (312 9/32) (373 21/32)
9
/32) (116 5/16) (153 3/8) (190 7/16) (227 1/2) (283 3/32) (375 3/4) (468 3/8) (561 1/32)
(79
(minimum) 249 374 498 623 747 934 1245 1557 1868
7
/8)(14 3/4)(19 5/8)(24 5/8)(29 1/2)(36 7/8)(49 1/8)(61 3/8)(73 5/8)
y’
(maximum) 592 754 916 1078 1240 1483 1887 2292 2697
(9
3
/8)(29 3/4)(36 1/8)(42 1/2)(48 7/8)(58 1/2)(74 3/8)(90 1/4) (106 1/4)
(23
Unit: mm (inches)
To calculate the installation positions
7
L’ (minimum) = 31.1781 (1
L’ (maximum) = 47.0644 (1
y’ (minimum) = 6.2263 (
y’ (maximum) = 8.0942 (
/32) × SS + 137.7 (5 13/32)
27
/32) × SS + 130.8 (5 5/32)
1
/4) × SS
5
/16) × SS + 268.5 (10 9/16)
When using the 4:3 aspect ratio screen size
Screen Size
SS (inches)
(mm) 1016 1524 2032 2540 3048 3810 5080 6350 7620
(minimum) 1664 2427 3190 3953 4717 5861 7769 9677 11585
L’
(maximum) 2435 3587 4739 5891 7043 8771 11651 14531 17411
(minimum) 305 457 610 762 914 1143 1524 1905 2286
y’
(maximum) 665 863 1061 1259 1457 1754 2250 2745 3240
To calculate the installation positions
L’ (minimum) = 38.1569 (1
L’ (maximum) = 57.5992 (2
y’ (minimum) = 7.62 (
y’ (maximum) = 9.906 (
40 60 80 100 120 150 200 250 300
(65 1/2) (95 9/16) (125 19/32) (155 21/32) (185 11/16) (230 3/4) (305 7/8) (380 31/32) (456 3/32)
(95 27/32) (141 7/32) (186 9/16) (231 29/32) (277 9/32) (345 5/16) (458 11/16) (572 1/16) (685 15/32)
1
/8)(18)(24 1/8) (30) (36) (45) (60) (75) (90)
(12
1
(26
/4)(34)(41 7/8)(49 5/8)(57 3/8)(69 1/8)(88 5/8) (108 1/8) ( 127 5/8)
Unit: mm (inches)
1
/2) × SS + 137.7 (5 13/32)
9
/32) × SS + 130.8 (5 5/32)
5
/16) × SS
3
/8) × SS + 268.5 (10 9/16)
84
Page 85
Attaching the PSS-H10 projector suspension support
For details on installation on a ceiling, refer to the Installation manual for Dealers of the
PSS-H10. Make sure to consult with a qualified Sony personnel for installation.
The installation measurements are shown below when installing the projector on a ceiling
using the PSS-H10.
Top view
Install the projector so that the center of the lens is parallel to the center of the screen.
182.8 (7 1/4) 130 (5 1/8)
Front of the cabinet
Center of the lens
Distance between the screen
and the center of the lens
227.8 (9)
Center of the supporting pole
(The center of the supporting pole
is different from that of the unit.)
Upper ceiling
mount bracket
Others
85
Page 86
Front view
150 (6)
75 (3)
Ceiling
Center of the
supporting pole
175 (7)
The bottom
surface of the
mount bracket
3
93.5 (3
/4)
Side view
1
203.7 (8
/8) 203.7 (8 1/8)
407.4 (16
Center of the lens
Front of the cabinet
1
/8)
182.8 (7 1/4) 130 (5 1/8)
227.8 (9) 236.1 (9
Center of the lens
3
463.9 (18
/8)
3
/8)
86
Page 87
Index
Numerics
3D Glasses
Using the 3D glasses ...........................37
3D Settings
2D-3D Display Sel. .............................55
3D Depth Adjust ..................................56
3D Format ............................................55
3D glasses Bright .................................56
Simulated 3D Effect ............................56
A
Acceptable 3D Signals ............................81
Adjust Signal
APA .....................................................52
Phase ....................................................52
Pitch .....................................................52
Shift .....................................................52
Adjuster ...................................................24
Adjusting
picture position ....................................20
picture quality ......................................39
Advanced Iris ..........................................47
APA .........................................................52
Auto Input Search ....................................57
B
Background .............................................57
Black Level Adj. .....................................49
Blanking ..................................................58
Brightness ................................................47
C
Ceiling Installation ..................................83
Cinema Black Pro ....................................47
Color Space .............................................49
Color Temp. ............................................48
Connecting
Computer .............................................27
Optional 3D sync transmitter ...............28
Video equipment .................................25
Contrast ...................................................47
Control for HDMI ...................................56
Cooling Setting ........................................53
F
fH .......................................................... 60
fV .......................................................... 60
G
Gamma Correction .................................. 49
H
HDMI ...................................................... 25
Hue .......................................................... 48
I
Image Flip ............................................... 58
Input-A Signal Sel. ................................. 54
L
Lamp Control .......................................... 47
Lamp Timer ............................................ 60
Language ................................................. 53
Location of Controls
Front/Right side .................................... 8
Rear/Bottom .......................................... 9
M
Menu
Advanced Picture ................................ 50
Function .............................................. 55
Information ......................................... 60
Installation ........................................... 58
Picture ................................................. 46
Screen .................................................. 51
Setup ................................................... 53
Messages
Caution ................................................ 68
Warning ............................................... 68
Motion Enhancer .................................... 47
Motionflow ............................................. 47
MPEG NR ............................................... 48
N
NR .......................................................... 48
O
Over Scan ................................................ 52
Others
E
Expert Setting ....................................48, 49
87
Page 88
P
Panel Alignment ......................................59
