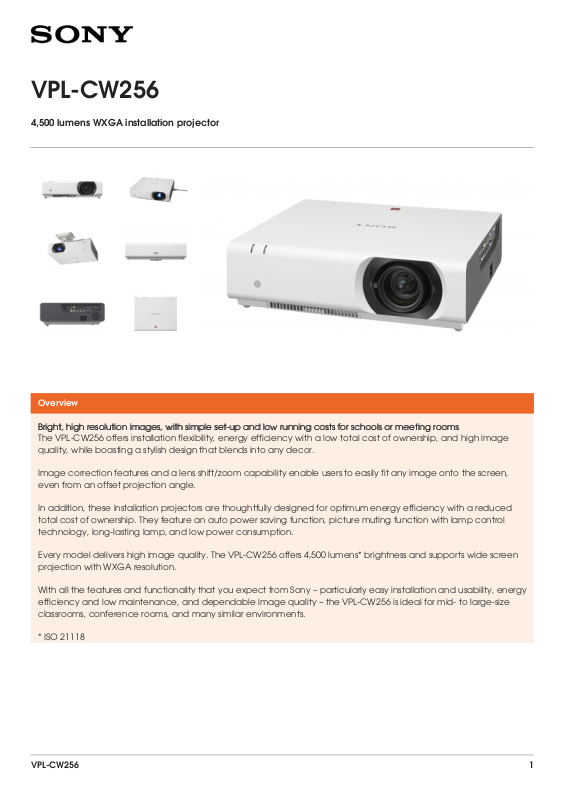

Page 1
VPL-CW256
4,500 lumens WXGA installation projector
Overview
Bright, high resolution images, with simple set-up and low running costs for schools or meeting roomsBright, high resolution images, with simple set-up and low running costs for schools or meeting rooms
The VPL-CW256 offers installation flexibility, energy efficiency with a low total cost of ownership, and high image
quality, while boasting a stylish design that blends into any decor.
Image correction features and a lens shift/zoom capability enable users to easily fit any image onto the screen,
even from an offset projection angle.
In addition, these installation projectors are thoughtfully designed for optimum energy efficiency with a reduced
total cost of ownership. They feature an auto power saving function, picture muting function with lamp control
technology, long-lasting lamp, and low power consumption.
Every model delivers high image quality. The VPL-CW256 offers 4,500 lumens* brightness and supports wide screen
projection with WXGA resolution.
With all the features and functionality that you expect from Sony – particularly easy installation and usability, energy
efficiency and low maintenance, and dependable image quality – the VPL-CW256 is ideal for mid- to large-size
classrooms, conference rooms, and many similar environments.
* ISO 21118
VPL-CW256 1
Page 2
Features
Bright, clear images with maximum 4,500 lumens colour light output
The projector’s high light output ensures that presentations are seen clearly in any classroom or meeting
room. Choose from three brightness modes to suit any environment – High for naturally white presentations in
bright rooms, Standard for everyday use, and Low for watching video in darkened rooms.
•
1.32:1 to 1.91:1 throw ratio
The VPL-CW256 offers a 1.32:1 to 1.91:1 throw ratio, allowing installation in most larger classrooms or meeting
rooms.
•
High resolution lens
The high resolution Advanced Crisp Focus (ACF) lens offers a large diameter and fine pitch to ensure clear,
sharp pictures.
•
Fine lens shift
The projector's wide lens shift range means that the projector can be positioned closer to the ceiling, or
horizontally offset to avoid ceiling obstacles.
•
3LCD BrightEra™ Technology
The projector’s efficient 3LCD panel system is enhanced by advanced BrightEra™ technology by Sony.
You’ll see the difference with impressively bright, consistent, high resolution images and increased panel
reliability.
•
WXGA resolution for detail-packed presentations
WXGA (1280 x 800) 16:10 resolution offers lots of crisp, fine detail: perfect for making presentations direct
from a laptop or PC.
•
Quieter operation
Acoustic fan noise is reduced compared with previous models for even quieter operation.
•
Save energy at the touch of a button
Just push the ECO MODE button on the projector or remote commander to instantly access a range of
energy-saving settings.
•
Auto Dimming
Projector brightness is gradually reduced automatically if there’s no input signal, or after a pre-set time –
cutting power consumption and saving energy bills. Brightness instantly returns to maximum when an input
signal is detected.
•
Power Saving Picture Mute
Touch a button on the projector remote and the picture’s muted instantly. Another touch and the
projector’s instantly powered back up to resume your presentation.
•
Vertical and Horizontal Keystone Adjustment
Keystone distortion of vertically up to +/- 30 degrees and horizontally up to +/- 20 degrees can be digitally
corrected via the on-screen menu and/or remote commander. This allows images to be projected with their
correct geometry, even when installation space is limited.
•
Advanced Geometric Correction
•
VPL-CW256 2
Page 3
Each image corner and side can be grabbed and adjusted for a true, square fit - invaluable when
projecting from an offset position.
Smart APA (Auto Pixel Alignment)
Phase, Pitch and Shift values are automatically optimised when using the projector with a PC source. These
values can also be adjusted manually.
•
Auto Input Search
The projector automatically switches to the correct input, simplifying set-up and saving time.
•
Audio switcher facility
The projector can select between two audio sources, routing them via a variable audio output to the room
amplification system.
•
Picture Freeze Function
Picture Freeze is useful if you need to look at other material on your PC’s screen during presentations without
the audience seeing it. Freeze the current image that's being projected, and use your PC independently
from the projector display.
•
Get closer with Digital Zoom
Instantly magnify a selected portion of the screen by up to 4x for a really close-up view of images from a
connected PC.
•
Off and Go
Touch a button at the end of your presentation and projector is turned off immediately, without going
through a lengthy power-down cycle.
•
Direct Power On/Off
There’s no need to go through Standby mode when powering up the projector: the projector activates as
soon as power is supplied.
•
Security that’s built in
Your investment’s protected with security measures including password protection and physical anti-theft
anchor points.
•
VPL-CW256 3
Page 4
Technical Specifications
Display System
•
Display System 3 LCD system
Display device
•
Size of effective display area 0.75” (19.1 mm) x 3, BrightEra, Aspect ratio: 16:10
•
Number of pixels 3,072,000 (1280 x 800 x 3) pixels
Projection lens
•
Focus Manual
•
Zoom - Powered/Manual Manual
•
Zoom - Ratio Approx. 1.45 x
•
Throw Ratio 1.32:1 to 1.91:1
•
Lens shift - Powered/Manual Manual
•
Lens shift - Range Vertical +/- 5%
•
Lens shift - Range Horizontal +/- 3%
Light source
•
Type Ultra high pressure mercury lamp
•
Wattage 245 W type
Recommended lamp replacement time *1
•
Lamp mode: High 3000 H
•
Lamp mode: Standard 4000 H
•
Lamp mode: Low 5000 H
Filter cleaning / replacement cycle (Max.) *1
•
Filter cleaning / replacement cycle (Max.) Same time as the lamp replacement is recommended
Screen size
•
Screen size 40” to 300” (1.02 m to 7.62 m) (measured diagonally)
Light output
•
Lamp mode: High 4500 lm
•
Lamp mode: Standard 3400 lm
•
Lamp mode: Low 2500 lm
Color light output
•
Lamp mode: High 4500 lm
•
Lamp mode: Standard 3400 lm
•
Lamp mode: Low 2500 lm
VPL-CW256 4
Page 5
Contrast ratio (full white / full black) *2
•
Contrast ratio (full white / full black) 3700:1
Speaker
•
Speaker 10 W x 1 (monaural)
Displayable scanning frequency
•
Horizontal 19 kHz to 92 kHz
•
Vertical 48 Hz to 92 Hz
Display resolution
•
Computer signal input Maximum display resolution: UXGA 1600 x 1200 dots*3
•
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
Color system
•
Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone correction (Max.)
•
Vertical +/- 30°
•
Horizontal +/- 20°
OSD language
•
OSD
language
24-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Norwegian, Swedish,
Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Indonesian, Finnish, Hungarian, Greek)
INPUT OUTPUT (Computer/Video/Control)
•
INPUT A
RGB / Y PB PR input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
•
INPUT B
RGB input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
•
INPUT C HDMI input connector: HDMI 19-pin, HDCP support
•
INPUT D HDMI input connector: HDMI 19-pin, HDCP support
•
VIDEO IN
Video input connector: Pin jack
Audio input connector: Pin jack (x2)
•
OUTPUT
Monitor output connector*4: Mini D-sub 15-pin (female)
Audio output connector*5: Stereo mini jack (variable out)
•
REMOTE D-sub 9-pin (male)/RS232C
•
LAN RJ-45, 10BASE-T/100BASE-TX
Acoustic noise
•
Lamp mode: Low 29 dB
Operating temperature / Operating humidity
•
Operating temperature / Operating humidity 0°C to 40°C (32°F to 104°F) / 20% to 80%（ no condensation)
Storage temperature / Storage humidity
•
Storage temperature / Storage humidity -10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)
Power requirements
•
Power requirements AC 100 V to 240 V 3.5 A to 1.5 A, 50/60 Hz
VPL-CW256 5
Page 6
Power consumption
•
AC 100 V to 120 V Lamp mode: High : 346 W
•
AC 220 V to 240 V Lamp mode: High : 326 W
Power Consumption (Standby Mode)
•
AC 100 V to 120 V 0.5 W (when “Standby mode” is set to “Low”)
•
AC 220 V to 240 V 0.5 W (when “Standby mode” is set to “Low”)
Power Consumption (Networked Standby Mode)
•
AC 100 V to 120 V 3.0 W (LAN) (when "Standby Mode" is set to "Standard")
•
AC 220 V to 240 V 3.0 W (LAN) (when "Standby Mode" is set to "Standard")
Standby Mode / Networked Standby Mode Activated
•
Standby Mode / Networked Standby Mode Activated After about 10 minutes
Heat dissipation
•
AC 100 V to 120 V 1180 BTU/h
•
AC 220 V to 240 V 1112 BTU/h
Dimensions (W x H x D)
•
Dimensions (W x H x D) (without protrusions) Approx. 406 × 113 × 330.5 mm (15 31/32 × 4 7/16 × 13 inches)
Mass
•
Mass Approx. 5.6 kg (12 lb)
Supplied accessories
•
Remote commander RM-PJ8
Optional Accessories
•
Replacement lamp LMP-C240
Notes
•
*1 The figures are the expected maintenance time and not guaranteed. They will depend on the environment or how the projector is used.
•
*2 The value is average.
•
*3 Available for VESA Reduced Blanking signal.
•
*4 From INPUT A and INPUT B.
•
*5 Works as an audio switcher function. Output from a selected channel; not available in standby
VPL-CW256 6
Page 7
PAM-210
Projector Ceiling Mount for
Installation Projector
Ceiling Brackets
PAM-310
Projector Ceiling Mount for
Installation Projector
Accessories
© 2016 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice. The values for mass and dimension are approximate.
All trademarks are the property of their respective owners.
