Before Use >

Before Use

Congratulations on your purchase of this Sony VAIO® computer and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide you with a state-of-the-art computing experience.

External views illustrated in this manual may look slightly different from those of your computer.

How to find specifications

Some features, options, and supplied items may not be available on your computer.

To find out about the configuration of your computer, visit the web site at http://www.sony-asia.com/

Before Use > Finding More about Your VAIO Computer

Finding More about Your VAIO Computer

This section provides support information about your VAIO computer.

1. Printed Documentation

❑ Quick Start Guide — An overview of components connection, set-up information, etc.

❑ Recovery, Backup and Troubleshooting Guide

❑ Safety Regulations, etc.

✍

Before activating the wireless functions such as the wireless LAN and Bluetooth technology, read the Safety Regulations carefully.

2. On-screen Documentation

❑ VAIO User Guide — General information of your VAIO computer including support and troubleshooting information.

To access VAIO User Guide, click Start , All Programs, and VAIO Manual.

❑ Windows Help and Support — A comprehensive resource for practical advice, tutorials, and demonstrations to help you

learn to use your computer.

To access Windows Help and Support, click Start and Help and Support, or press and hold the Microsoft Windows key and press the F1 key.

Before Use > Finding More about Your VAIO Computer

3. Support Web Sites

❑ Sony online support web site

The Sony online support web site provides instant access to information on commonly encountered problems:

http://www.sony-asia.com/support/vaio/onlinesupport

❑ Online registration

You can register your computer online at the following URL:

http://www.sony-asia.com/support/vaio/registration

❑ Contact information

You can contact us at the following URL:

http://www.sony-asia.com/support/vaio/contactus

❑ For other Sony products, visit the web site at http://www.sony-asia.com/

Before Use > Ergonomic Considerations

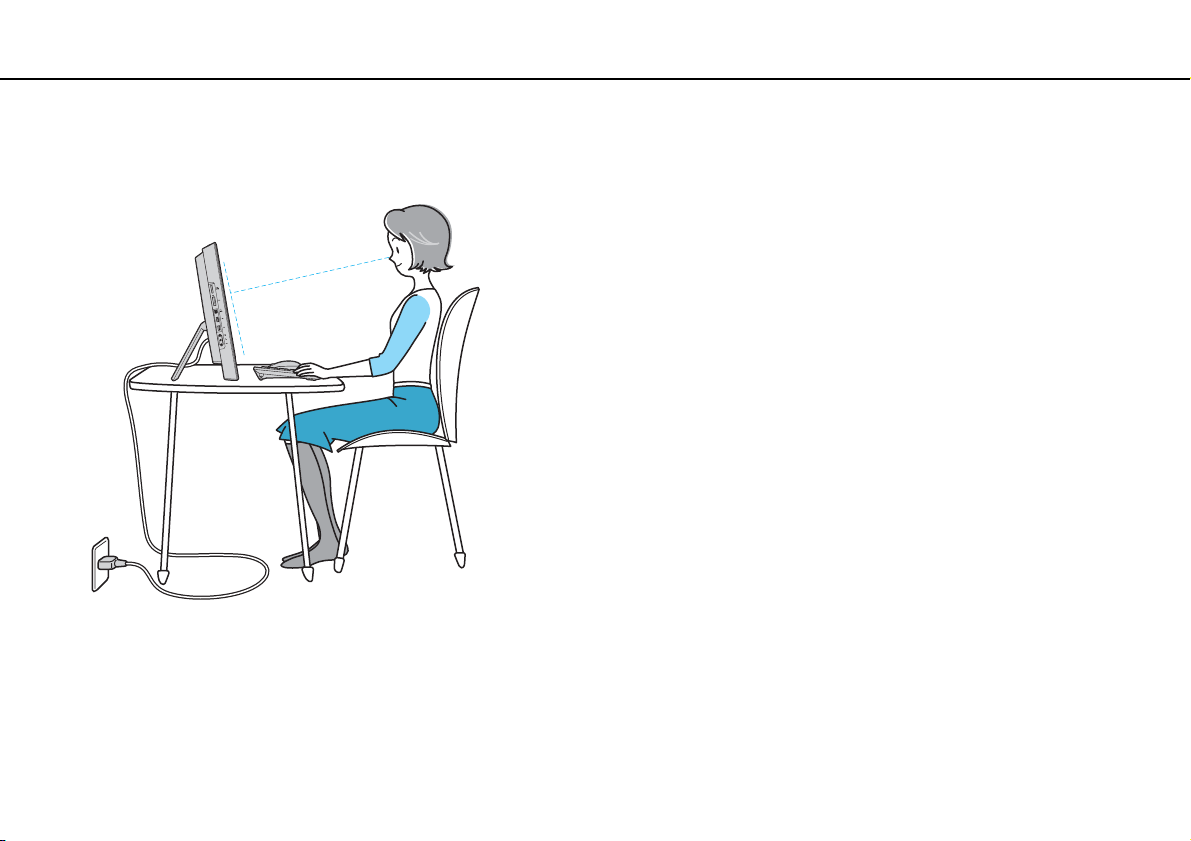

Ergonomic Considerations

Whenever possible, you should attempt to take account of the following ergonomic considerations:

❑ Position of your computer – Place the display directly in front of you. Keep your forearms horizontal, with your wrists in

a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Before Use > Ergonomic Considerations

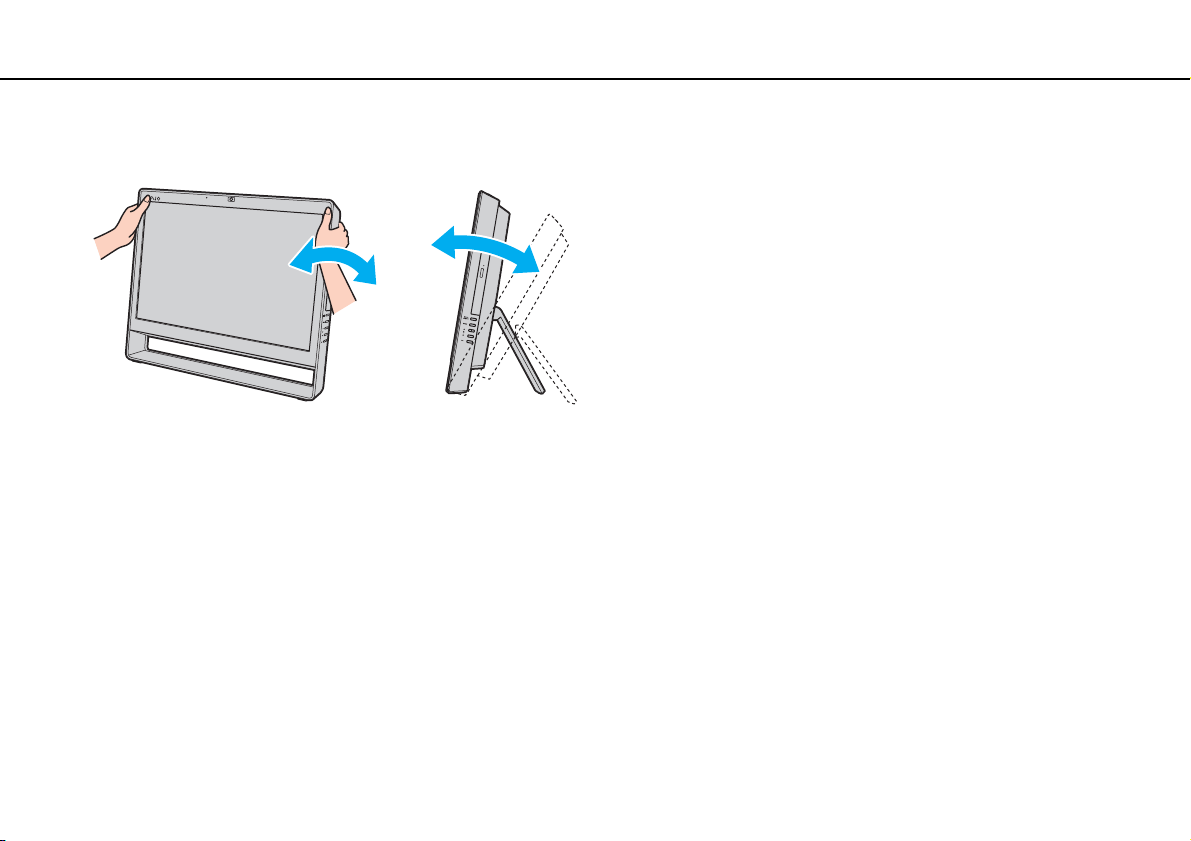

❑ Viewing angle of the display – Use the display tilting feature to find the best position. You can reduce eye strain and

muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.

While adjusting the viewing angle, do not exert excessive pressure on your computer to eliminate a risk of mechanical damage.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Venti lation – Make sure you leave at least 10 cm of space behind and at least 20 cm of space on each side of the main

unit.

Getting Started >

Getting Started

This section describes how to get started using your VAIO computer.

Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Upon completion, connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.

❑ Locating Controls and Ports (page 10)

❑ About the Indicator Lights (page 14)

❑ Setting Up Your Computer (page 15)

❑ Shutting Down Your Computer Safely (page 23)

❑ Using the Power Saving Mode (page 24)

❑ Keeping Your Computer in Optimum Condition (page 26)

Getting Started > Locating Controls and Ports

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

The appearance of your computer may be different from those illustrated in this manual due to variations in specifications.

Front

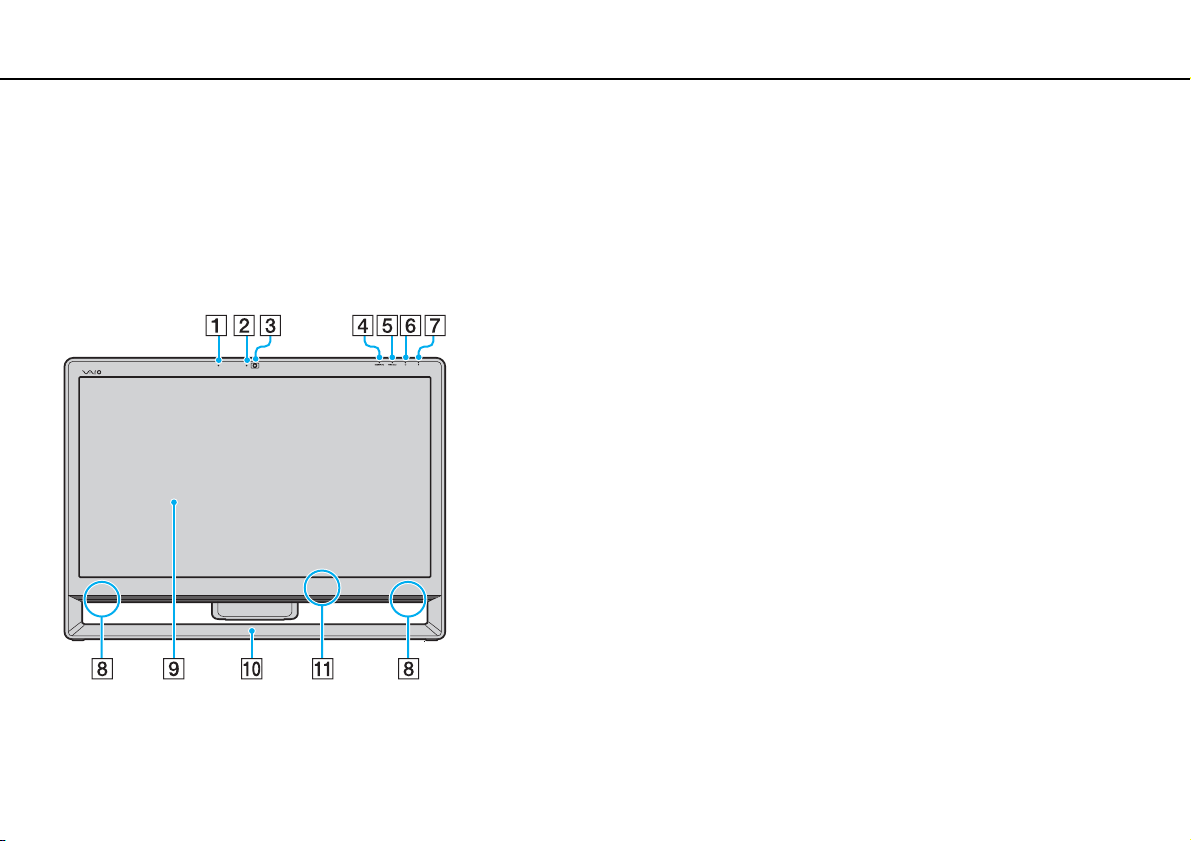

A Built-in microphone (monaural) B Built-in MOTION EYE camera indicator (page 14) C Built-in MOTION EYE camera (page 45)

D HDMI/VIDEO input indicator E WIRELESS indicator (page 14) F Disc drive indicator (page 14) G Power indic ator (page 14) H Built-in speakers (stereo) I LCD screen/touch screen (page 41)

Due to the mechanical design of the touch screen of your computer, some areas of the screen surface may become warm while you are using the computer for an extended period of time. This is normal and does not indicate a malfunction.

J Bottom chassis frame (page 116) K Remote sensor

Point the supplied remote commander to this sensor for operations.

* On selected models only.

(page 14)

Getting Started > Locating Controls and Ports

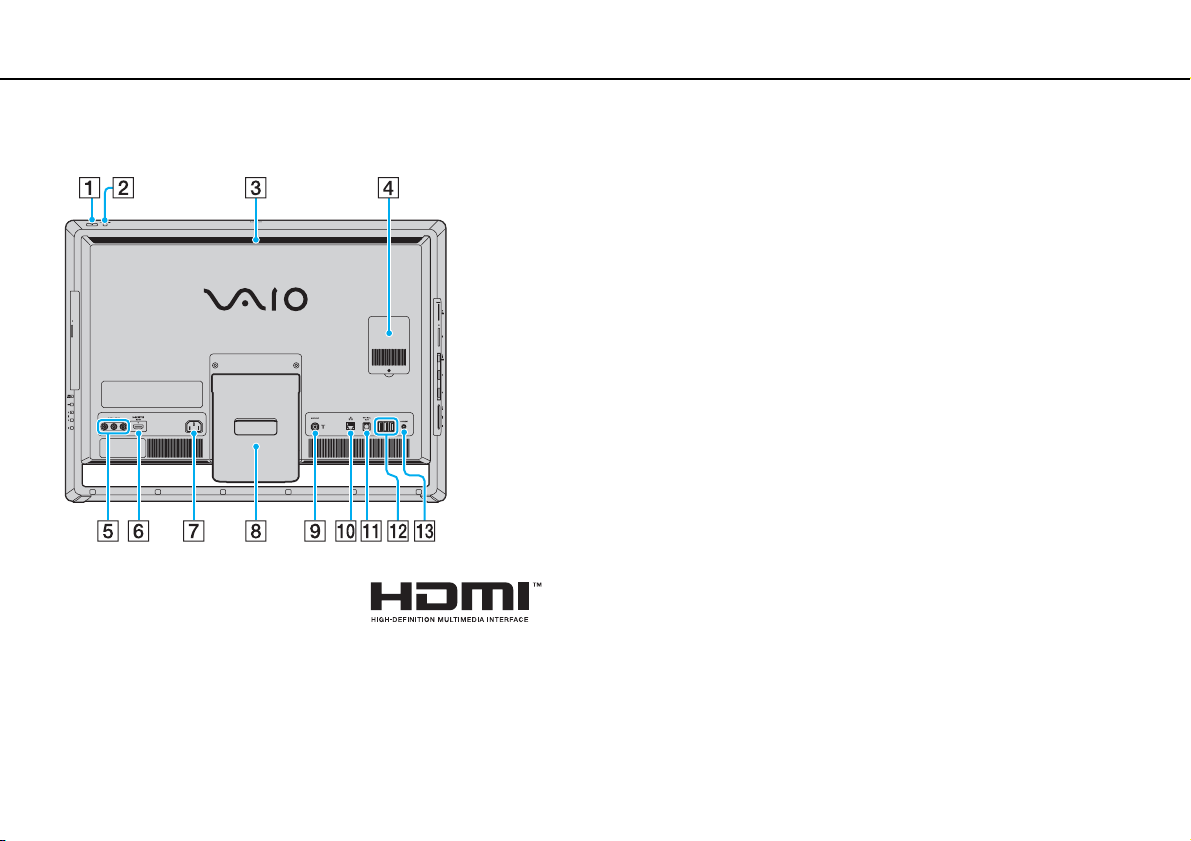

Back

The area around the air exhaust vent (3) becomes extremely hot while your computer is on. Be sure to wait until the computer cools down before you touch it.

A Power button B DISPLAY OFF button/DISPLAY OFF indicator (page 14)

Press this button to turn off the LCD backlight. While the HDMI input or the video input is selected as the audio/video input source by the INPUT SELECT button (page 12), pressing this button also turns off the volume.

C Air exhaust vent D Memory module compartment cover (page 108)

E VIDEO INPUT jacks F HDMI INPUT port

(page 57)

G AC input port (page 15) H Prop-up stand (page 116)

I VHF/UHF input port

(page 54)

J Network (LAN) por t (page 79) K OPTICAL OUT port (page 91)

(Output Sampling Rate: 44.1 KHz/48.0 KHz/96.0 KHz)

L USB ports

(page 93)

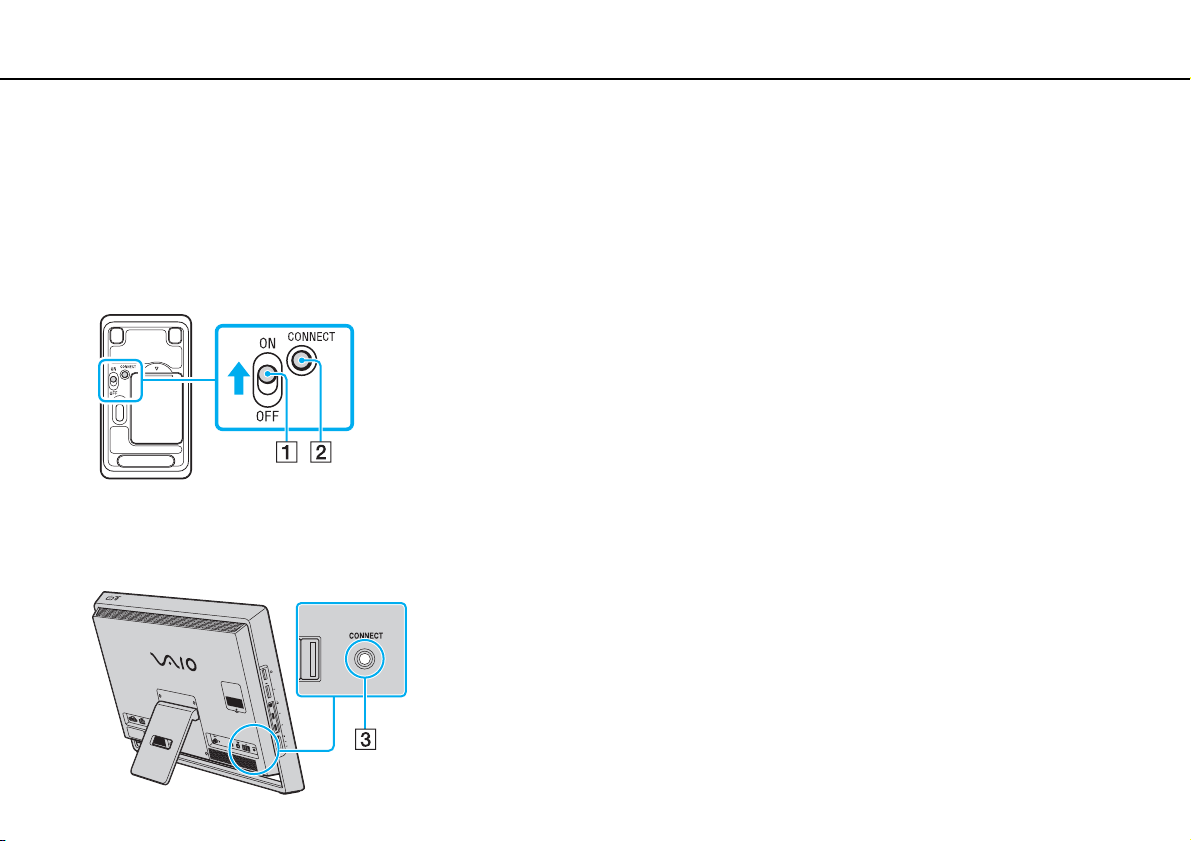

M CONNECT button (page 35), (page 39)

On selected models only.

Compliant with the USB 2.0 standard and support high-/full-/low- speeds.

Getting Started > Locating Controls and Ports

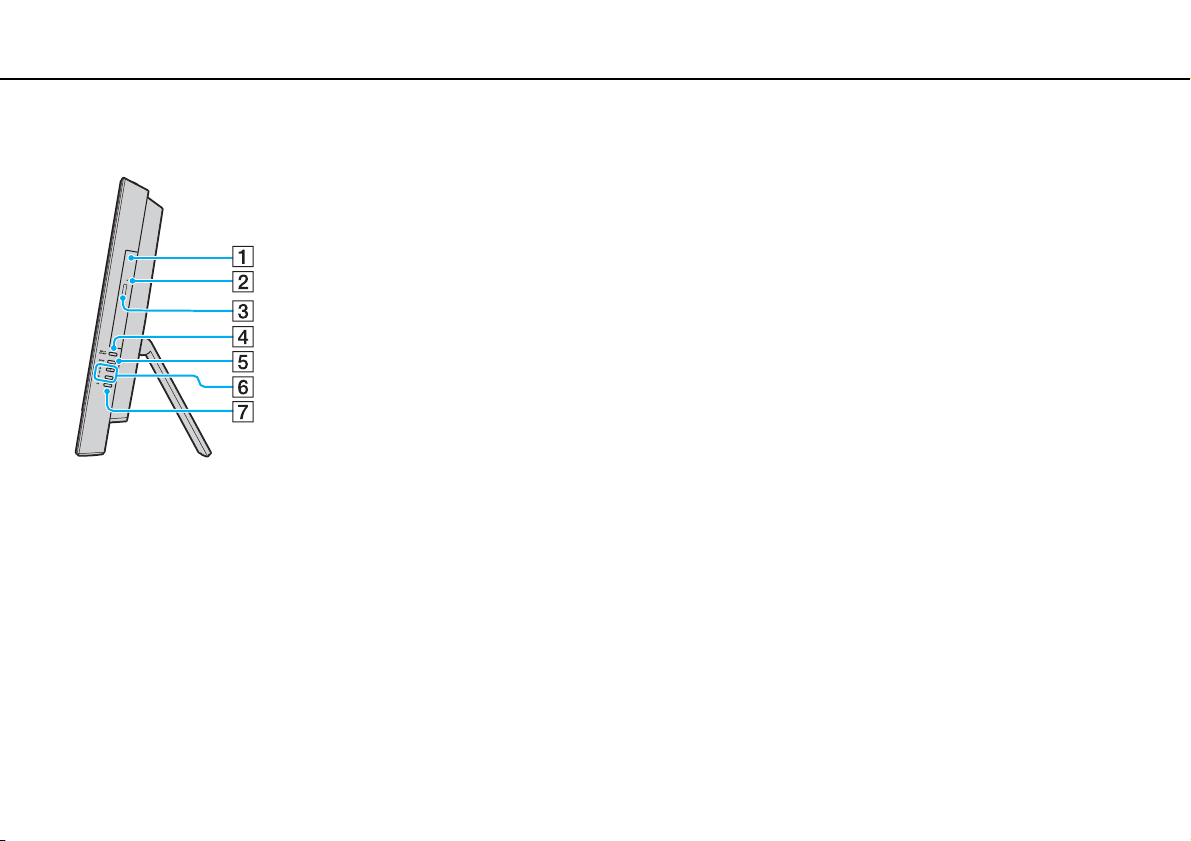

Right

A Optical disc drive (page 46) B Manual eject hole (page 146) C Drive eject button (page 46)

D INPUT SELECT button

INPUT SELECT indicator

E MENU button

(page 59)

F V/v (Up/Down) buttons G OK button

* On selected models only.

(page 59)

(page 59)/

(page 14)

(page 59)

Getting Started > Locating Controls and Ports

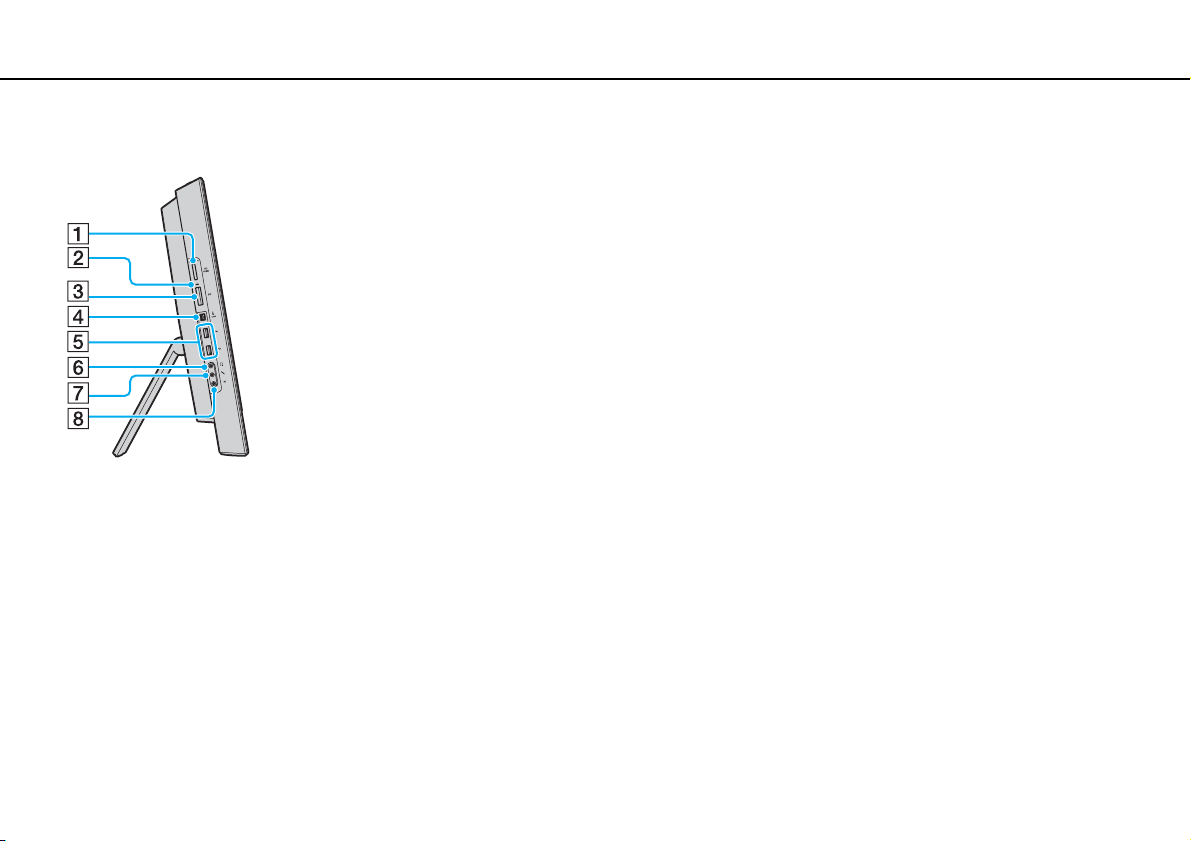

Left

A "Memory Stick Duo" slot*

(page 67)

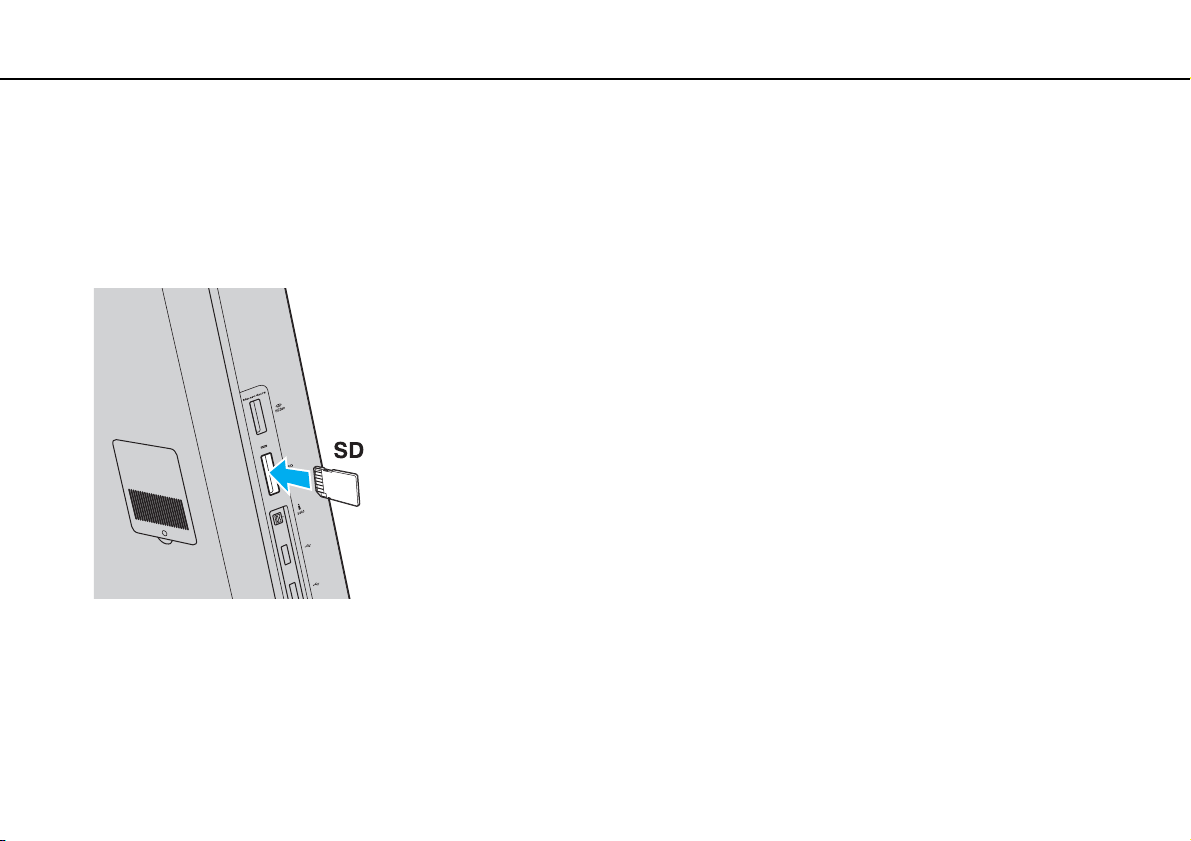

B Media Access indicator (page 14) C SD memory card slot (page 74) D i.LINK 4-pin (S400) port (page 95)

E USB ports

(page 93)

F Headphones jack (page 91) G Microphone jack (page 92) H Line In jack

Connect an external audio device to receive audio signals.

Your computer supports only Duo-size "Memory Stick".

Compliant with the USB 2.0 standard and support high-/full-/low- speeds.

Getting Started > About the Indicator Lights

About the Indicator Lights

Your computer is equipped with the following indicator lights:

Indicator Functions

Power 1 Illuminates in green while the computer is in Normal mode, illuminates in orange while the computer is in Sleep

HDMI/VIDEO input

Built-in MOTION EYE camera Illuminates while the built-in camera is in use.

Media Access Illuminates while data access to a memor y card, such as "Memory Stick" and an SD memory card, is in

INPUT SELECT

DISPLAY OFF Illuminates in orange while the LCD backlight is off.

Disc drive

WIRELESS Illuminates while one or more wireless options are enabled.

* On selected models only.

mode, and turns off when the computer is turned off.

Illuminates in green while the HDMI input or the video input is selected as the audio/video input source.

progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the indicator light is unlit, the memory card is not in use.

Illuminates in green while the HDMI input or the video input is selected as the audio/video input source.

Illuminates while data access to the built-in storage device or the optical disc drive is in progress. Do not place the computer into Sleep mode or turn it off while this indicator light is lit.

Getting Started > Setting Up Your Computer

Setting Up Your Computer

Connecting a Power Source

You need a power cord to connect your computer to an AC power source.

✍

Use only the supplied power cord for your computer.

Getting Started > Setting Up Your Computer

To connect the power cord

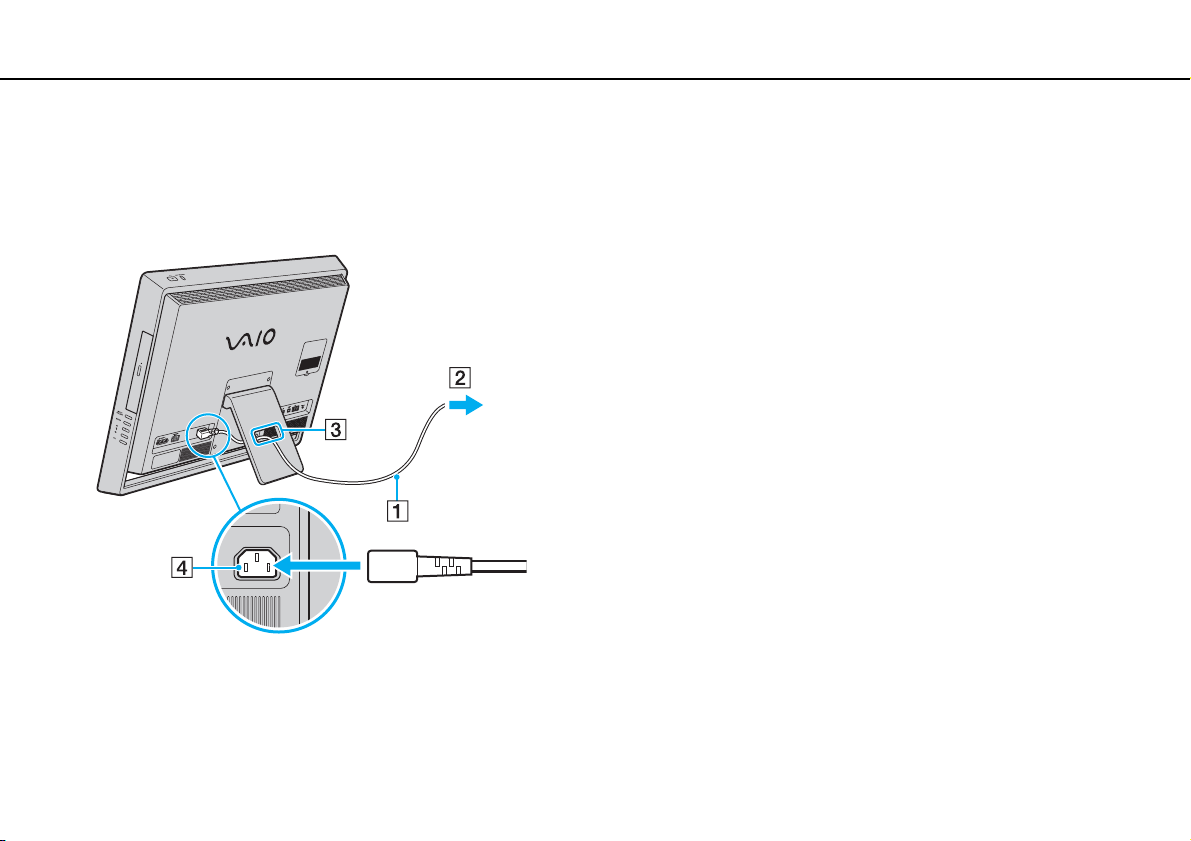

1 Plug one end of the power cord (1) into an AC outlet (2).

2 Route the power cord through the hole (3) of the prop-up stand and plug the other end into the AC input port (4) on the

computer.

✍

To disconnect your computer completely from an AC power source, turn off the computer and unplug the power cord.

Make sure that an AC outlet is easily accessible.

If you unplug the power cord from your computer while the computer is on, you will lose all unsaved data.

Getting Started > Setting Up Your Computer

Preparing for Wall Mounting

Four mounting studs and six screws, which are compliant with the Video Electronics Standards Association (VESA) mounting standard, are supplied with your computer for connecting the computer to your mounting system.

Before connecting your computer to your mounting system or changing your computer setup from the desktop type to the wall-mount type, make sure that:

The weight of your computer is within the range of supported weight of your mounting system. See the manual that came with your mounting system for the weight information. A wireless connection is established both between the computer and the keyboard and between the computer and the mouse. If not, follow the instructions described in You shut down the computer, turn off all peripheral devices, disconnect the power cord and the peripheral devices from the power source, and

then wait about an hour until the computer cools down before proceeding. While your computer is wall mounted, observe the following so as not to break the frame and cause the main unit to fall from the wall, resulting in damage to the computer or personal injuries.

Do not place any objects on top of your computer.

Do not place or hang any objects from the bottom chassis frame of your computer.

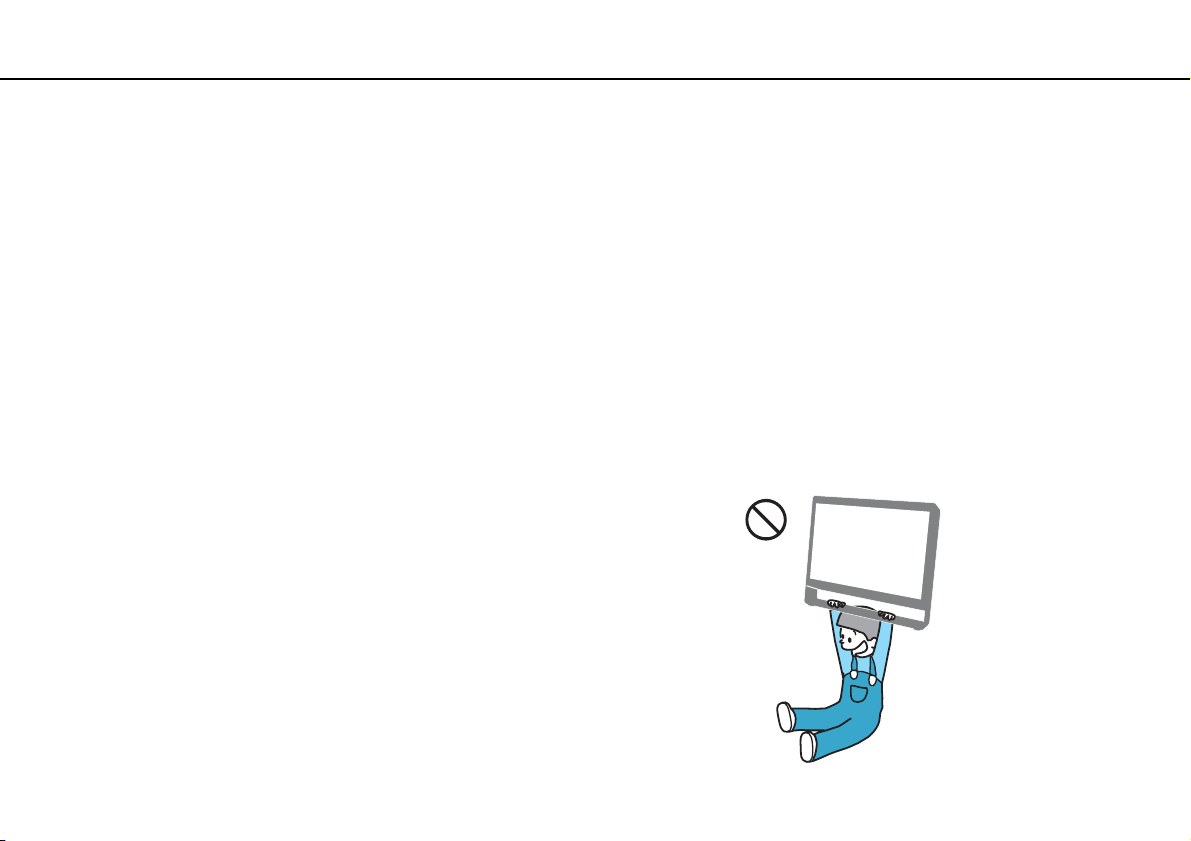

Keep children from hanging from the bottom chassis frame of your computer.

To connect the wireless keyboard (page 35) and To connect the wireless mouse (page 39).

Getting Started > Setting Up Your Computer

To set up the computer for mounting

1 Gently face down your computer on a flat surface.

When facing down your computer, be sure to place it on a soft cloth to avoid damage to the screen frame.

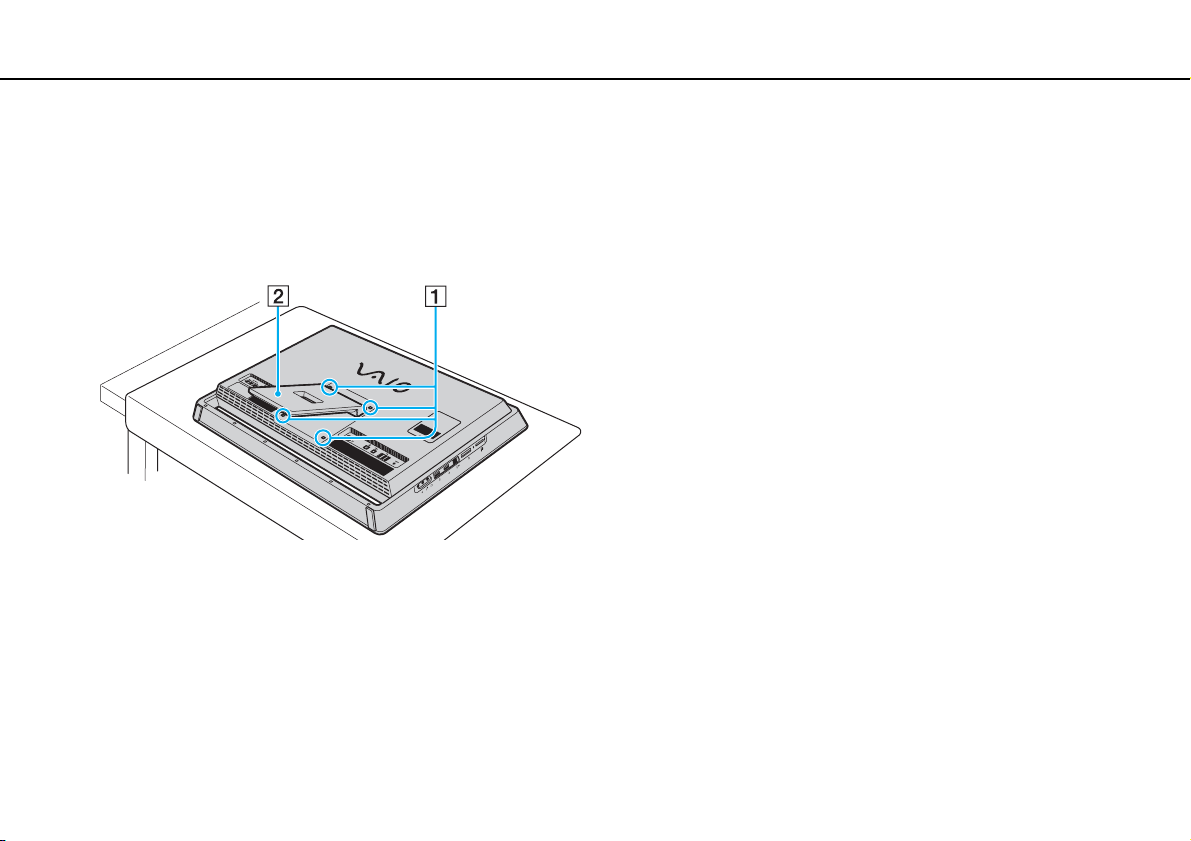

2 Remove the four screws (1) and take the prop-up stand (2) off the computer.

Getting Started > Setting Up Your Computer

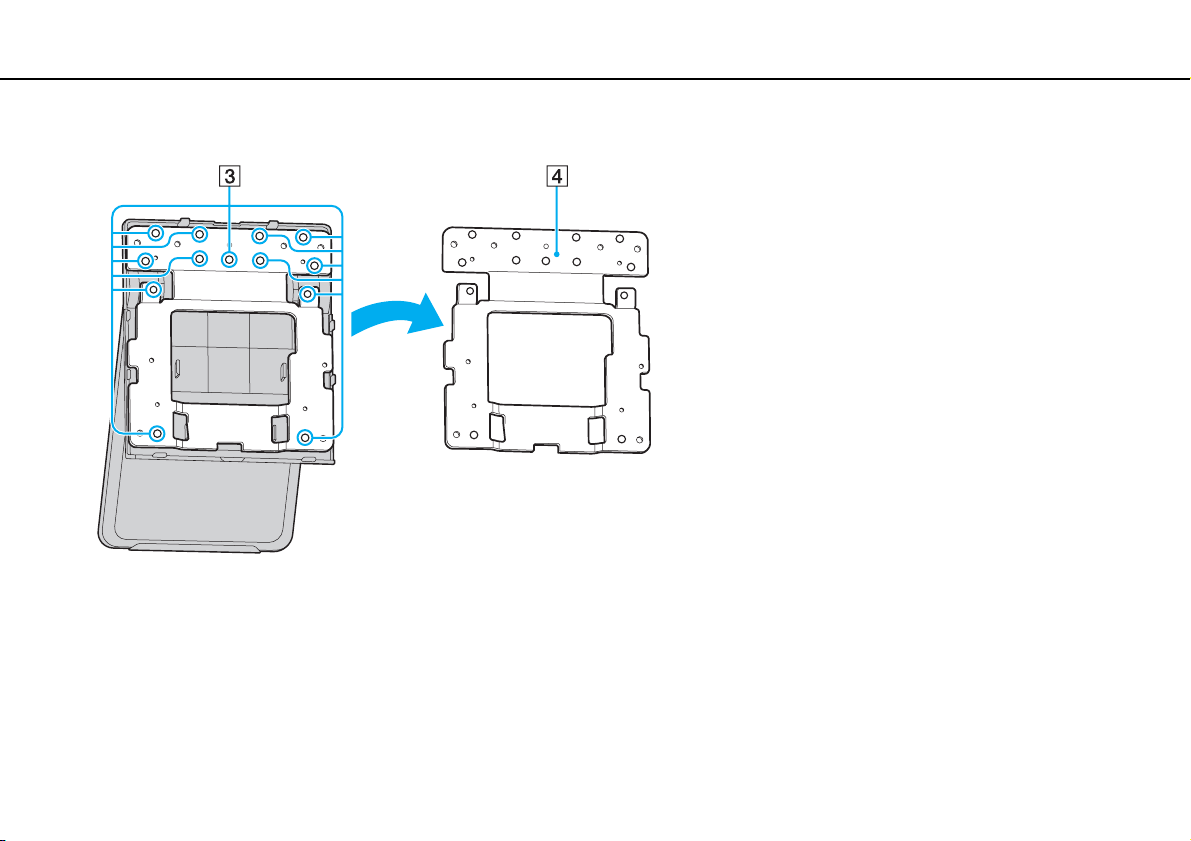

3 Remove the 13 screws (3) from the back of the prop-up stand and take off the mounting base plate (4).

Be sure to keep the removed screws for future use.

Getting Started > Setting Up Your Computer

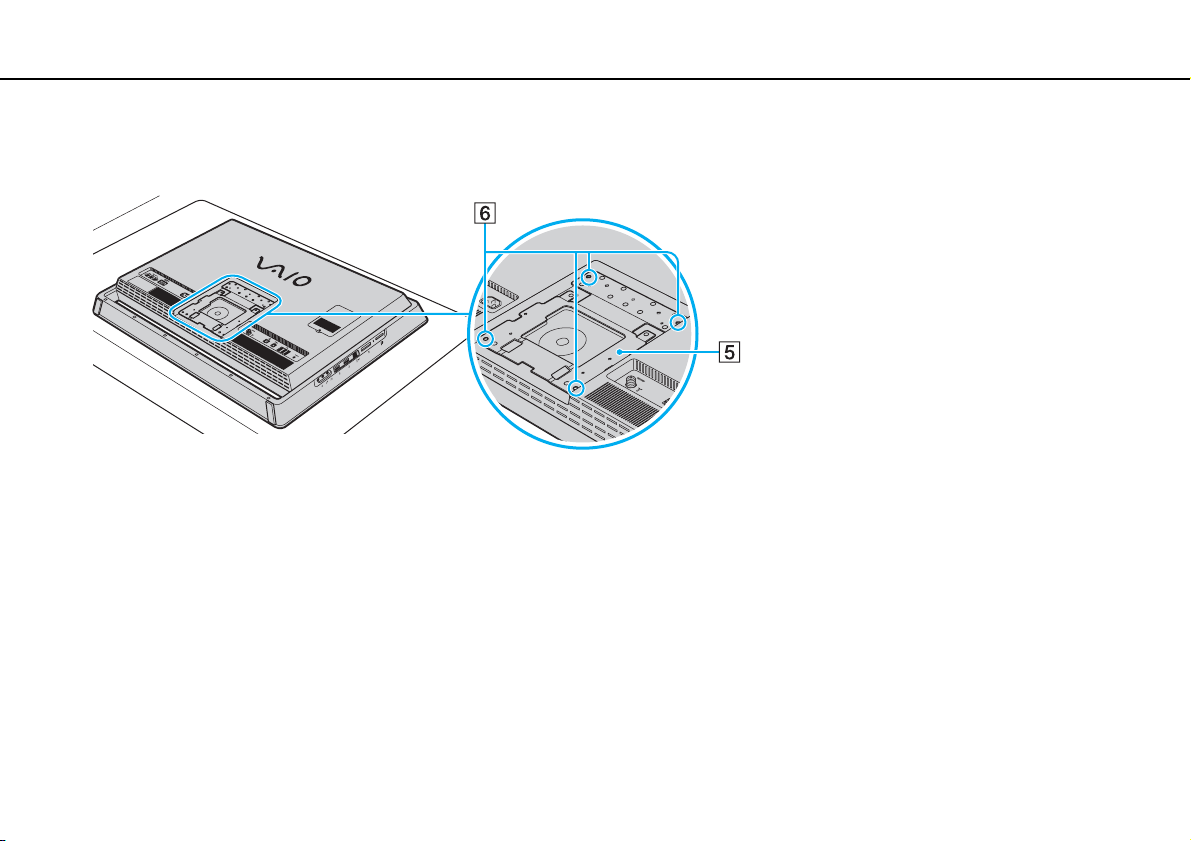

4 Flip over the mounting base plate (5) and screw it onto the back of the computer using the four screws (6) that you

removed in step 1.

Getting Started > Setting Up Your Computer

5 Secure the mounting base plate additionally with the supplied two long screws (7).

Be sure to tighten the screws with adequate torque.

Getting Started > Setting Up Your Computer

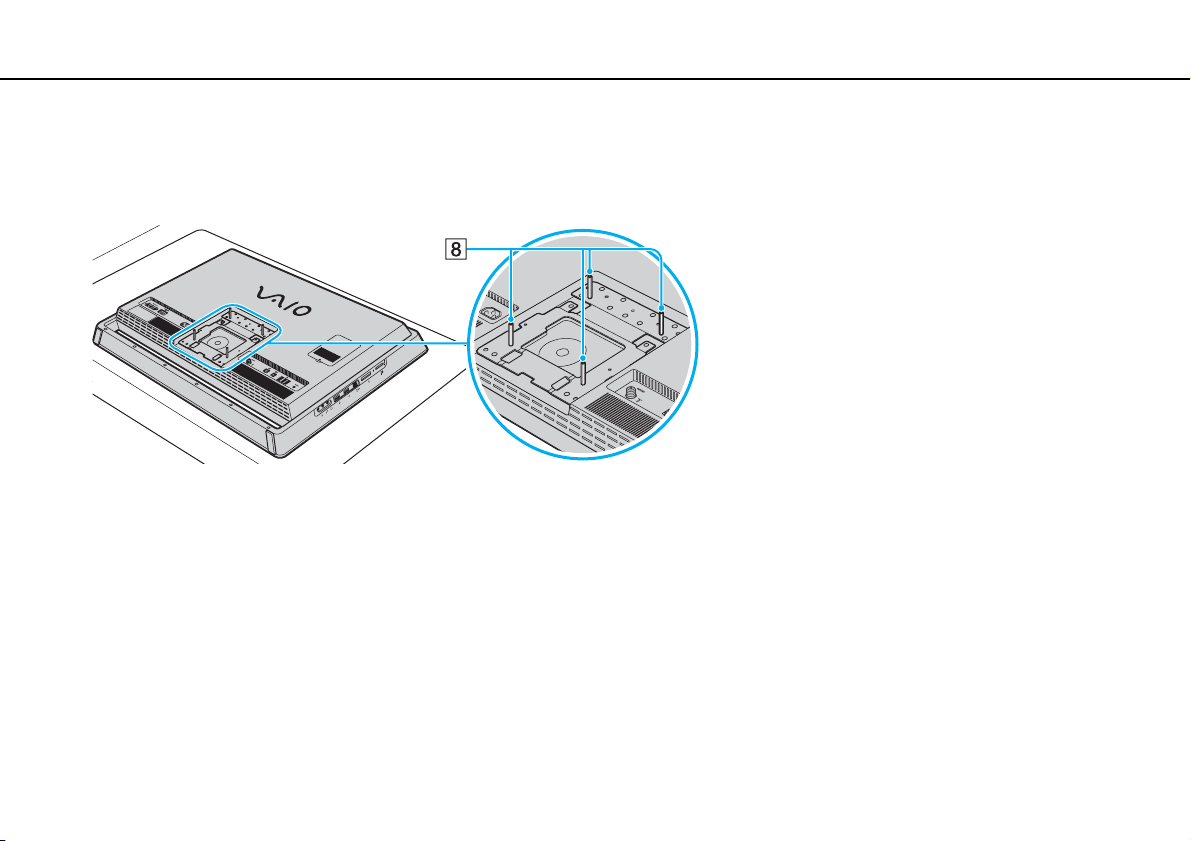

6 Screw the supplied four mounting studs (8) onto the mounting base plate.

Be sure to use the supplied accessory tool and tighten the mounting studs with adequate torque.

7 Secure your wall mount attachment to your computer with the supplied four short screws.

Do not use any screws other than the supplied ones.

8 Follow the instructions described in the manual that came with your mounting system to mount your computer using the

hole on each mounting stud.

Getting Started > Shutting Down Your Computer Safely

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Save your data and close all running software applications.

3 Click Start and the Shut down button.

After a short time, the computer automatically turns off. Make sure the power indicator light turns off.

Getting Started > Using the Power Saving Mode

Using the Power Saving Mode

In addition to the normal operating mode, your computer has a distinct power saving mode called Sleep mode.

Turn off your computer if you do not intend to use it for an extended period of time.

Mode Description

Normal mode This is the normal state of your computer while it is in use. The green power indicator light is lit while the

computer is in this mode.

Sleep mode Sleep mode turns off the LCD screen and places the built-in storage device(s) and the CPU into a low power

consumption mode. The orange power indicator light illuminates while your computer is in this mode.

Getting Started > Using the Power Saving Mode

Using Sleep Mode

To activate Sleep mode

Click Start, the arrow next to the Shut down button, and Sleep.

✍

Alternatively, you can press the sleep button on the wireless keyboard or the remote commander (if supplied) to place your computer into Sleep mode.

To return to Normal mode

❑ Press any key on the wireless keyboard or the sleep button on the remote commander (if supplied).

❑ Press the power button on your computer.

Make sure that the batteries of your wireless keyboard and remote commander (if supplied) are properly installed and not running out of power.

If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.

If the computer is not used for a certain period of time, it will enter Sleep mode. To modify this, you can change the Sleep mode settings.

To change the Sleep mode settings

1 Click Start, Control Panel, Hardware and Sound, and Power Options.

2 Click Change plan settings under the current power plan.

3 Change the time to place the computer into Sleep mode and click Save Changes.

Getting Started > Keeping Your Computer in Optimum Condition

Keeping Your Computer in Optimum Condition

Updating Your Computer

Be sure to update your VAIO computer with the following software applications for enhancing your computer's efficiency, security, and functionality.

The VAIO Update automatically notifies you of new updates available on the Internet, and downloads and installs them on the computer.

❑ Windows Update

Click Start, All Programs, and Windows Update and then follow the on-screen instructions.

❑ VAIO Update 5

Click Start, All Programs, and VAIO Update 5 and then follow the on-screen instructions.

Your computer must be connected to the Internet to download the updates.

Getting Started > Keeping Your Computer in Optimum Condition

Keeping the Antivirus Software Updated

You can keep the Internet security software programs current with the latest updates by downloading and installing the updates from the web site of the manufacturer.

Your computer must be connected to the Internet to download the updates.

❑ When using the McAfee:

1 Click Start, All Programs, McAfee, and McAfee SecurityCenter.

2 Click the update tab and select the option to check for updates.

3 Follow the on-screen instructions to complete the updates.

❑ When using the Norton Internet Security:

1 Click Start, All Programs, Norton Internet Security, and LiveUpdate or Norton Internet Security.

2 Follow the on-screen instructions to complete the updates.

✍

See the help file included with your software program for more information.

The actual procedure may be different from the above depending on updates installed on your computer. In such a case, follow the on-screen instructions.

Getting Started > Keeping Your Computer in Optimum Condition

Using the VAIO Care

With the VAIO Care, you can regularly conduct performance checks and tune-ups on your computer to keep it running at an optimum level. Launch the VAIO Care whenever a problem is found on your computer. The VAIO Care will provide appropriate measures to solve the problem.

To launch the VAIO Care

❑ On models with the ASSIST button

Press the ASSIST button while your computer is on.

❑ On models without the ASSIST button

Click Start, All Programs, VAIO Care, and VAIO Care.

✍

See the help file included with the VAIO Care for more information.

On models with the ASSIST button, pressing the ASSIST button while the computer is off launches the VAIO Care Rescue. The VAIO Care Rescue can be used to recover your computer in case of emergency, for example, when the Windows does not start.

Using Your VAIO Computer >

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 30)

❑ Using the Mouse (page 36)

❑ Using the Touch Screen (page 41)

❑ Using the Built-in Camera (page 45)

❑ Using the Optical Disc Drive (page 46)

❑ Using the TV Function (page 54)

❑ Using the HDMI/VIDEO Input Function (page 57)

❑ Using the Remote Commander (page 63)

❑ Using "Memory Stick" (page 67)

❑ Using Other Modules / Memory Cards (page 74)

❑ Using the Internet (page 78)

❑ Using the Network (LAN) (page 79)

❑ Using the Wireless LAN (page 80)

❑ Using the Bluetooth Function (page 85)

Using Your VAIO Computer > Using the Keyboard

Using the Keyboard

A wireless keyboard is supplied with your computer.

The wireless keyboard uses a standard key arrangement with additional keys that perform specific functions.

Using the Wireless Keyboard

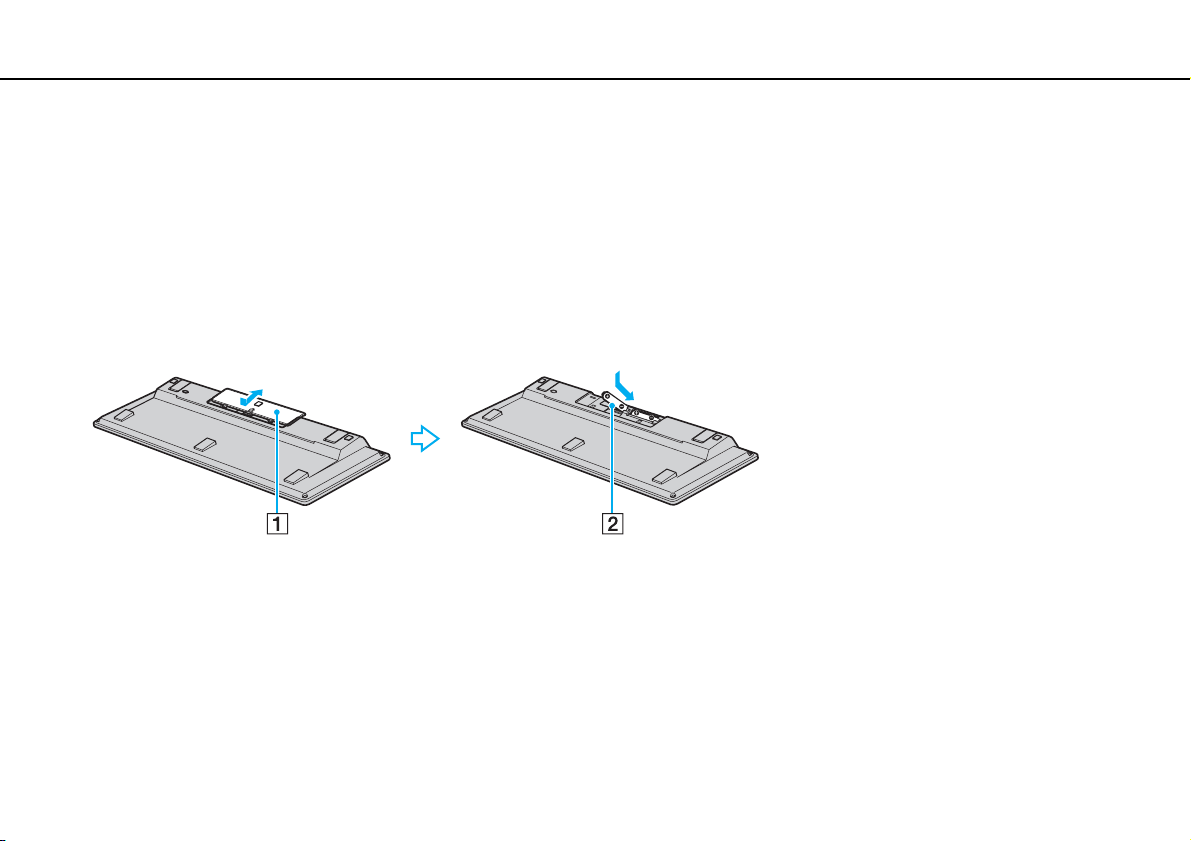

Two alkaline AA batteries are supplied with your wireless keyboard. Before attempting to use the wireless keyboard, remove the battery compartment cover (1) from the bottom of the wireless keyboard and install the supplied two AA batteries (2) into the battery compartment.

✍

If the wireless keyboard does not operate properly, the batteries may need to be replaced. If you do not intend to use the wireless keyboard for an extended period of time, remove the batteries to avoid possible damage from battery leakage.

If the wireless keyboard is left unused for 20 minutes or longer, your computer enters Sleep mode. To bring it back into Normal mode, press any key on the wireless keyboard.

Using Your VAIO Computer > Using the Keyboard

To maintain good communication, operate the wireless keyboard within the distance limitations of keyboard: approximately 10 m from your computer.

You cannot use the wireless keyboard in conjunction with the HDMI/VIDEO input function (page 57).

If you find your wireless keyboard not working, for example after you used the keyboard with another VAIO model, reconnect the keyboard. See To

connect the wireless keyboard (page 35) for the detailed procedure.

Avoid using any wireless devices that exchange radio signals on the 2.4 GHz band near your wireless keyboard. These devices may create radio interference, causing the keyboard to stop working properly.

Do not place metal furniture or objects near your computer or wireless keyboard, as this may create radio interference, causing the keyboard to stop working properly.

Do not mix old (used) and new batteries when replacing batteries in the wireless keyboard. Be sure to use the same type and manufacture of the battery.

Do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the wireless keyboard.

Using Your VAIO Computer > Using the Keyboard

✍

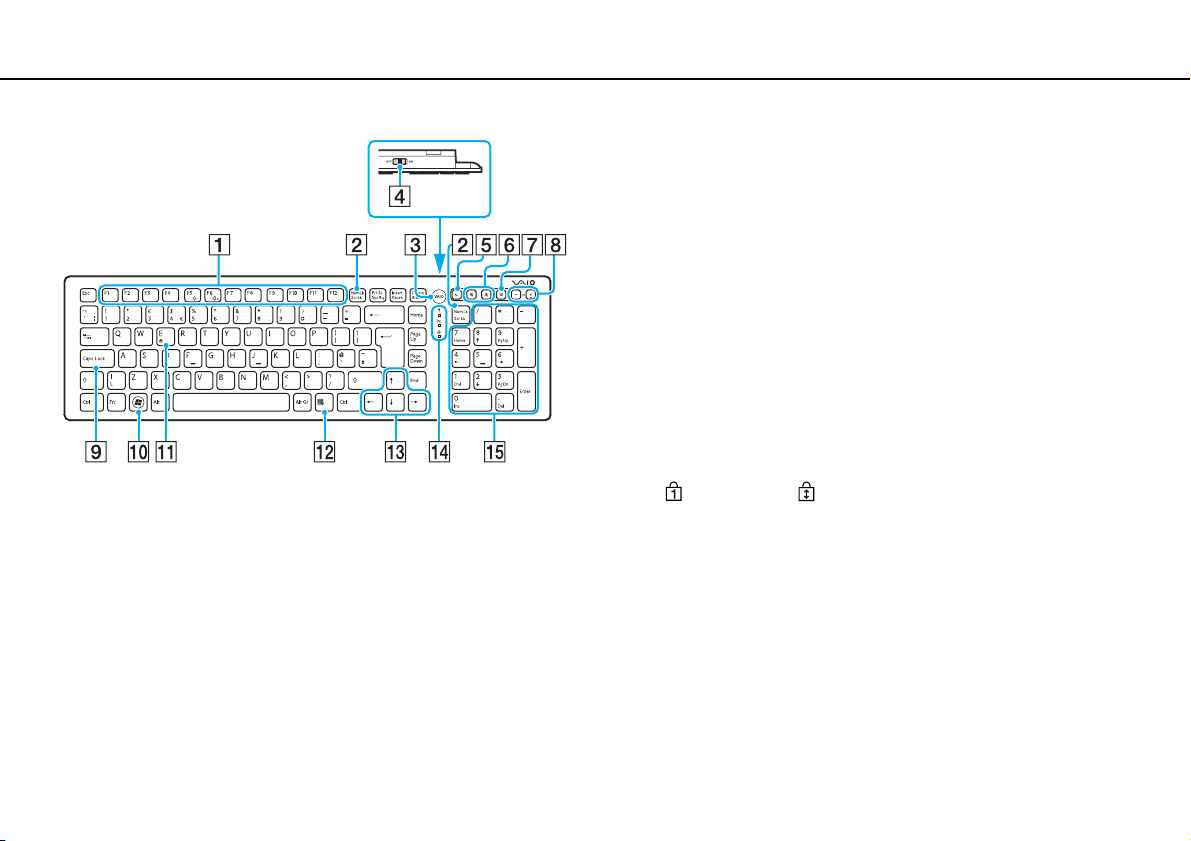

Illustrated above is the English keyboard as an example. The appearance of your wireless keyboard may be different from those illustrated in this manual due to variations in specifications.

A Function keys

Perform certain tasks. The task associated with each function key varies among software applications except the following combinations with the Fn key to change the LCD brightness of your computer screen.

Fn+F5: Decrease lighting intensity of the LCD screen. Fn+F6: Increase lighting intensity of the LCD screen.

While using the HDMI/VIDEO input function, you cannot use the function keys on the wireless keyboard to change the LCD brightness. To change the brightness while using the HDMI/VIDEO input function, see Using the HDMI/ VIDEO Input Control Buttons (page 59) for the procedure.

B Num Lk/Scr Lk key

Activates/deactivates Num Lk mode. To activate/deactivate Scr Lk mode, use this key in conjunction with the Fn key. When Num Lk or Scr Lk mode is activated or deactivated, the

(Num lock) or (Scroll lock) icon appears on the taskbar

along with a pop-up message to indicate a mode change.

✍

You can keep the Num lock and/or Scroll lock icon on the taskbar. To do so, rightclick the f icon on the taskbar, click Customize notification icons, and then select Show icon and notifications for your desired icon.

C VAI O button

Launches the Media Gallery.

D Power switch

Slide the switch to turn the wireless keyboard on and off.

E Sleep button

Provides a lower level of power consumption. For details on power management, see Using the Power

Saving Mode (page 24).

Using Your VAIO Computer > Using the Keyboard

F Zoom buttons

Change the size of an image or a document displayed on some software.

Press

Press See the help file included with the VAIO Control Center for more information.

G Muting button

Turns the volume on and off.

H Volume control buttons

Increase (+) or decrease (-) the volume.

to make the view look smaller and further away (zoom out).

to make the view look bigger and closer (zoom in).

I Caps Lock key

Activates/deactivates Caps Lock mode where letters are all typed in upper case.

J Windows key

Displays the Start menu.

K E key

Ejects the optical disc drive tray when used in conjunction with the Fn key.

L Applications key

Displays a context-sensitive shortcut menu (if any).

M Directional arrow keys

Move the pointer on the computer screen.

N Indicator lights

(Battery): Stays off while the AA batteries for the wireless keyboard are sufficient and blinks when the batteries are running out of power.

(Caps lock): Turns on when Caps Lock mode is activated.

(Connect): Blinks slowly while the wireless keyboard is not connected with your computer, blinks rapidly when the keyboard is ready for connection with the computer, and turns off when the connection is established.

O Numeric keypad

Use the numeric keypad to type numbers or to perform basic math calculations.

* Disabled while you are using the HDMI/VIDEO input function.

Using Your VAIO Computer > Using the Keyboard

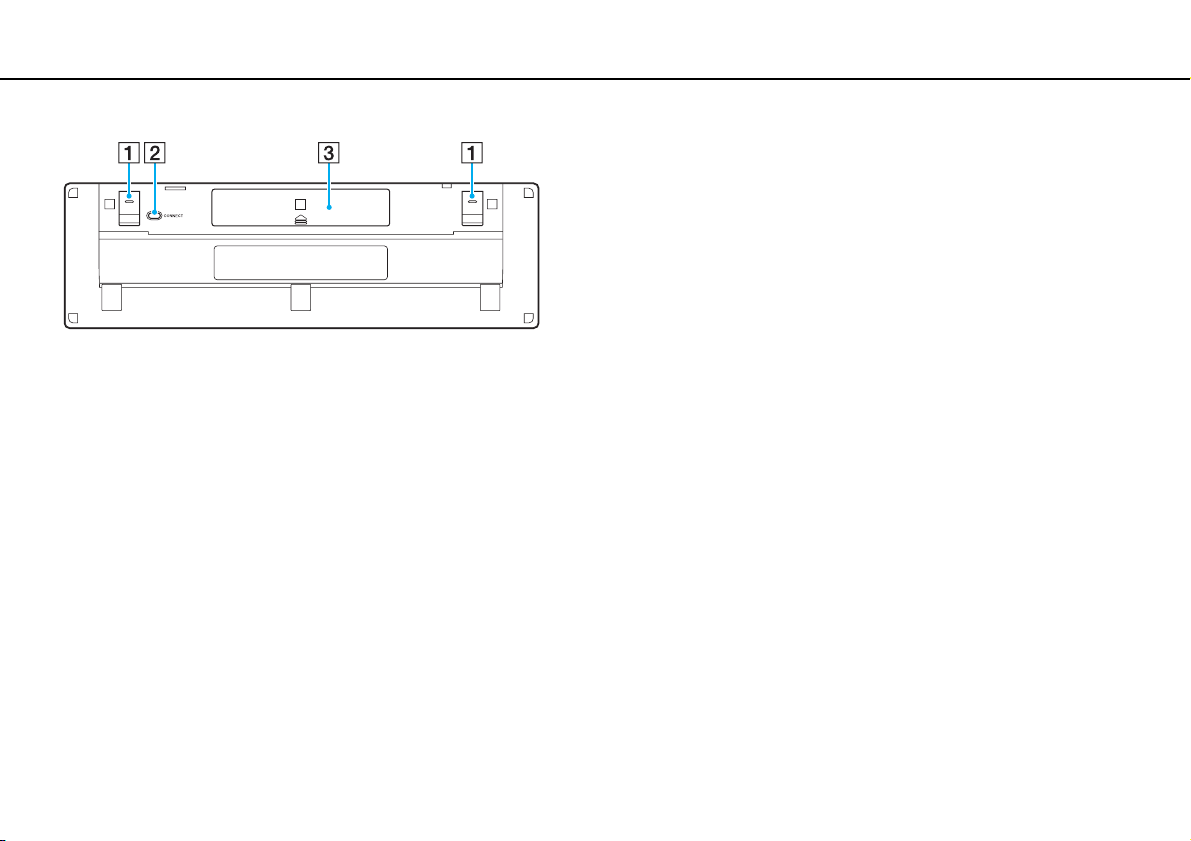

A Keyboard feet

Flip open to put the wireless keyboard in a more 'ergonomic' position.

B CONNECT button (page 35)

Press to enable the wireless keyboard to communicate with the computer.

C Battery compartment (page 30)

Storage compartment for the AA batteries.

Using Your VAIO Computer > Using the Keyboard

To connect the wireless keyboard

To connect the wireless keyboard, it must be located within a range of 30 cm to 1 m from the computer.

1 Make sure the supplied two AA batteries are properly installed.

2 Turn on the computer.

3 Slide the power switch on the back of the keyboard to the ON position.

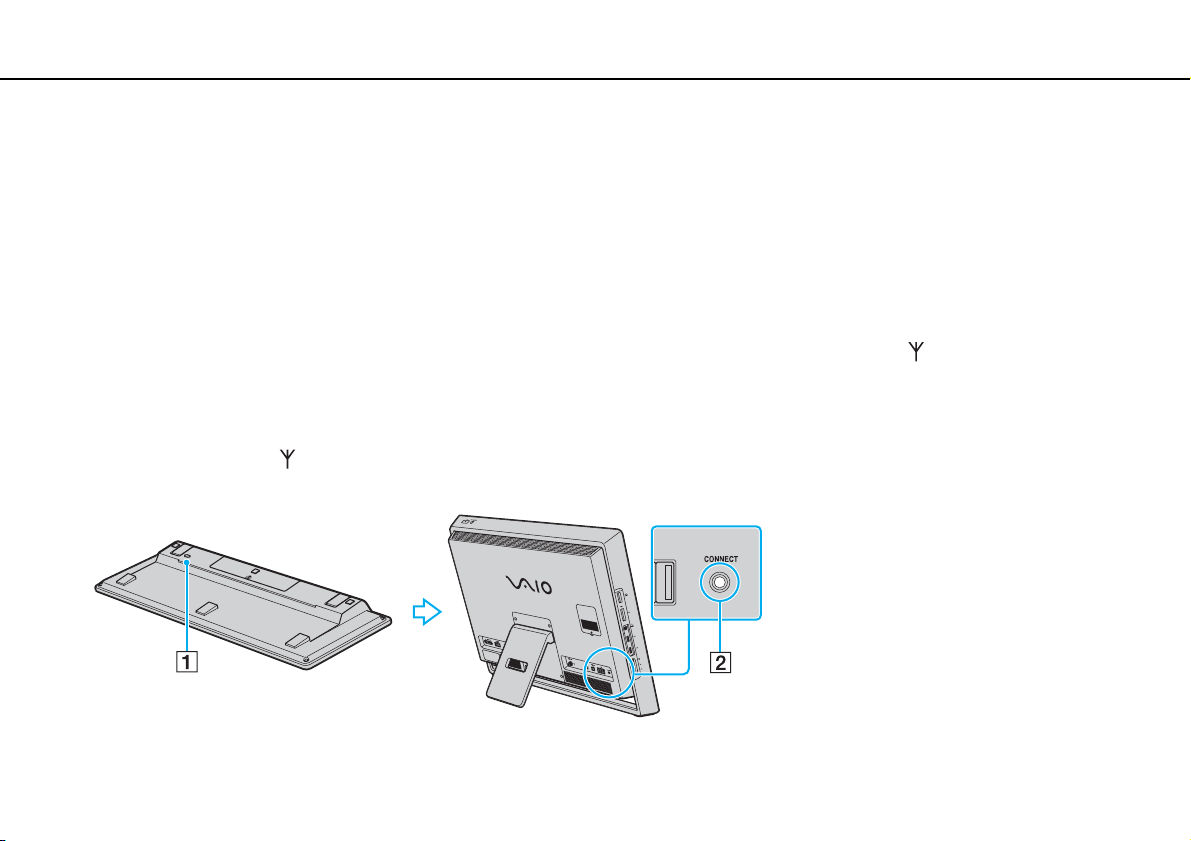

4 Press the CONNECT button (1) on the bottom of the keyboard.

5 Press the CONNECT button (2) on the back of the computer while the connect indicator light is blinking rapidly.

The rapid-blinking connect indicator light turns off when connection is established between the computer and the keyboard. If not, repeat the procedure.

The connect indicator light blinks rapidly for about one minute to indicate that the keyboard is ready for connection with the computer. If no connection is made during this period, the indicator light goes blinking slowly to indicate that the connection is down.

Using Your VAIO Computer > Using the Mouse

Using the Mouse

A wireless mouse is supplied with your computer.

The wireless mouse has no cables to plug in and uses a laser sensor instead of a ball.

Using the Wireless Mouse

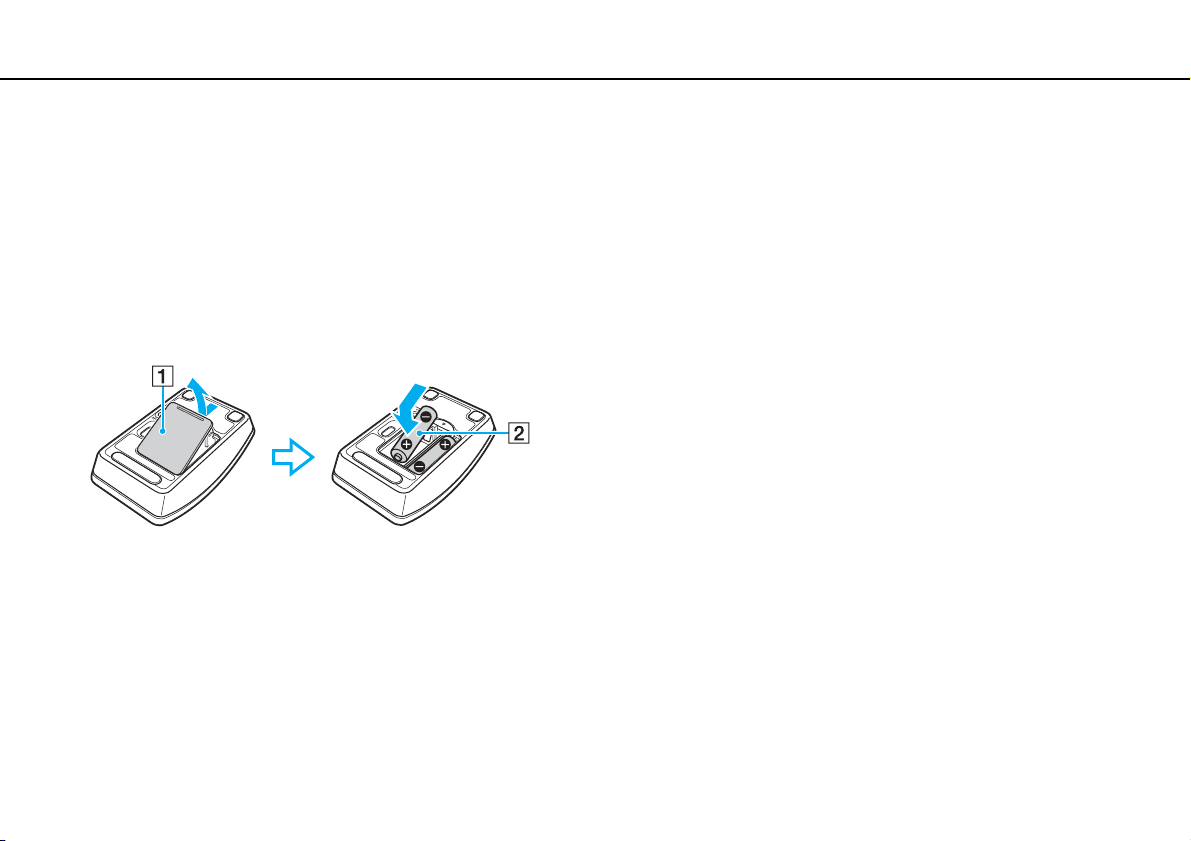

Two alkaline AA batteries are supplied with your wireless mouse. Before attempting to use the wireless mouse, remove the battery compartment cover (1) from the bottom of the wireless mouse and install the supplied two AA batteries (2) into the battery compartment.

✍

If the wireless mouse does not operate properly, the batteries may need to be replaced. If you do not intend to use the wireless mouse for an extended period of time, remove the batteries to avoid possible damage from battery leakage.

Using Your VAIO Computer > Using the Mouse

To maintain good communication, operate the wireless mouse within the distance limitations of mouse: approximately 10 m from your computer.

If you find your wireless mouse not working, for example after you used the mouse with another VAIO model, reconnect the mouse. See To connect the wireless mouse (page 39) for the detailed procedure.

Avoid using any wireless devices that exchange radio signals on the 2.4 GHz band near your wireless mouse. These devices may create radio interference, causing the mouse to stop working properly.

Use surfaces such as plain paper, card stock, or fabric that have minimal repetitive patterns.

Avoid using the wireless mouse on surfaces such as mirrors, smooth glass, or magazines that have half- tone printing.

Do not place metal furniture or objects near your computer or wireless mouse, as this may create radio interference, causing the mouse to stop working properly.

Do not mix old (used) and new batteries when replacing batteries in the wireless mouse. Always use the same type and manufacture of the battery.

Do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the wireless mouse.

Using Your VAIO Computer > Using the Mouse

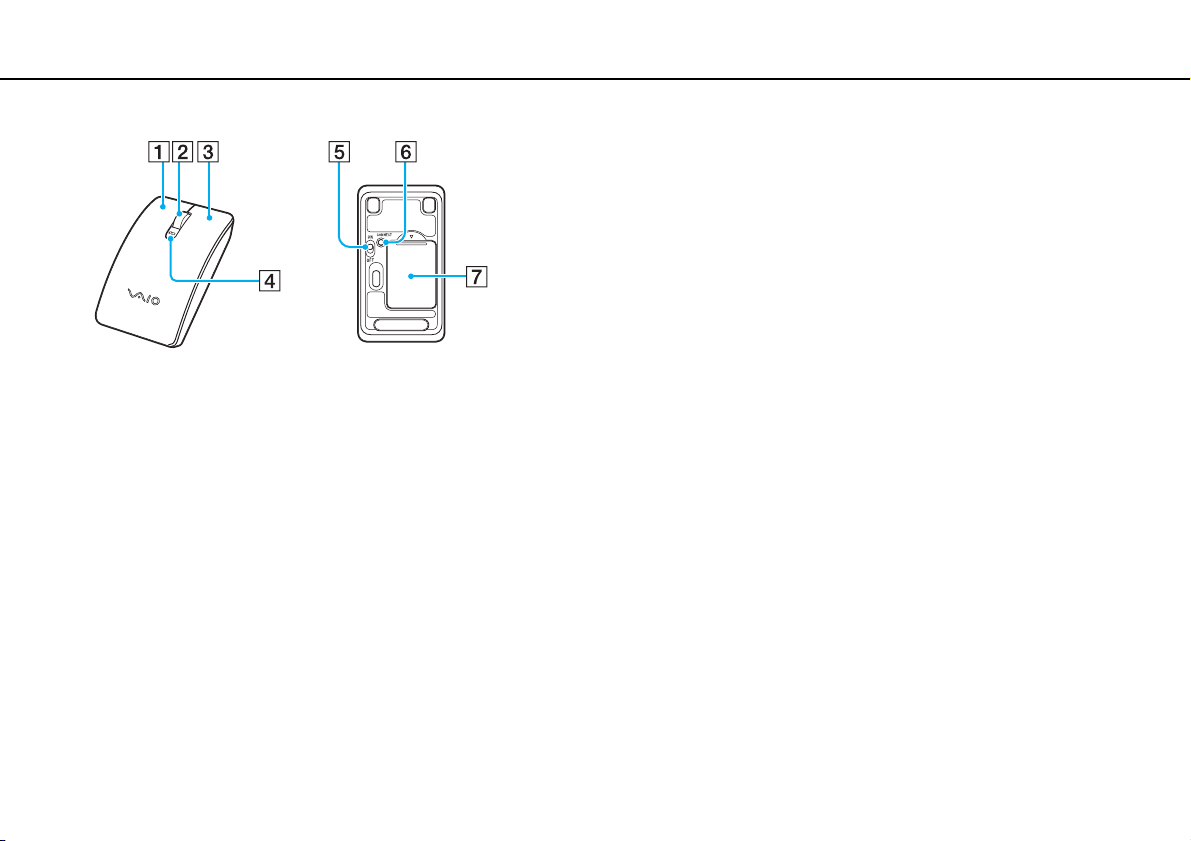

A Left button

Click or double-click the left button to select items. To drag and drop items, hold the left button down while sliding the mouse, then release the button to drop the item.

B Central wheel

Rotate the central wheel to scroll up or down a page. Press the wheel once to lock the scroll action and control the movement by moving the entire mouse (the scroll function is available only with applications that support it).

C Right button

Press the right button once to display a context-sensitive shortcut menu (if any).

D Battery indicator light

Blinks when the mouse batteries are running out of power.

E Power switch

Slide the switch to turn the mouse on and off.

F CONNECT button (page 39)

Press to enable communication between the computer and the wireless mouse.

G Battery compartment (page 36)

Storage compartment for the AA batteries.

Using Your VAIO Computer > Using the Mouse

To connect the wireless mouse

To connect the wireless mouse, it must be located within a range of 30 cm to 1 m from the computer.

1 Make sure the supplied two AA batteries are properly installed.

2 Turn on the computer.

3 Slide the power switch (1) on the bottom of the mouse to the ON position.

4 Press the CONNECT button (2) on the bottom of the mouse.

5 Press the CONNECT button (3) on the back of the computer within 10 seconds from step 4.

Communication between the mouse and the computer should now be established. If not, repeat the procedure.

Using Your VAIO Computer > Using the Mouse

Adjusting the Mouse Functions

1 Click Start and Control Panel.

2 Click Mouse under Hardware and Sound.

The Mouse Properties window appears.

3 Change the settings.

Using Your VAIO Computer > Using the Touch Screen

Using the Touch Screen

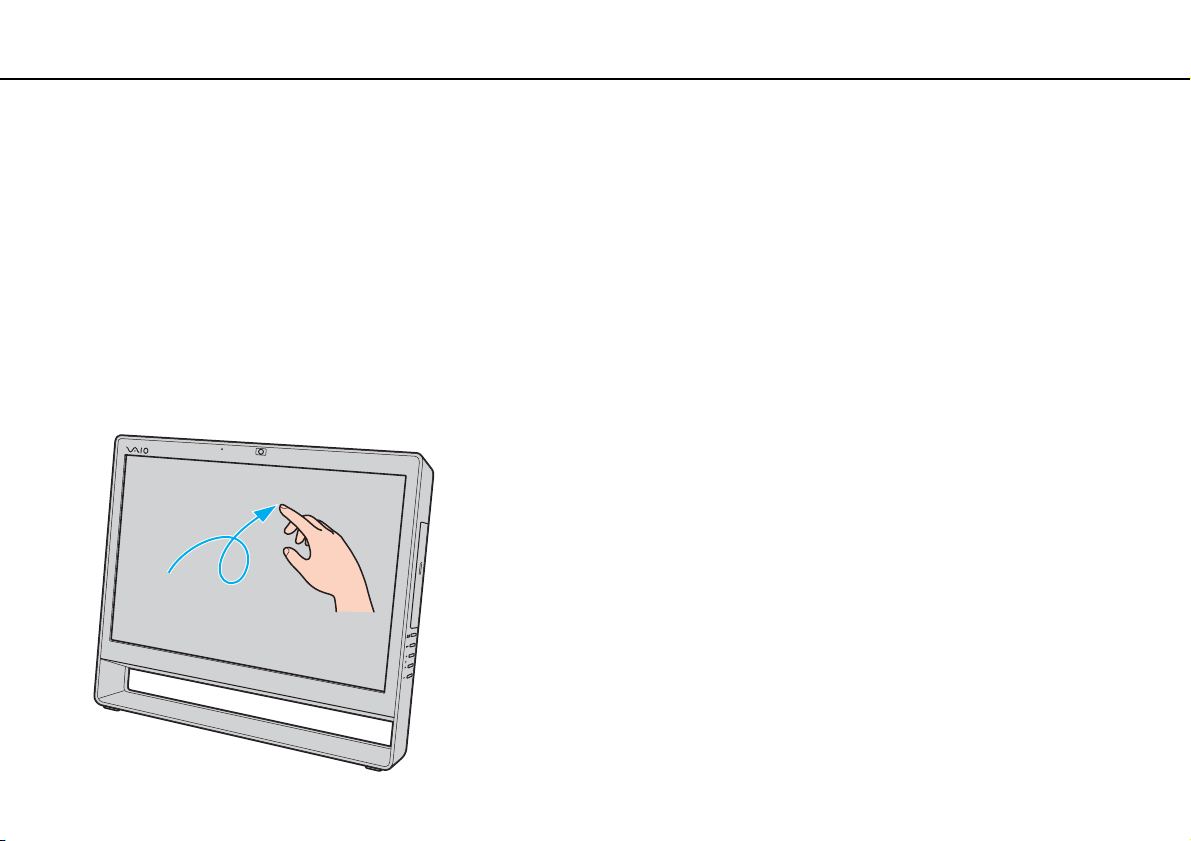

Embedded infrared optical sensors of your computer's touch screen enable direct interaction with the computer using your finger(s). You can perform various gestures on the touch screen to compensate for mouse operations, such as selecting items and scrolling.

The touch screen function may be disabled depending on the software application you are using.

Your computer is equipped with two optical sensors and supports multi-touch input of up to two points. When you rotate a picture on the touch screen, for example, a rotating gesture may not be successfully recognized by your computer, which, however, does not indicate a malfunction.

The touch screen function is disabled while you are using the HDMI/VIDEO input function. See Using the HDMI/VIDEO Input Function (page 57) for more information.

Using Your VAIO Computer > Using the Touch Screen

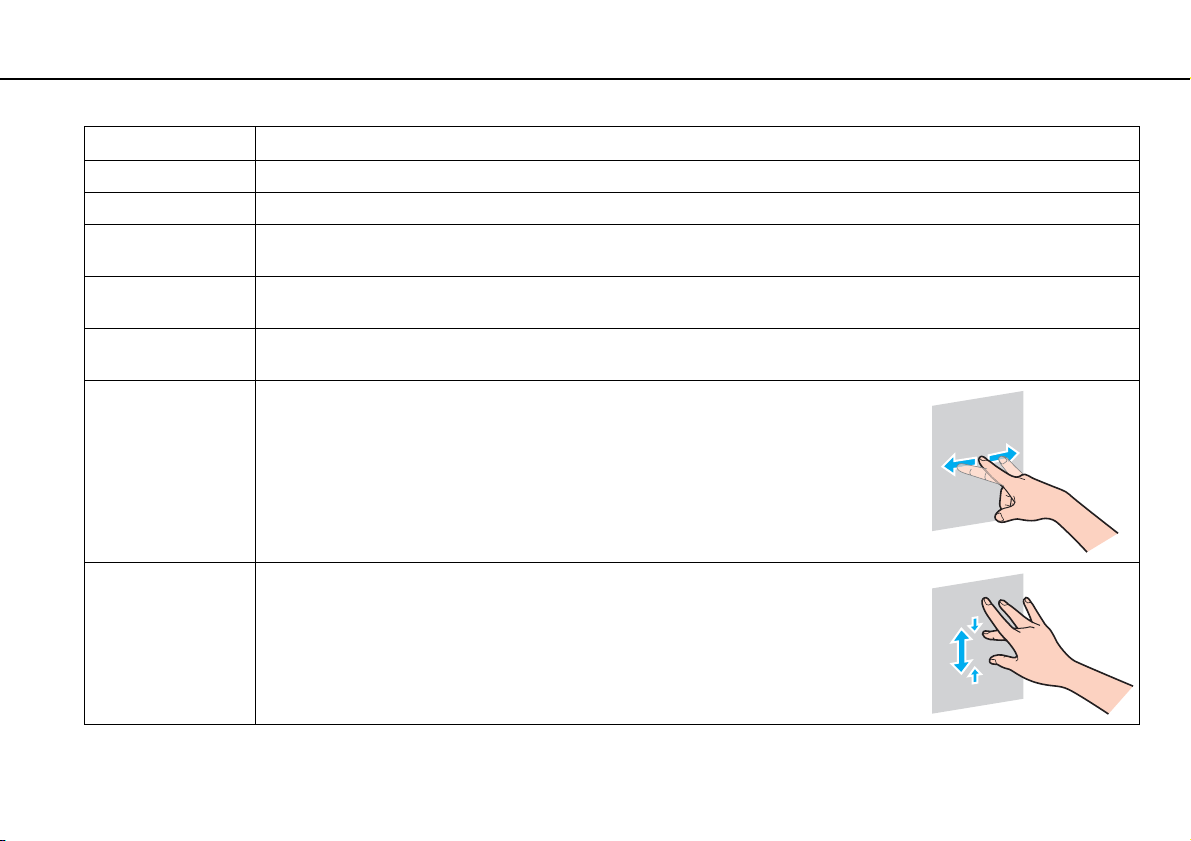

Gesture Description

Tap Tap on the touch screen once with a finger. This gesture is equivalent to a click with a mouse.

Double-tap Tap on the touch screen twice in quick succession with a finger. This gesture is equivalent to a double-click with a mouse.

Press-and-hold Touch and hold on the touch screen with a finger until a circling icon appears, and then lift the finger off the screen to display

a context-sensitive shortcut menu (if any). This gesture is equivalent to a right-click with a mouse.

Press-and-tap Touch and hold on the touch screen with a finger and tap with another finger to display a context-sensitive shortcut menu (if

any). This gesture is equivalent to a right-click with a mouse.

Drag Put a finger on the touch screen and slide it while keeping the finger in contact with the screen. Drag left or right for panning;

up or down for scrolling.

Flick Put a finger on the touch screen and slide it linearly in quick motion.

You can assign an individual task to up to eight flicks. There are four default flick assignments: you can flick left to move backward, flick right to move forward, flick up to scroll up, and flick down to scroll down. When a flick gesture is successfully recognized, an icon appears with a description of the assignment on the desktop. To add or change the flick assignments, click Start, Control Panel, Hardware and Sound, and Pen and Touch to access the Flick tab.

Zoom With some software applications, you can pinch on the touch screen with two fingers

for zooming. Pinch open to zoom in or pinch close to zoom out.

Using Your VAIO Computer > Using the Touch Screen

Gesture Description

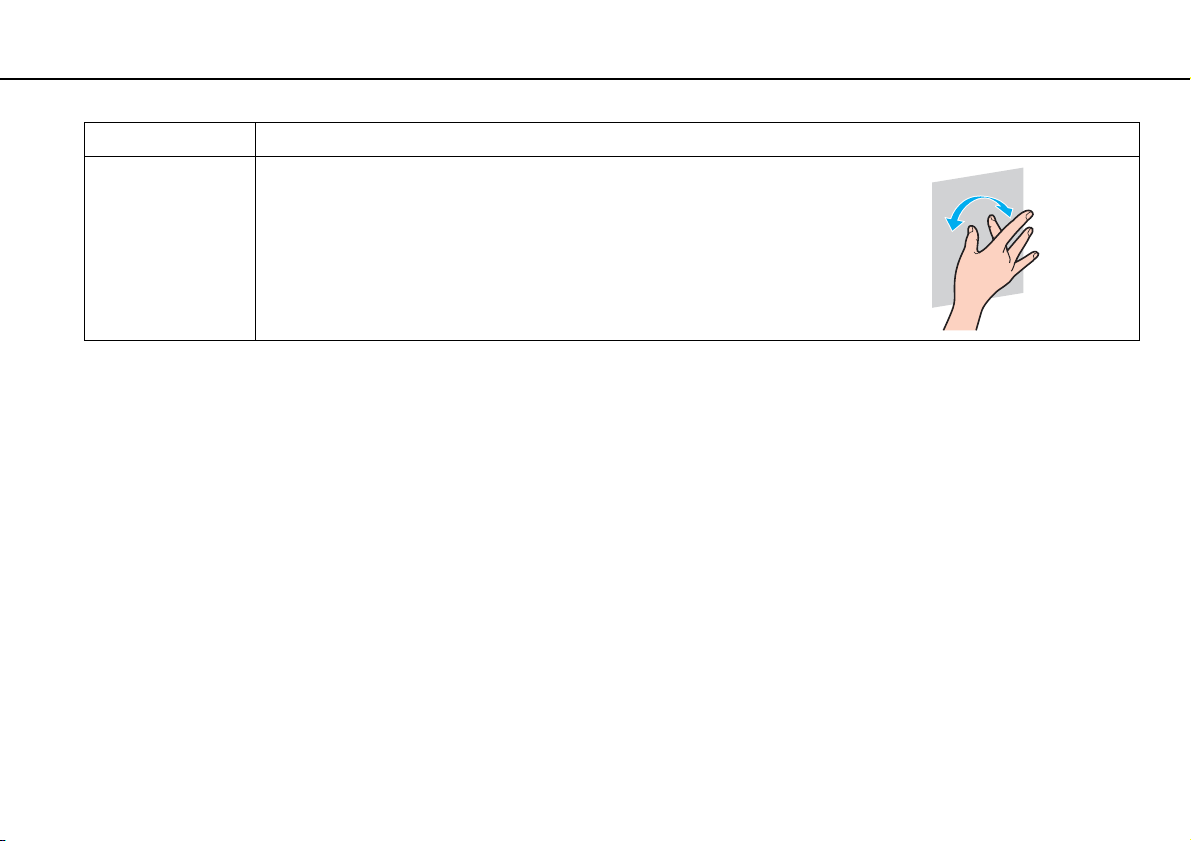

Rotate With some software applications, such as photo viewer software, you can put two

✍

You can disable the touch screen function with the Control Panel. Click Start, Control Panel, Hardware and Sound, and Pen and Touch, and then click to cancel the Use your finger as an input device check box on the Tou ch tab.

You can change the DPI to enlarge the view size of the touch screen for easier touch works. To do so, click Start, Control Panel, Hardware and Sound, Display, and Set custom text size (DPI), and then specify your preference. Changing the DPI, however, may distort the screen view while you are using

a non-compatible software application or viewing a non-compatible web site. Depending on the model you purchased, the text size may be set to Larger by default.

You can bring your computer from Sleep mode to Normal mode by touching the touch screen. This, however, may not work in some cases including the one, for example, where you were using the HDMI/VIDEO input function when the computer entered Sleep mode. In such a case, press any key on

the wireless keyboard or the power button on the computer to bring the computer back into Normal mode.

fingers on the touch screen and slide them in circles to rotate the underlying object.

Using Your VAIO Computer > Using the Touch Screen

Displaying the On-screen Keyboard

While the touch screen function is enabled, you can use the on-screen keyboard, instead of the wireless keyboard, for text entry. To display the on-screen keyboard, simply tap on a text entry field. Alternatively, you can use the keyboard tab at the left edge of the desktop to display the on-screen keyboard. Tap on the tab to pull it out, and then tap on it once again to display the keyboard in full view.

Notes on Using the Touch Screen

❑ To repeat tapping, be sure to lift your finger at least 4 mm off the touch screen after each tap.

❑ When tapping triggers an unintentional operation, make sure that no other parts of your body, including your clothes, are

in contact with the touch screen. The touch screen may even respond to a touch made by an insect that happens to come in contact with the screen.

❑ Be sure to touch gently with your fingertip, not with the ball of your finger. If the area of contact with the touch screen is

beyond specifications of the touch screen function, your computer may not recognize your touch.

❑ Depending on the spot you touch on the screen, the touch screen sensitivity varies. This is normal and does not indicate

a malfunction.

❑ Gentle touches always work. The degree of pressing force does not count for operations as the touch screen employs

optical technology.

Using Your VAIO Computer > Using the Built-in Camera

Using the Built-in Camera

Your computer is equipped with a built-in MOTION EYE camera.

With the appropriate image capture software, you can perform the following operations:

❑ Capture still images and movies

❑ Sense and capture object movements for monitoring purposes

❑ Edit captured data

✍

Turning on the computer activates the built-in camera.

Video calls are possible with the appropriate software.

Launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in camera.

Do not place your computer into Sleep mode while you are using the built-in camera.

To use the image capture software

1 Click Start, All Programs, ArcSoft WebCam Companion 3, and WebCam Companion 3.

2 Click your desired icon in the main window.

For detailed information on how to use the software, see the help file included with the software.

✍

When capturing an image or a movie in a dark place, click the Capture icon in the main window, and then click the WebCam Settings icon and select the low light or low light compensation option in the properties window.

Using Your VAIO Computer > Using the Optical Disc Drive

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

Some features and options in this section may not be available on your computer. See the specifications to find out about the configuration of your computer.

Using Your VAIO Computer > Using the Optical Disc Drive

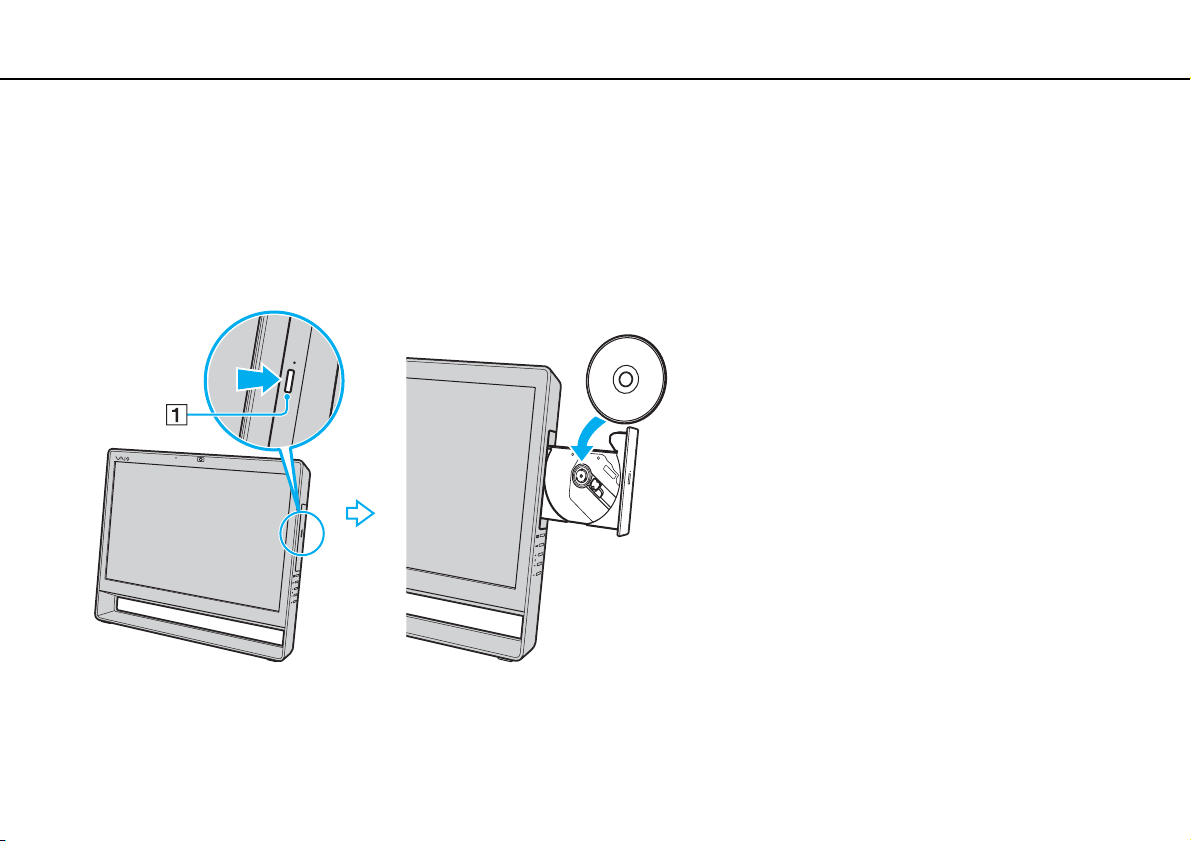

To insert a disc

1 Turn on the computer.

2 Press the drive eject button (1) or the Fn+E keys to open the drive.

The drive tray slides out.

3 Hold the back of the drive tray with one hand, place a disc in the middle of the drive tray with the label side facing toward

you, and gently push it toward the drive tray until the disc clicks into place.

Do not exert pressure on the drive tray. Be sure to hold the back of the drive tray when placing/removing a disc onto/from the drive tray.

4 Close the drive tray by pushing it in gently.

Do not remove the optical disc while your computer is in Sleep mode. Be sure to bring the computer back into Normal mode before removing the disc.

Using Your VAIO Computer > Using the Optical Disc Drive

Supported Discs

Your computer plays and records CDs, DVDs, and Blu-ray Disc™ media, depending on the model you purchased.

See the reference chart below to find out which type of optical disc drive supports which types of media.

PR: playable and recordable P: playable but not recordable –: not playable or recordable

CD-ROM CD-R/RW DVD-ROM DVD-R/RW DVD+R/RWDVD+R DL

DVD SuperMulti Drive P

Blu-ray Disc™ Drive with DVD SuperMulti

Blu-ray Disc™ ROM Drive with DVD SuperMulti

The DVD SuperMulti Drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.

Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported. DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.

The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.

Supports writing data to BD-R Part1 Version 1.1/1.2/1.3 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Part1 Version 2.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).

Writing data to Ultra Speed CD-RW discs is not supported.

P PRPRPRPRPR– –

P PRPRPRPRPRP

P PRPRPRPRPRP P

(Double Layer)

DVD-R DL (Dual Layer)

DVD-

RAM

BD-ROM

*1 *2

BD-R/RE

Using Your VAIO Computer > Using the Optical Disc Drive

This unit is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard. Therefore, these discs may not be compatible with this unit.

When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives

with discs that are not compliant with the official "CD," "DVD," or "Blu-ray Disc" standard. USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE TO YOUR VAIO COMPUTER OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING. For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

✍

8 cm disc writing is not supported.

To play copyright protected Blu-ray Disc media continually, update the AACS key. The AACS key update requires Internet access.

As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support movie playback on packaged media recorded in AVC or VC1 formats at high bit rates.

Region settings are required for some contents of DVD and BD-ROM Disc media. If the region setting on the optical disc drive does not match the region coding on the disc, playback is not possible.

Some content may restrict video output to standard definition or prohibit analog video output. When you output video signals through digital connections, such as an HDMI connection or a DVI connection, it is strongly recommended that a digital HDCP compliant environment be implemented

for optimum compatibility and viewing quality.

Exit all memory-resident utility software before playing or writing a disc as it may cause the computer to malfunction.

Using Your VAIO Computer > Using the Optical Disc Drive

Notes on Using the Optical Disc Drive

Notes on writing data to a disc

❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake your computer while the optical disc drive is writing data to a disc.

❑ Do not plug or unplug the power cord or the AC adapter while the optical disc drive is writing data to a disc.

Notes on playing discs

To achieve optimum performance of disc playback, you should follow these recommendations:

❑ Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW

media.

❑ Some DVD players and computer optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-R

DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.

❑ When your computer is equipped with a Blu-ray Disc drive, Blu-ray Disc playback is available on your computer. However,

the drive may not be able to play some Blu-ray Disc content, or the computer may become unstable during Blu-ray Disc playback. To play content normally, download and install the latest updates for the WinDVD BD using the VAIO Update. For information on how to use the VAIO Update, see Updating Your Computer (page 26).

❑ Depending on system environment, you may find sound interruptions and/or dropped frames during AVC HD playback.

❑ Do not place your computer into the power saving mode while your computer is playing a disc.

Using Your VAIO Computer > Using the Optical Disc Drive

Notes on region codes

Region code indicators are labeled on the discs or packages to indicate in which region and on what type of player you can play the disc. If the region code indicates "all," you can play this disc in most regions of the world. If the region code for your residence area is different from the label, you cannot play the disc on your computer.

To find out the region code for your residence area, see the following table.

Residence area Region code Residence area Region code Residence area Region code

Africa 5 Australia* 4 China 6

Europe 2 Hong Kong* 3 India* 5

Indonesia* 3 Japan* 2 Korea 3

Kuwait* 2 Malaysia* 3 New Zealand* 4

Philippines* 3 Russia 5 Saudi Arabia* 2

Singapore* 3 South Africa* 2 Taiwan 3

Thailand* 3 United Arab Emirates* 2 Vietnam 3

* A region code is not assigned to your computer's optical disc drive by default.

Using Your VAIO Computer > Using the Optical Disc Drive

If it is your first time to play a DVD video on your computer, follow these steps before inserting the disc:

1 Click Start and Computer.

2 Right-click the optical disc drive icon and select Properties.

3 Click the Hardware tab.

4 Select your optical disc drive from the All disk drives list and click Properties.

5 Click the DVD Region tab.

6 Select an appropriate region from the list and click OK.

You can change the region code only a limited number of times. When you have exceeded this number, the drive's region code is permanently assigned and you will not be able to change it again. Reconfiguring your computer does not reset this count. Any difficulties caused by changing the region code settings of the drive are not covered by the warranty.

If you change the region code while the WinDVD or the WinDVD BD is running, restart the software or eject the disc and re-insert it to make the new setting effective.

Using Your VAIO Computer > Using the Optical Disc Drive

Playing Discs

To play a disc

1 Insert a disc into the optical disc drive.

Close all running software applications before playing a disc.

2 If nothing appears on the desktop, click Start, All Programs, and your desired software to play the disc.

For instructions on how to use the software, see the help file included with the software.

Copying Files to Discs

To copy files to a disc

1 Insert a recordable disc into the optical disc drive.

Close all running software applications before copying files to a disc.

2 If nothing appears on the desktop, click Start, All Programs, and your desired disc burning software to copy files to the

disc. For instructions on how to use the software, see the help file included with the software.

Using Your VAIO Computer > Using the TV Function

Using the TV Function

Your computer may have a TV tuner board installed. The Windows Media Center included in your operating system enables TV program viewing, recording and playback.

Some features and options in this section may not be available on your computer. See the specifications to find out about the configuration of your computer.

Any functions related to digital terrestrial television (DVB-T) will only work in countries where free-to-air DVB-T digital terrestrial TV signals are broadcasted. Make sure you can receive free-to-air DVB-T signals in your country or region.

✍

On models with a dual DVB-T TV tuner board, you can record up to two digital channels at the same time, or watch a TV program while recording another.

Using Your VAIO Computer > Using the TV Function

To connect your computer to land-based (terrestrial) or cable TV services

No TV coaxial cables are supplied with your computer. Make sure that you have a TV coaxial cable ready beforehand.

The state of receiving TV signals widely varies depending on services available in your country or region as well as connection types.

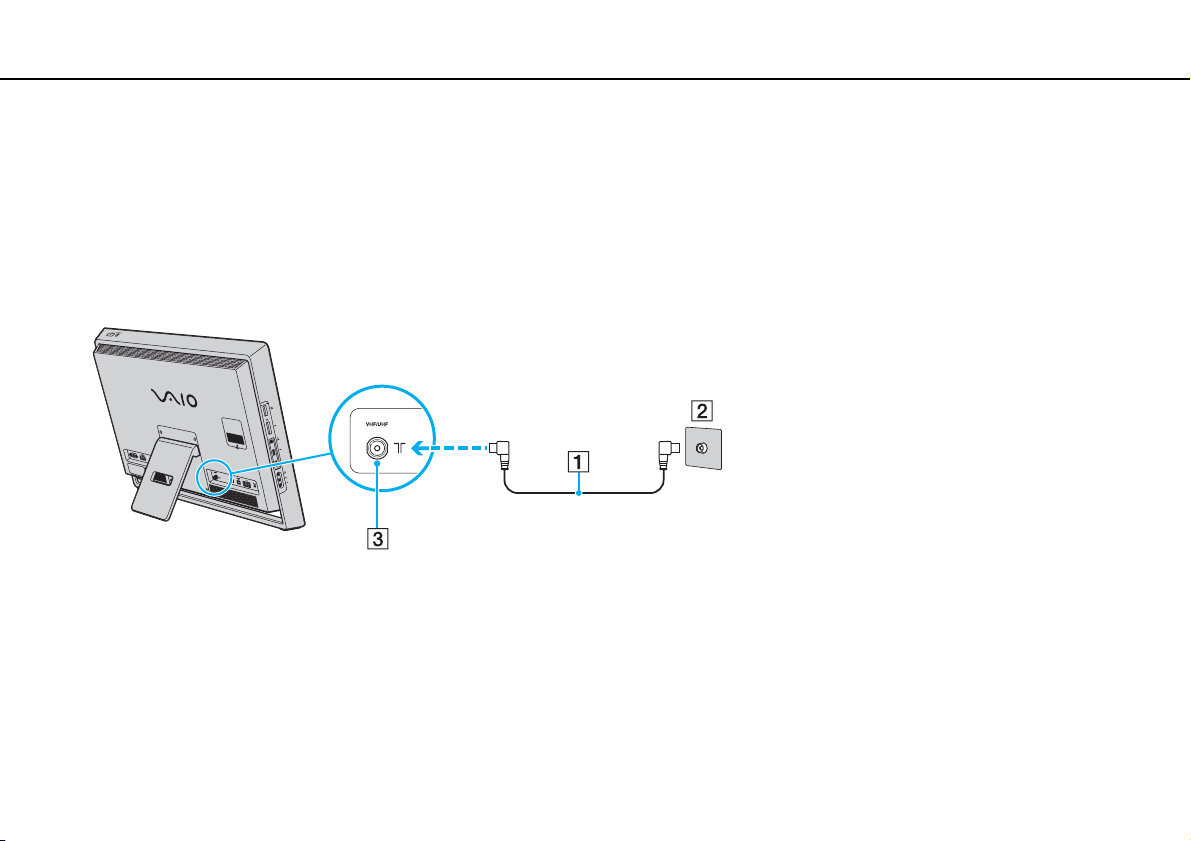

1 Connect one end of a TV coaxial cable (1) to your TV wall outlet/cable service access (2).

2 Connect the other end of the cable to the VHF/UHF input port (3) on the computer.

Using Your VAIO Computer > Using the TV Function

Setting Up the Windows Media Center

The first time you launch the Windows Media Center, the setup wizard pops up. If your computer is equipped with a TV tuner board, click Custom setup and follow the on-screen instructions to configure the TV tuner. In the Optional Setup window, click Configure tuners, TV signal, and Guide and follow the on-screen instructions.

In case the TV tuner was not configured during the first run of the Windows Media Center, you can do this by selecting live TV setup in the TV section.

When you want to change TV input signal (TV Signal or TV Signal Type) or change location, click settings in the Tasks section and then click TV.

In this case, a new channel scan needs to be done, the previous channel list and Guide information is lost, and scheduled timer recordings are canceled.

Using Your VAIO Computer > Using the HDMI/VIDEO Input Function

Using the HDMI/VIDEO Input Function

Your computer may be equipped with an HDMI INPUT port and VIDEO INPUT jacks that enable you to connect an external audio/video device, such as an HDD video recorder and a video game player. With the HDMI/VIDEO input function, you can receive high-definition audio and video signals from the connected device and play the audio/video content on your computer without turning on the computer and starting Windows.

Some features and options in this section may not be available on your computer. See the specifications to find out about the configuration of your computer.

You cannot capture audio/video signals coming through the HDMI INPUT port or the VIDEO INPUT jacks and save them into a file on your computer.

Using Your VAIO Computer > Using the HDMI/VIDEO Input Function

Connecting an External Audio/Video Device

To connect an external audio/video device to the HDMI INPUT port or the VIDEO INPUT jacks (page 11), you need an HDMI cable or an audio/video cable with triple RCA plugs.

No HDMI cables or audio/video cables with triple RCA plugs are supplied with your computer. Be sure to have one ready beforehand.

Be sure to use an HDMI cable approved by HDMI Licensing, LLC.

To connect an external audio/video device to your computer

1 Plug one end of an HDMI cable or an audio/video cable with triple RCA plugs to an appropriate port or jacks on an external

audio/video device.

2 Plug the other end to the HDMI INPUT port or the VIDEO INPUT jacks on the computer.

3 Turn on the connected device.

The INPUT SELECT indicator light and the HDMI/VIDEO input indicator light illuminate in green. If not, press the INPUT SELECT button to switch the audio/video input source to the HDMI input or the video input.

✍

You do not need to turn on your computer and start Windows to switch the audio/video input source.

Using Your VAIO Computer > Using the HDMI/VIDEO Input Function

Using the HDMI/VIDEO Input Control Buttons

The HDMI/VIDEO input control buttons are located on the right of your computer (page 12) for operations with the HDMI/ VIDEO input function, including input source selections and On-Screen Display (OSD) menu operations.

The following table describes the task(s) assigned to each control button.

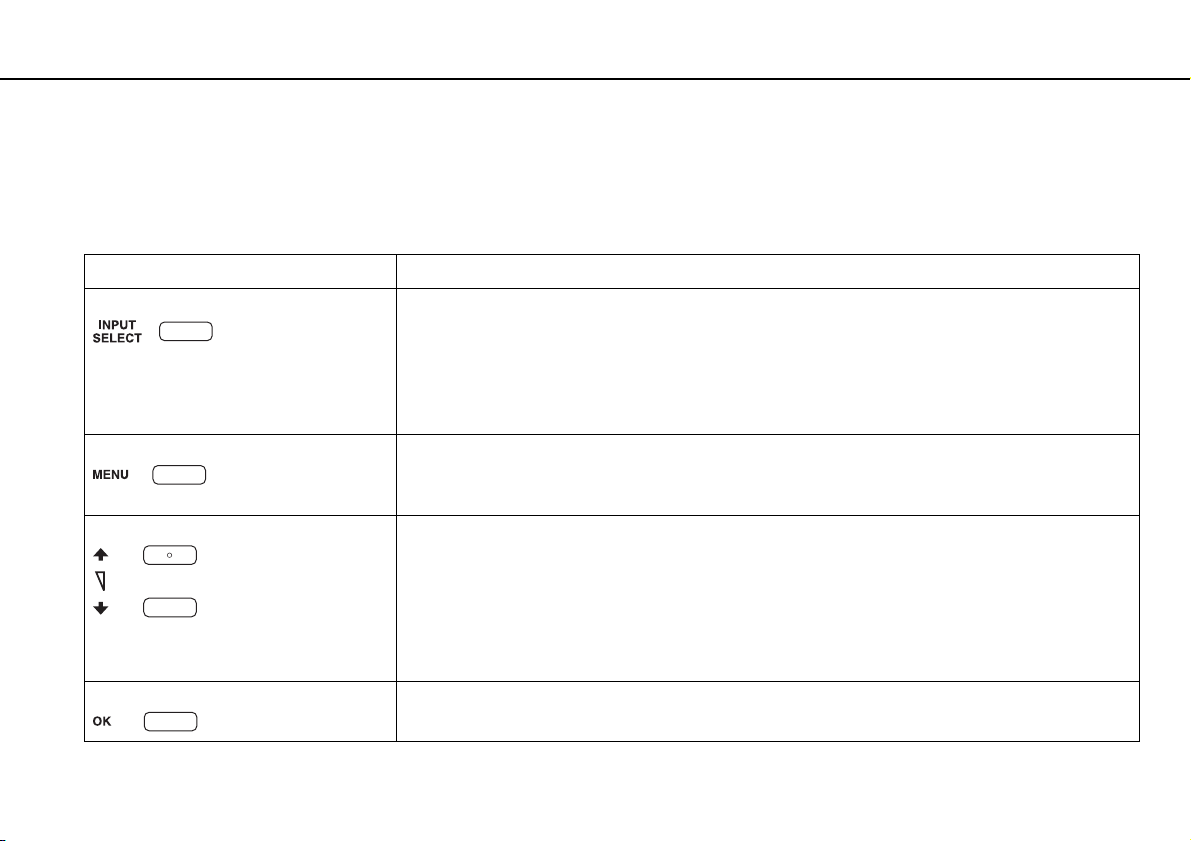

HDMI/VIDEO input control button Assigned task

INPUT SELECT button Switches the audio/video input among three sources: HDMI input, video input, and computer input.

✍

Alternatively, you can press the INPUT SELECT button on the remote commander (if supplied) to switch the audio/ video input source. See Using the Remote Commander (page 63) for more information. While the HDMI input or the video input is selected, the INPUT SELECT indicator light and the HDMI/VIDEO input indicator light illuminate in green.

MENU button Shows/hides the OSD menu on your computer screen.

Touch screen operations are not available on the OSD menu.

V/v (Up/Down) button Navigates through options on the OSD menu.

OK button Executes your selection on the OSD menu.

While the OSD menu is not displayed and the HDMI input or the video input is selected, you can use the V/v button to increase/decrease the volume as well.

✍

Alternatively, you can use the volume control buttons, including the muting button, on the remote commander (if supplied) to change the volume regardless of the current audio/video input source. The respective buttons on the wireless keyboard, however, work only while the computer input is selected as the audio/video input source.

Using Your VAIO Computer > Using the HDMI/VIDEO Input Function

Using the OSD Menu

The OSD menu is provided for customizing your computer to suit your preference. Press the MENU button on the right of your computer to display the OSD menu and use the V/v button to navigate through

options until you find your desired one.

Using Your VAIO Computer > Using the HDMI/VIDEO Input Function

Using the menu for the HDMI/VIDEO input function

The following lists some settings that you may find helpful for using the HDMI/VIDEO input function.

Selecting language mode of the OSD menu

Selecting Input Sensing mode You can select one of the three Input Sensing modes: AUTO ON, AUTO OFF (Normal), and AUTO OFF

Disabling the HDMI/VIDEO input function

1 Select OPTION and LANGUAGE. 2 Select the desired language. 3 Press the OK button.

(Power Save). In AUTO ON mode, connecting an external audio/video device to the HDMI INPUT port or the VIDEO INPUT jacks while your computer is off or in Sleep mode automatically switches the audio/video input source to the HDMI input or the video input, respectively. In AUTO OFF (Normal) or AUTO OFF (Power Save) mode, automatic input selection is not performed. By default, AUTO OFF (Normal) mode is selected. 1 Select OPTION and INPUT SENSING. 2 Select the desired mode. 3 Press the OK button.

✍

Selecting AUTO OFF (Power Save) reduces power consumption. To resume power, press the INPUT SELECT button on the computer or the remote commander (if supplied).

1 Select OPTION and DISABLE INPUT. 2 Select the desired mode. 3 Press the OK button.

Using Your VAIO Computer > Using the HDMI/VIDEO Input Function

Using the menu for the PinP and Swap functions

The PinP function is provided for showing a small sub window on the main window and switching the audio/video input source for the sub window among three sources: the computer input, the HDMI input, and the video input. While the PinP function is enabled, you can additionally use the Swap function to interchange the input signals between the main and sub windows.

Enabling the PinP function 1 Select PinP and PinP MODE.

Switching the audio/video input source for the sub window

Swapping the input signals between the main and sub windows

2 Select ON mode. 3 Press the OK button.

1 Select PinP and SUB INPUT. 2 Select the desired input source. 3 Press the OK button.

1 Select PinP and SWAP. 2 Press the OK button.

✍

Alternatively, you can use the PinP A and Swap S buttons on the remote commander (if supplied) for the above operations. See Using the Remote Commander (page 63) for more information.

Using Your VAIO Computer > Using the Remote Commander

Using the Remote Commander

If your computer supports the TV function (page 54), then a remote commander is supplied with the computer for using a wide variety of audio/video related software applications, including the Windows Media Center.

Some features and options in this section may not be available on your computer. See the specifications to find out about the configuration of your computer.

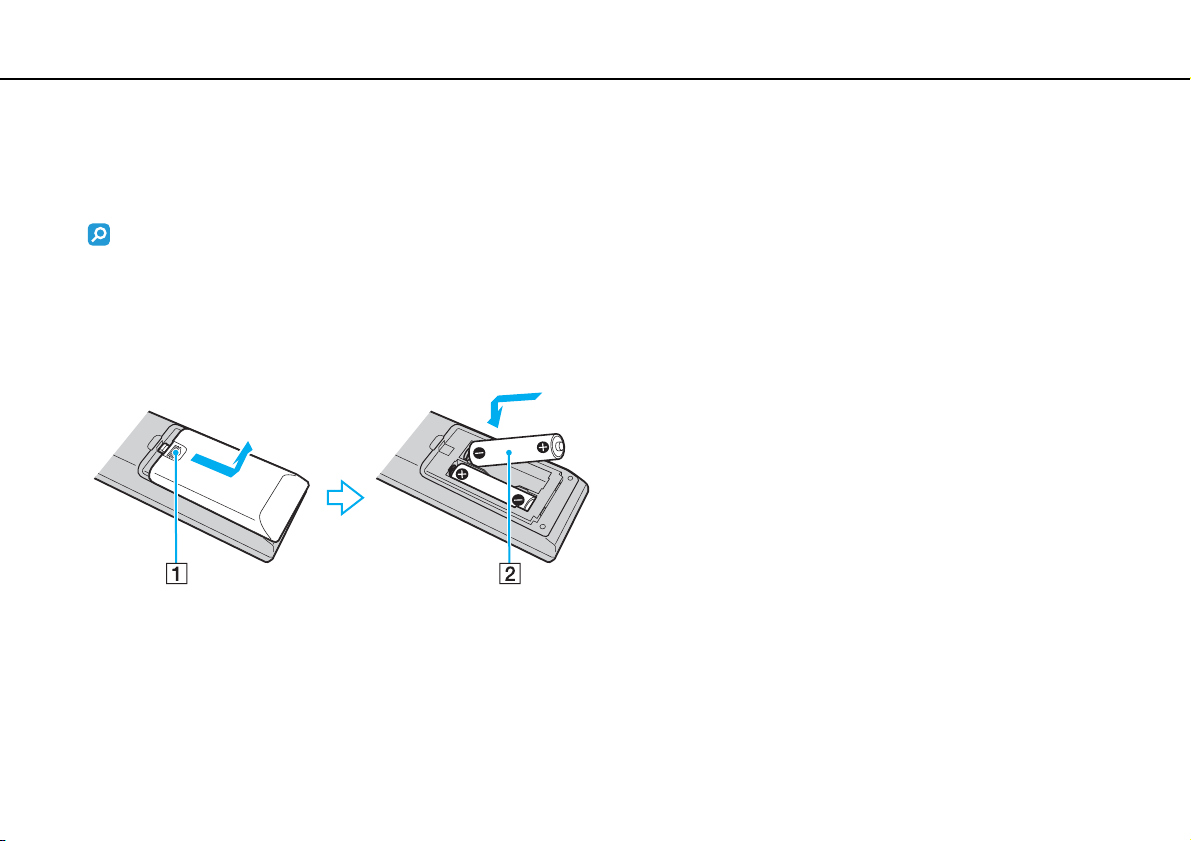

Two AA manganese batteries are supplied with the remote commander. Before attempting to use the remote commander, remove the battery compartment cover (1) from the bottom of the remote commander and install the supplied two AA manganese batteries (2) into the battery compartment.

✍

If the remote commander does not operate properly, you may need to replace the batteries. When the remote commander is not going to be used for an extended period of time, remove the batteries to avoid possible damage from battery leakage.

Buttons with no assigned tasks are not described below.

Using Your VAIO Computer > Using the Remote Commander

✍

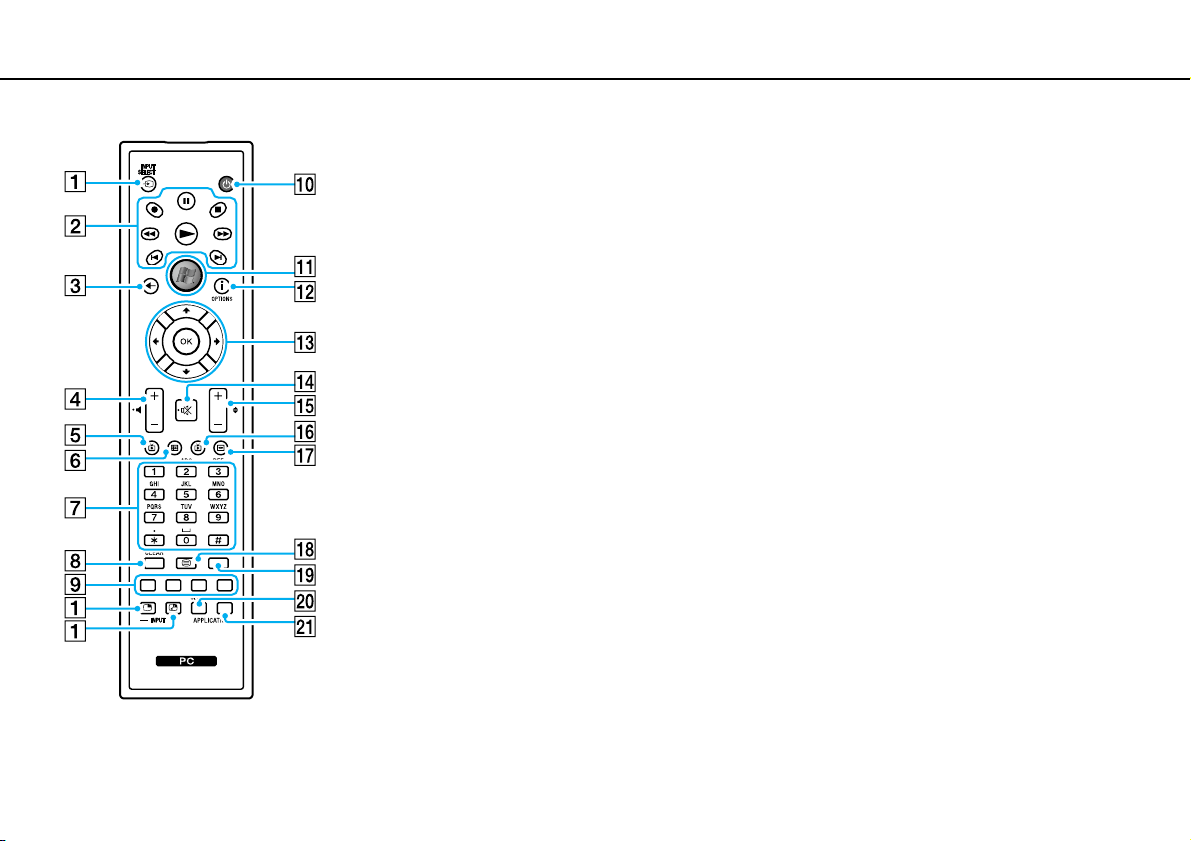

Some button functions may not be available. Illustrated above is the English remote commander as an example.

A HDMI/VIDEO input control buttons

INPUT SELECT t button Press to switch the audio/video input source among the computer input, the HDMI input, and the video input. PinP A button Press to show a small sub window on the main window. While the sub window is in view, this button works as the INPUT SELECT button for the sub window or hide the sub window. Swap S button While the sub window is in view, press to swap the input signals between the main and sub windows.

B Pause X button

Press to pause or resume media playback. Stop x button Press to stop media playback or TV recording session. Forward M button Press to fast-forward media at three speeds. Skip B? button Press to move media forward, for example, one audio track, one DVD chapter, and 30 seconds of recorded TV or video. Replay ?b button Press to move media backward, for example, one audio track, one DVD chapter, and 7 seconds of TV or video. Rewind m button Press to move media backward at three speeds. Record z button Press to begin recording. Play N button Press to begin media playback.

Using Your VAIO Computer > Using the Remote Commander

C Back button

Press to return to the previous window.

D Volume control buttons

Press to increase (+) or decrease (-) the volume.

E Recorded TV button

Press to view previously recorded TV programs.

F Guide button

Press to view the TV program guide for your area.

G Alphanumeric buttons

Press to select specific channels or enter text. (Press ENTER or OK to activate the channel selection.)

H CLEAR button

Press to backspace and delete entered text.

I Teletext TV program mode buttons

Red button Press to jump to the red shortcut link in teletext TV program mode. Green button Press to jump to the green shortcut link in teletext TV program mode. Yellow button Press to jump to the yellow shortcut link in teletext TV program mode. Blue button Press to jump to the blue shortcut link in teletext TV program mode.

J Sleep button

Press to place the computer into Sleep mode to reduce power consumption.

K Start button

Press to open the Start menu of the Windows Media Center.

L More button / OPTIONS button

Press to view additional options that are available for features on software applications, such as the Windows Media Center.

M Directional arrow buttons

Press the V, v, B, and b buttons to move the pointer on the screen. OK button Press to select your desired action or window option. While watching full-screen TV, press to return to the previous channel. Press again to switch between channels.

N Muting button

Press to turn off the sound. Press again to restore the sound.

O Channel/Page buttons

Press to change or page up/down channels (no number input required).

P Live TV button

Press to view TV programs.

Q DVD menu button / MENU button

Press to open the main menu on the playback media, such as a DVD media.

Using Your VAIO Computer > Using the Remote Commander

R Teletext TV program mode selection button

Press to activate/deactivate teletext TV program mode.

S ENTER button

Press to activate a feature or an action, such as channel selection or a return to the previous channel. (This button's actions are similar to using the OK button.)

T APPLICATION SELECT button

Press to switch among open applications. This button works the same as the Alt+Ta b keys.

U APPLICATION CLOSE button

Press to close the active application window.

Pressing these buttons displays a message if your computer does not support the HDMI/VIDEO input function.

Available with the HDMI/VIDEO input function (page 57) as well.

Using Your VAIO Computer > Using "Memory Stick"

Using "Memory Stick"

"Memory Stick" is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable, it can be used for external data storage.

Before You Use "Memory Stick"

The "Memory Stick Duo" slot on your computer can accommodate the following sizes and types of media:

❑ "Memory Stick Duo"

❑ "Memory Stick PRO Duo"

❑ "Memory Stick PRO-HG Duo"

Your computer supports only Duo-size "Memory stick", and does not support standard-size "Memory Stick".

For the latest information about "Memory Stick", visit http://www.sony.net/memorycard/.

Using Your VAIO Computer > Using "Memory Stick"

Inserting and Removing "Memory Stick"

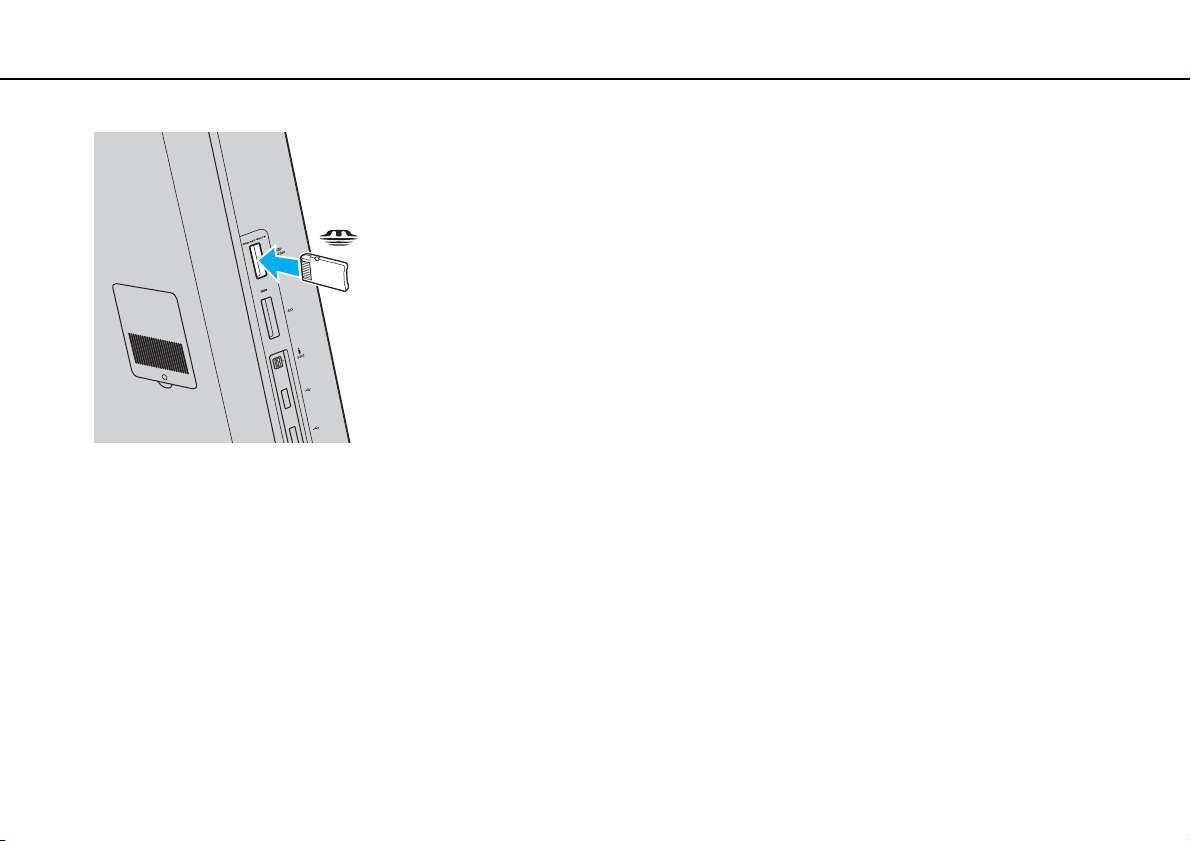

To insert "Memory Stick"

1 Locate the "Memory Stick Duo" slot (page 13).

2 Hold "Memory Stick" with the arrow pointing toward the slot.

3 Carefully slide "Memory Stick" into the slot until it clicks into place.

Do not force the media into the slot.

✍

If "Memory Stick" does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

When you insert "Memory Stick" into the slot for the first time, you may be prompted to install driver software. If prompted, follow the on-screen instructions to install the software.

"Memory Stick" is automatically detected by your system and the contents of "Memory Stick" are displayed. If nothing appears on the desktop, click Start, Computer, and double-click the "Memory Stick" icon.

The "Memory Stick" icon will appear in the Computer window after you insert "Memory Stick" into the slot.

Using Your VAIO Computer > Using "Memory Stick"

Before using "Memory Stick Micro" ("M2"), be sure to insert it into an "M2" Duo adaptor. If you insert the media directly into the "Memory Stick Duo" slot without the adaptor, you may not be able to remove it from the slot.

Using Your VAIO Computer > Using "Memory Stick"

To remove "Memory Stick"

Do not remove "Memory Stick" while the Media Access indicator light is lit. If you do, you may lose data. Large volumes of data may take time to load, so make sure the indicator light is unlit before removing "Memory Stick".

1 Locate the "Memory Stick Duo" slot (page 13).

2 Check that the Media Access indicator light is unlit.

3 Push in "Memory Stick" toward the computer and release.

"Memory Stick" ejects.

4 Pull "Memory Stick" out of the slot.

Be sure to remove "Memory Stick" gently, or it may pop out unexpectedly.

Using Your VAIO Computer > Using "Memory Stick"

Formatting "Memory Stick"

To format "Memory Stick"

"Memory Stick" is formatted by default and is ready for use.

If you want to reformat the media with your computer, follow these steps.

Be sure to use the device that is designed to format the media and supports "Memory Stick" when formatting the media.

Formatting "Memory Stick" erases the entire data stored on the media. Before formatting the media, make sure that it does not contain your valuable data.

Do not remove "Memory Stick" from the slot while formatting. This could cause a malfunction.

1 Locate the "Memory Stick Duo" slot (page 13).

2 Carefully slide "Memory Stick" into the slot until it clicks into place.

3 Click Start and Computer.

4 Right-click the "Memory Stick" icon and select Format.

5 Click Restore device defaults.

The size of the allocation unit and file system may change.

Do not select NTFS from the File system drop-down list as it may cause a malfunction.

✍

The formatting process will be completed more quickly if you select Quick Format in Format options.

Using Your VAIO Computer > Using "Memory Stick"

6 Click Start.

7 Follow the on-screen instructions.

It may take time to format "Memory Stick" depending on the media type.

Using Your VAIO Computer > Using "Memory Stick"

Notes on Using "Memory Stick"

❑ Your computer has been tested and found compatible with Sony branded "Memory Stick" with capacity of up to 32 GB

that are available as of May 2010. However, not all "Memory Stick" are guaranteed of compatibility.

❑ Be sure to hold "Memory Stick" with the arrow pointing in the correct direction as you insert it into the slot. To avoid

damaging your computer or the media, do not force "Memory Stick" into the slot if you cannot insert it smoothly.

❑ Use care when inserting or removing "Memory Stick" from the slot. Do not force it in or out of the slot.

❑ Inserting "Memory Stick" with multiple conversion adaptors is not guaranteed of compatibility.

❑ "MagicGate" is the general name of the copyright protection technology developed by Sony. Use "Memory Stick" with the

"MagicGate" logo to take advantage of this technology.

❑ Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior

consent from the respective copyright holders. Accordingly, "Memory Stick" with such copyrighted data can be used only within the law.

❑ Do not insert more than one "Memory Stick" into the slot. Improper insertion of the media may damage both your

computer and the media.

Using Your VAIO Computer > Using Other Modules / Memory Cards

Using Other Modules / Memory Cards

Using the SD Memory Card

Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices.

Before you use the SD memory card

The SD memory card slot on your computer can accommodate the following memory cards:

❑ SD memory card

❑ SDHC memory card

❑ SDXC memory card

For the latest information on compatible memory cards, see Finding More about Your VAIO Computer (page 5) to visit the appropriate support web site.

Using Your VAIO Computer > Using Other Modules / Memory Cards

To insert an SD memory card

1 Locate the SD memory card slot (page 13).

2 Hold the SD memory card with the arrow pointing toward the slot.

3 Carefully slide the SD memory card into the slot until it clicks into place.

Do not force the card into the slot.

✍

When you insert the SD memory card into the slot for the first time, you may be prompted to install driver software. If prompted, follow the on-screen instructions to install the software.

The SD memory card icon will appear in the Computer window after you insert the card into the slot.

Using Your VAIO Computer > Using Other Modules / Memory Cards

To remove an SD memory card

1 Locate the SD memory card slot (page 13).

2 Check that the Media Access indicator light is unlit.

3 Push in the SD memory card toward the computer and release.

The SD memory card ejects.

4 Pull the SD memory card out of the slot.

Using Your VAIO Computer > Using Other Modules / Memory Cards

Notes on Using Memory Cards

General notes on using the memory card

❑ Be sure to use memory cards that are compliant with the standards supported by your computer.

❑ Be sure to hold the memory card with the arrow pointing in the correct direction as you insert it into the slot. To avoid

damaging your computer or the media, do not force the memory card into the slot if you cannot insert it smoothly.

❑ Use care when inserting or removing the memory card from the slot. Do not force it in or out of the slot.

❑ Do not remove the memory card while the media access indicator light is lit. If you do, you may lose data.

❑ Do not attempt to insert a memory card or memory card adaptor of a different type into the memory card slot. An

incompatible memory card or memory card adaptor may cause difficulty in removing from the slot and can cause damage to your computer.

Notes on using the SD memory card

❑ Your computer has been tested and found compatible only with major memory cards available as of May 2010. However,

not all memory cards are guaranteed of compatibility.

❑ SD memory cards (up to 2 GB), SDHC memory cards (up to 32 GB), and SDXC memory cards (up to 64 GB) have been

tested and found compatible with your computer.

❑ The SD memory card slot on your computer does not support the copyright protection and high-speed data transfer

features of the SDXC memory card.

Using Your VAIO Computer > Using the Internet

Using the Internet

Before using the Internet, you need to sign up with an Internet Service Provider (ISP) and set up devices required for connecting your computer to the Internet.

The following types of Internet connection services may be available from your ISP:

❑ Fiber to the Home (FTTH)

❑ Digital Subscriber Line (DSL)

❑ Cable modem

❑ Satellite

❑ Dial-up

For detailed information on devices required for Internet access and how to connect your computer to the Internet, ask your ISP.

✍

To connect your computer to the Internet using the wireless LAN function, you need to set up the wireless LAN network. See Using the Wireless LAN

(page 80) for more information.

When you connect your computer to the Internet, be sure to take appropriate security measures to protect the computer against online threats.

Depending on the service contract with your ISP, you may need to connect an external modem device, for example a USB telephone modem, a DSL modem, or a cable modem, to your computer to connect to the Internet. For detailed instructions on connection setups and modem configuration, see

the manual that came with your modem.

Using Your VAIO Computer > Using the Network (LAN)

Using the Network (LAN)

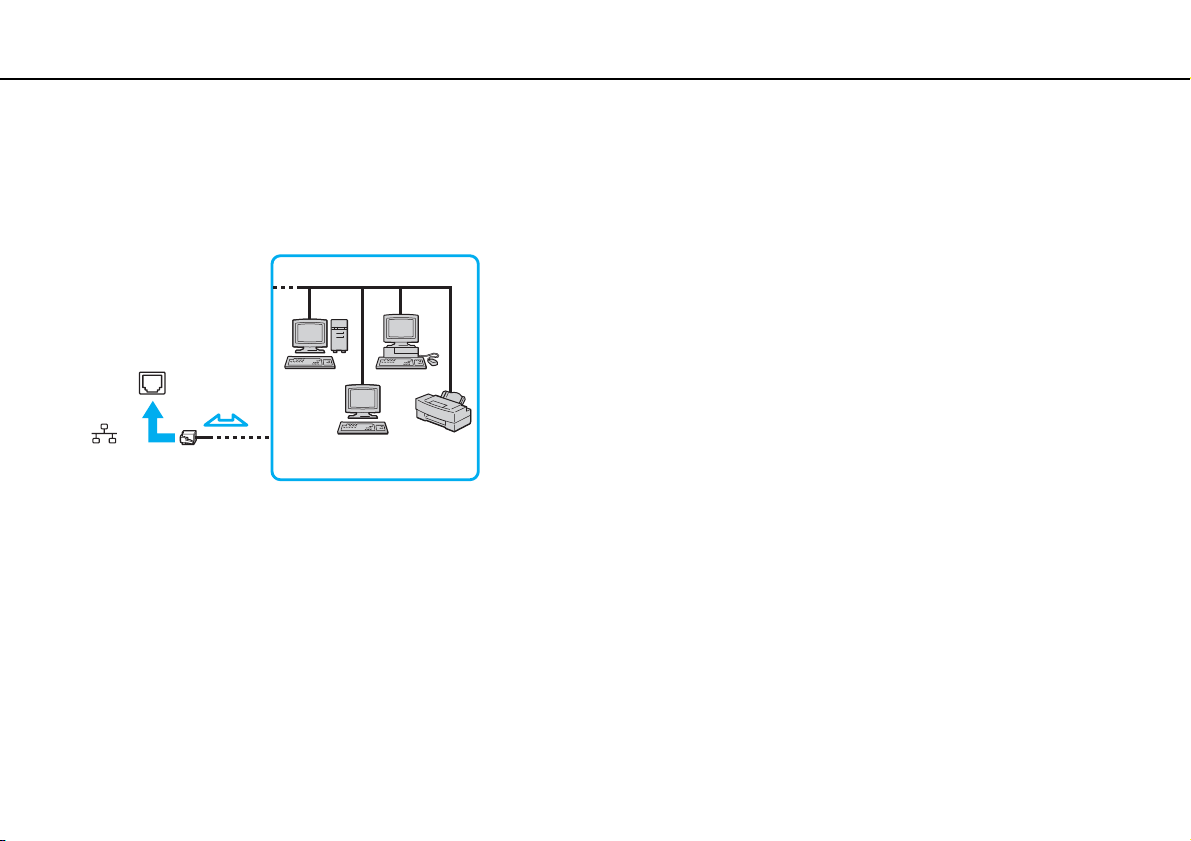

You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T type networks with a LAN cable. Connect one end of a LAN cable (not supplied) to the network (LAN) port on the back of the computer and the other end to your network. For detailed settings and devices required for LAN access, ask your network administrator.

✍

You can connect your computer to any network without changing the default settings.

Do not plug a telephone cable into the network (LAN) port on your computer. If the network (LAN) port is connected to one of the telephone lines mentioned below, high electric current to the port may cause damage, overheating, or fire.

- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)

- Public telephone subscriber line

- Private branch exchange (PBX)

Using Your VAIO Computer > Using the Wireless LAN

Using the Wireless LAN

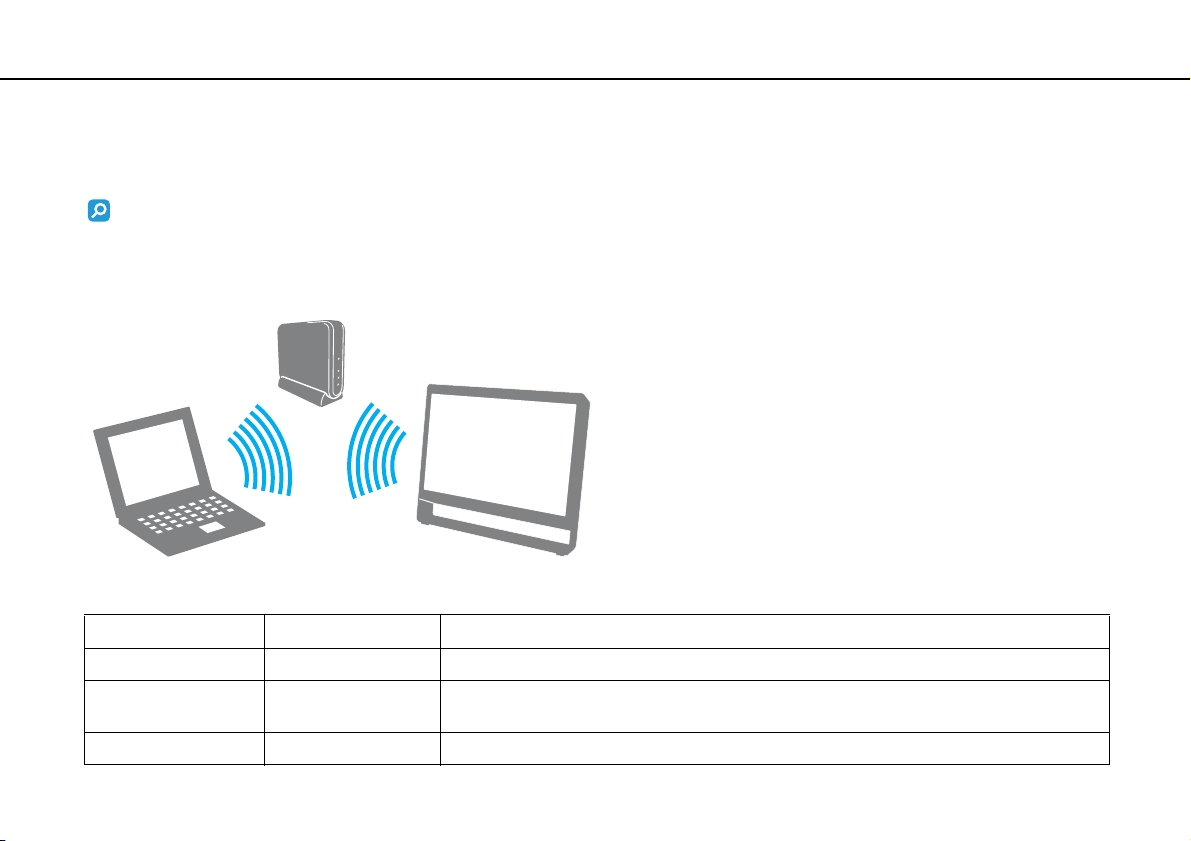

The Wireless LAN (WLAN) allows your computer to connect to a network through a wireless connection.

The WLAN uses the following IEEE 802.11a/b/g/n standard, which specifies the type of technology used. See the specifications to find out about the configuration of your computer.

WLAN standard Frequency band Remarks

IEEE 802.11a 5 GHz -

IEEE 802.11b/g 2.4 GHz The IEEE 802.11g standard provides higher-speed communications than the IEEE 802.11b

standard.

IEEE 802.11n 5 GHz/2.4 GHz On models compliant with the IEEE 802.11b/g/n standard, only the 2.4 GHz band can be used.

Using Your VAIO Computer > Using the Wireless LAN

Notes on Using the Wireless LAN Function

General notes on using the wireless LAN function

❑ In some countries or regions, using WLAN products may be restricted by the local regulations (e.g. limited number of

channels).

❑ The IEEE 802.11a standard and the IEEE 802.11n standard are not available on ad-hoc networks.

❑ The 2.4 GHz band, with which wireless LAN devices work, is used by various devices. Although the wireless LAN devices

use the technology to minimize radio interference from other devices that use the same band, such radio interference may cause slower communication speeds and narrower communication ranges or communication failures.

❑ The communication speed and range may vary depending on the following conditions:

❑ Distance between communication devices

❑ Existence of obstacles between devices

❑ Device configuration

❑ Radio conditions

❑ Ambient environment that includes existence of walls and materials of such walls

❑ Software in use

❑ Communications may be cut off depending on radio conditions.

❑ Actual communication speed may not be as fast as the one displayed on your computer.

❑ Deploying WLAN products compliant with different standards that use the same band on the same wireless network may

reduce the communication speed due to radio interference. Taking this into consideration, WLAN products are designed to reduce the communication speed to ensure communications with another WLAN product if it is compliant with a different standard that uses the same band. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase the communication speed.

Using Your VAIO Computer > Using the Wireless LAN

Note on the data encryption

The WLAN standard includes the encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access (WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based on interoperable security enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA is designed to be forward compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption Temporal Key Integrity Protocol (TKIP) in addition to user authentication using 802.1X and Extensible Authentication Protocol (EAP). Data encryption protects the vulnerable wireless link between clients and access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n standards, multi-band and multi-mode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible with WPA.

Using Your VAIO Computer > Using the Wireless LAN

Starting Wireless LAN Communications

You first need to establish wireless LAN communications between your computer and an access point (not supplied). See

Windows Help and Support for more information.

For details on how to select the channel that will be used by the access point, see the manual that came with your access point.

To start wireless LAN communications

1 Make sure an access point is set up.

See the manual that came with your access point for more information.

2 Click the VAIO Smart Network icon on the taskbar.

3 Click the switch next to your desired wireless option(s) to toggle it to On in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

4 Click or on the taskbar.

5 Select the desired access point and click Connect.

✍

For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be a text string between 8 and 63 characters in length or a hexadecimal string of 64 characters.

Using Your VAIO Computer > Using the Wireless LAN

Stopping Wireless LAN Communications

To stop wireless LAN communications

Click the switch next to Wireless LAN to toggle it to Off in the VAIO Smart Network window.

Turning off the wireless LAN function while accessing remote documents, files, or resources may result in data loss.

Using Your VAIO Computer > Using the Bluetooth Function

Using the Bluetooth Function

You can establish wireless communications between your computer and other Bluetooth® devices such as another computer or a mobile phone. You can transfer data between these devices without cables at a range of up to 10 meters in an open area.

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to communicate. With the authentication function, you can prevent any anonymous Bluetooth devices from accessing your computer.

The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

Using Your VAIO Computer > Using the Bluetooth Function

Communicating with Another Bluetooth Device

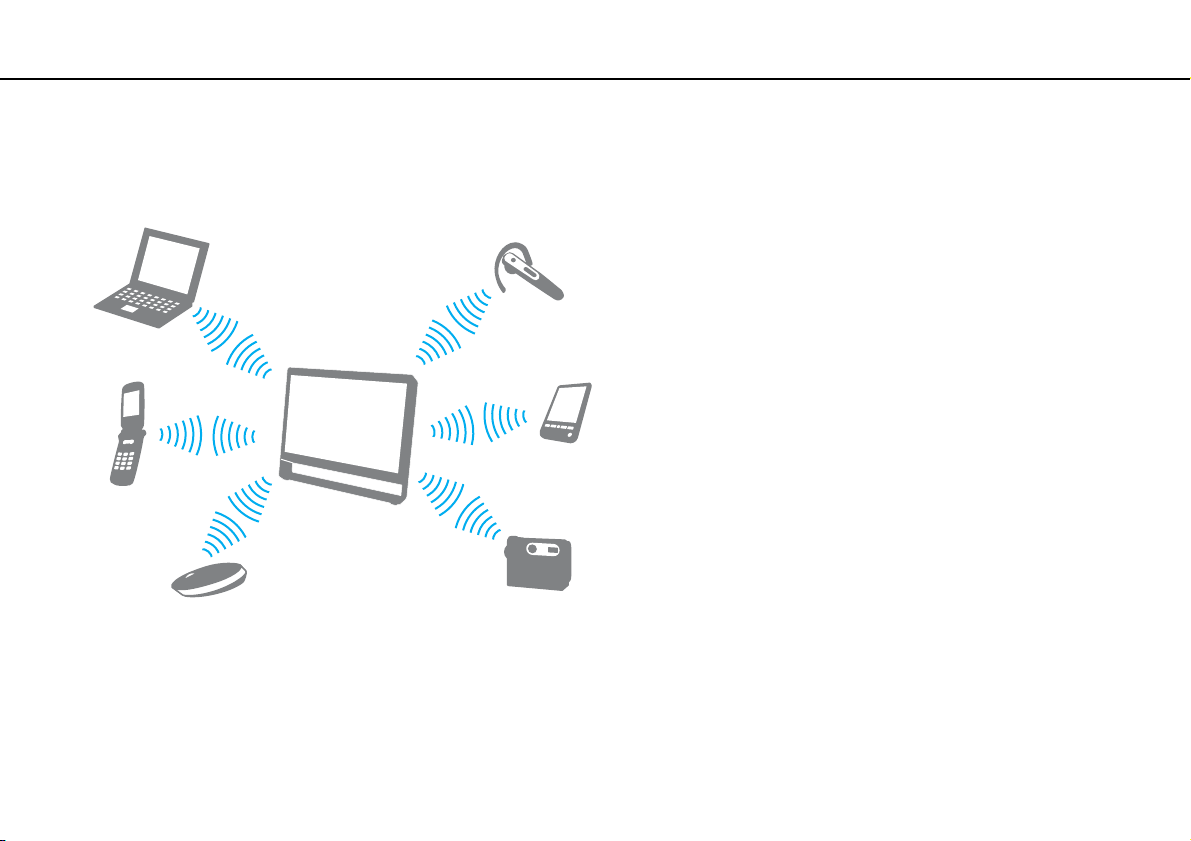

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a mouse, or a digital camera without the use of any cables.

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you first need to set up the Bluetooth function. For information on setting up and using the Bluetooth function, see Windows Help and Support.

1 Click the VAIO Smart Network icon on the taskbar.

2 Click the switch next to Bluetooth to toggle it to On in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

Using Your VAIO Computer > Using the Bluetooth Function

Stopping Bluetooth Communications

To stop Bluetooth communications

1 Turn off the Bluetooth device that is communicating with your computer.

2 Click the switch next to Bluetooth to toggle it to Off in the VAIO Smart Network window.

Using Your VAIO Computer > Using the Bluetooth Function

Notes on Using the Bluetooth Function

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both wireless LAN and Bluetooth functions at the same time on your computer

❑ Size of file being exchanged

❑ Large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard and

electromagnetic interference in the environment.

❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may not be possible in all situations.

❑ Video and audio may not be synchronized if you play videos on your computer with audio output from a connected

Bluetooth device. This is a frequent occurrence with Bluetooth technology and does not indicate a malfunction.

❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Although

Bluetooth devices use the technology to minimize radio interference from other devices that use the same band, such radio interference may cause slower communication speeds and shorter distances or communication failures.

Using Your VAIO Computer > Using the Bluetooth Function

❑ The Bluetooth function may not work with other devices, depending on the manufacturer or the software version employed

by the manufacturer.

❑ Connecting multiple Bluetooth devices to your computer may cause channel congestion, resulting in poor performance

of the devices. This is normal with Bluetooth technology and does not indicate a malfunction.

Using Peripheral Devices >

Using Peripheral Devices

You can add functionality to your VAIO computer by using the various ports on the computer.

❑ Connecting External Speakers or Headphones (page 91)

❑ Connecting an External Microphone (page 92)

❑ Connecting a USB Device (page 93)

❑ Connecting an i.LINK Device (page 95)

Using Peripheral Devices > Connecting External Speakers or Headphones

Connecting External Speakers or Headphones

You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer.

Since your computer is capable of outputting digital signals through the OPTICAL OUT port, you can connect an S/PDIF device such as digital headphones or an audio/video amplifier to the port and enhance the sound quality of your computer. For more information, see the manual that came with your S/PDIF device.

To hear sound from the S/PDIF device connected to the OPTICAL OUT port, you need to change the sound output device. For detailed instructions, see How do I change the sound output device? (page 162).

To connect external speakers

✍

Make sure your speakers are designed for computer use.

Turn down the volume of the speakers before you turn them on.

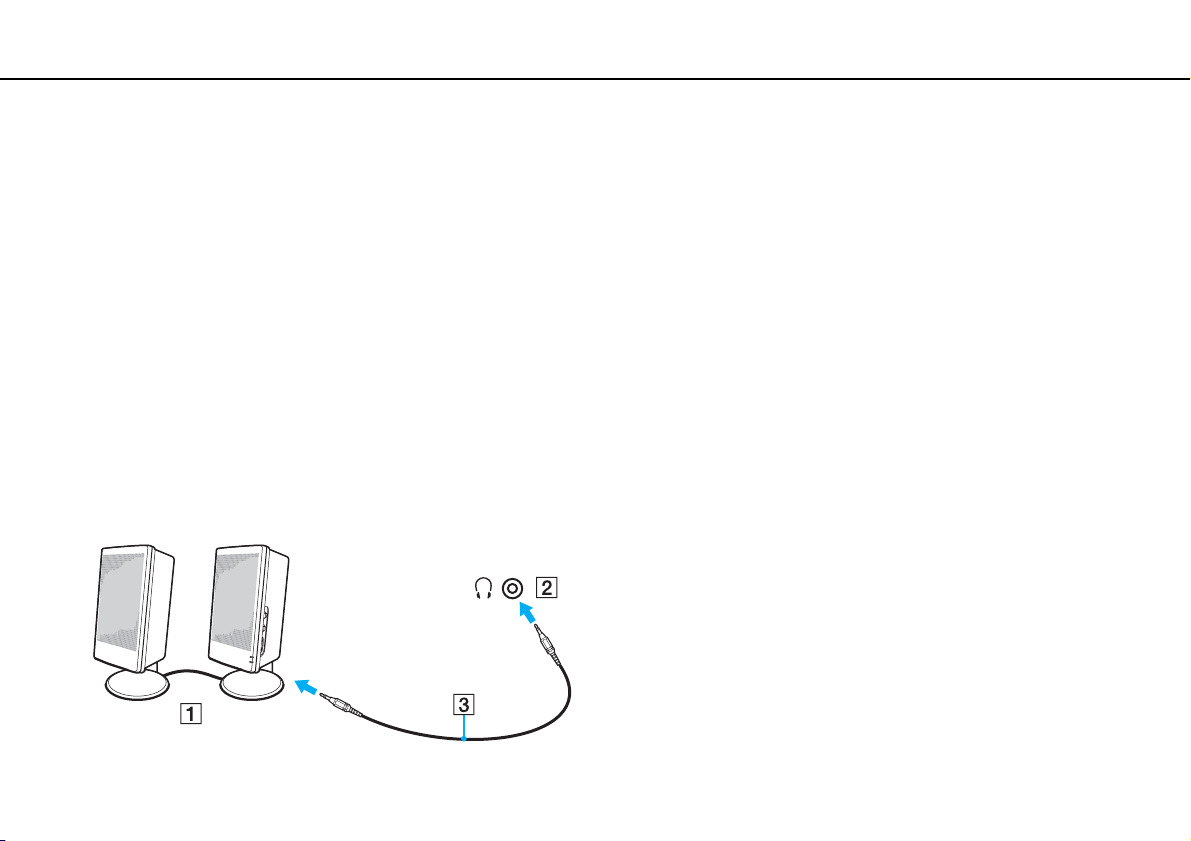

Connect external speakers (1) to the headphones jack (2) i with a speaker cable (3) (not supplied).

Using Peripheral Devices > Connecting an External Microphone

Connecting an External Microphone

You can connect an external microphone (not supplied) to your computer.

To connect an external microphone

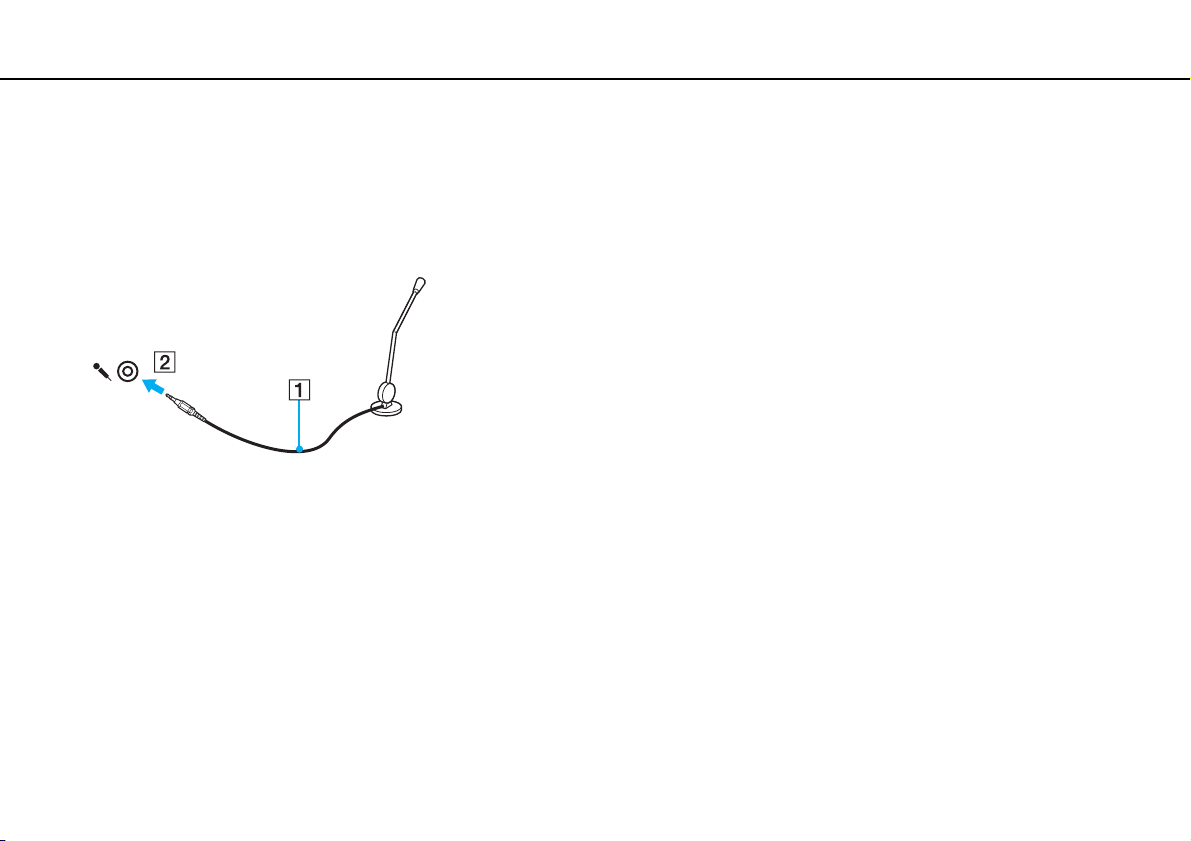

Plug the microphone cable (1) into the microphone jack (2) m.

✍

Make sure your microphone is designed for computer use.

Using Peripheral Devices > Connecting a USB Device

Connecting a USB Device

You can connect a Universal Serial Bus (USB) device, such as a mouse, a floppy disk drive, a speaker, or a printer, to your computer.

To connect a USB device

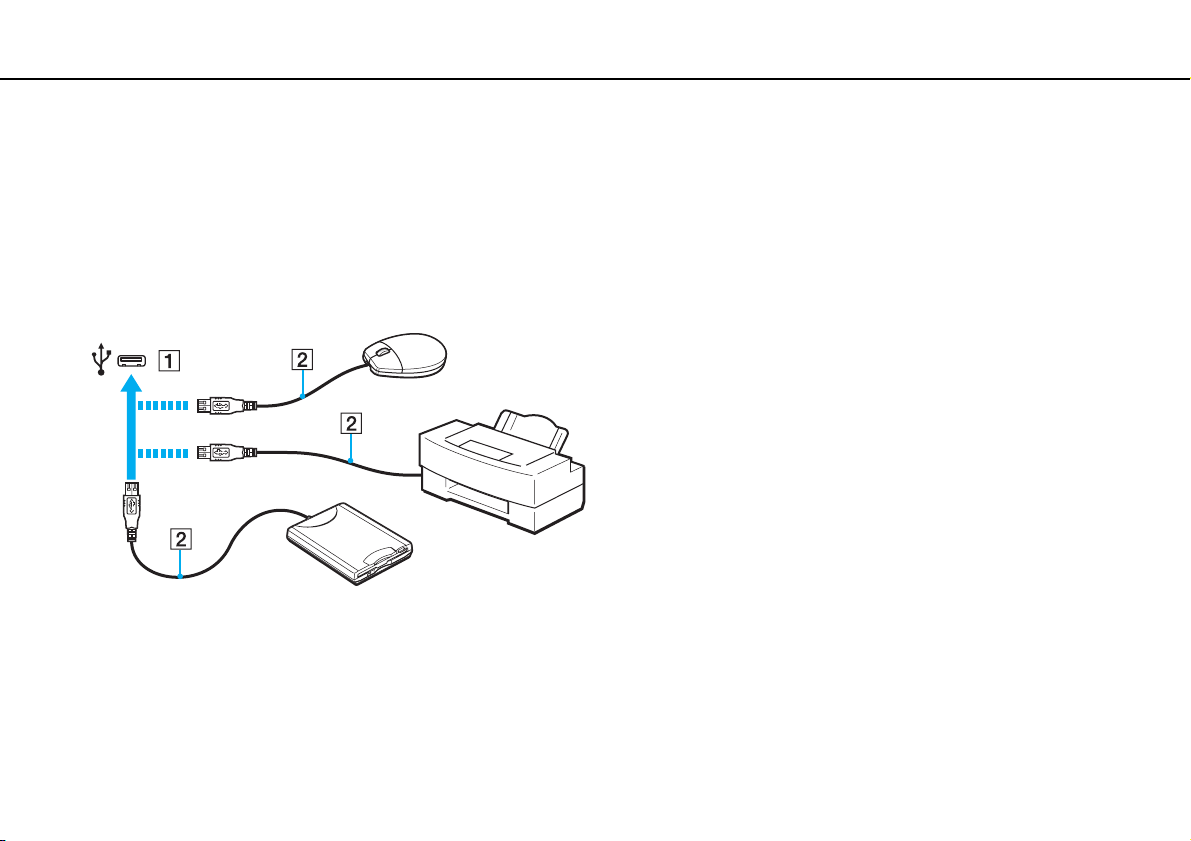

1 Choose the USB port (1) you prefer to use.

2 Plug the USB device cable (2) into the USB port.

Using Peripheral Devices > Connecting a USB Device

Notes on connecting a USB device

❑ You may need to install the driver software supplied with your USB device before use. See the manual that came with the

USB device for more information.

❑ Be sure to use a USB printer compatible with your version of Windows to print documents.

❑ For information on how to remove a USB device, see the manual that came with the device.

❑ To protect your computer and/or USB devices from damage, observe the following:

❑ When moving the computer with USB devices connected, avoid exposing the USB ports to shock or impact.

❑ Do not put the computer into a bag or carrying case when it has USB devices connected.

Using Peripheral Devices > Connecting an i.LINK Device

Connecting an i.LINK Device

Your computer is equipped with an i.LINK port which you can use to connect an i.LINK device, such as a digital video camcorder.

✍

i.LINK is a trademark of Sony Corporation used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK connection may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK connection can communicate with each other. See the manual that came with your compatible i.LINK device for more information on operating conditions and proper connection. Before connecting compatible i.LINK PC peripherals to your system, such as a CD-RW or hard disk drive, confirm their operating system compatibility and required operating conditions.

Notes on connecting i.LINK devices

❑ The i.LINK port on your computer does not supply power to an external device. If the external device requires external

power, be sure to connect it to a power source.

❑ The i.LINK port supports transfer rates up to 400 Mbps. However, the actual transfer rate depends on the transfer rate of

the external device.

❑ The optional i.LINK cables may not be available in some countries or regions.

❑ An i.LINK connection with other compatible devices is not fully guaranteed.

❑ The i.LINK connection may not be available depending on the software applications, operating system, and i.LINK-

compatible devices you use. See the manual that came with your software for more information.

❑ Check the working conditions and operating system compatibility of i.LINK-compatible PC peripherals (for example, an

HDD or a CD-RW drive) before you connect them to your computer.

Using Peripheral Devices > Connecting an i.LINK Device

Connecting a Digital Video Camcorder

To connect a digital video camcorder

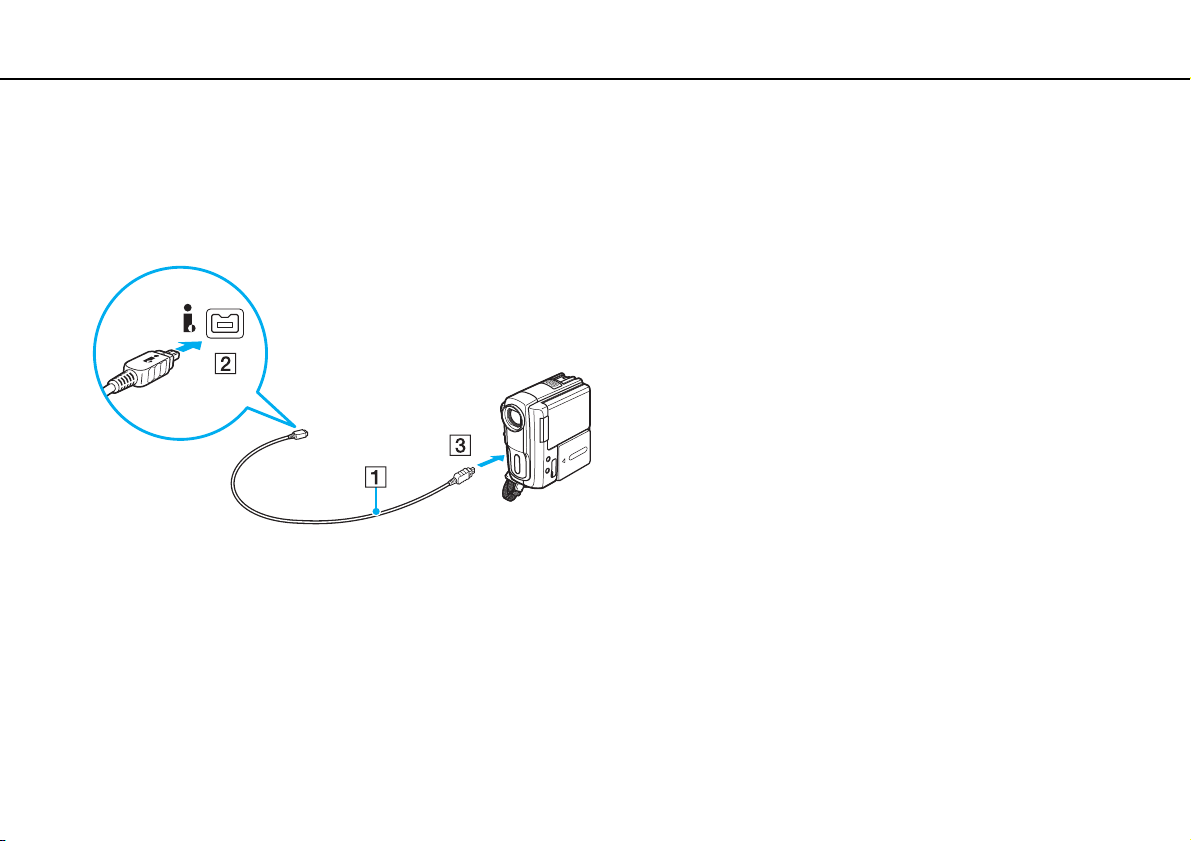

Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV In/ Out port (3) on the digital video camcorder.

✍

The connection procedure varies depending on your compatible i.LINK device. See the manual that came with the device for more information.

You cannot access the contents of "Memory Stick" in the digital video camcorder via an i.LINK connection.

Customizing Your VAIO Computer >

Customizing Your VAIO Computer

This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities.

❑ Setting the Password (page 98)

❑ Using Intel VT (page 105)

❑ Using the VAIO Control Center (page 106)

Customizing Your VAIO Computer > Setting the Password

Setting the Password

Setting the password allows you to protect your computer from unauthorized access by making the user enter the password when the computer is turned on or returns to Normal mode from Sleep mode.

Do not to forget your password. Write down the password and keep it in a secure place.

Type of Password Description

Power-on password You can use BIOS functions to set two types of passwords:

- Machine password: Allows users with administrative rights to change all the setup options in the BIOS setup screen, as well as to start the computer.

- User password: Allows the standard users to change some of the BIOS setup options, as well as to start the computer. To set the user password, you must first set the machine password.

✍

Entry of the power-on password will be prompted after the VAIO logo appears to start your computer.

If you forget the machine password, the password needs to be reset and a fee will be charged. To reset the password, contact an authorized Sony service/support center. To find the nearest center or agent, see Finding More about Your VAIO Computer (page 5). You can reset the user password at the BIOS setup screen by entering the machine password.

Windows password Allows users to log onto your computer and protect each user account with its own password.

✍

Entry of the Windows password will be prompted after you select your user account.

Customizing Your VAIO Computer > Setting the Password

Setting the Power-on Password

To add the power-on password (machine password)

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the

Enter key.

4 On the password entry screen, enter the password twice and press the Enter key.

The password can be up to 32 alphanumeric characters long (including spaces).

5 Select Password when Power On under Security and press the Enter key.

6 Change the setting from Disabled to Enabled. 7 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Customizing Your VAIO Computer > Setting the Password

100

To add the power-on password (user password)

Make sure you set the machine password before setting the user password.

1 Turn on the computer.

2 Press the F2 key when the VAIO logo appears.

The password entry screen appears. If the screen does not appear, restart the computer and press the F2 key several times when the VAIO logo appears.

3 Enter the machine password and press the Enter key. 4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the

Enter key.

5 On the password entry screen, enter the password twice and press the Enter key.

The password can be up to 32 alphanumeric characters long (including spaces).

6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.

At the confirmation prompt, press the Enter key.

Sony VPCL148FG Users guide

Specifications and Main Features

Frequently Asked Questions

User Manual
