Page 1
User Guide
Personal Computer
VGN-AW Series
N
Page 2
Contents
2
nN
Before Use.......................................................................... 4
Finding More about Your VAIO Computer .................... 5
Ergonomic Considerations ............................................ 9
Getting Started.................................................................. 11
Locating Controls and Ports........................................ 12
About the Indicator Lights ........................................... 19
Connecting a Power Source ....................................... 20
Using the Battery Pack................................................ 22
Shutting Down Your Computer Safely ........................ 28
Using the Power Saving Modes .................................. 29
Updating Your Computer ............................................ 31
Using Your VAIO Computer.............................................. 32
Using the Keyboard..................................................... 33
Using the Touch Pad................................................... 35
Using Special-function Buttons ................................... 36
Using the Built-in Camera ........................................... 37
Using the Optical Disc Drive ....................................... 38
Using "Memory Stick".................................................. 45

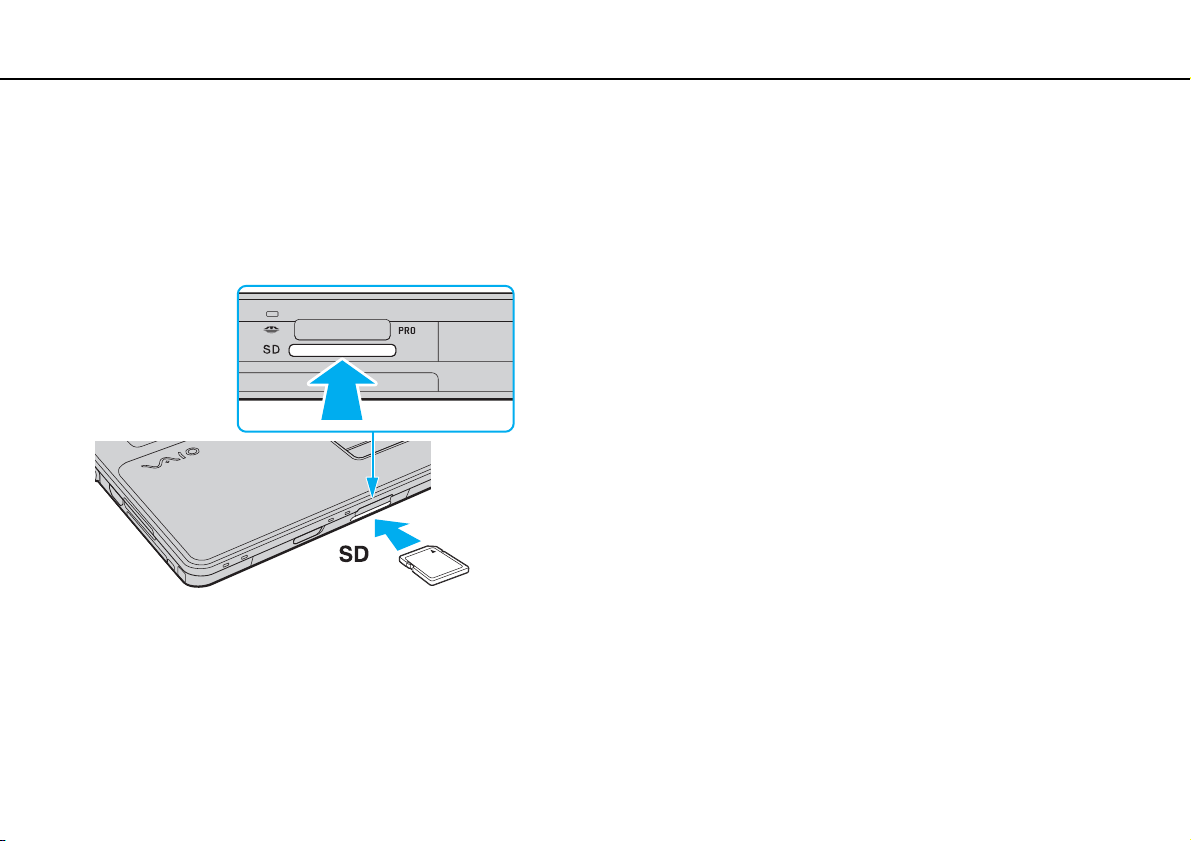

Using Other Modules / Memory Cards ........................ 51
Using the Internet ........................................................ 61

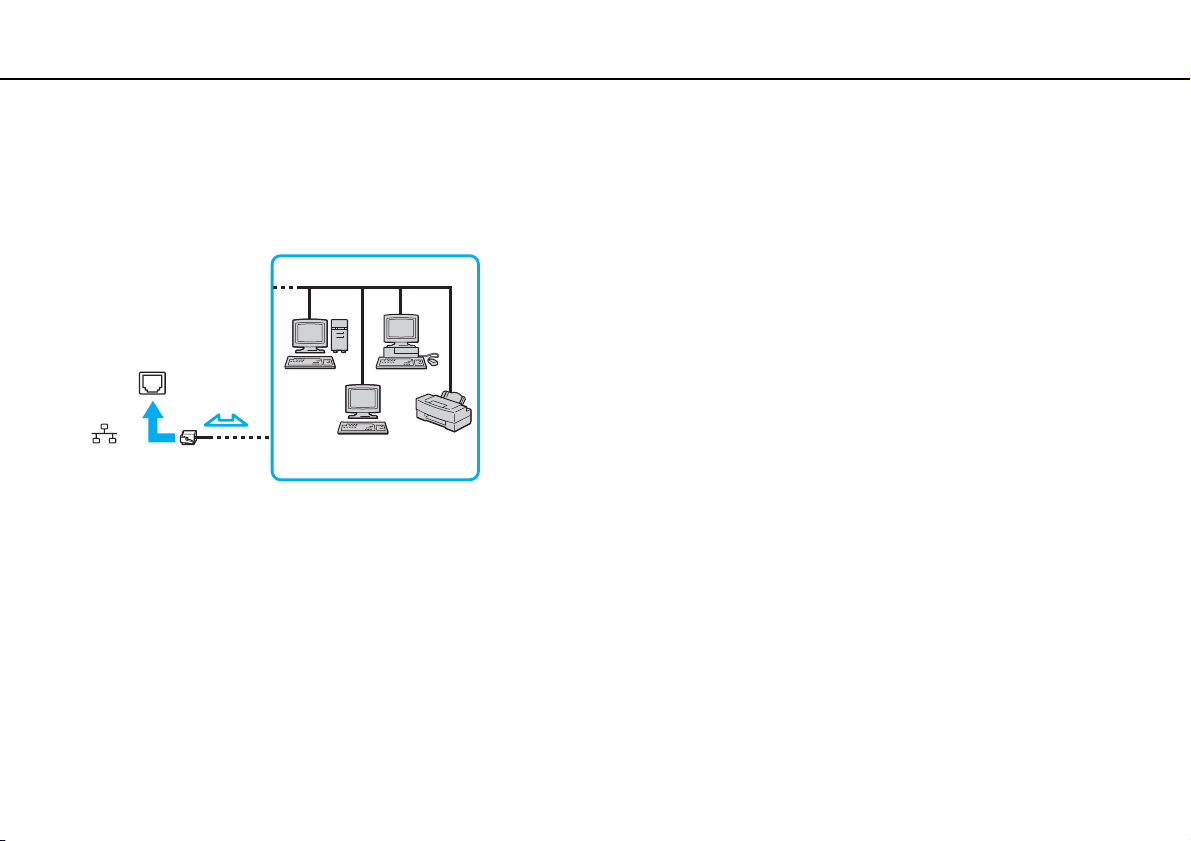

Using the Network (LAN) ............................................ 62
Using the Wireless LAN .............................................. 63

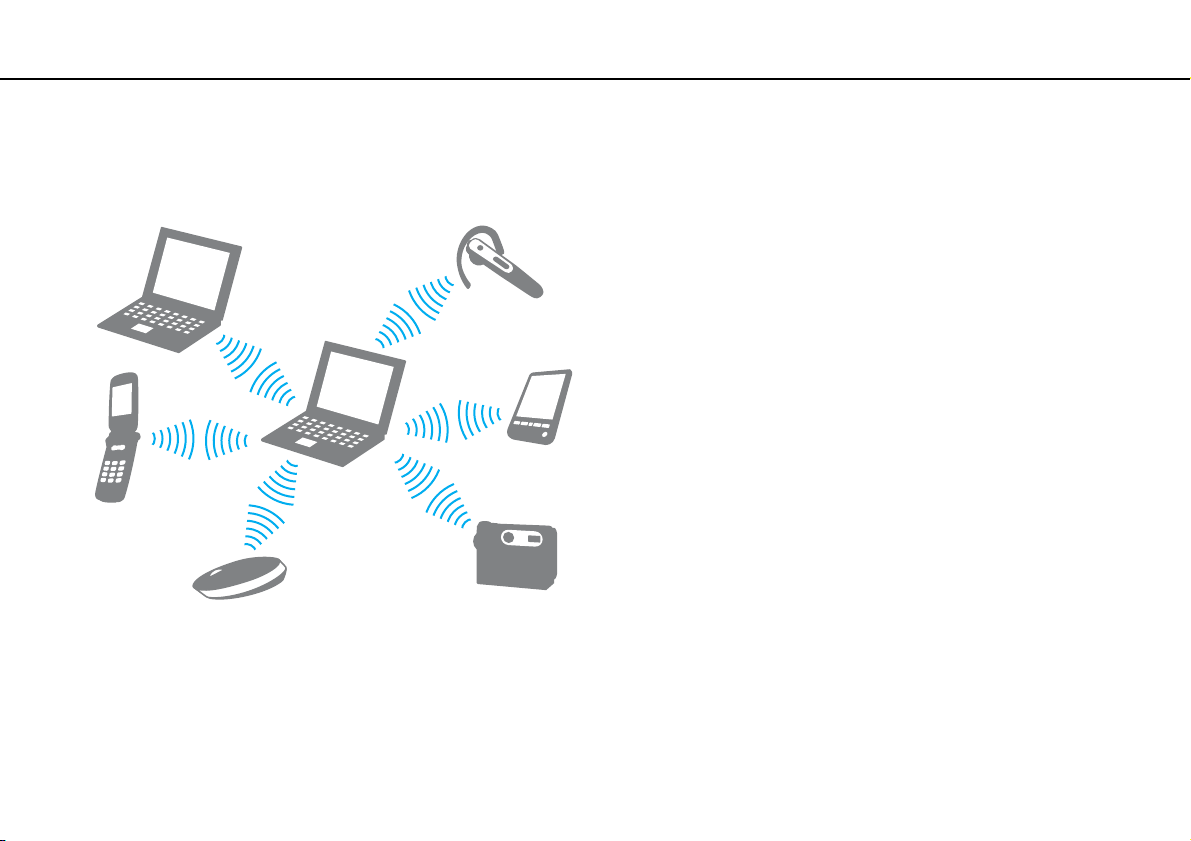

Using the Bluetooth Function ......................................66

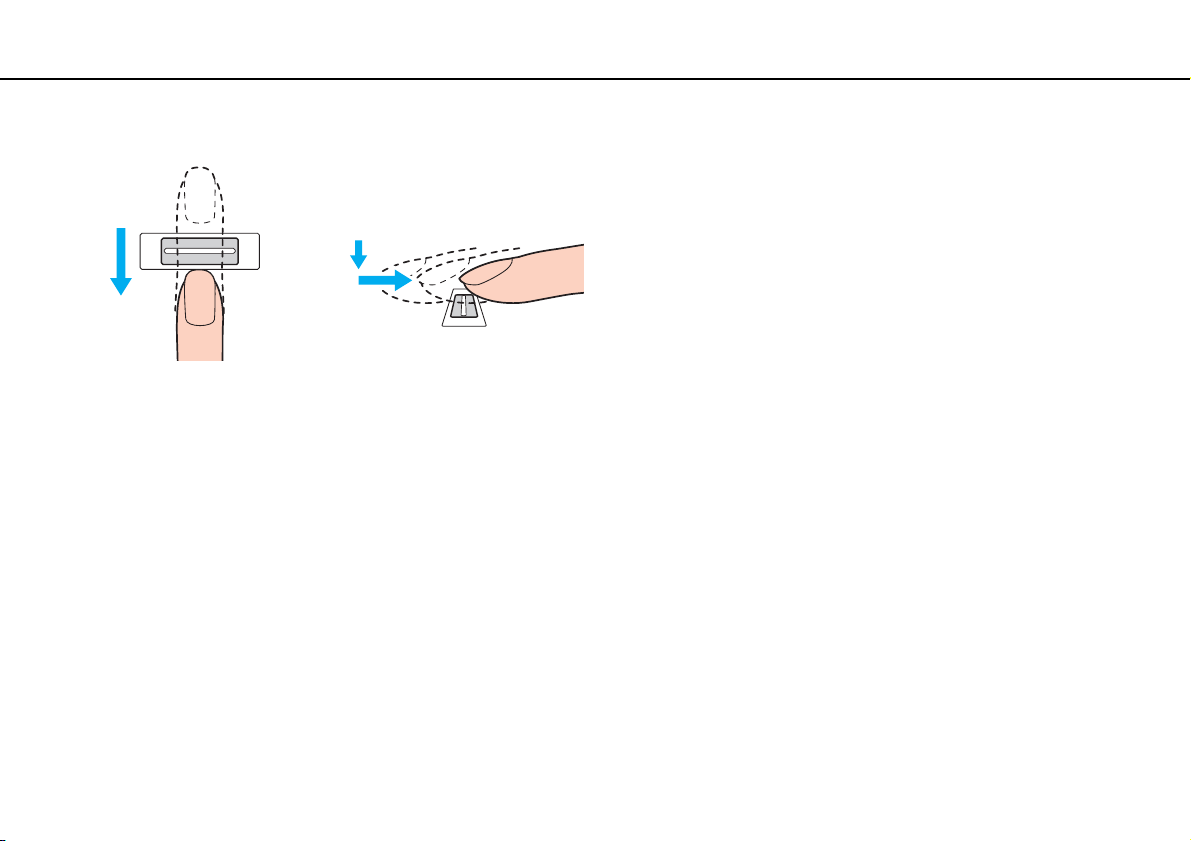

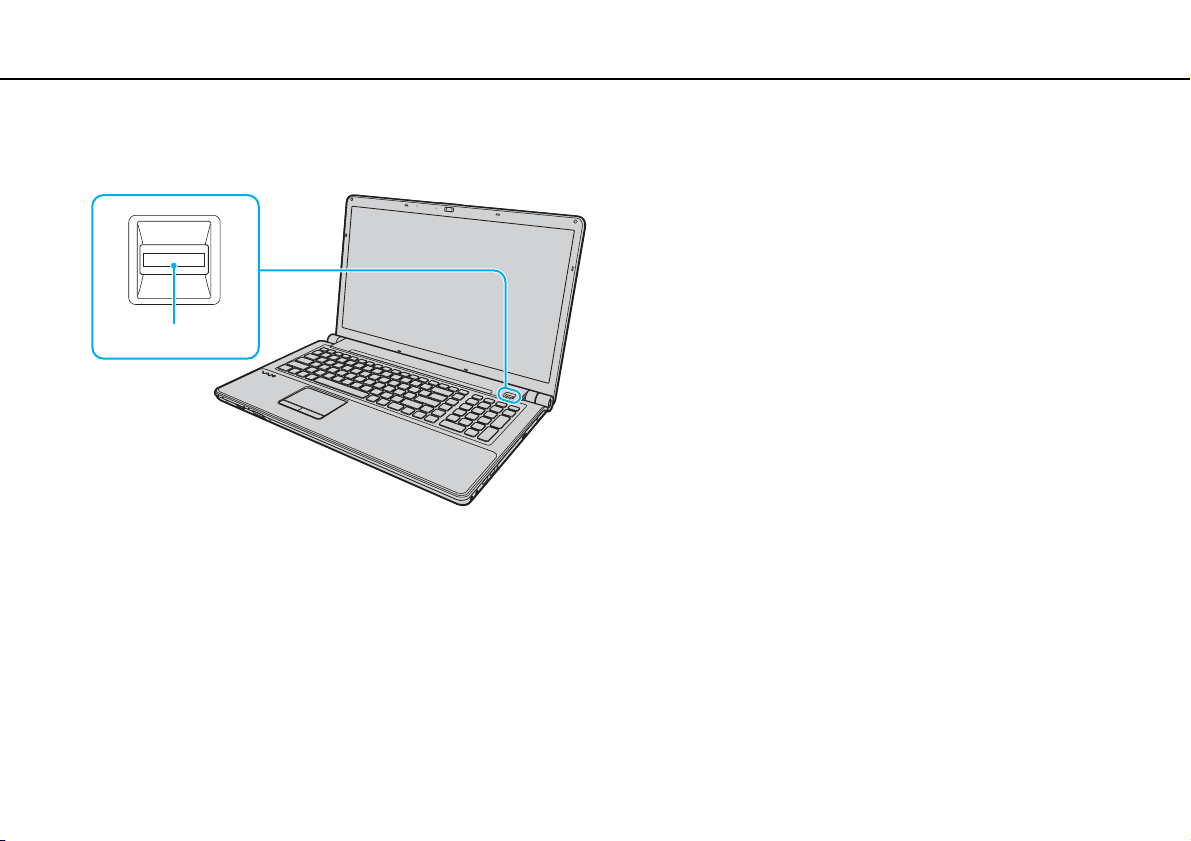

Using Fingerprint Authentication .................................71
Using Peripheral Devices..................................................78

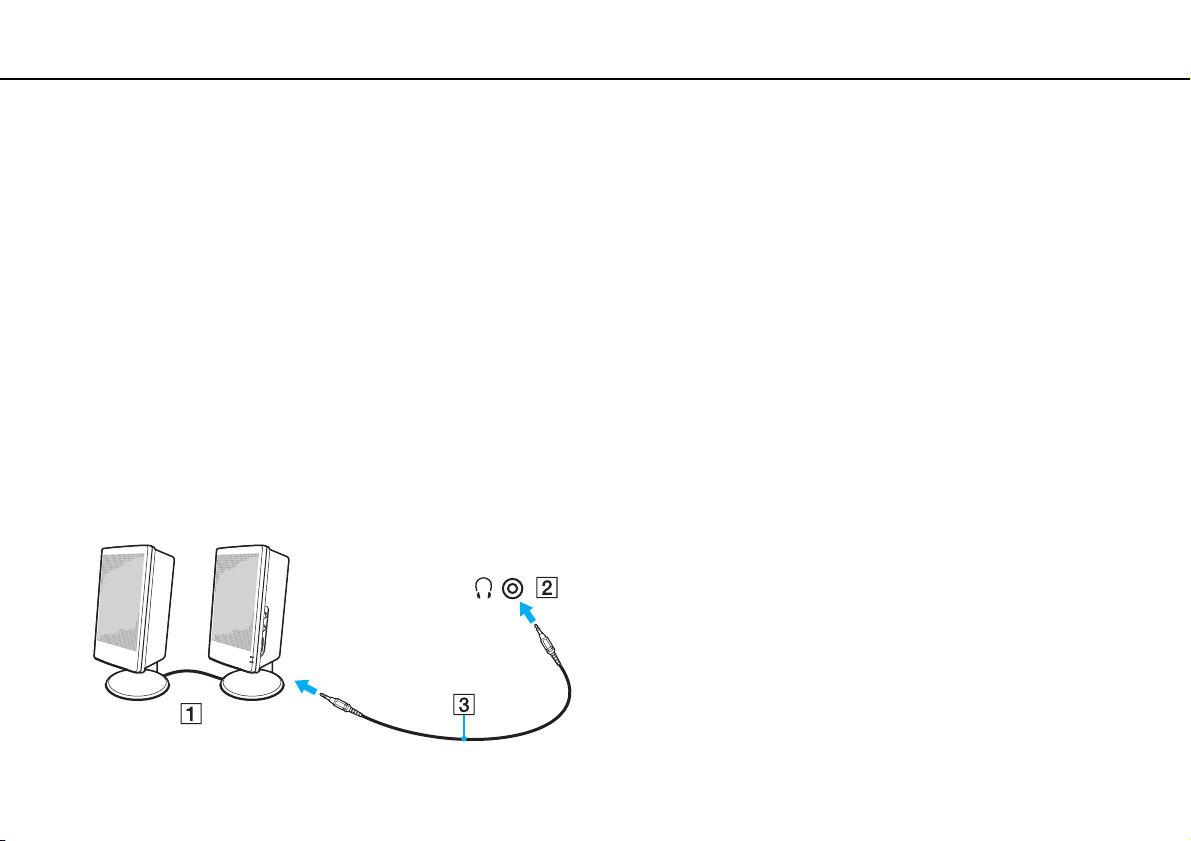

Connecting External Speakers or Headphones ..........79

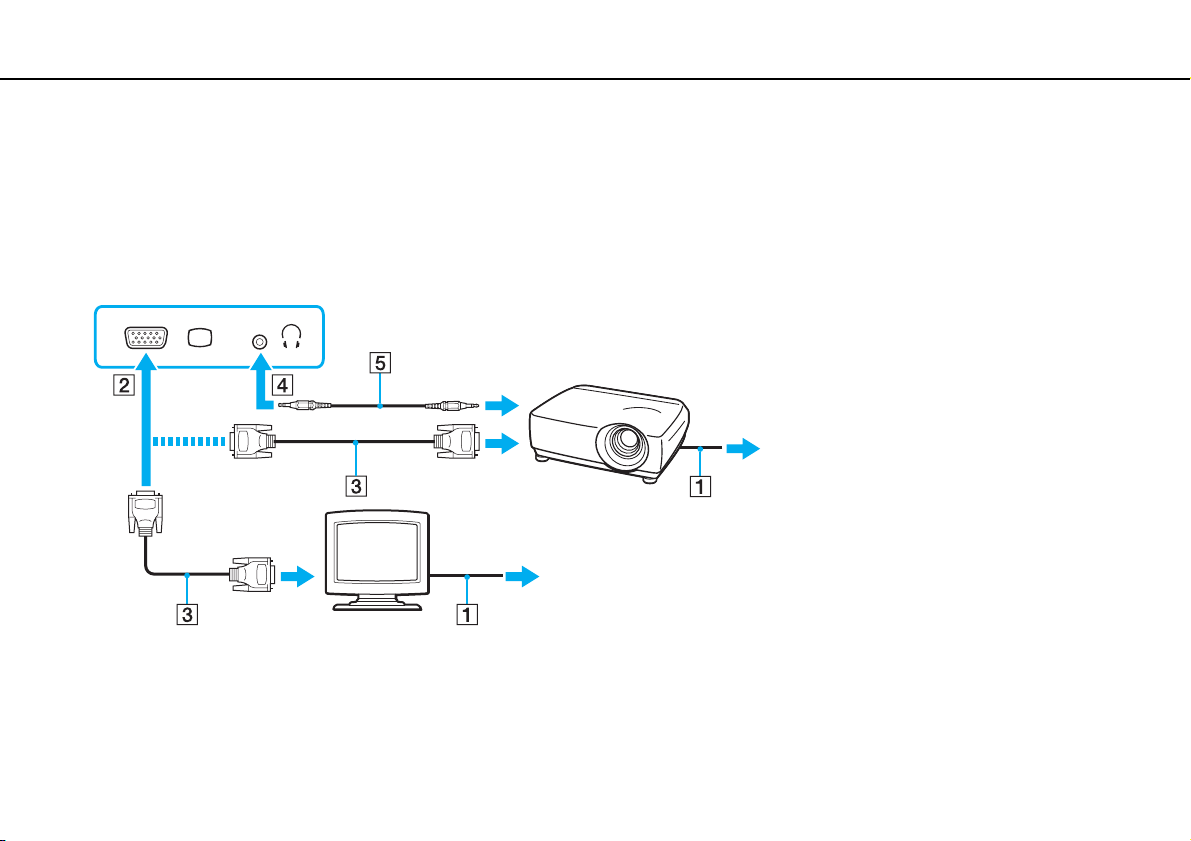

Connecting an External Display ..................................80
Selecting Display Modes .............................................86

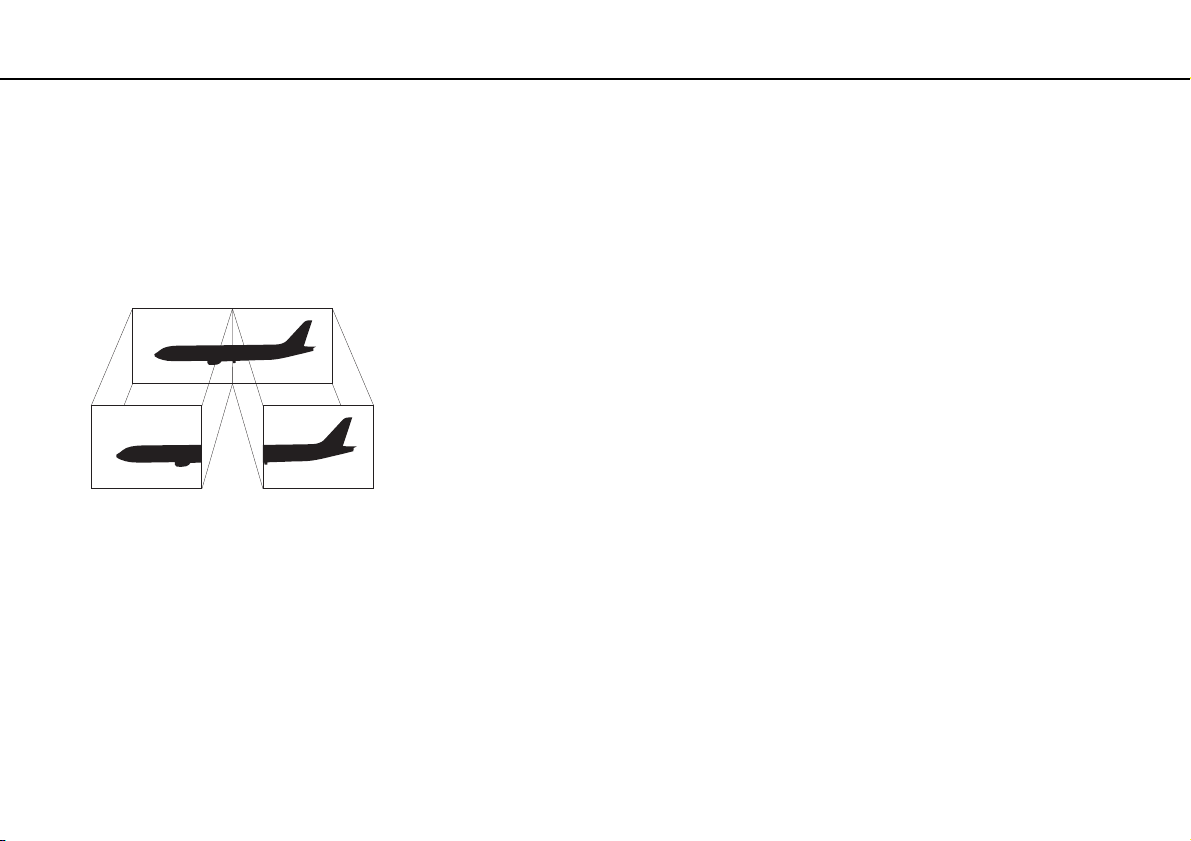

Using the Multiple Monitors Function ..........................87

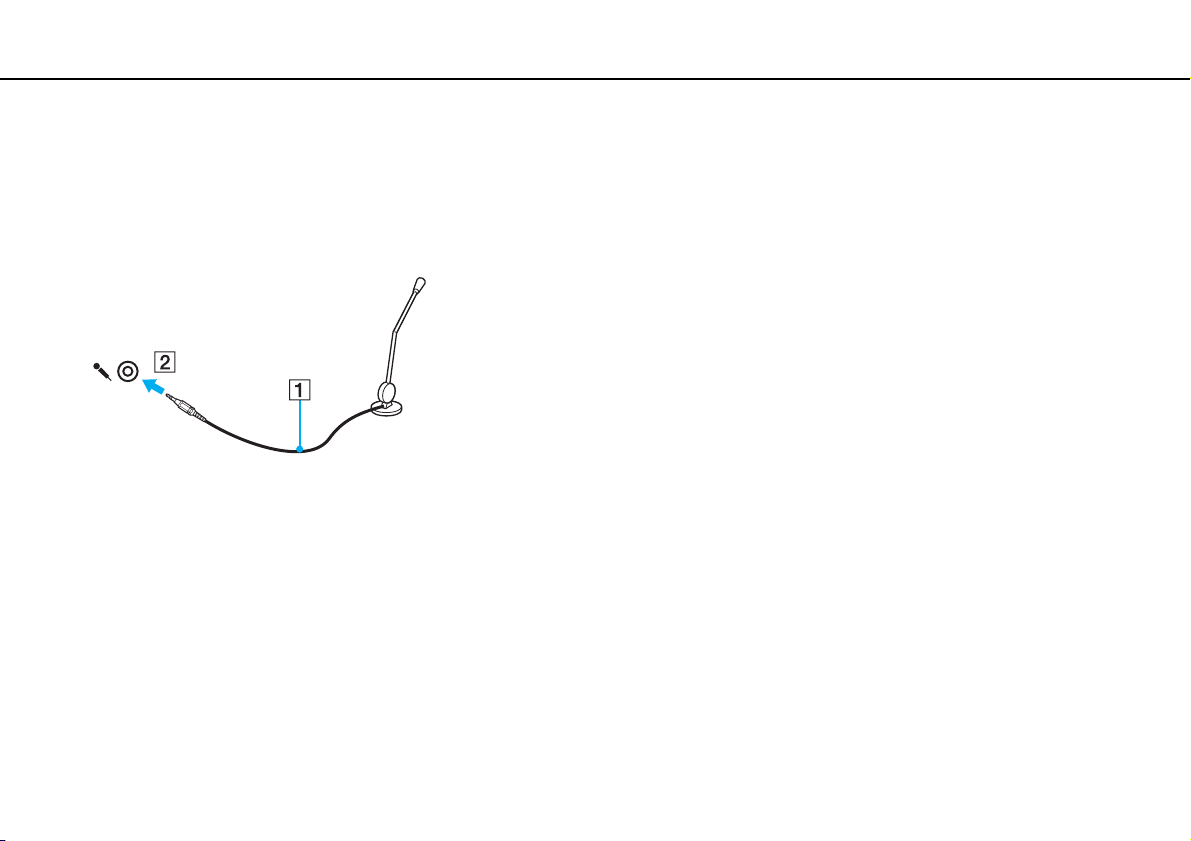

Connecting an External Microphone ...........................89

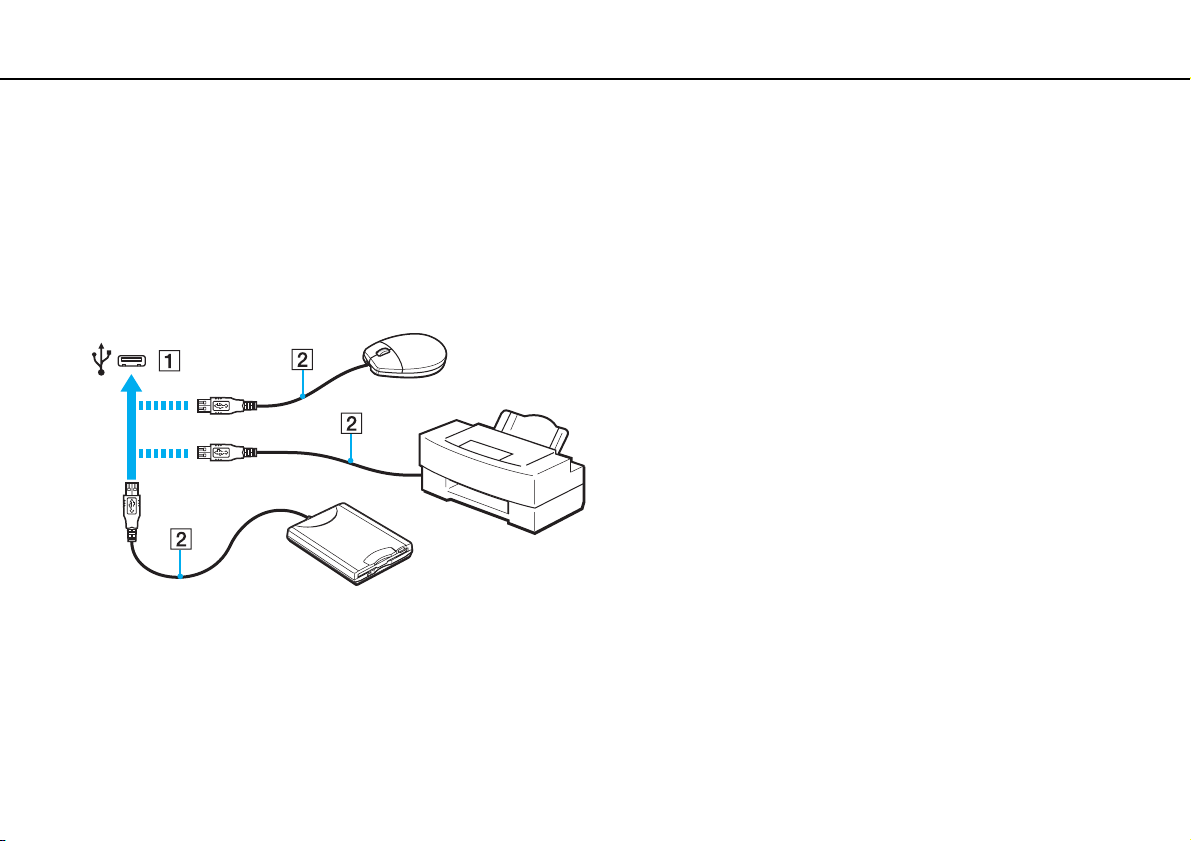

Connecting a USB Device ...........................................90
Connecting an i.LINK Device.......................................92
Customizing Your VAIO Computer....................................94
Setting the Password...................................................95
Using the VAIO Control Center .................................102
Using the VAIO Power Management.........................103
Upgrading Your VAIO Computer.....................................104
Adding and Removing Memory .................................105
Page 3
3
nN
Precautions..................................................................... 111
Safety Information ..................................................... 112
Care and Maintenance Information........................... 116
Handling Your Computer........................................... 117
Handling the LCD Screen ......................................... 119
Using the Power Source ........................................... 120
Handling the Built-in Camera .................................... 121
Handling Discs .......................................................... 122
Using the Battery Pack.............................................. 123
Handling "Memory Stick"........................................... 124
Handling the Built-in Storage Device ........................ 125
Using Fingerprint Authentication ............................... 126
Troubleshooting .............................................................. 127
Computer .................................................................. 129
System Security ........................................................ 138
Battery....................................................................... 139
Built-in Camera ......................................................... 141
Networking ................................................................ 143
Bluetooth Technology ............................................... 146
Optical Discs ............................................................. 150
Display ...................................................................... 154
Printing ...................................................................... 158
Microphone ............................................................... 159
Speakers ................................................................... 160
Touch Pad .................................................................161
Keyboard ...................................................................162
Floppy Disks ..............................................................163
Audio/Video ...............................................................164
"Memory Stick" ..........................................................167
Peripherals ................................................................168
Trademarks .....................................................................169
Notice ..............................................................................171
Page 4
Before Use >
nN
Before Use
Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide a state-of-the-art personal
computing experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
How to find specifications
Some features, options, and supplied items may not be available on your computer.
To find out about the configuration of your computer, visit the Sony online support web site at the following URLs:
❑ For customers in USA
http://esupport.sony.com/EN/VAIO/
❑ For customers in Canada
http://sony.ca/support/
❑ For customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/ES/VAIO/LA
❑ For customers in Brazil
http://esupport.sony.com/BR/
4
Page 5
Before Use >
Finding More about Your VAIO Computer
Finding More about Your VAIO Computer
This section provides support information about your VAIO computer.
1. Printed Documentation
❑ Quick Start Guide — An overview of components connection, set-up information, etc.
❑ Safety Information — Safety guidelines and owner information.
2. On-screen Documentation
❑ Help and Support — General information and technical assistance for your VAIO computer.
To access Help and Support:
1 Click Start and Help and Support.
2 Choose from the following categories to find the answers you need.
5
nN
Get started with my VAIO Get help with Internet and wireless setup, security setup, personalizing your VAIO computer, and creating
Use my VAIO Access interactive help in the form of VAIO tutorials, how-to articles, the VAIO technology page,
Troubleshoot my VAIO Maintain and troubleshoot your VAIO computer with VAIO Care, system restore, backup and recovery, and
recovery discs and more.
specifications, and system and software information.
You can find useful documentation such as below:
- VAIO User Guide (This manual)
- VAIO Recovery Center User Guide - Information about restoring individual software programs,
hardware drivers, and drive partition(s) or your entire built-in storage device to the original factory settings
- Software Information
contact Sony support.
Page 6
Before Use >
Finding More about Your VAIO Computer
6
nN
❑ Program help files — May be included with the preinstalled software programs on your computer. You may be able to
access the help files from the help menu on a specific program.
™
❑ SmartWi
Connection Utility Help — Information about setting up Bluetooth®, wireless LAN, GPS, and wireless WAN
functions.
Features and options may not be available on your computer.
See the specifications to find out about configuration of your computer.
To access this on-screen guide:
1 Click Start, All Programs, and SmartWi Connection Utility.
2 Click SmartWi Connection Utility Help.
Page 7
Before Use >
Finding More about Your VAIO Computer
3. Support Web Sites
❑ Sony online support web site
The Sony online support web site provides instant access to information on commonly encountered problems. Type a
description of the problem and the Knowledge Database searches for the corresponding solutions online.
❑ For customers in USA
http://esupport.sony.com/EN/VAIO/
❑ For customers in Canada
http://sony.ca/support/
❑ For customers in Spanish-speaking Latin American countries or areas
http://esupport.sony.com/ES/VAIO/LA
❑ For customers in Brazil
http://esupport.sony.com/BR/
❑ Operating system online support web site
Your computer comes preinstalled with a Microsoft Windows operating system. For operating system support, you can
visit Microsoft customer support at http://support.microsoft.com/directory/
.
7
nN
Page 8
Before Use >
Finding More about Your VAIO Computer
8
nN
4. Customer Information Center
If you do not find the information you are looking for at our site, you may call Sony directly. You can find the contact numbers
on the Sony online support web site. In order to receive the fastest and most efficient services, have the following information
readily available:
1 Your VAIO computer model
You can find it at the lower right corner of the display on the computer.
2 Your computer's serial number
You can find it on the bottom, the back panel, or inside the battery compartment of your Sony VAIO computer. The serial
number is the last 7 digits of the number below the barcode.
3 The operating system on your computer
4 The hardware component or the software program that is causing the problem
5 A brief description of the problem
5. In Store Service & Support (available in USA only)
Make an appointment with a Sony certified technician at a U.S. Sony Style store and get personalized service and support
for your VAIO PC. Sony Style Backstage Technicians can assist with the setup of your new VAIO PC, system optimization,
data rescue, and any repair service you might need.
Visit the web site at www.sonystyle.com/backstage
to find the nearest location.
Page 9
Before Use >
Ergonomic Considerations
9
nN
Ergonomic Considerations
You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations for both stationary and portable environments:
❑ Position of your computer – Place the computer directly in front of you. Keep your forearms horizontal, with your wrists
in a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at
your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or
tendons.
❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.
Page 10
Before Use >
Ergonomic Considerations
10
nN
❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.
❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑ Positioning an external display – When using an external display, set the display at a comfortable viewing distance.
Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.
Page 11
Getting Started >
Getting Started
This section describes how to get started using your VAIO computer.
!
Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Upon completion,
connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.
❑ Locating Controls and Ports (page 12)
❑ About the Indicator Lights (page 19)
❑ Connecting a Power Source (page 20)
❑ Using the Battery Pack (page 22)
❑ Shutting Down Your Computer Safely (page 28)
❑ Using the Power Saving Modes (page 29)
❑ Updating Your Computer (page 31)
11
nN
Page 12
Getting Started >
Locating Controls and Ports
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
!
The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some
countries or areas.
12
nN
Page 13
Getting Started >
Locating Controls and Ports
Front
A Built-in MOTION EYE camera (page 37)
B Built-in MOTION EYE camera indicator (page 19)
C Built-in microphone (monaural)
D LCD screen (page 119)
E Built-in speakers (stereo)
F Fingerprint sensor
*1
(page 71)
G Numeric keypad
Use the numeric keypad to type numbers or to perform basic
math calculations.
H Keyboard (page 33)
I Charge indicator (page 19)
J Disc drive indicator (page 19)
K WIRELESS indicator (page 19)
L Media Access indicator (page 19)
M "Memory Stick" slot
*2
(page 45)
N WIRELESS switch (page 63), (page 66)
O SD memory card slot (page 53)
*1
On selected models only.
*2
Your computer supports both standard-size "Memory Stick" and Duo-size
"Memory Stick".
13
nN
Page 14
Getting Started >
Locating Controls and Ports
A S1/S2 buttons (page 36)
B Play/Pause button (page 36)
C Stop button (page 36)
D Previous track button (page 36)
E Next track button (page 36)
F AV MODE button (page 36)
G Num lock indicator (page 19)
H Caps lock indicator (page 19)
I Scroll lock indicator (page 19)
J Touch pad (page 35)
K Left button (page 35)
L Right button(page 35)
M Muting button (page 36)
N Volume control buttons (page 36)
O Drive eject button (page 36), (page 38)
14
nN
Page 15
Getting Started >
Locating Controls and Ports
Back
A Battery connector (page 22)
15
nN
Page 16
Getting Started >
Locating Controls and Ports
Right
A Headphones/OPTICAL OUT jack (page 79)
(Optical Output Sampling Rate: 44.1 KHz/48.0 KHz/96.0 KHz)
B Microphone jack (page 89)
C Hi-Speed USB (USB 2.0) ports
D Optical disc drive (page 38)
E Optical disc drive indicator (page 19)
F Substitute drive eject button (page 38)
G Manual eject hole (page 150)
H Network (LAN) por t (page 62)
I Power button/Power indicator (page 19)
* Support high-/full-/low- speeds.
*
(page 90)
16
nN
Page 17
Getting Started >
Locating Controls and Ports
Left
A DC IN port (page 20)
B Security slot
C Air vent
D Hi-Speed USB (USB 2.0) port
*1
(page 90)
E Monitor port (page 81)
F HDMI output port
*2
(page 84)
G ExpressCard/34 slot (page 51)
H CF (CompactFlash) memory card slot
I CF memory card release button
J CF memory card indicator
*3
(page 19)
*3
*3
(page 56)
(page 56)
K i.LINK 4-pin (S400) port (page 92)
*1
Supports high-/full-/low- speeds.
*2
There may be no sound from an output device connected to the HDMI
output port for the first few seconds after playback starts. This is not a
malfunction.
*3
On selected models only.
17
nN
Page 18
Getting Started >
Locating Controls and Ports
Bottom
18
nN
A Subwoofer speakers for bass frequencies
B Air vents
C Memory module compartment cover (page 105)
* On selected models only.
*
Page 19
Getting Started >
About the Indicator Lights
About the Indicator Lights
Your computer is equipped with the following indicator lights:
Indicator Functions
Power 1 Illuminates in green while the computer is on, blinks slowly in orange while the computer is in Sleep mode, and
Charge
Built-in MOTION EYE camera Illuminates while the built-in camera is in use.
Media Access Illuminates while data access to a memor y card, such as "Memory Stick" and an SD memory card, is in
CF memory card
Optical disc drive Illuminates while data access to the optical disc drive is in progress. When the indicator light is unlit, the optical
Disc drive
Num lock
Caps lock
Scroll lock
WIRELESS Illuminates while one or more wireless options are enabled.
* On selected models only.
*
goes out when the computer is turned off or enters Hibernate mode.
Illuminates while the battery pack is charging. See Charging the Battery Pack (page 25) for more information.
progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the
indicator light is unlit, the memory card is not in use.
Illuminates while data is being read from or written to a CF memory card. (Do not place the computer into Sleep
mode or turn it off when this indicator light is lit.) When the indicator light is unlit, the CF memory card is not in
use.
disc media is not in use.
Illuminates while data access to the built-in storage device or the optical disc drive is in progress. Do not place
the computer into Sleep mode or turn it off while this indicator light is lit.
Press the Num Lk key to activate the numeric keypad. Press it a second time to deactivate the numeric keypad.
The numeric keypad is not active when the indicator light is unlit.
Press the Caps Lock key to type letters in uppercase. Letters appear in lowercase if you press the Shift key
while the indicator light is lit. Press the key a second time to turn off the indicator light. Normal typing resumes
when the Caps lock indicator light is turned off.
Press the Fn+Scr Lk keys to change how you scroll the display. Normal scrolling resumes when the Scroll lock
indicator light is turned off. The Scr Lk key functions differently depending on the program you are using and
does not work with all programs.
19
nN
Page 20
Getting Started >
Connecting a Power Source
20
nN
Connecting a Power Source
You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.
Using the AC Adapter
While your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet.
✍
Use only the supplied AC adapter for your computer.
To use the AC adapter
1 Plug one end of the power cord (1) into the AC adapter (3).
2 Plug the other end of the power cord into an AC outlet (2).
3 Plug the cable from the AC adapter (3) into the DC IN port (4) on the computer.
!
The shape of the DC In plug varies depending on the AC adapter.
Page 21
Getting Started >
Connecting a Power Source
✍
To disconnect your computer completely from AC power, unplug the AC adapter.
Make sure that the AC outlet is easily accessible.
If you do not intend to use your computer for an extended period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page
30).
21
nN
Page 22
Getting Started >
Using the Battery Pack
Using the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
Installing/Removing the Battery Pack
To install the battery pack
1 Turn off the computer and close the LCD screen lid.
2 Slide the battery LOCK switch (1) inward.
22
nN
Page 23
Getting Started >
Using the Battery Pack
3 Slide the battery pack diagonally into the battery compartment until the projection (2) on either side of the battery
compartment fits into the U-shaped cut (3) on either side of the battery pack.
4 Push the battery pack down into the compartment until it clicks into place.
23
nN
5 Slide the battery LOCK switch outward to secure the battery pack on the computer.
Page 24
Getting Started >
Using the Battery Pack
24
nN
To remove the battery pack
!
You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack
while the computer is in Sleep mode.
1 Turn off the computer and close the LCD screen lid.
2 Slide the battery LOCK switch (1) inward.
3 Slide and hold the battery RELEASE latch (2) inward, put your fingertip underneath the tab (3) on the battery pack, and
lift the battery pack in the direction of the arrow, and then slide it away from the computer.
!
This computer is designed to operate only with genuine Sony battery packs.
Page 25
Getting Started >
Using the Battery Pack
Charging the Battery Pack
The battery pack supplied with your computer is not fully charged at the time of delivery.
To charge the battery pack
1 Install the battery pack.
2 Connect the computer to a power source with the AC adapter.
The charge indicator light is on while the battery pack is charging. When the battery pack charges close to the maximum
charge level you selected with the battery charge functions, the charge indicator turns off.
Charge indicator status Meaning
Lit in orange The battery pack is charging.
Blinks along with the green
power indicator
Blinks along with the orange
power indicator
Blinks fast in orange A battery error has occurred due to a failed battery
!
Charge the battery pack as described in this manual from your first battery charge.
The battery pack is running out of power.
(Normal mode)
The battery pack is running out of power.
(Sleep mode)
pack or an unlocked battery pack.
25
nN
Page 26
Getting Started >
Using the Battery Pack
✍
Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the
computer.
When the battery pack is running out of power and both the charge and power indicator lights blink, you should either connect the AC adapter to
recharge the battery pack or shut down your computer and install a fully charged battery pack.
Your computer is supplied with a lithium ion battery pack and can be recharged any time. Charging a partially discharged battery pack does not affect
the life of battery.
You can extend the life of your battery pack if you enable the battery care function of the Battery Charge Functions with the VAIO Control Center.
While some software applications or peripheral devices are in use, your computer may not enter Hibernate mode even when the remaining battery life
becomes short. To avoid loss of data while the computer is running on the battery, you should save your data frequently and manually activate a power
management mode, such as Sleep or Hibernate.
If the battery pack runs out of power while the computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is
impossible. To avoid loss of data, you should save your data frequently.
26
nN
Page 27
Getting Started >
Using the Battery Pack
27
nN
Extending Your Battery Life
When your computer is running on battery power, you can extend your battery life using the following methods.
❑ Decrease the LCD brightness of your computer screen.
❑ Use the power saving mode. See Using the Power Saving Modes (page 29) for more information.
❑ Change the power saving settings on the Power Options. See Using the VAIO Power Management (page 103) for more
information.
❑ Set the wallpaper in Long Battery Life Wallpaper Setting as your desktop background with the VAIO Control Center.
Page 28
Getting Started >
Shutting Down Your Computer Safely
28
nN
Shutting Down Your Computer Safely
To avoid losing unsaved data, be sure to shut down your computer properly, as described below.
To shut down your computer
1 Turn off any peripherals connected to the computer.
2 Click Start and the Shut down button.
3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off
automatically.
The power indicator light turns off.
Page 29
Getting Started >
Using the Power Saving Modes
29
nN
Using the Power Saving Modes
You can take advantage of the power management settings to conserve battery life. In addition to the normal operating mode,
your computer has two distinct power saving modes to suit your preference: Sleep and Hibernate.
!
If you do not intend to use your computer for an extended period of time while it is disconnected from AC power, place the computer into Hibernate
mode or turn it off.
If the battery pack runs out of power while your computer is in Sleep mode, you will lose all unsaved data. Going back to the previous work state is
impossible. To avoid loss of data, you should save your data frequently.
Mode Description
Normal mode This is the normal state of your computer while it is in use. The green power indicator light is lit while the
computer is in this mode.
Sleep mode Sleep mode turns off the LCD screen and places the built-in storage device(s) and the CPU into a low power
Hibernate mode While your computer is in Hibernate mode, the state of the system is saved on the built-in storage device(s) and
consumption mode. The orange power indicator light blinks slowly while your computer is in this mode. Your
computer comes out of Sleep mode quicker than out of Hibernate mode. However, Sleep mode uses more
power than Hibernate mode.
power is turned off. Even when the battery pack runs out of power, no data will be lost. The power indicator light
is unlit while your computer is in this mode.
Page 30
Getting Started >
Using the Power Saving Modes
Using Sleep Mode
To activate Sleep mode
Click Start, the arrow next to the Shut down button, and Sleep.
To return to Normal mode
❑ Press any key.
❑ Press the power button on your computer.
!
If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.
Using Hibernate Mode
To activate Hibernate mode
Press the Fn+F12 keys.
Alternatively, you can click Start, the arrow next to the Shut down button, and Hibernate.
!
Do not move your computer before its power indicator light turns off.
30
nN
To return to Normal mode
Press the power button.
!
If you press and hold the power button for more than four seconds, your computer will turn off automatically.
Page 31
Getting Started >
Updating Your Computer
31
nN
Updating Your Computer
Be sure to install the latest updates on your computer with the following software applications so that the computer can run
more efficiently.
❑ Windows Update
Click Start, All Programs, and Windows Update and then follow the on-screen instructions.
❑ VAIO Update 4
Click Start, All Programs, VAIO Update 4, and Go to VAIO Web Support and then follow the on-screen instructions.
!
Your computer must be connected to the Internet to download the updates.
Page 32
Using Your VAIO Computer >
Using Your VAIO Computer
This section describes how to get the most out of using your VAIO computer.
❑ Using the Keyboard (page 33)
❑ Using the Touch Pad (page 35)
❑ Using Special-function Buttons (page 36)
❑ Using the Built-in Camera (page 37)
❑ Using the Optical Disc Drive (page 38)
❑ Using "Memory Stick" (page 45)
❑ Using Other Modules / Memory Cards (page 51)
❑ Using the Internet (page 61)
❑ Using the Network (LAN) (page 62)
❑ Using the Wireless LAN (page 63)
❑ Using the Bluetooth Function (page 66)
❑ Using Fingerprint Authentication (page 71)
32
nN
Page 33
Using Your VAIO Computer >
Using the Keyboard
Using the Keyboard
Your keyboard has additional keys that perform model-specific tasks.
Combinations and Functions with the Fn Key
✍
Some keyboard functions can be used only after the operating system is finished launching.
Combination/Feature Function
Fn + 8 (F5/F6): brightness control Changes the LCD brightness of your computer screen.
Fn + /T (F7): display output
To increase lighting intensity, keep pressing the Fn+F6 keys or press the Fn+F6 keys and then
the M or , key.
To decrease lighting intensity, keep pressing the Fn+F5 keys or press the Fn+F5 keys and then
the m or < key.
Switches the display output between your computer screen, an external display, simultaneous
output to both, and multiple displays with both that function as a single desktop. Press the Enter
key to select the display output.
!
If you disconnect a display cable from your computer while an external display is selected as the display
output destination, the computer screen goes blank. In such a case, press the F7 key twice while holding
down the Fn key, and then press the Enter key to switch the display output to the computer screen.
33
nN
Fn + / (F9/F10): zooming
Multiple displays may not be supported depending on the operating system on your computer.
Changes the size of an image or a document displayed on some software.
To make the view look smaller and further away (zoom out), press the Fn+F9 keys.
To make the view look bigger and closer (zoom in), press the Fn+F10 keys.
See the help file included with the VAIO Control Center for more information.
Page 34
Using Your VAIO Computer >
Using the Keyboard
Combination/Feature Function
Fn + (F12): hibernation
34
nN
Provides the lowest level of power consumption. When you execute this command, the states
of the system and the connected peripheral devices are saved to the built-in storage device and
the system power is turned off. To return the system to its original state, use the power button
to turn on the power.
For details on power management, see Using the Power Saving Modes (page 29).
Page 35
Using Your VAIO Computer >
Using the Touch Pad
Using the Touch Pad
You can point to, select, drag, and scroll objects on the screen using the touch pad.
Action Description
Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.
Click Press the left button (3) once.
Double-click Press the left button twice in a row.
Right-click Press the right button (4) once. With many applications, this action displays a context-sensitive shortcut menu (if any).
Drag Slide your finger on the touch pad while pressing the left button.
Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll
horizontally (the scroll function is available only with applications that support a touch pad scroll feature).
✍
You can disable/enable the touch pad while a mouse is connected to your computer. To change the touch pad settings, use the VAIO Control Center.
35
nN
!
Be sure to connect a mouse before disabling the touch pad. If you disable the touch pad before connecting a mouse, you will be able to use only the
keyboard for pointer operations.
Page 36
Using Your VAIO Computer >
Using Special-function Buttons
Using Special-function Buttons
Your computer is equipped with special buttons to help you use specific functions of the computer.
Buttons on the touch panel
Special-function button Functions
S1/S2 buttons Execute the task that is assigned to each button by default.
u Play/Pause button
x Stop button
. Previous track button Plays the previous chapter/file during video playback or the previous song/file during audio playback.
> Next track button Plays the next chapter/file during video playback or the next song/file during audio playback.
AV M O DE button Launches the VAIO Media plus.
*Use the WinDVD BD software for playback.
Buttons above the numeric keypad
Special-function button Functions
Muting button
Volume control buttons
Drive eject button
You can change the default assignments with the VAIO Control Center.
™ *
Starts or pauses playback of a CD, DVD, or Blu-ray Disc
storage device.
*
Stops playback of a CD, DVD, or Blu-ray Disc
Turns the volume on and off.
Decrease (-) and increase (+) the volume.
Ejects the optical disc drive tray.
If this button does not work, try the substitute drive eject button on the optical disc drive.
media or a music/video file stored on the built-in storage device.
media or a music/video file stored on the built-in
36
nN
Page 37
Using Your VAIO Computer >
Using the Built-in Camera
Using the Built-in Camera
Your computer is equipped with a built-in MOTION EYE camera.
With the preinstalled image capture software, you can perform the following:
❑ Capture still images and movies
❑ Sense and capture object movements for monitoring purposes
❑ Edit captured data
✍
Turning on the computer activates the built-in camera.
Video conferences are possible with the appropriate software.
!
Launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in camera.
Do not place your computer into Sleep or Hibernate mode while you are using the built-in camera.
To use the preinstalled image capture software
1 Click Start, All Programs, ArcSoft WebCam Companion 3, and WebCam Companion 3.
2 Click your desired icon in the main window.
For detailed information on how to use the software, see the help file included with the software.
37
nN
✍
When capturing an image or a movie in a dark place, click the Capture icon in the main window, and then click the WebCam Settings icon and select
the low light or low light compensation option in the properties window.
Page 38
Using Your VAIO Computer >
Using the Optical Disc Drive
Using the Optical Disc Drive
Your computer is equipped with an optical disc drive.
Features and options in this section may not be available on your computer.
See the specifications to find out about the configuration of your computer.
To insert a disc
1 Turn on the computer.
2 Press the drive eject button (1) to open the drive.
The drive tray slides out.
!
If the power supply to the optical disc drive is disabled by the VAIO Power Management, it will take a while to eject the drive tray with the drive eject
button.
✍
If the drive eject button does not work, try the substitute drive eject button on the optical disc drive. The substitute drive eject button, however, is not
functional if the power supply to the optical disc drive is disabled by the VAIO Power Management.
38
nN
Page 39
Using Your VAIO Computer >
Using the Optical Disc Drive
39
nN
3 Place a disc in the middle of the drive tray with the label side facing upward and gently push it down until the disc clicks
into place.
!
Do not exert pressure on the drive tray. Be sure to hold the bottom of the drive tray when placing/removing a disc onto/from the tray.
4 Close the drive tray by pushing it in gently.
!
Do not remove the optical disc while your computer is in a power saving mode (Sleep or Hibernate). Be sure to bring the computer back into Normal
mode before removing the disc.
Page 40
Using Your VAIO Computer >
Using the Optical Disc Drive
Supported Disc Media
Your computer plays and records CDs, DVDs, and Blu-ray Disc media, depending on the model you purchased.
See the reference chart below to find out which type of optical disc drive supports which types of media.
PR: playable and recordable
P: playable but not recordable
–: not playable or recordable
CD-
Video CDMusic CDCD
ROM
DVD± RW/
±R DL/RAM
Blu-ray DiscPPPP
Blu-ray Disc
Combo
*1
The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.
*2
Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.
*3
The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.
*4
Supports writing data to BD-R Part1 Version 1.1/1.2/1.3 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BDRE Part1 Version 2.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).
*5
Writing data to Ultra Speed CD-RW discs is not supported.
PPPP
PPPP
Extra
CD-R/RWDVD-
*5
PR
*5
PR
*5
PR
DVD-
DVD-R/RWDVD+R/RWDVD+R DL
ROM
Video
PPPRPRPRPRPR––
PPPRPRPRPRPRP
PPPRPRPRPRPRPP
(Double
Layer)
DVD-R DL
(Dual
Layer)
DVD-
RAM
*1 *2
BDROM
nN
BD-R/RE
PR
*3
*4
40
Page 41
Using Your VAIO Computer >
Using the Optical Disc Drive
!
This unit is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some music discs encoded with copyright
protection technologies do not conform to the Compact Disc (CD) standard. Therefore, these discs may not be compatible with this unit.
When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both
playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives
with discs that are not compliant with the official "CD," "DVD," or "Blu-ray Disc" standard. USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE
TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.
✍
8 cm disc writing is not supported.
!
To play copyright protected Blu-ray Disc media continually, update the AACS key. The AACS key update requires Internet access.
As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support
movie playback on packaged media recorded in AVC or VC1 formats at high bit rates.
Region settings are required for some contents of DVD and BD-ROM Disc media. If the region setting on the optical disc drive does not match the
region coding on the disc, playback is not possible.
Unless your external display is compliant with the High-bandwidth Digital Content Protection (HDCP) standard, you cannot play or view the contents
of copyright protected Blu-ray Disc media.
41
nN
Some content may restrict video output to standard definition or prohibit analog video output. When you output video signals through digital
connections, such as an HDMI connection or a DVI connection, it is strongly recommended that a digital HDCP compliant environment be implemented
for optimum compatibility and viewing quality.
Exit all memory-resident utility software before playing or writing a disc as it may cause the computer to malfunction.
Page 42
Using Your VAIO Computer >
Using the Optical Disc Drive
42
nN
Notes on Using the Optical Disc Drive
Notes on writing data to a disc
❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc
drive.
❑ Do not strike or shake your computer while the optical disc drive is writing data to a disc.
❑ Do not plug or unplug the power cord or the AC adapter while the optical disc drive is writing data to a disc.
Notes on playing discs
To achieve optimum performance of disc playback, you should follow these recommendations:
❑ Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW
media.
❑ Some DVD players and computer optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-R
DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.
❑ You may not be able to play some of the Blu-ray Disc content on your computer, or the computer may become unstable
during Blu-ray Disc playback. To play content successfully, download and install the latest updates for the WinDVD BD
using the VAIO Update.
For information on how to use the VAIO Update, see Updating Your Computer (page 31).
❑ Depending on system environment, you may find sound interruptions and/or dropped frames during AVC HD playback.
❑ Do not place your computer into either of the power saving modes while your computer is playing a disc.
Page 43
Using Your VAIO Computer >
Using the Optical Disc Drive
43
nN
Notes on region codes
Region code indicators are labeled on the discs or packages to indicate in which region and on what type of player you can
play the disc. If the region code indicates "all," you can play this disc in most regions of the world. If the region code for your
residence area is different from the label, you cannot play the disc on your computer.
Page 44
Using Your VAIO Computer >
Using the Optical Disc Drive
44
nN
Playing Discs
To play a disc
1 Insert a disc into the optical disc drive.
!
Connect the AC adapter to the computer and close all running software applications before playing a disc.
2 If nothing appears on the desktop, click Start, All Programs, and your desired software to play the disc.
For instructions on how to use the software, see the help file included with the software.
Copying Files to Discs
To copy files to a disc
1 Insert a recordable disc into the optical disc drive.
!
Connect the AC adapter to the computer and close all running software applications before copying files to a disc.
2 If nothing appears on the desktop, click Start, All Programs, and your desired disc burning software to copy files to the
disc.
For instructions on how to use the software, see the help file included with the software.
Page 45
Using Your VAIO Computer >
Using "Memory Stick"
45
nN
Using "Memory Stick"
"Memory Stick" is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing
digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable,
it can be used for external data storage.
Before You Use "Memory Stick"
The "Memory Stick" slot on your computer can accommodate the following sizes and types of media:
❑ "Memory Stick"
❑ "Memory Stick Duo"
❑ "Memory Stick PRO"
❑ "Memory Stick PRO Duo"
❑ "Memory Stick PRO-HG Duo"
!
The "Memory Stick" slot on your computer does not support 8-bit parallel data transfer (high-speed data transfer).
For the latest information about "Memory Stick", visit [memorystick.com] at http://www.memorystick.com/en/.
Page 46
Using Your VAIO Computer >
Using "Memory Stick"
Inserting and Removing "Memory Stick"
To insert "Memory Stick"
1 Locate the "Memory Stick" slot.
2 Hold "Memory Stick" with the arrow facing upward and pointing toward the slot.
3 Carefully slide "Memory Stick" into the slot until it clicks into place.
✍
"Memory Stick" is automatically detected by your system and the contents of "Memory Stick" are displayed. If nothing appears on the desktop, click
Start, Computer, and double-click the "Memory Stick" icon.
The "Memory Stick" icon will appear in the Computer window after you insert "Memory Stick" into the slot.
46
nN
Page 47
Using Your VAIO Computer >
Using "Memory Stick"
✍
You can insert Duo-size "Memory Stick" directly into the "Memory Stick" slot without using a "Memory Stick Duo" adaptor.
!
Be sure to hold "Memory Stick" with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the
media, do not force "Memory Stick" into the slot if you cannot insert it smoothly.
Before using "Memory Stick Micro" ("M2"), be sure to insert it into an "M2" Standard-size adaptor or "M2" Duo adaptor. If you insert the media directly
into the "Memory Stick" slot without the adaptor, you may not be able to remove it from the slot.
"Memory Stick Micro" in an "M2" Duo adaptor may not operate properly if it is additionally inserted into a "Memory Stick Duo" adaptor.
To remove "Memory Stick"
!
Do not remove "Memory Stick" while the Media Access indicator light is lit. If you do, you may lose data. Large volumes of data may take time to load,
so make sure the indicator light is unlit before removing "Memory Stick".
1 Locate the "Memory Stick" slot.
2 Check that the Media Access indicator light is unlit.
3 Push in "Memory Stick" toward the computer and release.
"Memory Stick" ejects.
4 Pull "Memory Stick" out of the slot.
47
nN
!
Be sure to remove "Memory Stick" gently, or it may pop out unexpectedly.
Page 48
Using Your VAIO Computer >
Using "Memory Stick"
Formatting "Memory Stick"
To format "Memory Stick"
"Memory Stick" has been formatted by default and is ready for use.
If you want to reformat the media with your computer, follow these steps.
!
Be sure to use the device that is designed to format the media and supports "Memory Stick" when formatting the media.
Formatting "Memory Stick" erases the entire data stored on the media. Before formatting the media, make sure that it does not contain your valuable
data.
Do not remove "Memory Stick" from the slot while formatting. This could cause a malfunction.
1 Locate the "Memory Stick" slot.
2 Carefully slide "Memory Stick" into the slot until it clicks into place.
3 Click Start and Computer to open the Computer window.
4 Right-click the "Memory Stick" icon and select Format.
5 Click Restore device defaults.
!
The size of the allocation unit and file system may change.
48
nN
Do not select NTFS from the File system drop-down list as it may cause a malfunction.
✍
The formatting process will be completed more quickly if you select Quick Format in Format options.
Page 49
Using Your VAIO Computer >
Using "Memory Stick"
6 Click Start.
7 Follow the on-screen instructions.
!
It may take time to format "Memory Stick" depending on the media type.
49
nN
Page 50
Using Your VAIO Computer >
Using "Memory Stick"
50
nN
Notes on Using "Memory Stick"
❑ Your computer has been tested and found compatible with Sony branded "Memory Stick" with capacity of up to 16 GB
that are available as of May 2009. However, not all "Memory Stick" are guaranteed of compatibility.
❑ Inserting "Memory Stick" with multiple conversion adaptors is not guaranteed of compatibility.
❑ "MagicGate" is the general name of the copyright protection technology developed by Sony. Use "Memory Stick" with the
"MagicGate" logo to take advantage of this technology.
❑ Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior
consent from the respective copyright holders. Accordingly, "Memory Stick" with such copyrighted data can be used only
within the law.
❑ Do not insert more than one "Memory Stick" into the slot. Improper insertion of the media may damage both your
computer and the media.
Page 51
Using Your VAIO Computer >
Using Other Modules / Memory Cards
nN
Using Other Modules / Memory Cards
Using the ExpressCard Module
Your computer is equipped with an ExpressCard/34 slot* for transferring data among digital cameras, camcorders, music
players, and other audio/video devices. This slot can only accommodate an ExpressCard/34
* Referred to as the ExpressCard slot and the ExpressCard module in this manual.
To insert an ExpressCard module
1 Locate the ExpressCard slot.
2 Carefully slide the ExpressCard module into the slot until it clicks into place.
Do not force it into the slot.
(34 mm wide) module*.
51
✍
If the module does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
Make sure you use the most recent driver software provided by the ExpressCard module manufacturer.
Page 52
Using Your VAIO Computer >
Using Other Modules / Memory Cards
To remove an ExpressCard module
✍
You can skip steps 1 to 4 when:
- your computer is off.
- the Safely Remove Hardware icon is not displayed on the taskbar.
- the hardware you want to unplug is not displayed in the Safely Remove Hardware window.
1 Locate the ExpressCard slot.
2 Double-click the Safely Remove Hardware icon on the taskbar.
3 Select the hardware you want to unplug and click Stop.
4 Follow the on-screen instructions for removing the ExpressCard module.
5 Push in the ExpressCard module toward the computer so that the module pops out.
6 Gently take hold of the ExpressCard module and pull it out of the slot.
52
nN
Page 53
Using Your VAIO Computer >
Using Other Modules / Memory Cards
53
nN
Using the SD Memory Card
Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras,
camcorders, music players, and other audio/video devices.
Before you use the SD memory card
The SD memory card slot on your computer supports the following memory cards:
❑ SD memory card
❑ SDHC memory card
For the latest information on compatible memory cards, see Finding More about Your VAIO Computer (page 5) to visit the
appropriate support web site.
Page 54
Using Your VAIO Computer >
Using Other Modules / Memory Cards
To insert an SD memory card
1 Locate the SD memory card slot.
2 Hold the SD memory card with the arrow facing upward and pointing toward the slot.
3 Carefully slide the SD memory card into the slot until it clicks into place.
Do not force the card into the slot.
54
nN
✍
If the SD memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
The SD memory card icon will appear in the Computer window after you insert the card into the slot.
Page 55
Using Your VAIO Computer >
Using Other Modules / Memory Cards
To remove an SD memory card
1 Locate the SD memory card slot.
2 Check that the Media Access indicator light is unlit.
3 Push in the SD memory card toward the computer and release.
The SD memory card ejects.
4 Pull the SD memory card out of the slot.
55
nN
Page 56
Using Your VAIO Computer >
Using Other Modules / Memory Cards
56
nN
Using the CF Memory Card
Your computer may be equipped with a CF memory card slot. You can use this slot to transfer data among digital cameras,
camcorders, music players, and other audio/video devices.
Features and options in this section may not be available on your computer.
See the specifications to find out about the configuration of your computer.
Page 57
Using Your VAIO Computer >
Using Other Modules / Memory Cards
To insert a CF memory card
!
Your computer is supplied with a slot protector in the CF memory card slot. Remove the slot protector before you use the CF memory card slot.
1 Locate the CF memory card slot.
2 Push the CF memory card release button so that the release button pops out.
3 Push the CF memory card release button a second time so that the slot protector pops out.
4 Gently take hold of the slot protector and pull it out of the slot.
5 Hold the CF memory card with the arrow facing upward and pointing toward the slot.
6 Carefully slide the CF memory card into the slot until it clicks into place.
Do not force the card into the slot.
57
nN
✍
If the CF memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.
The CF memory card icon will appear in the Computer window after you insert the card into the slot.
Page 58
Using Your VAIO Computer >
Using Other Modules / Memory Cards
To remove a CF memory card
!
Insert the CF memory card slot protector to block any particles from entering the slot when not using an CF memory card. Before moving your
computer, be sure to insert the CF memory card slot protector into the slot.
1 Locate the CF memory card slot.
2 Check that the CF memory card indicator light is unlit.
3 Push the CF memory card release button so that the release button pops out.
4 Push the CF memory card release button a second time so that the CF memory card pops out.
5 Gently take hold of the CF memory card and pull it out of the slot.
6 If the CF memory card release button is still out, push it back in all the way to the end.
58
nN
Page 59
Using Your VAIO Computer >
Using Other Modules / Memory Cards
59
nN
Notes on Using Memory Cards
General notes on using the memory card
❑ Be sure to use memory cards that are compliant with the standards supported by your computer.
❑ Be sure to hold the memory card with the arrow pointing in the correct direction as you insert it into the slot. To avoid
damaging your computer or the media, do not force the memory card into the slot if you cannot insert it smoothly.
❑ Use care when inserting or removing the memory card from the slot. Do not force it in or out of the slot.
❑ Do not remove the memory card while the media access indicator light is lit. If you do, you may lose data.
❑ Do not attempt to insert a memory card or memory card adaptor of a different type into the memory card slot. An
incompatible memory card or memory card adaptor may cause difficulty in removing from the slot and can cause damage
to your computer.
Notes on using the SD memory card
❑ Your computer has been tested and found compatible only with major memory cards available as of May 2009. However,
not all memory cards that meet the same specifications as the compatible media are guaranteed of compatibility.
❑ SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 32 GB have been tested
and found compatible with your computer.
❑ The SD memory card slot on your computer does not support the high-speed data transfer feature of the SD memory
card and the SDHC memory card.
Page 60
Using Your VAIO Computer >
Using Other Modules / Memory Cards
nN
Notes on using the CF memory card
❑ Your computer has been tested and found compatible only with major CF memory cards available as of May 2009.
However, not all CF memory cards that meet the same specifications as the compatible media are guaranteed of
compatibility.
❑ CF memory cards with capacity of up to 16 GB have been tested and found compatible with your computer.
❑ The CF memory card slot on your computer does not support any wireless communication cards.
60
Page 61
Using Your VAIO Computer >
Using the Internet
61
nN
Using the Internet
Before using the Internet, you need to sign up with an Internet Service Provider (ISP) and set up devices required for
connecting your computer to the Internet.
The following types of Internet connection services may be available from your ISP:
❑ Fiber to the Home (FTTH)
❑ Digital Subscriber Line (DSL)
❑ Cable modem
❑ Satellite
❑ Dial-up
For detailed information on devices required for Internet access and how to connect your computer to the Internet, ask your
ISP.
✍
To connect your computer to the Internet using the wireless LAN function, you need to set up the wireless LAN network. See Using the Wireless LAN
(page 63) for more information.
!
When you connect your computer to the Internet, be sure to take appropriate security measures to protect the computer against online threats.
Depending on the service contract with your ISP, you may need to connect an external modem device, for example a USB telephone modem, a DSL
modem, or a cable modem, to your computer to connect to the Internet. For the detailed instructions on connection setups and modem configuration,
see the manual that came with your modem.
Page 62
Using Your VAIO Computer >
Using the Network (LAN)
62
nN
Using the Network (LAN)
You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T type networks with a LAN cable. Connect one end
of a LAN cable (not supplied) to the network (LAN) port on the computer and the other end to your network. For detailed
settings and devices required for LAN access, ask your network administrator.
✍
You can connect your computer to any network without changing the default settings.
!
Do not plug a telephone cable into the network (LAN) port on your computer.
If the network (LAN) port is connected to one of the telephone lines mentioned below, high electric current to the port may cause damage, overheating,
or fire.
- Home (intercom speakerphone) or business-use telephone lines (multi-line business telephone)
- Public telephone subscriber line
- Private branch exchange (PBX)
Page 63
Using Your VAIO Computer >
Using the Wireless LAN
63
nN
Using the Wireless LAN
Using the Wireless LAN (WLAN), all your digital devices with the built-in WLAN function communicate freely with each other
through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless (radio)
connection.
The WLAN supports all normal LAN connectivity, but with the added benefits of mobility and roaming. You can still access
information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to
another.
You can communicate without an access point, which means that you can communicate with a limited number of computers
(ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.
To use the wireless LAN function
!
Be sure to turn on the WIRELESS switch before starting the wireless LAN function.
The IEEE 802.11a standard, using the 5 GHz band, and the IEEE 802.11n draft standard, using the 2.4 GHz or 5 GHz band, are not available on ad-hoc
networks.
To use the wireless LAN function, you first need to set up the wireless LAN function.
Use the SmartWi Connection Utility to set up the wireless LAN function. See the SmartWi Connection Utility Help for
more information.
To access this on-screen guide:
1 Click Start, All Programs, and SmartWi Connection Utility.
2 Click SmartWi Connection Utility Help.
Page 64
Using Your VAIO Computer >
Using the Wireless LAN
✍
In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN function, read the Safety Information carefully.
WLAN uses the IEEE 802.11a
the encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access
(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based on interoperable security
enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA is designed to be forward compatible with
the IEEE 802.11i specification. It utilizes the enhanced data encryption Temporal Key Integrity Protocol (TKIP) in addition to user authentication using
802.1X and Extensible Authentication Protocol (EAP). Data encryption protects the vulnerable wireless link between clients and access points. Besides
that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption, virtual private networks,
and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and is also designed to secure
all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n draft standard, multi-band and multi-mode. In addition, based on
the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of Standards and Technology
(NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible with WPA.
* See the specifications to find out about the configuration of your computer.
The IEEE 802.11b/g standard is a wireless LAN standard, using the 2.4 GHz band. The IEEE 802.11g standard provides higher-speed communications
than the IEEE 802.11b standard.
The IEEE 802.11a standard is a wireless LAN standard, using the 5 GHz band.
The IEEE 802.11n draft standard is a wireless LAN standard, using the 2.4 GHz or 5 GHz band.
*
/b/g standard or the IEEE 802.11n* draft standard, which specifies the type of technology used. The standard includes
64
nN
Wireless LAN devices using the 2.4 GHz band cannot communicate with devices using the 5 GHz band because the frequencies are different.
The 2.4 GHz band used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference from
other devices that use the same band are employed on wireless LAN compatible devices, such interference may cause lower communication speed,
narrower communication range, or broken wireless connections.
Page 65
Using Your VAIO Computer >
Using the Wireless LAN
The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device
configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.
The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the
radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.
Actual communication speed may not be as fast as the one displayed on your computer.
Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.
Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with
IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase
the communication speed.
65
nN
Page 66
Using Your VAIO Computer >
Using the Bluetooth Function
66
nN
Using the Bluetooth Function
You can establish wireless communications between your computer and other Bluetooth devices such as another computer
or a mobile phone. You can transfer data between these devices without cables at a range of up to 33 feet (10 meters) in an
open area.
To use the Bluetooth function
!
Be sure to turn on the WIRELESS switch before starting the Bluetooth function.
To use the Bluetooth function, you first need to set up the Bluetooth function.
Use the SmartWi Connection Utility to set up the Bluetooth function. See the SmartWi Connection Utility Help for more
information.
To access this on-screen guide:
1 Click Start, All Programs, and SmartWi Connection Utility.
2 Click SmartWi Connection Utility Help.
Page 67
Using Your VAIO Computer >
Using the Bluetooth Function
67
nN
Bluetooth Security
The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to
communicate. With the authentication function, you can prevent any anonymous Bluetooth devices from accessing your
computer.
The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be
determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.
✍
The passkey can be different each time, but must be the same at both ends.
For certain devices, such as a mouse, no passkey can be entered.
Page 68
Using Your VAIO Computer >
Using the Bluetooth Function
nN
Communicating with Another Bluetooth Device
You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a
mouse, or a digital camera without the use of any cables.
68
To communicate with another Bluetooth device
To communicate with another Bluetooth device, you first need to set up the Bluetooth function. For setting up and using the
Bluetooth function, search Windows Help and Support for Bluetooth information.
!
Be sure to turn on the WIRELESS switch before starting the Bluetooth function.
Page 69
Using Your VAIO Computer >
Using the Bluetooth Function
69
nN
Notes on Using the Bluetooth Function
❑ The data transfer rate varies, depending on the following conditions:
❑ Obstacles, such as walls, located between devices
❑ Distance between devices
❑ Material used in walls
❑ Proximity to microwaves and cordless telephones
❑ Radio frequency interference and other environmental conditions
❑ Device configuration
❑ Type of software application
❑ Type of operating system
❑ Use of both wireless LAN and Bluetooth functions at the same time on your computer
❑ Size of file being exchanged
❑ Large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard and
electromagnetic interference in the environment.
❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if
standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may
not be possible in all situations.
❑ Video and audio may not be synchronized if you play videos on your computer with audio output from a connected
Bluetooth device. This is a frequent occurrence with Bluetooth technology and is not a malfunction.
❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth
devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous
use of the Bluetooth function and wireless communication devices, however, may cause radio interference and result in
reduced communication speeds and distances than the standard values.
Page 70
Using Your VAIO Computer >
Using the Bluetooth Function
70
nN
❑ The Bluetooth function may not work with other devices, depending on the manufacturer or the software version employed
by the manufacturer.
❑ Connecting multiple Bluetooth devices to your computer may cause channel congestion, resulting in poor performance
of the devices. This is normal with Bluetooth technology and is not a malfunction.
Page 71
Using Your VAIO Computer >
Using Fingerprint Authentication
Using Fingerprint Authentication
Your computer may be equipped with a fingerprint sensor to provide you with additional convenience.
Features and options in this section may not be available on your computer.
See the specifications to find out about the configuration of your computer.
Once you have registered your fingerprint(s), the fingerprint authentication function offers:
❑ A substitute for password entry
❑ Logging onto Windows (page 76)
If you have registered your fingerprints for your user account, you can substitute fingerprint authentication for
password entry when logging onto Windows.
❑ Power-on Security feature (page 76)
If you have set the power-on password (page 95), you can substitute fingerprint authentication for password entry
when starting your computer.
❑ Password Bank for quick web site access
Once you have registered your user information (user accounts, passwords, etc.) for web sites in the Password Bank,
you can substitute fingerprint authentication for entering information required to access the password-protected web sites.
For detailed information, see the help file included with the Protector Suite.
71
nN
!
You may not be able to use the Password Bank feature depending on the web site you access.
Page 72
Using Your VAIO Computer >
Using Fingerprint Authentication
❑ Archive encryption
❑ File Safe feature to encrypt/decrypt data
With the File Safe feature, you can create an encrypted archive to include a file and/or folder for protection against
unauthorized access. The encrypted archive can be decrypted or unlocked for included file/folder access by swiping
your finger across the fingerprint sensor or entering the backup password you specified for encryption.
❑ Personal Safe feature
With the Personal Safe feature, you can encrypt contents of any protected folder on the desktop or the built-in storage
device. The encrypted folder will be hidden from other users sharing your computer.
❑ Application launcher function for quick application access
The application launcher feature is available on your computer for launching your preferred application (executable file)
that is assigned to one of your fingers with a registered fingerprint. Once you have assigned an application to your finger,
you can launch the assigned application simply by swiping the finger across the fingerprint sensor.
❑ Strong Password Generator function
The Strong Password Generator function allows you to enhance computer security by generating a strong password
resistant to dictionary attacks. The generated password can be registered in the Password Bank.
72
nN
Page 73
Using Your VAIO Computer >
Using Fingerprint Authentication
Registering a Fingerprint
To use the fingerprint authentication function, you must register your fingerprint(s) in your computer.
✍
Set the Windows password on your computer before registration. See Adding the Windows Password (page 100) for the detailed instructions.
To register a fingerprint
1 Click Start, All Programs, Protector Suite, and Control Center.
2 Read an end user license agreement thoroughly and click Accept.
3 Follow the on-screen instructions.
✍
For detailed information, see the help file.
73
nN
Page 74
Using Your VAIO Computer >
Using Fingerprint Authentication
If you have failed to register a fingerprint, follow these steps to try again.
1 Place the top joint of your finger on the fingerprint sensor (1).
1
74
nN
Page 75
Using Your VAIO Computer >
Using Fingerprint Authentication
2 Swipe your finger perpendicularly across the fingerprint sensor.
!
Place your fingertip flat in the center of the fingerprint sensor.
Scan your fingerprint from the top joint of the finger to the fingertip.
Keep your finger in contact with the fingerprint sensor while swiping.
Fingerprint registration may fail if you move your finger too quickly or too slowly. Let the fingerprint sensor take about one second to scan your
fingerprint.
You may not be able to register and/or have your fingerprint(s) recognized if your finger is too dry or wet, wrinkled, injured, dirty, etc.
75
nN
Register more than one fingerprint in case that the fingerprint sensor fails to recognize the fingerprint.
Be sure to clean your fingertip(s) and the fingerprint sensor before swiping in order to keep good recognition performance.
You can register only the limited number of fingerprints for logging onto your system using the Power-on Security feature (page 76). The maximum
number of fingerprints you can register varies depending on the data amount of each fingerprint.
You can also select the fingerprint you want to use for the Power-on Security feature (page 76) later.
Page 76
Using Your VAIO Computer >
Using Fingerprint Authentication
76
nN
Logging Onto Your System
To use the fingerprint authentication function in place of a password entry to log onto your system, you need to set the poweron and Windows passwords and configure your computer for fingerprint authentication.
For setting the power-on and Windows passwords, see Setting the Password (page 95).
For detailed information, see the help file included with the Protector Suite.
Logging onto Windows
If you have registered your fingerprints for your user account, you can substitute fingerprint authentication for Windows
password entry. To log onto Windows, swipe the registered finger across the fingerprint sensor when the Windows log-on
screen appears.
Power-on Security feature
If you have set the power-on password (page 95), you can substitute fingerprint authentication for password entry when
starting your computer.
Page 77
Using Your VAIO Computer >
Using Fingerprint Authentication
77
nN
Erasing the Registered Fingerprints
Before disposing of your computer or transferring it to a third person, it is strongly recommended you erase the fingerprint
data registered on the fingerprint sensor after erasing the data stored on your built-in storage device.
To erase the registered fingerprints
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times
when the VAIO logo appears.
3 Press the < or , key to select Security to display the Security tab.
4 Press the
5 At the confirmation prompt, select Continue and press the Enter key.
The fingerprint data registered on the fingerprint sensor is erased automatically after your system restarts.
m key to select Clear Fingerprint Data and press the Enter key.
Page 78
Using Peripheral Devices >
Using Peripheral Devices
You can add functionality to your VAIO computer by using the various ports on the computer.
❑ Connecting External Speakers or Headphones (page 79)
❑ Connecting an External Display (page 80)
❑ Selecting Display Modes (page 86)
❑ Using the Multiple Monitors Function (page 87)
❑ Connecting an External Microphone (page 89)
❑ Connecting a USB Device (page 90)
❑ Connecting an i.LINK Device (page 92)
78
nN
Page 79
Using Peripheral Devices >
Connecting External Speakers or Headphones
79
nN
Connecting External Speakers or Headphones
You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer.
Since your computer is capable of outputting both analog and digital signals through the headphones/OPTICAL OUT jack,
you can connect an S/PDIF device such as digital headphones or an audio/video amplifier to the jack and enhance the sound
quality of your computer. For more information, see the manual that came with your S/PDIF device.
!
To hear sound from the S/PDIF device connected to the headphones/OPTICAL OUT jack, you need to change the sound output device. For the detailed
instructions, see How do I change the sound output device? (page 164).
To connect external speakers
✍
Make sure your speakers are designed for computer use.
!
Turn down the volume of the speakers before you turn them on.
Connect external speakers (1) to the headphones/OPTICAL OUT jack (2) i with a speaker cable (3) (not supplied).
Page 80
Using Peripheral Devices >
Connecting an External Display
Connecting an External Display
Features and options in this section may not be available on your computer.
80
nN
Page 81
Using Peripheral Devices >
Connecting an External Display
Connecting a Computer Display or a Projector
You can connect an external display, such as a computer display or a projector, to your computer.
To connect a computer display or a projector
1 Plug the power cord (1) of your external display or the projector into the AC outlet.
2 Connect the external display or the projector to the monitor port (2) on the computer with a display cable (3).
81
nN
✍
If necessary, connect the headphones jack on the projector and the headphones/OPTICAL OUT (4) i on the computer with a speaker cable (5).
Page 82
Using Peripheral Devices >
Connecting an External Display
!
Your computer is compliant with the HDCP standard and capable of encrypting the transmission channel of digital video signals for the purpose of
copyright protection, which enables you to play and view a wide variety of copyright protected and high-quality content. To view the copyright protected
content, connect an HDCP-compliant monitor to your computer. If your computer has a non-compliant monitor connected, you will not be able to play
or view any copyright protected content.
✍
If the external computer display is equipped with an HDMI input port, plug one end of an HDMI cable into the HDMI output port on the computer and
the other end into the HDMI input port on the computer display.
If your computer is equipped with the HDMI output port, use an HDMI to DVI-D adapter to connect a TFT/DVI monitor.
DVI-D stands for Digital Visual Interface - Digital. It is a type of DVI port that supports only digital video signals (no analog video signals). It has 24 pins.
A DVI-I (Digital Visual Interface - Integrated) port supports digital video and analog video signals. It has 29 pins.
The HDMI cable carries both video and audio signals.
82
nN
Page 83
Using Peripheral Devices >
Connecting an External Display
83
nN
Using the VAIO Presentation Support
The VAIO Presentation Support allows you to use handy functions for the presentation, for example, displaying a document
for quick reference and the mirror image of the connected external display simultaneously on the computer screen.
To use the VAIO Presentation Support
1 Press the S1 or S2 button to launch the VAIO Presentation Support.
If the VAIO Presentation Support is not assigned to either of the buttons, change the button assignment with the VAIO
Control Center.
2 Select your desired display mode.
✍
Selecting any display mode other than Normal Display activates the Presentation mode. In Presentation mode, some functions of the computer, such
as a screen saver, the power saving modes, and system message generation, are disabled so as not to disturb a presentation.
Page 84
Using Peripheral Devices >
Connecting an External Display
Connecting a TV with an HDMI Input Port
You can connect a TV with an HDMI input port to your computer.
To connect a TV to your computer
!
To hear sound from the device connected to the HDMI output port, you need to change the device for sound output. For detailed instructions, see How
do I change the sound output device? (page 164).
1 Plug the power cord of your TV (1) into an AC outlet.
2 Plug one end of an HDMI cable (2) to the HDMI output port (3) on the computer and the other end to the TV.
3 Switch the input channel of the TV to external input.
4 Set up the TV configuration system.
84
nN
!
If a device driver other than the one provided by Sony is used, the image will not be displayed and the audio will not be heard. Always use the device
driver provided by Sony for updates.
Page 85
Using Peripheral Devices >
Connecting an External Display
85
nN
✍
See the manual that came with your TV for more information on installation and use.
The HDMI cable carries both video and audio signals.
To connect a high-quality digital sound output device between your computer and a TV
You can connect a high-quality home theater receiver or other surround sound decoder devices between your computer and
TV using an HDMI connection.
!
Before connecting the device to the computer, make sure the HDMI connection has been set up between the TV and the home theater receiver or
surround sound decoder device first.
To hear sound from the device connected to the HDMI output port, you need to change the device for sound output. For detailed instructions, see How
do I change the sound output device? (page 164).
1 Turn on the TV and set its input to the HDMI input.
2 Turn on the home theater receiver or surround sound decoder device and set its input to the HDMI input.
3 Plug one end of an HDMI cable to the HDMI input port on the home theater receiver or surround sound decoder device
and the other end to the HDMI output port on the computer.
✍
You can adjust the screen resolution of the connected TV with your computer. See Why doesn't my screen display a video? (page 156) for more
information.
With the HDMI connection, the volume can be adjusted by the connected audio device only. Your computer has no control over the output volume of
any connected devices.
Page 86
Using Peripheral Devices >
Selecting Display Modes
86
nN
Selecting Display Modes
When an external display is connected, you can select either your computer screen or the connected display to use as the
primary monitor.
✍
You may not be able to display the same content on your computer screen and the external display or projector at the same time, depending on the
type of your external display or projector.
Turn on the external display before turning on your computer.
To select a display mode with the Fn+F7 keys
You can select a display mode with the Fn+F7 keys. See Combinations and Functions with the Fn Key (page 33) for more
information.
To select a display mode from the display settings
1 Right-click on the desktop and select Screen resolution.
2 Click the drop-down list next to Multiple Displays, select your desired setting, and then click OK.
Page 87
Using Peripheral Devices >
Using the Multiple Monitors Function
87
nN
Using the Multiple Monitors Function
The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you
have an external display connected to the monitor port, your computer screen and the external display can function as a
single desktop.
You can move the cursor from one display to the other. This allows you to drag objects, such as an open application window
or a toolbar, from one display to the other.
Page 88
Using Peripheral Devices >
Using the Multiple Monitors Function
To use the Multiple Monitors function
✍
Your external display may not support the Multiple Monitors function.
Certain software applications may not be compatible with Multiple Monitors settings.
Make sure that your computer does not enter Sleep or Hibernate mode while you are using the Multiple Monitors function, or the computer may not
return to Normal mode.
If you set different colors on each display, do not expand a single window across two displays, or your software may not work properly.
1 Right-click on the desktop and select Screen resolution.
2 Click the drop-down list next to Multiple Displays, select Extend these displays, and then click OK.
✍
You can set the display colors and resolution for each display and customize the Multiple Monitors function.
88
nN
Page 89
Using Peripheral Devices >
Connecting an External Microphone
Connecting an External Microphone
You can connect an external microphone (not supplied) to your computer.
To connect an external microphone
Plug the microphone cable (1) into the microphone jack (2) m.
✍
Make sure your microphone is designed for computer use.
89
nN
Page 90
Using Peripheral Devices >
Connecting a USB Device
90
nN
Connecting a USB Device
You can connect a Universal Serial Bus (USB) device to your computer, such as a mouse, floppy disk drive, speaker, and
printer.
To connect a USB device
1 Choose the USB port (1) you prefer to use.
2 Plug the USB device cable (2) into the USB port.
Page 91
Using Peripheral Devices >
Connecting a USB Device
91
nN
Notes on connecting a USB device
❑ You may need to install the driver software supplied with your USB device before use. See the manual that came with the
USB device for more information.
❑ Be sure to use a USB printer compatible with your version of Windows to print documents.
❑ For information on how to remove a USB device, see the manual that came with the device.
❑ To protect your computer and/or USB devices from damage, observe the following:
❑ When moving the computer with USB devices connected, avoid exposing the USB ports to shock or impact.
❑ Do not put the computer into a bag or carrying case when it has USB devices connected.
Page 92
Using Peripheral Devices >
Connecting an i.LINK Device
92
nN
Connecting an i.LINK Device
Your computer is equipped with an i.LINK port which you can use to connect an i.LINK device, such as a digital video
camcorder.
✍
i.LINK is a trademark of Sony Corporation used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK
connection may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK
connection can communicate with each other. See the manual that came with your compatible i.LINK device for more information on operating
conditions and proper connection. Before connecting compatible i.LINK PC peripherals to your system, such as a CD-RW or hard disk drive, confirm
their operating system compatibility and required operating conditions.
Notes on connecting i.LINK devices
❑ The i.LINK port on your computer does not supply power to an external device. If the external device requires external
power, be sure to connect it to a power source.
❑ The i.LINK port supports transfer rates up to 400 Mbps. However, the actual transfer rate depends on the transfer rate of
the external device.
❑ The optional i.LINK cables may not be available in some countries or areas.
❑ An i.LINK connection with other compatible devices is not fully guaranteed.
❑ The i.LINK connection may not be available depending on the software applications, operating system, and i.LINK-
compatible devices you use. See the manual that came with your software for more information.
❑ Check the working conditions and operating system compatibility of i.LINK-compatible PC peripherals (for example, an
HDD or a CD-RW drive) before you connect them to your computer.
Page 93
Using Peripheral Devices >
Connecting an i.LINK Device
93
nN
Connecting a Digital Video Camcorder
To connect a digital video camcorder
Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV In/
Out port (3) on the digital video camcorder.
✍
The connection procedure varies depending on your compatible i.LINK device. See the manual that came with the device for more information.
You cannot access the contents of "Memory Stick" in the digital video camcorder via an i.LINK connection.
Page 94
Customizing Your VAIO Computer >
94
nN
Customizing Your VAIO Computer
This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn
how to use and customize the look of your Sony software and utilities.
❑ Setting the Password (page 95)
❑ Using the VAIO Control Center (page 102)
❑ Using the VAIO Power Management (page 103)
Page 95
Customizing Your VAIO Computer >
Setting the Password
95
nN
Setting the Password
Use one of the BIOS functions to set the password.
Once you have set the password, you will be prompted to enter the password after the VAIO logo appears to start your
computer. The power-on password allows you to protect your computer from unauthorized access.
Adding the Power-on Password
The power-on password is provided to protect your computer from unauthorized access.
There are two types of the power-on passwords: the machine password and the user password. The machine password is
provided for users with administrative rights on the computer to change all the setup options in the BIOS setup screen, as
well as to start the computer. The user password is provided for the standard users to allow for changing some of the BIOS
setup options, as well as starting the computer. To set the user password, you must first set the machine password.
!
Once you have set the power-on password, you cannot start your computer without entering the password. Be sure not to forget the password. Write
down your password and keep it safe and private from other people.
If you forget the power-on password and need assistance to reset it, a password reset fee will be charged, and your computer may need to be sent in
for service to reset the password.
✍
If your computer is equipped with a fingerprint sensor and you have set the power-on password in conjunction with the fingerprint authentication
function, you can substitute fingerprint authentication for password entry when turning on your computer. For more information, see Using Fingerprint
Authentication (page 71).
Page 96
Customizing Your VAIO Computer >
Setting the Password
96
nN
To add the power-on password (machine password)
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
4 On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters (including spaces) long.
5 Select Password when Power On under Security and press the Enter key.
6 Change the setting from Disabled to Enabled.
7 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Page 97
Customizing Your VAIO Computer >
Setting the Password
97
nN
To add the power-on password (user password)
!
Make sure you set the machine password before setting the user password.
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Enter the machine password and press the Enter key.
4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the
Enter key.
5 On the password entry screen, enter the password twice and press the Enter key.
The password can be up to 32 alphanumeric characters (including spaces) long.
6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Page 98
Customizing Your VAIO Computer >
Setting the Password
98
nN
Changing/Removing the Power-on Password
To change or remove the power-on password (machine password)
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Enter the machine password and press the Enter key.
4 Press the < or , key to select Security to display the Security tab, select Set Machine Password, and then press the
Enter key.
5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Page 99
Customizing Your VAIO Computer >
Setting the Password
99
nN
To change or remove the power-on password (user password)
1 Turn on the computer.
2 Press the F2 key when the VAIO logo appears.
The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo
appears.
3 Enter the user password and press the Enter key.
4 Press the < or , key to select Security to display the Security tab, select Set User Password, and then press the
Enter key.
5 On the password entry screen, enter the current password once and a new password twice, and then press the Enter key.
To remove the password, leave the Enter New Password and Confirm New Password fields blank and press the Enter
key.
6 Press the < or , key to select Exit, select Exit Setup, and then press the Enter key.
At the confirmation prompt, press the Enter key.
Page 100
Customizing Your VAIO Computer >
Setting the Password
100
nN
Adding the Windows Password
The Windows password comes in handy when you have to share a single computer with other people. By setting the Windows
password, you can protect your user account from unauthorized access.
Entry of the Windows password will be prompted after you select your user account.
!
Be sure not to forget the password. Write down your password and keep it safe and private from other people.
✍
If your computer is equipped with a fingerprint sensor and you have set the Windows password in conjunction with the fingerprint authentication
function, you can substitute fingerprint authentication for password entry when turning on your computer. For more information, see Using Fingerprint
Authentication (page 71).
To add the Windows password
1 Click Start and Control Panel.
2 Click User Accounts and Family Safety or User Accounts.
3 Click User Accounts.
4 Click Create a password for your account under Make changes to your account.
5 In the New password and Confirm new password fields, enter the password for your account.
6 Click Create password.
✍
See Windows Help and Support for more information on the Windows password.
Loading...
