Sony VGC - LV User Manual

User Guide

Personal Computer

VGC-LV series/VGC-LN series

N

Contents

Before Use .........................................................................................................................................................................6

Notice ...........................................................................................................................................................................7

Documentation .............................................................................................................................................................8

Ergonomic Considerations .........................................................................................................................................11

Getting Started .................................................................................................................................................................13

Locating Controls and Ports.......................................................................................................................................14

About the Indicator Lights ..........................................................................................................................................20

Setting Up Your Computer.........................................................................................................................................21

Shutting Down Your Computer Safely .......................................................................................................................37

Using Your VAIO Computer .............................................................................................................................................38

Using the Keyboard ...................................................................................................................................................39

Using the Touch Pad .................................................................................................................................................43

Using the Mouse ........................................................................................................................................................44

Using the Built-in MOTION EYE Camera...................................................................................................................47

Using the Optical Disc Drive ......................................................................................................................................51

Using the TV Function ...............................................................................................................................................60

Using the HDMI Input Function ..................................................................................................................................69

Using the ExpressCard Module .................................................................................................................................74

Using the Memory Stick .............................................................................................................................................78

Using the SD Memory Card .......................................................................................................................................84

Using the Internet.......................................................................................................................................................87

2

nN

3

nN

Using Wireless LAN (WLAN) .....................................................................................................................................88

Using the Bluetooth Function .....................................................................................................................................95

Using Peripheral Devices ...............................................................................................................................................101

Connecting External Speakers ................................................................................................................................102

Connecting a Universal Serial Bus (USB) Device....................................................................................................104

Connecting a Printer ................................................................................................................................................106

Connecting an i.LINK Device ...................................................................................................................................107

Connecting to a Network (LAN) ...............................................................................................................................109

Customizing Your VAIO Computer ................................................................................................................................111

Setting the Password ...............................................................................................................................................112

Setting Up Your Computer with VAIO Control Center..............................................................................................117

Using the Power Saving Mode.................................................................................................................................118

Upgrading Your VAIO Computer....................................................................................................................................121

Adding and Removing Memory................................................................................................................................122

Adding the Hard Disk Drive......................................................................................................................................129

4

nN

Precautions ....................................................................................................................................................................135

Handling the LCD Screen ........................................................................................................................................136

Using the Power Source ..........................................................................................................................................137

Handling Your Computer .........................................................................................................................................138

Handling the Built-in MOTION EYE Camera............................................................................................................141

Handling Floppy Disks .............................................................................................................................................142

Handling Discs .........................................................................................................................................................143

Using Headphones ..................................................................................................................................................145

Handling the Memory Stick ......................................................................................................................................146

Handling the Hard Disk ............................................................................................................................................147

Updating Your Computer .........................................................................................................................................148

Troubleshooting .............................................................................................................................................................149

Computer .................................................................................................................................................................150

System Security .......................................................................................................................................................156

Built-in MOTION EYE Camera.................................................................................................................................157

Networking ...............................................................................................................................................................160

Bluetooth Technology ..............................................................................................................................................163

Optical Discs ............................................................................................................................................................167

Display .....................................................................................................................................................................171

Printing .....................................................................................................................................................................172

Microphone ..............................................................................................................................................................173

Mouse ......................................................................................................................................................................174

Speakers ..................................................................................................................................................................175

Touch Pad................................................................................................................................................................177

5

nN

Keyboard..................................................................................................................................................................178

Floppy Disks ............................................................................................................................................................179

Audio/Video..............................................................................................................................................................180

HDMI ........................................................................................................................................................................183

Memory Stick ...........................................................................................................................................................185

Peripherals ...............................................................................................................................................................186

Support Options .............................................................................................................................................................187

Sony Support Information ........................................................................................................................................188

e-Support .................................................................................................................................................................189

Trademarks ....................................................................................................................................................................191

nN

Before Use

Before Use

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide state-of-the-art personal
computing experience.

!

External views illustrated in this manual may look slightly different from those of your computer.

6

7

nN

Before Use

Notice

© 2008 Sony Corporation. All rights reserved.

This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any
machine-readable form without prior written approval.

Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and
hereby expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this
manual, the software, or such other information. In no event shall Sony Corporation be liable for any incidental, consequential,
or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the
software, or other information contained herein or the use thereof.

In the manual, the ™ or ® marks are not specified.

Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time
without notice. The software described herein is governed by the terms of a separate user license agreement.

8

nN

Before Use

Documentation

Your documentation includes printed information and user guides to read on your VAIO computer.

Printed Documentation

❑ Quick Start Guide — Describes the process from unpacking to starting up your VAIO.

❑ Troubleshooting and Recovery Guide — Contains solutions to problems other than those you encounter during normal

operation.

❑ Regulations, Guarantee, EULA and Service Support — Contains Sony guarantee conditions,

safety / regulations, modem regulations, wireless LAN regulations, wireless WAN regulations,
Bluetooth regulations, end user software license agreement, and Sony support services information.

Non-printed Documentation

❑ User Guide (this manual) — Explains features of your computer. It also includes information about the software programs

included with your computer, as well as information on solving common problems. The User Guide is provided in PDF
format for easy browsing and printing.

To view this on-screen guide:

1 Double-click the VAIO User Guide icon on the desktop.

2 Open the folder for your language.

3 Select the guide you want to read.

✍

You can manually browse to the user guides by going to Computer > VAIO (C:) (your C drive) > Documentation > Documentation and opening the
folder for your language.

To go to web sites described in this manual by clicking their respective URLs beginning with http://, your computer must be connected to the Internet.

9

nN

Before Use

❑ Specifications — The online specifications describe the hardware and software configurations of your VAIO computer.

To view the online specifications:

1 Connect to the Internet.

2 Go to the Sony online support web site at http://www.vaio-link.com

.

✍

You may have a separate disc that includes documentation for the bundled accessories.

10

nN

Before Use

Windows Help and Support

Windows Help and Support is a comprehensive resource for practical advice, tutorials, and demonstrations to help you
learn to use your computer.

Use the search feature, index, or table of contents to view all Windows Help resources, including those on the Internet.

To access Windows Help and Support, click Start and Help and Support. Or go to Windows Help and Support by
pressing and holding the Microsoft Windows key and pressing the F1 key.

Further Sources

❑ Consult the help files included with the software you are using for detailed information on features and troubleshooting.

❑ Go to http://www.club-vaio.com

to find online tutorials about your favorite VAIO software.

Ergonomic Considerations

Whenever possible, you should attempt to take account of the following ergonomic considerations:

11

nN

Before Use

❑ Position of your computer – Place the display directly in front of you (1). Keep your forearms horizontal (2), with your

wrists in a neutral, comfortable position (3) while using the keyboard, pointing device, or external mouse. Let your upper
arms hang naturally at your sides. Take frequent breaks while using your computer. Excessive use of the computer may
strain eyes, muscles, or tendons.

❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the

floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.

12

nN

Before Use

❑ Viewing angle of the display – Use the display's tilting feature to find the best position. You can reduce eye strain and

muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.

!

While adjusting the viewing angle, do not exert excessive pressure on your computer, especially on the center of the speaker grill, to eliminate a risk of
mechanical damage.

❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect

lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

❑ Ventilation – Make sure you leave at least 10 cm of space behind and at least 20 cm of space on each side of the main

unit.

Getting Started

This section describes how to get started using your VAIO computer.

❑ Locating Controls and Ports (page 14)

❑ About the Indicator Lights (page 20)

❑ Setting Up Your Computer (page 21)

❑ Shutting Down Your Computer Safely (page 37)

13

nN

Getting Started

Getting Started

Locating Controls and Ports

Take a moment to identify the controls and ports shown on the following pages.

!

The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some
countries or areas.

Front

A Built-in speakers (stereo)
B Built-in microphone (monaural)
C Built-in MOTION EYE camera indicator (page 20)
D Built-in MOTION EYE camera (page 47)
E Power indicator (page 20)
F Remote sensor

Point the supplied remote commander to this sensor for
operations.

G SONY logo lamp (page 117)
H LCD screen (page 136)
I HDMI SELECT indicator (page 20)
J WIRELESS indicator (page 20)
K DISPLAY OFF indicator (page 20)
L Hard disk drive/Optical disc drive indicator (page 20)

14

nN

Back

Getting Started

A Power button
B DISPLAY OFF button

Press this button to turn off the LCD backlight. While the HDMI
input is selected (page 70), pressing this button also turns off
the volume.

C Capture angle adjuster (page 47)
D Back panel cover

Remove the back panel cover to access the ports and jacks
behind it (page 21).

E CONNECT button (page 30), (page 32)
F i.LINK 4-pin (S400) port (page 107)
G OPTICAL OUT port (page 102)

(Output Sampling Rate: 44.1 KHz/48.0 KHz/96.0 KHz)

H Hi-Speed USB (USB 2.0) ports

*

(page 104)

I Base stand cover

Remove the base stand cover to bundle cables to keep them
tidy (page 21).

J Base stand (page 140)

* Support high-/full-/low- speeds.

15

nN

VGC-LV series models

Getting Started

A Air exhaust vent (page 139)
B HARD DISK DRIVE ACCESS BAY cover (page 130)
C Memory module compartment cover (page 124)
D AC In port (page 26)

E VHF/UHF input port

*

(page 60)

F HDMI INPUT port (page 69)
G Cable clamps (page 29)

H S VIDEO input port

Connect an external device such as a VCR.

I A/V INPUT jack

Connect an external device such as a VCR.

*

*

J Network (Ethernet) port (page 109)

* On selected models only.

16

nN

!

The area around the air exhaust vent (1) becomes hot while your computer is on. Be
sure to wait until the computer cools down before you touch it.

VGC-LN series models

A Air exhaust vent (page 139)
B Memory module compartment cover (page 124)
C HDMI INPUT port (page 69)
D DC IN port (page 26)
E Network (Ethernet) port (page 109)

F VHF/UHF input port

*

(page 60)

G Cable clamps (page 29)
H S VIDEO input port

Connect an external device such as a VCR.

I A/V INPUT jack

Connect an external device such as a VCR.

* On selected models only.

*

*

17

nN

Getting Started

!

The area around the air exhaust vent (1) becomes hot while your computer is on. Be
sure to wait until the computer cools down before you touch it.

Right

A Optical disc drive (page 51)
B Drive eject button (page 52)

C Hi-Speed USB (USB 2.0) ports
D WIRELESS switch (page 88)
E HDMI SELECT button (page 70)
F MENU button (page 70)
G Up/Down buttons (page 70)
H OK button (page 70)

* Support high-/full-/low- speeds.

*

(page 104)

18

nN

Getting Started

Left

19

nN

Getting Started

A ExpressCard/34
B Memory Stick slot

slot (page 74)

*1

(page 78)

C Media Access indicator (page 20)
D SD memory card slot (page 84)
E Headphones jack (page 102)
F Microphone jack

Connect an external microphone.

G Line In jack

Connect an external audio device for audio input.

H Hi-Speed USB (USB 2.0) port

*1

Your computer supports both standard- and Duo-size Memory Stick.

*2

Supports high-/full-/low- speeds.

*2

(page 104)

Getting Started

About the Indicator Lights

Your computer is equipped with the following indicator lights:

Indicator Functions

Power 1 Illuminates in green when the computer is on, illuminates in orange while the computer is in Sleep mode, and

turns off when the computer is off.

Built-in MOTION EYE camera Illuminates while the built-in MOTION EYE camera is in use.

Media Access Illuminates when data is read from or written to a memory card. (Do not place the computer into Sleep mode or

HDMI SELECT Illuminates in green while the HDMI input is selected.

DISPLAY OFF Illuminates in orange when the LCD backlight is turned off.

Hard disk drive/Optical disc drive

WIRELESS Illuminates when the WIRELESS switch is turned on, provided that one or more wireless options are enabled

turn it off when this indicator is lit.) When the indicator is unlit, the memory card is not in use.

Illuminates when the drive is reading or writing data. Do not place the computer into Sleep mode or turn it off
when this indicator is lit.

in the VAIO Smart Network window.

20

nN

21

nN

Getting Started

Setting Up Your Computer

Removing and Replacing the Covers

Before accessing some ports and jacks on the back of your computer, you first need to remove the back panel cover from
the computer and the base stand cover from the base stand.

To remove the back panel cover and the base stand cover

1 Gently face down your computer on a flat surface.

!

When facing down your computer, be sure to place it on a soft cloth to avoid damage to the LCD screen.

2 Grasp the back panel cover (1) with both hands, gently lift it, and remove it from the computer.

!

Put your fingertips underneath the back panel cover (2) when removing the cover from the computer.

22

nN

Getting Started

3 Slide the base stand cover (3) in the direction of the arrow and remove it from the base stand.

23

nN

Getting Started

To replace the back panel cover and the base stand cover

1 Put the base stand cover (1) back on the base stand and slide it in the direction of the arrow.

24

nN

Getting Started

nN

Getting Started

2 Put the back panel cover (2) so as to fit the projections inside the cover into the respective holes on the back of the

computer and push in the cover toward the computer.

!

Keep the back panel cover and the stand cover on the computer unless access to the back panel is necessary.

25

26

nN

Getting Started

Connecting a Power Source and Cables

A power cord is supplied with VGC-LV series models, and an AC adapter is supplied with VGC-LN series models to connect
your computer to a power source. It must be plugged into the power source before you can establish communication with
your wireless keyboard and mouse. In addition, you need to connect other cables if you want to use some functions of your
computer, such as the TV function.

✍

Use only the supplied AC adapter or power cord for your computer.

To connect the power cord or the AC adapter and other cables

1 Remove the back panel cover and the base stand cover from the computer.

See Removing and Replacing the Covers (page 21) for the procedure.

2 Connect a power cord or an AC adapter to the computer.

❑ VGC-LN series models

1 Plug one end of the power cord (1) into the AC adapter (3) and the other end into AC outlet (2).

27

nN

Getting Started

2 Put the cable connected to the AC adapter through the hole (4) in the base stand and plug it into the DC IN port (5)

as illustrated below.

!

The shape of the DC In plug varies depending on the AC adapter.

Be sure to push the plug all the way in.

28

nN

Getting Started

❑ VGC-LV series models

Plug one end of the power cord (6) into the AC outlet (7), put the other end through the hole (8) in the base stand, and
plug it into the AC In port (9) on the computer as illustrated below.

!

Be sure to push the plug into the AC In port all the way to the guide (10).

Getting Started

3 Connect other cables to the computer, if necessary.

❑ To set up TV connections available on models with the TV tuner board, see Using the TV Function (page 60).

❑ To connect an HDMI cable to the HDMI INPUT port for using the HDMI Input function, see Using the HDMI Input

Function (page 69).

❑ To connect your computer to an Ethernet network, see Connecting to a Network (LAN) (page 109).

4 Snap open the cable clamp (11), route the cables through it, and then snap the cable clamp back shut.

5 Replace the stand cover and the back panel cover.

See Removing and Replacing the Covers (page 21) for the procedure.

✍

To disconnect your computer completely from AC power, unplug the power cord or the AC adapter when the computer is off.

29

nN

Make sure that the AC outlets are easily accessible.

!

If you unplug the power cord or the AC adapter from your computer while the computer is on or in Sleep mode, you may lose all unsaved data.

30

nN

Getting Started

Connecting the Wireless Keyboard

A wireless keyboard and four AA alkaline batteries for use in the keyboard are supplied with your computer. Before attempting
to use the wireless keyboard, you must install the batteries and establish communication between the computer and the
keyboard.

✍

If you find your keyboard not working, for example after replacement of the keyboard batteries, try the following steps for reconnection.

To connect the wireless keyboard

!

To connect the wireless keyboard, it must be located within a range of 30 cm to 1 m from the computer.

1 Insert the supplied four AA batteries (1) into the battery compartment (2) on the bottom of the wireless keyboard.

2 Turn on the computer.

3 Slide the power switch (3) on the back of the keyboard to the ON position.

4 Press the CONNECT button (4) on the back of the computer.

5 Press the CONNECT button (5) on the bottom of the keyboard.

The connect indicator turns on in the LCD window on the keyboard when connection is established between the
computer and the keyboard. If not, repeat the procedure.

!

Steps 4 and 5 must be completed within 10 seconds of each other.

If the wireless keyboard is left unused for 20 minutes or longer, the connect indicator will turn off. This could indicate that the connection between
your computer and the keyboard is lost. Press the Fn key to check that the connect indicator turns on before using the keyboard.

31

nN

Getting Started

✍

You can check the battery indicator ( or ) in the LCD window on the wireless keyboard for its battery power level.

If the wireless keyboard does not operate properly, the batteries may need to be replaced. If you do not intend to use the wireless keyboard for an
extended period of time, remove the batteries to avoid possible damage from battery leakage.

If you want to put the wireless keyboard in a more 'ergonomic' position, flip open the keyboard feet.

32

nN

Getting Started

Connecting the Wireless Mouse

A wireless mouse and two AA alkaline batteries for use in the mouse are supplied with your computer. Before attempting to
use the wireless mouse, you must install the batteries and establish communication between your computer and the mouse.

✍

If you find your mouse not working, for example after replacement of the mouse batteries, try the following steps for reconnection.

To connect the wireless mouse

!

To connect the wireless mouse, it must be located within a range of 30 cm to 1 m from the computer.

1 Insert the supplied two AA batteries into the wireless mouse as shown below:

2 Turn on the computer.

3 Slide the power switch on the bottom of the mouse to the ON position.

4 Press the CONNECT button (1) on the back of the computer.

33

nN

Getting Started

5 Press the CONNECT button on the bottom of the mouse within 10 seconds from step 4.

Communication between the mouse and the computer should now be established.

✍

If the wireless mouse does not operate properly, the batteries may need to be replaced. If you do not intend to use the wireless mouse for an extended
period of time, remove the batteries to avoid possible damage from battery leakage.

34

nN

Getting Started

Preparing for Wall Mounting

Your computer is equipped with four holes on its back panel, which look similar to those compliant with the Video Electronics
Standards Association (VESA) mounting standard, for connecting to your mounting system.

!

Be sure to establish wireless communication between your computer and the wireless mouse and keyboard before mounting the computer on the wall.

It is recommended that you allow adequate clearance between the wall and the back of your computer when mounting the computer on the wall so that
you can access the ports and buttons on the back of the computer.

Be sure to place the AC adapter on a flat surface while it is connected to the computer so as not to dangle in the air.

To reveal the mounting holes

1 Remove the back panel cover from the computer.

See Removing and Replacing the Covers (page 21) for the procedure.

2 Unscrew the six screws (1) and remove the base stand (2).

35

nN

Getting Started

36

nN

Getting Started

3 Use the four holes (3) for mounting by following the instructions described in the manual that came with your mounting

system.

37

nN

Getting Started

Shutting Down Your Computer Safely

To avoid losing unsaved data, be sure to shut down your computer properly, as described below.

To shut down your computer

1 Turn off any peripherals connected to the computer.

2 Click Start, the arrow next to the Lock button, and then Shut Down.

3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off

automatically.
The power indicator light turns off.

Using Your VAIO Computer

This section describes how to get the most out of using your VAIO computer.

❑ Using the Keyboard (page 39)

❑ Using the Touch Pad (page 43)

❑ Using the Mouse (page 44)

❑ Using the Built-in MOTION EYE Camera (page 47)

❑ Using the Optical Disc Drive (page 51)

❑ Using the TV Function (page 60)

❑ Using the HDMI Input Function (page 69)

❑ Using the ExpressCard Module (page 74)

❑ Using the Memory Stick (page 78)

❑ Using the SD Memory Card (page 84)

❑ Using the Internet (page 87)

❑ Using Wireless LAN (WLAN) (page 88)

❑ Using the Bluetooth Function (page 95)

38

nN

Using Your VAIO Computer

Using Your VAIO Computer

Using the Keyboard

A wireless keyboard is supplied with your computer.

The wireless keyboard uses a standard key arrangement with additional keys that perform specific functions.

The VAIO-Link web site (http://www.vaio-link.com

Using the Wireless Keyboard

!

To maintain good communication, operate the wireless keyboard within the distance limitations of keyboard: 10 m from your computer.

Confirm that the supplied AA batteries are properly installed.

Press the CONNECT button located on the back of your computer first, and then press the CONNECT button on the bottom of the wireless keyboard.

If you find your keyboard not working after replacement of the keyboard batteries, reconnect the keyboard. See Connecting the Wireless Keyboard

(page 30) for the detailed procedure.

Avoid using any wireless devices that exchange radio signals on the 2.4 GHz frequency band near the wireless keyboard. These devices may cause
interference, causing the keyboard to stop working properly.

Do not place metal furniture or objects near your computer or wireless keyboard, as this may create interference, causing the keyboard to stop working
properly.

) also contains glossary information to help you use the keyboard.

39

nN

Do not mix old (used) and new batteries when replacing batteries in the wireless keyboard. Always use the same type and manufacture of battery.

Do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the wireless
keyboard.

✍

Illustrated above is the English keyboard as an example.

Using Your VAIO Computer

A Zoom buttons

Change the view size of your screen.

Press
away (zoom out).

Press
in).
See the help file included with the VAIO Control Center for
more information.

to make the screen view look smaller and further

to make the screen view look bigger and closer (zoom

B Function keys

Perform certain tasks. The task associated with each function
key varies among software applications except the following
combinations with the Fn key.

Fn+F5: Decreases lighting intensity of the LCD screen.
Fn+F6: Increases lighting intensity of the LCD screen.

C Disc drive eject button

Ejects the optical disc from the drive.

D Sleep button

Provides for the lower level of power consumption.
For details on power management, see Using the Power
Saving Mode (page 118).

E Power indicator

A green bar appears when the power switch is turned on.

F Power switch

Slide the switch to turn the wireless keyboard on and off.

40

nN

41

nN

Using Your VAIO Computer

Indicators

G

(Battery): turns on while the AA batteries for the

wireless keyboard are sufficient and switches to when the
batteries wear out.

(Num lock): Turns on while in the Num Lock state.

(Caps lock): Turns on while in the Caps Lock state.

(Scroll lock): Turns on while in the Scroll Lock state.

(Connect): Turns on while connection between the computer and
the wireless keyboard is in place to indicate that the keyboard is
ready for use (page 30).

H Volume control buttons

Increase (+) or decrease (-) the volume.

I Muting button

Turns the volume on and off.

J S1 button

Launches the VAIO Guide by default.

✍

The default S1 button assignment may be different from the above. In such a
case, you can change the assignment with the VAIO Control Center. See Setting
Up Your Computer with VAIO Control Center (page 117) and find out more in
its help file.

K Touch pad

See Using the Touch Pad (page 43) for more information.

L Directional arrow keys

Move the pointer on the computer screen.

M Applications key

Displays a shortcut menu in certain software applications.

N Windows key

Displays the Start menu.

42

nN

Using Your VAIO Computer

A Keyboard feet

Flip open to adjust the keyboard angle.

B CONNECT button (page 30)

Press to enable the wireless keyboard to communicate with the
computer.

C Battery compartment

Storage compartment for the AA batteries.

Using Your VAIO Computer

Using the Touch Pad

You can point to, select, drag, and scroll objects on the screen using the touch pad.

Action Description

Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object.

Click Press the left button (3) once.

Double-click Press the left button twice.

Right-click Press the right button (4) once. In many applications, this action displays a shortcut menu.

Drag Slide your finger on the touch pad while pressing the left button.

Scroll Slide your finger along the right edge of the touch pad to scroll vertically. Slide your finger along the bottom edge to scroll

horizontally (the scroll function is available only with applications that support a touch pad scroll feature).

43

nN

✍

You can disable/enable the touch pad with the Fn+F11 keys while a mouse is connected to your computer. To change other touch pad settings, click
Start, All Programs, VAIO Control Center, Keyboard and Mouse and Pointing Device.

You can disable/enable the Motion Pointer feature with the Fn+F1 keys that keeps moving the pointer or scrolling when your fingertip reached an edge
of the touch pad.

If pointer movement or scrolling continues against your intention, your fingertip may have reached an edge of the touch pad. In such a case, take your
finger off the touch pad. It is recommended that you put your finger on the touch pad around its center to start an operation.

Using Your VAIO Computer

Using the Mouse

A wireless mouse is supplied with your computer.

Using the Wireless Mouse

The wireless optical mouse has no cables to plug in and uses a light-emitting diode (LED) instead of a ball.

!

To maintain good communication, operate the wireless mouse within the distance limitations of mouse: 10 m from your computer.

Confirm that the supplied AA batteries are properly installed.

Press the CONNECT button located on the back of your computer first, and then press the CONNECT button on the bottom of the wireless mouse.

If you find your mouse not working after replacement of the mouse batteries, reconnect the mouse. See Connecting the Wireless Mouse (page 32)
for the detailed procedure.

Avoid using any wireless devices that exchange radio signals on the 2.4 GHz frequency band near the wireless mouse. These devices may cause
interference, causing the mouse to stop working properly.

Use surfaces such as plain paper, card stock, or fabric that have minimal repetitive patterns.

Avoid surfaces such as mirrors, smooth glass, or magazines that have half- tone printing.

44

nN

Do not place metal furniture near your computer or wireless mouse, as this may create interference, causing the mouse to stop working properly.

Do not mix old (used) and new batteries when replacing batteries in the wireless mouse. Always use the same type and manufacture of battery.

Do not mix alkaline with manganese batteries. Using incompatible batteries or mixing used, new or different types of batteries can damage the wireless
mouse.

Using Your VAIO Computer

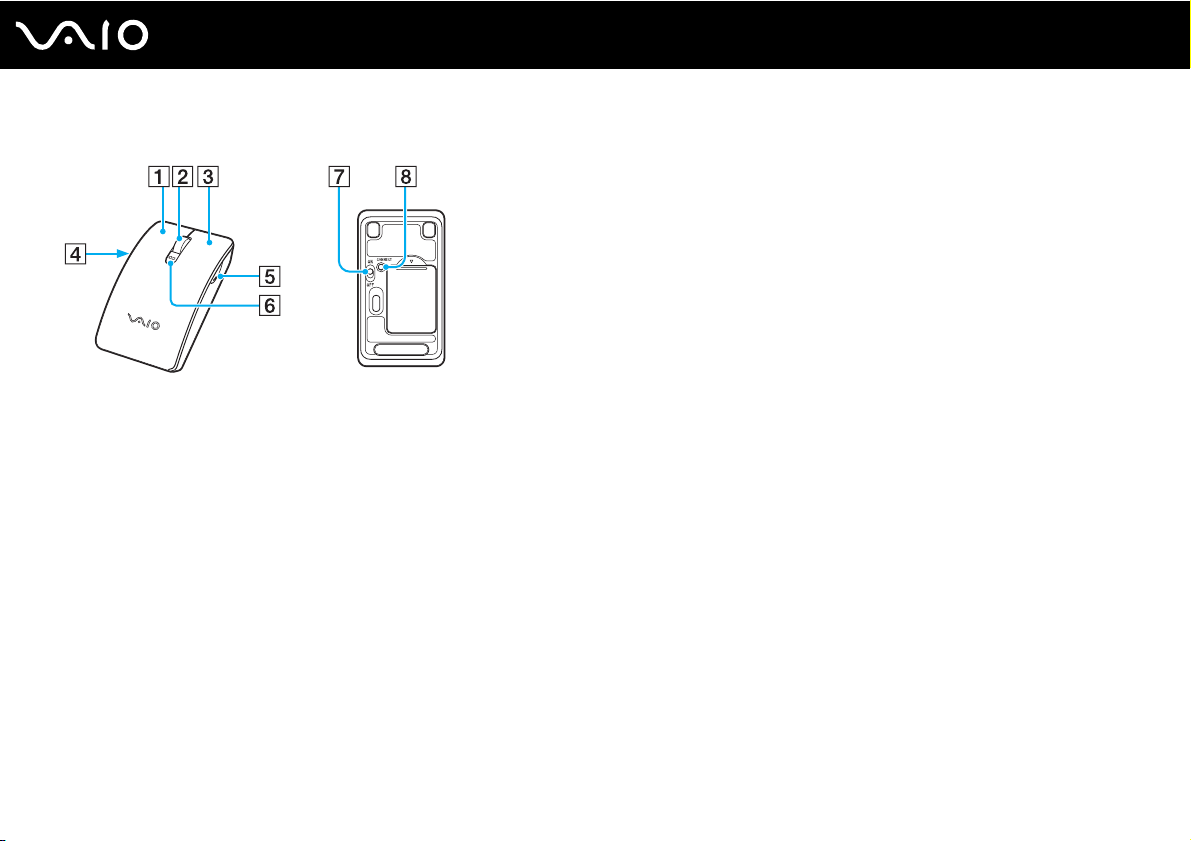

Left button

A

Click or double-click the left button to select items. To drag and
drop items, hold the left button down while sliding the mouse,
then release the button to drop the item.

B Central wheel

Rotate the central wheel to scroll up or down a page. Press the
wheel once to lock the scroll action and control the movement
by moving the entire mouse (the scroll function is available only
with applications that support it).

C Right button

Press the right button once to display a context-sensitive
shortcut menu (if any).

D Left side button

Press the left side button to go back to the previous page.
Pressing it works in the same way as pressing the back button
on the Internet Explorer. To change the button assignment,
press and hold the central wheel.

E Right side button

Press the right side button to go forward to the page you viewed
before. Pressing it works in the same way as pressing the
forward button on the Internet Explorer. To change the button
assignment, press and hold the central wheel.

F Battery indicator

Blinks when the mouse batteries are running out of power.

G Power switch

Slide the switch to turn the mouse on and off.

H CONNECT button (page 32)

Press to enable communication between the computer and the
wireless mouse.

45

nN

Adjusting the Mouse Functions

1 Click Start and Control Panel.

2 Click Mouse under Hardware and Sound.

The Mouse Properties window appears.

3 Change the settings.

46

nN

Using Your VAIO Computer

nN

Using Your VAIO Computer

Using the Built-in MOTION EYE Camera

Your computer is equipped with a built-in MOTION EYE camera.

The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software and
enables you to capture still images and movies with the preinstalled image capture software.

Turning on the computer activates the built-in MOTION EYE camera. Video conference is possible with the appropriate
software.

Note that launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in
MOTION EYE camera, respectively.

✍

The built-in MOTION EYE camera cannot be shared by more than one software application. If another software application is using the camera, exit the
application before using the built-in MOTION EYE camera with your desired application.

47

You can change the capture angle of the built-in MOTION EYE camera with the capture angle adjuster (1) on the back of your computer.

up the horizontal bar to adjust the angle upward or downward, respectively, until you see the live feed in the desired angle.

Push down or

48

nN

Using Your VAIO Computer

!

The viewer window may show some noise, for example horizontal streaks, if you view a rapid-moving object. This is normal and does not indicate a
malfunction.

You cannot operate the built-in MOTION EYE camera with the Microsoft Windows Movie Maker software.

nN

Using Your VAIO Computer

Capturing Still Images

To capture a still image

1 Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch the WebCam

Companion 2.

2 Click the Capture icon in the main window.

3 Frame your subject in the viewfinder.

4 Click the Capture button below the displayed image.

The current image in the viewfinder is captured and its thumbnail image is added as a the thumbnail in the left pane of
the main window.

✍

When capturing an image in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the
properties window.

The WebCam Companion 2 provides many more features. See the help file included with the software for more information.

49

nN

Using Your VAIO Computer

Capturing Movies

To capture a movie

1 Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch the WebCam

Companion 2.

2 Click the Record icon in the main window.

3 Frame your subject in the viewfinder.

4 Click the Record Video button below the displayed image to start movie recording.

5 When finished, click the Record Video button once again to stop movie recording.

The first scene of the captured movie is added as a thumbnail in the left pane of the main window.

✍

When capturing a movie in a dark place, click the WebCam Settings icon after step 2 and select the low light or low light compensation option in the
properties window.

The WebCam Companion 2 provides many more features. See the help file included with the software for more information.

50

Using the Optical Disc Drive

Your computer is equipped with an optical disc drive.

To insert a disc

!

Be sure to attach the 8 cm disc adapter to an 8 cm disc before inserting the disc into the optical disc drive slot.

Slide the disc straight into the slot so as not to apply excessive pressure to the disc or slot.

1 Turn on the computer.

2 With the label side facing toward you, slide a disc into the optical disc drive slot.

51

nN

Using Your VAIO Computer

✍

If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled disc operation program.

To remove a disc

!

The drive eject button is disabled when your computer is turned off.

Do not remove the optical disc when your computer is in Sleep mode. Doing so may cause the computer to malfunction.

Be sure not to pull out the optical disc forcefully before it completely slides out.

1 Check that the Hard disk/Optical disc drive indicator light (1) is unlit.

2 Press the drive eject button (2) or the disc drive eject button on the wireless keyboard.

The optical disc slides out.

52

nN

Using Your VAIO Computer

✍

Alternatively, you can remove a disc with some mouse operations.
To do so, click Start and Computer, right-click the optical disc drive icon, and select Eject.

If pressing either button does not slide the disc out of the drive, restart your computer and repeat the procedure.

53

nN

Using Your VAIO Computer

Reading and Writing Optical Discs

Your computer plays and records CDs, DVDs, and Blu-ray Disc™ media, depending on the model you purchased. Check your
specifications for the type of optical disc drive installed on your model.

Use the table below to see which types of media your optical disc drive supports.

Using Your VAIO Computer

PR: playable and recordable
P: playable but not recordable
–: not playable or recordable

CD-

Video CDMusic CDCD

DVD± RW/

ROM

PPPP PRP P –

Extra

±R DL/RAM

Blu-ray Disc

PPPP

Combo

Blu-ray Disc P P P P

*1

Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1.

*2

Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2.

*3

The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.

*4

Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.

*5

Writing data to DVD+R DL (Double Layer) discs is available only on discs supporting DVD+R DL (Double Layer) recording.

*6

Writing data to DVD-R DL (Dual Layer) discs is available only on discs supporting DVD-R DL (Dual Layer) recording.

*7

Supports writing data to BD-R Version 1.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BD-RE Version 2.1
discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).

*8

Writing data to Ultra Speed CD-RW discs is not supported on the models with certain types of the Blu-ray Disc drive.

*9

BD-R stands for Blu-ray Disc-Recordable in Version 1.1 format.

*10

BD-RE stands for Blu-ray Disc-Rewritable in Version 2.1 format.

*11

The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.

*12

Playback of BD-R LTH TYPE media is supported only on the models with the Blu-ray Disc drive.

CD-R/RWDVD-

ROM

*8

PR

PR

PPP

*8

PPP

DVD­Video

BD­ROM

DVD-R/RWDVD+R/RWDVD+R DLDVD-R DLDVD-

RAM

PR

PR

PR

*1 *2

*1 *2

*1 *2

PR

PR

PR

PR

PR

PR

*5

*5

*5

PR

PR

PR

*6

PR

*6

PR

*6

PR

BD-R

RE

*3 *4

–

*3 *4P*11 *12

*3 *4

PR

54

nN

*9

/

*10

*7 *11 *12

55

nN

Using Your VAIO Computer

!

This product is designed to play back discs that conform to the Compact Disc Digital Audio standard specifications (CD Standard). A DualDisc is a two
sided disc product with a DVD recorded layer on one side and a digital audio layer on the other side. Be aware that the audio side (non-DVD side) of a
DualDisc may not play on this product because it does not conform to the CD Standard.

When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both
playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives

with discs that are not compliant with the official "CD," "DVD," or "Blu-ray Disc" standard. USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE
TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.

✍

8 cm disc writing is not supported.

Except the Blu-ray Disc drive, installed on selected models only, all other optical disc drives are capable of reading 8 cm discs with the supplied 8 cm
disc adapter.

With the supplied 8 cm disc adapter, the Blu-ray Disc drive, installed on selected models only, is capable of reading 8 cm DVD-R, DVD-RW, DVD+RW,
and DVD+R DL discs, but not 8 cm CD-ROM, DVD-RAM discs, and Blu-ray Disc media.

!

To play copyright protected Blu-ray Disc media continuously, you need to update the AACS key. Note that the AACS key update requires Internet access.

As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support
movie playback on packaged media recorded in AVC or VC1 format at high bit rates.

Region settings are required for some contents on DVDs and BD-ROM Disc media. If the region setting on the optical disc drive does not match the
region coding on the disc, playback is not possible.

Some contents may restrict video output to standard definition or prohibit analog video output. It is strongly recommended that a digital HDCP­compliant environment be implemented for optimum compatibility and viewing quality.

56

nN

Using Your VAIO Computer

Notes on writing data to a disc

❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc

drive.

❑ Do not strike or shake your computer while the optical disc drive is writing data to a disc.

❑ Do not use memory-resident utility software while the optical disc drive is writing data to a disc. This may cause your

computer to malfunction.

❑ Do not plug or unplug the power cord or the AC adapter while the optical disc drive is writing data to a disc.

Notes on playing discs

To achieve optimum performance when playing discs, you should follow these recommendations.

❑ Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW

media.

❑ Some DVD players and computer optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-R

DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.

❑ Do not place your computer into the power saving mode while your computer is playing a disc.

❑ Region code indicators are labeled on the discs or packages to indicate in which region and on what type of player you

can play the disc. Unless the region code indicates "2" (Europe belongs to region "2") or "all" (this means that you can
play this disc in most regions of the world), you cannot play the disc on your computer.

!

If you change the region code while the WinDVD or WinDVD BD software is running, restart the software or eject the disc and re-insert it to make the
new setting effective.

❑ Do not try to change the region code settings of the drive. Any difficulties caused by changing the region code settings of

the drive are not covered by the warranty.

Using Your VAIO Computer

Playing CDs

To play an audio CD

1 Insert a disc into the optical disc drive.

2 If nothing appears on the desktop, click Start, All Programs, and the desired CD software to play the CD.

If the Audio CD window appears, click to select an option.

Copying Files to CDs

To copy files to a disc

1 Insert a disc into the optical disc drive.

If the AutoPlay window appears, click Burn files to disc and follow the on-screen instructions until the empty disc folder
appears.

2 Open the folder that contains the file(s) you want to copy and drag them to the empty disc folder.

3 Close the disc folder.

57

nN

58

nN

Using Your VAIO Computer

Playing DVDs

To play a DVD

1 Close all running software applications.

2 Insert a DVD into the optical disc drive.

3 If nothing appears on the desktop, click Start, All Programs, and the desired DVD software to play the DVD.

For instructions on how to use the software, see the help file included with your DVD software.

Copying Files to DVDs

To copy files to a disc

1 Close all running software applications.

2 Insert a disc into the optical disc drive.

3 If nothing appears on the desktop, click Start, All Programs, and the desired DVD burning software to copy files to the

disc.

For instructions on how to use the software, see the help file included with your DVD burning software.

59

nN

Using Your VAIO Computer

Playing Blu-ray Disc Media

To play a Blu-ray Disc media

1 Close all running software applications.

2 Insert a Blu-ray Disc media into the optical disc drive.

3 If nothing appears on the desktop, click Start, All Programs, and the desired Blu-ray Disc software to play the disc.

For instructions on how to use the software, see the help file included with your software.

Copying Files to Blu-ray Disc Media

!

The Blu-ray Disc writing function is available on selected models only. See the online specifications to find out the type of your optical disc drive, and
then Reading and Writing Optical Discs (page 53) to find out about the supported disc media.

To copy files to a Blu-ray Disc media

1 Close all running software applications.

2 Insert a Blu-ray Disc media into the optical disc drive.

3 If nothing appears on the desktop, click Start, All Programs, and the desired Blu-ray Disc burning software to copy files

to the disc.

For instructions on how to use the software, see the help file included with your Blu-ray Disc burning software.

60

nN

Using Your VAIO Computer

Using the TV Function

Your computer may have one hybrid TV tuner board installed along with the Microsoft Windows Vista Home Premium
operating system which includes the Windows Media Center that enables TV program viewing, recording, and playback.
See the online specifications to find out about your TV tuner board configuration.

The hybrid TV-tuner supports the following broadcasts:

❑ Analog cable and terrestrial TV:

Systems: B/G/I/D/K/L/L'
Color systems: PAL and SECAM
Frequency band: 48.25 MHz - 855.25 MHz

❑ Digital terrestrial TV (DVB-T):

System: DVB-T
Video system: MPEG2

Frequency band: 48.25 MHz - 855.25 MHz

!

Any functions related to digital terrestrial television (DVB-T) will only work in countries or areas where DVB-T MPEG2* digital terrestrial TV signals are
broadcasted. Make sure you can receive a DVB-T MPEG2

* MPEG4/H.264 AVC also applies to French models sold in France when using the TV Enhance pour VAIO. See Setting up TV Enhance pour VAIO (page 68) for more

information.

*

*

signal where you live.

Using Your VAIO Computer

To connect your computer to land-based (terrestrial) or cable TV services

✍

You need to remove the back panel cover from the computer and the base stand cover from the base stand before setting up the TV connection. See

Removing and Replacing the Covers (page 21) for the procedure. For information on how to connect cables to the computer, see Connecting a Power
Source and Cables (page 26).

!

The appearance of your computer and the location of the ports may be different from those illustrated in this manual due to variations in specifications.
It may also vary in some countries or areas.

1 Connect one end of a TV coaxial cable (supplied) (1) to the VHF/UHF input port (3) on the computer.

2 Connect the other end of the cable to your TV wall outlet/cable service access (2).

61

nN

62

nN

Using Your VAIO Computer

Using the Remote Commander

If your computer supports the TV function, then a remote commander is supplied with the computer for using a wide variety
of AV related software applications, including Media Center.

Using Your VAIO Computer

A Pause X button

Press to pause media playback. Press again to resume
playback.
Stop x button
Press to stop media playback or TV recording session.
Forward M button
Press to fast-forward media at three speeds.
Skip B? button
Press to move media forward, for example, one audio track, one
DVD chapter, and 30 seconds of recorded TV or video.
Replay ?b button
Press to move media backward, for example, one audio track,
one DVD chapter, and 7 seconds of TV or video.
Rewind m button
Press to move media backward at three speeds.
Record z button
Press to begin recording.
Play N button
Press to begin media playback.

B Back button

Press to return to the previous window.

C Volume control buttons

Press to increase (+) or decrease (-) the volume.

D Recorded TV button

Press to view previously recorded TV programs.

63

nN

✍

Illustrated above is the English remote commander as an example.

64

nN

Using Your VAIO Computer

Guide button

E

Press to view the TV program guide for your area.

F Alphanumeric buttons

Press to select specific channels or enter text. (Press ENTER or
OK to activate the channel selection.)

G CLEAR button

Press to backspace and delete entered text.

H Teletext TV program mode buttons

Red button
Press to jump to the red shortcut link in teletext TV program mode.
Green button
Press to jump to the green shortcut link in teletext TV program
mode.
Yellow button
Press to jump to the yellow shortcut link in teletext TV program
mode.
Blue button
Press to jump to the blue shortcut link in teletext TV program
mode.

I APPLICATION SELECT button

Press to switch among open applications. This button works the
same as the Alt+Ta b keys.

J APPLICATION CLOSE button

Press to close the active application window.

K Sleep button

Press to place the computer into Sleep mode to reduce power
consumption.

L Start button

Press to open the Media Center Start menu.

M More button / OPTIONS button

Press to view additional options that are available for features on
software applications, such as Media Center.

N Directional arrow buttons

Press the M, m, <, and , buttons to move the pointer on the
screen.
OK button
Press to select the desired action or window option. When
watching full-screen TV, press to return to the previous channel.
Press again to switch between channels.

O Muting button

Press to turn off the sound. Press again to restore the sound.

P Channel/Page buttons

Press to change or page up/down channels (no number input
required).

Q Live TV button

Press to view TV programs.

R DVD menu button / MENU button

Press to open the main menu on the playback media, such as a
DVD media.

S Teletext TV program mode selection button

Press to activate/deactivate teletext TV program mode.

T ENTER button

Press to activate a feature or an action, such as channel selection
or a return to the previous channel. (This button's actions are
similar to using the OK button.)

nN

Using Your VAIO Computer

Before you use the remote commander

Before using the remote commander, you need to insert the supplied AA manganese batteries to enable communication
between the computer and the remote commander.

To insert batteries

1 Turn the remote commander over.

2 Slightly push down the dented area (1), slide the battery cover in the direction of the arrow, and remove the cover.

65

66

nN

Using Your VAIO Computer

3 Insert the supplied two AA batteries into the remote commander.

4 Put the battery cover back on the remote commander and slide it in the reverse direction of the arrow illustrated above

until the cover clicks into place.

✍

If the remote commander does not operate properly, you may need to replace the batteries. When the remote commander is not going to be used for
an extended period of time, remove the batteries to avoid possible damage from battery leakage.

67

nN

Using Your VAIO Computer

Setting up Windows Media Center

The first time you launch the Windows Media Center, the setup wizard will pop up. To configure the TV tuner, click Custom
setup and follow the on-screen instructions. In the Optional Setup window, click Configure tuners, TV signal, and Guide
and follow the on-screen instructions.

In case the TV tuner was not configured during the first run of the Windows Media Center, you can do this by selecting set
up TV in the TV + Movies section.

When you want to change TV input signal (TV Signal or TV Signal Type) or change location, click settings in the Tasks
section and then click TV.

Note that in this case a new channel scan needs to be done and that the previous channel list and Guide information is lost
and that scheduled timer recordings are cancelled.

nN

Using Your VAIO Computer

Setting up TV Enhance pour VAIO

The TV Enhance pour VAIO is available on French models sold in France only.

The TV Enhance pour VAIO allows you to watch and record free-to-air standard definition and high definition digital
terrestrial TV, improving your multimedia experience.

To launch the application, start the Windows Media Center and go to TNT and select:

❑ TV en direct: to start watching live TV.

❑ TV enregistrée: to access your TV recordings.

❑ Guide: to consult the electronic program guide.

❑ TV + menu: to watch live TV and have easy access to settings.

The first time you launch the TV Enhance pour VAIO, the setup wizard will pop up. Follow the on-screen instructions to
configure the application.

When you want to re-scan channels or to change location, go to the Menu and Paramètres, and then click Paramètres
signal or Rechercher les chaînes. See the help file included with the software for more information.

✍

In single tuner systems, the tuner can be used either by MCE TV or by the TV Enhance pour VAIO.

68

The supplied remote commander can also be used in the TV Enhance pour VAIO but the following buttons are reserved for the Windows Media Center:
Live TV, Recorded TV, Guide, DVD and More.

69

nN

Using Your VAIO Computer

Using the HDMI Input Function

Your computer is equipped with an HDMI INPUT port that enables you to connect a device with the HDMI output port, such
as a hard disk drive recorder, to the computer. With the HDMI Input function, the computer can receive the high-definition
video and sound outputs from the connected device and you can view and hear them on the computer without turning on your
computer and starting Windows.

!

You cannot record the HDMI input, such as a TV program, displayed on your computer or control the Windows Media Center with the HDMI Input
function.

70

nN

Using Your VAIO Computer

Using the HDMI Input Control Buttons

The HDMI input control buttons allow you to switch the display and sound input between the computer input and the HDMI
input from the connected device and change the display and sound settings for the HDMI input.

HDMI input control buttons Functions

Toggles the display and sound input between the computer input and the HDMI input from the connected
device. When the HDMI input is selected, the HDMI SELECT button and the HDMI SELECT indicator light

HDMI SELECT button

MENU button

Up/Down buttons

OK button

illuminate in green.

Displays the On-Screen Display (OSD) menu. You can change the display and sound settings for the HDMI
input with the OSD menu.

Increase (V) or decrease (v) the volume while the HDMI input is selected. While the OSD menu is displayed,
you can use these buttons to select your desired item.

Confirms your selection.

71

nN

Using Your VAIO Computer

Connecting and Using the HDMI-Compatible Device

You need to connect the HDMI-compatible device to your computer with an HDMI cable to display the HDMI input from the
device on the computer.

!

Be sure to use an HDMI cable approved by HDMI Licensing, LLC.

To connect your computer to the HDMI-compatible device

✍

You need to remove the back panel cover from the computer and the base stand cover from the base stand before setting up the HDMI connection. See

Removing and Replacing the Covers (page 21) for the procedure. For information on how to connect cables to the computer, see Connecting a Power
Source and Cables (page 26).

If you have enabled the Auto Input Sensing feature with the OSD menu, turning on the connected device automatically selects the HDMI input. For
instructions on how to enable or disable the Auto Input Sensing feature, see Changing the Display and Sound Settings for the HDMI Input (page 73).

1 Connect an HDMI cable (not supplied) to the HDMI output port on the device and the other end to the HDMI INPUT port

on the computer.

2 Turn on the connected device.

✍

You do not need to turn on your computer to switch the display input.

3 Press the HDMI SELECT button to switch the display input to the HDMI input.

The HDMI SELECT button and the HDMI SELECT indicator light illuminate in green.

✍

Unless you have switched the display input to the computer input since the last time you viewed the HDMI input on the computer, you do not need to
change the display input. If you want to change the display input, press the HDMI SELECT button.

Using Your VAIO Computer

To change the HDMI input volume

Press the Up (V) or the Down (v) button to increase or decrease the volume.

!

While the HDMI input is selected:

- You can only use the Up/Down buttons to change the volume. You cannot use the volume control buttons on the wireless keyboard or the supplied

remote commander to change the volume.

- You can only use the OSD menu to change the brightness. You cannot use the function keys on the wireless keyboard to change the brightness.

72

nN

73

nN

Using Your VAIO Computer

Changing the Display and Sound Settings for the HDMI Input

You can change the display and sound settings for the HDMI input with the OSD menu. The following shows how to change
the language mode of the OSD menu, enable or disable the Auto Input Sensing feature, and change the default SONY logo
lamp activity while the HDMI input is selected.

To select the language mode of the OSD menu

1 Press the MENU button to display the OSD menu.
2 Press the Up (V) or Down (v) button to select OPTION and then the OK button.
3 Press the Up (V) or Down (v) button to select LANGUAGE and then the OK button.
4 Press the Up (V) or Down (v) button to select the desired language and then the OK button.

To enable or disable the Auto Input Sensing feature

1 Press the MENU button to display the OSD menu.
2 Press the Up (V) or Down (v) button to select OPTION and then the OK button.
3 Press the Up (V) or Down (v) button to select INPUT SENSING and then the OK button.
4 Press the Up (V) or Down (v) button to select AUTO ON or AUTO OFF and then the OK button.

To change the default SONY lamp activity

!

You cannot change this option when the computer input is selected.

1 Press the MENU button to display the OSD menu.
2 Press the Up (V) or Down (v) button to select OPTION and then the OK button.
3 Press the Up (V) or Down (v) button to select LOGO LAMP and then the OK button.
4 Press the Up (V) or Down (v) button to select ON or OFF and then the OK button.

74

nN

Using Your VAIO Computer

Using the ExpressCard Module

Your computer is equipped with either a Universal ExpressCard slot* or an ExpressCard/34 slot* for transferring data among
digital cameras, camcorders, music players, and other audio/video devices. The former
ExpressCard/34
only an ExpressCard/34 module

(34 mm wide) or ExpressCard/54 (54 mm wide) module* as shown below and the latter can accommodate

*

only.

can accommodate either an

❑ ExpressCard/34 module

Your computer is equipped with an ExpressCard/34

* Referred to as the ExpressCard slot and the ExpressCard module in this manual.

*

❑ ExpressCard/54 module

slot*.

*

Inserting an ExpressCard Module

!

Your computer is supplied with a slot protector in the ExpressCard slot. Remove the slot protector before you use the slot.

Use care when inserting or removing the ExpressCard module from the slot. Do not force it in or out of the slot.

✍

You do not need to shut down your computer before inserting or removing the ExpressCard module.

To insert an ExpressCard module

1 Locate the ExpressCard slot (page 19).

2 Push the ExpressCard slot protector to pop it out.

3 Gently take hold of the ExpressCard slot protector and pull it out of the slot.

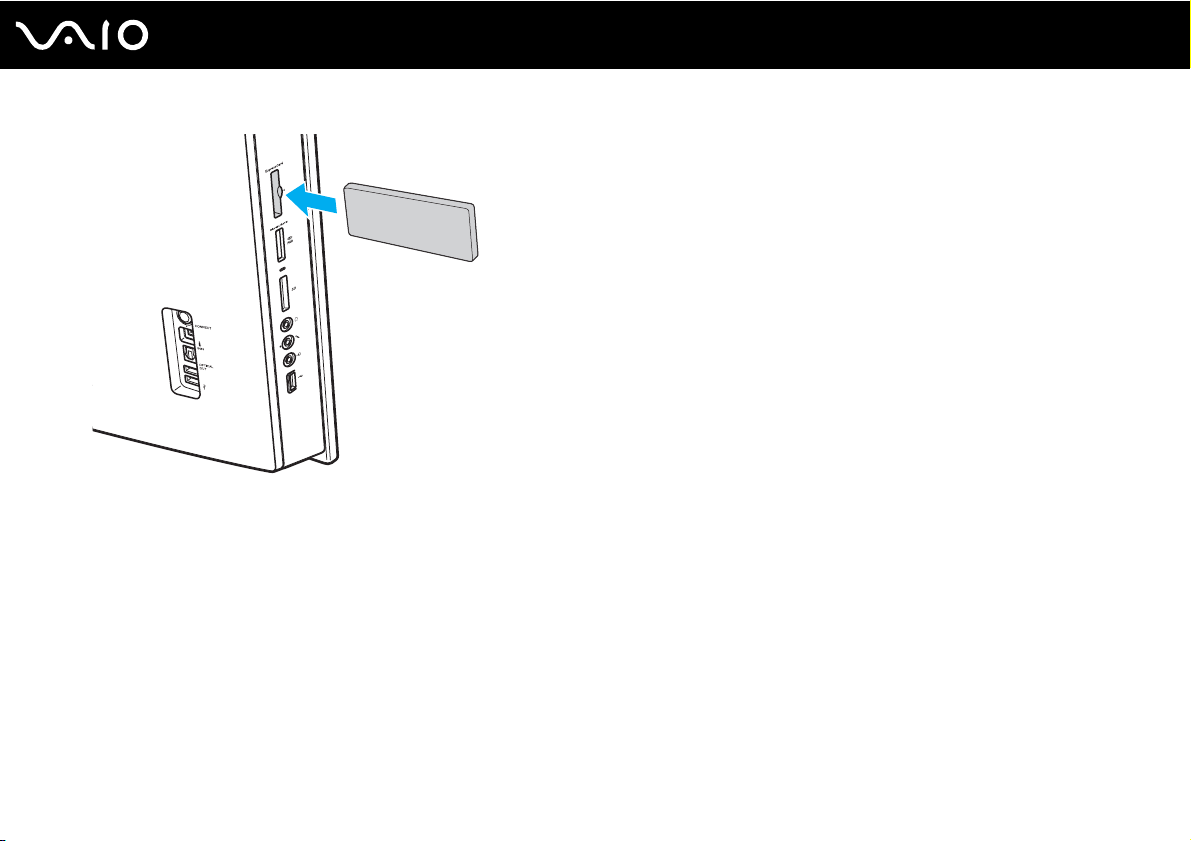

4 Carefully slide the ExpressCard module into the slot until it clicks into place.

!

Make sure that the arrow on the ExpressCard module is pointing toward the ExpressCard slot.

Do not force the ExpressCard module into the slot.

75

nN

Using Your VAIO Computer

nN

Using Your VAIO Computer

!

Insert the ExpressCard slot protector to block any particles from entering the slot when not using an ExpressCard module. Before moving your
computer, be sure to insert the ExpressCard slot protector into the slot.

✍

If the module or adapter does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

76

Make sure you use the most recent software driver provided by the ExpressCard module manufacturer.

nN

Using Your VAIO Computer

Removing an ExpressCard Module

Follow the steps below to remove the ExpressCard module while your computer is on. If it is not removed properly, your
system may not work properly.

To remove an ExpressCard module

✍

To remove an ExpressCard module when your computer is off, skip steps 1 to 4.

1 Double-click the Safely Remove Hardware icon on the taskbar.

2 Select the hardware you want to unplug.

3 Click Stop.

4 Follow the on-screen instructions to remove the ExpressCard module.

5 Push in the ExpressCard module toward the computer so that the module pops out.

6 Gently take hold of the ExpressCard module and pull it out of the slot.

77

78

nN

Using Your VAIO Computer

Using the Memory Stick

Memory Stick is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital
data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable, it can
be used for external data storage.

79

nN

Using Your VAIO Computer

Before You Use the Memory Stick

The Memory Stick slot on your computer can accommodate both standard- and Duo-size media and supports Memory Stick
PRO and Memory Stick PRO-HG Duo formats with high speed data transfer and large data capacity capabilities.

✍

You can insert a Duo-size Memory Stick directly into the Memory Stick slot without using a Memory Stick Duo adaptor.

!

Before using a Memory Stick Micro (M2), be sure to insert it into an M2 Standard-size adaptor or M2 Duo adaptor. If you insert the media directly into
the Memory Stick slot without the adaptor, you may not be able to remove it from the slot.

For the latest information about the Memory Stick, visit the Memory Stick web site at http://www.memorystick.com/en/.

!

Your computer has been tested and found compatible with Sony branded Memory Stick with capacity of up to 16 GB that are available as of May 2008.
However, not all Memory Stick that meet the same specifications as the compatible media are guaranteed of compatibility.

Inserting a Memory Stick with multiple conversion adapters is not guaranteed of compatibility.

MagicGate is the general name of the copyright protection technology developed by Sony. Use a Memory Stick with the MagicGate logo to use this
feature.

Except for your personal use, it is against the copyright law to use any audio and/or image data you recorded without prior consent from the respective
copyright holders. Accordingly, the Memory Stick with such copyrighted data can be used only within the law.

The Memory Stick slot on your computer does not support 8-bit parallel data transfer (high speed data transfer).

The Memory Stick Micro in an M2 Duo adaptor may not operate properly if it is additionally inserted into a Memory Stick Duo adaptor.

Using Your VAIO Computer

Inserting a Memory Stick

To insert a Memory Stick

1 Locate the Memory Stick slot (page 19).

2 Hold the Memory Stick with the arrow pointing toward the slot.

3 Carefully slide the Memory Stick into the slot until it clicks into place.

The Memory Stick is automatically detected by your system and the contents on the Memory Stick are displayed. If
nothing appears on the desktop, click Start, Computer, and double-click the Memory Stick icon.

80

nN

Using Your VAIO Computer

!

Be sure to hold the Memory Stick with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the
Memory Stick, do not force the Memory Stick into the slot if you cannot insert it smoothly.

Do not insert more than one Memory Stick into the slot. Improper insertion of the media may damage both your computer and the media.

To view the contents on the Memory Stick

1 Click Start and Computer to open the Computer window.

2 Double-click the Memory Stick icon to view the list of data files saved in the Memory Stick.

81

nN

Using Your VAIO Computer

To format a Memory Stick

The Memory Stick has been formatted in the factory default setting and is ready for use.
If you want to reformat the media with your computer, follow these steps.

!

Be sure to use the device that is designed to format the media and supports the Memory Stick when formatting the media.

Formatting the Memory Stick erases the entire data on the media. Before formatting the media, make sure that it does not contain your valuable data.

Do not remove the Memory Stick from the slot while formatting. This could cause a malfunction.

1 Carefully slide the Memory Stick into the slot until it clicks into place.

2 Click Start and Computer to open the Computer window.

3 Right-click the Memory Stick icon and select Format.

4 Click Restore device defaults.

!

The size of the allocation unit and file system may change.

Do not select NTFS from the File system drop-down list as it may cause a malfunction.

✍

The formatting process will be completed more quickly if you select Quick Format in Format options.

5 Click Start.

6 Follow the on-screen instructions.

82

nN

!

It may take time to format the Memory Stick depending on the media type.

Using Your VAIO Computer

Removing a Memory Stick

!

Do not remove the Memory Stick while the Media Access indicator light is lit. If you do, you may lose data. Large volumes of data may take time to
load, so make sure the indicator is unlit before removing the Memory Stick.

To remove a Memory Stick

1 Check that the Media Access indicator light is unlit.

2 Push in the Memory Stick toward the computer and release.

The Memory Stick ejects.

3 Pull the Memory Stick out of the slot.

!

Always remove the Memory Stick gently, or it may pop out unexpectedly.

83

nN

84

nN

Using Your VAIO Computer

Using the SD Memory Card

Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras,
camcorders, music players, and other audio/video devices.

Before You Use the SD Memory Card

The SD memory card slot on your computer supports the following memory cards:

❑ SD memory card

❑ SDHC memory card

❑ MultiMediaCard (MMC)

For the latest information on compatible memory cards, see Sony Support Information (page 188) to visit the appropriate
support web site.

!

Your computer has been tested and found compatible only with major memory cards available as of May 2008. However, not all memory cards that
meet the same specifications as the compatible media are guaranteed of compatibility.

Always insert the correct memory card into the SD memory card slot.

SD memory cards with capacity of up to 2 GB and SDHC memory cards with capacity of up to 32 GB have been tested and found compatible with your
computer.

The SD memory card slot on your computer does not support the high-speed data transfer feature of the SD memory card and the SDHC memory card.

Do not attempt to insert an SD memory card or SD memory card adapter of a different type into the SD memory card slot. An incompatible memory
card or memory card adapter may cause difficulty in removing from the slot and can cause damage to your computer.

Use care when inserting or removing an SD memory card from the SD memory card slot. Do not force the SD memory card in or out of the slot.

Inserting an SD Memory Card

To insert an SD memory card

1 Locate the SD memory card slot (page 19).

2 Hold the SD memory card with the arrow pointing toward the slot.

85

nN

Using Your VAIO Computer

3 Carefully slide the SD memory card into the slot until it clicks into place.

Do not force the card into the slot.

✍

If the SD memory card does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction.

Removing an SD Memory Card

!

Do not remove an SD memory card while the Media Access indicator light is lit. If you do, the card or its data may become damaged.

To remove an SD memory card

1 Check that the Media Access indicator light is unlit.

2 Push in the SD memory card toward the computer and release.

The SD memory card ejects.

3 Pull the SD memory card out of the slot.

86

nN

Using Your VAIO Computer

87

nN

Using Your VAIO Computer

Using the Internet

To use the Internet, you need to connect an external modem device, for example a USB telephone modem, an xDSL modem,
or a cable modem, to your computer. For the detailed instructions on connection setups and modem configuration, see the
manual that came with your modem.

88

nN

Using Your VAIO Computer

Using Wireless LAN (WLAN)

Using the Sony Wireless LAN (WLAN), all your digital devices with built-in WLAN function communicate freely with each other
through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless (radio)
connection. This eliminates the need to pull cables or wires through walls and ceilings.

You can communicate without an access point, which means that you can communicate with a limited number of computers
(ad-hoc). Or you can communicate through an access point, which allows you to create a full infrastructure network.

✍

In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the
WLAN function, read the wireless LAN regulations guide carefully.

*

WLAN uses the IEEE 802.11a
encryption methods: Wired Equivalent Privacy (WEP), which is a security protocol, Wi-Fi Protected Access 2 (WPA2), and Wi-Fi Protected Access

(WPA). Proposed jointly by the IEEE and Wi-Fi Alliance, both WPA2 and WPA are specifications of standards based on interoperable security
enhancements that increase the level of data protection and access control for existing Wi-Fi networks. WPA has been designed to be forward
compatible with the IEEE 802.11i specification. It utilizes the enhanced data encryption TKIP (Temporal Key Integrity Protocol) in addition to user
authentication using 802.1X and EAP (Extensible Authentication Protocol). Data encryption protects the vulnerable wireless link between clients and
access points. Besides that, there are other typical LAN security mechanisms to ensure privacy, such as: password protection, end-to-end encryption,
virtual private networks, and authentication. WPA2, the second generation of WPA, provides stronger data protection and network access control and
is also designed to secure all versions of 802.11 devices, including 802.11b, 802.11a, 802.11g, and 802.11n draft standard, multi-band and multi­mode. In addition, based on the ratified IEEE 802.11i standard, WPA2 provides government grade security by implementing the National Institute of
Standards and Technology (NIST) FIPS 140-2 compliant AES encryption algorithm and 802.1X-based authentication. WPA2 is backward compatible
with WPA.

* See the online specifications to find out whether your model supports the IEEE 802.11a standard and/or the IEEE 802.11n draft standard.

/b/g standard or the IEEE 802.11n* draft standard, which specifies the used technology. The standard includes the

89

nN

Using Your VAIO Computer

The IEEE 802.11b/g standard is a wireless LAN standard, using the 2.4 GHz bandwidth. The IEEE 802.11g standard provides high-speed
communications, faster than the IEEE 802.11b standard.

The IEEE 802.11a standard is a wireless LAN standard, using the 5 GHz bandwidth.

The IEEE 802.11n draft standard is a wireless LAN standard, using the 2.4 or 5 GHz bandwidth.

Wireless LAN devices using the 2.4 GHz bandwidth cannot communicate with devices using the 5 GHz bandwidth because the frequencies are different.

The 2.4 GHz bandwidth used by wireless LAN compatible devices is also used by other various devices. Although technologies to minimize interference
from other devices that use the same bandwidth are employed on wireless LAN compatible devices, such interference may cause lower communication

speed, narrower communication range, or broken wireless connections.

The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device
configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions.

The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the
radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.

Actual communication speed may not be as fast as the one displayed on your computer.

Deploying IEEE 802.11b and IEEE 802.11g products on the same wireless network may reduce the communication speed due to radio interference.
Taking this into consideration, the IEEE 802.11g products are designed to reduce the communication speed to ensure communications with

IEEE 802.11b products. When the communication speed is not as fast as expected, changing the wireless channel on the access point may increase
the communication speed.

90

nN

Using Your VAIO Computer

Communicating without an Access Point (Ad-hoc)

An ad-hoc network is a network in which a LAN is created only by the wireless devices themselves, with no other central
controller or access point. Each device communicates directly with other devices in the network. You can set up an ad-hoc
network easily at home.

To communicate without an access point (ad-hoc)

!

You cannot select the 5 GHz bandwidth, which is used for the IEEE 802.11a standard, on ad-hoc networks.

The IEEE 802.11n draft standard, using the 2.4 or 5 GHz bandwidth, is not available on ad-hoc networks.

1 Turn on the WIRELESS switch.

2 Click Start, All Programs, and VAIO Control Center.

3 Click Network Connections and VAIO Smart Network.

4 Click Advanced in the right pane.

✍

For information on the VAIO Smart Network software, see the help file included with the software.

5 Click the button next to or above your desired wireless option(s).

Make sure the WIRELESS indicator light turns on.

6 Click Start and Control Panel.

7 Click View network status and tasks under Network and Internet.

8 Click Set up a connection or network on the left pane.

The Set up a connection or network window appears.

9 Select an option to specify the ad-hoc network settings and click Next.

10 Follow the on-screen instructions.

91

nN

Using Your VAIO Computer

92

nN

Using Your VAIO Computer

Communicating with an Access Point (Infrastructure)

An infrastructure network is a network that extends an existing wired local network to wireless devices by providing an access
point (not supplied). The access point bridges the wireless and wired LAN and acts as a central controller for the wireless
LAN network. The access point coordinates transmission and reception from multiple wireless devices within a specific range.

The access point will select which channel to use on an infrastructure network.

!

For details on how to select the channel that will be used by the access point, see the manual that came with your access point.

Using Your VAIO Computer

To connect to a wireless network

1 Make sure an access point is set up.

See the manual that came with your access point for more information.

2 Turn on the WIRELESS switch.

3 Click Start, All Programs, and VAIO Control Center.

4 Click Network Connections and VAIO Smart Network.

5 Click Advanced in the right pane.

✍

For information on the VAIO Smart Network software, see the help file included with the software.

6 Click the button next to or above your desired wireless option(s).

Make sure the WIRELESS indicator light turns on.

7 Right-click or on the taskbar and select Connect to a network.

8 Select the desired access point and click Connect.

✍

For WPA-PSK or WPA2-PSK authentication, you must enter a passphrase. The passphrase is case sensitive and must be a text string between 8 and
63 characters in length or a hexadecimal string of 64 characters.

93

nN

Stopping Wireless LAN Communication

To stop wireless LAN communication

Click the button next to or above the WLAN icon in the VAIO Smart Network window.

!

Turning off the wireless LAN function while accessing remote documents, files, or resources may result in data loss.

94

nN

Using Your VAIO Computer

95

nN

Using Your VAIO Computer

Using the Bluetooth Function

You can establish wireless communication between your computer and other Bluetooth devices such as another computer
or a mobile phone. You can transfer data between these devices without cables at a range of up to 10 meters in an open area.

To start Bluetooth communications

1 Turn on the WIRELESS switch.

2 Click Start, All Programs, and VAIO Control Center.

3 Click Network Connections and VAIO Smart Network.

4 Click Advanced in the right pane.

✍

For information on the VAIO Smart Network software, see the help file included with the software.

5 Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.

Make sure the WIRELESS indicator light turns on.

96

nN

Using Your VAIO Computer

Notes on using the Bluetooth function

❑ The data transfer rate varies, depending on the following conditions:

❑ Obstacles, such as walls, located between devices

❑ Distance between devices

❑ Material used in walls

❑ Proximity to microwaves and cordless telephones

❑ Radio frequency interference and other environmental conditions

❑ Device configuration

❑ Type of software application

❑ Type of operating system

❑ Use of both wireless LAN and Bluetooth functions at the same time on your computer

❑ Size of file being exchanged

❑ Note that large files may occasionally be corrupted during continuous transfer due to limitations of the Bluetooth standard

and electromagnetic interference in the environment.

❑ All Bluetooth devices must be certified to make sure that the applicable standard requirements are maintained. Even if

standards are met, individual device performance, specifications, and operation procedures can vary. Data exchange may
not be possible in all situations.

❑ Video and audio may not be synchronized if you play videos on your computer with audio output from a connected

Bluetooth device. This is a frequent occurrence with Bluetooth technology and is not a malfunction.

97

nN

Using Your VAIO Computer

❑ The 2.4 GHz band, with which Bluetooth devices or wireless LAN devices work, is used by various devices. Bluetooth

devices use the technology to minimize the interference from other devices that use the same wave length. Simultaneous
use of the Bluetooth function and wireless communication devices, however, may cause radio interference and result in
reduced communication speeds and distances than the standard values.

✍

Read the Bluetooth regulations guide before using the Bluetooth function.

❑ The Bluetooth function may not work with other devices, depending on the manufacturer or the software version employed

by the manufacturer.

❑ Connecting multiple Bluetooth devices to your computer may cause bandwidth congestion, resulting in poor performance

of the devices. This is normal with Bluetooth technology and is not a malfunction.

98

nN

Using Your VAIO Computer

Bluetooth Security

The Bluetooth wireless technology has an authentication function, which allows you to determine with whom you choose to
communicate. With the authentication function, you can prevent any anonymous Bluetooth devices from accessing your
computer.

The first time two Bluetooth devices communicate, a common passkey (a password required for authentication) should be
determined for both devices to be registered. Once a device is registered, there is no need to re-enter the passkey.

✍

The passkey can be different each time, but must be the same at both ends.

For certain devices, such as a mouse, no passkey can be entered.

nN

Using Your VAIO Computer

Communicating with Another Bluetooth Device

You can connect your computer to a Bluetooth device such as another computer, a mobile phone, a PDA, a headset, a
mouse, or a digital camera without the use of any cables.

99

To communicate with another Bluetooth device

To communicate with another Bluetooth device, you first need to set up the Bluetooth function. For setting up and using the
Bluetooth function, search for Bluetooth information using Windows Help and Support. To open Windows Help and
Support, click Start and Help and Support.

Stopping Bluetooth Communications

To stop Bluetooth communications

1 Turn off the Bluetooth device that is communicating with your computer.

2 Click the button next to or above the Bluetooth icon in the VAIO Smart Network window.

100

nN

Using Your VAIO Computer
