Sony VGC-JS45SF Users guide
Operating Instructions - Hardware Guide
Personal Computer
VGC-JS Series
N
Contents
2
nN
Before Use.......................................................................... 4
Finding More about Your VAIO Computer .................... 5
Ergonomic Considerations ............................................ 7
Getting Started.................................................................... 9
Locating Controls and Ports........................................ 10
About the Indicator Lights ........................................... 14
Setting Up Your Computer .......................................... 15
Shutting Down Your Computer Safely ........................ 18
Using the Power Saving Mode.................................... 19
Updating Your Computer ............................................ 21
Using Your VAIO Computer.............................................. 22
Using the Keyboard..................................................... 23
Using the Built-in Camera ........................................... 25
Using the Optical Disc Drive ....................................... 26
Using "Memory Stick".................................................. 34
Using Other Modules / Memory Cards........................ 40
Using the Internet ........................................................ 44
Using the Network (LAN) ............................................ 45
Using the Wireless LAN .............................................. 46
Using the Bluetooth Function ...................................... 53
Using Peripheral Devices..................................................59

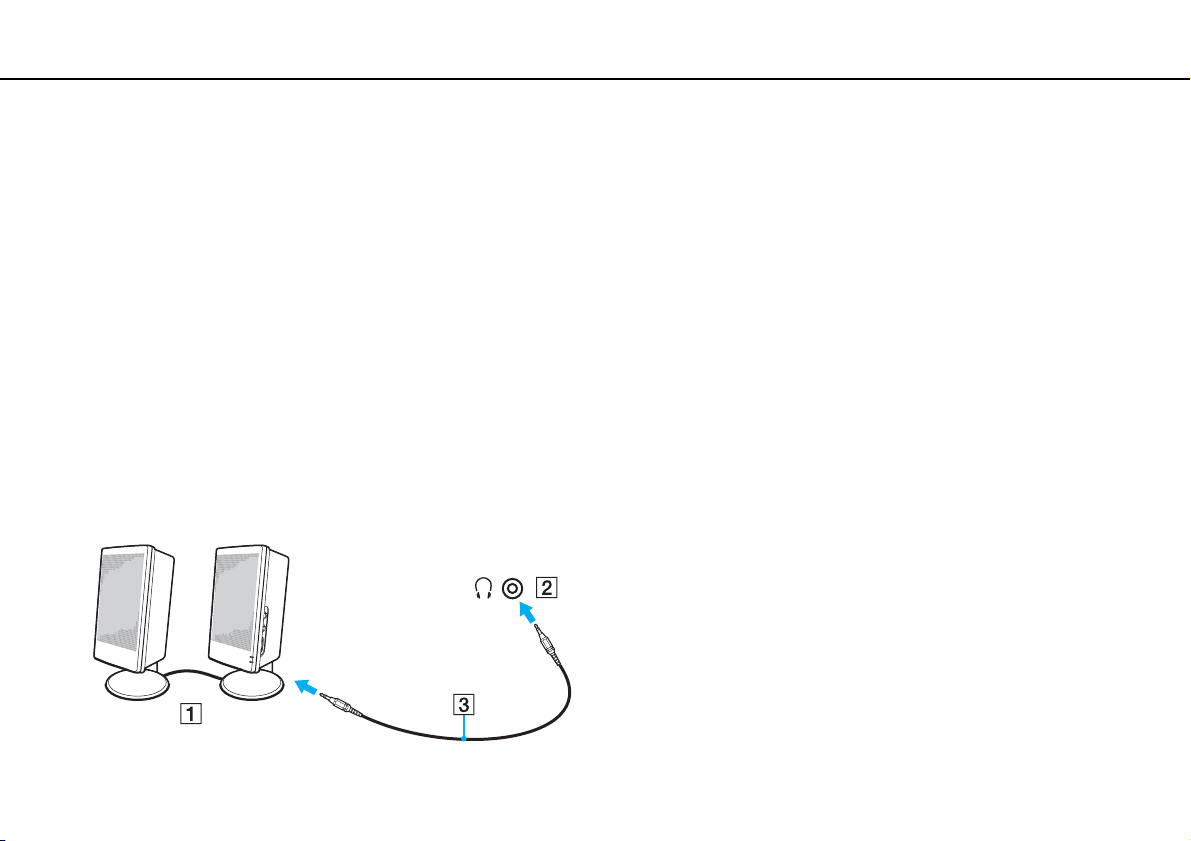

Connecting External Speakers or Headphones ..........60

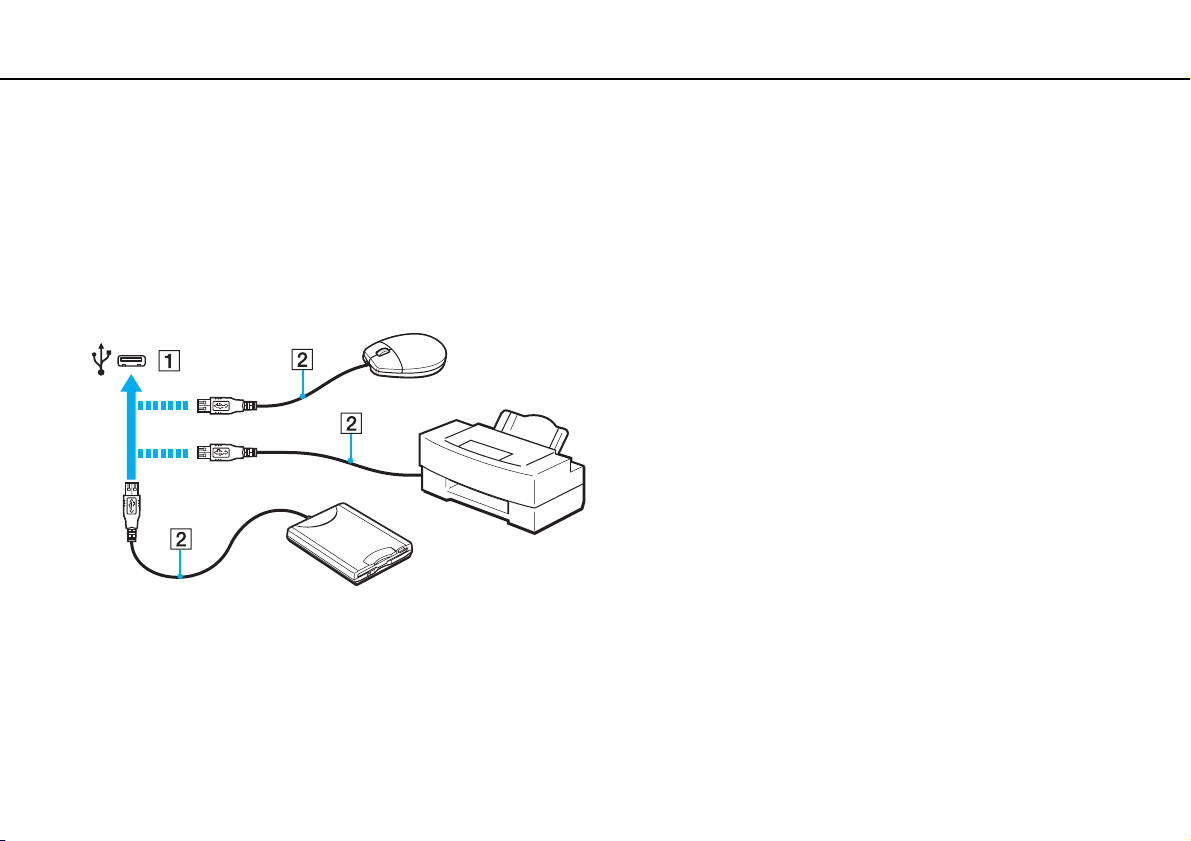

Connecting a USB Device ...........................................61
Connecting an i.LINK Device.......................................63
Customizing Your VAIO Computer....................................65
Setting the Password...................................................66
Using the VAIO Control Center ...................................71
Upgrading Your VAIO Computer.......................................72
Adding and Removing Memory ...................................73
Precautions .......................................................................79
Safety Information .......................................................80
Care and Maintenance Information .............................81
Handling Your Computer .............................................82
Handling the LCD Screen ............................................84
Using the Power Source..............................................85
Handling the Built-in Camera.......................................86
Handling Discs.............................................................87
Handling "Memory Stick" .............................................88
Handling the Built-in Storage Device ...........................89
Troubleshooting ................................................................ 90
Computer .................................................................... 91
System Security .......................................................... 96
Built-in Camera ........................................................... 97
Networking .................................................................. 99
Bluetooth Technology ............................................... 102
Optical Discs ............................................................. 106
Display ...................................................................... 110
Printing ...................................................................... 112
Microphone ............................................................... 113
Mouse ....................................................................... 114
Speakers ................................................................... 115
Keyboard................................................................... 116
Floppy Disks.............................................................. 117
Audio/Video ............................................................... 118
"Memory Stick" .......................................................... 121
Peripherals ................................................................ 122
Trademarks..................................................................... 123
Notice.............................................................................. 125
3
nN
Before Use >
nN
Before Use
Congratulations on your purchase of this Sony VAIO® computer, and welcome to the on-screen User Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide a state-of-the-art personal
computing experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
How to find specifications
Some features, options, and supplied items may not be available on your computer.
To find out about the configuration of your computer, see the Specifications (supplied with your computer).
4
Before Use >
Finding More about Your VAIO Computer
5
nN
Finding More about Your VAIO Computer
This section provides support information about your VAIO computer.
1. Printed Documentation
❑ Quick Start Guide — An overview of components connection, set-up information, etc.
❑ Specifications — The hardware configurations of your VAIO computer.
❑ Recovery and Troubleshooting Guide
❑ Safety Regulations
2. On-screen Documentation
❑ VAIO Manual — General information and technical assistance for your VAIO computer.
To access VAIO Manual, double-click VAIO Manual on the desktop.
❑ Windows Help and Support — A comprehensive resource for practical advice, tutorials, and demonstrations to help you
learn to use your computer.
To access Windows Help and Support, click Start and Help and Support, or press and hold the Microsoft Windows
key and press the F1 key.
Before Use >
Finding More about Your VAIO Computer
6
nN
3. Support Web Sites
If you have any problem with the computer, you can visit the following VAIO online web sites for troubleshooting:
❑ http://www.sony-asia.com/support/vaio/
❑ http://scs.sony.co.kr/
❑ http://service.sony.com.tw/
Before contacting VAIO Helpdesk by telephone, try to solve the problem by reading the supplied documentation and visiting
other Sony web sites.
❑ For other Sony products, visit the web site at http://www.sony.net
❑ For available optional accessories, visit the following web sites:
❑ http://vaio-online.sony.com/
❑ http://vaio-online.sony.co.kr/
❑ http://www.sonystyle.com.tw/vaio/
(Korean)
(Traditional Chinese)
(English)
(Korean)
(English)
.
(Traditional Chinese)
Before Use >
Ergonomic Considerations
Ergonomic Considerations
Whenever possible, you should attempt to take account of the following ergonomic considerations:
7
nN
❑ Position of your computer – Place the display directly in front of you. Keep your forearms horizontal, with your wrists in
a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at your
sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or
tendons.
❑ Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.
Before Use >
Ergonomic Considerations
8
nN
❑ Viewing angle of the display – Use the display's tilting feature to find the best position. You can reduce eye strain and
muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.
!
While adjusting the viewing angle, do not exert excessive pressure on your computer to eliminate a risk of mechanical damage.
❑ Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑ Venti lation – Make sure you leave at least 10 cm of space behind and at least 20 cm of space on each side of the main
unit.
Getting Started >
Getting Started
This section describes how to get started using your VAIO computer.
❑ Locating Controls and Ports (page 10)
❑ About the Indicator Lights (page 14)
❑ Setting Up Your Computer (page 15)
❑ Shutting Down Your Computer Safely (page 18)
❑ Using the Power Saving Mode (page 19)
❑ Updating Your Computer (page 21)
9
nN
Getting Started >
Locating Controls and Ports
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
Front
A LCD screen (page 84)
B Built-in microphone (monaural)
C Built-in MOTION EYE camera indicator (page 14)
D Built-in MOTION EYE camera (page 25)
E WIRELESS indicator (page 14)
F Disc drive indicator (page 14)
G Power indic ator (page 14)
H Power button
I Built-in speakers (stereo)
J Bottom chassis frame (page 80)
10
nN
Getting Started >
Locating Controls and Ports
Back
!
The area around the air vent (1) becomes hot while your computer is on. Be sure to
wait until the computer cools down before you touch it.
A Air vent
B Cable clamps (page 15), (page 16)
C Prop-up stand (page 80)
D DC IN port (page 16)
E Network (LAN) por t (page 45)
F Hi-Speed USB (USB 2.0) ports
G OPTICAL OUT port (page 60)
(Output Sampling Rate: 44.1 KHz/48.0 KHz/96.0 KHz)
H i.LINK 4-pin (S400) port (page 63)
I Memory module compartment cover (page 73)
* Support high-/full-/low- speeds.
*
(page 61)
11
nN
Getting Started >
Locating Controls and Ports
Right
A Optical disc drive (page 26)
B Manual eject hole (page 106)
C Drive eject button (page 26)
12
nN
Getting Started >
Locating Controls and Ports
Left
13
nN

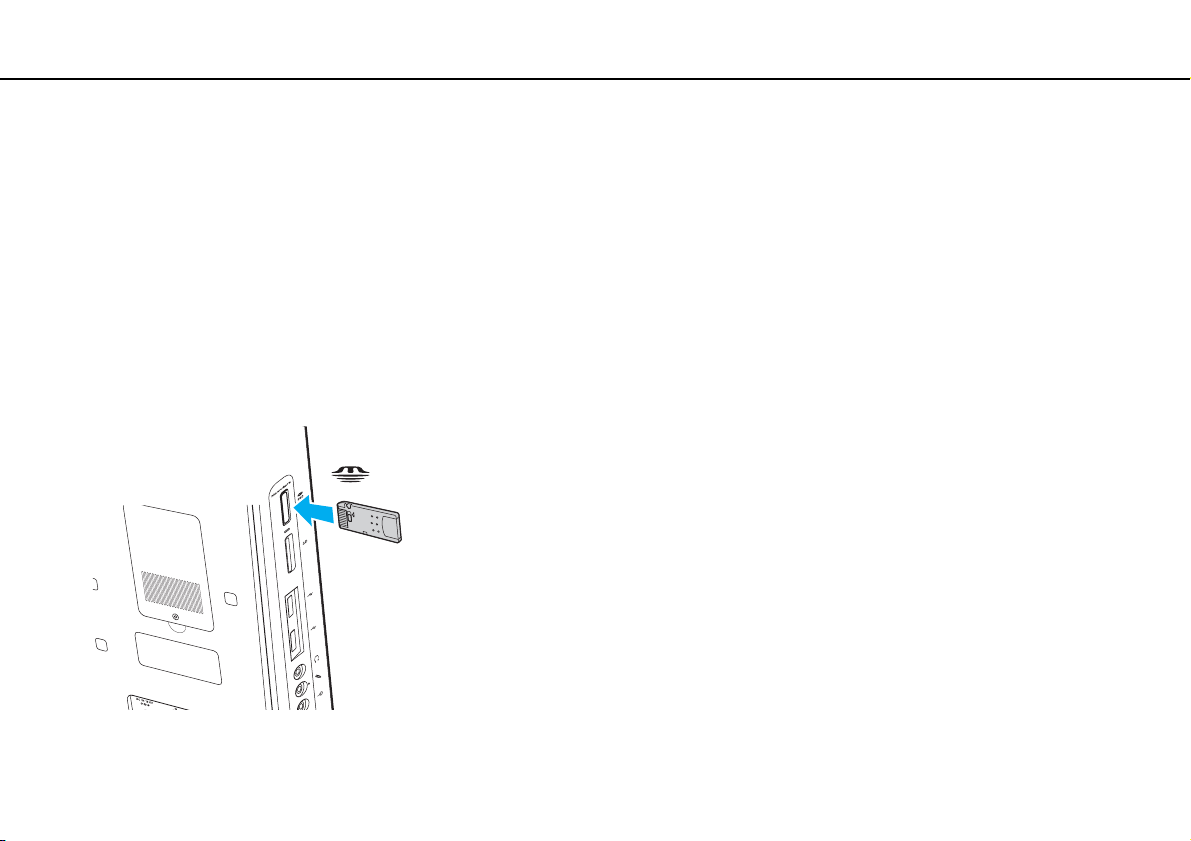

A "Memory Stick" slot*
1
(page 34)
B Media Access indicator (page 14)

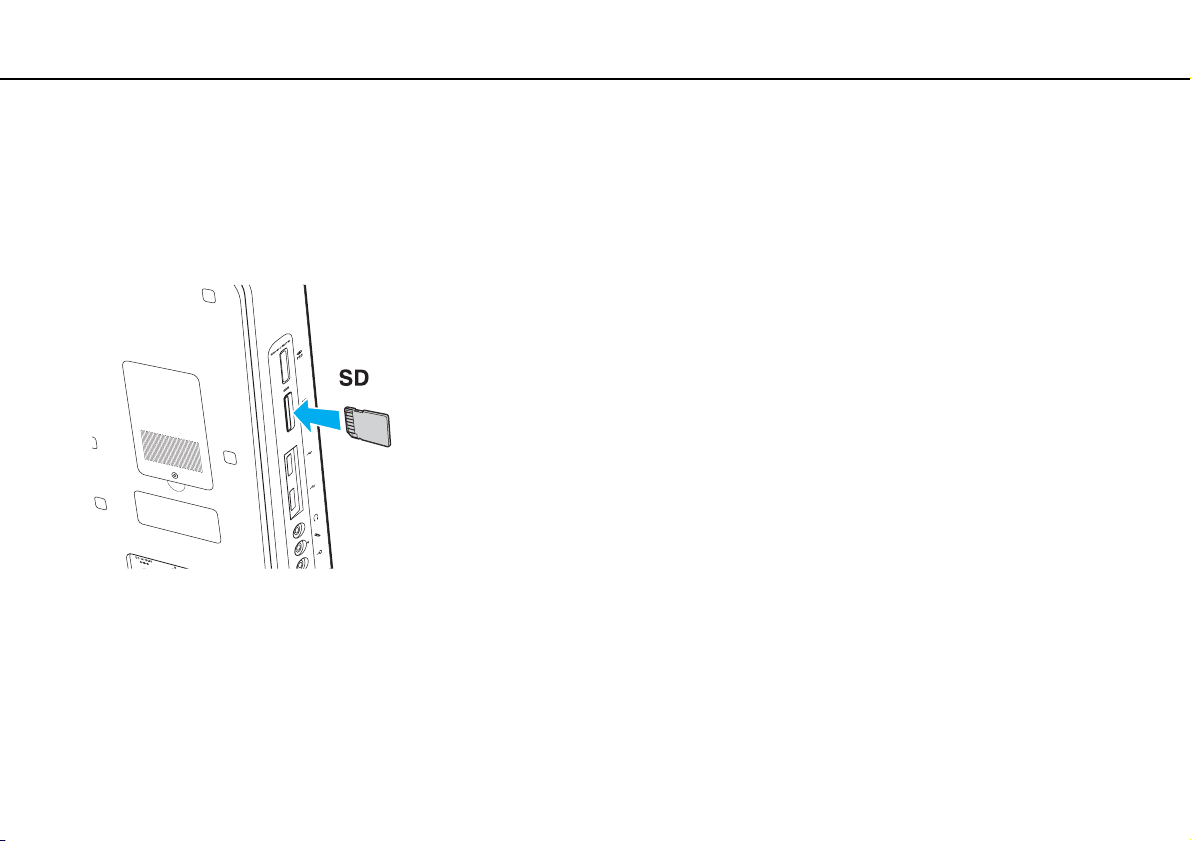

C SD memory card slot (page 40)
D Hi-Speed USB (USB 2.0) ports
*2
(page 61)
E Headphones jack (page 60)
F Microphone jack
Connect an external microphone.
G Line In jack
Connect an external audio device to receive audio signals.
H WIRELESS switch (page 46), (page 53)
*1
Your computer supports both standard-size "Memory Stick" and Duo-size
"Memory Stick".
*2
Support high-/full-/low- speeds.
Getting Started >
About the Indicator Lights
About the Indicator Lights
Your computer is equipped with the following indicator lights:
Indicator Functions
Power 1 Illuminates in green while the computer is on, illuminates in orange while the computer is in Sleep mode, and
Built-in MOTION EYE camera Illuminates while the built-in camera is in use.
Media Access Illuminates while data access to a memor y card, such as "Memory Stick" and an SD memory card, is in
Disc drive
WIRELESS Illuminates while one or more wireless options are enabled.
goes out when the computer is turned off.
progress. (Do not place the computer into Sleep mode or turn it off while this indicator light is lit.) When the
indicator light is unlit, the memory card is not in use.
Illuminates while data access to the built-in storage device or the optical disc drive is in progress. Do not place
the computer into Sleep mode or turn it off while this indicator light is lit.
14
nN
Getting Started >
Setting Up Your Computer
Setting Up Your Computer
Connecting the Keyboard and the Mouse
A USB keyboard and a USB mouse are supplied with your computer.
To connect the keyboard and the mouse
1 Plug the keyboard cable (1) and the mouse cable (2) to your desired USB ports (3) on the back of the computer.
2 Route the mouse cable (2) through the cable clamp (4) on the back of your computer.
15
nN
Getting Started >
Setting Up Your Computer
Connecting a Power Source
You need an AC adapter to connect your computer to an AC power source.
✍
Use only the supplied AC adapter for your computer.
To connect the AC adapter
1 Plug one end of the power cord (1) into the AC adapter (3).
2 Plug the other end of the power cord into an AC outlet (2).
3 Plug the AC adapter cable (4) into the DC IN port (5).
4 Route the AC adapter cable through the cable clamp (6).
16
nN
Getting Started >
Setting Up Your Computer
!
The shape of the DC In plug varies depending on the AC adapter.
✍
To disconnect your computer completely from AC power, turn off the computer and unplug the AC adapter.
17
nN
Make sure that the AC outlets are easily accessible.
!
If you unplug the AC adapter from your computer while the computer is on or in Sleep mode, you may lose all unsaved data.
Getting Started >
Shutting Down Your Computer Safely
18
nN
Shutting Down Your Computer Safely
To avoid losing unsaved data, be sure to shut down your computer properly, as described below.
To shut down your computer
1 Turn off any peripherals connected to the computer.
2 Click Start and the Shut down button.
3 Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off
automatically.
The power indicator light turns off.
Getting Started >
Using the Power Saving Mode
Using the Power Saving Mode
In addition to the normal operating mode, your computer has a distinct power saving mode called Sleep mode.
!
Turn off your computer if you do not intend to use it for a long period of time.
Mode Description
Normal mode This is the normal state of your computer while it is in use. The green power indicator light is lit while the
computer is in this mode.
Sleep mode Sleep mode turns off the LCD screen and places the built-in storage device(s) and the CPU into a low power
consumption mode. The orange power indicator light illuminates while your computer is in this mode.
19
nN
Getting Started >
Using the Power Saving Mode
20
nN
Using Sleep Mode
To activate Sleep mode
Click Start, the arrow next to the Shut down button, and Sleep.
✍
Alternatively, you can press the sleep button on the keyboard to place your computer into Sleep mode.
To return to Normal mode
❑ Press any key on the keyboard.
❑ Press the power button on your computer.
!
If you press and hold the power button for more than four seconds, your computer will turn off automatically. You will lose all unsaved data.
If the computer is not used for a certain period of time, it will enter Sleep mode. To modify this, you can change the Sleep
mode settings.
To change the Sleep mode settings
1 Click Start, Control Panel, Hardware and Sound, and Power Options.
2 Click Change plan settings under the current power plan.
3 Change the time to place the computer into Sleep mode and click Save Changes.
Getting Started >
Updating Your Computer
21
nN
Updating Your Computer
Be sure to install the latest updates on your computer with the following software applications so that the computer can run
more efficiently.
❑ Windows Update
Click Start, All Programs, and Windows Update and then follow the on-screen instructions.
❑ VAIO Update 4
Click Start, All Programs, VAIO Update 4, and Go to VAIO Web Support and then follow the on-screen instructions.
!
Your computer must be connected to the Internet to download the updates.
Using Your VAIO Computer >
Using Your VAIO Computer
This section describes how to get the most out of using your VAIO computer.
❑ Using the Keyboard (page 23)
❑ Using the Built-in Camera (page 25)
❑ Using the Optical Disc Drive (page 26)
❑ Using "Memory Stick" (page 34)
❑ Using Other Modules / Memory Cards (page 40)
❑ Using the Internet (page 44)
❑ Using the Network (LAN) (page 45)
❑ Using the Wireless LAN (page 46)
❑ Using the Bluetooth Function (page 53)
22
nN
Using Your VAIO Computer >
Using the Keyboard
Using the Keyboard
A USB keyboard is supplied with your computer.
The keyboard uses a standard key arrangement with additional keys that perform specific functions.
A Function keys
Perform certain tasks. The task associated with each function
key varies among software applications except the following
combinations with the Fn key.
Fn+F5: Decreases lighting intensity of the LCD screen.
Fn+F6: Increases lighting intensity of the LCD screen.
B Sleep button
Provides for the lower level of power consumption.
For details on power management, see Using the Power
Saving Mode (page 19).
C S1 button
Executes the task that is assigned to the button by default.
✍
Illustrated above is the English keyboard as an example.
You can change the default assignment with the VAIO Control
Center.
D Zoom buttons
Changes the size of an image or a document displayed on
some software.
Press to make the view look smaller and further away (zoom
out).
Press
See the help file included with the VAIO Control Center for
more information.
to make the view look bigger and closer (zoom in).
23
nN
Using Your VAIO Computer >
Using the Keyboard
24
nN
E Muting button
Turns the volume on and off.
F Volume control buttons
Increase (+) or decrease (-) the volume.
G Windows key
Displays the Start menu.
H E key
Ejects the optical disc drive tray when used in conjunction with the Fn
key.
I Applications key
Displays a shortcut menu in certain software applications.
J Directional arrow keys
Move the pointer on the computer screen.
K Indicator lights
(Num Lk): Turns on while in the Num Lock state.
(Caps Lock): Turns on while in the Caps Lock state.
(Scr Lk): Turns on while in the Scroll Lock state.
L Numeric keypad
Use the numeric keypad to type numbers or to perform basic
math calculations.
Using Your VAIO Computer >
Using the Built-in Camera
Using the Built-in Camera
Your computer is equipped with a built-in MOTION EYE camera.
With the preinstalled image capture software, you can perform the following operations:
❑ Capturing still images and movies
❑ Sensing and capturing object movements for monitoring purposes
❑ Editing captured data
✍
Turning on the computer activates the built-in camera.
Video conferences are possible with the appropriate software.
!
Launching or exiting your instant messaging or video editing software does not activate or deactivate the built-in camera.
Do not place your computer into Sleep mode while you are using the built-in camera.
To use the preinstalled image capture software
1 Click Start, All Programs, ArcSoft WebCam Companion 3, and WebCam Companion 3.
2 Click your desired icon in the main window.
For detailed information on how to use the software, see the help file included with the software.
25
nN
✍
When capturing an image or a movie in a dark place, click the Capture icon in the main window, and then click the WebCam Settings icon and select
the low light or low light compensation option in the properties window.
Using Your VAIO Computer >
Using the Optical Disc Drive
26
nN
Using the Optical Disc Drive
Your computer is equipped with an optical disc drive.
Features and options in this section may not be available on your computer.
See the specifications to find out about the configuration of your computer.
To insert a disc
1 Turn on the computer.
2 Press the drive eject button (1) or the Fn+E keys to open the drive.
The drive tray slides out.
3 Hold the back of the drive tray with one hand, place a disc in the middle of the drive tray with the label side facing toward
you, and gently push it toward the drive tray until the disc clicks into place.
Using Your VAIO Computer >
Using the Optical Disc Drive
!
Do not exert pressure on the drive tray. Be sure to hold the back of the drive tray when placing/removing a disc onto/from the drive tray.
4 Close the drive tray by pushing it in gently.
!
Do not remove the optical disc while your computer is in Sleep mode. Be sure to bring the computer back into Normal mode before removing the disc.
27
nN
Using Your VAIO Computer >
Using the Optical Disc Drive
Supported Disc Media
Your computer plays and records CDs, DVDs, and Blu-ray Disc™ media, depending on the model you purchased.
See the reference chart below to find out which type of optical disc drive supports which types of media.
PR: playable and recordable
P: playable but not recordable
–: not playable or recordable
CD-
Video CDMusic CDCD
ROM
DVD±RW/
±R DL/RAM
Blu-ray Disc P P P P
Blu-ray Disc
Combo
*1
The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge.
*2
Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
DVD-RAM Version 2.2/12X-SPEED DVD-RAM Revision 5.0 disc is not supported.
*3
The Blu-ray Disc drive on your computer does not support BD-RE Disc media in Version 1.0 format and Blu-ray Disc media with a cartridge.
*4
Supports writing data to BD-R Part1 Version 1.1/1.2/1.3 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB) and BDRE Part1 Version 2.1 discs (single-layer discs with the capacity of 25 GB, dual-layer discs with the capacity of 50 GB).
*5
Writing data to Ultra Speed CD-RW discs is not supported.
PPPP
PPPP
Extra
CD-R/RWDVD-
*5
PR
*5
PR
*5
PR
DVD-
ROM
P P PR PR PR PR PR – –
P P PR PR PR PR PR P
P P PR PR PR PR PR P P
DVD-R/RWDVD+R/RWDVD+R DL
Video
(Double
Layer)
DVD-R DL
(Dual
Layer)
DVD-
RAM
*1 *2
BDROM
BD-R/RE
PR
28
nN
*3
*4
Using Your VAIO Computer >
Using the Optical Disc Drive
!
This unit is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some music discs encoded with copyright
protection technologies do not conform to the Compact Disc (CD) standard. Therefore, these discs may not be compatible with this unit.
When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both
playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives
with discs that are not compliant with the official "CD," "DVD," or "Blu-ray Disc" standard. USING NON-COMPLIANT DISCS CAN CAUSE FATAL DAMAGE
TO YOUR VAIO PC OR CREATE SOFTWARE CONFLICTS AND CAUSE SYSTEM HANGING.
For inquiries about disc formats, contact the individual publisher of the pre-recorded disc or the manufacturer of the recordable disc.
✍
8 cm disc writing is not supported.
!
To play copyright protected Blu-ray Disc media continually, update the AACS key. The AACS key update requires Internet access.
As with other optical media devices, circumstances may limit compatibility or prevent Blu-ray Disc media playback. VAIO computers may not support
movie playback on packaged media recorded in AVC or VC1 formats at high bit rates.
Region settings are required for some contents on DVD and BD-ROM Disc media. If the region setting on the optical disc drive does not match the
region coding on the disc, playback is not possible.
Some contents may restrict video output to standard definition or prohibit analog video output. When you output video signals through digital
connections, such as an HDMI connection or a DVI connection, it is strongly recommended that a digital HDCP compliant environment be implemented
for optimum compatibility and viewing quality.
29
nN
Exit all memory-resident utility software before playing or writing a disc as it may cause the computer to malfunction.
Using Your VAIO Computer >
Using the Optical Disc Drive
30
nN
Notes on Using the Optical Disc Drive
Notes on writing data to a disc
❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc
drive.
❑ Do not strike or shake your computer while the optical disc drive is writing data to a disc.
❑ Do not plug or unplug the power cord or the AC adapter while the optical disc drive is writing data to a disc.
Notes on playing discs
To achieve optimum performance of disc playback, you should follow these recommendations:
❑ Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW
media.
❑ Some DVD players and computer optical disc drives may not be able to play DVDs created with the DVD+R DL, DVD-R
DL, DVD+R, DVD+RW, DVD-R, DVD-RW, or DVD-RAM media.
❑ Depending on system environment, you may find sound interruptions and/or dropped frames during AVC HD playback.
❑ Do not place your computer into the power saving mode while your computer is playing a disc.
Loading...
