Sony UTXP11 Users Manual [en, fr]

3-870-284-11 (1)

Wireless
Microphone System

The supplied CD-ROM includes the Operating Instructions for the UWP-V1/
V2/V6/X7/X8 Wireless Microphone System (English, French, German, Italian,
and Spanish versions). For more details, see “Using the CD-ROM Manual” on
page 20.

Operating Instructions

UWP-V1/V2/V6
UWP-X7/X8

©2008 Sony Corporation

For the UTX-B2/H2/P1
Transmitters

Owner’s Record

The model and serial numbers are located at
the rear or on the bottom of the unit. Record
the model and serial numbers in the space
provided below.
Refer to these numbers whenever you call
upon your Sony dealer regarding this
product.
Model No. _____________________
Serial No. _____________________

IMPORTANT

The name plate is located on the bottom and
the serial number is located inside the
battery compartment (UTX-P1).

IMPORTANT

La plaquette signalétique est posée sur le
dessous de l’appareil et le numéro de série
dans le logement des piles (UTX-P1).

WICHTIG

Am Boden des Geräts befindet sich das
Typenschild und die Seriennummer
befindet sich innen im Batteriefach (UTX­P1).

IMPORTANTE

La targhetta con il nome si trova sul fondo e
il numero di serie si trova all’interno del
vano pile (UTX-P1).

IMPORTANTE

La placa de caracteristicas se encuentra en
la parte inferior y el número de serie está en
el interior del compartimiento de pilas
(UTX-P1).

Notice for customers in the
U.S.A.

Use of Sony wireless devices is regulated
by the Federal Communications
Commission as described in Part 74 subpart
H of the FCC regulations and users

authorized thereby are required to obtain an
appropriate license.

You are cautioned that any changes or
modifications not expressly approved in
this manual could void your authority to
operate this equipment.

IMPORTANT NOTE: To comply with
the FCC RF exposure compliance
requirements, no change to the antenna or
the device is permitted.
Any change to the antenna or the device
could result in the device exceeding the RF
exposure requirements and void user’s
authority to operate this device.

This device complies with FCC radiation
exposure limits set forth for uncontrolled
equipment and meets the FCC radio
frequency (RF) Exposure Guidelines in
Supplement C to OET65. This device has
very low levels of RF energy that it is
deemed to comply without testing of
specific absorption ratio (SAR).

Notice for customers in Canada:

Use of Sony wireless devices is regulated
by the Industry Canada as described in their
Radio Standard Specification RSS-123.
A licence is normally required. The local
district office of Industry Canada should
therefore be contacted. When the operation
of the device is within the broadcast band,
the licence is issued on no-interference,
noprotection basis with respect to broadcast
signals.

Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.

The term “IC” before the radio certification
number only signifies that Industry Canada
technical specifications were met.

2

Remarque à l’intention des
utilisateurs au Canada:

L’usage des appareils sans fil Sony est
réglementé par l’Industrie Canada comme
décrit dans leur Cahier des Normes
Radioélectriques CNR-123.
Une licence est normalement requise.
Le bureau de l’Industrie Canada doit être
contacté. Lorsque le fonctionnement de
l’appareil respecte les limites de la bande de
radiodiffusion, la licence est accordée sur la
base d’une non-interférence, non­protection pour les signaux de
radiodiffusion.

L’utilisation doit répondre aux deux
conditions suivantes : (1) ce matériel ne doit
pas provoquer de brouillage et (2) il doit
accepter tout brouillage, même celui qui est
susceptible d’affecter son fonctionnement.

La mention « IC: » devant le numéro de
certification/ homologation signifie
uniquement que les spécifications
techniques d’Industrie Canada sont
remplies.

Für Kunden in Deutshland (UTX­B2/H2/P1)

Entsorgungshinweis: Bitte werfen Sie nur
entladene Batterien in die Sammelboxen
beim Handel oder den Kommunen.
Entladen sind Batterien in der Regel dann,
wenn das Gerät abschaltet und signalisiert
“Batterie leer” oder nach längerer
Gebrauchsdauer der Batterien “nicht mehr
einwandfrei funktioniert”. Um
sicherzugehen, kleben Sie die Batteriepole
z.B. mit einem Klebestreifen ab oder geben
Sie die Batterien einzeln in einen
Plastikbeutel.

Notice for customers in Europe

Notification aux clients
européens

Hinweis für die Kunden in
Europa

Avvertenza per gli utilizzatori in
Europa

Aviso para los clientes de
Europa

Nota para utilizadores da Europa

Mededeling voor de klanten in
Europa

Att observera för kunder i
Europa

Meddelelse til kunderne i Europa

Huomautus Euroopassa asuville
asiakkaillemme

Για τους πελάτες στην Eυρώπη

U.K. 854.125 - 862 MHz
Germany 790 - 814 MHz
Norway 800 - 820 MHz
Luxembourg 800 - 830 MHz, 854.125

- 862 MHz
Belgium 854.125 - 862 MHz
Denmark 800.100 - 819.900 MHz
France 798 - 830 MHz
Italy 800 - 820 MHz
Sweden 800 - 820 MHz
Switzerland 800 - 820 MHz
Finland 800.100 - 819.900 MHz
Iceland 800 - 814 MHz
Turkey 470 - 862 MHz

Hereby, Sony Corporation, declares that
this UTX-B2/H2/P1 is in compliance with
the essential requirements and other
relevant provisions of the Directive 1999/5/
EC.

3

UWP-V6

The UWP-V6 consists of a plug-on transmitter (UTX-P1), a body-pack transmitter (UTX­B2), a portable diversity tuner (URX-P2), and their accessories. When used in conjunction
with a compact camcorder, the UWP-V6 makes a mobile system for ENG (Electronic News
Gathering) or EFP (Electronic Field Production) purposes.

Plug-on transmitter
(UTX-P1) (1)

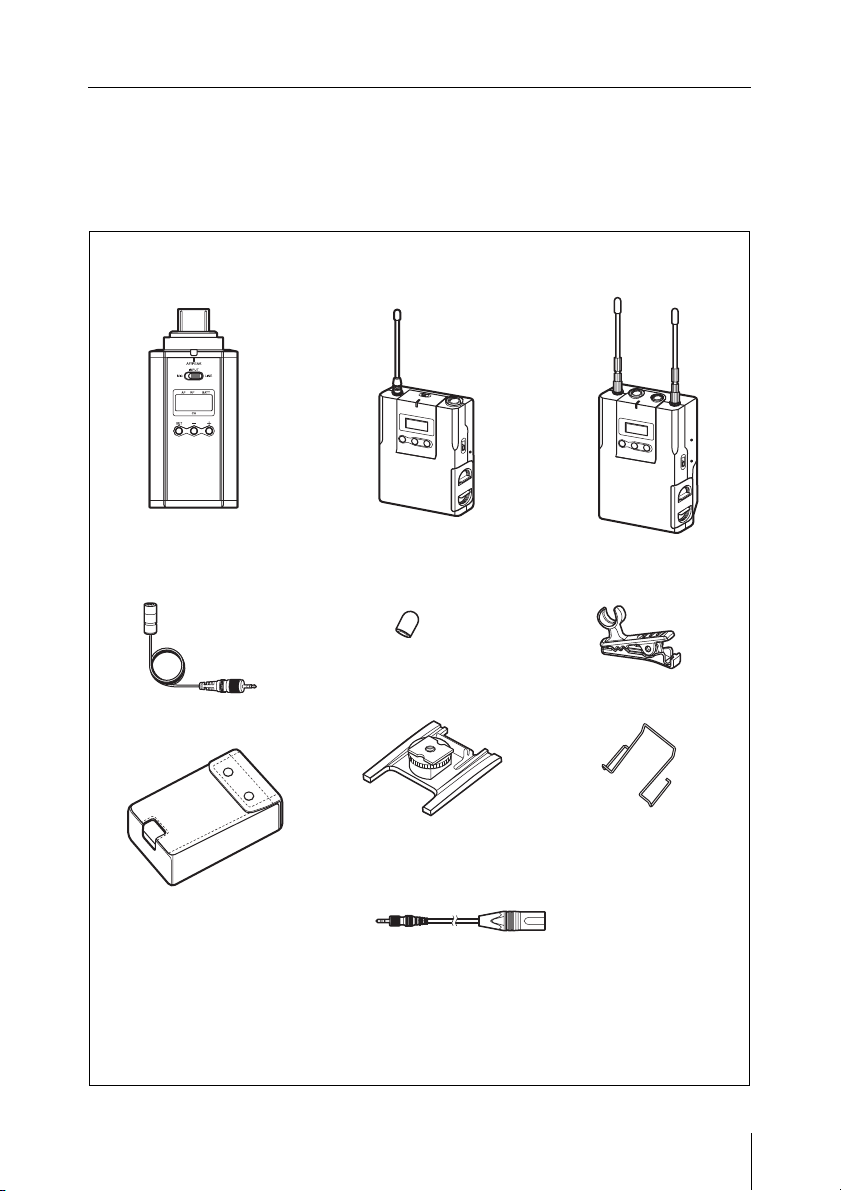

Supplied accessories

Omni-directional lavalier
microphone (1)

Soft case (1)

Body-pack transmitter
(UTX-B2) (1)

Wind screen (1)

Shoe mount adapter (1)

Portable diversity tuner
(URX-P2) (1)

Holder clip (1)

Belt clip (2)

XLR-BMP conversion output cable for the
URX-P2 (1)

Stereo mini plug-BMP
conversion cable (1)

Operating Instructions (1)
CD-ROM (1) (for U30, U42, CE62, and CE67 models)
Warranty card (1) (for U30 and U42 models)

Configuration of the Packages

15

Using the CD­ROM Manual

The supplied CD-ROM includes Operating
Instructions for the UWP series (English,
French, German, Italian, and Spanish
versions).

Preparations

This opens the PDF file of the
operation manuals.

The files may not be displayed properly,
depending on the version of Acrobat
Reader. In such a case, install the latest
version you can download from the URL
mentioned in “Preparations” above.

Note

If you have lost or damaged the CD-ROM,
you can purchase a new one to replace it.
Contact your Sony service representative.

The following program must be installed on
your computer in order to read the
Operating Instructions contained on the
CD-ROM.

• Adobe Reader Version 6.0 or higher

If Adobe Reader is not installed, you can
download it from the following URL:
http://www.adobe.com/

Adobe and Adobe Reader are trademarks of
Adobe Systems Incorporated in the United States
and/or other countries.

Reading the CD-ROM
manual

To read the operation manuals contained on
the CD-ROM, do the following.

1 Insert the CD-ROM in your CD-ROM

drive.

A cover page appears automatically in
your browser.
If it does not appear automatically in
the browser, double-click on the
index.htm file on the CD-ROM.

Reading the Sony Wireless
Microphone System
Frequency List

The frequency lists for U30 and U42
models (for the U.S.A.) and CE62 and
CE67 models (for Europe) are contained in
the CD-ROM disc. To read the frequency
lists, do the following.

1 Insert the CD-ROM in your CD-ROM

drive.

A cover page appears automatically in
your browser.

2 Select and click on the frequency list

that you want to read.

This opens the PDF file of the
frequency list.

2 Select and click on the Operating

Instructions that you want to read.

Using the CD-ROM Manual

20

Important Notes
on Use

On usage and storage

• The UWP series components must be
used within a temperature range of 0°C to
40°C (32°F to 104°F).

• Operating the UWP series components
near electrical equipment (motors,
transformers, or dimmers) may cause it to
be affected by electromagnetic induction.
Keep the UWP series components as far
from such equipment as possible.

• The presence of the lighting equipment
may produce electrical interference over
the entire frequency range. Position the
UWP series components so that
interference is minimized.

• To avoid degradation of the signal to­noise ratio, do not use the UWP series
components in noisy places or in
locations subject to vibration, such as the
following:

- near electrical equipment, such as
motors, transformers or dimmers

- near air conditioning equipment or
places subject to direct air flow from
an air conditioner

- near public address loudspeakers

- where adjacent equipment might
knock against the tuner

Keep the UWP series components as far
from such equipment as possible or use
buffering material.

or any other chemicals, since these may mar
the finish.

To prevent electromagnetic
interference from portable
communication devices

The use of portable telephones and
other communication devices near
the UWP series components may
result in malfunction and interference
with audio signals. It is recommended
that portable communication devices
near the UWP series components be
turned off.

On cleaning

Clean the surface and the connectors of the
UWP series components with a dry, soft
cloth. Never use thinner, benzene, alcohol

Important Notes on Use

51

Specifications

Design and specifications are subject to
change without notice.

Note

Always verify that the unit is operating
properly before use. SONY WILL NOT
BE LIABLE FOR DAMAGES OF ANY
KIND INCLUDING, BUT NOT
LIMITED TO, COMPENSATION OR
REIMBURSEMENT ON ACCOUNT
OF THE LOSS OF PRESENT OR
PROSPECTIVE PROFITS DUE TO
FAILURE OF THIS UNIT, EITHER
DURING THE WARRANTY PERIOD
OR AFTER EXPIRATION OF THE
WARRANTY, OR FOR ANY OTHER
REASON WHATSOEVER.

Transmitters (UTX-B2/H2/
P1)

Items common to all
transmitters

Oscillator type

Crystal-controlled PLL synthesizer

Carrier frequencies

Model available in USA: 758 to 806

MHz

Model available in Europe: 798 to

862 MHz

Model available in Australia: 792 to

806 MHz

Operating frequency band

Model available in USA and

Europe: 24 MHz BW

Model available in Australia: 14

MHz BW

Pre-emphasis

50 µs

Frequency characteristics

50 Hz to 18 kHz

Signal-to-noise ratio

60 dB or more

Tone signal

32 kHz

Attenuation

0 to 21 dB, in 3-dB steps

Display

Channel, frequency, audio level,

RF level, accumulated battery
use time

Power requirements

3.0 V DC (two LR6/AA size
alkaline batteries)

Battery life

Approx. 6 hours (measured with

two Sony LR6/AA size alkaline
batteries at 25°C (77°F), with
output power of 30 mW)

Body-pack transmitter (UTX­B2)

Antenna

λ wave length wire

1/4

Audio input connector

3.5-mm dia. mini jack

Audio input level

–60 dBV to –39 dBV

RF output level

30 mW/5 mW selectable

Reference deviation

±5 kHz

Distortion

1.0% or less

Indicator

Power on

52

Specifications

Dimensions

63 × 83 × 20 mm (2 1/2 × 3 3/8 × 13/

inches) (w/h/d) (excluding

16

the antennas)

Mass Approx. 145 g (5.1 oz) including

batteries

Hand-held microphone (UTX­H2)

Microphone unit

Dynamic

Directivity

Unidirectional

Antenna

λ wave length wire (internal)

1/4

RF output level

30 mW/5 mW selectable

Reference deviation

±5 kHz

Distortion

1.0% or less

Indicator

Power on

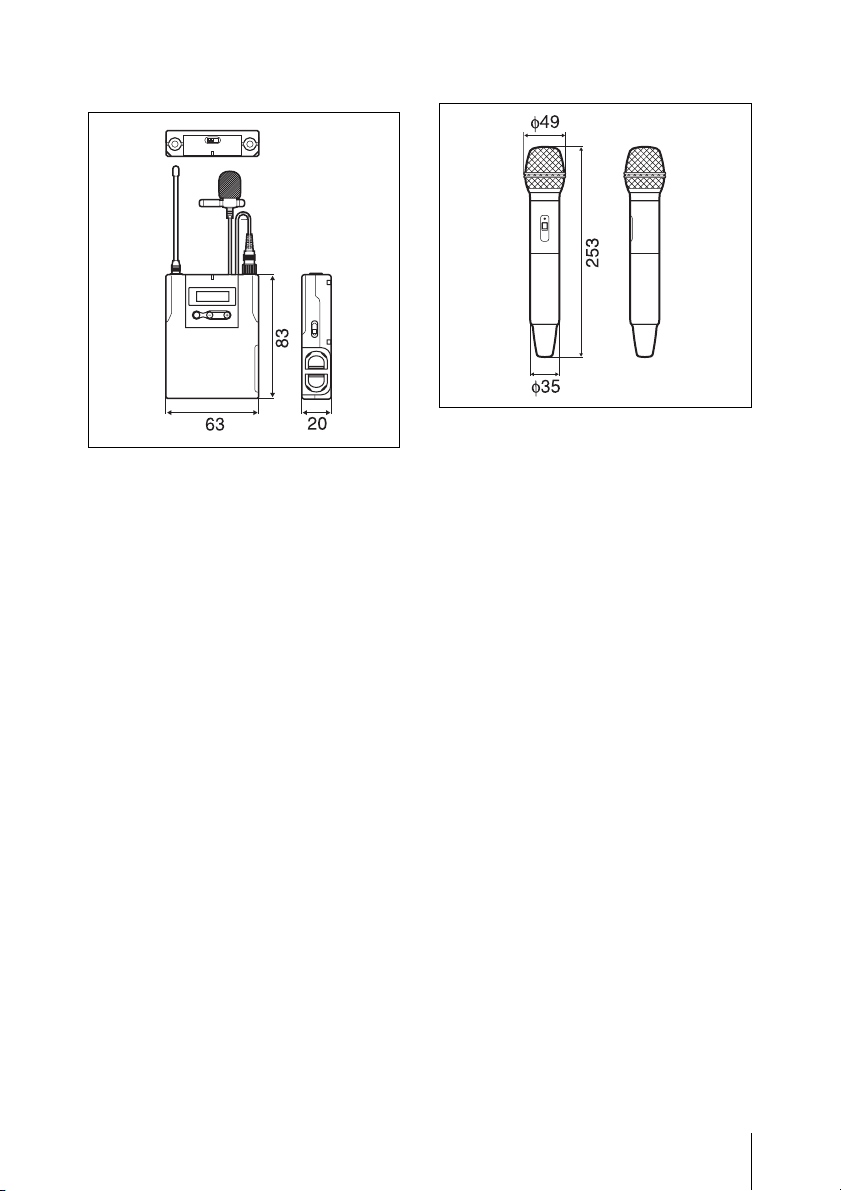

Dimensions

15

φ 49 × 253 mm (1

(dia/length)

Mass Approx. 300 g (11 oz) including

batteries

/16 × 10 inches)

Plug-in transmitter (UTX-P1)

RF output level

50 mW

Reference deviation

±10 kHz

Maximum deviation

±40 kHz

Distortion

1.0% or less at 1 kHz, –60 dBV
(MIC INPUT)

Audio reference level

Mic: –60 dBV
Line: +4 dBu

Audio input connector

XLR-3-11type

Indicator

AF/PEAK level

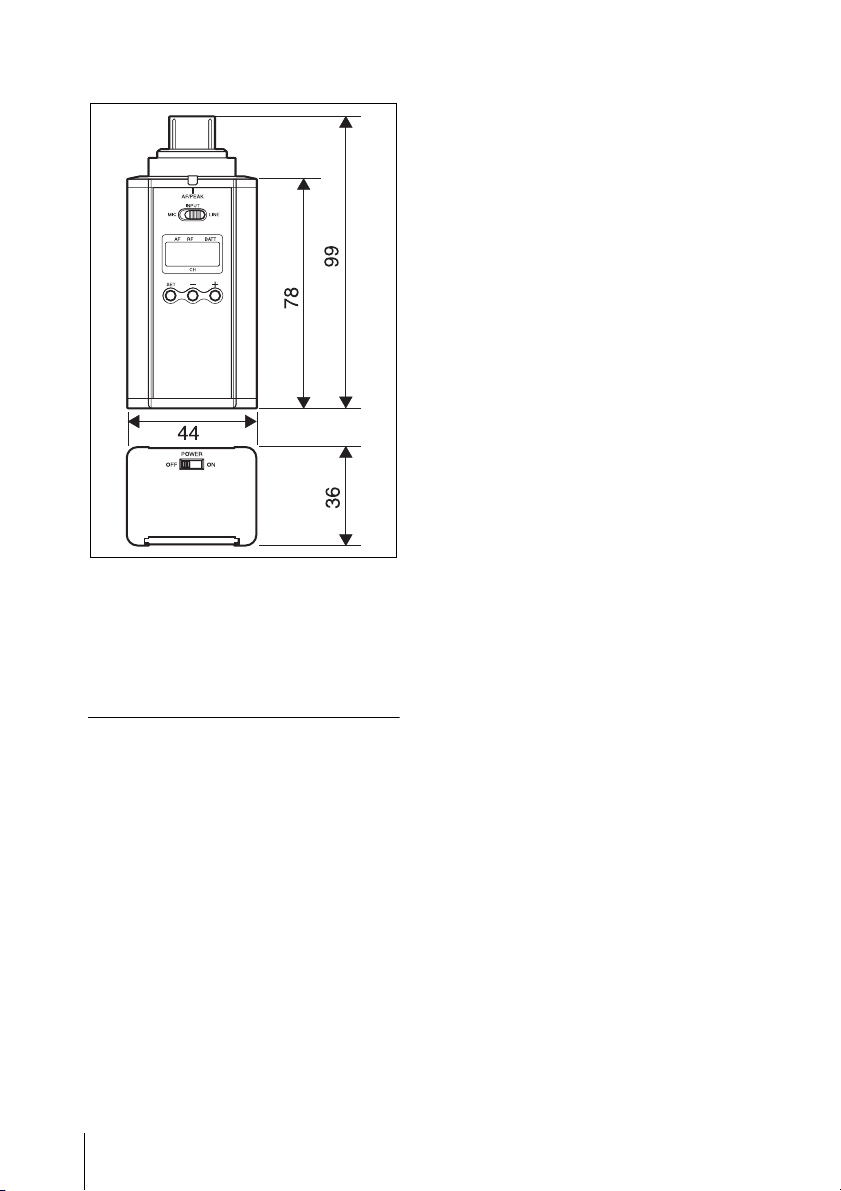

Dimensions

Specifications

53

44 × 99 × 36 mm (1 3/4 × 4 × 1 7/16

inches) (w/h/d) (including the
audio input connector)

Mass Approx. 185 g (6.5 oz) including

batteries

Tuners (URX-P2/M2)

Items common to all tuners

Type of reception

Space diversity

Oscillator type

Crystal-controlled PLL synthesizer

Reception frequencies

Model available in USA: 758 to 806

MHz

Model available in Europe: 798 to

862 MHz

Model available in Australia: 792 to

806 MHz

Operating frequency band

Model available in USA and

Europe: 24 MHz BW

Model available in Australia: 14

MHz BW

Signal-to-noise ratio

60 dB or more

De-emphasis

50 µs

Reference deviation

±5 kHz

Frequency characteristics

50 Hz to 18 kHz

Distortion

1.0% or less at 1 kHz modulation

Tone signal

32 kHz

Indicator

RF input level

Portable diversity tuner (URX­P2)

Antenna

1/4

λ wave length wire

Squelch level

25 dBµ

Audio output level

–58 dBm

Audio output connector

3.5 mm dia. mini jack

Headphones output level

5 mW (16 ohms)

Display

Channel, frequency, audio level,

RF level,accumulated battery
use time, monitor level

Power requirements

3.0 V DC (two LR6/AA size
alkaline batteries)

Battery life

Approx. 6 hours (measuredwith

two Sony LR6/Assizealkaline
batteries at 25 °C (77°F))

Dimensions

54

Specifications

Sony Corporation
Printed in Korea
