Sony Trinitron KV-HW212 User Manual

2-177-672-12 (1)

Trinitron Color TV

Operating Instructions

• Before operating the unit, please read this manual thoroughly and retain it for future reference.

Инструкция по эксплуатации

• Перед работой с устройством внимательно прочтайте инструкцию и сохраните её для дальнейшего использования.

KV-HW212

M95 M91

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

• Do not plug in the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the remote if you are not going to use it for several days. If any liquid leaks from the batteries and touches your skin, immediately wash it away with water.

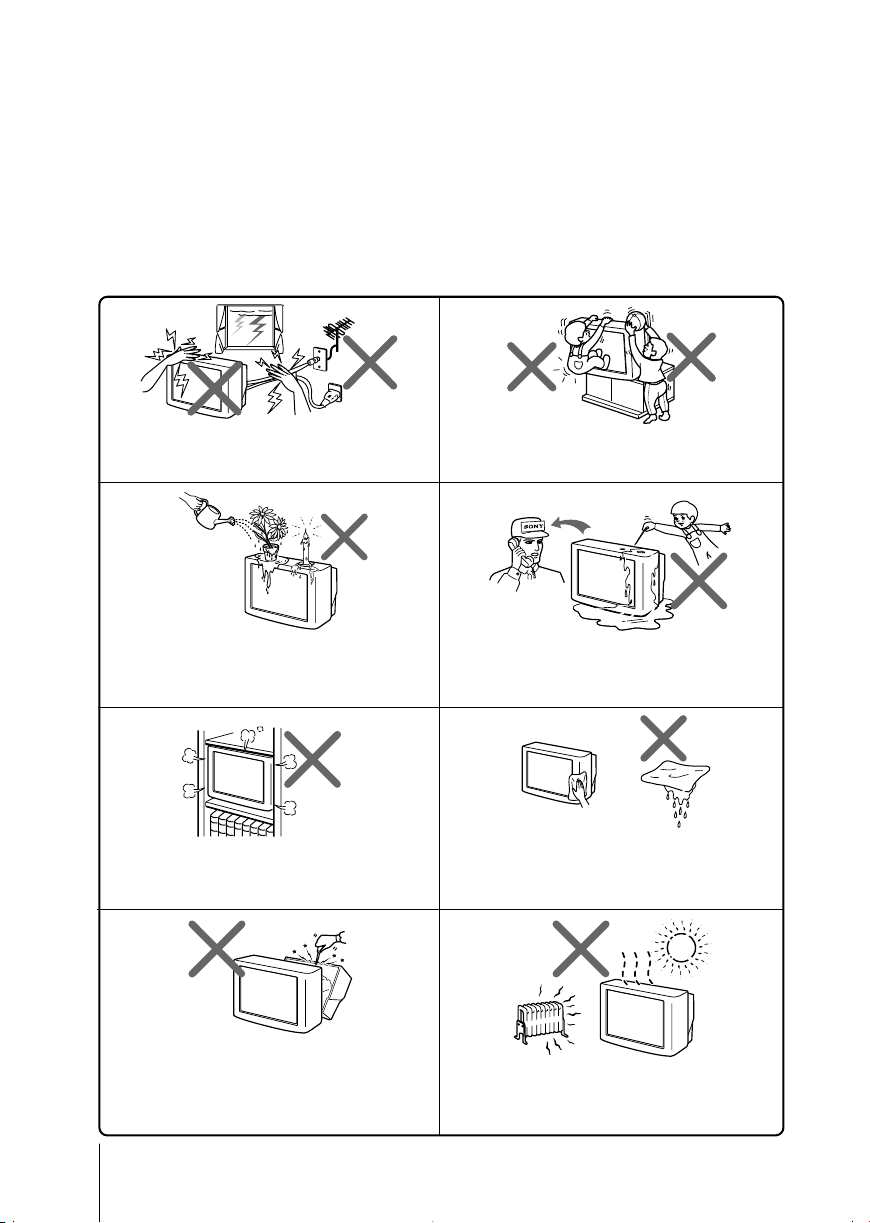

For your own safety, do not touch any part of the TV, the power cord and the antenna cable during lightning storms.

Do not place any objects on the TV. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not block the ventilation openings of the TV. Do not install the TV in a confined space, such as a bookcase or built-in cabinet.

For children’s safety, do not leave children alone with the TV. Do not allow children to climb onto it.

Do not operate the TV if any liquid or solid object falls into it. Have it checked immediately by qualified personnel only.

Clean the TV with a dry and soft cloth. Do not use benzine, thinner, or any other chemicals to clean the TV. Do not attach anything (e.g., adhesive tape, cellophane tape, glue) on the painted cabinet of the TV. Do not scratch the picture tube.

Do not open the cabinet and the rear cover of the TV as high voltages and other hazards are present inside the TV. Refer servicing and disposal of the TV to qualified personnel.

Your TV is recommended for home use only. Do not use the TV in any vehicle or where it may be subject to excessive dust, heat, moisture or vibrations.

To prevent fire or shock hazard, do not expose the TV to rain or moisture.

Install the TV on a stable TV stand and floor which can support the TV set weight. Ensure that the TV stand surface is flat and its area is larger than the bottom area of the TV.

Made in Malaysia.

Sony Corporation 6-7-35 Kitashinagawa, Shinagawa-ku, Tokyo, 141-0001 Japan.

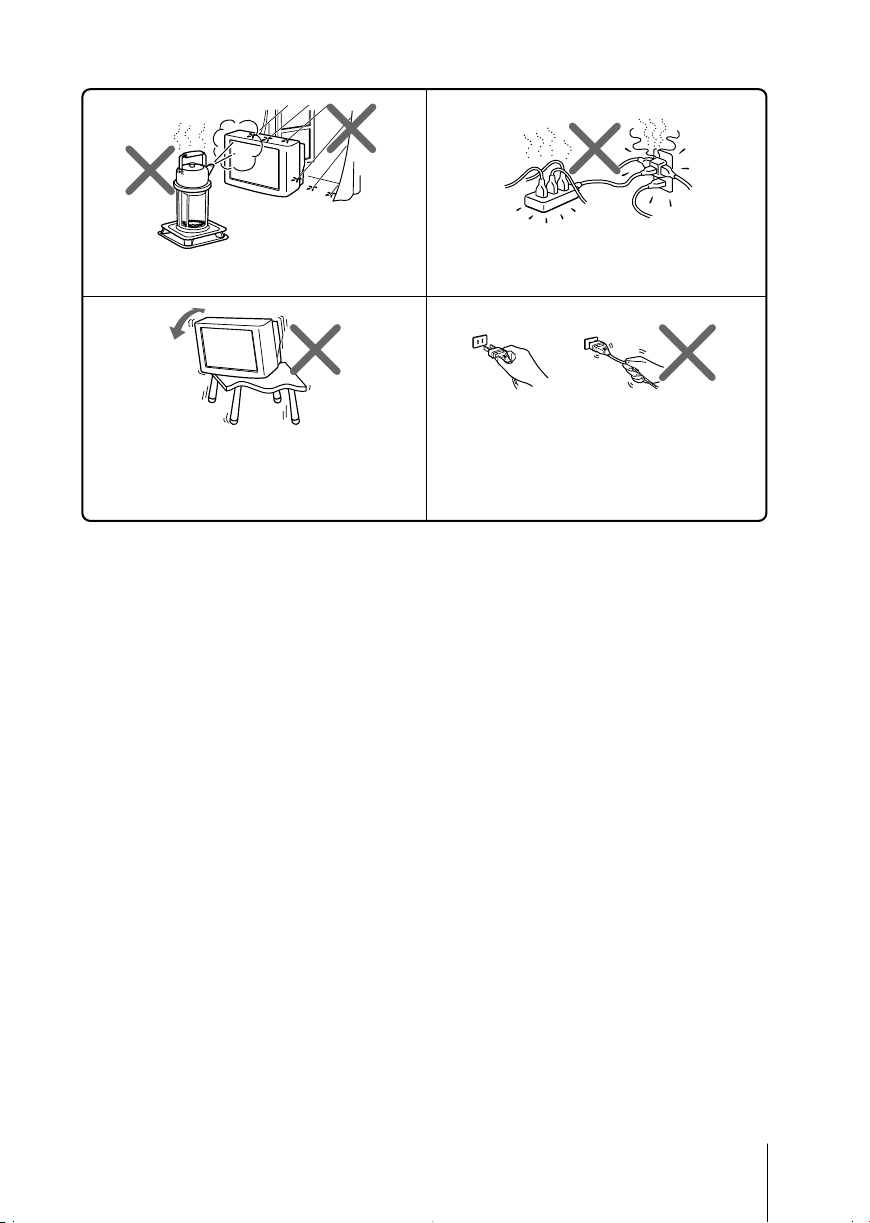

Do not plug in too many appliances to the same power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull the power cord itself. Even if your TV is turned off, it is still connected to the AC power source (mains) as long as the power cord is plugged in. Unplug the TV before moving it or if you are not going to use it for several days.

x Securing the TV

To prevent the TV from falling, use the supplied screws, clamps and band to secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps. (2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at the rear of your TV.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“Initial Setup”) .................................... 7

Overview of Controls

TV top control, front and

rear panels............................................. 9

Using the remote control and

basic functions .................................... 10

Advanced Operations

Selecting the picture and sound

modes .................................................. 12

Enjoying stereo or bilingual

programs ............................................. 13

Viewing Teletext ................................. 14

Menu Adjustment

Introducing the menu system .......... 15

Changing the “Picture” setting........ 18

Changing the “Sound” setting......... 19

Changing the “Timer” setting.......... 21

Changing the “Channel Setup”

setting .................................................. 22

Changing the “Setup” setting .......... 24

Additional Information

Connecting the 3D WOOFER

(KV-HW212M95 only)....................... 25

Connecting optional components ... 25

Troubleshooting ................................. 27

Specifications ...................................... 31

Installation

x Getting Started

Step 1

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Connect the antenna cable (not supplied) to 8 (antenna input) at the rear of the TV.

Tip

• You can also connect your TV to other optional components (see page 25).

Step 3

Plug in the power cord, then press ! on the TV to turn it on.

Note

• The 1 (standby) indicator flashes green for a few seconds when turning on the TV. This does not indicate a malfunction.

Step 4

6 Installation

Set up the TV by following the instructions of the “Начальная настройкa” (“Initial Setup”) menu (see page 7).

Program Sorting Program:

01 02 03 04

Select channel

Program:

TV System: Auto

VHF Low

Setting up your TV

(“Initial Setup”)

When you turn on your TV for the first time, the “Начальная настройкa” (“Initial Setup”) menu will appear. You may change the menu language, preset the TV channels automatically, change the order of TV channels that appear on the screen and adjust the picture position using the buttons on the top control panel.

Tip

• The MENU, and V/v/B/b buttons on the remote control can also be used for the

operations below.

Press 2 +/– to select the desired menu

language, then press t.

The selected menu language appears.

Press 2 +/– to select “Yes”, then press t

to preset the channels automatically.

The screen will indicate automatic presetting is in progress.

After all available channels have been tuned and stored, the “Program Sorting” menu appears automatically on the screen.

Installation

To skip automatic channel presetting, select “No”, then press t.

If the message “No channel found. Please connect cable/antenna” appears, check your TV connections, then press t.

The “Program Sorting” menu enables you

to change the order in which the channels appear on the screen.

a) If you wish to keep the channels in the

b) If you wish to store the channels in a

tuned order, press MENU.

different order:

1) Press 2 +/– to select the program number with the channel you wish to rearrange, then press t.

continue

Installation

continued

The selected channel will appear on the screen.

2) Press 2 +/– to select the new program number position for your

Program Sorting Program:

02 03 04

Select new position

selected channel, then press t.

3) Repeat steps b) 1) and 2) if you wish to change the order of the other channels.

c) Press MENU to go to the next menu.

Press 2 +/– to adjust the bars on the

top and bottom of the menu if they are slanted, then press t.

If no adjustment is necessary, then press t.

Press 2 +/– to select “No”, then press t.

This menu will not appear again the next time you turn on the TV by pressing !.

To allow this menu to appear again, select “Yes”, then press t.

Tips

• You can immediately go to the end of the ”Initial Setup” menu by pressing MENU.

• You can also set up your TV by using the menu system (see page 5) or by pressing the MENU button on the top control panel for about five seconds to reset your TV to the factory setting.

8 Installation

Overview of Controls

x TV top control, front and rear panels

TV top control panel

MENUSOUND MODE

PROG

098 7 6

TV rear panel

TV front panel

(MONO)

(MONO) (MONO)

qf qd

Button/Terminal Function Page

1 ! Turn off or turn on the TV. 6 2 Remote control sensor. – 3 Wake Up indicator. 21 3 1 Standby indicator. 6 4 i Headphone jack. – 5 t2 Video input terminal 2. 25 6 PROG +/– Select program number. – 7 2 +/– Adjust volume. – 8 t Select TV or video input. 25

Menu operations

7 2 +/– Select and adjust items. – 8 t Confirm selected items. – 9 MENU Display or cancel the menu. –

0 SOUND MODE Select sound mode options with a 5-Band Graphic 12

Equalizer display.

qa 8 Antenna input terminal. 25 qs T Monitor output terminal. 26 qd Component video input terminal. 26 qf t1 Video input terminal 1. 25

qg WOOFER Enjoy high quality sound. 25

(KV-HW212M95 only)

Overview of Controls

x Using the remote control and basic

functions

qa qs

A/B

1 4 7

8 0

PROG

4 5

ql w;

Button Description Page

1 ?/1 Turn off temporarily or turn on the TV. – 2 a Display the TV program. – 3 Jump to last program number that has been –

4 PROG +/– Select program number. – 5 2 +/– Adjust volume. – 9 Change the picture size:

0 qa Mute the sound. – qd t Select TV or video input. 25 qf 0 – 9, ÷ Input numbers. – qj Select surround mode options:

watched for at least five seconds.

“On” (16:9 wide-mode), “Off”. Display on-screen information. –

“On” (surround), “Simulated” (stereo-like monaural – sound), “Off”.

10 Overview of Controls

–

Button Description Page

ql Select sound mode options with a 5-Band Graphic 12

Equalizer display.

w; Select picture mode options. 12

Menu operations

6 MENU Display or cancel the menu. 17 7 Confirm selected items. 17 qk V, v, B, b Select and adjust items. 17

Timer operations

qg Set TV to turn on automatically according to the –

desired period of time.

qh Set TV to turn off automatically according to the –

desired period of time.

Teletext operations (green label)

4 , Display the next or previous page. 14 8 Display Teletext broadcast. 14 0 Reveal concealed information. 14 qs Enlarge the Teletext display. 14 qd Stop Teletext display from scrolling. 14 qg Display Teletext service contents. 14 qh Show TV screen while waiting for Teletext page. 14 wa

(red, green,

yellow, blue)

Stereo/bilingual operations

Access a FASTEXT menu. 14

qs A/B Select stereo/bilingual mode. 13

Overview of Controls

Licensed by BBE Sound, Inc. under USP4638258, 4482866. “BBE” and BBE symbol are trademarks of BBE Sound, Inc.

Overview of Controls

Advanced Operations

x Selecting the picture and sound

modes

You can select picture and sound modes and adjust the setting to your preference in the “Personal” option.

Selecting the picture mode

A/B

8 0

PROG

Selecting the sound mode

Press (or SOUND MODE on the top control panel) to select the desired sound mode with a 5-Band Graphic Equalizer display.

Press to select the desired picture mode.

Select To view

“Dynamic” high contrast pictures.

“Standard” normal pictures.

“Soft” mild pictures.

“Personal” the last adjusted picture setting

from the “Picture Adjustment” option in the menu (see page 18).

Select To listen to

“Dynamic” dynamic and clear sound that emphasizes both the low

Dynamic

and high tones.

100 300 1k 3k 8k

“Drama” sound that emphasizes voice and high tones.

“Soft” soft, natural and relaxing sounds.

“Personal” the last adjusted sound setting from the

Drama

100 300 1k 3k 8k

Soft

100 300 1k 3k 8k

Personal

“Sound Adjustment” option in the menu (see page 20).

100 300 1k 3k 8k

12 Advanced Operations

Enjoying stereo or bilingual programs

You can enjoy stereo sound or bilingual programs of NICAM and A2 stereo systems by using the A/B button.

Viewing a stereo or bilingual program

A/B

8 0

PROG

When receiving a NICAM program

Broadcasting On-screen display (Selected sound)

NICAM stereo

NICAM bilingual

NICAM monaural

NICAM

(Stereo sound)

NICAM Main (Main sound)

NICAM Sub

(Sub sound)

Mono

(Regular sound)

Mono

(Regular sound)

Mono

(Regular sound)

When receiving an A2 program

Broadcasting On-screen display (Selected sound)

A2 stereo

A2 bilingual

Note

• If the stereo sound is noisy when receiving a stereo program, select “Mono”. The sound becomes monaural but the noise is reduced.

Stereo

(Stereo sound)

Main

(Main sound)

Mono

(Regular sound)

Sub

(Sub sound)

Advanced Operations

x Viewing Teletext

Some TV stations broadcast an information service called Teletext which allows you to receive various information, such as stock market reports and news.

You can use the buttons on the remote to view Teletext.

To Do this

display a Teletext Press . Each time you press , the

(red,

green,

yellow,

blue)

A/B

8 0

PROG

page on the screen changes as follows: TV picture Teletext t Teletext and TV t TV.

3 6 9

If there is no Teletext broadcast, “100” is displayed at the top left corner of the screen.

check the contents Press . of a Teletext service An overview of the Teletext contents,

including page numbers, appears on the

screen.

select a Teletext page Press the number buttons to enter the

three-digit page number of the desired Teletext page. If you make a mistake, reenter the correct page number. To access the next or previous page, press

or .

hold (pause) a Press to display the symbol “ ” at Teletext display the top left corner of the screen. To

resume normal Teletext viewing, press

reveal concealed Press . information (e.g., To conceal the information, press the an answer to a quiz) button again.

enlarge the Teletext Press . Each time you press , the display Teletext display changes as follows:

Enlarge upper half t Enlarge lower half t Normal size.

stand by for a Teletext (1) Enter the Teletext page number that page while watching you want to refer to, then press . a TV program (2) When the page number is displayed,

press to show the text.

select a FASTEXT Press (red, green, yellow and blue) menu or the colored that corresponds to the desired menu or boxes page number.

turn off Teletext Press a.

Note

• The FASTEXT feature can be used only when the FASTEXT broadcast is available.

14 Advanced Operations

Menu Adjustment

x Introducing the menu system

The MENU button lets you open a menu and change the settings of your TV. The following is an overview of the menu system.

Picture icon

Sound icon

Timer icon

Channel Setup icon

Setup icon

Menu level 1

Level 1

“Picture”

“Sound”

Select

Level 2

“Mode”

“Picture Adjustment”

“Color Temperature”

“Intelligent Picture”

“Mode”

“Sound Adjustment”

“Balance”

“Intelligent Volume”

“Surround”

Return icon

Setup Language: English Picture Rotation Wide Mode: Video Label Color System: Portable Audio Mode:

Confirm

End

Name of the current menu

Menu level 3

Menu level 2

User Guidance

Level 3/Function

Select the picture mode: “Dynamic” t “Standard” t “Soft” t “Personal”

Adjust the “Personal” option: “Picture” t “Brightness” t “Color” t “Hue” t “Sharpness” t “Reset”

Adjust white color tint: “Cool” t “Neutral” t “Warm”

Optimize picture quality: “On” t “Off”

Select the sound mode: “Dynamic” t “Drama” t “Soft” t “Personal”

Adjust sound frequency settings of “Personal” option: “Adjust” t “Reset”

Select to emphasize the left and right speakers.

Adjust volume automatically: “On” t “Off”

Select the surround mode: “On” t “Simulated” t “Off”

Page

continue

Menu Adjustment

continued

Level 1

“Timer”

“Channel Setup”

“Setup”

Level 2

“Sleep Timer”

“Wake Up Timer”

“Auto Program”

“Manual Program”

“Program Label”

“Program Block”

“Program Sorting”

“Language”

“Picture Rotation”

“Wide Mode”

“Video Label” “Color System”

“Portable Audio Mode”

Level 3/Function

Set TV to turn off automatically.

Set TV to turn on automatically.

Preset channels automatically.

Preset channels manually.

Label the program number.

Block unwanted programs.

Change the order in which the channels appear

on the screen.

Change the menu language:

“English” t “ ”(Russian)

Adjust the picture position.

Change the picture size:

“On” (16:9 wide-mode) t “Off”

Label the connected equipment.

Select the color system:

“Auto” t “PAL” t “SECAM” t “NTSC3.58”

t “NTSC4.43”

Select the input connected to your audio

equipment:

“Video1” t “Video2” t “Off”

Page

16 Menu Adjustment

Select

End

Channel Setup

Program Block

Manual Program Program Label

Program Sorting

Confirm

Auto Program

How to use the menu

PROG

Press MENU to display the menu.


Mode: Dynamic

Picture Adjustment Color Temperature: Cool Intelligent Picture: On

Select

Confirm

End

Press V or v to select the desired item.

Auto Program

Manual Program

Program Label

Program Block

Program Sorting

Select

Channel Setup

Confirm

End

Press (or b) to confirm your selection and go to the next level.

Other menu operations

Adjust the setting value

Move to the next/previous menu level

Cancel the menu

Press

V, v, B or b. B or b.

MENU.

Tips

• If you want to exit from Menu level 2 to Menu level 1, press V or v until the return icon ( ) is

highlighted, then press .

• The MENU, t and 2 +/– buttons on the top control panel can also be used for the

operations above (see page 9).

Note

• When a feature is dimmed in the menu, it is not selectable.

Menu Adjustment

x Changing the “Picture” setting

The “Picture” menu allows you to adjust the picture settings.

Press MENU.

Make sure the “Picture” icon ( ) is

selected, then press


Mode: Dynamic

Picture Adjustment Color Temperature: Cool Intelligent Picture: On

Select

Press V or v to select the desired item (e.g., “Mode”), then press .

Select To

“Mode” choose either “Dynamic”, “Standard”, “Soft” or

“Color Temperature” adjust white color tint.

“Intelligent Picture” optimize picture quality.

* You can adjust the setting to your personal preference in the “Picture Adjustment” and

“Color Temperature” options only when the “Personal” mode is selected.

“Personal”* (see page 12).

Choose either “Cool” (blue tint), “Neutral” (neutral tint) or “Warm” (red tint).

Press V or v to select “On”, then press . To cancel, select “Off”, then press .

Confirm

Adjusting the “Picture Adjustment” items under “Personal” mode

Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,

“Hue” (color tones) or “Sharpness”, then press

Selecting “Reset” will set your TV to the factory setting.

Press V,v,B or b to adjust the setting of your selected item, then press .

Repeat the above steps to adjust other items.

The adjusted settings will be received when you select “Personal”.

End

Notes

• “Hue” can be adjusted for the NTSC color system only.

• Reducing “Sharpness” can also reduce picture noise.

18 Menu Adjustment

x Changing the “Sound” setting

The “Sound” menu allows you to adjust the sound settings.

Press MENU.

Press V or v to select the “Sound”

icon (

Press V or v to select the desired item (e.g., “Mode”), then press .

Select To

“Mode” choose either “Dynamic”, “Drama”, “Soft” or

“Balance” Press v or B to emphasize the left speaker.

“Intelligent Volume” adjust the volume of all program numbers and

“Surround” choose either “On”, “Simulated” or “Off”

* You can adjust the setting to your personal preference in the “Sound Adjustment”

), then press .

“Personal”* (see page 12).

Press V or b to emphasize the right speaker.

video inputs automatically. Press V or v to select “On”, then press .

To cancel, select “Off”, then press .

(see page 10).

option only when the “Personal” mode is selected (see page 20).

Sound

Mode:

Sound Adjustment Balance Intelligent Volume: Surround: Off

Select

Confirm

Dynamic

Off

End

continue

Menu Adjustment

+ 42 hidden pages
