SERVICE MANUAL BG-2S

MODEL COMMANDER DEST. CHASSIS NO.MODEL COMMANDER DEST. CHASSIS NO.

CHASSIS

KV-G14M2

RM-869 Russia SCC-U11A-A

TRINITRON

®

COLOR TV

KV-G14M2

RM-869

SPECIFICATIONS

Power requirements 110-240 V AC, 50/60 Hz Power consumption (W) Indicated on the rear of the TV Television system B/G, I, D/K, M Color system PAL, PAL 60, SECAM, NTSC4.43, NTSC3.58 Channel coverage

B/G VHF: E2 to E12 / UHF: E21 to E69 / CATV: S01 to S03, S1 to S41 I UHF: B21 to B68 / CATV: S01 to S03, S1 to S41 D/K VHF: C1 to C12, R1 to R12/UHF: C13 to C57, R21 to R60 /

CATV: S01 to S03, S1 to S41, Z1 to Z39

M VHF: A2 to A13 / UHF: A14 to A79 /

CATV: A-8 to A-2, A to W+ 4, W+ 6 to W+ 84

Audio output (speaker) 3W Inputs ˘ (antenna): 75 ohms external terminal

… (video input) jacks: phono jacks

D (video): 1 Vp-p, 75 ohms

≥ (audio): 500 mVrms, high impedance

Outputs A (earphone) jack: minijack

Ú (monitor output) jacks: phono jacks

D (video): 1 Vp-p, 75 ohms

≥ (audio): 500 mVrms

Picture tube 14 in.

Tube size (cm) 37 Measured diagonally Screen size (cm) 34 Measured diagonally

Dimensions (w/h/d, mm) 373 × 346 × 412 Mass (kg) 11

Note

CAUTION

SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR CARBON PAINTED ON THE CRT, AFTER REMOVING THE ANODE.

Design and specifications are subject to change without notice.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY SHADING AND MARK ! ON THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE PARTS LIST ARE CRITICAL T O SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

– 2 –

KV-G14M2

GENERAL

KV-G14M2

RM-869

The operating instructions mentioned here are partial abstracts from the Operating Instructions Manual. The page numbers of the Operating Instruction Manual remain as in this manual.

5

Getting Started

-EN

Connecting optional equipment

You can connect optional audio/video equipment to your TV such as a VCR, multi disc player, camcorder, or video game.

Connecting video equipment using the

…

(video input) jack

When connecting video equipment to the

…

(video input) jack

Do not connect video equipment to the

…

(video input) jacks at the front and the rear of your TV simultaneously; otherwise the picture

will not be displayed properly on the screen.

Connecting audio/video equipment using the

Ú

(monitor output) jack

Rear of TV

to antenna socket

VCR

to antenna output

≥

ÖÚ

…

D

to video and audio inputs

: Signal flow

Rear of TV

to antenna output

to video and audio outputs

VCR

to antenna socket

≥

ÖÚ

…

D

: Signal flow

Front of TV

Camcorder

D…≥

to video and audio outputs

: Signal flow

to

…

(video input)

D

(video) and

≥

(audio) inputs

to

Ú

(monitor output)

D

(video) and

≥

(audio) outputs

to

…

(video input)

D

(video) and

≥

(audio) inputs

When recording through the

Ú

(monitor output) jack

Do not change the channel or video input while recording with a VCR; otherwise the channel or video input you are recording also will be changed.

Getting Started

4

-EN

Connecting a VHF antenna or a combination VHF/UHF antenna — 75-ohm coaxial cable (round)

Attach an optional IEC antenna connector to the 75-ohm coaxial cable.

Plug the connector into the

(antenna) socket at the rear of the TV.

Connecting an indoor antenna

Connections

On a wall

or

Note

• You are advised to use an outdoor antenna for better reception.

3

1

2

Ö≥

ÖÚ

Ö…

ò

D

Getting Started

Rear of TV Rear of TV

– 5 –

KV-G14M2

RM-869

KV-G14M2

Getting Started

6

-EN

Presetting channels

If the picture color is poor and/or the sound is noisy

Select the appropriate TV system as follows:

1 Press SELECT on the remote commander or the TV

until “TV SYSTEM” appears.

2 Press +/– on the remote commander or

. +/– on

the TV until the picture and sound becomes normal.

Notes

• If you do not know your local TV system, consult your nearest

authorized service center or dealer.

• The setting of the “TV SYSTEM” is memorized for each

program position.

Presetting channels automatically

1

Press SELECT on the remote commander or the TV until “TV SYSTEM” appears on the screen.

2

Press +/– on the remote commander or

.

+/– on the TV to select the TV system.

3

Press SELECT on the remote commander or the TV until “AUTO PROGRAM” appears on the screen.

4

Press +/– on the remote commander or

. +/– on the TV.

You can preset up to 100 TV channels in numerical sequence from program position 1 using the buttons on the remote commander or the TV.

You can preset TV channels quickly, automatically or manually.

Quick channel presetting

1

Press U

to turn on the TV.

When the TV is turned on in standby mode, press

u

on the remote commander.

2

Press SELECT and PROGR + on the TV simultaneously for one to two seconds.

Remote commander

1 2 3

1

– PROGR +

SELECT

U

TV

–

PROGR

+

–

.

+

TV/VIDEO

SELECT

R



U

u

Number

PROGR +/–

+/–

SELECT

Front of TV

TV SYSTEM

SELECT SELECT

or

AUTO PROGRAM

SELECT SELECT

or

VHF LOW B/G

1

–

.

+

or

B/G I D/K M

–

.

+

7

Getting Started

-EN

5

Press +/– on the remote commander or

. +/– on the TV again.

To start presetting channels automatically from the specified program position

Press PROGR +/– or number buttons on the remote commander or PROGR +/– on the TV until the required program position appears on the screen after step 4 of “Presetting channels automatically”.

Presetting channels manually

1

Press SELECT on the remote commander or the TV until “TV SYSTEM” appears on the screen.

2

Press +/– on the remote commander or

.

+/– on the TV to select the TV system.

3

Press SELECT on the remote commander or the TV until “MANUAL PROGRAM” appears on the screen.

4

Press +/– on the remote commander or

.

+/– on the TV.

5

Press PROGR +/– or number buttons on the remote commander or PROGR +/– on the TV until the required program position appears on the screen.

6

Press +/– on the remote commander or

. +/– on the TV until the required channel

picture appears on the screen.

7

Press SELECT on the remote commander or the TV.

Disabling program positions

1

Press PROGR +/– or number buttons on the remote commander or PROGR +/– on the TV until the unused or unwanted program position appears on the screen.

2

Press SELECT on the remote commander or the TV until “MANUAL PROGRAM” appears on the screen.

3

Press +/– on the remote commander or

. +/– on the TV.

4

Press PIC MODE on the remote commander.

5

Press SELECT on the remote commander or the TV.

To preset the disabled program position again

Preset the channel quickly, automatically or manually

.

1

2

3

4

6

7

8

9

÷

0

5

PROGR

– PROGR +

or

VHF LOW B/G

–

.

+

1

SELECT

or

1 2 3

1

–

.

+

or

1

2

3

4

6

7

8

9

÷

0

5

PROGR

– PROGR +

or

TV SYSTEM

SELECT SELECT

or

B/G I D/K M

–

.

+

or

MANUAL PROGRAM

SELECT

–

.

+

or

RM-869

– 6 –

Operations

8

-EN

Watching the TV

Turning off the TV

To turn off the TV temporarily

Press

u

on the remote commander. The

u

indicator

on the TV lights up.

To turn off the TV completely

Press

U on the TV.

If the power on the TV is turned off in standby mode, the

u

indicator on the TV may remain alight for a while.

Watching the video input

Press … F

.

To watch TV

Press

;

.

Muting the sound

Press ¤.

1

Press U to turn on the TV.

When the TV is turned on in standby mode, press

u

on the remote commander.

2

Select the TV program you want to watch.

To select a program position directly

Press the number button.

To select a two-digit program position, press “-/--” before the number buttons. For example: to select program position 25, press “-/--,” and then “2” and “5.”

To scan through program positions

Press PROGR +/– until the program position you want appears.

3

Press . +/– to adjust the volume.

1

2

3

4

6

7

8

9

÷

0

5

÷

2 5

PROGR

Operations

U

.

u

¤

MUTING

U

… F

VIDEO

1

;

9

Operations

-EN

1

AUTO B/G

DYNAMIC

-EN

• If no buttons or controls are pressed for more than two hours

after the TV is turned on using the Wake Up Timer, the TV automatically turns into standby mode. If you want to continue watching the TV, press any button or control on the TV or remote commander.

After 30 minutes

After 60 minutes

After 90 minutes

No sleep timer

SLEEP TIMER:30M

SLEEP TIMER:60M

SLEEP TIMER:OFF

SLEEP TIMER:90M

C

I

Displaying on-screen information

Press

E G

.

The program position, local system, and TV settings are displayed on the screen.

EG

Setting the Sleep Timer

You can set the TV automatically turned off as you program.

Press

C

I.

To cancel the Sleep Timer, press

C

I

repeatedly

until “SLEEP TIMER: OFF” appears, or turn off the TV.

Changing the on-screen display

language

You can use buttons on the remote commander or the TV to change the on-screen display language.

1

Press SELECT until the screen appears as follows:

2

Press +/– to select “ ”.

Note

• You can also use SELECT and

.

+/– on the TV to select the

on-screen display language.

Setting the Wake Up Timer

You can set the TV automatically turned on as you program.

1

Press

B

The on-screen display appears and the

B

indicator

on the TV lights up.

2

If you want a particular TV program or video input to be displayed using the Wake Up Timer, select the TV program or video input.

3

Press

u on the remote commander or set

the Sleep Timer to turn off the TV in standby mode.

To cancel the Wake Up Timer, press

B

until “WAKE UP TIMER: OFF” appears, or turn off the main power of the TV.

Notes

• The Wake Up Timer starts immediately after the on-screen

display disappears.

• The last TV program position or video input just before the TV

turns into standby mode will appear when the TV is turned on using the Wake Up Timer.

After 10 minutes

No wake up timer

After 12 hours

WAKE UP TIMER:0H10M

WAKE UP TIMER:OFF

WAKE UP TIMER:12H00M

B

í

©

: LANGUAGE /

+/– SELECT

LANGUAGE /

: ENGLISH

SELECT

– 7 –

KV-G14M2

RM-869

Operations

10

-EN

Adjusting the picture

Each time you press SELECT, the screen changes as follows:

2

Press +/– to adjust the item.

3

To adjust other items, repeat steps 1 and 2.

Note

• You can also use SELECT and

.

+/– on the TV to adjust the

picture setting.

If the picture color is abnormal when receiving programs through the

˘ (antenna) terminal

Change the “TV SYSTEM” or “COLOR SYSTEM” setting or adjust the “COLOR” level in the on-screen display until the color becomes normal.

If the picture is abnormal when receiving programs through the

…

(video input) jack

Change the “COLOR SYSTEM” setting or adjust the “COLOR” level in the on-screen display until the color becomes normal.

Note

• Normally set “COLOR SYSTEM” to “AUTO”.

If the sound is distorted or noisy when receiving programs through the

˘

(antenna)

terminal

Change the “TV SYSTEM” setting in the on-screen display until the sound becomes clear.

Note on the SOUND MODE button

• The sound mode feature is unavailable for your TV. Thus, the

SOUND MODE button on the remote commander is not used for your TV.

Selecting the picture mode

Press PIC MODE until the mode you want appears.

Each time you press PIC MODE, the screen changes as follows:

Note

• If you change the picture mode after the following

adjustments, the adjustment changes in accordance with the picture mode.

Adjusting the picture setting

1

Press SELECT until the item you want to adjust appears.

÷

0

SOUND

MODE

SELECT PIC MODE

PIC MODE

High contrast picture

Soft picture (good for video games)

DYNAMIC

STANDARD

SOFT

+/–

SELECT

PICTURE COLOR

BRIGHT

HUE

SHARPNESS

(Operative for NTSC signal only)

…

SELECT

–

PROGR

+

–

.

+

Front of TV

Normal picture

Additional Information

11

-EN

Troubleshooting

No picture No sound

/ Press

U

or u.

/ Check the antenna connection. / Check the VCR connections. / Check the power cord connection. / Check the standby mode.

Good picture No sound

/ Press

. +.

/ Press

¤

.

No color

/ Adjust the “COLOR” level in the on-

screen display.

/ Check the “COLOR SYSTEM” setting.

TV cabinet creaks

/ Even if the picture or the sound is normal,

changes in the room temperature sometimes make the TV cabinet expand or contract, making a noise. This does not indicate a malfunction.

Note on the remote commander

• The supplied remote commander is used on several models of

the TV. If you do not find instructions for some controls that are on the remote commander, that means your TV does not employ the features of those controls, e.g.

V

and SOUND

MODE.

Notes

• When you turn on the TV, you may hear the “boon” sound

that is caused by the demagnetization of the TV. This does not indicate a malfunction.

• The picture color may become abnormal if you change the

direction of your TV. To obtain the normal picture color, press

U

on the TV to turn off the TV for five minutes and then turn

it on again.

• Design and specifications are subject to change without notice.

• All contents in the instruction manual are subject to change

without notice.

WARNING

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

If you have any problems, read this manual again and check the countermeasure for each of the symptoms listed below. If the problem persists after trying the methods below, contact your nearest authorized service center or dealer.

Snowy picture Noisy sound

/Check the antenna. /Check the antenna connection on the TV

and on the wall.

/Check the “TV SYSTEM” setting.

Dotted lines or stripes

/ This may be caused by local interference

(e.g. cars, neon signs and hair dryers). Adjust the antenna for minimum interference.

Double images or “ghosts”

/ This may be caused by reflections from

nearby mountains or buildings. A highly directional antenna may improve the picture.

Good picture Noisy sound

/Check the “TV SYSTEM” setting.

Additional Information

KV-G14M2

RM-869

– 8 –

SECTION 2

Seven screws (BVTP 4×16)

1

2

Four screws (BVTP 4×16)

Lever

A board

F1 board

A board

DISASSEMBLY

2-1. REAR COVER REMOVAL

– 9 –

2-2. A BOARD REMOVAL

2-3. F1 BOARD REMOVAL

2-4. SERVICE POSITION

KV-G14M2

RM-869

KV-G14M2

Cut

Multi button

Light guide

Cut

Light guide

Two screws (BVTP 3

×12)

• SCREWING TORQUE

7±1 kg•cm

Two claws

A board

Terminal board bracket

A board

Terminal board bracket

2

Demagnetization coil

1

Tension spring

Picture tube

3

DGC holder

3 DGC holder

Multi button

Three screws (BVTP 3

×12)

• SCREWING TORQUE 7±1 kg•cm

2-5. REPLACEMENT OF PARTS

For replacement of the Multi Button and Light Guide, cut the welded portions from them, exchange with the new parts, and fix them with screws (+BVTP) respectively.

2-5-1. REPLACEMENT OF MULTI BUTTON

– 10 –

2-5-2. REPLACEMENT OF LIGHT GUIDE

2-6. TERMINAL BOARD BRACKET REMOVAL

RM-869

2-7. DEMAGNETIZATION COIL REMOVAL

2-8. PICTURE TUBE REMOVAL

a

b

c

Anode button

2 A board

4 C board

3 F1 board

5 Deflection yoke

Cushion

6 Four screws (Tapping screws)

1 Anode cap

– 11 –

2 Using a thumb press down, then pull up the rubber cap firmly in the direction indicated

by the arrow b.

3 When one side of the rubber cap is separated from the anode button, the anode-cap

can be removed by turning up the rubber cap and pulling it up in the direction of the arrow c.

• REMOVAL OF ANODE-CAP

NOTE : After removing the anode, short circuit the anode of the picture tube and the

• REMOVING PROCEDURES

1 Turn up one side of the rubber cap in the direction indicated by the arrow a.

anode cap to the metal chassis, CRT shield or carbon paint on the CRT.

• HOW TO HANDLE AN ANODE-CAP

1 Do not damage the surface of anode-cap with sharp shaped objects. 2 Do not press the rubber too hard so as not to damage the inside of anode-cap.

A metal fitting called the shatter-hook terminal is built into the rubber.

3 Do not turn the foot of rubber over too hard.

The shatter-hook terminal will stick out or damage the rubber.

KV-G14M2

RM-869

KV-G14M2

GREEN

BLUE RED

Purity control

RM-869

SECTION 3

SET -UP ADJUSTMENTS

• The following adjustments should be made when a complete

realignment is required or a new picture tube is installed.

• These adjustments should be performed with rated power

supply voltage unless otherwise noted.

Controls and switch should be set as follows unless otherwise noted:

PICTURE control........................................................... normal

BRIGHTNESS control................................................... normal

...............................................................................................................................................................................................................................

Preparation :

• In order to reduce the influence of geomagnetism on the set's

picture tube, face it east or west.

• Switch on the power and degauss with the degausser.

Perform the adjustments in the following order:

1. Beam Landing

2. Convergence

3. Focus

4. White Balance

Note : Test Equipment Required:

1. Color-bar/Pattern Generator

2. Degausser

3. Oscilloscope

3-1. BEAM LANDING

1. Input a white signal with the pattern generator. Contrast Brightness

2. Set the pattern generator raster signal to green.

3. Move the deflection yoke to the rear and adjust with the purity control so that the green is at the center and the blue and the red take up equally sized areas on each side. (See Figures 3-1 through 3-3.)

4. Move the deflection yoke forward and adjust so that entire screen is green. (See Figure 3-1.)

5. Switch the raster signal to blue, then to red and verify the condition.

6. When the position of the deflection yoke has been decided, fasten the deflection yoke with the screws.

7. If the beam does not land correctly in all the corners, use a magnet to adjust it. (See Figure 3-4.)

}

normal

Fig. 3-2

Fig. 3-3

Purity control corrects this area.

ba

Disk magnets or rotatable disk magnets correct these areas (a-d).

Fig. 3-1

– 12 –

c

Deflection yoke positioning

corrects these areas.

a

d

Fig. 3-4

b

c

KV-G14M2

B

R

B

R

ab

bb

a

b

a

b

a

R

G

B

b

B

G

R

b

a

1

2

3

GG

B G R

R G B

RM-869

3-2. CONVERGENCE

Preparation :

• Before starting this adjustment, adjust the focus, horizontal size,

and vertical size.

• Minimize the brightness setting.

• Provide dot pattern.

(1) Horizontal and Vertical Static Convergence

Center dot

R G B

V.STAT Magnet

• Operation of V.STAT magnet.

If the V.STAT magnet is moved in the direction of the a and b arrows, the red, green and blue dots move as shown below.

RV 701

C board

SCREEN (G2)

1. (Moving vertically), adjust the V.STAT magnet so that the r ed, green and blue dots are on top of each other at the center of the screen.

2. (Moving horizontally), adjust the H.STAT VR so tha t the red, green and blue dots are on top of each other at the center of the screen.

Purity

V.STAT

• Operation of BMC (Hexapole) magnet.

If the blue or red dot does not conver ge with the other two dots, perform following steps. Move BMC magnet (a) to correct insufficient H.static convergence. Rotate BMC magnet (b) to correct insufficient V.static convergence. In either case, repeat Beam Landing Adjustment.

BMC magnet

a

b

– 13 –

KV-G14M2

RM-869

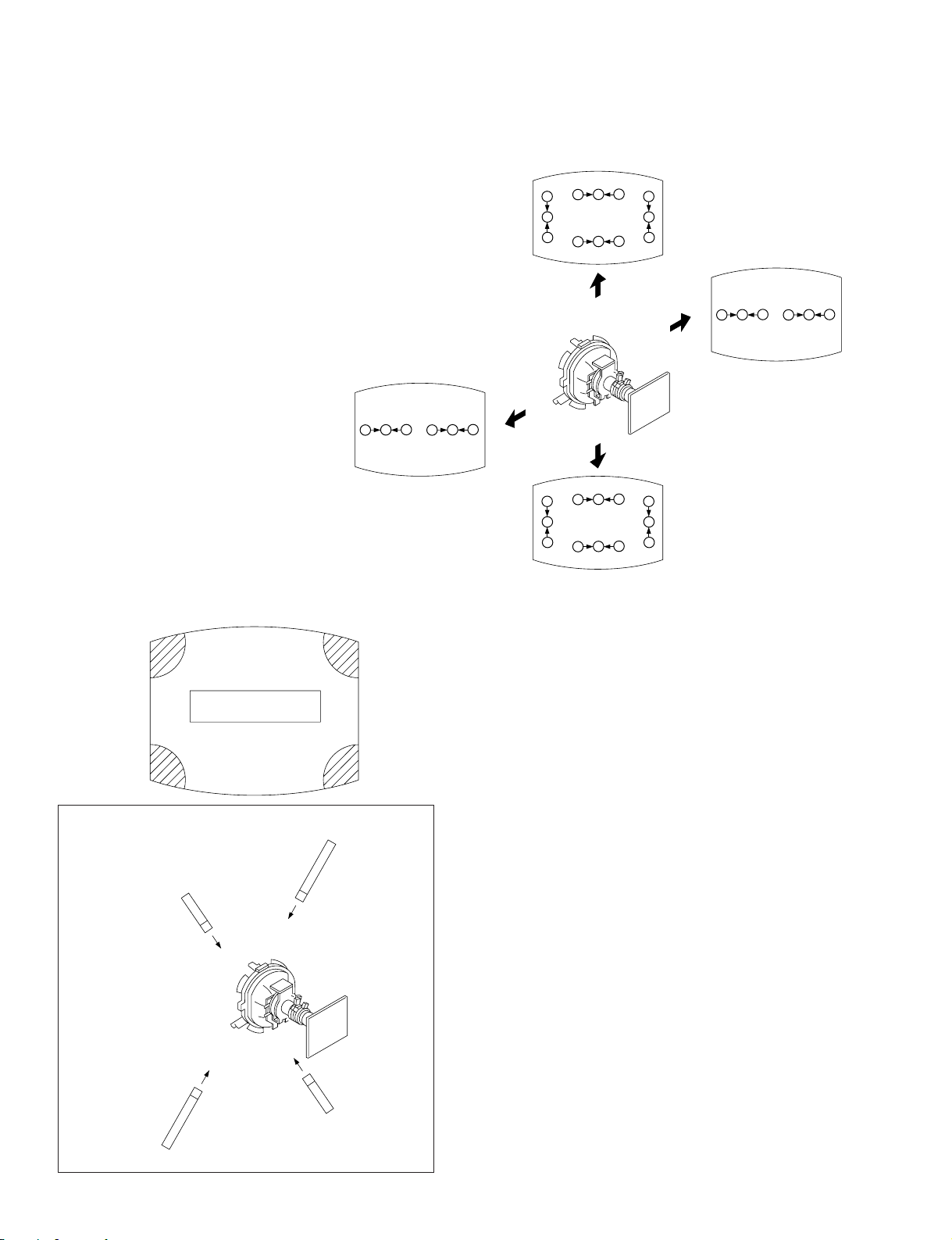

(2) Dynamic Convergence Adjustment Preparation :

• Before starting this adjustment, adjust the horizontal static

convergence and the vertical static convergence.

1. Slightly loosen the deflection yoke screws.

2. Remove the deflection yoke spacer.

3. Move the deflection yoke as shown in the figure below and optimize the convergence.

4. Tighten the deflection yoke screws.

5. Install the deflection yoke spacer.

R

B G R

G

R G B

B

B G RR G B

B G R

R G BB G R

(3) Screen-corner Convergence

b

a-d : screen-corner misconvergence

c

Fix a Permalloy assy corresponding to the misconverged areas

a

B

G

R

R G B

B G R

R G B

3-3. FOCUS ADJUSTMENT

a

d

b

Adjust FOCUS control on the C board (RV703) for the best focus.

c

d

a to d : Permalloy assembly

– 14 –

3-4. a. AN ITEM OF ADJUSTMENT

0

KV-G14M2

RM-869

Item number

09 0A 0B

Adjustment Item

RDR GDR BDR

Initial DATA

25 20 20

Note

WHITE POINT R WHITE POINT G WHITE POINT B

b. METHOD OF CANCELLATION FROM SERVICE

MODE

Set the standby condition (Press commander) and then press

POWER

button again, hereupon it

button on the

becomes TV mode.

c. METHOD OF WRITE FOR MEMORY

1) Set to Service Mode.

2) Press 1 (UP) and 4 (DOWN) to select an item of adjustments.

3) Press

MUTING

button and it will indicate WRITE on screen.

4) Press - button to write into memory.

d. MEMORY WRITE CONFIRMATION METHOD

1) After adjustment, pull out the plug from AC outlet, and then plug into AC outlet again.

2) Turn the power switch ON and set to Service Mode.

3) Call the adjusted items again, confirm they were adjusted.

3-5. G2 (SCREEN) AND WHITE BALANCE

ADJUSTMENTS

1. G2 (SCREEN) ADJUSTMENT (RV701)

1) Set the PICTURE and BRIGHTNESS to normal.

2) Put to VIDEO input mode without signals.

3) Connect R, G and B of the C board cathode to the oscilloscope.

4) Adjust G2 (RV701) volume to the value below.

165 ± 2 V DC

V

2. WHITE BALANCE ADJUSTMENTS

1) Set to Service Mode.

2) Input an entire white signal.

3) Set the PICTURE to maximum.

4) Select RDR(09) with 1 and 4 , and then set the level to 25 with 3 and 6 .

5) Select GDR(0A) and BDR(0B) with 1 and 4, and adjust the level with 3 and 6 for the best white balance.

6) Write into the memory by pressing

MUTING

, then - .

German A2 Stereo

Software Version #

OEM CODE

1 FRDR09

SERVICE

6000V3.2C052S

PAL or NTSC

WRITE1 FRDR09

6000V3.2C052S

WRITE1 FRDR09

MUTING

Green

0

Executes the writing

0

Executes the writing (bottom line disappears)

– 15 –

KV-G14M2

RM-869

SECTION 4

SELF DIAGNOSIS FUNCTION

If no acknowledgement is returned from a device which is turned "ON", the device has a problem. In this case, one of the LED's responding to the problem device will flicker a defined number of times.

Flickering is operated by lighting the LED's for 60ms each time.

The flickering frequency responding to each failed device is shown below.

Board name Ref. No.

Device

Flickering Frequency

All the devices are checked one after another from the left of the table. If an error is found, the responding LED will start flickering. So, if more than 1 device have failed, only the one on the left side will f licker.

A Board

IC003

NONVOLATILE

MEMORY

(ST24C04FB6)

1

A Board

IC300

Y/C JUNGLE

(TDA8374A)

3

– 16 –

SECTION 5

SERVICE Mode08

Data

HSF

50 Depends on the signals

PAL, SECAM : 50 NTSC : 60

Adjustment item

00

ModeItem #

00V3.2C052S

OEM CODE

German A2 Stereo

Software Version #

1

SERVICE00OP0

50

3D

0000000000

2

(Bit options adjustable)

CIRCUIT ADJUSTMENTS

5-1. ADJUSTMENTS WITH COMMANDER

Service adjustments are made with the RM-869 that comes with this unit.

Entering service mode

With the unit on standby

↓

DISPLAY

↓

5

↓

(+)

VOL

↓

POWER

The operation sequence puts the unit into service mode.

KV-G14M2

RM-869

1, 4 Raise/lower the service item number 3, 6 Raise/lower the data

[MUTING] Writes

- Executes the writing

7, - All data becomes the values in memory 8, - All user control goes to the standard state 5, - Service data initialization (Be sure not to use

usually.)

2, - Write 50Hz adjustment data to 60Hz, or

viceversa.

The screen display is :

¤

EG

…F

V

12

5

4

8

7

0

.

SOUND MODE

+

A/B H

B©

CI

RM-869

+ p

– p

TV

SELECT p

PIC MODE p

u

;

3

6

9

PROGR

+

1, 4 Select the adjustment item.

↓

3, 6 Raise/lower the data.

↓

MUTING

Writes

↓

- Executes the writing.

– 17 –

KV-G14M2

RM-869

5-2. ADJUSTMENT METHOD

Item Number 08 This explanation uses V-SHIFT as an example.

1. Select 08 V-SHIFT with the 1 and 4 buttons.

2. Raise/lower the data with the 3 and 6 buttons.

3. Select the optimum state. (The standard is 0F for PAL reception.)

4. Write with the

5. Execute the writing with the - button. (The WRITE display returns to green SERVICE.)

MUTING

button.

Use the same method for Items Number 00-40. Use 1 and 4 to select the adjustment item, use 3 and 6 to adjust, write with

MUTING

, then execute the write with -.

Blank

Adjusted with

Written with MUTING

00V3.2C052S

3

and 6 buttons

00V3.2C052S

0CVSF08

SERVICE

50

WRITE

50

WRITE

GREEN0CVSF08

GREEN The WRITE display will change back to SERVICE. (2nd line disappear when written)

Write executed with

0

– 18 –

Adjustment Item Table

Item Adj. No. Item

00 HSF 00–3F 50:2C 60:33 H Shift TDA8375 01 HSZ 00–3F 50:35 60:35 H Size TDA8375 02 PAP 00–3F 50:25 60:25 Pin Amplitude TDA8375 03 CNP 00–3F 50:10 60: 0C Corner Pin TDA8375 04 TLT 00–3F 50:20 60:2D Tilt TDA8375 05 VSL 00–3F 50:1F 60: 1F V Slope TDA8375 06 VAP 00–3F 50:1C 60:1B V Amplitude TDA8375 07 SCR 00–3F 50:16 60: 16 S Correction TDA8375 08 VSF 00–3F 50: 10 60: 10 V Shift TDA8375

09 RDR 00–3F 25 R Drive TDA8375 0A GDR 00–3F 20 G Drive TDA8375 0B BDR 00–3F 20 B Drive TDA8375 0C FO 00–03 TV:00 VIDEO: 00 TEXT: 00 ø1 TIME CONSTANT TDA8375 0D AGC 00–3F TV:28 VIDEO: 28 TEXT: 28 AGC Take Over TDA8375 0E VSW 00–01 TV:00 VIDEO: 01 TEXT: 00 Video Mute Switch TDA8375 0F FOR 00–03 03 Forced Field Frequency TDA8375

10 DL 00–01 00 De-interlace TDA8375

11 POC 00–01 00 Fixed ø1 Synchro. Mode TDA8375

12 COR 00–01 TV: 01 VIDEO: 00 TEXT: 00 Noise Coring TDA8375

13 VPX 00–FF 00 Extra Bits (see below) TDA8375

14 PMX 00–3F TV: 20 VIDEO: 20 TEXT: 20 Picture Maximum Data TDA8375

15 PMI 00–3F 04 Picture Maximum Data TDA8375

16 SBR 00–7F 4B Sub Brightness TDA8375

17 SHU 00–0F 09 Sub Hue TDA8375

18 SSH 00–03 TV: 01 VIDEO: 03 Sub Sharpness TDA8375

19 SC1 00–3F 50: 26 60:29 Sub Color Lower TDA8375 1A SC2 00–3F 50:0C 60:0D Sub Color Higher TDA8375 1B AIP 00–7F 3F Adjustment IF-PLL TDA8375 1C VZM 00–3F 19 Vertical Zoom TDA8375

1D WST 00–FF 15 W/G Stereo Threshold MSP3410D 1E WBT 00–FF EB W/G Bilingual Threshold MSP3410D 1F WLL 00–FF 05 W/G Monaural Threshold MSP3410D

20 ACG 00–01 01 ACG Switch auto/constant MSP3410D

21 CDB 00–3F 28 ACG Gain at Constant Mode MSP3410D

22 FGP 00–7F 24 FM Prescale for B/G, I. DK MSP3410D

23 FMP 00–7F 40 FM Prescale for M MSP3410D

24 FMH 00–7F 20 FM Prescale for HDEV Mode MSP3410D

25 WGP 00–7F 3C W/G Prescale MSP3410D

26 NIP 00–7F 7F NICAM Prescale MSP3410D

27 SCP 00–7F 20 SCART Input Prescale MSP3410D

28 SCV 00–7F 20 SCART Output Prescale MSP3410D

29 CRM 00–01 00 Carrier Muting on/off MSP3410D 2A ACD 00–01 01 Audio Clock-out on/off MSP3410D 2B AWC 00–0F 01 W/G Agreement Count MSP3410D 2C NFT 00–FF 50 Auto FM Switch Threshold MSP3410D 2D DLG 00–FF 30 W/G Search Delay MSP3410D 2E DLN 00–FF 10 NICAM Search Delay MSP3410D 2F DLS 00–FF 0A Stereo Status Read Delay MSP3410D

30 SMX 00–7F 72 DFP Volume Maximum MSP3410D

31 ING 00–0F M: 00 non-M: 00 VIDEO: 00 Input Gain TDA7438

32 VOM 00–3F 01 Volume Output Gain TDA7438

33 TXH 00–03 01 Teletext Horizontal Position SAA5261

34 BKP 00–3F 00 Picture Data at Blanking OFF Other Control

35 ODL 00–FF 10 Power on Delay Other Control

36 OFR 00–0F 00 RGB Output Time (STBY OFF) Other Control

Data Range

Initial Data

Note for Different Data

Function

Device

KV-G14M2

RM-869

– 19 –

KV-G14M2

RM-869

Item Adj. No. Item

37 OFM 00–0F 00 RGB Output Time (AC OFF) Other Control 38 OSH 00–3F 0A OSD H POSITION Other Control

39 DSK 00–01 00 D/K Stereo enable/disable TDA8375 3A MUT 00–01 00 Muting on/off at No. Sync Other Control 3B ABL 00–01 00 Bright ABL Switch Other Control 3C SCM 00–01 00 SECAM Trap active/inactive Other Control 3D FBT 00–01 01 FBT L/S C/M stract/plain Other Control 3E OP0 00–FF 4F Optional Flags 0 (see below) Other Control 3F OP1 00–FF 0F Optional Flags 1 (see below) Other Control

40 OP2 00–FF 00 Optional Flags 2 (see below) Other Control

NOTE

• Note for Different Data Those are the standard data values written on the microprocessor. Therefore, the data values of

• 50..............50 Hz data

• 60..............60 Hz data

• Note for Different Data listed on the adjustment item table are reference values, therefore it is different for every model.

Data Range

Initial Data

the modes are stored respectively in the memory. In case of a device replacement, adjustment by rewriting the data value is necessary for some items.

Note for Different Data

Function

Device

– 20 –

Option Note

Item No. 13 VPX

Item HCO EVG SBL PRD – – – VID Initial data 0 0 0 0 0 0 0 0

HCO EHT Tracking Mode 1 = on V and E–W. 0 = only on V EVG Enable Vertical Guard 1 = enable. 0 = disable SBL Service Blanking 1 = active. 0 = inactive PRD Over-voltage Protection Detection 1 = enable. 0 = disable VID Video Ident Mode 1 = not for ø1-loop 0 = for ø1-loop

Item No. 3E OP0

Item No TOP AV input AVMUT B/G I D/K M Initial data 0 1 0 0 1 1 1 1

AV Input 0 0 no AV input model 0 1 1 AV input model

1 0 2 AV input model 1 1 2 AV input and RGB input model No TOP (for teletext model) 1 = only FLOF available. 0 = both FLOF and TOP available AV MUT 1 = AV multi is always muted if no signal input. 0 = not muted always Other optional bits are effective if set to 1.

KV-G14M2

RM-869

Item No. 3F OP1

Item No NICAM – HDEV 1 V-Curve XTAL SEL SECAM 2nd Lang. Initial data 0 0 0 0 1 1 1 1

XTAL SEL 0 0 only 4.43 XTAL 0 1 only 3.58 XTAL

1 0 (not used) 1 1 both 4.43 and 3.58 XTAL 1 V-Curve (for monaural model)

1 = using common volume curve for every mode and every TV system

0 = another volume curve available for video mode and M system HDEV 1 = High Deviation Mode switch available. 0 = not available Other optional bits are effevctive if set to 1.

Item No. 40 OP2

Item – – No. Bal TV Out Hotel VM D.B.F.B. Thai Bil. Initial data 0 0 0 0 0 0 0 0

No Bal. (for AV stereo model) 1 = no balance in analog select items. 0 = balance included Other optional bits are effective if set to 1. Hotel TV mode should be switched with remote commander from STBY condition as below.

Hotel TV on : push “display”. “8”. “vol +” and “power” sequentially Hotel TV off : push “display”. “8”. “vol –” and “power” sequentially

– 21 –

KV-G14M2

RM-869

5-3. A BOARD ADJUSTMENT AFTER IC003

(MEMORY) REPLACEMENT

1. Enter to Service Mode.

2. Press commander buttons 5 and - (Data Initialize), and 2 and - (Data Copy) to initialize the data.

3. Call each item number, and check if the respectiv e screen shows the normal picture. In case some items are not well-adjusted, give them fine adjustment.

Write the data per each item number (

MUTING

4. Select item numbers “3E” (OP0), “3F” (OP1) and “40” (OP2) and respectively set the bit per model with command buttons 3 and 6.

5. Press commander buttons 8 and - (Test Normal) to return to the data that was set on the shipment from the factory. (= Cancel Service Mode.)

+ -).

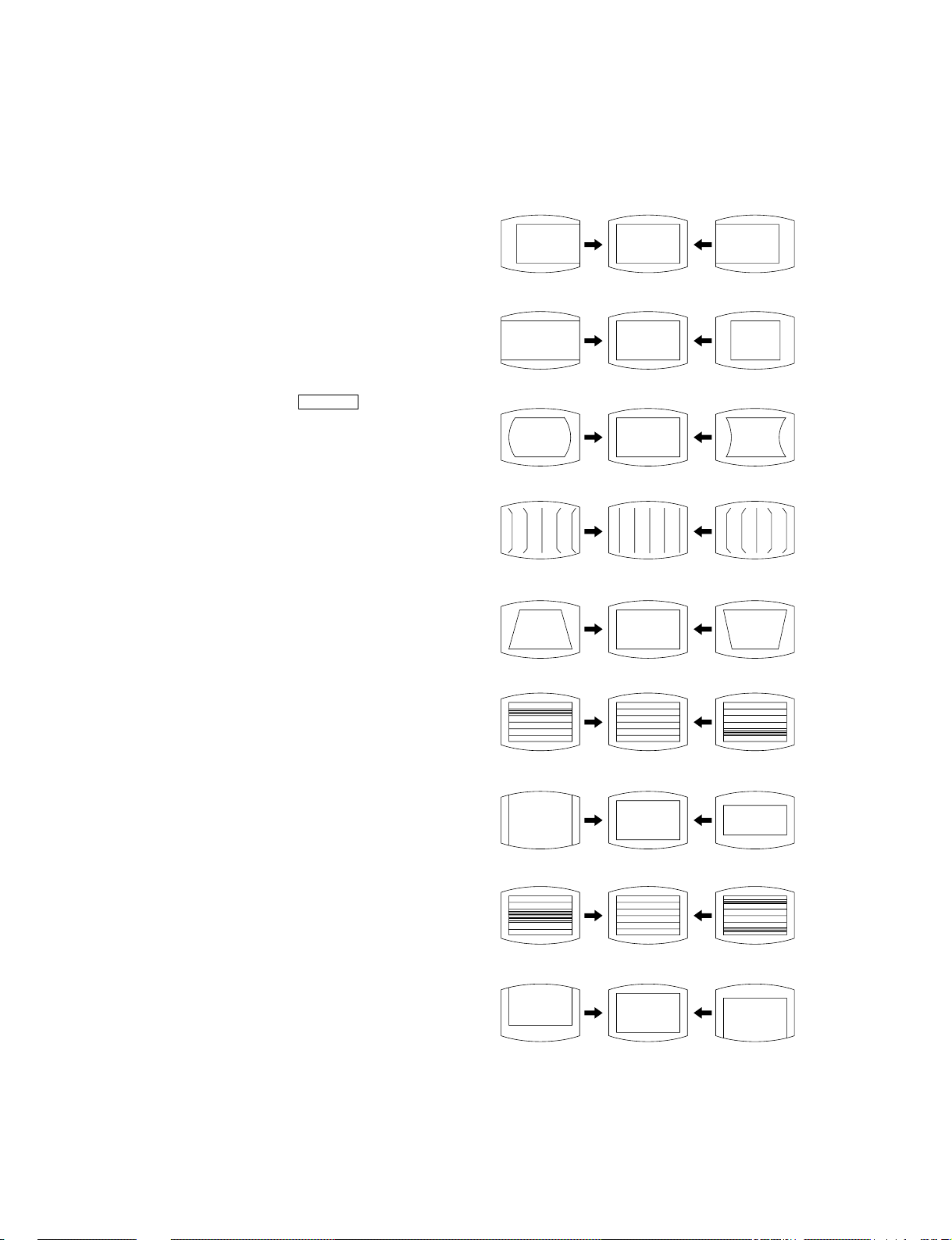

5-4. PICTURE DISTORTION ADJUSTMENT

Item Number 00 – 08

00 HSF (H SHIFT)

01 HSZ (H SIZE)

02 PAP (PIN AMPLITUDE)

03 CNP (CORNER PIN)

04 TLT (TILT)

05 VSL (V SLOPE)

06 VAP (V AMPLITUDE)

07 SCR (S CORRECTION)

08 VSF (V SHIFT)

– 22 –

SECTION 7

EXPLODED VIEW

KV-G14M2

RM-869

KV-G14M2

RM-869

NOTE:

• Items with no part number and no description are not stocked because they are seldom required for routine service.

• The construction parts of an assembled part are indicated with a collation number in the remark column.

7-1. CHASSIS

L : BVTP4 × 16 7-685-663-71 8 : BVTP3 × 12 7-685-648-71

28

29

4

2

• Items marked " ∗ " are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.

7

6

8

4

5

11

4

6

3

10

9

12

19

13

7

20

14

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

22

4

21

23

24

15

p

REF.NO. PART NO. DESCRIPTION REMARK

(FOR F35430206/F35430296)

1 X-4034-826-1 BEZNET ASSY 2, 3 2 4-056-187-01 BUTTON, MULTI 3 4-056-188-01 PLATE, LIGHT GUIDE 4 1-505-547-11 SPEAKER (5X9CM)

5 4-372-556-31 SHEET, BLOTTING 6 4-365-808-21 SCREW (5), TAPPING 7 4-390-169-12 HOLDER, DGC 8 4-046-600-11 SPACER, DY 9 4-369-318-61 SPRING, TENSION 10 ! 1-426-145-21 COIL, DEGAUSSING

11 ! 8-735-562-05 PICTURE TUBE (A34JBU70X) 12 ! 8-451-418-21 DEFLECTION YOKE (Y14NDA2) 13 1-452-277-00 MAGNET, BMC 14 * A-1331-687-A C BOARD, COMPLETE 15 ! 4-056-185-21 COVER, REAR

REF.NO. PART NO. DESCRIPTION REMARK

(FOR F35821706/F35821796)

1 X-4034-829-1 BEZNET ASSY 2, 3 2 4-059-721-01 BUTTON, MULTI 3 4-059-714-01 PLATE, GUIDE LIGHT 4 1-505-547-11 SPEAKER (5X9CM) 5 4-372-556-41 SHEET, BLOTTING

6 4-365-808-31 SCREW (5), TAPPING 7 4-390-169-21 HOLDER, DEGAUSSING COIL 8 4-064-818-01 SPACER, DY 9 4-369-318-41 SPRING, TENSION 10 ! 1-426-145-21 COIL, DEMAGNETIZATION

11 ! 8-735-562-05 PICTURE TUBE (A34JBU70X) 12 ! 8-451-418-51 DEFLECTION YOKE (Y14NDA2-I) 13 1-452-277-00 MAGNET, BMC 14 * A-1331-704-A C BOARD, COMPLETE 15 ! 4-056-185-21 COVER, REAR

p

16 * 4-055-841-03 RAIL (L), GUIDE 17 * 4-055-840-02 RAIL (R), GUIDE 18 4-056-186-01 BUTTON, POWER 19 * A-1241-204-A F1 BOARD, COMPLETE 20 * 4-049-158-01 BRACKET, F1 PC BOARD

21 ! 8-598-323-30 TUNER, VSS BT -AG401 22 4-059-710-02 BRACKET, TERMINAL BOARD 23 * 4-059-711-02 HOLDER, FBT 24 ! 1-453-249-11 TRANSFORMER ASSY , FLYBACK (NX-1733//M3A) 25 * A-1298-593-A A BOARD, COMPLETE (F35430206)

* A-1298-594-A A BOARD, COMPLETE (F35430296)

26 ! 4-022-115-12 HOLDER, A C CORD 27 ! 1-574-062-11 CORD, POWER (WITH CONNECTOR) 2.5A/250V 28 1-452-032-00 MAGNET,DISC 29 4-051-736-12 PIECE A(90), CONV. CORRECT

NOTE:

1) F35430206 : SBN plant. (Serial no. Start with 1,450,001 ~ 1,500,000) and Chinese OSD (µ-com is IC CXP85220A-058S)

2) F35430296 : SBN plant. (Serial no. Start with 1,450,001 ~ 1,500,000) and Arabic OSD (µ-com is IC CXP85220A-060S)

3) F35821706 : SSI plant. (Serial no. Start with 6,950,001 ~ 7,000,000) and Chinese OSD (µ-com is IC CXP85220A-058S)

4) F35821796 : SSI plant. (Serial no. Start with 6,950,001 ~ 7,000,000) and Arabic OSD (µ-com is IC CXP85220A-060S)

16 * 4-059-713-01 RAIL (L), GUIDE 17 * 4-059-712-01 RAIL (R), GUIDE 18 4-059-708-01 BUTTON, POWER 19 * A-1241-210-A F1 BOARD, COMPLETE 20 4-050-701-02 BRACKET, F1 PC BOARD

21 ! 8-598-323-30 TUNER, VSS BT-A G401 22 4-059-716-01 BRACKET, TERMINAL BOARD 23 4-059-707-02 HOLDER FBT 24 ! 1-453-249-11 TRANSFORMER ASSY , FLYBACK (NX-1733//M3A) 25 * A-1298-617-A A BOARD, COMPLETE (F35821796)

* A-1298-616-A A BOARD, COMPLETE (F35821706)

26 ! 4-022-115-12 HOLDER, AC CORD 27 ! 1-574-062-11 CORD, POWER (WITH CONNECTOR) 2.5A/250V 28 1-452-032-00 MAGNET,DISC 29 4-051-736-12 PIECE A(90), CONV. CORRECT

25

27

1

– 2 –

– 40 –

16

17

18

26

– 2 –

– 41 –

KV-G14M2

RM-869

A

F35430206

()

F35430296

SECTION 8

ELECTRICAL PARTS LIST

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

KV-G14M2

RM-869

F35430206

()

A

F35430296

KV-G14M2

RM-869

()

A

F35430206 F35430296

NOTE:

• Items marked " ∗ " are not stocked since

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

When indicating parts by reference number, please include the board name.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

* A-1298-593-A A BOARD, COMPLETE (F35430206)

*********************

* A-1298-594-A A BOARD, COMPLETE (F35430296)

*********************

* 1-580-798-11 CONNECTOR PIN (DY) 6P * 4-049-131-01 CASE (A), SHIELD

C001 1-163-011-11 CERAMIC CHIP 0.0015MF 10% 50V C002 1-126-965-11 ELECT 22MF 20% 50V C003 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C004 1-126-961-11 ELECT 2.2MF 20% 50V C006 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C007 1-126-959-11 ELECT 0.47MF 20% 50V C008 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C009 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C010 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V C011 1-126-967-11 ELECT 47MF 20% 16V

C012 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C013 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C014 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C015 1-101-884-00 CERAMIC 56PF 5% 50V C016 1-101-884-00 CERAMIC 56PF 5% 50V

C017 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C018 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C019 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C020 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C021 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C022 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C023 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C024 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C025 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C026 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C027 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C028 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C029 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C032 1-163-031-11 CERAMIC CHIP 0.01MF 50V C034 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C035 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C036 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C037 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C038 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C040 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

C042 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C044 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C045 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

they are seldom required for routine service. Some delay should be anticipated when ordering these items.

• All variable and adjustable resistors have characteristic curve B, unless otherwise noted.

C046 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C047 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

C048 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C049 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C050 1-126-960-11 ELECT 1MF 20% 50V C051 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C052 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C053 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C054 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C055 1-126-925-11 ELECT 470MF 20% 10V C056 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C057 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C058 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C059 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C060 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C061 1-164-505-11 CERAMIC CHIP 2.2MF 16V C064 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C072 1-126-925-11 ELECT 470MF 20% 10V C074 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C101 1-163-029-11 CERAMIC CHIP 0.0047MF 50V C105 1-104-665-11 ELECT 100MF 20% 16V C106 1-126-964-11 ELECT 10MF 20% 50V

C108 1-126-942-61 ELECT 1000MF 20% 16V C109 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V C111 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C114 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C115 1-163-093-00 CERAMIC CHIP 10PF 5% 50V

C116 1-136-165-00 FILM 0.1MF 5% 50V C117 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C118 1-126-965-11 ELECT 22MF 20% 50V C119 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C120 1-130-493-00 MYLAR 0.068MF 5% 50V

C121 1-130-493-00 MYLAR 0.068MF 5% 50V C122 1-104-665-11 ELECT 100MF 20% 16V C124 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C125 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C127 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C128 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C234 1-126-964-11 ELECT 10MF 20% 50V C235 1-126-967-11 ELECT 47MF 20% 16V C236 1-104-666-11 ELECT 220MF 20% 25V C237 1-104-665-11 ELECT 100MF 20% 16V

C238 1-136-167-00 FILM 0.15MF 5% 50V C241 1-126-942-61 ELECT 1000MF 20% 25V C242 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C243 1-126-965-11 ELECT 22MF 20% 50V C244 1-126-942-61 ELECT 1000MF 20% 25V

RESISTORS

• All resistors are in ohms

• F : nonflammable

CAPACITORS

• MF : µF, PF : µµF

COILS

• MMH : µH, UH : µH

C252 1-126-961-11 ELECT 2.2MF 20% 50V C253 1-104-665-11 ELECT 100MF 20% 16V C255 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C258 1-136-167-00 FILM 0.15MF 5% 50V C300 1-126-967-11 ELECT 47MF 20% 16V

C301 1-126-964-11 ELECT 10MF 20% 50V C304 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C305 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C306 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C307 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C308 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C309 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C310 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C311 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C312 1-163-231-11 CERAMIC CHIP 15PF 5% 50V

C313 1-104-665-11 ELECT 100MF 20% 16V C314 1-164-161-11 CERAMIC CHIP 0.0022MF 10% 50V C315 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V C316 1-102-125-00 CERAMIC 0.0047MF 10% 50V C317 1-164-505-11 CERAMIC CHIP 2.2MF 16V

C319 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C320 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C321 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C322 1-216-295-91 SHORT 0 C323 1-163-235-11 CERAMIC CHIP 22PF 5% 50V

C324 1-164-505-11 CERAMIC CHIP 2.2MF 16V C325 1-163-093-00 CERAMIC CHIP 10PF 5% 50V C326 1-163-095-00 CERAMIC CHIP 12PF 5% 50V C327 1-163-093-00 CERAMIC CHIP 10PF 5% 50V C328 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C329 1-163-016-00 CERAMIC CHIP 0.0039MF 10% 50V C330 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C331 1-126-964-11 ELECT 10MF 20% 50V C332 1-136-165-00 FILM 0.1MF 5% 50V C333 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C334 1-164-182-11 CERAMIC CHIP 0.0033MF 10% 50V C335 1-102-973-00 CERAMIC 100PF 5% 50V C336 1-126-964-11 ELECT 10MF 20% 50V C337 1-104-665-11 ELECT 100MF 20% 16V C338 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V

C339 1-163-121-00 CERAMIC CHIP 150PF 5% 50V C340 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C341 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C342 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C344 1-126-964-11 ELECT 10MF 20% 50V

C349 1-126-963-11 ELECT 4.7MF 20% 50V C350 1-126-967-11 ELECT 47MF 20% 16V C351 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C352 1-164-489-11 CERAMIC CHIP 0.22MF 10% 16V C358 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C359 1-104-665-11 ELECT 100MF 20% 16V C361 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C367 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C368 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C369 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C370 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C374 1-126-967-11 ELECT 47MF 20% 10V

REF. NO. PART NO. DESCRIPTION REMARKREF. NO. PART NO. DESCRIPTION REMARK

C375 1-126-967-11 ELECT 47MF 20% 10V C376 1-107-823-11 CERAMIC CHIP 0.47MF 10% 16V C402 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V

C403 1-126-965-11 ELECT 22MF 20% 50V C405 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V C406 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V C407 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V C408 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V

C409 1-163-109-00 CERAMIC CHIP 47PF 5% 50V C410 1-163-103-00 CERAMIC CHIP 27PF 5% 50V C411 1-163-113-00 CERAMIC CHIP 68PF 5% 50V C412 1-163-113-00 CERAMIC CHIP 68PF 5% 50V C413 1-104-665-11 ELECT 100MF 20% 16V

C414 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C415 1-163-017-00 CERAMIC CHIP 0.0047MF 10% 50V C416 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C417 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C418 1-163-131-00 CERAMIC CHIP 390PF 5% 50V

C419 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C420 1-126-967-11 ELECT 47MF 20% 16V C422 1-163-129-00 CERAMIC CHIP 330PF 5% 50V C423 1-163-129-00 CERAMIC CHIP 330PF 5% 50V C424 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C501 1-102-228-00 CERAMIC 470PF 10% 500V C523 1-104-665-11 ELECT 100MF 20% 16V C548 1-106-220-00 MYLAR 0.1MF 10% 100V C551 1-126-968-11 ELECT 100MF 20% 35V C552 1-126-968-11 ELECT 100MF 20% 35V

C553 1-163-019-00 CERAMIC CHIP 0.0068MF 10% 50V C554 1-102-244-00 CERAMIC 220PF 10% 500V C555 1-101-804-00 CERAMIC 10PF 5% 500V C562 1-104-665-11 ELECT 100MF 20% 16V C603 1-161-830-00 CERAMIC 0.0047MF 99% 500V

C604 1-107-414-11 ELECT(BLOCK) 220MF 20% 400V C605 1-161-830-00 CERAMIC 0.0047MF 99% 500V C606 1-161-830-00 CERAMIC 0.0047MF 99% 500V C607 1-161-830-00 CERAMIC 0.0047MF 99% 500V C608 1-104-332-11 CERAMIC 470PF 10% 2KV

C609 1-123-024-21 ELECT 33MF 160V C611 ! 1-117-697-51 CERAMIC 470PF 10% 250V C613 1-102-824-00 CERAMIC 470PF 5% 50V C614 1-126-943-11 ELECT 2200MF 20% 25V C616 1-102-228-00 CERAMIC 470PF 10% 500V

C617 1-104-666-11 ELECT 220MF 20% 25V C618 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C619 1-162-116-00 CERAMIC 680PF 10% 2KV C621 ! 1-104-705-51 FILM 0.1MF 20% 250V C622 1-106-383-00 MYLAR 0.047MF 10% 200V

C623 1-126-934-11 ELECT 220MF 20% 16V C624 1-126-942-61 ELECT 1000MF 20% 16V C625 1-102-074-00 CERAMIC 0.001MF 10% 50V C627 1-162-116-00 CERAMIC 680PF 10% 2KV C628 1-163-133-00 CERAMIC CHIP 470PF 5% 50V

C630 ! 1-117-697-51 CERAMIC 470PF 10% 250V C631 1-161-830-00 CERAMIC 0.0047MF 99% 500V C632 ! 1-117-697-51 CERAMIC 470PF 10% 250V

C633 1-161-754-00 CERAMIC 0.001MF 10% 3KV C634 1-163-005-11 CERAMIC CHIP 470PF 10% 50V

C801 1-123-024-21 ELECT 33MF 160V C802 1-107-364-11 MYLAR 0.01MF 10% 200V C804 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C805 1-102-244-00 CERAMIC 220PF 10% 500V C806 1-126-960-11 ELECT 1MF 20% 50V

C809 1-162-115-00 CERAMIC 330PF 10% 2KV C810 1-106-365-00 MYLAR 0.0082MF 10% 200V C811 1-101-821-00 CERAMIC 0.0022MF 500V C812 1-136-075-00 FILM 0.008MF 3% 2KV C816 1-107-636-11 ELECT 10MF 20% 160V

C820 1-162-116-00 CERAMIC 680PF 10% 2KV C821 1-106-381-12 MYLAR 0.039MF 99% 200V C822 1-136-121-00 FILM 0.27MF 5% 200V C823 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V C825 1-107-364-11 MYLAR 0.01MF 10% 200V

C850 1-124-480-11 ELECT 470MF 20% 25V C852 1-104-574-11 CERAMIC 0.0047MF 10% 2KV C853 1-162-318-11 CERAMIC 0.001MF 10% 500V C854 1-124-480-11 ELECT 470MF 20% 25V C856 1-162-318-11 CERAMIC 0.001MF 10% 500V

C857 1-130-493-00 MYLAR 0.068MF 5% 50V C860 1-102-228-00 CERAMIC 470PF 10% 500V C861 1-107-654-11 ELECT 33MF 20% 250V C876 1-107-369-11 MYLAR 0.068MF 10% 100V C898 1-106-379-12 MYLAR 0.033MF 10% 100V

C900 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C901 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C1201 1-104-665-11 ELECT 100MF 20% 16V C1202 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C1204 1-104-665-11 ELECT 100MF 20% 16V

C1205 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C1210 1-104-665-11 ELECT 100MF 20% 16V C1213 1-126-960-11 ELECT 1MF 20% 50V C1214 1-104-665-11 ELECT 100MF 20% 16V C1217 1-104-665-11 ELECT 100MF 20% 16V

C1218 1-163-123-00 CERAMIC CHIP 180PF 5% 50V C1219 1-104-665-11 ELECT 100MF 20% 16V C1221 1-164-005-11 CERAMIC CHIP 0.47MF 25V C1225 1-164-005-11 CERAMIC CHIP 0.47MF 25V C1226 1-126-934-11 ELECT 220MF 20% 16V

C1228 1-164-346-11 CERAMIC CHIP 1MF 16V C1229 1-164-005-11 CERAMIC CHIP 0.47MF 25V C1230 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C1260 1-163-019-00 CERAMIC CHIP 0.0068MF 10% 50V C1513 1-124-122-11 ELECT 100MF 20% 50V

CF45 1-527-943-00 FILTER, CERAMIC CF55 1-567-099-00 FILTER, CERAMIC CF60 1-567-100-00 FILTER, CERAMIC CF65 1-567-101-11 FILTER, CERAMIC

REF. NO. PART NO. DESCRIPTION REMARKREF. NO. PART NO. DESCRIPTION REMARK

CN100 * 1-508-784-00 PIN, CONNECTOR (5MM PITCH) 1P CN101 * 1-560-124-00 PLUG, CONNECTOR (2.5MM) 4P CN103 * 1-564-509-11 PLUG, CONNECTOR 6P CN251 * 1-564-506-11 PLUG, CONNECTOR 3P CN601 * 1-580-843-11 PIN, CONNECTOR (POWER)

CN602 * 1-508-786-00 PIN, CONNECTOR (5MM PITCH) 2P CN603 * 1-508-786-00 PIN, CONNECTOR (5MM PITCH) 2P CN851 * 1-508-766-00 PIN, CONNECTOR (5MM PITCH) 4P

CT45 1-579-690-11 TRAP, CERAMIC CT55 1-404-801-11 TRAP, CERAMIC CT60 1-409-429-11 TRAP, CERAMIC CT65 1-409-327-00 TRAP, CERAMIC (6.5MHZ)

<DIODE>

D001 8-719-109-81 DIODE RD4.7ESB2 D002 8-719-911-19 DIODE 1SS119-25 D003 8-719-041-97 DIODE MA113-(TX) D005 8-719-109-84 DIODE RD5.1ESB1 D008 8-719-109-89 DIODE RD5.6ESB2

D103 8-719-914-42 DIODE DA204K D201 8-719-041-97 DIODE MA113-(TX) D202 1-216-295-91 SHORT 0 D251 8-719-041-97 DIODE MA113-(TX) D252 8-719-914-42 DIODE DA204K

D253 8-719-041-97 DIODE MA113-(TX) D300 8-719-041-97 DIODE MA113-(TX) D301 8-719-041-97 DIODE MA113-(TX) D302 8-719-041-97 DIODE MA113-(TX) D304 8-719-041-97 DIODE MA113-(TX)

D305 8-719-041-97 DIODE MA113-(TX) D306 8-719-911-19 DIODE 1SS119-25 D307 8-719-911-19 DIODE 1SS119-25 D308 8-719-109-54 DIODE RD2.2ESB2 D310 8-719-041-97 DIODE MA113-(TX)

D311 8-719-109-68 DIODE RD3.6ESB1 D312 8-719-110-08 DIODE RD8.2ESB2 D315 8-719-121-24 DIODE RD9.1ESL D351 8-719-908-03 DIODE GP08D D399 8-719-977-22 DIODE DTZ9.1

D401 8-719-421-40 DIODE MA77 D402 8-719-911-19 DIODE 1SS119-25 D403 8-719-911-19 DIODE 1SS119-25 D513 8-719-109-84 DIODE RD5.1ESB1 D551 8-719-908-03 DIODE GP08D

D561 8-719-911-19 DIODE 1SS119-25 D591 8-719-911-19 DIODE 1SS119-25 D601 8-719-510-53 DIODE D4SB60L D604 8-719-301-64 DIODE RU4DS D606 8-719-510-73 DIODE S3L20UF4

D607 8-719-510-26 DIODE D1NL20 D609 8-719-510-26 DIODE D1NL20 D610 8-719-510-26 DIODE D1NL20

– 42 –

– 43 –

– 44 –

KV-G14M2

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

F35430206

()

A

F35430296

RM-869

D611 8-719-510-26 DIODE D1NL20 D801 8-719-945-80 DIODE ERC06-15S

D851 8-719-302-43 DIODE EL1Z D852 8-719-028-72 DIODE RGP02-17EL-6433 D853 8-719-302-43 DIODE EL1Z D855 8-719-302-43 DIODE EL1Z D857 8-719-908-03 DIODE GP08D

D858 8-719-908-03 DIODE GP08D D860 8-719-911-19 DIODE 1SS119-25 D901 1-810-039-11 LED UNIT D1201 8-719-121-24 DIODE RD9.1ESL D1202 8-719-121-24 DIODE RD9.1ESL

D1207 8-719-121-24 DIODE RD9.1ESL D1208 8-719-121-24 DIODE RD9.1ESL D1504 8-719-911-19 DIODE 1SS119-25 D1505 8-719-109-81 DIODE RD4.7ESB2

FB101 1-410-397-21 FERRITE 1.1UH FB102 1-410-397-21 FERRITE 1.1UH FB103 1-410-397-21 FERRITE 1.1UH FB601 1-410-397-21 FERRITE 1.1UH FB603 1-410-397-21 FERRITE 1.1UH

FB610 1-410-397-21 FERRITE 1.1UH FB612 1-410-397-21 FERRITE 1.1UH

<IC>

IC001 8-752-891-28 IC CXP85220A-058S (F35430206) IC001 8-752-891-61 IC CXP85220A-060S (F35430296) IC002 8-759-805-37 IC L78LR05D-MA IC003 8-759-370-33 IC ST24C04FB6 IC004 8-742-041-12 HYB IC SBX1981-11(12)

IC100 8-759-157-40 IC UPC574J IC203 8-759-339-60 IC TA8248K IC300 8-759-365-25 IC TDA8374A IC351 8-759-288-85 IC TDA4665T-T IC354 8-759-251-56 IC TDA8395T

IC401 8-759-800-65 IC LA7910 IC521 8-759-195-63 IC PQ09RE11 IC551 8-759-801-98 IC LA7830 IC601 8-749-014-00 IC STR-S6707N IC602 8-749-921-89 IC SE115N

IC603 ! 8-749-010-64 PHOTO COUPLER PC123F2 IC801 8-759-100-96 IC UPC4558G2 IC1210 8-759-100-96 IC UPC4558G2 IC1211 8-759-711-23 IC NJM2234L

JR050 1-216-295-91 SHORT 0 JR052 1-216-295-91 SHORT 0 JR101 1-216-295-91 SHORT 0 JR111 1-216-295-91 SHORT 0 JR112 8-719-041-97 DIODE MA113-(TX)

JR113 1-216-295-91 SHORT 0 JR114 1-208-291-11 RES,CHIP 4.7M 5% 1/10W JR116 1-216-295-91 SHORT 0 JR117 1-216-295-91 SHORT 0 JR118 1-216-295-91 SHORT 0

JR124 1-216-295-91 SHORT 0 JR125 1-216-295-91 SHORT 0 JR126 1-216-295-91 SHORT 0 JR251 1-216-295-91 SHORT 0

<COIL>

L001 1-408-397-00 INDUCTOR 1UH L002 1-410-509-11 INDUCTOR 10UH L003 1-408-605-31 INDUCTOR 15UH L101 1-410-470-11 INDUCTOR 10UH L301 1-408-602-31 INDUCTOR 8.2UH

L401 1-410-498-11 INDUCTOR 1.2UH L402 1-410-510-11 INDUCTOR 12UH L403 1-410-510-11 INDUCTOR 12UH L404 1-410-508-11 INDUCTOR 8.2UH L405 1-410-508-11 INDUCTOR 8.2UH

L406 1-410-507-11 INDUCTOR 6.8UH L407 1-410-511-11 INDUCTOR 15UH L408 1-410-500-11 INDUCTOR 1.8UH L409 1-410-501-11 INDUCTOR 2.2UH L410 1-410-501-11 INDUCTOR 2.2UH

L411 1-410-502-11 INDUCTOR 2.7UH L802 1-412-527-11 INDUCTOR 15UH L805 1-460-046-11 COIL, HORIZONTAL LINEARITY L807 1-459-348-51 COIL, VAR, FERRITE (HWC) L808 1-412-553-11 INDUCTOR 3.3MMH

L821 1-406-677-11 INDUCTOR 0UH L850 1-408-947-00 INDUCTOR 2.2MMH

Q030 8-729-422-27 TRANSISTOR 2SD601A-Q Q108 8-729-422-27 TRANSISTOR 2SD601A-Q Q109 8-729-422-27 TRANSISTOR 2SD601A-Q Q110 8-729-422-27 TRANSISTOR 2SD601A-Q Q202 8-729-216-22 TRANSISTOR 2SA1162-G

<JACK>

J251 1-770-785-11 JACK J1201 1-779-849-11 JACK BLOCK, PIN 4P J1202 1-779-205-11 JACK, PIN 2P

Q207 8-729-216-22 TRANSISTOR 2SA1162-G Q208 8-729-421-19 TRANSISTOR UN2213 Q210 8-729-424-67 TRANSISTOR UN2216 Q301 8-729-421-22 TRANSISTOR UN2211 Q303 8-729-422-27 TRANSISTOR 2SD601A-Q

Q402 8-729-922-66 TRANSISTOR 2SC2410SN Q403 8-729-424-67 TRANSISTOR UN2216 Q404 8-729-424-67 TRANSISTOR UN2216 Q405 8-729-216-22 TRANSISTOR 2SA1162-G Q406 8-729-216-22 TRANSISTOR 2SA1162-G

– 45 –

KV-G14M2

RM-869

A

F35430206

()

F35430296

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK

Q407 8-729-216-22 TRANSISTOR 2SA1162-G Q408 8-729-422-27 TRANSISTOR 2SD601A-Q Q409 8-729-216-22 TRANSISTOR 2SA1162-G Q410 8-729-216-22 TRANSISTOR 2SA1162-G Q411 8-729-422-27 TRANSISTOR 2SD601A-Q

Q412 8-729-422-27 TRANSISTOR 2SD601A-Q Q413 8-729-424-67 TRANSISTOR UN2216 Q414 8-729-422-27 TRANSISTOR 2SD601A-Q Q415 8-729-424-67 TRANSISTOR UN2216 Q416 8-729-422-27 TRANSISTOR 2SD601A-Q

Q417 8-729-424-67 TRANSISTOR UN2216 Q418 8-729-424-67 TRANSISTOR UN2216 Q561 8-729-200-17 TRANSISTOR 2SA1091-O Q801 8-729-140-50 TRANSISTOR 2SC3209LK Q802 8-729-810-49 TRANSISTOR 2SD1877S-SONY-CA

Q902 8-729-421-19 TRANSISTOR UN2213 Q903 8-729-421-19 TRANSISTOR UN2213 Q1201 8-729-422-27 TRANSISTOR 2SD601A-Q Q1202 8-729-422-27 TRANSISTOR 2SD601A-Q Q1203 8-729-422-27 TRANSISTOR 2SD601A-Q

Q1204 8-729-216-22 TRANSISTOR 2SA1162-G Q1207 8-729-422-27 TRANSISTOR 2SD601A-Q Q1208 8-729-422-27 TRANSISTOR 2SD601A-Q Q1209 8-729-422-27 TRANSISTOR 2SD601A-Q Q1265 8-729-424-67 TRANSISTOR UN2216

Q1513 8-729-422-27 TRANSISTOR 2SD601A-Q

REF.NO. PART NO. DESCRIPTION REMARK

R038 1-216-033-00 RES,CHIP 220 5% 1/10W R040 1-216-033-00 RES,CHIP 220 5% 1/10W

R041 1-216-025-91 RES,CHIP 100 5% 1/10W R042 1-216-039-00 RES,CHIP 390 5% 1/10W R045 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R047 1-216-025-91 RES,CHIP 100 5% 1/10W R048 1-216-025-91 RES,CHIP 100 5% 1/10W

R053 1-216-295-91 SHORT 0 R054 1-216-073-00 RES,CHIP 10K 5% 1/10W R057 1-216-049-91 RES,CHIP 1K 5% 1/10W R060 1-216-037-00 RES,CHIP 330 5% 1/10W R061 1-216-049-91 RES,CHIP 1K 5% 1/10W

R062 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R063 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R066 1-216-033-00 RES,CHIP 220 5% 1/10W R068 1-216-025-91 RES,CHIP 100 5% 1/10W R071 1-216-037-00 RES,CHIP 330 5% 1/10W

R072 1-216-061-00 RES,CHIP 3.3K 5% 1/10W R076 1-216-025-91 RES,CHIP 100 5% 1/10W R077 1-216-025-91 RES,CHIP 100 5% 1/10W R090 1-216-073-00 RES,CHIP 10K 5% 1/10W R101 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R102 1-216-049-91 RES,CHIP 1K 5% 1/10W R113 1-216-081-00 RES,CHIP 22K 5% 1/10W R114 1-216-041-00 RES,CHIP 470 5% 1/10W R115 1-216-081-00 RES,CHIP 22K 5% 1/10W R116 1-216-081-00 RES,CHIP 22K 5% 1/10W

R65 1-216-033-00 RES,CHIP 220 5% 1/10W R001 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R002 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R003 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R004 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R007 1-216-073-00 RES,CHIP 10K 5% 1/10W R008 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R009 1-216-049-91 RES,CHIP 1K 5% 1/10W R010 1-216-049-91 RES,CHIP 1K 5% 1/10W R012 1-216-017-91 RES,CHIP 47 5% 1/10W

R013 1-216-049-91 RES,CHIP 1K 5% 1/10W R014 1-216-049-91 RES,CHIP 1K 5% 1/10W R015 1-216-049-91 RES,CHIP 1K 5% 1/10W R016 1-216-049-91 RES,CHIP 1K 5% 1/10W R017 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R018 1-216-033-00 RES,CHIP 220 5% 1/10W R019 1-216-101-00 RES,CHIP 150K 5% 1/10W R021 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R022 1-216-295-91 SHORT 0 R025 1-216-295-91 SHORT 0

R026 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R027 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R028 1-216-025-91 RES,CHIP 100 5% 1/10W R029 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R031 1-216-049-91 RES,CHIP 1K 5% 1/10W

R033 1-216-049-91 RES,CHIP 1K 5% 1/10W R035 1-216-049-91 RES,CHIP 1K 5% 1/10W R036 1-216-049-91 RES,CHIP 1K 5% 1/10W

R117 1-216-081-00 RES,CHIP 22K 5% 1/10W R118 1-216-081-00 RES,CHIP 22K 5% 1/10W R119 1-216-055-00 RES,CHIP 1.8K 5% 1/10W R120 1-216-109-00 RES,CHIP 330K 5% 1/10W R131 1-216-464-11 METAL OXIDE 18K 5% 2W F

R180 1-216-033-00 RES,CHIP 220 5% 1/10W R181 1-216-033-00 RES,CHIP 220 5% 1/10W R182 1-216-033-00 RES,CHIP 220 5% 1/10W R240 1-216-043-91 RES,CHIP 560 5% 1/10W R241 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

R242 1-216-037-00 RES,CHIP 330 5% 1/10W R243 1-216-073-00 RES,CHIP 10K 5% 1/10W R244 1-216-073-00 RES,CHIP 10K 5% 1/10W R245 1-216-067-00 RES,CHIP 5.6K 5% 1/10W R248 1-216-071-00 RES,CHIP 8.2K 5% 1/10W

R250 1-216-071-00 RES,CHIP 8.2K 5% 1/10W R251 1-216-049-91 RES,CHIP 1K 5% 1/10W R252 1-247-815-91 CARBON 220 5% 1/4W R253 1-216-073-00 RES,CHIP 10K 5% 1/10W R254 1-249-389-11 CARBON 4.7 5% 1/4W

R257 8-719-041-97 DIODE MA113-(TX) R265 1-216-061-00 RES,CHIP 3.3K 5% 1/10W R266 1-216-073-00 RES,CHIP 10K 5% 1/10W R301 1-216-073-00 RES,CHIP 10K 5% 1/10W R302 1-216-063-91 RES,CHIP 3.9K 5% 1/10W

R303 1-216-025-91 RES,CHIP 100 5% 1/10W R304 1-216-025-91 RES,CHIP 100 5% 1/10W R305 1-216-033-00 RES,CHIP 220 5% 1/10W R306 1-216-033-00 RES,CHIP 220 5% 1/10W R307 1-216-033-00 RES,CHIP 220 5% 1/10W

– 46 –

KV-G14M2

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

F35430206

()

A

F35430296

RM-869

R308 1-216-033-00 RES,CHIP 220 5% 1/10W R309 1-216-033-00 RES,CHIP 220 5% 1/10W R310 1-216-097-91 RES,CHIP 100K 5% 1/10W R311 1-216-075-00 RES,CHIP 12K 5% 1/10W R312 1-216-025-91 RES,CHIP 100 5% 1/10W

R313 1-216-053-00 RES,CHIP 1.5K 5% 1/10W R314 1-216-025-91 RES,CHIP 100 5% 1/10W R315 1-216-295-91 SHORT 0 R318 1-216-097-91 RES,CHIP 100K 5% 1/10W R319 1-216-123-11 RES,CHIP 1.2M 5% 1/10W

R320 1-216-083-00 RES,CHIP 27K 5% 1/10W R321 1-216-689-11 METAL CHIP 39K 0.50% 1/10W R322 1-216-083-00 RES,CHIP 27K 5% 1/10W R324 1-216-133-00 RES,CHIP 3.3M 5% 1/10W R325 1-216-295-91 SHORT 0

R326 1-216-039-00 RES,CHIP 390 5% 1/10W R327 1-216-295-91 SHORT 0 R328 1-216-295-91 SHORT 0 R329 1-216-295-91 SHORT 0 R330 1-216-043-91 RES,CHIP 560 5% 1/10W

R331 1-216-117-00 RES,CHIP 680K 5% 1/10W R332 1-216-033-00 RES,CHIP 220 5% 1/10W R333 1-216-077-00 RES,CHIP 15K 5% 1/10W R335 1-216-073-00 RES,CHIP 10K 5% 1/10W R336 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R338 1-216-295-91 SHORT 0 R339 1-216-036-00 RES,CHIP 300 5% 1/10W R340 1-216-035-00 RES,CHIP 270 5% 1/10W R341 1-216-049-91 RES,CHIP 1K 5% 1/10W R351 1-216-001-00 RES,CHIP 10 5% 1/10W

R355 1-216-001-00 RES,CHIP 10 5% 1/10W R356 1-216-049-91 RES,CHIP 1K 5% 1/10W R360 1-208-291-11 RES,CHIP 4.7M 5% 1/10W R403 1-216-021-00 RES,CHIP 68 5% 1/10W R406 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R407 1-216-063-91 RES,CHIP 3.9K 5% 1/10W R408 1-216-055-00 RES,CHIP 1.8K 5% 1/10W R409 1-216-025-91 RES,CHIP 100 5% 1/10W R410 1-216-073-00 RES,CHIP 10K 5% 1/10W R411 1-216-057-00 RES,CHIP 2.2K 5% 1/10W

R412 1-216-069-00 RES,CHIP 6.8K 5% 1/10W R413 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R414 1-216-041-00 RES,CHIP 470 5% 1/10W R415 1-216-033-00 RES,CHIP 220 5% 1/10W R416 1-216-033-00 RES,CHIP 220 5% 1/10W

R417 1-216-033-00 RES,CHIP 220 5% 1/10W R418 1-216-045-00 RES,CHIP 680 5% 1/10W R419 1-216-049-91 RES,CHIP 1K 5% 1/10W R420 1-216-039-00 RES,CHIP 390 5% 1/10W R421 1-216-033-00 RES,CHIP 220 5% 1/10W

R422 1-216-027-00 RES,CHIP 120 5% 1/10W R423 1-216-029-00 RES,CHIP 150 5% 1/10W R424 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R425 1-216-039-00 RES,CHIP 390 5% 1/10W R426 1-216-029-00 RES,CHIP 150 5% 1/10W

R427 1-216-037-00 RES,CHIP 330 5% 1/10W R428 1-216-081-00 RES,CHIP 22K 5% 1/10W

R429 1-216-031-00 RES,CHIP 180 5% 1/10W R430 1-216-041-00 RES,CHIP 470 5% 1/10W R431 1-216-081-00 RES,CHIP 22K 5% 1/10W

R432 1-216-041-00 RES,CHIP 470 5% 1/10W R433 1-216-081-00 RES,CHIP 22K 5% 1/10W R434 1-216-041-00 RES,CHIP 470 5% 1/10W R435 1-216-041-00 RES,CHIP 470 5% 1/10W R436 1-216-081-00 RES,CHIP 22K 5% 1/10W

R437 1-216-081-00 RES,CHIP 22K 5% 1/10W R440 1-216-029-00 RES,CHIP 150 5% 1/10W R521 1-216-049-91 RES,CHIP 1K 5% 1/10W R555 1-249-427-11 CARBON 6.8K 5% 1/4W R556 1-216-049-91 RES,CHIP 1K 5% 1/10W

R557 1-216-055-00 RES,CHIP 1.8K 5% 1/10W R560 1-216-295-91 SHORT 0 R561 1-249-421-11 CARBON 2.2K 5% 1/4W R562 1-249-418-11 CARBON 1.2K 5% 1/4W F R563 1-260-126-11 CARBON 180K 5% 1/2W

R564 1-216-091-00 RES,CHIP 56K 5% 1/10W R565 1-216-091-00 RES,CHIP 56K 5% 1/10W R566 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R569 1-260-125-11 CARBON 150K 5% 1/2W R571 1-216-033-00 RES,CHIP 220 5% 1/10W

R605 1-216-396-11 METAL OXIDE 3.9 5% 3W F R610 1-215-924-00 METAL OXIDE 15K 5% 3W F R611 1-202-933-61 FUSIBLE 0.1 10% 1/2W F R613 1-219-134-11 FUSIBLE 0.1 10% 1/4W R614 1-215-877-11 METAL OXIDE 22K 5% 1W F

R615 1-249-389-11 CARBON 4.7 5% 1/4W R616 ! 1-218-265-91 METAL 8.2M 5% 1W R617 1-215-924-00 METAL OXIDE 15K 5% 3W F R619 1-219-134-11 FUSIBLE 0.1 10% 1/4W R620 1-202-962-11 CEMENTED 3.3 5% 10W

R622 1-207-615-00 WIREWOUND 0.33 10% 2W F R623 1-247-807-31 CARBON 100 5% 1/4W R624 1-216-446-00 METAL OXIDE 18 5% 2W F R625 1-249-424-11 CARBON 3.9K 5% 1/4W R626 1-249-420-11 CARBON 1.8K 5% 1/4W

R627 1-249-417-11 CARBON 1K 5% 1/4W R628 1-249-417-11 CARBON 1K 5% 1/4W R629 1-249-401-11 CARBON 47 5% 1/4W R632 1-249-381-11 CARBON 1 5% 1/4W R636 1-215-924-00 METAL OXIDE 15K 5% 3W F

R801 1-215-921-11 METAL OXIDE 4.7K 5% 3W F R803 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R804 1-216-049-91 RES,CHIP 1K 5% 1/10W R805 1-216-081-00 RES,CHIP 22K 5% 1/10W R809 1-247-763-11 CARBON 8.2K 5% 1/2W F

R811 1-216-350-11 METAL OXIDE 1.2 5% 1W F R816 1-249-437-11 CARBON 47K 5% 1/4W R820 1-216-053-00 RES,CHIP 1.5K 5% 1/10W R821 1-216-475-11 METAL OXIDE 120 5% 3W F R822 1-216-429-00 METAL OXIDE 270 5% 1W F

R823 1-215-869-11 METAL OXIDE 1K 5% 1W F R824 1-215-889-00 METAL OXIDE 330 5% 2W F R825 1-249-392-11 CARBON 8.2 5% 1/4W F R829 1-216-651-11 METAL CHIP 1K 0.50% 1/10W R831 1-215-887-00 METAL OXIDE 150 5% 2W F

– 47 –

KV-G14M2

RM-869

A

F35430206

()

F35430296

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK

R834 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R851 1-249-382-11 CARBON 1.2 5% 1/4W F R852 1-249-417-11 CARBON 1K 5% 1/4W F R853 1-249-377-11 CARBON 0.47 5% 1/4W F R854 1-249-377-11 CARBON 0.47 5% 1/4W F

R855 1-260-107-11 CARBON 4.7K 5% 1/2W R856 1-249-429-11 CARBON 10K 5% 1/4W R857 1-249-440-11 CARBON 82K 5% 1/4W R858 1-216-370-11 METAL OXIDE 1.2 5% 2W F R860 1-247-887-00 CARBON 220K 5% 1/4W

R883 1-216-696-11 METAL CHIP 75K 0.50% 1/10W R895 1-216-349-00 METAL OXIDE 1 5% 1W F R898 1-249-421-11 CARBON 2.2K 5% 1/4W R902 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R906 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R907 1-216-043-91 RES,CHIP 560 5% 1/10W R908 1-216-059-00 RES,CHIP 2.7K 5% 1/10W R909 1-216-071-00 RES,CHIP 8.2K 5% 1/10W R910 1-216-043-91 RES,CHIP 560 5% 1/10W R911 1-216-059-00 RES,CHIP 2.7K 5% 1/10W

R912 1-216-071-00 RES,CHIP 8.2K 5% 1/10W R913 1-216-041-00 RES,CHIP 470 5% 1/10W R914 1-216-041-00 RES,CHIP 470 5% 1/10W R1201 1-216-023-00 RES,CHIP 82 5% 1/10W R1202 1-216-049-91 RES,CHIP 1K 5% 1/10W

REF.NO. PART NO. DESCRIPTION REMARK

R1255 1-216-073-00 RES,CHIP 10K 5% 1/10W R1513 1-216-073-00 RES,CHIP 10K 5% 1/10W R1514 1-216-065-91 RES,CHIP 4.7K 5% 1/10W

R1515 1-216-025-91 RES,CHIP 100 5% 1/10W

S601 ! 1-571-433-31 SWITCH, PUSH (AC POWER) S801 1-572-707-11 SWITCH, LEVER S901 1-571-532-21 SWITCH, TACTILE S902 1-571-532-21 SWITCH, TACTILE S903 1-571-532-21 SWITCH, TACTILE

S904 1-571-532-21 SWITCH, TACTILE S905 1-571-532-21 SWITCH, TACTILE S906 1-571-532-21 SWITCH, TACTILE

SG801 1-519-422-11 GAP, SPARK

SWF401 1-760-771-11 FILTER, SURFACE WAVE

R1203 1-216-089-91 RES,CHIP 47K 5% 1/10W R1205 1-216-023-00 RES,CHIP 82 5% 1/10W R1206 1-216-089-91 RES,CHIP 47K 5% 1/10W R1211 1-216-021-00 RES,CHIP 68 5% 1/10W R1212 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1215 1-216-113-00 RES,CHIP 470K 5% 1/10W R1216 1-216-113-00 RES,CHIP 470K 5% 1/10W R1218 1-216-041-00 RES,CHIP 470 5% 1/10W R1219 1-216-073-00 RES,CHIP 10K 5% 1/10W R1220 1-216-049-91 RES,CHIP 1K 5% 1/10W

R1221 1-216-073-00 RES,CHIP 10K 5% 1/10W R1227 1-216-689-11 RES,CHIP 39K 5% 1/10W R1228 1-216-049-91 RES,CHIP 1K 5% 1/10W R1229 1-216-041-00 RES,CHIP 470 5% 1/10W R1230 1-216-073-00 RES,CHIP 10K 5% 1/10W

R1231 1-216-049-91 RES,CHIP 1K 5% 1/10W R1232 1-216-063-91 RES,CHIP 3.9K 5% 1/10W R1233 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R1235 1-216-689-11 RES,CHIP 39K 5% 1/10W R1239 1-249-389-11 CARBON 4.7 5% 1/4W F

R1240 1-216-025-91 RES,CHIP 100 5% 1/10W R1241 1-216-049-91 RES,CHIP 1K 5% 1/10W R1243 1-216-025-91 RES,CHIP 100 5% 1/10W R1245 1-216-037-00 RES,CHIP 330 5% 1/10W R1246 1-216-037-00 RES,CHIP 330 5% 1/10W

R1247 1-216-041-00 RES,CHIP 470 5% 1/10W R1248 1-216-051-00 RES,CHIP 1.2K 5% 1/10W R1249 1-216-041-00 RES,CHIP 470 5% 1/10W R1250 1-216-119-00 RES,CHIP 820K 5% 1/10W R1251 1-216-119-00 RES,CHIP 820K 5% 1/10W

T601 ! 1-429-138-21 TRANSFORMER, CONVERTER (SRT) T605 ! 1-424-682-11 TRANSFORMER, LINE FILTER T801 1-437-195-11 TRANSFORMER, HORIZONTAL DRIVE T851 ! 1-453-249-11 TRANSFORMER ASSY , FL YB ACK (NX-1733//M3A)

THP601!1-806-165-12 THERMISTOR (POSITIVE)

<TUNER>

TU101 ! 8-598-323-30 TUNER, VSS BT-A G401

X101 1-577-358-21 VIBRATOR, CERAMIC X300 1-411-752-11 COIL X358 1-567-505-11 OSCILLATOR, CRYSTAL X443 1-567-504-11 OSCILLATOR, CRYSTAL

******************************************************************

R1252 1-216-057-00 RES,CHIP 2.2K 5% 1/10W R1253 1-216-051-00 RES,CHIP 1.2K 5% 1/10W

– 48 –

KV-G14M2

The components identified by shading and mark ! are critical for safety. Replace only with part number specified.

REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK

F35821706

()

A

F35821796

RM-869

* A-1298-616-A A BOARD, COMPLETE (F35821706)

*********************

* A-1298-617-A A BOARD, COMPLETE (F35821796)

*********************

* 1-580-798-11 CONNECTOR PIN (DY) 6P * 4-059-707-01 HOLDER, FBT

4-382-854-11 SCREW (M3X10), P, SW (+) 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3

C001 1-163-011-11 CERAMIC CHIP 0.0015MF 10% 50V C002 1-126-965-11 ELECT 22MF 20% 50V C003 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C004 1-126-961-11 ELECT 2.2MF 20% 50V C006 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C007 1-126-959-11 ELECT 0.47MF 20% 50V C008 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C009 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C010 1-163-037-11 CERAMIC CHIP 0.022MF 10% 50V C011 1-126-967-11 ELECT 47MF 20% 16V

C012 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C013 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C014 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C015 1-101-884-00 CERAMIC 56PF 5% 50V C016 1-101-884-00 CERAMIC 56PF 5% 50V

C017 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C018 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C019 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C020 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C021 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C022 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C023 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C024 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C025 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C026 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C027 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C028 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C029 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C032 1-163-031-11 CERAMIC CHIP 0.01MF 50V C034 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C035 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C036 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C037 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C038 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C040 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

C042 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C044 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C045 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C046 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C047 1-163-117-00 CERAMIC CHIP 100PF 5% 50V

C048 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C049 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C050 1-126-960-11 ELECT 1MF 20% 50V C051 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C052 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V

C053 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C054 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C055 1-124-480-11 ELECT 470MF 20% 25V C056 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C057 1-163-243-11 CERAMIC CHIP 47PF 5% 50V

C058 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C059 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C060 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V C061 1-164-505-11 CERAMIC CHIP 2.2MF 16V C064 1-163-009-11 CERAMIC CHIP 0.001MF 10% 50V

C072 1-124-480-11 ELECT 470MF 20% 25V C074 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C101 1-163-029-11 CERAMIC CHIP 0.0047MF 50V C105 1-104-665-11 ELECT 100MF 20% 16V C106 1-126-964-11 ELECT 10MF 20% 50V
