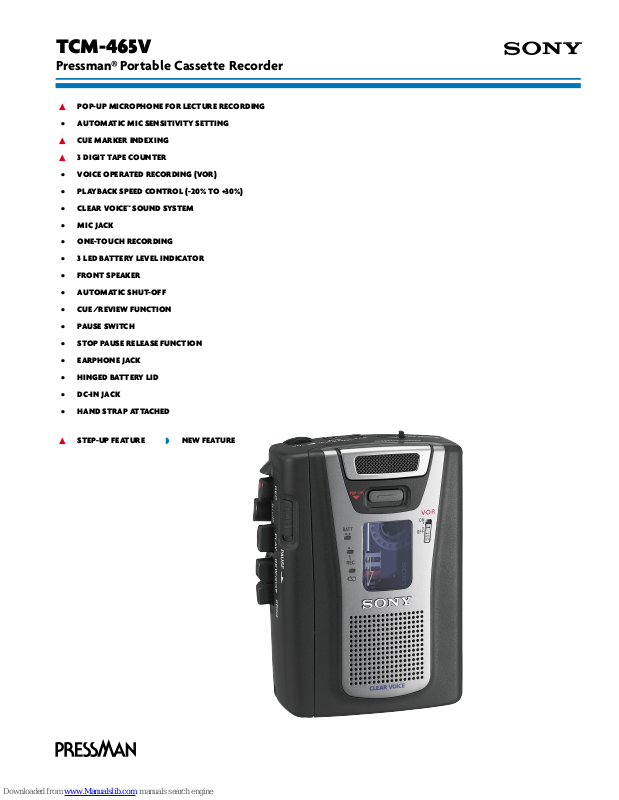

Sony TCM-465V Operating Instructions (primary manual) Specifications
TCM-465V
Pressman®Portable Cassette Recorder
▲ POP-UP MICROPHONE FOR LECTURE RECORDING
• AUTOMATIC MIC SENSITIVITY SETTING
▲ CUE MARKER INDEXING
▲ 3 DIGIT TAPE COUNTER
• VOICE OPERATED RECORDING (VOR)
• PLAYBACK SPEED CONTROL (-20% TO +30%)
• CLEAR VOICE™ SOUND SYSTEM
• MIC JACK
• ONE-TOUCH RECORDING
• 3 LED BATTERY LEVEL INDICATOR
• FRONT SPEAKER
• AUTOMATIC SHUT-OFF
• CUE/REVIEW FUNCTION
• PAUSE SWITCH
• STOP PAUSE RELEASE FUNCTION
• EARPHONE JACK
• HINGED BATTERY LID
• DC-IN JACK
• HAND STRAP ATTACHED
▲ STEP-UP FEATURE ◗ NEW FEATURE
TCM-465V
Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com Printed in USA 2/2002
features
▲
POP-UP MICROPHONE
is built-in for convenience and provides for
distinct recording of lectures and other situations
• AUTOMATIC MIC SENSITIVITY SETTING
automatically adjusts the builtin microphone to record appropriately in different situations such as
meetings, conferences, dictation or one-on-one recordings
▲
CUE MARKER INDEXING SYSTEM
lets you place an electronic "mark" at
specific tape segments, and provides rapid access during Cue and Review
▲
3 DIGIT TAPE COUNTER
makes it easy to find a specific location on the
tape for rapid access and editing
• VOICE OPERATED RECORDING (VOR)
activates the recorder only when
audible sound is present, conserving tape and eliminating soundless
passages
• PLAYBACK SPEED CONTROL
(-20% to +30%) lets you adjust playback
speed slower or faster than normal, for easy review and editing of
recorded information during playback
• CLEAR VOICE™ SOUND SYSTEM
enhances voice quality during recording
and playback for greater clarity
• MIC JACK (MONAURAL)
lets you connect an external microphone if
desired
• ONE TOUCH RECORDING
for simplified, quick play/record operation
• 3 LED BATTERY LEVEL INDICATOR
provides visible indication of battery
power remaining
• FRONT SPEAKER
has excellent sound quality to monitor tape playback
• AUTOMATIC SHUT-OFF
at end of tape reduces mechanical wear and
conserves battery power
• CUE/REVIEW FUNCTION
provides sound during fast Forward and Rewind
modes to help find specific passages
• PAUSE SWITCH
allows for instant on-the-spot editing
• STOP PAUSE RELEASE FUNCTION
automatically turns off the Pause
switch whenever the Stop button is pressed, to prevent loss of recording
• EARPHONE JACK
for private listening with optional earphone
• HINGED BATTERY LID
helps prevent accidental loss
• DC-IN JACK
for two-way power operation, using replaceable batteries or
optional AC power adaptor
• HAND STRAP ATTACHED
affords very convenient one-hand use
specifications
RECORDING SYSTEM:
2 track, 1 channel (standard cassette)
FREQUENCY RESPONSE:
250 - 6300Hz
SPEAKER:
1 7⁄16" (36mm) dia.
POWER REQUIREMENTS:
DC 3V with "AA" x 2 batteries
BATTERY LIFE:
Rec/Play: Approx. 11 hours with Sony alkaline batteries
COLOR:
Black
DIMENSIONS (WHD):
3 5⁄8" x 4 5⁄8" x 1 3⁄4" (91 x 115.8 x 42.8mm)
WEIGHT:
6 3⁄4oz (195g)
SUPPLIED ACCESSORIES:
Hand Strap
OPTIONAL ACCESSORIES:
AC-E30HG AC Adaptor
POP-UP MICROPHONE
©2002 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony,
Clear Voice and Pressman are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
