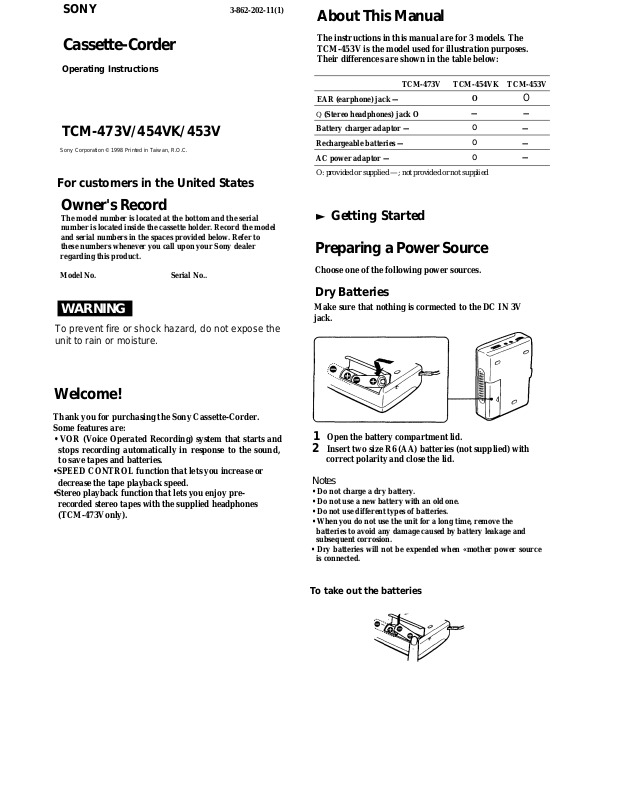

Page 1
SONY
3-862-202-11(1)
About This Manual
Cassette-Corder
Operating Instructions
TCM-473V/454VK/453V
Sony Corporation © 1998 Printed in Taiwan, R.O.C.
For customers in the United States
Owner's Record
The model number is located at the bottom and the serial
number is located inside the cassette holder. Record the model
and serial numbers in the spaces provided below. Refer to
these numbers whenever you call upon your Sony dealer
regarding this product.
Model No.
WARNING
To prevent fire or shock hazard, do not expose the
unit to rain or moisture.
Serial No..
The instructions in this manual are for 3 models. The
TCM-453V is the model used for illustration purposes.
Their differences are shown in the table below:
TCM-473V
EAR (earphone) jack —
Q (Stereo headphones) jack O
Battery charger adaptor —
Rechargeable batteries —
AC power adaptor —
O: provided or supplied —; not provided or not supplied
TCM-454VK TCM-453V
O O
— —
o
o
o
► Getting Started
Preparing a Power Source
Choose one of the following power sources.
Dry Batteries
Make sure that nothing is cormected to the DC IN 3V
jack.
—
—
—
Welcome!
Thank you for purchasing the Sony Cassette-Corder.
Some features are:
• VOR (Voice Operated Recording) system that starts and
stops recording automatically in response to the sound,
to save tapes and batteries.
•SPEED CONTROL function that lets you increase or
decrease the tape playback speed.
•Stereo playback function that lets you enjoy pre
recorded stereo tapes with the supplied headphones
(TCM-473Vonly).
1 Open the battery compartment lid.
2 Insert two size R6 (AA) batteries (not supplied) with
correct polarity and close the lid.
Notes
• Do not charge a dry battery.
• Do not use a new battery with an old one.
• Do not use different types of batteries.
• When you do not use the unit for a long time, remove the
batteries to avoid any damage caused by battery leakage and
subsequent corrosion.
• Dry batteries will not be expended when «mother power source
is connected.
To take out the batteries
Page 2
To attach the battery compartment lid if it is accidentaily detached
• The unit will play back normally for a while even after the
ВАТТ lamp dims. However, replace the batteries as soon as
you can. If you do not, subsequent recording will not be done
correctly.
Rechargeable Batteries (supplied to TCM-
454VK only)
Before using the rechargeable batteries, charge them with
the supplied battery charger adaptor and AC power
adaptor.
AC power adaptor
Battery charger
y*- adaptor
DC IN 3V
Power indicator
1 Insert the rechargeable batteries (NC-AA) into the
battery charger adaptor with correct polarity.
2 Connect the AC power adaptor (supplied to TCM-
454VK) to the DC IN 3V jack of the battery charger
adaptor and to the wall outlet.
The power indicator lights up.
3 Unplug the AC power adaptor from the wall outlet
and from the battery charger adaptor after about
eight hours.
Battery life (Approximate hours)
Playback Recording
Sony alkaline LR6 (SG)
Sony R6P (SR)
Sony rechargeable
battery (NC-AA)
fully charged
(TCM^54VK only)
* Measured value by the standard of EIAJ (Electric Industries
Association of Japan). (Using a Sony HE series cassette tape)
11 11
3 3
(Models for U.S.A. and Canada)
3 3
(Model for Europe)
3.5 4
(EIAJ*)
Note
The battery life may shorten depending on the operation of the
unit.
House Current
AC power adaptor
Connect the AC power adaptor to DC IN 3V and to the
wall outlet. The AC power adaptor is supplied only with
the TCM-454VK. For other models, use the AC-E30HG
AC power adaptor (not supplied). Do not use any other
AC power adaptor.
Polarity of the plug
Notes
• The power indicator lights in green as long as the AC power
adaptor is plugged fo the wall outlet and the DC IN 3V jack,
even when the charging has not been done.
• Use only the supplied or recommended AC power adaptor,
battery charger adaptor and rechargeable batteries.
• The rechargeable batteries can be charged approximately 500
times.
• Do not leave the battery charger adaptor plugged in for more
than 20 hours. Overcharging may damage the rechargeable
batteries.
When to replace the batteries
Replace the batteries
with new ones or charge
the batteries (TCM- ВАТТ lamp
454VK only) when the
ВАТТ lamp dims.
Notes
• After the batteries have been used for a while, the ВАТТ lamp
may flicker with the playback sound when you turn up the
volume; however, this does not mean that you need to replace
the batteries.
Note
Specifications for AC-E30HG varies for each area. Check your
local voltage and the shape of plug before purchasing.
Page 3
► Operating the Unit
Recording
You can record right away with the built-in microphone.
Make sure that nothing is connected to the MIC jack.
To
Stop recording ■ STOP
Pause recording PAUSE " > in the direction of the
Review the portion
just recorded
• PAUSE will be also automatically released when Ш STOP
is pressed (stop-pause-release function).
Press or slide
arrow
To release pause recording, release
pause —
Press and hold ◄◄ REW/REVIEW
during recording.
Release the button at the point to start
playback.
To monitor the sound
For TCM-473V: Connect stereo headphones (supplied)
firmly to the CT (headphones) jack.
For TCM-454VK/453V: Connect an earphone (not
supplied) firmly to the EAR jack.
EAR(TCM-454VK/453V)
rXTCM-473V)
1 Insert a normal (TYPE I) tape with the side to start
recording facing the cassette holder.
2 Set VOR to; H or L to start and pause recording
automatically to the sound.
H (high) to record at meetings or in a quiet and/
or spacious place.
L (low) to record for dictation or in a noisy place.
OFF to start and stop recording manually.
Notes
• Do not use a CrCh (TYPE II) or metal (TYPE IV) tape, otherwise
the sound may be distorted when you play back the tape, or
the previous recording may not be erased completely.
• The SPEED CONTROL switch works in the playback mode
only. Recording will be made independent of this control.
Notes on VOR (Voice Operated Recording)
• When you use the VOR system in a noisy place, the unit will
stay in the recording mode. If the sound is too soft, on the
contrary, the unit will not start recording. Set VOR to H (high)
or L (low) depending on the conditions to pick up necessary
sound only.
• The VOR system depends on the environmental conditions. If
you cannot get the desired results even though you adjust
VOR to H or L, set VOR to OFF.
To prevent a tape from being accidentally recorded over
Break out and remove the cassette tabs. To reuse the tape
for recording, cover the tab hole with adhesive tape.
Note
When the sound to be recorded is not loud enough, set the
VOR switch to OFF, or the unit may not start recording.
3 Press # REC.
Recording starts.
At the end of the tape, recording stops and the unit turns
off automatically.
Page 4
Recording from Various Sound
Sources
The sound is recorded in monaural.
MIC (PLUG IN POWER)
Recording with an External Microphone
Connect a microphone to the MIC jack. The raised dot
near the MIC jack identifies as the jack' for a microphone,
not an earphone. Use a microphone of low impedance
(less than 3 kilohms) such as ECM-TllO (not supplied).
When using a plug-in-power system microphone, the
power to the microphone is supplied from this unit.
Note
When recording with an external microphone, the VOR system
may not work properly because of the difference in sensitivity.
Recording from Another Equipment
Connect another equipment to the MIC jack using the
RK-G64HG connecting cord (not supplied).
Playing a Tape
VOL
1 Insert a cassette with the side to start playing facing
the cassette holder.
2 Adjust the tape playback speed.
Set SPEED CONTROL to;
SLOW (slow) to play back a tape slower.
Center position to playback a tape at normal speed.
FAST (fast) to play back a tape faster.
3 Press ► PLAY then adjust the volume. There is a
raised dot to show the direction to turn down volume
beside VOL.
At the end of the tape, playback stops and the unit turns
off automatically.
To
Stop playback/stop
fast forward or rewind
Pause playback PAUSE ' in the direction of the
Search forward
during playback (CUE)
Search backward
during playback
(REVIEW)
Fast forward” ►► FF/CUE during stop
Rewind**
Start recording
during playback
* PAUSE >1 will be also automatically released when ■ STOP
is pressed (stop-pause-release function).
. **If you leave the unit after the tape has been wound or
rewound, the batteries will be consumed rapidly. Be sure to
depress ■ STOP.
Press or slide
■ STOP
arrow
To release pause playdack, release
PAUSE —*-*.
Press and hold ►► FF/CUE and
release it at the point you want
Press and hold REW/REVIEW
and release it at the point you want
◄◄ REW/REVIEW during stop
• REC
To play back a tape recorded in stereo
(TCM-473V only)
The built-in speaker on this unit is monaural.
To enjoy stereo sound, use the supplied headphones.
Page 5
Aaamonai mrormation
Troubleshooting
Precautions
On power
•Operate the unit only on 3V DC. For AC operation, use
the AC power adaptor recommended for the unit. Do
not use any other type. For battery operation, use two
size R6 (AA) batteries^
On the unit
• Do not leave the unit in a location aear heat sources, or
in a place subject to direct sunlight, excessive dust or
mechanical shock.
•Should any solid object or liquid fall into the unit,
remove the batteries or disconnect the AC power
adaptor, and have the unit checked by qualified
personnel before operating it any further.
•Keep personal credit cards using magnetic coding or
spring-wound watches etc. away from the unit to
prevent possible damage from the magnet used for the
speaker.
•If the unit has not been used for a long time, set it in the
playback mode and warm it up for a few minutes
before inserting a tape.
On tapes longer than 90 minutes
We do not recommend the use of tapes longer than 90
minutes except for a long continuous recording or
playback. They are very thin and tend to be stretched
easily.
For the customers in the USA and Canada
RECYCLING NICKEL-CADMIUM BATTERIES
(Supplied to TCM-454VK only)
NICKEL-CADMIUM BATTERY.
BATTERY MUST BE RECYCLED OR DISPOSED OF
PROPERLY.
Nickel-Cadmium batteries are recyclable.
CSX
Nl-Cd
For the Sony Service Center nearest you call 1-800-222SONY (United States only)
For the Factory Service Center nearest you call 416-499SONY (Canada only)
Caution: Do not handle damaged or leaking nickel-
cadmium batteries.
If you have any questions or problems concerning your
unit, please consult your nearest Sony dealer.
You can help preserve our environment by
retunung your unwanted batteries to your
nearest Sony Service Center or Factory
Service Center for collection, recycling or
proper disposal.
Note: In some areas the disposal of nickel-
cadmium batteries in household or
business trash may be prohibited.
Should any problem persist after you have made these
checks, consult your nearest Sony dealer.
You cannot press • REC.
The tab on the tape has been removed.
You cannot press ► PLAY.
■> The tape has reached the end. Rewind the tape.
The unit does not operate.
-> The batteries have been inserted with incorrect
polarity.
The batteries are weak.
PAUSE —^ is slid in the direction of the arrow.
-> The AC power adaptor or car battery cord is not
firmly connected.
The batteries have been inserted, but simultane
ously the AC power adaptor is connected and not
to be done to the wall outlet.
No sound comes from the speaker.
•> The earphone or headphones is plugged in.
-> The volume is turned down completely.
Tape speed is too fast or too slow in the piayback mode.
-> SPEED CONTROL is set at a point other than the
center.
The sound drops out or comes with excessive noise.
•> The volume is turned down completely.
The batteries are weak.
-> ITie heads are contaminated. See "Maintenance."
Recording cannot be made.
Connection is made incorrectly.
-> The batteries are weak.
-> The record/playback head is contaminated.
-> VOR has been set to the improper position when
VOR function works.
Recording is interrupted.
^ VOR is set to H or L. When you do not use VOR,
set it to OFF.
Recording cannot be erased completely.
■> The erase head is contaminated.
-> Recording or erasing is being made using recorded
CrCh (TYPE II) or metal (TYPE FV) tape.
Specifications
Recording system
2-track 1 channel monaural
Frequency range
TCM-473V: Recording: 250-6,300Hz
Playback: 100-8,000Hz
TCM-454VK/453V: 250-6,300Hz
Speaker
Approx. 3.6 cm (lYw in.) dia.
Power output
TCM-473V: 130mW (at 10 % harmonic distortion)
TCM-454VK/453V: 300mW (at 10 % harmonic distortion)
Input
TCM-473V: Microphone input jack (minijack) sensitivity 0.2
mV for 3 kilohms or lower impedance microphone
TCM-454VK/453V: Microphone input jack (minijack)
sensitivity 0.14 mV for 3 kilohms or lower impedance
microphone
Page 6
output
TCM-473V: 0 (headphones) jack (stereo minijack) for 8-300
ohms headphones
TCM-454VK/453V: Earphone jack (minijack) for 8 - 300 ohms
earphone
Variable range of the tape speed
from +30% to -15%
Power requirements
• Two size R6 (AA) batteries (not supplied): 3V E)C
• Two NC-AA rechargeable batteries (1.2 V) (supplied to
TCM-454VK)
DC IN 3 V jack accepts:
• Sony AC power adaptor (supplied to TCM-454VK) or
AC-E30HG AC power adaptor (not supplied) suitable in the
country where the unit is to be ustd.
• Sony DCC-E230 car battery cord (not supplied) for use on
12 V car battery.
Dimensions (w/h/d) (inch projecting parts and controls)
113 X 91 X 37 mm (4'A x 3 V« x I'/i in.)
Mass (not inch batteries)
TCM-473V; 185g (6.6 oz.)
TCM-454VK/453V: 170g (6.0 oz.) '
Supplied accessories
Hand strap (1) (attached to the unit)
AC power adaptor (1) (TCM-454VK)
Battery charger adaptor (1) (TCM-454VK)
Rechargeable batteries (TCM-454VK) (2)
(Models for U.S.A. 2u\d Canada: NC-AA, 1.2V, 600mAh, NiCd)
(Model for Europe: NC-AA, 1.2V, 700mAh, Ni-Cd)
Headphones (1) (TCM^73V)
Design and specifications are subject to change without notice.
This warranty is valid only in the United States.
Sony ElKtronici Inc. l*Sony*) warrants this Product finduding any accessorras) against dataos In rrtatarial or
Kvorkmenship aa fodwis:
1. LABOR: For a period oi 90 days from the data c4 pumhasa. it this Product la dMarmined to ba datactrra.
Sony wW repair or rapteca the Product at ks ofNloa at no charge, or pay the labor charge to any Sony aMhortMd sarvica fadHty. Altor the Warranty Period, you mutt pay lor aH labor chargaa.
2. RtRTS; In addition, Sony will aupply, at no charge, naw or rebuikreplacemania in eschattga lor dalactive
partilor a period ol one <11 voar.AlMrMdayt from the data olpurcheaa, labor for removaiartd inalaHatlon ia
aveilabla from Sony amhoraodaervlcefacifrbes or a Sony Servtea Center at your espenaa,
To obtain warratay aervice. you muat talca the Product, or deliver the ftoducl freight prepaid, in either its original
pachagiftg or pecfcagInQallordwg an equal degree of protection, to any aiAhoriiedSotiyeatvtea fadHty,
This werranty doaa not cover cuatomer Inatructtoa inatellatioa aat up adjuatments or eignel reception prob
lema.
This werrsnty does not cover ooemafic demege or damege due to acts of God. aoddent misuse, ebuaa. nagli
далее, cemmereiei use, or modlfrcMion of, ono any pert of the Product Indudlno the enterrfka. 111)« werreray
does not cover densage due to improper operation or maintertance. connection to improper voltage tuppiy. or
atletTvted repair by enyorte other then e fadlitv euthorind by Sony to tervice the Product. This warrenty does
not cover Products sold AS IS or WTTH ALL FAULTS, or corrsumables (such as fuaes or betteries). This warf anty
is velid only in the UnMad States.
This werrardv is krvelid If the factory applied eeriai number has beer* eliered or removed from the Product
REPAIR OR REPLAfXMENT AS PROVIOEO UNDER THIS WARRANTY IS THE EXaUSIVE REM^ OF THE
CONSUMER SONY SHAa NOT BE LIABLE FOR ANY INODENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH Of ANY EXPRESS OR IMPUEO WARRANTY ON THIS PROOUa. EXCEPT TO THE EXTENT PROHIBГТЕО BY APPUCABlf LAW, ANY IMPUEO WARRANTY OF MERCHANTABILrY OR FITNESS FOR A AUmeULAR PURPOSE ON THIS PRODUCT IS UMfTED IN DURATION TO THE OURA-nON OF THIS WARRANTY
Some aatee do ГЮ1 eHowihe axclueion or KmiiBtion of hfctdeniel or coneoquentM demegea, or adow Nmliatlons
on how long an impliad warranty ieata. ao the abova limicaiiont or oxduaiona may not apply to you. In addition,
if you enter into a aervloa contract vWch the Sony Partnarahlp within 90 dayi of the data of sela, the Nmltation on
how long an impliod werranty iaeti doaa rtot apply to you. This warranty ghoe you epadfic legal rights, агч1 you
may have other rights which vary from stele to elan.
Fofyourcom«eoieoce.SonYEticiionicalnc.heaeetahlirtted WeohonerHimbefefoffreqiietAlyadMdqueatlona:
To locata tfta eervioer or deafer neeiwt you, or for aerviee laaMaiun or leeolubon of a aervioe problem, or for
product Information or operation. ПА:
or pan not Bvailebia from your suthorind daaler. call:
Sony Direct Waapanaa Center
14800h222-7Ae9
or write to:
Sony Direct Reaponee Center
t24SlGafew«yBlvd.
Fort Myers. FL 33913
14800Mee-SONy(76e9)
Maintenance
To clean the tape heads and path
Wipe the heads, pinch rollers, and the capstans with a
cotton swab moistened with alcohol every 10 hours of
use.
To clean the exterior
Use a soft cloth slightly moistened in water. Do not use
alcohol, benzine or thinner.
Note (TCM-473V only)
Clean the headphones plug periodically.
Loading...
