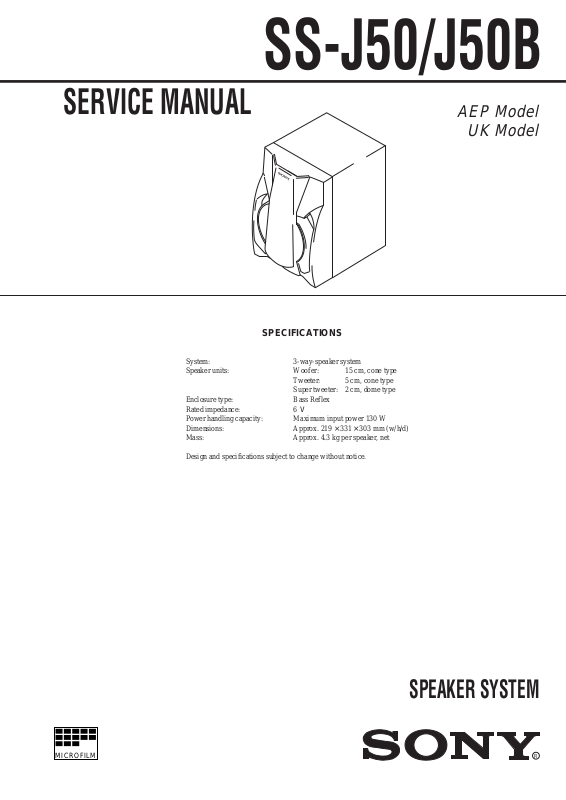

Sony SS-J50, SS-J50B Service Manual
R
R
SS-J50/J50B
SERVICE MANUAL
SPECIFICATIONS
System: 3-way-speaker system
Speaker units: Woofer: 15 cm, cone type
Tweeter: 5 cm, cone type
Super tweeter: 2 cm, dome type
Enclosure type: Bass Reflex
Rated impedance: 6 V
Power handling capacity: Maximum input power 130 W
Dimensions: Approx. 219 × 331 × 303 mm (w/h/d)
Mass: Approx. 4.3 kg per speaker, net
AEP Model
UK Model
Design and specifications subject to change without notice.
SPEAKER SYSTEM
MICROFILM
SS-J50/J50B
1. EXPLODED VIEW AND PARTS LIST
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
2
3
7
SP2
4
5
SP1
8
6
5
not supplied
SP3
3
1
Ref. No. Part No. Description Remark
1 X-4949-591-1 FRAME ASSY, GRILLE
2 4-998-367-01 PANEL FRONT (J50)
4-998-367-11 PANEL FRONT (J50B)
3 4-990-505-01 CATCHER
4 4-998-362-01 PACKING (A)
5 4-993-215-01 SCREW +P 3.5 x 16
6 4-993-217-01 PACKING
* 7 X-4949-590-1 CABINET ASSY, SPEAKER (J50)
X-4950-185-1 CABINET ASSY, SPEAKER (J50B)
8 1-694-299-11 TERMINAL BOARD
5
Ref. No. Part No. Description Remark
SP1 1-505-637-12 SPEAKER (5cm)
SP2 1-505-617-11 SPEAKER (2cm)
SP3 1-505-909-11 SPEAKER (15cm)
<ACCESSORIES & PACKING MATERIALS>
1-777-149-11 CORD, SPEAKER
4
9-922-892-11
Sony Corporation
Home A&V Products Company
— 2 —
Printed in Germany © 1998. 6
98F7549-1
Published by Quality Assurance Dept.
(Shibaura)
