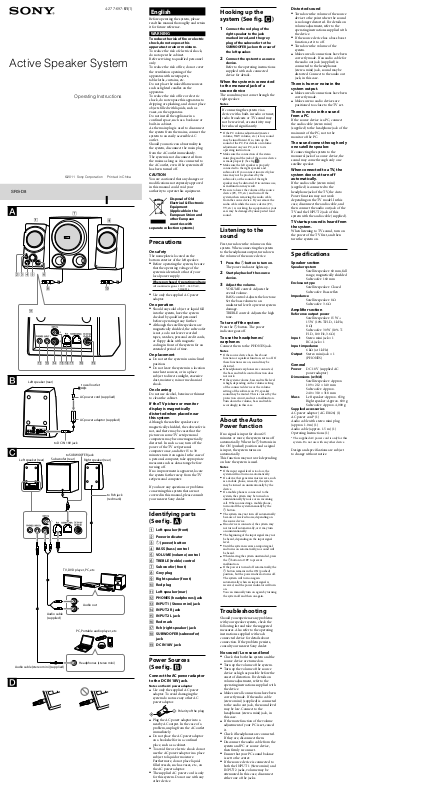

Sony SRS-D8 Users guide
4-277-697-51(1)
Active Speaker System
Operating Instructions
©2011 Sony Corporation Printed in China
SRS-D8
Left speaker (rear)
to DC IN 18V jack
Left speaker (rear)
Audio cable (stereo mini) (supplied)
Subwoofer (rear)
Audio cable
(supplied)
to wall outlet
AC power cord (supplied)
AC power adaptor (supplied)
to SUBWOOFER jack
Right speaker (rear)
to Rch jack
(red mark)
TV, DVD player, PC, etc.
Audio out
PC, Portable audio player, etc.
Headphones (stereo mini)
English
Before operating the system, please
read this manual thoroughly and retain
it for future reference.
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical shock,
do not open the cabinet.
Refer servicing to qualified personnel
only.
To reduce the risk of fire, do not cover
the ventilation opening of the
apparatus with newspapers,
tablecloths, curtains, etc.
Do not place the naked flame sources
such as lighted candles on the
apparatus.
To reduce the risk of fire or electric
shock, do not expose this apparatus to
dripping or splashing, and do not place
objects filled with liquids, such as
vases, on the apparatus.
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
As the main plug is used to disconnect
the system from the mains, connect the
system to an easily accessible AC
outlet.
Should you notice an abnormality in
the system, disconnect the main plug
from the AC outlet immediately.
The system is not disconnected from
the mains as long as it is connected to
the AC outlet, even if the system itself
has been turned off.
CAUTION
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
Disposal of Old
Electrical & Electronic
Equipment
(Applicable in the
European Union and
other European
separate collection systems)
countries with
Precautions
On safety
The nameplate is located on the
bottom exterior of the left speaker.
Before operating the system, be sure
that the operating voltage of the
system is identical to that of your
local power supply.
Where purchased
All countries/regions 120 V – 240 V AC,
Use only the supplied AC power
adaptor.
Operating voltage
50/60 Hz
On operation
Should any solid object or liquid fall
into the system, have the system
checked by qualified personnel
before operating it any further.
Although the satellite speakers are
magnetically shielded, the subwoofer
is not, so do not leave recorded
tapes, watches, personal credit cards,
or floppy disks with magnetic
coding in front of the system for an
extended period of time.
On placement
Do not set the system in an inclined
position.
Do not leave the system in a location
near heat sources, or in a place
subject to direct sunlight, excessive
dust, moisture, rain or mechanical
shock.
On cleaning
Do not use alcohol, benzine or thinner
to clean the cabinet.
If the TV picture or monitor
display is magnetically
distorted when placed near
this system
Although the satellite speakers are
magnetically shielded, the subwoofer is
not, and there may be cases that the
picture on some TV sets/personal
computers may become magnetically
distorted. In such a case, turn off the
power of the TV set/personal
computer once, and after 15 to 30
minutes turn it on again. In the case of
a personal computer, take appropriate
measures such as data storage before
turning off.
If no improvement is apparent, locate
the system farther away from the TV
set/personal computer.
If you have any questions or problems
concerning this system that are not
covered in this manual, please consult
your nearest Sony dealer.
Identifying parts
(See fig. )
Left speaker (front)
Power indicator
(power) button
BASS (bass) control
VOLUME (volume) control
TREBLE (treble) control
Subwoofer (front)
Grey plug
Right speaker (front)
Red plug
Left speaker (rear)
PHONES (headphones) jack
INPUT 1 (Stereo mini) jack
INPUT 2 R jack
INPUT 2 L jack
Red mark
Rch (right speaker) jack
SUBWOOFER (subwoofer)
jack
DC IN 18V jack
Power Sources
(See fig. )
Connect the AC power adaptor
to the DC IN 18V jack.
Notes on the AC power adaptor
Use only the supplied AC power
adaptor. To avoid damaging the
system do not use any other AC
power adaptor.
Polarity of the plug
Plug the AC power adaptor into a
nearby AC output. In the case of a
problem, unplug from the AC outlet
immediately.
Do not place the AC power adaptor
on a bookshelf or in a confined
place, such as a cabinet.
To avoid fire or electric shock do not
use the AC power adaptor in a place
subject to liquid or moisture.
Furthermore, do not place liquidfilled vessels, such as vases, etc., on
the AC power adaptor.
The supplied AC power cord is only
for this system. Do not use with any
other device.
Hooking up the
system (See fig. )
1 Connect the red plug of the
right speaker to the jack
marked in red, and the grey
plug of the subwoofer to the
SUBWOOFER jack on the rear of
the left speaker.
2 Connect the system to a source
device.
Refer to the operating instructions
supplied with each connected
device for details.
When the system is connected
to the monaural jack of a
source device
The sound may not come through the
right speaker.
Notes
If connecting the system via a
device with a built-in radio or tuner,
radio broadcasts or TV sound may
not be received, or sensitivity may
be reduced significantly.
If the PC volume adjustment (master
volume, WAV volume, etc.) is low, sound
may be insufficient. If so, turn up the
sound of the PC. For details on volume
adjustment on your PC, refer to its
operating instructions.
Make sure the connection of the stereo
mini plug and the jack of the source device
is made properly. (See fig. )
Make sure the left speaker is properly
connected to the right speaker and
subwoofer. If you connect incorrectly, low
tone may not be produced by the
subwoofer, or the sound of the right
speaker may be distorted. Discontinue use,
as malfunction may result.
Be sure to lower the volume of the source
device (PC, TV, etc.) and turn off the
system when removing the audio cable
from the source device. If you remove the
audio cable while the source device (PC,
TV, etc.) is working, the equipment or your
ears may be damaged by unexpected loud
sound.
Listening to the
sound
First, turn down the volume on this
system. When connecting the system
to the headphones output, turn down
the volume of the source device.
1 Press the button to turn on.
The power indicator lights up.
2 Start playback of the source
device.
3 Adjust the volume.
VOLUME control: Adjusts the
overall volume.
BASS control: Adjusts the low tone.
Set the bass volume to an
undistorted level to prevent system
damage.
TREBLE control: Adjusts the high
tone.
To turn off the system
Press the button. The power
indicator goes off.
To use the headphones/
earphones
Connect them to the PHONES jack.
Notes
If the source device has a bass boost
function or equalizer function, set to off. If
these functions are on, sound may be
distorted.
If headphones/earphones are connected,
the bass and treble control function does
not work.
If the system volume, bass and treble level
is high, depending on the volume setting
of the connected device or the volume
setting of the software on PC, speaker
sound may be muted. This is caused by the
protection circuit, and not a malfunction.
Turn down the volume, bass and treble
accordingly, in this case.
About the Auto
Power function
If no signal is input for about 25
minutes or more, the system turns off
automatically. When the button is in
the ON (pushed) position and a signal
is input, the system turns on
automatically.
This function may not work depending
on how the system is used.
Notes
If the input signal level is too low, the
system will not turn on automatically.
If a device that generates microwaves, such
as a mobile phone, is nearby, the system
may be turned on unintentionally by the
device.
If a mobile phone is connected to the
system, the system may be turned on
unintentionally by noise or an incoming
call. When connecting a mobile phone,
turn on/off the system manually by the
button.
The system may not turn off automatically
because of received noise, depending on
the source device.
If no device is connected, the system may
not turn off automatically, or it may turn
on unintentionally.
The beginning of the input signal may not
be heard, depending on the input signal
level.
Until the system receives an input signal
and turns on automatically, no sound will
be heard.
When leaving the system unattended, press
the button to OFF to prevent
malfunction.
If the power is turned off automatically, the
button remains in the ON (pushed)
position, but the power indicator turns off.
The system will turn on again
automatically when an input signal is
received, and the power indicator will turn
on.
You can manually turn on again by turning
the system off and then on again.
Troubleshooting
Should you experience any problems
with your speaker system, check the
following list and take the suggested
measures. Also refer to the operating
instructions supplied with each
connected device for details about
connection. If the problem persists,
consult your nearest Sony dealer.
No sound / Low sound level
Check that both this system and the
source device are turned on.
Turn up the volume of the system.
Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
Make sure all connections have been
correctly made. If the audio cable
(stereo mini) (supplied) is connected
to the audio out jack, the sound level
may be low. Connect to the
headphones (stereo-mini) jack, in
this case.
If the mute function of the volume
adjustment of your PC is set, cancel
it.
Check if headphones are connected.
If they are, disconnect them.
Disconnect the audio cable from the
system and PC or source device,
then firmly reconnect.
Ensure that your PC sound balance
is set to the center.
If the source device is connected to
both the INPUT 1 (Stereo mini) and
INPUT 2 jacks, volume may be
attenuated. In this case, disconnect
either one of the jacks.
Distorted sound
Turn down the volume of the source
device to the point where the sound
is no longer distorted. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
If the source device has a bass boost
function, set it to off.
Turn down the volume of the
system.
Make sure all connections have been
correctly made. If an audio cable for
the audio out jack (supplied) is
connected to the headphones
(stereo-mini) jack, sound may be
distorted. Connect to the audio out
jack, in this case.
There is hum or noise in the
system output.
Make sure all connections have been
correctly made.
Make sure no audio devices are
positioned too close to the TV set.
There is noise in the sound
from a PC.
If the source device is a PC, connect
the audio cable (stereo mini)
(supplied) to the headphone jack of the
main unit of the PC, not to the
monitor of the PC.
The sound comes through only
one satellite speaker.
If connecting the system to the
monaural jack of a source device, the
sound may come through only one
satellite speaker.
When connected to a TV, the
system does not turn off
automatically.
If the audio cable (stereo mini)
(supplied) is connected to the
headphone jack of the TV, the Auto
Power function may not work
depending on the TV model. In this
case, disconnect the audio cable, and
then connect the audio out jack of the
TV and the INPUT 2 jack of this
system with the audio cable (supplied).
TV startup sound is heard from
the system.
When listening to TV sound, turn on
the power of the TV first, and then
turn the system on.
Specifications
Speaker section
Speaker system
Enclosure type
Impedance
Amplifier section
Reference output power
Input
Input impedance
Output
General
Power DC 18 V (supplied AC
Dimensions (w/h/d)
Mass
Supplied accessories
AC power adaptor (AC-E1826) (1)
AC power cord* (1)
Audio cable with stereo mini plug
(approx. 1.0 m) (1)
Audio cable (approx. 1.5 m) (1)
Operating Instructions (1)
* The supplied AC power cord is only for this
Design and specifications are subject
to change without notice.
Satellite speaker: 60 mm, full
range, magnetically shielded
Subwoofer: 160 mm
Satellite speaker: Closed
Subwoofer: Bass reflex
Satellite speaker: 8 Ω
Subwoofer: 3.6 Ω
Satellite speaker: 15 W +
15 W (10% T.H.D., 1 kHz,
8 Ω)
Subwoofer: 30 W (10% T.
H.D., 100 Hz, 3.6 Ω)
Stereo mini jack × 1
RCA jack × 1
6 kΩ (at 1 kHz)
Stereo mini jack × 1
(PHONES)
power adaptor)
Satellite speaker: Approx.
109 × 212 × 140 mm
Subwoofer: Approx.
240 × 310 × 318 mm
Left speaker: Approx. 650 g
Right speaker: Approx. 600 g
Subwoofer: Approx. 4,000 g
system. Do not use with any other device.
Loading...
