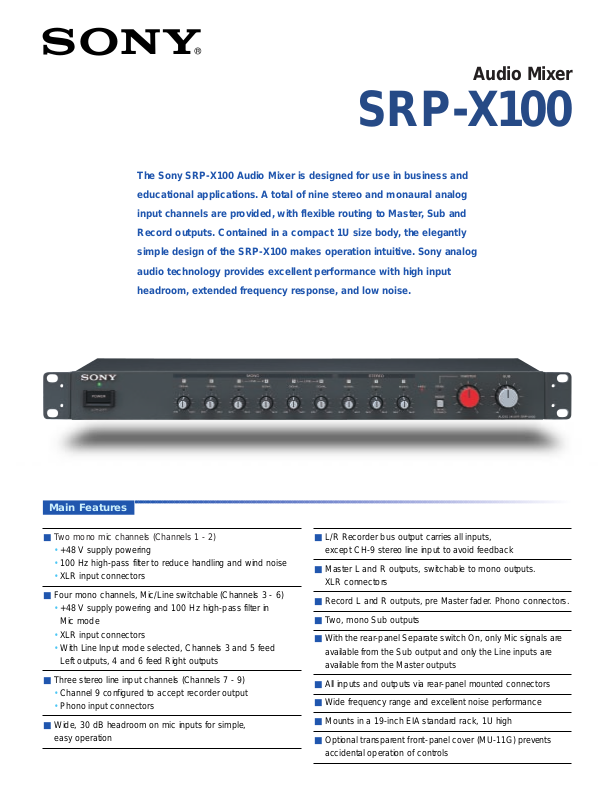

Sony SRP-X100 Features & Specifications
Audio Mixer
SRP-X100
■ Two mono mic channels (Channels 1 - 2)
•+48 V supply powering
•100 Hz high-pass filter to reduce handling and wind noise
•XLR input connectors
■ Four mono channels, Mic/Line switchable (Channels 3 - 6)
•+48 V supply powering and 100 Hz high-pass filter in
Mic mode
•XLR input connectors
•With Line Input mode selected, Channels 3 and 5 feed
Left outputs, 4 and 6 feed Right outputs
■ Three stereo line input channels (Channels 7 - 9)
•Channel 9 configured to accept recorder output
•Phono input connectors
■ Wide, 30 dB headroom on mic inputs for simple,
easy operation
The Sony SRP-X100 Audio Mixer is designed for use in business and
educational applications. A total of nine stereo and monaural analog
input channels are provided, with flexible routing to Master, Sub and
Record outputs. Contained in a compact 1U size body, the elegantly
simple design of the SRP-X100 makes operation intuitive. Sony analog
audio technology provides excellent performance with high input
headroom, extended frequency response, and low noise.
Main Features
■ L/R Recorder bus output carries all inputs,
except CH-9 stereo line input to avoid feedback
■ Master L and R outputs, switchable to mono outputs.
XLR connectors
■ Record L and R outputs, pre Master fader. Phono connectors.
■ Two, mono Sub outputs
■ With the rear-panel Separate switch On, only Mic signals are
available from the Sub output and only the Line inputs are
available from the Master outputs
■ All inputs and outputs via rear-panel mounted connectors
■ Wide frequency range and excellent noise performance
■ Mounts in a 19-inch EIA standard rack, 1U high
■ Optional transparent front-panel cover (MU-11G) prevents
accidental operation of controls
Printed in Japan on recycled paper
MK7546V1OHB00AUG
Distributed by
© 2000 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permissionof Sony is prohibited.
Features and specifications subject to change without notice.
All non-metric weights and measures are approximate.
Sony is trademark of Sony Corporation.
All other trademarks are the property of their respective owners.
MONO 1
–60 dBu
+48 V
MIC HA
LCF
Fc=100 Hz
LCF
Fc=100 Hz
LCF
Fc=100 Hz
Signal
IND
Signal
IND
Signal
IND
Signal
IND
CH
VOLUME
CH
VOLUME
CH
VOLUME
MONO 2
–60 dBu
Same as MONO 1
MONO 3
–60 dBu/+4 dBu
+48 V
+48 V
MIC
MIC/LINE
SWITCH
LINE
LINE
MONO 4
–60 dBu/+4 dBu
MIC HA
MIC HA
MONO 5
–60 dBu/+4 dBu
Same as MONO 3
Same as MONO 4
MONO 6
–60 dBu/+4 dBu
ST 1
–10 dBu
L
R
CH
VOLUME
ST 2
–10 dBu
Same as ST 1
ST 3
–10 dBu
Same as ST 1
SUB OUTPUT
-5 dBu
SUB
REC OUTPUT
–10 dBu
SEPARATE
SWITCH
MODE SWITCH
STEREO/MONO
PEAK
MASTER OUTPUT
+4 dBu
L
R
MASTER
MONO MIX
REC L
REC R
ST L
ST R
MONO BUS
MASTER L
MASTER R
MASTER
L
R
175
16
7
44
430
482
GENERAL
Signal Indicator Green indicates at -20 dB of reference level
Storage Temperature -20°C - +60°C
Operating Temperature 0°C - +40°C
Power Requirements AC 120, 230 V Switchable 50/60 Hz*
Power Consumption 19 W
Dimensions 482 (W) x 44 (H) x 175 (D) mm (19 x 13/4 x 7 inches)
Mass 2.6 kg
Supplied Accessories Power cord (2) one for 120 V, one for 230 V
Optional Accessory MU-11G Front guard
* Not available in USA
0 dBu = 0.775 Vrms
AUDIO INPUTS
Connector
Channel No. & Reference Max. input Input
function level level impedance
1-2 Mic -60 dBu -30 dBu 2.2 kΩ
MONO XLR-3-31
3-6 Mic/Line
-60/+4 dBu -30/+24 dBu 2.2/10 kΩ
selectable
STEREO Phono 7-9 Line -10 dBu +24 dBu 47 kΩ
ELECTRICAL CHARACTERISTICS
Conditions Standard
Frequency response
5 Hz to 100 kHz, ref 1 kHz +0.5/-2.0 dB
20 Hz to 20 kHz, ref 1 kHz +0.5/-1.0 dB
MONO IN - MASTER OUT 1 kHz, -44 dBu input Less than 0.01 %
Total harmonic distortion MONO IN - MASTER OUT 1 kHz, -44 dBu input Less than 0.005 %
STEREO IN - MASTER OUT 1 kHz, -10 dBu input Less than 0.005 %
Equivalent input noise IHF-A 150 Ω terminated Less than -126 dBu
Residual Noise Master Vol 0 position Less than -83 dBu
1 kHz, between L-R outputs Less than -70 dB
Cross Talk 1 kHz, between channel Less than -80 dB
Channel Vol attenuation More than 90 dB
Specifications
AUDIO OUTPUTS
Connector Channel No.
Reference Max. output Output
level level impedance
REC Phono 1 Stereo -10 dBu +10 dBu
Less than 470 Ω
SUB Phono 2 -15 dBu +15 dBu
Less than 470 Ω
MASTER XLR-3-32 1 Stereo +4 dBu +24 dBu
Less than 47 Ω
Dimensions
Block Diagram
Master Output
Separate Button
Sub Output
Rec Output
Stereo Input Mono Input
Input Level Selector Buttons +48 V Button AC Inlet
•
••
•
Unit: mm
