Sony SPP-934 User Manual

Cordless Telephone

3-043-723-21 (1)

Operating Instructions Mode d‘emploi

US FR

SPP-934

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

INDUSTRY CANADA NOTICE

NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection.

The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions may give the telecommunications company cause to request the user to disconnect the equipment.

Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminal allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Number of all the devices does not exceed 5.

IMPORTANT INSTRUCTION TO USERS

Your model (SPP-934) has been approved by the Industry Canada.

Note

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Privacy of communications may not be ensured when using this telephone.

DIGITAL SECURITY CODE

Your SPP-934 has a random digital security code which automatically selects one of over 65,000 digital security codes.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Table of contents

Getting Started

4 Read this first 5 Step 1: Checking the package

contents

6 Step 2: Setting up the base phone 9 Step 3: Preparing the battery

pack

11 Identifying the parts

Basics

14 Making calls

16 Redialing

17 Receiving calls

Telephone Features

18 Speed dialing 18 Storing phone numbers on

the handset

19 Storing phone numbers on

the base phone

20 Making calls with speed

dialing on the handset

20 Making calls with speed

dialing on the base phone

21 Setting the ringer type 21 Turning off the ringer 22 Checking the ringer type 22 Adjusting the ringer volume

level of the base phone

23 Switching the phones during a

call

23 To switch from the base

phone to the handset

24 To switch from the handset

to the base phone

25 Talking between the handset and

the base phone (Intercom)

25 To talk from the handset to

the base phone

26 To talk from the base phone

to the handset

27 Transferring a call 27 To transfer from the base

phone to the handset

28 To transfer from the handset

to the base phone

29 Having a three-way conference 29 To join the phone

conversation

Additional Information

30 Mounting the base phone on a

wall

31 Notes on power sources 31 Maintenance 32 Troubleshooting 34 Specifications 35 Index

Table of contents

Getting Started

Read this first

Before you use your phone, you must first set it up. Here’s a quick way to set up your phone: Steps 1, 2 and 3.

Step 1 (page 5)

First, unpack the phone and the supplied accessories.

Step 2 (pages 6 to 8)

Next, you need to do three things to set up the base phone, including finding the best location for the base phone.

Base phone

Getting Started

Step 3 (pages 9 to 10)

Then, insert the battery pack into the handset and charge it for more than 12 hours.

Handset

About the digital security code

The cordless telephone uses a digital security code to provide protection against unwanted access to your base phone. The security code blocks other cordless handsets to make calls through your base phone. A random security code will be assigned automatically between your base phone and handset when you charge the battery pack for the first time.

That’s it!

Step 1

Checking the package contents

Make sure you have received the following items in the package. If anything is missing, contact your local Sony dealer.

Getting Started

Base phone

Telephone line cords (2) Wall bracket/stand

for base phone

SPEED DIALING 1 2 3 4 5 6 7 8 9 0

Directories (2)

HandsetAC power adaptor (AC-T129)

Rechargeable battery pack (BP-T18)

Getting Started

Step 2

Setting up the base phone

Do the following steps:

• Choose the best location

• Connect the base phone

• Choose the dialing mode

Choose the best location

Where you place the base phone affects the reception quality of the handset.

Away from television sets and other electronic equipment

Away from noise sources such as a window by a street with heavy traffic

Away from heat sources, such as radiators, airducts, and sunlight

Away from a microwave oven

Away from excessive moisture, extremely low temperatures, dust, mechanical vibration, or shock

Away from a personal computer

Near a central location and on a level surface

Away from another cordless telephone

CAUTION: • Should you experience intermittent loss of audio during a conversation, try

Getting Started

moving closer to the base or move base phone away from other noise sources.

• The cordless telephone operates at a frequency that may cause interference to nearby TVs and VCRs; the base phone should not be placed near or on the top of a TV or VCR; and, if interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.

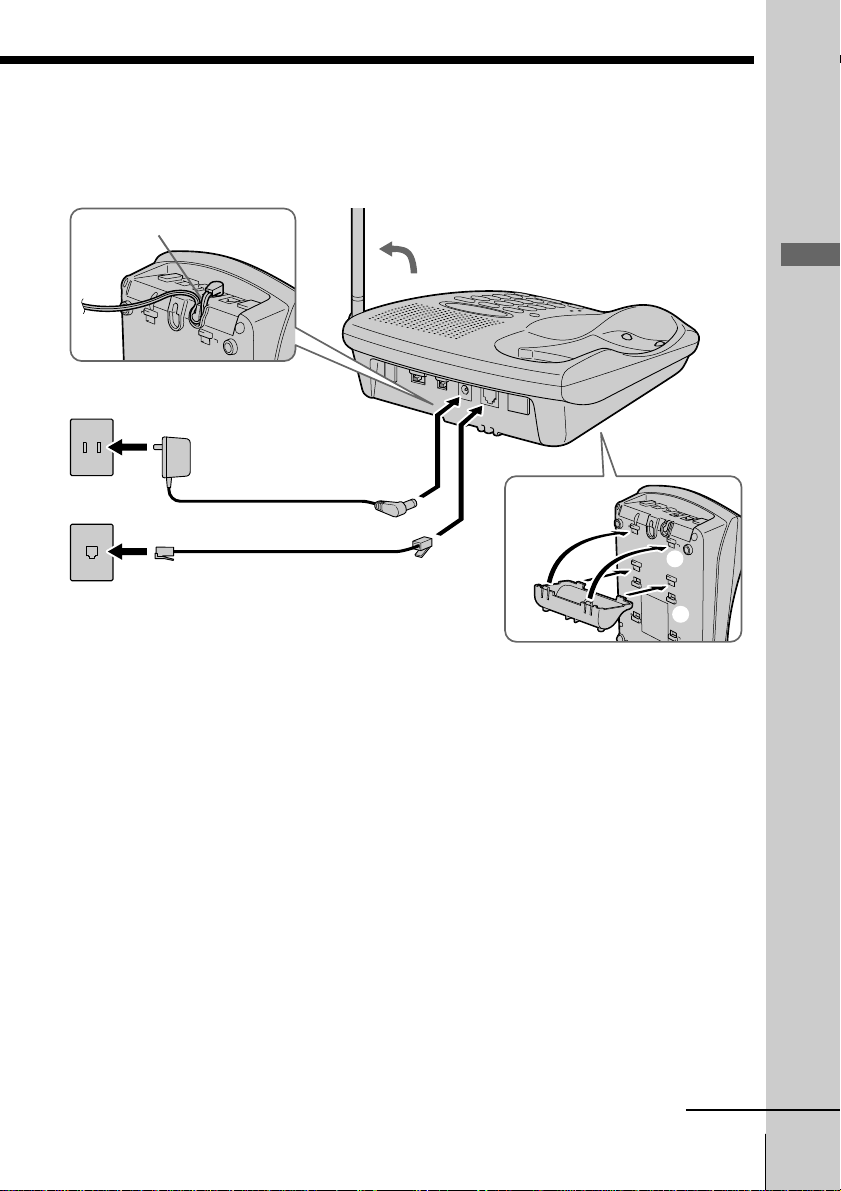

Connect the base phone

If you want to hang the base phone on the wall, see page 30.

Route the code

To an AC outlet

To DC IN 9V

AC power adaptor

(supplied AC-T129)

Telephone line cord

To the telephone outlet

If you want to use the wall bracket as the stand, attach it on the bottom of the base phone before step 1 as illustrated above.

(supplied)

To LINE

Align the f marks.

1 Connect the telephone line cord

to the LINE jack and to a telephone outlet.

Getting Started

2 Connect the AC power adaptor

to the DC IN 9V jack and to an AC outlet.

3 Raise the antenna. Make sure it

points towards the ceiling.

continued

Getting Started

Step 2: Setting up the base phone (continued)

Notes

• Use only the supplied AC-T129 AC power adaptor. Do not use any other AC power adaptor.

• Connect the AC power adaptor to a continuous power supply.

• Place the base phone close to the AC outlet so that you can unplug the AC power adaptor easily.

Polarity of the plug

–

Tip

If your telephone outlet is not modular, contact your telephone service company for assistance.

Modular

Choose the dialing mode

For the telephone to work properly, select an appropriate dialing mode (tone or pulse).

DIAL MODE switch

Depending on your dialing system, set the DIAL MODE switch as follows:

If your dialing system is Set the switch to

Tone TONE Pulse PULSE

If you aren't sure of your dialing system

Make a trial call with the DIAL MODE switch set to TONE. If the call connects, leave the switch as is; otherwise, set to PULSE.

Getting Started

Step 3

Preparing the battery pack

Charge the battery pack for more than 12 hours before you start using your phone.

BP-T18

Black

Red

1 Slide open the battery

compartment lid of the handset.

2 Connect the battery connector

with correct polarity (black wire goes on left side and red wire goes on right).

3 Close the battery compartment

lid.

4 Place the handset on the base

phone. The CHARGE lamp lights up

when the handset is properly seated on the charge terminals of the base phone. Charge the battery pack for more than 12 hours so that the battery is fully charged. The CHARGE lamp remains lit even after charging is completed.

Getting Started

CHARGE lamp

continued

Getting Started

Step 3: Preparing the battery pack (continued)

Battery duration

A fully charged battery pack lasts for about:

• approx. 7 hours when you use the handset continuously.

• approx. 7 days when the handset is in standby mode.

Notes

• The battery pack will gradually discharge over a long period of time, even if not in use.

• If you leave the battery pack in the handset without charging it, the battery pack will be completely discharged.

It may require several times of charging to recover its full capacity.

To obtain the best performance from the battery

Do not place the handset on the base phone after each call. The battery works best if the handset is returned to the base phone after two or three calls. However, do not leave the handset off the base phone for a long period of time as this will completely discharge the battery pack.

When to purchase a new battery pack

If the battery lasts only a few minutes even after 12 hours of charging, the usable life of the battery has expired and needs replacement. Contact your local Sony authorized dealer or service center, and ask for a Sony BP-T18 rechargeable battery pack.

Note

Battery life may vary depending on usage condition and ambient temperature.

Getting Started

Identifying the parts

Refer to the pages indicated in parentheses for details.

Handset

2 3

6 7 8

Getting Started

0 qa qs

qd qf

qg qh

1 Antenna 2 Speaker 3 TALK/BATT LOW lamp

(p. 14, 18)

Lights up during a call, flashes when you store a phone number for speed dialing.

4 VOL (volume) switch (p. 14, 17)

Adjusts the handset volume.

5 TALK button (p. 14, 17)

Lets you make or receive a call.

6 Dialing keys (p. 14) 7 Battery compartment (p. 9) 8 TONE button (p. 14, 17)

Allows you to switch temporarily to tone dialing.

9 SPEED DIAL button (p. 20)

Used to make a call with speed dialing.

0 OFF button (p. 14, 17)

Allows you to disconnect the call.

qa FLASH button (p. 14, 17) qs HOLD button (p. 14, 17, 24)

Used to hold a call.

qd INTERCOM button (p. 25)

Used to make an intercom call.

qf CHANNEL button (p. 14, 17)

Used to select a better channel.

qg REDIAL/PAUSE button

(p. 16, 20)

Redials the last number called, inserts a pause in the dialing sequence.

qh PGM (Program) button

(p. 18)

Used to store numbers for speed dialing.

qj Microphone

continued

Getting Started

Identifying the parts (continued)

Base Phone

1 2 3

4 5

6 7

q; qa

qd qf

1 PGM (Program) button

(p. 19)

Used to store numbers for speed dialing.

2 Dialing keys (p. 15) 3 TONE button (p. 15, 17)

Allows you to switch temporarily to tone dialing.

4 LINE lamp (p. 15, 17, 23)

Lights when one of the phones is in use.

5 CHARGE lamp (p. 9)

Lights while the battery is being charged.

6 HOLD button (p. 15, 17, 23)

Used to hold a call.

7 MIC (microphone)

qh qj

8 SPEAKERPHONE lamp

(p. 15, 17)

Lights while making or receiving a call with the base phone.

9 SPEAKERPHONE button

(p. 15, 17)

Used to make or receive a call with the base phone.

q; Antenna (p. 7, 30) qa REDIAL/PAUSE button

(p. 16, 20)

Redials the last number called, inserts a pause in the dialing sequence.

qs Speaker qd SPEED DIAL button (p. 20)

Used to make a call with speed dialing.

qf FLASH button (p. 15, 17)

Getting Started

qg VOLUME control (p. 15, 17)

Adjusts the speaker volume.

qh INTERCOM button (p. 26)

Used to make an intercom call.

qj INTERCOM lamp (p. 25)

Lights up during an intercom call.

qk RINGER switch (p. 22)

Adjusts the ringer volume.

Getting Started

waw;qlqk

ql DIAL MODE switch (p. 8)

Selects pulse or tone dialing.

w; DC IN 9V jack (p. 7, 30) wa LINE (telephone line) jack

(p. 7, 30)

Getting Started

Basics

Making calls

1 Pick up the handset from the

base phone.

TALK/BATT LOW lamp

2 Press (TALK).

The TALK/BATT LOW lamp on the handset and the LINE on the base phone light up. The dialing keys light up for 10

VOL switch

(HOLD)

(FLASH)

(CHANNEL)

seconds. Then you’ll hear a dial tone. If

you hear error beeps, move closer to the base phone.

3 Dial the phone number.

(*TONE)

(REDIAL/PAUSE)

Additional tasks

Put a call on hold

Select a better channel Adjust the handset

volume Switch to tone dialing

temporarily

Switch to another call (“call waiting” service*)

* You need to subscribe to the service from your telephone company.

Do this

Press (HOLD). The TALK/BATT LOW lamp flashes slowly. Press (TALK) to resume the conversation.

Press (CHANNEL). Set the VOL switch to H (high), M (middle) or L

(low). Press (*TONE) while using the telephone after

you’re connected. The line remains in tone dialing until disconnected.

Press (FLASH) to access the flash function. Press (FLASH) again to return to the first caller.

4 When you’re done talking, press

(OFF) or replace the handset on the base phone.

The TALK/BATT LOW lamp on the handset and the LINE on the base phone

lamp

go off.

Notes

• Before dialing, make sure you can hear the dial tone, otherwise you cannot dial correctly.

• When the TALK/BATT LOW lamp repeats a set of two flashes, the base phone is in use.

• When you set the handset volume to H (high), the volume will be raised considerably. Under normal circumstances, set the volume to M (middle).

Basics

If the handset battery becomes weak during a call

You hear a beep every three seconds and the TALK/BATT LOW lamp on the handset flashes.

The call will disconnect soon. Replace the handset on the base phone to charge.

For optimum performance, charge the battery for a full 12 hours.

Note that during the first 10 - 15 minutes of charging, the phone will be inactive, i.e., unable to make or receive a call.

After this initial 10 - 15 minutes, you may be able to use the phone, but the battery duration will be very short; thus it is recommended that you fully charge the battery before the next usage.

Making calls through the speakerphone

Press (SPEAKERPHONE) on the base phone. The SPEAKERPHONE lamp and the LINE lamp light up.

Dial the phone number. When you are done talking, press

(SPEAKERPHONE) again.

(*TONE)

LINE lamp

(HOLD)

SPEAKERPHONE lamp

Additional tasks

Put a call on hold

Adjust the speaker volume Switch to tone dialing

temporarily

Switch to another call (“call waiting” service*)

* You need to subscribe to the service from your telephone company.

Do this

Press (HOLD). The LINE lamp flashes slowly. Press (SPEAKERPHONE) to resume the conversation.

Slide the VOLUME control. Press (*TONE) while using the telephone after

you’re connected. The line remains in tone dialing until disconnected.

Press (FLASH) to access the flash function. Press (FLASH) again to return to he first caller.

(REDIAL/PAUSE)

Basics

(FLASH)

VOLUME control

(SPEAKERPHONE)

continued

Basics 15

Making calls (continued)

To obtain the best speakerphone performance

• You may not be able to hear the other party’s voice in a noisy place. Therefore, use the speakerphone in a quiet room.

• Do not bring your hand or other object too close to the microphone or you will hear a shrill noise (“feedback”).

• When the speaker volume is loud, or the telephone has been placed close to a wall, you may find that the volume drops suddenly. This is due to a circuit in the telephone designed to protect against feedback. In such cases, lower the speaker volume slightly.

Redialing

On the handset

1 Press (TALK).

The TALK/BATT LOW lamp lights up. The dialing keys light up for 10 seconds.

2 Press (REDIAL/PAUSE) to redial the number last dialed.

On the base phone

1 Press (SPEAKERPHONE).

The SPEAKERPHONE lamp lights up.

2 Press (REDIAL/PAUSE) to redial the number last dialed.

Note

If the number last dialed exceeds 32 digits, only the first 32 digits are dialed.

Tip

The number to be redialed is the last number dialed either on the handset or on the base phone.

Basics

Receiving calls

TALK/BATT LOW lamp

VOL switch

(HOLD)

(FLASH)

1 When you hear the phone ring;

•Press (TALK) (or any key except (OFF)) .

•Pick up the handset from the base phone when the handset is placed on the base phone.

The TALK/BATT LOW lamp on the handset and the LINE lamp on the base phone light up. The dialing keys light up for 10 seconds.

(*TONE)

(CHANNEL)

2 When you’re done talking, press

(OFF) or replace the handset on the base phone.

The TALK/BATT LOW lamp on the handset and the LINE lamp

Additional tasks

Put a call on hold

Select a better channel Adjust the handset volume Switch to tone dialing

temporarily Switch to another call

(“call waiting” service*) Turn on/off the ringer

of the handset * You need to subscribe to the service from your telephone company.

Do this

Press (HOLD). The TALK/BATT LOW lamp flashes slowly. Press (TALK) to resume the conversation.

Press (CHANNEL). Set the VOL switch to H (high), M (middle) or L (low). Press (*TONE) while using the telephone after you’re connected.

The line remains in tone dialing until disconnected. Press (FLASH) to access the flash function.

Press (FLASH) again to return to the first caller. See “Setting the ringer type” on page 21.

on the base phone go off.

Receiving calls through the speakerphone

When the phone rings, press (SPEAKERPHONE) on the base phone. The SPEAKERPHONE lamp and the LINE lamp light up.

To adjust the speaker volume, slide the VOLUME control.

When you are done taking, press (SPEAKERPHONE) again.

To obtain the best speakerphone performance, see page 16. To adjust the ringer volume, see page 22.

(*TONE)

LINE lamp

(HOLD)

SPEAKERPHONE lamp

(FLASH)

VOLUME control

(SPEAKERPHONE)

Basics 17

Basics

Telephone Features

Speed dialing

You can dial with a touch of a few buttons by storing a phone number on a dialing key. You can store up to 10 different phone numbers separately on the handset and on the base phone.

Storing phone numbers on the handset

1 Press (PGM).

The TALK/BATT LOW lamp flashes.

TALK/BATT LOW lamp

The dialing keys light up for 10 seconds.

2 Press one of the dialing keys

((0) to (9)) for the phone

(TALK)

number to be stored. You’ll hear a confirmation beep.

(OFF)

(SPEED DIAL)

(REDIAL/PAUSE)

3 Enter the phone number you

want to store. You can enter up to 16 digits,

including a tone and a pause, each of which is counted as one digit.

4 Press (PGM) again.

You’ll hear a confirmation beep, and the number is stored. The TALK/BATT LOW lamp goes off.

Notes

• In step 3, if you don’t enter the phone number, the previously stored number will be erased.

• Do not allow more than 20 seconds to elapse between each step of the procedure.

• Before storing phone numbers, make sure the handset is not in use.

Tips

• If you enter a wrong number, press (OFF), then start from the beginning.

• Use the supplied directory to write down what you stored on the speed dialing numbers.

Telephone Features

Storing phone numbers on the base phone

1 Press (PGM).

The SPEAKERPHONE lamp flashes quickly.

2 Press one of the dialing keys

((0) to (9)) for the phone

LINE lamp

number to be stored. You’ll hear a confirmation beep.

3 Enter the phone number you

want to store. You can enter up to 16 digits,

(SPEED DIAL)

(REDIAL/PAUSE)

SPEAKERPHONE lamp

Notes

• In step 3, if you don’t enter the phone number, the previously stored number will be erased.

• Do not allow more than 20 seconds to elapse between each step of the procedure.

• You cannot store phone numbers on the base phone while the handset is being used. The LINE lamp will light up to indicate this condition.

Tips

• If you enter a wrong number, press (PGM), then start from the beginning.

• Use the supplied directory to write down what you have stored to the speed dialing numbers.

(SPEAKERPHONE)

including a tone and a pause, each of which is counted as one digit.

4 Press (PGM) again.

You’ll hear another confirmation beep, and the number is stored.

Telephone Features

continued

Telephone Features

Speed dialing (continued)

To store the previous number dialed

Press (REDIAL/PAUSE) directly after step 2, then go to step 4.

To store a number to be dialed via Private Branch Exchange (PBX)

Before entering a phone number in step 3 on the previous page, do as follows:

1 Enter the outside line access digit (e.g. 9). 2 Press (REDIAL/PAUSE).

To change a stored number

To store a new number, follow the instructions described previously.

To clear a number from memory

1 Press (PGM). 2 Press the speed dialing key you want to clear. 3 Press (PGM) again.

Making calls with speed dialing on the handset

1 Press (TALK).

The TALK/BATT LOW lamp lights up. The dialing keys light up for 10 seconds.

2 Press (SPEED DIAL). 3 Enter the desired speed dialing number ((0) to (9)).

The phone number stored in the speed dialing number will be dialed.

Making calls with speed dialing on the base phone

1 Press (SPEAKERPHONE).

The SPEAKERPHONE lamp lights up.

2 Press (SPEED DIAL). 3 Enter the desired speed dialing number ((0) to (9)).

The phone number stored in the speed dialing number will be dialed.

Telephone Features

Setting the ringer type

You can select a ringer type from four types.

1 Press (PGM). 2 Press (#) or (*TONE). 3 Press a number button, (1) to

(OFF)

4 Press (OFF).

(4), to select a ringer type.

You’ll hear the corresponding ringer tone.

(*TONE)

(#)

Turning off the ringer

1 Press (PGM). 2 Press (#) or (*TONE). 3 Press (5). 4 Press (OFF).

The ringer on the handset is turned off.

To turn the ringer on again

Follow the instructions described in “Setting the ringer type.”

Note

Do not allow more than 20 seconds to elapse between each step of the procedure.

Telephone Features

continued

Telephone Features

Setting the ringer type (continued)

Checking the ringer type

1 Press (PGM). 2 Press (#) or (*TONE). 3 Press (0).

The currently selected ringer sounds.

4 Press (OFF).

Note

If you hear no sound (only key beep), the ringer on the handset has been turned off.

Adjusting the ringer volume level of the base phone

Set the RINGER switch on the base phone to HIGH or LOW. To turn the ringer off, set it to OFF.

Telephone Features

RINGER switch

+ 50 hidden pages
