Sony SNC-ER520 Specsheet

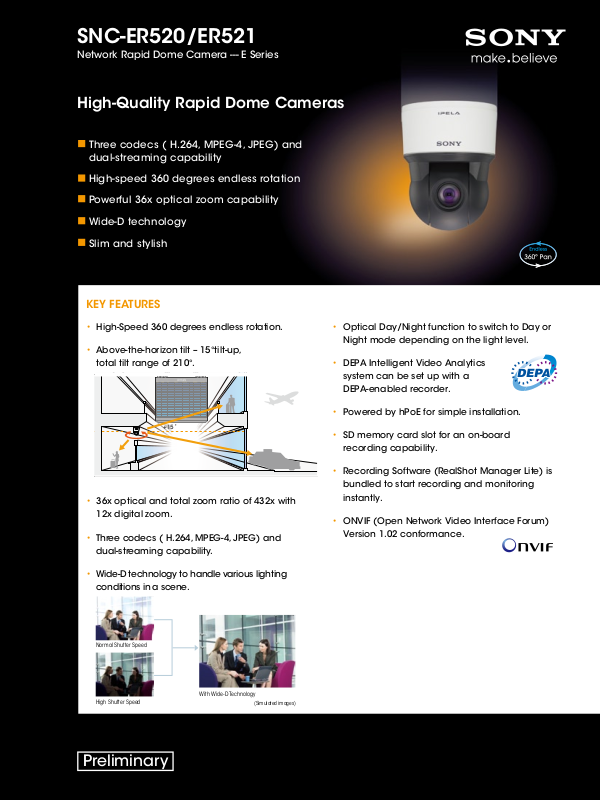

SNC-ER520/ER521

+15˚

With Wide-D Technology

(Simulated images)

Normal Shutter Speed

High Shutter Speed

Network Rapid Dome Camera --- E Series

High-Quality Rapid Dome Cameras

Three codecs ( H.264, MPEG-4, JPEG) and dual-streaming capability

High-speed 360 degrees endless rotation

Powerful 36x optical zoom capability

Wide-D technology

Slim and stylish

KEY FEATURES

• High-Speed 360 degrees endless rotation.

• Above-the-horizon tilt – 15°tilt-up,

total tilt range of 210°.

• 36x optical and total zoom ratio of 432x with

12x digital zoom.

• Three codecs ( H.264, MPEG-4, JPEG) and

dual-streaming capability.

• Wide-D technology to handle various lighting

conditions in a scene.

• Optical Day/Night function to switch to Day or

Night mode depending on the light level.

• DEPA Intelligent Video Analytics

system can be set up with a DEPA-enabled recorder.

• Powered by hPoE for simple installation.

• SD memory card slot for an on-board

recording capability.

• Recording Software (RealShot Manager Lite) is

bundled to start recording and monitoring instantly.

• ONVIF (Open Network Video Interface Forum)

Version 1.02 conformance.

Preliminary

SPECIFICATIONS

Network

Recording Software

IMZ-NS100 Series

Recording Server NSR-1000 Series

HD monitor

SNC-ER520/ER521

190.9 (7 5/8)

ø147.4 (5

7/8

)

190 (7 1/2)

Camera

Image device 1/4-type EXview HAD CCD Number of effective pixels Approx. 0.38 Megapixel Approx. 0.44 Megapixel Minimum Illumination Color: 1.4lx (F1.6, shutter 1/60sec,

Signal system NTSC standard PAL standard Electronic shutter speed 1/1 to 1/10,000 s Auto gain control Auto/Manual (-3 to 28 dB) Exposure control Full auto, Shutter priority, Iris priority, Manual White balance mode Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp Lens type Auto-focus Zoom Lens Zoom ratio Optical zoom 36x, Digital zoom 12x, Total zoom 432x Horizontal viewing angle 57.8 to 1.7 degrees Focal length f=3.4 to 122.4 mm F-number F1.6 to F4.5 Minimum object distance 10mm (wide) to 1500mm (tele) Pan angle 360 degrees endless rotation Pan Speed 300 degrees/s (max) Tilt angle 210 degrees(with e-ﬂip) Tilt speed 300 degrees/s (max) Preset position 256 positions Tour 5

Camera Features

Day/Night Yes Wide-D Yes Noise Reduction Yes


Codec image size (H x V) 704×576, 720×480, 640×480, 384×288,

Video compression format H.264, MPEG-4, JPEG Codec streaming capability Dual streaming Maximum frame rate 30 fps (H.264/MPEG-4/JPEG)

Audio

Audio compression G.711/G.726

Scene Analytics

Intelligent motion detection Yes

Network

Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS, NTP,

ONVIF conformance Yes (Ver. 1.02) Number of clients 5 Authentication IEEE802.1X

Interface

Ethernet 10BASE-T / 100BASE-TX (RJ-45) Card slots SD memory card x 1 (Compatible with the SD/SDHC standards) Sensor input x2 Alarm output x1 External microphone input Mini-jack (monaural) Audio line output Mini-jack (monaural), Max ouput level: 1 Vrms

General

Mass 1.7 kg (3 lb 12 oz) (including sealing bracket) Dimensions (ø x H mm) ø147.4 x 190.9 mm (5 7/8 x 7 5/8 inches) Power requirements HPoE (IEEE802.3at compliant), AC24V Power consumption Approx. 25W Operating temperature -5 to +50 °C (23 to 122°F) Starting temperature 0 to 50 °C (32 to 122°F) Storage temperature -20 to +60 °C (-4 to +140°F) Safety regulation UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4,

System Requirements

Operating system Microsoft Windows XP(32bit) - Professional Edition

Processor Intel Core2 Duo 2 GHz or higher Memory 1 GB or more Web browser Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0

Supplied Accessories

*The SNC-ER520 and SNC-ER521 include software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).

SYSTEM CONFIGURATION

CD-ROM (User’s guide, supplied programs), Installation manual, Ceiling bracket, Screws(2), Template, 24V AC Connector, I/O Connector

SNC-ER520 SNC-ER521

AGC ON(50IRE[IP])

B/W: 0.15lx (F1.6, shutter 1/60sec,

AGC ON, Night Mode ,50IRE[IP])

320×240

RTP/RTCP, RTSP, SNMP(MIB-2)

VCCI Class A, C-Tick Class A

Microsoft Windows Vista(32bit) - Ultimate, Business Edition

Microsoft Windows 7 (32/64bit) - Ultimate, Professional Edition

Firefox Ver.3.5 (Plug-in free viewer only)

Safari Ver.4.0 (Plug-in free viewer only)

Google Chrome Ver.4.0 (Plug-in free viewer only)

Color: 1.4lx (F1.6, shutter 1/50sec,

B/W: 0.15lx (F1.6, shutter 1/50sec,

720×576, 704×576, 640×480, 384×288,

AGC ON(50IRE[IP])

AGC ON, Night Mode ,50IRE[IP])

320×240

DIMENSIONS

Unit: mm (inches)

Distributed by

MK10828V1OHB11FEB

Reproduction in whole or in part without written permission is prohibited.

Features and speciﬁcations are subject to change without notice.

The values for weight and dimension are approximate.
