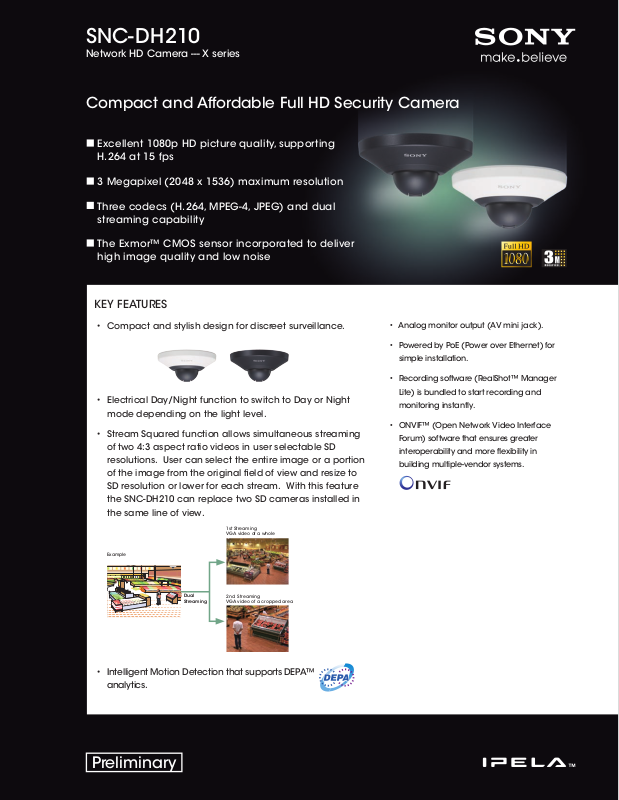

Sony SNCDH210-R, SNC-DH210-W-R Specsheet

SNC-DH210

Network HD Camera --- X series

Compact and Affordable Full HD Security Camera

Excellent 1080p HD picture quality, supporting H.264 at 15 fps

3 Megapixel (2048 x 1536) maximum resolution

Three codecs (H.264, MPEG-4, JPEG) and dual streaming capability

The Exmor™ CMOS sensor incorporated to deliver high image quality and low noise

KEY FEATURES

• Compact and stylish design for discreet surveillance.

• Electrical Day/Night function to switch to Day or Night

mode depending on the light level.

• Stream Squared function allows simultaneous streaming

of two 4:3 aspect ratio videos in user selectable SD resolutions. User can select the entire image or a portion of the image from the original ﬁeld of view and resize to SD resolution or lower for each stream. With this feature the SNC-DH210 can replace two SD cameras installed in the same line of view.

1st Streaming

VGA video of a whole

Example

Dual Streaming

2nd Streaming

VGA video of a cropped area

• Analog monitor output (AV mini jack).

• Powered by PoE (Power over Ethernet) for

simple installation.

• Recording software (RealShot™ Manager

Lite) is bundled to start recording and

monitoring instantly.

• ONVIF™ (Open Network Video Interface

Forum) software that ensures greater

interoperability and more ﬂexibility in

building multiple-vendor systems.

• Intelligent Motion Detection that supports DEPA™ analytics.

Preliminary

SPECIFICATIONS

Network

Recording Software

RealShot Manager Lite

Network Surveillance

Recorder

NSR-S10

HD monitor

SNC-DH210

Camera

Image device 1/2.8 type progressive scan Exmor CMOS sensor Minimum illumination 2.0 lx

Number of effective pixels (H x V)

Electronic shutter speed Gain control Exposure control White balance mode Lens type Horizontal viewing angle Focal length F-number Minimum object distance Pan angle Tilt angle

Camera Features

Day/Night Yes (Electrical D/N) Noise reduction Yes


Codec image size (H x V) 2048×1536(JPEG only), 1920x1080, 1600x1200, 1680x1056, 1440x912, 1280x1024, 1280x960, 1376x768,

Video compression format H.264, MPEG-4, JPEG Codec streaming capability Dual streaming Maximum frame rate JPEG:12fps(2048×1536)/15fps(1920×1080)/30fps(1280×720)

Scene Analytics

Intelligent motion detection Yes

Network

Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP,

ONVIF software Yes Number of clients 5 Authentication IEEE802.1X

Analog Video Output

Signal system NTSC / PAL

Interface

Ethernet 10BASE-T / 100BASE-TX (RJ-45) Analog monitor output AV mini jack Sensor input x 1

General

Weight 5.3 oz (150g) Dimensions ø 4 1/4 x 2 1/8 inches (ø 106 x 50.5 mm) Power requirements PoE Power consumption 2.4W Starting temperature 32°F to 122°F (0°C to 50°C) Working temperature 32°F to 122°F (0°C to 50°C) Storage temperature -4°F to +140°F (-20°C to +60°C) Safety regulation UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A,

System Requirements

Operating system Windows XP™, Windows Vista (32bit), Windows 7 (32bit) Processor Intel Core2 Duo 2 GHz or higher Memory 1 GB or more Web browser Microsoft Internet Explorer

Supplied Accessories

* The SNC-DH210 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).

(AGC [38 dB] / 50IRE [IP])

3 Megapixel (2096×1561)

1s to 1/10000 s Auto Auto, EV Compensation, Auto Slow Shutter Auto (ATW, ATW-PRO) , Preset, One-push WB, Manual Fixed 88 degrees f=3.3 F2.8 500 mm ±170° 0 degrees to 60 degrees

1280x800, 1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576, 800x480, 720x480, 640x480, 640x368, 384x288, 352x288, 320x240, 320x192, 176x144

MPEG-4:15fps(1920×1080)/30fps(1280×720) H.264:15fps(1920×1080)/30fps(1280×720)

SNMP (MIB-2)

C-Tick Class A (Tentative)

Firefox® Ver.3.5 (Plug-in free viewer only) Safari® Ver.4.0 (Plug-in free viewer only) Google® Chrome Ver.4.0 (Plug-in free viewer only)

CD-ROM (User’s Guide, SNC Toolbox, RSM-Lite), Installation manual, B&P warranty booklet, Sensor input cable

SNC-DH210

Ver. 6.0, 7.0, or 8.0

SYSTEM CONFIGURATION

DIMENSIONS

/32 (2)

2 1/8 (50.5)

Unit: inches (mm)

ø 4 1/4 (106)

Sony Electronics Inc. 1 Sony Drive Park Ridge, NJ 07656 sony.com/security

S-IP2091 (MK10738V1)

Reproduction in whole or in part without written permission is prohibited.

Features and speciﬁcations are subject to change without notice.

Weights and measurements are approximate.

Sony, ‘make.believe’, IPELA, DEPA, RealShot, Exmor, ONVIF and

their respective logos are trademarks of Sony. Windows, XP, and Vista are trademarks of Microsoft Corporation. All other trademarks are the property of their respective owners.

Printed in USA (11/10)
