P AL/NTSC
Network Mini Dome Cameras
SNC-DF Series
SNC-DF40N
SNC-DF40P
SNC-DF70N
SNC-DF70P
Choose From the Sony High-
FEATURES
Performance Mini Dome
Camera Lineup to Meet Your
Monitoring Needs – Ranging
From Indoor to Outdoor, 24hour Monitoring Applications.
Sony introduces new additions to its line of
surveillance mini dome cameras – SNC-DF40
2
*
SNC-DF70
Network Cameras. The compact dome
design of the SNC-DF Series preserves a discreet
appearance and is ideal for use in building entrances,
schools, offices, retail stores and shopping malls.
The SNC-DF Series incorporates a built-in web server
and network interface, which enables users to control
the cameras and monitor images over a Network.
These cameras utilize both MPEG-4 and JPEG
compression formats, allowing for both smooth
video/audio streaming and providing high-quality still
images over a wide range of network bandwidths.
1
*
and
All-in-one Network Mini Dome Camera
The SNC-DF Series incorporates a built-in web
server and a 100Base-TX/10Base-T network
interface in a compact dome design, allowing
users to monitor live images and control
cameras from a PC running a standard web
browser; additional software or plug-ins are not
needed. Its compact, discreet appearance is
ideal where less noticeable video cameras are
preferred.
What's more, this series of cameras incorporate an
external microphone input, and an audio line output
for active speakers, allowing for audio monitoring and
audible warnings at the monitoring site.
To meet a wide range of monitoring needs, the
SNC-DF70 features a Day/Night capability in a
durable aluminum diecast construction with an IP-66
rating, ideal for 24-hour outdoor surveillance
applications.
*1
The"SNC-DF40" refers to both the SNC-DF40N (NTSC model) and the
SNC-DF40P (PAL model).
*2
The "SNC-DF70" refers to both the SNC-DF70N (NTSC model) and the
SNC-DF70P (PAL model).
Viewer
Superior Picture Quality
The SNC-DF Series incorporates a 1/4-type
Super HAD™ CCD that achieves highhorizontal resolution of 480 TV lines and high
sensitivity. The CCD imager provides a
minimum illumination of 0.8 lx at F1.0
(SNC-DF40)/0.9 lx at F1.0 (SNC-DF70), enabling
the cameras to capture clear images even under
low light conditions.
MPEG-4 and JPEG Compression
a
b
c
Formats
Easy Mounting and Flexible
Installation
The SNC-DF Series supports both the MPEG-4
and JPEG compression formats. The high
compression ratio of MPEG-4 provides smooth
moving images over networks even when
bandwidth is limited. If higher quality still
images are preferred, then the industry
standard JPEG compression format is selectable
from the setup menu. The SNC-DF Series also
supports variable bit rates up to 2Mb/s.
Image size can be selected from six modes:
640 x 480, 480 x 360, 384 x 288, 320 x 240,
256 x 192, and 160 x 120.
High Frame Rate
The SNC-DF Series produces images at a
maximum frame rate of 30fps (NTSC) /25fps
*3
(PAL)
when the image size is 320 x 240 in
both MPEG-4 and JPEG modes, producing clear
and smooth-moving images.
*3
In order to view images at the maximum frame rate,
adequate PC processing power and network bandwidth
are required.

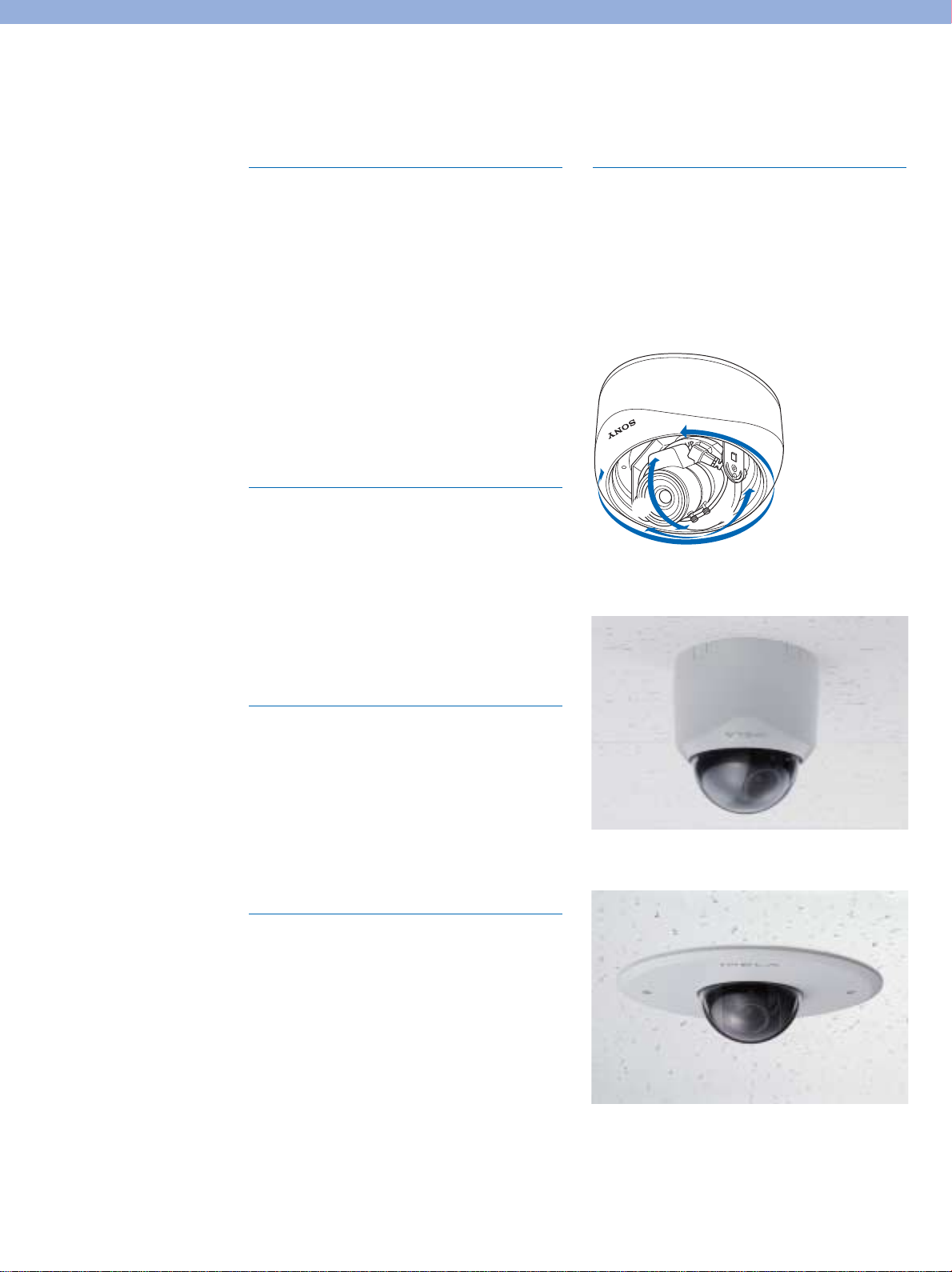

The SNC-DF Series can be wall-mounted or
ceiling-mounted with the supplied ceilingmount bracket. What's more, the 2.7x varifocal lens incorporated into these cameras can
be freely rotated, allowing for easy adjustment
of the camera's viewing angle after installation.
a (Panning): ±150°
b (Tilting): ±75°
c (Rotating): ±150°
Adjustment range of lens angle
Audio Monitoring
Incorporating an external microphone input,
the SNC-DF Series is capable of picking up
sound from camera site clearly. The unit is also
equipped with an audio line output for active
speakers; allowing users to communicate with
the remote site, expanding the capability of
remote monitoring applications.
Day/Night Function (SNC-DF70)
The SNC-DF70 features a "Day/Night"
capability, which provides optimized sensitivity in
both day and night shooting applications.
As the scene darkens, an infrared filter is
automatically replaced with a clear filter and the
camera switches to B&W mode, allowing for
operation at a minimum illumination of 0.2 lx at
F1.0, or 0 lx
party vendors
*4
0 lux means absence of visible light to the naked eye.
*5
Please contact your local Sony dealers for 3rd-party item.
*4
using an IR Illuminator from 3rd
*5
.
Ceiling Surface Mount (SNC-DF40)
Ceiling Flush Mount (SNC-DF40)
*Optional YT-ICB40 Ceiling-mount bracket is required.
Ruggedized Design (SNC-DF70)
Alarm Functions
The SNC-DF70 is specially designed to be used
for outdoor surveillance or indoors for vandal
resistant applications. The cameras are housed
in a heavy-duty aluminum die cast enclosure
with a durable polycarbonate viewing window.
These cameras comply with the IP66
*6
standard
for protection against water and dust.
*6
Ingress Protection (IP) standard is a system for numerically
classifying the degree of protection provided by
enclosures of electrical equipment against solid objects
and liquids. IP66 means there is no ingress of dust and
the equipment is protected against powerful water jets.
Network Features
Adaptive Rate Control
To meet Quality of Service (QoS) requirements
over a network, the SNC-DF Series provides an
adaptive rate control function. This function
automatically varies the bit rate of audio and
video data to meet changing network
conditions and selects the most appropriate
frame rates. This function helps prevent audio
and video breakup.
Multicasting Capability
The SNC-DF Series has a built-in multicasting
capability that enables efficient video and audio
streaming to a large number of users.
Motion Detection*7/Alarm Trigger
The SNC-DF Series is equipped with a built-in
motion detection function that can generate an
alarm through its alarm-output port or trigger
another device to perform a variety of actions.
The motion detection function uses vector
information to detect motion so that unwanted
noise components do not accidentally trigger
the alarm. In addition to these features, the
SNC-DF Series is equipped with a sensor-input
port that can receive a trigger from an external
sensor.
*7
The motion detection function is available only with
MPEG-4 compression.
Pre-/Post-Alarm Image Storage
With a built-in buffer memory, the SNC-DF
Series can store several seconds of pre-alarm
and post-alarm still images when an alarm is
triggered by the motion detection function, the
alarm input, or both.
Image storage capacity
MPEG 4 image: Approx. 15 s* (pre-/post- 7.5 s)
*when the image size is 320 x 240 at a frame rate of
30fps and a bit rate of 512 kbps
JPEG image: Approx. 10 s* (pre-/post- 5 s)
*when the image size is 320 x 240 at a frame rate of
15fps and the image quality is set to Level 3
Simultaneous Access
Up to 20 (JPEG mode)/10 (MPEG-4 mode) users
can simultaneously access any of the SNC-DF
Series cameras and monitor images separately.
Network Security Features
Access to the SNC-DF Series can be restricted
to one or more groups of selected users.
Up to ten different groups can be established
by defining an IP address range for each group.
In addition, user names and passwords can be
assigned to allow three levels of access.
The administrator has complete access/control
of the cameras; while the other two levels of
access can be set to limit user privileges to
functions such as viewing, trigger control, etc.
Image Transfer Using FTP/SMTP
*8
All of the pre-/post-alarm images stored at the
time of an alarm event can be transferred to an
FTP server for later viewing. Also, the still
image captured at the time of an alarm event
can be sent to a designated e-mail address.
*8
All images transferred using SMTP are in JPEG format.
Analog Composite Video Output
The SNC-DF Series is equipped with an analog
composite video output, allowing camera
images to be directly recorded or monitored by
connecting video equipment such as time-lapse
recorders, hard disk recorders, and monitors.

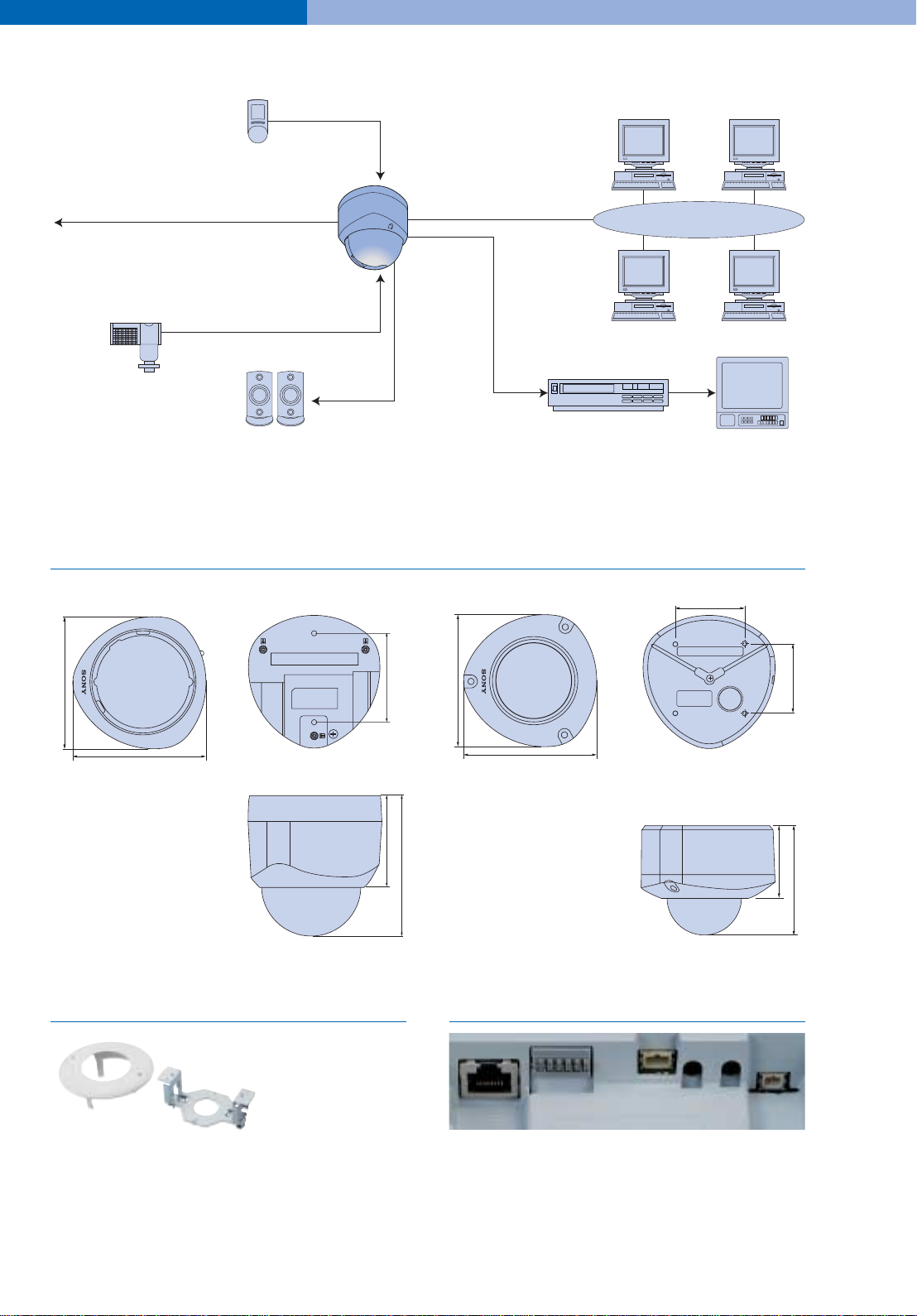

SYSTEM CONFIGRATION
Network Mini Dome Cameras
SNC-DF Series
Monitor
PC PC
PC
Speaker
Microphone
PC
100Base-TX
Video out
Sensor
Sensor in
Alarm out
Motion Detection/IR Cont Out
LAN/WAN
Video Cassette Recorder
or
Hard Disk Recorder
Top View Rear View
Front View
Top View Rear View
Front View
164.5 (6
1
/2)
166.1 (6 5/8)
89.3 (3
5
/8)
135 (5
3
/8)
85.7 (3
3
/8)
85.7 (3 3/8)
132 (5
1
/4)
87.2 (3
1
/2)
83.5 (3
3
/8)
123.9 (5)
125.5 (5)
DIMENSIONS
SNC-DF40N/SNC-DF40P SNC-DF70N/SNC-DF70P
Unit: mm (inches)
OPTIONAL ACCESSORIES
YT-ICB40
Ceiling-mount bracket for
SNC-DF40N/SNC-DF40P
YT-ICB70
Ceiling-mount bracket for
SNC-DF70N/SNC-DF70P
REAR PANEL LAYOUT
SNC-DF40N/SNC-DF40P
SPECIFICATIONS
Camera
Image device 1/4-type Super HAD CCD
Number of effective pixels (H x V) 380,000 (768 X 494) 440,000 (752 X 582) 380,000 (768 X 494) 440,000 (752 X 582)
Electronic shutter 1/60 to 1/100,000 s 1/50 to 1/100,000 s 1/60 to 1/100,000 s 1/50 to 1/100,000 s
Gain control AUTO/MANUAL
Exposure control Auto, Manual, Back-Light-Compensation (BLC)
White balance mode ATW
Lens mount CS mount
Lens type x2.7 Vari-focal auto iris lens
Horizontal viewing angle 66.6 to 26.9 degrees
Focal length f=3.0 to 8.0 mm
F number F=1.0 (Wide), F1.4 (Tele)
Iris CCD iris
Other functions Motion detection Motion detection, Day/Night
Image size (H x V) 640 x 480, 480 x 360, 384 x 288, 320 x 240, 256 x 192, 160 x 120
Compression format MPEG-4/JPEG selectable
Maximum frame rate (MPEG-4 mode)
(JPEG mode) Max. 30 fps (320 x 240) Max. 25 fps (320 x 240) Max. 30 fps (320 x 240) Max. 25 fps (320 x 240)
Audio
Compression format G.711 (64 Kbps) / G.726 (40, 32, 24, 16 Kbps)
Network
Protocols TCP/IP, UDP, RTP, RTCP, ARP, ICMP, DHCP, DNS, HTTP, FTP, SMTP,NTP, SNMP (M1B2), PPPoE
Number of clients JPEG: 20 users, MPEG-4: 10 users
Interface
Ethernet 100Base-TX/10Base-T (RJ-45)
Analog video output BNC, 1.0 Vp-p, 75 Ω, unbalanced, sync negative
I/O port Sensor in (1), Alarm out (2)
External microphone input Mini-jack, 2.4 VDC plug-in power, 4.7 kΩ
Audio line output Mini-jack (Monoaural), max output level: 1 Vrms
Analog video output
Signal system NTSC (Composite) PAL (Composite) NTSC (Composite) PAL (Composite)
Horizontal resolution 480 TV lines
S/N ratio more than 50 dB
Minimum illumination (Color) 0.8 lx (AGC On, F1.0, 50IRE) 0.9 lx (AGC On, F1.0, 50IRE)
(Black and White) – 0.2 lx (AGC On, F1.0)
General
Mass Approx. 750 g (1 lb 10 oz) Approx. 1,500 g (3 lb 5 oz)
Dimensions (W x H x D) 124 x 132 x 126 mm (5 x 5 1/4 x 5 inches) without projection ports 165 x 135 x 166 mm (6 1/2 x 5 3/8 x 6 5/8 inches) without projection ports
Power requirements AC24 V 50/60 Hz, DC12 V,POE
Power consumption 7.5 W 8.0 W
Operating temperature -10 to +50 ºC (14 to 122 ºF)
Storage temperature -20 to +60 ºC (-4 to +140 ºF)
Operating humidity 20 to 80%, non-condensing
Storage humidity 20 to 95%, non-condensing
Max. 30 fps (320 x 240) Max. 25 fps (320 x 240) Max. 30 fps (320 x 240) Max. 25 fps (320 x 240)
Supplied accessories
SNC-DF40N SNC-DF40P SNC-DF70N SNC-DF70P
CD-ROM (setup program, users guide), Monitor cables (2),AC power code, CD-ROM (setup program, users guide), Monitor cables (2),AC power code,
Wire rope, Screws (2), Dome cover screw, Installation manual Wire rope, Screws (2), Installation manual
System requirements
Operating system Microsoft®Windows®2000/XP
Processor Intel®Pentium®III, 1 GHz or higher (Recommendation: Pentium IV, 2GHz or higher)
Memory 256 MB RAM minimum
Web browser Microsoft Internet Explorer®version 5.5 or 6.0
Distributed by
MK10165V2IW05JUN
©2004 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Design, features and specifications are subject to change without notice.
All non-metric weights and measures are approximate.
Sony is a registered trademark of Sony Corporation.
IPELA and Super HAD are trademarks of Sony Corporation.
All other trademarks are the property of their respective owners.
Loading...
