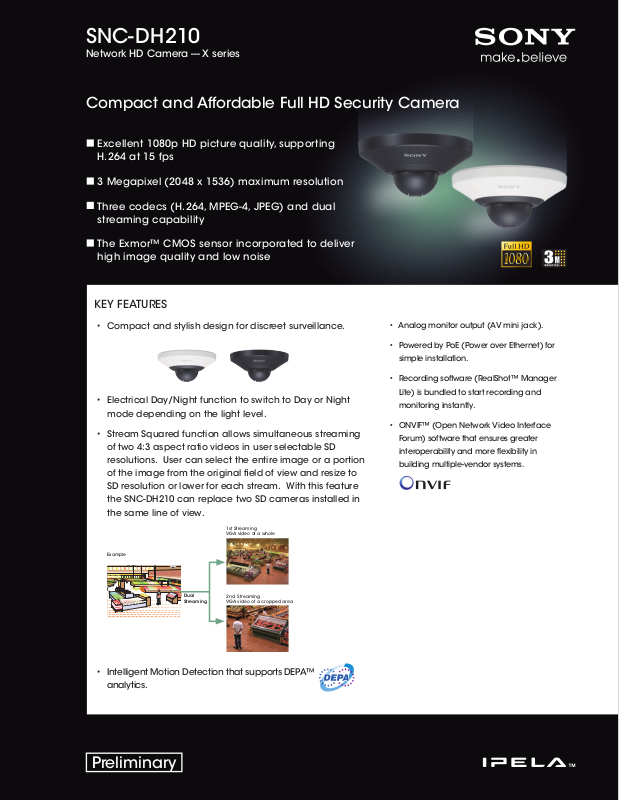

SNC-DH210
Network HD Camera --- X series
Compact and Affordable Full HD Security Camera
Excellent 1080p HD picture quality, supporting
H.264 at 15 fps
3 Megapixel (2048 x 1536) maximum resolution
Three codecs (H.264, MPEG-4, JPEG) and dual
streaming capability
The Exmor™ CMOS sensor incorporated to deliver
high image quality and low noise
KEY FEATURES
• Compact and stylish design for discreet surveillance.
• Electrical Day/Night function to switch to Day or Night
mode depending on the light level.
• Stream Squared function allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. User can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream. With this feature
the SNC-DH210 can replace two SD cameras installed in
the same line of view.
1st Streaming
VGA video of a whole
Example
Dual
Streaming
2nd Streaming
VGA video of a cropped area
• Analog monitor output (AV mini jack).
• Powered by PoE (Power over Ethernet) for
simple installation.
• Recording software (RealShot™ Manager
Lite) is bundled to start recording and
monitoring instantly.
• ONVIF™ (Open Network Video Interface
Forum) software that ensures greater
interoperability and more flexibility in
building multiple-vendor systems.
• Intelligent Motion Detection that supports DEPA™
analytics.
Preliminary
![](/html/45/45d3/45d3772fa69b98db1618e40a66a5d17960e005926d3b7d8e565413d54242ba40/bg2.png)
SPECIFICATIONS
Network
Recording Software
RealShot Manager Lite
Network Surveillance
Recorder
NSR-S10
PC
HD monitor
SNC-DH210
SNC-DH210
Camera
Image device 1/2.8 type progressive scan Exmor CMOS sensor
Minimum illumination 2.0 lx
Number of effective pixels
(H x V)
Electronic shutter speed
Gain control
Exposure control
White balance mode
Lens type
Horizontal viewing angle
Focal length
F-number
Minimum object distance
Pan angle
Tilt angle
Camera Features
Day/Night Yes (Electrical D/N)
Noise reduction Yes
Codec image size (H x V) 2048×1536(JPEG only), 1920x1080, 1600x1200, 1680x1056, 1440x912, 1280x1024, 1280x960, 1376x768,
Video compression format H.264, MPEG-4, JPEG
Codec streaming capability Dual streaming
Maximum frame rate JPEG:12fps(2048×1536)/15fps(1920×1080)/30fps(1280×720)
Scene Analytics
Intelligent motion detection Yes
Network
Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP,
ONVIF software Yes
Number of clients 5
Authentication IEEE802.1X
Analog Video Output
Signal system NTSC / PAL
Interface
Ethernet 10BASE-T / 100BASE-TX (RJ-45)
Analog monitor output AV mini jack
Sensor input x 1
General
Weight 5.3 oz (150g)
Dimensions ø 4 1/4 x 2 1/8 inches (ø 106 x 50.5 mm)
Power requirements PoE
Power consumption 2.4W
Starting temperature 32°F to 122°F (0°C to 50°C)
Working temperature 32°F to 122°F (0°C to 50°C)
Storage temperature -4°F to +140°F (-20°C to +60°C)
Safety regulation UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A,
System Requirements
Operating system Windows XP™, Windows Vista (32bit), Windows 7 (32bit)
Processor Intel Core2 Duo 2 GHz or higher
Memory 1 GB or more
Web browser Microsoft Internet Explorer
Supplied Accessories
* The SNC-DH210 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
(AGC [38 dB] / 50IRE [IP])
3 Megapixel
(2096×1561)
1s to 1/10000 s
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO) , Preset, One-push WB, Manual
Fixed
88 degrees
f=3.3
F2.8
500 mm
±170°
0 degrees to 60 degrees
1280x800, 1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576, 800x480, 720x480, 640x480,
640x368, 384x288, 352x288, 320x240, 320x192, 176x144
MPEG-4:15fps(1920×1080)/30fps(1280×720)
H.264:15fps(1920×1080)/30fps(1280×720)
SNMP (MIB-2)
C-Tick Class A (Tentative)
Firefox® Ver.3.5 (Plug-in free viewer only)
Safari® Ver.4.0 (Plug-in free viewer only)
Google® Chrome Ver.4.0 (Plug-in free viewer only)
CD-ROM (User’s Guide, SNC Toolbox, RSM-Lite), Installation manual, B&P warranty booklet, Sensor input cable
SNC-DH210
®
Ver. 6.0, 7.0, or 8.0
SYSTEM CONFIGURATION
DIMENSIONS
/32 (2)
3
2 1/8 (50.5)
Unit: inches (mm)
ø 4 1/4 (106)
