Sony SNC-DH180 Specsheet

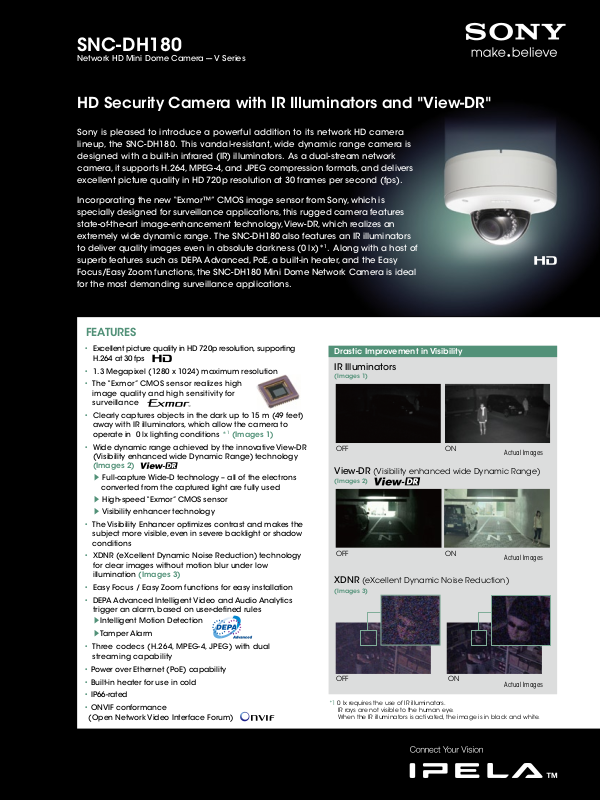

SNC-DH180

Network HD Mini Dome Camera --- V Series

HD Security Camera with IR Illuminators and "View-DR"

Sony is pleased to introduce a powerful addition to its network HD camera lineup, the SNC-DH180. This vandal-resistant, wide dynamic range camera is designed with a built-in infrared (IR) illuminators. As a dual-stream network camera, it supports H.264, MPEG-4, and JPEG compression formats, and delivers excellent picture quality in HD 720p resolution at 30 frames per second (fps).

Incorporating the new “Exmor™” CMOS image sensor from Sony, which is specially designed for surveillance applications, this rugged camera features state-of-the-art image-enhancement technology, View-DR, which realizes an extremely wide dynamic range. The SNC-DH180 also features an IR illuminators to deliver quality images even in absolute darkness (0 lx)* superb features such as DEPA Advanced, PoE, a built-in heater, and the Easy Focus/Easy Zoom functions, the SNC-DH180 Mini Dome Network Camera is ideal for the most demanding surveillance applications.

FEATURES

• Excellent picture quality in HD 720p resolution, supporting

H.264 at 30 fps

• 1.3 Megapixel (1280 x 1024) maximum resolution

• The “Exmor” CMOS sensor realizes high

image quality and high sensitivity for surveillance

• Clearly captures objects in the dark up to 15 m (49 feet)

away with IR illuminators, which allow the camera to operate in 0 lx lighting conditions *

• Wide dynamic range achieved by the innovative View-DR

(Visibility enhanced wide Dynamic Range) technology

(Images 2)

s Full-capture Wide-D technology – all of the electrons

converted from the captured light are fully used

s High-speed “Exmor” CMOS sensor s Visibility enhancer technology

• The Visibility Enhancer optimizes contrast and makes the

subject more visible, even in severe backlight or shadow conditions

• XDNR (eXcellent Dynamic Noise Reduction) technology

for clear images without motion blur under low illumination (Images 3)

• Easy Focus / Easy Zoom functions for easy installation

• DEPA Advanced Intelligent Video and Audio Analytics

trigger an alarm, based on user-deﬁned rules

sIntelligent Motion Detection sTamper Alarm

• Three codecs (H.264, MPEG-4, JPEG) with dual

streaming capability

• Power over Ethernet (PoE) capability

• Built-in heater for use in cold

• IP66-rated

• ONVIF conformance

(Open Network Video Interface Forum)

(Images 1)

. Along with a host of

Drastic Improvement in Visibility

IR Illuminators IR Illuminator

(Images 1)

OFF ON

View-DR (Visibility enhanced wide Dynamic Range)

(Images 2)

OFF ON

XDNR (eXcellent Dynamic Noise Reduction)

(Images 3)

OFF ON

*1 0 lx requires the use of IR illuminators.

IR rays are not visible to the human eye. When the IR illuminators is activated, the image is in black and white.

Actual Images

SPECIFICATIONS

Network

Recording Software

IMZ-NS100 Series

Recording Server NSR-1000 Series

HD monitor

SNC-DH180

Camera

Image device 1/3 type progressive scan “Exmor” CMOS sensor Minimum illumination 0.2 lx (Color)

Number of effective pixels (H x V) Electronic shutter speed 1s to 1/10000s Gain control Auto (3 levels) Exposure control Auto, EV Compensation * White balance mode Auto (ATW, ATW-PRO), Preset, One-push WB, Manual Lens type Vari-focal lens Zoom ratio Optical 2.9X (x2 Digital Zoom) Horizontal viewing angle 85.4 to 31.2 degrees Focal length f=3.1 to 8.9 mm F-number F1.2 (wide), F2.1 (tele) Minimum objects distance 300 mm Powered Focus Yes (Easy Focus) Powered Zoom Yes (Easy Zoom) IR illuminators Yes

Camera Features

Day/Night * Wide-D View-DR (125dB: Theoretical) Image enhancement Visibility Enhancer Noise reduction XDNR


Codec image size (H x V) 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1024 x 768, 1024 x 576, 800 x 480, 768 x 576,

Video compression format H.264, MPEG-4, JPEG Codec streaming capability Dual streaming Maximum frame rate H.264: 20fps (1280 x 1024)

Audio

Audio compression G.711/G.726

Scene Analytics

Intelligent motion detection Yes (with built-in Post Filter) Intelligent object detection No Rule ﬁlter Yes

Network

Protocols

ONVIF conformance Yes Wireless network No Number of clients 10 Authentication IEEE802.1X

Analog Video Output

Signal system NTSC / PAL Horizontal resolution 600 TV lines S/N ratio More than 50dB

Interface

Ethernet 10BASE-T / 100BASE-TX (RJ-45) Serial interface No Card slots No Analog video output BNC x 1, RCA x 1 Sensor input x 1 Alarm output x 2 External microphone input Mini-jack (Monaural), MIC IN/LINE IN: 2.5VDC plug-in power Audio line output Mini-jack (Monaural), Max output level: 1 Vrms

General

Mass 1380 g (3 lb 1 oz) Dimensions (ø x H) 166 x 119 mm (6 5/8 x 4 3/4 inches) Power requirements PoE * Power consumption 28 W max. Starting temperature AC24V/DC12V: -20 to 50 °C (-4 to 122°F)

Working temperature AC24V/DC12V: -30 to 50 °C (-22 to 122°F)

Storage temperature -20°C to +60°C (-4°F to 140 °F) Ingress Protection IP66 Vandal Resistant IK10

System Requirements

Operating system Windows XP, Windows Vista Processor Intel Core2 Duo 2 GHz or higher Memory 1 GB or more Web browser Microsoft Internet Explorer Ver 6.0 or 7.0

Supplied Accessories

*1 VE off mode only. *2 View-DR off mode only. *3 Removable IR Cut Filter. *4 When used with PoE, SNC-DH180 cannot be used with a heater.

The SNC-DH180 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).

0 lx (B/W) - IR ON (F1.2 / View-DR Off/VE Off / AGC High(48dB max.) / XDNR Middle / 50IRE [IP])

1.4 Megapixel (1329 x 1049)

(Wave Length: 850nm [Typical], IR LED: 21pcs)

Yes

640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)

MPEG-4: 25fps (1280 x 1024) JPEG: 30fps (1280 x 1024) H.264/MPEG-4/JPEG: 30 fps (1280 x 720)

IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)

, AC24V, DC12V

PoE (IEEE802.3af): 0 to 50 °C (32 to 122°F)

PoE (IEEE802.3af): -10 to 50 °C (23 to 122°F)

CD-ROM (User's Guide, SNC Toolbox), Installation manual, Wire rope, Bracket, BNC cable, I/O cable, Audio cable, M4 shoulder screw, M4 screw x 4, Flyee, L-wranch, B&P Warranty Booklet, Template

SNC-DH180

, Auto Slow Shutter *

SYSTEM CONFIGURATIONS

DIMENSIONS

Unit: mm (inches)

Distributed by

MK10683V1OHB10MAR

Reproduction in whole or in part without written permission is prohibited.

Features and speciﬁcations are as subject to change without notice.

The values for weight and dimension are approximate.

“SONY” and “make.believe” are registered trademarks of Sony Corporation.

IPELA and “Exmor” are trademarks of Sony Corporation.

Windows, XP, and Vista are trademarks of Microsoft Corporation.

Core is a trademark of Intel Corporation.

All other trademarks are the property of their respective owners.
