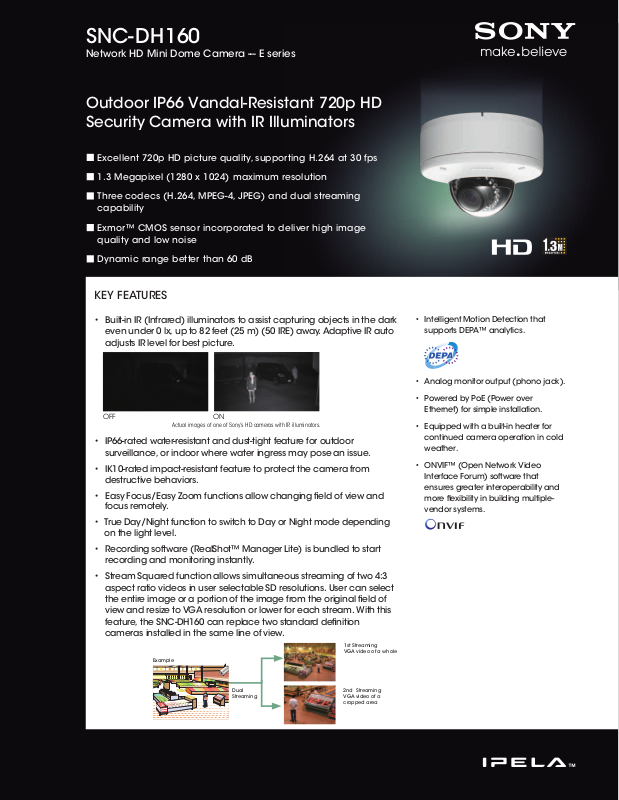

SNC-DH160
Network HD Mini Dome Camera --- E series
Outdoor IP66 Vandal-Resistant 720p HD
Security Camera with IR Illuminators
Excellent 720p HD picture quality, supporting H.264 at 30 fps
1.3 Megapixel (1280 x 1024) maximum resolution
Three codecs (H.264, MPEG-4, JPEG) and dual streaming
capability
Exmor™ CMOS sensor incorporated to deliver high image
quality and low noise
Dynamic range better than 60 dB
KEY FEATURES
• Built-in IR (Infrared) illuminators to assist capturing objects in the dark
even under 0 lx, up to 82 feet (25 m) (50 IRE) away. Adaptive IR auto
adjusts IR level for best picture.
OFF ON
Actual images of one of Sony’s HD cameras with IR illuminators.
IR Illuminator
(Images 1)
• IP66-rated water-resistant and dust-tight feature for outdoor
surveillance, or indoor where water ingress may pose an issue.
• IK10-rated impact-resistant feature to protect the camera from
destructive behaviors.
• Easy Focus/Easy Zoom functions allow changing eld of view and
focus remotely.
• True Day/Night function to switch to Day or Night mode depending
on the light level.
• Recording software (RealShot™ Manager Lite) is bundled to start
recording and monitoring instantly.
• Stream Squared function allows simultaneous streaming of two 4:3
aspect ratio videos in user selectable SD resolutions. User can select
the entire image or a portion of the image from the original eld of
view and resize to VGA resolution or lower for each stream. With this
feature, the SNC-DH160 can replace two standard denition
cameras installed in the same line of view.
1st Streaming
Example
VGA video of a whole
• Intelligent Motion Detection that
supports DEPA™ analytics.
• Analog monitor output (phono jack).
• Powered by PoE (Power over
Ethernet) for simple installation.
• Equipped with a built-in heater for
continued camera operation in cold
weather.
• ONVIF™ (Open Network Video
Interface Forum) software that
ensures greater interoperability and
more flexibility in building multiplevendor systems.
Dual
Streaming
2nd Streaming
VGA video of a
cropped area
![](/html/61/610a/610a707faa47c26d0d7ad93cbecb6a99600bf131bf90a9adabe263a382a2f091/bg2.png)
SPECIFICATIONS
Camera
Image device 1/3 type progressive scan Exmor CMOS sensor
Minimum illumination 0.50lx (Color), 0 lx (BW) (IR ON)
Dynamic Range Better than 60 dB
Number of effective pixels
(H x V)
Electronic shutter speed 1 s to 1/10000 s
Gain control Auto
Exposure control Auto, EV Compensation, Auto Slow Shutter
White balance mode Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Lens type Vari-focal lens
Zoom ratio Optical 2.9X
Horizontal viewing angle 85.4 to 31.2 degrees
Focal length f=3.1 to 8.9 mm
F-number F1.2 (Wide), F2.1 (Tele)
Minimum object distance 300 mm
Powered focus Yes (Easy Focus)
Powered zoom Yes (Easy Zoom)
IR illuminators Yes (Wave Length: 850nm [Typical], IR LED: 21pcs)
IR working distance 82 feet (25 m) (50 IRE)
Camera Features
1
Day/Night *
Noise reduction Yes
Codec image size (H x V) 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1024 x 768, 1024 x 576, 800 x 480, 768 x 576, 720 x 576,
Video compression format H.264, MPEG-4, JPEG
Codec streaming capability Dual streaming
Maximum frame rate H.264: 20fps (1280 x 1024) / 30 fps (1280 x 720)
Scene Analytics
Intelligent motion detection Yes
Network
Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
ONVIF software Yes
Number of clients 5
Authentication IEEE802.1X
Analog Monitor Output
Signal system NTSC
Interface
Ethernet 10BASE-T / 100BASE-TX (RJ-45)
Analog monitor output Phono jack x 1
Sensor input x 1, make contact, break contact
Alarm output x 1, 24V AC/DC, 1A
General
Weight 2 lb 15 oz (1320 g)
Dimensions (ø x H) ø 6 5/8 x 4 3/4 inches (166 x 119 mm)
Power requirements PoE
Power consumption 12.9 W max
Starting temperature -4°F to +122°F (-20°C to +50°C)
Working temperature -22°F to +122°F (-30°C to +50°C)
Storage temperature -4°F to +140°F (-20°C to +60°C)
Ingress protection IP66
Vandal resistant IK10
Safety regulation UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A
System Requirements
Operating system Microsoft Windows XP™, Windows Vista™ (32bit), Windows
Processor Intel Core2 Duo 2 GHz or higher
Memory 1 GB or more
Web browser Microsoft Internet Explorer
Supplied Accessories
*1 Removable IR Cut Filter.
*The SNC-DH160 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
(F1.2/AGC 42dB/50IRE [IP])
1.4 Megapixel
(1329 x 1049)
Yes (True D/N)
720 x 480, 704 x 576, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)
MPEG-4: 25fps (1280 x 1024) / 30 fps (1280 x 720)
JPEG: 30fps (1280 x 1024) / 30 fps (1280 x 720)
(Mechanical relay outputs electrically isolated from the camera)
®
Ver.3.5 (Plug-in free viewer only)
Firefox
®
Ver.4.0 (Plug-in free viewer only)
Safari
®
Chrome Ver.4.0 (Plug-in free viewer only)
Google
CD-ROM (User’s Guides, SNC Toolbox), Installation Manual, Bracket, Template, Wire rope,
Camera unit mounting screws (4), Shoulder screw M4, I/O cable, LAN cable, B&P Warranty Booklet
SNC-DH160
®
Ver. 6.0, Ver. 7.0, Ver. 8.0, Ver. 9.0
®
7 (32bit)
SYSTEM CONFIGURATIONS
HD monitor
NETWORK SURVEILLANCE RECORDER NSR-100
POWER NETWORK
SNC-DH160
Network
SNC-DH160
DIMENSIONS
Model
UNI-MDB3 GOOSENECK WALL Mount (includes Pendant Cap)
UNI-WMB4 GOOSENECK WALL Mount (without pendant cap)
UNI-MDPDH180 PENDANT CAP ONLY
UNI-WMBB1 CONDUIT BOX
UNI-CMA1 CORNER ADAPTER
UNI-PMA1 POLE ADAPTER
YT-ICB45 RECESSED BRACKET - Flush mount
Optional Accessory
Recording Server
NSR-500
Recording Software
IMZ-NS100 Series
PC
Unit: inches (mm)
