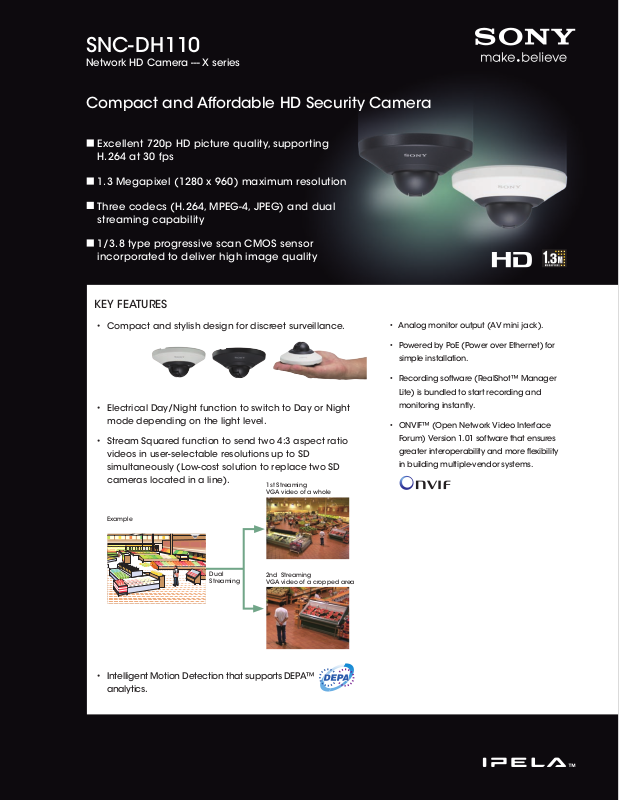

SNC-DH110
Network HD Camera --- X series
Compact and Affordable HD Security Camera
Excellent 720p HD picture quality, supporting
H.264 at 30 fps
1.3 Megapixel (1280 x 960) maximum resolution
Three codecs (H.264, MPEG-4, JPEG) and dual streaming capability
1/3.8 type progressive scan CMOS sensor incorporated to deliver high image quality
KEY FEATURES
•Compact and stylish design for discreet surveillance.
•Electrical Day/Night function to switch to Day or Night mode depending on the light level.
•Stream Squared function to send two 4:3 aspect ratio videos in user-selectable resolutions up to SD simultaneously (Low-cost solution to replace two SD
cameras located in a line).
Example
Dual |
2nd Streaming |
Streaming |
VGA video of a cropped area |
•Analog monitor output (AV mini jack).
•Powered by PoE (Power over Ethernet) for simple installation.
•Recording software (RealShot™ Manager Lite) is bundled to start recording and monitoring instantly.
•ONVIF™ (Open Network Video Interface Forum) Version 1.01 software that ensures greater interoperability and more flexibility in building multiple-vendor systems.
•Intelligent Motion Detection that supports DEPA™
analytics.
SPECIFICATIONS
|
SNC-DH110 |
Camera |
|
Image device |
1/3.8 type CMOS sensor |
Minimum illumination |
5.0lx / AGC 30dB / 50IRE[IP] |
Number of effective pixels |
1.3 Megapixel |
(H x V) |
(1296×985) |
Electronic shutter speed |
1/2s to 1/10000s |
Gain control |
Auto |
Exposure control |
Auto, EV Compensation, Auto Slow Shutter |
White balance mode |
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual |
Lens type |
fixed |
Horizontal viewing angle |
80.7 degrees |
Focal length |
f=2.34 |
F-number |
F2.8 |
Minimum object distance |
500 mm |
Pan angle |
Approx. 340° |
Tilt angle |
0° to 57° |
Camera Features |
|
Day/Night |
Yes (electrical D/N) |
Noise reduction |
Yes |
Image |
|
Codec image size (H x V) |
1280x960,1280x720,1024x768,1024x576,768x576,720x576,704x576,800x480,720x480, |
|
640x480,640x368,384x288,352x288,320x240,320x192,176x144 |
Video compression format |
H.264, MPEG-4, JPEG |
Codec streaming capability |
Dual streaming |
Maximum frame rate |
JPEG / MPEG-4 / H.264: 30fps (1280×960 / 1280x720) |
Scene Analytics |
|
Intelligent motion detection |
Yes |
Network |
|
Protocols |
IPv4, IPv6,TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, |
|
SNMP (MIB-2) |
ONVIF software |
Yes |
Wireless network |
No |
Number of clients |
5 |
Authentication |
IEEE802.1X |
Analog Video Output |
|
Signal system |
NTSC / PAL |
Interface |
|
Ethernet |
10BASE-T / 100BASE-TX (RJ-45) |
Analog monitor output |
AV MiniJack |
Sensor input |
x 1 |
General |
|
Weight |
5.6 oz (160 g) |
|
*Without cable |
Dimensions |
ø 4 1/4 x 2 inches (ø 106 x 50.5 mm) |
Power requirements |
PoE |
|
IEEE802.3af compliant, class1 |
Power consumption |
2.4 W max. |
Working temperature |
32°F to 122°F (0 °C to 50 °C) |
Storage temperature |
-4°F to +140°F (-20 °C to +60 °C) |
Safety regulation |
UL2044,FCC 15B Class B,IC Class B,IEC60950-1,EN55022(B)+EN55024+EN50130-4,VCCI Class B, |
|
C-Tick Class B |
System Requirements |
|
Operating system |
Windows XP™, Windows Vista™ (32bit), Windows 7 (32bit) |
Processor |
Intel Core2 Duo 2 GHz or higher |
Memory |
1 GB or more |
Web browser |
Microsoft Internet Explorer® Ver6.0, 7.0, or 8.0 |
|
Firefox® Ver.3.5 (Plug-in free viewer only) |
|
Safari® Ver.4.0 (Plug-in free viewer only) |
|
Google® Chrome Ver.4.0 (Plug-in free viewer only) |
Supplied Accessories |
|
|
CD-ROM (User’s Guide, SNC Toolbox, RSM-Lite) |
|
Installation manual |
|
B&P Warranty Booklet |
|
Sensor input cable |
|
Template |
* The SNC-DH110 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
SYSTEM CONFIGURATION
HD monitor
|
|
Network Surveillance |
SNC-DH110 |
|
Recorder |
|
NSR-S10 |
|
|
Network |
Recording Software |
|
|
|
|
|
RealShot Manager Lite |
SNC-DH110 |
|
|
|
|
PC |
DIMENSIONS |
|
|
Unit: inches (mm) |
|||
|
|
|
|
|
1/4 |
(106) |
|
|
|
|
4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
ø |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3/16 (30) |
2 (50.5) |
1 |
|
3/32 (2) |
|
