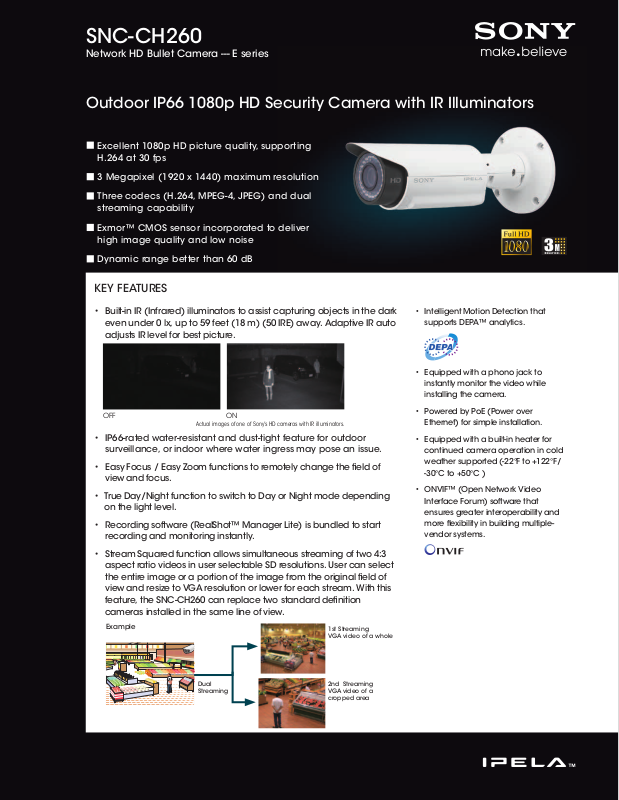

Sony SNC-CH260 Specsheet

SNC-CH260

Network HD Bullet Camera --- E series

Outdoor IP66 1080p HD Security Camera with IR Illuminators

Excellent 1080p HD picture quality, supporting
H.264 at 30 fps

3 Megapixel (1920 x 1440) maximum resolution

Three codecs (H.264, MPEG-4, JPEG) and dual
streaming capability

Exmor™ CMOS sensor incorporated to deliver
high image quality and low noise

Dynamic range better than 60 dB

KEY FEATURES

• Built-in IR (Infrared) illuminators to assist capturing objects in the dark

even under 0 lx, up to 59 feet (18 m) (50 IRE) away. Adaptive IR auto
adjusts IR level for best picture.

IR Illuminator

OFF ON

Actual images of one of Sony’s HD cameras with IR illuminators.

(Images 1)

• IP66-rated water-resistant and dust-tight feature for outdoor
surveillance, or indoor where water ingress may pose an issue.

• Easy Focus / Easy Zoom functions to remotely change the eld of

view and focus.

• True Day/Night function to switch to Day or Night mode depending

on the light level.

• Recording software (RealShot™ Manager Lite) is bundled to start

recording and monitoring instantly.

• Stream Squared function allows simultaneous streaming of two 4:3

aspect ratio videos in user selectable SD resolutions. User can select

the entire image or a portion of the image from the original eld of

view and resize to VGA resolution or lower for each stream. With this

feature, the SNC-CH260 can replace two standard denition

cameras installed in the same line of view.

Example

1st Streaming
VGA video of a whole

• Intelligent Motion Detection that

supports DEPA™ analytics.

• Equipped with a phono jack to

instantly monitor the video while
installing the camera.

• Powered by PoE (Power over

Ethernet) for simple installation.

• Equipped with a built-in heater for

continued camera operation in cold

weather supported (-22°F to +122°F/

-30°C to +50°C )

• ONVIF™ (Open Network Video
Interface Forum) software that

ensures greater interoperability and
more flexibility in building multiple­vendor systems.

Dual
Streaming

2nd Streaming
VGA video of a
cropped area

SPECIFICATIONS

Camera

Image device 1/2.8 type progressive scan Exmor CMOS sensor
Minimum illumination Color: 0.70lx lx, B/W: 0 lx (IR ON)

Dynamic range Better than 60 dB
Number of effective pixels (H x V) Approx. 3.27Megapixel

Electronic shutter speed 1s to 1/10000 s
Gain control Auto
Exposure control Auto, EV Compensation, Auto Slow Shutter
White balance mode Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Lens type Buil-in Vari-focal lens
Zoom ratio Optical 2.9X (x2 Digital Zoom)
Horizontal viewing angle 88.5 degrees to 32.3 degrees
Focal length
F-number F1.2 (Wide), F2.1 (Tele)
Minimum object distance 300 mm
Powered focus Yes (Easy Focus)
Powered zoom Yes (Easy Zoom)
IR illuminators Yes (Wave Length: 850nm [Typical], IR LED: 21pcs)
IR working distance 59 feet (18 m) (50 IRE)

Camera Features

1

Day/Night *
Noise reduction Yes


Codec image size (H x V) 1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080, 1440 x 912, 1376 x 768, 1280 x 960, 1280 x 800,

Video compression format H.264, MPEG-4, JPEG
Codec streaming capability Dual streaming
Maximum frame rate H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)

Scene Analytics

Intelligent motion detection Yes

Network

Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
ONVIF software Yes
Number of clients 5
Authentication IEEE802.1X

Analog Monitor Output

Signal system NTSC

Interface

Ethernet 10BASE-T / 100BASE-TX (RJ-45)
Analog monitor output Phono jack x 1 (1.0 Vp-p, 75 ohms, unbalanced, sync negative)
Sensor input x 1, make contact, break contact
Alarm output x 1, 24V AC/DC, 1A

General

Weight 3 lb 14 oz (1.75 kg)
Dimensions ø 3 3/4 x 7 3/8 inches (93 x 186 mm)

Power requirements PoE (802.3af)
Power consumption 12.9 W max.
Starting temperature -4°F to +122°F (-20°C to +50°C)
Working temperature -22°F to +122°F (-30°C to +50°C)*
Storage temperature -4°F to +140°F (-20°C to +60°C)
Ingress protection IP66
Safety regulation UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A

System Requirements

Operating system Microsoft Windows XP™, Windows Vista™ (32bit), Windows
Processor Intel Core2 Duo 2 GHz or higher
Memory 1 GB or more
Web browser Microsoft Internet Explorer

Supplied Accessories

*1 Removable IR Cut Filter. *2 With a built-in heater.
*The SNC-CH260 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).

(F1.2/ AGC 42dB / 50IRE [IP])

(2096×1561)

f=3.1 mm to 8.9 mm　

Yes (True D/N)

1280 x 720, 1280 x 1024, 1024 x 768, 1024 x 576, 800 x 480, 768 x 576, 720 x 576, 704 x 576, 720 x 480,
640 x 480, 640x 368, 384 x 288, 320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)

MPEG-4: 15fps (1920 x 1440) / 20 fps (1920 x 1080)
JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)

(mechanical relay outputs electrically isolated from the camera)

ø 5 3/8 x 13 1/4 inches (140 x 334.8mm) (including arm)

®

Ver.3.5 (Plug-in free viewer only)

Firefox

®

Ver.4.0 (Plug-in free viewer only)

Safari

®

Chrome Ver.4.0 (Plug-in free viewer only)

Google

CD-ROM (User’s Guide, SNC Toolbox), Installation manual, Wire rope, +M4x8 screw, Warranty Booklet, Template

SNC-CH260

2

®

Ver. 6.0, Ver. 7.0, Ver. 8.0, Ver. 9.0

®

7 (32bit)

SYSTEM CONFIGURATIONS

HD monitor

Unit: inches (mm)

7

3/8 (186)

POWER NETWORK

Recording Server

Recording Software

IMZ-NS100 Series

ø 3

3 5/8 (90)

SNC-CH260

Network

SNC-CH260

DIMENSIONS

R 4 (100)

ø 3

3/8

(85)

12 1/8 (306)

12 (304)

5/8 (140)

ø 5

1/4 (334.8)

13

Model

UNI-BBB1 Optional Conduit Box / Pole Mount

Optional Accessory

NETWORK SURVEILLANCE RECORDER NSR-100

NSR-500

PC

(93)

3/4

3/4 (93)

3
