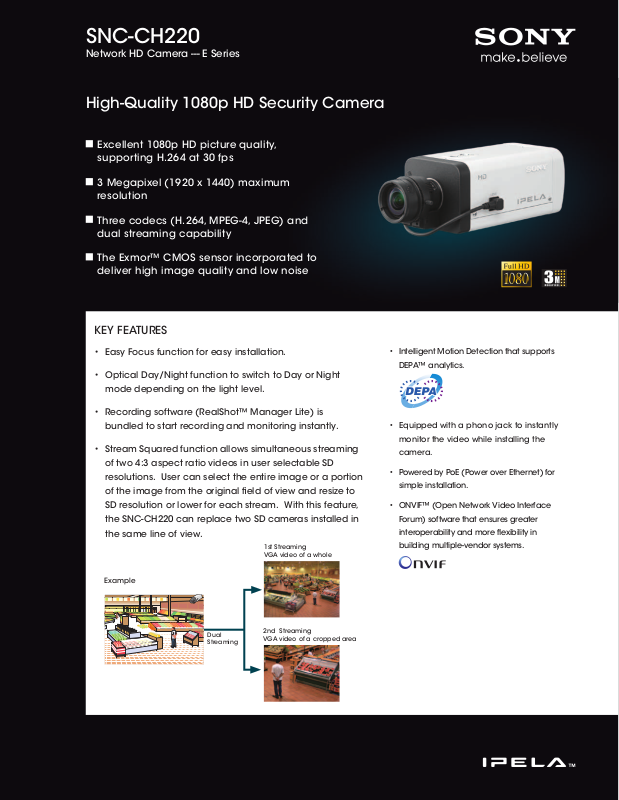

Sony SNC-CH220-R, SNC-CH220 Specsheet

SNC-CH220

Network HD Camera --- E Series

High-Quality 1080p HD Security Camera

Excellent 1080p HD picture quality, supporting H.264 at 30 fps

3 Megapixel (1920 x 1440) maximum resolution

Three codecs (H.264, MPEG-4, JPEG) and dual streaming capability

The Exmor™ CMOS sensor incorporated to deliver high image quality and low noise

KEY FEATURES

• Easy Focus function for easy installation.

• Optical Day/Night function to switch to Day or Night

mode depending on the light level.

• Recording software (RealShot™ Manager Lite) is

bundled to start recording and monitoring instantly.

• Stream Squared function allows simultaneous streaming

of two 4:3 aspect ratio videos in user selectable SD

resolutions. User can select the entire image or a portion

of the image from the original ﬁeld of view and resize to

SD resolution or lower for each stream. With this feature,

the SNC-CH220 can replace two SD cameras installed in

the same line of view.

1st Streaming VGA video of a whole

Example

Dual Streaming

2nd Streaming VGA video of a cropped area

• Intelligent Motion Detection that supports

DEPA™ analytics.

• Equipped with a phono jack to instantly

monitor the video while installing the

camera.

• Powered by PoE (Power over Ethernet) for

simple installation.

• ONVIF™ (Open Network Video Interface

Forum) software that ensures greater

interoperability and more ﬂexibility in

building multiple-vendor systems.

SPECIFICATIONS

Camera

Image device 1/2.8 type progressive scan Exmor CMOS sensor Minimum illumination 0.70lx (Color), 0.45lx (BW)

Number of effective pixels (H x V)

Electronic shutter speed Gain control Exposure control White balance mode Lens type Zoom ratio Horizontal viewing angle Focal length F-number Minimum object distance Powered focus

Camera Features

Day/Night * Noise reduction Yes


Codec image size (H x V) 1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080, 1440 x 912, 1376 x 768, 1280 x 960, 1280 x 800,

Video compression format H.264, MPEG-4, JPEG Codec streaming capability Dual streaming Maximum frame rate H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)

Scene Analytics

Intelligent motion detection Yes

Network

Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client only), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP,

ONVIF software Yes Number of clients 5 Authentication IEEE802.1X

Analog Video Output

Signal system NTSC / PAL

Interface

Ethernet 10BASE-T / 100BASE-TX (RJ-45) Analog monitor output Phono jack x 1 (1.0 Vp-p, 75 ohms, unbalanced, sync negative) Sensor input x 1, make contact, break contact Alarm output x 1, 24V AC/DC, 1A

General

Weight 1 lb 3 oz (550 g) with lens Dimensions 2 7/8 x 2 1/2 x 7 3/4 inches (72 x 63 x 197.3 mm) Power requirements PoE (IEEE802.3af compliant) Power consumption 5.0 W Max. Starting temperature 32°F to 122°F (0°C to 50°C) Working temperature 14°F to 122°F (-10°C to +50°C) Storage temperature -4°F to +140°F (-20°C to +60°C) Safety regulation UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A,

System Requirements

Operating system Microsoft Windows XP™, Windows Vista™ (32bit), Windows Processor Intel Core2 Duo 2 GHz or higher Memory 1 GB or more Web browser Microsoft Internet Explorer

Supplied Accessories

*1 Removable IR Cut Filter.

* The SNC-CH220 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).

(F1.2/ AGC 42dB/ 50IRE [IP])

Approx. 3.27Megapixel (2096×1561)

1 s to 1/10000 s Auto Auto, EV Compensation, Auto Slow Shutter Auto (ATW, ATW-PRO), Preset, One-push WB, Manual CS Mount Vari-focal lens Optical 2.1X

101.2 degrees to 47.0 degrees f=2.8 mm to 6.0 mm F1.3 (Wide), F1.9 (Tele) 300 mm Yes (Easy Focus)

Yes

1280 x 720, 1280 x 1024, 1024 x 768, 1024 x 576, 800 x 480, 768 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640x 368, 384 x 288, 320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)

MPEG-4: 15fps (1920 x 1440) / 20 fps (1920 x 1080) JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)

SNMP (MIB-2)

(mechanical relay outputs electrically isolated from the camera)

C-Tick Class A

Firefox

Ver.3.5 (Plug-in free viewer only)

Safari

Ver.4.0 (Plug-in free viewer only)

Google

Chrome Ver.4.0 (Plug-in free viewer only)

CD-ROM (Users guides, and Supplied programs), Wire rope, Screw M4, Installation Manual

SNC-CH220

Ver. 6.0, Ver. 7.0, Ver. 8.0

7 (32bit)

SYSTEM CONFIGURATION

SNC-CH220

Recording Server NSR-1000 Series

Recording Software

IMZ-NS100 Series

Unit: inches (mm)

3/4 (145)

SNC-CH220

DIMENSIONS

1/2 (52.3)

7/8 (72)

2 1/2 (63)

Network

5 5/8 (140)

HD monitor

Sony Electronics Inc. 1 Sony Drive Park Ridge, NJ 07656 sony.com/security

S-IP2077 (MK10756V1)

Reproduction in whole or in part without written permission is prohibited.

Features and speciﬁcations are subject to change without notice.

Weights and measurements are approximate.

Sony, 'make.believe', IPELA, DEPA, ONVIF, Exmor and their respective logos are trademarks of Sony.

Windows, XP, and Vista are trademarks of Microsoft Corporation. All other trademarks are the property of their respective owners.

Printed in USA (10/10)
