Sony SNC-CH110-B-R, SNC-CH110-S-R Specsheet

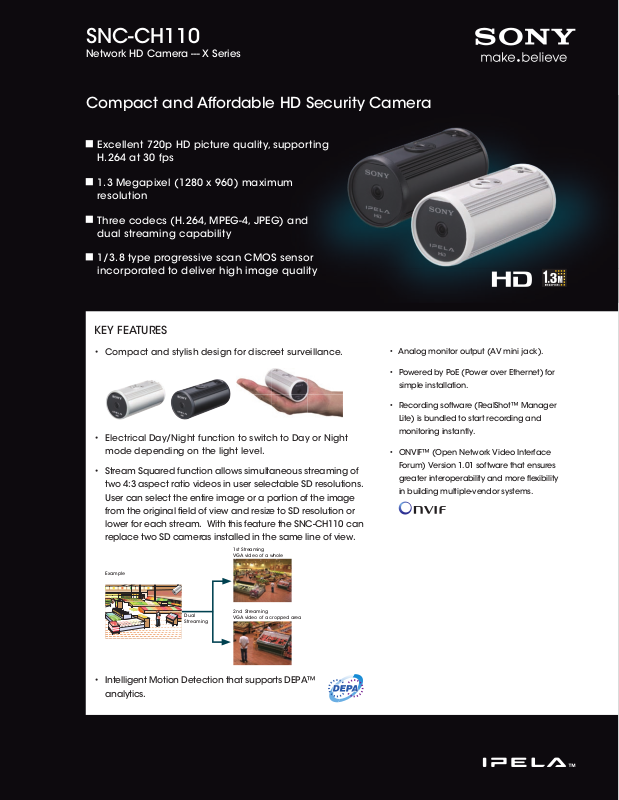

SNC-CH110

Network HD Camera --- X Series

Compact and Affordable HD Security Camera

Excellent 720p HD picture quality, supporting H.264 at 30 fps

1.3 Megapixel (1280 x 960) maximum resolution

Three codecs (H.264, MPEG-4, JPEG) and dual streaming capability

1/3.8 type progressive scan CMOS sensor incorporated to deliver high image quality

KEY FEATURES

• Compact and stylish design for discreet surveillance.

• Electrical Day/Night function to switch to Day or Night

mode depending on the light level.

• Stream Squared function allows simultaneous streaming of

two 4:3 aspect ratio videos in user selectable SD resolutions. User can select the entire image or a portion of the image from the original ﬁ eld of view and resize to SD resolution or lower for each stream. With this feature the SNC-CH110 can replace two SD cameras installed in the same line of view.

1st Streaming

VGA video of a whole

Example

Dual Streaming

2nd Streaming

VGA video of a cropped area

• Analog monitor output (AV mini jack).

• Powered by PoE (Power over Ethernet) for

simple installation.

• Recording software (RealShot™ Manager

Lite) is bundled to start recording and

monitoring instantly.

• ONVIF™ (Open Network Video Interface

Forum) Version 1.01 software that ensures

greater interoperability and more ﬂ exibility

in building multiple-vendor systems.

• Intelligent Motion Detection that supports DEPA™

analytics.

13/16

(46)

3/4

(44) 1

3/4

(44)

3/4

(93)

ø1

3/4

(44)

SPECIFICATIONS

Network

Recording Software

RealShot Manager Lite

Network Surveillance

Recorder

NSR-S10

HD monitor

SNC-CH110

Camera

Image device 1/3.8 type CMOS sensor Minimum illumination 5.0 lx / AGC 30dB / 50IRE [IP] Number of effective pixels

(H x V) Electronic shutter speed Gain control Exposure control White balance mode Lens type Horizontal viewing angle Focal length F-number Minimum object distance

Camera Features

Day/Night Yes (electrical D/N) Noise reduction Yes


Codec image size (H x V) 1280x960, 1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576, 800x480, 720x480,

Video compression format H.264, MPEG-4, JPEG Codec streaming capability Dual streaming Maximum frame rate JPEG / MPEG-4 / H.264: 30fps (1280×960 / 1280x720)

Scene Analytics

Intelligent motion detection Yes

Network

Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP,

ONVIF software Yes (Version 1.01) Number of clients 5 Authentication IEEE802.1X

Analog Video Output

Signal system NTSC / PAL

Interface

Ethernet 10BASE-T / 100BASE-TX (RJ-45) Analog monitor output AV Mini Jack Sensor input x 1

General

Weight 3.5 oz (100 g) Dimensions ø 1 3/4 x 3 3/4 inches (ø 44 x 93 mm) Power requirements PoE Power consumption 2.4W Working temperature 32°F to 122°F (0°C to 50°C) Storage temperature -4°F to +140°F (-20°C to +60°C) Safety regulation UL2044, FCC 15B Class B, IC Class B, IEC60950-1, EN55022(B)+EN55024+EN50130-4,

System Requirements

Operating system WindowsXP™, WindowsVista™ (32bit), Windows7 (32bit) Processor Intel Core2 Duo 2 GHz or higher Memory 1 GB or more Web browser Microsoft Internet Explorer

Supplied Accessories

1.3 Megapixel (1296×985)

1/2 s to 1/10000 s Auto Auto, EV Compensation, Auto Slow Shutter Auto(ATW, ATW-PRO), Preset, One-push WB, Manual ﬁxed

80.7 degrees f=2.34 F2.8 500 mm

640x480, 640x368, 384x288, 352x288, 320x240, 320x192, 176x144

SNMP (MIB-2)

VCCI Class B, C-Tick Class B

Ver.3.5 (Plug-in free viewer only)

Firefox

Ver.4.0 (Plug-in free viewer only)

Safari

Chrome Ver.4.0 (Plug-in free viewer only)

Google

CD-ROM (User’s Guide, SNC Toolbox-RSM-Lite), Installation manual, B&P warranty booklet, FrontSheet (with logo), FrontSheet (without logo), Sensor input cable

SNC-CH110

Ver6.0, 7.0, or 8.0

SYSTEM CONFIGURATION

DIMENSIONS

Unit: inches (mm)

Sony, 'make.believe' and their respective logos, IPELA, DEPA, ONVIF and RealShot are trademarks of Sony.

* The SNC-CH110 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).

Sony Electronics Inc. 1 Sony Drive Park Ridge, NJ 07656 sony.com/security

S-IP2093 (MK10778V1)

Reproduction in whole or in part without written permission is prohibited.

Features and speciﬁcations are subject to change without notice.

Weights and measurements are approximate.

All other trademarks are the property of their respective owners.
