Sony SLV-N650 User Manual

Page 1

3-089-903-11 (1) US

Video Cassette Recorder

Operating Instructions

For customers in the USA

Many solutions to common problems and service information can be found at www.sony.com/vcrhelp or contact Sony VCR service at 1 (800) VHSSONY.

To register your purchase of this product, visit:

www.sony.com/productregistration For all other S ony pr od uct q uest ion s, pl ease ca ll Sony Customer

Information Services Company at 1-800-222-SONY (7669). For Custom ers i n Can ad a

If this product is not working properly, please call 1-877-602-2008 for

Peace of Mind Warranty Replacement service. For other product related questions please contact our Customer

Info rma ti on Se rvi c e C ent re at 1-877- 899-7669 or write to us at : Customer

Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6

SLV-N750 SLV-N650

Page 2

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’ s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION:

TO PREVENT ELECTRIC SHOC K, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Precautions

Safety

• Operate the unit only on 120 V AC, 60 Hz.

• If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.

• This unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

• Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord.

• One blade of the plug is wider than the other for the purpose of safety and will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, contact your Sony dealer.

Installing

• Do not install the unit in a confined space su ch as a book or similar unit.

• Allow adequate air circulation to prevent internal heat buildup.

• Do not place the unit on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.

• Do not install the unit near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mech anical vibration o r shock.

• Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only.

• Keep the unit and cassettes away fro m equipment with strong magnets, such as microwave o ven s o r large loudspeakers.

• Do not place heavy objects on the unit.

• If the unit is brought directly from a cold to a warm location, moisture may condense inside the VCR and cause damage to the video head and tape. When you first install the unit, or when you move it from a cold to a warm location, wait for about three hours before operating the unit.

WARNING

Page 3

Information

For customers in the USA

CAUTION

Y ou ar e cautioned that any changes or mod ification s not expressly approved in this manual could void your authority to operate this equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However , there is no guarantee tha t interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Owner’s record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No._________________________ Serial No._________________________

WARNING

Page 4

Important Safeguards

For your protection, please read these sa fe ty instructions completely before operating the appliance, and keep this manual fo r f uture refe ren ce. Carefully observe all warnings, precautions and instructions on the appliance, or the one described in the operating instructions and adhere to them.

Use

Power sources

This set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those sets designed to operate from battery power, or other sources, refer to the operating instructions.

Grounding or Polarization

This set is equipped with a polarized ac power cord plug (a plug h aving one blade wider than t he other), or with a three-wire grounding type plug (a plug having a third pin for grounding). Follow the instructions below:

For the set with a polarized ac power cord plug:

This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in.

For the set with a three-wire grounding type ac plug:

This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to have a suitable outlet installed. Do not defeat the safe ty purpose of the grounding plug.

Overloading

Do not overload wall outlets, extension cords or convenience receptacles b eyond their ca pacity, since this can result in fire or electric shock.

Object and Liquid Entry

Never pu sh ob jec ts of any kin d into the set through openings as they may touch dangerous voltage points or short out parts that c ould result in a fire or electric shock. Never spill liquid of any kind on the set.

Attachments

Do not use attachments not recommended by the manufactu rer, as they may cause hazards.

Cleaning

Unplug the set from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the set.

Installation

Water and Moisture

Do not use power-line operated sets near water - for exampl e, near a bathtub, washbowl, ki tchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.

Power-Cord Protection

Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance.

Accessories

Do not place the set on an unstable cart, stand, tripod, bracket, or table. The set may fall, causing serious injury to a child or an adult, and serious damage to the set. Use only a cart stand tripod, bracket, or table recommended by the manufacturer.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven su rfaces may cause the appliance and cart combination to overturn.

Ventilation

The slots and openings in the cabinet are pro vided for necessary v entil atio n. To ensure reliable operation of the set, and to protect it from overheating, these slots and openings must never be blocked or covered.

• Never cover the slots and openings with a cloth or other materials.

• Never block the slots and openings by placing the set on a bed, sofa, rug or oth er simila r surface.

S3125A

Important Safeguards

Page 5

• Never place the set in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.

• Do not place the set near or over a radiator or heat register, or where it is exposed to direct sunlight.

Antennas Outdoor antenna grounding

If an outdoor antenna or cable system is installed, follow the precautions below.

An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits. WHEN INST ALLING AN OUT DOOR ANTENN A SYSTEM, EXTREME CARE SHOULD BE T AKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABL Y FATAL. Be sure the antenna system is grounded so as to provide some protection a gainst vol tage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper ground ing of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge un it , si ze of gro und i n g conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Antenna Grounding According to the National Electrical Code

Service

Lightning

For added prot e ction for this set during a lightni ng storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power-line surges.

Important Safeguards

Page 6

Table of contents

Getting Started

7 Step 1 : Unpacking

8 Step 2 : Setting up the remote commander 11 Step 3 : Hookups 18 Step 4 : Selecting a language 19 Step 5 : Setting the clock 24 Step 6 : Presetting channels

Basic Operations

28 Playing a tape 31 Recording TV programs 34 Setting the timer 37 Locking the VCR (Child Lock)

44 Searching using various functions 46 Adjusting the picture (tracking) 47 Changing menu options 49 Editing with another VCR

Additional Information

Additional Operations

38 Playing/searching at various speeds 40 Quick Timer Recording 41 Checking/changing/canceling timer

settings

43 Recording stereo and bilingual

programs

Caution

Television programs, films, video tapes and other materials may be copyrighted. Unauthorized recording of such material may be contrary to the provisions of the copyright laws. Also, use of this recorder with cable television transmission may require authorization from the cable television transmission and/or progra m owner.

51 Antenna information 52 Troubleshooting 54 Specifications 55 Index to parts an d controls 60 Index

Back Cover

Quick reference to using the VCR

Table of contents

Page 7

Getting Started

Step 1 : Unpacking

Check that you have received the following items with the VCR:

• Remote commander

• Size AA (R6) batteries

• 75-ohm coaxial cable with F-type connectors

Getting Started

Note

• The supplied remote commande r is for the exclusive use of this VCR.

Check your model name

The instructions in this manual are for the 2 models: SLV-N750 and SLV-N650. Check your model name by look ing at the rear panel o f your VCR. SLV-N750 is the model used for illu strat ion purpose s.

Unpacking

Page 8

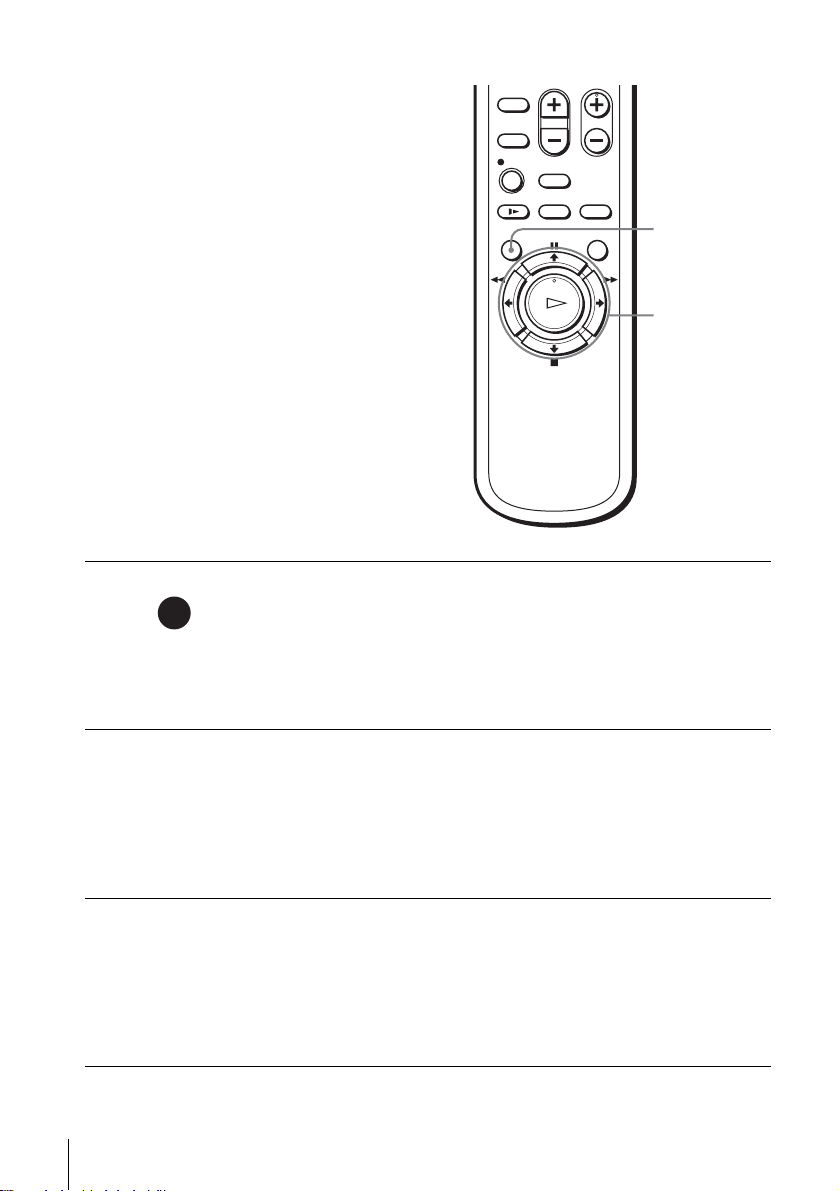

Step 2 : Setting up the remote commander

Inserting the batteries

Insert two size AA (R6) batteries by matching the + an d – on the batteries to the diagram inside the battery compartment.

Insert the negative (–) end first, then push in and down until the positive (+) end clicks into position.

Using the remote commander

You can use this remote commander to operate this VCR and a Sony TV. Buttons on the remote commander marked with a dot (•) can be used to operate your Sony TV.

If the TV does not h ave the symbol near the remote sensor, this remote commander will not operate the TV.

•TV / VIDEO

Remote sensor

To operate Set •TV / VIDEO to

the VCR VIDEO a Sony TV •TV

Setting up the remote commander

123 456

and point at the remote sensor a t th e V CR

and point at the remote sensor at th e T V

Page 9

Notes

• With normal use, the batteries should last about three to six months.

• If you do not use the remote commander for an extended period of time, remove the batteries to avoid possible damage from batter y le akage.

• Do not use a new battery with an o ld on e.

• Do not use different types of batteries.

• Do not leave the remote commander in an extremely hot or humid place.

• Do not drop any foreign object into th e re mote casing, particularly whe n re pla c ing the batteries.

• Do not expose the remote sensor to dire ct light from the sun or lighting apparatus. Do ing so may cause a malfunction.

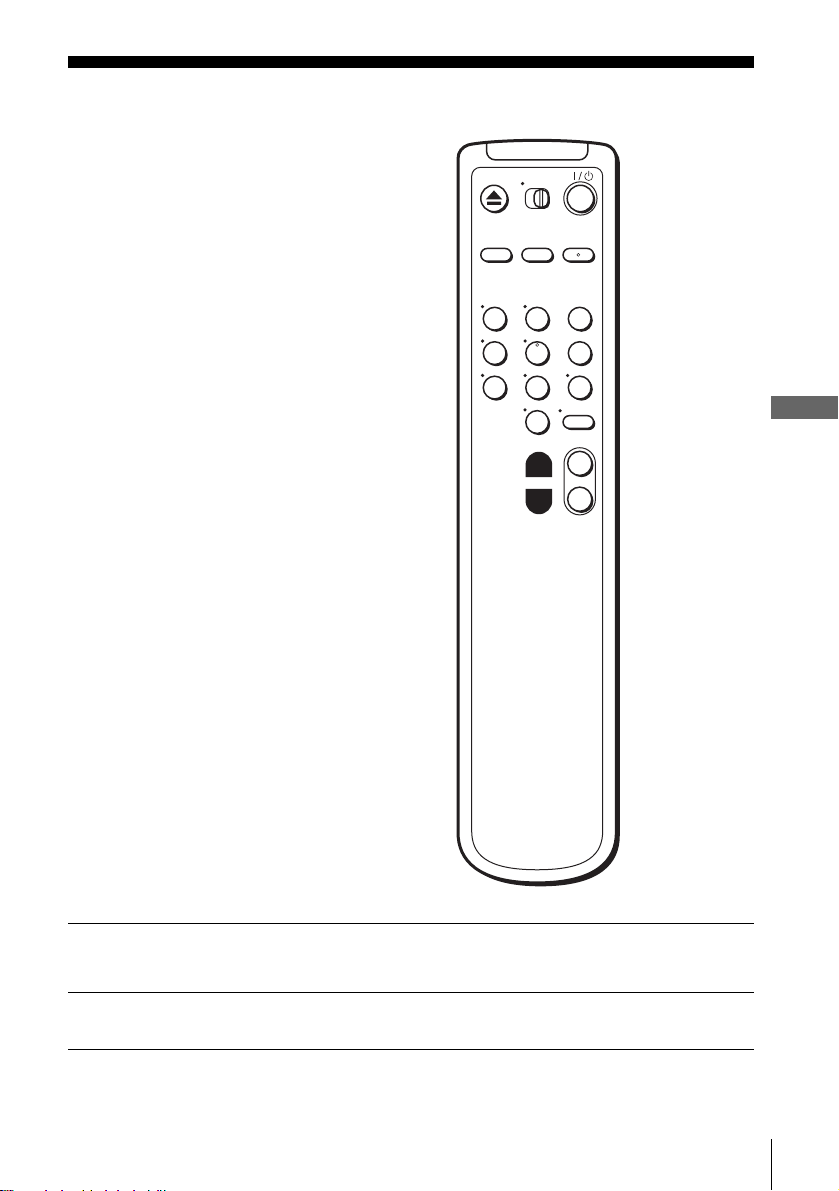

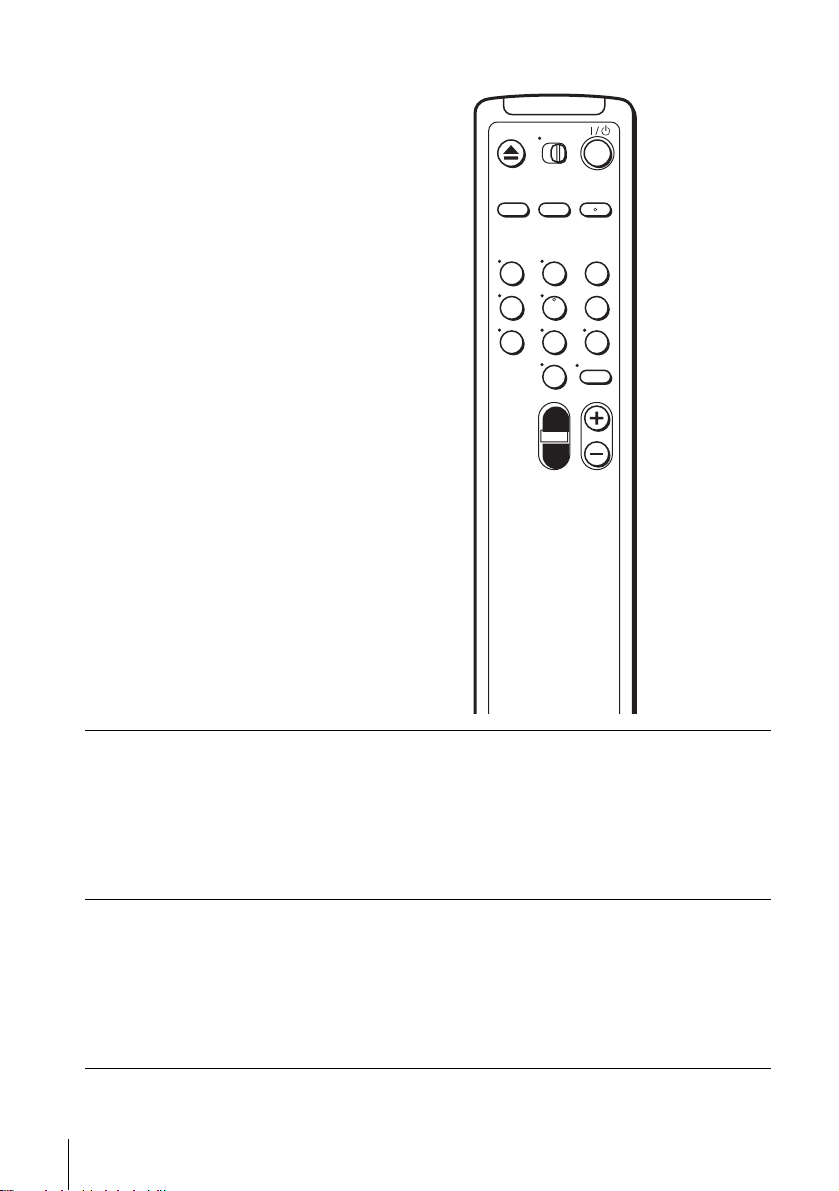

Controlling other TVs with the remote commander

The remote commander is preprogramed to control non-Sony TVs. If your TV is listed in the following table, set the appro pri ate manufacturer’s code number.

Set •TV / VIDEO at the top of the remote commander to •TV.

Hold down ?/1, and enter your TV’s code number using the n umber buttons.

Then release ?/1.

Now you can use the ?/1, VOL +/–, CH +/–, and TV/VID EO buttons to co ntrol your TV. You can also use the buttons marked with a dot (•) to control a Sony TV. To control the VCR, reset •TV

/ VIDEO to VIDEO.

Getting Started

continued

Setting up the remote commander

Page 10

Code numbers of controllable TVs

If more than one code number is listed, try entering th em on e at a time until you find the one that works with your TV.

TV brand Code number

Sony 01 Akai 04 AOC 04 Centurion 12 Coronado 03 Curtis-Mathes 12 Daytron 12 Emerson 03, 04, 14 Fisher 11 General Electric 06, 10 Hitachi 02, 03 J.C.Penn ey 04, 12 JVC 09 KMC 03 LG/Gold Star 03, 04, 17 Magnavox 03, 08, 12 Marantz 04, 13 MGA/Mitsubishi 04, 12, 13, 17 NEC 04, 12

Notes

• If you enter a new code number, the code numb er previously entered will be era sed.

• If the TV uses a different remote control system from the one programed to work with the

VCR, you cannot contro l your TV with the remote comma nder.

• When you replace the batteries of the remote commander, the code number may change. Set

the appropriate code number every time you replace the batteries.

• When you press the AUDIO MONITOR button, your TV’s menu may appear on th e TV

screen. To exit the TV menu, press the MENU button on the TV remote commander or wait until the menu disappea r s automatical l y.

Setting up the remote commander

Page 11

Step 3 : Hookups

Selecting the best hookup option

There are many ways in which your VCR can be hooked up. To hook up your VCR so that it works best for you, first scan through the table below. Then use the accompanying diagrams and procedures on the following pages to set up your VCR.

If your TV has audio/video inputs, refer to page 12 for audio/video (A/V) hookup. Then follow one of the hookups below. If your TV does not have A/V inputs, perform directly one of the hookups below.

If you have Use Refer to

Antenna only, no cable TV Hookup 1

No cable box or cable bo x w it h only a few scrambled channels

Cable box with many scrambled channels

(Plug and Play) Hookup 2

(Plug and Play) Hookup 3 Page 17

After you have completed the connections, follow the instructions for setup. After you have completed the setup, you are ready to use your VCR. Procedures

differ dep end ing on the ho okup you u sed . Fo r an ov e rview , r efer to “Qu ick re fer enc e to using the VCR” on the back cover.

Before you get started

• Turn off the power to all equipment.

• Do not connect the AC power cords until all of the connections are completed. If you connect t he A C po w er cor d befor e the co nnect ions are co mpleted, you m ay not be able to use the Plug and Play function.

• Be sure you make connections firmly. Loose connections may cause picture distortion.

• If your TV does not match any of the examples provided, see your nearest Sony dealer or qualified technician.

Pages 13 and 14

Pages 15 and 16

Getting Started

Caution

Connections betw een the VCR’s VHF/UHF connector and t he antenna terminals of the T V receiver should be made only as shown in the following instructions. Failure to do so may result in operation that violates the regulations of the Federal Communications Commission regarding the use and operation of RF devices. Never connect the output of the VCR to an antenna or make simultaneous (parallel) antenna and VCR connect ion s at the antenna terminals of your receiver.

Note to CATV system installer (in USA)

This reminder is p rovided to call th e C ATV system installer’ s attention to Article 820- 40 of th e NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practi cal.

Hookups

Page 12

Audio/video (A/V) hookup

If your TV has audio/video (A/V) inpu t j ack s, yo u will g et a bette r p ic ture a n d so un d if you hook up your VC R using these connections. For a true “home theater” experience, you should connect the audio outputs of your VCR or TV to your stereo system. If your TV does not have A/V inputs, see the following pages for antenna or cable hookups.

If you are not planning to use your VCR to record programs, you finished setting up the VCR after you have made the connections shown on this page. If you want to record regular or cable TV programs, complete these connections first, and then go to the following pages for antenna or cable hookups.

A Use this hookup if your TV has stereo jacks

LINE

IN 1

OUT

AUDIO VIDEO

Stereo receiverVCR

VIDEO AUDIO

AUDIO OUT

AUX IN

Audio/video cable (not supplied)

Audio cable (not supplied)

B Use this hookup if your TV does not have stereo jacks

Stereo receiverVCR

LINE

IN 1

OUT

AUDIO VIDEO

Video cable (not supplied)

Notes

• To play a tape in st ereo, you must use the A / V connection.

• If you do not have a stereo receiver, connect the white LINE OUT/AUDIO L jack to the

AUDIO IN jack on your TV.

VIDEO AUDIO

Audio cable (not supplied)

AUX IN

Hookups

Page 13

Hookup 1 (Plug and Play)

Antenna hookup

Make the following connections if you are using an antenna (if you do not have cable TV).

A Use this hookup if you are using:

• VHF/UHF antenna (you get channels 2–13 and channels 14 and hi gher)

• UHF-only antenna (you get channels 14 and higher)

• Separate VHF and UHF antennas

VCR

OUT

B Use this hookup if you are using a VHF-only antenna (you get

channels 2–13 only)

Rear of TV

VHF/UHF

VHF

UHF

VHF

UHF

Getting Started

Match the type of connector on your TV: A, B, or C.

Rear of TV

VHF/UHF

Match the type of

connector on your TV: A, B, or C.

VHF

For connector type

B and C, no UHF

UHF

connection is required.

VHF

UHF

VCR

OUT

If you cannot connect your antenna cable to the VCR directly

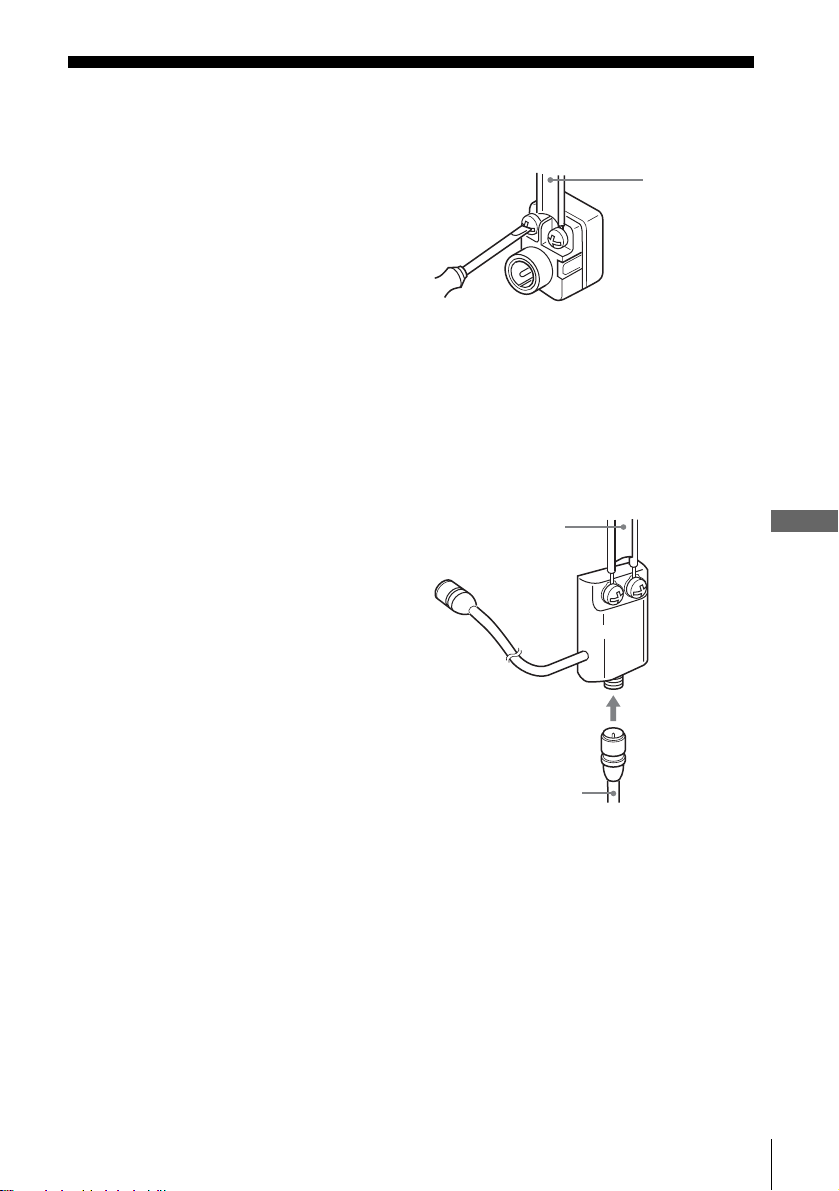

If your antenna cable is a flat cable (300-ohm twin lead cable), attach an external antenna connector (not supplied) so you can connect the cab le to the RF IN connector. If you have separate cables for VHF and UHF antennas, you should use a U/V band mixer (not suppli ed) (page 51).

Hookups

Page 14

Hookup 1 : VCR setup

Plug the VCR into the AC outlet.

The VCR automatically presets the VCR’s clock and TV channels when the VCR is plugged into the AC outlet.

AC power cord

to AC outlet

The VCR starts presetting the clock and channels.

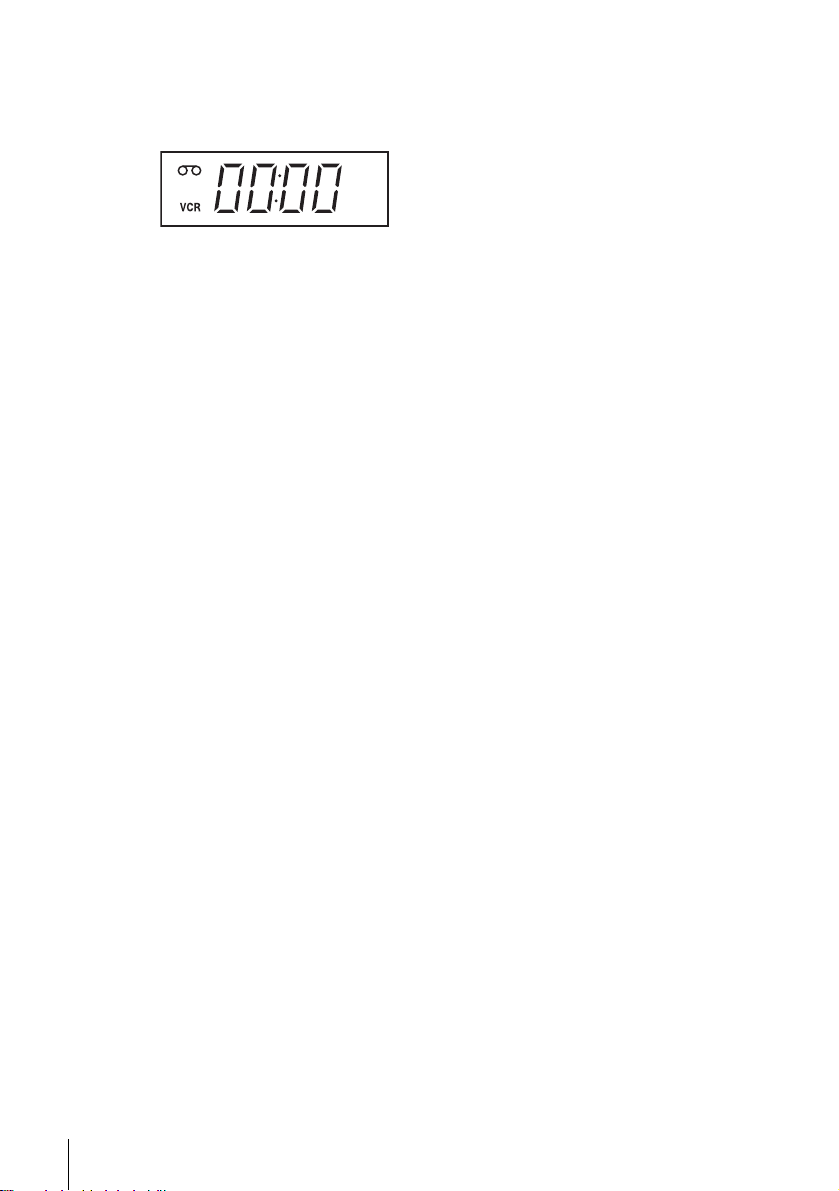

When Auto preset is completed, the current time appears in the display wi ndow.

You have now completed VCR setup. T o change the on-scre e n di sp la y la ng ua g e to Fr e nch or Spanish, see

“Step 4 : Selecting a la nguage” on page 18. The clock is set using a time signal provided by some TV channels. If the clock

is incorrect, or “--:--” appears in the display window, see “Using Manual Clock Set” on page 22.

To add or disable channels manually, see “Presetting/disabling channels manually” on page 26.

Hookups

Notes

• If you connect the AC power cord before the antenna connections are completed, the channels

may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 24.

• Do not press any buttons on the VCR or remote com mander during Auto preset.

• Auto preset starts automatically only when you plug in the AC power cord for the first time

after you purchase the VC R.

• Auto preset can be performed by pressing x STOP on the VCR

or more with the VCR power turned off.

continuously for 5 seconds

Page 15

Hookup 2 (Plug and Play)

You have no cable box, or a cable box with only a few scrambled channels

Recommended use

Use this hookup if you do not have a cable box. Also use this hookup if your cable system scrambles only a few channels.

What you can do with this hookup

• Record any unscrambled channel by selecting the chann el on the VCR

What you cannot do

• Record scrambled channels that require a cable box

Getting Started

Wall

Connect this cable directly to your TV if you do not have a cable box.

Cable box

IN OUT

VCR

OUT

Rear of TV

VHF/UHF

VHF

UHF VHF

UHF

Match the type of connector on your TV: A, B, or C.

For connector types B and C, no UHF connection is required.

Hookups

Page 16

Hookup 2 : VCR setup

Plug the VCR into the AC outlet.

The VCR automatically presets the VCR’s clock and TV channels when the VCR is plugged into the AC outlet.

AC power cord

to AC outlet

The VCR starts presetting the clock and channels.

When Auto preset is completed, the current time appears in the display wi ndow.

You have now completed VCR setup. T o change the on-scre e n di sp la y la ng ua g e to Fr e nch or Spanish, see

“Step 4 : Selecting a la nguage” on page 18. The clock is set using a time signal provided by some TV channels. If the clock

is incorrect, or “--:--” appears in the display window, see “Using Manual Clock Set” on page 22.

To add or disable channels manually, see “Presetting/disabling channels manually” on page 26.

Hookups

Notes

• If you connect the AC power cord before the antenna connections are completed, the channels

may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 24.

• Do not press any buttons on the VCR or remote com mander during Auto preset.

• Auto preset starts automatically only when you plug in the AC power cord for the first time

after you purchase the VC R.

• Auto preset can be performed by pressing x STOP on the VCR

or more with the VCR power turned off.

continuously for 5 seconds

Page 17

Hookup 3

Connecting a cable box with man y scrambled channels

Recommended use

Use this hookup if your cable system scrambles all or most channels.

What you can do with this hookup

• Record any channel by selecting the channel on the cable box

What you cannot do

• Record with the cable box turned off

• Record one channel while watching another ch annel

Wall

VCR

OUT

Cable box

IN OUT

Rear of TV

VHF/UHF

VHF

UHF VHF

UHF

Match the type of

connector on y our TV: A, B, or C.

For connector

types B and C, no UHF connection is required.

Getting Started

After you have completed hookup…

After you have completed hookup, plug the VCR into the AC outlet and see “Step 4 : Selecting a language” on page 18.

AC power cord

to AC outlet

Hookups

Page 18

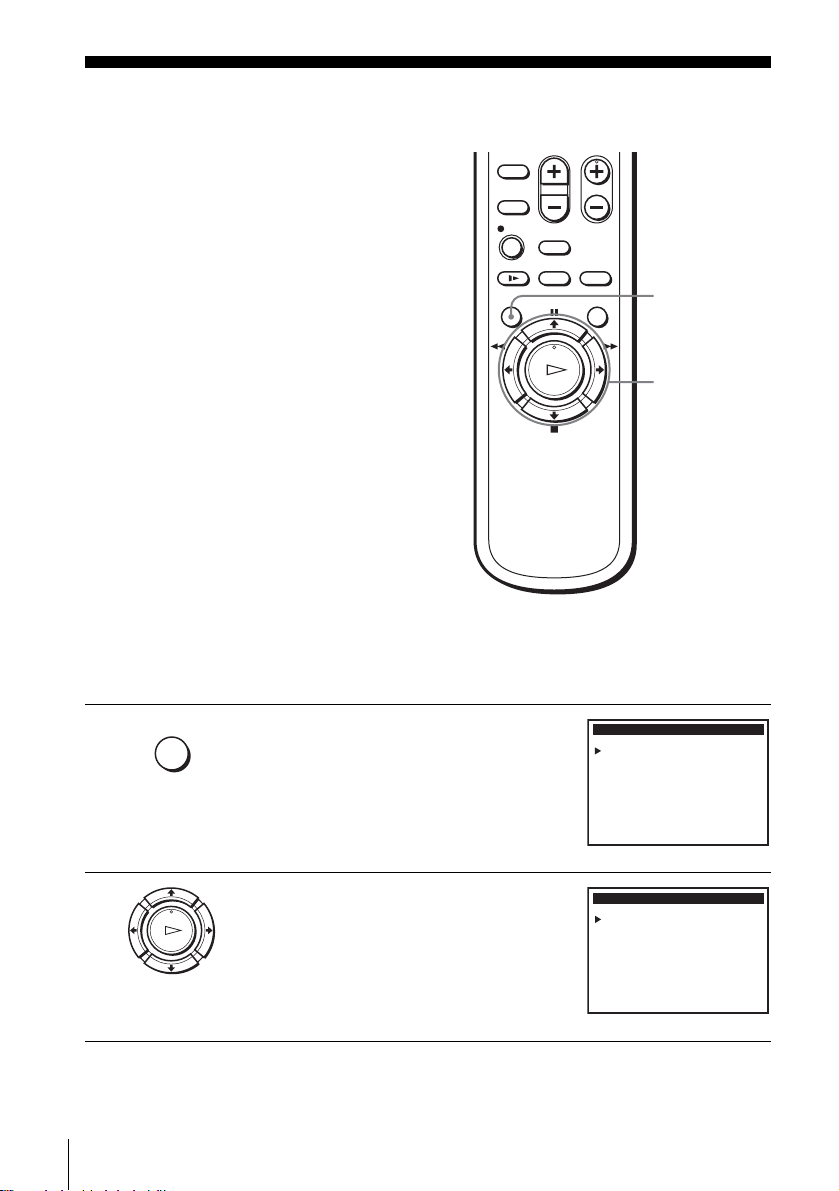

Step 4 : Selecting a language

You can change the on-screen display language.

Before you start…

• Turn on the VCR and the TV.

• Set the “VCR Output CH” to “3CH” or “4CH” in ADVANCED OPTIONS menu (page 47). If both are used, set the “VCR Output CH” to either channel. If your TV is connected to the VCR using A/V connections, set the TV to video input.

• Press TV/VIDEO to display the VCR indicator in the VCR’s display window.

M/m/,

PLAY

Press MENU.

Timer set / check Clock set Tuner preset Advanced options Language / Idioma / Langue

Select

Press M/m to move the cursor (B) to “Language/Idioma/Langue.”

Timer set / check Clock set Tuner preset Advanced options Language / Idioma / Langue

Select

Press , to select the desired language, French or Spanish.

Press MENU to exit the menu.

MAIN MENU

:Set

MAIN MENU

:Set

: MENUQuit

Selecting a language

Page 19

Step 5 : Setting the clock

Using the Auto Clock Set feature

Some TV and cable chann els transmit time signals with their broadcasts. Your VCR can pick up this time signal to automatically set the clock.

The Auto Clock Set feature works only if a channel in your area is broadcasting a time signal. If broadcasters in your area are no t yet sending time signals, set the time manually (page 22).

Before you start…

• T urn on the VCR and the TV . When using a cable box, turn it on.

• Press TV/VIDEO to display the VCR indicator in the VCR’s display window.

Press MENU.

M/m/</, OK

MAIN MENU

Timer set / check Clock set Tuner preset Advanced options Language / Idioma / Langue

Select

:Set

Getting Started

: MENUQuit

PLAY

Press M/m to move the cursor (B) to “Clock set,” then press OK.

Select

CLOCK SET

AUTO MANUAL

:Set

continued

Setting the clock

: MENUQuit

Page 20

PLAY

Press M/m to select AUTO, then press OK.

Clock set CH: Time zone: Daylight Saving:

Select

CLOCK SET

Vv Set : Bb

:End

]

AUTO

[[]

AUTO

[]

AUTO

: MENUQuit

PLAY

Press M/m to select the item you want. Then press

</, to make the setting and press OK.

• For “Clock set CH” Leave the setting to AUTO to have the VCR automatically search for a chann el that carries a time signal. Press

</, to select a

channel that carries a time signal. Use this option if you know of a channel that carries a time signal. Most PBS member stations broadcast a time signal. For the fastest response, select your local PBS station.

• For “Time zone” Select the time zone of your area, or selec t AUTO to have the VCR automatically set your time zone. The options are: AUTO y Atl. (Atlantic) y East (Eastern) y Cen. (Central) y Mtn. (Mountain) y Pac. (Pacific) y Alas (Alaska) y Haw. (Hawaii) y AUTO

• For “Daylight Saving” Select YES or NO (standard time), or AUTO to have the VCR automatically set the daylight saving time.

Clock set CH: Time zone: Daylight Saving:

Select::

Clock set CH: Time zone: Daylight Saving:

Select

Clock set CH: Time zone: Daylight Saving:

Select::

CLOCK SET

Vv Set : Bb OK

CLOCK SET

Vv Set : Bb

:End

CLOCK SET

Vv Set : Bb OK

[]

123

[]

AUTO

[]

AUTO

: MENUQuitEnd

]

AUTO

[[]

Pac.

[]

AUTO

: MENUQuit

[]

AUTO

[]

AUTO

[]

: MENUQuitEnd

Setting the clock

Press MENU to exit the menu.

To activate the Auto Clock Set function, turn off the VCR.

Page 21

Notes

• The clock cannot be set auto m at ic al ly if you do not receive a channel that carries a time signal in your area. If so, set the clock ma nually (page 22).

• If there are only a few channels in your area that carry time signals, setting the clock automatically may take up to about 20 minutes. If nothing happens even after you wait about 20 minutes, set the clock manually (page 22).

• If you made Hookup 3, make sure you le ave the cable box on.

Getting Started

continued

Setting the clock

Page 22

Using Manual Clock Set

Before you start…

• Turn on the VCR and the TV.

• Press TV/VIDEO to display the VCR indicator in the VCR’s display window.

M/m/, OK

Setting the clock

Press MENU.

Press M/m to move the cursor (B) to “Clock set,” then press OK.

Press M/m to select MANUAL, then press OK.

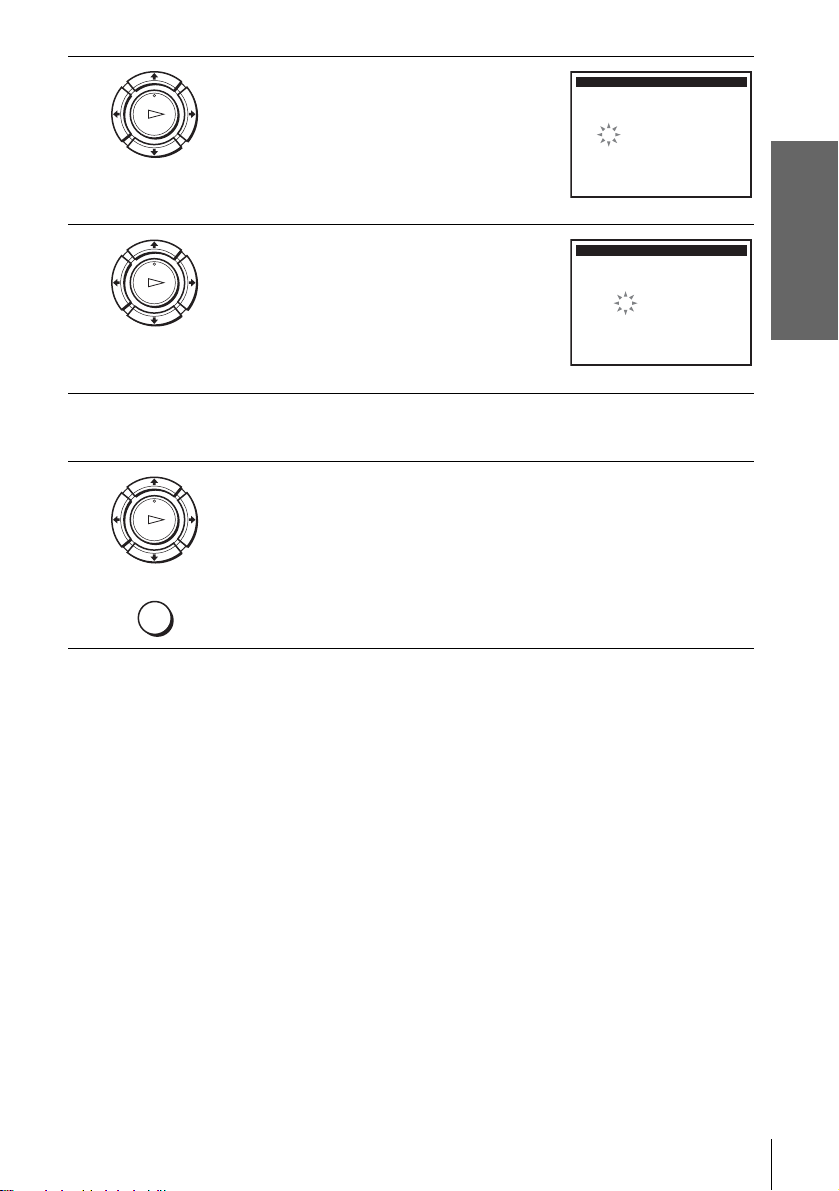

Page 23

PLAY

Press M/m to set the month.

CLOCK SET

YEAR

DATE

90120 0004 WED :

TIME 12

6 7

PLAY

Select

Press , to flash the day and pre ss M/m to set the day.

DATE YEAR

92820 0004 TUE :

Select

Set the year, hour, and minutes in the same way as the day. The day of the week is set automatically.

Press OK or MENU to start the clock.

Bb Set : Vv

:End

CLOCK SET

TIME 12

Bb Set : Vv

:End

: MENUQuit

Getting Started

Setting the clock

Page 24

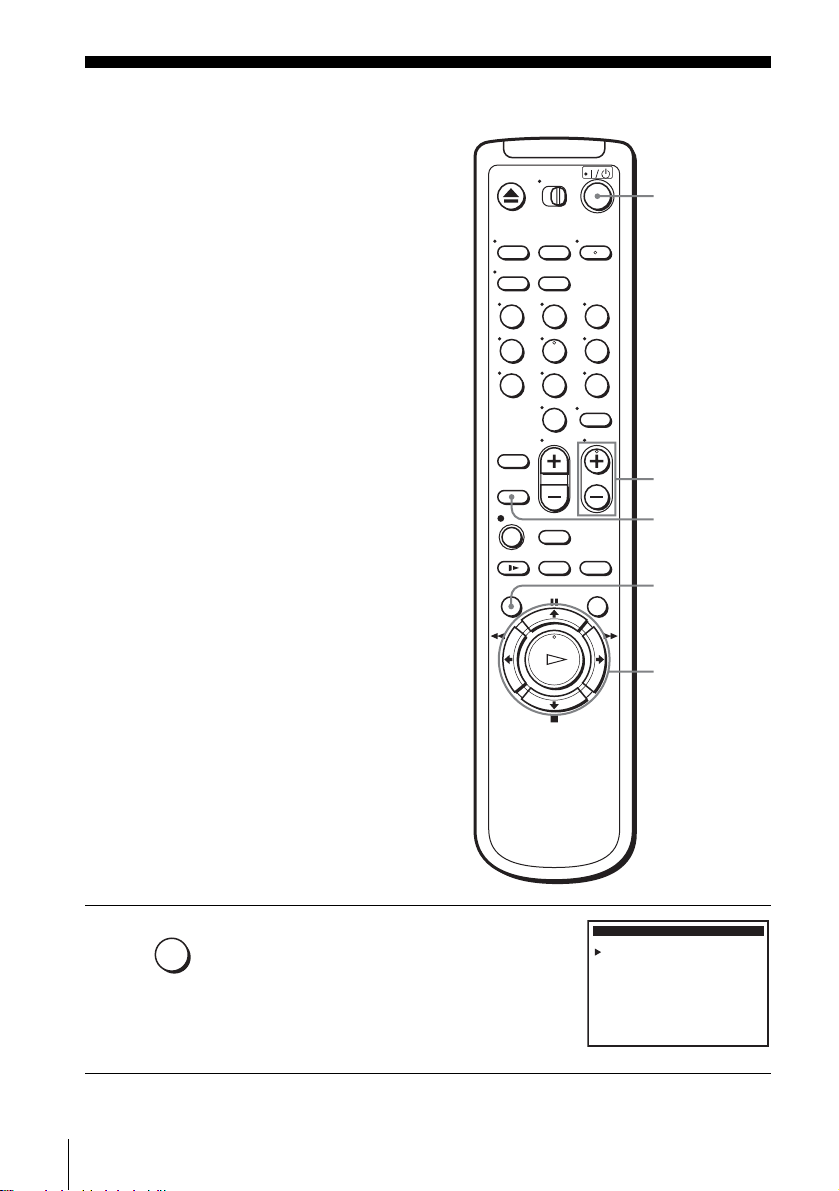

Step 6 : Presetting channels

This VCR is capable of receiving VHF channels 2 to 13, UHF channels 14 to 69 and unscrambled CATV channels 1 to 125. First, we recommend that you preset the receivable channels in your area using automatic presetting methods. Then, if there are any unwanted channels, disable them manually. If you have already decided which channels you wish to preset, set them direct ly usi ng manual presetting methods (page 26).

Presetting all receivable channels automatically

Before you start…

• T urn on the VCR and the TV. When using a cable box, turn it on.

• Press TV/VIDEO to display the VCR indicator in the VCR’s display window.

M/m/</, OK

Presetting channels

PLAY

Press MENU.

Press M/m to move the cursor (B) to “Tuner preset,” then press OK.

MAIN MENU

Timer set / check Clock set Tuner preset Advanced options Language / Idioma / Langue

Select

:Set

TUNER PRESET

Ant / Cable: Auto preset Channel add / erase

Select

Vv Set : Bb

:End:OK

: MENUQuit

[]

CABLE

: MENUQuit

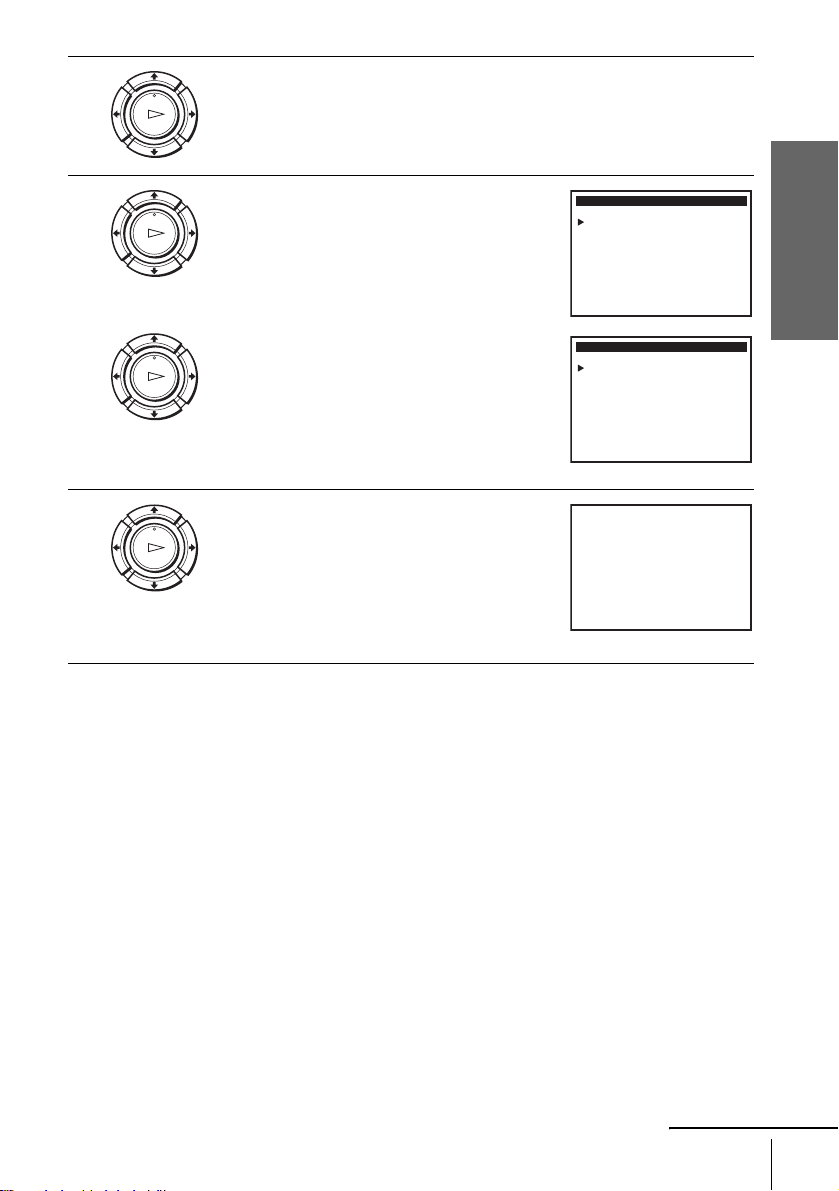

Page 25

PLAY

Press M/m to move the cursor (B) to “Ant/Cable.”

• To preset cable TV channels: Press </, to select CABLE.

TUNER PRESET

Ant / Cable: CABLE Auto preset Channel add / erase

Select

Vv Set : Bb

:End:OK

Getting Started

[]

: MENUQuit

PLAY

• To preset VHF and UHF channels: Press </, to select ANTENNA.

Press M/m to move the cursor (B) to “Auto preset,” then press OK.

All receivabl e ch annels are pre s et in numeric al sequence. When no more receivable channels can be found, presetting stops and the picture from the lowest numbered channel is displayed on the TV screen.

TUNER PRESET

Ant / Cable: ANTENNA Auto preset Channel add / erase

Select

• • • • •

[]

Vv Set : Bb

:End:OK

please wait

• • • • •

: MENUQuit

02CHAuto preset

continued

Presetting channels

Page 26

Presetting/disabling channels manually

Before you start…

• T urn on the VCR and the TV. When using a cable box, turn it on.

• Press TV/VIDEO to display the VCR indicator in the VCR’s display window.

123 456 789

Presetting channels

Press MENU.

Press M/m to move the cursor (B) to “Tuner preset,” then press OK.

Page 27

Press M/m to move the cursor (B) to “Channel add/erase,” then press OK.

PLAY

Getting Started

• To preset a channel:

1 Press the number buttons to enter the

channel number, then press ENTER.

2 Press ,, then press OK or MENU.

PLAY

• To disable a channel:

1 Press CH +/– to select the channel number. 2 Press <, then press OK or MENU.

Presetting channels

Page 28

Basic Operations

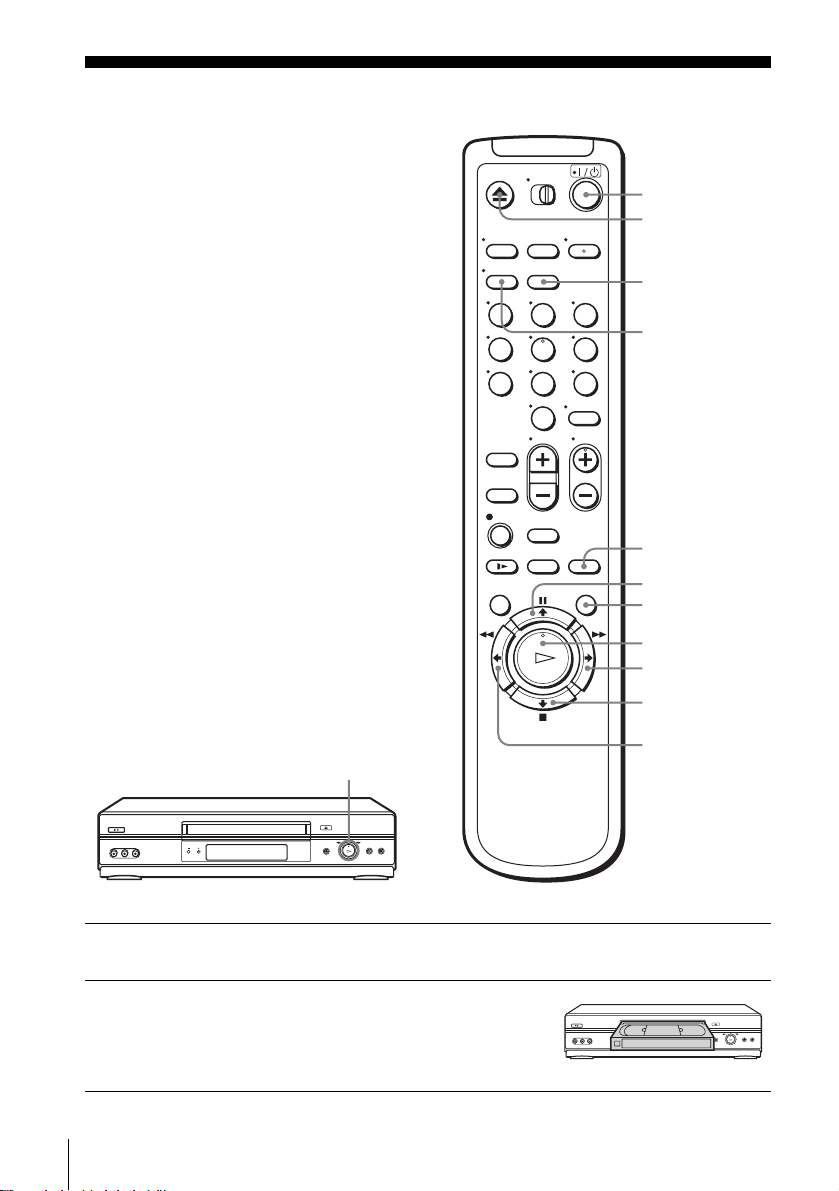

Playing a tape

?/1 Z EJECT

CLEAR

Playback Dial

123 456 789

DISPLAY

REPLAY X PAUSE

COMMERCIAL SKIP

H PLAY M FF

x STOP

m REW

1 2

Playing a tape

Turn on your TV and set it to the video channel.

Insert a tape. The VCR turns on and starts playing

automatically if you insert a tape with its safety tab removed.

Page 29

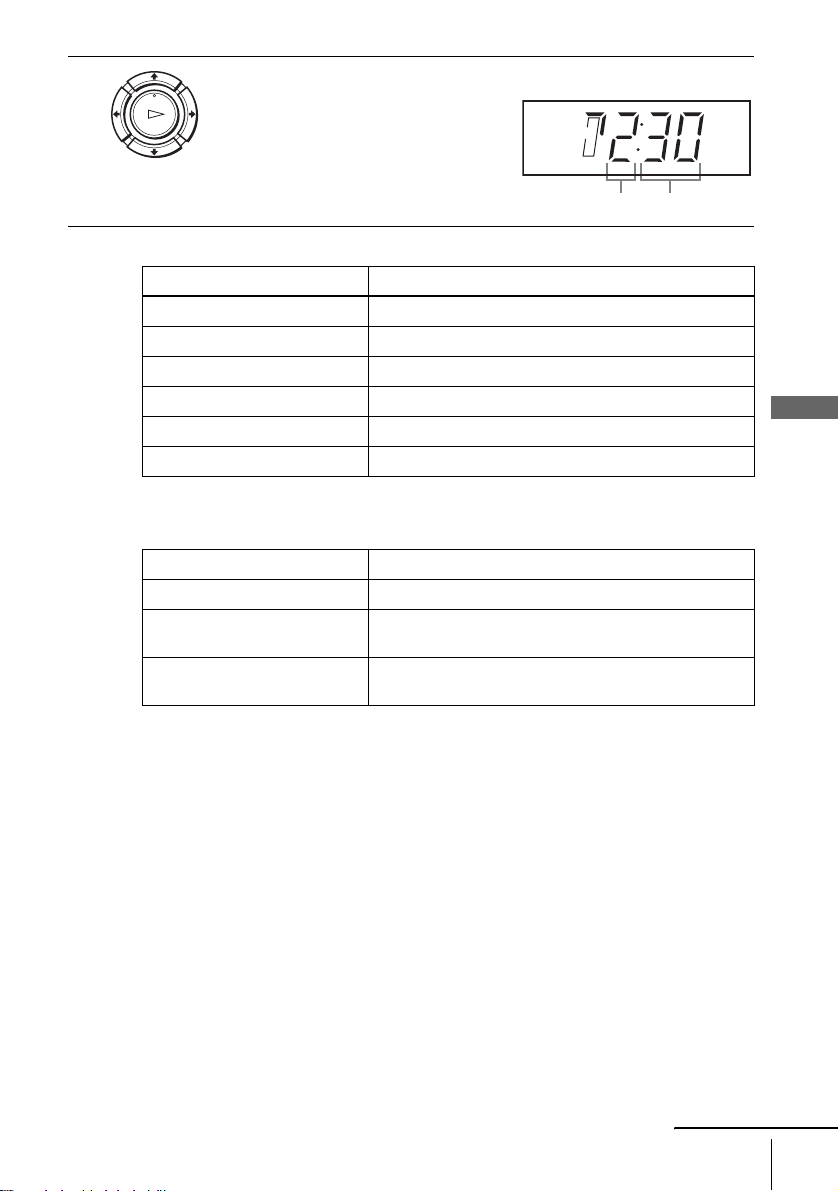

Press H PLAY.

PLAY

The display wind o w s ho w s the p layb ack time and playback dir ection.

When the tape reaches the end, it wi ll rewind automatically.

Hour Minute

Additional tasks

To D o this

Stop play Press x STOP Pause play Press X PAUSE Resume play after pause Press X PAUSE o r H PLAY Fast-forward the tape Press M FF during stop Rewind the tape Press m REW duri ng stop Eject the tape Press Z EJECT

Using Playback Dial on the VCR

With Playback Dial, you can operate th e following playback options.

To D o this

Resume play after pause Press H PLAY Fast-forward the tape Quickly turn and release Playba ck Dial to the right

Rewind the tape Quickly turn and release Playback Dial to the left

(M FF) during stop

(m REW) duri ng stop

Basic Operations

Note

• Do not turn Playback Dial forc ib ly. It may damage Playback Dia l.

To play a recently watched scene

You can immediately rewind and playback the scene you want to watch again. During playback, press REPLAY. The VCR rewinds the tape about ten seconds on

the counter for each press of the button, and res ta r ts p layback.

To skip playback

You can skip a portion of playback you do not want to watch (such as a commercial) and restart playback.

During playback, press COMMERCIAL SKIP up to four times. The VCR skips the tape 30 seconds on the coun ter for each press of the button, and restarts playback.

To turn off the power while rewinding (Rewind Shut Off)

Press ?/1 while the tape is rewinding. The power will turn off but the tape will keep rewinding until it reaches the end.

continued

Playing a tape

Page 30

To use the time counter

Press CLEAR at the point on the tape that you want to find later. The counter in the display window resets to “00:00” or “0:00.” To search for the counter 0:00:00 point automatically, see “To search for the counter 0:00:00 point” on page 45.

To display the counter on the TV screen, press DISPLAY.

Notes

• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but the picture quality ca nnot be guaranteed.

• While displaying a menu on the TV screen, you cannot use H PLAY, X PAUSE, M FF, m REW, or x STOP buttons.

• The counter resets to “00:00” or “0:00” (in the display window) or “0:00:00” (on the TV screen) whenever a tape is reinserted.

• The counter stops counting when it comes to a porti on wit h no rec ordi ng.

• When 10 hours have passed, the counter in the display window returns to “0:00” and the count starts over again.

• When playback does not start even if you insert a tape w ith it s safet y t ab re m oved, set “Auto play” in the ADVANCED OPTIONS menu correctly (page 47).

• This VCR can also play S-VHS tape s. The V CR will automatically identify t he type of ta pe inserted in the VCR (either VHS o r S-VHS). When S-V HS t apes are played i n the VCR, the enhanced resolution wil l not be visi ble on screen; there may also be pictur e distortion while playing the S-VHS tape in slow motion or while utilizing other special playback modes. The VCR will not record in S-VHS mode on an S-VHS tape.

Playing a tape

Page 31

Record ing TV progra ms

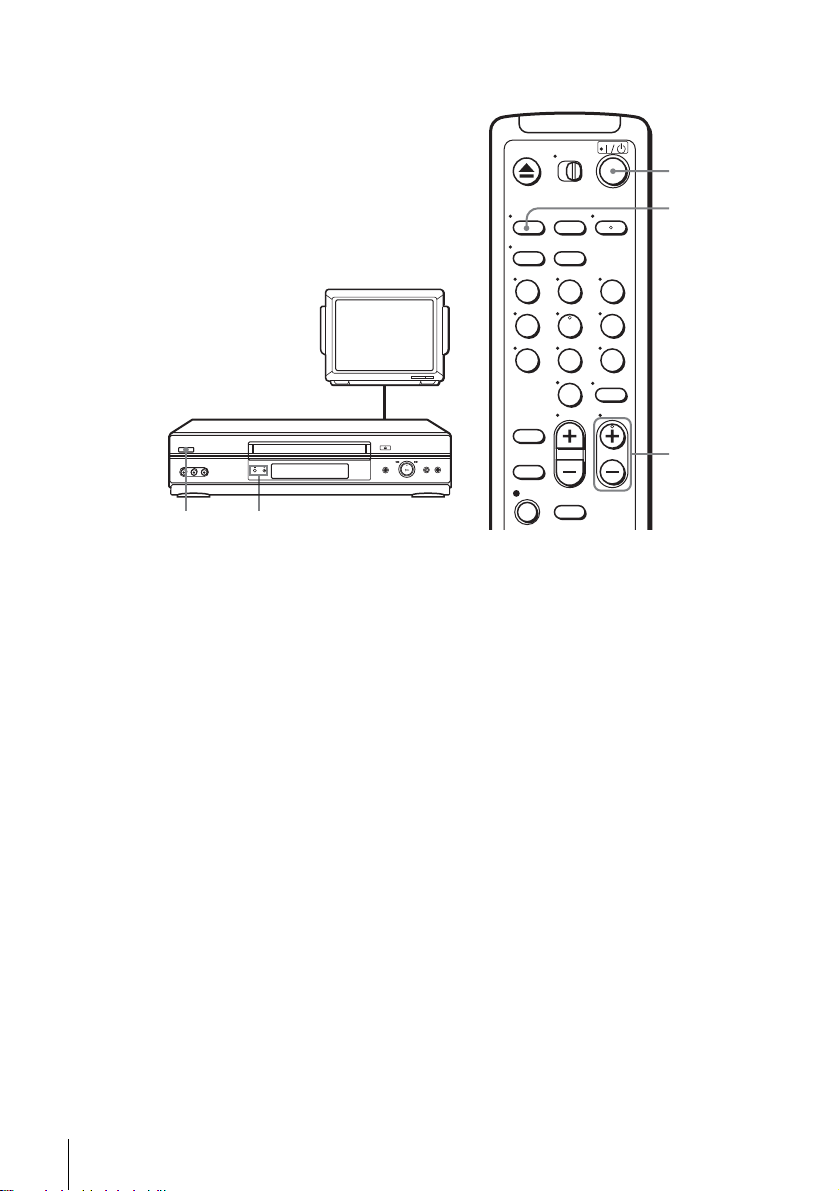

123 456 789

Turn on your TV and set it to the video channel. To record from a cable box, turn it on.

Basic Operations

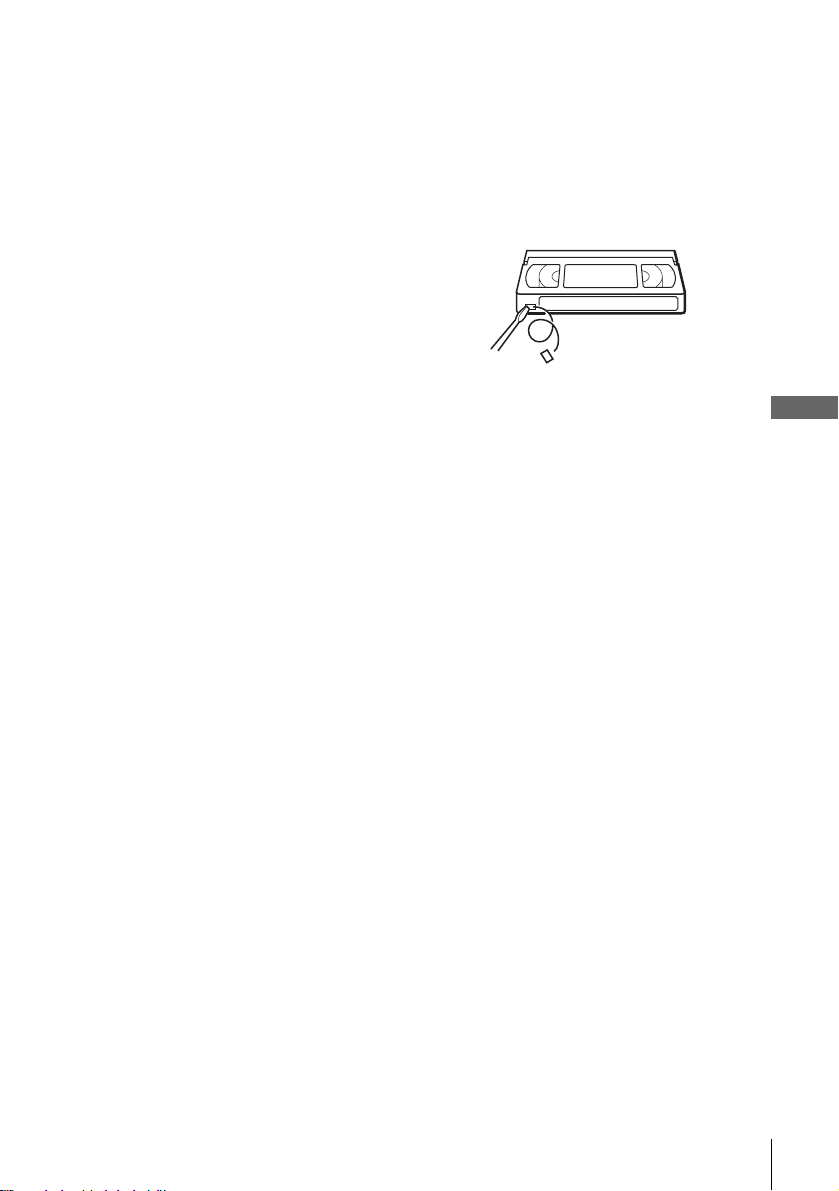

Insert a tape with its safety tab in place.

Recording TV programs

Page 32

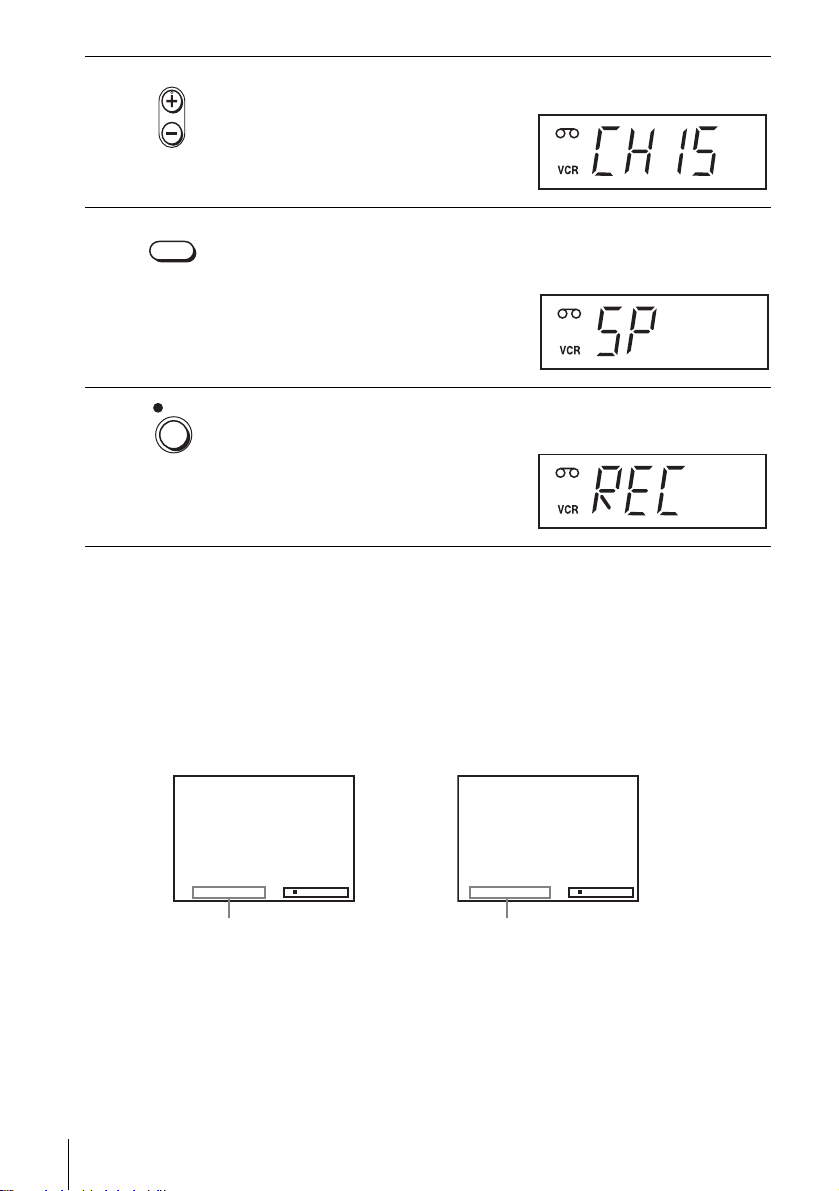

• CH

Press CH +/– to select the channel or line input video sour ce you want to record.

SP / EP

REC

To stop recording

Press x STOP.

To check the remaining tape length

Press DISPLAY. With the display on, press COUNTER/REMAIN to check the remaining time. Each time you press COUNT ER/REMAIN, the time count er and the remaining tape length app ear a lternately. The white bar indicates the current locatio n in relation to the entire tape length. The remaining time also appears in the display window.

Press SP/EP to select the tape speed, SP or EP. EP (Extended Play) provides recording time three t im es as long as SP

(Standard Play). However, SP produces better picture and audio quality.

Press z REC to start recording. “REC” appears in the display window.

Recording TV programs

::00030SP :Rem 1 38 SP

Time counter Remaining tape length

To check the remaining tape l ength of a tape, set “Tape select” in the ADVANCED OPTIONS menu correctly (page 47).

Page 33

To watch another TV program while recording

Press TV/VIDEO to turn off the VCR indicator in the display window.

If your TV is connected to the VCR using A/V con nect ions, set the TV to the

TV’s antenna input; if not, skip this step. Select another channel on the TV.

To save a recording

To prevent accidental erasure, break off the safety tab as illustrated. To record on the tape again, cover the tab hole with adhesive tape.

Tips

• To select a channel, you can use the number buttons on t he remote commander. Enter the channel number, then press ENTER.

• You can select a video source from the LINE IN 1 or LINE -2 IN ja c ks usin g the INPU T SELECT button.

• The display appears on the TV screen indicating informati on a bout the tape, but the information will not be recorded on the tape.

• If you do not want to watch TV while recording, you can turn off the TV. When using a cable box, make sure to leave it on.

Notes

• The remaining tape length may not be indicated accurately for short tapes such as T-20 or T30, or tapes recorded in the LP mode.

• The display does not appear during still (pause) mode or slow-motion playback.

• It may take up to one minute for the VCR to calculate and display the remaining tape length after you press DISPLAY.

Safety tab

Basic Operations

Recording TV programs

Page 34

Setting the timer

You can preset up to eight programs at one time.

Before you start…

• Check that the VCR clock is set to the correct time.

• Turn on the VCR and the TV and set it to the video channel. When using a cable box, turn it on.

• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time.

?/1

123 456 789

CH +/–

INPUT SELECT

M/m/</, OK x STOP

Setting the timer

Press MENU.

MAIN MENU

Timer set / check Clock set Tuner preset Advanced options Language / Idioma / Langue

Select

:Set

: MENUQuit

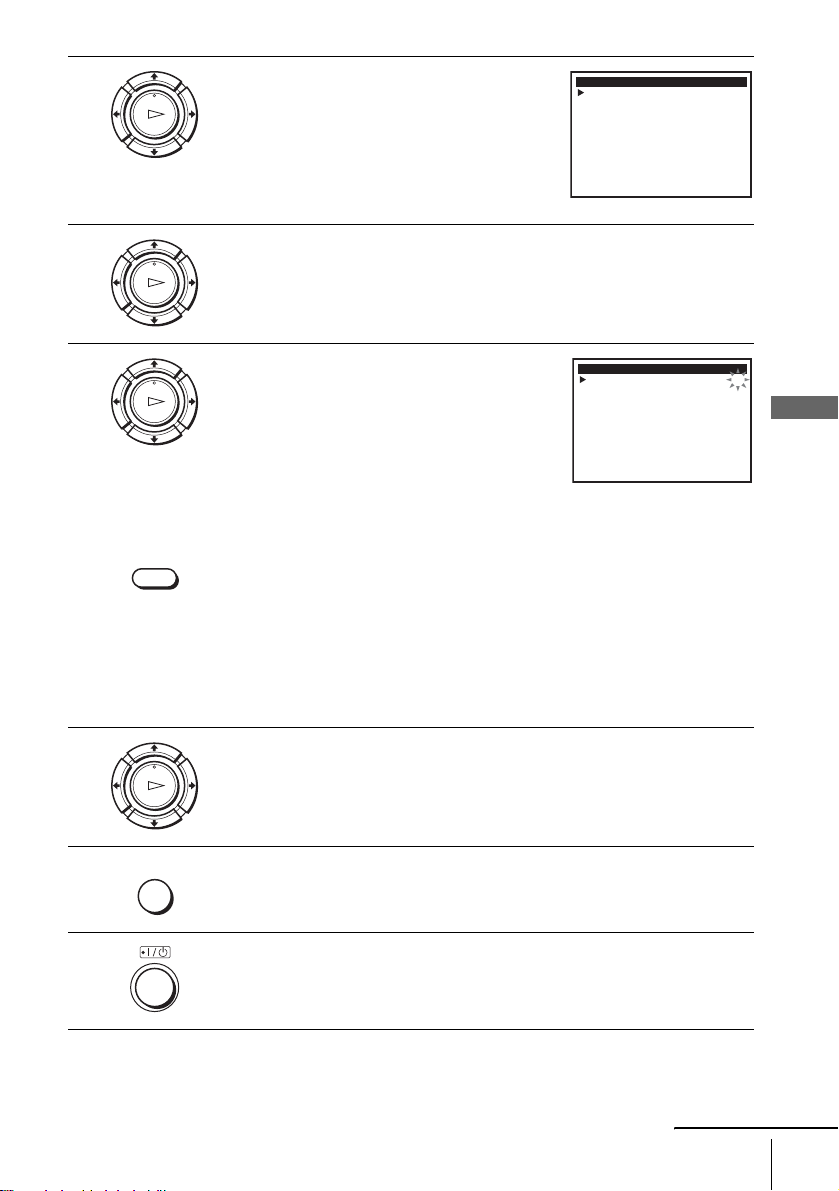

Page 35

PLAY

Press M/m to move the cursor (B) to “Timer set/check,

” then press OK.

CH START STOP DATE

–– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– --

Select

::End

Set :Vv

SPD

MENUQuit

PLAY

INPUT

SELECT

PLAY

If necessary, press M/m to move the cursor (B) to the row that is to be set.

Set the channel number, start and stop time, date, and tape speed:

1 Press , to flash each item in turn. 2 Press M/m to set each item.

CH START STOP DATE

PMP

35 8: 00 9: 00 9/ 30 SP –– –: –– –: –– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– --

Select

: ::End

Set :Vv

SPD

MENUQuit

T o correct a setting, press < to return to that setting and reset.

To record from a source connected to the LI NE IN 1 or LINE-2 IN jacks, press INPUT SELECT or M/m to display “L1” or “L2” in the “CH” position.

To record the same program every day or the same day every week, press m while the date is flashing. For details, see “Daily/weekly recording” below.

To use the Auto Tape Speed function, press m to display “AUTO” in the “SPD” position. For details, see “To use the Auto Tape Speed function” on page 36.

Press OK to confirm the setting. To enter another setting, press M/m to select the next row and repeat step 4.

Basic Operations

Press MENU to exit the menu.

Press ?/1 to turn off the VCR. The TIMER indicator appears in the display window and the VCR stands by

for recording. When using a cable box, leave it on.

To stop recording

To stop the VCR while recording, press x STOP.

continued

Setting the timer

Page 36

Daily/weekly recording

In step 4, press m to select the recording pattern. Each time you press m, the indication changes as shown below. Press M to change the indication in reverse order.

MO~FR t SUN’S t MON’S t ..... t SAT’S t 1 month later t (dates count

down) t the current date

To use the Auto Tape Speed function

When you are recording a program in the SP mode and the remaining tape becomes shorter than the recording time, the tape speed is automatically changed to the EP mode. Note that some noise will appear on the picture when the tape speed is changed. If you want to keep the tape speed , select SP. To operate this function, set “T ape select” in the ADVANCED OPTIONS menu correctly (page 47).

To use the VCR after setting the timer

To use the VCR before a timer recording begins, just press ?/1. The TIMER indicator disappears from the display window and the VCR switches on. Remember to press ?/1 to reset the VCR to th e timer recording standby mode after using the VCR.

You can also do the following tasks while the VCR is recording:

• Reset the counter (page 30).

• Display tape information on the TV screen (page 32).

• Check the timer setting s (page41).

• Watch another TV program (page 33).

Note

• In step 7, mak e su re a tape is inserted before turning off the VCR. The TIMER indicato r

appears in the display window even if no tape is inserted.

Setting the timer

Tips

• To set the channel, you can also use the number buttons.

• If the indicator app ears, the time r setti ngs o ve rlap. To check , chang e or cancel the pro gram setting, see “Checking/c ha nging/canceling timer setti ngs” on page 41.

Page 37

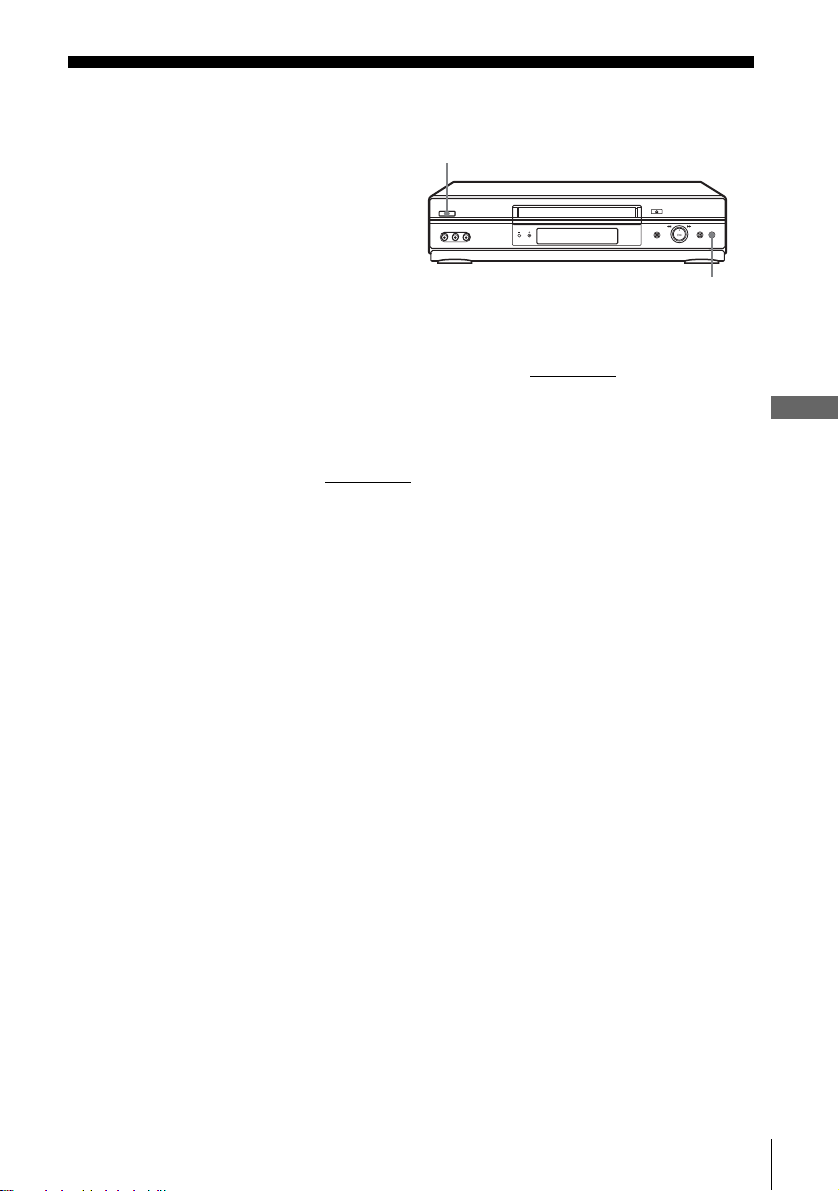

Locking the VCR (Child Lock)

After you have set the time r, you can lock all of the buttons on the VCR so that the settings are not canceled by mistake.

To lock the VCR

When the VCR is turned on, hold down ?/1 POWER on the VCR until “LOC” appears in the display window. The VCR turns off and th e TIMER indica tor remains lit if there is a timer setting. The VCR will not work except for timer recordings.

To unlock the VCR

Hold down ?/1 POWER on the VCR until “LOC” disappears from the display window. The VCR is unlocked and turns on.

To stop timer recording while the VCR is locked, press x STOP. The recording stops and the VCR is unlocked.

Note

• The VCR will be unlocked when: – You stop timer recording by pressing x STOP. – You insert a tape. – The AC power cord is disconnected or power suppl y stops.

?/1 POWER

x STOP

Basic Operations

Locking the VCR (Child Lock)

Page 38

Additional Operations

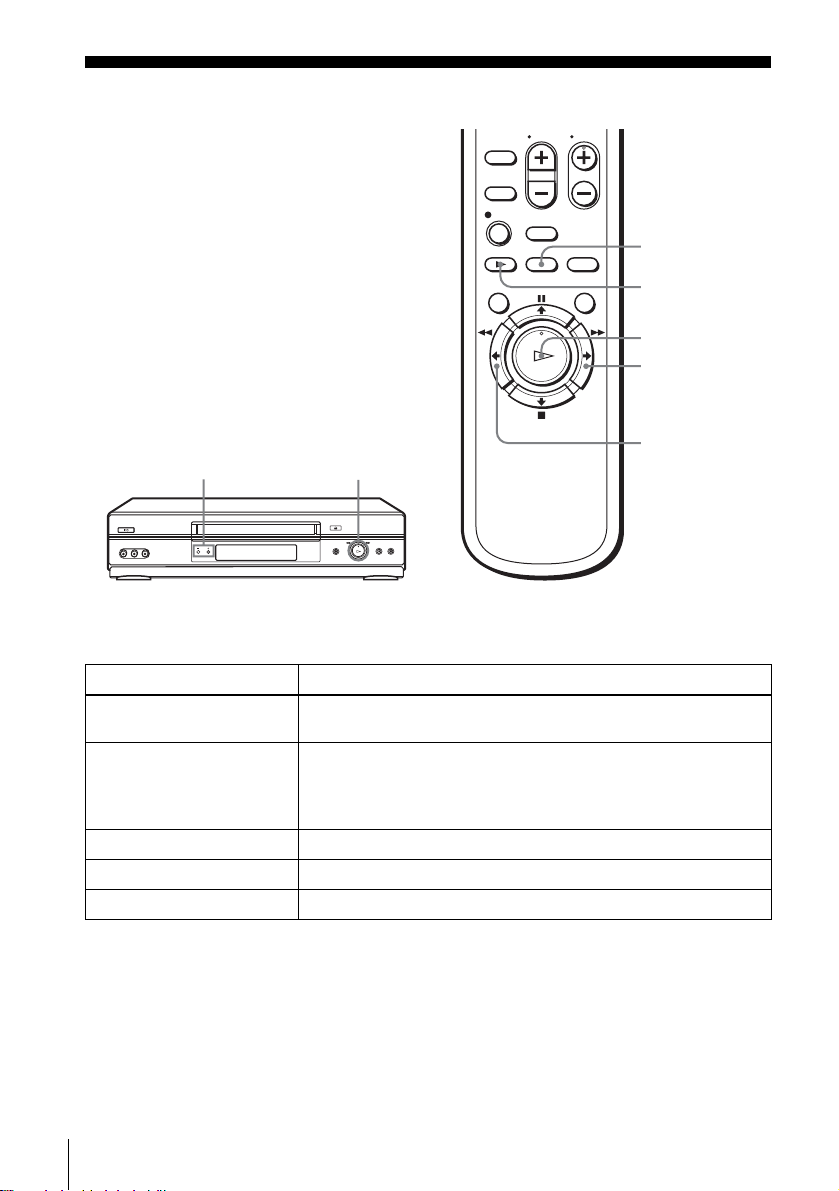

Playing/searching at various speeds

×2

y SLOW

H PLAY M FF

m REW

TRACKING +/–

Playback Dial

Playback options

To Do this

View the picture during fastforward or rewind

Play at high spee d • During pl ayback, brief ly press M FF or m REW. The tape

Play at twice the normal speed During playback, press ×2. Play in slow motion During playback or pa use , pr ess y SLOW. Play frame by frame During pause, press M FF.

During fast-forward, hold down M FF. During rewi nd, hold do wn m REW.

continues to play at high speed.

• During playback, hold down M FF or m REW. When you release the button, normal playback resumes.

To resume normal playback

Press H PLAY.

Playing/searching at various speeds

Page 39

Using Playback Dial on the VCR

With Playback Dial, you can operate the following playback options.

To Do thi s

View the picture during fastforward or rewind

Play at high speed • During playback, qu ickly turn and release Pl ayback Dial to the right

Tips

• Adjust the picture using the TRACKING +/– buttons if: – Streaks appear whi le playing in slo w moti on. – The picture shakes du rin g pause.

• The VCR turns on and st arts play back au toma tical ly b y p ressing H PLA Y on the VCR the VCR power turned off.

During fast-forward, turn and hold Playback Dial to the right (M FF). During rewind, turn and hold Playbac k Dia l to the le ft (m REW).

(M FF) or left (m REW). The tape continues to play at high speed.

• During playback, turn and hold Playback Dial to the right (M FF) or left (m REW). When you release Playb ack Dial, normal playback resumes.

with

Notes

• The sound is muted during these operations.

• Tapes recorded in the LP mode on other VC Rs ca n be played back on this VCR but the picture quality cannot be guaranteed.

• The picture may show noise when playing at high speed in reverse.

• Do not turn Playback Dial forc ib ly. It may damage Playback Dia l.

Additional Operations

Playing/searching at various speeds

Page 40

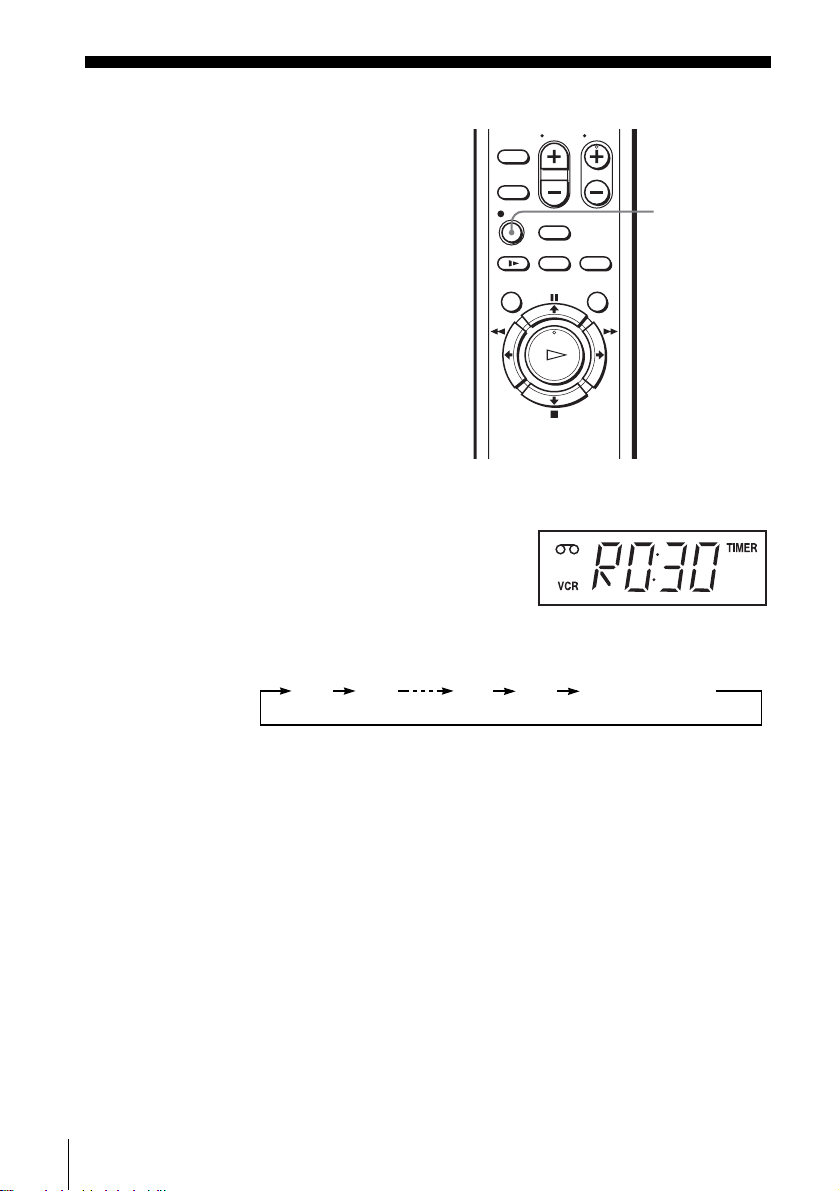

Quick Timer Recording

After you have started r ecording, you can have the VCR stop recording automatically after a specified duration.

While recording, press z REC.

The TIMER indicator appears in the display window.

Press z REC repeatedly to set the duration time.

Each press advances the time in increments of 30 minutes.

0:30 1:00

3:30 4:00

z REC

Normal recording

Quick Timer Recording

The tape counter decreases minute by minute to 0:00, then the VCR stops recording and turns off automatically.

To extend the duration

Press z REC repeatedly to set a new duration time.

To cancel the duration

Press z REC repeatedly until the TIMER indicator disappears and the VCR returns to normal recording mode.

To stop while recording

Press x STOP.

Note

• You cannot display the current tape time in the displ a y w in dow when settin g the rec ording

duration time.

Page 41

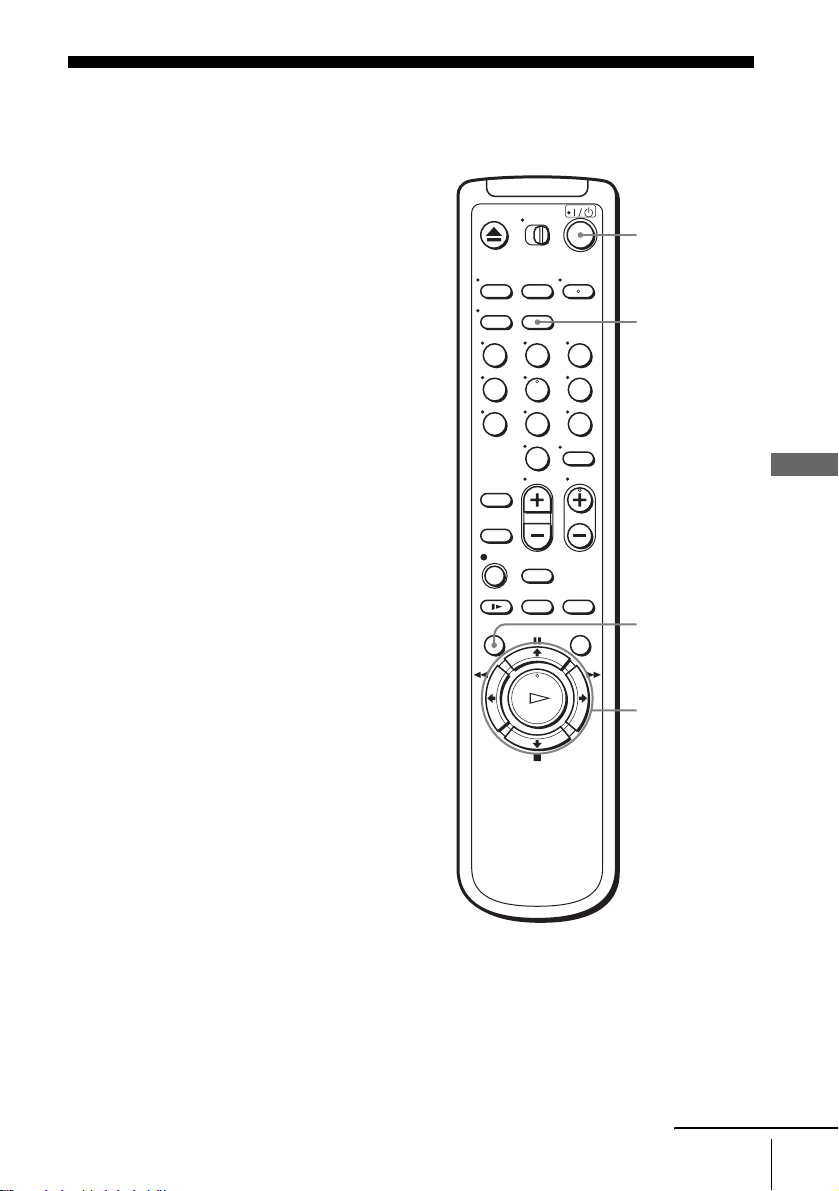

Checking/changing/canceling timer settings

Before you start…

• Turn on the TV and set it to the video channel.

123 456 789

?/1

CLEAR

Additional Operations

Press ?/1 to turn on the VCR.

Press MENU.

M/m/</, OK

continued

Checking/changing/canceling timer settings

Page 42

Press M/m to move the cursor (B) to “Timer set/check,” then press OK.

• If you want to change a setting, go on to the next step.

• If you do not need to change the settings, press MENU, then turn off the VCR to return to recording standby.

Press M/m to move the cursor (B) to the setting you

want to change or cancel.

• To change the setting, press </, to flash the item you want to change, and press M/m to change it.

• To cancel the setting, press CLEAR .

Press OK to confirm the setting.

Press MENU to exit the menu.

CH START STOP DATE

35 8: 00 9 :00 9 / 30 SP 20

:0011:3010/0 EP 60 8: 30 –– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– -–– –: –– – :–– ––– --

Select

::End

:00 9/320

Set :Vv

SPD

AUTO

MENUQuit

If any timer settings remain, turn off the VCR to return to recording standby.

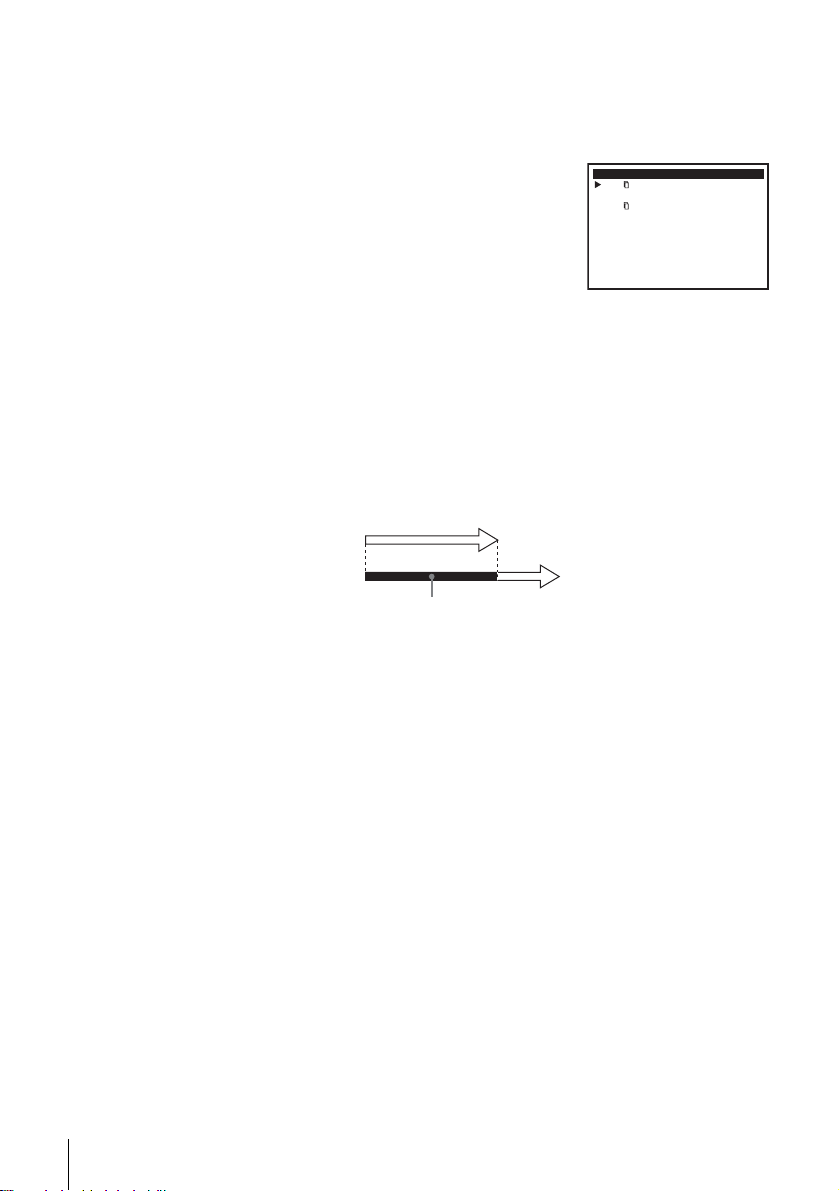

When the timer settings overlap

The program th at star ts f irst ha s pri ority a nd the s econd pr ogram start s recor ding on ly after the first program has finished. If the programs start at the same time, the program listed first in the menu has pri ority.

Program 1 Program 2

Will be cut off

Checking/changing/canceling timer settings

Page 43

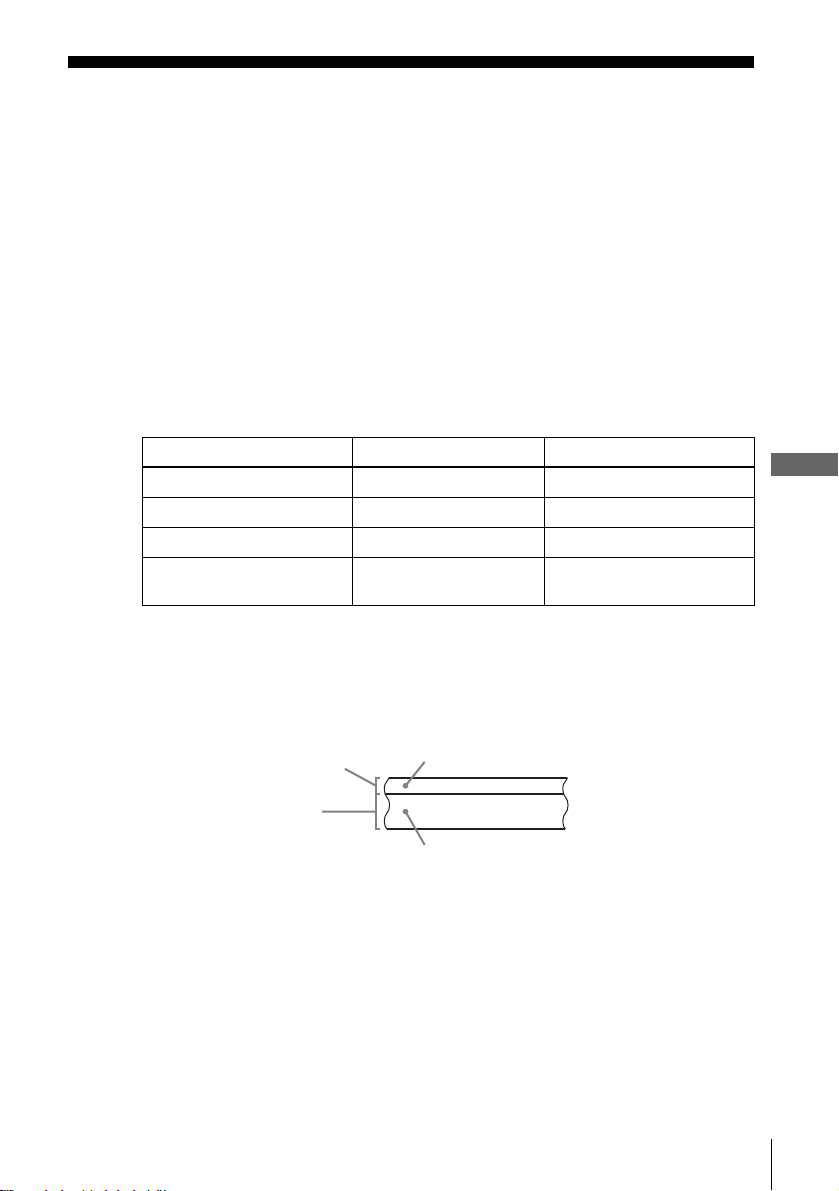

Recording stereo and bilingual programs

Recording stereo programs

When you receive a program broadcast in stereo, press AUDIO MONITOR to display STEREO on the TV screen. You can also select LEFT, RIGHT, or MONO. If there is noise in the stereo program, select MONO. The sound will be recorded in monaural (on both hi-fi and normal audio tracks) but with less noise.

Recording bilingual programs

Press AUDIO MONITOR to display “SAP” on the TV screen. When a SAP (Second Audio Program) is received, “SAP” appears on the TV screen. When MAIN is selected, the VCR records only the main sound.

Selecting the sound during playback

During playback, press AUDIO MONITOR to select the sound you want.

To listen to On-screen display Display window

Stereo HI-FI Hi-Fi Left channel LEFT Hi-Fi Right channel RIGHT Hi-Fi Monaural sound on the

normal audio track

How sound is recorded on a video tape

The VCR records sound onto two separate tracks. Hi-fi audio is recorde d onto the main track along with the picture. Monaural sound is recorded onto the normal audio track along the edge of the tape.

MONO No indicator

Additional Operations

Normal audio track

Hi-fi audio track (main track)

Notes

• To play a tape in stereo, you must use the A/V connectio ns.

• When you play a tape recorded in monaural, the sound is heard in monaural regardless of the AUDIO MONITOR setting.

Monaural sound

Stereo sound (left/right channels)

Recording stereo and bilingual programs

Page 44

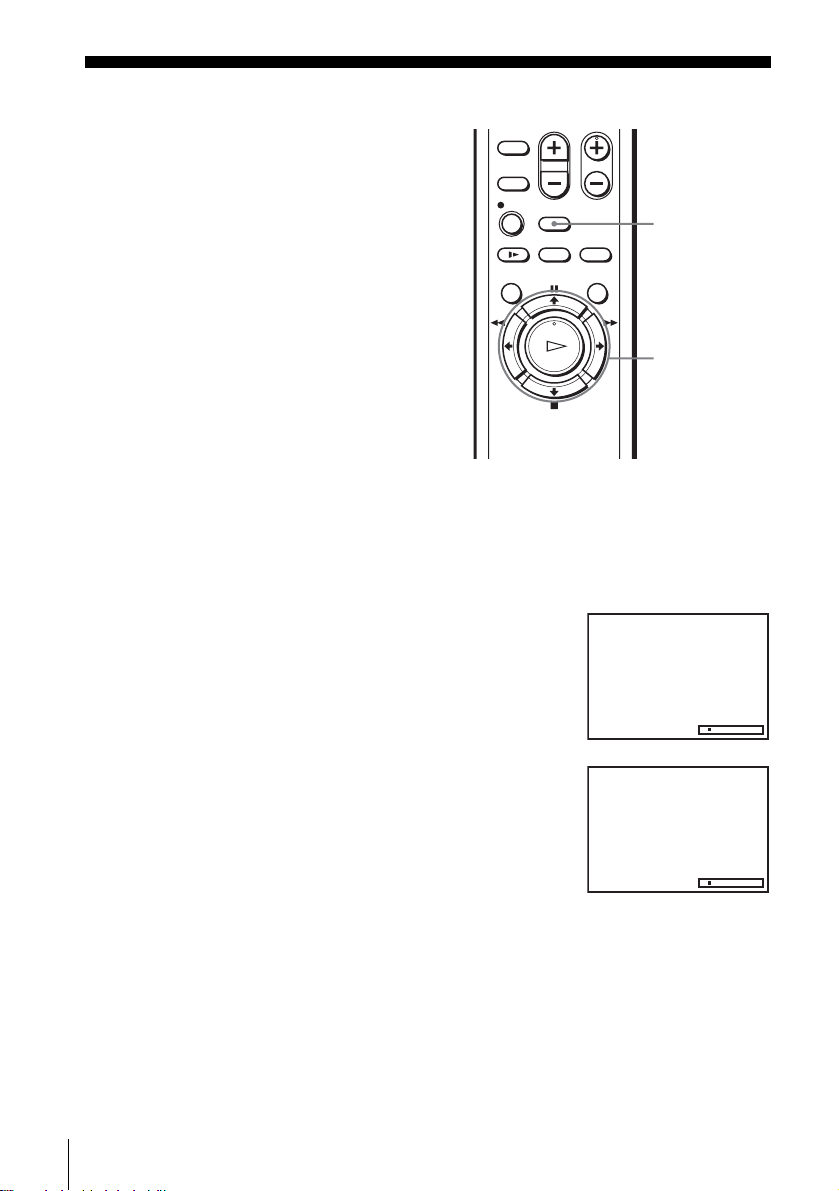

Searching using various functi ons

The VCR automatically marks the tape with an index signal at the point whe r e each recording begins. You can easily find a specific point using various search functions.

To search using the index function (Scan and Play)

The VCR automatically marks the tape with an index signal at the point where each recording begins. Use these signals as references to find a specific recording.

Insert an indexed tape into the VCR.

Press SEARCH.

Scan and play:

Go to

End search:

::00130SP

M/m/</, H PLAY

Press [ orB ][b ]

[]

000:00::

Press [V ]

Press [v ]

Press , to scan ahead, or < to scan backwards.

The VCR searches and then plays back for about five seconds.

Press H PLAY to view that program.

If you do not press H PLA Y, the VCR automatically searches for the next index mark, or until it reaches the end of the tape.

Searching using various functions

Scan and play

::00130SP

Page 45

To search for the counter 0:00:00 point

To mark a point on the tape that you want to find later, reset the tape counter to “0:00:00.” The VCR automatically fast-forwards or rewinds to the 0:00:00 point on the tape counter.

Press SEARCH.

Press M.

The VCR starts searching and automatically stops at the 0:00:00 point.

[]

Go to

::00130SP

000:00:

To search f o r a blank portion of the tape

The VCR automatically searches for the beginning of a blank portion. You can easily find a point you can start recording from.

Press SEARCH.

Press m.

The VCR starts searching and automatically stops at the beginning of a blank space. If no bl ank space is found, the VCR reaches the end and the tape will stop.

End search

::00130SP

Additional Operations

Note

• Once in recording mode, if the VCR is put in pau se an d then released to start the recor di n g, no index mark will be inserted. An index ma r k will be insert ed if the chann el is changed while VCR is put in pause.

Searching using various functions

Page 46

Adjusting the picture (tracking)

Although the VCR automatically adjusts the tracking when playing a tape, distortion may occur if the recording is in poor condition. In this case, manually adjust the tracking.

Press TRACKING +/– on th e VCR to display the tracking meter. The distortion should disappear as you press one of the two tracking buttons. To resume automatic tracking adjustment, eject the tape and reinsert it.

Note

• The auto tracking adjustm en t ca nnot be guaranteed to work with tap es re corded in the LP

mode on other VCRs.

TRACKING

T racking meter

Adjusting the picture (tracking)

Page 47

Changing menu options

Press MENU.

Press M/m to move the cursor (B) to “Advanced

options,” then press OK.

Press M/m to move the cursor (B) to the option to change.

Press </, to change the setting.

Press MENU to exit the menu.

ADVANCED OPTIONS

Tape select: Auto play: Auto repeat: Auto power off: OFF Power save: VCR Output CH:

Select

Vv Set : Bb

:End

[

T120

[

OFF [] []

OFF []

3CH

: MENUQuit

] ] ]

Menu choices

Initial settings are indicated in bold print.

Menu option Set this option to

Tape select • T-120 when using a T-120 or shorter length tape.

• T-160 when using a T-160 length tape.

• T-180 when using a T-180 or longer length tape. For details, see page 32.

Auto play • ON to start playback automatically, when you insert a tape

with its safety tab removed.

• OFF to turn off Auto play. You need to press H PLAY to start playback, even if you ins er t a tape with it s sa f ety tab removed.

Auto repeat • ON to play back a tap e repeatedly. The V CR rewinds a tape to

the beginning and restarts playback automatically.

• OFF to turn off Auto repeat.

Auto power off • 1Hr to turn off the VCR automatically one hour after the last

operation.

• 2Hr to turn off the VCR automatically two hours after the last operation.

• OFF to set no specific ti me to turn off.

Power save • ON to turn off the indicators in the display window during

standby mode to reduce the VCR’s power consumption to a minimum.

• OFF to turn on the indicators in th e display window while the VCR is standing by.

VCR Output CH • 3CH when using channel 3 to receive the VCR signal.

• 4CH when using channel 4 to receive the VCR signal.

For details, see page 48.

Additional Operations

continued

Changing menu options

Page 48

Setting the RF Output channel

When connecting the VCR to the TV using only the antenna cable, you must set the “VCR Output CH” in the ADVANCED OPTIONS menu so that the TV can receive the correct signal from the VCR.

?/1

TV/VIDEO

CHANNEL +/–?/1

Set the “VCR Output CH” to “3CH” or “4CH” (see page 47 to set the channel),

whichever channel is not used in your area. If both are used, set the “VCR Output CH” to either channel.

Press ?/1 to turn on the VCR.

Press TV/VIDEO to turn on the VCR indicator in the VCR’s display wi ndow.

Press CH +/– to display a channel number in the display window.

Select an active channel number in your area. Turn on your TV and set it to the channel you selected in step 1 (3CH or 4CH).

The channel you selected in step 4 appears on the TV screen. If the channels change when you press CH +/–, you have made the correct setting.

Whenever you use the VCR, set the TV to the channel selecte d i n step 1.

123 456 789

CH +/–

Changing menu options

Page 49

Editing with another VCR

How to connect to record on this VCR

This VCR (Recorder)

LINE-2 IN

Other VCR (Player )

LINE OUT

Audio/video ca ble (not supplied)

: Signal flow

Notes

• Make sure you connect the plug s to jacks of the same color.

• If the other VCR is a monaural type and connected to this VCR’s LINE-2 IN jacks, connec t the audio plug to the AUDIO L (white) jack. Th e sound is recorded on both right and left channels. If you connect to the AUDIO R (red) jack, the sound is recorded only on the right channel.

• If you connected this VCR to both the LINE IN and LINE OUT jack s of th e ot her VCR, select the input correctly to prevent a humm ing noise.

• You can use the LINE IN 1 jacks for editing. If the other VCR is a monaural type the sound is recorded only on the channel whose jack is connected to the audio plug. To record on both right and left channe ls, connect the audi o plu gs to the AUDIO R/L jacks us ing an audio/ vid eo cable (not supplied).

Additional Operations

continued

Editing with another VCR

Page 50

Operation (when recording on this VCR)

Before you start editing

• Turn on the VCR and the TV and set

it to the video channel.

• Press INPUT SELECT or

CHANNEL +/– to display “L1” or “L2” in the display wind ow.

• Press SP/EP to select the tape speed,

SP or EP.

Insert a source tape with its safety tab removed into the other (pla yback) VCR.

Search for the point to start play back and set it to playback pause. Insert a tape into this (recording) VCR. Search for the point to start recording

and press X PAUSE. Press z REC on this VCR to set it to recording pause.

T o start editing , press the X PAUSE buttons on both VCRs at the same time.

To stop editing

Press the x STOP buttons on both VCRs.

Tip

• To cut out unwanted scenes while ed iting, press X PAUSE on this VCR when an unwanted

scene begins. When it ends, press X PAUSE again to resume recording.

Editing with another VCR

Page 51

Additional Information

Antenna information

Attaching the external antenna connector

When using a 300-ohm t w in lead cable for a VHF/UHF antenna, use an antenna connector (not supplied) to connect t he antenna to the VCR.

Loosen the screws on the antenna connect or.

Wind the twin leads around the screws on the antenna connector.

Retighten the screws.

Attaching a UHF/VHF band mixer

When using bo th a 75 -oh m co axi al ca ble an d a 300-ohm twin lead cable for a VHF/UHF antenna, use a UHF/VHF band sepa rat or/ mixer (not supplied) to connect the antenna to the VCR.

300-ohm twin lead cable

Antenna connector (not supplied)

Additional Information

UHF/VHF band separator/ mixer (not supplied)

75-ohm coaxial cable

Loosen the screws on the mixer.

Wind the twin leads around the screws on the mixer.

Retighten the screws.

Connect the 75-ohm coaxial cable to the mixer.

Antenna information

Page 52

Troubleshooting

If you have any questions or probl e ms not covered below, please consult your nearest Sony dealer.

Symptom Remedy

The ?/1 (on/standby) switch do es not function.

Power

The power is turned on but the VCR does not operate.

The clock has stopped and “--:--” appears in th e display window.

Clock

The playback picture does not appear on the TV screen.

The picture is not clea r. • Adjust the tracking w ith the TRACKING + /– buttons.

Playback

The picture rolls vertically du ring picture sea rc h.

The picture has no sound. • The tape is defec tive.

A TV program does not appe ar on the TV screen.

TV reception is poor. • Adjust th e T V antenna. The tape starts playing as soon as it is

Recording

inserted. The tape is ejected w he n you press

z REC. Nothing happens when you press

z REC.

• Connect the AC power cord securely.

• Make sure the VCR is not locked. To unlock, hold down ?/1 (on/standby) POWER on the VCR disappears.

• Moisture condensation has occurred. Turn the power off, unplug the AC power cord and leave the VCR to dry for over three hours.

• The clock stops if the VCR is disconnected from the wall outlet for more than one minute. Reset the clock (and timer).

• Make sure the TV is se t to the channel for th e V CR. If you are using a monitor, set it to video input.

• The video heads are dirty (see the last page of “Troubleshooting”). Clean the video he ads using a Sony video head cleaning cassette. If a Sony cleaning cassette is not available in your area, have the hea ds cleaned at your nearest Sony dealer (a standard service fee will be charged). Do not use a commercially available liquid type cleaning cassette, as it may damage the video heads.

• The video heads may have to be replaced. Consult your local Sony dealer for more information.

• Adjust the ver tical hold con tr ol on the TV or m o nitor.

• If you made A/V connections, check the audio cable connection.

• Make sure the TV is se t to the channel for th e V CR. If you are using a monitor, set it to video input.

• Select the correct source with the INP U T S ELECT or CH +/– buttons. Select a channel number when recording TV programs; select “L1” or “L2” when recording from other equipment.

• The safety tab has been removed. To record on this tape, cover the tab hole.

• Check that the safety tab has not been removed.

• Make sure the tape is not at its end.

until “LOC”

Troubleshooting

Page 53

Symptom Remedy

The timer does not operate. • Check that the clock is set.

• Make sure a tape has been inserted.

• Check that the safety tab has not been removed.

• Make sure the tape is not at its end.

• Make sure a program has been set for ti me r re cording.

• Make sure your timer settings are past the current time.

• Check that the cable box is turned on.

Timer recording

A tape cannot be inserted. • Check that a tape is not already in the tape compartment. The remote commander does not

function.

The tracking meter does not appear on the screen.

Others

You cannot control other TVs. • Set your TV’s code number. The code number may

The VCR needs to be cleaned. • Clean the cabinet, panel and controls with a dry, soft

• The clock stops if th e VCR is disconnected from th e wall outlet for more than one mi nut e. Rese t t he clock and timer.

• Turn the power off and unplug the AC power cord.

• Make sur e you are pointing t he remote commande r at the remote sensor on the VCR.

• Replace all the batteries in the remote commander with new ones if they are weak.

• Make sure the •TV

• The recording condition of the tape is very poor and tracking cannot be adjust ed.

change when you replace the batteries of the remote commander.

cloth, or a soft cloth slig ht ly moistened with a mild detergent solution. Do not use any type of so lvent, such as alcohol or benzine.

/ VIDEO switch is set cor rectly.

Additional Information

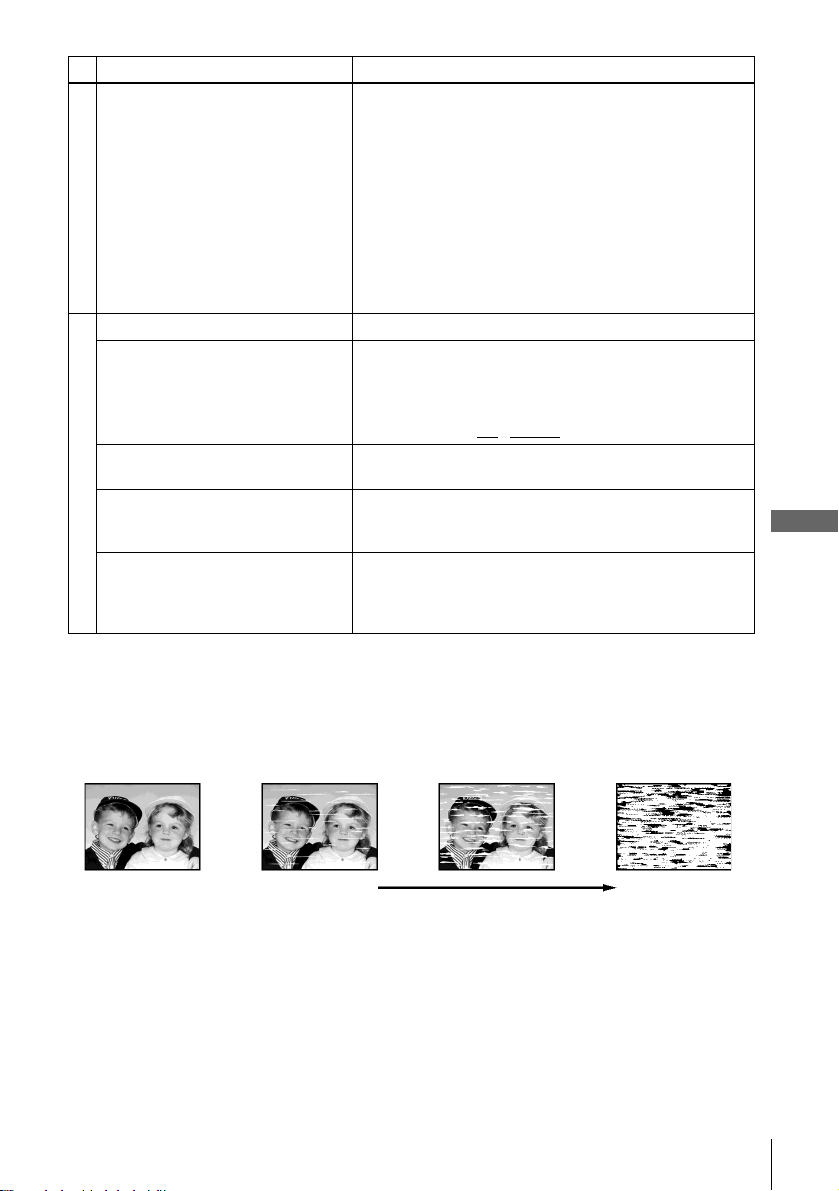

Symptoms caused by contaminated video heads

•Norm al picture •Unclear picture•Rough picture

initial

contamination

•N o picture (or black & white screen appears)

terminal

Troubleshooting

Page 54

Specifications

System

Format

VHS NTSC standard

Video recording system

Rotary head helical scanning FM system

Video heads

Double azimuth four heads

Video signal

NTSC color, EIA standards

Tape speed

SP: 33.35 mm/s (1 EP: 11.12 mm/s ( LP: 16.67 mm/s (

inches/s)

inches/s),

playback only

Maximum recording/playback time

8 hrs. in EP mode (with T-160 tape)

Rewind time

Approx. 1 min (with T-120 tape)

Tuner section

Channel coverage

VHF 2 to 13 UHF 14 to 69 CATV A-8 to A-1, A to W, W+1 to W+84

Antenna

75-ohm antenna terminal for VHF/UHF

Inputs and outputs

LINE IN 1 and LINE-2 IN

VIDEO IN, phono jack (1 each) Input signal: 1 Vp-p, 75 ohms, unbalanced, sync

negative AUDIO IN, phono jacks (2 each) Input level: 327 mVrms Input impedance: more than 47 kilohms

LINE OUT

VIDEO OUT, phono jack (1) Output signal: 1 Vp-p, 75 ohms, unbalanced, sync

negative AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 kilohms Output impedance: less than 10 kilohms

Timer section

Clock

Quartz locked

Timer indication

12-hour cycle

Timer setting

8 programs (max.)

General

Power requirements

120 V AC, 60 Hz

Power consumption

16 W

Operating temperature

0°C to 45°C (32°F to 113°F)

Storage temperature

–20°C to 60°C (–4°F to 140°F)

Dimensions including projecting parts and controls (w/h/d)

SLV-N750 Approx. 430 × 96 × 262 mm (Approx. 17 × 3 × 10 inches)

SLV-N650 Approx. 360 × 95 × 260 mm (Approx. 14 × 3 × 10 inches)

143

Mass

SLV-N750 Approx. 2.8 kg (Approx. 6 lb 3 oz)

SLV-N650 Approx. 2.6 kg (Approx. 5 lb 12 oz)

Supplied accessories

Remote commander (1) Size AA (R6) batteries (2) 75-ohm coaxial cable with F-type connectors (1)

Design and specifications are subject to change without notice.

ENERGY STAR

As an determined that this product meets the guidelines for energy efficiency.

is a U.S. registered mark.

Partner, Sony Corporation has

ENERGY STAR

Specifications

Page 55

Index to parts and controls

Refer to the pages indicated in parentheses ( ) for details.

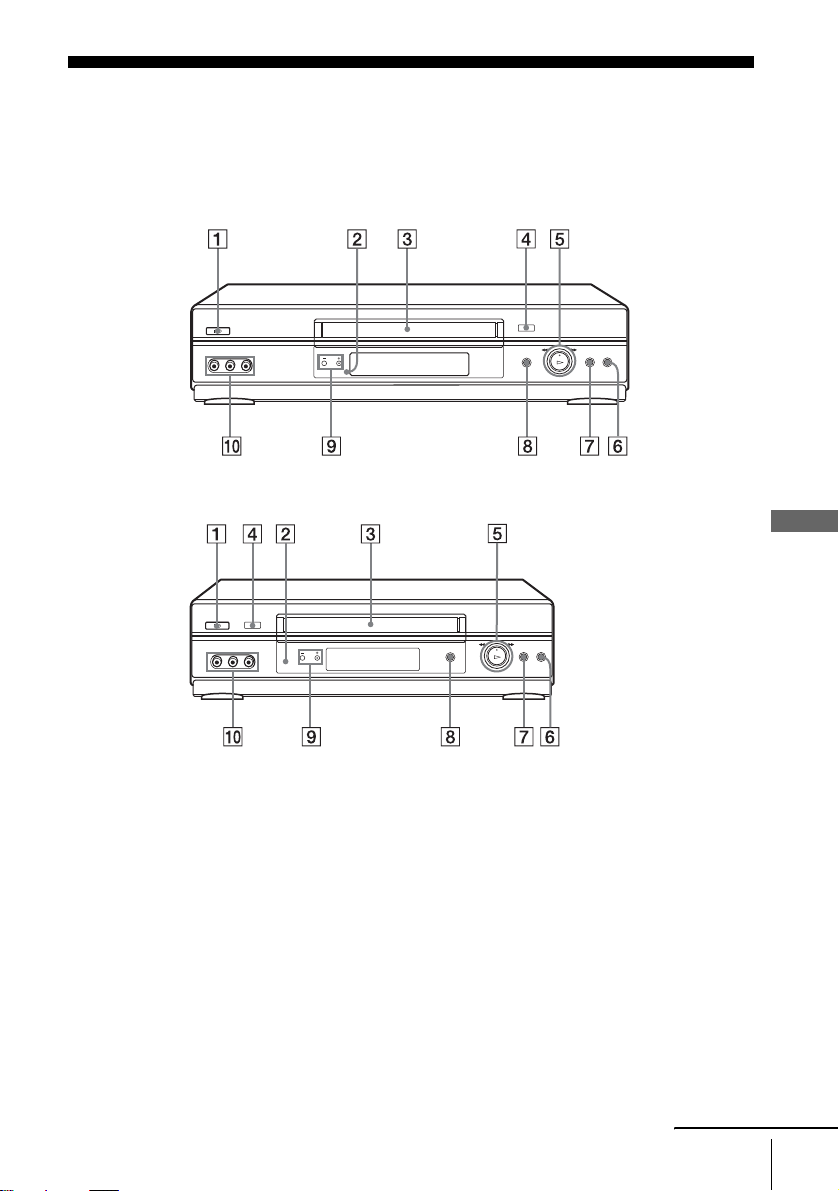

Front panel

SLV-N750

SLV-N650

Additional Information

A ?/1 (on/standby) POWER switch (35) B Remote sensor (8) C Tape compartment D A EJECT button (29) E H PLAY button* (29)/M FF (fast-

forward)/m REW (rewind) (29) (39)/ Playback Dial (29) (39)

F x STOP button (29) (50)

G X PAUSE button (29) (50) H z REC (record) button (32) (40) (50) I CHANNEL/TRACKING +/– buttons*

(32) (46)

J LINE-2 IN VIDEO/AUDIO L/R jacks

(49)

* The H PLAY and CHANNEL + buttons have

a tactile dot.

continued

Index to parts and controls

Page 56

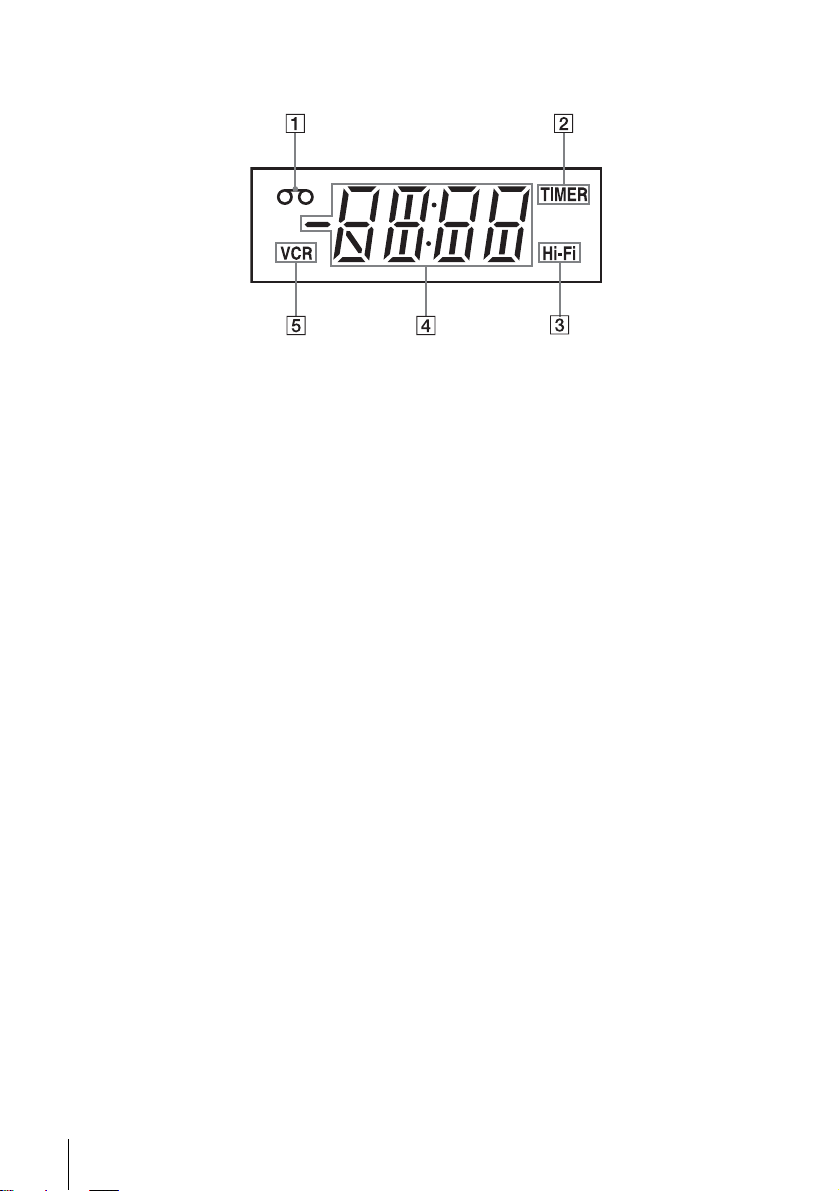

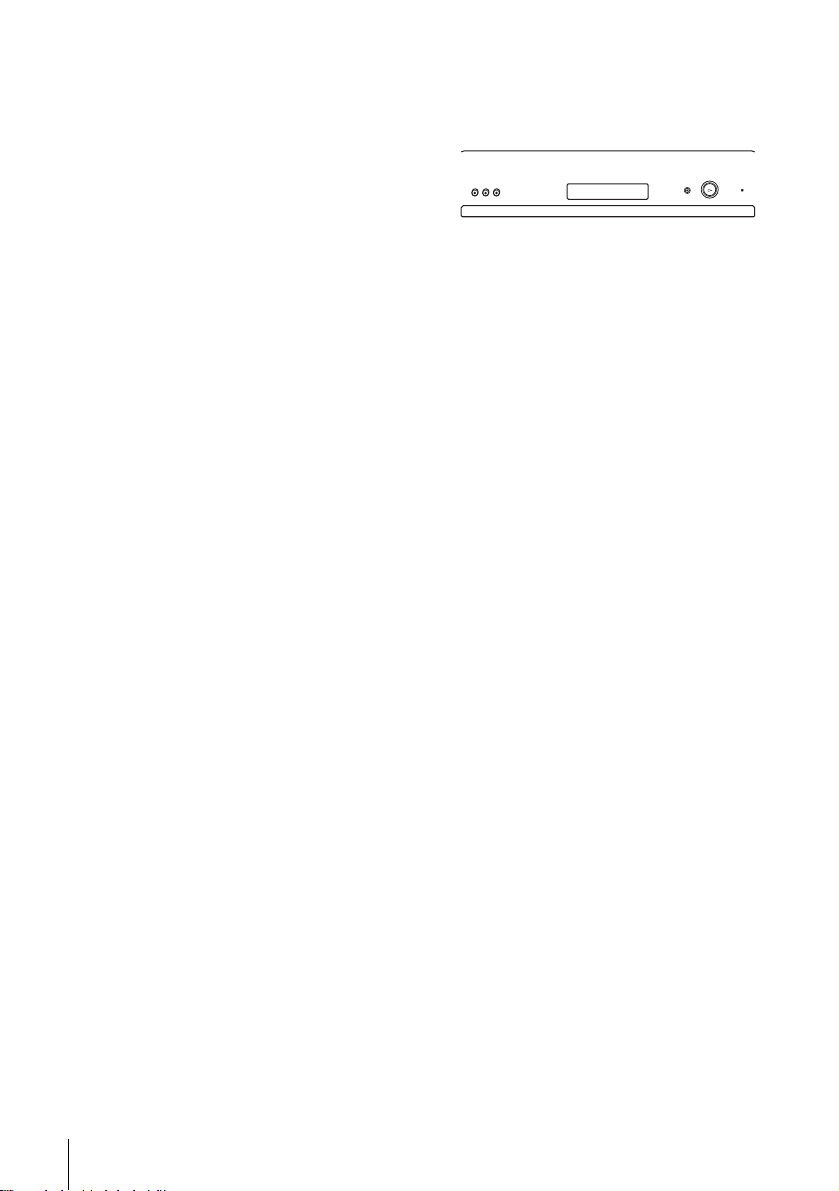

Display window

A Tape indicator (32) B TIMER indicator (35) C Hi-Fi indicator (43)

D Time counter/clock/line/channel

indicator (30) (32) (50)

E VCR indicator (33)

Index to parts and controls

Page 57

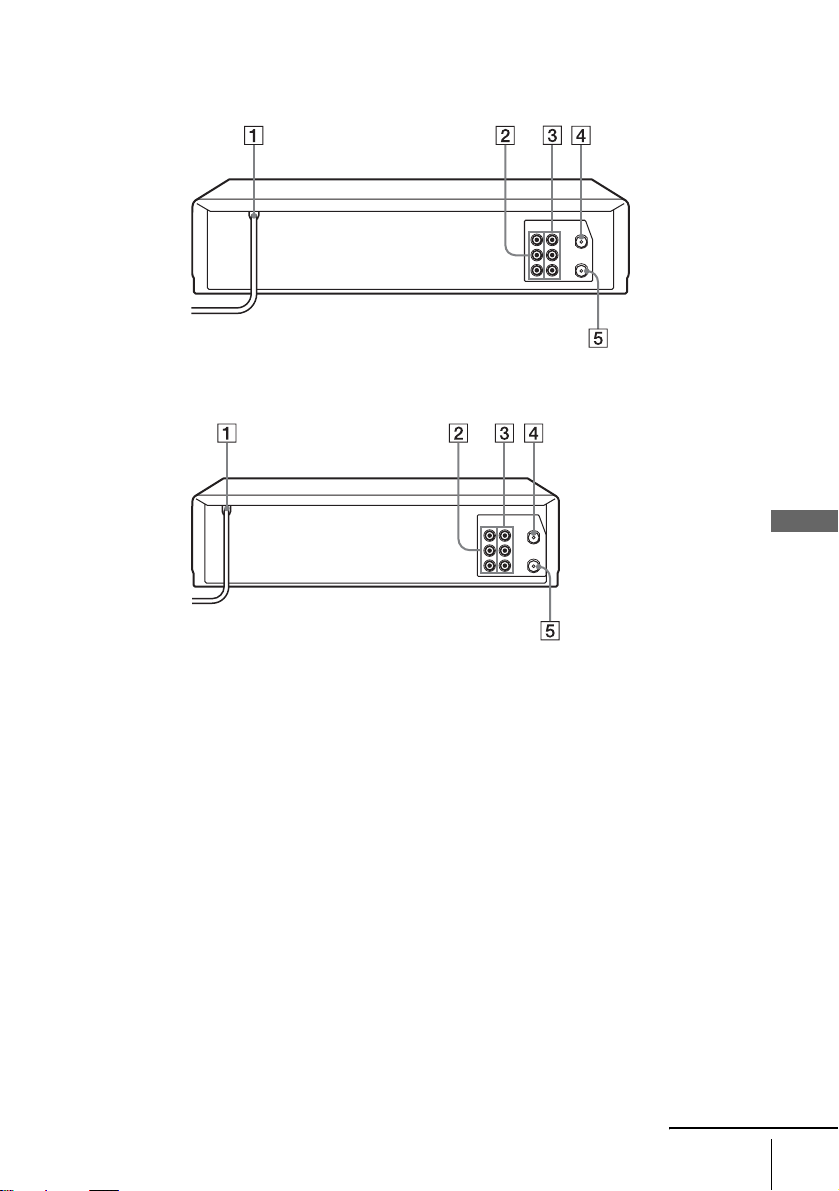

Rear panel

SLV-N750

SLV-N650

Additional Information

A AC power cord (11) (14) (16) B LINE OUT AUDIO R/AUDIO L/VIDEO

jacks (12)

C LINE IN 1 AUDIO R/AUDIO L/VIDEO

jacks (49)

D RF IN (FROM ANT.) connector (13)

(15) (17)

E RF OUT (TO TV) connector (13) (15)

(17)

continued

Index to parts and controls

Page 58

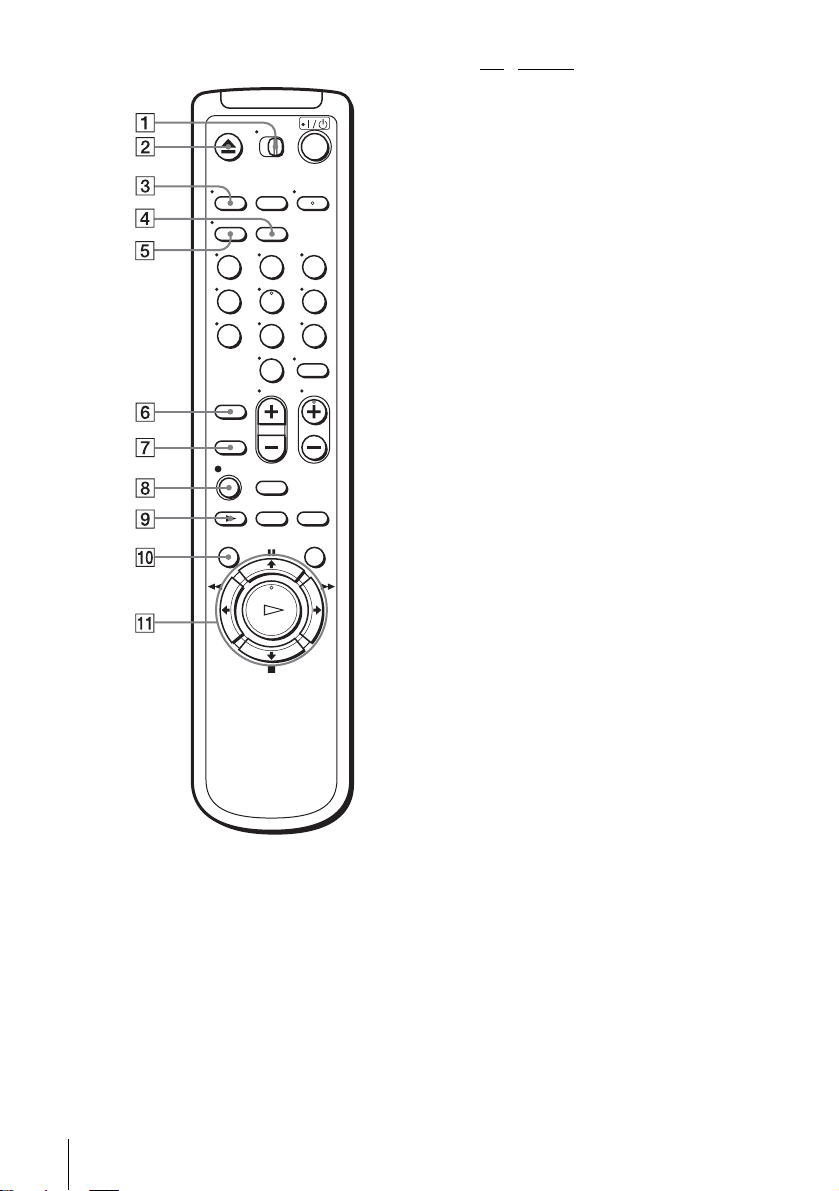

Remote commander

123 456 789

A •TV / VIDEO switch (8) B Z EJECT button (29) C TV/VIDEO button (9) (33) D CL EAR button (30) (42) E DISPLAY button (32) F SP (Standard Play)/EP (Extended Play)

button (32)

G INPUT SELECT button (33) (50) H z REC (record) button (32) (40) I y SLOW button (3 8) J MENU button (18) (34) (41) (47) K X PAUSE/M button (18) (29)

x STOP/m button (18) (29) m REW (rewind)/ < button (29) (38) M FF (fast-forward)/ , button (29)

(38) H PLAY/OK button* (19) (29)

* The H PLAY button has a tactile dot.

Index to parts and controls

Page 59

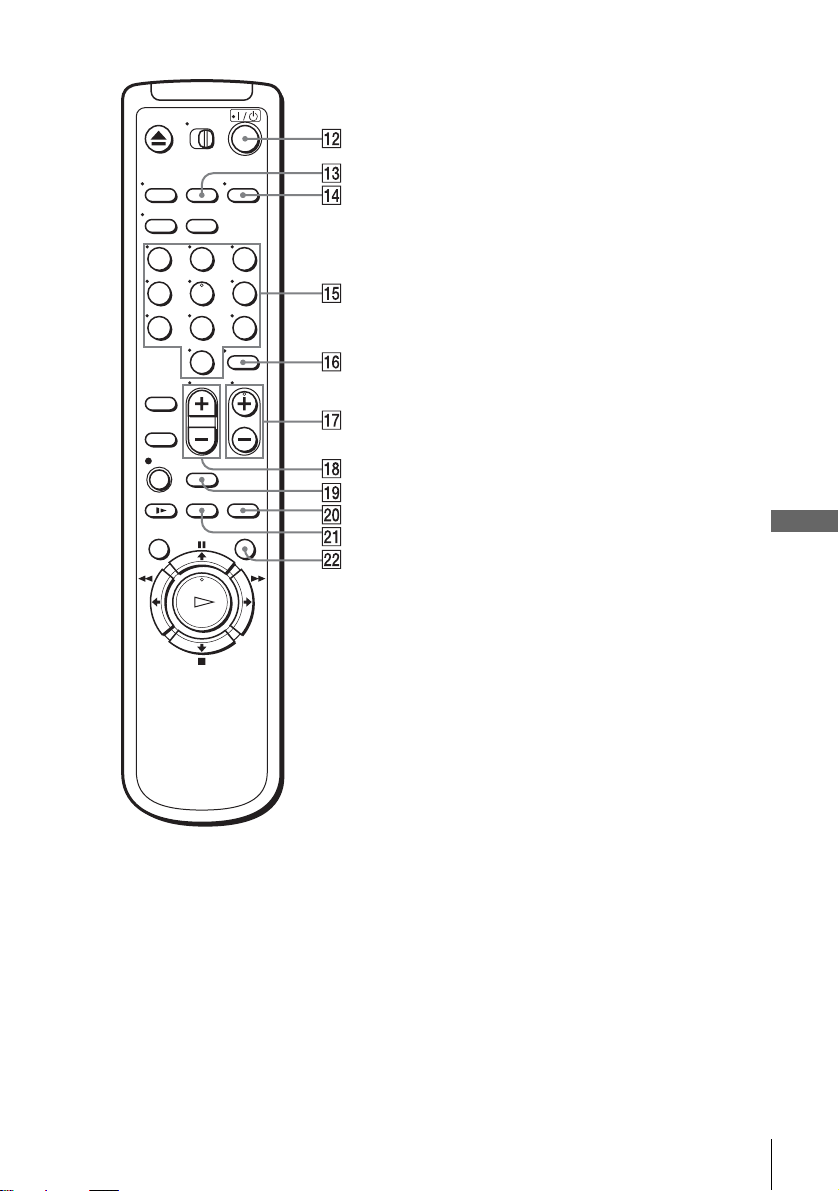

123 456 789

L ?/1 (on/standby) (power) switch (9) (35) M COUNTER/REMAIN button (32) N AUDIO MONITOR button* (43) O Number buttons* (33) P ENTER button (33) Q CH (channel) +/– buttons* (9) (32) R VOL (volume) +/– buttons (9) S SEARCH button (44) T REPLAY button (29) U ×2 button (38) V COMMERCIAL SKIP button (29)

* The AUDIO MONITOR, number 5 and CH +

buttons have a tactile dot.

Additional Information

Index to parts and controls

Page 60

Index

Adjusting


tracking Advanced option Antenna hookup Audio track Audio/video (A/V) hookup Auto Clock Set Auto Tape Speed

Cable hookup 11 Child Lock Cleaning the video heads Clock setting Commercial Skip Connecting

Counter

Cable TV

external antenna connector

UHF/VHF band mixer

Disabling channe ls 26 Dubbing. see Editing

Editing 49 EP mode

Hi-fi audio track 43

Language selecting 18 Locking the VCR

LP mode

Monaural 43 Monitoring audio during playback

Normal audio track 43

Picture adjustment 46

Playback

at various speeds frame by frame selecting the sound

skip slow motion

Presetting chann els

Quick Timer Recor ding 40

Recording 31

bilingual programs SAP broadcasts

saving stereo broadcasts timer setting while watching another program

RF channel

Safety tab 33 SAP (Second Audio Program) 43 Searching

at various speeds for a blank portion for the counter 0 poin t Scan and Play

SP mode

Stereo

Timer setting 34

canceling changing checking

daily/wee kly recording Tracking adjustment. see Adjusting Tuner presetting

41 41 41

Index

Page 61

Page 62

Page 63

Page 64

Quick reference to using the VCR

Hookup 1

To play a tape

Sony Corporation Printed in China AC68-02106A
