HIGH RESOLUTION
DAY & NIGHT COLOR CAMERA
INSTRUCTION MANUAL
SDC-415 SERIES
About this manual
Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for later reference.
Thank you for purchasing a SAMSUNG CCD CAMERA.
Before operating the camera, confirm the camera model and proper input
power voltage. In order to that you can understand this manual thoroughly,
we'll introduce our model description.
■ SDC-415 SERIES
• NTSC MODELS •PAL MODELS
SDC-415ND SDC-415PD
SDC-415NA SDC-415PA
SDC-415PH
■ MODEL DESCRIPTION
• SDC-415X X
__
POWER SOURCE
SIGNAL SYSTEM
The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
• SIGNAL SYSTEM
N --> NTSC MODEL
P --> PAL MODEL
• POWER SOURCE
D --> DC 12V
A --> AC 24V~
H --> AC 230V~
Correct Disposal of This Product
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other
household wastes at the end of its working life. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
(Waste Electrical & Electronic Equipment)
INFORMATION-This equipment has been tested and found to comply with limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
WARNING -Changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
WARNING : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and
should conform to all local codes.
Contents
Features
Warnings and precautions
Components
Names and functions of parts
■ Front
■ Side
■ Bottom

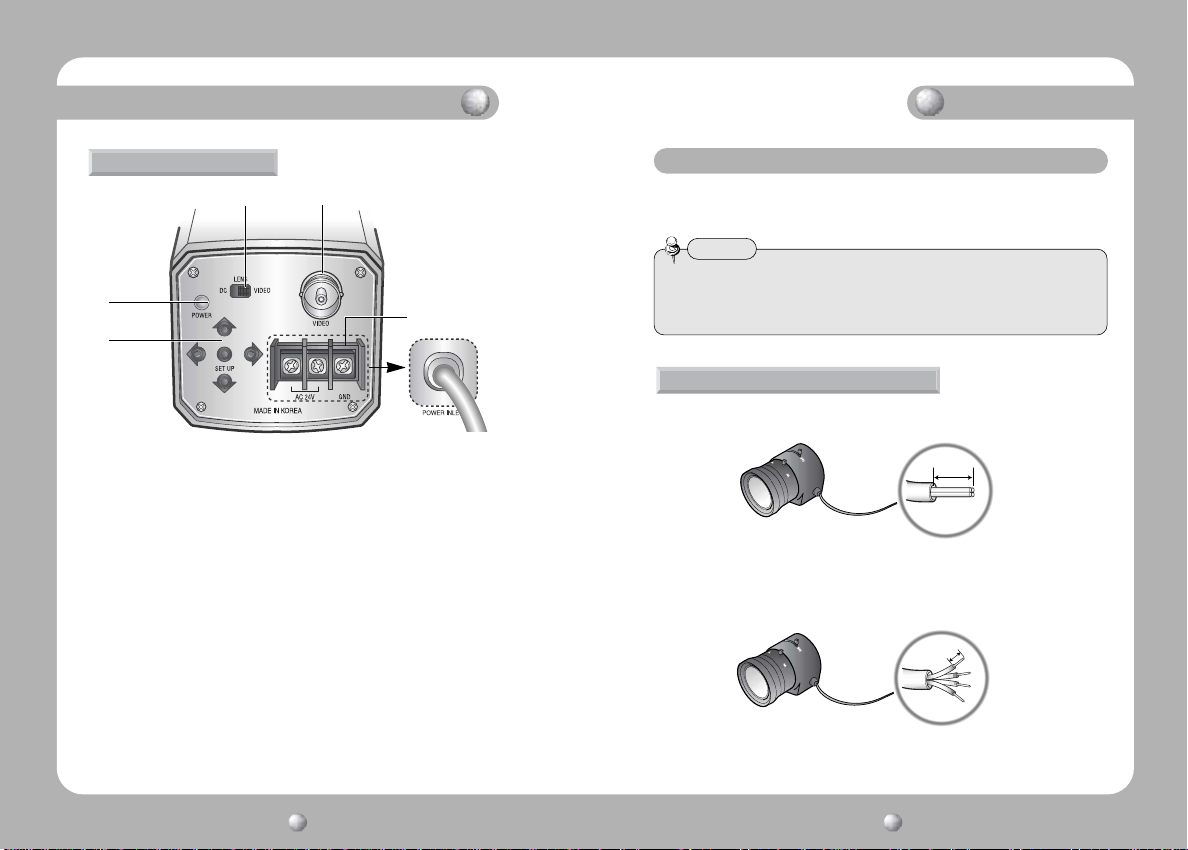

■ Back

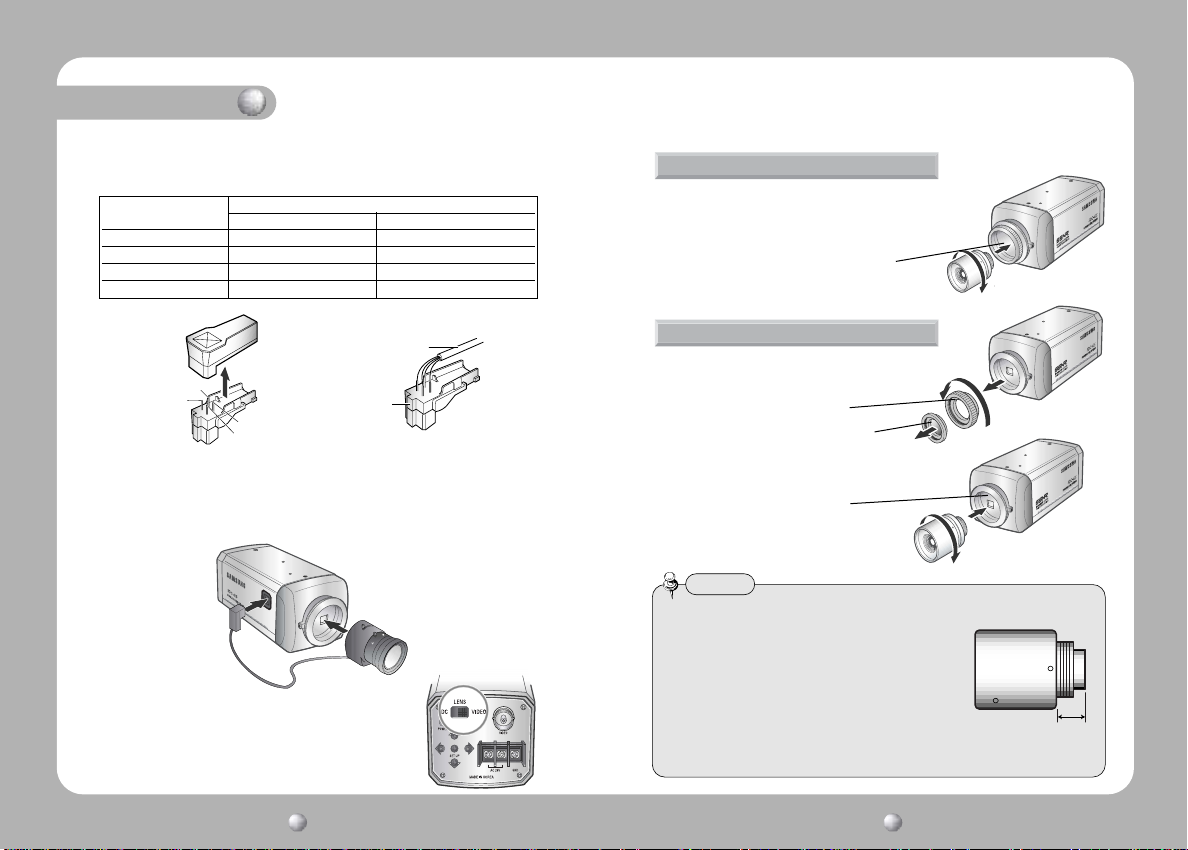

Installation
■ Lens
• Using auto iris
• Using C/CS mount lens

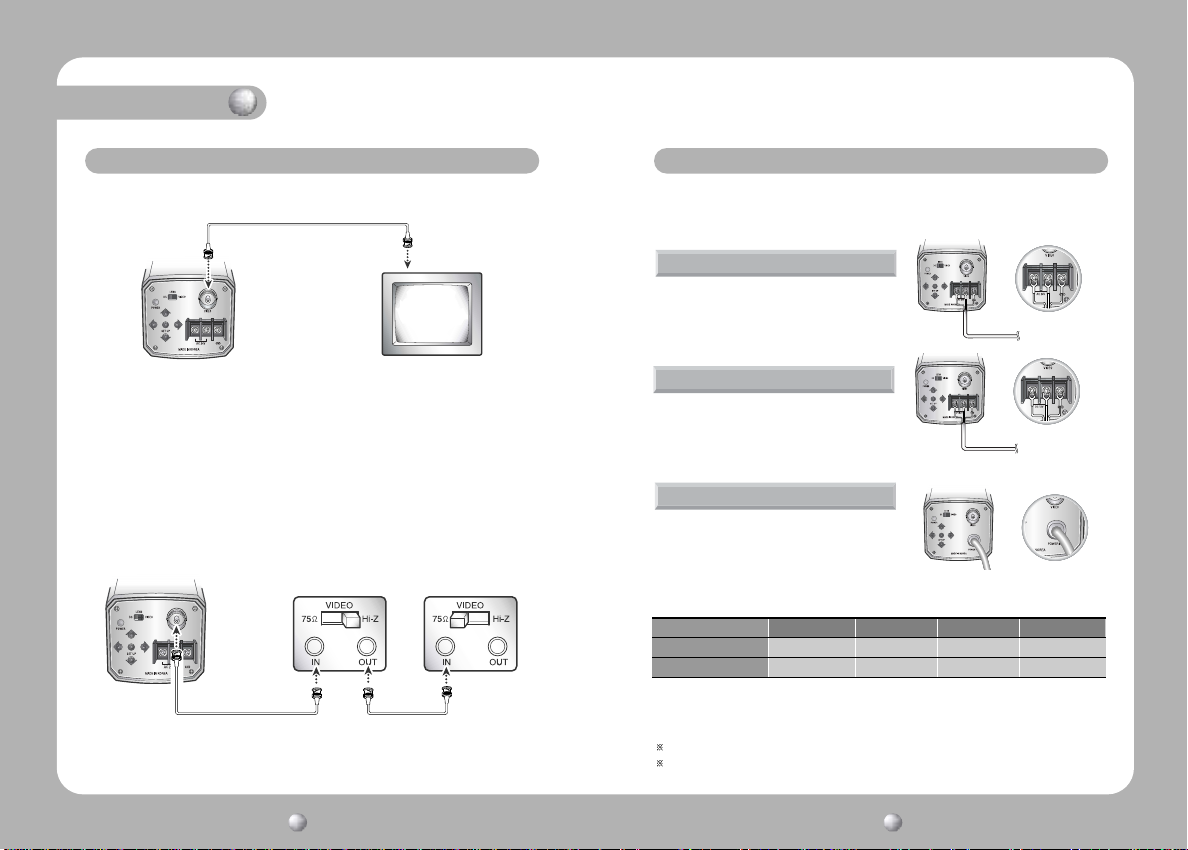

■ Connecting to a monitor
■ Connecting to power
6
7
10
11
11
12
13
14
15
15
Camera operation

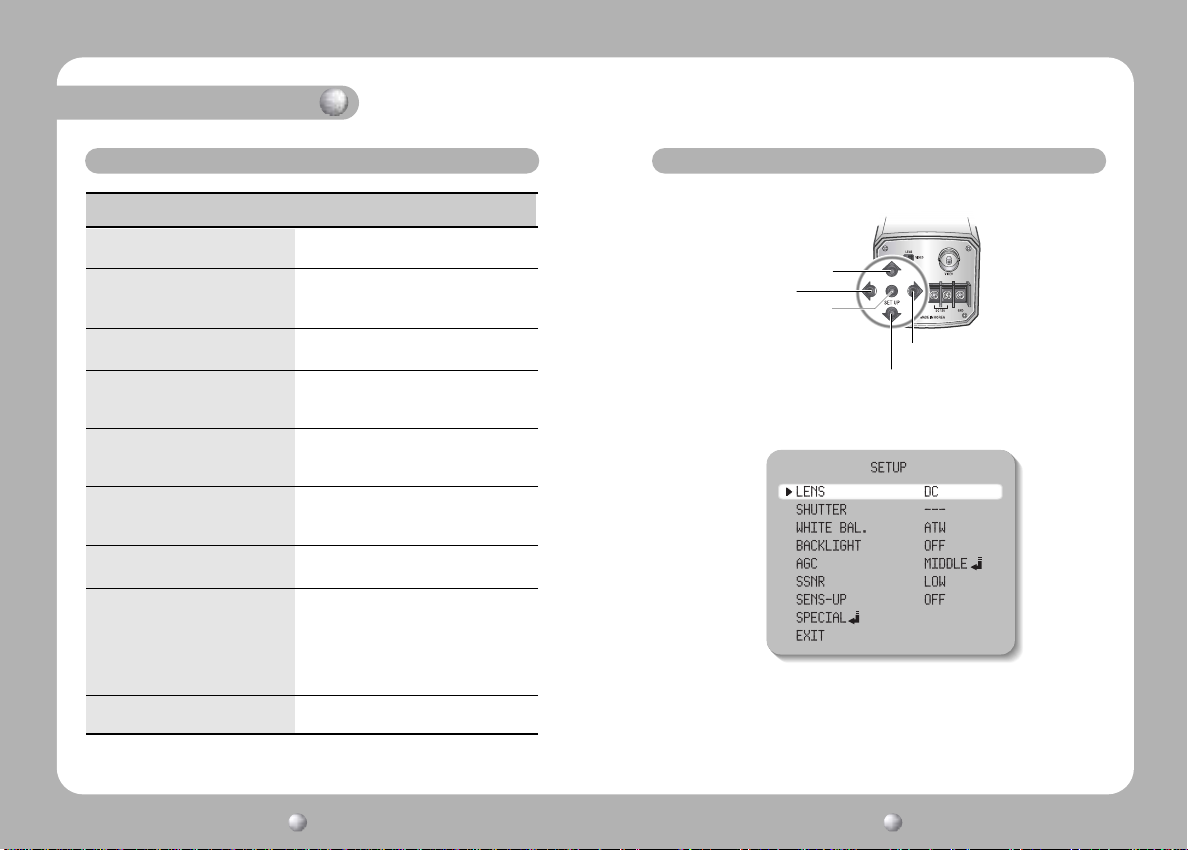

■ Menu
■ Settings

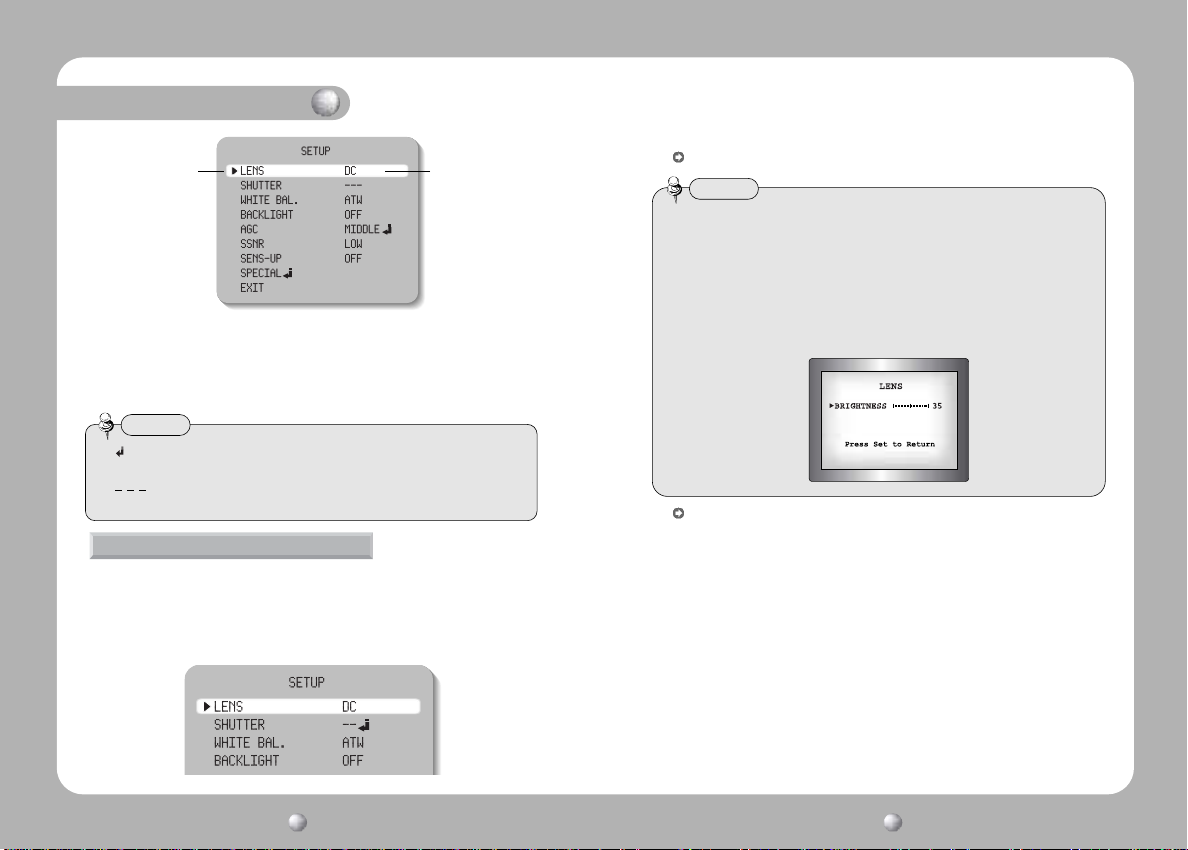

• LENS (selection)

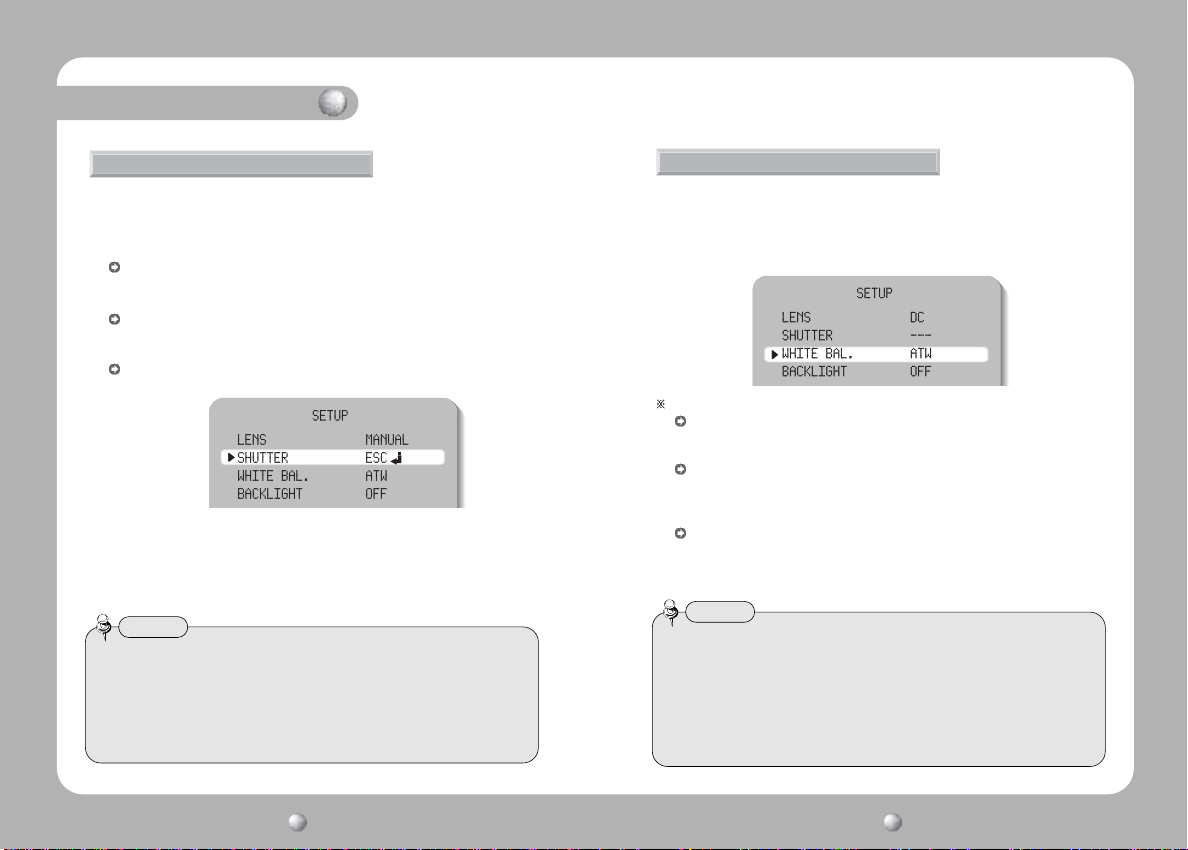

• SHUTTER (condition and speed control)
• WHITE BALANCE control

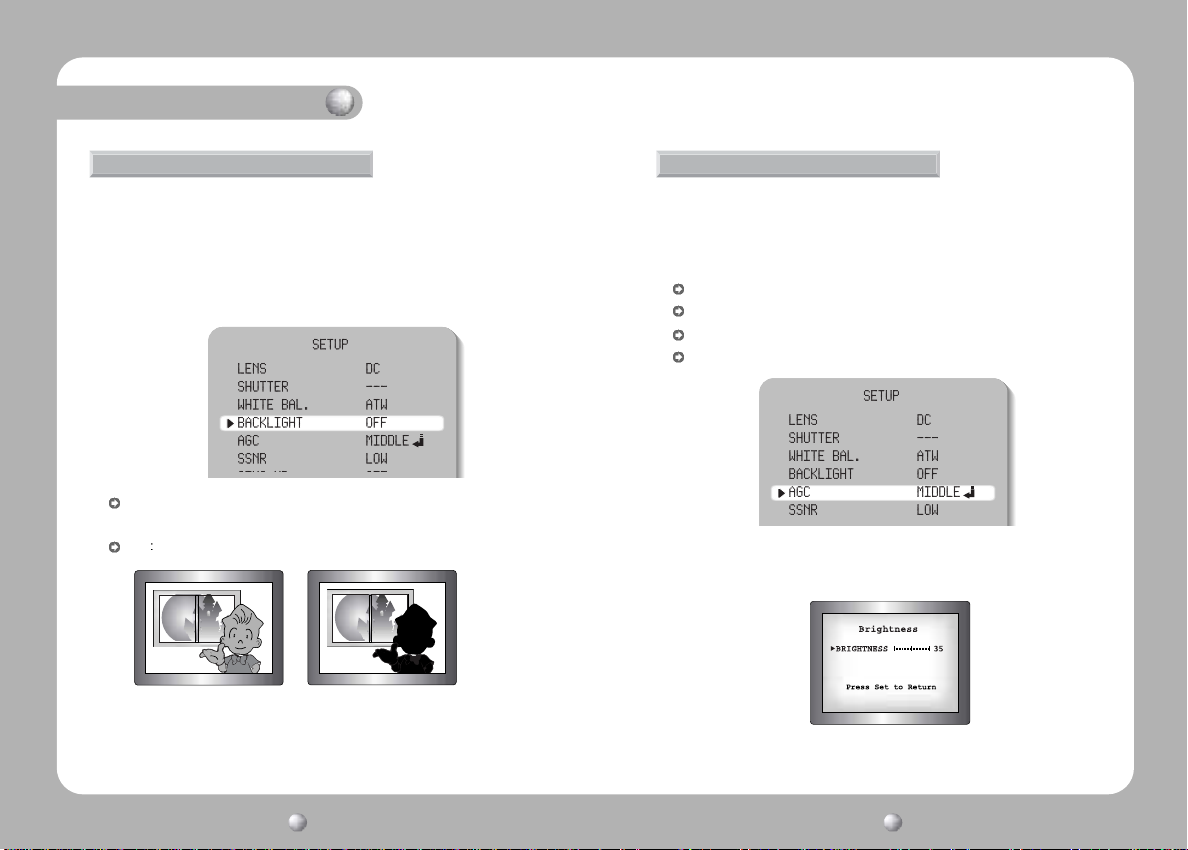

• BACKLIGHT (Backlight Compensation)
• AGC (Auto gain compensation)

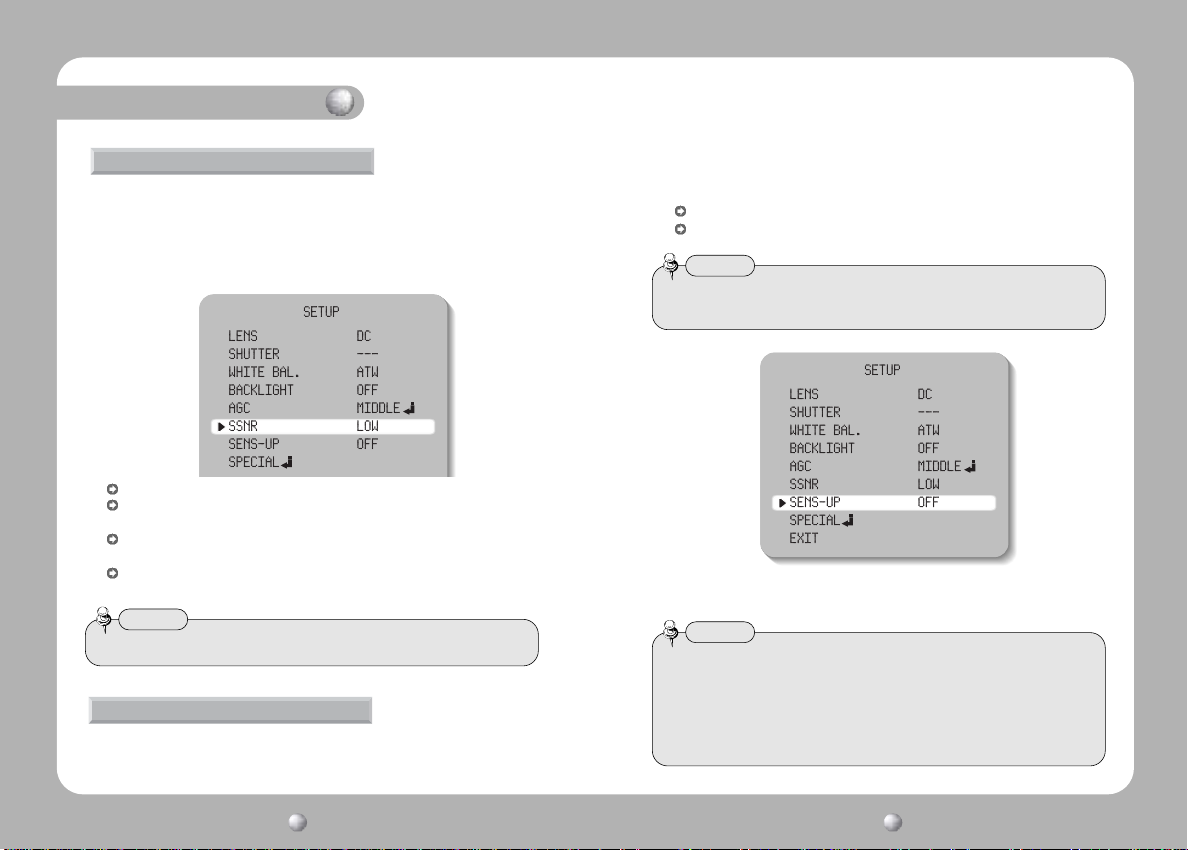

• SSNR (Samsung Super Noise Reduction)
• SENS-UP

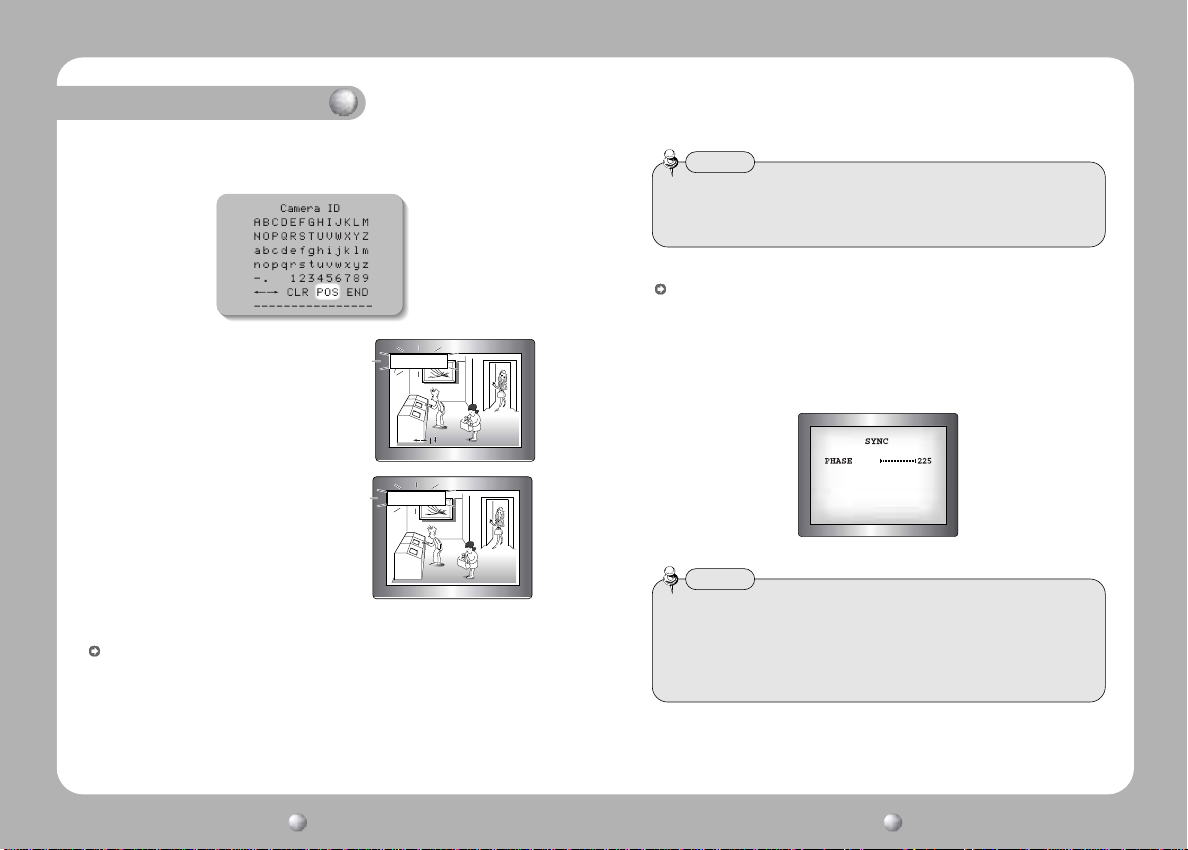

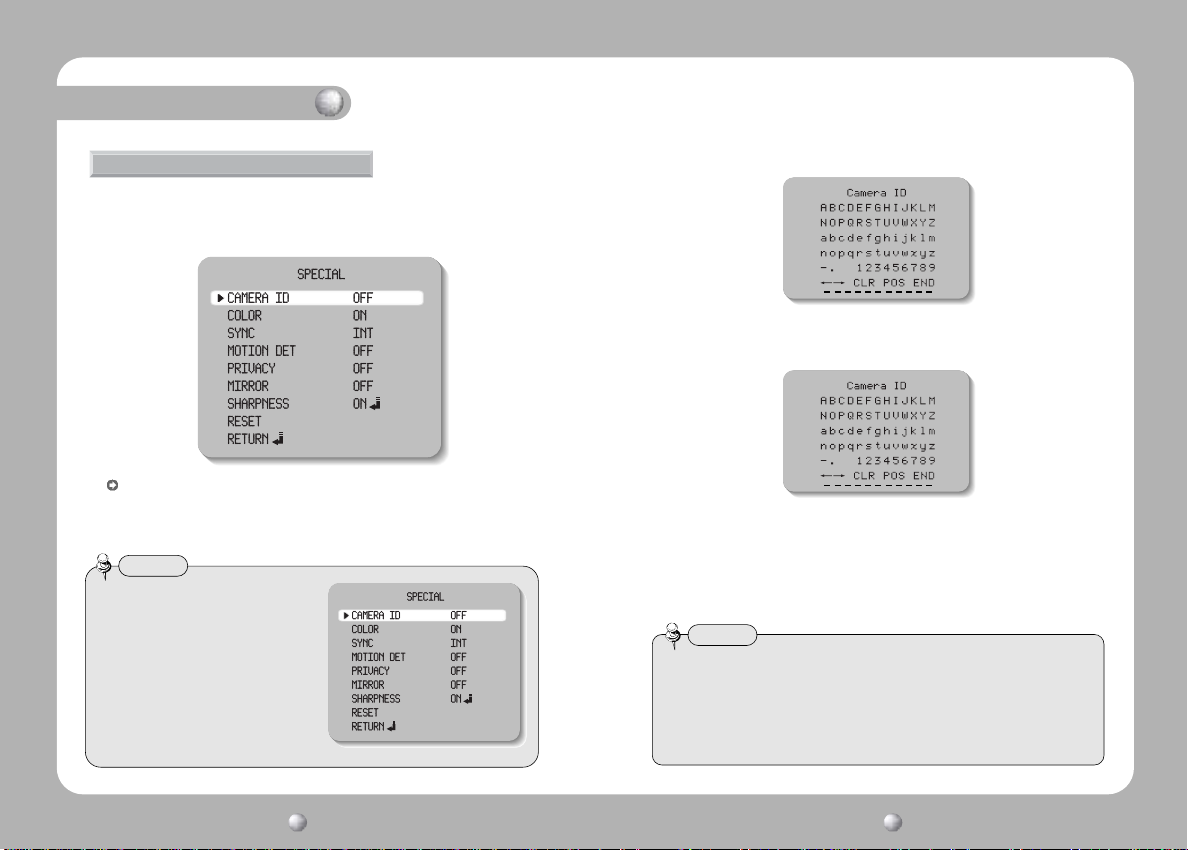

• SPECIAL
• EXIT
Troubleshooting
20
20
21
22
24
25
26
27
27
28
30
35
36
18
19
Specifications
37
COLOR CCD CAMERA User’s Manual
4
COLOR CCD CAMERA User’s Manual
COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
54
5
Features
Warning
Horizontal Resolution 530 TV
Lines
Clear image quality has been achieved by
employing a CCD with 410,000 pixels(NTSC),
470,000 pixels (PAL), which provides a
horizontal resolution of 530 TV lines.
Electronic DAY & NIGHT
This camera has a function that electronically
selects the mode that is appropriate for
daytime or night-time conditions.
The COLOR mode operates in daytime
conditions to provide optimum colors, and
BW mode operates in night-time conditions
to enhance the definition of the image.
Electronic IRIS
The electronic IRIS function enables continuous
automatic control of the shutter between
1/60(1/50)~1/120,000 seconds.
PRIVACY Function
The PRIVACY function conceals the areas
you do not wish to appear on the screen.
VIDEO/DC Drive Lens
The video drive lens and the DC drive lens
can be selected by the touch of a switch.
High Sensitivity
The built-in high sensitivity COLOR CCD
enables a clear image even in 0.3Lux or
lower illumination.
SSNR (Samsung Super Noise
Reduction)
By using built-in SSNR function manufactured
by SAMSUNG TECHWIN, the amount of
low illuminance noise has been significantly
reduced, and the signal-to-noise ratio (S/N)
as well as horizontal resolution have been
improved, resulting in a clear and sharp
image display even in the dark.
Controlled by OSD Menu
The camera can be controlled by selecting text
displayed on the monitor screen.
Additional Functions

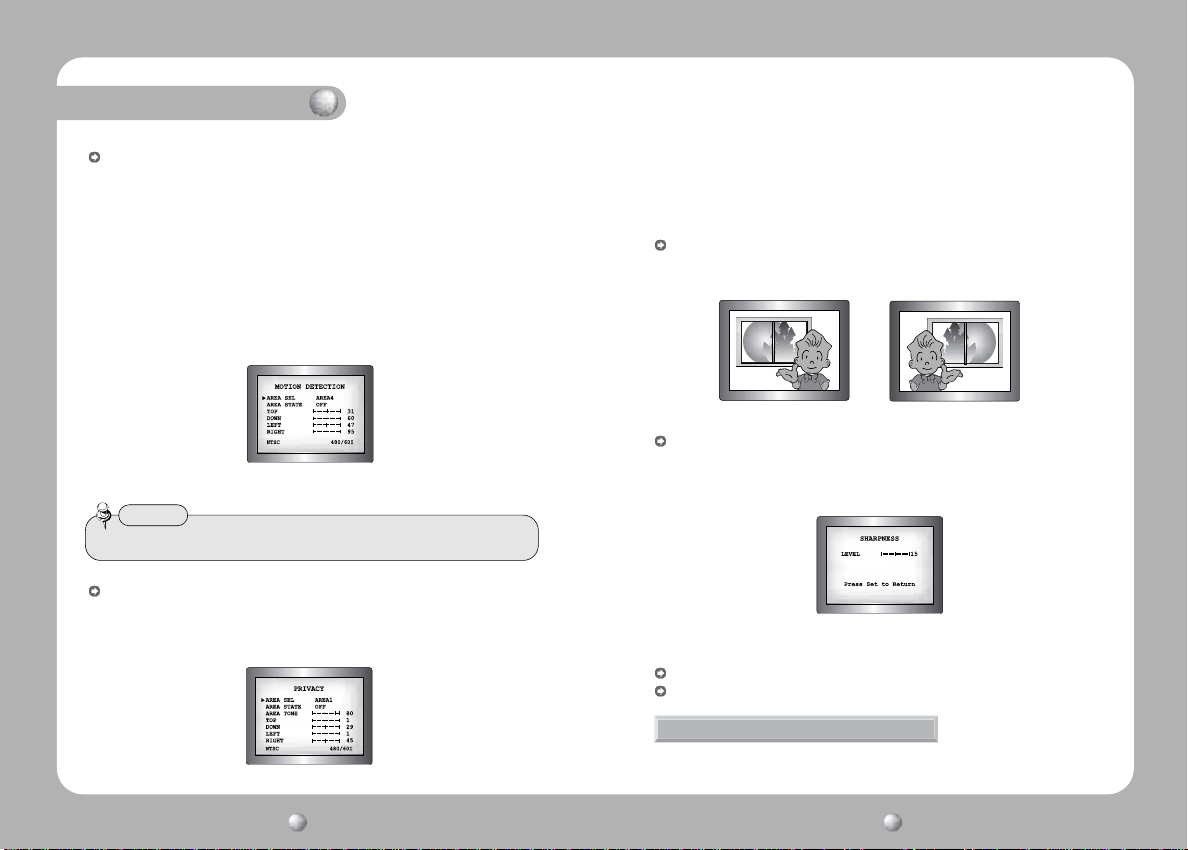

SENS-UP, MOTION DETECTION, MIRROR,
SHARPNESS and SYNC(INT/LL) functions are
also available.
The camera needs periodic maintenance.
Contact an authorized technician for maintenance.
Stop using your camera when you find a malfunction.
If you use your camera around smoke or unusual heat for a long time,
fire may be caused.
Do not Install the camera on a surface that can not support it.
Unless the surface is suitable, it could cause falling or other hazards.
Do not handle the camera with wet hands.
It could cause an electric shock.
Do not disassemble the camera.
It may result in fire, electric shock or other hazards.
Do not use the camera close to a gas or oil leak.
It may result in fire or other hazards.
COLOR CCD CAMERA User’s Manual
6
COLOR CCD CAMERA User’s Manual
7
Precautions
Do not install the camera in
extreme temperature conditions.
Only use the camera under conditions
where temperatures are between -10°C
and +50°C. Be especially careful to
provide ventilation when operating
under high temperatures.
Do not install the camera under
unstable lighting conditions.
Severe lighting change or flicker can
cause the camera to work improperly.
Do not install or use the camera in an
environment where the humidity is high.
It can cause the image quality to be
poor.
Do not touch the front lens of the
camera.
It is one of the most important parts of
the camera. Be careful not to be stained
by fingerprint.
Do not drop the camera or subject
them to physical shocks.
It can cause malfunctions to occur.
Do not expose the camera to rain
or spill beverage on it.
If it gets wet, wipe it dry immediately.
Liquids can contain minerals that
corrode the electronic components.
Never keep the camera face to
strong light directly.
It can damage the CCD.
Do not expose the camera to
radioactivity.
If it is exposed to radioactivity,
For heated CCD, it will be out of order.
Note
• If the camera is exposed to spotlight or object reflecting strong light, smear or
blooming may occur.
• Please check that the power satisfies the normal specification before connecting
the camera.
COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
98
Components
1. HIGH RESOLUTION
DAY & NIGHT COLOR CAMERA
2. Auto iris lens connection plug
3. C-Mount adaptor
4. Instruction manual
Names and Functions of Parts
Front
CCD protection cap
Please cover the CCD SENSOR when not using it.
C-Mount lens adaptor
Please attach the C-Mount lens here.
CS-Mount lens adaptor
Please remove the C-MOUNT lens adaptor and then attach it.
Back Focus clamp screw
Please loosen the clamp screw with a screwdriver before adjusting the Back
Focal length.
COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
1110
Names and Functions of Parts
L
Side
Auto iris lens connector
This is the connection terminal for the auto iris lens.
Bottom
Mounting bracket screw hole
Please use the screw hole when fixing the
camera onto the mounting bracket. Please use
the clamp screw as specified below.
The mounting bracket can be separated and attached to the
top of the camera.
In this instance please do not tighten the
screw to a depth of more than 4mm,
otherwise serious damage can occur
to the inside of the camera.
Note
• This camera package does not include the mounting bracket. Please refer to the
user's manual for installation of the mounting bracket.
1/4"-20 UNC (20 THREAD)
L:4.5mm±0.2mm (ISO standard),
or 0.197" (ASA standard)
COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
1312
