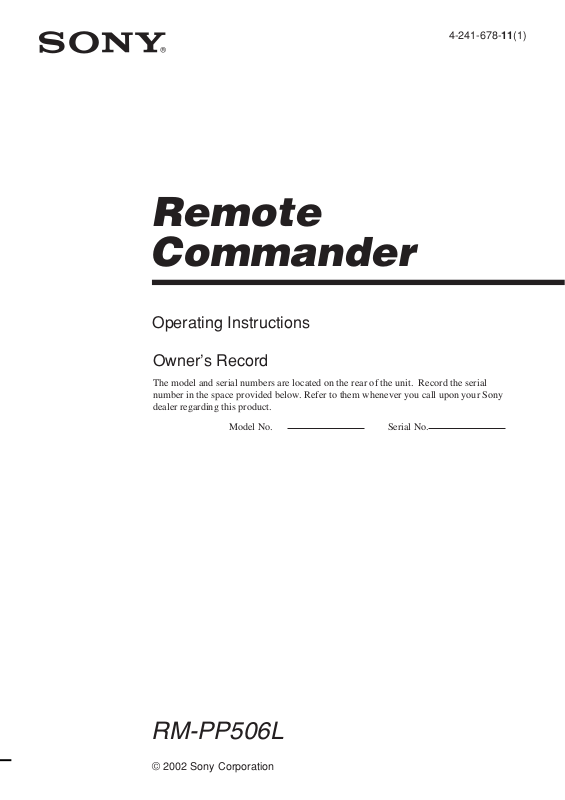

Sony RM-PP506L User Manual
4-241-678-11(1)
Remote
Commander
Operating Instructions
Owner’s Record
The model and serial numbers are located on the rear of the unit. Record the serial
number in the space provided below. Refer to them whenever you call upon your Sony
dealer regarding this product.
Model No. Serial No.
RM-PP506L
© 2002 Sony Corporation
Precautions
About this manual
On safety
Should any solid object or liquid fall into the cabinet,
unplug the receiver and have it checked by qualified
personnel before operating it any further.
On operation
Before connecting other components, be sure to turn
off and unplug the receiver.
On cleaning
Clean the cabinet, panel and controls with a soft cloth
slightly moistened with a mild detergent solution. Do
not use any type of abrasive pad, scouring powder or
solvent such as alcohol or benzine.
If you have any question or problem
concerning your remote, please consult your
nearest Sony dealer.
The instructions in this manual are for model
RM-PP506L. Check your model number by
looking at the lower right corner of the front
side.
GB
2
Before you use your
remote
Inserting batteries into the
remote
Insert two R6 (size-AA) batteries with the +
and – properly oriented in the battery
compartment.
Tip
Under normal conditions, the batteries should last for
about 6 months. When the remote no longer operates
the receiver, replace both batteries with new ones.
Notes
• Do not leave the remote in an extremely hot or
humid place.
• Do not use a new battery with an old one.
• Do not expose the remote sensor of the receiver to
direct sunlight or lighting apparatuses. Doing so
may cause a malfunction.
• If you don’t use the remote for an extended period
of time, remove the batteries to avoid possible
damage from battery leakage and corrosion.
Table of Contents
Location of Parts and Basic
Remote Operations
Parts description .................................... 4
Table of buttons that you can use to
control each component .................. 9
Advanced Remote Operations
Programming the remote ..................... 10
Learning the commands of your
components ................................... 13
Performing several commands in
sequence automatically
(Macro Play).................................. 14
Selecting the mode of the remote ........ 15
Additional Information
Troubleshooting ..................... Back cover
Specifications ........................ Back cover
GB
3
Location of Parts and Basic Remote Operations
This chapter provides information on the
location of buttons and how to use them to
perform basic operations.
However, some functions explained in this
section may not work depending on the model
of the receiver.
For the functions of the receiver you purchased,
refer to the Operating Instructions supplied
with the receiver.

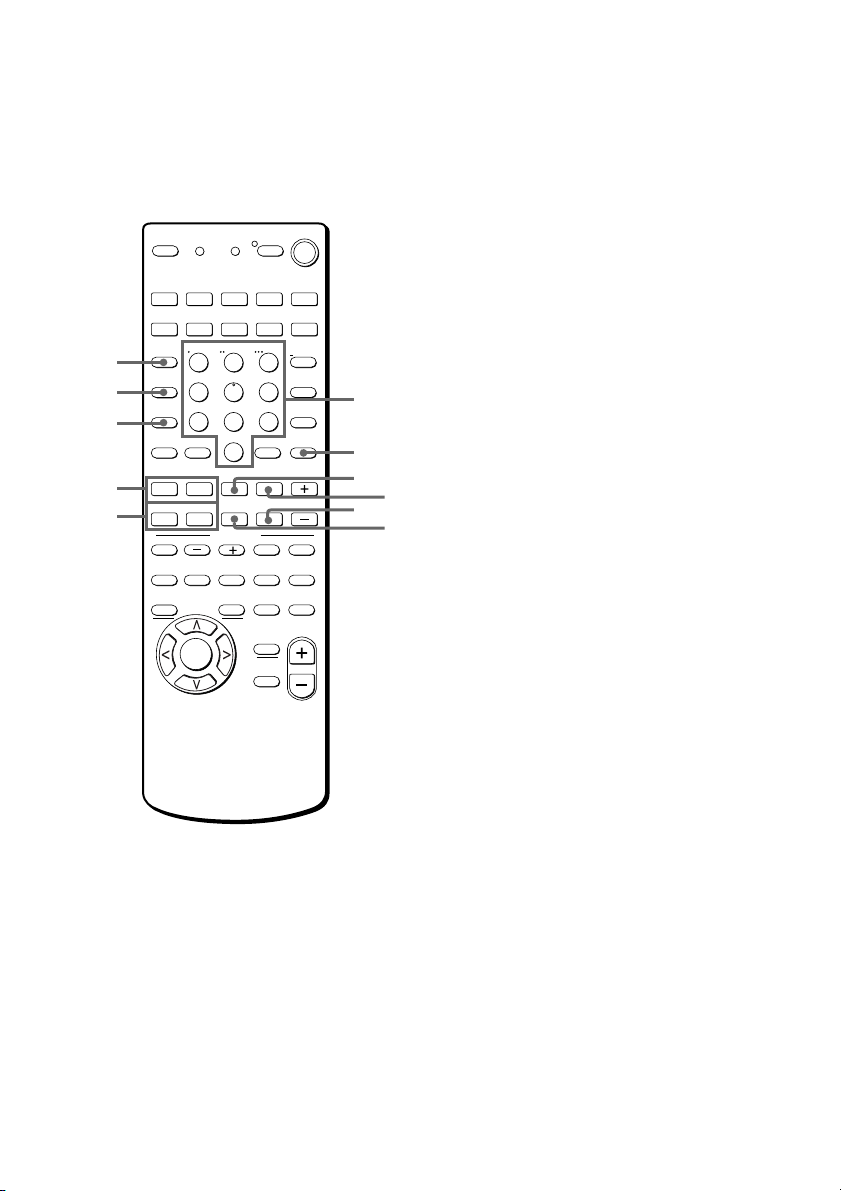

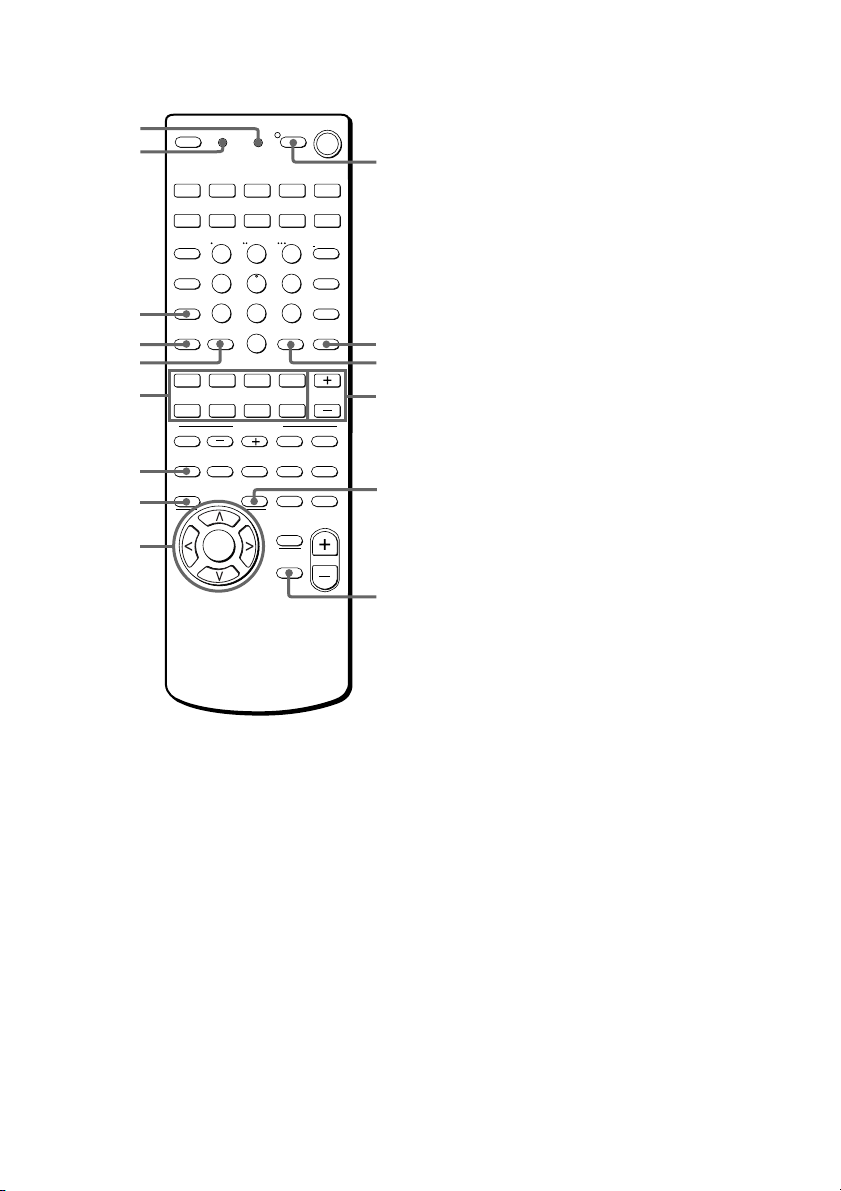

Parts description
? / 1
AV
qd
qs
qa
SLEEP
VIDEO 1 VIDEO 2 VIDEO 3 DVD/LD TV/SAT
MD/DAT CD/SACD TUNER PHONO
TAPE
AV1 AV2 3RD
MONITOR
TV/VIDEO
SEARCH
MODE
WIDE
CLEAR
– /– –
D.TUNING
– SUB CH +
– VOL +
nN
O
AUTO DEC
AV
DISPLAY
TITLE/
GUIDE
ENTER/
EXEC
SHIFT
>10
TEST
TONE
1
4
7
MODE
? / 1
USE MODE
SYSTEM
STANDBY
2
3
5
6
8
9
ENTER
0
/11 /10 /12
POSITION SWAP
.Mm
MUTING
P IN P
X>x
SOUND FIELD
2CH
EQ/
NIGHT
TONE
MODE
ON
AV
SCREEN
MENU
MAIN
MENU
EXIT/
RETURN
2ND ROOM
(SOURCE)
MACRO 1
MACRO 2
ANT
TV/VTR
DISC
JUMP
D. SKIP/
CH/PRESET
PRESET
MULTI/2CH
A. DIRECT
MUTING
MASTER
VOL
1
2
3
4
5
6
7
8
9
1 Function buttons
Press one of the buttons to select the
component you want to use. When you
press a button, the receiver turns on. The
components are factory assigned to the
buttons as follows. When you want to
assign other components, program the
remote following the steps on page 10.
Button(s) Assigned
component(s)
VIDEO1 VCR (VTR mode 3)
VIDEO2 VCR (VTR mode 1)
VIDEO3 VCR (VTR mode 2)
DVD/LD DVD player
TV/SAT TV tuner
TAPE Tape deck
MD/DAT MD deck
CD/SACD CD player
TUNER Built-in tuner
PHONO Turntable
See the table on page 9 for information on
the buttons that you can use to control each
component.
Note that the function buttons are factoryset as described in the table above. If you
want to change the factory setting of the
buttons to match your particular
components, do the procedure
“Programming the remote” on page 10.
0
GB
4
2 Remote mode buttons
Press to select the mode of the remote (page
15).
3 MACRO 1, 2 buttons
Press to use Macro Play function (page 14).
4 SOUND FIELD buttons
AUTO DEC button
Press to set the receiver to automatically
select the appropriate sound field for the
input signal.
This button can be used only with receivers
that have digital inputs.
MODE +/– buttons
Press to select sound fields.
2CH button
Press to turn the sound field off and listen to
2 channel stereo sound.
Multi channnel source is also downmixed to
a 2 channel stereo sound.
PRESET button
Press to select CINEMA STUDIO A, B, or
C, etc.
5 MULTI/2CH A. DIRECT* button
Press to select the multi channel input
sources.
6 EQ/TONE button
Press to turn the tone effect on or off.
Note that if you have adjusted the tone
using the MAIN MENU button and cursor
buttons, the adjusted tone will be produced
whenever you turn on the tone effect.
7 MUTING button
Press to mute the sound.
8 ON SCREEN button*
Press to display the menus of the receiver
on the TV screen.
9 MASTER VOLUME +/– buttons
Press to adjust the volume level of all
speakers at the same time.
0 MAIN MENU button
Press to select the cursor mode of the
receiver (SET UP, LEVEL, etc.).
qa NIGHT MODE button*
Press to select NIGHT MODE.
qs TEST TONE button
Press to output a test tone.
qd SLEEP button
Press repeatedly to activate the sleep
function and the duration which the receiver
turns off automatically.
Location of Parts and Basic Remote Operations
* Not available with STR-DA1ES.
continued
GB
5
