Theatre Stand System
3-218-865-11(2)
RHT-S10
©2008 Sony Corporation
Operating Instructions
Mode d’emploi
Manual de instrucciones
US
FR
ES
Page 2
3
WARNING
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
Batteries or batteries installed apparatus shall not be exposed to excessive heat such as sunshine, fire or the like.
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
For the customers in the U.S.A
This symbol is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
For the customers in Canada
To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.
This Class B digital apparatus complies with Canadian ICES-003.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with t he apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
US
2
Page 3
WARNING
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
This unit incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System. * Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.
** Manufactured under license under U.S. Patent #’s:
5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved.
This unit incorporates High-Definition Multimedia Interface (HDMI™) technology.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
“BRAVIA” is a trademark of Sony Corporation.
US
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
Owner’s Record
The model and serial numbers are located at the rear of the unit. Record the serial numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.
Model No. RHT-S10
Serial N o.
US
3
Page 4
Table of Contents
Precautions...............................................5
Main features ...........................................6
Getting Started
Supplied accessories ................................7
Installing the unit.....................................8
Connecting components with HDMI
jacks...................................................9
Connecting components without HDMI
jacks.................................................11
Setting up the sound output of the
connected component......................12
Connecting a VCR or audio
component .......................................13
Connecting the DIGITAL MEDIA PORT
adapter .............................................14
Connecting the subwoofer .....................15
Playback Options
Index to parts and controls.....................16
Enjoying TV...........................................19
Enjoying other components ...................20
Surround Function
Enjoying the surround effect..................22
Tuner Functions
Presetting radio stations.........................24
Listening to the radio .............................25
“BRAVIA” Sync Features
What is “BRAVIA” Sync?.....................27
Preparing for the “BRAVIA” Sync........27
Enjoying Blu-ray Disc/DVD..................29
(One-Touch Play)
Enjoying the TV sound from the
speakers ...........................................29
(System Audio Control)
Turning off the TV, unit and connected
components......................................30
(System Power Off)
Advanced Settings
Changing the TV’s video input together
with the unit’s input
(Input SYNC: Sony TV only)......... 31
Programming the remote for other
components..................................... 32
Controlling the connected
components..................................... 35
Settings and adjustments using the
amplifier menu................................ 39
Using the sleep timer.............................46
Additional Information
Troubleshooting ....................................47
Specifications........................................ 49
Glossary................................................. 51
Index...................................................... 52
US
4
Page 5
Precautions
On safety
Should any solid object or liquid fall into the unit, unplug the unit and have it checked by qualified personnel before operating it any further.
On power sources
• Before operating the unit, check that the operating voltage is identical to your local power supply. The operating voltage is indicated on the nameplate at the rear of the unit.
• If you are not going to use the unit for a long time, be sure to disconnect the unit from the wall outlet (mains). To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.
• One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet (mains) only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
• AC power cord (mains lead) must be changed only at the qualified service shop.
• Install this unit so that the power cord can be unplugged from the wall socket immediately in the event of trouble.
On heat buildup
Although the unit heats up during operation, this is not a malfunction. If you continuously use this unit at a large volume, the unit temperature of the top, side and bottom rises considerably. To avoid burning yourself, do not touch the unit.
On placement
• Place the unit in a location with adequate ventilation to prevent heat buildup and prolong the life of the unit.
• Use caution when placing the unit on surfaces that
have been specially treated (with wax, oil, polish, etc.) as staining or discoloration of the surface may result.
• The floor may be damaged if sand, trash, etc., gets
caught under the legs of the unit.
On operation
Before connecting other compo nents, be sure to turn off and unplug the unit.
If you encounter color irregularity on a nearby TV screen
The unit is magnetically shielded to allow it to be installed near a TV set. However, color irregularities may still be observed on certain types of TV sets.
If color irregularity is observed...
Turn off the TV set, then turn it on again after 15 to 30 minutes.
If color irregularity is observed again...
Place the unit further away from the TV set.
On cleaning
Clean the unit with a soft dry cloth. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.
If you have any question or problem concerning your unit, please consult your nearest Sony dealer.
US
5
Page 6
Main features
B Easy connection with HDMI
b
The cords are all tangled up. Neat connections (page 9).
B Easy operation
b
Which remote? Only one! (page 32)
B Easy Surround settings
b
I need lots of cords and speakers. Easy set-up and high quality sound with
S-Force PRO Front Surround.
About S-Force PRO Front Surround
Sony’s long-term involvement in surround technology (and the vast amounts of acoustic data accumulated as a result) has led to the development of all-new processing method and advanced DSP to handle this task effectively, which we call S-Force PRO Front Surround. Compared with previous front surround technologies, S-Force PRO Front Surround reproduces a more convincing sense of distance and space, resulting in a true surround sound experience without the need for rear speakers.
US
6
Recommended surround-sound area
You can enjoy surround sound in the areas in which sound is spread as illustrated.
Page 7
Getting Started
Supplied accessories
Please check the following accessories in the package.
Optical cable (1 m) (39 3/8 inches) (1) Remote commander (RM-ANP009) (1)
Size AA (R6) batteries (2) FM wire antenna (aerial) (1) Wall Mounting Bracket (WS-S10WA) (1)
Operating Instructions (1)

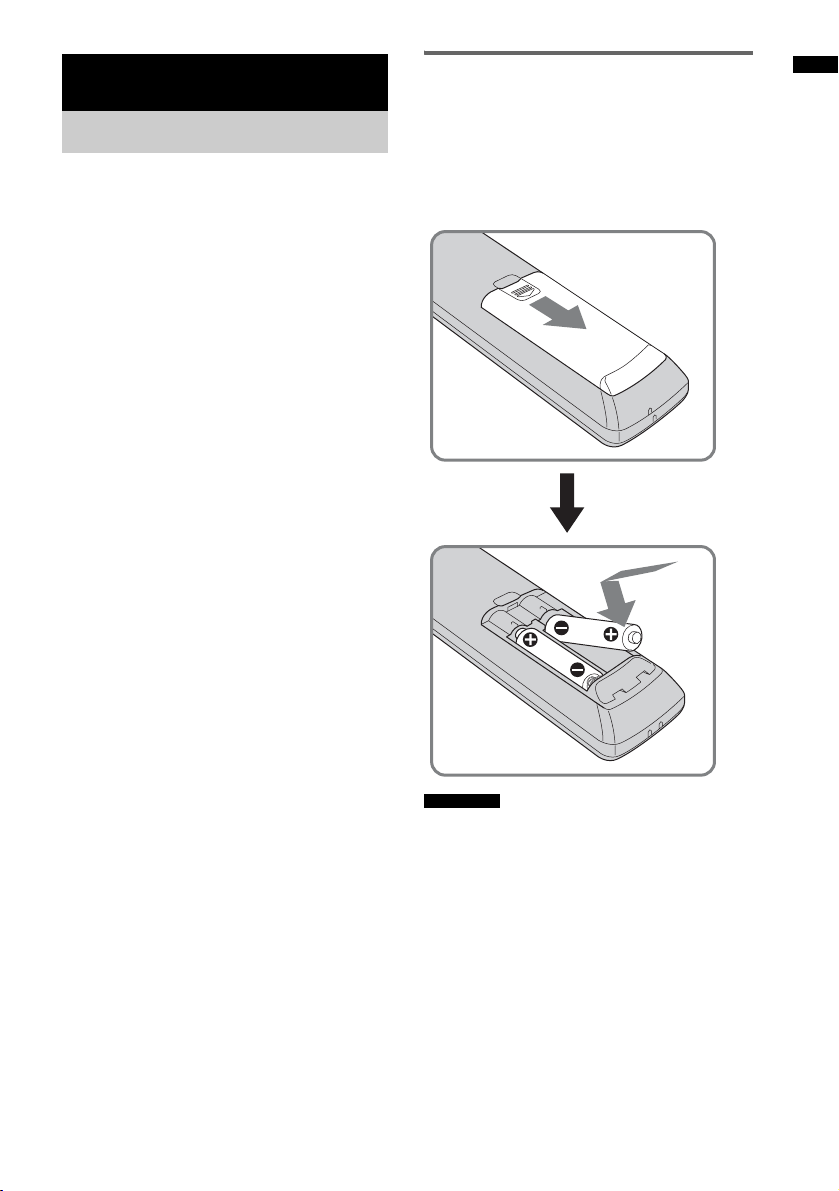

Inserting batteries into the remote
You can control the unit using the supplied remote. Insert two size AA (R6) batteries by matching the + and – ends on the batteries to the markings inside the compartment.
Getting Started
Notes
• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with an old one.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction.
• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.
7
US
Page 8
Notes
Installing the unit
• Adjust the direction of the FM wire antenna (aerial) for best FM broadcast sound.
Install the unit after allowing for a space of 300
7
mm (11
/8 inches) or more on the right and left
from the wall.
AA
MULTI CH
MULTI CH
POWER / HDMI POWER
POWER / HDMI POWER INPUT
INPUT SELECTOR
SELECTOR
VOLUME
PRESET
VOLUME
PRESET
+
-
+
-
+
-
+
-
• If you attach the FM wire antenna (aerial) to a wall, select a wall for best reception.
• Do not use the FM wire antenna (aerial) rolled up.
• Be sure to insert the FM wire antenna (aerial) fully into the jack.
B
Subwoofer
A 300 mm (11 7/8 inches) B 50 mm (2 inches)
Connecting the FM wire antenna (aerial)
Connect the FM wire antenna (aerial) to the FM 75Ω COAXIAL ANTENNA jack.
HDMI
SAT IN
BD/DVD IN
FM wire antenna (aerial) (supplied)
FM 75Ω COAXIAL ANTENNA jack
TV OUT
ANTENNA
FM 75
COAXIAL
ANTENNA
FM 75
COAXIAL
Tip
• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM antenna (aerial).
Connecting the power cord
1 Connect the components to this unit.
For details of connecting the components, see page 9 to page 13.
2 Connect the power cord of this unit to
the wall outlet.
Note
• Install this system near the wall outlet so that the AC power cord (mains lead) can be unplugged from the wall socket immediately in the event of trouble.
Installing this unit
Install the unit after connecting all the components to the unit. When installing the unit, allow for a space of at least 50 mm (2 inches) from the wall and 300 mm (11 7/8 inches) or more on the right and left when you install the unit. This is to allow for heat dissipation, a sufficient surround effect, and to prevent the TV from falling.
Note
• Do not put a magnetic card (such as a cash card or commuter pass) close to the speaker. The card may become unusable because of the magnetism of the speaker’s magnet.
US
8
Page 9
Connecting components with HDMI jacks
Getting Started
We recommend that you connect components to the unit using an HDMI cable. With HDMI, you can easily enjoy both high quality sound and high quality images.
However, it is necessary to connect the audio output of the TV to the audio input of the unit using an optical cable or an audio cord in
TV monitor, projector, etc.
Audio/video signal
INPUT
SAT IN
HDMI
BD/DVD IN
TV OUT
ANTENNA
FM 75
COAXIAL
order listen to the TV’s sound from the unit.
For details on the Control for HDMI function, see ““BRAVIA” Sync Features” (page 27).
Connect the AC power cord (mains lead) after you have finished connecting all components to the unit.
Audio signal
OUTPUT
OUTPUT
or
BA
C
DMPORT
DC 5V
0.7A MAX
LINE
LL
RR
TV SAT
OPTICALTVOPTICAL
ANALOG IN DIGITAL IN
COAXIAL
SUB WOOFER
OPTICAL
BD/DVD
OUT
AA
OUTPUT OUTPUT
Audio/video signal
Satellite tuner
A HDMI cable (not supplied) B Optical cable (supplied) C Audio cord (not supplied)
Audio/video signal
Blu-ray Disc player (recorder), DVD player (recorder), “PlayStation 3”
: Signal flow
continued
US
9
Page 10
Notes
• Refer to page 11 for how to connect a component without an HDMI jack.
• The HDMI jack has priority when you connect the component to the unit using HDMI, DIGITAL IN COAXIAL, DIGITAL IN OPTICAL and ANALOG IN together.
• The DIGITAL IN OPTICAL jack has priority when you connect both the audio output of the TV to the DIGITAL IN OPTICAL and ANALOG IN jack of the system.
Notes on HDMI connections
• You can enjoy high quality images using an
HDMI cable with an HDMI logo. We recommend that you use a Sony HDMI cable.
• Check the setup of the connected component if
an image is poor or the sound does not come out of a component connected via the HDMI cable.
• Audio signals (sampling frequency, bit length,
etc.) transmitted from an HDMI jack may be suppressed by the connected component.
• Sound may be interrupted when the sampling
frequency or the number of channels of audio output signals from the playback component is switched.
• When the connected component is not
compatible with copyright protection technology (HDCP), the image and/or the sound from the HDMI TV OUT jack may be distorted or may be not output. In this case, check the specification of the connected component.
• We do not recommend using an HDMI-DVI
conversion cable.
• No matter what input is selected for the unit,
video signals from the HDMI input jack (BD/ DVD IN, SAT IN) that was selected last time are output from the HDMI TV OUT jack.
• This unit supports x.v.Color transmission
extended by HDMI ver1.3.
10
US
Page 11
Connecting components without HDMI jacks
Getting Started
When you connect a DVD player (recorder), satellite tuner, “PlayStation 2”, etc., that has no HDMI jacks, connect to the unit using the DIGITAL IN OPTICAL or DIGITAL IN COAXIAL jack. If the satellite tuner does not have the OPTICAL OUT jack, connect the unit using the DIGITAL
CB
HDMI
SAT IN
BD/DVD IN
TV OUT
ANTENNA
FM 75
COAXIAL
IN COAXIAL jack. In this case, it is not necessary to connect all the cables. Connect the audio cords according to the jacks of your components. Connect the AC power cord (mains lead) last.
* “PlayStation 2” is a trademark of Sony Computer
Entertainment Inc.
TV monitor, projector, etc.
OUTPUT
DMPORT
DC 5V
0.7A MAX
Audio signal
or
LINE
LL
RR
ANALOG IN DIGITAL IN
OUTPUT
TV
OPTICAL OPTICAL
TV SAT
COAXIAL
Video signal
INPUT
Video signal
SUB WOOFER
OUT
OPTICAL
BD/DVD
: Signal flow
D
OUTPUT
AA
OUTPUT
or
Audio signal
Video signal
Satellite tuner
A Optical cable (not supplied) B Optical cable (supplied) C Audio cord (not supplied) D Coaxial digital cord (not supplied)
OUTPUT
OUTPUT
OUTPUT
Audio signal Video signal
DVD player (recorder), “PlayStation 2”, etc.
continued
11
US
Page 12
Note
• The DIGITAL IN OPTICAL jack has priority when you connect both the audio output of the TV to the DIGITAL IN OPTICAL and ANALOG IN jack of the system.
Setting up the sound output of the connected component
Depending on the audio output settings of the connected component, the sound may output in 2 channel sound format only. In this case, set the connected component to output the sound in multi channel sound format (PCM, DTS, Dolby Digital). For details on audio output settings, refer to the operating instructions supplied with the connected component.
12
US
Page 13
Connecting a VCR or audio component
Getting Started
Connect this unit to a VCR or audio component using the LINE IN jacks.
SAT IN
HDMI
BD/DVD IN
TV OUT
ANTENNA
FM 75
COAXIAL
OUTPUT
Connect the AC power cord (mains lead) last.
TV
DMPORT
DC 5V
0.7A MAX
A
Audio signal
Video signal
INPUT
LINE
TV
LL
RR
ANALOG IN DIGITAL IN
TV SAT
OPTICAL OPTICAL
OUTPUT
COAXIAL
SUB WOOFER
OPTICAL
BD/DVD
To Video In jack
OUT
Video signal
A Audio cord (not supplied)
VCR, CD player
: Signal flow
Video signal
To Video Out jack
13
US
Page 14
Connecting the DIGITAL MEDIA PORT adapter
You can enjoy sound from the connected component on the unit by connecting the DIGITAL MEDIA PORT adapter.
HDMI
SAT IN
BD/DVD IN
DIGITAL MEDIA PORT adapter
Notes
• Do not connect or disconnect the DIGITAL MEDIA PORT adapter while the unit is turned on.
• When you connect the DIGITAL MEDIA PORT adapter, be sure the connector is inserted with the arrow mark facing toward the arrow mark on the DMPORT jack. To detach the DIGITAL MEDIA PORT adapter, press and hold
A and then pull out the
connector.
TV OUT
ANTENNA
FM 75
COAXIAL
Connect the AC power cord (mains lead) last.
DMPORT
DC 5V
0.7A MAX
LINE
TV
LL
RR
ANALOG IN DIGITAL IN
TV SAT
OPTICAL OPTICAL
: Signal flow
COAXIAL
SUB WOOFER
OPTICAL
BD/DVD
OUT
14
A
US
Page 15
Connecting the subwoofer
The unit has a built-in subwoofer. However, for even more extended bass, connect an external subwoofer to this unit using an audio connecting cord. Connect the AC power cord (mains lead) last.
Getting Started
SAT IN
HDMI
BD/DVD IN
TV OUT
ANTENNA
FM 75 COAXIAL
A Audio connecting cord (not supplied)
DMPORT
DC 5V
0.7A MAX
Input jack
LINE
TV
LL
RR
OPTICAL OPTICAL
ANALOG IN DIGITAL IN
Subwoofer
: Signal flow
TV SAT
COAXIAL
SUB WOOFER
OPTICAL
BD/DVD
OUT
15
US
Page 16
Playback Options
Index to parts and controls
For more information, refer to the pages indicated in parentheses.
Front panel
MULTI CH
A (remote sensor) (48)
SELECTOR
INPUT
PRESET VOLUME
F VOLUME +/–
Receives signals from remote commander.
B MULTI CH indicator
G POWER/ACTIVE STANDBY indicator
Lights up when playing multi-channel sauce.
C Front panel display (17) D INPUT SELECTOR
Press to select the input source to play back.
E PRESET +/–
Selects the preset stations.
MULTI CH
INPUT
INPUT
PRESET VOLUME
PRESET VOLUME SELECTOR
SELECTOR
Tips Note
• The touch panel is functional when lit.
• The touch panel lights up momentarily when touched,
H ?/1 (on/standby)
POWER/
ACTIVE STANDBY
• The touch panel functions by touching lightly. Do not press it strongly.
or when the power is turned on. When you operate, touch the panel at first. The touch panel becomes unlit when it is not touched for about 10 seconds.
POWER/ ACTIVE STANDBY
Press to adjust the volume level.
Lights as follows: Green: The unit is turned on. Amber: Control for HDMI function is
working while the unit is turned off.
Off: The unit is turned off, and the
Control for HDMI function is not working.
Press to turn the unit on or off.
INPUT
PRESET VOLUME
SELECTOR
Touch panel
16
US
Page 17
Front panel display
About the indications in the front panel display
Playback Options
PL
PCM
HDMI
A HDMI (9, 48)
Lights up when the HDMI cable is being used.
B Lights up according to the audio input
signals.
C SLEEP (46)
Flashes when the sleep timer function is active.
D NIGHT (23)
Lights up in NIGHT mode.
MONOSTTUNEDOPTCOAXNIGHTSLEEP
E COAX/OPT
Lights up according to the cable which you are using.
F TUNED (24)
Lights up when receiving a radio broadcast.
G ST (24)
Lights up when receiving a radio broadcast in stereo.
H MONO (26)
Lights up when “MONO” is selected in FM mode.
continued
17
US
Page 18
Remote control
Here describes the buttons for amplifier operation only. See page 35 for the buttons for operation of the connected components.
Note
• Point the remote at the remote sensor on the unit.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
A POWER (on/standby)
Press to turn the unit on or off.
B Input buttons
Press one of the buttons to select the component you want to use. The buttons are factory assigned to control Sony components. You can program the remote to control non-Sony components following the steps in “Programming the remote for other components” (page 32).
C C, X, x, c or
Press C, X, x or c to select the settings. Then press to enter the selection.
D SOUND FIELD
Press to select the sound field (page 22).
E AMP MENU
Press to display the menu of the unit (page 39).
F NIGHT
Press to activate the NIGHT mode function (page 23).
G SLEEP
Press to activate the Sleep Timer function and the duration which the unit turns off automatically (page 46).
H VOL +/– - Volume
Press to adjust the volume.
I MUTING
Press to turn off the sound.
* The 5, H and CH + buttons have a tactile dot. Use
it as a guide during operation.
US
18
Page 19
Enjoying TV
TV (white)
VOL +, –
POWER
1 Turn on the TV and choose a program.
Refer to the operating instructions of your TV for details.
Playback Options
2 Turn the unit on. 3 Press TV (white) on the remote. 4 Adjust the volume of the unit.
Tips
• When connecting a Sony TV, the Sony TV input can be selected automatically by pressing the input button after setting. For details on the setting, refer to “Changing the TV’s video input together with the
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
unit’s input (Input SYNC: Sony TV only)” (page 31).
• The sound may be output from the TV’s speaker. In this case, turn the volume of the TV’s speaker down to the minimum.
19
US
Page 20
Enjoying other components
POWER
Input buttons (BD/DVD, SAT, AUDIO)
D
I
S
VOL +, –
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
Enjoying satellite tuner
1 Turn on the TV.
Refer to the operating instructions of your TV for details.
2 Turn the satellite tuner and the unit on. 3 Press SAT on the remote.
When connecting a Sony TV, the Sony TV input can be selected automatically by pressing the input button after setting (Input SYNC) - jump to step 5.
4 Change the TV input.
Refer to the operating instructions of your TV for details.
5 Adjust the volume of the unit.
Tip
• The sound may be output from the TV’s speaker. In this case, turn the volume of the TV’s speaker down to the minimum.
Enjoying Blu-ray Disc, DVD, “PlayStation 2” or “PlayStation 3”
1 Turn on the TV. 2 Turn the Blu-ray Disc/DVD player
(recorder), “PlayStation 2” or “PlayStation 3” and the unit on.
3 Press BD/DVD on the remote.
When connecting a Sony TV, the Sony TV input can be selected automatically by pressing the input button after setting (Input SYNC) - jump to step 5.
4 Change the TV input.
Refer to the operating instructions of your TV for details.
5 Play back the disc.
Tip
• Even if you play back Dolby true HD, Dolby Digital plus or DTS HD with a connected component
20
US
Page 21
compatible with these sound formats, the system accepts as Dolby Digital or DTS. When you playback these high-quality sound formats, set the connected component to output the sound in multi channel PCM, if possible.
Listening to an analog equipment
You can enjoy the sound of the VCR and the portable audio player, etc.
1 Press AUDIO on the remote. 2 Press LINE IN on the remote. 3 Turn on the analog player and play
back a CD.
Enjoying a connected component through DMPORT connection
1 Press AUDIO on the remote. 2 Press DMPORT on the remote. 3 Start playback of the connected
component.
Tip
• When listening to MP3 or other compressed music files using a portable audio source, you can enhance the sound. Press SOUND FIELD repeatedly until “P. AUDIO” appears in the front panel display.
• If you have a Sony TV, you can change the input of TV and the unit automatically by setting “Input SYNC” (page 31).
Note
• By pressing AUDIO, the input changes to the last input (LINE IN, FM, DMPORT) selected by the remote.
Playback Options
21
US
Page 22
Surround Function
Enjoying the surround effect
Selecting the sound field
This unit can create multi channel surround sound. You can create the desired sound field by selecting one of unit’s preprogrammed sound fields.
Press SOUND FIELD.
The present sound field appears. Each time you press the SOUND FIELD button, the display changes cyclically as follows: STANDARD t CINEMA t MUSIC t SPORTS t NEWS t P.AUDIO* Press SOUND FIELD repeatedly until the sound field you want appears.
PCM
HDMI
Available sound fields
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
Sound field Effect
STANDARD You can enjoy normal
sound.
CINEMA You can enjoy powerful
sound in which low­pitched sound is emphasized, with enhanced presence.
MUSIC This sound field is the best
for listening to music, and you can enjoy the full surround sound experience.
SPORTS You can enjoy the
atmosphere of a game, and listen to the exciting play­by-play description.
SOUND FIELD
NEWS You can hear the
announcer’s voice clearly.
P.AUDIO You can enjoy enhanced
sound when you listen to MP3 or other compressed music files using a portable audio source.
* “P.AUDIO” appears only when DMPORT or LINE
IN is selected for the input source to playback.
Tips
• The sound fields memorized for each input are retained even if you disconnect the AC power cord (mains lead).
• Multi-channel sound is processed by the surround feature in any sound field. Also, multi-channel sound is processed by the surround feature for any sound in “CINEMA” or “SPORTS.”
22
US
Page 23
Enjoying the sound at low volume (NIGHT mode)
You can enjoy sound effects and to hear the dialog clearly even at a low volume level using this function.
D
I
S
E
D
I
U
G
P
L
A
Y
Surround Function
R
E
T
U
R
N
H
M
S
N
S
O
I
L
T
P
O
O
O
T
E
O
M
U
E
N
NIGHT
Press NIGHT.
To cancel the NIGHT mode, press NIGHT again.
Note
• If the volume level is set high before the NIGHT mode is selected, the loud sound may suddenly occur when the mode is turned off. Turn down the volume beforehand.
Tip
• You can listen to Dolby Digital sound at low volume by using AUDIO DRC (page 43).
23
US
Page 24
Tuner Functions
Presetting radio stations
You can preset 20 FM stations. Before tuning, make sure to turn down the volume to minimum.
Input button (AUDIO)
Input button
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
O
I
T
P
O
O
O
H
T
E
O
M
M
U
E
N
(FM)
X, x,
S
L
MENU
4 Press MENU. 5 Press X/x repeatedly until “Memory?”
appears in the front panel display.
6 Press .
A preset number appears in the front panel display.
STTUNED
7 Press X/x to select the preset number
you want.
STTUNED
Tip
• You can select the preset number directly by pressing the number buttons.
8 Press .
“Complete!” appears in the front panel display, and the station is stored.
TUNING –/+
1 Press AUDIO on the remote. 2 Press FM on the remote. 3 Press and hold TUNING + or – until the
auto scanning starts.
Scanning stops when the unit tunes in a station. “TUNED” and “ST” (for stereo program) light up in the front panel display.
US
24
STTUNED
9 Press MENU. 10Repeat 3 to 9 to store other stations.
To change the preset number
Restart from Step 4.
Page 25
Naming preset stations
You can enter a name for preset stations. These names (for example, “XYZ”) appear in the front panel display when a station is selected. Note that no more than one name can be entered for each preset station. Up to 10 characters can be entered.
1 Press AUDIO on the remote. 2 Press FM on the remote.
The last received station is tuned in.
3 Press PRESET + or – repeatedly to
select the preset station you want to create an index name for.
4 Press MENU. 5 Press X/x repeatedly until “Name In?”
appears in the front panel display.
STTUNED
6 Press . 7 Create a name by using C/X/x/c.
Press X/x to select a character, then press c to move the cursor to the next position. Letters, numbers, and other symbols can be input for a radio station name.
If you enter a wrong character
Press C/c repeatedly until the character to be changed flashes, then press X/x to select the desired character. To erase the character, press C/c repeatedly until the character to be erased flashes, then press CLEAR.
8 Press .
“Complete!” appears in the front panel display, and the station name is stored.
STTUNED
Listening to the radio
Preset radio stations in the unit’s memory first (see “Presetting radio stations” (page 24)).
Input button (AUDIO)
CLEAR
Input button (FM)
S
L
O
MENU
PRESET –/+
VOL +/–
D
I
E
D
I
U
G
R
E
T
U
R
N
S
P
L
A
Y
S
N
O
I
T
P
O
O
H
T
E
O
M
M
U
E
N
1 Press AUDIO on the remote. 2 Press FM on the remote.
The last received station is tuned in.
3 Press PRESET + or – repeatedly to
select the preset station.
Each time you press the button, the unit tunes in one preset station.
Tuner Functions
9 Press MENU.
continued
25
US
Page 26
Tip
• You can select the preset number directly by pressing the number buttons.
4 Adjust the volume by pressing VOL +/–.
To turn off the radio
Press POWER on the remote or "/1 on the unit to turn off the unit. To change the input, press the input button.
To listen to non-preset radio stations
Use manual or automatic tuning in Step 3. For manual tuning, press TUNING + or – repeatedly. For automatic tuning, press and hold TUNING + or –. The automatic tuning stops when the unit tunes in a station. To stop the automatic tuning manually, press TUNING + or –.
If an FM program is noisy
If an FM program is noisy, you can select monaural reception. There will be no stereo effect, but reception will improve.
1 Press MENU. 2 Press X/x repeatedly until “FM Mode?”
appears in the front panel display, then press
or c.
3 Press X/x to select “MONO.”
• ST: stereo reception.
• MONO: monaural reception.
4 Press .
The setting is made.
5 Press MENU.
Tip
• To improve reception, reorient the FM wire antenna (aerial).
26
US
Page 27
“BRAVIA” Sync Features
What is “BRAVIA” Sync?
By connecting Sony components that are compatible with the “BRAVIA” Sync with an HDMI cable (not supplied), operation is simplified as below:
• One-Touch Play: When you play back a
component such as a Blu-ray Disc/DVD player (recorder), the unit and the TV are turned on automatically and switch to the appropriate HDMI input.
• System Audio Control: While watching TV,
you can select to output the sound from the TV speaker or the speakers of the unit.
• System Power Off: When you turn off the TV,
the unit and the connected components are also turned off simultaneously.
“BRAVIA” Sync is compatible with a Sony TV, Blu-ray Disc/DVD player, AV amplifier, etc., with the Control for HDMI function.
Preparing for the “BRAVIA” Sync
To use the “BRAVIA” Sync, set the Control for HDMI function to on for the unit and the connected component. When you connect a Sony TV with the Control for HDMI function, the Control for HDMI function for the unit and the connected component can be set simultaneously by setting the Control for HDMI function of the TV.
POWER
Input buttons (TV, BD/ DVD, SAT)
“BRAVIA” Sync Features
CONTROL FOR HDMI is a mutual control function standard used by CEC (Consumer Electronics Control) for HDMI (High-Definition Multimedia Interface).
The Control for HDMI function will not operate in the following cases:
• When you connect this unit to a component
which is not correspond with the Control for HDMI function.
• When you connect the unit and components
using other than HDMI connection.
We recommend that you connect this system to products featuring “BRAVIA” Sync.
Note
• Depending on the connected component, the Control for HDMI function may not work. See the operating instructions of the component.
D
I
S
E
D
I
U
G
P
L
A
Y
C, X,
R
E
T
U
R
N
H
M
S
N
O
I
T
P
O
O
O
T
E
O
M
U
E
N
x, c,
S
L
AMP MENU
continued
US
27
Page 28
1 Make sure that the unit is connected to
the TV and the connected components (which should be compatible with the Control for HDMI function) using HDMI cables (not supplied).
2 Turn on the unit, the TV and the
connected components.
3 Select the input of the unit connected to
the component you want to watch (BD/ DVD, SAT), and switch the HDMI input of the TV, so that an image from the connected component is displayed.
4 Set the Control for HDMI function of the
TV to on.
The Control for HDMI function for the unit and the connected component is simultaneously set to on. During the setting, “SCANNING” appears in the front panel display. After you finish the setting, “COMPLETE” appears in the front panel display. Wait until the setting is complete.
If “SCANNING” or “COMPLETE” does not appear after performing the steps above
Set the Control for HDMI function to on for the unit and the connected component individually.
1 Press AMP MENU. 2 Press x/X repeatedly until
“CUSTOMIZE” appears, then press or c.
3 Press x/X repeatedly until “CTRL:
HDMI” appears, then press or c.
4 Press x/X to select “CTRL ON.” 5 Press AMP MENU.
The AMP menu turns off. The Control for HDMI function is set to on.
6 Set the Control for HDMI function of the
connected component to on.
For details on setting the connected component, refer to its operating instructions.
7 Select the input of the unit connected to
the component you want to use the Control for HDMI function for (BD/DVD, SAT), and repeat step 6.
If you add or reconnect the component
Perform steps of “Preparing for the “BRAVIA” Sync” and “If “SCANNING” or “COMPLETE” does not appear after performing the steps above” again.
Notes
• During the setting of the Control for HDMI function for the unit, the System Audio Control function does not work.
• If the Control for HDMI function for the connected component cannot be set simultaneously by setting “CONTROL FOR HDMI” of the TV, set the Control for HDMI function using the menu of the connected component.
• For details on setting the TV and the connected components, refer to their operating instructions.
Tip
• The default setting of the Control for HDMI function of the unit is “CTRL OFF.”
28
US
Page 29
Enjoying Blu-ray Disc/DVD
Enjoying the TV sound
(One-Touch Play)
Play back a connected component.
The unit and the TV are turned on automatically and switch to the appropriate HDMI input.
Note
• Depending on the TV, the start of the content may not be output.
Tip
• You can enjoy the Blu-ray Disc/DVD player (recorder) connected to the unit, even if you turn the unit off. The POWER/ACTIVE STANDBY indicator lights up in amber at this time.
from the speakers
(System Audio Control)
You can enjoy the TV sound from the speakers of the unit by means of a simple operation. For details, see the operating instructions of the TV.
POWER
Input buttons (TV, BD/ DVD, SAT)
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
“BRAVIA” Sync Features
Press POWER to turn on the unit.
The sound is output from the speaker of the unit. The sound is output from the TV’s speaker when you turn the unit off.
Notes
• When the TV is turned on before this unit is turne d on, the TV sound will not be output for a moment.
• When you connect a TV that does not have System Audio Control function, the System Audio Control function does not work.
Tip
• You can adjust the volume and turn off the sound of the unit using the TV remote.
continued
29
US
Page 30
Using the input buttons of the remote
The input buttons (TV (white), BD/DVD, SAT) work as follows when the Control for HDMI function is set to on.
• BD/DVD, SAT: Since the input of the TV is also switched automatically, you can watch the image of the selected component on the TV simply by pressing the buttons.
• TV: The input of the TV switches automatically. When you connect a Sony TV, you can watch the TV simply by pressing the buttons.
Tip
• You can control connected components by pressing
the input buttons. For details, refer to “Controlling the connected components” (page 35).
Turning off the TV, unit and connected components
(System Power Off)
When you turn the TV off by using the POWER button on the TV’s remote, the unit and the connected components turns off automatically. Also, when you turn the TV off by using the system’s remote, the system and the connected components turn off automatically.
TV (orange)
D
I
S
E
D
I
U
G
P
L
A
Y
AV POWER
30
R
E
T
U
R
N
H
M
S
N
S
O
I
L
T
P
O
O
O
T
E
O
M
U
E
N
1 Press TV (orange). 2 Press AV POWER.
The TV, the unit and the connected component are turned off.
Note
• Depending on the status, the connected components may not be turned off. For details, see operating instructions supplied with the connected components.
US
Page 31
Advanced Settings
Changing the TV’s video input together with the unit’s input (Input SYNC: Sony TV only)
You can set the remote so that the TV’s video input switches when you change the unit’s input with the remote.
Note
• Do not use the Control for HDMI function while the Input SYNC function is active for buttons other than TV (white) and DMPORT. For details, see ““BRAVIA” Sync Features” (page 27).
TV (orange)
Input buttons (TV, BD/ DVD, SAT, AUDIO)
Input buttons (LINE IN, FM, DMPORT)
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
O
I
T
P
O
O
O
H
T
E
O
M
M
U
E
N
Number buttons
ENT
S
L
1 Select the input button to which you
want to assign Input SYNC.
For TV, BD/DVD and SAT
Press TV (orange) while holding down the input button (TV (white), BD/DVD, SAT) for the component you want to operate.
For example, if you are going to operate a DVD player, press BD/DVD.
The input button you pressed flashes.
For LINE IN, FM and DMPORT 1 Press TV (orange) while holding down
AUDIO.
2 Press the input button (LINE IN, FM,
DMPORT) for the component you want to operate.
2 Check the table below for the remote
button number corresponding to the TV input jack you have connected to, and press the number.
The input button (TV, BD/DVD, SAT, AUDIO) lights up when you press the number button.
TV input jack* Remote Button
(codes)
VIDEO 1 21 VIDEO 2 22 VIDEO 3 23 VIDEO 4 24 VIDEO 5 25 VIDEO 6 26 VIDEO 7 27 VIDEO 8 28 COMPONENT 1 29 COMPONENT 2 30 COMPONENT 3 31 COMPONENT 4 32 HDMI 1 33 HDMI 2 34 HDMI 3 35 HDMI 4 36 HDMI 5 37 TV program** 38 None 20
* TV input jack name may differ depending on
your TV model.
** This setting switches from the current input to
TV program. It is assigned to the TV (white) button by default.
Advanced Settings
continued
31
US
Page 32
Tip
• Press 20 if you do not want to send signals to the TV.
3 Press ENT.
The setting is completed after the input button you pressed in step 1 flashes twice.
4 Repeat steps 1 to 3 to program the
remote.
Notes
• An error has occurred when the input button you pressed in step 1 flashes five times. Perform this process from step 1 again.
• The two digits entered last are valid.
To cancel programming
Press the input button (TV, BD/DVD, SAT) you pressed in step 1. For LINE IN, FM and DMPORT, press AUDIO.
If programming is unsuccessful, check the following:
• If the input button you pressed in step 1 does not light up, the batteries are weak. Replace both batteries.
• If you do not press the following button within 60 seconds during registration, the operation will become invalid. Perform the process from step1 again.
• An error has occurred when the input button you pressed in step 1 flashes five times after ENT has been pressed in step 3. Perform the process from step 1 again.
Programming the remote for other components
You can program the remote to control non-Sony components by changing the code. Once the control signals have been memorized, you can use those components as part of your unit. Furthermore, you can also program the remote for Sony components that the remote is unable to control. Note that the remote can only control components that accept infrared wireless control signals. You cannot register any component other than a TV into the TV button of the remote.
AV POWER
Input buttons (TV, BD/DVD, SAT)
Number buttons
ENT
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
32
1 Press AV POWER while holding down
the input button (TV, BD/DVD, SAT) for the component you want to operate.
For example, if you are going to operate a DVD player, press BD/DVD. The input button you pressed flashes.
2 Check the manufacture code of the
component you want to operate and press the number button.
US
Page 33
See the tables on pages 34 to 35 for information on the numeric code(s) corresponding to the component and the manufacturer of the component (the first digit and the last two digits of the numeric code correspond to the category and the manufacturer’s code, respectively).
You can select one of them when there are two or more code numbers.
The input button (TV, BD/DVD, SAT) lights up when you press the number button.
3 Press ENT.
The setting is completed after the input button you pressed in step 1 flashes twice.
4 Repeat steps 1 to 3 to control other
components.
To cancel programming
Press the input button (TV, BD/DVD, SAT) you pressed in step 1.
To activate the input after programming
Press the programmed button to activate the input you want.
If programming is unsuccessful, check the following:
• If the input button you pressed in step 1 does not light up, the batteries are weak. Replace both batteries.
• If you do not press the following button within 60 seconds during registration, the operation will become invalid. Perform the process from step1 again.
• An error has occurred when the input button you pressed in step 1 flashes five times after ENT has been pressed in step 3. Perform the process from step 1 again.
Notes
• You can program only a manufacturer code numbered
from 500 to 599 on the TV (white) button.
• In step 1, if several input buttons (TV, BD/DVD,
SAT) are pressed, only the last pressed button is valid.
• For the numeric codes, only the three digits entered
last are valid.
To clear the memory of the remote
First press and hold VOL –, then press and hold POWER. Next, while pressing and holding the first two buttons, press AV POWER. All input buttons (TV, BD/DVD, SAT, AUDIO) flash together, then go off.
The numeric codes corresponding to the component and the manufacture of the component
Use the numeric codes in the tables on pages 34 to 35 to control non-Sony components and also Sony components that the remote is normally unable to control. Since the remote signal that a component accepts differs depending on the model and year of the component, more than one numeric code may be assigned to a component. If you fail to program your remote using one of the codes, try using other codes. The initial settings are underlined.
Notes
• The numer ic codes are based on the latest information available for each brand. There is a chance, however, that your component will not respond to some or all of the codes.
• All of the input buttons on this remote may not be available when used with your particular component.
Default Settings
The default settings of each input are as follows.
Input Code(s)
TV TV 501 BD/DVD Blu-ray Disc Recorder 310 SAT Satellite Tuner 801
Advanced Settings
continued
33
US
Page 34
To control a CD player
Manufacture Code(s)
SONY 101, 102, 103 DENON 104, 123 JVC 105, 106, 107 KENWOOD 108, 109, 110 MARANTZ 116 ONKYO 112, 113, 114 PIONEER 117 YAMAHA 120, 121, 122
To control a DVD player
Manufacture Code(s)
SONY 401, 402, 403 PANASONIC 406, 408, 425 PHILIPS 407 PIONEER 409, 410 TOSHIBA 404, 421 DENON 405 HITACHI 416 SAMSUNG 416, 422
To control a DAT deck
Manufacture Code(s)
SONY 203 PIONEER 219
To control a tape deck
Manufacture Code(s)
SONY 201, 202 DENON 204, 205 PIONEER 213, 214 YAMAHA 217, 218
To control an MD deck
Manufacture Code(s)
SONY 301
To control a VCR
Manufacture Code(s)
SONY 701, 702, 703, 704, 705,
706 HITACHI 722, 725, 729, 741 JVC 726, 727, 728, 736 MITSUBISHI/MGA 732, 733, 734, 735 PANASONIC 729, 730, 737, 738, 739,
740 PHILIPS 729, 730, 731 PIONEER 729 SAMSUNG 742, 743, 744, 745 SANYO 717, 720, 746 SHARP 748, 749 TOSHIBA 747, 756
To control a DVD recorder
Manufacture Code(s)
SONY 401, 402, 403
To control a TV
Manufacture Code(s)
SONY 501 DAEWOO 504, 505, 506, 515, 544 LG/GOLDSTAR 503, 511, 512, 515, 517,
544, 568, 578
HITACHI 503, 513, 514, 515, 517,
519, 544, 557, 571 JVC 516, 552 MITSUBISHI/MGA 503, 519, 527, 544, 566,
568 NEC 503, 517, 520, 540, 544,
554, 566 PANASONIC 509, 524, 553, 559, 572 PHILIPS 515, 518, 557, 570, 571 PIONEER 509, 525, 526, 540, 551,
555, 579 SAMSUNG 503, 515, 517, 531, 533,
544, 557, 562, 563, 566,
569 SANYO 508, 545, 546, 560, 567 SHARP 517, 535, 550, 561, 565,
577 TOSHIBA 535, 540, 541, 551
34
US
Page 35
To control a satellite tuner
Manufacture Code(s)
SONY 801, 802, 803, 804, 824,
825 PANASONIC 818 PHILIPS 874
To control a cable box
Manufacture Code(s)
SONY 821 PANASONIC 816, 832, 833, 834 PIONEER 828, 829
To control a hard disc recorder
Manufacture Code(s)
SONY 307, 308, 309
To control a Blu-ray Disc player/ recorder
Manufacture Code(s)
SONY 310, 311, 312 PANASONIC 331, 332, 333
To control an HDD/DVD COMBO
Manufacture Code(s)
SONY 401, 402, 403 SHARP 459, 460, 461 HITACHI 441, 442, 443 JVC 444, 445, 446, 447, 459,
460, 461 MITSUBISHI 448, 449 PANASONIC 450, 451, 452 PIONEER 453, 454, 455, 456, 457,
458 TOSHIBA 462, 463, 464
Controlling the connected components
You can control connected components with the remote of this unit. Some functions cannot be selected depending on the equipment. In that case, select them using the remote control supplied with the equipment.
TV (orange)
Input buttons (TV, BD/ DVD, SAT)
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
Advanced Settings
To control a DVD/VIDEO COMBO
Manufacture Code(s)
SONY 411
* The 5, H and CH + buttons have a tactile dot. Use
it as a guide during operation.
continued
35
US
Page 36
Controlling the component
1 Press one of the input buttons (TV
(white), BD/DVD, SAT) to select the component you want to operate.
The component assigned to the selected input button becomes operable.
2 Referring to the following table, press
the corresponding button for the operation.
Tips
• You can use the remote as a TV remote for 60 seconds
after pressing the TV (orange) button. If you do not press the following button within 60 seconds during registration or you press TV (orange) again, the operation will become invalid.
Common operations
Remote Button Function
1 Number buttons Selects channels and tracks
directly.
2 ENT Enters the selection. wk AV POWER Turns the TV and other
audio and video components on and off.
To control the TV
Remote Button Function
1 Number buttons Selects channels. 3 FREEZE Press once to display a
frozen image of the current program. Press again to return to the program.
4 WIDE Press to set the Wide
Mode.
5 DISPLAY Press to display the current
channel number, etc.
6 C, X, x, c, Selects a menu item and
enters the selection.
7 TOOLS Enables you to access
various viewing options and change/make adjustments according to the source and screen format.
Remote Button Function
8 MENU Allows you to select
qs CH +/– Press to scan through
qj VOL (with orange
dot)
qk MUTING (with
orange dot)
ql THEATER Press to automatically set
ws RETURN Returns to the previous
wd GUIDE Press to display the guide
wf JUMP Press to jump back and
wg ANT Press to change between
channels or input sources and change the settings for your TV.
channels. To scan quickly through channels, press and hold down either +/–.
Press TV (orange) to light up TV (white), and then press this button to adjust the TV volume while TV (white) is lit.
Press TV (orange) to light up TV (white), and then press this button to turn off the sound of the TV while TV (white) is lit.
the optimal picture set tings for watching movies, wh en you connect a Sony TV which is compatible with the THEATER button. Also, the audio is automatically switched to the audio output of this unit when you connect the TV and the unit with HDMI connection, and the control for HDMI function is s et to on.
screen of any displayed menu.
when you are watching analog or digital channels.
forth between two channels. The TV alternates between the current channel and the last channel that was selected.
the VHF/UHF input and the CABLE input.
36
US
Page 37
Remote Button Function
wh Use with the 0-9 and ENT
wj INPUT Selects input.
buttons to select digital channels. For example, to enter 2.1, press , ,
1
and ENT.
2
To control the Blu-ray Disc recorder/DVD recorder/Hard disc recorder
Remote Button Function
6 C, X, x, c, Selects a menu item and
8 MENU Displays the MENU. 9 , Jumps forward while
0 m/M To fast reverse or to fast
qa H (playback)/X
(pause, press again to resume normal playback)/x (stop)
qs CH +/– Changes channels. qd REC z/REC STOP
x/REC MODE
qh BD/DVD TOP
MENU BD/DVD MENU
< Jumps backward while
w;
wa > Jumps forward to the next
. Skips chapters.
wj INPUT Selects input.
enters the selection.
viewing recorded programs.
forward the disc when pressed during playback.
Play mode buttons.
Record mode buttons.
Displays the top menu/ disc menu.
viewing live or recorded programs.
available chapter.
To control the Blu-ray Disc player/ DVD player
Remote Button Function
6 C, X, x, c, Selects a menu item and
8 MENU Displays the MENU. 9
, Jumps forward.
enters the selection.
Remote Button Function
0 m/M To fast reverse or to fast
qa H (playback)/X
(pause, press again to resume normal playback)/x (stop)
qh BD/DVD TOP
MENU BD/DVD MENU
< Jumps backward.
w; wa ./> Skips chapters. wj INPUT Selects input.
forward the disc when pressed during playback.
Play mode buttons.
Displays the top menu/ disc menu.
To control the VCR
Remote Button Function
6 C, X, x, c, Selects a menu item and
8 MENU Displays the MENU. 0 m/M To fast reverse or to fast
qa H (playback)/X
(pause, press again to resume normal playback)/x (stop)
qs CH +/– Selects preset channels. qd REC z/REC STOP
x/REC MODE
wj INPUT Selects input.
enters the selection.
forward the disc when pressed during playback.
Play mode buttons.
Record mode buttons.
To control the HDD/DVD COMBO
Remote Button Function
6 C, X, x, c, Moves the highlight
8 MENU Displays the MENU.
, Advance.
9 0 m/M To fast reverse or to fast
qa H (playback)/X
(pause, press again to resume normal playback)/x (stop)
(cursor) and selects the item.
forward the disc when pressed during playback.
Play mode buttons.
Advanced Settings
continued
37
US
Page 38
Remote Button Function
qd REC z/REC STOP
x/REC MODE
qf F2 Selects the DVD. qg F1 Selects the HDD. qh BD/DVD TOP
MENU BD/DVD MENU
w;
< Changes to replay mode.
wa ./> Specifies the previous/next
wj INPUT Selects input.
Record mode buttons.
Displays the top menu/ disc
menu.
chapter/track.
To control the DVD/VIDEO COMBO
Remote Button Function
6 C, X, x, c, Moves the highlight
8 MENU Displays the MENU. 0 m/M To fast reverse or to fast
qa H (playback)/X
(pause, press again to resume normal playback)/x (stop)
qs CH +/– Changes channels for the
qd REC z/REC STOP
x/REC MODE
qf F2 Selects the DVD. qg F1 Selects the VCR. wa ./> Index search. wj INPUT Selects input.
(cursor) and selects the
item for the DVD.
Enter channel when you
select a channel using
number buttons for the
VCR.
forward the disc when
pressed during playback.
Play mode buttons.
VCR.
Adjusts tracking for the
VCR.
Records using the VCR.
Remote Button Function
qs CH +/– Changes channels. wd GUIDE Displays the guide menu. wf JUMP Press to jump back and
forth between two channels.
To control the cable box
Remote Button Function
qs CH +/– Changes channels. wf JUMP Press to jump back and
forth between two channels.
To control the CD player, DAT player, MD player, tape deck
Remote Button Function
0 m/M To fast reverse or to fast
qa H (playback)/X
(pause, press again to resume normal playback)/x (stop)
wa ./> Skips tracks.
Note
• The above explanations are intended to serve as an example only. Depending on the component, the above operations may not be possible, or may operate differently than described.
forward the disc when pressed during playback.
Play mode buttons.
To control the SAT
Remote Button Function
6 C, X, x, c, Selects a menu item and
8 MENU Displays the MENU.
US
38
enters the selection.
Page 39
Settings and adjustments
3 Press AMP MENU to turn off the AMP
menu.
using the amplifier menu
Using the AMP menu
You can set the following items with AMP MENU on the remote. The default settings are underlined.
AMP MENU
LEVEL
CUSTOMIZE
CNT LEVEL (center level)
SW LEVEL (subwoofer level)
CTRL: HDMI*
DUAL MONO
A/V SYNC
AUDIO DRC
DIMMER
DISPLAY
–6 to +6 (0)
–6 to +6 (0)
CTRL ON CTRL OFF
MAIN SUB MAIN+SUB
SYNC ON SYNC OFF
OFF STD MAX
DIMMER ON
DIMMER OFF
DSPL ON DSPL OFF
The following pages show details for each setting.
Advanced Settings
* For details, see ““BRAVIA” Sync Features”
(page 27).
1 Press AMP MENU to turn on the AMP
menu.
2 Press C/X/x/c repeatedly to select the
item and the setting.
continued
39
US
Page 40
Setting up the speakers level
You can adjust the level of the center speaker and subwoofer. This setting is applied to all sound fields.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
C, X, x, c,
S
N
S
O
I
L
T
P
O
O
O
H
M
T
E
O
M
U
E
N
4 Press x/X repeatedly to select “CNT
LEVEL (center speaker level)” or “SW LEVEL (subwoofer level).”
5 Press or c. 6 While monitoring the sound, press x/X
repeatedly to select the setting you want.
Default setting: 0 (dB) You can adjust from –6 (dB) to +6 (dB) in 1 (dB) steps.
7 Press AMP MENU.
The AMP menu turns off.
Tip
• If the subwoofer (not supplied) is connected, adjust the “SW LEVEL (subwoofer level)” (page 15).
AMP MENU
1 Start playing a source encoded with
multi channel surround effects (DVD, etc.).
2 Press AMP MENU. 3 Press x/X repeatedly until “LEVEL”
appears, then press or c.
US
40
Page 41
Enjoying multiplex broadcast sound (DUAL MONO)
You can enjoy multiplex broadcast sound when the unit receives an AC-3 multiplex broadcast signal.
Note
• To receive AC-3 signal, you need to connect a digital satellite tuner to the unit with an optical cable or coaxial cable, and set the digital output mode of the digital satellite tuner to AC-3.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
C, X, x, c,
S
N
S
O
I
L
T
P
O
O
O
H
M
T
E
O
M
U
E
N
2 Press x/X repeatedly until
“CUSTOMIZE” appears, then press or c.
3 Press x/X repeatedly until “DUAL
MONO”
appears, then press or c.
4 Press x/X to select the sound you want.
• MAIN: Plays back only the main channel.
• SUB: Plays back only the sub channel.
• MAIN+SUB: Main sound is output from the left speaker and sub sound is output from the right speaker.
5 Press AMP MENU.
The AMP menu turns off.
Advanced Settings
1 Press AMP MENU.
AMP MENU
continued
41
US
Page 42
Synchronizing the delay between the sound and the image (A/V SYNC)
You can delay the sound using this function when the image is slower than the sound.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
C, X, x, c,
S
N
S
O
I
L
T
P
O
O
O
H
M
T
E
O
M
U
E
N
• SYNC ON: Adjusts the difference
between picture and sound.
• SYNC OFF:Does not adjust.
5 Press AMP MENU.
The AMP menu turns off.
Notes
• You may not be able to adjust the delay between sound and image perfectly using this function.
• This function is useful only for Dolby Digital, DTS and Linear PCM (2ch) input by coaxial (audio), optical (audio) or HDMI.
AMP MENU
1 Press AMP MENU. 2 Press x/X repeatedly until
“CUSTOMIZE” appears, then press or c.
3 Press X/x repeatedly until “A/V SYNC”
appears, then press or c.
4 Press X/x to select the setting.
US
42
Page 43
Enjoying Dolby Digital sound at low volume (AUDIO DRC)
Narrows the dynamic range of the sound track. Useful for enjoying movies at low volume. AUDIO DRC only applies to Dolby Digital sources.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
C, X, x, c,
S
N
S
O
I
L
T
P
O
O
O
H
M
T
E
O
M
U
E
N
4 Press x/X to select the setting.
• OFF: No compression of dynamic range.
• STD: Reproduces the sound track with the kind of dynamic range that the recording engineer intended.
• MAX: Compresses dynamic range fully.
5 Press AMP MENU.
The AMP menu turns off.
Advanced Settings
1 Press AMP MENU. 2 Press x/X repeatedly until
“CUSTOMIZE” appears, then press or c.
3 Press x/X repeatedly until “AUDIO
DRC” appears, then press or c.
AMP MENU
continued
43
US
Page 44
Changing the brightness of the front panel display (DIMMER)
The brightness of the front panel display can be set to one of 2 levels.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
C, X, x, c,
S
N
S
O
I
L
T
P
O
O
O
H
M
T
E
O
M
U
E
N
4 Press X/x to select the brightness of
the front panel display.
• DIMMER ON: Low lighting.
• DIMMER OFF: Bright lighting.
5 Press AMP MENU.
The AMP menu turns off.
AMP MENU
1 Press AMP MENU. 2 Press x/X repeatedly until
“CUSTOMIZE” appears, then press or c.
3 Press X/x repeatedly until “DIMMER”
appears, then press or c.
US
44
Page 45
Changing the display setting (DISPLAY)
You can change the display setting.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
C, X, x, c,
S
N
S
O
I
L
T
P
O
O
O
H
M
T
E
O
M
U
E
N
4 Press x/X to select the setting of the
front panel display.
• DSPL ON: The display appears all the
time.
• DSPL OFF:The display appears for a
moment when you operate the unit.
Note
• The display a ppears all the time when the muting
or protection function is working, even if you set the “DISPLAY” to “DSPL OFF.”
5 Press AMP MENU.
The AMP menu turns off.
Advanced Settings
AMP MENU
1 Press AMP MENU. 2 Press x/X repeatedly until
“CUSTOMIZE” appears, then press or c.
3 Press x/X repeatedly until “DISPLAY”
appears, then press or c.
continued
45
US
Page 46
Using the sleep timer
You can set the unit to turn off at a preset time when you sleep listening to music. You can preset the time in 10 minutes decrements.
D
I
S
E
D
I
U
G
P
L
A
Y
To check the remaining time
Press SLEEP once.
To change the remaining time
Press SLEEP repeatedly to select the desired time.
To cancel the Sleep Timer function
Press SLEEP repeatedly until “SLEEP OFF” appears.
Note
• This function is only for this unit, not for the connected TV or other components.
R
E
T
U
R
N
H
O
M
S
N
S
O
I
L
T
P
O
O
O
T
E
M
U
E
N
SLEEP
Press SLEEP.
Each time you press this button, the minutes display (the remaining time) changes as follows:
SLEEP 90M t SLEEP 80M t SLEEP 70M
Rr
SLEEP OFF T SLEEP 10M ..... SLEEP 60M
US
46
Page 47
Additional Information
Troubleshooting
If you experience any of the following difficulties while using the unit, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.
General
The power is not turned on.
• Check that the AC power cord (mains lead) is connected securely.
If “PROTECTOR” and “PUSH POWER” appears alternately in the front panel display.
Press POWER to turn off the system, and check the following item after “STANDBY” disappears.
• Is anything blocking the ventilation holes of the unit? After checking the above item and fixing any problems, turn on the unit. If the cause of the problem cannot be found even after checking the above item, consult your nearest Sony dealer.
Dolby Digital or DTS multi channel sound is not reproduced.
• Check that the playing Blu-ray Disc, DVD, etc., is recorded in Dolby Digital or DTS format.
• When connecting the Blu-ray Disc, DVD player, etc., to the digital input jacks of this unit, check that audio setting (settings for the audio output) of the connected component.
The surround effect cannot be obtained.
• Install the unit allowing for a space of at least 300 mm (11 right and left (page 8).
• Depending on the digital signal, the surround processing may not work (page 22).
7
/8 inches) or more on the
No sound or only a very low-level sound is heard from the speakers.
• Press VOL + and check the volume level.
• Press MUTING or VOL + to cancel the muting function.
• Press SOUND FIELD and check the selected sound field.
• Depending on the source, the sound effect of the speakers may be less noticeable.
Radio stations cannot be tuned in.
• Check that the antenna (aerial) is connected securely.
• Adjust the antenna (aerial) or connect an external antenna (aerial) if necessary.
• The signal strength of the stations is too weak (when tuning in with automatic tuning). Use direct tuning.
• No stations have been preset or the preset stations have been cleared (when tuning by scanning preset stations). Preset the stations (page 24).
• Check that the current frequency is correct.
The image is delayed compared to the sound of the TV.
• Set “A/V SYNC” to “SYNC OFF” when “A/ V SYNC” is set to “SYNC ON” (page 42).
Connected components
There is no sound or only a very low-level sound no matter which component is selected.
• Check that this unit and components are connected correctly and securely.
• Check that both this unit and the selected component are turned on.
There is no sound from the selected component.
• Check that the component is connected correctly to the audio input jacks for that component.
• Check that the cords are fully inserted into the jacks on both the component and this unit.
• Check that the component is selected correctly.
Additional Information
continued
47
US
Page 48
• If you resume play a disc when volume is maximum, there may be no sound. In this case, turn down the volume, turn off the unit and turn on again.
Sound is interrupted or there is noise.
• Check the output audio formats supported by this unit on page 49.
There is no picture or an unclear picture appears on the TV screen.
• Check that the TV is connected correctly.
• Check that the TV is selected correctly.
• Set the TV to the appropriate input mode.
• Check that the component is connected correctly to the video input jacks for that component.
• Check that the cords are fully inserted into the jacks on both the component and this unit.
Control for HDMI
The Control for HDMI function does not work.
• Check the HDMI connection (page 9).
• Make sure “CTRL: HDMI” is set to “CTRL ON” in AMP menu.
• Make sure the connected component is compatible with the Control for HDMI function.
• Check the Control for HDMI settings on the connected component. Refer to the operating instructions supplied with the connected component.
• If you change the HDMI connection, or connect/disconnect the AC power cord (mains lead), or if there is a power failure, repeat the procedures of “Preparing for the “BRAVIA” Sync” (page 27).
• The system may not work correctly if you select a component that is not compatible with the Control for HDMI function on the TV side.
No sound is output from the system and the TV’s speaker.
• Check the volume of the system and the TV.
• Select the input of the system correctly.
The sound is output from both the system and the TV.
• If the Control for HDMI function is set to off, or the selected component is not compatible with the Control for HDMI function, turn off the sound of the unit or the TV.
The System Power Off function does not work.
• Change the setting of the TV to turn connected components off automatically when you turn off the TV. For details, refer to the operating instructions of the TV.
An image does not appear on the TV.
• Check whether HDMI IN and HDMI OUT are connected correctly.
Other
The remote does not function.
• Point the remote at the remote sensor on the unit.
• Remove any obstacles in the path between the remote and the unit.
• Replace both batteries in the remote with new ones, if they are weak.
• Make sure you select the correct input on the remote.
If the unit still does not operate properly after performing the above measures, reset the unit as follows:
Use buttons on the unit for the operation.
1 Press ?/1 to turn on the power. 2 Press INPUT SELECTOR, VOLUME –
and ?/1 at the same time.
“COLD RESET” appears and the unit is reset. AMP menu, sound field etc., return to the default settings.
48
US
Page 49
Specifications
Dimensions: mm (inch)
Weight: kg (oz) 12.4 (27 lb 6 oz)
A 1,134 (44 3/4) B 138.5 (5 C 172 (6
1
/2)
7
/8)
Formats supported by this unit
Digital input formats supported by this unit are as follows.
Format Supported/Not supported
Dolby Digital a DTS a Linear PCM (2ch)* a Linear PCM (5.1ch,
7.1ch)* (Only on HDMI)
Dolby Digital Plus × Dolby True HD × DTS-HD ×
* Linear PCM accepts sampling frequencies of no
more than 48 kHz.
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 8 ohms loads, both channels driven, from 200 ­20,000 Hz; rated 40 Watts per channel minimum RMS power, with no more than 1 % total harmonic distortion from 250 milli Watts to rated output.
Amplifier section
Reference Output Power Surround mode
Front: 50 Watts/ch (8 ohms at 1 kHz, THD 10 %) Center*: 50 Watts/ch (8 ohms at 1 kHz, THD 10 %) Surround*: 50 Watts/ch (8 ohms at 1 kHz, THD 10 %) Subwoofer: 100 Watts/ch (4 ohms at 100 Hz, THD 10 %)
* Depending on the sound field settings and the source,
there may be no sound output.
Inputs (Analog) TV, LINE Sensitivity: 700 mV
Impedance: 33 kohms Inputs (Digital) TV, BD/DVD Optical
a
Additional Information
continued
49
US
Page 50
SAT Coaxial
Impedance: 75 ohms
Optical Outputs (Analog) Subwoofer Pin jack
Voltage: 0.775 V RMS
Impedance: 1 kohm
HDMI section
Connector HDMI 19pin-standard
connector Video inputs/outputs SAT, BD/DVD:
640 × 480p@60 Hz
720 × 480p@59.94/60 Hz
1440 × 480p@59.94/60 Hz
(pixel sent 2 times)
1280 × 720p@59.94/60 Hz
1920 × 1080i@59.94/
60 Hz
1920 × 1080p@59.94/
60 Hz
720 × 576p@50 Hz
1440 × 576p@50 Hz
(pixel sent 2 times)
1280 × 720p@50 Hz
1920 × 1080i@50 Hz
1920 × 1080p@50 Hz
1920 × 1080p@24 Hz Audio inputs SAT, BD/DVD INPUT:
Linear PCM 7.1ch/
Dolby Digital/ DTS
Tuner section
System PLL quartz-locked digital
synthesizer FM tuner section Tuning range 87.5 – 108.0 MHz
(100 kHz step) Antenna (aerial) FM wire antenna (aerial) Antenna (aerial) terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz
Speakers Front
Speaker units 50 mm (2 inches) cone type
× 2
Surround
Speaker unit 50 mm (2 inches) cone type
× 2
Subwoofer
Speaker unit 100 mm (4 inches) cone
type × 2
General
Power requirements AC 120 V/60 Hz Power consumption On: 85 Watts
Power output (DIGITAL MEDIA PORT)DC OUT: 5 V, 700 mA
Dimensions (approx.) 1,134 × 138.5 × 172 mm
Mass (approx.) 12.4 kg (27 lb 6 oz) Supplied accessories Optical cable (1 m)
Design and specifi cations are subject to c hange without notice.
• Standby power consumption 0.3 W.
• Halogenated flame retardants are not used in the printed wiring boards.
• Over 85 % power efficiency of amplifier block is achieved with the full digital amplifier, S-Master.
• Halogenated flame retardants are not used in cabinets.
Control for HDMI is on:
1.5 Watts or more Standby (Control for HDMI is off):
0.3 Watts
3
/4 × 5 1/2 × 6 7/8
(44 inches) (w/h/d) incl. projecting parts
3
/8inches) (1)
(39 Remote commander (RM­ANP009) (1) Size AA (R6) batteries (2) FM wire antenna (aerial) (1) Operating Instructions (1)
Center
Speaker unit 50 mm (2 inches) cone type
US
50
Page 51
Glossary
Dolby Digital
This movie theater sound format is more advanced than Dolby Surround Pro Lo gic. In this format, the surround speakers output stereo sound with an expanded frequency range, and a subwoofer channel for deep bass is independently provided. This format is also called “5.1” with the subwoofer channel designed as the 0.1 channel (since it functions only when a deep bass effect is needed). All six channels in this format are recorded separately for superior channel separation. Furthermore, since all the signals are processed digitally, less signal degradation occurs.
Dolby Pro Logic II
Dolby Pro Logic II creates five full-bandwidth output channels from 2 channel sources. This is done using an advanced, high-purity matrix surround decoder that extracts the spatial properties of the original recording without adding any new sounds or tonal colorations.
DTS
Digital audio compression technology developed by Digital Theater Systems, Inc. This technology conforms to 5.1-channel surround. This format comprises of stereo rear channel and there is discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio. The good channel separation is realized due to the all channel data being recorded discretely and processed in digitally.
HDMI
HDMI (High-Definition Multimedia Interface) is an interface that supports both video and audio on a single digital connection, allowing you to enjoy high quality digital picture and sound. The HDMI specification supports HDCP (High­bandwidth Digital Contents Protection), a copy protection technology that incorporates coding technology for digital video signals.
PCM (Pulse Code Modulation)
A method of converting analog audio to digital audio for easy enjoyment of digital sound.
S-Force PRO Front Surround
Sony’s long-term involvement in surround technology (and the vast amounts of acoustic data accumulated as a result) has led to the development of all-new processing method and advanced DSP to handle this task effectively, which we call S-Force PRO Front Surround. Compared with previous front surround technologies, S-Force PRO Front Surround reproduces a more convincing sense of distance and space, resulting in a true surround sound experience without the need for rear speakers.
S-Master
S-Master is an all-digital amplifier technology developed by Sony, which effectively minimizes the occurrence of sound fragmentation and jitter, delivering superb dialog clarity and faithful reproduction of the original sound. The compact amplifier section supports a higher power efficiency and improved thermal performance.
x.v.Color
x.v.Color is a more familiar term for the xvYCC standard proposed by Sony, and is a trademark of Sony. xvYCC is an international standard for color space in video. This standard can express a wider color range than the currently used broadcast standard.
Additional Information
51
US
Page 52
Index
A
A/V SYNC 42 AMP menu AUDIO DRC
39
43
B
Blu-ray Disc player (recorder)
connecting
9
C
CD player
connecting
13
D
DIGITAL MEDIA PORT
connecting DIMMER DISPLAY DUAL MONO DVD player (recorder)
connecting 9, 11
14 44 45
41
H
HDMI
connecting
9
R
Remote
before use operating programming
7
18
32
S
Satellite tuner
connecting Setting S-Force PRO Front Surround Sleep timer Sound field Speakers level
9, 11
8
46
22
40
V
VCR
connecting
13
6
I
Input SYNC 31
N
NIGHT mode 23
P
“PlayStation 3”
connecting
US
52
9
Page 53
Page 54
3
AVERTISSEMENT
Afin de réduire les risques d’incendie ou de choc électrique, n’exposez pas cet appareil à la pluie ni à l’humidité.
Le récepteur n’est pas déconnecté du secteur tant qu’il reste branché sur la prise secteur, même si l’appareil proprement dit a été mis hors tension.
Les piles ou les app areils contenant des piles ne doivent pas être exposés à une chaleur excessive comme aux rayons du soleil, à du feu, etc.
N’installez pas cet appareil dans un endroit confiné, comme sur une étagère ou un meuble TV intégré.
Pour les clients aux États-Unis
Ce symbole est destiné à avertir l’utilisateur de la présence d’une « tension dangereuse »
non isolée dans le boîtier du produit don’t l’amplitude peut être suffisante pour constituer un risque d’électrocution.
Ce symbole est destiné à avertir l’utilisateur
de la présence d’instructions d’utilisation et
de maintenance (entretien) importantes dans la documentation qui accompagne l’appareil.
Consignes de sécurité importantes
1) Lisez ces instructions.
2) Conservez ces instructions.
3) Tenez compte de tous les avertissements.
4) Respectez toutes les instructions.
5) N’utilisez pas cet appareil à proximité de l’eau.
6) Nettoyez l’appareil uniquement avec un chiffon sec.
7) Ne bloquez pas les ouvertures de ventilation. Installez l’appareil conformément aux instructions du fabricant.
8) N’installez pas l’appareil à proximité d’une source de chaleur, telle qu’un radiateur, un poêle, une cuisinière ou d’autres appareils (notamment des amplificateurs) qui dégagent de la chaleur.
9) Pour des raisons de sécurité, veillez à utiliser une fiche polarisée ou une fiche avec terre. Une fiche polarisée possède deux lames dont une est plus large que l’autre. Une fiche avec terre possède deux lames et une broche de mise à la masse. La lame large ou la troisième broc he sont prévues pour votre sécurité. Si la fiche fournie n’est pas adaptée à la prise, consultez un électricien pour remplacer la prise obsolète.
10) Protégez le cordon d’alimentation afin d’éviter qu’il soit piétiné ou pincé, en particulier au niveau des fiches, des prises multiples et du point de sortie de l’appareil.
11) Utilisez uniquement des options/accessoires spécifiés par le fabricant.
12) Utilisez l’appareil uniquement avec le chariot, le socle, le trépied, le support ou la table spécifiés par le fabricant ou vendus avec l’appareil. Si vous utilisez un chariot, soyez prudent lors du déplacement de la combinaison chariot/appareil afin d’éviter de vous blesser lors du transport.
Pour les clients au Canada
Pour prévenir tout risque d’in cendie ou d’électrocution, ne placez pas d’objets remplis de liquides, comme des vases, sur l’appareil.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
FR
2
13) Débranchez l’appareil pendant les orages ou lorsque vous ne l’utilisez pas pendant des périodes prolongées.
14) Tout entretien ne peut être effectué que par un technicien qualifié. Un entretien est nécessaire si l’appareil a été endommagé d’une quelconque manière, par exemple si le cordon ou la fiche d’alimentation est endommagé, si du liquide a pénétré dans l’appareil ou si des objets sont tombés à l’intérieur de celui-ci, s’il a été exposé à la pluie ou à l’humidité, s’ il ne fonctionne pas normalement ou s’il a subi une chute.
Page 55
AVERTISSEMENT
Cet appareil a été soumis à l’essai et s’est avéré conforme aux limites pour un appareil numérique de classe B, conformément à la section 15 de la réglementation FCC. Ces normes sont conçues pour assurer une protection raisonnable contre les interférences nuisibles dans un environnement résidentiel. Cet appareil génère, utilise et peut émettre de l’énergie radioélectrique et, s’il n’est pas installé ou utilisé selon les directive s, peut causer des interférenc es nuisibles aux communications radio. Cependant, il n’existe aucune garantie que des interférences ne se produiront pas dans une installation particulière. Si ce matériel est la source d’interférences nuisibles pour la réception radio ou télévision, ce qui peut être déterminé en éteignant, puis en rallumant l’appareil, il est recommandé d’élimine r ces interférences en appliquant une ou plusieurs des mesures suivantes : – Réorienter ou déplacer l’antenne réceptrice ;
– Éloigner l’appareil du récepteur ; – Brancher l’appareil dans une prise d’un circuit
différent de celui qui alimente le récepteur ;
– Consulter le détaillant ou un technicien radio ou
télévision qualifié pour obtenir de l’aide.
PRÉCAUTIONS
L’utilisateur est avisé que toute modification non expressément approuvée dans ce mode d’emploi pourrait entraîner l’annulation des droits d’utilisation de cet appareil.
Remarque à l’attention de l’installateur du système de télévision par câble :
Ce rappel est destiné à attirer l’attention de l’installateur du système de télévision par câble conformément à l’Article 820-40 du NEC qui fournit des instructions pour une mise à la terre correcte et qui stipule, en particulier, que la masse du câble doit être raccordé au système de mise à la terre du bâtiment, le plus près possible du point d’entrée du câble.
Archives du propriétaire
Les numéros de modèle et de série se trouvent à l’arrière de l’appareil. Indiquez les numéros de série dans les espaces prévus à cet effet ci-dessous. Vous devrez vous y référer lors d’un appel à votre revendeur Sony au sujet de ce produit.
N° de modèle RHT-S10
N° de sér ie
Cet appareil intègre les systèmes Dolby* Digital et Pro Logic Surround, ainsi que DTS** Digital Surround System.
* Fabriqué sous licence de Dolby Laboratories.
Les termes Dolby et Pro Logic, ainsi que le sigle double D sont des marques commerciales de Dolby Laboratories.
**Fabriqué sous licence des brevets américains
suivants : 5 451 942 ; 5 956 674 ; 5 974 380 ; 5 978 762 ; 6 487 535, ainsi que d’autres brevets délivrés ou en instance aux États-Unis et dans le monde. DTS et DTS Digital Surround sont des marques déposées et les logos et le symbole DTS sont des marques de commerce de DTS, Inc. © 1996-2007 DTS, Inc. Tous droits réservés.
Cet appareil intègre la technologie High­Definition Multimedia Interface (HDMI™).
HDMI, le logo HDMI et High-Definition Multimedia Interface sont des marques ou des marques déposées de HDMI Licensing LLC.
« BRAVIA » est une marque de Sony Corporation.
FR
FR
3
Page 56
Table des matières
Précautions...............................................5
Principales fonctions................................6
Mise en route
Accessoires fournis..................................7
Installation de l’appareil ..........................8
Connexion de composants équipés de
prises HDMI .....................................9
Connexion de composants ne disposant
pas de prises HDMI ........................11
Réglage de la sortie audio du composant
raccordé ...........................................12
Connexion d’un magnétoscope ou d’un
composant audio..............................13
Connexion de l’adaptateur DIGITAL
MEDIA PORT.................................14
Connexion du caisson de graves............15
Options de lecture
Index des composants et des
commandes......................................16
Regarder la télévision ............................19
Utilisation d’autres composants.............20
Fonction Surround
Reproduction de l’effet surround...........22
Fonctions du tuner
Présélection des stations de radio ..........24
Ecoute de la radio...................................26
Caractéristiques de « BRAVIA » Sync
A quoi sert « BRAVIA » Sync ?............28
Préparation à l’utilisation de « BRAVIA »
Sync .................................................29
Lecture d’un Blu-ray Disc/DVD............30
(Lecture une touche) Ecoute du son du téléviseur via les
enceintes ..........................................31
(Commande du son du système) Mise hors tension du téléviseur, de
l’appareil et des composants
raccordés..........................................32
(Mise hors tension du système)
Configuration avancée
Modification de l’entrée vidéo du
téléviseur simultanément avec l’entrée de l’appareil (uniquement pour l’entrée SYNC : téléviseur Sony) ... 33
Programmation de la télécommande pour
d’autres composants........................ 35
Commande des composants
raccordés ......................................... 38
Sélections et réglages à l’aide du menu de
l’amplificateur................................. 43
Utilisation de la minuterie
d’endormissement...........................50
Informations complémentaires
Dépannage............................................. 51
Caractéristiques.....................................53
Glossaire................................................55
Index...................................................... 57
FR
4
Page 57
Précautions
Concernant la sécurité
Si un objet ou du liquide venait à pénétrer à l’intérieur de l’appareil, débranchez-le et faites-le vérifier par un technicien qualifié avant de le remettre en marche.
Concernant les sources d’alimentation
• Avant de mettre en marche l’appareil, vérifiez que la tension de fonctionnement est identique à celle de votre source d’alimentation locale. La tension de fonctionnement est indiquée sur l’étiquette située à l’arrière de l’appareil.
• Si vous prévoyez de ne pas utiliser l’appareil pendant une période prolongée, assurez-vous de le déconnecter de la prise secteur. Pour déconnecter le cordon d’alimentation, tirez sur la fiche et non sur le cordon.
• Une des lames de la fiche est plus large que l’autre pour assurer une meilleure sécurité et ne peut être insérée dans la pri se secteur que dans un sens. Si vous ne pouvez pas insérer la fiche dans la prise secteur, contactez votre revendeur.
• Le cordon d’alimentation doit être remplacé uniquement dans un centre de service après-vente qualifié.
• Installez cet appareil de façon à ce que vous puissiez débrancher immédiatement le cordon d’alimentation de la prise murale en cas de problème.
Concernant l’accumulation de chaleur
Bien que l’appareil chauffe lors du fonctionnement, il ne s’agit pas d’un dysfonctionnement. Si vous utilisez l’appareil continuellement à un volume élevé, la température augmente considérablement au niveau de ses faces supérieure, inférieure et latérales. Pour éviter de vous brûler, ne touchez pas l’appareil.
Concernant l’emplacement
• Installez l’appareil dans un endroit correctement ventilé afin d’éviter l’accumulation de chaleur et de prolonger la durée de vie de votre appareil.
• Faites attention lorsque vous installez l’appareil sur
des surfaces traitées (avec de la cire, de l’huile, etc.), car vous risquez de les tacher et de les décolorer.
• Vous risquez d’endommager le revêtement de sol si
du sable ou des saletés, par exemple , sont coincés sous les pieds de l’appareil.
Concernant le fonctionnement
Avant de raccorder d’autres composants, assurez-vous d’éteindre et de débrancher l’appareil.
Si un téléviseur proche présente des couleurs irrégulières
L’appareil dispose d’un blindage magnétique afin de pouvoir être installé à proximité d’un téléviseur. Il se peut néanmoins que des irrégularités apparaissent sur certains types de téléviseurs.
Si vous remarquez des couleurs irrégulières...
Eteignez le téléviseur, puis rallumez-le après 15 à 30 minutes.
Si vous remarquez encore des couleurs irrégulières...
Eloignez l’appareil du téléviseur.
Concernant l’entretien
Nettoyez l’appareil uniquement avec un linge sec et doux. N’utilisez pas de tampons abrasifs, de poudre à récurer ou de solvant tel que de l’alcool ou de la benzine.
Pour toute question ou tout problème concernant votre appareil, n’hésitez pas à consulter votre revendeur Sony le plus proche.
FR
5
Page 58
Principales fonctions
B Connexion aisée grâce à l’interface HDMI
b
Les câbles sont tous emmêlés. Raccordements nets (page 9).
B Utilisation aisée
b
Quelle télécommande ? Une seule ! (page 35)
B Paramètres surround aisés
b
J’ai besoin d’un grand nombre de câbles et d’enceintes.
A propos de S-Force PRO Front Surround
Sony est impliqué depuis longtemps dans la technologie surround (et a ainsi pu accumuler une somme considérable de données acoustiques), ce qui a permis le développement d’une toute nouvelle méthode de traitement et d’un nouveau DSP avancé pour mener à bien cette tâche. Cette nouvelle technologie, nous l’avons baptisée S-Force PRO Front Surround.
Par rapport aux anciennes technologies surround avant, S-Force PRO Front Surround restitue une impression d’espace et de distance plus convaincante, recréant ainsi un véritable son surround sans nécessiter d’enceintes arrière.
FR
6
Configuration aisée et son de haute qualité avec S-Force PRO Front Surround.
Zone surround recommandée
Vous pouvez profiter du son surround dans les zones où le son est diffusé, comme illustré ci­dessous.
Page 59
Mise en route
Accessoires fournis
Vérifiez que les accessoires suivants sont fournis dans l’emballage.
Câble optique (1 m) (39 3/8 pouces) (1) Télécommande (RM-ANP009) (1)
Piles AA (R6) (2) Fil d’antenne FM (1) Kit de Fixation Murale (WS-S10WA) (1)
Mode d’emploi (1)
Insertion des piles dans la télécommande
Vous pouvez commander l’appareil au moyen de la télécommande fournie. Insérez deux piles AA (R6) en faisant correspondre les pôles + et – des piles avec les inscriptions situées à l’intérieur du compartiment.
Mise en route
Remarques
• Ne laissez pas la télécommande dans un endroit extrêmement chaud ou humide.
• N’utilisez pas simultanément une pile neuve et une pile usagée.
• Ne laissez rien tomber dans le boîtier de la télécommande, en particulier lorsque vous remplacez les piles.
• N’exposez pas le capteur de télécommande à la lumière directe du soleil ou d’une lampe. Vous risqueriez de l’endommager.
• Si vous ne prévoyez pas d’utiliser la télécommande pendant une période prolongée, retirez les piles pour éviter qu’elles fuient et génèrent de la corrosion, endommageant ainsi la télécommande.
FR
7
Page 60
• Choisissez le mur qui dispose de la meilleure
Installation de l’appareil
réception pour y fixer le fil d’antenne FM.
• Il est déconseillé d’utiliser le fil d’antenne FM enroulé.
Installez l’appareil en prenant soin de laisser un espace de 300 mm (11
7
/8 pouces) ou plus par
• Vérifiez que le fil d’antenne FM est bien introduit dans la prise.
rapport aux murs situés à sa droite et à sa gauche.
AA
MULTI CH
MULTI CH
POWER / HDMI POWER
POWER / HDMI POWER INPUT
INPUT
SELECTOR
SELECTOR
VOLUME
PRESET
VOLUME
PRESET
+
-
+
-
+
-
+
-
B
Caisson de graves
A 300 mm (11 7/8 pouces) B 50 mm (2 pouces)
Conseil
• Si vous disposez d’une mauvaise réception FM, utilisez un câble coaxial 75 ohms (non fourni) pour
Connexion du fil d’antenne FM
Connectez le fil d’antenne FM à la prise FM 75 Ω COAXIAL ANTENNA.
raccorder l’appareil à une antenne FM extérieure.
Connexion du cordon d’alimentation
1 Connectez les composants à l’appareil.
Pour plus de détails sur la connexion des composants, reportez-vous de la page 9 à la page 13.
2 Connectez le cordon d’alimentation de
l’appareil à la prise murale.
Remarque
• Installez le système assez près de la prise murale afin de pouvoir débrancher le cordon d’alimentation de la prise murale en cas de problème.
Installation de l’appareil
Installez l’appareil une fois tous les composants connectés. Lors de l’installation de l’appareil, prenez soin de laisser un espace d’au moins 50 mm (2 pouces) par rapport au mur arrière et de 300 mm (11 murs situés à sa droite et à sa gauche. Ces précautions permettent un bonne dissipation de la chaleur, un effet surround satisfaisant, et évitent la chute du téléviseur.
Remarque
• Il est déconseillé de poser une carte magnétique (par exemple, une carte de crédit) à proximité des enceintes. En effet, la carte peut être démagnétisée par l’aimant des enceintes.
SAT IN
HDMI
BD/DVD IN
TV OUT
ANTENNA
FM 75
COAXIAL
Fil d’antenne FM (fournie)
Prise FM 75 Ω COAXIAL ANTENNA
Remarques
• Réglez l’orientation du fil d’antenne FM pour vous faire profiter du meilleur son possible pour vos programmes FM.
ANTENNA
FM 75
COAXIAL
7
/8 pouces) ou plus par rapport aux
FR
8
Page 61
Connexion de composants équipés de prises HDMI
Mise en route
Il est recommandé de connecter les composants à l’appareil à l’aide d’un câble HDMI. HDMI permet de bénéficier aisément d’un son et d’images de haute qualité.
Il est toutefois nécessaire de connecter la sortie audio du téléviseur à l’entrée audio de l’appareil à l’aide d’un câble optique ou d’un cordon audio pour écouter le son de votre
Téléviseur, projecteur, etc.
Signal audio/vidéo
INPUT
SAT IN
HDMI
BD/DVD IN
TV OUT
ANTENNA
FM 75
COAXIAL
téléviseur par le biais de l’appareil.
Pour plus de détails sur la fonction de la Commande pour HDMI, reportez-vous à la section « Caractéristiques de « BRAVIA » Sync » (page 28).
Lorsque vous avez connecté tous les composants à l’appareil, raccordez le cordon d’alimentation.
Signal audio
OUTPUT
OUTPUT
ou
BA
C
DMPORT
DC 5V
0.7A MAX
LINE
LL
RR
TV SAT
OPTICALTVOPTICAL
ANALOG IN DIGITAL IN
COAXIAL
SUB WOOFER
OPTICAL
BD/DVD
OUT
AA
OUTPUT OUTPUT
Signal audio/ vidéo
Tuner satellite
A Câble HDMI (non fourni) B Câble optique (fourni) C Cordon audio (non fourni)
Signal audio/ vidéo
Lecteur (enregistreur) Blu-ray Disc, lecteur (enregistreur) DVD, « PlayStation 3 »
: Sens du signal
suite
FR
9
Page 62
Remarques
• Pour savoir comment connecter un composant dépourvu de prise HDMI, reportez-vous à la page 11.
• Lorsque vous connectez un composant à l’appareil à l’aide de HDMI, DIGITAL IN COAXIAL, DIGITAL IN OPTICAL et ANALOG IN simultanément, la prise HDMI est prioritaire.
• Lorsq ue vous connectez simultanément l a sortie audio de votre téléviseur aux prises DIGITAL IN OPTICAL et ANALOG IN du système, la prise DIGITAL IN OPTICAL est prioritaire.
Remarques sur les connexions HDMI
• Vous pouvez profiter d’images de haute qualité
en utilisant un câble HDMI portant le logo HDMI. Nous vous recommandons d’utiliser un câble HDMI Sony.
• Si la qualité d’image est médiocre ou si le son
n’est pas reproduit par un composant connecté à l’aide du câble HDMI, vérifiez la configuration de ce composant.
• Il se peut que les signaux audio (fréquence
d’échantillonnage, longueur binaire, etc.) transmis par une prise HDMI soient supprimés par le composant connecté.
• Le son peut être interrompu en cas de
modification d e la fréquence d’échantillon nage ou du nombre de canaux des signaux audio provenant du composant utilisé pour la lecture.
• Si le composant connecté n’est pas compatible
avec la technologie de protection des droits d’auteur (HDCP), l’image et/ou le son provenant de la prise HDMI TV OUT peuvent être déformés ou absents. Dans ce cas, veuillez vérifier les caractéristiques du composant.
• Nous déconseillons d’utiliser un câble de
conversion HDMI-DVI.
• Quelle que soit l’entrée sélectionnée pour
l’appareil, les signaux vidéo provenant de la prise d’entrée HDMI (BD/DVD IN, SAT IN) sélectionnée en dernier sont reproduits par la prise HDMI TV OUT.
• Cet appareil prend en charge la transmission
x.v.Color étendue par HDMI ver1.3.
10
FR
Page 63
Connexion de composants ne disposant pas de prises HDMI
Mise en route
Lorsque vous connectez un lecteur (enregistreur) DVD, un tuner satellite, une « Playstation 2 », etc., ne disposant pas de prise HDMI, raccordez­les à l’appareil par l’entremise de la prise DIGITAL IN OPTICAL ou DIGITAL IN COAXIAL. Si le tuner satellite ne dispose pas d’une prise OPTICAL OUT, raccordez-le à l’appareil par
CB
HDMI
SAT IN
BD/DVD IN
TV OUT
ANTENNA
FM 75
COAXIAL
l’intermédiaire de la prise DIGITAL IN COAXIAL. Il n’est pas nécessaire dans ce cas de raccorder tous les câbles. Connectez les cordons audio aux prises correspondantes de vos composants. Raccordez le cordon d’alimentation en dernier.
* « PlayStation 2 » est une marque commerciale de
Sony Computer Entertainment Inc.
Téléviseur, projecteur, etc.
OUTPUT
DMPORT
DC 5V
0.7A MAX
Signal audio
ou
LINE
LL
RR
ANALOG IN DIGITAL IN
OUTPUT
TV
OPTICAL OPTICAL
TV SAT
COAXIAL
Signal vidéo
INPUT
Signal vidéo
SUB WOOFER
OUT
OPTICAL
BD/DVD
: Sens du signal
D
OUTPUT
AA
OUTPUT
OUTPUT
ou
Signal audio
Signal vidéo
Tuner satellite
A Câble optique (non fourni) B Câble optique (fourni) C Cordon audio (non fourni) D Câble numérique coaxial (non fourni)
OUTPUT
OUTPUT
Signal audio Signal vidéo
Lecteur (enregistreur) DVD, « P layStation 2 », etc.
suite
11
FR
Page 64
Remarque
• Lorsq ue vous connectez simultanément l a sortie audio de votre téléviseur aux prises DIGITAL IN OPTICAL et ANALOG IN du système, la prise DIGITAL IN OPTICAL est prioritaire.
Réglage de la sortie audio du composant raccordé
Selon les paramètres de sortie audio du composant raccordé, le son ne peut être reproduit qu’au format 2 canaux. Si tel est le cas, réglez le composant raccordé afin que le son soit reproduit au format multi-canaux (PCM, DTS, Dolby Digital). Pour plus de détails sur les paramètres de sortie audio, reportez-vous au mode d’emploi fourni avec le composant raccordé.
12
FR
Page 65
Connexion d’un magnétoscope ou d’un composant audio
Mise en route
Connectez cet appareil à un magnétoscope ou un composant audio à l’aide des prises LINE IN.
SAT IN
HDMI
BD/DVD IN
TV OUT
ANTENNA
FM 75
COAXIAL
OUTPUT
Raccordez le cordon d’alimentation en dernier.
TV
DMPORT
DC 5V
0.7A MAX
A
Signal audio
Signal vidéo
INPUT
LINE
TV
LL
RR
TV SAT
OPTICAL OPTICAL
ANALOG IN DIGITAL IN
OUTPUT
COAXIAL
Vers la prise d’entrée vidéo
SUB WOOFER
OUT
OPTICAL
BD/DVD
Signal vidéo
A Cordon audio (non fourni)
Signal vidéo
Magnétoscope, lecteur CD
: Sens du signal
Vers la prise de sortie vidéo
13
FR
Page 66
Connexion de l’adaptateur DIGITAL MEDIA PORT
Vous pouvez profiter du son du composant raccordé à l’appareil en connectant l’adaptateur DIGITAL MEDIA PORT.
HDMI
SAT IN
BD/DVD IN
Adaptateur DIGITAL MEDIA PORT
Remarques
• Il est déconseillé de connecter ou de déconnecter l’adaptateur DIGITAL MEDIA PORT lorsque l’appareil est sous tension.
• Lorsque vous connectez l’adaptateur DIGITAL MEDIA PORT, vérifiez que le connecteur est bien inséré, avec le repère fléché dirigé vers celui de la prise DMPORT. Pour débrancher l’adaptateur DIGITAL MEDIA PORT, maintenez retirez le connecteur.
ANTENNA
TV OUT
A enfoncé puis
FM 75
COAXIAL
Raccordez le cordon d’alimentation en dernier.
DMPORT
DC 5V
0.7A MAX
LINE
TV
LL
RR
ANALOG IN DIGITAL IN
TV SAT
OPTICAL OPTICAL
: Sens du signal
COAXIAL
SUB WOOFER
OPTICAL
BD/DVD
OUT
14
A
FR
Page 67
Connexion du caisson de graves
L’appareil est équipé d’un caisson de graves intégré. Vous pouvez toutefois accroître vos graves en connectant un caisson de graves externe à l’appareil à l’aide d’un cordon de raccordement audio. Raccordez le cordon d’alimentation en dernier.
Mise en route
SAT IN
HDMI
BD/DVD IN
TV OUT
ANTENNA
FM 75 COAXIAL
A Cordon de raccordement audio (non fourni)
DMPORT
DC 5V
0.7A MAX
Prise d’entrée
: Sens du signal
LINE
TV
LL
RR
ANALOG IN DIGITAL IN
TV SAT
COAXIAL
OPTICAL OPTICAL
Caisson de graves
SUB WOOFER
OPTICAL
BD/DVD
OUT
15
FR
Page 68
Options de lecture
Index des composants et des commandes
Pour plus de détails, reportez-vous aux pages indiquées entre parenthèses.
Panneau frontal
MULTI CH
A (capteur de télécommande) (53)
Reçoit les signaux provenant de la télécommande.
B Témoin MULTI CH
S’allume lors de la lecture d’une source multi-canaux.
SELECTOR
INPUT
PRESET VOLUME
F VOLUME +/–
Appuyez pour régler le niveau de volume.
G Témoin POWER/ACTIVE STANDBY
S’allume de la manière suivante : Vert : L’appareil est sous tension. Orange : La fonction Commande pour
C Affichage du panneau frontal (17) D INPUT SELECTOR
Appuyez pour sélectionner la source
Eteint : L’appareil est mis hors tension et
d’entrée à lire.
E PRESET +/–
Sélectionnent les stations présélectionnées.
H ?/1 (marche/veille)
Appuyez pour mettre l’appareil sous tension ou hors tension.
MULTI CH
INPUT
INPUT SELECTOR
SELECTOR
Conseils Remarque
• L’écran tactile est actif lorsqu’il est allumé.
• L’écran tactile s’allume momentanément dès que vous le touchez, ou lorsque l’appareil est mis sous tension. Pour vous servir de l’appareil, commencez par toucher l’écran tactile. L’écran tactile s’éteint lorsque vous ne le touchez pas pendant environ 10 secondes.
PRESET VOLUME
PRESET VOLUME
POWER/
ACTIVE STANDBY
• Il suffit de toucher légèrement l’écran tactile pour pouvoir l’utiliser. N’appuyez jamais brutalement dessus.
POWER/ ACTIVE STANDBY
HDMI est activée alors que l’appareil est hors tension.
la fonction Commande pour HDMI est désactivée.
INPUT
PRESET VOLUME
SELECTOR
Ecran tactile
16
FR
Page 69
Affichage du panneau frontal
A propos des indications de l’affichage du panneau frontal
Options de lecture
PL
PCM
HDMI
A HDMI (9, 52)
S’allume en cas d’utilisation du câble HDMI.
B S’allume en fonction des signaux
d’entrée audio.
C SLEEP (50)
Clignote lorsque la minuterie d’endormissement est active.
D NIGHT (23)
S’allume en mode NIGHT.
MONOSTTUNEDOPTCOAXNIGHTSLEEP
E COAX/OPT
S’allume en fonction du câble que vous utilisez.
F TUNED (24)
S’allume lorsque l’appareil reçoit un programme radio.
G ST (24)
S’allume lorsque l’appareil reçoit un programme radio en stéréo.
H MONO (27)
S’allume lorsque l’option « MONO » est sélectionnée en mode FM.
suite
17
FR
Page 70
Télécommande
Seules sont décrites les touches concernant le fonctionnement de l’amplificateur. Reportez­vous à la page 38 pour la description des touches concernant le fonctionnement des composants raccordés.
Remarque
• Dirigez la télécommande vers le capteur de la télécommande situé sur l’appareil.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
* Les touches 5, H et CH + possèdent un point
tactile. Il vous servira de guide lors de l’utilisation.
A POWER (marche/veille)
Appuyez pour mettre l’appareil sous tension ou hors tension.
B Touches de sélection d’entrée
Appuyez sur une des touches pour sélectionner le composant que vous souhaitez utiliser. Par défaut, les touches sont affectées à la commande de composants Sony. Vous pouvez programmer la télécommande de façon à ce qu’elle commande des composants n’appartenant pas à Sony en procédant de la manière décrite à la section « Programmation de la télécommande pour d’autres composants » (page 35).
C C, X, x, c ou
Appuyez sur C, X, x ou c pour sélectionner les paramètres. Ensuite, appuyez sur pour valider la sélection.
D SOUND FIELD
Appuyez pour sélectionner le champ acoustique (page 22).
E AMP MENU
Appuyez pour afficher le menu de l’appareil (page 43).
F NIGHT
Appuyez pour activer la fonction du mode NIGHT (page 23).
G SLEEP
Appuyez pour activer la minuterie d’endormissement et le temps qui doit s’écouler avant l’extinction automatique de l’appareil (page 50).
H Volume VOL +/–
Appuyez pour régler le volume.
I MUTING
Appuyez pour couper le son.
18
FR
Page 71
Regarder la télévision
TV (blanc)
VOL +, –
POWER
1 Mettez le téléviseur sous tension et
choisissez un programme.
Pour plus de détails, reportez-vous au mode
Options de lecture
d’emploi de votre téléviseur.
2 Mettez l’appareil sous tension. 3 Appuyez sur la touche TV (blanche) de
la télécommande.
4 Réglez le volume de l’appareil.
Conseils
• Lors de la connexion d’un téléviseur Sony, l’entrée de ce dernier peut être sélectionnée automatiquement en
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
appuyant sur la touche d’entrée, une fois la configuration terminée. Pour plus d’informations sur ce réglage, reportez-vous à la section « Modification de l’entrée vidéo du téléviseur simultanément avec l’entrée de l’appareil (uniquement pour l’entrée SYNC : téléviseur Sony) » (page 33).
• Il se peut que le son soit reproduit par le haut-parleur du téléviseur. Dans ce cas, réduisez le volume de ce dernier au minimum.
19
FR
Page 72
Utilisation d’autres composants
POWER
Touches d’entrée (BD/DVD, SAT, AUDIO)
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
Utilisation d’un tuner satellite
1 Mettez le téléviseur sous tension.
Pour plus de détails, reportez-vous au mode d’emploi de votre téléviseur.
2 Mettez le tuner satellite et l’appareil
sous tension.
3 Appuyez sur la touche SAT de la
télécommande.
Lors de la connexion d’un téléviseur Sony, l’entrée de ce dernier peut être sélectionnée automatiquement en appuyant sur la touche d’entrée une fois la configuration terminée (Entrée SYNC). Accédez à l’étape 5.
4 Changez l’entrée du téléviseur.
Pour plus de détails, reportez-vous au mode d’emploi de votre téléviseur.
5 Réglez le volume de l’appareil.
Conseil
• Il se peut que le son soit reproduit par le haut-parleur du téléviseur. Dans ce cas, réduisez le volume de ce dernier au minimum.
20
VOL +, –
FR
Utilisation de DVD, Blu-ray Disc, « PlayStation 2 » et « PlayStation 3 »
1 Mettez le téléviseur sous tension. 2 Mettez le lecteur (enregistreur) Blu-ray
Disc/DVD, la « PlayStation 2 » ou la « PlayStation 3 » et l’appareil sous tension.
3 Appuyez sur la touche BD/DVD de la
télécommande.
Lors de la connexion d’un téléviseur Sony, l’entrée de ce dernier peut être sélectionnée automatiquement en appuyant sur la touche d’entrée une fois la configuration terminée (Entrée SYNC). Accédez à l’étape 5.
Page 73
4 Changez l’entrée du téléviseur.
Pour plus de détails, reportez-vous au mode d’emploi de votre téléviseur.
5 Lisez le disque.
Conseil
• Même si vous lisez un disque en Dolby True HD, Dolby Digital Plus ou DTS HD avec un composant raccordé compatible avec ces formats audio, le système ne l’accepte que comme Dolby Digital ou DTS. Lorsque vous lisez ces formats audio de haute qualité, réglez le composant raccordé afin que le son soit reproduit en PCM multi-canaux, si possible.
Ecoute d’un appareil analogique
Vous pouvez écouter le son d’un magnétoscope, d’un lecteur audio portable, etc.
1 Appuyez sur la touche AUDIO de la
télécommande.
2 Appuyez sur la touche LINE IN de la
télécommande.
3 Mettez le lecteur analogique sous
tension et lisez un CD.
Ecoute d’un composant raccordé au moyen de la connexion DMPORT
1 Appuyez sur la touche AUDIO de la
télécommande.
2 Appuyez sur la touche DMPORT de la
télécommande.
3 Lancez la lecture du composant
raccordé.
Conseil
• Lorsque vous écoutez des fichiers musicaux compressés au format MP3 ou autre à partir d’une source audio portable vous pouvez en améliorer le rendu sonore. Appuyez plusieurs fois sur SOUND FIELD jusqu’à ce que « P. AUDIO » apparaisse dans l’affichage du panneau frontal.
• Si votre téléviseur est un Sony, vous pouvez changer automatiquement l’entrée du téléviseur et de l’appareil en sélectionnant « Entrée SYNC » (page 33).
Remarque
• En appuya nt sur AUDIO, l’entrée revient à la dernièr e entrée (LINE IN, FM, DMPORT) sélectionnée à l’aide de la télécommande.
Options de lecture
21
FR
Page 74
Fonction Surround
Reproduction de l’effet surround
Sélection du champ acoustique
Cet appareil peut créer un son surround multi­canaux. Vous pouvez créer le champ acoustique souhaité en sélectionnant un des champs acoustiques préprogrammés de l’appareil.
Appuyez sur SOUND FIELD.
Le champ acoustique en cours apparaît. A chaque pression sur la touche SOUND FIELD, l’affichage change de manière cyclique dans l’ordre suivant : STANDARD t CINEMA t MUSIC t SPORTS t NEWS t P.AUDIO* Appuyez plusieurs fois sur SOUND FIELD jusqu’à ce que le champ acoustique de votre choix apparaisse.
PCM
HDMI
Champs acoustiques disponibles
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
Champ acoustique Effet
STANDARD Vous pouvez écouter un
son normal.
CINEMA Vous pouvez bénéficier
d’un son puissant dans lequel les tonalités graves dominent, avec une présence accrue.
MUSIC Ce champ acoustique est
idéal pour écouter de la musique et permet de bénéficier de toute l’expérience d’un son surround.
SPORTS Vous pouvez profiter de
l’atmosphère d’un match et écouter la description exaltante partie par partie.
SOUND FIELD
NEWS Vous pouvez entendre
clairement la voix du présentateur.
P.AUDIO Vous pouvez profiter d’un
meilleur rendu sonore pour écouter vos fichiers musicaux compressés au format MP3 ou autre stockés sur une source audio portable.
* « P.AUDIO » apparaît uniquement lorsque
DMPORT ou LINE IN est sélectionné pour la source d’entrée de lecture.
22
FR
Page 75
Conseils
• Les champs acoustiques mémorisés pour chaque entrée sont gardés en mémoire, même si vous déconnectez le cordon d’alimentation.
• Le son multi-canaux est traité par la fonction surround, quel que soit le champ acoustique. En outre, le son multi-canaux est traité par la fonction surround quel que so it le son reproduit dans les m odes « CINEMA » ou « SPORTS ».
Reproduction du son à faible volume (mode NIGHT)
Cette fonction permet de bénéficier des effets sonores et d’entendre clairement les dialogues, même à faible volume.
D
I
S
E
D
I
U
G
P
L
A
Y
Remarque
• Si le niveau de volume est élevé avant que vous passiez en mode NIGHT, le son peut brusquement revenir à ce niveau lorsque vous quittez le mode NIGHT. Baissez le volume au préalable.
Conseil
• Vous pouvez profiter du son Dolby Digital à faible volume en utilisant AUDIO DRC (page 47).
Fonction Surround
R
E
T
U
R
N
H
M
S
N
S
O
I
L
T
P
O
O
O
T
E
O
M
U
E
N
Appuyez sur NIGHT.
Pour annuler le mode NIGHT, appuyez à nouveau sur NIGHT.
NIGHT
23
FR
Page 76
Fonctions du tuner
Présélection des stations de radio
Vous pouvez présélectionner jusqu’à 20 stations de radio FM. Avant d’effectuer vos réglages, vérifiez que vous avez bien réduit le son au minimum.
Touche d’entrée (AUDIO)
Touche d’entrée
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
O
I
T
P
O
O
O
H
T
E
O
M
M
U
E
N
(FM)
X, x,
S
L
MENU
3 Maintenez TUNING + ou – enfoncée
jusqu’à ce que le balayage automatique démarre.
Le balayage s’arrête lorsque l’appareil détecte une station. « TUNED » et « ST » (pour les programmes en stéréo) s’allument dans la fenêtre d’affichage du panneau frontal.
4 Appuyez sur la touche MENU. 5 Appuyez plusieurs fois sur X/x jusqu’à
ce que « Memory ? » apparaisse dans la fenêtre d’affichage du panneau frontal.
6 Appuyez sur .
Une plage de présélection apparaît dans la fenêtre d’affichage du panneau frontal.
STTUNED
7 Appuyez sur X/x pour sélectionner le
numéro de la présélection de votre choix.
STTUNED
TUNING –/+
1 Appuyez sur la touche AUDIO de la
télécommande.
2 Appuyez sur la touche FM de la
télécommande.
FR
24
Conseil
• Vous pouv ez sélectionner directement le numéro de la présélection à l’aide des touches numériques.
8 Appuyez sur .
« Complete ! » apparaît dans la fenêtre d’affichage du panneau frontal et la station est mémorisée.
STTUNED
9 Appuyez sur la touche MENU.
Page 77
10Répétez les étapes 3 à 9 pour
mémoriser des stations supplémentaires.
Pour modifier le numéro de la présélection
Recommencez à partir de l’étape 4.
Affectation de noms aux stations présélectionnées
Vous pouvez saisir un nom pour les stations présélectionnées. Ces noms (par exemple, « XYZ ») apparaissent dans la fenêtre d’affichage du panneau frontal lorsqu’une station est sélectionnée. Notez qu’un seul nom peut être saisi pour chaque station présélectionnée. Vous pouvez saisir jusqu’à 10 caractères.
1 Appuyez sur la touche AUDIO de la
télécommande.
2 Appuyez sur la touche FM de la
télécommande.
La dernière station reçue est syntonisée.
3 Appuyez plusieurs fois sur PRESET
+ ou – pour sélectionner la station présélectionnée pour laquelle vous souhaitez donner un nom.
4 Appuyez sur la touche MENU. 5 Appuyez sur X/x de manière répétée
jusqu’à ce que « Name In ? » apparaisse dans la fenêtre d’affichage du panneau frontal.
Fonctions du tuner
STTUNED
6 Appuyez sur . 7 Créez un nom à l’aide de C/X/x/c.
Appuyez sur X/x pour sélectionner un caractère, puis appuyez sur c pour déplacer le curseur jusqu’au caractère suivant. Vous pouvez saisir des lettres, nombres et autres symboles pour indiquer un nom de station.
suite
25
FR
Page 78
Si vous saisissez un caractère erroné
Appuyez sur C/c de manière répétée jusqu’à ce que le caractère souhaité clignote, puis appuyez sur X/x pour sélectionner le bon caractère.
Pour effacer un caractère, appuyez plusieurs fois sur C/c jusqu’à ce que le caractère souhaité clignote, puis appuyez sur CLEAR.
8 Appuyez sur .
« Complete ! » apparaît dans la fenêtre d’affichage du panneau frontal, et le nom de la station est mémorisé.
Ecoute de la radio
Présélectionnez tout d’abord les stations de radio dans la mémoire de l’appareil (reportez-vous à la section « Présélection des stations de radio » (page 24)).
Touche d’entrée (AUDIO)
9 Appuyez sur la touche MENU.
STTUNED
CLEAR
Touche d’entrée
D
I
E
D
I
U
G
R
E
T
U
R
N
S
P
L
A
Y
S
N
O
I
T
P
O
O
H
T
E
O
M
M
U
E
N
(FM)
S
L
O
MENU
PRESET –/+
VOL +/–
1 Appuyez sur la touche AUDIO de la
télécommande.
2 Appuyez sur la touche FM de la
télécommande.
La dernière station reçue est syntonisée.
26
FR
Page 79
3 Appuyez plusieurs fois sur PRESET
+ ou – pour sélectionner la station présélectionnée.
A chaque pression sur la touche, l’appareil passe à la station présélectionnée suivante.
Conseil
• Vous pouv ez sélectionner directement le numéro de la présélection à l’aide des touches numériques.
4 Réglez le volume en appuyant sur VOL
+/–.
Pour éteindre la radio
Appuyez sur la touche POWER de la télécommande ou "/1 de l’appareil pour mettre celui-ci hors tension. Pour modifier l’entrée, appuyez sur la touche d’entrée.
Pour écouter des stations de radio non présélectionnées
Effectuez une syntonisation manuelle ou automatique en suivant les instructions de l’étape 3. Pour effectuer une syntonisation manuelle, appuyez plusieurs fois sur TUNING + ou –. Pour une syntonisation automatique, maintenez la touche TUNING + ou – enfoncée. Le balayage automatique s’arrête lorsque l’appareil se règle sur une station. Pour arrêter la syntonisation automatique manuellement, appuyez sur la touche TUNING + ou –.
Parasites lors de l’écoute d’un programme FM
Si des parasites perturbent votre programme FM, vous pouvez sélectionner la réception en mono. Vous n’aurez pas d’effet stéréo, mais la réception sera meilleure.
1 Appuyez sur la touche MENU. 2 Appuyez plusieurs fois sur X/x jusqu’à ce
que « FM Mode ? » apparaisse dans la fenêtre d’affichage du panneau frontal, puis appuyez sur ou sur c.
3 Appuyez sur X/x pour sélectionner
«MONO».
• ST : réception stéréo.
• MONO : réception mono.
4 Appuyez sur .
Vos réglages sont terminés.
5 Appuyez sur la touche MENU.
Conseil
• Pour amé liorer la réception, réorientez le fil d ’antenne FM.
Fonctions du tuner
27
FR
Page 80
Caractéristiques de « BRAVIA » Sync
A quoi sert « BRAVIA » Sync ?
En connectant les composants Sony compatibles « BRAVIA » Sync à l’aide d’un câble HDMI (non fourni), tout est plus simple :
• Lecture une touche : Lorsque vous lisez un composant comme un lecteur (enregistreur) Blu-ray Disc/DVD, l’appareil et le téléviseur s’allument automatiquement et s’accordent sur l’entrée HDMI adéquate.
• Commande du son du système : Vous pouvez choisir de reproduire le son depuis le haut­parleur de votre téléviseur ou des haut-parleurs de l’appareil lorsque vous regardez la télévision.
• Mise hors tension du système : Lorsque vous mettez votre téléviseur hors tension, l’appareil ainsi que les composants raccordés sont mis hors tension simultanément.
« BRAVIA » Sync est compatible avec les téléviseurs Sony, les lecteurs Blu-ray Disc/DV D, les amplificateurs AV, etc., avec fonction Commande pour HDMI.
Remarque
• Suivant le composant raccordé, il est possible que la fonction de Commande pour HDMI soit sans effet. Reportez-vous au mode d’emploi du composant.
La COMMANDE POUR HDMI est une fonction de commande mutuelle utilisée par CEC (Consumer Electronics Control) pour HDMI (High-Definition Multimedia Interface).
La fonction de Commande pour HDMI ne fonctionnera pas dans les cas suivants :
• Lorsque vous connectez l’appareil à un composant ne correspondant pas à la fonction de Commande pour HDMI.
• Lorsque vous connectez l’appareil à des composants ne disposant pas de connexion HDMI.
Nous vous conseillons de connecter ce système à des produits disposant de « BRAVIA » Sync.
FR
28
Page 81
Préparation à l’utilisation de « BRAVIA » Sync
Pour pourvoir utiliser « BRAVIA » Sync, activez la fonction de Commande pour HDMI de l’appareil ainsi que du composant raccordé. Lorsque vous connectez un téléviseur Sony équipé de la fonction de Commande po ur HDMI, il vous est possible en effectuant le réglage de la fonction de Commande pour HDMI de votre téléviseur, de régler simultanément la fonction de Commande pour HDMI de l’appareil et du composant raccordé.
POWER
Touches d’entrée (TV, BD/ DVD, SAT)
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
C, X,
S
N
O
I
T
P
O
O
O
H
T
E
O
M
M
U
E
N
x, c,
S
L
AMP MENU
1 Vérifiez que l’appareil est connecté au
téléviseur et aux composants raccordés (qui devraient être compatibles avec la fonction de Commande pour HDMI) au moyen de câbles HDMI (non fournis).
2 Mettez sous tension l’appareil, le
téléviseur et les composants raccordés.
3 Sélectionnez l’entrée de l’appareil
connectée au composant raccordé (BD/ DVD, SAT) de votre choix et commutez l’entrée HDMI de votre téléviseur afin d’afficher l’image du composant raccordé.
4 Activez la fonction de Commande pour
HDMI de votre téléviseur.
La fonction de Commande pour HDMI de l’appareil et du composant connecté s’active simultanément. Pendant le réglage, « SCANNING » apparaît sur la fenêtre d’affichage du panneau frontal. Une fois le réglage terminé, « COMPLETE » apparaît sur la fenêtre d’affichage du panneau frontal. Attendez que le réglage soit terminé.
Si « SCANNING » ou « COMPLETE » ne s’affiche pas après avoir effectué les étapes ci-dessus
Activez séparément la fonction de Commande pour HDMI de l’appareil et du composant raccordé.
1 Appuyez sur AMP MENU. 2 Appuyez plusieurs fois sur x/X jusqu’à
ce que « CUSTOMIZE » apparaisse, puis appuyez sur ou sur c.
3 Appuyez plusieurs fois sur x/X jusqu’à
ce que « CTRL: HDMI » apparaisse, puis appuyez sur ou sur c.
4 Appuyez sur x/X pour sélectionner
« CTRL ON ».
Caractéristiques de « BRAVIA » Sync
suite
29
FR
Page 82
5 Appuyez sur AMP MENU.
Le menu AMP est désactivé. La fonction de Commande pour HDMI est activée.
6 Activez la fonction de Commande pour
HDMI du composant raccordé.
Pour plus de détails sur le réglage du composant raccordé, reportez-vous à son mode d’emploi.
7 Sélectionnez l’entrée de l’appareil
connectée au composant de votre choix pour utiliser la fonction de Commande pour HDMI pour (BD/DVD, SAT), et répétez l’étape 6.
Si vous ajoutez ou reconnectez le composant
Suivez à nouveau les étapes de « Préparation à l’utilisation de « BRAVIA » Sync » et de « Si «SCANNING» ou «COMPLETE» ne s’affiche pas après avoir effectué les étapes ci­dessus ».
Remarques
• Pendant le réglage de la fonction de Commande pour
HDMI de l’appareil, l a fonction Commande du son du système ne fonctionne pas.
• S’il n’est pas possible de régler simultanément la
fonction de Commande pour HDMI du composant connecté lors du réglage de la « COMMANDE POUR HDMI » du téléviseur, réglez la fonction de Commande pour HDMI au moyen du menu du composant raccordé.
• Pour plus de détails sur les réglages du téléviseur et
des composants raccordés, reportez-vous à leurs modes d’emploi respectifs.
Conseil
• Le paramètre par défaut de la fonction de Commande
pour HDMI de l’appareil est « CTRL OFF ».
Lecture d’un Blu-ray Disc/ DVD
(Lecture une touche)
Lecture à partir d’un composant raccordé.
L’appareil et le téléviseur se mettent automatiquement sous tension et basculent vers l’entrée HDMI adéquate.
Remarque
• Selon le téléviseur, il est possible que le début du contenu ne soit pas reproduit.
Conseil
• Vous pouvez profiter de votre lecteur (enregistreur) Blu-ray Disc/DVD connecté à l’appareil, même lorsque celui-ci est hors tension. A ce stade, le témoin POWER/ACTIVE STANDBY s’allume en orange.
30
FR
Page 83
Ecoute du son du téléviseur via les enceintes
(Commande du son du système)
Vous pouvez profiter du son de votre téléviseur via les enceintes de l’appareil grâce à une manipulation très simple. Pour plus de détails, reportez-vous au mode d’emploi de votre téléviseur.
POWER
Touches d’entrée (TV, BD/ DVD, SAT)
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
Remarques
• Lorsque le téléviseur est mis sous tension avant l’appareil, le téléviseur ne reproduit aucun son pendant quelques instants.
• Lorsque vous connectez un téléviseur ne disposant pas de la fonction de Commande du son du système, celle-ci ne fonctionne pas.
Conseil
• Vous pouvez régler le volume et couper le son de l’appareil à l’aide de la télécommande de votre téléviseur.
Caractéristiques de « BRAVIA » Sync
Utilisation des touches d’entrée de la télécommande
Les touches d’entrée (TV (blanche), BD/DVD, SAT), fonctionnent de la manière suivante lorsque la fonction de Commande pour HDMI est activée.
• BD/DVD, SAT : Puisque l’entrée du téléviseur
est aussi commutée automatiquement, vous pouvez visionner les images du composant sélectionné sur votre téléviseur par simple pression sur les touches.
• TV : L’entrée de votre téléviseur bascule
automatiquement. Lorsque vous connectez un téléviseur Sony, vous pouvez, par simple pression sur ces touches, regarder un programme télévisé.
Conseil
• Vous pouvez commander les composant raccordés en appuyant sur les touches d’entrée. Pour plus de détails, reportez-vous à la section « Commande des composants raccordés » (page 38).
Appuyez sur POWER pour mettre l’appareil sous tension.
Le son est reproduit par les enceintes de l’appareil. Lorsque vous mettez l’appareil hors tension, le son est à nouveau reproduit par le haut-parleur de votre téléviseur.
31
FR
Page 84
Mise hors tension du téléviseur, de l’appareil et des composants raccordés
(Mise hors tension du système)
Lorsque vous mettez le téléviseur hors tension à l’aide de la touche POWER de sa télécommande, l’appareil et les composants raccordés se mettent automatiquement hors tension. De même, lorsque vous mettez le téléviseur hors tension à l’aide de la télécommande du système, celui-ci et les composants raccordés se mettent automatiquement hors tension.
TV (orange)
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
O
I
T
P
O
O
H
M
T
E
O
M
U
E
N
AV POWER
S
L
O
1 Appuyez sur la touche TV (orange). 2 Appuyez sur la touche AV POWER.
Le téléviseur, l’appareil et le composant raccordé sont mis hors tension.
Remarque
• Selon l’état, les composants raccordés peuvent rester sous tension. Pour plus de détails, reportez-vous au mode d’emploi fourni avec vos composants.
32
FR
Page 85
Configuration avancée
Modification de l’entrée vidéo du téléviseur simultanément avec l’entrée de l’appareil (uniquement pour l’entrée SYNC : téléviseur Sony)
Vous pouvez régler la télécommande pour que l’entrée vidéo du téléviseur soit activée lorsque vous changez l’entrée de l’appareil avec la télécommande.
Remarque
• Nous vous déconseillons d’utiliser la fonction de Commande pour HDMI lorsque la fonction Entrée SYNC est activée pour des touches autres que TV (blanche) et DMPORT. Pour plus de détails, reportez-vous à la section « Caractéristiques de « BRAVIA » Sync » (page 28).
TV (orange)
Touches d’entrée (TV, BD/ DVD, SAT, AUDIO)
Touches d’entrée (LINE IN, FM, DMPORT)
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
T
P
O
H
E
O
M
M
U
E
N
Touches numériques
ENT
S
N
S
O
I
L
O
O
T
1 Sélectionnez la touche d’entrée à
laquelle vous souhaitez affecter Entrée SYNC.
Pour TV, BD/DVD et SAT
Appuyez sur TV (orange) en maintenant enfoncée la touche de sélection d’entrée (TV (blanche), BD/DVD, SAT) du composant que vous souhaitez commander. Par exemple, si vous souhaitez utiliser un lecteur DVD, appuyez sur BD/DVD. La touche de sélection d’entrée sur laquelle vous appuyez clignote.
Pour LINE IN, FM et DMPORT 1 Appuyez sur TV (orange) tout en
maintenant la touche AUDIO enfoncée.
2 Appuyez sur la touche d’entrée (LINE
IN, FM, DMPORT) du composant que vous souhaitez commander.
2 Reportez-vous au tableau ci-dessous
pour savoir quel numéro de touche de la télécommande correspond à la prise d’entrée du téléviseur à laquelle vous vous êtes connecté, puis appuyez sur ce numéro.
La touche de sélection d’entrée (TV, BD/ DVD, SAT, AUDIO) s’allume lorsque vous appuyez sur la touche numérique.
Prise d’entrée du téléviseur*
VIDEO 1 21 VIDEO 2 22 VIDEO 3 23 VIDEO 4 24 VIDEO 5 25 VIDEO 6 26 VIDEO 7 27 VIDEO 8 28 COMPONENT 1 29 COMPONENT 2 30 COMPONENT 3 31 COMPONENT 4 32 HDMI 1 33 HDMI 2 34 HDMI 3 35 HDMI 4 36
Télécommande (codes)
Configuration avancée
suite
33
FR
Page 86
Prise d’entrée du téléviseur*
HDMI 5 37 Programme de
télévision** Aucun 20
* Il est possible que le nom de la prise d’e ntrée du
téléviseur soit différent de celui du modèle de votre téléviseur.
**Ce réglage remplace l’entrée en cours par le
programme de télévision. Il est affecté par défaut à la touche TV (blanche).
Conseil
• Appuyez sur 20 si vous ne souhaitez pas envoyer de signaux au téléviseur.
Télécommande (codes)
38
3 Appuyez sur ENT.
La configuration est terminée lorsque la touche de sélection d’entrée sur laquelle vous avez appuyé à l’étape 1 clignote à deux reprises.
4 Pour programmer la télécommande,
répétez les étapes 1 à 3.
Remarques
• Si la touche de sélection d’entrée sur laquelle vous avez appuyé à l’étape 1 clignote à cinq reprises, une erreur s’est produite. Recommencez la procédure depuis l’étape 1.
• Les deux derniers chiffres entrés sont valables.
Pour annuler la programmation
Appuyez sur la même touche de sélection d’entrée (TV, BD/DVD, SAT) qu’à l’étape 1. Pour LINE IN, FM et DMPORT, appuyez sur AUDIO.
Si la programmation a échoué, procédez aux vérifications suivantes :
• Si la touche de sélection d’entrée sur laquelle vous avez appuyé à l’étape 1 ne s’allume pas, les piles sont usées. Remplacez les deux piles.
• Si vous n’appuyez pas sur la touche suivante dans les 60 secondes pendant l’enregistrement, l’opération n’est pas valide. Recommencez la procédure depuis l’étape 1.
• Si la touche de sélection d’entrée sur laquelle vous avez appuyé à l’étape 1 clignote à cinq reprises après l’appui de la touche ENT à l’étape 3, une erreur s’est produite. Recommencez la procédure depuis l’étape 1.
34
FR
Page 87
Programmation de la télécommande pour d’autres composants
Vous pouvez programmer la télécommande de façon à ce qu’elle commande des composants n’appartenant pas à Sony en changeant le code. Une fois les signaux de commande mémorisés, vous pouvez utiliser ces composants comme faisant partie de votre système. De plus, vous pouvez programmer la télécommande pour commander des composants Sony que votre télécommande ne commande normalement pas. Veuillez noter que la télécommande ne peut commander que des composants pouvant recevoir des signaux infrarouges. Vous ne pouvez pas enregistrer de composant autre qu’un téléviseur dans la touche TV de la télécommande.
AV POWER
Touches d’entrée (TV, BD/DVD, SAT)
Touches numériques
ENT
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
S
N
S
O
I
L
T
P
O
O
O
H
T
E
O
M
M
U
E
N
1 Appuyez sur AV POWER en maintenant
enfoncée la touche de sélection d’entrée (TV, BD/DVD, SAT) du composant que vous souhaitez commander.
Par exemple, si vous souhaitez utiliser un lecteur DVD, appuyez sur BD/DVD.
La touche de sélection d’entrée sur laquelle vous appuyez clignote.
2 Vérifiez le code du fabricant du
composant que vous souhaitez commander et appuyez sur la touche numérique correspondante.
Reportez-vous aux tableaux des pages 36 à 38 pour de plus amples détails concernant les codes des composants et des fabricants (le premier et les deux derniers chiffres du code numérique correspondent respectivement à la catégorie et au code du fabricant).
S’il existe plusieurs numéros de code, vous pouvez en sélectionner un.
La touche de sélection d’entrée (TV, BD/ DVD, SAT) s’allume lorsque vous appuyez sur la touche numérique.
3 Appuyez sur ENT.
La configuration est terminée lorsque la touche de sélection d’entrée sur laquelle vous avez appuyé à l’étape 1 clignote à deux reprises.
4 Répétez les étapes 1 à 3 pour
commander d’autres composants.
Pour annuler la programmation
Appuyez sur la même touche de sélection d’entrée (TV, BD/DVD, SAT) qu’à l’étape 1.
Pour activer la sélection de l’entrée après la programmation
Appuyez sur la touche programmée pour activer l’entrée de votre choix.
Si la programmation a échoué, procédez aux vérifications suivantes :
• Si la touche de sélection d’entrée sur laquelle vous avez appuyé à l’étape 1 ne s’allume pas, les piles sont usées. Remplacez les deux piles.
• Si vous n’appuyez pas sur la touche suivante dans les 60 secondes pendant l’enregistrement, l’opération n’est pas valide. Recommencez la procédure depuis l’étape 1.
suite
35
Configuration avancée
FR
Page 88
• Si la touche de sélection d’entrée sur laquelle vous avez appuyé à l’étape 1 clignote à cinq reprises après l’appui de la touche ENT à l’étape 3, une erreur s’est produite. Recommencez la procédure depuis l’étape 1.
Remarques
• Vous ne pouvez programmer qu’un code de fabricant
compris entre 500 et 599 sur la touche TV (blanc).
• A l’étape1, si vous appuyez sur plusieurs touches de
sélection d’entrée (TV, BD/DVD, SAT), seule la dernière touche sur laquelle vous avez appuyé est valable.
• En ce qui concerne les codes numériques, seuls les
trois derniers chiffres entrés sont valables.
Pour effacer la mémoire de la télécommande
Pour commencer, appuyez sur la touche VOL – et maintenez-la enfoncée, puis appuyez sur la touche POWER et maintenez-la elle aussi enfoncée. Ensuite, tout en maintenant les deux premières touches enfoncées, appuyez sur AV POWER. Toutes les touches de sélection d’entrée (TV, BD/DVD, SAT, AUDIO) clignotent simultanément, puis s’éteignent.
Codes numériques correspondant au composant et au fabricant du composant
Utilisez les codes numériques des tableaux des pages 36 à 38 pour commander des composants appartenant à d’autres marques, mais également d’autres composants de la marque Sony que la télécommande ne commande normalement pas. Étant donné que le signal de la télécommande que reçoit un composant varie selon le modèle et l’année de fabrication, il est possible que vous deviez attribuer au composant plus d’un code numérique. Si vous n’arrivez pas à programmer votre télécommande avec ces codes, essayez avec d’autres codes. Les réglages initiaux sont soulignés.
Remarques
• Les codes numériques ont été élaborés à partir des
dernières informations disponibles sur chaque marque. Il se peu t néanmoins que votre composant ne réponde pas à certains de ces codes.
• Il est possible que toutes les touches de sélection d’entrée de cette télécommande ne soient pas disponibles lorsque vous les utilisez sur votre composant.
Réglages par défaut
Chaque entrée possède les réglages par défaut suivants.
Entrée Code(s)
TV TV 501 BD/DVD Enregistreur Blu-ray Disc
310
SAT Tuner satellite 801
Pour commander un lecteur CD
Fabricant Code(s)
SONY 101, 102, 103 DENON 104, 123 JVC 105, 106, 107 KENWOOD 108, 109, 110 MARANTZ 116 ONKYO 112, 113, 114 PIONEER 117 YAMAHA 120, 121, 122
Pour commander une platine DAT
Fabricant Code(s)
SONY 203 PIONEER 219
Pour commander un magnétophone
Fabricant Code(s)
SONY 201, 202 DENON 204, 205 PIONEER 213, 214 YAMAHA 217, 218
Pour commander une platine MD
Fabricant Code(s)
SONY 301
36
FR
Page 89
Pour commander un magnétoscope
Fabricant Code(s)
SONY 701, 702, 703, 704, 705,
706 HITACHI 722, 725, 729, 741 JVC 726, 727, 728, 736 MITSUBISHI/MGA 732, 733, 734, 735 PANASONIC 729, 730, 737, 738, 739,
740 PHILIPS 729, 730, 731 PIONEER 729 SAMSUNG 742, 743, 744, 745 SANYO 717, 720, 746 SHARP 748, 749 TOSHIBA 747, 756
Pour commander un lecteur DVD
Fabricant Code(s)
SONY 401, 402, 403 PANASONIC 406, 408, 425 PHILIPS 407 PIONEER 409, 410 TOSHIBA 404, 421 DENON 405 HITACHI 416 SAMSUNG 416, 422
Pour commander un graveur DVD
Fabricant Code(s)
SONY 401, 402, 403
Pour commander un téléviseur
Fabricant Code(s)
SONY 501 DAEWOO 504, 505, 506, 515, 544 LG/GOLDSTAR 503, 511, 512, 515, 517,
544, 568, 578 HITACHI 503, 513, 514, 515, 517,
519, 544, 557, 571 JVC 516, 552 MITSUBISHI/MGA 503, 519, 527, 544, 566,
568
Fabricant Code(s)
NEC 503, 517, 520, 540, 544,
554, 566 PANASONIC 509, 524, 553, 559, 572 PHILIPS 515, 518, 557, 570, 571 PIONEER 509, 525, 526, 540, 551,
555, 579 SAMSUNG 503, 515, 517, 531, 533,
544, 557, 562, 563, 566,
569 SANYO 508, 545, 546, 560, 567 SHARP 517, 535, 550, 561, 565,
577 TOSHIBA 535, 540, 541, 551
Pour commander un tuner satellite
Fabricant Code(s)
SONY 801, 802, 803, 804, 824,
825 PANASONIC 818 PHILIPS 874
Pour commander un boîtier de jonction
Fabricant Code(s)
SONY 821 PANASONIC 816, 832, 833, 834 PIONEER 828, 829
Pour commander un enregistreur avec disque dur
Fabricant Code(s)
SONY 307, 308, 309
Pour commander un lecteur/ enregistreur Blu-ray Disc
Fabricant Code(s)
SONY 310, 311, 312 PANASONIC 331, 332, 333
Configuration avancée
suite
37
FR
Page 90
Pour commander un HDD/DVD COMBO
Fabricant Code(s)
SONY 401, 402, 403 SHARP 459, 460, 461 HITACHI 441, 442, 443 JVC 444, 445, 446, 447, 459,
460, 461 MITSUBISHI 448, 449 PANASONIC 450, 451, 452 PIONEER 453, 454, 455, 456, 457,
458 TOSHIBA 462, 463, 464
Pour commander un DVD/VIDEO COMBO
Fabricant Code(s)
SONY 411
Commande des composants raccordés
Vous pouvez commander des composants raccordés à l’aide de la télécommande de cet appareil. Selon l’appareil, certaines fonctions ne peuvent pas être sélectionnées. Dans ce cas, sélectionnez­les à l’aide de la télécommande fournie avec l’appareil.
TV (orange)
Touches d’entrée (TV, BD/ DVD, SAT)
D
I
S
E
D
I
U
G
P
L
A
Y
38
R
E
T
U
R
N
H
M
S
N
S
O
I
L
T
P
O
O
O
T
E
O
M
U
E
N
* Les touches 5, H et CH + possèdent un point
tactile. Il vous servira de guide lors de l’utilisation.
FR
Page 91
Commande du composant
1 Appuyez sur une des touches d’entrée
(TV (blanche), BD/DVD, SAT) pour sélectionner le composant que vous souhaitez commander.
Le composant affecté à la touche d’entrée sélectionnée est utilisable.
2 En vous reportant au tableau suivant,
appuyez sur la touche correspondant à la fonction souhaitée.
Conseil
• Vous pouvez utiliser la télécommande pour
commander le téléviseur pendant 60 secondes après avoir appuyé sur la touche TV (orange). Si vous n’appuyez sur aucune autre touche pendant 60 secondes lors de l’enregistrement ou si vous appuyez à nouveau sur la touche TV (orange), cette opération s’annule.
Opérations communes
Télécommande Fonction
1 Touches numériques Permettent de sélectionner
directement les stations et les plages.
2 ENT Permet de valider la
sélection.
wk AV POWER Permet de mettre le
téléviseur ou d’autres composants audio et vidéo sous ou hors tension.
Pour commander le téléviseur
Télécommande Fonction
1 Touches numériques Permet de sélectionner les
chaînes.
3 FREEZE Appuyez une fois sur cette
touche pour que l’image du programme en cours se fige. Appuyez à nouveau sur cette touche pour revenir au programme.
4 WIDE Appuyez sur cette touche
pour passer en mode large.
5 DISPLAY Appuyez sur cette touche
pour afficher le numéro de la chaîne actuellement visionnée, etc.
Télécommande Fonction
6 C, X, x, c, Permettent de sélectionner
7 TOOLS Permet d’accéder à
8 MENU Permet de sélectionner des
qs CH +/– Appuyez sur cette touche
qj VOL (avec un point
orange)
qk MUTING (avec un
point orange)
un élément du menu et d’entrer dans la sélection.
différentes options d’affichage et de modifier/ effectuer des réglages selon la source et le format d’affichage.
chaînes ou des sources d’entrée et de modifier les paramètres de votre téléviseur.
pour effectuer un balayage des chaînes. Pour effectuer un balayage rapide d’une chaîne à l’autre, appuyez indifféremment sur la touche +/– et maintenez-la enfoncée.
Appuyez sur TV (orange) pour éclairer TV (blanche), puis appuyez sur cette touche pour régler le volume du téléviseur aussi longtemps que TV (blanche) est allumée.
Appuyez sur TV (orange) pour éclairer TV (blanche), puis appuyez sur cette touche pour couper le son du téléviseur aussi longtemps que TV (blanche) est allumée.
Configuration avancée
suite
39
FR
Page 92
Télécommande Fonction
ql THEATER Lorsq ue vous connectez un
ws RETURN Permet de revenir à l’écran
wd GUIDE Appuyez sur cette touche
wf JUMP Appuyez sur cette touche
wg ANT Appuyez sur cette touche
wh A utiliser avec les touches
wj INPUT Permet de sélectionner
téléviseur Sony co mpatible avec la touche THEATER, appuyez sur cette touche pour régler automatiquement des paramètres d’image optimale pour regarder des films. De plus, le son bascule automatiquement vers la sortie audio de cet appareil lorsque vous raccordez le téléviseur et l’appareil au moyen d’une connexion HDMI, et la fonction de Commande pour HDMI est activée.
précédent d’un menu affiché.
pour afficher le guide lorsque vous visionnez des chaînes analogiques ou numériques.
pour basculer entre deux chaînes. Votre téléviseur alterne entre la chaîne actuellement visionnée et la dernière chaîne ayant été sélectionnée.
pour basculer entre l’entrée VHF/UHF et l’entrée CABLE.
0-9 et ENT pour sélectionner les chaînes numériques. Par exemple, pour saisir 2.1, appuyez sur
2
, , et ENT.
1
l’entrée.
Pour commander un enregistreur Blu-ray Disc/enregistreur DVD/ enregistreur avec disque dur
Télécommande Fonction
6 C, X, x, c, Permettent de sélectionner
8 MENU Permet d’afficher le
9
, Permet de faire un saut en
0 m/M Permettent d’effectuer un
qa H (lecture)/X
(pause, appuyez à nouveau pour reprendre une lecture normale)/x (arrêt)
qs CH +/– Permettent de changer de
qd REC z/REC STOP
x/REC MODE
qh BD/DVD TOP
MENU BD/DVD MENU
< Permet de faire un saut en
w;
wa > Permet de passer au
. Permet de passer d’un
wj INPUT Permet de sélectionner
un élément du menu et d’entrer dans la sélection.
MENU.
avant lors d u visionnage de programmes enregistrés.
retour ou une avance rapides sur le disque lorsque vous appuyez sur ces touches pendant la lecture.
Touches de mode de lecture.
chaîne. Touches de mode
d’enregistrement. Permet d’afficher le menu
principal/menu du disque.
arrière lors du visionnage de programmes en direct ou enregistrés.
chapitre suivant disponible.
chapitre à l’autre.
l’entrée.
Pour commander le lecteur Blu­ray Disc/lecteur DVD
Télécommande Fonction
6 C, X, x, c, Permettent de sélectionner
un élément du menu et d’entrer dans la sélection.
40
FR
Page 93
Télécommande Fonction
8 MENU Permet d’afficher le
, Saute vers l’avant.
9 0 m/M Permettent d’effectuer un
qa H (lecture)/X
(pause, appuyez à nouveau pour reprendre une lecture normale)/x (arrêt)
qh BD/DVD TOP
MENU BD/DVD MENU
< Saute vers l’arrière.
w; wa ./> Permet de passer d’un
wj INPUT Permet de sélectionner
MENU.
retour ou une avance
rapides sur le disque
lorsque vous appuyez sur
ces touches pendant la
lecture.
Touches de mode de
lecture.
Permet d’afficher le menu
principal/menu du disque.
chapitre à l’autre.
l’entrée.
Pour commander le magnétoscope
Télécommande Fonction
6 C, X, x, c, Permettent de sélectionner
8 MENU Permet d’afficher le
0 m/M Permettent d’effectuer un
qa H (lecture)/X
(pause, appuyez à nouveau pour reprendre une lecture normale)/x (arrêt)
qs CH +/– Permet de présélectionner
qd REC z/REC STOP
x/REC MODE
wj INPUT Permet de sélectionner
un élément du menu et
d’entrer dans la sélection.
MENU.
retour ou une avance
rapides sur le disque
lorsque vous appuyez sur
ces touches pendant la
lecture.
Touches de mode de
lecture.
les chaînes.
Touches de mode
d’enregistrement.
l’entrée.
Pour commander un HDD/DVD COMBO
Télécommande Fonction
6 C, X, x, c, Permettent de déplacer la
8 MENU Permet d’afficher le
9 0 m/M Permettent d’effectuer un
qa H (lecture)/X
qd REC z/REC STOP
qf F2 Permet de sélectionner le
qg F1 Permet de sélectionner le
qh BD/DVD TOP
w;
wa ./> Permet de spécifier le
wj INPUT Permet de sélectionner
surbrillance (curseur) et de sélectionner l’élément.
MENU.
, Permet d’avancer.
retour ou une avance rapides sur le disque lorsque vous appuyez sur ces touches pendant la lecture.
(pause, appuyez à nouveau pour reprendre une lecture normale)/x (arrêt)
x/REC MODE
MENU BD/DVD MENU
Touches de mode de lecture.
Touches de mode d’enregistrement.
DVD.
HDD. Permet d’afficher le menu
principal/menu du disque.
< Permet de passer en mode
de relecture.
chapitre/la plage précédent(e)/suivant(e).
l’entrée.
suite
41
Configuration avancée
FR
Page 94
Pour commander le DVD/VIDEO COMBO
Télécommande Fonction
6 C, X, x, c, Permettent de déplacer la
8 MENU Permet d’afficher le
0 m/M Permettent d’effectuer un
qa H (lecture)/X
(pause, appuyez à nouveau pour reprendre une lecture normale)/x (arrêt)
qs CH +/– Permettent de changer les
qd REC z/REC STOP
x/REC MODE
qf F2 Permet de sélectionner le
qg F1 Permet de sélectionner le
wa ./> Recherche dans l’index. wj INPUT Permet de sélectionner
surbrillance (curseur) et de
sélectionner l’élément du
DVD.
Permettent d’accéder à une
chaîne sélectionnée à
l’aide des touches
numériques de commande
du magnétoscope.
MENU.
retour ou une avance
rapides sur le disque
lorsque vous appuyez sur
ces touches pendant la
lecture.
Touches de mode de
lecture.
chaînes du magnétoscope.
Permettent de régler le
suivi du magnétoscope.
Permettent d’enregistrer à
l’aide du magnétoscope.
DVD.
magnétoscope.
l’entrée.
Télécommande Fonction
wd GUIDE Permet d’afficher le menu
wf JUMP Appuyez sur cette touche
Pour commander le boîtier de jonction
Télécommande Fonction
qs CH +/– Permettent de changer de
wf JUMP Appuyez sur cette touche
Pour commander le lecteur CD, le lecteur DAT, le lecteur MD, le magnétophone
Télécommande Fonction
0 m/M Permettent d’effectuer un
qa H (lecture)/X
wa ./> Permet de passer d’une
Remarque
• Les explications ci-dessus sont données à titre
Pour commander le satellite
Télécommande Fonction
6 C, X, x, c, Permettent de sélectionner
8 MENU Permet d’afficher le
qs CH +/– Permettent de changer de
un élément du menu et
d’entrer dans la sélection.
MENU.
chaîne.
de guidage.
pour basculer entre deux chaînes.
chaîne.
pour basculer entre deux chaînes.
retour ou une avance rapides sur le disque lorsque vous appuyez sur ces touches pendant la lecture.
(pause, appuyez à nouveau pour reprendre une lecture normale)/x (arrêt)
d’exemple. Selon le composant, il est possible que ces opérations fonctionnent différemment ou que vous ne puissiez pas les réaliser.
Touches de mode de lecture.
plage à l’autre.
42
FR
Page 95
Sélections et réglages à l’aide du menu de l’amplificateur
2 Appuyez plusieurs fois sur C/X/x/c
pour sélectionner l’élément et le réglage.
3 Appuyez sur la touche AMP MENU pour
quitter le menu AMP.
Utilisation du menu AMP
Vous pouvez régler les paramètres suivants avec la touche AMP MENU de la télécommande. Les réglages par défaut sont soulignés.
AMP MENU
LEVEL
CUSTOMIZE
CNT LEVEL (niveau central)
SW LEVEL (niveau caisson de graves)
CTRL: HDMI*
DUAL MONO
A/V SYNC
AUDIO DRC
DIMMER
DISPLAY
–6 à +6 (0)
–6 à +6 (0)
CTRL ON CTRL OFF
MAIN SUB MAIN+SUB
SYNC ON SYNC OFF
OFF STD MAX
DIMMER ON
DIMMER OFF
DSPL ON DSPL OFF
Les pages suivantes décrivent chaque paramètre.
Configuration avancée
* Pour plus de détails, reportez-vous à la section
« Caractéristiques de « BRAVIA » Sync » (page 28).
1 Appuyez sur la touche AMP MENU pour
activer le menu AMP.
suite
43
FR
Page 96
Réglage du niveau des enceintes
Vous pouvez régler le niveau de l’enceinte centrale et du caisson de graves. Ce réglage s’applique à tous les champs acoustiques.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
C, X, x, c,
S
N
S
O
I
L
T
P
O
O
O
H
M
T
E
O
M
U
E
N
4 Appuyez plusieurs fois sur x/X pour
sélectionner « CNT LEVEL (niveau de l’enceinte centrale) » ou « SW LEVEL (niveau du caisson de graves) ».
5 Appuyez sur ou c. 6 Pendant le réglage du son, appuyez
plusieurs fois sur x/X pour sélectionner le paramètre de votre choix.
Réglage par défaut : 0 (dB) Vous pouvez sélectionner une valeur comprise entre –6 (dB) et +6 (dB) par incréments de 1 (dB).
7 Appuyez sur AMP MENU.
Le menu AMP est désactivé.
Conseil
• Si le caisson de graves (non fourni) est connecté, réglez le « SW LEVEL (niveau du caisson de graves) » (page 15).
AMP MENU
1 Reproduisez une source encodée avec
des effets surround multi-canaux (DVD, etc.).
2 Appuyez sur AMP MENU. 3 Appuyez plusieurs fois sur x/X jusqu’à
ce que « LEVEL » apparaisse, puis appuyez sur ou sur c.
FR
44
Page 97
Reproduction d’un son diffusé en multiplex (DUAL MONO)
Vous pouvez écouter un son diffusé en multiplex lorsque l’appareil reçoit un signal diffusé en multiplex AC-3.
Remarque
• Pour recevoir un signal AC-3, vous devez raccorder un tuner satellite numérique à l’appareil à l’aide d’un câble optique ou coaxial et régler le mode de sortie numérique du tuner satellite numérique sur AC-3.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
C, X, x, c,
S
N
S
O
I
L
T
P
O
O
O
H
M
T
E
O
M
U
E
N
2 Appuyez plusieurs fois sur x/X jusqu’à
ce que « CUSTOMIZE » apparaisse, puis appuyez sur ou sur c.
3 Appuyez plusieurs fois sur x/X jusqu’à
« DUAL MONO » apparaisse,
ce que puis appuyez sur ou sur c.
4 Appuyez sur x/X pour sélectionner le
son de votre choix.
• MAIN : Lecture du canal principal seulement.
• SUB : Lecture du canal secondaire seulement.
• MAIN+SUB : Le son principal est reproduit par l’enceinte gauche et le son secondaire par l’enceinte droite.
5 Appuyez sur AMP MENU.
Le menu AMP est désactivé.
Configuration avancée
1 Appuyez sur AMP MENU.
AMP MENU
suite
45
FR
Page 98
Synchronisation du décalage entre le son et l’image (A/V SYNC)
Vous pouvez retarder le son à l’aide de cette fonction lorsque l’image est plus lente que le son.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
C, X, x, c,
S
N
S
O
I
L
T
P
O
O
O
H
M
T
E
O
M
U
E
N
3 Appuyez plusieurs fois sur X/x jusqu’à
ce que « A/V SYNC » apparaisse, puis appuyez sur ou sur c.
4 Appuyez sur X/x pour sélectionner le
paramètre de votre choix.
• SYNC ON : Règle le décalage entre
l’image et le son.
• SYNC OFF : Aucun réglage.
5 Appuyez sur AMP MENU.
Le menu AMP est désactivé.
Remarques
• Il se peut que vous soyez incapable de régler parfaitement le décalage entre le son et l’image à l’aide de cette fonction.
• Cette fonction n’est utile qu’avec Dolby Digital, DTS et une entrée PCM Linéaire (2 canaux) par câble coaxial (audio), optique (audio) ou HDMI.
AMP MENU
1 Appuyez sur AMP MENU. 2 Appuyez plusieurs fois sur x/X jusqu’à
ce que « CUSTOMIZE » apparaisse, puis appuyez sur ou sur c.
FR
46
Page 99
Reproduction du son Dolby Digital à faible volume (AUDIO DRC)
Permet de réduire la gamme dynamique du son de la plage. Utile pour regarder des films à faible volume. AUDIO DRC s’applique uniquement aux sources Dolby Digital.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
C, X, x, c,
S
N
S
O
I
L
T
P
O
O
O
H
M
T
E
O
M
U
E
N
3 Appuyez plusieurs fois sur x/X jusqu’à
ce que « AUDIO DRC » apparaisse, puis appuyez sur ou sur c.
4 Appuyez sur x/X pour sélectionner le
paramètre de votre choix.
• OFF : Aucune compression de la gamme dynamique.
• STD : Reproduit la plage audio en respectant la gamme dynamique prévue par l’ingénieur du son au moment de l’enregistrement.
• MAX : Compresse complètement la gamme dynamique.
5 Appuyez sur AMP MENU.
Le menu AMP est désactivé.
Configuration avancée
AMP MENU
1 Appuyez sur AMP MENU. 2 Appuyez plusieurs fois sur x/X jusqu’à
ce que « CUSTOMIZE » apparaisse, puis appuyez sur ou sur c.
suite
47
FR
Page 100
Modification de la luminosité de l’affichage du panneau frontal (DIMMER)
La luminosité de l’affichage du panneau frontal peut être réglée sur l’un ou l’autre de ces 2niveaux.
D
I
S
E
D
I
U
G
R
E
T
U
R
N
P
L
A
Y
C, X, x, c,
S
N
S
O
I
L
T
P
O
O
O
H
M
T
E
O
M
U
E
N
3 Appuyez plusieurs fois sur X/x jusqu’à
ce que « DIMMER » apparaisse, puis appuyez sur ou sur c.
4 Appuyez sur X/x pour sélectionner la
luminosité dans la fenêtre d’affichage du panneau frontal.
• DIMMER ON : Eclairage faible.
• DIMMER OFF : Eclairage lumineux.
5 Appuyez sur AMP MENU.
Le menu AMP est désactivé.
AMP MENU
1 Appuyez sur AMP MENU. 2 Appuyez plusieurs fois sur x/X jusqu’à
ce que « CUSTOMIZE » apparaisse, puis appuyez sur ou sur c.
FR
48
Loading...
