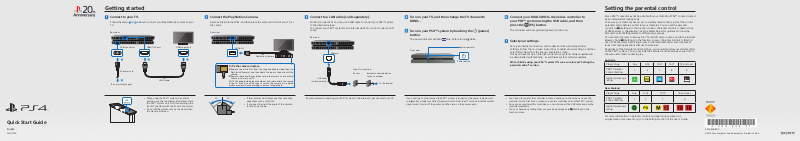

Sony PS4 CUH-1102A Quick Start Manual

Getting started

Setting the parental control

Quick Start Guide

Connect to your TV.

Follow the steps to below to connect your PlayStation®4 system to your
TV.

Rear view

AC IN connector HDMI OUT port HDMI input port

AC power cord

HDMI cable

To an electricity supply

• When using the PS4™ system in a vertical
position, use the supplied vertical stand. Place
the PS4™ system on a soft cloth and align the
front of the stand with the front of the system.

• Do not lift the system only by the stand when
the stand is attached.

Connect the PlayStation®Camera.

Remove the protective film, and then place the camera in front of your TV, at
the centre.

Rear view

AUX port

PlayStation®Camera

To fix the camera in place

①Remove the white film from the supplied double-sided tape (for

PlayStation®Camera), and then attach the tape to the bottom of the
camera.

②Remove the yellow film, and then secure the camera on a horizontal

surface in front of your TV.

NOTE: The double-sided tape should not be used to attach the camera
to the TV itself. Use of the tape to secure the camera to a painted
surface may result in the marking or removal of paintwork.

35° 35°

• If the camera's dual lenses ever become dirty,
wipe them with a soft cloth.

• If you need to adjust the angle of the camera,
rotate it up or down.

Connect to a LAN cable (sold separately).

No Wi-Fi connection? You can use a LAN cable to connect your PS4™ system
to the Internet instead.
To connect your PS4™ system to the Internet via Wi-Fi, do not connect a LAN
cable.

Rear view

LAN port

Type of connection:

Router Internet connected device

LAN cable

(sold separately)

We recommend connecting your PS4™ system to the Internet to get the most out of it.

such as a modem

To the Internet

Turn on your TV, and then change the TV channel to

HDMI®.

Turn on your PS4™ system by touching the (power)

button.

The power indicator will blink blue, before turning white.

Power indicator

Front view

Power button

If you can't get a picture when the PS4™ system is turned on (the power indicator will
turn

white), simply touch the (power) button for at least 7 seconds (until the system

beeps twice) to turn off the power, and then turn on the power again.

Connect your DUALSHOCK®4 wireless controller to

your PS4™ system using the USB cable, and then
press the

The controller will be registered (paired), and turn on.

(PS) button.

Select your settings.

Set up an Internet connection, set the date and time, and adjust other
settings. Follow the on-screen instructions to adjust various settings, and then
select [Start Now] from the set-up completion screen.
Once you have set up an Internet connection, a system software update will
be downloaded automatically - as will future system software updates.

Will a child be using your PS4™ system? If so, be sure to read “Setting the
parental control” section.

• You'll need to register the controller in some situations, such as when you use the
controller for the first time, or when you use the controller on another PS4™ system.

• Once you've registered the controller, you can disconnect the USB cable and use the
controller wirelessly.

• You can change any settings that you previously skipped via
function screen.

(Settings) in the

Some PS4™ content may not be suitable for your child. Most PS4™ content is rated
by an independent ratings body.

To ensure your child only has access to suitably rated content, just set the correct
parental control before you first let your child play. You can set the parental
controls in (Settings) in the function screen > [Parental Controls] > [Restrict Use
of PS4 Features] > [Application]. Use the tables below for guidance on how the
Parental Control Setting relates to different age groups.

You can restrict access to Blu-ray Disc™ and DVD video content, and to the Internet
Browser, from
Use of PS4 Features]. Restricting access to the Internet Browser will not prevent
launch of some applications that use the Internet.

Regardless of the Parental Control Settings, you should monitor your child’s activity
on the PS4™ system. You can override the Parental Control Settings at any time to
allow an older child or adult to play.

Australia

Player’s Age Any 0-14 15-17 15-17 18 and over

PS4™ Parental
Control Setting

Highest game age
rating

New Zealand

Player’s Age Any 0-12 13-15 16 and over

PS4™ Parental
Control Setting

Highest game age
rating

For more information on parental controls and age ratings please visit
eu.playstation.com/parents or go to the Settings section of the User's Guide.

(Settings) in the function screen > [Parental Controls] > [Restrict

1 3 7 8 9

1 3 7 9

English

CUH-1102A

4-559-858-31(1)

© 2014 Sony Computer Entertainment Inc. Printed in China

Playing gamesUsing the screen Creating an SEN account

Using the controller

Turning off the power

Further information

Up button/
Down button

Up button/
Down button

Function screen

Access several features here
including your current Trophy
details, new notifications, Friends
and Settings.
To enjoy some features, you must
have an Internet connection or be
signed in to PSN

SM

.

Home screen

Content area

Access your games and other content.
All content is listed from left to right
in order of the most recently
accessed.

Content info screen

Access the latest information about
the currently selected content. To
display the latest information, you
must be signed in to PSN

SM

.

Insert a disc.

The game will appear in the content area of the home screen.

Front view

Select the game to start playing.

Quitting a game

Press and hold the (PS) button, and
then select [Close Application].

Returning to the home screen
from a game

To return to the home screen without
quitting a game, press the

button.
To resume playing the game, select it
from the content area.

(PS)

Removing a disc

Touch the (eject) button.

Front view

Eject button

Go to (PlayStation®Store)

Now that you've got a PS4™ system, it's time to head over to see what's available
at PlayStation®Store.

PlayStation®Store has a wide variety of downloadable content, some of which you
can’t get anywhere else. You’ll find games to suit every taste, as well as game
add-ons that make your games even more fun to play, plus free demos and much,
much more. And you can even begin playing your games before they've finished
downloading.

To use PlayStation®Store, you must have a Sony Entertainment Network (SEN)
account and an Internet connection. PlayStation®Store and SEN subject to terms
and country and language restrictions, see eu.playstation.com/legal for details.
Users are responsible for internet service fees. Users must be 7 years or older and
users under 18 require parental consent. Additional age restrictions may apply.
Charges apply for some content and/or services.

Sharing your gaming experience

When using some of the PS4™ system's online services, you can upload
screenshots and video clips of gameplay from a game, and broadcast (stream) your

gameplay.
To use these features, you must have an SEN master account and an Internet
connection.

Using a mono headset

Connect the mono headset to your controller for in-game voice chat.

Mono headset

Microphone

MIC switch

Stereo headset jack

Clip

Create an SEN account to use PSNSM and SEN services such as PlayStation®Store and
Music Unlimited*.

* Not available in all countries.

• You can create your own SEN account for free.

• You must have an Internet connection to use services. You must also update the
system software to the latest version.

• A maximum of 16 accounts can be registered on each PS4™ system.

• To create a sub account for users under a certain age, you must first create a
master account for a parent or guardian.

• Accounts created on a PlayStation®3 system, a PlayStation®Vita system, or a
computer can be used on the PS4™ system.

If you do not have an SEN account

Select (Settings) > [PSNSM] > [Sign In to PSN] from the function screen, and then
follow the screens to create an account.

If you already have an SEN account

Select (Settings) > [PSNSM] > [Sign In to PSN] from the function screen, enter your
sign-in ID and password, and then select [Sign In].

Charging

To use your controller wirelessly, you must first charge its battery. Press and hold
the

(PS) button and the controller's battery charge level will be shown

on-screen.

Turn on your PS4™ system (the power indicator will light

up

white), or set it to standby mode (the power indicator

will light up

orange).

Connect your controller to your PS4™ system with the USB

cable.

Light bar

USB port

To your

USB cable

To charge your controller when in standby mode, you must first checkmark
the [Supply Power from USB Ports] option in
Settings] > [Set Functions Available in Standby Mode].

(Settings) > [Power Saving

PS4™ system

Using multiple controllers

You can use up to 4 controllers at the same time.
When you press the
completed, a colour will be assigned to that user and the light bar will light up in
their own colour, depending on the order in which they join in. The first user is
blue, the second is red, the third is green and the fourth is pink.

(PS) button on a controller for which registration has been

Caution

If you disconnect the AC power cord while the power indicator is lit or blinking,
data might be lost or corrupted, or the system might become damaged. You must
disconnect the AC power cord only once the power is turned off completely. Be
sure to read the "Turning off the power completely" section below.

Entering standby mode

You can charge the controller from a USB port and remain signed in to PSNSM while
in standby mode.

(Power) from the function screen, and then select [Enter Standby Mode].

Select
The picture will disappear, and the power indicator will blink
turning

orange.

To exit standby mode, press the

(PS) button.

white, before

Turning off the power completely

Select (Power) from the function screen, and then select [Turn Off PS4].
The picture will disappear, and the power indicator will blink
turning off.

white, before

Power indicator status

White

Orange

Unlit The power is off

The power is on

Standby mode

User's Guide

The User's Guide contains more information about what your PS4™ system can do
– including how to adjust settings, how long to charge the controller for and how
to use each function. Select
screen.
You can also view the User's Guide by visiting:
eu.playstation.com/help/ps4/manuals/
You must have an Internet connection to view the User’s Guide.

(Settings) > (User's Guide) from the function

Safety Guide

The Safety Guide contains information about how to safely use your PS4™ system,
and information about specifications. Be sure to read it before using the system.

" ", "PlayStation", "DUALSHOCK", " " and " " are registered trademarks of Sony
Computer Entertainment Inc. "

"SONY" and "
a trademark of the same company.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.

"Blu-ray Disc™" and "Blu-ray™" are trademarks of the Blu-ray Disc Association.

Design and specifications are subject to change without notice.
Information about system functionality and images published in this document may vary from
those for your system, depending on the system software version in use. Also, the illustrations
and screen images used in this guide may vary from the actual product.

The information contained in this manual is subject to change without notice.

" are registered trademarks of Sony Corporation. "Sony Entertainment Network" is

" and "PSN" are trademarks of the same company.
