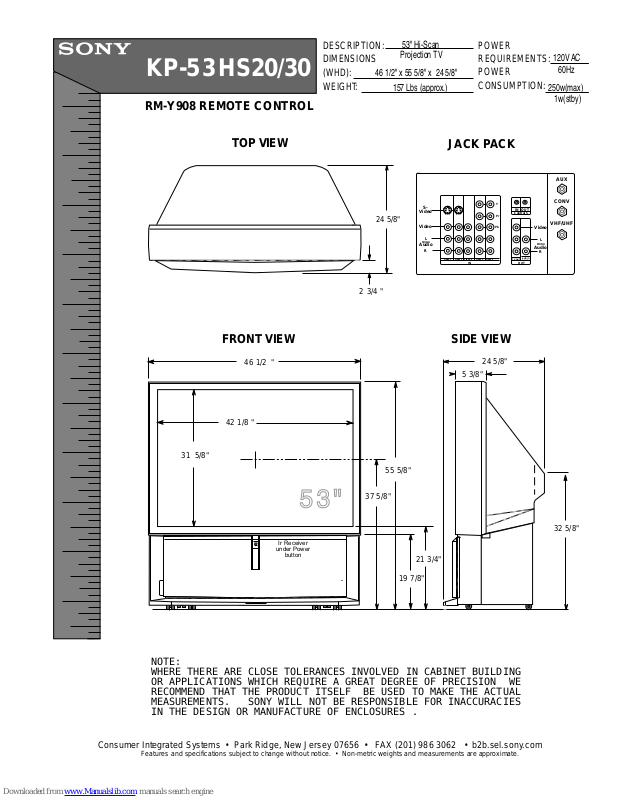

Sony KP-53HS30 - 53"" Hi-scan 1080i&trade, Projection Tv, KP-53HS20 Dimensions
KP-53HS20/30
RM-Y908 REMOTE CONTROL
DESCRIPTION:
DIMENSIONS
(WHD):
46 1/2" x 55 5/8" x 24 5/8"
WEIGHT:
53" Hi-Scan
Projection TV
157 Lbs (approx.) 250w(max)
POWER
REQUIREMENTS:
120V AC
POWER
CONSUMPTION:
60Hz
1w(stby)
TOP VIEW
FRONT VIEW
46 1/2 "
42 1/8 "
2 3/4 "
24 5/8"
JACK P ACK
S-
Video
Video
L
MONO
Audio
R
Video 1 Video 3
Y
Pr
Pb
Video 4 V ideo 5 Video 6
IN
SIDE VIEW
24 5/8"
5 3/8"
IN OUT
Control S
TV OUT
AUX
CONV
VHF/UHF
Video
L
MONO
Audio
R
AUDIO
Fix/Var
OUT
31 5/8"
55 5/8"
37 5/8"
53"
R
Ir Receiver
under Power
button
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 986 3062 • b2b.sel.sony.com
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
21 3/4"
19 7/8"
32 5/8"
