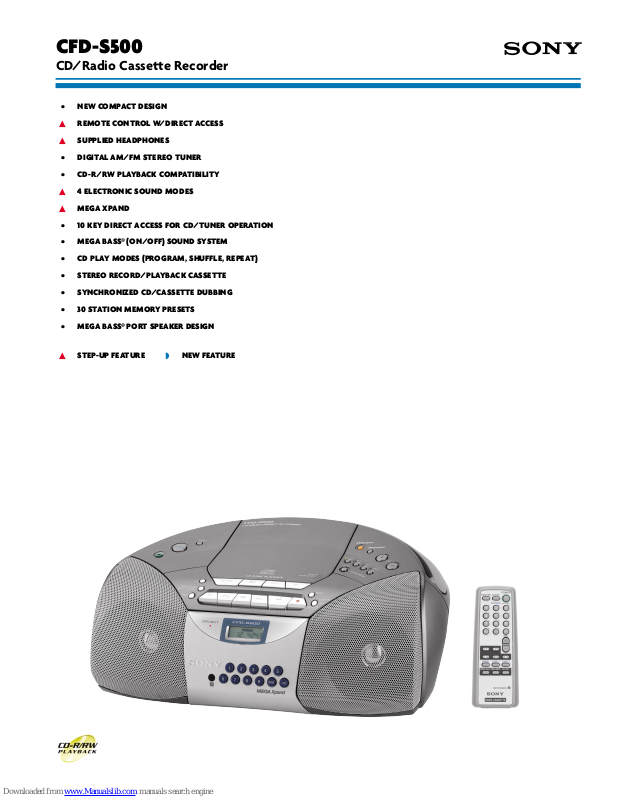

Sony CFD-S500 Marketing, Pressman M-950 Specifications

CFD-S500

CD/Radio Cassette Recorder

• NEW COMPACT DESIGN

▲ REMOTE CONTROL W/DIRECT ACCESS
▲ SUPPLIED HEADPHONES

• DIGITAL AM/FM STEREO TUNER

• CD-R/RW PLAYBACK COMPATIBILITY

▲ 4 ELECTRONIC SOUND MODES
▲ MEGA XPAND

• 10 KEY DIRECT ACCESS FOR CD/TUNER OPERATION

• MEGA BASS®(ON/OFF) SOUND SYSTEM

• CD PLAY MODES (PROGRAM, SHUFFLE, REPEAT)

• STEREO RECORD/PLAYBACK CASSETTE

• SYNCHRONIZED CD/CASSETTE DUBBING

• 30 STATION MEMORY PRESETS

• MEGA BASS®PORT SPEAKER DESIGN

▲ STEP-UP FEATURE ◗ NEW FEATURE

CFD-S500

Sony Electronics Inc • 1 Sony Drive, Park Ridge, New Jersey 07656 • www.sony.com Printed in USA 2/2002

features

• NEW COMPACT DESIGN

represents high quality and power with a new

look in portable entertainment

▲

REMOTE CONTROL W/ DIRECT ACCESS

provides full function remote
control on power on/off, compact disc, tuner and volume, as well as 10­key direct access of CD tracks and tuner presets

▲

SUPPLIED HEADPHONES

• DIGITAL AM/FM STEREO TUNER

provides the most accurate drift-free
tuning of AM and FM radio stations and lets you choose from the wide
variety of radio talk shows and music programs, with the added
enjoyment of stereo sound

• CD-R/RW PLAYBACK COMPATIBILITY

plays all compact discs including

CD-R recordable and CD-RW rewritable

▲

4 ELECTRONIC SOUND MODES (ROCK/POP/JAZZ/VOCAL)

is selected
when EQ appears on the LCD display, allowing you to select an
appropriate sound adjustment setting for listening to various different
types of music

▲

MEGA XPAND

is a unique Sony feature that dramatically enhances the

sound stage, for a fuller, richer sound

• 10 KEY DIRECT ACCESS FOR CD/TUNER OPERATION

provides convenient

one-button access to preset AM/FM stations or tracks of CD player

• MEGA BASS®(ON/OFF) SOUND SYSTEM

produces rich, deep, bass tones

for more powerful overall sound

• CD PLAY MODES (PROGRAM, SHUFFLE, REPEAT)

lets you hear tracks in
multiple modes: in sequence as recorded, in program (RMS) order, all
tracks in random (Shuffle) order or a single track over and over

• STEREO RECORD/PLAYBACK CASSETTE DECK

provides direct recording
from the AM/FM Stereo tuner or the CD player, and lets you play back
your own cassettes in addition to pre-recorded tapes

• SYNCHRONIZED CD/CASSETTE DUBBING

starts cassette recording when

compact disc playback begins

• 30 STATION MEMORY PRESETS (10AM/20FM)

uses electronic settings
for easy one-button tuning of your choice of 10 AM and 20 FM radio
stations

specifications

DIGITAL FILTER:

8X Oversampling

DIGITAL TO ANALOG CONVERSION:

1 Bit

CD FREQUENCY RESPONSE:

20-20000Hz, +1,-2dB

TUNER FREQUENCY RANGE:

AM: 530-1710kHz

FM: 87.6-108MHz

ANTENNA SYSTEM:

AM: Built-in Ferrite Bar Antenna

FM: Telescopic Antenna

TAPE SYSTEM:

4 track, 2 channel stereo cassette

SPEAKERS:

4" (10cm) x 2

OUTPUTS:

Headphone (stereo mini jack)

POWER REQUIREMENTS:

“D” x 6 Batteries (optional)

“AA” x w batteries for Remote (optional)

COLOR:

Black

DIMENSIONS (WHD):

16 1⁄2" x 6 1⁄4" x 11 1⁄8" (386 x 166 x 252mm)

WEIGHT:

8 lbs 8 2⁄3oz (3.8kg) w/batteries

©2002 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved.
Sony and Mega Bass are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures
are approximate.
