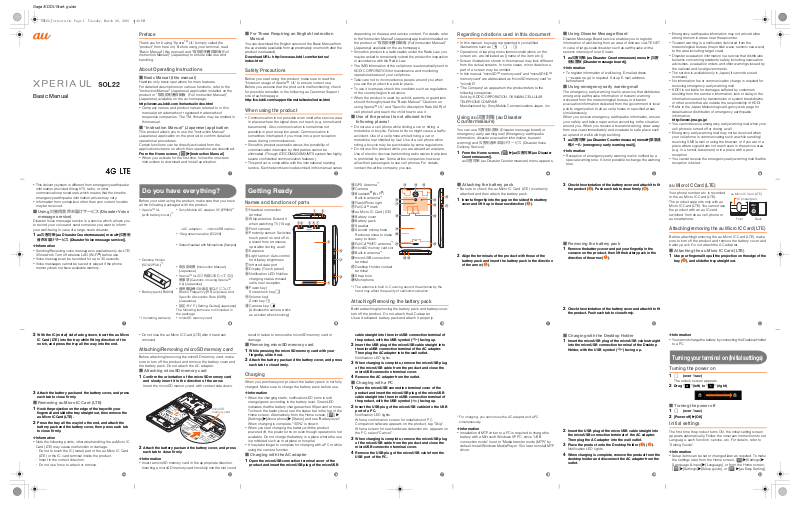

Preface
Thank you for buying "XperiaTM UL" (simply called the "product" from here on). Before using your terminal, read
"Basic Manual" (this manual) and " (Full Instruction Manual)" (Japanese) to ensure safe use and handling.
About Operating Instructions
■ Basic Manual (this manual)
Handles only basic operations for main features.
For detailed descriptions on various functions, refer to the "Instruction Manual" (Japanese) application installed on the
Basic Manual product or " (Full Instruction Manual)" (Japanese) available on the au homepage. http://www.au.kddi.com/torisetsu/index.html
Company names and product names referred to in this manual are trademarks or registered trademarks of respective companies. The TM, ® marks may be omitted in this manual.
■ "Instruction Manual" (Japanese) application
This product allows you to use the "Instruction Manual" (Japanese) application on the product to confirm detailed operational procedures.
Certain functions can be directly activated from the application screens on which their operations are described.
From the Home screen, [ ]X[Instruction Manual]
When you activate for the first time, follow the onscreen instructions to download and install application.
This delivery system is different from emergency earthquake information provided through TV, radio, or other communication procedures, which means that the time the emergency earthquake information arrives may vary.
Information from someplace other than your current location may be received.
■Using (Disaster Voice message service)
Disaster Voice message service is a service which allows you to record your voice and send someone you want to inform your well-being in case of a large-scale disaster.
1au (au Disaster Countermeasure) menuX[(Disaster Voice message service)].
Information
Sending/Receiving voice messages is available only via LTE/ 3G network. Turn off wireless LAN (Wi-Fi®) before use.
Voice message can be recorded for up to 30 seconds.
Voice messages cannot be saved or played if the phone memory does not have available memory.
g
2With the IC (metal) side facing down, insert the au Micro IC Card (LTE) into the tray while fitting direction of the notch, and press the tray all the way into the end.
3Attach the battery pack and the battery cover, and press each tab to close firmly.
■ Removing au Micro IC Card (LTE)
1Hook the projection on the edge of the tray with your fingernail and slide the tray straight out, then remove the au Micro IC Card (LTE).
2Press the tray all the way into the end, and attach the battery pack and the battery cover, then press each tab to close firmly.
Information
Note the following points, otherwise handling the au Micro IC Card (LTE) may cause malfunction or damage.
Do not to touch the IC (metal) part of the au Micro IC Card (LTE) or the IC card terminal inside the product.
Insert in the correct direction.
Do not use force to attach or remove.
a
Do you have everything?
Before your start using the product, make sure that you have all the following packaged with the product.
XperiaTM UL
(with battery cover)*1
Desktop Holder (SOL22PUA)*1
Battery pack (BA800)
*1 Including warranty
Sony Mobile AC adapter 05 (EP880)*1
<AC adapter> <microUSB cable>
1Seg antenna cable (EC220)
Stereo Headset with Microphone (Sample)
(Instruction Manual) (Japanese)
XperiaTM UL(Cautions on using XperiaTM UL) (Japanese)
(Radio Frequency (RF) exposure and Specific Absorption Rate (SAR)) (Japanese)
(Setting Guide) (Japanese) The following items are not included in
the package.
microSD memory card
h
Do not lose the au Micro IC Card (LTE) after it has been removed.
Attaching/Removing microSD memory card
Before attaching/removing the microSD memory card, make sure to turn off the product and remove the battery cover and the battery pack. Do not attach the AC adapter.
■ Attaching microSD memory card
1Confirm the orientation of the microSD memory card and slowly insert it in the direction of the arrow.
Insert the microSD memory card with contact side down.
microSD
memory card
2Attach the battery pack and the battery cover, and press each tab to close firmly.
Information
Insert a microSD memory card in the appropriate direction. Inserting a microSD memory card forcefully into the slot could
■ For Those Requiring an English Instruction
Manual
You can download the English version of the Basic Manual from the au website (available from approximately one month after the product is released).
Download URL: http://www.au.kddi.com/torisetsu/ index.html
Safety Precautions
Before you start using the product, make sure to read the "Notes on usage of XperiaTM UL" to ensure correct use. Before you assume that the product is malfunctioning, check for possible remedies in the following au Customer Support site of au homepage: http://cs.kddi.com/support/komatta/kosho/index.html
When using the product
Communication is not possible even inside the service area in places where the signal does not reach (e.g. tunnels and basements). Also, communication is sometimes not possible in poor reception areas. Communication is sometimes interrupted if you move into a poor reception areas during communications.
Since this product uses radio waves, the possibility of communication intercepts by third parties cannot be eliminated. (Though LTE/CDMA/GSM/UMTS system has highly secure confidential communication features.)
This product is compatible with the international roaming service. Each network service described in this manual varies
b
Getting Ready
Names and functions of parts
aHeadset connection terminal
bWhip antenna: Extend it when watching TV (1Seg).
cFront camera
dProximity sensor: Switches touch panel on and off to prevent from erroneous operation during a call.
eEarpiece
fLight sensor: Auto-control for display brightness
gInfrared data port
hDisplay (Touch panel)
iNotification LED: Notifies charging status, missed calls, mail reception.
jPower key/
Screen lock key:p
kVolume key/ Zoom key:m
lCamera key: k (Activates the camera, works as a shutter when shooting.)
a b
cd e fg
h
j
k
l
i
i
result in failure to remove the microSD memory card or damage.
■ Removing microSD memory card
1While pressing the microSD memory card with your fingertip, slide it out.
2Attach the battery pack and the battery cover, and press each tab to close firmly.
Charging
When you purchase your product, the battery pack is not fully charged. Make sure to charge the battery pack before use.
Information
When the charging starts, notification LED turns in red/ orange/green according to the battery level. Green LED indicates that the battery charge reaches 90 percent or more.
To check the battery level, see the status bar in the top of the
Home screen. Alternatively, from the Home screen, [ ] X [Settings]X[About phone]X [Status] and see "Battery level". When charging is complete, "100%" is shown.
When you start charging the battery with the product powered off, the power turns on even though operation is not available. Do not charge the battery in a place where the use is prohibited such as in airplane or hospital.
It may take longer to complete for charging with a PC or while using the camera function.
■ Charging with the AC adapter
1Open the microUSB connection terminal cover of the product and insert the microUSB plug of the microUSB
depending on the area and service content. For details, refer to the "Instruction Manual" (Japanese) application installed on the product or " (Full Instruction Manual)"
(Japanese) available on the au homepage.
Since this product is a radio station under the Radio Law, you may be asked to temporarily submit the product for inspection in accordance with the Radio Law.
The IMEI information of the cell phone is automatically sent to KDDI CORPORATION for maintenance and monitoring operational status of your cell phone.
Take care not to inconvenience people around you when you use the product in a public place.
To use it overseas, check the condition such as regulations of the country/region in advance.
When the product is used by a child, parents or guardians should thoroughly read the "Basic Manual" "Cautions on using XperiaTM UL" and "Specific Absorption Rate (SAR) of cell phones" and teach the child how to use it.
■ Use of the product is not allowed in the following places!
Do not use a cell phone while driving a car or riding a motorbike or bicycle. Failure to do so might cause a traffic accident. Use of a cell phone while driving a car or motorbike is prohibited by law. Use of a cell phone while riding a bicycle may be punishable by some regulations.
Do not use this product while you are aboard an airplane. Use of electric devices transmitting radio waves in airplane is prohibited by law. Some airline companies, however, allow their passengers to use cell phones. For details, contact the airline company you use.
c
mGPS Antenna*1 nCamera
oBluetooth®/Wi-Fi®/
Built-in antenna*1 |
p |
|
pFlash/Photo light |
||
q |
||
qFeliCaTM mark |
|
|
rau Micro IC Card (LTE) |
|
|
sBattery cover |
r |
|
tBattery pack |
|
uSpeaker
vSecond microphone: s Reduces noise to make t
easy to listen.
wFeliCaTM/NFC antenna*1 u
xmicroSD memory card slot
yBuilt-in antenna*1
zmicroUSB connection terminal
ADesktop Holder contact terminal
BStrap hole CMicrophone
m n o
z
v
w A
x
y
BC
*1 The antenna is built in. Covering around the antenna by the hand may affect the quality of call/communication.
Regarding notations used in this document
In this manual, keys are represented by simplified illustrations such as x, y, r.
Operations of tapping menu items/icons/buttons on the screen etc. are indicated as [(name of the item etc.)].
Screen illustrations shown in this manual may look different from the actual screens. In some cases, minor details or a part of a screen may be omitted.
In this manual, "microSDTM memory card" and "microSDHCTM memory card" are abbreviated as "microSD memory card" or "microSD".
"The Company" as appears on the product refers to the following companies:
Sold by: KDDI CORPORATION, OKINAWA CELLULAR TELEPHONE COMPANY
Manufactured by: Sony Mobile Communications Japan, inc.
Using au (au Disaster
Countermeasure)
You can use (Disaster message board) or emergency early warning mail (Emergency earthquake information, disaster evacuation information, tsunami
warning) and (Disaster Voice Delivery Service).
1From the Home screen, [ ]X[au (au Disaster
Countermeasure)].
au (au Disaster Countermeasure) menu appears.
d
■ Attaching the battery pack
Be sure to check the au Micro IC Card (LTE) is certainly attached and then attach the battery pack.
1Insert a fingertip into the gap on the side of the battery cover and lift it up in the arrow direction ().
2Align the terminals of the product with those of the
battery pack and insert the battery pack in the direction of the arrow ( ).
Attaching/Removing the battery pack
Before attaching/removing the battery pack and battery cover, turn off the product. Do not attach the AC adapter.
Use a dedicated battery pack and attach it properly.
j
cable straight into the microUSB connection terminal of the product, with the USB symbol () facing up.
2Insert the USB plug of the microUSB cable straight into the microUSB connection terminal of the AC adapter. Then plug the AC adapter into the wall outlet.
Notification LED lights.
3When charging is complete, remove the microUSB plug of the microUSB cable from the product and close the microUSB connection terminal cover.
4Remove the AC adapter from the outlet.
■ Charging with a PC
1Open the microUSB connection terminal cover of the product and insert the microUSB plug of the microUSB cable straight into the microUSB connection terminal of the product, with the USB symbol () facing up.
2Insert the USB plug of the microUSB cable into the USB port of a PC.
Notification LED lights.
When a confirmation screen for installation of PC Companion software appears on the product, tap "Skip". When a screen for new hardware detection etc. appears on the PC, select "Cancel".
3When charging is complete, remove the microUSB plug of the microUSB cable from the product and close the microUSB connection terminal cover.
4Remove the USB plug of the microUSB cable from the USB port of the PC.
k
*For charging, you cannot use the AC adapter and a PC simultaneously.
Information
Installation of MTP driver to a PC is required to charge the battery with a Microsoft Windows XP PC, since "USB connection mode" is set to "Media transfer mode (MTP)" by default. Install Windows Media Player 10 or later to install MTP driver.
■ Using Disaster Message Board
Disaster Message Board service enables you to register information of well-being from an area of distress via LTE NET in case of large-scale disaster such as earthquake with a seismic intensity of over 6 lower.
1au (au Disaster Countermeasure) menu X[(Disaster message board)].
Information
To register information of well-being, E-mail address
( ezweb.ne.jp) is required. Set up E-mail address beforehand.
■ Using emergency early warning mail
The emergency early warning mail is a service that distributes emergency earthquake information or tsunami warning delivered from the meteorological bureau or disaster evacuation information delivered from the government or local public organization to all au cell phones in specified areas simultaneously.
When you receive emergency earthquake information, ensure your safety and take proper action according to the situation around you. When you receive a tsunami warning, draw away from sea coast immediately and evacuate to safe place such as upland or well-built high building.
1au (au Disaster Countermeasure) menuX[(emergency early warning mail)].
Information
Reception of emergency early warning mail is notified by a special warning tone. It is not possible to change the warning tone.
Emergency earthquake information may not arrive before strong tremors in areas near the epicenter.
Tsunami warning is a notification delivered from the meteorological bureau (major tidal wave, seismic sea wave) to the area including target coast.
Disaster evacuation information is a service that distributes bulletins concerning residents' safety including evacuation advisories, evacuation orders and other warnings issued by the national and local governments.
The service is available only in Japan (it cannot be used overseas).
No information fee or communication charge is required for receiving emergency early warning mail.
KDDI is not liable for damages suffered by customers resulting from the service's information, lack or delay in the information caused by transmission or system breakdowns, or other events that are outside the responsibility of KDDI.
Refer to the Japan Meteorological Agency web page for details about distribution of emergency earthquake information.
http://www.jma.go.jp/
You cannot receive emergency early warning mail when your cell phone is turned off or during a call.
Emergency early warning mail may not be received when your cell phone is communicating such as while sending/ receiving SMS/e-mail or using the browser, or if you are in a place where signal does not reach even in the service area (e.g. in a tunnel, basement) or in a place with a poor reception.
You cannot receive the emergency early warning mail that the reception is failed.
e |
|
|
|
|
f |
|
3 Check the orientation of the battery cover and attach it to fit |
au Micro IC Card (LTE) |
|
|
|
|
|
the product ( ). Push each tab to close firmly ( ). |
|
|
|
|
|
|
Your phone number etc. is recorded |
au Micro IC Card (LTE) |
|||||
|
||||||
|
in the au Micro IC Card (LTE). |
|
|
IC (metal) part |
||
|
The product supports only with au |
|
|
|
|
|
|
Micro IC Card (LTE). You cannot use |
|
|
|
|
|
|
the product with an au IC-card |
|
|
|
|
|
|
switched from an au cell phone or |
|
|
|
|
|
|
au smartphone. |
|
Front |
Back |
■ Removing the battery pack
1Remove the battery cover and put your fingertip in the
concave on the product, then lift the battery pack in the direction of the arrow ().
2Check the orientation of the battery cover and attach it to fit the product. Push each tab to close firmly.
Attaching/removing the au Micro IC Card (LTE)
Before attaching/removing the au Micro IC Card (LTE), make sure to turn off the product and remove the battery cover and battery pack. Do not attach the AC adapter.
■ Attaching the au Micro IC Card (LTE)
1Use your fingernail to pull the projection on the edge of the tray (), and slide the tray straight out.
l
■ Charging with the Desktop Holder
1Insert the microUSB plug of the microUSB cable straight into the microUSB connection terminal of the Desktop Holder, with the USB symbol () facing up.
2Insert the USB plug of the microUSB cable straight into the microUSB connection terminal of the AC adapter. Then plug the AC adapter into the wall outlet.
3Place the product onto the Desktop Holder () ().
Notification LED lights.
4When charging is complete, remove the product from the desktop holder and disconnect the AC adapter from the outlet.
m
Information
You cannot charge the battery by connecting the Desktop Holder to a PC.
Turning your terminal on (Initial settings)
Turning the power on
1p(over 1 sec)
The unlock screen appears.
2Drag " " (left) to " " (right)
■ Turning the power off
1p(over 1 sec)
2[Power off]X[OK]
Initial settings
The first time the product turns ON, the initial setting screen appears automatically. Follow the onscreen instructions to set Language, each function, service, etc. For details, refer to "Setting Guide".
Information
Setup items can be set or changed later as required. To make
the settings later, from the Home screen, [ ]X[Settings]X [Language & input]X[Language], or from the Home screen, [ ]X[Settings]X[Setup guide], or [ ]X[au Easy Setting].
n |
o |
p |
q |
r |
s |
t |
Screen Lock
When the screen lock is set, the screen light turns off to avoid the keys or touch panel from false operations.
When the specified time elapses, the product screen light turns off and screen lock is activated.
1 While the screen is displayed, p
■ Unlocking screen
The unlocking screen appears when turning the power on or the backlight on by pressing p.
1 Drag " " (left) to " " (right).
Information
Drag (right) to (left) to activate the camera to shoot without unlocking the screen.
Basic Operation
Key icons
The followings are the main functions of x, y, r keys located at the bottom of the screen.
x y r
u
Information
When you set screen lock to "Slide", slide the status bar downward to check the Notification panel without unlocking the screen.
■ Notification LED
Notification LED informs charging prompt, battery level while charging, missed calls, mail arrival, etc. by turning on or flashing.
Status |
Description |
Red |
The battery is charging when the |
|
remaining battery level is 14% or lower. |
|
|
Orange |
The battery is charging when the |
|
remaining battery level is 15% - 89%. |
|
|
Green |
The battery is charging when the |
|
remaining battery level is 90 % or higher. |
|
|
Flashing red |
The battery is charging when the |
|
remaining battery level is 14% or lower. |
|
|
Flashing green |
New Gmail, new PC mail or new SMS |
|
arrives while backlight is off. |
|
|
Flashing blue |
New mail arrives while the backlight turns |
|
off. |
|
|
Information |
|
When the remaining battery is not sufficient for turning the product ON, pressing pmakes LED flash red.
■ Checking own phone number
1From the Home screen, [ ]X[Settings].
2[About phone]X[Status].
B
For inquiries, call: Customer Service Center
For general information and charges (toll free)
From fixed-line phones: |
From au cell phones: |
|
|
0077-7-111 |
157without area code |
|
For loss or theft and operation information (toll free)
From fixed-line phones: |
From au cell phones: |
|
|
0077-7-113 |
113without area code |
|
In case above numbers are not available, (toll free)
0120-977-033 (except Okinawa)
0120-977-699 (Okinawa)
Secure cell phone support center
For loss, theft, damage.
From a land-line phone/an au cell phone,
0120-925-919 (toll-free)
Business hours 9:00 21:00 (7 days a week)
Cell phone and PHS operators collect and recycle unused telephones, batteries and battery chargers at stores bearing thelogo regardless of brand and manufacturer to protect the environment and reuse valuable resources.
Sold by: KDDI CORPORATION, |
September 2012, 1st Edition |
OKINAWA CELLULAR TELEPHONE COMPANY |
|
Manufactured by: Sony Mobile Communications Japan, Inc |
1268-7227.1 |
x |
Return to the previous screen. Close a dialog |
Back |
box, menu, the Notifications panel or |
|
keyboard. |
|
|
y |
Display the Home screen. |
Home |
|
|
|
r |
Recently used applications appear on a list. |
Recently used |
Tap a thumbnail to activate or flick left or right |
applications |
to delete from the list. |
|
|
Using the touch panel
The display on the product is a touch panel operated by touching it with your finger.
■ Tap/Double-tap
Tap: Gently touch a screen and then immediately release your finger. Double tap: Tap the same position twice.
■ Long-touch
Keep touching an item with your finger.
■ Slide
While your finger is gently touching the screen, trace it to the desired direction to move over.
■ Flick
Operate the screen by quickly moving (flicking) your finger up, down, right, or left.
■ Pinch
Touch the screen with two fingers and widen (pinchout) or narrow (pinch-in) the fingers' distance.
v
The phone number of the product is shown under "My phone number".
Information
Alternatively, from the Home screen, tap [ ] X[Contacts]X [Myself] to check your phone number.
■ Setting the Silent Mode
Set the ringtone volume to 0. Note that setting the product to Silent mode does not mute sounds for shutter, playback of video or music, alarm, etc. And volume up for ringtone or notification tone cancels Silent mode.
1p(over 1 sec)
2[ ]/[]
Tap " " to set mute (ringtone volume 0) and tap " " to set vibrator.
Information
Alternatively, from the Home screen,
[ ]u[Settings]u[Sound]u[Silent mode]u[Off]/[Vibrate]/[Mute] to switch the Silent mode on or off.
■ Setting Airplane mode
When airplane mode is set, all wireless functions (phone, packet communication, Wi-Fi®, Bluetooth® function, NFC R/W P2P function) are turned off.
1 p(over 1 sec.) u[Airplane mode]
Information
Alternatively, from the Home screen,
[ ]u[Settings]u[More...]uMark/Unmark [Airplane mode] to switch the airplane mode on/off.
C
■ Downloading and updating software
Update files can be downloaded from the Internet web site via wireless communication into the product directly.
To download software updates only via Wi-Fi® , from the Home screen, [ ]X[Update Center]X[]X[Settings]X[Preferred data traffic] and select [Via Wi-Fi only]. If you set to [Via mobile network/Wi-Fi] for updating, note that when Wi-Fi®
communication becomes unstable, packet communication takes the place automatically, which may apply communication fees.
1From the Home screen, [ ]X[Update Center].
2[System]X[ ].
■ Connecting to a PC for updating software
You can update software using PC Companion to be installed from the product.
Install PC Companion to your PC beforehand.
After-sales service
■ When asking for repair
For repair, contact Secure cell phone support center.
During the |
Repairs will be done based on the terms of |
warranty |
services of the free-of-charge repair warranty |
period |
described on the warranty card. |
|
|
Outside the |
We shall repair the product for a charge as |
warranty |
requested by the customer if repair renders it |
period |
usable. |
|
|
■ Drag
Keep touching an item or icon, trace it to the desired direction to move.
Slide Flick Pinch
Home screen
Home screen consists of multiple screens. Slide/flick left or
right to switch them. The center screen is the default screen to |
||||||||||||
operate. Tap yto return to the Home screen any time. |
|
|||||||||||
aHome screen position |
a |
|
|
|
|
|
|
|
|
|||
Indicates which screen of the |
|
|
|
|
|
|
|
|
|
|
|
|
five home screens you are in. |
b |
|
||||||||||
bWidget |
|
|
|
|
|
|
|
|
|
|
|
|
cWallpaper |
|
|
|
|
|
|
|
|
|
|
|
|
dMedia folders |
|
|
|
|
|
|
|
|
|
|
|
|
(WALKMAN, Movies, Album, |
c |
|
|
|
||||||||
|
|
|||||||||||
Camera, Music Unlimited, |
|
|
|
|
|
|
|
|
|
|
|
e |
Video Unlimited, FM radio) |
|
|
|
|
|
|
|
|
|
|
|
|
eShortcuts (Applications) |
d |
|
|
|
|
|
|
f |
||||
|
|
|
|
|
|
|
|
|
|
|||
fau folders |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(au (au Smart |
|
|
|
|
|
|
|
|
|
|
|
|
Pass), E-mail, SMS, Friends |
|
|
|
e g e |
|
w
Entering characters
When entering characters, use the software keyboard displayed when tapping a character input box for adding contacts, creating a message, etc.
■ Switching keyboards
To input Japanese, use "Xperia Japanese keyboard" switching four input types of "Phonepad", "QWERTY keyboard", "Japanese syllabary", "Kana handwriting".
Phonepad |
QWERTY keyboard |
Japanese syllabary |
Kana handwriting |
keyboard |
|
1Tap a character input box.
2Long-touch " "X[]/[]/[]/[].
The keyboard switches to Phonepad/QWERTY keyboard/ Japanese syllabary/Kana handwriting.
D
Information
Before handing in the product for repair, make a backup of the contents of memory since they may disappear during repair. Note that the Company shall not be liable for any damages and loss of income should the contents of memory be altered or lost.
Recycled parts that meet the Company's quality standards are sometimes used for repair.
Collected au cell phones by Replacement cell phone delivery service which you used before are recycled to cell phones for replacement after repairs. Also replaced parts by au aftersales service are collected and recycled by KDDI. They are not returned to customers.
■ Performance parts for repair
The Company retains performance parts for repair of the XperiaTM UL main unit and its peripherals for six years after discontinuation of production. "Performance parts for repair" refers to parts required for maintaining the functions of the product.
■ Warranty card
At the store of purchase, thoroughly check and read the name of the retailer, date of purchase and other necessary details filled in on the warranty card, and be sure to keep it in a safe place.
■ Secure cell phone support plus
An after-sales service membership program on a monthly basis called "Secure cell phone support plus" (monthly fee: 399 yen including tax) is available for using your au cell phone for a long time without worries. This service expands coverage for many troubles including malfunction, theft and
I J
Note, Uta Pass, Video Pass, LISMO Book Store,(Talk Assist), LINE, LISMO Player, au(au Customer Support), au (au Disaster Countermeasure))
gApplication key
Adding to Home screen/Editing Home screen
You can change wallpaper or theme of the Home screen and add/delete/move shortcuts of applications, widgets or folders on the Home screen.
1 Tap an area of the Home screen where no icons are displayed.
An icon appears at the top of the screen.
2 |
|
|
|
|
Wallpaper |
Select an image from Album/Live |
|
|
|
|
wallpapers/XperiaTM wallpapers to |
|
|
|
replace wallpaper. |
|
|
|
|
|
|
Theme |
Set background image for the Home |
|
|
|
screen or settings screen. |
|
|
|
|
|
|
Shortcuts |
Add a shortcut of application etc. |
|
|
|
|
|
|
Widgets |
Select a widget to add from the list. |
|
|
|
|
■ Adding a folder
1From the Home screen, long-touch an icon.
2Drag the icon onto another icon then release your finger.
3Enter a folder nameu[Done]
x
Information
Word suggestions or direct conversion candidates for the entered characters appear. Tap a word to enter.
Tap " " to delete the character before the cursor.
Long-touch " " to enter symbols (single byte/double byte), facemarks from the displayed list.
On the Phonepad, you can enter characters by flicking a key up/down/left/right besides repeatedly tapping the key (toggle input).
Tap xto stop entering characters and return to the previous screen.
Support
Introduction of related accessories
For details, refer to the instruction manual for each device.
Battery pack (BA800)
Sony Mobile AC adapter 05 (EP880)
Desktop Holder (DK25)
1Seg antenna (EC220)
Common AC Adapter 04 (0401PWA) (sold separately)
au Carrying Case F Black (0105FCA) (sold separately)
Information
For the latest information on accessories, visit the au homepage
(http://www.au.kddi.com/) or contact the Customer Service Center.
E
loss. For details of this service, refer to au homepage or contact Secure cell phone support center.
Information
You can apply for membership only at the time of purchasing your au cell phone.
Once you cancel the membership, you cannot reapply for it until you purchase an au cell phone next time.
Note that when changing the model or purchasing an extra cell phone, this service only covers the most recently purchased au cell phone.
When an au cell phone is handed over to you or someone else, the Secure cell phone support plus membership is also handed over to the successor of the cell phone.
When you get a new au cell phone by changing the model or purchasing an extra cell phone, the "Secure cell phone support plus" membership for the old au cell phone is automatically canceled.
Service contents are subject to change without notice.
■ au Micro IC Card (LTE)
The au Micro IC Card (LTE) is lent to you by au. In case of loss or damage, the card will be replaced at your expense. When malfunction is suspected, or in case of theft or loss, contact an au shop or PiPit.
■ After-sales service
If you are unsure about anything regarding after-sales service, contact the following service contact.
Customer Service Center (for service canceling procedure or operation in case of loss or theft)
From a land-line phone, 0077-7-113 (toll-free) From an au cell phone, 113 without area code (toll free)
K
■ Deleting shortcuts/widgets/folders
1From the Home screen, long-touch an icon to delete.
appears at the bottom of the screen.
2Drag the icon to " " then release your finger.
To delete a folder, tap "Delete" after Step 2. Shortcuts etc. in the folder are also deleted.
Information
Long-touch a shortcut, widget, or folder icon to move.
Using the Applications screen
You can call up functions from the Applications screen. Application icons installed to the product are also displayed.
■ Starting an application
When you tap application icons to use respective functions, you may incur communication charges depending on the function.
1From the Home screen, [ ]
The Applications screen appears. Slide/Flick left or right to switch the Applications screen.
2Tap an application to use.
■ Main applications
/ |
Phone/Contacts |
|
Play Store |
|
|
|
|
/ |
E-mail/SMS |
/ |
Camera/Album |
|
|
|
|
|
Browser |
|
Maps |
|
|
|
|
|
Settings |
|
Search |
|
|
|
|
y
Accessories described on this page can be purchased from the au Online Shop.
http://auonlineshop.kddi.com/
Troubleshooting
Before you assume that the product is malfunctioning, check the following:
Symptom |
What you should check |
|
Power is not turned |
Is the battery pack charged? |
|
on even though |
|
|
Is ppressed for over 1 second? |
||
pis pressed. |
|
|
The power goes off |
Is the battery running out? |
|
|
|
|
The power turns off |
Is the battery running out? |
|
while activation |
|
|
screen is displayed. |
|
|
|
|
|
(Out of service |
Is the product out of the service area |
|
area) appears. |
or in an area where the signal is weak? |
|
|
|
|
|
Is the built-in antenna covered with |
|
|
finger etc.? |
|
|
|
|
Cannot charge the |
Is the power plug of the AC adapter |
|
battery pack |
surely inserted into the outlet? |
|
(Notification LED |
|
|
Is the battery pack attached properly? |
||
does not light, the |
||
|
||
Is the microUSB plug of the microUSB |
||
battery icon does |
||
cable surely inserted into the product? |
||
not change into |
||
|
||
charging). |
|
|
|
|
|
Charging is not |
Is the temperature of the product |
|
complete. |
raised or very low? |
|
|
|
|
|
F |
Secure cell phone support center (for loss, theft, damage)
From a land-line phone/From an au cell phone,
0120-925-919 (toll free) Business hours 9:00 – 21:00 (7 days a week)
■ au after-sales service information
Replacement cell phone delivery service
Secure cell phone support plus members
Spontaneous failure |
1st |
Free of charge |
Spontaneous failure |
2nd |
Customer charge |
|
1st: 5,250 yen |
|
Partially damage, water |
||
soak, irreparable damage, |
2nd: 8,400 yen |
|
theft or loss |
|
|
|
|
|
Non-Secure cell phone support plus members
Spontaneous failure |
1st |
No recompense |
Spontaneous failure |
2nd |
|
Partially damage, water |
|
|
soak, irreparable damage, |
|
|
theft or loss |
|
|
|
|
|
Holding over and repair
Secure cell phone support plus members
Spontaneous failure |
1st |
Free of charge |
Spontaneous failure |
2nd |
Free of charge (three-year |
|
|
warranty) |
|
|
|
Partially damage |
|
Customer charge |
|
|
Upper limit: 5,250 yen |
|
|
|
Water soak, irreparable |
No recompense |
|
damage |
|
|
|
|
|
Theft, loss |
|
|
|
|
|
L
/ |
Alarm & clock/ |
|
Instruction Manual |
|
Calendar |
|
|
|
|
|
|
■ Downloading applications
You can download applications such as convenient tools and games from the Google Play and install them to use on the product.
To use Google Play, you need to set a Google account. For details, refer to "Setting Guide".
■ Deleting (uninstalling) applications
Before deleting installed applications, back up contents related to the application that you want to save including data saved in the application.
Information
Some applications may not be deleted.
Knowing the status of the product
■ Status bar
The status bar is located at the top of the product screen. On the left of the status bar, notification icons appears to inform missed calls, new mail, operations in progress, etc., and on the right, status icons appear to indicate the status of the product.
|
|
|
|
z |
|
|
|
|
|
||
|
|
|
|||
|
Symptom |
What you should check |
|||
Cannot operate |
Are you operating with gloved hands? |
||||
touch panel as |
|
|
|
||
Are you operating with a fingernail or |
|||||
intended. |
|||||
foreign object on the screen? |
|||||
|
|
||||
|
|
||||
Cannot operate key/ |
Is the power turned on? |
||||
touch panel. |
|
|
|
||
Is "Screen lock" set? |
|
|
|||
|
|
|
|
||
|
|
|
|||
|
|
Turn off the power and then turn it on |
|||
|
|
again. |
|
|
|
|
|
||||
Screen response is |
Screen response may be slowed |
||||
slow when you tap |
down when a large amount of data is |
||||
on the screen/press |
stored in the product or being |
||||
the keys. |
transmitted between the product and |
||||
|
|
a microSD memory card. |
|||
|
|
||||
A message such as |
The battery is almost dead. |
||||
charge the battery |
|
|
|
||
appears. |
|
|
|
||
|
|
||||
Battery usage time |
Is the battery pack fully charged? |
||||
is short. |
Charge until the notification LED turns |
||||
|
|
green. |
|
|
|
|
|
|
|||
|
|
Is the battery pack end-of-life? |
|||
|
|
|
|||
|
|
Is the product used for a long period |
|||
|
|
at places where |
(out of range) |
||
|
|
appears? |
|
|
|
|
|
||||
The display |
Is set "Sleep" period too short? Set the |
||||
backlight turns off |
screen to light longer. |
||||
in a short while. |
|
|
|
||
|
|
|
|
|
G
Non-Secure cell phone support plus members
Spontaneous failure |
1st |
Free of charge |
Spontaneous failure |
2nd |
Actual cost |
Partially damage |
|
|
|
|
|
Water soak, irreparable |
No recompense |
|
damage |
|
(model change) |
|
|
|
Theft, loss |
|
|
|
|
|
* Charge amounts are all tax-included.
Information
Replacement cell phone delivery service
When you have trouble with your au cell phone, replacement cell phone (same model, same color, including new battery) is delivered by calling to. Return your damaged cell phone within 14 days after replacement cell phone is delivered.
Available up to twice in a year from the day you use this service as a start day. If you do not use this service in the past year at the subscription to this service, it will be 1st and if you use, it will be 2nd.
*For details, refer to au homepage.
Holding over and repair
Repairs due to water soak and irreparable damage are not covered by this service.
Damages and malfunctions intentionally caused by the customer as well as those due to modification (e.g. disassembly, change of parts, painting, etc.) by the customer are not covered by this service.
You cannot receive a refund for replacement of the outer casing due to stains, scratches, paint removal, etc. on the outer casing.
M
■ Examples of notification icon
New Gmail message
New PC mail message
New E mail ( @ezweb.ne.jp) message
New SMS/Receiving notification service message/New Receiving notification
Talking/Calling/Receiving
Missed call
Green Heat energy saving icon (Remove the AC adapter from the power outlet)
USB connecting
Receiving/Downloading data
■ Main status icons
/ |
Signal level (Level 4/Out of service area) |
|
|
/ |
Data communication status (LTE available/3G |
|
available) |
|
|
/ |
Battery level (100%/Charging) |
|
|
/ |
Silent mode (Vibrate/Mute) |
|
|
|
Airplane mode is activated. |
|
|
■ Notification panel
If any notification icons are displayed, slide down the status bar to open the Notification panel. You can check details of notification icons or start corresponding applications.
|
A |
|
|
|
|
Symptom |
What you should check |
|
Display is dark. |
Is “Brightness” set to dark? |
|
|
|
|
|
Is the proximity sensor covered by |
|
|
sticker? |
|
|
|
|
Cannot hear sound |
Is Stereo Headset with Microphone |
|
while watching |
(Sample) unplugged from the 1Seg |
|
1Seg. |
antenna cable while watching 1Seg |
|
|
using Stereo Headset with Microphone |
|
|
(Sample)? Reconnect the 1Seg |
|
|
antenna cable. |
|
|
|
|
Cannot recognize a |
Is the microSD memory card inserted |
|
microSD memory |
properly? |
|
card. |
|
|
Is the microSD memory card |
||
|
||
|
unmounted? |
|
|
|
For more details, visit au Customer Support site of au homepage. http://cs.kddi.com/support/komatta/kosho/index.html
Updating Software
You can update the product to the most recent software for optimal performance and to get the latest enhancements.
You are charged for data communication when connecting to the Internet from the product using packet communication.
You are recommended to back up your data before updating software.
For details, visit http://www.sonymobile.co.jp/support/ or refer to the "Instruction Manual" (Japanese) application or " (Full instruction manual)" (Japanese) available on au homepage.
|
|
H |
Main specifications |
|
|
|
|
|
|
|
|
Display |
|
Approx. 4.3 inches TFT |
|
|
16,777,216 colors |
|
|
|
|
|
720 × 1,280 dots |
Weight |
|
Approx. 120 g (with battery |
|
|
pack) |
|
|
|
Dimension (W × H × D) |
Approx. 65mm × 129mm |
|
|
|
× 8.7mm (thickest part |
|
|
10.9mm) |
|
|
|
Continuous |
In Japan |
Approx. 700 minutes |
call time |
|
|
Overseas |
Approx. 470 minutes |
|
|
(GSM) |
|
|
|
|
Continuous |
In Japan |
Approx. 320 hours (LTE) |
stand-by |
|
Approx. 490 hours (3G) |
time |
|
|
Overseas |
Approx. 440 hours |
|
|
(GSM) |
|
|
|
|
Continuous |
charging time |
Approx. 130 minutes |
(Sony Mobile AC adapter 05) |
|
|
|
|
|
1Seg viewing time |
Approx. 270 minutes |
|
|
|
|
Information |
|
|
The continuous talk time, continuous standby time and continuous 1Seg viewing time may drop to less than half depending on the battery charging status, usage environment such as temperature, reception condition at the location where the product is used, and the function settings.
N
