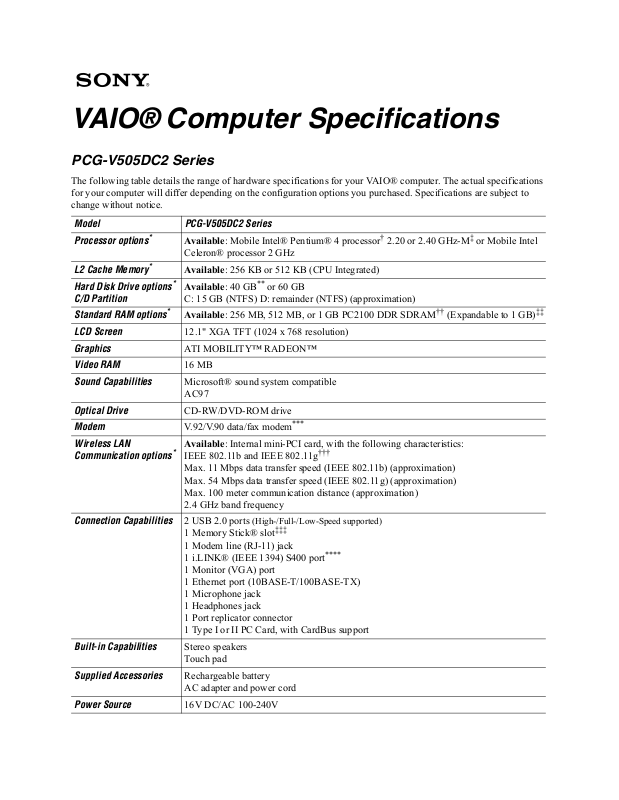

Sony PCG-V505DC2K, PCG-V505DC2P Technical Specifications

VAIO® Computer Specifications

PCG-V505DC2 Series

The following table details the range of hardware specifications for your VAIO® computer. The actual specifications for your computer will differ depending on the configuration options you purchased. Specifications are subject to change without notice.

Model PCG-V505DC2 Series

Processor options

L2 Cache Memory

Hard Disk Drive options C/D Partition

Standard RAM options

LCD Screen 12.1" XGA TFT (1024 x 768 resolution)

Graphics ATI MOBILITY™ RADEON™

Video RAM 16 MB

Sound Capabilities Microsoft® sound system compatible

Optical Drive CD-RW/DVD-ROM drive

Modem V.92/V.90 data/fax modem

Wireless LAN Communication options

Connection Capabilities 2 USB 2.0 ports (High-/Full-/Low-Speed supported)

Built-in Capabilities Stereo speakers

Supplied Accessories Rechargeable battery

Power Source 16V DC/AC 100-240V

Available: Mobile Intel® Pentium® 4 processor† 2.20 or 2.40 GHz-M‡ or Mobile Intel Celeron® processor 2 GHz

Available: 256 KB or 512 KB (CPU Integrated)

Available: 40 GB** or 60 GB C: 15 GB (NTFS) D: remainder (NTFS) (approximation)

Available: 256 MB, 512 MB, or 1 GB PC2100 DDR SDRAM†† (Expandable to 1 GB)

AC97

***

Available: Internal mini-PCI card, with the following characteristics:

IEEE 802.11b and IEEE 802.11g Max. 11 Mbps data transfer speed (IEEE 802.11b) (approximation) Max. 54 Mbps data transfer speed (IEEE 802.11g) (approximation) Max. 100 meter communication distance (approximation)

2.4 GHz band frequency

1 Memory Stick® slot 1 Modem line (RJ-11) jack 1 i.LINK® (IEEE 1394) S400 port 1 Monitor (VGA) port 1 Ethernet port (10BASE-T/100BASE-TX) 1 Microphone jack 1 Headphones jack 1 Port replicator connector 1 Type I or II PC Card, with CardBus support

Touch pad

AC adapter and power cord

‡‡‡

†††

****

‡‡

VAIO® Computer Specifications

Model PCG-V505DC2 Series

Power Management Energy Star® Compliant

Advanced Configuration and Power Interface (ACPI)

Battery Lithium-ion

Dimensions 10.9" (w) x 1.32 - 1.38" (h) x 9.54" (d) (277 mm x 33.5 - 35 mm x 242.4 mm)

Weight 4.39 lbs. (1.99 kg) with battery

Operating Temperature 40°F to 95°F (5°C to 35°C)

Operating Humidity 20% to 80% (not condensed), provided that humidity is less than 65% at 95°F (35°C),

hygrometer reading of less than 84°F (29°C)

Storage Temperature -4°F to 140°F (-20°C to 60°C) (temperature gradient less than 18°F (10°C/hour)

Storage Humidity 10% to 90% (not condensed) provided that humidity is less than 20% at 140° F (60°C),

hygrometer reading of less than 95°F (35°C)

* Certain specifications differ depending on the specific configuration you purchased. † Mobile Intel® Pentium® 4 processors support Enhanced Intel SpeedStep® Technology. ‡ GHz denotes maximum microprocessor internal clock speed; other factors may affect application performance. ** GB means one billion bytes when referring to hard drive capacity. Five GB is reserved as a recovery partition.

Accessible capacity may vary. †† Your system may contain additional memory installed at the time of purchase. ‡‡ One gigabyte is equal to 1,024 megabytes. ***Maximum speed for faxing is 14.4 Kbps. Your modem is capable of downloading at 56 Kbps using V.92/V.90. Your online service or

Internet Service Provider may not support this technology or operate at this speed. †††IEEE 802.11b and IEEE 802.11g comply with WPA (Wi-Fi Protected Access). Max. data communication/transfer speed per IEEE

802.11b/g standard. Speed will be reduced under certain operating and environmental conditions. Communication distance will be reduced

under certain operating and environmental conditions. ‡‡‡Supports Memory Stick PRO™ high-capacity media. Tested to support up to 1 GB media capacity, does not support access control secu-

rity function, does not support MagicGate copyright protection in Memory Stick PRO media. ****i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may

vary, depending on the software applications, operating system, and compatible i.LINK devices. All products with an i.LINK connection

may not communicate with each other. Refer to the documentation that came with your compatible i.LINK device for information on oper-

ating conditions and proper connection. Before connecting compatible i.LINK PC peripherals to your system, such as CD-RW or hard disk

drive, confirm their operating system compatibility and required operating conditions.
