Sony PCG-NVR23 User Manual

Welcome

Congratulations on your purchase of this Sony VAIO® computer, and welcome to the VAIO User Guide.
This User Guide provides detailed information on all aspects of using your new VAIO computer, from keyboard functions to
preinstalled software programs.
In the left navigation window, click the topics you want to learn more about, and that information will be displayed in this
main window.

Click here to find the latest updates and supplemental information about your computer.

Click here to view your computer's hardware specifications and software information.

Page 1

Using Your VAIO Computer

This section describes the following aspects of your new computer:

Using the Keyboard



Using the Touchpad



Using the Jog Dial Control



Using the Optical Disc Drive



Using PC Cards



Using Memory Stick Media



Using the Multipurpose Bay



Using the Floppy Disk Drive



Using Power Saving Modes



Connecting a Telephone Cable



Networking With Your Computer



Page 2

Using the Keyboard

Your computer's keyboard is very similar to that of a typewriter, but the keyboard has additional keys that perform specific
computer-related tasks.

Keyboard

Key Description

Numeric keypad Contains the keys found on a typical calculator. Use the numeric keypad area to type numbers or to
perform mathematical calculations such as addition and subtraction. Note that you must press the Num Lock key to activate
the numeric keypad. (When you do so, the Num Lock light will be on.) Press the Num Lock key again to deactivate it.

Navigation keys The Left/Right/Up/Down arrow keys are devoted to move the cursor on the screen, and also function
as the Home, End, Page Up, and Page Down keys, respectively.

Correction keys The Insert, Back Space, and Delete keys enable you to make corrections in your documents.

Function keys The 12 function keys along the top of the keyboard are used to perform designated tasks. For example, in
many programs, F1 is the Help key. The task associated with each function key may vary from one application to the next.

Escape key The Esc (Escape) key is used to cancel commands.

Print Screen key The Print Screen key takes an electronic snapshot of the screen and places it in the Windows

®

Clipboard. You can then paste the screen shot into a document and print it.

Operator keys
(Shift, Ctrl, Alt keys) Several keys are always used with at least one other key: Ctrl, Alt, and Shift. When held down with
another key, the Ctrl (Control) and Alt (Alternate) keys offer another way to give commands. For example, in many
programs, instead of choosing the Save command from a menu, you can hold down Ctrl and press S (referred to as Ctrl+S).
The Shift key operates the same way as on a typewriter; it is used to produce capital letters or special symbols such as @
and $.

Windows key

The key with the Windows logo displays the Windows Start menu; it is the equivalent of clicking the Start
button on the taskbar. See Combinations and functions with the Windows key for more information.
Fn key The Fn key is used in combination with other keys to issue commands. See Combinations and functions with

the Fn key for more information.

Applications key

The Applications key displays a shortcut menu of context-sensitive choices. Pressing this key is the equivalent
of clicking the right mouse button.

Page 3

Page 4

Combinations and functions with the Windows key

Combination Function

+ F1 Displays the VAIO Help and Support Center window.

+ Tab Switches the selected button on the taskbar.

+ D Displays the desktop.

+ E Displays the My Computer window.

+ F Displays the Search window to find a file or folder. This is the equivalent of selecting Search from the Start

menu.

+ Ctrl + F Displays the Search Results: Computers window where you can locate other computers. This is the

equivalent of selecting Search and then Computers from the Start menu.

+ M Minimizes all displayed windows.

Shift + + M Returns all minimized windows to their previous size.

+ R Displays the Run window. This is the equivalent of selecting Run from the Start menu.

Fn + + Insert Displays the Properties window. This is the equivalent of selecting Control Panel and then System
from the Start menu.

Page 5

Indicators

Indicator Function

Power

Light is green when the power to the computer is turned on, flashes amber in Standby mode, and turns off
when the computer is in Hibernate mode or powered off.
Battery

Indicates the status of the battery inserted in the battery bay.
Memory Stick

Indicates that the Memory Stick® slot is in use.
Hard disk

This indicator will light when data is being read from or written to the hard disk. Do not enter Standby mode or
turn off the computer when this indicator is on.

Page 6

Indicator lights

Light On Off

Num Lock

The number keys in the numeric keypad are active. The alphanumeric character keys in the keypad area are
active.
Caps Lock

The letters appear in uppercase as you type. The Shift key lowers the case of typed letters when Caps Lock is on.

Letters appear in lower case as you type (unless you hold down the Shift key).
Scroll Lock

The screen scrolls differently. (Exactly how it scrolls depends on the specific application. It has no effect in many
programs.) Information moves across the display normally.

Page 7

Combinations and functions with the Fn key

If you switch user identities during a computing session, the Fn+F7 and Fn+F8 key functionality (if available on your
computer) will be interrupted. To switch to an external display or monitor, see Selecting the Display Mode for more
information.

Combinations/

Feature Function

Fn+ (F3)
Mute On/Off Toggles the built-in speaker off and on. A red circle appears on the Volume icon on the Windows
taskbar.

Fn+ (F4)
Speaker volume Adjusts the built-in speaker volume.

To increase volume, press Fn+F4.

To decrease volume, press Fn+Shift+F4.

Fn+ (F5)
Brightness control Adjusts the brightness of the LCD.

To increase light intensity, press Fn+F5.

To decrease light intensity, press Fn+Shift+F5.

®

Fn+ / (F7)

Switch to the external monitor/LCD Toggles between the LCD, external display (connected to the Monitor port) and
both LCD and external display.

Select one display at a time to playback DVDs. Connect the cable before you turn on the computer; otherwise, Fn + F7 will
not work.

Fn+ only/

(F8)

Control AV Out Toggles between LCD-only and dual LCD/TV display modes.

Select one display at a time to playback DVDs. Connect the cable before you turn on the computer; otherwise, Fn + F8 will
not work. You cannot use the Fn + F8 function to switch between LCD and TV once a DVD is inserted into the optical disc
drive.

Fn+ (F12)
Standby Puts the system into Standby mode, a power management state. To return the system to the active
state, press any key.

You can also carry out these functions using the Jog Dial Control. Some functions are not available until Windows

Page 8

®

launches.

Page 9

Using the Touchpad

The keyboard contains a cursor-pointing device called a touchpad. You can point to, select, drag, and scroll objects on the
screen using the built-in touchpad.

Touchpad

Action Description

Point Slide one finger on the touchpad to place the pointer on an item or object.

Click Press the left button once.

Double-click Press the left button twice.

Right-click Press the right button once. In many programs, this action displays a shortcut menu of context-sensitive
choices.

Drag Slide one finger while pressing the left button.

Scroll Move your finger along the right edge of the touchpad to scroll vertically. Move your finger along the bottom to
scroll horizontally. (The scroll function is available only with programs that support a touchpad scroll feature.)

The Mouse Properties dialog box lets you customize your mouse and touchpad features, such as touch sensitivity, motion,
and buttons.

To open the Mouse Properties dialog box

1.

Click Start on the Windows® taskbar, and then Control Panel.

2.

Click Printers and Other Hardware, and then Mouse. The Mouse Properties dialog box opens.

Page 10

Using the Jog Dial Control

Your computer is equipped with a Jog Dial Control and Jog Dial Navigator software, which enables you to scroll through
programs, folders, and documents from a predefined list. The Jog Dial Control and Jog Dial Navigator are compatible with
preinstalled software programs that support Jog Dial Navigator functions.1

1

Some software programs do not s upport Jog Dial Navigator.

Page 11

Using the Jog Dial Control

Locating and Using the Jog Dial Control

To use the Jog Dial Control

Turn the Jog Dial Control to scroll up and down a menu.



Press the Jog Dial Control to select a menu item.



Press the Back button (on selected models) to return to the previous menu.



If your computer does not come with a Back button, you can select Return on the Jog Dial Launcher to go back to the
previous menu.

Page 12

Using the Jog Dial Navigator icon

The Jog Dial Navigator icon appears on the taskbar when you turn on your computer. A second Jog Dial Navigator

icon appears on the Indicate Window, when it is displayed. The arrows on the Jog Dial Navigator icon on the taskbar
change to show the direction in which you are turning the Jog Dial Control. No arrows appear on the taskbar icon if the
Application mode is selected, and the Jog Dial Control is not in use.

For more information about Jog Dial Navigator, right-click the Jog Dial Navigator icon on the taskbar, and click Help.

Page 13

Using the Indicate Window

The Indicate Window appears as a floating window on your desktop when you use the Jog Dial Control or when you

double-click the Jog Dial Navigator icon on your taskbar.

Indicate Window

Features Function

1 Launcher button Opens the Jog Dial Launcher.

2 LCD area Shows program information, depending on the mode and software.

3 Close button Closes the Indicate Window.

4 Mode buttons Shows the current mode, Application or Scroll.

5 Jog Dial Navigator icon Displays Jog Dial Navigator operations.

To move, hide, or close the Indicate Window

Click and drag the Indicate Window to another location on the desktop.



Click the Close button, and then click OK.



Right-click the Indicate Window, and select Hide Indicate Window from the drop-down menu. To make the Indicate



Window reappear, right-click the Jog Dial Navigator icon on the taskbar, and select Display Indicate Window.

Right-click the taskbar, select Toolbars from the pop-up menu, and click Jog Dial to store the Indicate Window on the



taskbar. To make the Indicate Window reappear on the desktop, right-click the taskbar, select Toolbars from the
menu, and click Jog Dial to clear the selection.

If the Indicate Window is hidden behind the taskbar icons, right-click the taskbar and click Lock the Taskbar to clear
the selection. Click and drag the edge of the Indicate Window to the left until it is in clear view.

Page 14

Using Jog Dial Launcher

Jog Dial Launcher lists a menu of programs installed on your computer. You can use the Jog Dial Control to scroll and open
these menu items.

Jog Dial Launcher

To open Jog Dial Launcher

If the APPS mode button is selected on the Indicate Window, click the Jog Dial Navigator icon on the Indicate



Window or press the Jog Dial Control.

If the Scroll mode button is selected on the Indicate Window, click the Launcher button .



To open a menu item

1.

Open Jog Dial Launcher. See To open Jog Dial Launcher.

2.

Turn the Jog Dial Control until the menu item you want to select appears between the two center arrows.

3.

Press the Jog Dial Control.

4.

Repeat steps 2 and 3 as necessary to open a program.

If your computer does not come with a Back button, you can select Return on the Jog Dial Launcher to go back to the
previous menu.

Page 15

Using Application and Scroll modes

Jog Dial Navigator operates in one of two modes: Scroll or Application. Once an application is open, you can easily switch
modes.

Mode Description

Application Enables you to navigate through a menu of programs installed on your computer.

Scroll Enables you to scroll through an active window with a scroll option.

Page 16

Selecting Application mode

To select Application mode, click APPS on the Indicate Window. When you select Application mode, the Jog Dial Guide or Jog
Dial Navigator window appears, depending on the program.

Jog Dial Guide

Jog Dial Navigator

Windows Descriptions

Jog Dial Guide Appears when a program that supports Jog Dial Navigator has audio features, such as volume control.

Jog Dial Navigator Appears when a program that supports Jog Dial Navigator is active.

When using a program that has audio features, you can switch Application mode windows by pressing the Jog Dial Control
and holding it until the window changes.

Page 17

Selecting Scroll mode

No windows appear when you select the Scroll mode. Simply turn the Jog Dial Control and the active window will scroll up
and down or side to side if it has a scroll option.

To select Scroll mode

Click SCROLL on the Indicate Window.



On the Application mode window, select SCROLL MODE and push the Jog Dial Control.



Selecting Scroll Mode

Page 18

Changing Jog Dial Navigator settings

You can change the Jog Dial Navigator settings to modify the Jog Dial Navigator functionality and appearance.

To change settings

1.

Right-click the Jog Dial Navigator icon on the taskbar. A pop-up menu appears.

2.

Select Jog Dial Setting. The Jog Dial Setting window appears.

3.

Make your changes, and click OK.

For information about Jog Dial settings, right-click the Jog Dial Navigator icon on the taskbar, and click Help.

Page 19

Using the Optical Disc Drive

Your computer comes with an optical disc drive. For information on the particular drive installed on your computer, see

Welcome to view your VAIO® Specifications.

Page 20

Inserting a disc

When the computer is in Standby or Hibernate mode, you cannot insert a disc. See Controlling Power Consumption for
more information on Standby and Hibernate modes.

1.

Turn on the computer.

2.

Press the Eject button to open the optical disc drive. The tray slides out.

Ejecting the Tray

Avoid using adhesive labels to identify your discs. Adhesive labels may come off while the disc is in use in your
optical disc drive and may cause damage to the unit.

3.

Place an optical disc on the tray with the label side facing up. For DVDs that can played on both sides, the side of
the disc facing up is the side that plays.

4.

Press the disc onto the hub until the disc clicks securely into place.

Inserting an Optical Disc

Make sure to seat the disc firmly over the hub fingers. If you do not seat the disc firmly, you could
damage your optical disc drive, and you may not be able to open the tray.

5.

Push the tray gently to close it.

Page 21

Ejecting a disc

When the computer is in Standby or Hibernate mode, you cannot eject a disc. See Controlling Power Consumption for
more information on Standby and Hibernate modes.

1.

Close all open applications and wait for the LED indicator to turn off.

2.

Press the Eject button to open the optical disc drive. The tray slides out. If the tray does not slide out when you
press the Eject button, turn off the computer and insert a thin, pointed object (such as a paper clip) into the
manual eject hole.

Manual Eject Hole

Page 22

Playing a DVD

1.

Turn your computer on. If your computer is already turned on, close any open software applications.

2.

Insert the DVD into the optical disc drive. See Inserting a disc for more information.

3.

Click Start on the Windows® taskbar, and select All Programs.

4.

Open InterVideo WinDVD. See the WinDVD® help file for more information.

Your optical disc drive can read most DVD-R media.

If you connect a TV display to your computer, you may need to adjust the display and the screen resolution. See Selecting

the Display Mode and Adjusting the screen resolution for more information.

Some discs recorded at 20 or 24 bits may produce noise while playing. If you have audio devices

connected, this may cause damage to your hearing and the speakers. Reduce the volume before playing a DVD.

You cannot use the Fn + F8 function to switch between LCD and TV once a DVD is inserted into the optical disc drive.

Do not switch between LCD and the external display while the DVD is playing. This may cause a malfunction, and you
may need to restart the DVD software.

Do not switch the power saving modes while you are playing the DVD.

Change the settings to disable the screen saver and the virus checker.

Do not use memory-resident utility software to speed up disc access. This may cause the computer to malfunction.

Page 23

Playing an audio CD

1.

Turn your computer on. If your computer is already turned on, close any open software applications.

2.

Insert the CD into the optical disc drive. See Inserting a disc for more information.

3.

Click Start on the Windows® taskbar, and select All Programs.

4.

Open SonicStage. See the SonicStage help file for more information.

If the CD plays but you do not hear sound, you may need to turn on the audio feature on your computer. See

Troubleshooting Audio for more information.

Page 24

Writing to a CD-RW or CD-R disc1

Before you write to a CD-RW or CD-R, read the following notes to avoid a computer malfunction and ensure the best writing
results:

Deactivate the screen saver and exit anti-virus software.



Deactivate memory-resident disc utilities to avoid data loss.



If your computer has preinstalled Microsoft® Office programs, such as Excel, Word, and Outlook, turn off the FindFast



application.



Connect and use the AC adapter to power your computer.



Use CD-Rs that are compatible with 16x speed for the best results.

Your computer does not support 1x and 2x writing speed.

To set the writing speed

1.

Click Start on the Windows® taskbar, and click My Computer. The My Computer window appears.

2.

Right-click DVD/CD-RW Drive, and select Properties from the drop-down list. The DVD/CD-RW Drive Properties
window appears.

3.

Select the Recording tab. In the Desktop CD recording box, select the appropriate writing speed.

4.

Click Apply, and click OK.

To write to a CD-RW or CD-R disc

1.

Insert the disc into the optical disc drive. See Inserting a disc for more information.

2.

Use Sony SonicStage and Microsoft® Windows® XP to write data to a CD-R or CD-RW disc.

SonicStage software is recommended for writing audio data to a disc. See the SonicStage help file for more
information. For information on using the Windows® XP software, see the instructions included with that application.

To open SonicStage software

1.

Click Start on the Windows® taskbar, and select All Programs.

2.

Open SonicStage. See the SonicStage help file for more information.

Once you finish writing data to a CD-R that is readable in a CD-ROM drive, make sure you finish the writing process before
you eject the disc. See the instructions included with the Windows® XP software for more information.

Do not strike or shake the computer while writing data to a disc.

Always use the AC adapter as the power source for your computer if you are writing data to a CD-RW or CD-R disc.
Using battery power may result in data transfer failure.

To avoid writing errors, remove the compact woofer or do not play music while writing data to a CD-RW or CD-R disc.

1

For computer models equipped with a C D-RW/DV D C ombo Drive.

Page 25

Notes on CD and DVD discs

Do not drop or bend the disc.



Do not touch the surface of the disc. Fingerprints and dust on the surface of a disc may cause reading errors. Proper



care of the disc is essential to maintain its reliability. Do not use solvents such as benzine, thinner, commercially
available cleaners or anti-static spray, as they may cause damage to the disc.

For normal cleaning, hold the disc by its edge and use a soft cloth to wipe the surface from the center out.



If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disc



from the center out. Wipe off any remaining moisture with a dry, soft cloth.

Page 26

Using PC Cards

Your computer includes two PC Card slots. PC Cards enable you to connect portable external devices such as another hard
disk drive, or a PC Network Interface Card (NIC) to connect to a network.

The PC Card slots can accommodate two Type I/II PC Cards, or one Type III PC Card. These slots are compatible with
CardBus. Use the lower slot for Type III PC Cards. You do not need to shut down your computer before inserting or
removing a PC Card.

Page 27

To insert a PC Card

1.

Insert the PC Card into the PC Card slot. Make sure the front label of the PC Card is facing up.

Inserting a PC Card

2.

Push the PC Card gently into the slot. The PC Card is automatically detected by your system.

Do not force a PC Card into the slot as this may damage the connector pins.

Do not carry your computer while touching the head of a PC Card, as pressure or shock may damage the connector
pins.

Page 28

To remove a PC Card

If your computer is turned on, follow these instructions. If your computer is turned off, skip to step number 5.

1.

Close all software programs that use the PC Card; otherwise, data may be lost.

2.

Double-click the green arrow icon in the taskbar.

3.

Select an option in the Hardware devices box, and click Stop. The Stop a Hardware device window opens.

4.

Click OK to confirm your selection, and then Close.

5.

Press the PC Card Release button. The Release button pops out.

6.

Press the PC Card Release button a second time (in some cases). Remove the card.

Notes on using PC Cards

For some PC Cards, if you alternate between normal power operation and the Standby or Hibernate power



management modes while the card is inserted, you may find that a device connected to your system is not
recognized. Restart your system to correct the problem.

Be sure to use the most recent software driver provided by the PC Card manufacturer.



If an exclamation mark (!) appears on the Device Manager tab in the System Properties dialog box, remove the



software driver and then reinstall it.

You may not be able to use some PC Cards or some functions of the PC Card with this computer. If you have



difficulty inserting a card, check that you are orienting the card correctly. See the manual that came with your PC
Card for more information on its use.

Page 29

Using Memory Stick Media

This compact, portable, and versatile recording medium has a data capacity exceeding that of a floppy disk. The medium is
specially designed for exchanging and sharing digital data with compatible products. Because it is removable, the media can
be used for external data storage.

Page 30

Types of Memory Stick media

The following two types of Memory Stick media can be used with your computer:

MagicGate 1 Memory Stick media (hereafter called MG Memory Stick media), which is provided with copyright



protection

Memory Stick2 media, which does not have the same copyright protection as MagicGate Memory Stick media



Some music files with secure copyright protection may be stored on MG Memory Stick media but not on regular Memory Stick
media.You can also use MagicGate media-compatible devices to record and playback music when they are connected to
your computer.

You can store mixed data on the Memory Stick media. For example, you can copy an ordinary file onto a MG Memory Stick
media that already contains music files.

What is MagicGate Memory Stick media?

MagicGate Memory Stick media provides copyright protection that consists of authentication and encryption technology.
Authentication technology ensures that protected content is only transferred between compliant devices and media.
Protected content is recorded and transferred in an encrypted format to prevent unauthorized duplication or playback.

MG Memory Stick media has the MG mark .

To insert Memory Stick media

1.

Insert the Memory Stick media with the arrow facing up and toward the Memory Stick media slot.

Inserting the media in the wrong direction may damage the connector pins.

2.

Slide the Memory Stick media carefully into the slot until it clicks in place.

Inserting Memory Stick Media

To view the contents of Memory Stick media

1.

Click Start on the Windows taskbar, and click My Computer

2.

Double-click Sony Memory Stick under the Devices with Removable Storage box. The Sony Memory Stick window
opens.

To remove Memory Stick media

1.

Make sure the Memory Stick media indicator is off.

2.

Push the Memory Stick media in toward the computer.

3.

When the Memory Stick media ejects, pull it out.

Page 31

Be careful when removing the Memory Stick media, as it may eject completely from the slot.

1

M agic Gate Memory Stick and are trademarks of Sony C orporation.

2

M emory Stic k and are trademarks of Sony C orporation.

Page 32

Write-protecting Memory Stick media

Memory Stick media is designed with a write-protect tab to protect valuable data from accidental erasure or overwriting.
Move the tab to the right or left to set or release write-protection.

Write-protect off Data can be saved on the Memory Stick media.

Write-protect on Data can be read from but not saved on the Memory Stick media.

Using the Write-protect Tab

Page 33

Formatting Memory Stick media

Memory Stick media is formatted for immediate use when you purchase it. If you need to reformat Memory Stick media,
follow the procedures below.

Reformatting erases all current data that is stored on Memory Stick media. Before you reformat, confirm that

the media does not contain files you want to keep.

1.

Insert the Memory Stick media into the computer. See To insert Memory Stick media for more information.

2.

Click Start on the Windows taskbar, and click My Computer.

3.

Under Devices with Removable Storage, right-click Sony Memory Stick - MG, and select Format. The Format Sony
Memory Stick - MG dialog box appears.

4.

Select the appropriate options, and click Start.

Page 34

Notes on using Memory Stick media

When the write-protect tab of the Memory Stick media is set to LOCK, data cannot be recorded or erased.



Before using Memory Stick media, back up important data.



Wait a minimum of 10 seconds after the Memory Stick media finishes reading or writing data before removing the



media.

If the media is removed prematurely, a blue screen with an error message appears, prompting you to continue or



exit. Reinsert the media into the slot and press Enter to continue. This enables the media to finish reading or writing
data.

You can view video clips that you have recorded with Memory Stick media- compatible video camera recorders.



The media slot can accommodate one Memory Stick media at a time.



You may copy images from a digital video camera using Memory Stick media.



Only MagicGate Memory Stick media can be used with copyright protected data such as music.



Copyright protected music cannot be checked-out to any Memory Stick media other than MG Memory Stick media.



Recorded music is limited to private use only. Using recorded music for any other purpose requires permission of the



copyright holders.

Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources.



Formatting Memory Stick media erases all data (including music data) previously saved to it. Before you format



Memory Stick media, confirm that the media does not contain files you want to keep.

Do not use the media in locations that are subject to static electricity or electrical noise.



Do not touch the media connector with your finger or metallic objects.



Do not attach labels other than the supplied label to a media.



Do not bend, drop, or apply strong shock to the media.



Do not disassemble or modify the media.



Do not allow the media to get wet.



Do not use or store the media in a location that is subject to:



Extremely high temperatures, such as in a car parked in the sun



Direct sunlight



High humidity or places with corrosive substances



To prolong the life of the media, use the supplied storage case. See the instructions that came with your media for



more information on its use.

Page 35

Using the Multipurpose Bay

You may install a variety of devices into the multipurpose bay to expand your computer's functionality. The multipurpose bay
supports the removable weight saver, floppy disk drive, compact woofer, or the internal numeric keypad (Ten-Key Bay unit).
You may install only one device at a time.

You may install a device into and remove a device from the multipurpose bay while the computer is powered
completely on or turned off. Installing and removing a device while the computer is in a power saving mode is not
supported.

Page 36

To install a device while the computer is on or off

Before you install a compact woofer, prop up the rear tilt stands on the bottom of the computer to maximize woofer
performance.

1.

Remove any device that is already installed in the bay. See To remove a device while the computer is off or To

remove a device while the computer is on for more information.

2.

Slide the device, such as the weight saver, into the multipurpose bay until it clicks into place. The computer
automatically detects the installed device.

Inserting a Device

Page 37

To remove a device while the computer is off

1.

Slide and hold the multipurpose bay Release switch in the release position while you gently pull the device from
the bay.

Multipurpose Bay Release Switch

If you do not plan to install another device into the multipurpose bay, insert the supplied weigh saver to protect
the bay.

Page 38

To remove a device while the computer is on

Before disconnecting the device, close any active programs to help prevent data loss.

1.

Double-click the Safely Remove Hardware icon on the taskbar. The Safely Remove Hardware window
appears.

2.

In the Hardware devices box, click the device you want to remove, and click Stop. The Stop a Hardware device
window appears.

3.

Verify that the correct device is selected, and click OK. A message appears stating it is now safe to remove the
device from the computer.

4.

Slide and hold the multipurpose bay Release switch in the release position while you gently pull the device from
the bay.

If you do not plan to install another device into the multipurpose bay, insert the supplied weigh saver to protect the
bay.

Page 39

Notes on using a device in the multipurpose bay

Do not place the compact woofer near any magnetic recording media, such as a hard disk, floppy disk, or mini
disk. The woofer's magnetic field may damage the data stored on this type of media.

Do not use external speakers and the compact woofer at the same time. Using both devices at the same time does



not enhance sound quality.

Page 40

Using the Floppy Disk Drive

Whether you installed the supplied floppy disk drive into the multipurpose bay or connected an external USB floppy disk
drive to the computer, you will find that both floppy disk drives are similar and easy to use.

Page 41

To insert a floppy disk into the floppy disk drive

1.

Hold the floppy disk with the label facing up.

2.

Push the floppy disk gently into the drive until it clicks into place.

Inserting a Floppy Disk

Page 42

To remove a floppy disk from the floppy disk drive

1.

Close all software programs that were opened from the disk and wait for the LED indicator to turn off.

Remov ing a Floppy Disk

2.

Push the Eject button, and remove the disk.

Do not push the Eject button when the LED indicator is turned on; otherwise, you may lose data.

Page 43

Notes on handling floppy disks

Do not open the shutter manually and touch the surface of the floppy disk.



Keep floppy disks away from magnets.



Keep floppy disk away from direct sunlight and other heat sources.



Page 44

Using Power Saving Modes

When you use a battery as the source of power for your computer, you can take advantage of power management settings
to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your
computer has two distinct power saving modes: Standby and Hibernate. When using battery power, be aware that the
computer automatically enters Hibernate mode when the remaining battery charge drops below 5 percent, regardless of
the power management setting you select.

If the battery level falls below 10 percent, you should either attach the AC adapter to recharge the battery or shut
down your computer and insert a fully charged battery.

Page 45

Normal mode

Normal mode is the normal state of your computer when it is in use. The power indicator displays green when your
computer is in this mode. To save power, you can turn off a specific device such as the LCD or the hard disk drive.

Page 46

Standby mode

In Standby Mode the computer saves the current state of the system in RAM and switches off power to the CPU. The amber
power indicator flashes in this mode.

To activate Standby mode

Press the key combination Fn+F12.



To return to Normal mode

Press any key to return to Normal mode.



Page 47

Hibernate mode

In the Hibernate mode, the state of the system is saved on the hard disk drive and power is turned off. The power indicator
is off in this mode.

To activate Hibernate mode

Press the power button and release it immediately. The computer enters Hibernate mode.



Do not move the computer until its power indicator turns off.

If the computer does not activate Hibernate mode, see The power management does not respond. for more
information.

To return to Normal mode

Press the power button to return to normal mode.



Page 48

Notes on power saving modes

When returning from Hibernate mode, the system status stored on the hard disk is erased and the computer starts



normally.

Standby uses more power than Hibernate.



Standby requires less time than Hibernate to return to normal mode.



Page 49

Connecting a Telephone Cable

You need to connect a telephone cable to take advantage of online services and the Internet.

In order to register your Sony VAIO computer, register your software online, and use Sony Customer Support, you
must connect to a telephone cable.

1.

Plug one end of the telephone cable into the Modem jack on the computer.

Connecting a Telephone Cable

2.

Plug the other end of the telephone cable into the wall jack.

Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not
work with multiple telephone lines or a private branch exchange (PBX). Some of these connections may result in excess
electrical current and could cause a malfunction in the internal modem.

If you connect a telephone cable coming through a splitter, the modem or connected device may not work properly.

Page 50

Networking With Your Computer

With a Sony computer, you can easily set up or connect to a variety of networks. The Network Setup Wizard and New
Connection Wizard make it easy to gain access to remote and local area networks (LANs) using these connections:

Ethernet



Dial-up



For more information about networking, click Start, Help and Support, and then Networking and the Web.

Page 51

Using Ethernet and Dial-up connections

Local area networks (LANs) comprise a group of computers and associated devices within a small geographic area, such as
a home or office building. For setting up LANs, Ethernet is a widely installed technology. Your computer accommodates both
10BASE-T and 100BASE-TX Ethernet connections, with data transfer speeds of between 10 and 100 Mbps, depending on
the Ethernet cable.

To set up an Ethernet LAN

1.

Plug one end of the Ethernet cable into your computer's Ethernet port and the other into the network
connection.

Connecting an Ethernet cable

2.

Click Start, point to All Programs, Accessories, Communications, and click Network Setup Wizard. The Network
Setup Wizard appears.

3.

Click Next.

4.

Follow the on-screen instructions.

Warning: Only connect 10BASE-T and 100BASE-TX cables to the Ethernet port. Do not connect any other

type of network cable or phone cable. Connecting cables other than those listed above may result in an electric current
overload and could cause a malfunction, excessive heat, or fire in the port. To connect the unit to the network, contact
your network administrator.

You can connect to your company network from a remote location and use data, applications, and network resources. See
Microsoft® Windows® Help and Support in the Start menu for more information.

To connect to a remote network using a telephone or Ethernet cable

1.

Connect your computer to an Ethernet or telephone cable. See To set up an Ethernet LAN and Connecting a

Telephone Cable for more information.

2.

From the Start menu, point to All Programs, Accessories, Communications, and click New Connection Wizard.

3.

Click Next. If you are prompted to the Local Information dialog box, follow the on-screen instructions.

4.

Click "Connect to the network at my workplace," and then click Next.

5.

Follow the on-screen instructions.

6.

Ask your network administrator for the detailed settings and devices needed to connect to an existing network.

Page 52

Connecting Peripheral Devices

You can add functionality to your computer by connecting a variety of peripherals, as discussed in the following sections:

Connecting a USB Device



Connecting a USB Printer



Connecting a Parallel Port Printer



Connecting an Audio Device



Connecting an Audio-Video Device



Connecting an i.LINK Audio-Video Device



Connecting an External Display



Connecting with another VAIO computer



Connecting External Speakers



Connecting an External Microphone



Expanding Your Computer Capabilities



Page 53

Connecting a USB Device

You can connect a universal serial bus (USB) device, such as a external mouse, keyboard, speaker, and microphone to your
computer. However, make sure the USB device you want to connect is compatible with the Windows® operating system
installed on your computer.

Page 54

To connect a USB device

1.

Locate a USB port on the rear panel of your computer.

2.

Plug one end of the USB cable (not supplied) into one of these ports, and plug the opposite end of the cable into
the USB device, if it is not already connected.

You can use a Sony USB mouse (not supplied) with this computer. The USB mouse software driver is preinstalled,
however, the first time you connect a mouse, on-screen installation instructions may appear. Press Enter to complete the
on-screen instructions.

Connecting a USB Mouse

See the manual that came with your USB device for more information on its installation and use.

Page 55

Connecting a USB Printer

You can connect a universal serial bus (USB) printer to your computer. However, make sure the USB device you want to
connect is compatible with the Windows® operating system installed on your computer.

Page 56

To connect a USB printer

1.

Locate a USB port on the rear panel of the computer.

2.

Plug one end of the USB printer cable (not supplied) into one of these ports, and plug the opposite end of the
cable into the USB port on your printer.

To use a printer, you may need to install the driver software that came with your printer.

Connecting a USB Printer

See the manual that came with your printer for more information on its installation and use.

Page 57

Connecting a Parallel Port Printer

You can connect a parallel port printer to your computer. However, make sure the parallel port printer you want to connect
is compatible with the Windows® operating system installed on your computer.

Page 58

To connect to a parallel port printer

1.

Locate the Printer port on the rear panel of the computer.

2.

Plug one end of the printer cable (not supplied) into this port, and plug the opposite end of the cable into the
parallel port on your printer.

To use a printer, you may need to install the driver software that came with your printer.

Connecting a Parallel Port Printer

See the manual that came with your printer for more information on its installation and use.

If your printer stops functioning after resuming from a power saving mode, see Troubleshooting the Printer for more
information.

Page 59

Connecting an Audio Device

You can connect an audio device to your computer using mini-plug cables shorter than 2 meters with no resistance.

Page 60

To connect an audio device

1.

Plug one end of an audio cable (not supplied) into the Headphone jack on the computer.

2.

Plug the opposite end of the audio cable into an audio output device, such as a CD player, active speaker, or
amplifier.

Connecting an Audio Device

Page 61

Connecting an Audio-Video Device

You can connect an audio-video (AV) device, such as a TV or a VCR, to your computer.

Page 62

To connect an AV device

1.

Locate the AV Out jack on the left panel of the computer.

2.

Plug one end of the supplied AV cable into this jack, and plug the opposite end of the cable into the AV device.

3.

Make sure you switch the TV input channel to external input and set up the TV configuration system. See To

change the display for more information.

Connecting a TV to the Computer

See the manual that came with your peripheral device for more information on its installation and use.

Page 63

To change the display

If you insert a DVD in your optical disc drive to watch on your TV, the Fn+F8 key combination might not activate the function
to toggle between your LCD and TV. Follow these steps.

1.

Connect the TV to the computer.

2.

Restart the computer and wait until it finishes rebooting.

3.

Press the Fn+F8 key combination to toggle between the LCD and TV display. The DVD will play on only one
display at a time, so select either LCD or TV as the primary display. See Selecting the Display Mode for more
information.

4.

Re-insert your DVD to launch your DVD software.

A part of the image cannot be displayed on your TV display if the resolution of your computer is more than 1024 x 768
dots.

Page 64

Connecting an i.LINK Audio-Video Device

You can connect an i.LINK®1 enabled digital video camera recorder to the i.LINK® S400 (IEEE 1394) port on your computer.

1

i.LINK is a trademark of Sony us ed to des ignate that a produc t c ontains an I E E E 1 3 9 4 c onnector. T he i.LINK c onnec tion may vary, depending on the
software application, operating system, and c ompatible i.LI N K devices. A ll products with an i.LI N K c onnec tion may not c ommunic ate with eac h other. Refer
to the documentation that came with your compatible i.LIN K devic e for more information on operating c onditions and proper c onnec tion. Before c onnecting
compatible i.LI N K P C peripherals to your system, s uc h as a C D-RW or hard dis k drive, c onfirm their operating s ys tem c ompatibility and required operating
conditions.

Page 65

To connect a digital video camera recorder

1.

Plug one end of the i.LINK® cable (not supplied) into the i.LINK port on the left panel of the computer.

2.

Plug the opposite end of the i.LINK cable into the DV IN/OUT port on the digital video camera recorder.

Connecting Digital Video Camera Recorder to i.LINK Port*

* I n this illus tration, a Sony digital video c amera rec order is c onnec ted to the c omputer. I ns truc tions for c onnec ting a different type of digital video c amera
recorder may differ.

Page 66

Notes on connecting an i.LINK device

Only the Sony digital video camera port labeled DV IN/OUT or i.LINK are i.LINK-compatible.



Do not connect more than one digital video camera at a time. The software supplied with your computer will not



recognize multiple cameras.

The i.LINK port does not supply power to external devices. If the external device requires power from the i.LINK



port, you cannot use the device with the computer.

The computer supports transfer rates up to 400 Mbps; however, the actual transfer rate is the lowest transfer rate



of the external device.

The i.LINK features available may vary depending on the software programs you use. See the documentation that



accompanied your software for more information.

See the manual that came with your digital video camera recorder for more information on its installation and use.



Page 67

Connecting an External Display

You can connect any of the following external displays to your computer.

Computer display (monitor)



Multimedia computer display



Projector



Page 68

To connect a computer display

1.

Turn off the computer before you connect the computer display.

2.

Locate the VGA (Monitor) port.

3.

Plug the display cable (not supplied) into the VGA (Monitor) port.

4.

Verify that the power cord is plugged into the computer display and an AC outlet.

5.

Turn on all external devices before turning on the computer.

Connecting an External Computer Display

Page 69

To connect a multimedia computer display

1.

Turn off the computer before you connect the multimedia computer display.

2.

Locate the AV Out jack on the left panel of the computer.

3.

Plug one end of the display cable (not supplied) into the AV Out jack, and plug the opposite end of the display
cable into the multimedia computer display.

4.

Verify that the power cord is plugged into the multimedia computer display and an AC outlet.

5.

Turn on all external devices before you turn on the computer.

Connecting a Multimedia Com puter Display

Once you connect the external display to the computer, you can use Fn+F7 to toggle between the LCD, external
display, and both LCD and external display. See Combinations and functions with the Fn key for more information.

See the manual that came with your multimedia computer display for more information on its installation and use.

Page 70

To connect a projector

1.

Turn off the computer before you connect the projector.

2.

Locate the VGA (Monitor) port and the Headphone jack on the computer.

3.

Plug one end of the display cable (not supplied) into the VGA port, and plug the opposite end into the
appropriate port on the projector.

4.

Plug one end of the audio cable (not supplied) into the Headphone jack, and plug the opposite end into the
appropriate port on the projector.

5.

Verify that the power cord is plugged into the projector and an AC outlet.

6.

Turn on all external devices before you turn on the computer.

Connecting a Projector

See the manual that came with your projector for more information on its installation and use.

Page 71

Changing the display when connecting an external computer display or projector

When you connect an external display to the VGA (Monitor) port, you can toggle the output between the Liquid Crystal
Display (LCD), the external monitor, or both devices. Press the Fn+F7 key combination to select a display. See Selecting the

Display Mode for more information.

The Fn+F7 key combination may not work if you connect the external display to the computer when the computer is
on. It is recommended that you connect the external display to the computer before you turn the computer on.

Page 72

Connecting with another VAIO computer

The preinstalled Microsoft® Windows® XP operating system enables you to use a compatible i.LINK®1 cable (not supplied) to
connect your VAIO computer to another compatible computer. You can use one computer to edit, copy, or delete files on the
other computer. You can also print from a printer attached to either computer.

You may need to use Smart Connect software to connect VAIO computers that do not have the latest Windows

®

operating system. Consult the Sony Web site for support options (http://www.sony.com/pcsupport).

Connecting with an i.LINK Cable

1

i.LINK is a trademark of Sony us ed to des ignate that a produc t c ontains an I E E E 1 3 9 4 c onnection. T he i.LIN K c onnec tion may vary, depending on the
software programs, operating system, and c ompatible i.LI N K devic es. A ll products with an i.LI N K c onnec tor may not c ommunic ate with eac h other. Refer to
the documentation that came with your compatible i.LIN K devic e for information on operating c onditions and proper c onnec tion. Before c onnecting
compatible i.LI N K P C peripherals to your system, s uc h as a C D-RW or hard dis k drive, c onfirm their operating s ys tem c ompatibility and required operating
conditions.

Page 73

To connect two VAIO computers

1.

Connect one end of the i.LINK cable to the i.LINK port on each computer.

2.

Click Start on the Windows® taskbar, and click Control Panel.

3.

Click Network and Internet Connections, and click "Set up or change your home or small office network." The
Network Setup Wizard window appears.

4.

Follow the on-screen Network Setup Wizard instructions.

When the Network Setup Wizard prompts you to name the computer, type in a unique name. You will use this
unique name to differentiate the two computers once they are networked together.

The Network Setup Wizard will also prompt you to name your network. Make sure the Workgroup name is the same
for the two networked computers.

5.

When you finish the Network Setup Wizard on-screen instructions, click Start on the Windows® taskbar and click
My Computer.

6.

Click My Network Places in the Other Places menu. The My Network Places window appears.

7.

Click "View workgroup computers" in the Network Tasks menu. The computers that are networked under the
same Workgroup name are displayed in this window.

Page 74

Connecting External Speakers

You can enhance the sound quality of your computer by connecting external speakers (not supplied).

Do not place floppy disks on the speakers. The speakers' magnetic field may damage the data on the floppy

disks.

Page 75

To connect external speakers

1.

Make sure that your speakers are designed for computer use.

2.

Turn down the volume of the speakers.

3.

Locate the Headphone jack on the left panel of the computer.

4.

Plug one end of the speaker cable (not supplied) into the Headphone jack.

Connecting External Speakers to the Headphone Jack

See the manual that came with your speakers for more information on its installation and use.

Page 76

Notes on connecting external speakers

Do not connect external speakers to the AV Out jack. Connecting speakers to this jack will not damage the



speakers, but only one speaker will function.

Do not use the external speakers and the compact woofer at the same time. Using both devices at the same time



does not enhance sound quality.

Page 77

Connecting an External Microphone

You can enhance the quality of sound input by using an external microphone (not supplied).

Page 78

To connect an external microphone

1.

Make sure that your microphone is designed for computer use.

2.

Locate the Microphone jack on the left panel of the computer. A protruding dot above the Microphone jack

distinguishes this jack from the Headphone jack.

3.

Plug one end of the microphone cable (not supplied) into the Microphone jack.

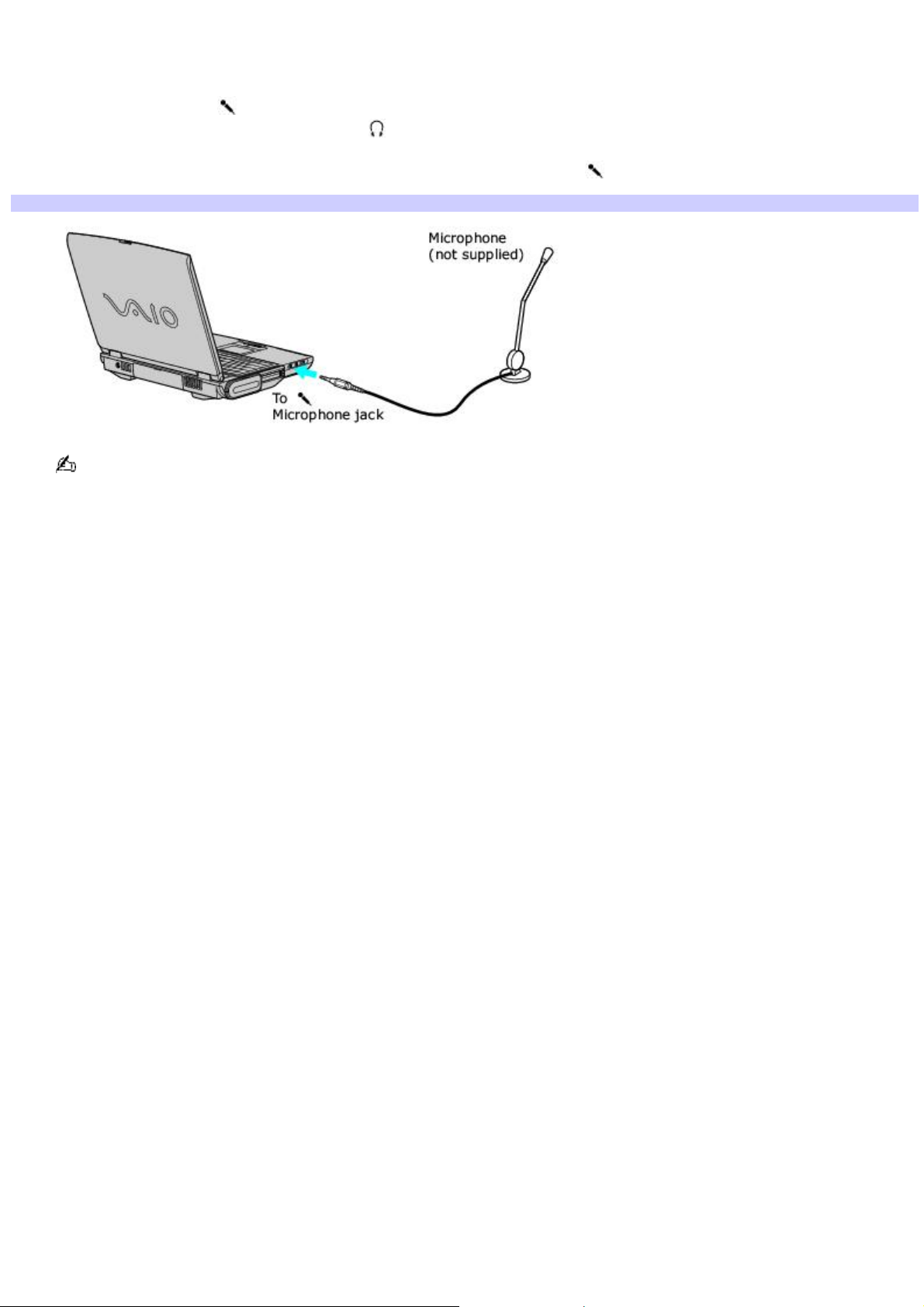

Connecting an External Microphone

See the manual that came with your microphone for more information on its installation and use.

Page 79

To record from a microphone or audio device

You can record messages, memos, or other recordings in analog by connecting a microphone or other audio device to the
Microphone jack of your computer and switching the jack's functionality. The Microphone jack is for MIC IN (monaural).

1.

Double-click the Volume icon on the taskbar. The Volume Control window appears.

2.

From the Options menu, click Properties. The Properties window appears.

3.

In the Adjust volume for box, click the Recording option button to select it, and then click OK. The Recording
Control window appears.

You can only adjust the recording volume in the Recording Control window.

4.

If it is not already turned on, click the Select check box at the bottom of the Microphone column. Close the
Recording Control window.

5.

Click Start on the taskbar, and select All Programs, Accessories, Entertainment, and then Sound Recorder. The
Sound - Sound Recorder window appears.

You are ready to begin recording. For help using Sound Recorder, click Help in the Sound Recorder window.

Page 80

Adjusting the volume for playing CDs or DVDs

To adjust the volume for playing CDs and DVDs, use the Volume icon on the Windows® taskbar or the volume dial
control. Adjusting the volume for playing CDs or DVDs does not adjust the volume for recording CDs or DVDs.

You can only adjust the recording volume in the Recording Control window. See To record from a microphone or audio

device for instructions on how to open this window.

To adjust the volume using the Volume icon

1.

Double-click the Volume icon on the taskbar. The Volume Control window appears.

2.

In the Volume Control column, move the slider up to increase volume and down to decrease volume.

Sound device Function

Volume Control Adjusts the sound level from the speakers or headphones.

Wave Adjusts the wavfile sound or the system sound of Windows.

SW Synth Adjusts the internal or external synthesizer volume.

CD Audio Adjusts the volume of the CD in the optical disc drive.

Microphone Adjusts the internal or external microphone volume.

Telephony Adjusts the modem or telephone line volume.

PC Beep Adjusts the beep sound when inserting or removing the PC Card and other devices.

Line Adjusts the sensitivity of volume input.

The Volume icon and Fn+F4 shortcuts will work only when the volume dial control is set to an audible level.

To adjust the volume using the volume dial control

Rotate the volume dial control clockwise to increase the volume.



Rotate the volume dial control counter clockwise to decrease the volume.



When you use the Volume icon to increase the volume, you also increase the volume dial control volume. Unlike the
Volume icon, the volume dial control adjusts only the sound level from the speakers or headphones.

The volume dial control will work only when the Volume icon is set to an audible level.

Page 81

Expanding Your Computer Capabilities

You can connect the following peripheral devices to your computer to expand its capabilities and enhance its versatility to
meet your needs:

A Personal Digital Assistant (PDA)



A Wireless LAN Access Point



A Wireless LAN PC Card



Page 82

Personal Digital Assistant

A handheld PDA is the quintessential personal planner and entertainment center that fits in your pocket. With a PDA, you
can easily perform the following functions:

Enter your schedule details in the calendar and view them by the day, week, or month, and even set an alarm to



remind you of important events.

Keep your contact names, addresses, phone numbers, and other details in the address book and find them when



you need them.

Add tasks to the To Do List, prioritize them, and assign them due dates.



Synchronize your data with the software on your computer to back up your data.



Track expenses when you are out of the office and transfer the data to your computer.



Exchange data with your computer.



Page 83

Wireless LAN Access Point

The Wireless LAN Access Point is designed for building a wireless Local Area Network (LAN) environment. You can easily
build a wireless LAN environment by plugging the access point into an AC power outlet and using a card that allows for
wireless connections with the provided software. Because a wireless LAN configuration requires no wiring, you can operate
multiple computers more freely than ever before.

You can also connect your access point to a telephone line, Integrated Services Digital Network (ISDN) router, cable
modem, or Digital Subscriber Line (xDSL) modem to share access to the Internet among multiple computers.

Page 84

Wireless LAN PC Card

You can purchase an external Wireless LAN PC Card separately, but your computer (depending on the model you
purchased) may already come with a built-in mini PCI card that allows for wireless connections. The Wireless LAN PC Card is
designed for a wireless LAN environment. You can use the Wireless LAN PC Card with or without the access point. With the
access point, you can build a wireless LAN between computers that are equipped with the Wireless LAN PC Card and gain
access to the Internet. Without the access point, you can achieve direct communication (Peer-to-Peer mode) between
computers.

For more information on Sony Wireless LAN, go to http://www.sonystyle.com/vaio.

Page 85

Customizing Your VAIO Computer

The following sections briefly describe how to change your computer's default settings.

Displaying Battery Information



Controlling Power Consumption



Selecting the Display Mode



Page 86

Displaying Battery Information

You can display information for each of the batteries in your computer. The following section briefly describes how to display
your computer's general battery information.

Page 87

To view battery information

1.

Click Start on the Windows® taskbar, and click Control Panel.

2.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears.

3.

Select the Power Meter tab. The total remaining battery charge is listed as a percentage. If your computer comes
with more than one battery, you have the option of viewing information on both batteries or just the primary
battery.

You may also use the power icon on the Windows® taskbar to quickly view battery information. See To view the power

icon on the taskbar for instructions on how to set up this shortcut.

Page 88

To view the power icon on the taskbar

1.

Click Start on the Windows® taskbar, and click Control Panel.

2.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears.

3.

Select the Advanced tab, and then select "Always show icon on the taskbar" in the Options box. The power icon
appears on the taskbar. See Power icon descriptions for more information.

You can rollover the power icon to view the remaining battery charge, and you can double-click the power icon to open the
Power Meter window, which also displays the remaining battery charge.

Page 89

Power icon descriptions

Power icon Power status

Computer is running on AC power.

Computer is running on AC power and charging the battery.

Battery is charging.

Battery is fully charged.

Battery is discharging.

No battery is inserted in the computer.

Page 90

Controlling Power Consumption

You can use the preset power schemes or you can customize the power scheme settings to conserve power. By using the
power schemes, you control the power supplied to different devices in your computer, such as the LCD screen and the hard
disk drive. You also control when the computer activates a power saving mode (Standby or Hibernate).

Page 91

To set your battery alarm

You can set your computer to notify you when your battery charge reaches a certain level.

1.

Click Start on the Windows® taskbar, and click Control Panel.

2.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears.

3.

Select the Alarms tab, and then select the type of alarm you want the computer to activate: a low battery alarm
or a critical battery alarm.

4.

Drag the slider to the battery level at which you want the computer to alarm you. The Low battery alarm is set to
10 percent, and the Critical battery alarm is set to 5 percent by default.

To further customize your alarm settings, click Alarm Action. Here, you can select the type of alarm you want the
computer to activate and how you want the computer to respond to the alarm.

Page 92

To use power saving modes

You can use the Standby and Hibernate power saving modes to override a profile setting or initiate an immediate action.

Standby — Saves the state of the system and peripheral devices in memory (RAM). Power consumption reduces to a



minimum, and the system remains on. To return the system to the active state, press any key on your computer.

Hibernate — Provides for the lowest level of power consumption. The system writes the state of the system and



peripheral devices to the hard disk and turns off the system power. To return the system to the original state, use
the power button to turn on power. The system saves the data in the Save to Disk Partition on the hard drive.

See Using Power Saving Modes for instructions on how to use the Standby and Hibernate modes.

Page 93

To select a power scheme

1.

Click Start on the Windows® taskbar, and click Control Panel.

2.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears
with the Power Schemes tab selected.

3.

Select a power scheme from the drop-down power schemes list. Each power scheme is preset to utilize your
power supply efficiently, according to your computing functions. Select the power scheme that best explains how
you plan to use your computer.

4.

Click Apply. The computer detects your changes.

Page 94

To create a power scheme

1.

Click Start on the Windows® taskbar, and click Control Panel.

2.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears
with the Power Schemes tab selected.

You can also right-click the power icon on the Windows® taskbar, and select Adjust Power Properties to open the
Power Options Properties window.

3.

Select your changes from the "Settings for....power scheme" box drop-down lists, and click Save As in the "Power

schemes" box. The Save Scheme window appears.

4.

Type a name for your customized power scheme, and click OK. The power scheme you created appears in the
"Power schemes" box.

If you want to delete a power scheme, select the power scheme and click Delete. When the Delete Scheme window
appears, click Yes.

Page 95

To customize your power properties

1.

Click Start on the Windows® taskbar, and click Control Panel.

2.

Click Performance and Maintenance, and click Power Options. The Power Options Properties window appears.

If you want to access the power scheme information quickly from the Windows® taskbar, see To view the power

icon on the taskbar for more information.

3.

Select the Advanced tab, and select your changes from the "Power buttons" box drop-down lists. See Using

Power Saving Modes for information on how Standby and Hibernate modes affect power consumption.

4.

Click Apply. The computer detects your changes.

If you want the computer to activate Hibernate mode, you must select the Hibernate tab, and click "Enable
hibernation" and then Apply.

Page 96

Notes on batteries

Storing the battery in extreme cold or heat may affect battery life.



Battery life gradually diminishes with the age and use of the battery.



Page 97

Selecting the Display Mode

This computer uses the NVIDIA video controller. When you connect an external monitor to the computer, you may select
which display you want to view the image. You have the option of switching the display mode to your computer's LCD
display, the external monitor, or to both the LCD display and the external monitor.

1.

Click Start on the Windows® taskbar, and then click Control Panel and Appearance and Themes.

2.

Click Display to access the Display Properties window.

3.

Click the Settings tab, and then click the Advanced button.

4.

Select the nView tab. The "(Multiple Monitors) and NVIDIA GeForce4 420 Go" window appears.

(Multiple Monitors) and NVIDIA GeForce4 420 Go window

5.

Select the radio button of one of the four options available in the nView Modes box.

Option Description

Standard Enables you to view the image on your LCD display.

Clone Enables you to view the image on both the LCD display and the external monitor.

Horizontal span Extends the image horizontally across the LCD display and the external monitor.

Vertical span Extends the image vertically across the LCD display and the external monitor.

You may not be able to display the image on the LCD screen and an external display or projector at the same time,
depending on the type of computer display or projector you use.

Depending on the external display, you may need to connect the display to the computer before you turn the computer on.

Page 98

Changing the window design of Sony software

To change the window design

1.

Click Start on the Windows® taskbar, and click Control Panel.

2.

In the left window pane of Control panel, click "Switch to Classic View."

3.

Double-click UI Design Selector.

4.

Click or and select the desired design.

5.

Click Apply. The "UI Design Selector" window design changes. The window design for your Sony software will
match the "UI Design Selector" window.

6.

To try another selection, click or and then click OK to close the UI Design Selector.

This feature is available with UI Design Selector-compatible software only.

Page 99

Adjusting the screen resolution

1.

Click Start on the Windows® taskbar, and then click Control Panel and Appearance and Themes.

2.

Click Display to access the Display Properties window, then select the Settings tab.

3.

In the Screen resolution box, drag the slider to the change the resolution. You screen resolution is set to 1024 x
768 by default.

Page 100
