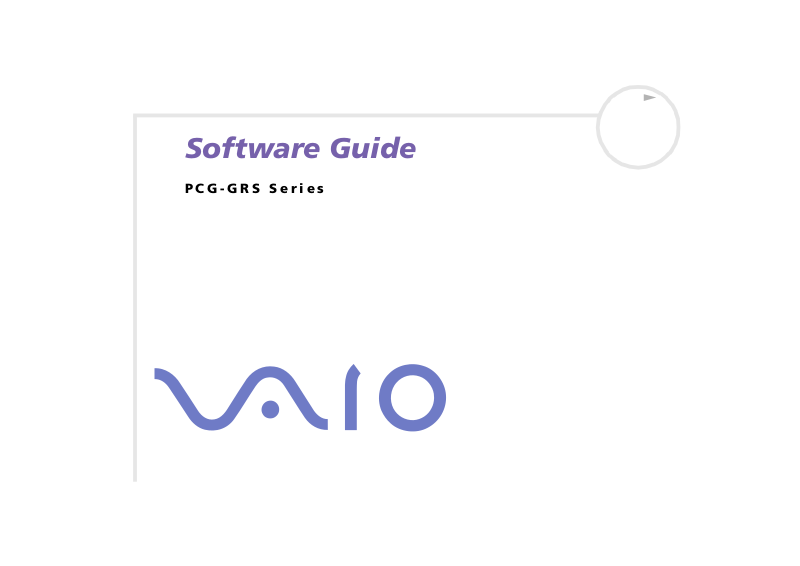

Sony PCG-GRS614MK, PCG-GRS615SK User Manual

Software Guide

PCG-GRS Series

Read this first

Software Guide

Read this first

Notice

This product contains software owned by Sony and licensed by third parties. Use of such software is subject to the terms and conditions of licence agreements enclosed with this product. Software specifications are subject to change without notice and may not necessarily be identical to current retail versions. Updates and additions to software may require an additional charge. Subscriptions to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institutions.

Reproduction in whole or in part without permission is prohibited.

End user software licence agreement

This End User Software Licence Agreement (the EULA) is a legal agreement between you and Sony Corporation (hereinafter referred to as Sony), a corporation organised under Japanese Law, the manufacturer of your Sony computer system (the SO NY H ARDWARE). Please read this EULA carefully before installing or using the software distributed together with this EULA (the SONY SOFTWARE). By installing or using the SONY SOFTWARE, you agree to be bound by the terms of this EULA. You may use the SONY SOFTWARE only in connection with the use of the SONY HARDWARE. SONY SOFTWARE is licensed; not sold.

Notwithst anding the foregoing, software distributed t ogether with separate End User Software Licence Agreement (the Third Party

EULA), including but not limited to Windows® operating system provided by Microsoft Corporation, shall be covered by the Third Party EULA.

If you do not agree to the terms of this EULA, please return the SONY SO FTWARE together with the SONY HARDWARE to the place where you obtained it.

1. Licence. This SONY SO FTWARE a nd the rela te d documentati on are licensed to you by Sony. This EULA allows you to use the SONY SOFTWARE for your personal use for a single SONY HARDWARE outside a network and only to make one copy of the SONY SOFTWARE in machine-readable form for back-up purposes only.

Read this first

Software Guide

2. Restrictions. The SONY SOFTWARE contains copyrighted material and other proprietary material. In order to protect them, and except as permitted by applicable law, you may not decompile, reverse engineer or disassemble the SONY SOFTWARE in whole or in part. Except for t he transfer of the SONY SOFTWARE together with the SONY HARDWARE and prior agreement of the recipient to be bound by the terms and conditions of this EULA, you may not sell or rent the SONY SOFTWARE and its copy to any third party.

3. Limited Warranty. Sony warrants the media on which the SONY SOFTWARE is recorded to be free from physical defects for a period of ninety (90) days from the date of purchase as evidenced by a copy of the receipt. During the applicable warranty period, So ny will replace free of charge such media proved to be defective, provided they are returned properly packaged to the place where you obtained it, together with your name, address, and proof of date of purchase. Sony will have no responsibility to replace media damaged by accident, abuse, or misapplication. The above limited warranty replaces all other representations, conditions and warranties, whether express or implied, by statute or otherwise and Sony expressly disclaims all other warranties and all conditions including, but not limited to, the implied warranties and/or conditions of satisfactory quality and fitness for a particular purpose. The terms of this limited warranty do not affect or prejudice your statutory rights as an ultimate consumer, neither do they limit or exclude any liability for death or personal injury caused by the negligence of Sony.

4. Termination. This EULA is effective until term inated. You may terminate this EULA at any time by destroying the SONY SOFTWARE, related documentation, and all copies thereof. This EULA will terminate immediately without notice from Sony, if you fail to comply with any provision of this EULA. Upon termination you must destroy the SONY SOFTWARE, related documentation, and al l copies thereof.

5. Governing Law. This EULA shall be governed by and construed in accordance with the laws of Japan.

Should you have any questions concerning this EULA or this limited warranty, please refer to the Customer Service Guide on how to contact VAIO-Link.

Read this first

Software Guide

ENERGY STAR

As a n ENERGY STAR® Partner, Sony has determined that this product meets the ENERGY STA R® guidelines for energy efficiency. The International ENERGY STAR® Office Equipmen t Program is an international program that promotes energy saving through the use

of computers and their office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles and copiers. Their standards and logos are uniform among participating nations.

ENERGY STAR is a U.S. registered mark.

Read this first

Software Guide

Trademarks

Sony, DVgate, Hotkey Utility, Memory Stick Formatter, MovieShaker, Network Smart Capture, PictureGear Studio, VAIO Web Phone, Sony Notebook Setup, UI Design Selector, VAIO Edit Components, Sony Style Imaging, SonicStage, Memory Stick and the Memory Stick logo, VAIO and the VAIO logo are trademarks of Sony Corporation.

The Windows and Windows 2000 Professional logo are trademarks or registered trademarks of U.S. Microsoft Corporation in the U.S. and other countries.

i.LINK is a trademark of Sony used only to designate that a product contains an IEEE1394-connection.

WinDVD for VAIO is a trademark or registered trademark of InterVideo Inc.

Adobe, Adobe Photoshop Elements and Adobe Acrobat Reader are trademarks of Adobe Systems Incorporated.

QuickTime and the QuickTime logo are trademarks used under licence. QuickTime is registered in the U.S. and other countries.

RealOne Player is a trademark or registered trademark of RealNetworks, Inc. in the U.S. and other countries.

PowerPanel is a trademark of Phoenix Technologies Ltd.

Symantec Norton AntiVirus is a trademark of Symantec Corporation.

EverQuest is a registered trademark of Sony Computer Entertainment America Inc.

Drag’n Drop CD is a registered trademark of Easy Systems Japan Ltd.

All other names of systems, products and services are trademarks of their respect ive owners. In the manual, the ™ or ® marks are not specified.

Specifications are subject to change without notice.

All other trademarks are trademarks of their respective owners.

Registering your VAIO

It only takes a few moments to register your Sony VAIO computer.

Software Guide

By registering your computer, you can take advantage of Sony’s commitment to quality customer support and receive the following benefits:

❑ Club VAIO – Online support, tutorials, tips and tricks, news, news forums, competitions, free downloads

and software updates.

❑ VAIO-Link – If you are experiencing any problems with your computer, you can check the VAIO-Link

website for a possible solution: http://www.vaio-link.com.

❑ Guarantee – Protect your investment. See the Guarantee sheet for the terms and conditions and refer

to your Troubleshooting Guide for more information.

To register your Sony VAIO computer, proceed as follows:

1 Set up an Internet connection (see also Configuring your modem (page 91)). 2 Double-click the VAIO Online Registration icon on the desktop.

You can also find the link on the Start menu under Programs.

3 Change your language if necessary and click Next. 4 Click Register Now and then click Next.

This brings you to the website https://registration.sonystyle-europe.com/vaio/registration.asp.

5 Fill in your first and last name.

The serial number of your computer is entered automatically.

6 Click Submit. 7 Enter your details as required and click Submit.

Your VAIO is registered and a thank you screen appears. If you entered an email address, you will receive a confirmation email from Club VAIO.

✍ Once you have registered, you can access VAIO Online Registration at any time to update your details without filling in the su rvey.

About the software delivered with your computer

This section gives you an overview of what you can do with the software delivered with your computer.

Software Guide

The software package includes preinstalled software as well as applications which you can install from the supplied application CD. Please see the printed Specifications sheet to see which software is preinstalled, and then the Application CD Guide booklet for installation details.

Your preinstalled software can mostly be found under Start / Programs.

Sony software

DVgate

Sony Electronics

DVgate is a kit of 3 complementary applications: DVgate Motion, DVgate Still, and DVgate Assemble. This collection makes it easy to select and edit digital video clips, then bring them together into a professionallooking home video. Use i.LINK™ to connect your digital video camera, and the computer operates as an editing desk that can capture, preview, cut and assemble your selection and save the sequences in AVI or MPEG 1 & 2 formats. DVgate Still displays digital video images sent from a digital videocassette recorder or a digital video camera recorder (only possible if you have DV In/Out on your camera or at least a DV Out for DV Gate Still), and saves them as graphic files on your hard drive.

See Using DVgate (page 17)

About the software delivered with your computer

EverQuest

Sony Computer Entertainment America Inc.

EverQuest is a popular software game that can be played simultaneously by multiple people on the Internet.

Software Guide

The link placed on your Windows® desktop brings you to the EverQuest website where you can find out more.

http://everquest.station.sony.com

Memory Stick Formatter

Sony Electronics

Memory Stick Formatter is a special application for formatting Memory Sticks™. Use this software whenever you reformat Memory Sticks™. Moreover, you may be able to reformat Memory Sticks™ that can not be identified by Windows® by using this software. Memory Stick Formatter supports Memory Sticks™ with the following capacities: 4, 8, 16, 32, 64 and 128 MB.

✍ When you format Memory Sticks™ with this software, all data on the Memory Stick™ will be lost. If necessary, take a backup of your data before

formatting.

MovieShaker

Sony Electronics

MovieShaker® creates personal movies - complete with transitions, special effects, background music, and text. All you do is import your clips, pick the tune you want and MovieShaker® does the rest. You can also choose to take control and produce your very own movie. You choose the exact clips order, special effects, and transitions. You can also import your own music and MovieShaker® will automatically match the length of the song to the length of your movie.

See Using MovieShaker (page 33)

About the software delivered with your computer

Network Smart Capture

Sony Electronics

Network Smart Capture is an application for capturing still and moving pictures using a Handycam / USB-

Software Guide

Webcam connected to your computer. This software allows you to view the photos you capture and send them to various destinations. It includes a web camera feature which you can set up to capture images at timed intervals, without you being in the room!

See Using Network Smart Capture (page 38)

PictureGear Studio

Sony Electronics

PictureGear Studio is easy-to-use software that is designed to help you get the most enjoyment out of your photographs taken with a digital camera. With the PictureGear Studio software, you can easily load photos into your computer, create photo albums and make prints.

See Using PictureGear Studio (page 62)

PowerPanel

Phoenix Technologies

The PowerPanel utility controls the power management of your computer and provides key information about system activity and battery life. Automatic power management selects the most appropriate profile, depending on the application you are working with and the conditions of use.

See Managing power with PowerPanel (page 83)

About the software delivered with your computer

SonicStage

Sony Electronics

SonicStage is software using the OpenMG technology, a copyright protection technology developed by Sony

Software Guide

Corporation and designed to allow recording and playback of digital music data on a personal computer. Once the data is encrypted and recorded onto the hard disk, OpenMG technology allows it to be played back on the PC but prevents unauthorised distribution. The purpose of OpenMG technology is to create an environment in which larger quantities of high-quality music can be distributed without subsequent unauthorised distribution of the music files. The SonicStage software encrypts and manages music files either downloaded to a personal computer by using the EMD services or adopted (or created) from your own CD or the Internet.

See Managing audio files with SonicStage (page 52)

Sony Notebook Setup

Sony Electronics

Use Sony Notebook Setup to consult system information, specify preferences for system behaviour, and set up a power-on password for your Sony computer.

See Setting up your notebook with Sony Notebook Setup (page 81)

Sony Style Imaging (shortcut on the desktop)

Sony Electronics

Sony Style Imaging is an easy way to share your digital pictures and videos with family and friends. Use Sony Style Imaging with MovieShaker to make the most of your images and movies. When you sign up as a Sony Style Imaging member, you can store your pictures and even order prints. Go to the following website to join for FREE:

http://www.sonystyle-imaging.com

About the software delivered with your computer

UI Design Selector

Sony Electronics

You can change the window design of the Sony software compatible with UI Design Selector.

Software Guide

See Changing your windows design with the UI Design Selector program (page 92)

VAIO Edit Components

Designed as a plug-in for Adobe® Premiere®, VAIO Edit Components includes special features to support your i.LINK™-DV devices, so you can produce superior quality home movies even after editing. Now you can control the DV device from your computer, import and edit the movie, and then export it back to the DV device. To be able to use the Sony software VAIO Edit Components, you must first install Adobe® Premiere® version

6.0* on your computer.

* available for purchase.

Product Recovery CD-ROMs

Sony Corporation

The Product Recovery CD-ROMs allow you to reinstall the system, the software shipped with your computer and the bundled device drivers if they are corrupted or accidentally erased. Reinstalling an individual device driver may correct a problem you are experiencing with your computer, without you having to recover the entire system. The final product recovery CD-ROM is also referred to as the "Application CD".

See Using the product recovery CD-ROMs (page 107)

! You can only use the Recovery CD-ROMs on the Sony computer you purchased, and not on any other Sony PC or other manufacturer's PC.

About the software delivered with your computer

Operating system and other available software

Windows® 2000 Professional with Service Pack 3

Software Guide

Microsoft Corporation

Microsoft® Windows®2000 makes your computer work better by integrating tightly with the Internet and networks and providing better system performance and easier system diagnostics and maintenance. With Windows®2000, your system takes better advantage and has improved support of the latest graphics, sound, and multimedia technologies. Easy addition and removal of peripheral devices, and the convergence of the TV and PC in your home are also featured. This exciting operating system is built on the groundbreaking features introduced with Windows®NT. At the same time, Windows®2000 maintains the best support for older Windows®-based applications and technologies. For questions and technical assistance, go online to:

http://support.microsoft.com/directory

Internet Explorer 6.0

Microsoft Corporation

Internet Explorer is the Microsoft Internet browser allowing you to surf the World Wide Web. The Setup Wizard configures your computer to connect automatically to your service provider. A full e-mail package enables you to send and receive mail - including attached files - across the Internet. NetMeeting, Outlook Express and Microsoft Chat are just some of the components bundled with Internet Explorer 6.0. Internet Explorer 6.0 also includes 128-bit encryption, the highest possible level of protection for all your Internet communications, including credit card use and financial transactions. A complete online tutorial helps new users become comfortable using the Internet. For questions and technical assistance, go online to:

http://support.microsoft.com/directory

About the software delivered with your computer

Adobe® Acrobat® Reader 5.1

Adobe Systems Incorporated

Acrobat® Reader software allows you to view, navigate, and print electronic documents in Adobe Portable

Software Guide

Document Format (PDF), an open file format that is intended to preserve the conformity of documents created on all major computer platforms. Once Acrobat® Reader is installed, you can open and view PDF files from within your Web browser by clicking a PDF file embedded in an HTML file. You quickly see the first page while the rest of the document is being downloaded. For questions and technical assistance, go online to:

http://www.adobe.com

Adobe® Photoshop® Elements 2.0

Adobe Systems Incorporated

Adobe® Photoshop® Elements software introduces the next generation of image editing with powerful new features that offer something for every user. Delivering the broadest and most productive toolset available, Photoshop® Elements helps you explore your creativity, work at peak efficiency, and achieve the highest quality results across all image media. For questions and technical assistance, go online to:

http://www.adobe.com

Drag'n Drop CD

DigiOn / Easy Systems Japan

Drag'n Drop CD is designed to be the most simple software to make your own CDs. Users can create their own audio CDs or data CDs that can be read in most PCs. Drag'n Drop CD can also create your own backup CD from the original CD that you own. The operation is simple: select the files that you want to write, and

About the software delivered with your computer

drag and drop them into an appropriate box that corresponds to the CD format. After dropping them, simply press the CD Create button. For questions and technical assistance, go online to:

http://www.easy.co.jp/dde/sony

Software Guide

QuickTime 5.0

Apple

QuickTime is the Apple technology that makes video, sound, music, 3D and virtual reality come alive for your Internet browser and Windows. For further information, see the website at:

http://www.apple.com/quicktime

RealOne Player

RealNetworks

RealOne Player is the RealNetworks video and audio player which lets you manage all major types of media in one. Its many features allow you to access over 3000 radio stations with music, news and sports; play and save audio files and create your own audio CDs; and organise your audio and video clips locally before transferring them to portable storage devices.

http://www.real.com

About the software delivered with your computer

Symantec Norton AntiVirus (as setup on the hard drive)

Symantec

This software package includes a 90-day free subscription to virus definition updates.

Software Guide

With Norton AntiVirus, you can scan files, folders, or entire drives for viruses, and quarantine infected files for submission to the Symantec AntiVirus Research Centre (SARC). Files submitted to SARC are analysed and the results are reported automatically within seven days. When you configure Norton AntiVirus adequately, your computer is safe. Norton AntiVirus can automatically check boot records for viruses at system startup, check programs for viruses at the time you use them, scan all local hard drives for viruses once per week, and monitor your computer for any activity that might indicate the work of a virus in action. It can also scan files you download from the Internet and check floppy disks for boot viruses when you use them. You must launch the Norton AntiVirus installation, and you will then be prompted to update the virus definitions. This is normal as new viruses will have come out since your VAIO left the factory. For more information, see the online help files and the website at:

http://www.symantec.com/techsupp

VAIO Web Phone

CallServe Communications Ltd.

Once you have purchased the USB telephone, this Internet Telephone enables you to make telephone calls from your PC via the Internet to any other phone. You can make international calls at significantly lower prices and make phone calls and surf the web at the same time - on just one phone line. For more information, see the online help files and the website at:

http://www.callserve.com/EN/help/index.asp

About the software delivered with your computer

WinDVD for VAIO

InterVideo, Inc.

WinDVD for VAIO is a simple-to-use DVD player. WinDVD for VAIO combines all the features you would

Software Guide

expect to find on a standard consumer DVD player, in addition to some very advanced functionalities, full precision video decoding, a choice of user interfaces, and video display options. You can play DVD movies, interactive DVD titles, MPEG video content, video and audio CDs. WinDVD for VAIO automatically determines the type of disc in the DVD drive and uses the correct playback method. For questions and technical assistance, go online to:

http://www.intervideo.com

Using Video software

The following video software applications are delivered with your VAIO. Check the printed Specifications sheet to see whether they are preinstalled. Then read the printed Application CD guide for installation

Software Guide

details, if applicable.

❑ Using DVgate (page 17) ❑ Using MovieShaker (page 33) ❑ Using Network Smart Capture (page 38)

Using Video software

Using DVgate

DVgate is a software application that enables you to capture and then edit images taken with digital video devices (DV devices), such as digital video camera recorders, on your personal computer. It also gives you the

Software Guide

ability to output the edited material for recording on a DV device. With DVgate, you can easily perform image editing with your computer and a DV device.

DVgate consists of 3 applications:

❑ DVgate Motion; ❑ DVgate Still; ❑ DVgate Assemble.

✍ Depending on the computer settings, frames may be lost during video capture and frame duplication when recording edited videos. Please make sure

you configure your compute r accordi ng to the recommended settings to prevent this from happening. To confi gure your compu ter to use DVgate, refer to the Online help of DVgate.

Using Video software

Using DVgate Motion

With DVgate Motion you can capture video and record edited videos on a DV device.

❑ Capturing videos:

Software Guide

You c a n automatically or manually capture any scene or portion of the images recorded on a DV device, such as a digital video camera recorder. What is more, you can specify the exact scenes that you want to capture while watching the tape playback on the monitor. You can then choose to save the selected scenes as separate files or as one file.

❑ Recording edited video on a DV device

You can record the edited video on tape using a DV device, such as a digital video camera recorder*, connected to the computer. With DVgate, you are not limited to recording single clips, but you can record a series of clips on the DV device at one time.

To launch DVgate Motion, proceed as follows:

1 Connect the camera to the computer with the i.LINK™ cable and turn on the camera. 2 Click Start, Programs, DVgate, DVgate Motion.

DVgate Motion and the Monitor windows appear.

* The digital video camera recorder must have a DV-IN connector.

Capturing videos

You can automatically or manually import videos onto your computer.

To automatically import videos onto your computer, proceed as follows:

1 Make sure you have installed DVgate from the application CD-ROM, if applicable (see the printed

Specifications sheet and Application CD guide).

2 Launch DVgate Motion.

Using Video software

3 Click the down arrow and select Import-Auto from the Mode drop-down list.

Use the DVgate camera controls buttons to play, rewind or fast forward the tape to the selected time code to begin capturing.

Software Guide

4 Press Play to start the video.

The video begins to play in the Monitor window.

5 Click Mark to mark the beginning of the first segment.

The first frame of the segment to be captured is displayed in the In/Out list window. Click Mark again to mark the end of the segment to be captured. The last frame of the segment to be captured is displayed in the In/Out list window. Continue to mark as many segments as you want.

6 Click Capture to import the selected video segment or click Capture All to import them all at once.

The Save as a file window appears.

7 Select the location to save the file.

Using Video software

8 Click the Save button.

DVgate captures the segments. The Capturing complete message appears.

Software Guide

9 Click OK in the DVgate Motion window to finish.

Information about the capturing process is displayed in the Report window.

10 Click OK. 11 Exit DVgate Motion.

The Dvmotion2 window appears on the screen. You can then save the In/Out list, which allows you to capture the same video sequences later on, or change the In/Out settings.

✍ Make sure that the camera is in Video Tape Recorder mode (VTR) when capturing or playing back video from or to a tape.

If you want to manually import video onto your computer, refer to the DVgate online help file.

Recording edited videos on a DV device

To record edited videos on a DV device, proceed as follows:

1 Adjust the recording correction values. 2 Add files to the Record List. 3 Record remotely or manually the video on the DV device.

Adjusting the recording correction values

To ensure accuracy in the recording, you can specify recording correction values. Adjustment of the recording correction values is especially important when performing splice recording. You can choose to specify the values yourself or to have them automatically adjusted by using the automatic calibration feature. The values generated by the automatic calibration feature are usually correct.

Using Video software

To automatically adjust the recording correction values, proceed as follows:

1 Launch DVgate Motion. 2 Click the down arrow and select Export - Auto from the Mode drop-down list.

Software Guide

3 Select Adjust on Recording… from the Settings menu.

The Adjust on Recording dialog box appears.

4 Click the AutoAdjust button.

DVgate Motion activates the connected DV device and automatically finds the adjustment values.

5 Click OK.

✍ To manually adjust the recording correction values, refer to the DVgate online help file.

Adding files to the Record List

To add files to the Record List, proceed as follows:

1 Launch DVgate Motion. 2 Click Add in the DVgate Motion – AVI file list.

The Add dialog box appears.

3 Select a file and click Open.

The specified file is added and the serial number, first and last images, time code, file length and file name are displayed.

★ DVgate Motion adds all serial numbered files with the same name if you select Add all divided files saved with the same name. Seri al num bered

files are created when you specify to save files as multiple files in DVgate Motion and DVgate Assemble.

✍ All newly added files are appended to the end of the list.

You can drag multiple files at one time; however, the order in which they are added is unpredictable. You can record AVI files with different sound modes on a DV device, but about one second of no sound (depending on the DV device) may occur at

the point where the sound mo des change. You can only add AVI files using DV Codec as video compression; MPEG files are not supported. When recording a video sequence, make sure that all images are saved in the same mode. Recording in different modes might cause sound or image

distortions during playback. After adding the files you want to the Record List, you can still change the order of the files, add or delete files.

Using Video software

After adding the files to the Record List, you can still change the order of the files, add or delete files.

To change the order of the files in the Record List, proceed as follows:

1 Click the file you want to move while holding down the mouse button.

Software Guide

2 Drag the file to the appropriate position and then release the mouse button.

To remove a file from the Record List, proceed as follows:

1 Click the file you want to remove. 2 Click De lete.

The removed file is filled by the subsequent file and the files are renumbered. Click De lete All when to remove all files.

✍ You can select multiple AVI or still picture files from the Record List by clicking them while holding down the <Shift> or <Ctrl> key.

When you move multiple files, they are all moved together. You can undo changes by choosing Undo from the Edit menu immediately after inserting, moving or deleting (a) file(s). You can save a Record List for future use. Record List files can only be used in DVgate Motion.

To preview a clip, proceed as follows:

1 Select the file you want to preview in the DVgate Motion – AVI file list window. 2 Click Preview.

The Monitor window and the Preview window appear. The Monitor window shows the first frame of the file. Click the Previous File button or on the Next File button to select the file you want to preview. Click Preview All to preview all the files shown in the list.

✍ Previou s File and Next File are buttons for moving the p review from one selected file to another. They are not for designed for navigation purposes

within the list. Consequently, you cannot click them when only one file is selected. When you select only one file, Previous File and Next File do not function.

Using Video software

Recording on the DV device

You can automatically or manually export videos from your computer to a DV device.

To automatically export videos from your computer to a DV device, proceed as follows:

Software Guide

1 Connect the camera to the computer with the i.LINK™ cable and turn on the camera. 2 Launch DVgate Motion. 3 Click the down arrow and select Export-Auto from the Mode drop-down list. 4 Click the Add button in the DVgate Motion - AVI file list window and select the video file you want

to export.

5 Click Record or Record All.

The Output dialog box appears.

6 Select the Add blank image option button.

❑ You can add blank frame(s) during recording if you select the Append option button in the Output

❑ You can specify the length of a blank image by entering the number of frames in the Length box in

7 Click OK.

The Output dialog box closes and recording starts. Video sequences are recorded on the DV device in the order in which they are arranged in the Record List.

★ Clicking Record All wi ll s end all the vide o fi les shown in the Record List to the connected device. Clicking Record will send only the video files

selected from the Record List to the connected device.

dialog box. Blank frame(s) can be placed in the following locations:

Head: A blank image is placed before the start of the video sequence during recording. Tail: A blank image is placed after the end of the video sequence during recording. Both: Blank images are placed before the start and after the end of the video sequence during

recording.

the Output dialog box.

Using Video software

✍ Even if you specify not to add blank frames, several blank frames are always placed at the end of the recorded segment regardless of the settings.

This is to prevent image noise from being recorded when recording stops.

Do not quit or log off from Windows

Software Guide

Disable the screen saver in Windows Do not start other applications or move any active window while recording. Recording from the very beginning of the tape may not be successful if you record by controlling the video device through DVgate Motion. Do not turn the power switch on the digital video camera recorder to Camera or turn it off while DVgate Motion is recording. Never switch the input

sources when recording on a digital videocassette recorder as this might prevent recording. If you want to export manually videos from your computer to a DV device, refer to the DVgate online help file.

Using DVgate Still

DVgate Still is an application that displays digital video images sent from DV devices such as a digital videocassette recorder or a digital video camera recorder and that captures them as still pictures. The following functions are featured:

❑ Control the connected DV device and display a video image on the screen of your VAIO. ❑ Capture 30 frames of still pictures in total with respectively 15 frames in the forward and backward

directions.

❑ Capture only one frame of a still picture. ❑ Save a captured still picture in BMP, JPEG, GIF or DVF format.

✍ The sound recorded with the image, is not played.

while recording. Otherwise, recording will fail.

Using Video software

Capturing pictures

There are two capture modes in DVgate Still: the Continuous Capture mode and the Single Frame Capture mode.

Software Guide

❑ Continuous Capture mode:

If you capture pictures during Play mode, you can capture 30 frames of still pictures in total with respectively 15 frames in the forward and backward directions. All still pictures already captured, are lost. If you capture during Pause mode, you can capture only one frame of a still picture.

✍ Immediately after you capture during Play mo de in Continuous Capture mode, the DV device pauses.

❑

Single Frame Capture mode:

You can capture one frame of a still picture. The captured result is the same even if you capture during Play or Pause mode.

✍ Capturing 30 frames in Continuous Capture mode replaces all 30 frames. Capturing only one frame overwrites the first frame of the still picture,

capturing the next frame overwrites the second frame, and so on.

To toggle between Continuous Capture mode and Single Frame Capture mode, proceed as follows:

1 Click Settings in the DVgate Still window. 2 Choose Capture…

The Capture Settings window appears.

3 Select the Capture frames continuously option button to capture in Continuous Capture mode.

Clear the Capture frames continuously option button to capture in Single Frame Capture mode.

To capture pictures, proceed as follows:

1 Make sure you have installed DVgate from the application CD-ROM, if applicable (see the printed

Specifications sheet and Application CD guide).

2 Connect the DV device to your computer. 3 Launch DVgate Still (Start/Programs/DVgate/DVgate Still).

The DVgate Still window appears.

Using Video software

Software Guide

4 Set the DV device to the Play or Pause mode.

The video image appears in the Monitor window.

5 Click the Capture button.

The video image in the Monitor window is being captured.

✍ Dragging the slider in the Capture window to the left or right lets you display the still picture before or after the current one.

! If you exit DVgate Still without saving the captured still picture, it is cleared. ! Even if you attempt to capture continuous pictures, you may not be able to capture some frames. In this case, exit all applications other than DVgate

Still and then retry to capture them.

Using Video software

Saving the captured pictures

You can save the still pictures displayed in the DVgate Still - Still window in either one of the following formats: BMP, JPG, GIF or DVF.

Software Guide

To save the captured pictures, proceed as follows:

1 Launch DVgate Still and capture images. 2 In the DVgate Still - Still window, select a still picture you want to save.

3 Click the Save button.

The Save As dialog box appears. Use the Location to Save drop-down list to select a folder. Select a file format from the File Format drop-down list.

4 Click Save.

The captured picture is saved.

Using Video software

Using DVgate Assemble

DVgate Assemble enables you to edit video files and still image files captured with DVgate Motion and DVgate Still. Afterwards you can splice them together to form one single file. You can save the resulting

Software Guide

spliced video sequences as AVI, MPEG1, or MPEG2* format files.

To launch DVgate Assemble, proceed as follows:

1 Click Start. 2 Point to Programs, DVgate and then to DVgate Assemble.

The DVgate Assemble main window appears.

* Depending on your model.

Using Video software

Creating an Assemble List

You can create an Assemble List with files you want to splice together. Afterwards you can always edit the Assemble List by changing the order of the files and adding or deleting files.

Software Guide

To add files to an Assemble List, proceed as follows:

1 Make sure you have installed DVgate from the application CD-ROM, if applicable (see the printed

Specifications sheet and Application CD guide).

2 Launch DVgate Assemble. 3 Click the Add button.

The Add dialog box appears.

4 Choose AVI file in the Files of type drop-down box.

If you select Add all divided files saved with the same name, DVgate Assemble will add all serial numbered files with the same name to the list. Serial numbered files are files that are created when DVgate Motion saves files that are split and applies consecutive numbers to them. The numbers of the split files have 4 digits and increase one unit at a time starting with 0001.

5 Select a file and click Open.

The AVI file is added to the list.

✍ Imported files are ad ded at the end of the Assemble List.

You can only add video files in AVI (DV CODEC) format, and still image files in BMP, JPEG, and GIF formats. Please see the help files for information on converting non-compatible AVI files.

When you add a still image file (BMP, JPEG, or GIF), the number of frames, converted size, and size conversion mode are shown. You can save an Assemble List for future use. Assemble List files can only be used in DVgate Assemble.

+ 84 hidden pages
