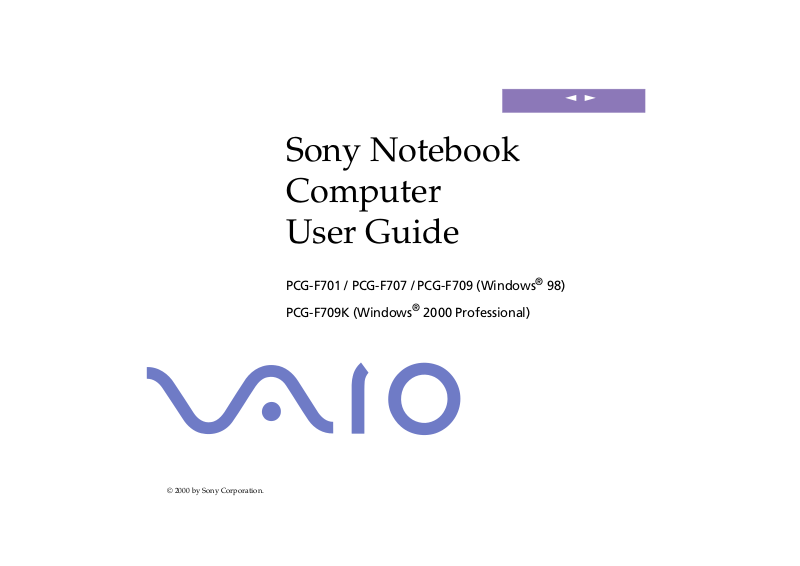

Sony PCG-F709, PCG-F709K, PCG-F707, PCG-F701 User Manual

Sony Notebook Computer User Guide
PCG-F701 / PCG-F707 / PCG-F709 (Windows® 98)
nN
PCG-F709K (Windows
®
NERGY STAR Partner, Sony
As an E has determined that this product meets the E for energy efficiency.
The International E Office Equipment Program is an international program that promotes energy saving through the use of computers and their office equipment. The program backs the development and dissemination of products with functions that
Sony Notebook Computer User Guide
effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles and copiers. Their standardsandlogosareuniform among participating nations.
NERGY STAR is an U.S. registered
E mark.
NERGY STAR guidelines
NERGY STAR
nN
2
Notice to Users
© 2000 Sony Corporation. All rights reserved. This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval.
Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this manual, the software or such other information. In no event shall Sony Corporation be liable for any incidental, consequential, or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the software, or other information contained herein or to use thereof.
Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.
TM
Sony, DVgate, i.LINK VAIO logo are trademarks of Sony Corporation. Windows, the Windows 98 and the Windows 2000 logos are registered trademarks of Microsoft Corporation. Intel, MMX, Celeron and Pentium are trademarks of Intel Corporation.
All other trademarks are trademarks of their respective owners.
Specifications are subject to change without notice.
, Mavica, PictureGear, Memory Stick and the Memory Stick logo, VAIO and the
nN
3

Safety Information

Owner’s Record
The model number and serial number are located on the bottom of your Sony notebook computer. Record the serial number in the space provided here. Refer to the model and serial number when you call VAIO­Link. Serial number:________________________ Model number:
PCG-92B1 / PCG-92A1 / PCG-9291 PCG-9292

WARNINGS

Sony Notebook Computer User Guide
General
Opening the unit, for whatever reason, could lead to damages that are not covered by the guarantee.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
To prevent fire or shock hazard, do not expose your VAIO notebook computer to rain or moisture.
Avoid using the modem during an electrical storm.
Do not use the modem or a telephone to report a gas leak in the vicinity of the leak.
CD-ROM/DVD-ROM
The use of the optical instruments intalled in your notebook computer will increase eye hazard. As the laser beam used in this product is harmful to eyes, do not attempt to disassemble the cabinet. For servicing, refer to qualified personnel only.
DVD-ROM ( for models equipped with a DVD-ROM drive)
TherearevisibleandinvisibleradiationswhentheDVD-ROMdriveisopen:avoiddirectexposureto the laser beam.
nN
4
Audio/Video
Audio and picture distortion may occur if this equipment is positioned in close proximity to any equipment emitting electromagnetic radiation.
Connectivity
Never install modem or telephone wiring during a lightning storm.
Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations
Use caution when installing or modifying telephone lines.
Use your notebook only with the supplied AC adapter. To disconnect your notebook completely from mains voltage, unplug the AC adapter.
Please make sure that the socket outlet is easily accessible.
Never touch uninsulated telephone wire or terminals unless the telephone line has been disconnected at the network interface.
Sony Notebook Computer User Guide
nN
5

Regulatory Information

This product conforms to the following European Directives: 73/23/EEC (Low Voltage Directive) 89/336/EEC, 92/31/EEC (EMC Directives) 93/68/EEC (CE Marking Directive)
This product complies with EN 55022 Class B and EN 50082-1 for use in following areas: residential, commercial and light-industrial.
This product has been tested and found compliant with the limits set out in the EMC Directive for using connection cables shorter than 3 metres (9.8 feet)
Depending on the model: The DVD-ROM / CD-ROM is classified as a CLASS 1 LASER PRODUCT and complies with the Laser Product Safety Standard EN 60825-1. Repair and maintenance only by authorized Sony technicians.
Sony Notebook Computer User Guide
Improper repairs and use can create safety hazards.
nN
6
Disposal of Lithium ion batteries
Dispose of properly at end-of-life. In some areas the disposal of lithium ion batteries in household or business waste may be prohibited. Please use the public collection system.

DISPOSAL OF LITHIUM ION BATTERY

! Do not handle damaged or leaking Lithium ion batteries. Dispose of promptly and properly. ! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions (see below).
! The battery pack used in this device may present a fire or chemical burn hazard if mistreated. Do not
disassemble, heat above 100°C (212°F) or incinerate. Dispose of used battery promptly.
! Keep away from children. ! Your notebook is equipped with an internal backup memory battery. For changing this battery, please contact
VAIO-Link.
Sony Notebook Computer User Guide

Welcome

Sony Notebook Computer User Guide
nN
7
Welcome
Congratulations on purchasing a Sony VAIO notebook computer. Sony has combined leading-edge technology in audio, video, computing and communications to provide you with state-of-the-art personal computing. Here are just some of the features your VAIO notebook computer has to offer (read the details in the Specifications chapter of this guide).
Exceptional performance - Your PC includes a fast Intel®processor, a fast CD- ROM or DVD-ROM drive (depending on the model), and an internal modem.
Portability - The rechargeable battery pack provides hours of use without AC power.
Sony audio and video quality - A high-resolution LCD screen enables you to take advantage of today’s advanced multimedia applications, games, and entertainment software.
Multimedia features - Enjoy the speaker(s) to listen to audio and video CDs.
Windows®- Your system includes the latest operating system from Microsoft.
Communications - Access popular online services, send and receive e-mails, browse the Internet...
Excellent customer support-Ifyouhaveanyproblemwithyourcomputer,you can contact VAIO-Link by Internet and e-mail (see your Customer Service Guide for addresses). Before contacting VAIO-Link, you may try to solve the problem by reading your User Guide (troubleshooting chapter) or the manuals and Help files for the peripherals or software.
Welcome

About the User Guides

nN
About the User Guides
Your Documentation Pack contains paper and on-line user guides on a Documentation CD-ROM:

Printed Documentation:

A Setting Up poster in colour and a Getting Started brochure; a Customer Guide, where you will find all the basic information to start using your notebook
computer;
A complete Regulatory and safety information poster;
A Modem Regulations Flyer applying to the internal modem;
Your Sony Guarantee conditions.
8
Sony Notebook Computer User Guide

On-line Documentation:

1 This User Guide:
Using Your Sony Notebook Computer shows you how to use the standard components of your system.
Connecting Peripheral Devices explains how you can add functionality by connecting various peripherals.
Getting Help explains the support options available to you, and offers basic troubleshooting tips.
Notes on Use provides facts and advice about using your notebook computer.
Specifications provides details on your computer, drivers and accessories.
2 Refer to your Software Guide for information on the bundled software and the
Sony applications.
Welcome
About the User Guides
Sony Notebook Computer User Guide
nN
About the Software is a short description of the features of the software pre­installed on your system.
Customizing your notebook explains how to set your system and power management with Sony Notebook Setup, VAIO Action Setup, PowerPanel, BatteryScope, etc. Learn how to set your display with NeoMagic Display option (Windows
®
98 only).
®
and enjoy the Dual Screen
3 Consult the On-line Help files of the software you're using for detailed
information on features and troubleshooting.
9
Welcome

Unpacking Your Notebook Computer

nN
10
*Depending on the type of Sony notebook computer you have
Unpacking Your Notebook Computer
Remove the following hardware items from the box:
purchased, some accessories may be optional. However, you need to have these peripherals to enjoy some of the features described in
Main unit
Rechargeable battery pack
Floppy disk drive
Weight Saver
this manual.
Product Recovery CD-ROMs
DVD- / CD-ROM drive
(installed at factory)
Documentation Pack
Sony Notebook Computer User Guide
AC adapter
Power cord
Video cable
*
Phone plug (country specific)
Phone cable
Welcome

Ergonomic Considerations

Sony Notebook Computer User Guide
nN
11
Ergonomic Considerations
You will be using your notebook computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments:
Compute r positioned directly in front of you
Arms at desk level
Wrists relaxed and flat
Position of your computer – Place the computer directly in front of you as you work. Keep your forearms horizontal, with your wrists in a neutral, comfortable position while using the keyboard, touchpad, or external mouse. Let your upper arms hang naturally at your sides. Take breaks during sessions with your computer. Excessive use of the computer may strain muscles or tendons.
Welcome
Ergonomic Considerations
Sony Notebook Computer User Guide
nN
Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.
Viewing angle of the computersdisplay– Use the display’s tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well.
Lighting – Choose a location where windows and lights do not create glare and reflection on the display. Use indirect lighting to avoid bright spots on the display. You can also purchase accessories for your display that help reduce glare. Proper lighting adds to your comfort and work effectiveness.
Placement of an external display – When using an external display, set the display at a comfortable viewing distance. Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.
Tilt stands – You use the tilt stands to place the computer at an angle that allows comfortable typing.
12

Using Your Notebook Computer

Locating the Controls and Connectors

Using Your Notebook Computer
This section describes how to start using your computer and how to use your computers internal devices, such as the touchpad, the disk drives and the battery...
Locating the Controls and Connectors

Right

Sony Notebook Computer User Guide
nN
13
1 3
PPK buttons
2 4
Power button
(page 44)
(page 24)
DVD-ROM / CD-ROM drive
Multi-purpose bay
(page 39)
(page 39)
Using Your Notebook Computer
*
*
Locating the Controls and Connectors
nN
14
*Not available on PCG-F701
AC adapter mains connector and

Left

power cord: hazardous voltage, according to EN 60950.
All other connectors for this notebook are SELV (Safety Extra Low Voltage), according to EN 60950.
Sony Notebook Computer User Guide
S400 i.LINKTM connector
1 5
Infrared port
2
Video Out connector
3
i Headphone connector
4
(page 70)
(page 48)
(page 67)
(page 76)
m Microphone connector
PC card slots
6
Battery bay
7
(page 77)
(page 41)
(page 19)
Using Your Notebook Computer
Locating the Controls and Connectors

Front

nN
15
Sony Notebook Computer User Guide
LCD screen
1
Speakers
2
3 7
Keyboard
Touchpad
4
(page 32)
(page 31)
(page 27)
(page 34)
!
Left/right buttons
5
! Power indicator
6
Battery 1 and 2 indicators
Hard disk drive indicator
8
(page 34)
(page 24)
(page 30)
(page 30)
Num Lock indicator
9
Caps Lock indicator
10
11
Scroll Lock indicator
(page 30)
(page 30)
(page 30)
Using Your Notebook Computer
Locating the Controls and Connectors
nN
16
There is a ventilation slot located

Back

near the USB connector. Do not cover the ventilation slot when your computer is on.
Cover
Sony Notebook Computer User Guide
Phone Line jack
1 5
2 6
Mouse connector
3 7
4
Serial connector
Printer
(page 46)
(page 74)
(page 68)
(page 62)
a Monitor connector
USB connectors
DC In
(page 64)
(page 75)
(page 18)
Using Your Notebook Computer
Locating the Controls and Connectors

Bottom

Port replicator connector cover Tilt stands
1
Sony Notebook Computer User Guide
2
Release lever
nN
3
17
Using Your Notebook Computer

Connecting a Power Source

nN
18
Use your notebook only with the supplied AC adapter.
To disconnect your notebook completely from mains voltage, unplug the AC adapter.
Please make sure that the socket outlet is easily accessible.
Connecting a Power Source
You can use either AC power or a rechargeable battery pack as a power source.

Using the AC Adapter

1 Plug the cable attached to the AC adapter into the DC In connector on the
computer.
2 Plug one end of the power cord into the AC adapter. 3 Plug the other end of the power cord into an AC outlet.
Notebook computer
Sony Notebook Computer User Guide
1
DC in
SELV according to EN 60950
AC adapter
(supplied)
2
3
Power cord (hazardous voltage according to EN 60950)
(supplied)
Using Your Notebook Computer
Connecting a Power Source

Using Battery Power

You can use one or two batteries as a source of power. You can insert the second battery pack into the multi-purpose bay on the right side of the computer. (See Using a Second Battery Pack.). Additional battery packs are available as a separate option.
The battery pack supplied with your computer is not fully charged at the time of purchase. Follow the steps below to insert and charge the battery pack.
To insert the battery pack
1 Open the cover of the battery bay.
Sony Notebook Computer User Guide
2 Insert the battery pack into the battery bay on the left side of the computer.
nN
19
Battery pack
(supplied)
Label facing down
Using Your Notebook Computer
Batt
Connecting a Power Source
3 Close the cover of the battery bay until it clicks.
To charge the battery pack
1 Connect the AC adapter to the computer. 2 Insert the battery pack.
The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery charges). When the battery is 85 percent full, the battery indicator light turns off. This process takes approximately two hours. To charge the battery completely, continue charging for an additional hour.
See your Software guide,in Displaying Battery Information" for information on checking the battery life.
nN
20
Sony Notebook Computer User Guide
There are two battery indicator lights on the computer:
ery indicators
Secondary battery pack
(not supplied)
Using Your Notebook Computer
Connecting a Power Source
Battery Indicator Meaning
nN
21
1
2
Battery Indicator Light Status Meaning
On
Indicates the status of the battery pack in the battery bay on the left side of the computer.
Indicates the status of the battery pack in the multi­purpose bay on the right side of the computer.
The computer is using battery power.
Single blink
Double blink
Sony Notebook Computer User Guide
Off
The battery is running out of power.
The battery is charging.
The computer is using AC power.
Using Your Notebook Computer
Connecting a Power Source
For some software applications and some peripheral devices, your computer may not enter system hibernation mode when battery life is low. To avoid loss of data when using battery power, you should save your data frequently and manually activate a power management mode, such as system suspend or system hibernation.
When the battery is running out of power, both the battery and power indicators blink. To determine the time the battery lasts, please refer to "Displaying Battery information" in your Software Guide.
Keep the battery pack in the computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer.
If the battery level falls to below 10%, you should either attach the AC adapter to recharge the battery or shut down your computer and insert a fully charged battery.
Sony Notebook Computer User Guide
You can extend battery life by changing the power management modes in the PowerPanel utility. See your Software guide, in Controlling Power Management".
The battery pack supplied with your computer is a lithium ion battery and can be recharged at any time. Charging a partially discharged battery does not affect battery life.
The battery indicator light is on while you use the battery pack as a power source. When battery life is nearly depleted, the battery indicator starts flashing.
When the computer is directly connected to AC power and has a battery pack inserted in the battery bay, it uses power from the AC outlet.
nN
22
Using Your Notebook Computer
Connecting a Power Source
nN
23
! You may lose data if you remove
the battery pack while the computer is on and not connected to the AC adapter or if you remove the battery while the computer is in system suspend mode.
Sony Notebook Computer User Guide
To remove the battery pack
1 Open the cover of the battery bay. 2 Pull out the battery pack.
3 Close the cover of the battery bay.
Using Your Notebook Computer

Starting Your Computer

Starting Your Computer
1 Slide the LCD lock lever in the direction of the arrow, and lift the cover.
LCD lock lever
nN
24
Sony Notebook Computer User Guide
If you press the power button for more than four seconds, the computer will turn off.
2 Press the power button of the computer until the green power indicator light
turns on.
Power indicator
Power button
3 If necessary, adjust the brightness controls for the LCD display with Fn+F5. To
increase the brightness, use the up or right arrow keys. To decrease use the down or left arrow keys.
Using Your Notebook Computer

Shutting Down Your Computer

nN
25
! To avoid potential loss of data,
follow these steps to shut down your computer.
Respond to any prompts warning you to save documents.
If you are unable to shut down your computer using the steps described above,
-close all software in use,
-remove the PC cards if inserted,
-disconnect any USB devices, then restart the computer.
If the previous steps do not work,
Sony Notebook Computer User Guide
see the Troubleshooting section of this User Guide.
During a period of inactivity, you can conserve battery life by using System Suspend mode. See "Controlling Power Management" in your Software Guide for further details.
Shutting Down Your Computer
1 Click the Start button on the Windows
2 Click Shut Down at the bottom of the Start menu to display the Shut Down
Windows dialog box.
3 Select Shut down. 4 Click on OK.
5 Wait for your computer to turn off automatically. The power indicator will turn
off.
6 Turn off any peripheral connected to your computer.
®
taskbar.
Using Your Notebook Computer

Registering Your Computer

nN
26
You must connect your phone line before using any online services, including the online registration service. Please refer to Connecting to a phone line.
To access the on-line Registration web page, you must have a connection to the internet.
Registering Your Computer
You can take advantage of Sonys commitment to quality customer support and receive the following benefits by registering your computer with Sony:
VAIO-Link – You can contact VAIO-Link by Internet or e-mail (see your Customer Service Guide for addresses).
Guarantee – Protect your investment. See the Guarantee sheet for the terms and conditions and please refer to your Customer Service Guide for more information.
Follow these steps to use the Sony Notebook Computers online registration service:
1 ClickontheWelcomebuttononyourDesktop, 2 Click Next,
Sony Notebook Computer User Guide
3 Click Internet, 4 Fill in your Registration card fields, 5 Scroll down to the bottom of the form and click Send, 6 Click OK.
Using Your Notebook Computer

Using the Keyboard

Using the Keyboard
Your keyboard is very similar to a desktop computers, but the keyboard has additional keys that perform specific notebook computer-related tasks.
nN
27
Escape key
Shift key
Sony Notebook Computer User Guide
Ctrl key
Fn key
®
Windows
key
Alt key
Function keys
Print screen key
Correction keys
Navigation keys
Application key
Numeric keypad area
Keys Descriptions
Numeric keypad area
Contains the keys found on a typical calculator. Use the numeric keypad area to type numbers or to perform mathematical calculations such as addition and subtraction. Note that you must press the Num Lock key to activate the numeric keypad. (When you do so, the Num Lock light will illuminate.)
Navigation keys Several keys are devoted to moving the cursor on the screen.
Using Your Notebook Computer
Using the Keyboard
Keys Descriptions
Correction keys The Insert, Back Space, and Delete keys enable you to make
Function keys The twelve function keys along the top of the keyboard are used to
Escape key The Esc (Escape) key is used to cancel commands.
Print Screen key The Print Screen key takes an electronic snapshot of the screen and
Operator keys Several keys are always used with at least one other key: Ctrl, Alt, and
Sony Notebook Computer User Guide
Windows
nN
corrections in your documents.
perform designated tasks. For example, in many applications, F1 is the Help key. The task associated with each function key may vary from one application to the next.
places it in the Windows Clipboard. You can then paste the screen shot into a document and print it.
Shift. When held down with another key, the Ctrl (Control) and Alt (Alternate) keys offer another way to give commands. For example, in many applications, instead of choosing the Save command from a menu, you can hold down Ctrl and press S (referred to as Ctrl+S). The Shift key is used to produce capital letters or special symbols such as @ and $.
®
key The key with the Windows®logo displays the Windows®Start menu;
its the equivalent of clicking the Start button on the task bar. See "Combinations and functions with the Windows details.
®
key" for further
28
Fn key The Fn key is used in combination with other keys to issue
commands. See Combinations and functions with the Fn key”.
Using Your Notebook Computer
Using the Keyboard
Keys Descriptions
Applications key The Applications key displays a shortcut menu of context-sensitive

Combinations and Functions with the Windows® Key

Combinations Functions
+ F1 Displays Windows Help
+ Tab Switches the selected button on the taskbar.
+ E Displays Windows Explorer.
nN
choices; pressing this key is the equivalent of clicking the right mouse button.
29
Sony Notebook Computer User Guide
+ F Displays the Windows Find: All Files window to find a file or
folder. This is the equivalent of selecting Find and then Files or Folders from the Start menu.
+Ctrl+F DisplaystheWindowsFind:Computerwindowwhereyoucan
locate other computers. This is the equivalent of selecting Find and then Computer from the Start menu.
+ M Minimizes all displayed windows.
Shift + + M Returns all minimized windows to their previous size.
+ R Displays the Run window. This is the equivalent of selecting Run
from the Start menu.
Fn + + Insert Displays the Properties window. This is the equivalent of double-
clicking the System icon in the Control Panel.
Using Your Notebook Computer
Using the Keyboard

Indicators

Indicator Functions
Power Power on: lights green.
System Idle mode: lights amber. System suspend mode: flashes amber.
nN
30
Battery 1
1
2
Hard disk Lights when data is read from or written to the hard drive. Do not
Sony Notebook Computer User Guide
Light On Off
Hard disk
Indicates the status of the battery inserted in the battery bay on the left side of the computer.
Indicates the status of the battery inserted in the multi-purpose bay on the right side of the computer.
enter System Suspend mode or turn off the computer when this indicator light is on.
Data is read from or written to the hard drive.
The hard drive is not being
accessed. Do not enter System Suspend mode or turn off the computer when this indicator light is on.
Num Lock
Turns on when the number keys area in the numeric keypad are active.
Turn s off w he n t he
alphanumeric character keys
in the keypad area are active.
Loading...
+ 92 hidden pages
