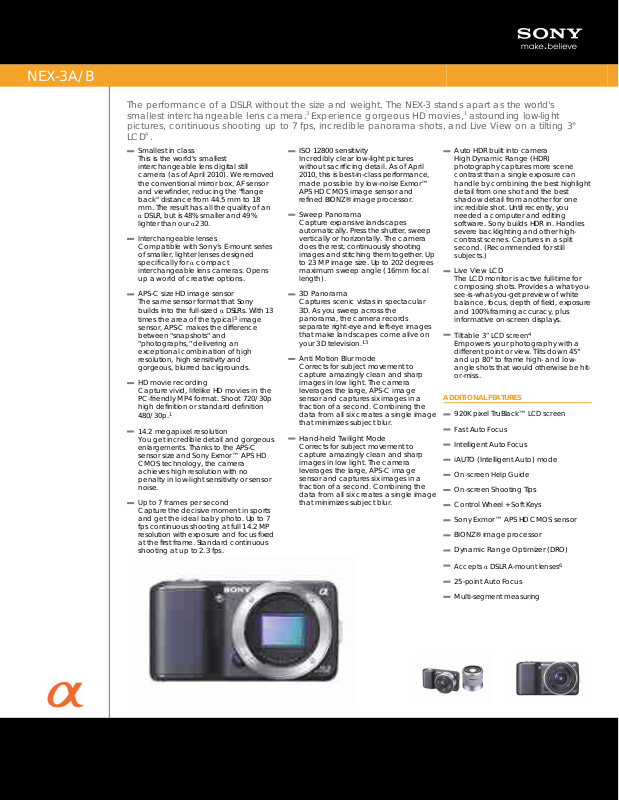

Sony NEX-3A/B BROCHURE

NEX-3A/B

The performance of a DSLR without the size and weight. The NEX-3 stands apart as the world's smallest interchangeable lens camera. Experience gorgeous HD movies, astounding low-light pictures, continuous shooting up to 7 fps, incredible panorama shots, and Live View on a tilting 3" LCD .

3 1 4

Smallest in class

This is the world's smallest interchangeable lens digital still camera (as of April 2010). We removed the conventional mirror box, AF sensor and viewfinder, reducing the "flange back" distance from 44.5 mm to 18 mm. The result has all the quality of an αDSLR, but is 48% smaller and 49% lighter than our

α230.

Interchangeable lenses

Compatible with Sony's E-

mount series of smaller, lighter lenses designed specifically for αcompact interchangeable lens cameras. Opens up a world of creative options.

APS-C size HD image sensor

The same sensor format that Sony builds into the full-sized αDSLRs. With 13 times the area of the typical image sensor, APS-

C makes the difference between "snapshots" and "photographs," delivering an exceptional combination of high resolution, high sensitivity and gorgeous, blurred backgrounds.

HD movie recording

Capture vivid, lifelike HD movies in the PC-friendly MP4 format. Shoot 720/30p high definition or standard definition 480/30p.

14.2 megapixel resolution

You get incredible detail and gorgeous enlargements. Thanks to the APS

-C sensor size and Sony Exmor™ APS HD CMOS technology, the camera achieves high resolution with no penalty in low-light sensitivity or sensor noise.

Up to 7 frames per second

Capture the decisive moment in sports and get the ideal baby photo. Up to 7 fps continuous shooting at full 14.2 MP resolution with exposure and focus fixed at the first frame. Standard continuous shooting at up to 2.3 fps.

ISO 12800 sensitivity

Incredibly clear low-light pictures without sacrificing detail. As of April 2010, this is best-in-class performance, made possible by low-noise Exmor™ APS HD CMOS image sensor and refined BIONZ

® image processor.

Sweep Panorama

Capture expansive landscapes automatically. Press the shutter, sweep vertically or horizontally. The camera does the rest, continuously shooting images and stitching them together. Up to 23 MP image size. Up to 202 degrees maximum sweep angle (16mm focal length).

3D Panorama

Captures scenic vistas in spectacular 3D. As you sweep across the panorama, the camera records separate right

-eye and left-eye images that make landscapes come alive on your 3D television.

Anti Motion Blur mode

Corrects for subject movement to capture amazingly clean and sharp images in low light. The camera leverages the large, APS-C image sensor and captures six images in a fraction of a second. Combining the data from all six creates a single image that minimizes subject blur.

Hand-held Twilight Mode

Auto HDR built into camera

High Dynamic Range (HDR) photography captures more scene contrast than a single exposure can handle by combining the best highlight detail from one shot and the best shadow detail from another for one incredible shot. Until recently, you needed a computer and editing software. Sony builds HDR in. Handles severe backlighting and other highcontrast scenes. Captures in a split second.

(Recommended for still

subjects.)

Live View LCD

The LCD monitor is active full-time for composing shots. Provides a what-yousee

-is-what-you-get preview of white balance, focus, depth of field, exposure and 100% framing accuracy, plus informative on-screen displays.

Tiltable 3”

LCD screen

Empowers your photography with a different point or view. Tilts down 45° and up 80° to frame high- and lowangle shots that would otherwise be hitor-miss.

ADDITIONAL FEATURES

920K pixel TruBlack™

LCD screen

Fast Auto Focus

Intelligent Auto Focus

iAUTO (Intelligent Auto) mode

On-screen Help Guide

-screen Shooting Tips

Control Wheel + Soft Keys

Sony Exmor™ APS HD CMOS sensor

BIONZ® image processor

Dynamic Range Optimizer (DRO)

Accepts

αDSLR A-

mount lenses

25-point Auto Focus

Multi-

segment measuring

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 11/11/2010

NEX-3A/B

Please visit the Dealer Source for more information at

www.sony.com/dealersource

Specifications

Optics/Lens

Lens Type: E-

mount 16mm F2.8

Aperture (Max.): F2.8 Aperture (Min.): F22 Filter Diameter: 49mm Lens Groups-Elements: 5 groups, 5

elements (1 aspheric surfaces)

Lens Mount Type:

Sony E-mount

Minimum Focus Distance: 9.4" (0.24m) Non-rotating Focusing Ring: No rotation Aperture Blade: 7 blades (Circular

aperture?

Focal Length (35mm equivalent): 24mm

(35mm equivalent)

Power

Battery Type: InfoLITHIUM® NP-FW50,7.2V Number of Still Images: Approx. 330 images

(CIPA standard)

Service and Warranty Information

Limited Warranty Term: 1 Year Parts &

Labor

Software

Supplied Software: PMB (Picture Motion

Browser) 4.3.01 Image Data Converter SR

3.1 Image Data Lightbox SR

Operating System Compatibility: Microsoft

Windows 2000 Professional Windows XP*SP2 Windows Vista Mac OS X(v10.1.3) or later

Dimensions

Weight: Approx. 8.4 oz (239g) (excl battery

& media) Approx. 10.5 oz (297g) (w/battery & media)

Measurements: Appx 4-5/8 × 2-1/2 × 1

3/8" (117.2x62.6x33.4mm) (W/H/D); 1" (25.4mm) excl grip and lens mount

Supplied Accessories

SEL16F28 E-mount 16mm F2.8 lens Lens cap HVL-F7S detachable flash Case for flash BC-VW1 Battery Charger Power cord NP-FW50 Lithium ion rechargeable battery Shoulder strap USB cable (Mini B) CD-ROM

Color:

Black

UPC Code:

027242785564

1. Movie recording is limited to segments of 29 minutes, maximum. When using movie mode Memory Stick PRO Duo with MARK2 logo, Memory Stick PRO-HG Duo, Memory Stick PRO-HG HX Duo or Class 4 or higher for SD/SDHC media are recommended.

2. More than 13 times the area of 1/2.4-inch type sensor of the Sony DSC-WX1.

3. World's smallest, lightest interchangeable lens digital camera as of April 2010

4. Viewable area measured diagonally

5. 48.8% smaller and 49.1% lighter compared to Sony α230.

6. Attaching Sony A-mount lens requires LA-EA1 adaptor (sold separately). Manual focus and full open aperture shooting only.

7. Works with other BRAVIA® Sync™ or Theatre Sync™

labeled HDTVs when connected via HDMI interface. Mini-HDMI-to-HDMI cable required, sold separately.

8. When fully charged. Actual results may vary based on product settings, usage patterns and environmental conditions.

9. Compatible BRAVIA®

HDTV and HDMI

™

or component cable (all sold separately) required for PhotoTV HD viewing. Specifications for BRAVIA HDTV shown vary according to market region.

10. Auto Focus function is only available with Sony E-Mount lenses.

11. PMB requires Microsoft®

Windows

® XP SP3/ Windows Vista® SP2/ Windows 7. Mac OS® not supported. Movie format is compatible with iMovie® ‘09 or later versions.

12. HD Viewing requires a mini-HDMI-to-HDMI cable and compatible HDTV, both sold separately.

13. Firmware update required for 3D feature functionality (available Summer 2010). 3D viewing requires 3D HDTV, a high speed HDMI™ cable (supporting at least 10.2 Gbps) connection and 3D glasses (all sold separately).
