Sony MPK-DVF User Manual
Marine Pack
3-864-446-12 (1)
Operating Instructions
Mode d’emploi
Manual de instrucciones
EN
F
ES
MPK-DVF
©1998 by Sony Corporation
WARNING
For the Customers in CANADA
DISPOSAL OF LITHIUM ION
BATTERY.
LITHIUM ION BATTERY.
DISPOSE OF PROPERLY.
You can return your unwanted lithium ion batteries
to your nearest Sony Service Center or Factory
Service Center.
Note: In some areas the disposal of lithium ion
batteries in household or business trash may
be prohibited.
For the Sony Factory Service Center nearest you call
416-499-SONY (Canada only)
Caution:Do not handle damaged or leaking lithium
ion battery.
Owner’s Record
The model and serial number are located on the
inside of the front shell. Record the serial number in
the space provided below.
Refer to these numbers whenever you call upon
your Sony dealer regarding this product.
Model No MPK-DVF Serial No. _____________
2-EN
Table of contents
MPK-DVF
Table of contents 3
Features and Precautions ........................... 3
Checking supplied accessories .................. 6
Preparing ...................................................... 7
1 Preparing the camcorder ............... 7
2 Preparing the Marine Pack ........... 9
3 Attaching the camcorder to the
marine pack ................................... 10
Features and Precautions
• MPK-DVF can be used with the Sony Handycam Vision™ camcorder DCR-TRV7/
TRV9/TRV890/TRV900 .
• Recording at a depth of 75 meters (246 feet) is possible.
• The following operation can be performed underwater.
– Power on/off
– Auto focusing on/off
– Recording start/stop
– Photo recording (DCR-TRV9/TRV890/TRV900 only)
– Electric zoom function
– Monitoring on the LCD screen
Recording .................................................... 13
When the LEAK lamp flashes ........... 14

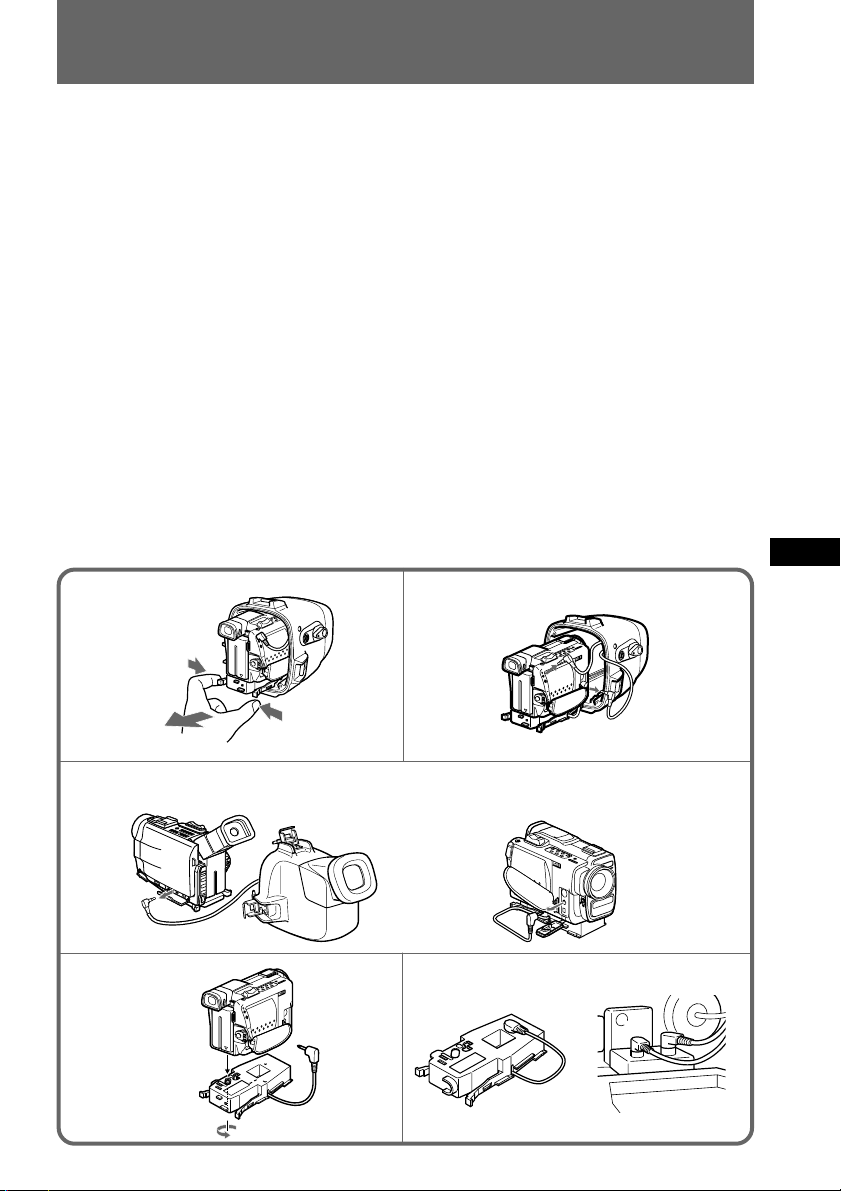

Removing the camcorder ......................... 15

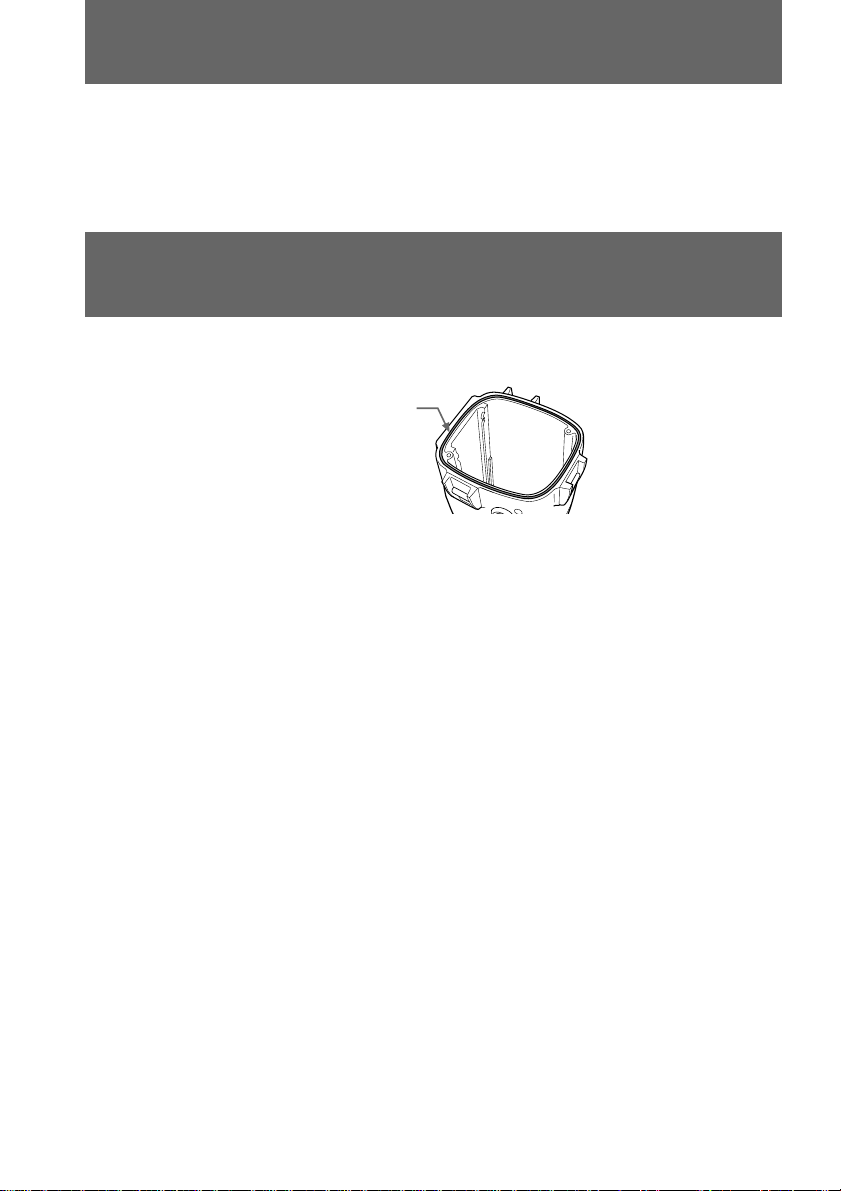

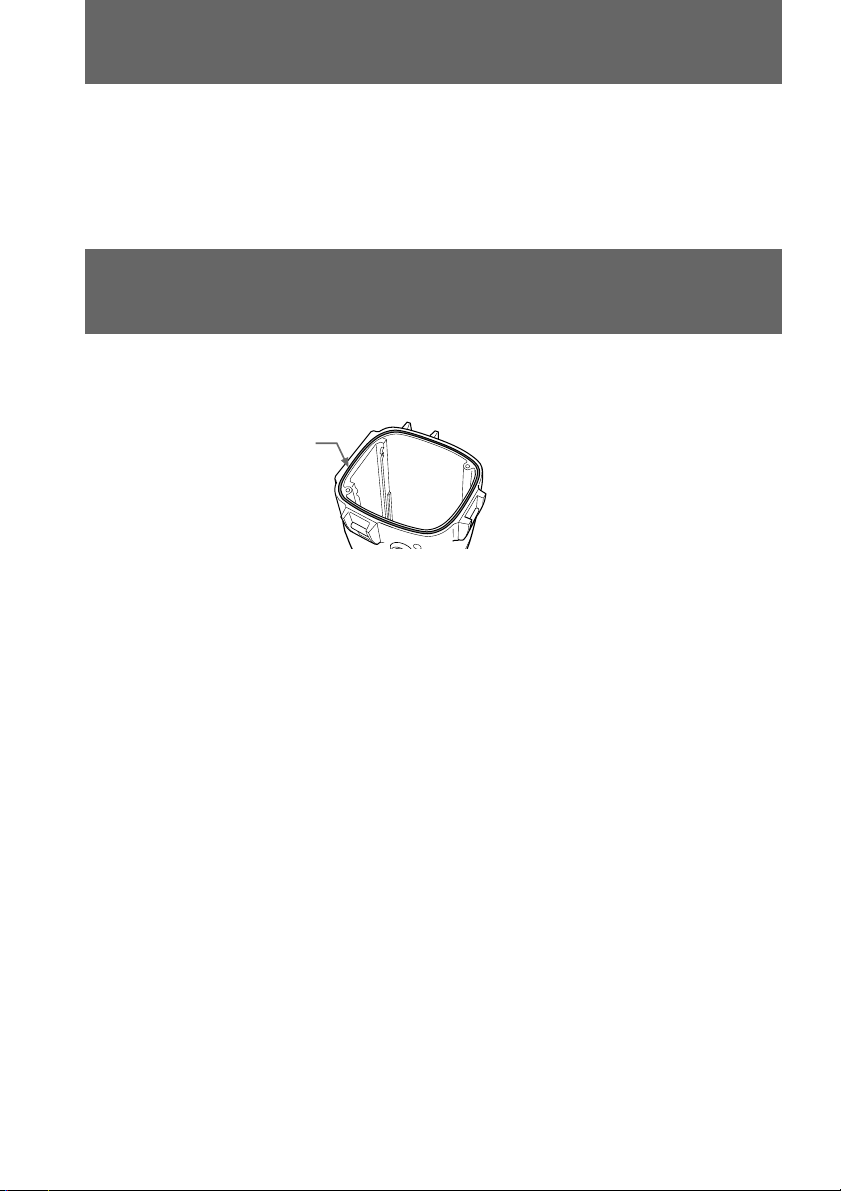

Note on the O-ring .................................... 16
Underwater recording .............................. 17

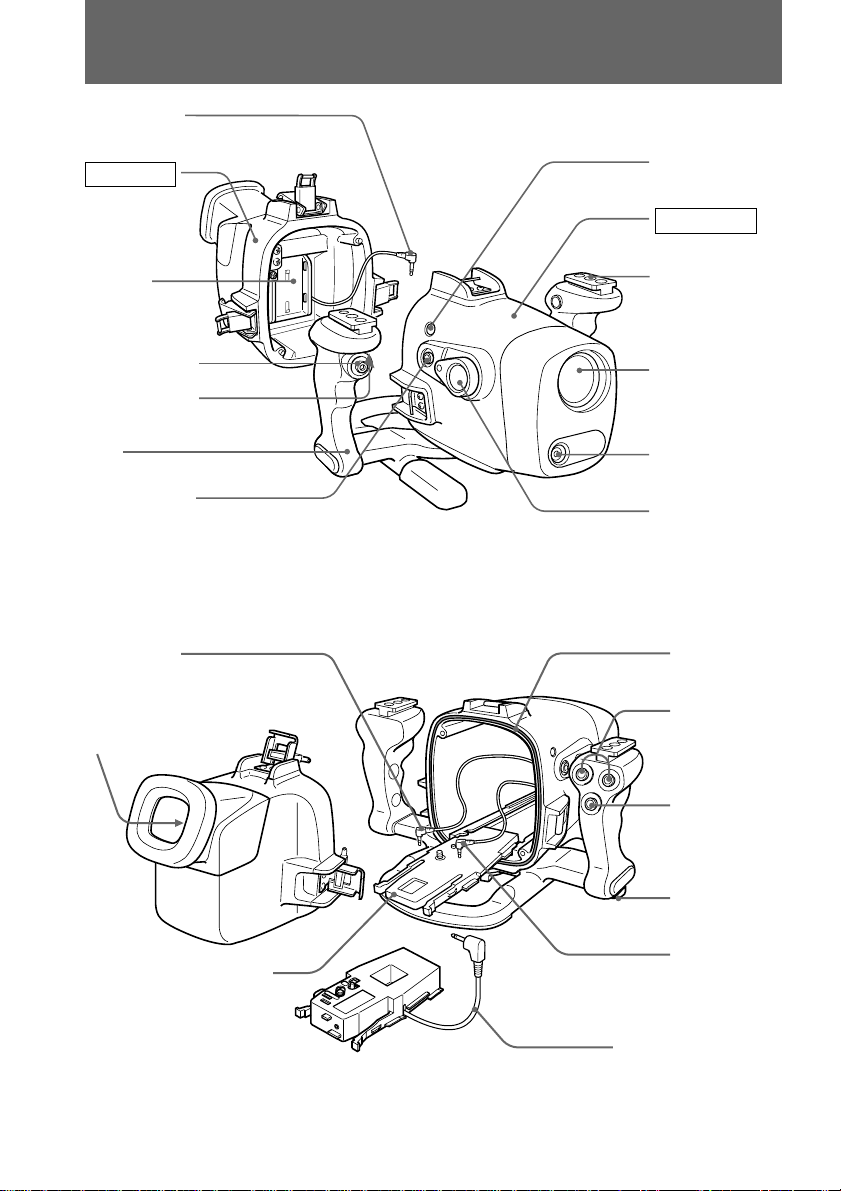

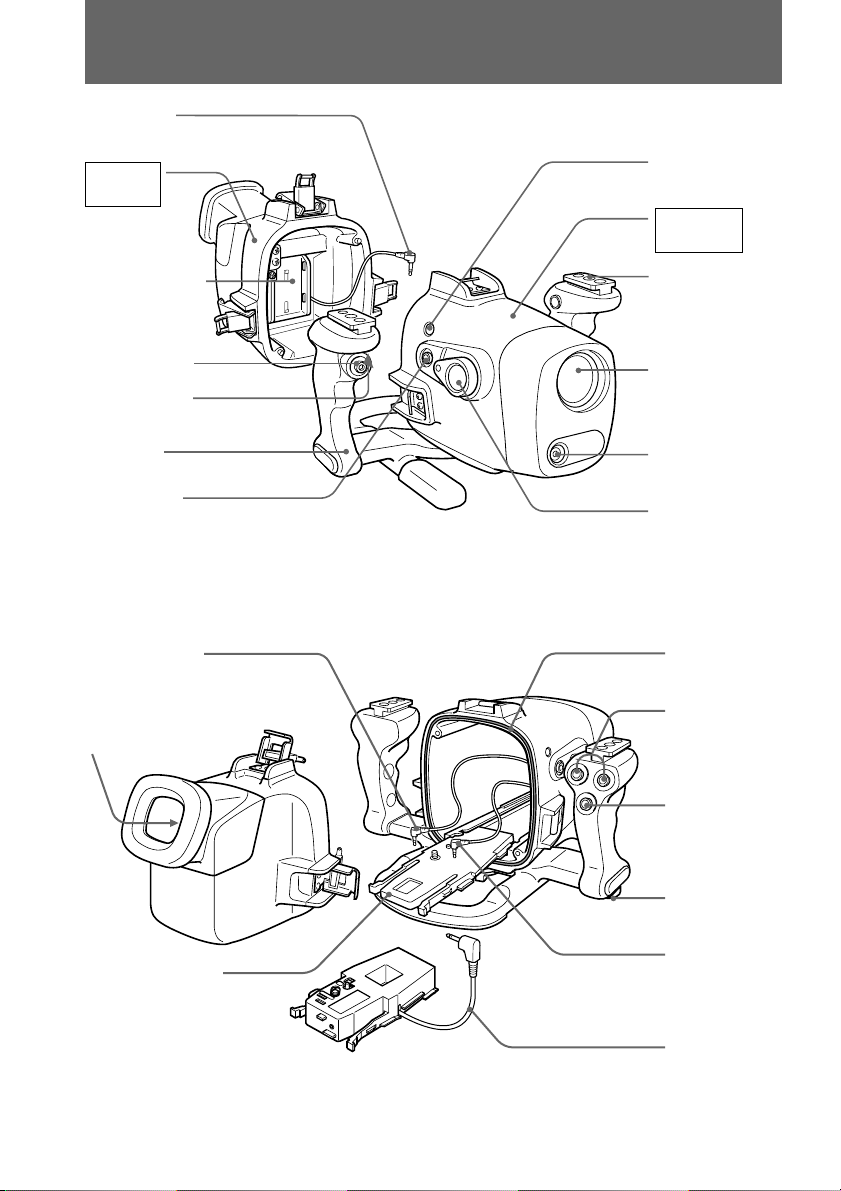

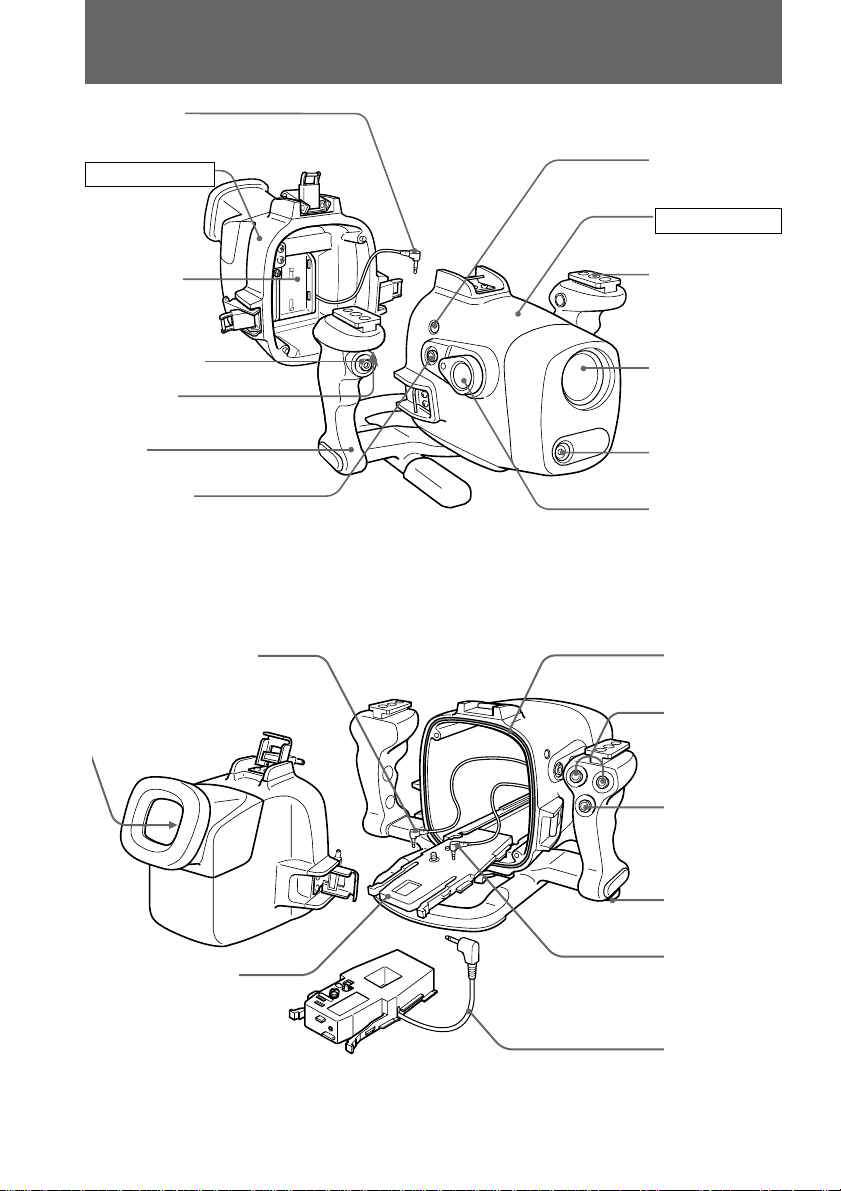

Labeling parts and controls...................... 18
Specifications.............................................. 19
EN
F
ES

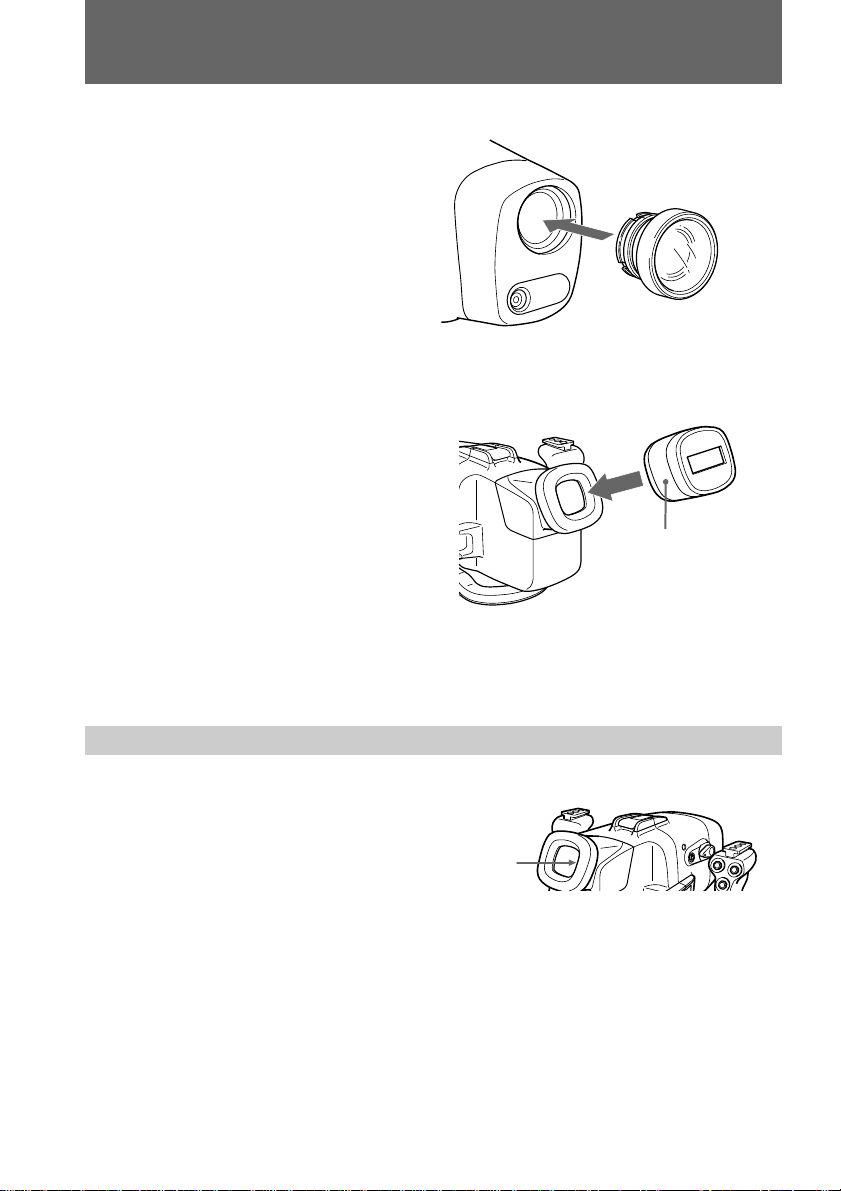

We recommend you use the supplied wide-conversion lens when using the marine
pack.
This mark indicates that this product is a genuine accessory for Sony
video products. When purchasing Sony video products, Sony
recommends that you purchase accessories with this “GENUINE
VIDEO ACCESSORIES” mark.
On the video camera recording
• Take care not to expose the equipment to salty air. Do not drop water on the
equipment.
• Do not open the marine pack underwater or at the beach. Preparation such as
installing and checking the equipment should be done in a place with low humidity
and no salty air.
• When your camcorder is to be used near the sea for a long time, we recommend that
it be checked periodically by Sony dealer.
• If the equipment becomes wet, take it immediately to the nearest Sony dealer for
preventive maintenance.
• We recommend you use battery packs with a large capacity.
3-EN
Features and Precautions
On the marine pack
• If you open and join the front and rear shells in a place with high temperature and
high humidity, moisture condensation may occur when you put the marine pack in
the water, causing the front glass to fog.
The waterproof integrity of the marine pack is maintained by the O-ring, and the
groove and surface where it touches. Be especially careful not to damage or deform
that area. For details, see “Note on the O-ring” (page 16).
• Do not leave the marine pack under direct sunlight for a long period of time,
otherwise the temperature in the marine pack may rise and the equipment inside
may be damaged. If you can not avoid leaving the marine pack under direct sunlight,
be sure to cover the marine pack with a towel or other protection.
• Do not throw the marine pack into the water. Lower it gently into the water.
On recording underwater
• Checking that the equipment operates correctly and that there is no water leakage at
a depth of about one meter (3 feet) before you dive deeper.
• Be sure to follow the safety rules for diving, such as diving period and depth.
• Remove the bubbles from the outside of the front glass before recording.
Sony dose not accept liability for damage to the video camera recorder, battery, etc.
in the marine pack or for the loss of prerecorded material if a water leakage caused
by incorrect operation occurs.
4-EN
On maintenance
After recording in the sea, submerge the marine pack with the buckles tightly fastened
in fresh water, then wipe with a soft dry cloth.
Clean your camcorder and the inside of the marine pack with a soft dry cloth. Do not
use any type of solvent such as alcohol or benzine for cleaning, as this might damage
the finish.
When you store the marine pack
• Coat the O-ring slightly with the supplied grease, and put it in the groove correctly.
Join the front and rear shells then put in a cool and dry place without fastening the
buckles.
• Prevent dust from collecting on the O-ring.
• Avoid storing the marine pack in a very hot, cold or humid place, or together with
naphthalene or camphor, as these conditions might damage the unit.
After using the marine pack

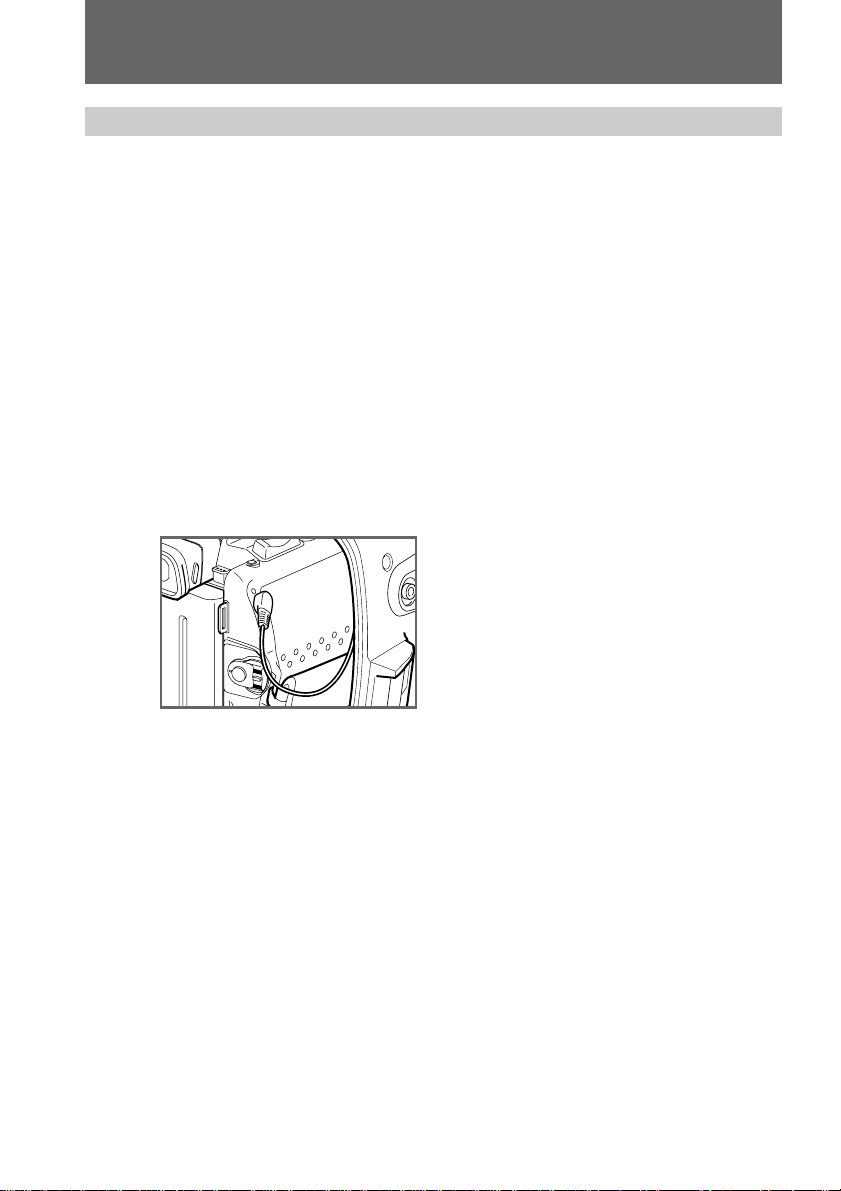

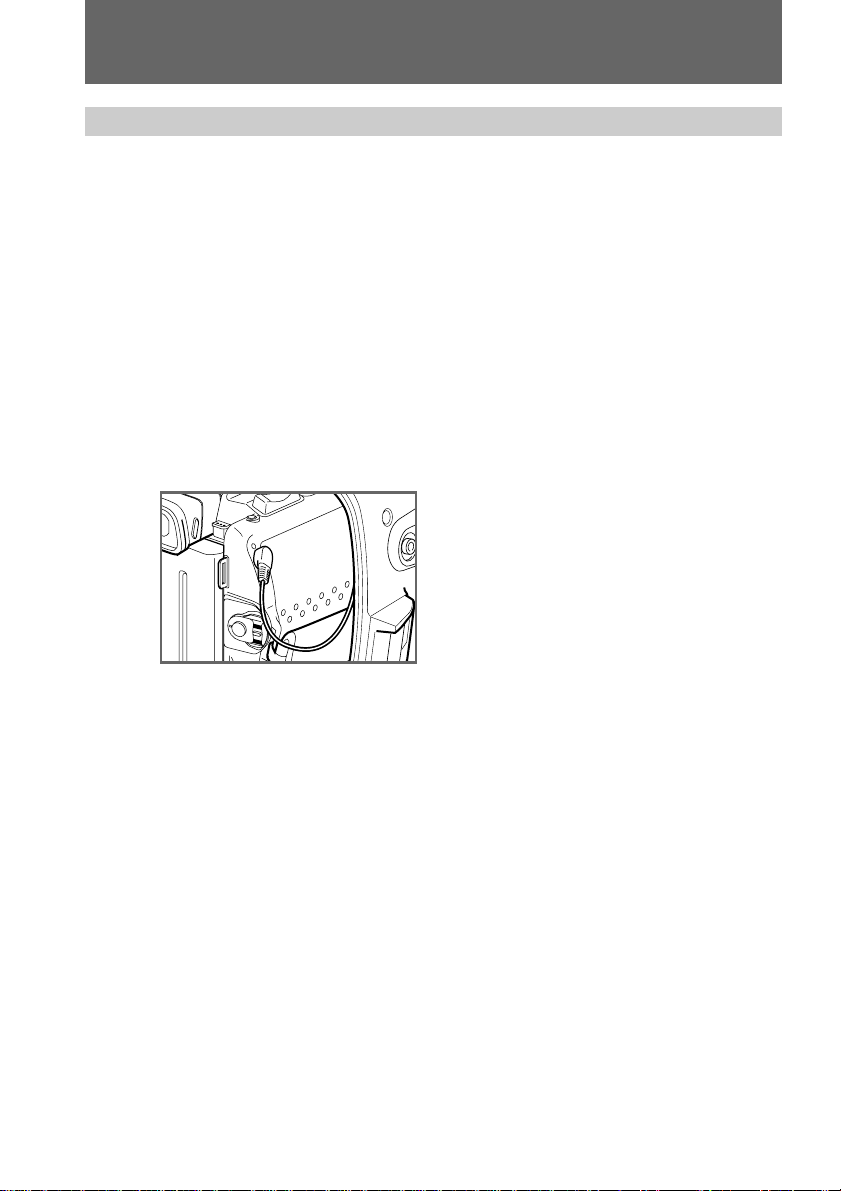

• Insert the A/V connecting cable plug to the plug holder of the camera mounting
shoe B.
• Insert the remote and microphone plugs to the plug holder inside of the front shell.
Features and Precautions

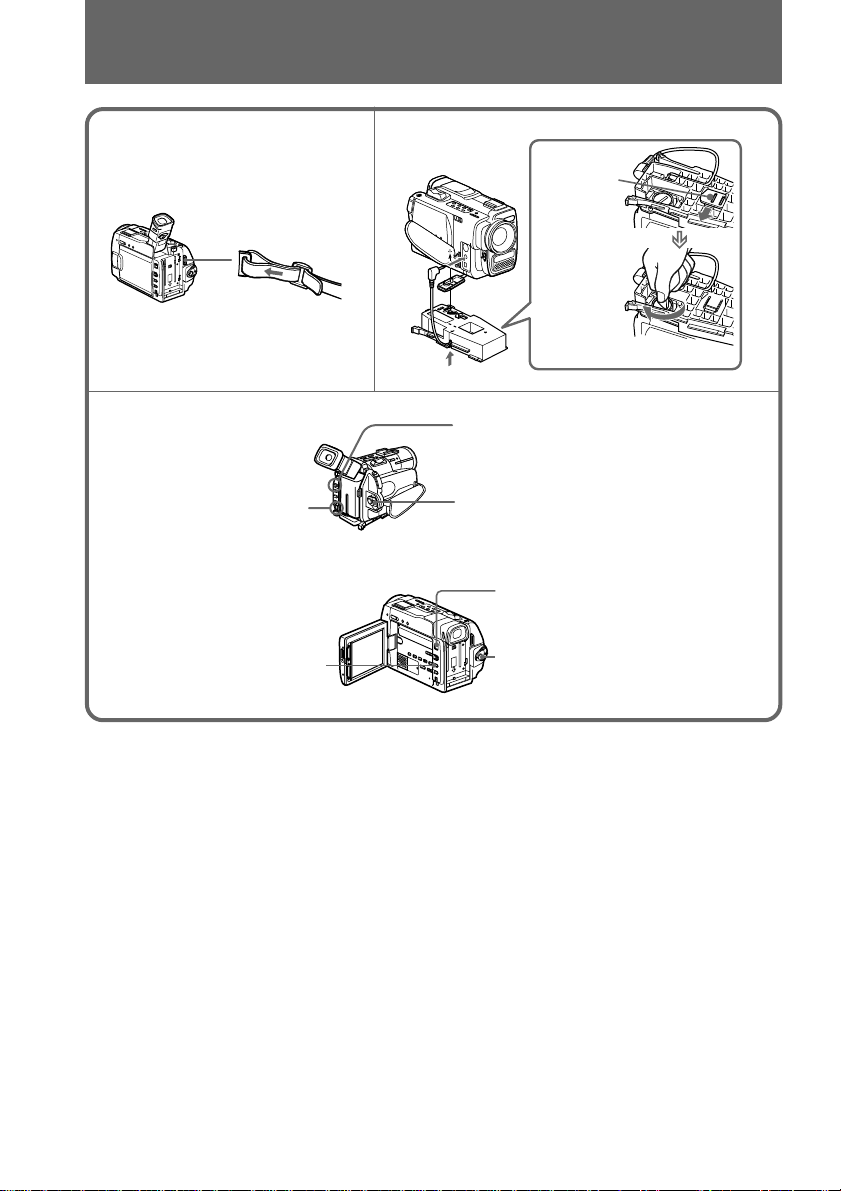

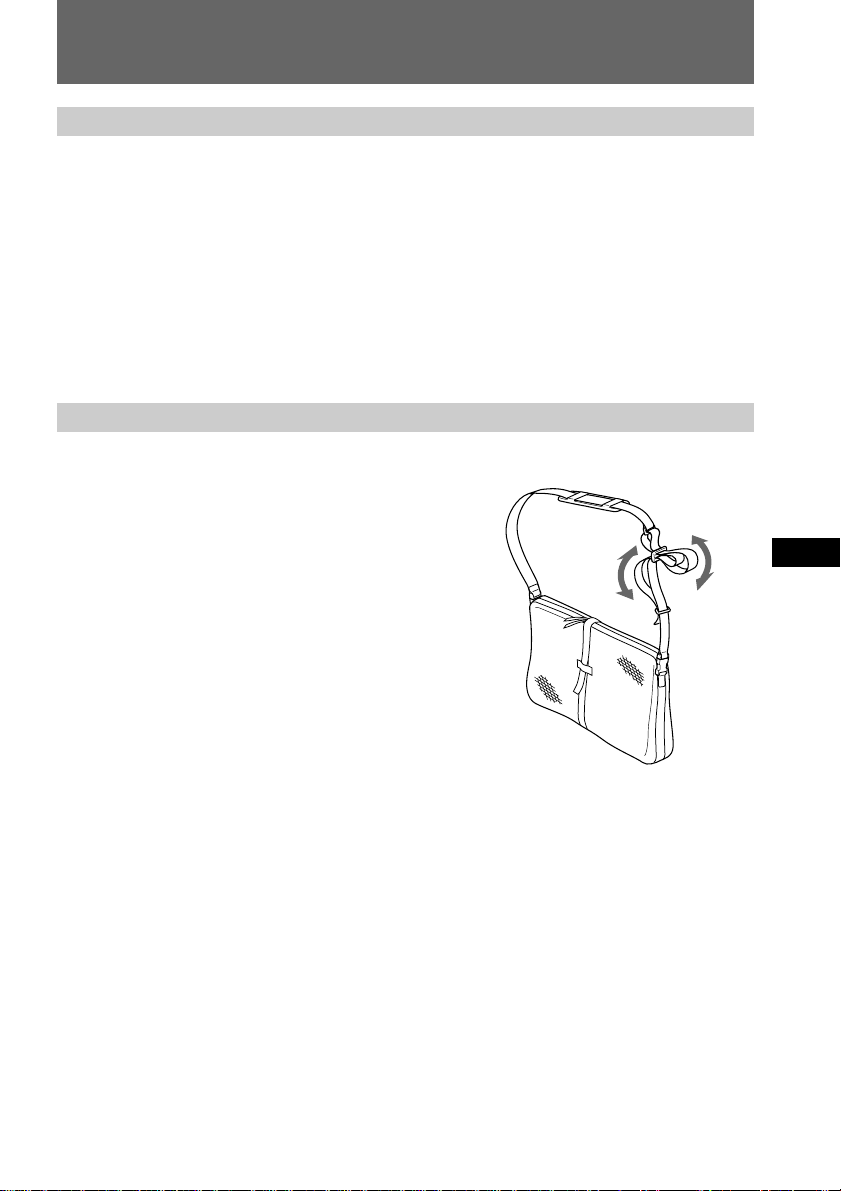

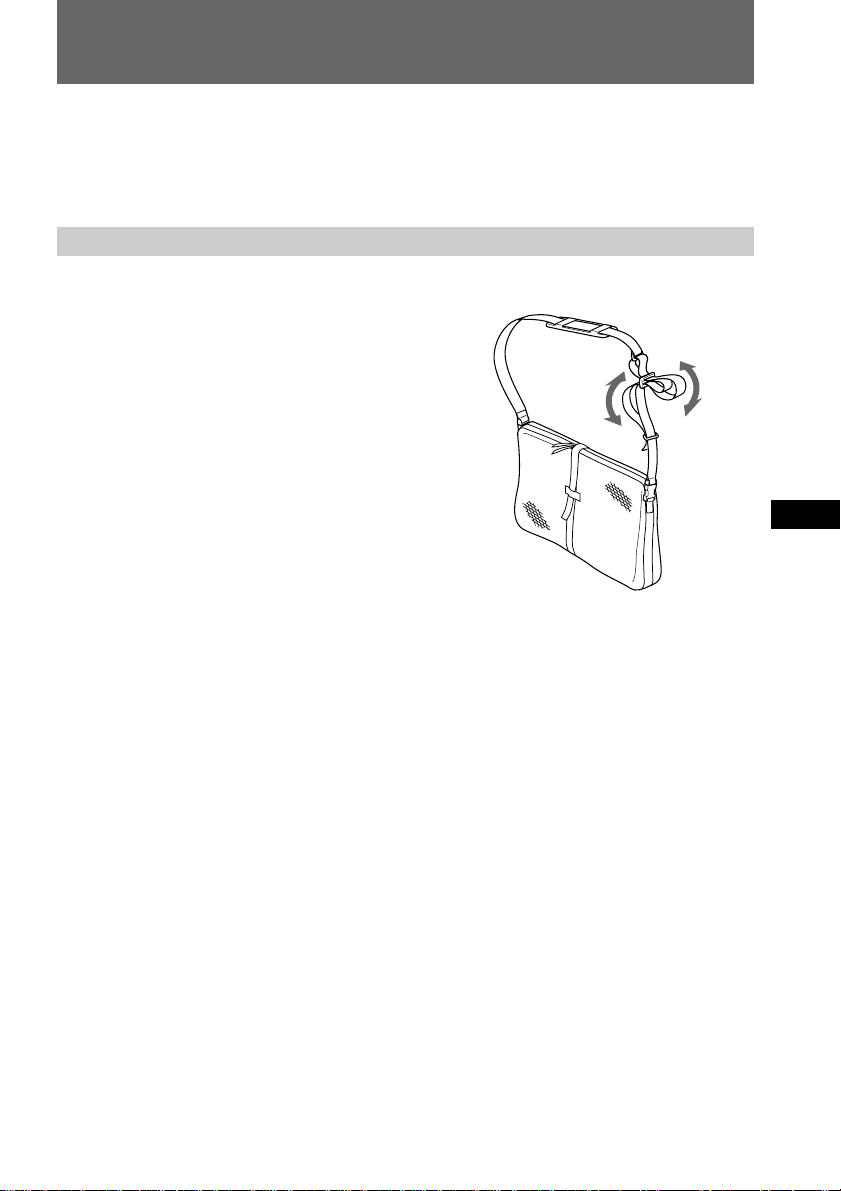

Using the supplied carrying bag
Attach the supplied carrying belt and adjust the length of the belt.
EN
On transportation
• When transporting the marine pack, be sure to remove your camcorder from it.
• Avoid rough handling or a shock. We recommend to cover the marine pack with a
towel or other protection.
F
ES
5-EN

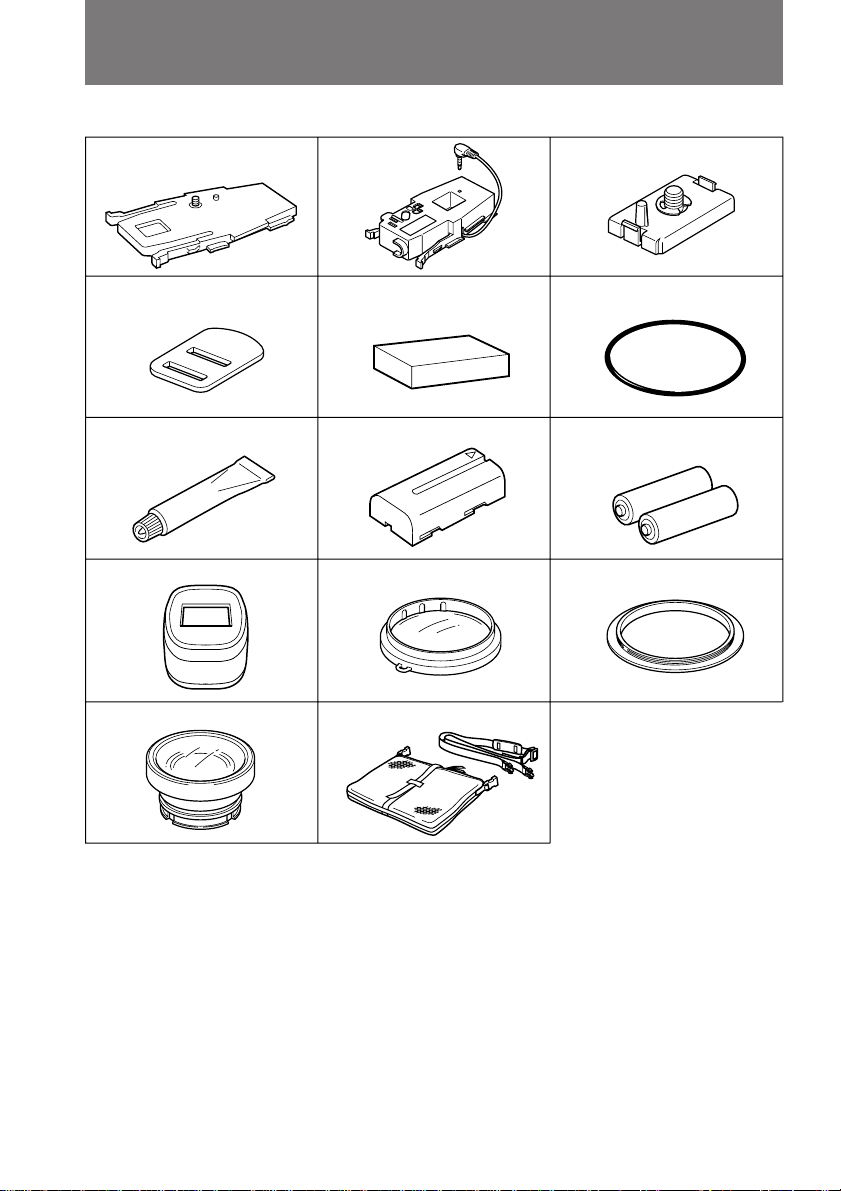

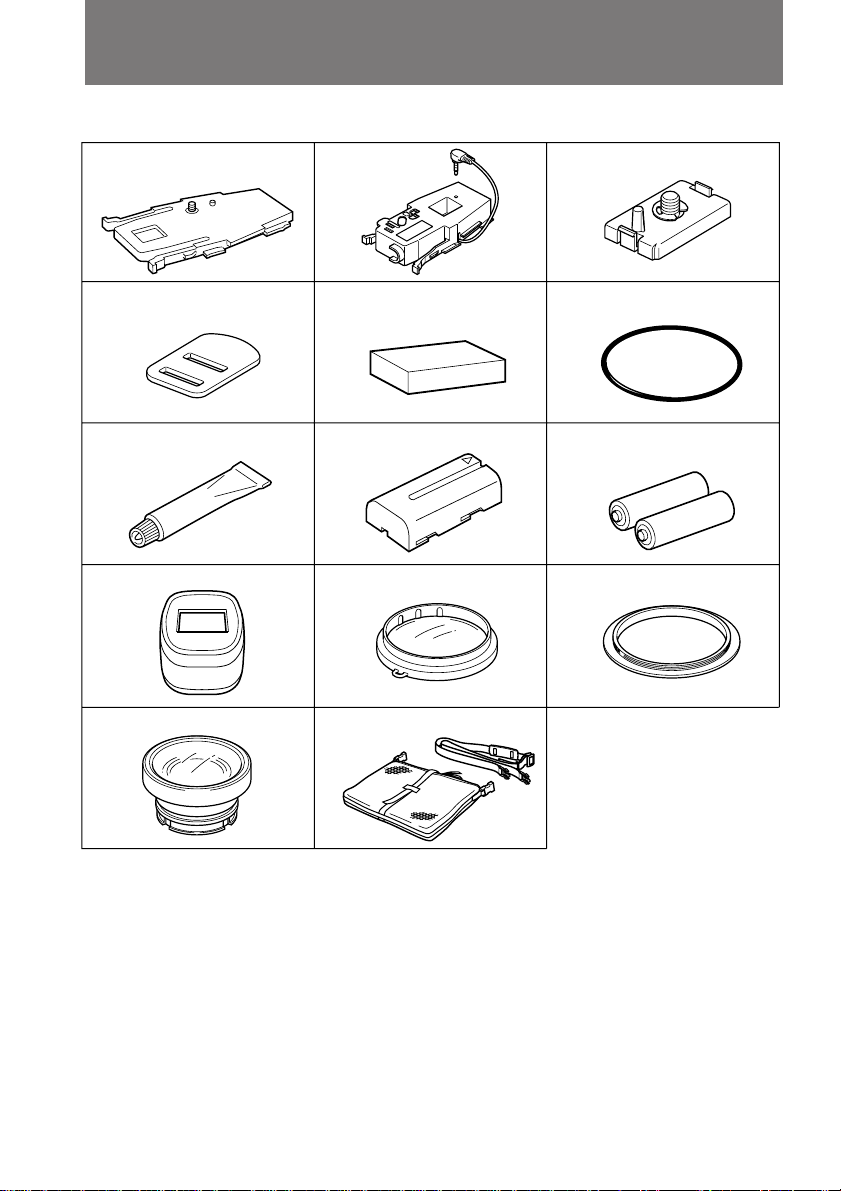

Checking supplied accessories
Check that the following accessories are supplied with your sports pack.
123
1
2
456
789
0!⁄ !¤
!‹ !›
1 Camera mounting shoe A (1)
for DCR-TRV7
2 Camera mounting shoe B (1)
for DCR-TRV9/TRV890/TRV900
3 Screw plate for camera mounting
shoe B (1)
4 Screw driver part (1)
The screw driver part is installed in the
camera mounting shoe B.
5 Battery cushion (1)
6 O-ring (1)
7 Grease (1)
6-EN
8 NP-F330 battery pack for the LCD
monitor (1)
9 R6 (size AA) battery (2)
0 Sunshade (1)
!¡ Color filter (1)
!™ Reflex prevention ring (1)
!£ Underwater wide–conversion lens (1)
!¢ Carrying bag (1)
Carrying belt (1)
!∞ Strap (3)
Preparing
1 Preparing the camcorder
The DCR-TRV9 is the model used for illustration purposes. Otherwise, the model name
is indicated in the illustrations. Any differences in operation are clearly indicated in the
text, for example, “DCR-TRV9 only”.
For details, please refer to the operating instructions supplied with your camcorder.
(1)Remove the lens cap, shoulder strap, conversion lens or filter from the
camcorder.
(2)Attach a charged battery pack.
(3)Insert a cassette tape.
(4)For DCR-TRV7 and DCR-TRV9, attach the reflex prevention ring to the tip of the
lens.
(5)Attach the camera mounting shoe A (for DCR-TRV7) or the camera mounting
shoe B* (for DCR-TRV9/TRV890/TRV900).
Remove the metal part from the camera mounting shoe B and fasten the screw.
For DCR-TRV9/TRV890/TRV900, connect the A/V connecting cable of the
camera mounting shoe B to the camcorder’s AUDIO/VIDEO jack.
(6)Adjust the camcorder.
(7)For DCR-TRV9/TRV890/TRV900, cancel the following functions: BACK
LIGHT,NightShot, PROGRAM AE and picture effect.

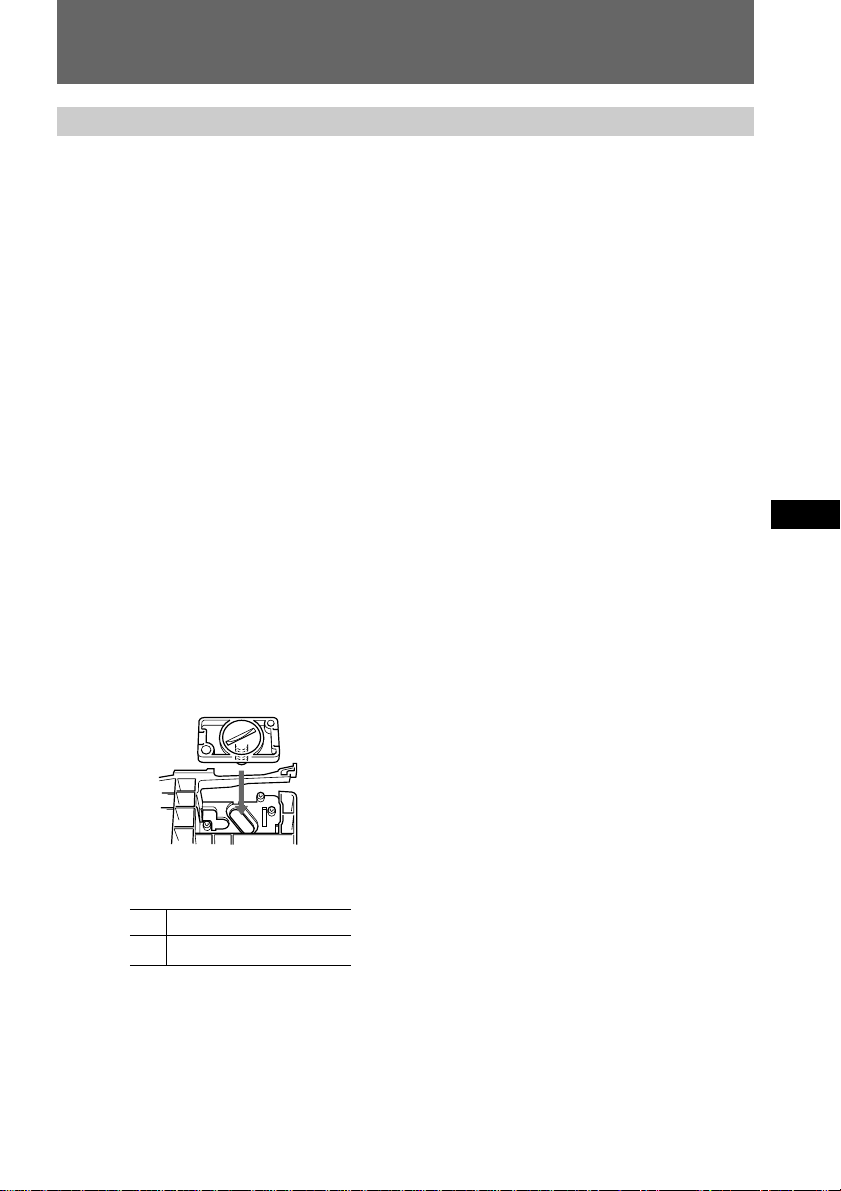

* To attach the camera mounting shoe B
Attach the screw plate to the camera mounting shoe B.
EN
F
ES

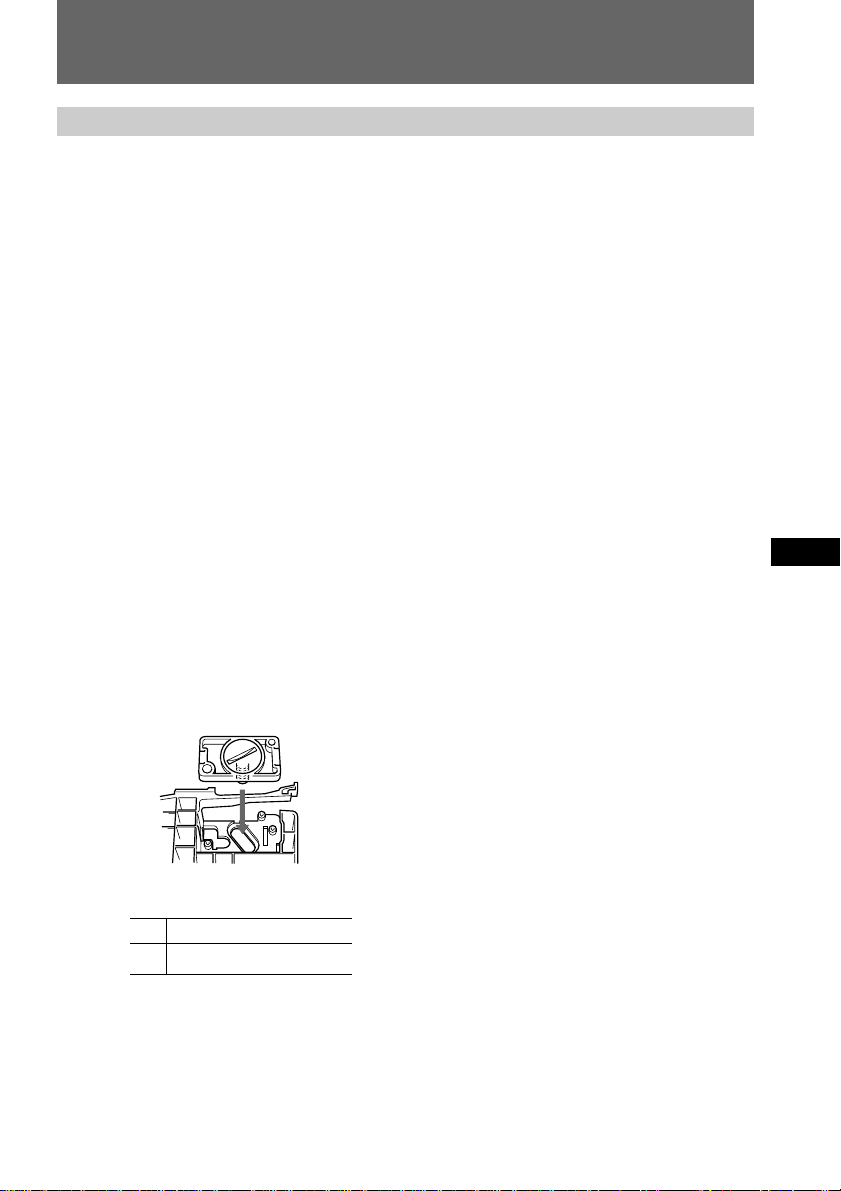

Installing positon of the screw plate
1 DCR-TRV9
2 DCR-TRV890/TRV900
7-EN
Preparing
1
6
2 Select COMMANDER
to ON in the menu
system.
2 Select COMMANDER to
ON in the menu system.
5
DCR-TRV7
DCR-TRV9/TRV890/TRV900
Remove the
metal part.
Fasten the screw.
3 Slide the AUTO LOCK
switch up.
1 Set the POWER switch
to CAMERA.
3 Slide FOCUS switch up
to AUTO.
1 Set the POWER switch
to CAMERA.
8-EN
Preparing

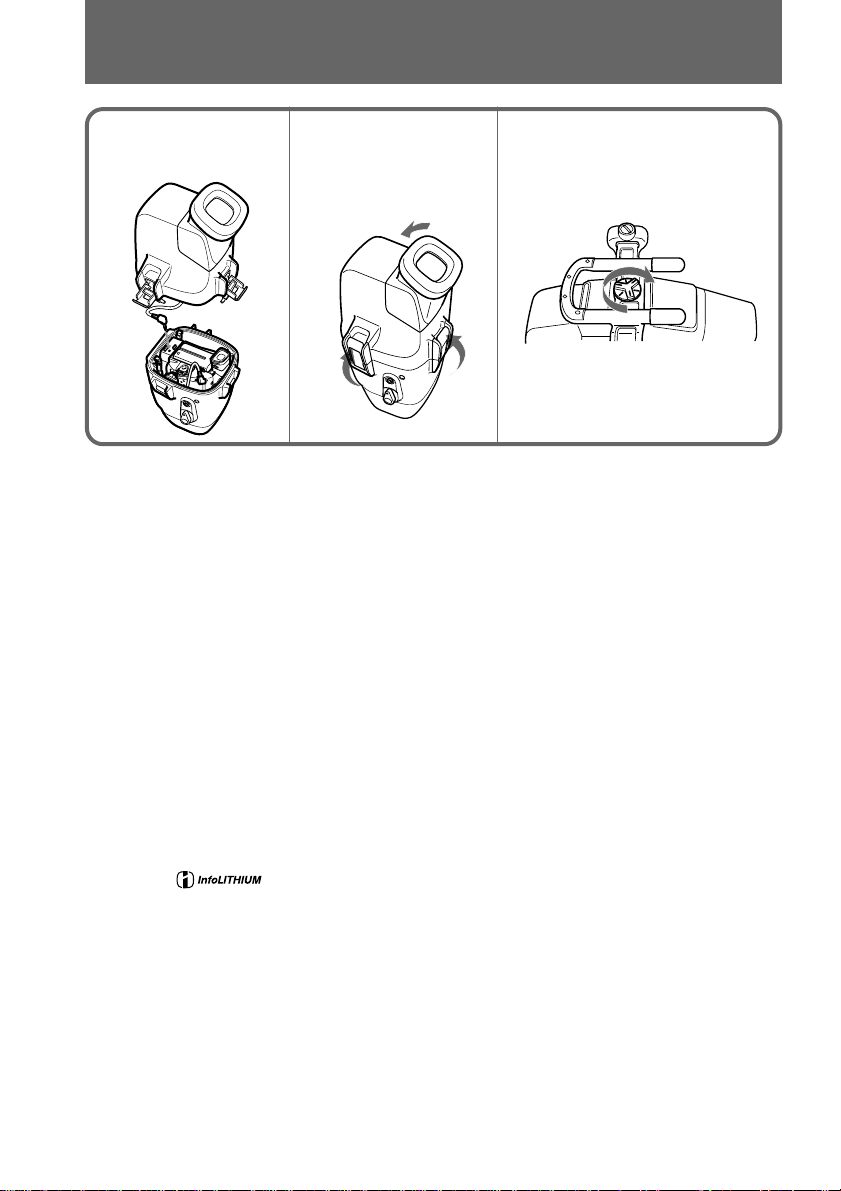

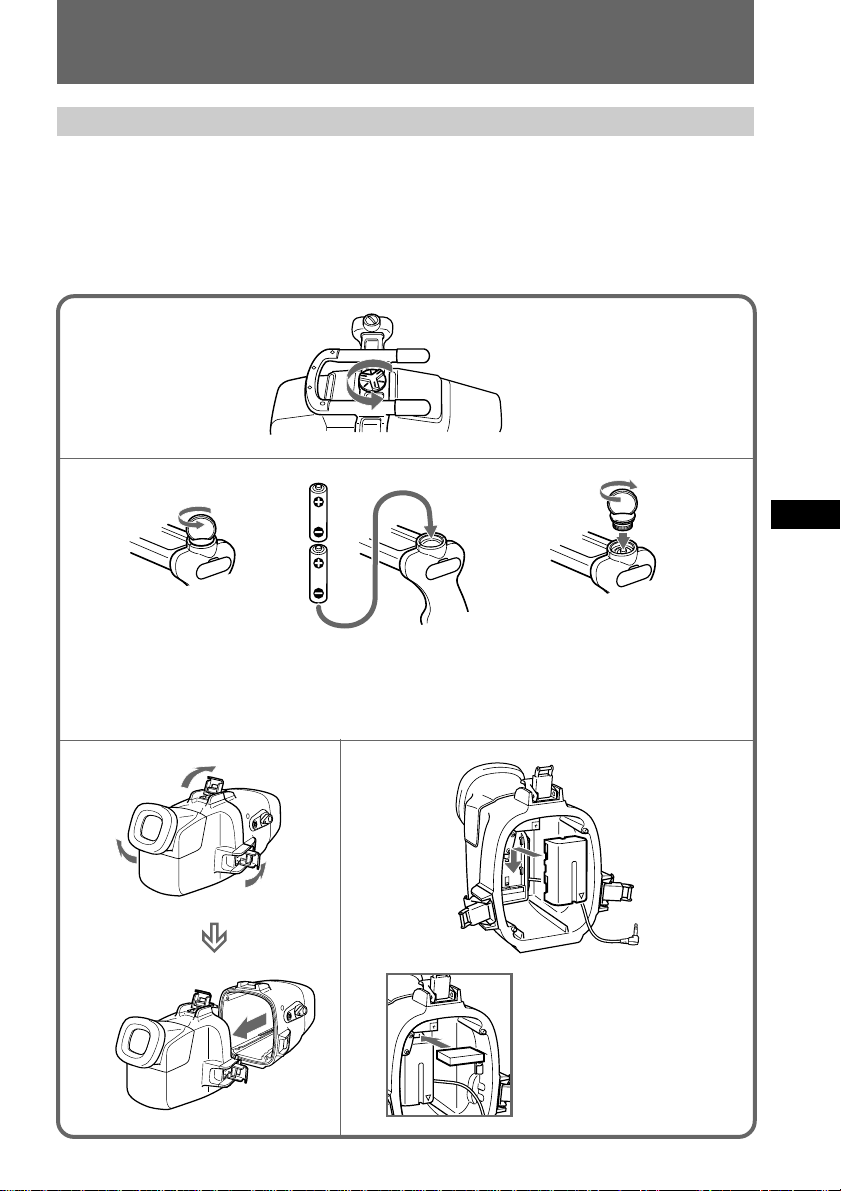

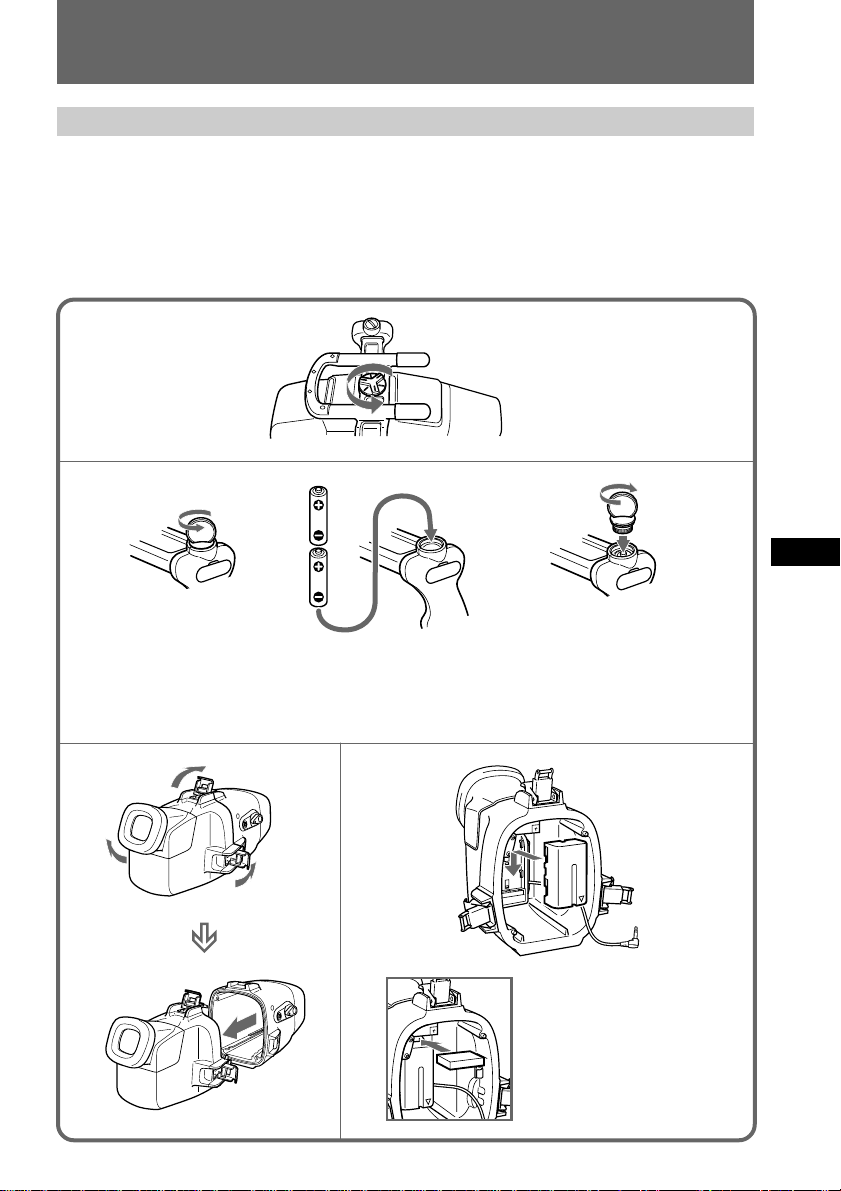

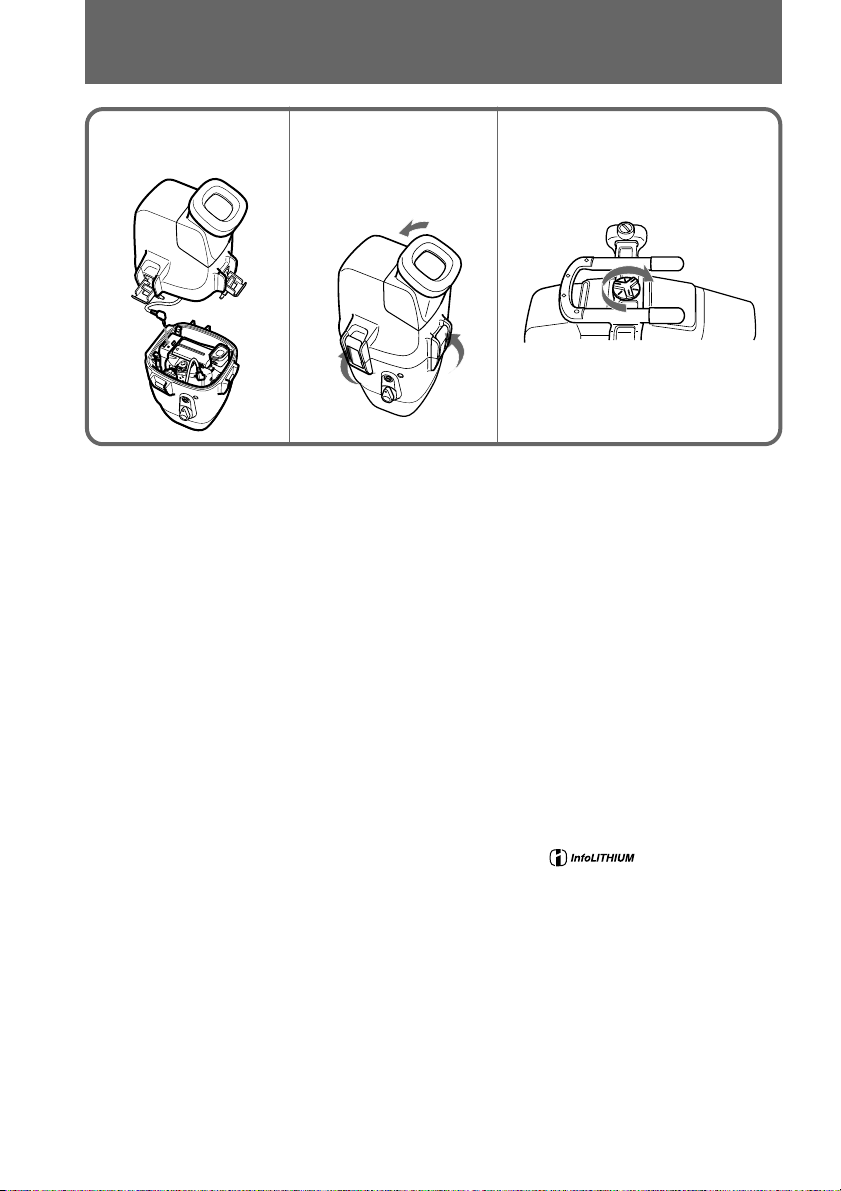

2 Preparing the Marine Pack
(1)Remove the grip.
(2)Insert the dry batteries into the grip.
(3)Unfasten the 3 buckles and open the marine pack.
(4)Attach the supplied battery pack NP-F330 for the LCD monitor to the rear
shell. Be sure to charge the battery pack fully before attaching.
1
2
EN
F
ES
1 Remove the screw
with something like
a coin.
2 Insert the dry batteries with
the polarity positioned
correctly as indicated on
the grip.
3 4
3 Fasten the screw tightly.
The battery pack may
come loose if dropped
or subjected to impacts
so insert the supplied
battery cushion.
9-EN
Preparing

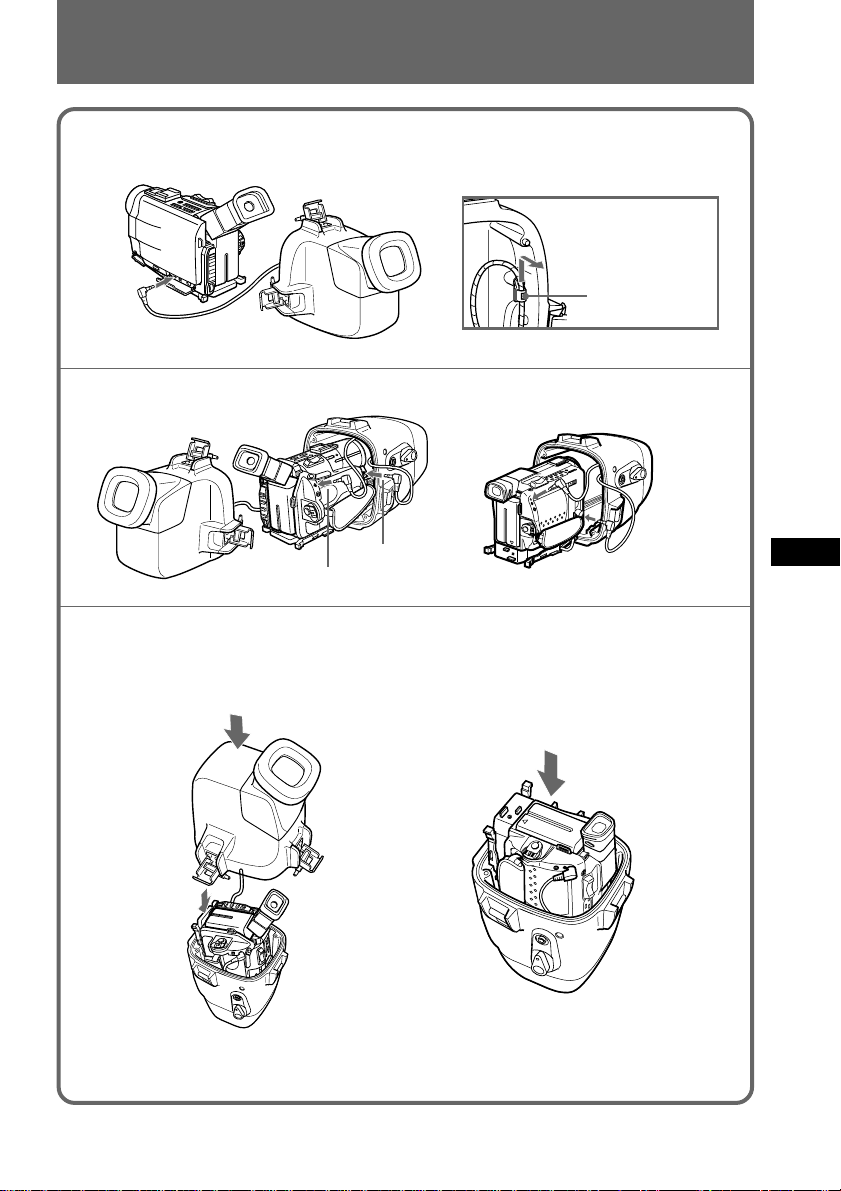

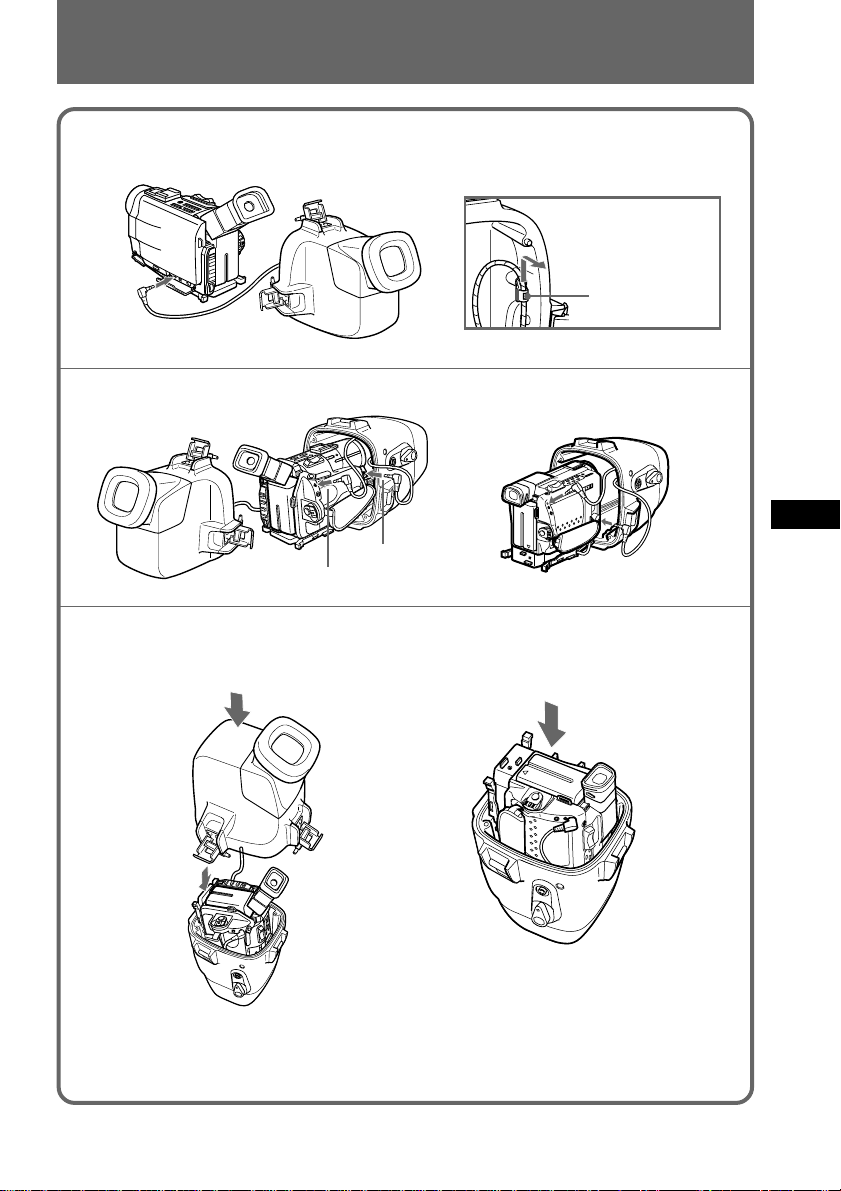

3 Attaching the camcorder to the marine pack
The cords are placed in the plug holders of the marine pack at the factory. Pull the plugs
out of the holders when in use.
(1)For DCR-TRV7 only, connect the monitor plug to AUDIO VIDEO jack.
(2)Connect the remote plug to LANC l control (1) jack, and the microphone
plug to MIC jack (plug in power) (2).
(3)Attach the camcorder.
Insert the camera mounting shoe until it clicks.
(4)For DCR-TRV9/TRV890/TRV900, connect the monitor cord to the jack of
camera mounting shoe B.
(5)Attach the front shell to the rear shell. Hold the both shells firmly and fasten 3
buckles securely.
Take care not to pinch the remote, microphone, and monitor cords. If this
happens water may leak in.
(6)Attach the grip.
Note
To prevent the cords from twisting or slacking,
make sure that these plugs are inserted as the
correct direction as the illusration.
10-EN
Preparing
1
to AUDIO VIDEO jack.
2
3
DCR-TRV7
DCR-TRV7 DCR-TRV9/TRV890/TRV900
DCR-TRV7 only
2
1
Remove the
monitor cord
hook.
Once slide up, then pull.
DCR-TRV9/TRV890/TRV900
EN
F
ES
11-EN
Preparing
DCR-TRV9/
4
TRV890/TRV900
Now you ready for underwater recording. Be sure to check that there is no
water leakage before you dive.
5
6
Tips for the LCD monitor
• The image does not appear on the LCD screen with only attaching the battery pack to
the rear shell. The LCD screen is linked with the power of your camcorder.
• To display indicator on the LCD monitor
Select V-OUT/LCD in the DISPLAY menu, and press the DISPLAY button on your
camcorder before attaching it to the marine pack.
• Remaining battery time displayed on the LCD screen refers to the time how many
minutes the battery of camcorder lasts. It is not the remaining battery time of the LCD
monitor.
Tips for the supplied battery pack NP-F330
• The LCD monitor of the marine pack does not correspond with the “InfoLITHIUM”
battery.
• What is the “InfoLITHIUM” battery pack.
The “InfoLITHIUM” battery pack is a lithium battery pack which can exchange data
with compatible video equipment about its battery consumption.
When you use this battery pack with video equipment having the mark,
the video equipment will indicate the remaining battery time in minutes.* However,
if you use it with video equipment not having this mark, the remaining battery
capacity will not indicated in minutes.
* The indication may not be accurate depending on the condition and environment
which the equipment is used under.
Note on dry batteries
• With normal operation, dry batteries will last for about 6 months.
• If the marine pack is not used for long period of time, remove the batteries to avoid
possible damage from the battery leakage.
• Do not try to recharge dry batteries.
• If a battery leak should develop, carefully and thoroughly wipe away battery fluid
from the battery compartment before inserting new ones.
12-EN

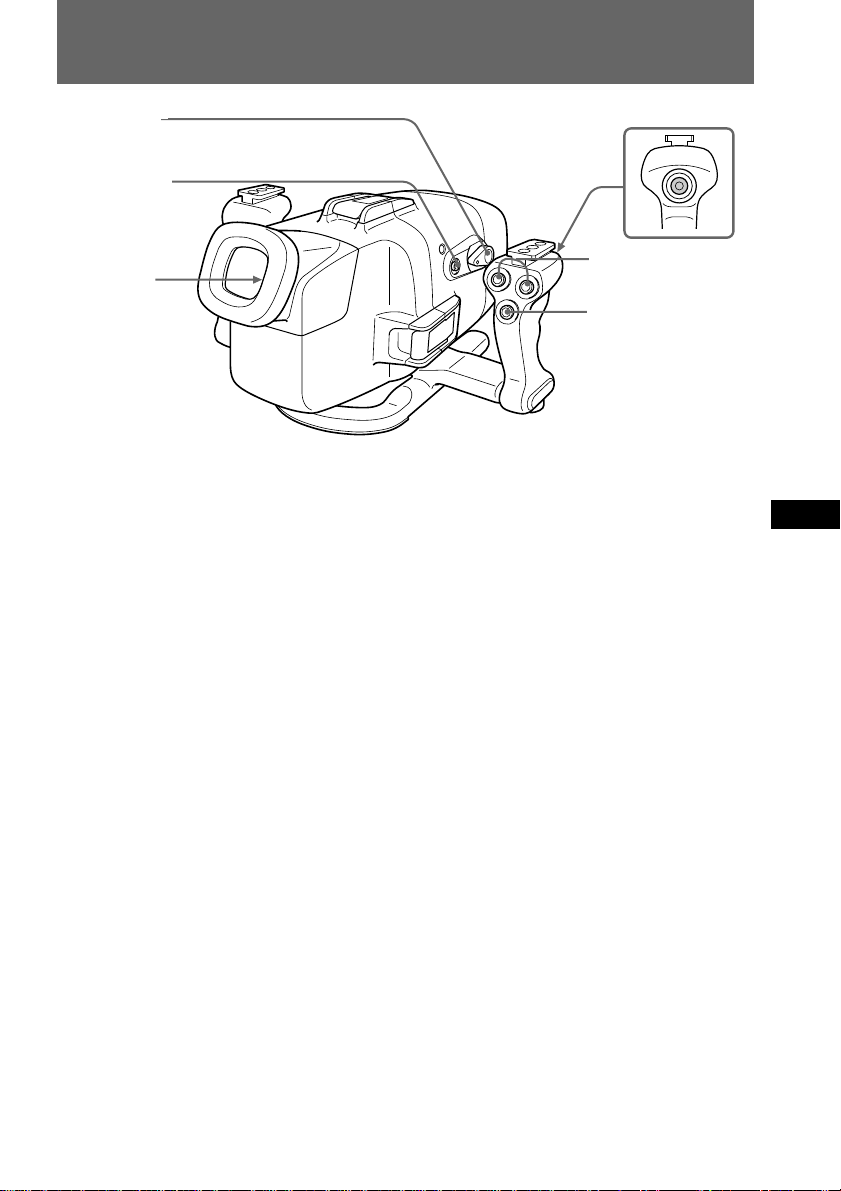

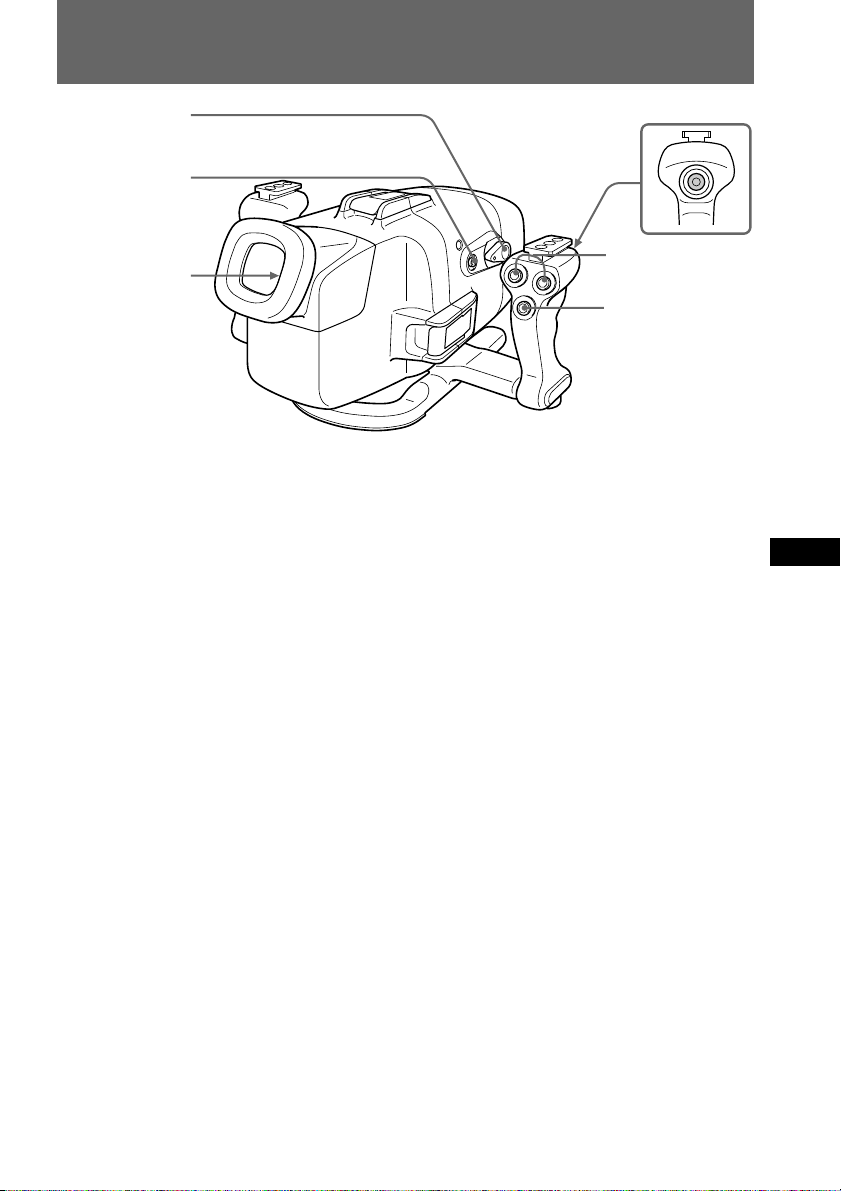

Recording
POWER switch
AUTO FOCUS
ON/OFF button
REC lamp (red)
LEAK lamp
(yellow)
(1) Set POWER switch to ON.
(2) Press START/STOP button to start recording.
REC lamp (red) lights up during recording.
To stop recording
Press START/STOP button.
To zoom
Press ZOOM button.
Press T for telephoto (subject appears closer) and W for wide-angle (subject appears
farther away).
You cannot change the zooming speed of the camcorder.
PHOTO button
ZOOM button
START/STOP button
EN
F
ES
Note on Photo recording (DCR-TRV9/TRV890/TRV900 only)
If you press PHOTO button when a still picture appears on the LCD screen or in the
viewfinder, the camcorder will record that still picture.
You cannot check the recorded picture by pressing PHOTO button lightly.
For details, please refer to the operating instructions supplied with your camcorder.
When you use DCR-TRV890/TRV900, the memory photo function does not work when
DCR-TRV890/TRV900 is placed in MPK-DVF.
To keep a subject in focus
After you focus on a subject, press AUTO FOCUS ON/OFF button to set the camcorder
to manual focus mode.
Even if fish swim between the camcorder and the subject, you can still keep the subject
in focus.
Note on before recording
Check that the equipment operates correctly and that there is no water leakage at a
depth of about one meter (3 feet) before you dive deeper.
Note on recording
Do not cover the control emitter or detector with your finger because the remote control
signal for operations is transmitted from the grip to the marine pack.
13-EN
Recording

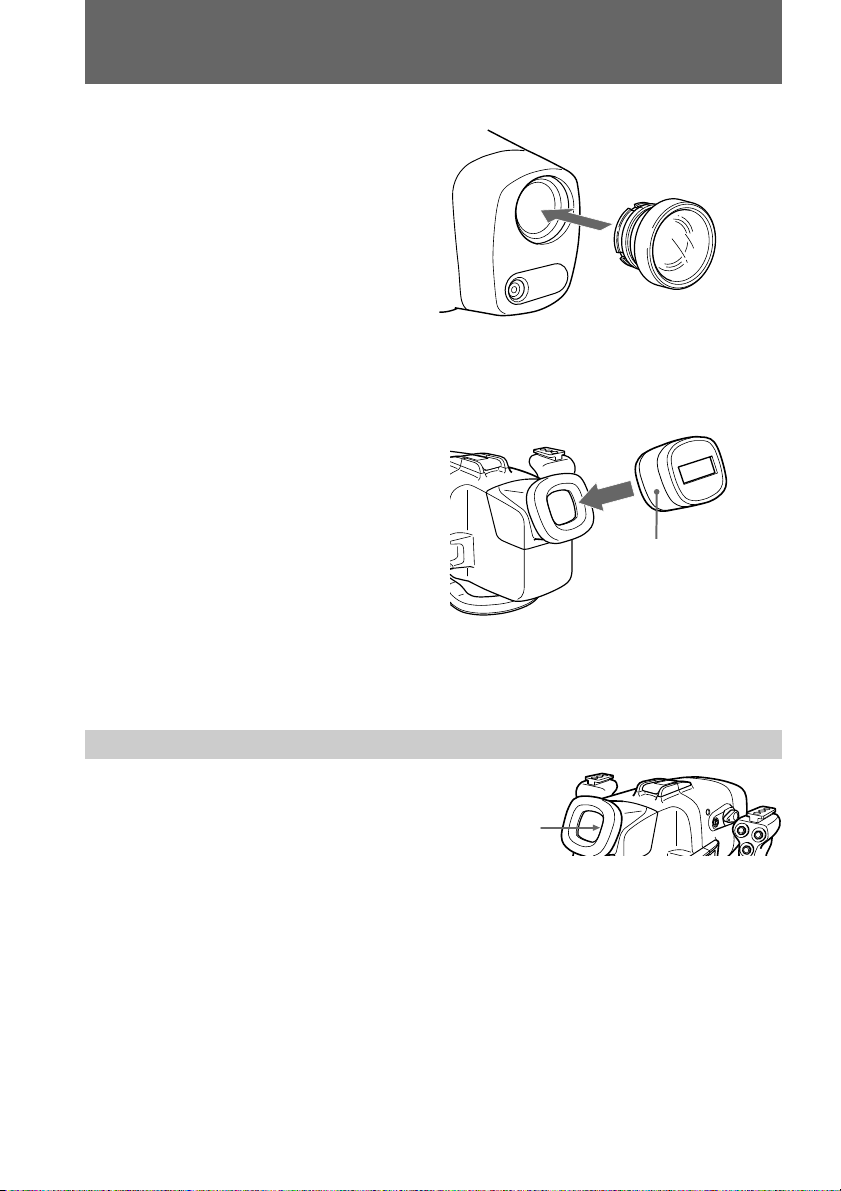

To attach the supplied wide-conversion lens
Attach the wide-conversion lens until it
fits firmly.
You can attach the wide-conversion
lens both on land and underwater.
Note
This wide-conversion lens is to be used
only underwater.
When using the supplied color filter,
attach it on top of the wide-conversion
lens.
Using the supplied sunshade
The supplied sunshade for the LCD
monitor reduces glare from the LCD
monitor. Attach the sunshade as shown
in the illustration.
You can attach the wide-conversion lens, sunshade, and color filter
underwater
If the image on the LCD screen is not clear because of the air remains between these
accessories and the marine pack, reattach them underwater.
Attach the sunshade until
it fits firmly.
14-EN
When the LEAK lamp flashes
If water happen to leak in , the LEAK
lamp (yellow) flashes.
LEAK lamp (yellow)
In such a case, remove the marine pack from the water as soon as possible, keeping it
horizontal. Be sure to surface following the safety rules for diving.
Dry the marine pack with a soft cloth and then open it.
To switch off the lamp, disconnect the remote control cable.
Check the cause of the leak.
If the camcorder is wet, take it to the nearest Sony dealer immediately.

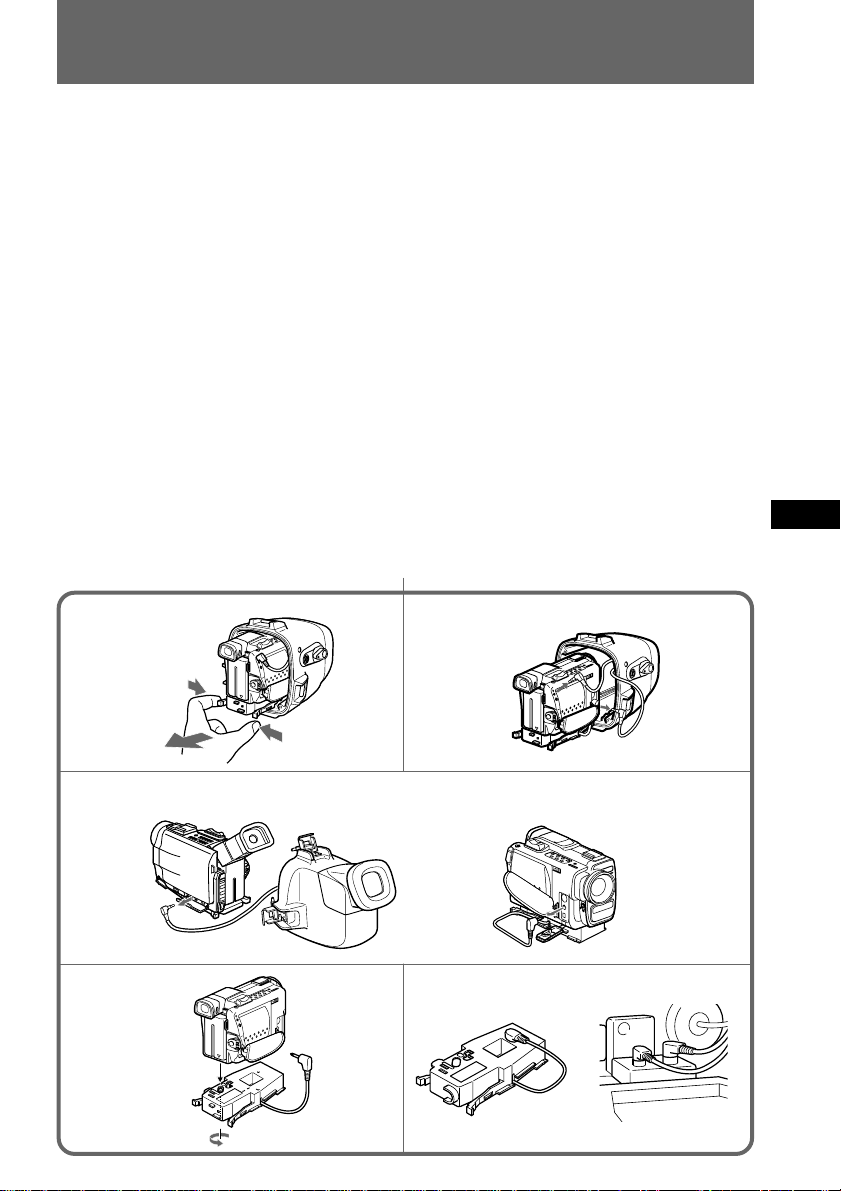

Removing the camcorder
Before opening the marine pack, rinse it with fresh water and dry with a soft cloth.
Note
• When you open the marine pack, make sure you are dry. And take care that no water
drips from your wet suit.
• When you open the marine pack, do not pull the monitor plug cord by force.
(1)Remove the grip.
(2)Unfasten 3 buckles and open the marine pack.
For DCR-TRV9/TRV890/TRV900 , disconnect the monitor cord from the camera
mounting shoe B.
(3)Take the camcorder out of the front shell.
Holding the camera mounting shoe by the knobs and extract the camcorder.
(4)Disconnect the remote plug and the microphone plug.
(5)Disconnect the monitor plug (for DCR-TRV7 ), the A/V connecting cable of
camera mounting shoe B (for DCR-TRV9/TRV890/TRV900 ) from AUDIO/
VIDEO jack.
When you take the camcorder out of the shell, be careful not to pull the remote
cord, microphone cord or A/V connecting cable.
(6)Remove the camera mounting shoe.
(7)Remove the battery pack for the LCD monitor.
43
EN
F
ES
5
6
DCR-TRV7 DCR-TRV9/TRV890/TRV900
After using
1
2
15-EN
Removing the camcorder
After using
• Insert the A/V connecting cable plug to the plug holder of the camera mounting shoe
B.
• Insert the remote and microphone plugs to the plug holder inside of the front shell.
Note on the O-ring
The O-ring assures the waterproof function of the marine pack. To maintain waterproof
integrity, use it correctly. Incorrect handling may cause water to leak in.
O-ring
Check the O-ring
Check that there are no scratches or cracks on the O-ring as they may allow water to
leak in. If there are scratches or cracks, replace the damaged O-ring with a new one. Do
not remove the O-ring from the groove with a metal tool or a tool with a sharp point.
16-EN
Remove any dust, sand or hair from the O-ring.
Make sure there is no dust, sand or hair on the O-ring, in the groove, or on the surface
of the marine pack where the O-ring touches. If there is, clean them completely, or the
O-ring and the surface of the marine pack may be damaged and water may leak in.
Grease the O-ring
Check that there are no cracks or dust on the O-ring, then coat it slightly with the
supplied grease using your finger. They will prevent wear. While applying the grease,
recheck for cracks or dust.
Never use cloth or paper to apply grease because the fibers may cling.
Do not use any type of grease other than the supplied one, or it may damage the O-ring.
If you run out of silicone grease (2-115-921-01) you can purchase it from your nearest
Sony Service Center.
Do not twist the O-ring
Put the O-ring in the groove evenly. Never twist it.
Do not pinch the O-ring with the marine pack
When jointing the front and rear shells, take care not to pinch the O-ring between the
front and rear shells. If this happens, not only will the O-ring be damaged, but water
may leak in.
Useful life of the O-ring
Depending upon the maintenance and the length of use, we recommend changing the
O-ring every one or two years.
The O-ring (3-977-362-01) can be replaced at your nearest Sony Service Center.
Underwater recording
Recording underwater is different from recording on land because it is affected by the
clarity, depth of the water and the light condition. The following are hints for good
recording underwater.

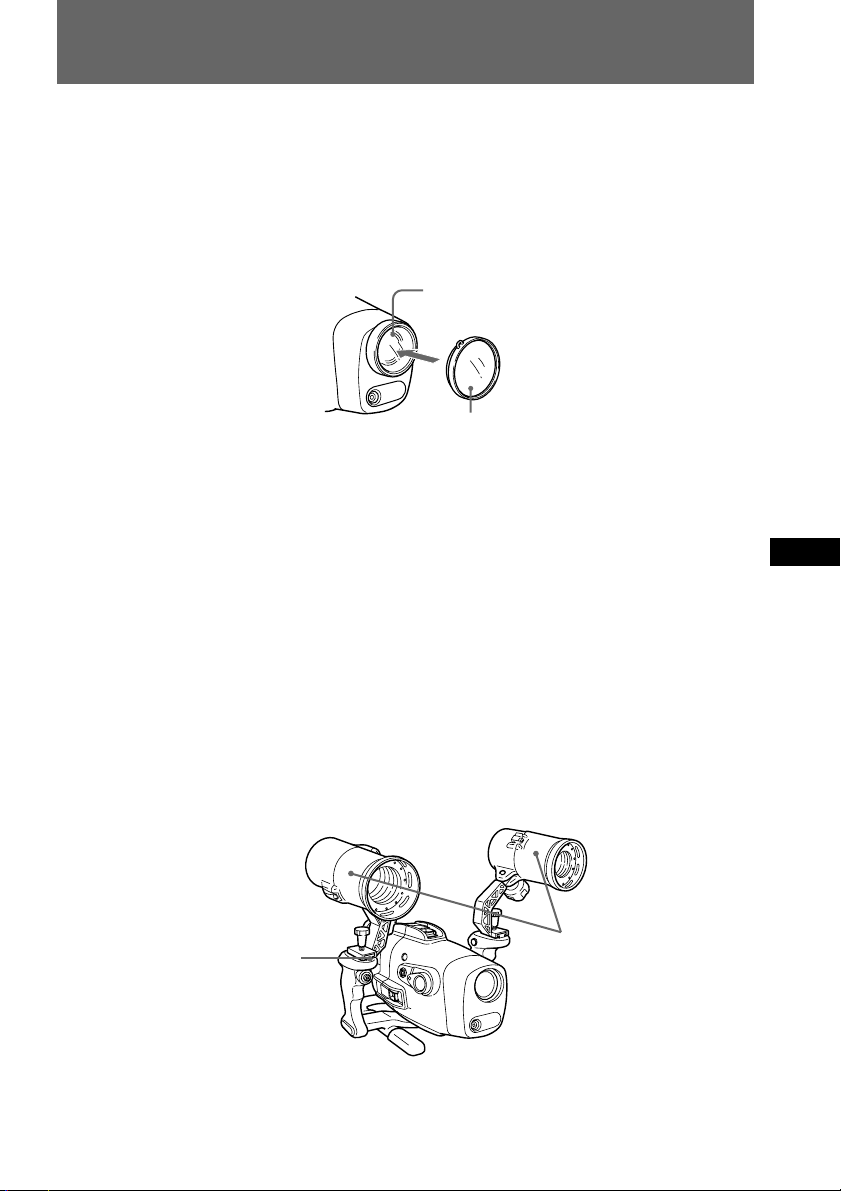

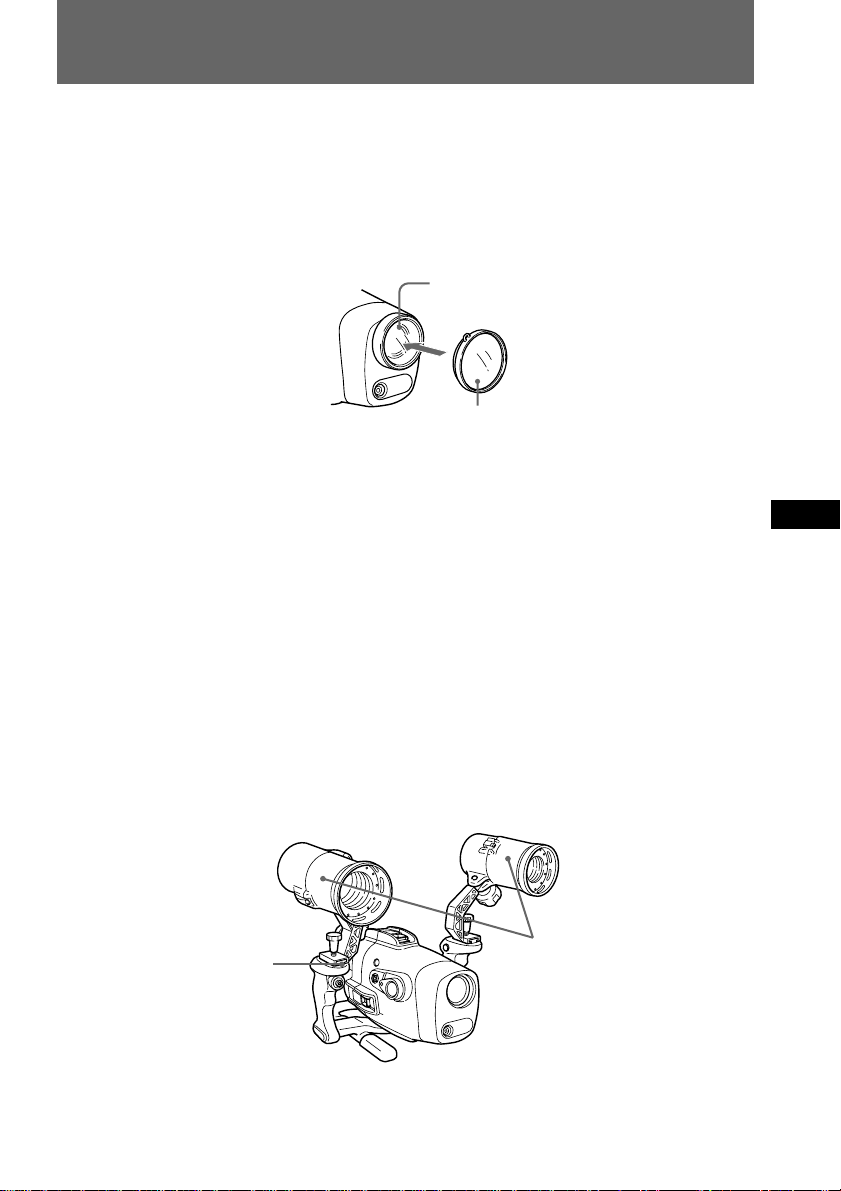

Color characteristic underwater
Water absorbs light, especially red light, so that objects in deep water are seen bluish.
The color of objects is affected by the clarity of the water.
To record in natural color, use the supplied color filter.
Wide-conversion lens
Color filter
Best time for recording
The best recording time is from 10:00 a.m. to 2:00 p.m. When the sun its highest,
optimum results can be obtained.
Subject size underwater
Since the refractive index underwater is higher than that in air, an object appears 1/4
more closer, and therefore larger. This phenomenon affects the lens on the camcorder as
well as human eye. Using the supplied wide-conversion lens is recommended.
Camera work on slow and stable motion
When recording, keep your body stable.
An unstable shot will be magnified on the TV screen. Move the camcorder as slow as
possible. As most of the object underwater move, you can record a good program
without moving the camcorder.
Underwater video light
In deep water or under locks where direct sunlight does not reach, recording with an
underwater video lights is recommended.
To record at night, use a powerful underwater video light.
Attachable to the both
sides of video light
shoe.
Underwater video light such as
Sony HVL-ML20 (not supplied)
EN
F
ES
Note on recording underwater
• Be sure to follow the safety rules for diving, such as diving period and depth.
• Remove the bubbles from the outside of the front glass before recording.
17-EN
Loading...
