Sony MPF82E User Manual

External USB Floppy Disk Drive

User’s Manual

使用说明书

MPF82E Series

Owner’s Record

The model and serial number are located on the bottom of the drive unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. MPF82E Serial No.

WARNING

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE. TO AVOID ELECTRICAL SHOCK, DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

CAUTION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa tion. I f this equ ipment does cause harmfu l inter ference to rad io or tele vision r eceptio n, whic h can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Trade Name : SONY Model Name : MPF82E Responsibility Party : Sony Electronics, Inc. Address : 1 Sony Drive, Park Ridge, NJ 07656-8003 Telephone No. : 201-930-6972

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two cond itions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause

undesired operation.

Declaration of Conformity

NOTICE TO USERS

Device drivers©2001 Sony Corporation / Documentation©2001 Sony Corporation All rights reserved. This manual or device drivers described herein, in who le or in part, may not be reproduced, translated to any machine readable form without prior written approval from Sony Corporation. IN NO EVENT SHALL SONY CORPORATION BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE DEVICE DRIVERS OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. SONY CORPORATION IS NOT RESPONSIBLE FOR ANY DAMAGE TO OR LOSS OF ANY PROGRAMS, DATA, OR OTHER INFORMATION STORED ON ANY MEDIA.

Trademarks

Microsoft®, MS-DOS®, Windows®, Windows®95, Windows®98, Windows®Me and Windows®2000 Professional are registered trademarks of Microsoft Corpor ation. Macintosh®, Mac®, PowerBook®, Power Macintosh®, iMac™, iBook™ and Mac® OS are registered trademarks or trademarks of Apple Computer, Inc.. The TM and ® marks are not indicated in the text of this manual. All other trademarks and registered trademarks are trademarks or registered trademarks of their respective holders .

System Requirements

The External USB Floppy Disk Drive requires the following system capabilities:

 PC/AT compatible personal computer

- Windows 98 or Windows 2000 Professional or Windows Me Pre-installed PC

- USB port (using Intel 82371 USB controller)

- CD-ROM Drive (or a device which can read CD-ROM disc)

 Macinto sh computer

- Power Mac G4, G4 Cube, iMac, iBook, PowerBook G4

- USB p ort (us ing USB co nnecto r on Mac intosh co mputer )

- One of following operating systems pre-installed : Mac OS 8.6 / 9.0, 9.1 Mac OS 8.6 requires installing the following device driver provided by Apple Web site. Device Driver : USB Storage Support 1.3.5.smi Apple Web site : http://asu.info.apple.com/swupdates.nsf/artnum/n11418

System Requirements 3 Installation of The Device Driver For Windows 98 5 Installation of The Device Driver For Windows 2000 9 Installation of The Device Driver For Windows Me 12 Installation of The Device Driver For Mac OS 8.6 14 Floppy Disk Ejection From USB Floppy Disk Drive 14 Ejection of Floppy Disk Before System Sleep 14 Product Specifications 15

系统要求 3 安装 Windows 98 用设备驱动程序 16 安装 Windows 2000 用设备驱动程序 20 安装 Windows Me 用设备驱动程序 23 安装 Mac OS 8.6 用设备驱动程序 25 从 USB 软盘驱动器取出软盘 25 在系统休眠之前取出软盘 25 产品技术规格 26

Installation of The Device Drivers For Windows 98

Before the installation, please read the README .TXT file in the USB Floppy Disk Drive Device Driver

CD-ROM disc for updated information and software license agreement.

To install the device driver for Windows 98, follow the instructions below.

1. Insert “USB Floppy Disk Drive Device Driver” CD-ROM disc into the CD-ROM drive on your PC.

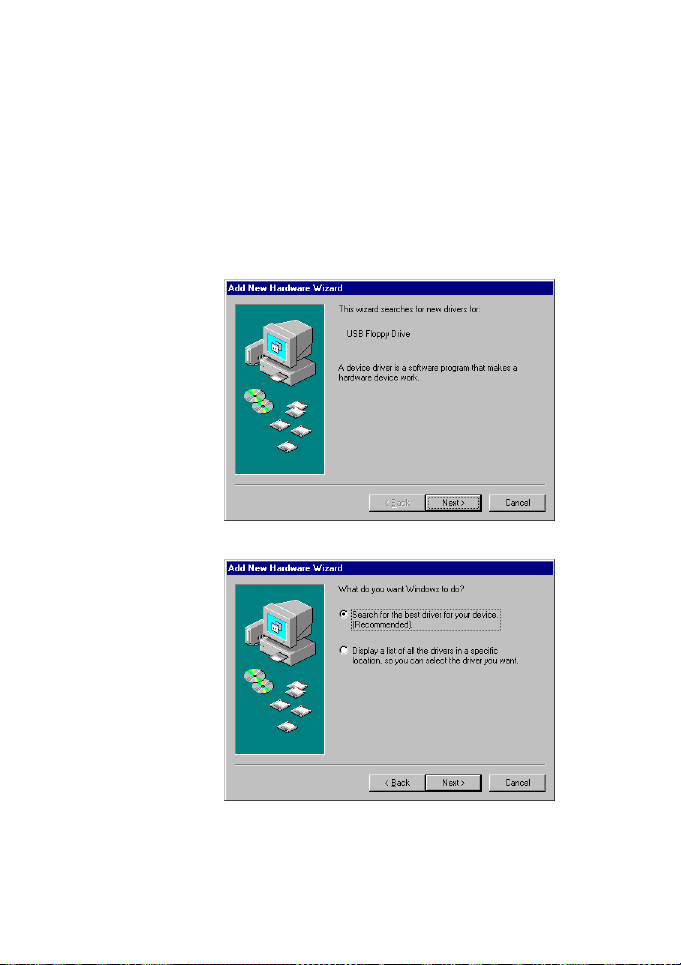

2. Connect the USB disk drive to the USB connector on your computer. The Add New Hardware

Wizard window appears.

3. Click Next. The following window appears.

Select Search for the best drivers for your device (recommended).

4. Click Next. The following window appears.

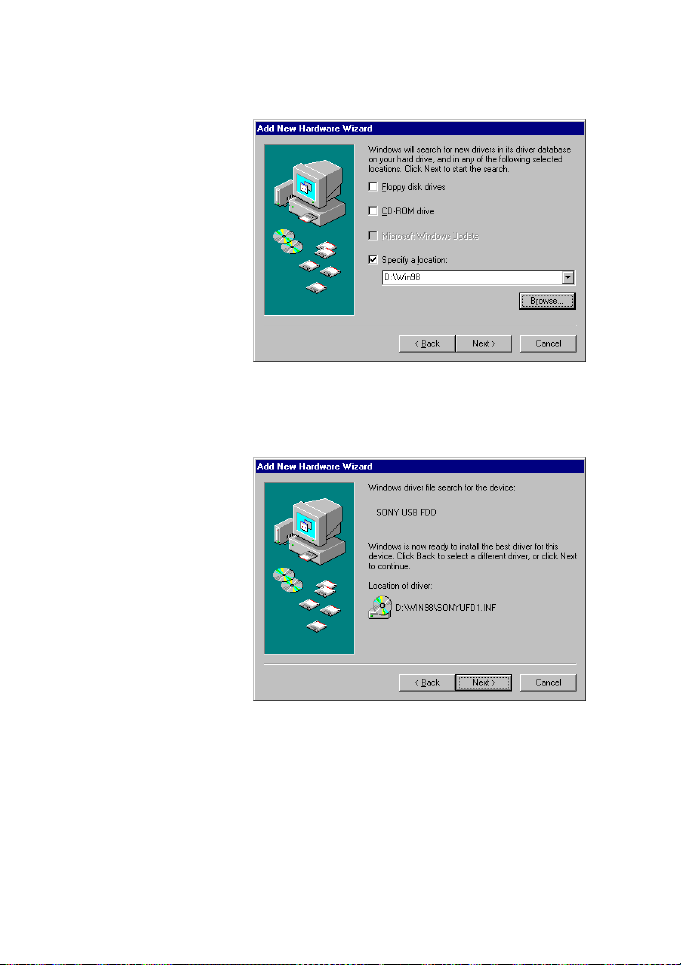

Place a check mark in the Specify a location check box and type X:\Win98 in the Specify a location

panel pull-down menu, where X is the letter of your CD-ROM drive.

5. Click Next. The following window appears.

Confirm the location of the driver. If the location of the device driver is not

X:\WIN98\SONYUFD1.INF, where X is the letter of your CD-ROM drive, click Back and return to

step 3.

6. Click Next to inst all the de vice dr iver. When t he devic e driver insta llation co mplet es, click Finish.

The Add New hardware Wizard window appears.

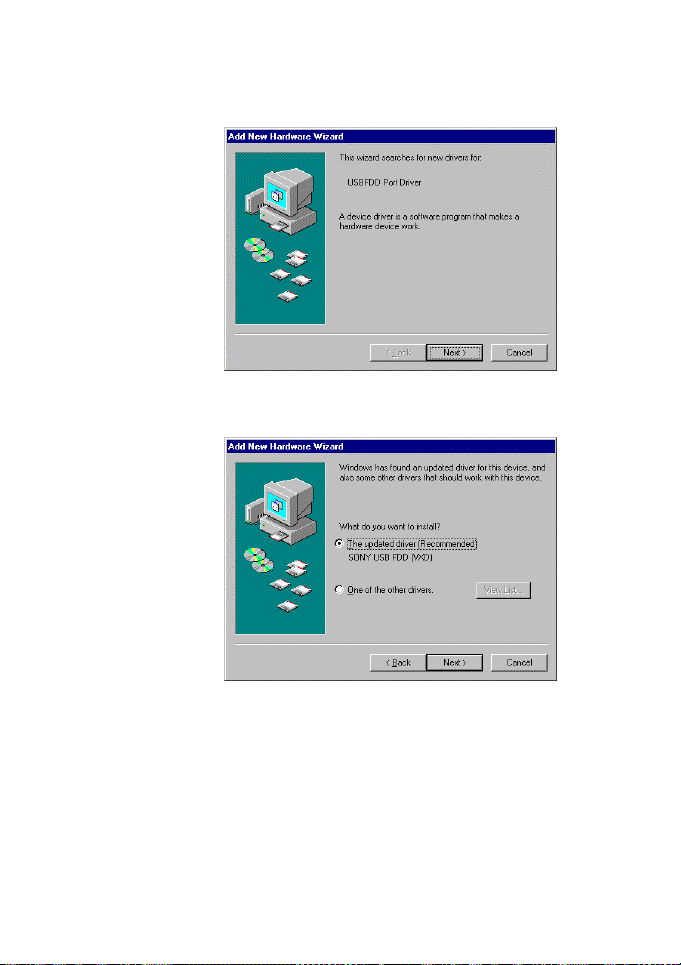

7. Click Next and then repeat step 3 and 4. The following window appears.

Select The updated driver (Recommended).

8. Click Next. The following window appears.

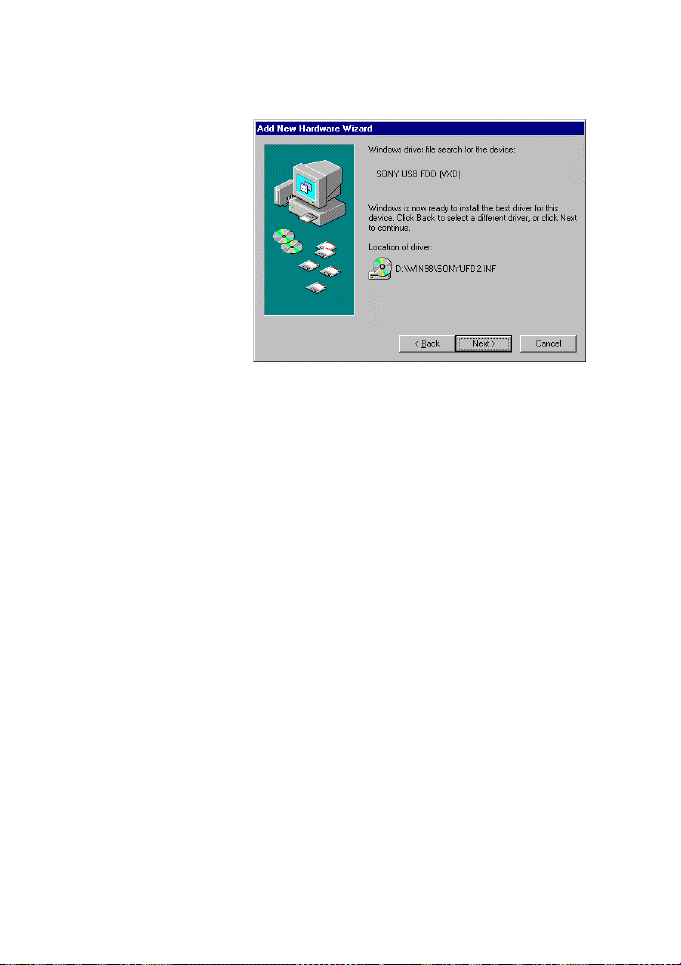

Confirm the location of the driver. If the location of the device driver is not

X:\WIN98\SONYUFD2.INF, where X is the letter of your CD-ROM drive, click Back and return to

step 7.

9. Click Next to install the device driver. Follow the instructions on the screen.

Installation of The Device Drivers For Windows 2000

Before the installation, please read the README .TXT file in the USB Floppy Disk Drive Device Driver CD-ROM disc for updated information and software license agreement.

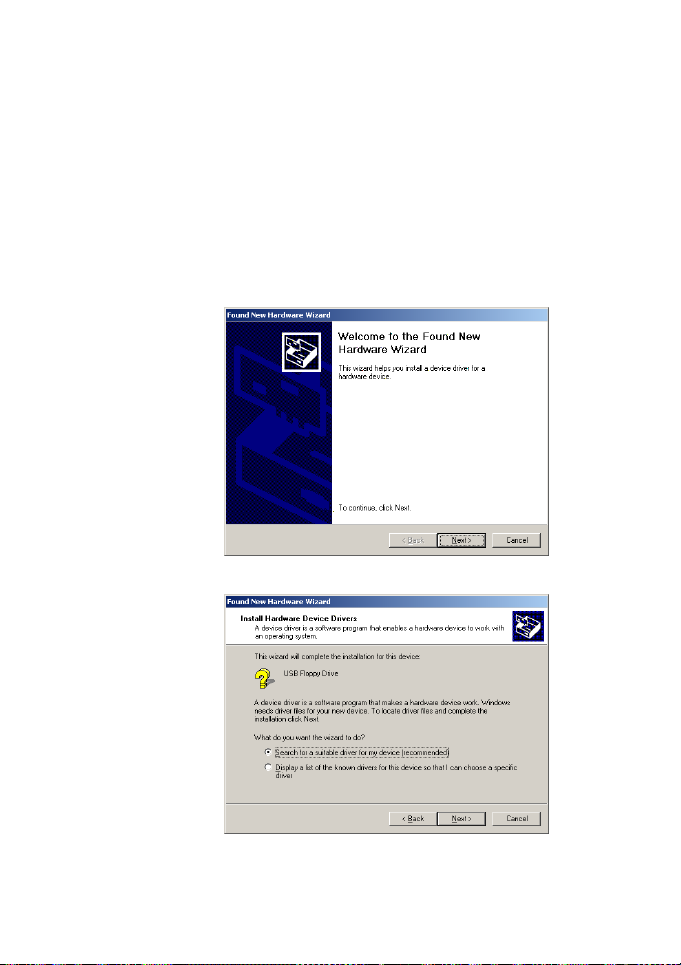

To install the device driver for Windows 2000, follow the instructions below.
