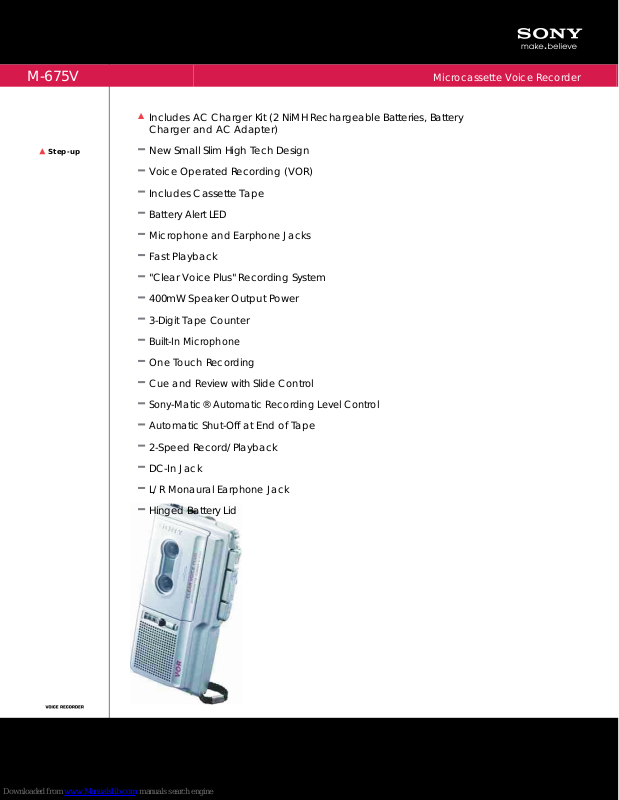

M-675V

Microcassette Voice Recorder

Step-up

Includes AC Charger Kit (2 NiMH Rechargeable Batteries, Battery
Charger and AC Adapter)

New Small Slim High Tech Design

Voice Operated Recording (VOR)

Includes Cassette Tape

Battery Alert LED

Microphone and Earphone Jacks

Fast Playback

"Clear Voice Plus" Recording System

400mW Speaker Output Power

3-

Digit Tape Counter

Built-In Microphone

One Touch Recording

Cue and Review with Slide Control

Sony-Matic® Automatic Recording Level Control

Automatic Shut

-Off at End of Tape

2-Speed Record/Playback

DC-

In Jack

L/R Monaural Earphone Jack

Hinged Battery Lid

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com

Last Updated: 10/01/2010

M-675V

Microcassette Voice Recorder

Please visit the Dealer Source for current information at

www.sony.com/dealersource

Features

Includes AC Charger Kit (2 NiMH Rechargeable Batteries,
Battery Charger and AC Adapter) All you need to keep your

recorder charged.

New Small Slim High Tech Design New design is slim enough to
fit in a shirt pocket. Controls are all in-line for easy use.

Voice Operated Recording Activates the recorder only when
audible sound is present, conserving tape and eliminating
soundless passages.

Includes Cassette Tape So it can be used right out of the box.

Battery Alert LED Provides visible indication of low battery

power.

External Microphone and Earphone Jack Allows connection
of an external microphone for special recording applications.

Fast Playback Plays back the recording at faster pace for
quicker review.

"Clear Voice Plus" Recording System Sound system enhances
voice quality during recording and playback for greater clarity.

400mW Speaker Output Power Provides crystal clear playback
of recorded material and lets you and others hear playback
without an earphone.

3 Digit Tape Counter Lets you find a specific recorded section
more easily.

Built-In Microphone For extra convenience eliminates the
need for an external microphone in many situations.

One Touch Record from Playback For simplified quick
play/record operation.

Cue and Review with Slide Control Provides sound during fast
forward and rewind modes to help find specific passages.

Sony-Matic® Automatic Recording Level Control Uses
advanced circuitry to ensure correct recording level.

Automatic Shut-Off at End of Tape Helps reduce mechanical
wear, reduces battery consumption, and lets you know when
you have reached the end of the tape.

2-Speed Record/Playback

DC-In Jack

Permits two-way power operation, using available

replaceable batteries or supplied AC power adapter.

L/R Monaural Earphone Jack Provide sound in both ears when
using an optional stereo headset.

Hinged Battery Lid Makes it easy to open and close the
battery lid for easy replacement of batteries, and prevent loss.

Carrying Strap Included Provides a secure, convenient band
to hold onto or carry the unit.

Specifications

General

Type of Use: Ultra Portable Voice Recorder
Recording Media: Microcassette
Recording and Playback Times: up to 120 minutes (mono)

Audio

Recording System: 2 Track, 1 Channel Monaural
Microphone: Built-in
Frequency Range: 300-4000Hz (2.4cm/sec)
Tape Speed: 2 Speeds (2.4cm/sec, 1.2cm/sec)

Audio Features

Recording Features: Voice Operated Recording (VOR), Clear

Voice

™ Plus Sound System, One-Touch Record, Sony-Matic

®

Automatic Recording Level

Convenience

Automatic Shut-off:

Yes

Convenience Features

Search Features: Cue and Review with slide control

Hardware

Display: 3-Digit Tape Counter, Record/Battery Indicator

Power

Output Power: 450mW
Power Requirements: 120V AC Adaptor (Optional)
Battery Life (Approx): Up to 15 Hours; Continuous Recording

w/Sony Alkaline Batteries (optional)

Speaker

Type: Built-In
Speaker Dimensions: 1 1/10" (28mm) diameter

Inputs and Outputs

Microphone Input: 1
DC-In:

3V

Headphone Output(s): 1 (Mini)

Dimensions

Weight: 3.25 oz (92 g) Unit only
Measurements: W 2 1/4" x H 4 1/4" x D 7/8" (54.8 x 106.8 x

21.5mm) including projecting parts and controls

Supplied Accessories

Hand Strap
NiMH Battery x 2
Tape (MC30 x 1)
AC Adapter
Battery Charger (BCA-30E)

Color:

Silver

UPC Code:

027242634435

1. Actual battery time may vary based upon usage pattern.
