2-682-380-12 (1)
Tr initron Color TV
Operating Instructions
• Before operating the unit, please read this manual thoroughly and retain
it for future reference.
使用說明書
• 使用本電視機之前請先詳細閱讀此手冊﹐並妥善保存以備日後用作參考。
Panduan Pengendalian
• Sebelum mengendalikan unit, sila baca buku panduan ini dengan teliti
dan simpan untuk rujukan masa depan.
GB
CT
MY
KV-SW212
© 2006 Sony Corporation
M53
M50
WARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 220 – 240 V AC.
• Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the antenna
and other terminals to ground.
•To avoid battery leakage and damage to the remote, remove the batteries from the
remote if you are not going to use it for several days. If any liquid leaks from the
batteries and touches your skin, immediately wash it away with water.
For your own safety, do not touch
any part of the TV, the power cord
and the antenna cable during
lightning storms.
Do not place any objects on the TV.
The apparatus shall not be
exposed to dripping or splashing
and that no objects filled with
liquids, such as vases, shall be
placed on the apparatus.
Do not block the ventilation
openings of the TV. Do not install
the TV in a confined space, such
as a bookcase or built-in cabinet.
Do not open the cabinet and the
rear cover of the TV as high
voltages and other hazards are
present inside the TV. Refer
servicing and disposal of the TV
to qualified personnel.
For children’s safety, do not leave
children alone with the TV. Do not
allow children to climb onto it.
Do not operate the TV if any liquid
or solid object falls into it. Have it
checked immediately by qualified
personnel only.
Your TV is recommended for
home use only. Do not use the TV
in any vehicle or where it may be
subject to excessive dust, heat,
moisture or vibrations.
Clean the TV with a dry and soft
cloth. Do not use benzine, thinner,
or any other chemicals to clean the
TV. Do not attach anything (e.g.,
adhesive tape, cellophane tape,
glue) on the painted cabinet of the
TV. Do not scratch the picture tube.
To prevent fire or shock hazard, do
not expose the TV to rain or
moisture.
Install the TV on a stable TV stand
and floor which can support the
TV set weight. Ensure that the TV
stand surface is flat and its area is
larger than the bottom area of the
TV.
Do not plug in too many
appliances to the same power
socket. Do not damage the power
cord.
Pull the power cord out by the
plug. Do not pull the power cord
itself. Even if your TV is turned
off, it is still connected to the AC
power source (mains) as long as
the power cord is plugged in.
Unplug the TV before moving it
or if you are not going to use it for
several days.
2
Table of Contents
Getting Started ............................................................................................................... 4
Setting up your TV (“Initial Setup”) ........................................................................... 5
TV top control, front and rear panels ......................................................................... 7
Connecting the 3D WOOFER (KV-SW212M53 only) ............................................... 8
Connecting optional components ............................................................................... 9
Using the remote control and basic functions ......................................................... 11
Introducing the WEGA GATE navigator ................................................................. 13
“Settings” Adjustment ................................................................................................ 14
Changing the “Picture” setting .................................................................................. 15
Changing the “Sound” setting ................................................................................... 16
Changing the “Channel Setup” setting .................................................................... 17
Changing the “Setup” setting .................................................................................... 19
Troubleshooting ........................................................................................................... 20
Specifications ................................................................................................ Back cover
GB
3
x Getting Started
Step 1
b
b
Insert the batteries (supplied) into the remote.
Note
• Do not use old or different types of batteries together.
Step 2
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
Tip
•You can also connect your TV to other optional components
(see page 9).
Step 3
Plug in the power cord, then press ! on the TV to
turn it on.
Note
• The 1 (standby) indicator flashes green for a few seconds
when turning on the TV. This does not indicate a malfunction.
Step 4
Set up the TV by following the instructions of the
“Initial Setup” menu (see page 5).
Select
Confirm
End
4
Program Sorting/Edit
01
02
03
04
Off
Off
Off
Sorting mode
PROG
SkipLabel
Off01
Exit
Select
Confirm
Program Sorting/Edit
01
02
03
04
Off
Off
Off
Off
Sorting:
Edit:
PROG
SkipLabel
Exit
Select
Confirm
End
Select
Confirm
Start Auto Program now?
Yes
No
First please connect
cable/ antenna
Initial Setup
End
Select
Confirm
Auto Program
Program:
TV System: Auto
01
VHF Low
End
x S
etting up your TV (“Initial Setup”)
When you turn on your TV for the first time, the “Initial Setup” menu will
appear. You may change the menu language, preset the TV channels
automatically, sort or edit the channels and adjust the picture position using the
buttons on the remote control or TV top control panel.
Press V or v to select the desired menu
1
language, then press .
The selected menu language appears.
Press V or v to select “Yes”, then press
2
to preset the channels automatically.
The screen will indicate automatic
presetting is in progress.
After all available channels have been tuned
and stored, the “Program Sorting/Edit”
menu appears automatically on the screen.
To skip automatic channel presetting, select
“No”, then press
.
If the message “No channel found. Please
connect cable/antenna” appears, check your
TV connections, then press .
The “Program Sorting/Edit” menu enables
3
you to sort and edit the channels.
a) If you wish to keep the channels in the current
b) Press V or v to select the program
c) If you wish to store the channels in a
condition, press WEGA GATE to exit.
number with the channel you wish to
change. The selected channel will appear
on the screen.
different order:
1) Press b to enter sorting mode.
2) Press V or v to select the new
program number position for your
selected channel, then press B.
continue
5
Setting up your TV (“Initial Setup”) (continued)
d) If you wish to edit the channels, press
to change to edit mode.
Press b until the mode that you wish to edit
is highlighted: Label, Skip, (block symbol).
Then press
1) To label, press V or v to select the
alphanumeric characters for the label.
Then press
2) To skip the program number, press V or v to
select “On”. Then press
You can skip this program number when
using PROG +/-.
3) To block unwanted program number,
press V or v to select
e) Repeat step b) to d) if you wish to change other
channels.
Press WEGA GATE to go to the next menu.
Press B or b to adjust the bars on the top
4
and bottom of the menu if they are
slanted, then press
If no adjustment is necessary, then press
.
.
.
. Then press .
.
.
Program Sorting/Edit
PROG
Edit mode
Select
Program Sorting/Edit
PROG
Edit mode
Select
Program Sorting/Edit
PROG
Edit mode
Select
01
02
03
04
01
02
03
04
01
02
03
04
Picture Rotation
Confirm
Select
SkipLabel
Off
Off
Off
Off
Confirm
SkipLabel
Off
Off
Off
Off
Confirm
SkipLabel
Off
Off
Off
Off
Confirm
Exit
Exit
Exit
End
To prevent this “Initial Setup” menu from
5
appearing again when you turn on the TV
by pressing !, press V or v to select “No”,
then press
.
To allow this menu to appear again, select
“Yes”, then press
.
Initial Setup
Display this menu next time?
Select
Confirm
Tip
•You can immediately go to the end of the “Initial Setup” menu by pressing WEGA GATE.
6
Yes
No
x TV top control, front and rear panels
TV top control panel
WEGA GATE
SOUND MODE
PROG
7
6
TV rear panel
1
(MONO) (MONO)
L
R
qf
qg
Y
C
B
L
C
R
R
qa
qsqd
2
L
R
(MONO)
TV front panel
2
L
(MONO)
5
0
R
4
9
3
2
8
1
Button/Terminal Function Page
1 ! Turn off or turn on the TV. 4
2 Remote control sensor. –
3 Wake Up indicator. 12
3 1 Standby indicator. 4
4 i Headphone jack. –
5 t2Video input terminal 2. 9
6 PROG +/– Select program number. –
7 2 +/– Adjust volume. –
8 t Select TV or video input. 9
WEGA GATE menu operations
6,7 V,v,B,b Select and adjust items. 13
Confirm selected items. 13
8
9 WEGA GATE Display or cancel WEGA GATE menu. 13
0 SOUND MODE Select sound mode options with a 5-Band Graphic 11
Equalizer display.
qa 8 Antenna input terminal. 9
qs T Monitor output terminal. 9
qd Component video input terminal. 10
qf t1Video input terminal 1. 9
qg WOOFER 3D WOOFER terminal. 8
(KV-SW212M53 only)
7
x Connecting the 3D WOOFER
B KV-SW212M53 only
You can enjoy high quality sound by connecting the 3D WOOFER as follows:
Step 1
3D WOOFER
Step 2
Black
wire
Notes
• Connect only the supplied 3D WOOFER; otherwise your TV may malfunction.
• Unplug your TV from the wall outlet when connecting the 3D WOOFER.
•To prevent a malfunction caused by a short circuit of the terminals, make sure that none of the 3D
WOOFER wire strands stick out, making contact with the neighbouring 3D WOOFER terminal.
Red wire
8
x Connecting optional components
Connecting to the video input terminal ( t )
Audio/Video cable
TV front panel
TV rear panel
(MONO)
L
2
R
(not supplied)
L
R
Camcorder
1
(MONO) (MONO)
L
R
Y
C
B
L
C
R
R
Antenna cable
(not supplied)
Audio/Video cable
(not supplied)
L
R
VCR
DVD Player
Note
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see page 18).
Connecting to the monitor output terminal ( T )
TV rear panel
1
(MONO) (MONO)
L
R
Y
C
B
L
C
R
R
Audio/Video
cable
(not supplied)
Audio system
L
R
VCR
continue
9
Connecting optional components (continued)
Connecting to the component video input terminal ( )
TV rear panel
1
(MONO) (MONO)
L
R
Y
C
B
L
C
R
R
Component video
cable
(not supplied)
Y
C
B
C
R
L
R
DVD player
Audio cable
(not supplied)
Notes
• If your DVD player can output interlace and progressive mode signals, select the interlace
output when connecting to (component video input) on your TV. Your TV can receive
either 525i/60Hz or 625i/50Hz interlace signals.
• The component video terminals on your DVD player are sometimes labeled Y/CB/CR, Y/PB/
PR, Y/Cb/Cr or Y/B-Y/R-Y.
• If you select “DVD” on your TV screen, the signal from the T (monitor output) jacks will not
be output properly. This does not indicate a malfunction.
10
x Using the remote control and basic
functions
0
qa
qs
qd
qf
qg
qh
qj
qk
ql
w;
A/B
1
4
7
RETURN
Button Description Page
1 ?/1 Turn off temporarily or turn on –
1
2 a Display the TV program. –
2
3 Jump to last program number –
3
2
6
5
9
8
0
PROG
4 PROG +/–
3
5 2 +/– Adjust volume. –
4
8 Change the picture size:
5
the TV.
that has been watched for at
least five seconds.
Select program number. To select –
quickly, press and hold until the
desired program number appears.
–
“On” (16:9 wide-mode), “Off”.
9 Select surround mode options: 16
“On”, “Simulated”, “Off”.
0 Display on-screen information. –
WEGA
GATE
TV
6
qa Mute the sound. –
7
qd t Select TV or video input. 9
8
qf 0 – 9 Input numbers. For program –
9
numbers 10 and above, enter the
second digit within two seconds.
ql Select sound mode options 16
Dynamic
100 300 1k 3k 8k
Standard
100 300 1k 3k 8k
Custom
with a 5-Band Graphic
Equalizer display:
“Dynamic”, “Standard”,
“Custom”*.
* When the “Custom” mode is
selected, you can receive the last
adjusted sound settings from the
“Sound Adjustment” option in
the menu.
w;
100 300 1k 3k 8k
Select picture mode options: 15
“Vivid”, “Standard”, “Custom”*.
* When the “Custom” mode is
selected, you can receive the last
adjusted picture settings from the
“Picture Adjustment” option in
the menu.
continue
11
Using the remote control and basic functions (continued)
Button Description Page
WEGA GATE menu operations
6 Confirm selected items. 13
7 WEGA GATE Display or cancel WEGA GATE menu.
qj V, v, B, b Select and adjust items.
qk RETURN Return to the previous level.
Timer operations
qg Set TV to turn on automatically according to the –
(Wake Up Timer)
qh Set TV to turn off automatically according to the –
(Sleep Timer)
Teletext operations (green label)
, , , , Not function for your TV. –
, , , ,
(red, green,
yellow, blue)
PIP operations
, , V, v, B, b Not function for your TV.
Stereo/bilingual operations
qs A/B Not function for your TV. –
desired period of time (max. of 12 hours).
The indicator on TV lights up amber once you set
the wake up timer.
If no buttons or controls are pressed for more than one
hour after the TV is turned on using the wake up timer,
the TV automatically goes into standby mode.
desired period of time (max. of one hour and 30 min.).
–
12
x Introducing the WEGA GATE
navigator
WEGA GATE is a gateway that allows you access to preset TV channels,
connected external inputs and “Settings” menu.
WEGA GATE
TV
Select
External Inputs
Settings
Confirm
“TV”
“External
Inputs”
“Settings”
How to use WEGA GATE
WEGA GATE
TV
External Inputs
Settings
Select
(1) Press WEGA GATE to display or cancel
the WEGA GATE menu.
TV
01
02
03
04
05
Select
End
Confirm
Confirm
TV
01
02
03
04
05
Select
End
External Inputs
1
Video 1
Video 2
2
DVD
Confirm
watch the preset TV
channels (see page 5)
select the inputs for the
connected equipment
(see page 9)
Select
End

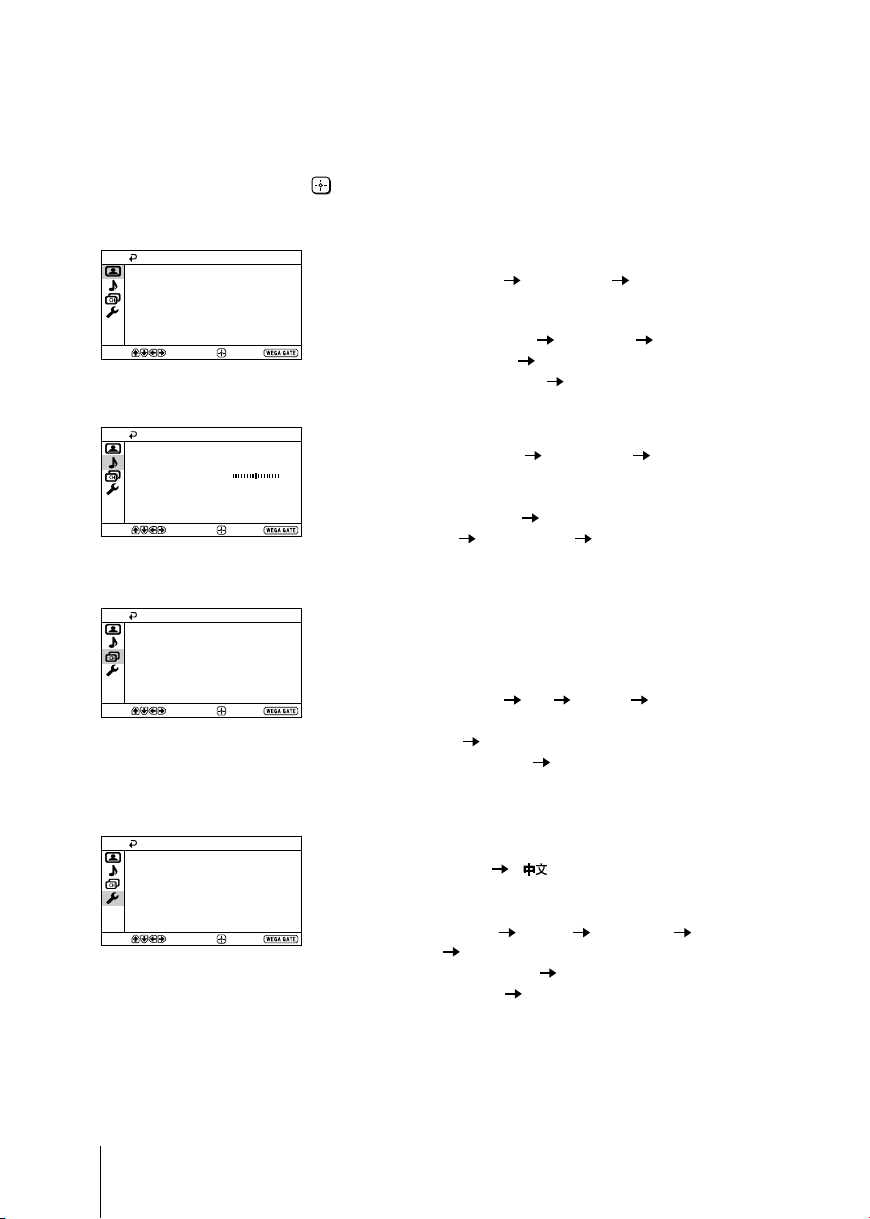

Picture Mode: Vivid
Picture Adjustment
Color Temperature: Cool
Intelligent Picture: On
Signal Level Indicator: On
Select
Confirm
Confirm
TV
Select
End
End
01
02
03
04
05
(3) Press V or v to select the desired item.
WEGA GATE
TV
External Inputs
Settings
Select
change the settings
of your TV
(see page 14)
Confirm
Confirm
(2) Press (or b) to confirm your selection
or go to the next level.
(4) Press RETURN to move to the previous
level.
Tip
• The WEGA GATE, and V,v,B,b buttons on the top control panel can also be used for the
operations above.
13
x “Settings” Adjustment
You are able to change the settings of your TV from “Settings” in WEGA GATE
menu.
Press WEGA GATE button to display WEGA GATE menu. Press V or v to select
“Settings” and press
The following is an overview of the items that can be adjusted.
.
Picture Mode: Vivid
Picture Adjustment
Color Temperature:
Intelligent Picture: On
Signal Level Indicator: On
Select
Select
Select
Confirm
Sound
Sound Mode: Dynamic
Sound Adjustment
Balance
Intelligent Volume:
Surround: Off
Confirm
Channel Setup
Auto Program
Manual Program
Program Sorting/Edit
Confirm
Cool
Off
End
End
End
“Picture” (see page 15)
“Picture Mode”: “Vivid” “Standard” “Custom”
“Picture Adjustment”: “Picture”, “Brightness”, “Color”, “Hue”,
“Sharpness”, “Reset”
“Color Temperature”: “Cool” “Neutral” “Warm”
“Intelligent Picture”: “On” “Off”
“Signal Level Indicator”: “On” “Off”
“Sound” (see page 16)
“Sound Mode”: “Dynamic” “Standard” “Custom”
“Sound Adjustment”: “Adjust”, “Reset”
“Balance”
“Intelligent Volume”: “On” “Off”
“Surround”: “On” “Simulated” “Off”
“Channel Setup” (see page 17)
“Auto Program”
“Manual Program”
“Program”: “00” - “99”
“TV System”: “B/G” “I” “D/K” “M”
“VHF Low”/“VHF High”/“UHF”
“Fine”: “Auto” “Manual”
“Signal Booster”: “Auto” “Off”
“Program Sorting/Edit”
Setup
Language:
Picture Rotation
Video Label
Color System:
Wake Up Timer Beep:
Factory Settings
Select
Confirm
English
Auto
On
End
“Setup” (see page 19)
“Language”: “English” “ ” (Chinese)
“Picture Rotation”
“Video Label”: “Video Input”, “Label”
“Color System”: “Auto” “PAL” “SECAM” “NTSC3.58”
“Wake Up Timer Beep”: “On” “Off”
“Factory Settings”: “Yes” “No”
Note
• When a feature is dimmed in the menu, it is not selectable.
14
“NTSC4.43”
x Changing the “Picture” setting
The “Picture” menu allows you to adjust settings below.
Press WEGA GATE and select “Settings”.
1
Make sure the “Picture” icon ( ) is selected, then press .
2
Press V or v to select the desired item (e.g., “Picture Mode”), then press .
3
Select To
“Picture Mode” choose either “Vivid” (bright, contrast and sharp),
“Color Temperature” adjust white color tint.
“Intelligent Picture” optimize picture quality.
“Standard” (normal) or “Custom”*.
Choose either “Cool” (blue tint), “Neutral” (neutral tint) or
“Warm” (red tint).
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
“Signal Level Indicator” display the signal level when the “Intelligent Picture” is
*You can adjust the setting to your personal preference in the “Picture Adjustment” and
“Color Temperature” options only when the “Custom” mode is selected.
functioning.
“Intelligent Picture Signal Level” indicator will be displayed,
followed by picture improvement when you change the
program number or the input mode.
red amber green
(weak) (average) (strong)
Press V or v to select “On”, then press .
To cancel, select “Off”, then press . “Intelligent Picture” is
still functioning.
Adjusting the “Picture Adjustment” items under “Custom”
mode
Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,
1
“Hue” (color tones) or “Sharpness”, then press .
Selecting “Reset” will set your TV to the factory settings.
Press V,v,B or b to adjust the setting of your selected item, then press .
2
Repeat the above steps to adjust other items.
3
The adjusted settings will be received when you select “Custom”.
Notes
• “Hue” can be adjusted for the NTSC color system only.
• Reducing “Sharpness” can also reduce picture noise.
15
x Changing the “Sound” setting
The “Sound” menu allows you to adjust settings below.
Press WEGA GATE and select “Settings”.
1
Press V or v to select the “Sound” icon ( ), then press .
2
Press V or v to select the desired item (e.g., “Sound Mode”), then press .
3
Select To
“Sound Mode” choose either “Dynamic” (low and high tones), “Standard”
“Balance” Press v or B to emphasize the left speaker.
“Intelligent Volume” adjust the volume of all program numbers and video inputs
“Surround” choose either “On” (surround), “Simulated” (stereo-like
*You can adjust the setting to your personal preference in the “Sound Adjustment”
option only when the “Custom” mode is selected.
Adjusting the “Sound Adjustment” items under “Custom”
mode
The 5-Band Graphic Equalizer feature allows you to adjust sound frequency settings
of “Custom” mode in the menu.
(voice and high tones) or “Custom”*.
Press V or b to emphasize the right speaker.
automatically.
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
monaural sound) or “Off”.
Make sure that “Adjust” is selected, then press .
1
Selecting “Reset” will set your TV to the factory settings.
Press B or b to select the desired sound frequency, then press V or v to
2
adjust the setting and press
The adjusted settings will be received when you select “Custom”.
Notes
• Adjusting higher frequency will affect higher pitched sound and adjusting lower frequency
will affect lower pitched sound.
•You may display the settings directly by using the SOUND MODE button on the top control
panel (see page 7) or button on the remote control (see page 11).
16
.
x Changing the “Channel Setup”
setting
The “Channel Setup” menu allows you to adjust settings below..
Press WEGA GATE and select “Settings”.
1
Press V or v to select the “Channel Setup” icon ( ), then press .
2
Press V or v to select the desired item (e.g., “Auto Program”), then press .
3
Select To
“Auto Program” preset channels automatically.
“Manual Program” manually preset desired channels and channels that cannot
“Program Sorting/Edit” change the order in which the channels appear on the screen,
Notes
• If you preset a blocked program number, that program number will be unblocked
automatically.
• If you sort a blocked program, that program will remain blocked.
be preset automatically (see Presetting channels manually
in page 18).
label the program number, skip the program number and
block unwanted programs (see step 3 of the section “Initial
Setup” in page 5).
continue
17
01
Changing the “Channel Setup” setting (continued)
Presetting channels manually
After selecting “Manual Program”, select the program
1
number to which you want to preset a channel.
(1) Make sure “Program” is selected, then press
(2) Press V or v
to preset appears on the menu, then press
Select the desired channel.
2
(1) Make sure either “VHF Low”, “VHF High” or “UHF” is selected, then press
.
(2) Press V or v until the desired channel’s broadcast appears on the TV screen,
then press
If the sound of the desired channel is abnormal, select the appropriate TV
3
system.
(1) Press V or v
(2) Press V or v
If you are not satisfied with the picture and sound quality, you may be able
4
to improve them by using the “Fine” tuning feature.
(1) Press V or v
(2) Press V or v
(3)
Press V,v,B or b until the picture and sound quality are optimal, then press .
The + or – icon on the menu flashes while tuning.
until the program number you want
.
to select “TV System”, then press .
until the sound becomes normal, then press .
to select “Fine”, then press .
to select “Manual”, then press .
.
.
18
If the TV signal is too strong (picture distorted; picture with lines; signal
5
interference) or weak (snowy picture), you may be able to improve the
picture quality by setting the “Signal Booster” feature.
(1) Press V or v
(2) Press V or v
signal interference) or “Auto” (for snowy picture), then press .
to select “Signal Booster”, then press .
to select either “Off” (for picture distorted; picture with lines;
x C
1
2
3
hanging the “Setup” setting
The “Setup” menu allows you to adjust settings below.
Press WEGA GATE and select “Settings”.
Press V or v to select the “Setup” icon ( ), then press .
Press V or v to select the desired item (e.g., “Language”), then press .
Select To
“Language” change the menu language.
“Picture Rotation”
“Video Label” label the connected equipment.
“Color System” select the color system.
“Wake Up Timer
Beep
” automatically using wake up timer.
“Factory Settings”
Press V or v to select either “English” or “ ” (Chinese), then press
.
adjust the picture position when it is not aligned with the TV
screen.
Press B or b to adjust the picture position, then press .
(1) Select “Video Input” and press . Press V or v to select the
input you want to label, then press .
(2) Select “Label” and press , then press V or v to select
the label options: “Video 1”/“Video 2”/“DVD”, “VCR”,
“SAT”, “Game” or “Edit”*.
* You may edit the video label to your favorite name. Press V or v
to select alphanumeric characters for the label, then press .
Press V or v to select either “Auto”, “PAL”, “SECAM”,
“NTSC3.58” or “NTSC4.43”, then press . Normally, set this to
“Auto”.
allow your TV to emit beeping sound when TV switches on
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
reset your TV to factory settings.
Press and press V or v to select “Yes”, then press .
To cancel, select “No”, then press .
Notes
•To ensure the beeping sound can be heard, you must set an appropriate volume level on your
TV and make sure the TV is not in mute condition.
•To stop the beeping sound, press any buttons on the remote control or top control panel.
• If no button is pressed for three minutes, the beeping sound will automatically go off.
19
Loading...
